Strategy to improve phase compatibility between proton conductive BaZr_0.8Y_0.2O_3−δ and nickel oxide

Abstract

BaZr_0.8Y_0.2O_3−δ (BZY20) is a promising candidate as an electrolyte in protonic ceramic fuel cells (PCFCs), and nickel (Ni) is known to show good electrode properties for the anode reaction. However, their compatibility seems to be questionable, since during the co-sintering process for cell fabrication, a second phase of BaY₂NiO₅ formed due to a reaction between BZY20 and NiO. The results in this work revealed that BaY₂NiO₅ was unstable against high temperature (1500 and 1600 °C), and could also be reduced in a hydrogen atmosphere at 600 °C. The products of these reactions may affect fuel cell performance. A systematic work was then performed to provide fundamental insight into the reactivity between BZY20 and NiO, which was found to be impacted significantly by the compositional homogeneity of the BZY20 powder used for cell fabrication, and also the BaO activity during the co-sintering process. It is concluded that improving the compositional homogeneity of BZY20, by elevating the final heating temperature for BZY20 from 1300 to 1600 °C in this work, and choosing a proper sintering strategy may improve effectively the phase purity of the cell.

---

1. Introduction

Y-Doped BaZrO₃ (BZY) is an attractive material due to its high protonic conductivity in a humid atmosphere.^1–3 Incorporation of BZY into fuel cells as an electrolyte therefore seems to be quite promising, since the operation temperature can thereby be decreased to an intermediate temperature range (450–700 °C), lower than that of conventional solid oxide fuel cells (SOFCs) using oxide ion conductive electrolytes (around 750–1000 °C).^4,5 Great efforts have been devoted to the development of BZY electrolyte-based fuel cells.^6–13 However, a lot of challenges still remain. Referring to the anode, it is regarded to be a good choice to use a composite one (generally, a mixture of nickel oxide (NiO) and the corresponding electrolyte material) which has already been widely applied in the SOFC community.⁵ The same strategy has also been introduced into the BZY electrolyte-based fuel cells with prospective applicability.^8–14

However, during the co-sintering process for fuel cell fabrication, a second phase of BaY₂NiO₅ formed due to the reaction between BZY and NiO.^14–16 Although a positive role of BaY₂NiO₅ in improving sinterability of BZY was suggested by Tong et al.,¹⁷ a recent work by Fang et al. reported that such second phase decomposed in reducing or humid environment at 900 °C.¹⁵ Since H₂ will be fed to the anode, existence of BaY₂NiO₅ is rather unfavorable, whose decomposition introduces electrochemical insulator phase (Y₂O₃), and also potentially results in cracks or delamination in the anode.¹⁵ However, although BaY₂NiO₅ formed after heating BZY–NiO mixture at 1400 °C, its existence was not confirmed by elevating the temperature to 1600 °C.¹⁸ Such information suggests the possibility to suppress the formation of BaY₂NiO₅. But first of all, it is necessary to perform a detailed investigation on the behavior of BaY₂NiO₅ at high temperature, and also the reaction between BZY and NiO. We therefore conducted this work.

2. Experimental

2.1 Material preparation

Samples of BaZr_0.8Y_0.2O_3−δ (BZY20) and BaY₂NiO₅ were prepared by a conventional solid state reaction method. Starting materials (BaCO₃, ZrO₂ and Y₂O₃ for BaZr_0.8Y_0.2O_3−δ, and BaCO₃, Y₂O₃ and NiO for BaY₂NiO₅) were mixed at the desired ratios, and ball-milled for 24 h. Mixtures were then pressed into pellets under 9.8 MPa and heat-treated at 1000 °C in ambient atmosphere for 10 h. After ball-milling for 10 h, the samples were pressed into pellets under 9.8 MPa again, and kept at 1300 °C in ambient atmosphere for 10 h for synthesizing. The as-synthesized samples were ball-milled for 100 h and 24 h for BZY20 and BaY₂NiO₅, respectively. The BaY₂NiO₅ powder was pressed at 392 MPa to prepare pellet-like samples. For all the heat-treatments in this work, the heating rates from room temperature to 1000 °C, and 1000 °C to higher temperature (1300, 1400, 1500 and 1600 °C) were 4.17 and 3.33 °C min⁻¹, respectively.

The as-synthesized BZY20 powder was pressed into pellets at 392 MPa. After being embedded in sacrificial powder with the composition of the as-synthesized BZY20, these BZY20 pellets were heated at 1600 °C for 24 h in oxygen atmosphere for sintering. The as-sintered BZY20 was pulverized by ball-milling for 50 h. For the sake of clarity, BZY20 with the final heating temperature of 1300 and 1600 °C are named as BZY20 (1300 °C) and BZY20 (1600 °C), respectively, in this work. Then, both BZY20 (1300 °C) and BZY20 (1600 °C) were mixed with 70 wt% NiO, and ball-milled for 10 h for mixing. The mixture was then pressed at 392 MPa to form pellet-like samples.

2.2 Sintering strategy

With the purpose to create environment containing different BaO activity during the sintering process, as shown in Fig. 1, different strategies were attempted for sample setting. To evaluate the stability of BaY₂NiO₅ at 1500 and 1600 °C, a method as shown in Fig. 1(a) with the name of open-sintering was used. Magnesia (MgO) containers were inserted between the BaY₂NiO₅ pellet-like samples and alumina (Al₂O₃) plate-like crucibles to prevent their direct touch and unfavorable reaction. In addition to the open-sintering, two other methods named as cover-sintering (Fig. 1(b)) and embed-sintering (Fig. 1(c)) were also applied to evaluate the reactivity between BZY20 and NiO by heat-treating the BZY20–70 wt% NiO pellet-like samples. In the cover-sintering method, the BZY20–70 wt% NiO pellet-like samples were covered with Al₂O₃ caps. Sacrificial powder (BZY20 (1300 °C)–10 wt% BaCO₃) was added to prevent a direct touch of the samples from the Al₂O₃ plate-like crucibles, and also seal the space between the Al₂O₃ caps and the plate-like crucibles in certain degree. In the embed-sintering method, the samples were embedded in sacrificial powder (only BZY20) in the MgO containers. After heat-treatment, the BaY₂NiO₅ and BZY20–70 wt% NiO pellet-like samples were all quenched in the ambient atmosphere.

Fig. 1 Schematics of methods for sample setting in this work. For evaluating the stability of BaY₂NiO₅ and reactivity between BZY20 and NiO, three different methods, namely (a) open-sintering, (b) cover-sintering and (c) embed-sintering, were adopted. In order to prevent the reaction between Al₂O₃ and BaY₂NiO₅, MgO containers were used in the open-sintering and embed sintering methods to avoid direct touch between the samples and the Al₂O₃ plate-like crucible.

2.3 Characterization

X-ray diffraction (XRD) measurements were performed using Cu Kα radiation with X'Pert-ProMPD (PANalytical, Almelo, Netherland). Rietveld refinement was carried out utilizing a commercial software X'Pert HighScore Plus to simulate the XRD patterns. Microstructures were observed by scanning electron microscopy (SEM) with VE-7800 (Keyence Co., Osaka, Japan) and scanning transmission electron microscopy (STEM) with JEM-2100F (JEOL, Tokyo, Japan). Energy dispersion X-ray spectroscopy with Genesis-XM2 (SEM-EDS, EDAX, Mahwah, NJ) and also JED-2300 (STEM-EDS, JEOL, Tokyo, Japan) were used for composition measurement.

3. Results

3.1 Stability of BaY₂NiO₅ in H₂ and O₂ atmospheres

As shown in Fig. 2(a), the as-synthesized BaY₂NiO₅ sample was a single phase after the heat-treatment at 1300 °C. The single phase was also confirmed after keeping the sample powder at 600 °C in dry O₂ atmosphere for 72 h (Fig. 2(b)). However, when the atmosphere was changed to dry H₂, as shown in Fig. 2(c), BaY₂NiO₅ decomposed completely (eqn (1)). Since the sample was lately exposed to the ambient atmosphere containing H₂O and CO₂ for the XRD measurements, Ba(OH)₂·H₂O, BaCO₃ were identified. Such result agrees with that reported by Fang et al. by heating BaY₂NiO₅ at 900 °C in dry H₂.¹⁵

Fig. 2 Powder XRD patterns of (a) as-synthesized BaY₂NiO₅ after heat-treatment at 1300 °C in air for 10 h, then heat-treated at 600 °C in (b) dry O₂, or (c) dry H₂ atmosphere for 10 h. BaY₂NiO₅ powder was used in the heat-treatment at 600 °C in dry O₂ and H₂. XRD patterns were collected in ambient atmosphere after each heat-treatment. The reported reference patterns of BaY₂NiO₅ (JCPDS no. 00-047-0090), Ba(OH)₂·H₂O (JCPDS no. 00-026-0154), BaCO₃ (JCPDS no. 00-045-1471), Ni (JCDPS no. 00-051-0370), and Y₂O₃ (JCPDS no. 00-041-1105) are also plotted.

3.2 Stability of BaY₂NiO₅ at 1500 and 1600 °C

In order to evaluate the behaviour at 1500 and 1600 °C, BaY₂NiO₅ pellet-like samples were heat-treated at these temperatures in ambient atmosphere for desired time, and finally quenched. It is worth noting here that at first, we placed the samples directly on Al₂O₃ plate-like crucibles, but found that BaY₂NiO₅ reacted with Al₂O₃ to form BaAl₂O₄ and Ba₃Y₂AlO_7.5 at 1500 and 1600 °C (detailed information is given in Fig. S1 to S3†). In order to prevent such reaction, we then used MgO containers to accommodate the BaY₂NiO₅ samples (a schematic as shown in Fig. 1(a)). As shown in Fig. 3, when heating at 1500 °C, the samples kept the round pellet-shape, and no obvious change in their appearance was confirmed. However, when heating at 1600 °C, although the shape of the pellets can still be identified, it is obvious that black liquid-like product formed, which further spread over the entire surface of the MgO containers with the heating time increased to 2 h. After the sample was heated for 24 h, such black liquid-like product disappeared, and the MgO crucibles showed green appearance possibly due to the diffusion of Ni inward.

Fig. 3 Optical images of BaY₂NiO₅ pellets heat-treated at 1500 and 1600 °C in ambient atmosphere for various time. The BaY₂NiO₅ pellets were placed on MgO containers, which were placed on Al₂O₃ plate-like crucibles, the same as shown in Fig. 1(a). Blue residue on the Al₂O₃ plate-like crucibles was due to past experiments. The heating rates from room temperature to 1000 °C, and 1000 °C to 1500 or 1600 °C were 4.17 and 3.33 °C min⁻¹, respectively. All the pellets were finally quenched in ambient atmosphere.

These residues of BaY₂NiO₅ pellet-like samples were pulverized and analysed by powder XRD. As shown in Fig. 4, when heating at 1500 °C for 0 h (quenched immediately after heating up to 1500 °C) and 1 h, only the diffraction peaks belonging to the BaY₂NiO₅ single phase were observed. When the sample was kept at 1500 °C for 2 h, diffraction peaks of Y₂O₃ appeared. And the intensity of Y₂O₃ peaks further increased with the heating time extended to 5 and 24 h. These results suggest that at 1500 °C, BaY₂NiO₅ is still a solid phase. However, theoretical calculation based on reported thermodynamic data^19–21 reflects the fact that Ba and Ni oxides and hydroxides have relatively high partial pressure at high temperature, as shown in Fig. 5. For example, the partial pressure of Ba(OH)₂ was calculated to be as high as 7.32 × 10⁻⁵ atm at 1500 °C, if the reaction among BaO(s), H₂O(g) (partial pressure assumed as 0.01 atm), and Ba(OH)₂(g) reached equilibrium. Such volatile property of Ba and Ni oxides and hydroxides results in a gradual decomposition of BaY₂NiO₅, with Y₂O₃ remained (eqn (2)).

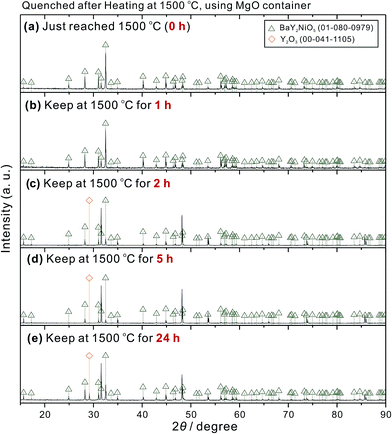

Fig. 4 Powder XRD patterns of the residues of BaY₂NiO₅ pellet-like samples heat-treated at 1500 °C for various time. The pellets were placed on MgO containers, which were placed on Al₂O₃ plate-like crucibles (Fig. 1(a)). The heating rates from room temperature to 1000 °C, and 1000 °C to 1500 °C were 4.17 and 3.33 °C min⁻¹, respectively. All the pellets were finally quenched in ambient atmosphere.

Fig. 5 Theoretical calculation of partial pressure of BaO, NiO, Ba(OH)₂, Ni(OH)₂ against temperature based on the reported thermodynamic data.^19–21 The partial pressure of water vapor was assumed to be 0.01 atm.

The case for heating at 1600 °C is different. As shown in Fig. 6(a), even the sample was just heated up to 1600 °C, in addition to BaY₂NiO₅, diffraction peaks belonging to Y₂O₃ and BaNiO₂ appeared. When the sample was heated for 24 h, the BaNiO₂ peaks disappeared. Such results suggest a totally different phase relationship at 1600 °C, compared with the case at 1500 °C. SEM-EDS analysis was then performed on the sample heated at 1600 °C for 0 h (quenched immediately after heating up to 1600 °C). As shown in Fig. 7(a), the area marked with number 1 and 2 has the composition close to BaY₂NiO₅ (detailed SEM-EDS point analysis results are given in Table S1†), whereas some adjacent areas (point 6) is compositionally Y-rich, indicating possible existence of Y₂O₃. The areas with the composition close to BaNiO₂ (points 4 and 5) showed a clear liquid-like appearance with some small precipitates embedded (a SEM image with large magnification is given in Fig. 7(b)). However, we did not succeed in determining the composition of these precipitates by SEM-EDS, because they are too small. Since the shape of the round pellets can still be identified even after heating for 24 h (Fig. 3(f)–(j)), it is reasonable to believe that at 1600 °C, BaY₂NiO₅ do not melt, but peritecticly decomposed to Y₂O₃ and a liquid phase, as given in eqn (3). But during the quenching from 1600 °C, the liquid phase decomposed to BaNiO₂ and the small precipitates (eqn (4)). Based on previous reports on relevant systems,^22–25 we here propose a schematic pseudoternary phase diagram of BaO–YO_1.5–NiO at 1600 °C (Fig. 8), in which a qualitative indication of the phase relationship was given. Anyhow, quantitative determination of the phase boundary might be an interesting topic in the future.

Fig. 6 Powder XRD patterns of the residues of BaY₂NiO₅ pellet-like samples heat-treated in ambient atmosphere at 1600 °C for various time. The pellets were placed on MgO containers, which were placed on Al₂O₃ plate-like crucibles (Fig. 1(a)). The heating rates from room temperature to 1000 °C, and 1000 °C to 1600 °C were 4.17 and 3.33 °C min⁻¹, respectively. All the pellets were finally quenched in ambient atmosphere. Some small peaks unable to be identified are marked with question marks.

Fig. 7 (a) A SEM image of the surface of the BaY₂NiO₅ pellet heat-treated in ambient atmosphere at 1600 °C for 0 h (the sample was quenched in ambient atmosphere just after heating up to 1600 °C). Remaining of BaY₂NiO₅ (points 1 and 2), and existence of BaNiO₂ (points 3, 4 and 5), and Y₂O₃ (point 6) were confirmed by SEM-EDS point analysis. The detailed composition of each point was listed in Table S1.† The morphology of the areas with the composition close to BaNiO₂ (points 4 and 5) was shown in (b) with large magnification.

Fig. 8 A schematic pseudoternary phase diagram of BaO–YO_1.5–NiO system at 1600 °C based on previous reports on the relevant systems.^22–25 The phase relationship is established based on the experimental results of the present work, but a more detailed investigation is expected in future to determine the precise phase boundary.

3.3 Dependence of BZY20–NiO reactivity on final heating temperature of BZY20

It is thereby an interesting and also important topic that under what kind of conditions would BaY₂NiO₅ form in the anode. Pellet-like samples with the composition of BZY20 : NiO = 30 : 70 wt% were heated in ambient atmosphere at the temperature range of 800 to 1600 °C for 10 h with the open-sintering method (Fig. 1(a)). Both the BZY20 powders finally heat-treated at 1300 and 1600 °C were used. As shown in Fig. 9(a), for the BZY20 (1300 °C)–70 wt% NiO mixture, peaks belonging to Y₂O₃ appeared even after heating at 800 and 900 °C, possibly due to the improvement of crystallinity of the Y₂O₃ residue. When the temperature was elevated to 1000 °C, the Y₂O₃ peaks disappeared, whereas those of BaY₂NiO₅ appeared. The existence of BaY₂NiO₅ was confirmed from 1000 to 1400 °C. In addition, at 1400 °C, the peaks of Y₂O₃ rose again to co-exist with those of BaY₂NiO₅. When the temperature was further increased to 1500 and 1600 °C, BaY₂NiO₅ disappeared. Only the Y₂O₃ peaks were observed.

Fig. 9 Powder XRD patterns between 27 and 33 degree of the BZY20–70 wt% NiO mixtures. The BZY20 powder added was finally heat-treated at (a) 1300 °C in ambient atmosphere for 10 h, and (b) 1600 °C in O₂ for 24 h, respectively. These samples were kept in ambient atmosphere at the desired temperature between 800 and 1600 °C for 10 h using the open-sintering method (Fig. 1(a)). The heating rates in the temperature ranges of room temperature to 1000 °C, and 1000 °C to 1600 °C were 4.17 and 3.33 °C min⁻¹, respectively. All the samples were finally quenched in ambient atmosphere.

However, the mixture added with the BZY20 powder finally heated at 1600 °C behaved in a different way. As shown in Fig. 9(b), no second phase was confirmed when the sample was heat-treated from 800 to 1100 °C. The peaks belonging to BaY₂NiO₅ appeared only with the temperature elevated to 1200 and 1300 °C. Further heating at 1400–1600 °C results in the formation of Y₂O₃, but BaY₂NiO₅ disappeared.

The XRD patterns were simulated by Rietveld refinement to estimate weight amounts of the second phases. As shown in Fig. 10, when BZY20 (1300 °C) was added, the weight amount of BaY₂NiO₅ was larger than 3 wt% after heating at 1000–1200 °C, and decreased with the increasing temperature higher than 1200 °C. However, using BZY20 (1600 °C) powder did not only lead to a relatively narrow temperature range for BaY₂NiO₅ confirmation (1200–1300 °C), and also reduced the BaY₂NiO₅ amount (1.1 and 1.7 wt% at 1200 and 1300 °C, respectively). In addition, in both the two cases, Y₂O₃ appeared at 1400 °C, with its amount increased with the elevating temperature.

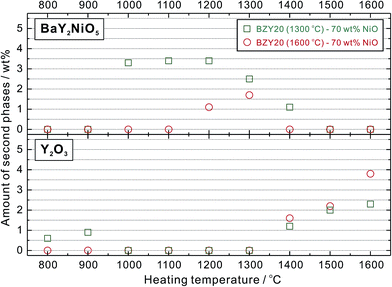

Fig. 10 Weight amount (wt%) of the second phases (BaY₂NiO₅ and Y₂O₃) generated after heat-treatment at various temperature. The weight amount was estimated by Rietveld refinement to simulate the powder XRD patterns shown in Fig. 9.

Variation of lattice constants of the perovskite phase (BZY20) in the BZY20–70 wt% NiO mixture is shown in Fig. 11. It is clear that without adding NiO, the lattice constant of BZY20 finally heat-treated at 1300 °C is smaller than that heat-treated at 1600 °C. The lattice constant of the perovskite phase in BZY20 (1600 °C)–70 wt% NiO decreased with the increasing heating temperature, due to diffusion of Ni cations into the BZY20 lattice, accompanied by an intra-grain Ba-loss.³ But the lattice constant of the perovskite phase in BZY20 (1300 °C)–70 wt% NiO increased slightly with the increasing temperature, which is regarded to be a combined effect from the Ni diffusion (shrinking the lattice) and improvement in compositional homogeneity (expanding the lattice). The status of the perovskite phase in these two samples seems to get approached after heating at 1500 °C for 10 h, since the lattice constants was very close. However, after heating at 1600 °C, the lattice constant of the perovskite phase in BZY20 (1600 °C)–70 wt% NiO is relatively small, compared with that that in BZY20 (1300 °C)–70 wt% NiO. It is attributed to a more severe Ba-loss in the open-sintering mode at such high temperature (1600 °C), and also a more significant segregation of Y₂O₃ (as shown in Fig. 10).

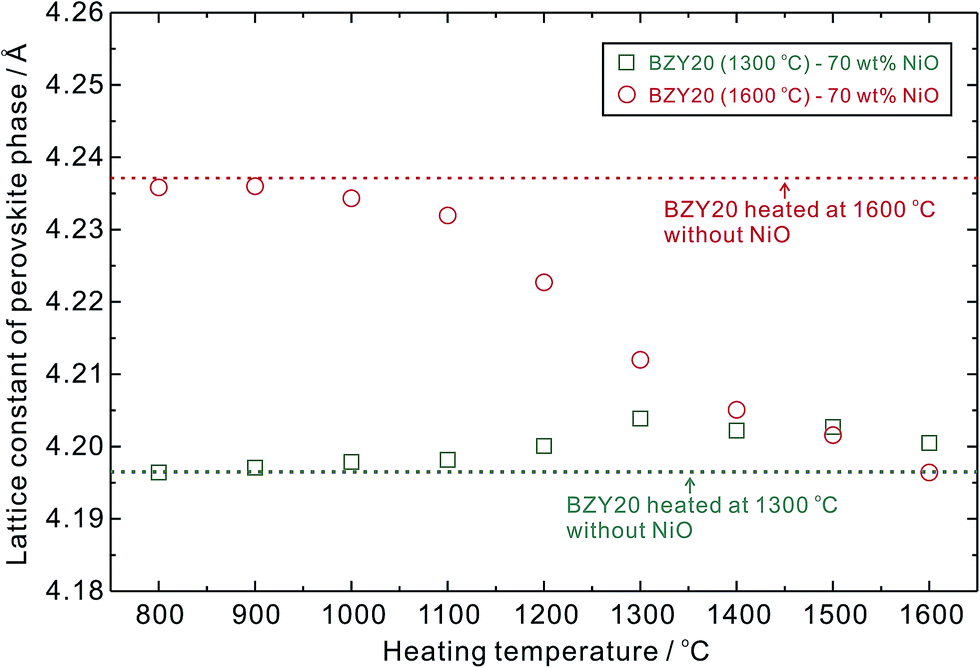

Fig. 11 Lattice constants of the perovskite phase in the mixture of BZY20 and NiO after heat-treated at the desired temperature between 800 and 1600 °C in ambient atmosphere for 10 h, using the open-sintering method (Fig. 1(a)). All the samples were finally quenched in the ambient atmosphere after the heat-treatment.

3.4 STEM-EDS analysis on BZY20 finally heat-treated at 1300 and 1600 °C

In our previous works, we supposed that the status of BZY20 is different after finally heating at 1300 and 1600 °C due to an obvious difference in lattice constant.^18,26 Moreover, it is a very common method to fabricate the anode by mixing NiO with as-synthesized BZY20.^8–14 And 1300 °C is a typical synthesizing temperature for using solid state reaction method to synthesize BZY20.^26–32 So, a detailed analysis of the as-synthesized BZY20 after heating at 1300 °C is highly necessary.

Fang et al.³³ suggested that by mechanical mixing (such as ball-mill in this work), it was difficult to achieve a homogeneous mixing of the raw materials of BaCO₃, ZrO₂ and Y₂O₃. It seems to be true, since we confirmed the residue of these raw materials in BZY20 heat-treated at 1300 °C by STEM observation, as shown in Fig. 12 (although these residues were not observed from XRD patterns (Fig. S4†)). However, such raw material residue was not observed in the sample heat-treated at 1600 °C. Elevating the final heating temperature from 1300 to 1600 °C decreased effectively the residue of raw materials, raising a great difference between BZY20 (1300 °C) and BZY20 (1600 °C).

Fig. 12 A bright field STEM (BF-STEM) image of BZY20 powder heat-treated at 1300 °C for 10 h with a subsequent ball-milling for 100 h to pulverize. The large long grains and small round grains were determined to be BaCO₃ and ZrO₂, respectively, by STEM-EDS point analysis.

Fig. 13(a) shows a bright field STEM (BF-STEM) image of the perovskite phase area in BZY20 (1300 °C), which exhibits a different morphology from that containing residue of raw materials (Fig. 12). Then, STEM-EDS point analysis of several different areas was performed to determine the local composition of such perovskite phase (examples for the STEM-EDS analysis are given in the ESI†). As shown in Fig. 13(c) (BaCO₃, Y₂O₃ and ZrO₂ residues were excluded), a very obvious compositional scattering, especially in the Y content, can be seen. A quite significant amount of the analyzing points locate in the area where the Y content is lower than the nominal value, and existence of highly Y-rich grains was also detected. Such result clearly indicates that the cation distribution in the as-synthesized BZY20 is not so homogeneous, possibly due to the insufficient diffusion of cations to achieve a uniform distribution under the current synthesizing condition (1300 °C for 10 h) or different phase relationship at 1300 °C. And we consider that such compositional imhomogeneity should be the reason why the peak shape of BZY20 (1300 °C) is broad and asymmetric, and its lattice constant is smaller than that of BZY20 (1600 °C).^18,23 In contrary, for BZY20 finally heat-treated at 1600 °C (a BF-STEM image is shown in Fig. 13(b) for the powder sample after ball-milling), significantly improved homogeneity in composition was confirmed by STEM-EDS. As shown in Fig. 13(d), most of the grains analyzed were determined to have the composition close to the nominal one. Although some grains are detected to be compositionally deviated from the nominal value, but the amount is very small. Such improvement in compositional homogeneity agrees well with our previous work.²⁷ The difference in compositional homogeneity is a quite interesting and important factor.

Fig. 13 BF-STEM images of grains belonging to perovskite phases in BZY20 finally heat-treated at (a) 1300 °C for 10 h in ambient atmosphere, and (b) 1600 °C for 24 h in O₂. STEM-EDS point analysis was applied to determine local compositions of these powder samples with the final heating temperature of (c) 1300 °C (d) 1600 °C. The position for nominal composition is indicated by a purple diamond symbol.

It is thereby definite that the final heating temperature of BZY20 (1300 or 1600 °C), which greatly influence the status of BZY20 (compositional homogeneity, residue of the starting materials, etc.), makes BZY20 to show different reactivity with NiO.

3.5 Dependence of BZY20–NiO reactivity on BaO activity

With the aim to control the BaO activity during sintering, different sintering strategies, namely the open-sintering (Fig. 1(a)), cover-sintering (Fig. 1(b)), and embed-sintering (Fig. 1(c)), were attempted. The open-sintering and the embed-sintering methods are considered to maintain the lowest and highest BaO activity, respectively. The BZY20–70 wt% NiO pellet-like samples were heated at 1500 °C for desired time (0, 2, 5, and 10 h) with a subsequent quench in the ambient atmosphere.

Both the mixtures containing BZY20 finally heating at 1300 and 1600 °C were examined here, but in general, these two samples behaved in a similar way, because the heat treatment temperature is 1500 °C. With the open-sintering method, as shown in Fig. 14(a) and (b), BaY₂NiO₅ existed even the samples were just heated up to 1500 °C (0 h), but the peak intensity of BaY₂NiO₅ decreased with the increasing heating time. Meanwhile, the peaks belonging to Y₂O₃ appeared when the sample was kept at 1500 °C for 2 h with its intensity increased with the time. Such phenomenon indicates that BaY₂NiO₅ formed during the elevating of temperature, but gradually decomposed during the static heating at 1500 °C. A quite similar result was obtained by using the cover-sintering method, as shown in Fig. 14(c) and (d). But it is worth noting here that a delayed rising of Y₂O₃ peak occurred with the cover-sintering method (2 h for the open-sintering method, but 5 h for the cover-sintering method).

Fig. 14 Variation of powder XRD patterns (27–33 degree) for mixture of BZY20–70 wt% NiO heating at 1500 °C in ambient atmosphere for various time using three different sintering methods, namely, open-sintering (Fig. 1(a)), cover-sintering (Fig. 1(b)), and embed-sintering (Fig. 1(c)) methods. The BZY20 powder added was finally heat-treated at 1300 °C in ambient atmosphere for 10 h, or 1600 °C in O₂ for 24 h. The sharp peak around 30 degree is the (011) diffraction peak of BZY20. The heating rates in the temperature ranges of room temperature to 1000 °C, and 1000 °C to 1500 °C were 4.17 and 3.33 °C min⁻¹, respectively. All the samples were finally quenched in ambient atmosphere.

When the embed-sintering method was applied, as shown in Fig. 14(e) and (f), peaks belonging to BaY₂NiO₅ were observed after just heating up to 1500 °C, but became weakened and finally disappeared after keeping at 1500 °C for 2 and 5 h, respectively (see a peak around 32.5°). It is especially interesting to see that Y₂O₃ was not observed, regardless of the heating time. No second phase appeared when the sample was kept at 1500 °C for 5 and 10 h. The results imply that relatively high BaO vapor assists incorporation of Y₂O₃ into the perovskite phase. These results indicate that controlling BaO activity is important.

4. Discussion

Tong et al. suggested that the melting point of BaY₂NiO₅ was between 1450 and 1500 °C.¹⁷ However, in this work, we confirmed that BaY₂NiO₅ to be a solid phase at 1500 °C. But it is unstable due to the evaporation of oxides and hydroxides of barium and nickel at such high temperature. Furthermore, at 1600 °C, BaY₂NiO₅ peritecticly decomposed to Y₂O₃ and a liquid phase. Anyhow, remaining of BaY₂NiO₅ in the fuel cells seems to be rather problematic, since it decomposes in the hydrogen atmosphere at 600 °C, which is an expected temperature for the BZY20 electrolyte-based fuel cell to operate.

In the anode, BaY₂NiO₅ formed due to the reaction between NiO and BZY20, which is revealed in this work to be a rather sophisticated process depending on a couple of parameters. Especially, the status of BZY20 after synthesizing is a very important factor. BZY20 which is relatively poor in homogeneity, and contains residue of raw materials (BaCO₃, Y₂O₃) exhibited high reactivity with NiO to maintain a wide temperature range for BaY₂NiO₅ to exist. However, a positive effect on suppressing the BaY₂NiO₅ formation was achieved by improving the compositional homogeneity of BZY20. Such improvement can be simply realized by just elevating the final heating temperature of BZY20 (namely, from 1300 °C to 1600 °C, in this study).

The sintering strategy, or the BaO activity during sintering in another word, also impacts greatly the phase appearance in the BZY20–NiO mixture. With the open-sintering (Fig. 1(a)) and cover-sintering (Fig. 1(b)) methods, which have relatively low BaO activity, Y₂O₃ was identified to be the only second phase after keeping at 1500 °C for 10 h. Such Y₂O₃ is considered to be generated from the decomposition of BaY₂NiO₅ residue formed at the low temperature range during the heating up process, because as shown in Fig. 14, BaY₂NiO₅ already existed in the sample just heated up to 1500 °C. We then increased the BaO activity during sintering by using the embed-sintering method (Fig. 1(c)), and was excited to see that the segregation of Y₂O₃ did not occur. Furthermore, there is even no second phase identified from XRD measurements after heating at 1500 °C for 5 and 10 h. It seems that Y, and possibly also Ni, return to the crystal lattice of barium zirconate, if a properly sufficient BaO activity can be supplied during the sintering.

5. Conclusions

The results in this work revealed that BaY₂NiO₅ was unstable at high temperature (1500 and 1600 °C) in a different way, and also in a reducing atmosphere at 600 °C. Remaining of BaY₂NiO₅ as a second phase in BZY20-based fuel cells seems quite problematic. A systematic work was therefore performed to provide fundamental insight into the reactivity between BZY20 and NiO. It was found that improving the compositional homogeneity of BZY20 powder, which was used in composing the electrolyte and anode layers, reduced or even suppressed effectively the formation of BaY₂NiO₅. It is rather interesting that such improvement in the compositional homogeneity can be yielded simply by just elevating the final heating temperature for BZY20, such as from 1300 to 1600 °C. Furthermore, a proper BaO activity in the environment during the sintering is another key factor, which can be adjusted by choosing appropriate sintering method. Improving the compositional homogeneity of BZY20, and controlling precisely the BaO activity, therefore provide a potential strategy to prepare a BZY20 electrolyte-based fuel cell without second phases.

Acknowledgements

The authors want to thank Mr Kenji Kazumi for STEM-EDS analysis.
