Design, synthesis and RAFT polymerisation of a quinoline-based monomer for use in metal-binding composite microfibers

Abstract

Metal-binding polymer fibres have attracted major attention for diverse applications in membranes for metal sequestration from waste waters, non-woven wound dressings, matrices for photocatalysis, and many more. This paper reports the design and synthesis of an 8-hydroxyquinoline-based zinc-binding styrenic monomer, QuiBoc. Its subsequent polymerisation by reversible addition–fragmentation chain transfer (RAFT) yielded well-defined polymers, PQuiBoc, of controllable molar masses (6 and 12 kg mol⁻¹) with low dispersities (Đ, M_w/M_n < 1.3). Protected (PQuiBoc) and deprotected (PQuiOH) derivatives of the polymer exhibited a high zinc-binding capacity, as determined by semi-quantitative SEM/EDXA analyses, allowing the electrospinning of microfibres from a PQuiBoc/polystyrene (PS) blend without the need for removal of the protecting group. Simple “dip-coating” of the fibrous mats into ZnO suspensions showed that PQuiBoc/PS microfibres with only 20% PQuiBoc content had almost three-fold higher loadings of ZnO (29%) in comparison to neat PS microfibres (11%).

---

Introduction

Organic–inorganic composite polymer materials continue to draw large attention due to their attractive properties, combining the processability and physical properties of an organic polymer component with the functionality of an inorganic moiety.¹ One of the most extensively employed techniques for the preparation of the composite materials with high surface area and loading of inorganic components is electrospinning, an electro-hydrodynamic process that allows the fabrication of nano- and microfibers with a wide range of secondary structures, compositions and applications: from biological scaffolds to water purification.² The main advantage of fibres is their high surface area-to-volume ratio and outstanding mechanical properties.³

Polystyrene (PS) fibres have been of major interest as a readily available material in a range of molar masses that exhibits excellent physical properties, such as high tensile and flexural stress with high long-term stability.^4,5 Moreover, good control over the size, size distribution, wettability⁶ and the morphology of the fibres has been achieved, including formation of pores,^7,8 wrinkles and folds.⁹ A good understanding of the structure–property relationship of the electrospun PS fibres and their relatively low cost have led to PS being the first choice material for producing fibres for diverse applications, including gas and chemical sensors,⁹ fluorescent pH-sensors,¹⁰ oil clean-up sorbents,^11–14 ion-exchange membranes,¹⁵ antibacterial wound dressings,¹⁶ biological scaffolds¹⁷ among others. Fibres of more sophisticated morphologies can be obtained by electrospinning PS-containing block copolymers of various polymer architectures.^10,18–20 These block copolymer fibres exhibit advantageous properties, such as highly enhanced hydrophobicity,²⁰ elastomeric properties and liquid-crystalline behavior.²¹ Furthermore, simple fabrication and solvent compatibility with various materials has allowed subsequent layer-by-layer functionalisation of the PS fibres with polyelectrolytes, deoxyribonucleic acids and composite polymer/nanoparticle layers to obtain hollow composite fibres.²²

Another advantage of electrospun PS fibres is that the polymer solutions can be loaded with various additives and components. Additives such as cellulose, sisal or single-walled carbon nanotubes have been used to improve the mechanical properties of the fibres.^23–25 Furthermore, PS nanofibres are often used as scaffolds, or matrices, for the incorporation of inorganic nanoparticles, such as gold,²⁶ silica,²⁷ TiO_x and ZnO²⁸ or serving as templates for the fabrication of such nanoparticles.¹⁶ For example, incorporation of Fe₂O₃ in nanofibres for the removal of oil from water, whilst allowing facile removal of the nanofibres after the sorption process,²⁹ or loading a PS fibre matrix with gold nanoparticles in for the colorimetric detection of oestrogenic compounds in dairy products.³⁰

However, the post-spinning modification of PS nanofibres with a high loading of nanoparticles has so far been inaccessible because of the limited interactions between PS and the nanoparticles, although for many applications the distribution of the particles on the fibre surface is important for the functionality, e.g. in wound dressings or photocatalysis.^31,32

To this end, a novel tert-butyloxycarbonyl (Boc) protected 8-hydroxyquinoline monomer has been designed and polymerised by reversible addition–fragmentation chain transfer (RAFT) polymerisation for subsequent blending with PS to create microfibres with high metal-binding capability. The design of this monomer has been inspired by previous reports of the metal-binding property of the 8-hydroxyquinoline moiety in various applications, such as emitters or electron-transporting layers (as a complex with aluminium or zinc, Alq₃ or Znq₂) in organic light emitting devices (OLEDs),^33–35 photoconductors,³⁶ or even as potential antineurodegenerative or antibiotic drugs (such as clioquinol).³⁷ Our approach herein exploits the use of low molar mass PQuiBoc/PS/ZnO microfibres which are highly loaded with ZnO post-spinning by simply “dip-coating” the fibre mats in ZnO suspensions. Moreover, to decrease the number of processing steps, and therefore fabrication costs, the PQuiBoc polymer is introduced into the blend without deprotection, allowing high ZnO surface loadings on the fibre even at low PQuiBoc loadings (2 : 8 PQuiBoc : PS).

Experimental

Materials

5-Bromo-8-hydroxyquinoline (>96.0%, TCI Europe N.V.), 5-chloro-8-hydroxyquinoline (95%, Alfa Aesar), 2-dicyclohexylphosphino-2′,4′,6′-triisopropylbiphenyl (Xphos, 98+%, Alfa Aesar), bis(acetonitrile)dichloropalladium(II) (Pd 40.5%, Alfa Aesar), tetrakis(triphenylphosphine)palladium(0) (99.8% metals basis, Pd 9% min, Alfa Aesar), di-tert-butyl dicarbonate (ReagentPlus®, ≥99%, Sigma Aldrich), copper iodide (99.999% trace metals basis, Sigma Aldrich), N-ethyldiisopropylamine (DIPEA, 99%, Sigma Aldrich), 4-(dimethylamino)pyridine (DMAP, ReagentPlus®, ≥99%, Sigma Aldrich), ethynyltrimethylsilane (98%, Alfa Aesar), sodium azide (ReagentPlus®, ≥99.5%, Sigma Aldrich), potassium fluoride (anhydrous powder, ≥99.99% trace metals basis, Sigma Aldrich), zinc oxide nanoparticles 40–100 nm NanoArc® ZN-2605 (Alfa Aesar), acetone, propan-2-ol (IPA), methanol, diethyl ether, dichloromethane (all Fisher Scientific, Laboratory grade) were used as received. 4-Vinylbenzyl chloride (VBC, 90%, Sigma Aldrich) was extracted with 10% aqueous NaOH solution to remove the inhibitor. 2,2′-Azobis(isobutyronitrile) (AIBN, Fisher Scientific) was recrystallised from methanol and dried in vacuo before use. 2-(Dodecylthiocarbonothioylthio)-2-methylpropionic acid (DDMAT) was synthesised according to Lai et al.³⁸ and recrystallised from hexane before use. 4-Vinylbenzyl azide was synthesised according to Li et al.³⁹ Anhydrous tetrahydrofuran (THF, ≥99.9%, inhibitor free, Sigma Aldrich) and acetonitrile (anhydrous, 99.8%, Sigma Aldrich) were purged with nitrogen before use. Polystyrene (PS, M_n ∼ 5 kg mol⁻¹) was synthesised according to a previous report.⁴⁰

Characterisation methods

¹H and ¹³C NMR spectra were recorded using a Bruker NMR spectrometer (300 MHz). All chemical shifts are reported in ppm (δ) and referenced to the chemical shifts of the residual solvent resonances.

Fourier transform infrared (FTIR) spectra were obtained using KBr discs on a Perkin Elmer Spectrum One spectrometer over the range 4000–500 cm⁻¹ for 16 scans with a resolution of 4 cm⁻¹.

Number-average molar mass (M_n) and dispersity (M_w/M_n, Đ) were measured using gel permeation chromatography (GPC) (flow rate 1 ml min⁻¹) through three PL gel 5 mm 300 × 7.5 mm mixed-C columns using a degassed THF eluent system containing 2% (v/v) triethylamine. The system, operating at 40 °C, was calibrated with narrow PS standards (M_p range = 162 to 6 035 000 g mol⁻¹). All data were analysed using PL Cirrus software (version 2.0) supplied by Agilent Technologies (previously Polymer Laboratories).

Ultraviolet and visible (UV-vis) absorbance spectra were obtained using a Perkin Elmer Lambda 35 system in the wavelength range 300–800 nm, using THF as solvent at 0.01 mg ml⁻¹. The photoluminescence spectra were obtained on a Hitachi FL-2500 spectrophotometer with an excitation wavelength at the maximum absorbance.

The glass transition temperature, T_g, and deprotection temperature of the polymer (T_dep) were measured using differential scanning calorimetry (DSC) equipment DSC 1 STARe (Mettler Toledo) at a heating rate of 10 °C min⁻¹ under nitrogen atmosphere with flow rate of 60 ml min⁻¹. Typically, one analysis included a heating step from 0 to 300 °C, a cooling step to 0 °C, and a second heating run from 0 to 200 °C.

Synthesis of the monomer precursor 8-tert-butoxycarbonyloxy-5-ethynylquinoline (3)

An oven-dried round-bottom flask was backfilled twice with nitrogen atmosphere and charged with 3.0 g (9.25 mmol) of the protected 5-bromo-8-hydroxyquinoline, 500 mg of Pd(PPh₃)₄ and 88 mg (0.46 mmol) of CuI and 350 ml of dry THF. The solution was purged with nitrogen for 15 min. The flask was equipped with a magnetic follower and sealed with a rubber septum. DIPEA (30 ml) and trimethylsilylacetylene (6.54 ml, 46.27 mmol) were added through the rubber septum and the reaction mixture stirred at 60 °C for 24 h. The mixture was filtered through celite to remove the copper salts, using diethyl ether as eluent. The filtrate was concentrated and the residue redissolved in methanol. Resulting mixture was stirred with 800 mg of potassium fluoride at room temperature for 5 h. To the mixture filtered through a filter paper, 40 ml of water added and methanol was evaporated at room temperature. The residue was extracted with dichloromethane (2 × 300 ml). Organic layer was separated, dried over magnesium sulfate and concentrated under vacuum. Final product was purified by column chromatography (15% ethyl acetate in hexane) to yield 2.26 g of yellow powder (yield 91%). ¹H NMR (CDCl₃, δ ppm): 1.59 (s, 9H), 3.47 (s, 1H), 7.48 (d, J = 7.9 Hz, 1H), 7.52 (dd, J = 4.2, 8.5 Hz, 1H), 7.76 (d, J = 7.9 Hz, 1H), 8.63 (dd, J = 1.7, 8.5 Hz, 1H), 8.96 ppm (dd, J = 1.7, 4.2 Hz, 1H).

Synthesis of the monomer, tert-butyl-{5-[2-(4-vinylbenzyl)-2H-1,2,3-triazol-4-yl]quinolin-8-yl} carbonate QuiBoc (5)

A solution of 3 (1.2 g, 4.45 mmol), 4-vinylbenzyl azide (4, 0.71 g, 4.46 mmol) and 5 mg CuI in dry THF was charged into a round-bottom flask and purged with nitrogen and stirred for 15 minutes. After purging, the solution was heated to 40 °C and left stirring overnight. The solvent was evaporated and the solid redissolved in DCM and washed with water to remove the copper catalyst. The organic phase was subsequently dried over magnesium sulfate. The solvent was evaporated under vacuum and the residue purified using column chromatography on silica gel (ethyl acetate : hexane, 1 : 1) to provide the product (1.83 g, yield 96%) as a white powder. Mp 136–138 °C. ¹H NMR (CDCl₃, δ ppm): 1.62 (s, 9H), 5.31 (d, J = 10.9 Hz, 1H), 5.67 (s, 2H), 5.75 (d, J = 17.5 Hz, 1H), 6.69 (dd, J = 17.5, 10.9 Hz, 1H), 7.34 (d, J = 8.2 Hz, 2H), 7.46–7.49 (d, J = 8.2 Hz, 2H), 7.45–7.51 (dd, J = 4.2, 8.2 Hz, 1H), 7.53 (d, J = 7.85 Hz, 1H), 7.65 (d, J = 7.85 Hz, 1H), 7.72 (s, 1H), 8.93 (dd, J = 8.2, 1.6, 1H), 8.98 (dd, J = 1.6, 4.2 1H). ¹³C PENDANT NMR (CDCl₃, δ ppm): 25.75 (CH₃), 54.33 (CH₂), 83.90 (C*), 115.28 (CH₂) 122.18 (C*), 122.3 (CH), 127.02 (CH), 127.47 (CH), 133.61 (C*), 134.77 (CH), 138.40 (C*), 150.62 (C=O). ESI-MS [M⁺]: found 429.1909, calculated: 429.1927. Elemental analysis calcd (%) for C₂₅H₂₄N₄O₃: C 70.08%, H 5.65%, N 13.07%, O 11.20%; found C 70.02%; H 5.63%, N 13.22%, O 11.13%.

RAFT polymerisation of QuiBoc (5)

The following procedure describes the polymerisation of QuiBoc in THF at 60 °C with [AIBN]₀/[DDMAT]₀/[QuiBoc]₀ = 1/1/20 (i.e. a target degree of polymerisation, D_p, of 20); this is representative of all QuiBoc polymerisations undertaken in this work (Scheme 2). A 25 ml polymerisation tube equipped with a magnetic follower was charged with a mixture of monomer (0.4 g, 0.93 mmol), AIBN (7.7 mg, 0.047 mmol), DDMAT (17 mg, 0.047 mmol) and THF (4 ml). The flask was sealed with a rubber septum and the solution was stirred and purged with nitrogen for 15 minutes. Following which, the flask was placed in an oil bath at 60 °C. After 36 h polymerisation was cooled rapidly to 0 °C to quench the polymerisation. 10 ml THF was added and the resulting solution was precipitated in 100 ml of cold diethyl ether. The PQuiBoc precipitate was collected by filtration, washed with cold diethyl ether multiple times and dried in vacuo.

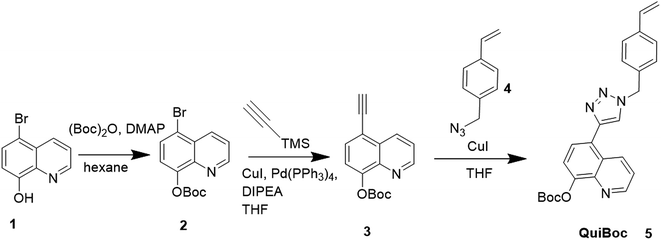

Scheme 1 Synthetic route toward the QuiBoc monomer.

Scheme 2 RAFT polymerisation of QuiBoc monomer 5 and subsequent deprotection to obtain PQuiOH (7).

Deprotection of PQuiBoc (6) to obtain PQuiOH (7)

PQuiBoc polymer (20 mg) was dissolved in 5 ml of DCM before 2 drops of piperidine were added to the solution, with stirring. After 5 min the colour of the polymer solution transformed from colourless to yellow and later precipitated as pale yellow flakes. Filtration afforded 17 mg of PQuiOH product (yield 98%).

Electrospinning

In a typical electrospinning procedure, a polymer solution (33 wt%) was prepared in chloroform by dissolving 120 mg of PS (∼5 kg mol⁻¹) and 30 mg of PQuiBoc₁₄ (∼6 kg mol⁻¹), in a 2 : 8 ratio. The solution was sonicated for 10 minutes until complete dissolution of the solids was achieved. DC high-voltage generator (Genvolt lab unit 73030) was applied to produce voltages ranging from 0 to 25 kV. Polymer solutions were charged into a 1 ml syringe and fed into the needle capillary tip (inner diameter 0.3 mm) by a syringe pump at a speed of 3.5 ml h⁻¹. A collecting sheet of aluminium foil, connected to the ground, was placed 20 cm from the needle tip. Voltage was supplied to the needle of the tip at a constant value of 20 kV.

Fibre characterisation

Surface morphology and zinc binding performance were studied using scanning electron microscopy with energy dispersive X-ray analysis (SEM/EDXA) on a Zeiss EVO60 microscope, fitted with Oxford Instruments Inca System350 Energy Dispersive X-ray Spectrometer (EDXA) at a beam intensity of 20 kV and a probe current of 130 pA. Before imaging the polymer fibres, mats were coated with a layer of carbon of the 10 nm approximate thickness. The polymer fibre mat was imaged pristine or after soaking in a methanol suspension of zinc oxide (ZnO) nanoparticles and subsequent multiple washing with methanol and sonication to remove any non-bound zinc oxide. Measurements were done in triplicate and zinc binding capacity was calculated according to the eqn (1):

Zinc binding capacity= (Int_Zn)/(Int_C) × 100%, (1)

where Int_Zn – integral of the EDX signal from zinc atoms of ZnO on the surface and Int_C, correspondingly, integral value of the EDX signal from carbon atoms of the polymer film.

Results and discussion

Monomer synthesis

The monomer was specifically designed to satisfy two main criteria: (i) possess an 8-hydroxyquinoline moiety for strong metal chelation and (ii) contain a styrenic group for simple polymerisation and to allow compatibility with the PS component of the fibres. Synthesis of the monomer (QuiBoc) was achieved in a small number of high yielding steps (>90%, Scheme 1).

The starting material, aryl bromide, was first protected with a tert-butyloxycarbonyl (Boc) group. This group provides several advantages, since (i) it is stable under the mild basic conditions of Sonogashira coupling and (ii) it can be easily removed (chemically or by thermal treatment).

Synthesis of 8-tert-butoxycarbonyloxy-5-ethynylquinoline (3) was carried out by Sonogashira coupling. This is an efficient way to form a C–C bond between the aryl bromide 2 (or a corresponding iodide) and trimethylsilylacetylene, whereas aryl chlorides are not converted under these conditions and normally require a Buchwald ligand and copper salt.⁴¹ However, in this work it was found that the coupling of aryl chloride can be carried out using 2-dicyclohexylphosphino-2′,4′,6′-triisopropylbiphenyl (XPhos) ligand in combination with an acetonitrile palladium complex, both commercially available, without the addition of copper salt. Furthermore, caesium carbonate, usually employed in aryl chloride cross-coupling as a base, cannot be used in this reaction as it would cause the protecting group to be removed. Thus, N-ethyldiisopropylamine (DIPEA) has been proved to be suitable here. Other ligands, such as (2-biphenyl)di-tert-butylphosphine (Johnphos) or 2-dicyclohexylphosphino-2′,6′-diisopropoxybiphenyl (Ruphos), were not found to be efficient.

4-Vinylbenzyl azide, precursor 4, was synthesised from commercially available 4-vinylbenzyl chloride. The most critical step of the synthesis was the ‘click reaction’ of 8-tert-butoxycarbonyloxy-5-ethynylquinoline (3) with 4-vinylbenzyl azide (4) which had to be carried out at room temperature to prevent spontaneous polymerisation of 4 and other side reactions. It was observed that the reaction could proceed without a copper catalyst, but using a copper(I) salt increased the rate and conversion (up to quantitative).

The efficiency of the ‘click reaction’ was confirmed by ¹H NMR and FTIR (see ESI, Fig. S1†) where the signal corresponding to the terminal alkynyl proton at 3.5 ppm (labelled as H_a in Fig. 1) of precursor 3 was significantly shifted to 7.73 ppm (Fig. 1b) due to the different environment of this proton, transformed to be a part of a 1,2,3-triazole ring (Fig. 1).

Fig. 1 ¹H NMR spectra of precursor 3 (a) and QuiBoc monomer 5 (b); residual solvent peaks are labelled with asterisks.

RAFT polymerisation and subsequent deprotection

To obtain well-defined polymers of QuiBoc, reversible addition–fragmentation chain transfer (RAFT) polymerisation was employed (Scheme 2) owing to its good control over polymer chain length and architecture for various monomers.^42–45 The use of a chain transfer agent (CTA) allows further modification of the resulting polymers, including synthesis of block copolymers^46,47 or derivatisation of the polymer with single molecules.⁴⁸ Furthermore, appropriate CTAs allow polymerisation from a solid substrate or anchoring the final polymer to nanoparticles.^49,50

Based on previous reports, 2-(dodecylthiocarbonothioylthio)-2-methylpropionic acid (DDMAT) was chosen as the CTA, owing to its efficiency in the polymerisation of other styrenic monomers.^51,52 The initiator to CTA ratio was set to 1 : 1 ([AIBN]₀/[DDMAT]₀ = 1.0) and the solvent, as well as the monomer concentration, was chosen based on solubility studies of the monomer in various organic solvents. Toluene and anisole were found to be unsuitable for the QuiBoc monomer, whereas THF allowed a solvent to solids ratio of 10 : 1 v/w (i.e. 10 ml of THF per 1 g of QuiBoc) to be attained. Polymerisations of QuiBoc with target D_p of 20 and 40 were undertaken; their results are summarised in Table 1.

Table 1 Summary of monomer conversion and molar mass data for the homopolymerisation of QuiBoc using AIBN and DDMAT in THF at 60 °C

Target Dp	Target Mn (kg mol^−1)	Time (h)	Conversion^a (%)	Dp^b	Mn^b (kg mol^−1)	Mw/Mn, Đ
a Calculated using ^1H NMR spectroscopy.b Calculated by GPC against PS standards in THF at 40 °C.
20	8.9	36	91	14	6.2	1.29
40	17.5	42	84	28	12.4	1.24

---

GPC traces of the two final polymers, PQuiBoc₁₄ and PQuiBoc₂₈, are presented in Fig. 2. It can be seen that the polymer peak for PQuiBoc₂₈ has a small low molar mass shoulder, whereas the PQuiBoc₁₄ peak appears unimodal. Nevertheless, both polymers were relatively low dispersity (Đ < 1.30) and close to the target D_p (taking into account the obtained values are relative to PS standards) with high monomer conversion (≥84%). To note, PQuiBoc was soluble in chlorinated organic solvents, such as chloroform, dichloromethane, and non-chlorinated polar aprotic solvents, such as acetone and THF and completely insoluble in cold ether, hexane, toluene, alcohols and water.

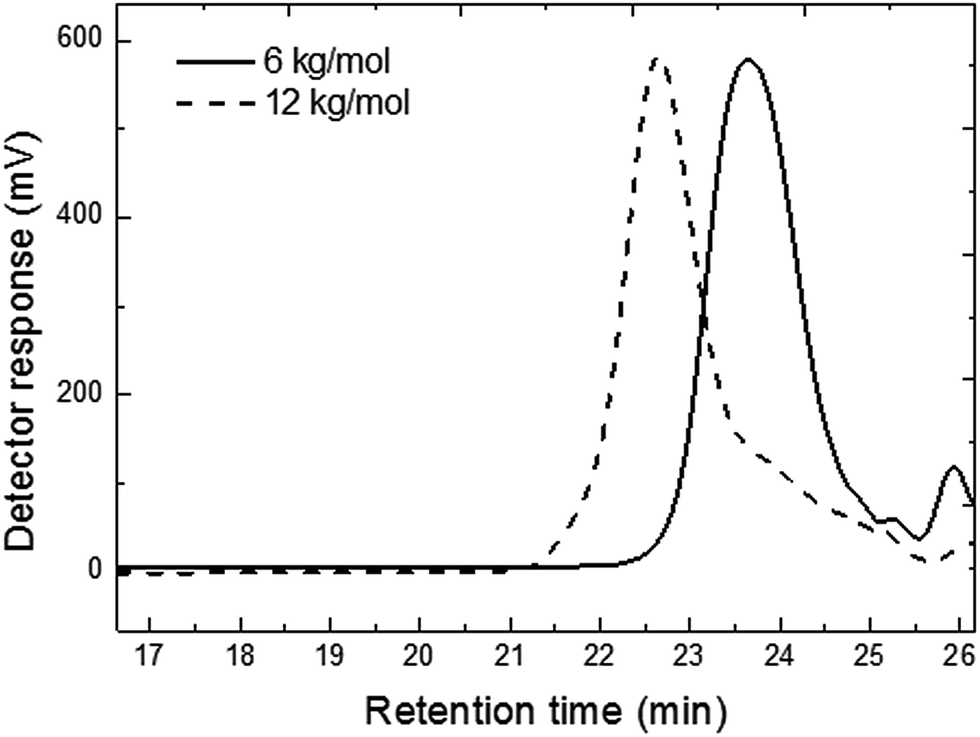

Fig. 2 GPC traces of PQuiBoc₁₄ (6 kg mol⁻¹, solid line) and PQuiBoc₂₈ (12 kg mol⁻¹, dotted line) produced by RAFT under following conditions: [AIBN]₀/[DDMAT]₀ = 1.0, QuiBoc : THF = 1 : 10 at 60 °C.

Deprotection of PQuiBoc to produce PQuiOH (Scheme 2) was efficiently and rapidly performed by stirring the polymer solution in DCM using piperidine as a strong base.⁵³ The product of the reaction was confirmed by ¹H NMR and FTIR spectroscopies where the corresponding peak attributed to the protons of the Boc group (Fig. 3a) in ¹H NMR and the carbonyl peak at 1760 cm⁻¹ in FTIR disappear (Fig. 3b). Moreover, in agreement with previous reports,⁵⁴ the thermal deprotection of PQuiBoc is also possible by heating at 160 °C, as determined by differential scanning calorimetry (DSC, see ESI, Fig. S2†).

Fig. 3 (a) ¹H NMR spectra of PQuiBoc and PQuiOH; residual solvent peaks are labelled with asterisks. (b) FTIR spectra of PQuiBoc and PQuiOH, where ‘Boc’ denotes the carbonyl stretching vibrations of the Boc protecting group.

Surface zinc binding capacity

To demonstrate the ability of PQuiBoc to bind metal oxides, its surface zinc binding capacity was estimated by SEM/EDXA. As has been shown in previous reports, SEM/EDXA is a semi-quantitative technique that, among other analyses, can allow one to estimate the loading of inorganic nanoparticles on a polymer surface.⁵¹ To this end, polymer films of PQuiBoc and PS (adopted as a control) were deposited from 5 mg ml⁻¹ THF solutions directly onto aluminium SEM substrates. Subsequently, zinc oxide nanoparticles (ZnO) were deposited onto the polymer films from a methanol suspension, and, after annealing, the films were thoroughly washed with methanol to remove all non-bound ZnO from the surface. As previously shown for other polymers,⁵¹ the molar mass has no effect on the zinc binding capacity of the polymer films, therefore for PQuiBoc, only one molar mass was studied, 12.4 kg mol⁻¹ (D_p of 28). It is important to note that the films were annealed at 140 °C (T_g) and at 160 °C (T_dep), as determined by DSC (see ESI Fig. S2†) in order to obtain smooth films of both pristine PQuiBoc and its deprotected version, PQuiOH, respectively.

When PQuiBoc₂₈ was annealed at T_g (140 °C), ZnO surface coverage was shown to be 72% (±3.1%), comparable to the polymer annealed at its deprotection temperature (160 °C), i.e. PQuiOH₂₈, for the same time (69%, ±2.5%). These findings indicate that the protected PQuiBoc₂₈ is also capable of strongly binding to ZnO, based on hydrogen bonds. Indeed, the Boc group has two oxygen centres to form hydrogen bonds with the surface hydroxyl groups, present in ZnO nanoparticles. PS, used as a control, showed negligible ZnO binding of 4.1% (±1.2%).

These results show that pristine PQuiBoc polymer has several advantages over its deprotected version, PQuiOH: (i) PQuiBoc has a marginally higher ZnO-binding capacity; (ii) PQuiBoc is soluble in common organic solvents typically used in the electrospinning of PS fibres, such as chloroform, tetrahydrofuran and toluene, whereas PQuiOH is not; and (iii) PQuiBoc does not require an extra processing step (chemical or thermal treatment). Thus, PQuiBoc, in its pristine, protected form, was used in a blend with PS to obtain microfibres.

Electrospun polymer fibres

Since PQuiBoc has demonstrated a high affinity for ZnO nanoparticles, the amount of PQuiBoc in the blend with PS was kept as low as 20% (2 : 8 PQuiBoc : PS mass ratio) to ensure a low production cost, while achieving good loadings of ZnO on the fibres. It is noteworthy that since polymer molar mass has a pronounced effect on the spinnability of polymers, only PQuiBoc₁₄ (∼6 kg mol⁻¹) has been used in the electrospinning studies since its molar mass more closely matches that of the PS employed (∼5 kg mol⁻¹) in this work. This also demonstrates that such low molar mass polymer blends can be electrospun under these conditions.

Based on previous reports on the electrospinning of PS blends,^3,55 and good solubility of both PS and PQuiBoc polymers even at high concentrations, the fibers were produced from chloroform (33 wt% solution). Of note, more dilute solutions (<33 wt%) resulted in inhomogenous fibre formation with beaded morphologies owing to insufficient entanglements between chains.⁵⁶ The electrospinning of PQuiBoc₁₄/PS mixtures and neat PS (as described in the Experimental section) yielded microfibres (2–6 μm diameter) with a smooth homogenous surface without pores or folds (Fig. 4), in line with previous reports.^6,8

Fig. 4 SEM images of pristine electrospun PQuiBoc₁₄/PS (a and b) and neat PS (d and e) and after dipping into a suspension of ZnO nanoparticles and washing with methanol so that only surface-bound ZnO nanoparticles remain: PQuiBoc₁₄/PS/ZnO (c) and PS/ZnO (f).

The composition of resulting fibres has been revealed by FTIR (Fig. 5), where the PQuiBoc₁₄/PS fibres exhibit a carbonyl band at 1760 cm⁻¹ attributed to the BOC group of the PQuiBoc₁₄ material. The two bands at 1226 and 1254 cm⁻¹ are assigned to the C–H in-plane bending vibrations of the quinoline and triazole ring protons,⁵⁷ whereas the band at 1140 cm⁻¹ arises from the C–O bending in the ester group attached to the quinoline system.⁵⁸ Importantly, even such low loadings of PQuiBoc₁₄ (20% of the total polymer loading) resulted in an increase in hydrophobicity of the fibres, reflected in an increase in the water contact angle from 137° to 152° (Fig. 5), despite the presence of the oxygen and nitrogen atoms.

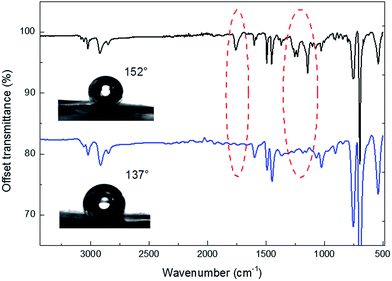

Fig. 5 FTIR spectra of PQuiBoc₁₄/PS microfibres (black) and PS microfibres (blue) electrospun from 33 wt% chloroform solution at 20 kV, 3.5 ml h⁻¹ feed rate and 20 cm needle-to-collector distance.

To load the fibres with ZnO nanoparticles, the fibre mats were dipped into a ZnO suspension in methanol for 10 min and then washed multiple times with methanol and sonicated in methanol to remove any ZnO that was not strongly bound to the fibres. The uptake of ZnO nanoparticles was estimated by SEM/EDXA to be 29% (±0.4%) by PQuiBoc₁₄/PS microfibres and only 11% (±2.7%) by neat PS microfibres (Fig. 4c and f). The presence of tightly bound ZnO on the surface of microfibres is accompanied by a decrease of the contact angle to 92°, reflecting the more hydrophilic nature of the ZnO particles.

Thus, the combination of PS used as a matrix and PQuiBoc used as functional metal-binding component is employed in fabrication of composite microfibres with increased surface area and high zinc-binding capacity. The introduction of only 20% PQuiBoc into the blend results in the fabrication of smooth microfibres with an almost three-fold increase in surface ZnO loading, as compared to neat PS fibres, critical for applications such as photocatalysis, antibacterial wound dressings and UV-absorbing fabrics. Of specific note, using PQuiBoc instead of PQuiOH provides several advantages: (i) allows electrospinning from the same single solvent (chloroform); (ii) decreases the number of processing steps and thus the fabrication costs of the fibres, whilst (iii) providing comparable (if not marginally higher) zinc-binding capacity than PQuiOH. Furthermore, the high affinity of PQuiBoc for metals gives potential for this approach to be used in heavy metal sequestration in waste water treatment or as absorbents for sample preparation in atomic spectroscopy.

Conclusions

This paper reports the design and synthesis of a new styrene-based monomer, intended to incorporate the zinc-binding moiety of 8-hydroxyquinoline, and its subsequent polymerisation by RAFT. RAFT polymerisation herein yielded well-defined polymers, PQuiBoc, with relative degrees of polymerisation of 14 and 28 (against PS standards), furnished with carboxylic acid terminal functionality with the potential of copolymerisation or derivatisation. Suitable conditions for RAFT were defined as a 1 : 1 ratio of initiator to CTA ([AIBN]₀/[DDMAT]₀ = 1.0) at a relatively high dilution of 1 : 10 monomer:THF at 60 °C. As shown by SEM/EDXA, the ZnO binding capacity of protected PQuiBoc was comparable to (if not marginally higher than) deprotected PQuiOH, which allowed the fabrication of electrospun fibres from a PQuiBoc/PS blend without the need for deprotection (removal of the Boc group). Electrospun PQuiBoc/PS microfibres with only 20% content of PQuiBoc had almost three-fold higher loadings of ZnO (29%) in comparison to neat PS microfibres (11%). Thus, the new zinc-binding PQuiBoc material allows straightforward and relatively inexpensive fabrication of composite polymeric fibres which provide a high surface loading of ZnO nanoparticles for future use in photocatalysis or wound dressings with a high surface area, suitable for membranes in heavy metal sequestration.
