Base-mediated isocyanide-based three-component reactions: divergent synthesis of spiro-substituted furans and pyrroles

Hai-Ying Wang*, Ming Bao, Bo Jiang and Liang Li*
School of Chemistry and Chemical Engineering, Jiangsu Key Laboratory of Green Synthetic Chemistry for Functional Materials, Jiangsu Normal University, Xuzhou 221116, P. R. China. E-mail: wanghy@jsnu.edu.cn; lil@jsnu.edu.cn

Received 30th November 2015 , Accepted 6th January 2016

First published on 11th January 2016


Abstract

A facile base-mediated isocyanide-based three-component cycloaddition protocol for chemoselective formation of functionalized spiro-substituted furans and pyrroles derivatives has been developed. Fairly good yields of the products, the ready availability of the starting materials and the excellent chemoselectivity are the main advantages of this method.


Introduction

Isocyanide-based multicomponent reactions1 (IMCRs) with efficient construction of complex molecules from the diversity of bond-forming processes available, inherent atom economy, and excellent selectivity (such as chemo-, regio-, and stereo-selectivity) are one of the most powerful and significant tools in modern synthetic chemistry.2 These reactions can provide an attractive pathway toward the generation of structurally diverse molecules, especially unusual fused heterocyclic scaffolds.3

Spiroheterocyclic structures are common scaffolds of many natural products due to their significant biological activities,4 including oxindole alkaloids,5 shellfish toxins,6 and marine macrolides.7 Therefore, the synthesis of spirocyclic compounds has received continual attention from organic and medicinal chemists.8 Among various efficient synthetic methodologies, 1,3-dipolar cycloaddition reaction is one of the most efficient approaches for the synthesis of important spiroheterocyclic compounds.9 The zwitterionic intermediates might undergo cycloaddition to activated acetylenes from nucleophiles, leading to a variety of novel highly substituted cyclopentadienoid systems.10 For instance, Nair et al. successfully developed a 1,3-dipolar cycloaddition in trapping the zwitterionic intermediates, derived from isocyanide and dimethyl acetylenedicarboxylates (DMAD), with dipolarophiles such as aryl aldehydes and activated styrenes leading to a facile synthesis of furan, pyrrole and cyclopentadienes derivatives (Scheme 1a and b).11 To the best of our knowledge, the utilization of the zwitterion derived from isocyanide and dialkyl acetylenedicarboxylates to build important spiroheterocyclic compounds was seldom investigated. There is only limited number of studies on related spirocyclic system.12


image file: c5ra25408f-s1.tif
Scheme 1 Three-component chemoselective synthesis of spiro-substituted furans 4 and pyrroles 5.

As a consequence of our interest in 1,3-dipolar cycloaddition reactions, we decided to explore the feasibility of cycloaddition reactions between activated acrylonitrile and the zwitterion derived from isocyanide and DMAD, furnishing substituted spirocyclic compounds 6 via a three-component reaction. Interestingly, instead of the expected products 6 (Scheme 1c), the reaction underwent another direction to give access to functionalized spiro-substituted furans 4 and pyrroles 5 with good yields through isocyanide-based multicomponent reactions (Scheme 1d and e). Further investigations revealed that spiro-substituted furans 4 could be directly converted into spiro-substituted pyrroles 5 by Mumm rearrangement under suitable base conditions. Herein, we would like to elaborate these interesting transformations.

Results and discussion

Initially, when a solution of equimolar amounts of 2-(2-oxoacenaphthylen-1(2H)-ylidene)malononitrile (1a), dimethyl acetylenedicarboxylate (2a), and tert-butyl isocyanide (3a) in toluene was stirred at 50 °C for 24 h, two identifiable products 4a and 5a were isolated with poor chemoselectivity (Table 1, entry 1). Subsequently, a series of other solvent (THF, CH3CN, 1,4-dioxane, CH3OH and CHCl3) were screened and a range of different temperatures were examined to improve the yields. The result showed that toluene is the best solvent (Table 1, entries 1–11). Surprisingly, when using anhydrous toluene as a solvent and increasing the reaction temperature from 90 to 110 °C, the desired spirofuran product 4a was obtained in 88% isolated yield without product 5a (Table 1, entries 8–9).
Table 1 Optimization of the reaction conditions for the synthesis 4a and 5a

image file: c5ra25408f-u1.tif

Entry Cat. (equiv) Solvent T (°C) Yielda (%)
4a 5a
a Isolated yield.b Anhydrous toluene.c Co-solvent of toluene and H2O (Vt[thin space (1/6-em)]:[thin space (1/6-em)]Vw = 50[thin space (1/6-em)]:[thin space (1/6-em)]1).d Co-solvent of toluene and H2O (Vt[thin space (1/6-em)]:[thin space (1/6-em)]Vw = 100[thin space (1/6-em)]:[thin space (1/6-em)]1).
1 Toluene 50 45 5
2 THF 50 40 Trace
3 CH3CN 50 35 Trace
4 1,4-Dioxane 50 40 Trace
5 CH3OH 50 0 0
6 CHCl3 50 20 Trace
7 Toluene 70 64 8
8 Tolueneb 90 73 0
9 Tolueneb 110 88 0
10 Co-solventc 110 70 5
11 Co-solventd 110 74 7
12 NEt3 (0.5) Co-solventd 110 67 12
13 DMAP (0.5) Co-solventd 110 72 14
14 Pyridine (0.5) Co-solventd 110 65 20
15 Quinoline (0.5) Co-solventd 110 61 18
16 KHCO3 (0.5) Co-solventd 110 40 45
17 K2HPO4 (0.5) Co-solventd 110 47 40
18 KOH (0.5) Co-solventd 110 0 62
19 K2CO3 (0.5) Co-solventd 110 0 80
20 K2CO3 (0.2) Co-solventd 110 0 70
21 K2CO3 (1.0) Co-solventd 110 0 78
22 K2CO3 (0.5) Tolueneb 110 0 69


Next, we set out to optimize the reaction conditions for the chemoselective synthesis of the spiropyrrol products 5a. The organic or inorganic bases, including NEt3, DMAP, pyridine, Quinoline, KHCO3, K2HPO4, KOH and K2CO3 were screened in co-solvent of toluene and water at 110 °C for 24 h and the influence of volume ratio of toluene and water on the reaction was also investigated (Table 1, entries 12–19). Interestingly, when we treated 2-(2-oxoacenaphthylen-1(2H)-ylidene)malononitrile (1a, 1.0 equiv.), dimethyl acetylenedicarboxylate (2a, 1.0 equiv.), tert-butyl isocyanide (3a, 1.0 equiv.) and K2CO3 (0.5 equiv.) as the base in toluene and water (Vt/Vw = 100[thin space (1/6-em)]:[thin space (1/6-em)]1) at 110 °C for 24 h. A significant improvement in 80% isolated yield of the product 5a was observed (Table 1, entry 19).

With the optimized reaction conditions in hand, we investigated the substrate scope of these transformations, the cyclohexyl- and benzyl-isocyanides (3b, 3c) were also utilized. As expected, the two isocyanides were efficiently converted into the corresponding products 4 and 5 in good yields under controlled conditions (Table 2, entry 4a–4f, entry 5a–5f). Furthermore, ethyl 2-(2-oxoaceanthrylen-1(2H)-ylidene)malononitrile (1b) and ethyl 2-(10-oxophenanthren-9(10H)-ylidene)malononitrile (1c) were also investigated as reaction partners for this reaction. Similarly, 2-(2-oxoaceanthrylen-1(2H)-ylidene)malononitrile (1b) showed high reactivity and efficiently afforded the corresponding products 4 and 5 in good yields under controlled conditions (Table 2, entry 4g–4l, entry 5g–5l). However, substrate 1c only afforded spiropyrrole derivatives 5m–5o (Table 2, entry 5m–5o). The spiro-substituted furans were quickly transformed into spiro-substituted pyrroles in reaction process according to the TLC detection.

Table 2 Synthesis of spirocyclic derivatives 4a,c and 5b,c

image file: c5ra25408f-u2.tif

a The reaction was performed with 1 (1.0 equiv.), dialkyl acetylenedicarboxylate (2, 1.0 equiv.) and isocyanide (3, 1.0 equiv.) in anhydrous toluene.b The reaction was performed with 1 (1.0 equiv.), dialkyl acetylenedicarboxylate (2, 1.0 equiv.), isocyanide (3, 1.0 equiv.) and K2CO3 (0.5 equiv.) in toluene and water (Vt/Vw = 100[thin space (1/6-em)]:[thin space (1/6-em)]1).c Isolated yield.
image file: c5ra25408f-u3.tif


The structures of compounds 4 and 5 were deduced from their IR, 1H NMR, 13C NMR, and high-resolution mass spectrometry (HRMS) spectra. For example, 1H NMR spectrum of 4a exhibited three singlets due to the two MeO (3.99 and 3.52 ppm) and t-butyl (1.33 ppm) groups. The 1H decoupled 13C NMR spectrum of 4a showed 23 distinct resonances that confirm the proposed structure.

The HRMS spectrum of 4a displayed the molecular ion peak at m/z = 454, which is consistent with the proposed 1[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1 adduct of t-butyl isocyanide, dimethyl acetylenedicarboxylate, and 2-(2-oxoacenaphthylen-1(2H)-ylidene)malononitrile. The IR spectrum of 4a showed strong absorptions at 2230 and 1736 cm−1 due to the cyan and ester carbonyls.

Unambiguous evidence for the structure of 4a and 5g was obtained from single-crystal X-ray analysis. The ORTEP diagram of the two compounds 4a and 5g were shown in Fig. 1 and 2, respectively.


image file: c5ra25408f-f1.tif
Fig. 1 ORTEP diagram of 4a, displacement ellipsoids are shown with 40% probability.

image file: c5ra25408f-f2.tif

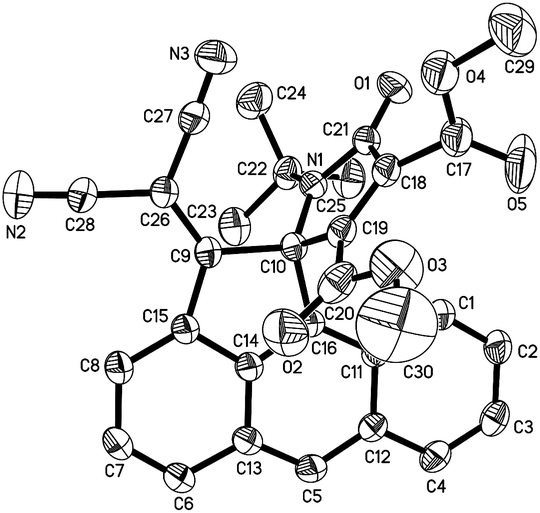

Fig. 2 ORTEP diagram of 5g, displacement ellipsoids are shown with 40% probability.

Based on the experimental results and literature reports,11c,13 a possible mechanism for the reaction is proposed in Scheme 2. The initial event is formation of the zwitterion A from the isocyanide 3 and dialkyl acetylenedicarboxylate 2, which reacts with the carbon-oxygen double bond of 2-(2-oxoacenaphthylen-1(2H)-ylidene)malononitrile 1a to yield spiro-substitute furan 4. Subsequently, in the presence of H2O and K2CO3, product 4 undergoes a Mumm rearrangement to yield spiro-substitute pyrrol 5. To verify the mechanism of the formation of 5, the isolate compound 4c was stirred in a mixture of toluene and water (tolune[thin space (1/6-em)]:[thin space (1/6-em)]H2O = 100[thin space (1/6-em)]:[thin space (1/6-em)]1) or anhydrous toluene and in the presence of K2CO3 at 110 °C for 24 h. As expected, the conversion of spiro-furans 4c to spiropyrrol 5c under base-mediated conditions was proved.


image file: c5ra25408f-s2.tif

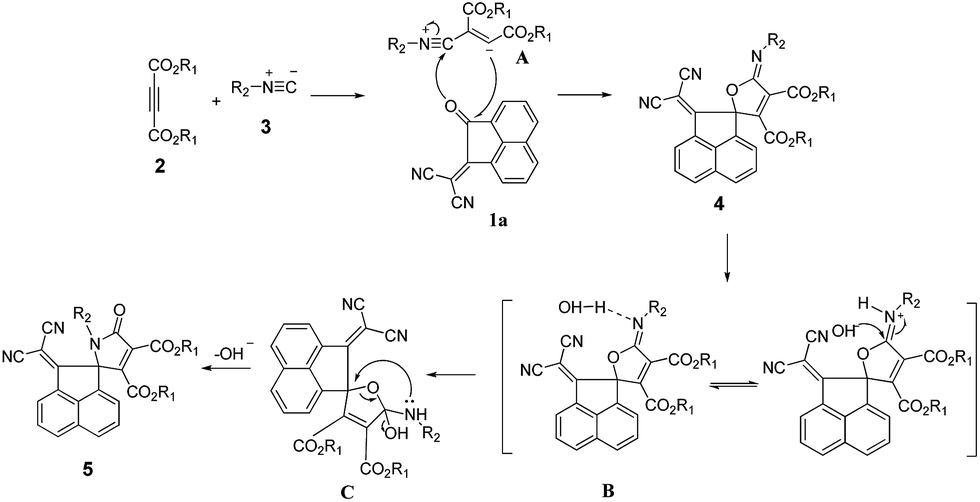

Scheme 2 Plausible mechanistic pathway.

Among these compounds, the photophysical properties of 4a, 4g, 5a and 5g have been examined and reported as an example. The UV-vis absorption spectra of 4a, 4g, 5a and 5g are presented in Fig. 3. As shown in Fig. 3, The maximum UV-vis absorptions of all compounds are located in the range of 399–490 nm, which is attributed to the π–π* transition of the conjugated backbone.14 By extended π-conjugated system in the compounds 4g, 5g, the absorption maxima (λmax) of the π–π* transition in MeCN solution are red shifted from 399 nm for 4a, to 490 nm for 4g and from 406 nm for 5a, to 490 nm for 5g, respectively.


image file: c5ra25408f-f3.tif
Fig. 3 Absorption spectra of 4a, 4g, 5a and 5g in MeCN (1.0 × 10−5 mol L−1).

The emission spectra of 4a, 4g, 5a and 5g are depicted in Fig. 4 with PL maxima at about 493, 498, 619 and 620 nm, respectively. In MeCN the 4g and 5g emit strong fluorescence than 4a and 5a (Fig. 4). However, if water was added to MeCN, their emission intensities dramatically decrease with increasing concentrations and formation of aggregates (Fig. S1 and S2 in the ESI). This aggregation-caused quenching (ACQ) effect mainly results from strong intermolecular π–π stacking interactions and non-radiative decay.15 The pH-dependent fluorescence response of 4g and 5g were also investigated (Fig. S3 and S4 in the ESI), which present slight change relative to the emission spectra of compound 4g and 5g in MeCN–H2O.


image file: c5ra25408f-f4.tif
Fig. 4 Emission spectra of 4a, 4g, 5a and 5g (excited at 399, 406, 486 and 490 nm, respectively) in MeCN (1.0 × 10−5 mol L−1).

Conclusions

In summary, a facile method has been developed for chemoselective synthesis of polyfunctionalized spiroheterocyclic compounds (spirofurans and spiropyrroles) by base-mediated three-component protocol. Due to the importance of these spiroheterocyclic compounds, especially in pharmaceutical and medicinal chemistry, the present protocol can be extended for the synthesis of various biologically important spiroheterocyclic compounds.

Experimental section

General

All reagents and solvents were acquired from commercially available suppliers and used without further purification, unless specified. 1H NMR and 13C NMR spectra were recorded on a Bruker 400 MHz spectrometer in CDCl3 using TMS as the internal standard. IR spectra were recorded on a Nicollet 740 FT-IR spectrometer. HRMS were measured on an Agilent Technologies 6510, Q-TOFLC/MS ESI Technique. Melting points were determined in capillaries and are uncorrected. UV-vis spectra were recorded on a Shimadzu UV-2501PC spectrometer; fluorescence spectra were obtained on an Hitachi FL-4500 spectrofluorimeter. All reactions were monitored using thin layer chromatography (TLC) on pre-coated silica gel 60 F254 (mesh); spots were observed under UV light.
General procedure for the preparation of spiro-substituted furans 4. To a magnetically stirred solution of 2-(2-oxoacenaphthylen-1(2H)-ylidene)malononitrile (1a, 1 mmol) and the corresponding dialkyl acetylenedicarboxylate (2, 1 mmol) in anhydrous toluene (2 mL) was added dropwise a solution of corresponding isocyanide (3, 1 mmol) in anhydrous toluene (1 mL) at 25 °C for 5 min. The reaction mixture was then stirred at 110 °C for 24 h. The solvent was removed and the residue was purified by column chromatography using n-hexane–EtOAc (1[thin space (1/6-em)]:[thin space (1/6-em)]4) as eluent. The solvent was removed and the product was obtained.
(Z)-Dimethyl 5′-(tert-butylimino)-2-(dicyanomethylene)-2H,5′H-spiro[acenaphthylene-1,2′-furan]-3′,4′-dicarboxylate (4a). Mp 190–192 °C; pale yellow powder; IR(KBr): 2970, 2902, 2230, 1758, 1577, 1299, 779 cm−1 1H NMR (400 MHz, CDCl3) δ 8.61 (d, J = 7.4 Hz, 1H), 8.17 (d, J = 8.2 Hz, 1H), 7.97 (d, J = 8.3 Hz, 1H), 7.86–7.80 (m, 1H), 7.69 (dd, J = 8.2, 7.1 Hz, 1H), 7.46 (d, J = 7.0 Hz, 1H), 3.99 (s, 3H), 3.52 (s, 3H), 1.33 (s, 9H); 13C NMR (100 MHz, CDCl3) δ 170.5, 161.8, 159.8, 151.3, 140.0, 139.2, 138.3, 135.6, 132.7, 132.5, 130.8, 129.2, 127.2, 125.1, 120.2, 112.5, 110.4, 94.4, 79.7, 55.9, 53.5, 53.1; HRMS (ESI) calcd for C26H21N3O5 [M − H] 454.1403, found 454.1397.
(Z)-Dimethyl 5′-(cyclohexylimino)-2-(dicyanomethylene)-2H,5′H-spiro[acenaphthylene-1,2′-furan]-3′,4′-dicarboxylate (4b). Mp 202–204 °C; pale yellow powder; IR (KBr): 2932, 2854, 2229, 1754, 1582, 1302, 780 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.60 (d, J = 7.4 Hz, 1H), 8.17 (d, J = 8.2 Hz, 1H), 7.97 (d, J = 8.2 Hz, 1H), 7.89–7.78 (m, 1H), 7.71 (dd, J = 8.2, 7.1 Hz, 1H), 7.49 (d, J = 6.9 Hz, 1H), 3.99 (s, 3H), 3.71–3.60 (m, 1H), 3.52 (s, 3H), 1.88 (d, J = 13.9 Hz, 1H), 1.79–1.68 (m, 3H), 1.60–1.41 (m, 3H), 1.32–1.17 (m, 3H); 13C NMR (100 MHz, CDCl3) δ 170.4, 161.5, 159.7, 153.5, 139.2, 139.2, 138.6, 135.5, 132.6, 132.4, 130.8, 129.2, 129.2, 127.2, 125.1, 120.5, 112.5, 110.5, 93.9, 79.9, 57.4, 53.5, 53.1, 33.3, 32.8, 25.6, 24.6; HRMS (ESI) calcd for C28H23N3O5 [M − H] 480.1559, found 480.1567.
(Z)-Dimethyl 5′-(benzylimino)-2-(dicyanomethylene)-2H,5′H-spiro[acenaphthylene-1,2′-furan]-3′,4′-dicarboxylate (4c). Mp 183–186 °C; pale yellow powder; IR (KBr): 2954, 2227, 1731, 1686, 1574, 1439, 1364, 1299, 1052, 776 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.62 (d, J = 7.4 Hz, 1H), 8.18 (d, J = 8.2 Hz, 1H), 7.98 (d, J = 8.3 Hz, 1H), 7.84 (t, J = 7.8 Hz, 1H), 7.70 (t, J = 7.7 Hz, 1H), 7.48 (dd, J = 6.8, 1.6 Hz, 1H), 7.34 (m, J = 15.0, 4.7 Hz, 4H), 7.23 (t, J = 7.1 Hz, 1H), 4.73 (d, J = 7.3 Hz, 2H), 4.01 (s, 3H), 3.54 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 169.7, 161.2, 159.6, 155.9, 140.1, 139.2, 138.9, 138.0, 135.1, 132.5, 130.8, 129.3, 129.2, 128.3, 127.8, 127.4, 126.8, 125.2, 120.6, 112.4, 110.3, 94.5, 80.0, 62.9, 53.6, 53.2, 52.1, 14.2; HRMS (APCI) calcd for C29H19N3O5 [M + H]+ 490.1403, found 490.1403.
(Z)-Diethyl 5′-(tert-butylimino)-2-(dicyanomethylene)-2H,5′H-spiro[acenaphthylene-1,2′-furan]-3′,4′-dicarboxylate (4d). Mp 204–206 °C; pale yellow powder; IR (KBr): 2988, 2968, 2229, 1747, 1685, 1580, 1335, 1276, 1030 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.60 (d, J = 7.4 Hz, 1H), 8.16 (d, J = 8.2 Hz, 1H), 7.96 (d, J = 8.3 Hz, 1H), 7.82 (t, J = 7.8 Hz, 1H), 7.73–7.65 (m, 1H), 7.48 (d, J = 7.0 Hz, 1H), 4.46 (dd, J = 7.1, 5.5 Hz, 2H), 3.88 (dd, J = 7.1, 5.3 Hz, 2H), 1.41 (t, J = 7.1 Hz, 3H), 1.34 (s, 9H), 0.80 (t, J = 7.1 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 170.5, 161.2, 159.2, 151.6, 140.1, 139.2, 138.4, 135.8, 132.8, 132.3, 130.8, 129.3, 129.1, 127.0, 124.9, 120.3, 112.6, 110.3, 94.3, 79.8, 62.6, 62.0, 55.9, 30.2, 29.5, 14.1, 13.2; HRMS (ESI) calcd for C28H25N3O5 [M + Na]+ 506.1692, found 506.1691.
(Z)-Diethyl 5′-(cyclohexylimino)-2-(dicyanomethylene)-2H,5′H-spiro[acenaphthylene-1,2′-furan]-3′,4′-dicarboxylate (4e). Mp 213–215 °C; pale yellow powder; IR (KBr): 2982, 2927, 2230, 1749, 1689, 1578, 1335, 1260, 1023, 784 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.59 (d, J = 7.4 Hz, 1H), 8.16 (d, J = 8.2 Hz, 1H), 7.96 (d, J = 8.2 Hz, 1H), 7.82 (t, J = 7.8 Hz, 1H), 7.70 (t, J = 7.6 Hz, 1H), 7.50 (d, J = 6.9 Hz, 1H), 4.47 (dd, J = 6.9, 5.1 Hz, 2H), 3.88 (dd, J = 13.6, 6.8 Hz, 2H), 3.73–3.61 (m, 1H), 1.88 (d, J = 12.8 Hz, 1H), 1.73 (s, 3H), 1.52 (dd, J = 24.6, 13.5 Hz, 3H), 1.40 (t, J = 7.1 Hz, 3H), 1.26 (d, J = 21.1 Hz, 3H), 0.79 (t, J = 7.1 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 170.5, 161.0, 159.2, 153.5, 139.3, 139.2, 138.9, 135.7, 132.8, 132.3, 130.7, 129.2, 129.2, 127.1, 124.9, 120.5, 112.6, 110.4, 93.9, 79.9, 62.7, 62.0, 57.2, 33.3, 32.8, 25.7, 24.6, 14.1, 13.2; HRMS (ESI) calcd for C30H27N3O5 [M + Na]+ 532.1848, found 532.1848.
(Z)-Diethyl 5′-(benzylimino)-2-(dicyanomethylene)-2H,5′H-spiro[acenaphthylene-1,2′-furan]-3′,4′-dicarboxylate (4f). Mp 191–194 °C; yellow powder; IR (KBr): 2987, 2950, 2223, 1735, 1686, 1570, 1440, 1367, 1230, 1045, 778 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.61 (d, J = 8.0 Hz, 1H), 8.18 (d, J = 8.0 Hz, 1H), 7.98 (d, J = 8.0 Hz, 1H), 7.87–7.80 (m, 1H), 7.71 (m, 1H), 7.49 (d, J = 8.0 Hz, 1H), 7.38 (d, J = 8.0 Hz, 2H), 7.31 (m, 2H), 7.26–7.21 (m, 1H), 4.80–4.68 (m, 2H), 4.48 (m, 2H), 3.91 (m, 2H), 1.42 (t, J = 8.0 Hz, 3H), 0.82 (t, J = 8.0 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 169.9, 160.8, 159.0, 156.0, 140.1, 139.3, 139.0, 138.3, 135.2, 132.7, 132.4, 130.8, 129.3, 129.2, 128.3, 127.7, 127.3, 126.7, 125.0, 120.7, 112.5, 110.3, 94.4, 80.0, 62.9, 62.2, 52.0, 14.1, 13.2; HRMS (ESI) calcd for C31H23N3O5 [M + H]+ 518.1716, found 518.1713.
(Z)-Dimethyl 5′-(tert-butylimino)-1-(dicyanomethylene)-1H,5′H-spiro[aceanthrylene-2,2′-furan]-3′,4′-dicarboxylate (4g). Mp 190–193 °C; red powder; IR (KBr): 2961, 2904, 2228, 1758, 1732, 1571, 1429, 1279, 1029, 970 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.63 (d, J = 7.1 Hz, 1H), 8.58 (s, 1H), 8.29 (d, J = 8.5 Hz, 1H), 8.16 (d, J = 8.5 Hz, 1H), 7.79–7.80 (m, 2H), 7.72–7.64 (m, 1H), 7.61–7.55 (m, 1H), 4.02 (s, 3H), 3.43 (s, 3H), 1.35 (s, 9H); 13C NMR (100 MHz, CDCl3) δ 171.0, 161.8, 159.7, 151.7, 140.4, 138.5, 137.4, 134.4, 132.9, 132.6, 130.3, 128.6, 128.4, 128.0, 128.0, 127.8, 126.9, 126.3, 125.3, 122.0, 112.7, 110.5, 96.3, 79.3, 56.2, 53.4, 53.0, 29.4; HRMS (ESI) calcd for C30H23N3O5 [M + Na]+ 528.1535, found 528.1535.
(Z)-Dimethyl 5′-(cyclohexylimino)-1-(dicyanomethylene)-1H,5′H-spiro[aceanthrylene-2,2′-furan]-3′,4′-dicarboxylate (4h). Mp 210–213 °C; red powder; IR (KBr): 2936, 2852, 2228, 1729, 1693, 1431, 1298, 1029, 979 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.66–8.55 (m, 2H), 8.27 (d, J = 8.5 Hz, 1H), 8.17 (d, J = 8.6 Hz, 1H), 7.78–7.79 (m, 2H), 7.69–7.64 (m, 1H), 7.62–7.56 (m, 1H), 4.02 (s, 3H), 3.76–3.68 (m, 1H), 3.43 (s, 3H), 2.00–1.88 (m, 1H), 1.81–1.65 (m, 3H), 1.53 (d, J = 14.3 Hz, 3H), 1.29–1.15 (m, 3H); 13C NMR (100 MHz, CDCl3) δ 170.9, 161.5, 159.7, 153.9, 139.5, 139.0, 137.4, 134.4, 132.9, 132.5, 130.4, 128.7, 128.2, 128.0, 127.9, 127.9, 127.0, 126.3, 125.3, 121.8, 112.7, 110.6, 95.8, 79.5, 57.6, 53.5, 53.0, 33.3, 33.0, 25.6, 24.6, 24.6; HRMS (ESI) calcd for C32H25N3O5 [M + Na]+ 554.1692, found 554.1689.
(Z)-Diethyl 5′-(tert-butylimino)-1-(dicyanomethylene)-1H,5′H-spiro[aceanthrylene-2,2′-furan]-3′,4′-dicarboxylate (4i). Mp 182–185 °C; red powder; IR (KBr): 2974, 2935, 2227, 1748, 1730, 1686, 1574, 1428, 1335, 1275, 1030, 973 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.62 (d, J = 7.1 Hz, 1H), 8.58 (s, 1H), 8.28 (d, J = 8.5 Hz, 1H), 8.16 (d, J = 8.6 Hz, 1H), 7.88–7.81 (m, 1H), 7.77 (dd, J = 8.4, 7.3 Hz, 1H), 7.71–7.64 (m, 1H), 7.62–7.54 (m, 1H), 4.55–4.43 (m, 2H), 3.85–3.72 (m, 2H), 1.43 (t, J = 7.1 Hz, 3H), 1.35 (s, 9H), 0.72 (t, J = 7.1 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 171.1, 161.3, 159.1, 151.7, 140.7, 138.5, 137.4, 134.4, 133.1, 132.4, 130.2, 128.7, 128.5, 127.9, 127.7, 126.9, 126.3, 125.1, 122.1, 112.8, 110.5, 96.2, 79.4, 62.6, 62.0, 56.0, 29.5, 14.1, 13.1; HRMS (ESI) calcd for C32H27N3O5 [M + Na]+ 556.1848, found 556.1843.
(Z)-Diethyl 5′-(cyclohexylimino)-1-(dicyanomethylene)-1H,5′H-spiro[aceanthrylene-2,2′-furan]-3′,4′-dicarboxylate (4j). Mp 208–211 °C; red powder; IR (KBr): 2932, 2856, 2230, 1720, 1696, 1575, 1429, 1335, 1276, 1020, 748 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.62 (d, J = 7.1 Hz, 1H), 8.58 (s, 1H), 8.28 (d, J = 8.5 Hz, 1H), 8.16 (d, J = 8.6 Hz, 1H), 7.88–7.81 (m, 1H), 7.77 (m, 1H), 7.71–7.64 (m, 1H), 7.62–7.54 (m, 1H), 4.55–4.43 (m, 2H), 3.85–3.72 (m, 2H), 1.43 (t, J = 7.1 Hz, 3H), 1.35 (s, 9H), 0.72 (t, J = 7.1 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 171.0, 161.0, 159.1, 153.9, 139.5, 139.3, 137.4, 134.4, 133.1, 132.4, 130.3, 128.7, 128.5, 127.9, 127.7, 126.9, 126.3, 125.1, 121.9, 112.8, 110.5, 95.7, 79.6, 62.7, 62.0, 57.4, 33.3, 33.0, 25.7, 24.6, 24.5, 14.1, 13.1; HRMS (APCI) calcd for C34H29N3O5 [M + H]+ 560.2185, found 560.2187.
(Z)-Dimethyl 5′-(benzylimino)-1-(dicyanomethylene)-1H,5′H-spiro[aceanthrylene-2,2′-furan]-3′,4′-dicarboxylate (4k). Mp 211–214 °C; red powder; IR (KBr): 3031, 2954, 2229, 1720, 1686, 1570, 1440, 1300, 1048, 985, 734 cm−1; 1H NMR (400 MHz, DMSO) δ 8.86 (s, 1H), 8.55 (d, J = 8.4 Hz, 1H), 8.42 (d, J = 7.3 Hz, 1H), 8.28 (d, J = 8.4 Hz, 1H), 7.97 (t, J = 7.8 Hz, 1H), 7.62 (m, J = 15.2, 6.7 Hz, 2H), 7.38 (d, J = 8.3 Hz, 1H), 6.96 (t, J = 7.8 Hz, 1H), 6.80 (t, J = 7.4 Hz, 2H), 6.45 (d, J = 7.7 Hz, 2H), 4.70–4.64 (m, 1H), 3.96 (s, 3H), 3.85 (d, J = 14.8 Hz, 1H), 3.33 (s, 3H); 13C NMR (100 MHz, DMSO) δ 167.8, 165.6, 161.9, 159.6, 142.9, 138.9, 137.9, 134.3, 134.1, 133.9, 133.7, 131.1, 129.3, 128.8, 128.8, 128.3, 128.2, 128.1, 126.7, 126.7, 125.8, 125.7, 120.0, 113.0, 110.6, 79.0, 78.2, 53.9, 51.9, 44.8; HRMS (APCI) calcd for C33H21N3O5 [M + H]+ 540.1559, found 540.1557.
(Z)-Diethyl 5′-(benzylimino)-1-(dicyanomethylene)-1H,5′H-spiro[aceanthrylene-2,2′-furan]-3′,4′-dicarboxylate (4l). Mp 200–203 °C; red powder; IR (KBr): 3030, 2954, 2220, 1731, 1686, 1575, 1435, 1364, 1299, 1052, 986, 735 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.65–8.57 (m, 2H), 8.29 (d, J = 8.0 Hz, 1H), 8.21–8.14 (m, 1H), 7.78 (t, J = 8.0 Hz, 2H), 7.60 (m, 2H), 7.39 (d, J = 4.0 Hz, 2H), 7.30–7.25 (m, 2H), 7.21 (t, J = 8.0 Hz, 1H), 4.85–4.72 (m, 2H), 4.55–4.43 (m, 2H), 3.88–3.74 (m, 2H), 1.43 (t, J = 8.0 Hz, 3H), 0.73 (t, J = 8.0 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 170.4, 160.8, 159.0, 156.3, 140.4, 139.0, 138.9, 137.5, 134.4, 133.0, 132.5, 130.3, 128.9, 128.3, 128.0, 127.9, 127.9, 127.8, 127.0, 126.7, 126.4, 125.2, 121.8, 112.6, 110.3, 96.3, 79.7, 62.9, 62.2, 52.2, 14.1, 13.1; HRMS (ESI) calcd for C35H25N3O5 [M + Na]+ 590.1692, found 590.1717.
General procedure for the preparation of spiro-substituted pyrroles 5. To a magnetically stirred solution of 2-(2-oxoaceanthrylen-1(2H)-ylidene)malononitrile (1b, 1 mmol), the corresponding dialkyl acetylenedicarboxylate (2, 1 mmol) and K2CO3 (0.5 mmol) in toluene and water (Vt/Vw = 100[thin space (1/6-em)]:[thin space (1/6-em)]1, 2.0 mL) was added dropwise a solution of corresponding isocyanide (3, 1 mmol) in toluene and water (Vt/Vw = 100[thin space (1/6-em)]:[thin space (1/6-em)]1, 1.0 mL) at 25 °C for 10 min. The reaction mixture was then stirred at 110 °C for 24 h. The solvent was removed and the residue was purified by column chromatography using n-hexane–EtOAc (1[thin space (1/6-em)]:[thin space (1/6-em)]4) as eluent. The solvent was removed and the product 5 was obtained.
Dimethyl 1′-tert-butyl-2-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-2H-spiro[acenaphthylene-1,2′-pyrrole]-3′,4′-dicarboxylate (5a). Mp 219–222 °C; yellow powder; IR (KBr): 2930, 2849, 2225, 1745, 1690, 1570, 1438, 1346, 1274, 1089, 786 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.68 (d, J = 7.4 Hz, 1H), 8.19 (d, J = 8.2 Hz, 1H), 7.96 (d, J = 8.3 Hz, 1H), 7.84 (t, J = 7.8 Hz, 1H), 7.69 (dd, J = 8.2, 7.1 Hz, 1H), 7.42 (d, J = 7.0 Hz, 1H), 3.95 (d, J = 5.3 Hz, 3H), 3.41 (d, J = 1.9 Hz, 3H), 1.23 (d, J = 7.1 Hz, 9H); 13C NMR (100 MHz, CDCl3) δ 171.2, 166.4, 161.7, 159.5, 142.1, 139.3, 138.1, 135.4, 134.0, 132.8, 131.2, 129.3, 129.0, 127.0, 125.5, 120.6, 112.6, 110.1, 78.6, 77.9, 59.2, 53.3, 53.0, 27.7; HRMS (APCI) calcd for C26H21N3O5 [M + H]+ 456.1559, found 456.1552.
Dimethyl 1′-cyclohexyl-2-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-2H-spiro[acenaphthylene-1,2′-pyrrole]-3′,4′-dicarboxylate (5b). Mp 247–250 °C; yellow powder; IR (KBr): 2948, 2226, 1780, 1708, 1576, 1436, 1303, 1285, 1116, 784 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.69 (d, J = 7.4 Hz, 1H), 8.22 (d, J = 8.2 Hz, 1H), 7.99 (d, J = 8.2 Hz, 1H), 7.87 (t, J = 7.8 Hz, 1H), 7.73–7.65 (m, 1H), 7.40 (d, J = 7.0 Hz, 1H), 3.98 (s, 3H), 3.48 (s, 3H), 2.59 (m, J = 15.8, 8.0, 3.8 Hz, 1H), 2.22–2.02 (m, 2H), 1.70 (t, J = 10.5 Hz, 2H), 1.58–1.49 (m, 1H), 1.46–1.33 (m, 2H), 0.98 (m, J = 18.8, 12.8, 3.2 Hz, 2H), 0.81–0.67 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 169.5, 165.1, 161.7, 159.7, 141.3, 140.0, 139.8, 133.9, 133.7, 133.0, 131.2, 129.3, 128.9, 127.2, 125.5, 120.9, 112.5, 109.9, 79.1, 56.2, 53.3, 53.1, 29.7, 29.7, 25.9, 25.7, 24.7; HRMS (APCI) calcd for C28H23N3O5 [M + H]+ 482.1716, found 482.1714.
Dimethyl 1′-benzyl-2-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-2H-spiro[acenaphthylene-1,2′-pyrrole]-3′,4′-dicarboxylate (5c). Mp 173–175 °C; yellow powder; IR (KBr): 2957, 2231, 1708, 1576, 1445, 1383, 1270, 1109, 780 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.41 (d, J = 7.4 Hz, 1H), 8.20 (d, J = 8.2 Hz, 1H), 7.98 (d, J = 8.3 Hz, 1H), 7.87–7.78 (t, 1H), 7.65 (dd, J = 8.2, 7.1 Hz, 1H), 7.25–7.16 (m, 2H), 7.05 (t, J = 7.6 Hz, 2H), 6.66 (d, J = 7.3 Hz, 2H), 4.97 (d, J = 14.7 Hz, 1H), 4.01 (d, J = 1.7 Hz, 3H), 3.56 (d, J = 14.7 Hz, 1H), 3.49 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 168.1, 165.5, 161.6, 159.7, 142.5, 139.7, 138.5, 134.3, 133.7, 133.5, 132.5, 131.0, 129.3, 129.1, 128.8, 128.4, 127.1, 125.1, 120.5, 111.9, 109.8, 79.5, 53.4, 53.1, 44.9; HRMS (APCI) calcd for C29H19N3O5 [M + H]+ 490.1403, found 490.1422.
Diethyl 1′-tert-butyl-2-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-2H-spiro[acenaphthylene-1,2′-pyrrole]-3′,4′-dicarboxylate (5d). Mp 214–217 °C; yellow powder; IR (KBr): 2935, 2850, 2227, 1740, 1686, 1574, 1439, 1340, 1280, 1070, 776 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.67 (d, J = 8.0 Hz, 1H), 8.18 (d, J = 8.0 Hz, 1H), 7.96 (d, J = 8.0 Hz, 1H), 7.83 (t, J = 8.0 Hz, 1H), 7.74–7.66 (m, 1H), 7.44 (d, J = 8.0 Hz, 1H), 4.41 (q, J = 8.0 Hz, 2H), 3.85–3.73 (m, 2H), 1.38 (t, J = 8.0 Hz, 3H), 1.23 (s, 9H), 0.74 (t, J = 8.0 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 171.4, 166.5, 161.3, 159.0, 142.0, 139.4, 138.5, 135.7, 134.2, 132.7, 131.2, 129.2, 129.0, 126.9, 125.4, 120.6, 112.6, 110.1, 78.6, 77.8, 62.5, 62.1, 59.1, 27.8, 14.1, 13.2; HRMS (ESI) calcd for C28H25N3O5 [M + Na]+ 506.1692, found 506.1659.
Diethyl 1′-cyclohexyl-2-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-2H-spiro[acenaphthylene-1,2′-pyrrole]-3′,4′-dicarboxylate (5e). Mp: 164–167 °C; yellow powder; IR (KBr): 2950, 2222, 1750, 1700, 1574, 1439, 1364, 1283, 1110, 780 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.69 (d, J = 8.0 Hz, 1H), 8.22 (d, J = 8.0 Hz, 1H), 7.98 (d, J = 8.0 Hz, 1H), 7.86 (t, J = 8.0 Hz, 1H), 7.69 (m, 1H), 7.42 (d, J = 8.0 Hz, 1H), 4.45 (m, 2H), 3.93–3.77 (m, 2H), 2.60 (m, 1H), 2.12 (m, 2H), 1.83–1.65 (m, 3H), 1.58–1.48 (m, 2H), 1.40 (m, 3H), 0.90 (m, 3H), 0.78 (m, 3H); 13C NMR (100 MHz, CDCl3) δ 169.7, 165.3, 161.3, 159.1, 141.2, 140.3, 140.1, 134.1, 133.9, 132.9, 131.1, 129.2, 129.0, 127.1, 126.6, 125.4, 120.9, 112.6, 109.9, 62.6, 62.1, 56.2, 25.9, 25.8, 24.7, 14.1, 13.2; HRMS (ESI) calcd for C30H27N3O5 [M + Na]+ 532.1848, found 532.1829.
Diethyl 1′-benzyl-2-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-2H-spiro[acenaphthylene-1,2′-pyrrole]-3′,4′-dicarboxylate (5f). Mp 207–210 °C; yellow powder; IR (KBr): 2960, 2229, 1710, 1686, 1574, 1440, 1375, 1285, 1111, 776 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.40 (d, J = 8.0 Hz, 1H), 8.20 (d, J = 8.0 Hz, 1H), 7.97 (d, J = 8.0 Hz, 1H), 7.84–7.78 (m, 1H), 7.65 (m, 1H), 7.25 (d, J = 8.0 Hz, 1H), 7.19 (t, J = 8.0 Hz, 1H), 7.05 (t, J = 8.0 Hz, 2H), 6.67 (d, J = 8.0 Hz, 2H), 4.98 (d, J = 16.0 Hz, 1H), 4.51–4.44 (m, 2H), 3.92–3.81 (m, 2H), 3.58 (d, J = 16.0 Hz, 1H), 1.42 (t, J = 8.0 Hz, 3H), 0.78 (t, J = 8.0 Hz, 3H). 13C NMR (100 MHz, CDCl3) δ 168.3, 165.6, 161.2, 159.1, 142.4, 139.7, 138.9, 134.3, 133.8, 133.7, 132.4, 131.0, 129.3, 129.2, 129.1, 128.8, 128.3, 127.0, 124.9, 120.6, 112.0, 109.7, 79.5, 62.7, 62.2, 44.9, 31.9, 22.7, 14.1, 13.2; HRMS (ESI) calcd for C31H23N3O5 [M + Na]+ 540.1535, found 540.1561.
Dimethyl 1′-tert-butyl-1-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-1H-spiro[aceanthrylene-2,2′-pyrrole]-3′,4′-dicarboxylate (5g). Mp 264–267 °C; red powder; IR (KBr): 2951, 2222, 1700, 1561, 1425, 1274, 1197, 1092, 745 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.75 (d, J = 7.2 Hz, 1H), 8.59 (s, 1H), 8.31 (d, J = 8.5 Hz, 1H), 8.20–8.13 (m, 1H), 7.83–7.73 (m, 2H), 7.65–7.56 (m, 2H), 3.98 (s, 3H), 3.32 (s, 3H), 1.17 (s, 9H); 13C NMR (100 MHz, CDCl3) δ 171.2, 166.6, 161.6, 159.5, 142.2, 138.6, 137.3, 134.3, 134.2, 133.1, 130.4, 128.6, 128.3, 128.2, 128.0, 127.8, 126.7, 126.5, 126.1, 121.8, 112.8, 110.3, 79.1, 78.2, 59.5, 53.3, 53.0, 27.7; HRMS (APCI) calcd for C30H23N3O5 [M + H]+ 506.1716, found 506.1726.
Dimethyl 1′-cyclohexyl-1-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-1H-spiro[aceanthrylene-2,2′-pyrrole]-3′,4′-dicarboxylate (5h). Mp 256–259 °C; red powder; IR (KBr): 2933, 2220, 1706, 1550, 1429, 1339, 1276, 1156, 1031, 746 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.75 (d, J = 7.2 Hz, 1H), 8.62 (s, 1H), 8.35 (d, J = 8.5 Hz, 1H), 8.21–8.13 (m, 1H), 7.83 (m, 1H), 7.78–7.71 (m, 1H), 7.65–7.55 (m, 2H), 4.01 (s, 3H), 3.39 (s, 3H), 2.71 (m, 1H), 2.17–1.91 (m, 2H), 1.68 (m, 2H), 1.41–1.31 (m, 2H), 1.09 (d, J = 12.4 Hz, 1H), 0.99–0.85 (m, 2H), 0.56 (m, J = 13.2, 6.7 Hz, 1H); 13C NMR (100 MHz, CDCl3) δ 169.7, 165.3, 161.7, 159.7, 141.7, 140.3, 138.1, 134.2, 133.9, 133.3, 130.4, 128.8, 128.3, 128.0, 127.1, 126.5, 126.0, 121.6, 112.7, 110.1, 79.0, 78.7, 56.3, 53.3, 53.0, 29.4, 29.0, 25.9, 25.7, 24.7; HRMS (APCI) calcd for C32H25N3O5 [M + H]+ 532.1872, found 532.1876.
Dimethyl 1′-benzyl-1-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-1H-spiro[aceanthrylene-2,2′-pyrrole]-3′,4′-dicarboxylate (5i). Mp 203–206 °C; red powder; IR (KBr): 3025, 2960, 2222, 1703, 1655, 1565, 1427, 1278, 1110, 745 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.61 (s, 1H), 8.45 (d, J = 7.2 Hz, 1H), 8.32 (d, J = 8.5 Hz, 1H), 8.20–8.12 (m, 1H), 7.77 (dd, J = 8.4, 7.3 Hz, 1H), 7.64–7.54 (m, 3H), 7.08 (t, J = 7.4 Hz, 1H), 6.92 (t, J = 7.7 Hz, 2H), 6.60–6.51 (m, 2H), 4.99 (d, J = 14.6 Hz, 1H), 4.04 (s, 3H), 3.56 (d, J = 14.6 Hz, 1H), 3.41 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 168.5, 165.7, 161.6, 159.7, 143.0, 138.9, 138.0, 134.2, 133.8, 133.7, 132.7, 130.4, 129.4, 129.1, 128.6, 128.2, 128.0, 127.1, 126.5, 125.8, 125.5, 120.6, 112.2, 109.9, 78.9, 78.3, 53.4, 53.1, 45.2; HRMS (APCI) calcd for C33H21N3O5 [M + H]+ 540.1559, found 540.1580.
Diethyl 1′-tert-butyl-1-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-1H-spiro[aceanthrylene-2,2′-pyrrole]-3′,4′-dicarboxylate (5j). Mp 239–242 °C; red powder; IR (KBr): 2954, 2222, 1705, 1574, 1420, 1275, 1120, 1087, 750 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.74 (d, J = 8.0 Hz, 1H), 8.59 (s, 1H), 8.31 (d, J = 8.0 Hz, 1H), 8.16 (d, J = 8.0 Hz, 1H), 7.84–7.75 (m, 2H), 7.65–7.56 (m, 2H), 4.49–4.40 (m, 2H), 3.75–3.63 (m, 2H), 1.40 (t, J = 8.0 Hz, 3H), 1.17 (s, 9H), 0.64 (t, J = 8.0 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 171.3, 166.8, 161.2, 159.1, 142.0, 138.9, 137.3, 134.4, 134.3, 133.0, 130.3, 128.6, 128.5, 128.3, 128.0, 127.6, 126.7, 126.6, 126.0, 121.9, 112.9, 110.2, 79.1, 78.3, 62.6, 62.0, 59.4, 27.7, 14.1, 13.0; HRMS (ESI) calcd for C32H27N3O5 [M + Na]+ 556.1848, found 556.1858.
Diethyl 1′-cyclohexyl-1-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-1H-spiro[aceanthrylene-2,2′-pyrrole]-3′,4′-dicarboxylate (5k). Mp 182–185 °C; red powder; IR (KBr): 2930, 2220, 1712, 1550, 1435, 1345, 1276, 1155, 1031, 746 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.74 (d, J = 8.0 Hz, 1H), 8.61 (s, 1H), 8.35 (d, J = 8.0 Hz, 1H), 8.19–8.14 (m, 1H), 7.83 (m, 1H), 7.76 (d, J = 8.0 Hz, 1H), 7.65–7.56 (m, 2H), 4.53–4.44 (m, 2H), 3.83–3.67 (m, 2H), 2.72 (m, 1H), 2.19–1.92 (m, 2H), 1.78–1.60 (m, 2H), 1.42 (t, J = 8.0 Hz, 3H), 1.39–1.32 (m, 2H), 1.10 (d, J = 8.0 Hz, 1H), 1.00–0.91 (m, 2H), 0.68 (t, J = 8.0 Hz, 3H), 0.57 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 169.8, 165.5, 161.3, 159.1, 141.5, 140.7, 138.1, 134.2, 134.1, 133.2, 130.3, 128.7, 128.2, 128.0, 127.9, 127.2, 126.8, 126.5, 125.8, 121.7, 112.8, 110.0, 78.9, 62.6, 62.1, 56.3, 29.4, 29.1, 25.9, 25.7, 24.7, 14.2, 13.1; HRMS (ESI) calcd for C34H29N3O5 [M + Na]+ 582.2005, found 582.2025.
Dimethyl 1′-benzyl-1-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-1H-spiro[aceanthrylene-2,2′-pyrrole]-3′,4′-dicarboxylate (5l). Mp 158–161 °C; red powder; IR (KBr): 3032, 2960, 2227, 1700, 1660, 1574, 1420, 1299, 1111, 746 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.61 (s, 1H), 8.44 (d, J = 8.0 Hz, 1H), 8.32 (d, J = 8.0 Hz, 1H), 8.20–8.13 (m, 1H), 7.80–7.73 (m, 1H), 7.62–7.56 (m, 3H), 7.08 (t, J = 8.0 Hz, 1H), 6.92 (t, J = 8.0 Hz, 2H), 6.56 (d, J = 8.0 Hz, 2H), 5.01 (d, J = 16.0 Hz, 1H), 4.51 (m, 2H), 3.83–3.71 (m, 2H), 3.57 (d, J = 16.0 Hz, 1H), 1.44 (t, J = 8.0 Hz, 3H), 0.69 (t, J = 8.0 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 168.7, 165.9, 161.2, 159.2, 142.8, 139.3, 138.0, 134.1, 134.0, 133.8, 132.6, 130.3, 129.4, 129.1, 128.6, 128.1, 127.9, 127.8, 127.1, 126.5, 126.1, 125.3, 120.7, 112.3, 109.8, 79.0, 78.3, 62.8, 62.2, 45.2, 14.1, 13.1; HRMS (ESI) calcd for C35H25N3O5 [M + Na]+ 590.1692, found 590.1681.
General procedure for the synthesis of compound 5m–5o. To a magnetically stirred solution of 2-(10-oxophenanthren-9(10H)-ylidene)malononitrile (1c, 1 mmol), the corresponding dialkyl acetylenedicarboxylate (1 mmol) and K2CO3 (0.5 mmol) in toluene and water (Vt/Vw = 100[thin space (1/6-em)]:[thin space (1/6-em)]1, 2.0 mL) was added dropwise a solution of corresponding isocyanide (1 mmol) in toluene and water (Vt/Vw = 100[thin space (1/6-em)]:[thin space (1/6-em)]1, 1.0 mL) at 25 °C for 10 min. The reaction mixture was then stirred at 110 °C for 24 h. The solvent was removed and the residue was purified by column chromatography using n-hexane–EtOAc (1[thin space (1/6-em)]:[thin space (1/6-em)]4) as eluent. The solvent was removed and the product 5m was obtained.
Dimethyl 1′-t-butyl-10-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-10H-spiro[phenanthrene-9,2′-pyrrole]-3′,4′-dicarboxylate (5m). Mp 231–234 °C; yellow powder; IR (KBr): 2980, 2953, 2220, 1702, 1670, 1531, 1445, 1286, 1197, 1093, 764 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.74 (d, J = 8.3 Hz, 1H), 8.17 (d, J = 8.1 Hz, 1H), 8.08 (d, J = 8.0 Hz, 1H), 7.79–7.73 (m, 1H), 7.49 (m, J = 9.3, 8.2, 4.3 Hz, 2H), 7.38 (t, J = 7.6 Hz, 1H), 7.17 (d, J = 8.0 Hz, 1H), 4.00–3.92 (m, 3H), 3.46 (d, J = 1.7 Hz, 3H), 1.30 (s, 9H); 13C NMR (100 MHz, CDCl3) δ 167.5, 166.4, 161.7, 159.4, 144.1, 137.7, 135.9, 133.8, 130.7, 130.0, 129.8, 129.6, 128.7, 127.0, 126.6, 124.6, 124.0, 115.4, 113.0, 82.4, 69.7, 59.2, 53.3, 53.1, 27.9; HRMS (APCI) calcd for C28H23N3O5 [M + H]+ 482.1716, found 482.1730.
Dimethyl 1′-cyclohexyl-10-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-10H-spiro[phenanthrene-9,2′-pyrrole]-3′,4′-dicarboxylate (5n). Mp 196–199 °C; yellow powder; IR (KBr): 2926, 2855, 2220, 1700, 1661, 1525, 1447, 1278, 1091, 762 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.45 (d, J = 8.1, 1H), 8.07 (t, J = 7.9 Hz, 2H), 7.83–7.73 (m, 1H), 7.55–7.45 (m, 2H), 7.40–7.32 (m, 1H), 7.14 (d, J = 8.0, 1H), 3.99 (s, 3H), 3.57 (s, 3H), 2.81 (m, J = 12.0, 3.6 Hz, 1H), 1.91–1.92 (m, 2H), 1.63 (d, J = 10.1 Hz, 2H), 1.51 (dd, J = 13.4, 1.6 Hz, 1H), 1.40 (d, J = 11.2, 1H), 1.16 (d, J = 12.3 Hz, 1H), 1.03–0.91 (m, 1H), 0.89–0.71 (m, 2H); 13C NMR (100 MHz, CDCl3) δ 165.4, 165.2, 161.7, 159.8, 143.9, 139.7, 135.9, 134.2, 131.3, 130.4, 130.0, 129.9, 128.7, 128.6, 127.0, 126.9, 124.7, 124.1, 114.9, 112.5, 83.9, 69.3, 56.8, 53.3, 53.2, 29.8, 29.0, 26.0, 25.9, 24.8; HRMS (APCI) calcd for C30H25N3O5 [M + H]+ 508.1872, found 508.1872.
Dimethyl 1′-benzyl-10-(dicyanomethylene)-5′-oxo-1′,5′-dihydro-10H-spiro[phenanthrene-9,2′-pyrrole]-3′,4′-dicarboxylate (5o). Mp 233–236 °C; yellow powder; IR (KBr): 2951, 2219, 1707, 1661, 1538, 1448, 1363, 1270, 1099, 759 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.08–7.99 (m, 3H), 7.75–7.67 (m, 1H), 7.49–7.40 (m, 1H), 7.38–7.32 (m, 1H), 7.24–7.14 (m, 2H), 7.09 (t, J = 7.3 Hz, 2H), 6.91 (d, J = 7.1 Hz, 2H), 6.83 (d, J = 8.0, 1H), 4.73 (d, J = 14.8 Hz, 1H), 3.99 (s, 3H), 3.92 (d, J = 14.8 Hz, 1H), 3.44 (s, 3H); 13C NMR (101 MHz, CDCl3) δ 166.5, 164.0, 161.5, 159.8, 146.0, 136.5, 135.6, 133.8, 133.7, 131.8, 130.4, 130.3, 130.1, 129.4, 128.7, 128.4, 128.4, 127.6, 126.8, 126.5, 124.4, 123.9, 114.5, 112.4, 84.0, 69.8, 53.4, 53.1, 45.8; HRMS (APCI) calcd for C31H21N3O5 [M + H]+ 516.1559, found 516.1558.
