Synthesis and characterization of a Cu(II) Schiff base complex immobilized on graphene oxide and its catalytic application in the green synthesis of propargylamines

Abstract

A Cu(II) Schiff base complex immobilized on graphene oxide has been synthesized and characterized by FTIR, FT-RAMAN, XRD, UV, TEM, FE-SEM, EDAX, TGA, N₂ adsorption–desorption and AAS analysis. The immobilized complex has been found to be a highly efficient and recyclable heterogeneous catalyst for the synthesis of propargylamines in aqueous medium.

---

The development of synthetic strategies for C–H bond activation by transition metal catalysts is one of the most important areas in organic chemistry.¹ The synthesis of propargylamines by the three-component one-pot coupling reactions (A³-coupling reactions) of aldehydes, alkynes, and secondary amines is one of the best examples of such a process.² Propargylamines moieties are versatile synthons in the preparation of nitrogen-containing molecules, such as aminoindolizines, β-lactams, oxotremorine analogs, pyrroles, pyrrolidines, isosteres, allylamines, and as key intermediates for natural product synthesis.^3,4 The A³-coupling reactions have been reported to be catalysed, by either salts or complexes of transition metals such as gold, silver, ruthenium, copper, iridium, iron, indium, zinc, etc.^5,6 However, most of them have certain drawbacks, such as long reaction time, moderate yields, formation of by-products, involvement of expensive reagents and solvents, and use of the microwave radiations.⁷ The large scale synthesis of propargylamines by the above protocols may entail some environmental & economic concerns. Therefore, the development of novel green heterogeneous catalysts is one of the frontier areas of current research. Herein, our interest lies in exploring new routes for the synthesis of propargylamines using a cost-effective, green and reusable catalyst under mild reaction conditions.

In recent years, graphene oxide (GO) has been demonstrated as a promising, ideal support for number of metals, metal oxides, inorganic complexes, nanoparticles and organic compounds due to its unique nanostructure, high chemical stability and surface area, good accessibility, and functional groups on its basal planes.⁸ The edges of GO also provide additional advantages.⁹ Mungse et al. reported the first Schiff base complex of vanadium immobilized on graphene oxide anchored.¹⁰ Su et al. prepared Schiff base complexes of transition metals onto graphene oxide for epoxidation of styrene.¹¹ Verma et al. reported oxo-vanadium Schiff base immobilized on graphene oxide as catalyst for the epoxidation of fatty acids and esters.¹² Recently, Xiong et al. have reported CuCl₂ immobilized on graphene oxide as a catalyst for the synthesis of propargylamines under microwave radiation.^7a In continuation of our work on the development of green synthesis methodologies for various organic transformations,¹³ we herein report the immobilization of a new Cu(II) Schiff base complex onto graphene oxide sheets and its use for the green synthesis of propargylamines. The water is a universal solvent and recently organic reactions in a aqueous medium has attracted a lot of attention.¹⁴

The schematic presentation of the synthesis of heterogeneous Cu(II) Schiff base complex immobilized on graphene oxide sheets (GO–Cu) is shown in Scheme 1 (more detail of GO–Cu preparation is given in the ESI†).

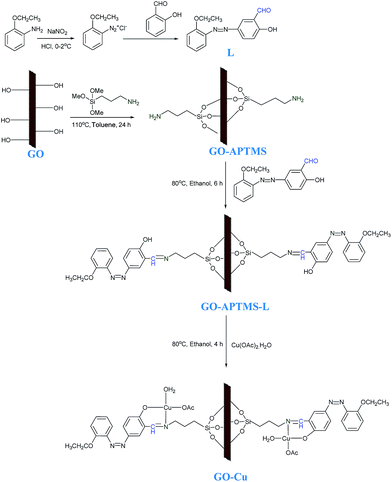

Scheme 1 Synthesis of ligand (L) and schematic presentation of the synthesis of Cu(II) Schiff base complex immobilized on graphene oxide sheets.

The chemical changes that occurred during the immobilization of Cu(II) Schiff base complex onto GO were followed by FTIR. The FTIR spectra of GO, GO–APTMS, GO–APTMS-L and GO–Cu are shown in Fig. 1a. The FTIR spectrum of GO exhibited strong characteristics bands at 3419, 1731, 1623, 1223, and 1035.5 cm⁻¹, due to the presence of hydroxyl, phenolic, carbonyl, carboxylic, epoxy, etc. functional groups in the scaffold.¹⁵ The FTIR spectrum of GO–APTMS, exhibited a doublet at 2850 and 2917 cm⁻¹, corresponding to the ν symmetric and asymmetric CH₂ of the alkyl chains.^16a Moreover, the bands observed at 1121.5 and 1034.6 cm⁻¹ were attributed to Si–O–Si and Si–O–C linkages, respectively.^16b The bands at 3423.7 and 1573.2 cm⁻¹, due to ν N–H, confirms the successful chemical functionalization of GO sheets.¹⁶ The FTIR spectrum of GO–APTMS-L depicted a new peak at 1632 cm⁻¹ due to ν C=N bond. The formation of C=N clearly indicated that the condensation reaction between the carbonyl groups of aldehyde of ligand (L) and the –NH₂ groups of GO–APTMS had taken place.¹⁷ In the FTIR spectrum of GO–Cu, ν C=N frequencies were slightly shifted to lower frequencies (Δν = 13 cm⁻¹) at 1619 cm⁻¹, compared with (GO–APTMS-L). The shifting of these absorption bands to lower wave numbers confirmed the coordination of Cu(II) metal ion with azomethine nitrogen atom of the Schiff base.¹⁸ However, no change in the ν N=N frequency was observed which rules out the interaction of the azo group to the metal. The new sharp band at 1438 cm⁻¹ was observed, due to the ν CO frequency which, indicated that Cu bonded with –OAc.^19a The new bands at 674, 462 cm⁻¹ were attributed to the stretching modes Cu–N and Cu–O bonds, respectively and confirmed the coordination of copper with N, O sites of GO–APTMS-L.¹⁹

Fig. 1 FTIR spectra of (a) GO, GO–APTMS, GO–APTMS-L, GO–Cu and FT-RAMAN spectra of (b) GO, GO–APTMS, GO–APTMS-L, GO–Cu.

The FT-RAMAN spectra of GO, GO–APTMS, GO–APTMS-L, and GO–Cu are shown in Fig. 1b. The FT-RAMAN spectra of GO–Cu complex and other intermediates show two remarkable peaks at around 1351, and 1596 cm⁻¹, which were associated with the well-defined D band and G bands, respectively.^8a The values of I_D/I_G were found to be 0.82, 0.84, 0.87 and 0.89 for GO, GO–APTMS, GO–APTMS-L, and GO–Cu respectively. The gradual increase in the I_D/I_G ratio is indicative of increasing disorder in the graphene oxide lattice after functionalization.²⁰ The PXRD of GO and GO–Cu are given in Fig. 2. The exfoliated GO exhibited a broad diffraction peak at 2θ = 11.62° with a corresponding d spacing of 0.82 nm, which may due to presence of functionalities in the basal plane of GO along with absorbed water molecules causing increase in the interlayer distance.^21a The PXRD spectrum of GO-Cu exhibited a new peak with a very broad pattern around 2θ = 22.24°, closer to reduced graphene (2θ = 24°). The broad diffraction peak of PXRD of GO–Cu indicates that the synthesized composite is almost amorphous in nature.²¹ The UV-visible spectra of GO (Fig. S1†) and GO–APTMS, ligand, GO–APTMS-L, GO–Cu are shown in Fig. S2† respectively. The UV-vis spectrum of GO depicted a strong absorption peak at 230 nm and a shoulder at about 300 nm, which were attributed to the π/π* transitions of the graphitic C–C bonds and to the n/π* transitions of the C=O bonds, respectively (Fig. S1†).^22a However, the UV-vis spectrum of the GO–Cu showed one broad band at 535 nm, due to d–d transitions of the Cu ions (Fig. S2†).²² Micro-structural features and morphology of GO and GO–Cu were analyzed by FESEM (Fig. S3†) and TEM (Fig. 3), FESEM image of GO–APTMS, GO–APTMS-L materials are also shown in the ESI (Fig. S3†).

Fig. 2 PXRD spectra of GO and GO-Cu.

Fig. 3 TEM image of (a) GO and (b) GO–Cu.

The FESEM images of GO and GO–Cu exhibited twisted nanosheets in disordered phase with a lot of wrinkles and crumpling features (Fig. S3†).²³ These folded edges and protrusions, owing to sp³-carbon in GO, bear the Cu immobilised Schiff base complex on both sides of the GO nanosheets (Fig. S3d†). These sites may serve as ideal templates for reactant molecules to accomplish the desired transformation.¹⁶ The TEM images of GO (Fig. 3a) revealed the nanoscopic features with few numbers of layers. The Fig. 3b also depicted fine nanostructures of the GO–Cu. The EDAX analysis provides detailed chemical analysis on the GO, GO–APTMS, GO–APTMS-L and GO–Cu (Fig. S4†). The GO was found to be mainly composed of carbon and oxygen. The loading of Cu(II) Schiff base complex on GO, changed the elemental composition with the introduction of copper, nitrogen and silicon, which are core elements of the complex apart from carbon and oxygen. Further, EDAX elemental mapping was performed to understand the distribution of the Cu-Schiff base complex on GO. The elemental mapping indicated the uniform distribution of Cu, N and Si over GO surface (Fig. 4). Further, the copper content, analyzed by AAS, was found to be 0.29 mmol g⁻¹ in the GO–Cu. The TGA thermograms of GO and GO–Cu are displayed in Fig. S5† The TGA of GO showed ∼20% weight loss near 100 °C, due to evaporation of water molecules present in the lattice of GO. The second significant weight loss was observed in the range of 170–240 °C, due to thermal decomposition of oxygen carrying functionalities.²⁴ The thermogram of GO–Cu showed a very small weight loss (5%) around 100 °C owing to the loss of adsorbed water molecules. The second weight loss in the temperature range from 175 to 260 °C was attributed to the thermal decomposition of undigested oxygen carrying functionalities and APTMS moieties, which have not participated in further chemical fictionalization. The last major mass loss observed in the range of 360–470 °C was related to the slow decomposition of the Cu(II) Schiff base complex.²⁵ The BET surface area of the GO and GO–Cu, determined by nitrogen physisorption at 77 K, was about 93.599 and 42.659 m² g⁻¹ respectively.

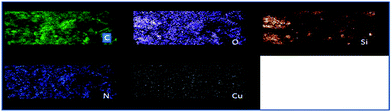

Fig. 4 Elemental mapping images of carbon, oxygen, silicon, nitrogen and copper in GO–Cu.

The catalytic efficiency of GO–Cu was tested in the three-component coupling of aldehydes, amines and alkynes shown in Scheme 2 (more detail of propargylamines synthesis is given in the ESI†).

Scheme 2 Synthesis of propargylamines using GO–Cu as catalyst.

In order to optimize reaction conditions, various parameters (time, temperature, solvents and catalyst loading) were studies. Benzaldehyde, phenylacetylene and piperidine were chosen as model reactants under N₂ atmosphere. These results are summarized in Table 1. When the reaction was carried out without catalyst (Table 1, entry 1) under reflux, no product was formed even after 36 h. The same reaction in presence of 20 mg of GO in water (5 mL) under reflux for 24 h yielded no product as the starting materials were recovered (Table 1, entry 2). However, when the reaction was carried out in the presence of 20 mg GO–Cu under reflux in water, the desired product was obtained in 85% yield within 8 h (Table 1, entry 3). However, no significant improvement in yield of the product was noticed when the catalyst loading was increased from 20 to 50 mg (Table 1 entry 4). It indicated that 20 mg of the catalyst was optimum. Among the various solvents used such as water, toluene, THF, DMF, neat and DMSO, water was found to be the best medium for the synthesis of propargylamines (Table 1, entries 1–12). After optimization of the reaction conditions, we choose a variety of different aldehydes, alkynes and amines to discern the catalytic scope and the generality of the GO–Cu complex (Table 2). Aryl aldehydes, possessing electron withdrawing groups, afforded better yields as compared to aldehydes bearing electron donating groups. The reaction of primary amines such as aniline and benzylamine, in place of secondary amines, with aldehydes and alkynes did not succeed to yield the expected products, thereby limiting the scope of the reaction.

Table 1 Optimization of reaction conditions for the synthesis of propargylamines from benzaldehyde, phenylacetylene and piperidine^a

Entry	Catalyst (mg)	Time (h)	Temp. (°C)	Solvents	Yield^b, %
a Reaction conditions: benzaldehyde (1 mmol), piperidine (1 mmol), phenyl acetylene (1.2 mmol).b Isolated yield after work up.
1	—	36	100	Water	—
2	GO (20)	24	100	Water	—
3	GO–Cu (20)	08	100	Water	85
4	GO–Cu (50)	08	100	Water	85
5	GO–Cu (20)	15	100	Water	85
6	GO–Cu (20)	08	100	—	60
7	GO–Cu (20)	08	100	Toluene	84
8	GO–Cu (20)	08	110	Toluene	84
9	GO–Cu (20)	08	100	THF	62
10	GO–Cu (20)	08	70	THF	58
11	GO–Cu (20)	08	100	DMF	50
12	GO–Cu (20)	08	100	DMSO	45

---

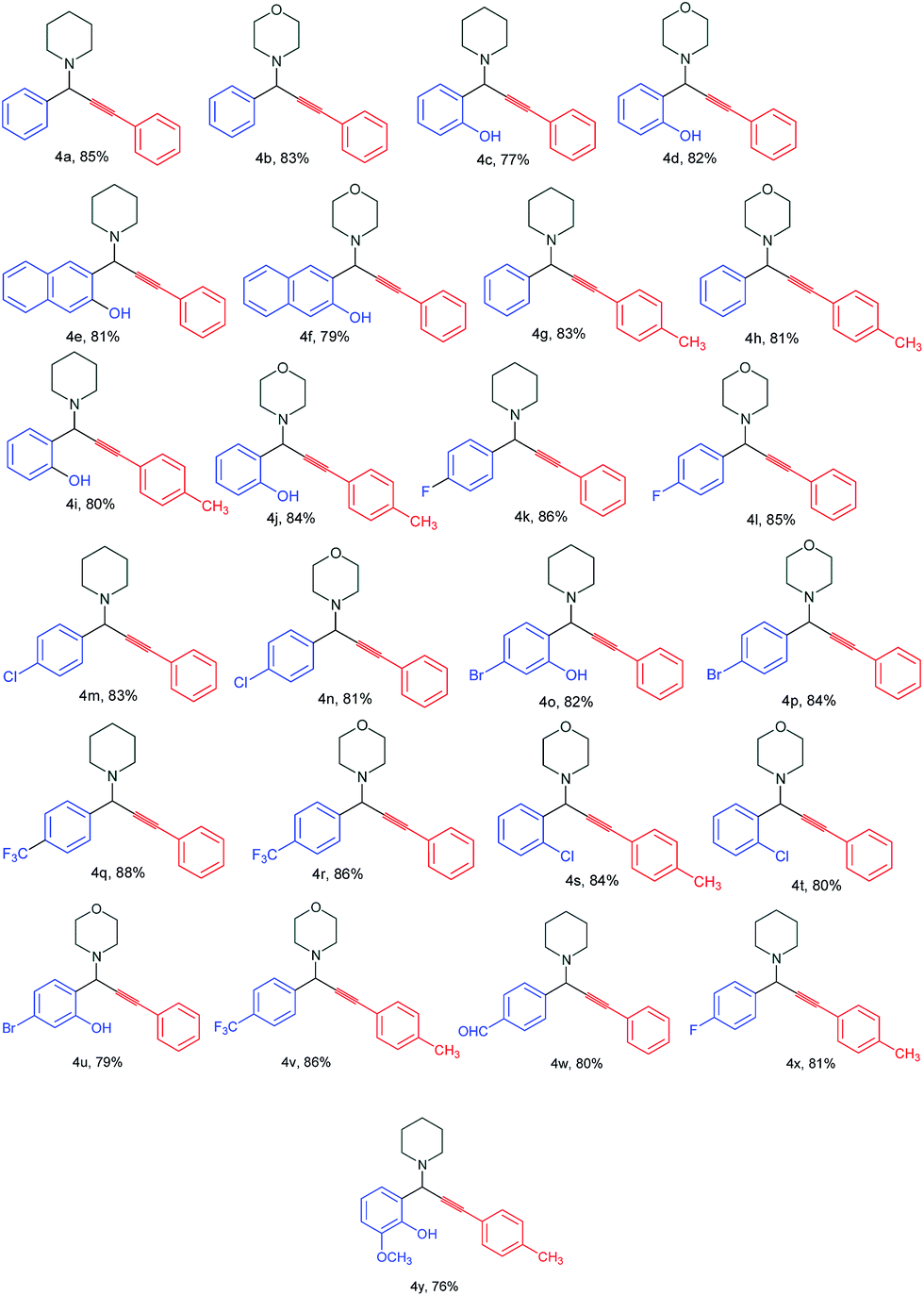

Table 2 Synthesis of propargylamines from of aldehydes, amines, and alkynes catalyzed by GO–Cu

---

The coupling proceeded smoothly with secondary amines such as morpholine and piperidine to afford the corresponding propargylamines in good yields under standard conditions, and it was found that piperidine gave better results in term of yields and reaction time than morpholine. The products were obtained as yellowish oil and fully characterized by IR and ¹H NMR. Furthermore, the catalyst (GO–Cu) was compared with previously reported catalysts for the synthesis of propargylamines in terms of TON and TOF (Table 3). Our catalyst (0.58 mol%, based on Cu) gave better TON (146) and TOF (18.3) in the reaction. Furthermore, the catalyst was tested for recyclability up to six times. It is apparent from (S6†) that the GO–Cu catalyst could be reused up to four cycles without loss of catalytic activity. However, gradual decline in the catalytic activity of GO–Cu was noted after 5th cycle. A plausible mechanism for the synthesis of propargylamines using GO–Cu complex is proposed in Scheme 3. Based upon the earlier reports,^2a it is suggested that the first step of the reaction involves the activation of the C–H bond of alkyne by Cu Schiff's base complex. The alkenyl–Cu Schiff's base complex intermediate thus formed reacted with the iminium ion generated in situ from aldehyde and secondary amines to give the corresponding propargylamines and regenerated the GO–Cu complex for further reaction.

Table 3 A comparative study of catalyst (GO–Cu) with previously reported catalysts in A³ coupling reaction in terms of TON and TOF

Entry	Catalyst	Metal (mol%)	Yield/conv. (%)	TON	TOF	Ref.
1	Au/IRMOF	Au (0.6)	98	112	9.3	26a
2	NAP–MgO	Au (—)	96	407	17	26b
3	AuCl	Au (5)	99	20	1.7	26c
4	AuBr3 (1)	Au (1)	100	100	8.3	26c
5	Au/ZrO2	Au (0.142)	93	668	111	26d
6	GO–Cu	Cu (0.58)	85	146	18.3	This work

---

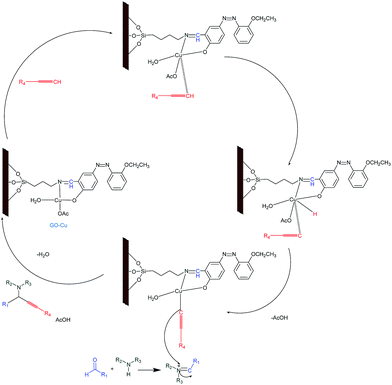

Scheme 3 Proposed reaction mechanism for the formation of propargylamines.

Conclusions

In summary, we have developed a new Cu(II) Schiff base complex immobilized onto graphene oxide and demonstrated its catalytic application in the green synthesis of propargylamines from aldehydes, alkynes and amines without using any base or co-catalyst in aqueous medium. The developed catalyst is very cheap, easily recovered at the end of the reaction, and recycled up to four times without significant loss in catalytic activity.
