Amalgamating 4′-substituted 4,2′:6′,4′′-terpyridine ligands with double-helical chains or ladder-like networks

Abstract

The reaction of five 4,2′:6′,4′′-terpyridine ligands containing diverse 4′-substituents with Hg(NCS)₂ by layering methods afforded crystals of five novel Hg^II-based coordination polymers (1–5) that have been structurally characterized by both powder and single-crystal X-ray diffraction analysis. Similar one-dimensional (ID) polymeric chains were observed in the structures of polymers 1–3 where Hg^II serves as a mononuclear node to link ligands in a linear mode. All 1D chains in these complexes form double-helical structures through significant inter-chain π-stacking interactions, whereas the packing modes were slightly different in the three compounds, resulting from the influence of 4′-substituents. It was interesting to note that the structures of isomorphic 4 and 5 are completely different from those in 1–3. In the former cases, 1D ladder-like architectures that are assembled through the bridging thiocyanate groups were revealed, while remaining the extra 4′-pyridyl units non-coordinated.

---

Introduction

4,2′:6′,4′′-Terpyridine (4,2′:6′,4′′-tpy) is a divergent ditopic N-donor ligand that has received increasing attention in the area of metallosupramolecular and coordination chemistry during the past fifteen years.^1–4 4′-Substituted 4,2′:6′,4′′-tpy derivatives mainly containing aryl groups have been extensively explored, owing to the facile one-pot synthesis that was developed recently and their versatility in coordination chemistry, as well as many intriguing properties.^5–12 A number of transition metals including Zn^II, Cd^II, Co^II, Cu^II, Ni^II, and Mn^II have been utilized to synthesize diverse metal coordination assemblies including discrete molecules, metallocycles, polycatenated metallocages, and one- to three-dimensional (1D to 3D) coordination polymers/frameworks, with the latter obviously remaining dominated.^5–12 The recent reviews by Housecroft documented concisely the recent progress in the coordination assemblies containing Zn^II, Cu^II and Cd^II metal centers, and discussed the role of both metal salts and the substituents in the 4′-position of 4,2′:6′,4′′-tpy in driving the selective formation of coordination polymers, metallomacrocycles, or cluster-containing polymers.^3,4

As a heavier element analogue of Zn^II and Cd^II, Hg^II is, however, not investigated for the coordination chemistry involving 4,2′:6′,4′′-tpy ligands. In contrast to Zn^II and Cd^II, Hg^II is a much softer metal and tends to form less predictable structures when coordinating to N-donor organic ligands.^13–22 The study on mercury(II)-derived coordination polymers is rather limited and known examples concerned mainly over some flexible pyridine-containing ligands,²³ although mercury(II) is quite attractive in fabricating hybrid materials that have found widespread applications in many fields such as energy-saving light bulbs, batteries, thermometers, manometers, and paper and paint industries, and so on.^24–26

In continuation with our recent efforts in exploring the remarkable substituent effects on the structures of the resulting metal assemblies of various 4,2′:6′,4′′-tpy and its structurally related ligands as well as their catalytic properties,^5–12,27 we were interested in studying the Hg^II-mediated coordination self-assembly and structural diversity of the corresponding metal–organic hybrid materials. It was known that switching from zinc(II) to cadmium(II) significantly changes the supramolecular or network structures of the resulting coordination assemblies with 4,2′:6′,4′′-tpys,^3,4 we expect that introducing mercury(II) as new metal nodes would produce interesting structural types distinct with those reported structures. Therefore, we herein report the first Hg^II coordination polymers based on five previously known 4,2′:6′,4′′-tpy ligands (L1–5, Scheme 1). Structural diversity in five mercury(II) coordination polymers resulting from small differences of the 4′-substituents in 4,2′:6′,4′′-tpy is revealed.

Scheme 1 The molecular structures of ligands L1–L5 studied in this work.

Experimental section

General

Solvents and reagents were purchased from Fisher or Sigma-Aldrich in the US. All reactions were performed under ambient conditions. Solution electronic absorption spectra were recorded on a Shimadzu UV-1800 spectrophotometer, and FT-IR spectra using a Shimadzu 8400S instrument with solid samples using a Golden Gate ATR accessory. Elemental Analyses were performed by Midwest Microlab LLC in Indianapolis. Powder X-ray diffraction (PXRD) was performed with a Bruker D8 Discover microdiffractometer with the General Area Detector Diffraction System (GADDS) equipped with a VÅNTEC-2000 2D detector. The X-ray beam was monochromated with a graphite crystal (λ Cu-Kα = 1.54178 Å) and collimated with a 0.5 mm capillary (MONOCAP). The integrated 1D pattern was analyzed by the software DIFFRAC^plus EVA.²⁸ The simulated powder pattern was calculated by the software Mercury v. 2.4.²⁹ Ligands L1–L5 were synthesized according to previously published procedures.⁹

[{Hg(L1)(NCS)₂}_n] (1). A solution of L1 (30.9 mg, 0.100 mmol) in MeOH/CH₂Cl₂ (10 cm³, 1 : 4, v/v) was placed in a long test tube. A mixture of MeOH and CH₂Cl₂ (5 cm³, 1 : 1, v/v) was layered on the top of this solution, followed by a solution of Hg(NCS)₂ (31.8 mg, 0.100 mmol) in MeOH (10 cm³). The tube was sealed and allowed to stand at room temperature for two weeks, during which time X-ray quality colorless crystals of 1 grew on the bottom of the tube. The crystals were collected by decanting the solvent, washed with MeOH and dried in air. Yield: 50.9 mg (81.3%). FT-IR (solid, cm⁻¹) 3057w, 2121s, 1605s, 1595s, 1558m, 1496w, 1437m, 1403m, 1321w, 1217m, 1060s, 1024s, 900w, 841s, 766s, 747m, 730s, 663s, 643s, 615m. Anal. calcd for C₂₃H₁₅HgN₅S₂: C 44.12, H 2.41, N 11.19%. Found C 44.47, H 2.46, N 11.09%.

[{Hg(L2)(NCS)₂}_n] (2). The synthetic procedure is similar to that for 1, except that the ligand L2 (35.2 mg, 0.100 mmol) was used. Orange blocks of 2 were obtained after a week. Yield: 67.0 mg (87.3%). FT-IR (solid, cm⁻¹) 2126s, 1607s, 1599s, 1527s, 1500m, 1441w, 1407s, 1359s, 1216s, 1168m, 1061m, 1015s, 946m, 818s, 729m, 671m, 645s. Anal. calcd for C₂₂H₂₀HgN₆S₂: C 41.73, H 3.18, N 13.27%. Found C 41.65, H 2.99, N 13.04%.

[{Hg(L3)(NCS)₂}_n] (3). The synthetic procedure is similar to that for 1, except that the ligand L3 (35.3 mg, 0.100 mmol) was used. Yellow blocks of 2 were obtained after a week. The solid materials appear to be very hydroscopic in the air. Yield: 55.6 mg (82.9%). FT-IR (solid, cm⁻¹) 2124s, 1596s, 1558w, 1538w, 1497s, 1447m, 1413m, 1352w, 1247s, 1218s, 1116w, 1061m, 1036 s, 1014m, 930w, 913w, 831 s, 812 s, 789m, 700s, 683m, 641s. Anal. calcd for C₂₂H₁₄HgN₆S₂: C 42.14, H 2.25, N 13.40%. Found C 42.36, H 2.13, N 13.34%.

[{Hg(L2)(NCS)₂}_n] (4). The synthetic procedure is similar to that for 1, except that the ligand L4 (31.0 mg, 0.100 mmol) was used. Colorless blocks of 4 were obtained after three weeks. The solid materials appear to be very hydroscopic in the air. Yield: 45.6 mg (72.6%). FT-IR (solid, cm⁻¹) 2113s, 1592s, 1558s, 1540m, 1507m, 1473w, 1396m, 1217m, 1063m, 1003w, 815s, 680s, 669s, 631m, 617s, 518s. Anal. calcd for C₂₂H₁₄HgN₆S₂: C 42.14, H 2.25, N 13.40%. Found C 41.88, H 2.12, N 13.32%.

[{Hg(L5)(NCS)₂}_n] (5). The synthetic procedure is similar to that for 1, except that the ligand L5 (31.0 mg, 0.100 mmol) was used. Colorless blocks of 5 were obtained after two weeks. The solid materials appear to be very hydroscopic in the air. Yield: 48.5 mg (77.2%). FT-IR (solid, cm⁻¹) 2111s, 1599s, 1556m, 1539m, 1467w, 1441w, 1398m, 1213m, 1062m, 1001w, 837s, 782s, 635s. Anal. calcd for C₂₂H₁₄HgN₆S₂: C 42.14, H 2.25, N 13.40%. Found C 42.28, H 2.42, N 13.32%.

Crystal structure determinations

Suitable crystals of 1–5 were mounted on Cryoloops with Paratone-N oil. Data were collected at 100 K with a Bruker APEX II CCD using Mo-Kα radiation and corrected for absorption with SADABS and structures solved by direct methods. For structure 5, large residual electron densities of 3.63 e and 1.90 e noted within 0.91 and 0.94 Å, respectively, of mercury atom Hg1 were attributed in part to the empirical absorption correction used. All non-hydrogen atoms were refined anisotropically by full-matrix least squares on F². Hydrogen atoms were found from Fourier difference maps and refined isotropically, otherwise they were placed in calculated positions with appropriate riding parameters. Refinement details are summarized in Table 1. CCDC no. 1017551 and 1413156–1413159 contain the supplementary crystallographic data for this paper.

Table 1 Crystallographic data and structure refinement for compounds 1–5

a R1 = (Fo − Fc)/Fo.b wR2 = [w(Fo^2 − Fc^2)^2/w(Fo)^2]^1/2.
Compound	1	2	3	4	5
Formula	C23H15HgN5S2	C22.50H20.50ClHgN6S2	C24H15HgN5O2S2	C22H14HgN6S2	C22H13HgN6S2
Formula weight	626.11	711.14	670.12	627.10	626.09
Crystal system	Monoclinic	Monoclinic	Monoclinic	Monoclinic	Monoclinic
Space group	C2/c	C2/c	P2(1)/n	P2(1)/m	P2(1)/m
a/Å	31.4424(10)	28.2486(17)	14.4085(4)	7.195(3)	7.3024(13)
b/Å	7.9438(3)	8.1596(3)	14.5536(5)	27.428(9)	26.158(5)
c/Å	20.5260(6)	22.5028(11)	22.9421(7)	10.889(4)	11.2559(15)
α/°	90	90	90	90	90
β/°	124.2599(5)	99.253(2)	99.9220(10)	107.890(7)	108.694(10)
γ/°	90	90	90	90	90
U/Å^3	4237.3(2)	5119.3(4)	4738.9(3)	2045.1(12)	2036.7 (6)
Dc/mg m^−3	1.963	1.845	1.879	2.037	2.042
Z	8	4	8	4	4
μ/mm^−1	15.044	6.308	13.569	7.754	7.786
T/K	200(2)	100(2)	200(2)	100(2)	100(2)
Reflections/unique	18 485/4139	24 670/5784	23 666/8439	18 802/4220	14 381/3951
Parameters	280	321	623	292	274
R1^a, wR2^b [I > 2σ(I)]	0.0346, 0.0954	0.0233, 0.0715	0.0554, 0.1270	0.0579, 0.1307	0.0743, 0.1396
R1^a, wR2^b (all data)	0.0351, 0.0960	0.0268, 0.0742	0.0672, 0.1355	0.0755, 0.1391	0.1000, 0.1470
GOF	1.095	1.005	1.081	1.095	1.263

---

Results and discussion

Synthesis and characterization

Ligands L1–L5 containing various substituents were prepared according to the literature procedure by one-pot Kröhnke condensations between 4-acetylpyridine and the corresponding aromatic aldehydes.⁸ Their molecular structures as illustrated in Scheme 1. The solution reaction of ligands with Hg(NCS)₂ in CH₂Cl₂–MeOH gave immediately precipitates that are insoluble in common solvent, preventing from further characterization. Instead, a layering diffusion method was utilized to produce good-quality crystals of compounds 1–5 that were suitable X-ray structural analysis. Specifically, slow diffusion between two layers of solutions containing Hg(NCS)₂ and the ligand using a CH₂Cl₂–MeOH solvent system led to the formation of crystals in one to three weeks. The synthetic details will be described below. It was noticed that the crystals of compounds 2 and 3 appeared to be orange and yellow in colour, respectively, while those of other compounds were colourless. This is probably owing to the existence of strongly electron-donating substituents in the corresponding ligands L2 and L3. The bulk samples of 1–5 are insoluble in both common organic solvents and water. All the compounds were characterized by FT-IR spectroscopy and elemental analysis, and structurally determined by X-ray crystallography. Powder X-ray diffraction (PXRD) data were recorded to confirm the phase purity of the bulk crystalline samples and the results indicated that the PXRD patterns of all samples matched with those simulated from single crystal X-ray diffraction data, indicating that samples 1–5 are all in good purity as a single phase. The crystal refinement results for 1–5 are summarized in Table 1.

1-D polymeric chains in 1–3

Layering a solution of Hg(NCS)₂ in MeOH onto the top of a solution of L1 in a CH₂Cl₂–MeOH solution with a Hg : ligand ratio of 1 : 1, separated with a blank solvent layer afforded colourless crystals of 1 after two weeks. Elemental analysis revealed the bulk crystalline sample as a component with the empirical formula of Hg(L1)(NCS)₂, in which the existence of NCS⁻ group was evidenced by a strong IR absorption at 2121 cm⁻¹. Single-crystal X-ray structural analysis confirmed unambiguously the formation of polymeric complex [Hg(L1)(NCS)₂]_n (1). 1 crystallizes in the monoclinic space group C2/c, and the asymmetric unit contains one independent Hg atom and one ligand molecule. An ORTEP representation of the repeating structural unit in 1 is shown in Fig. 1a and relevant bond parameters are given in the caption. Hg atom is four-coordinate with two S_SCN atoms and two nitrogen atoms from the outer pyridines of two symmetrically related ligands, adopting a distorted tetrahedral geometry. All bond lengths and angles are unexceptional and close to those reported for similar Hg(NCS)₂ complexes of N-ligands.^19–23 The tpy domain of L1 in 1 is not well planar and the torsion angles between the least square planes of pairs of adjacent pyridine rings are 18.56 and 2.03°, respectively, yet it is even more distorted between the planes of the phenyl group and central pyridine ring with a dihedral angle of 22.83°. Each ligand binds to two symmetrically related Hg centers with its outer pyridine N atoms, remaining the central pyridine uncoordinated. This is in agreement with all previously reported examples of coordination polymers involving 4,2′:6′,4′′-tpy.^1–12

Fig. 1 (a) The repeating unit of the polymeric chain in 1 with ellipsoids plotted at the 50% probability level, and H atoms omitted for clarity. Selected bond parameters: Hg1–N1 = 2.308(3), Hg1–N3ⁱ = 2.362(3), Hg1–S1 = 2.4556(10), Hg1–S2 = 2.4730(11) Å; N1–Hg1–N3ⁱ = 108.25(12), S1–Hg1–S2 = 126.63(4), N1–Hg1–S1 = 111.11(9), N3ⁱ–Hg1–S1 = 104.03(9), N1–Hg1–S2 = 102.64(8), N3ⁱ–Hg1–S2 = 102.99(8)°. Symmetry code: i = −x + 1/2, −y + 1/2, z − 1/2. (b) Part of the 1D monolayered coordination polymer found in 1. The alternate structural units generated by symmetry operation are shown in pink and grey, respectively. (c) A side-view of the 1-D polymeric chain showing a butterfly-like structure. (d) Space-filling representation of the double-helix-like packing of two polymeric chains in 1. The two entangled chains are illustrated in blue and green, respectively.

Propagation of the structure in Fig. 1a along the crystallographic a-axis leads to a one-dimensional infinite polymeric chain as shown in Fig. 1b. The ligands arrange in an alternate mode around the Hg atoms and the distance between two adjacent Hg centers is 13.105 Å. In addition, the distance of two alternating Hg centers is 26.140 Å. A side-view of the chain shows that the adjacent ligand molecules lie in the same side of Hg centers with a dihedral angle of approximately 60° between central pyridine ring planes of the ligands (Fig. 1c), resulting in a butterfly-like structure in which the aligned ligands look like two wings. Although 1-D polymeric chain containing 4,2′:6′,4′′-tpy linkers and metal nodes has been frequently found in structures of Zn(OAc)₂ assemblies of 4′-substituted 4,2′:6′,4′′-tpys including L1 and the zig–zag chain-like arrangement of ligands was most popular,⁸ the 1-D chain in 1 is essentially different. More interestingly, it was noticed that in the extended molecular packing mode two adjacent 1-D chains are twisted with respect to one another through effective π-stacking interactions between the tpy domains to form a double-helix structure (Fig. 1d). Specifically, the interchain π-stacking results from the head-to-tail arrangement of the closest tpy moieties of two chains and the central pyridine rings of two packing tpy domains are largely displaced. While the centroid…centroid distance of central pyridines is 4.891 Å, the interatomic distance for π⋯π interactions is as short as 3.212 Å, indicating very strong intermolecular forces. It is worth mentioning that such double-stranded helical packing of 1-D polymeric chains was not observed in any known transition metal assemblies of 4,2′:6′,4′′-tpys.^3,4

Next, the 4,2′:6′,4′′-tpy with a 4,4′-diaminophenyl substituent (L2) was examined for the reaction with Hg(NCS)₂ (metal–ligand ratio = 1 : 1). By using the layering method block-like organge crystals of 2 was obtained in one week under the same conditions. X-ray structural analysis was then conducted to reveal the molecular structure of 2. Similar to 1, 2 also crystallizes in the monoclinic space group C2/c, and the asymmetric unit contains one independent Hg atom and one ligand molecule. However, one dichloromethane molecule was found to co-crystallize in the asymmetric unit of 2, which tends to depart from the crystal upon exposing the bulk crystals to the air, as supported by the elemental analysis data of air-dried crystals. Three outer aromatic rings of L2 in 2 are slightly distorted out of the plane of the central pyridine ring, with tortion angles being in the range of 6.70–19.10°. The Hg centers in 2 also adopt similar coordination environment as in 1. Each Hg atom coordinates to two N_pyridine atoms from two symmetrically related ligands and two S_SCN atoms. However, the bond parameters around the Hg center are distinct. Except that one of the Hg–N bonds in 2 is slightly longer than that in 1, the bond angles are remarkably different. In 2 the N–Hg–N angle is much smaller than that in 1 (91.49(7)° vs. 108.25(12)°), and accordingly the S–Hg–S angle is larger (148.23(9)° vs. 126.63(4)°). Consequently, expansion of the repeating units in 2 forms an infinite zig–zag chain that is different from that of 1 (Fig. 2b). Although the distance between two adjacent Hg centers is almost identical to the relevant length in 1 (Hg1⋯Hg1ⁱ = 13.321 Å), the distance of two alternating Hg centers is 22.503 Å, significantly longer than that for 1. This should be attributed to more bent arrangement of the ligands around Hg centers. Further inspection of the packing mode in 2 leads to the observation of a similar double-helix structure that was discussed for 1 (Fig. 1d and 2c). Again, the helical structure was formed through significant π-stacking interactions between the aromatic regions of the ligand. Except for the tpy domains, the N,N-dimethylaminophenyl moieties also participate in interchain π⋯π packing event, and the shortest interatomic distance for this contact is 3.331 Å.

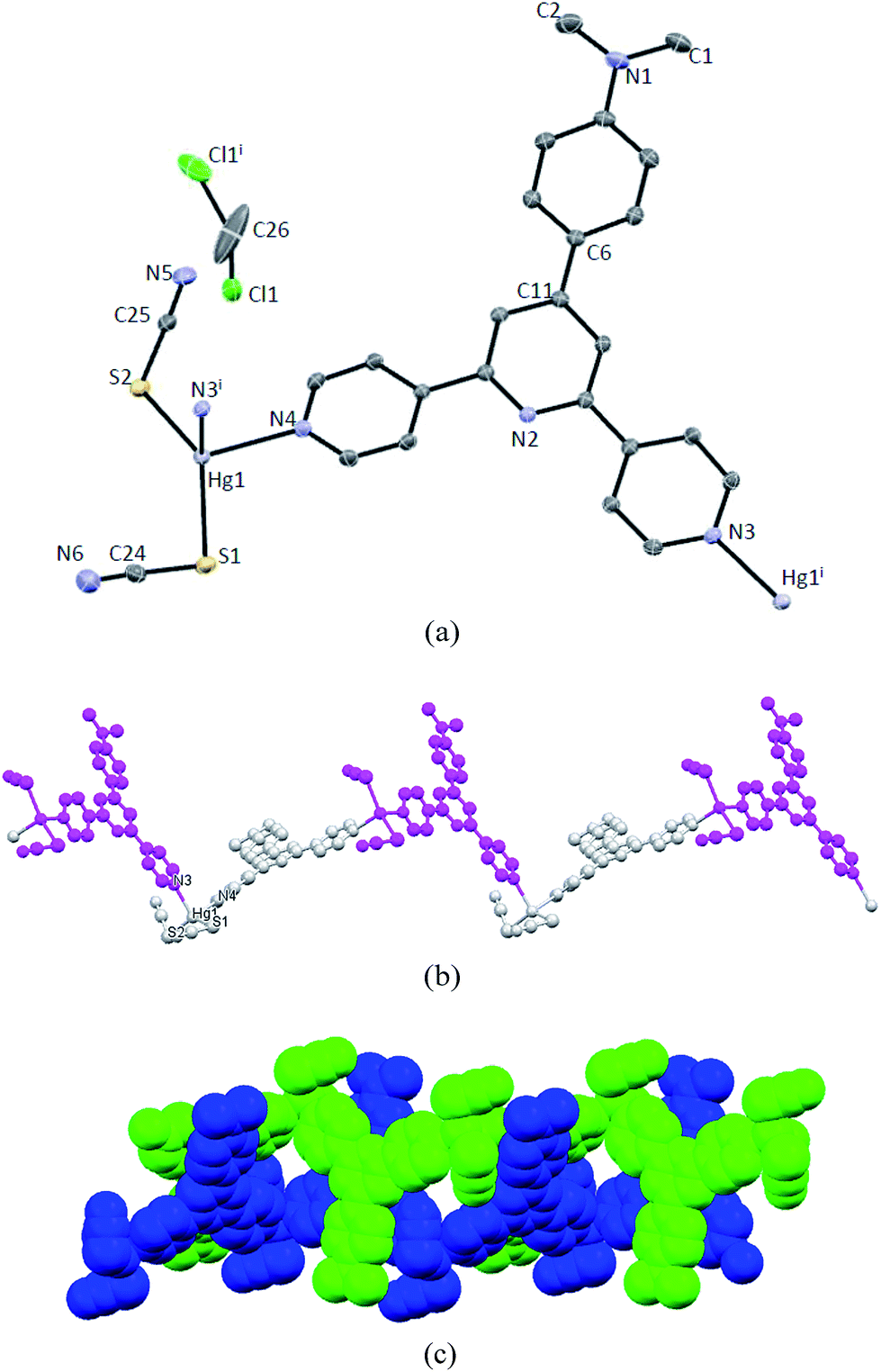

Fig. 2 (a) The repeating unit of the polymeric chain in 2 with ellipsoids plotted at the 50% probability level, and H atoms omitted for clarity. Selected bond parameters: Hg1–N4 = 2.348(2), Hg1–N3ⁱ = 2.369(2), Hg1–S1 = 2.4289(7), Hg1–N4 = 2.4477(7) Å; S1–Hg1–S2 = 148.23(9), S2–Hg1–N4 = 95.3(2), S1–Hg1–N4 = 97.7(2), S1–Hg1–N7ⁱ = 135.07(3), N4–Hg1–N3ⁱ = 91.49(7), N4–Hg1–S1 = 104.27(6), S1–Hg1–N3ⁱ = 108.77(6), N4–Hg1–S2 = 106.54(6), N3ⁱ–Hg1–S2 = 102.31(6)°. Symmetry code: i = x, −y, z − 1/2. (b) Part of the 1D monolayered zig–zag chain found in 2. The alternate structural units generated by symmetry operation are shown in pink and grey, respectively. (c) Space-filling representation of the double-helix-like packing of two polymeric chains in 2. The two entangled chains are illustrated in blue and green, respectively.

The same procedure was applied to the synthesis of Hg(NCS)₂ complex with ligand L3, and yellow crystals of 3 were collected after one week. X-ray studies on one of the good-quality crystals reveal that 3 crystallizes in the monoclinic space group P2(1)/n and is composed of two independent ligands and Hg centers in the asymmetric unit (Fig. 3a). 3 is remarkably distinct from 1 and 2 with regard to the cell parameters, although in 3 each Hg atom coordinates to two ligands and two thiocyanate ions again and adopts a distorted tetradedral geometry. All bond parameters around Hg centers are unexceptional and close to those in 2, and the N–Hg–N angles are 93.9(3)° and 96.3(3)°, respectively. The ligand molecules in 3 are almost co-planar except one outer-pyridine ring (pyridine containing N5 or N11) deviated from the plane by 19.14°. Two independent ligand molecules are aligned in parallel through intermolecular π-stacking between their central pyridine domains and the shortest interatomic distance is 3.396 Å. Like the extended structures in 1 and 2, 3 also features 1-D polymeric structures and two independent chains are developed via the expansion of ligands around Hg1 and Hg2 centers (Fig. 3b), and the chains are interwoven through the interchain π-stacking to form a double-helix chain as shown in Fig. 3c. The separations between adjacent Hg centers for two chain are 12.901 and 12.978 Å, respectively, while the distances of alternating Hg atoms are both 24.900 Å, which falls into approximately the middle of relevant values in 1 and 2. Although the double-helix structure present in 3 involves only π-stacking between central pyridine rings of ligands from independent chains, the 3-D packing in the crystal also shows significant π⋯π interactions between double helixes resulting from the aromatic overlapping between one of outer pyridines and the phenyl ring (Fig. 3d).

Fig. 3 (a) Two independent parts of the polymeric chains in 3 with ellipsoids plotted at the 50% probability level, and H atoms omitted for clarity. Selected bond parameters: Hg1–S1 = 2.418(3), Hg1–S2 = 2.445(3), Hg1–N3 = 2.390(8), Hg1–N5ⁱ = 2.362(8), Hg2–S3 = 2.436(3), Hg2–S4 = 2.427(3), Hg2–N9 = 2.360(8), Hg2–N11ⁱ = 2.401(8) Å; S1–Hg1–S2 = 138.59(13), S2–Hg1–N3 = 98.5(2), S1–Hg1–N3 = 110.1(2), S1–Hg1–N5ⁱ = 100.5(2), S2–Hg1–N3 = 98.5(2), S2–Hg1–N5ⁱ = 105.5(2), N3–Hg1–N5ⁱ = 96.3(3), S3–Hg2–S4 = 142.03(11), S3–Hg2–N9 = 104.5(2), S3–Hg2–N11ⁱ = 103.5(2), S4–Hg2–N11ⁱ = 99.3(2), S4–Hg2–N9 = 103.8(2), N9–Hg2–N11ⁱ = 93.9(3)°. Symmetry code: i = x − 1/2, −y − 1/2, z − 1/2. (b) Part of one polymeric chain in 2. The alternate structural units generated by symmetry operation are shown in pink and grey, respectively. (c) Space-filling representation of the double-helix packing of two independent polymeric chains found in 3. (d) The 3-D packing mode found in 3. The two entangled chains are illustrated in blue and green, respectively.

The common feature observed in the structures of 1–3 is that each Hg(II) center adopts a four-coordinate environment with a distorted tetrahedral geometry and links two ligand molecules to form infinite zig–zag chains, although different 4′-substituents in the 4,2′:6′,4′′-tpy backbone slightly affect the inter-chain interactions by altering the π-stacking. Previously, a plethora of 1-D Hg(II) coordination polymers have been reported,^18–22 where flexible ditopic pyridine-containing were popularly employed. However, the entanglement of 1-D chains into helical networks was not found in these examples. The finding of novel double helical networks in 1–3 is thus remarkable. We attribute this to the existence of both the rigid 4,2′:6′,4′′-tpy backbone and aromatic 4′-substituents in the ligands which resulted in the occurrence of significant π-stacking between infinite zig–zag chains.

Bilayered polymeric chains in 4 and 5

On going from ditopic ligands L1–3 to L4 which contains an extra 4-pyridyl coordination unit in the 4′-position of 4,2′:6′,4′′-tpy, we expected to add an additional dimension to the 1-D chains in 1–3 through a possible divergent tridentate coordination to Hg^II, as both polycatenated and double-walled cage frameworks have been previously reported in L4/ZnX₂ (X = Cl, I) assemblies and Co^II or Ni^II networks involving M₇F₁₂²⁺ (M = Co, Ni) cores.^7,30

Similarly, the layering reaction of solutions of Hg(NCS)₂ with L4 in CH₂Cl₂–MeOH afforded colourless crystals of 4 in three weeks. X-ray structural determination revealed that this is a 1-D bilayered coordination polymer, distinct remarkably from those found in 1–3. 4 crystallizes in the monoclinic space group P2(1)/m. The repeating structural unit is shown in Fig. 4a and relevant bond parameters around the Hg^II centers listed in the caption. Each Hg center is five-coordinate with two outer pyridine-N atoms of two distinct ligands and the S and N atoms from three thiocyanate groups, with one of which being generated by symmetry operation (code: −x + 1, −y + 1, −z + 2). The Hg–N_pyridine distances are 2.569(9) and 2.503(9) Å, respectively, significantly longer than those relevant Hg–N bonds in 1–3, while the Hg–N_NCS distance is 2.481(9) Å. Unexpectedly, in 4 each ligand binds to the Hg center with two of its terminal pyridine rings and the extra pyridine ring in the 4′-position is found to be uncoordinated. The observation of the bidentate coordinating mode of L4 here is clearly different from that in most of known metal assemblies with this ligand.^7,30 However, this is not unusual, as we have reported a 1-D zig–zag chain in Zn₂(L4)(OAc)₄, where the 4′-(4-pyridyl) group of 4,2′:6′,4′′-tpy remained non-bound.⁸ Despite the non-coordinating nature of the 4′-substituent in L4, the 4′-(4-pyridyl) group seems to play an important role in altering the coordination patterns around Hg centers and hence the resulting coordination networks. In 4, the ligands act as bidentate linear linkers to extend the NCS-bridging Hg^II centres to form a bilayered ladder-like structure with chains running along the crystallographic b-axis (Fig. 4b). The separation between the bridged Hg^II atoms is 5.603 Å, while the distance between adjacent Hg centers around the same ligand molecule is 14.013 Å. In the ligand, the outer pyridines of tpy region are distorted out of the central pyridine plane by 16.99° and 17.23°, respectively, whereas the 4′-pyridine ring is well co-planar with the center pyridine. Interestingly, ligand molecules besides bridged Hg centers within the ladder-like chain pack closely in a head-to-head fashion via significant π-stacking interactions (the shortest carbon⋯centroid distance between the terminal and central pyridine rings of the two layers is 3.293 Å). Furthermore, packing of the ladder-like chains along the crystallographic c-axis leads to an 2-D arrangement through effective π-stacking between the 4′-(4-pyridyl) and central pyridyl rings (Fig. 4c). Similar layered ladder-like polymeric chains have been observed in coordination assemblies including bilayered, trilayered or even multilayered polymeric chains with several 4′-substituted 4,2′:6′,4′′-tpy ligands as linkers, where a variety of metal cluster nodes such as {Zn₂(OAc)₄}, {Cd₂(OAc)₄}, {Mn₃(OAc)₆}, {Zn₅(OAc)₁₀} and {Zn₇(μ-OAc)₁₀(μ₄-O)₂} were found.^10–12 However, all these structures are composed of acetate anions as bridging ligands, and ligand L4 were unexplored in those reports. Therefore, the use of {Hg₂(NCS)₄} cluster as a bridging node in 4 opens a new pathway to assemble novel layered coordination networks with ligands of this type.

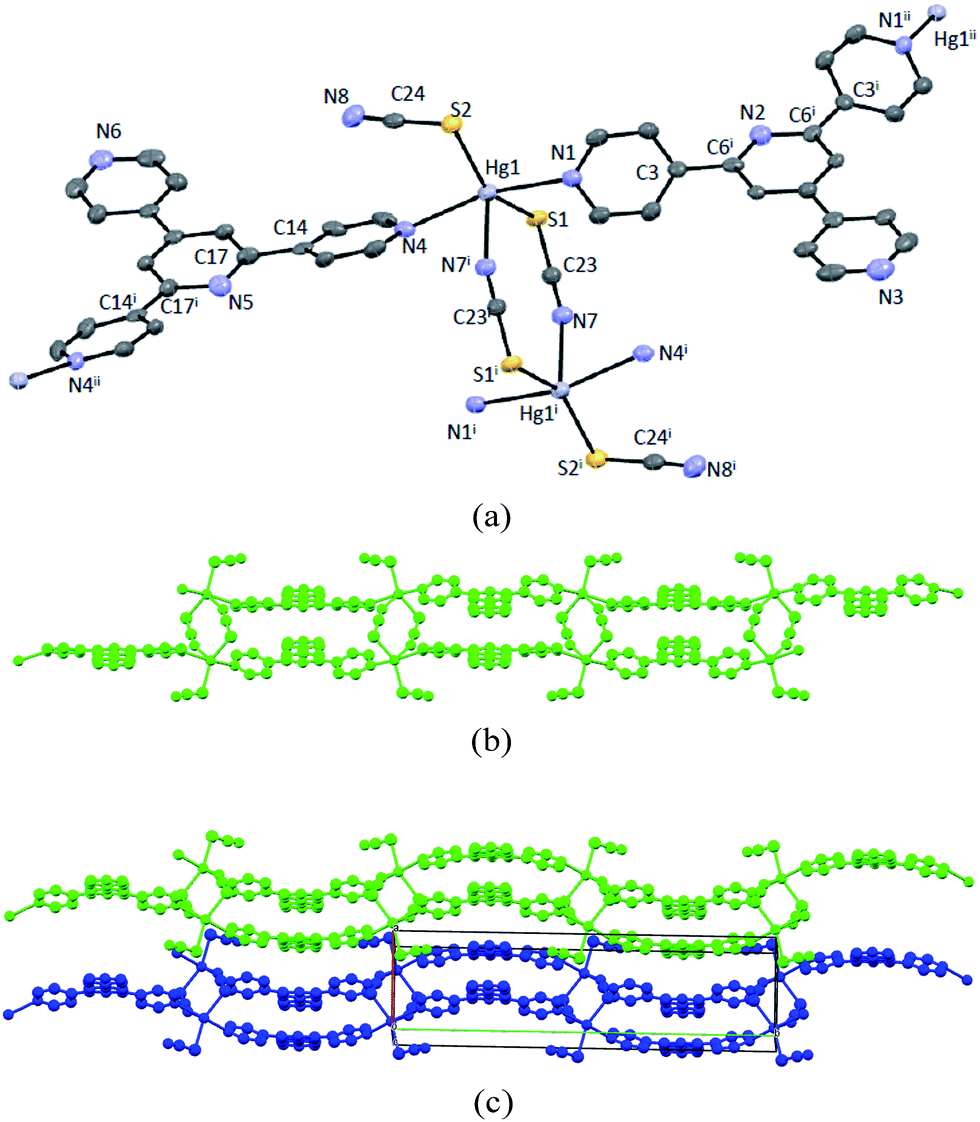

Fig. 4 (a) A part of the polymeric chain in 4 with ellipsoids plotted at the 40% probability level, and H atoms omitted for clarity. Selected bond parameters: Hg1–S1 = 2.478(3), Hg1–S2 = 2.451(3), Hg1–N1 = 2.569(9), Hg1–N4 = 2.503(9), Hg1–N7ⁱ = 2.481(9) Å; S1–Hg1–S2 = 148.23(9), S2–Hg1–N4 = 95.3(2), S1–Hg1–N4 = 97.7(2), S1–Hg1–N7ⁱ = 105.9(2), S2–Hg1–N7ⁱ = 104.9(2), N1–Hg1–N4 = 161.7(3), N4–Hg1–N7ⁱ = 80.1(3), S2–Hg1–N1 = 88.6(2), S1–Hg1–N1 = 88.1(2), N1–Hg1–N7ⁱ = 81.6(3)°. Symmetry code: i = −x + 1, −y + 1, −z + 2. (b) Part of the bilayered ladder-like coordination polymeric chain found in 4 is shown in green colour. (c) The packing mode of two ladder-like chains which are illustrated in green and blue, respectively.

To further investigate the role of 4′-(4-pyridyl) group in determining the coordinating mode of the resulting Hg assemblies, we switched the 4′-substituent to a 4′-(2-pyridyl) group and accordingly ligand L5 was utilized for the same reaction. In contrast, L5 is anticipated to behave as a ditopic ligand similar to L1–3, as the 2-pyridyl group in the 4′-position of 4,2′:6′,4′′-tpy is believed to be inert to metal coordination due to large steric hindrance. Thus, the same layering reaction was conducted and X-ray quality crystals of 5 were harvested after two weeks. 5 was found to be isomorphous to 4 and the structural analysis revealed a similar bilayered ladder-like structure (Fig. 5a and b), although some of bond parameters are slightly different from those of 4. In 5, the 4′-(2-pyridyl) group is almost co-planar with the central pyridine ring and not bound to any metal center as expected, yet participate in π-stacking interactions within the ladders. It is interesting to note that although the non-coordinated 4′-(4-pyridyl) groups in L1 and L5 are structurally similar to the phenyl group in L1, the corresponding Hg(NCS)₂ assemblies are essentially different. It is very possible that the co-planarity between the 4′-substituent and central pyridine has driven to generate the bilayered structure in 4 and 5 through the formation of interlayer head-to-head π-stacking which is absent in 1–3, although other factors including electronic and steric effects can not be excluded.

Fig. 5 (a) A part of the polymeric chain in 5 with ellipsoids plotted at the 40% probability level, and H atoms omitted for clarity. Selected bond parameters: Hg1–S1 = 2.447(4), Hg1–S2 = 2.457(3), Hg1–N4 = 2.478(11), Hg1–N2ⁱ = 2.493(12), Hg1–N3 = 2.612(11) Å; S1–Hg1–S2 = 150.44(13), S2–Hg1–N4 = 99.0(3), S1–Hg1–N4 = 95.8(3), S1–Hg1–N2ⁱ = 102.5(3), S2–Hg1–N2ⁱ = 105.2(3), N4–Hg1–N2ⁱ = 79.9(4), S1–Hg1–N3 = 85.4(3), S2–Hg1–N3 = 88.5(3), N4–Hg1–N3 = 161.5(4), N3–Hg1–N2ⁱ = 81.8(4)°. Symmetry code: i = −x, −y, −z. (b) Part of the bilayered ladder-like coordination chain in 5 that is shown in green.

Conclusions

In conclusion, five new Hg^II(NCS)₂-based coordination polymers from the known 4,2′:6′,4′′-tpy ligands with various 4′-substituents have been prepared and characterized by X-ray structural analyses. Single-crystal structures of compounds 1–5 revealed the important influence of different 4′-substituents in 4,2′:6′,4′′-tpy on the structures of the resulting Hg^II assemblies. Whereas similar 1-D polymer chain was observed in the structures of 1–3, slight differences on both the chains and the packing modes between chains led to distinct helical structures, owing to the existence of differing 4′-substituents. However, polymers 4 and 5 assembled from ligands containing additional N-binding sites in the 4′-position of 4,2′:6′,4′′-tpy adopt totally new bilayered ladder-like structures formed through the bridging thiocyanate groups, despite the N-donor remain uncoordinated in the metal assemblies. The results represent the first examples of mercury(II) complexes derived from 4,2′:6′,4′′-tpy ligands, further expanding the transition metal chemistry of 4,2′:6′,4′′-tpys.
