Bis-ammonium immobilized polystyrenes with co-catalyzing functional end groups as efficient and reusable heterogeneous catalysts for synthesis of cyclic carbonate from CO2 and epoxides

Qingyuan Denga, Gaohong Heab, Yu Pana, Xuehua Ruana, Wenji Zhenga and Xiaoming Yan*a
aState Key Laboratory of Fine Chemicals, School of Petroleum and Chemical Engineering, Dalian University of Technology, Panjin, LN 124221, China. E-mail: yanxiaoming@dlut.edu.cn; Fax: +86-0427-2631803; Tel: +86-0427-2631803
bResearch and Development Center of Membrane Science and Technology, School of Chemical Engineering, Dalian University of Technology, Dalian, LN 116024, China

Received 11th November 2015 , Accepted 20th December 2015

First published on 22nd December 2015


Abstract

A series of novel bis-ammonium ionic liquid immobilized polystyrene (BisAm-i-PS) heterogeneous catalysts with co-catalyzing functional end groups of –CH2COOH, –CH2CH2OH, and –CH2CH2NH2 were synthesized for the cycloaddition reaction of CO2 and epoxides without any additional co-catalyst and organic solvent. All the ammonium immobilized catalysts showed high selectivity. Bis-ammonium immobilized catalysts were more efficient than single-ammonium ones. The yield was further increased by introducing the functional end groups. Both –CH2COOH and –CH2CH2OH terminated BisAm-i-PS catalysts achieved high activities (yield: >99%), while the –NH2 terminated one had a slightly lower activity (yield: 97.3%) under the same reaction conditions. The effects of different parameters, such as the halide anions of the catalysts, reaction temperature, initial pressure and reaction time were also investigated with –CH2CH2OH terminated BisAm-i-PS (BisAm-OH-i-PS) as the catalyst. Under optimal reaction conditions (1.2 MPa, 130 °C and 2.5 h), BisAm-OH-i-PSs with 2Br and 2I showed very high efficiencies. For each of them, propylene carbonate selectivity and yield were more than 99% and 99%, respectively. In addition, the catalyst possessed good stability, and both catalytic activity and selectivity were always more than 99% for 5 times of recycle tests.


Introduction

Carbon dioxide has been considered as a renewable carbon resource, which has the advantages of abundant reserves, nontoxicity and low cost.1 One of the most promising ways to utilize CO2 is its fixation to generate commodity chemicals such as cyclic carbonates, which is a significant and good example of 100% atom economy.2 At present, cyclic carbonates play an increasingly important role in our society. They are widely used as battery electrolytes, precursors for polycarbonate, chemical intermediates, engineering plastics and excellent aprotic polar solvents.3

Over the past few decades, a wide range of homogeneous and heterogeneous catalysts including alkali metal salts,4 organometallic complexes,5–12 organic bases,13,14 ionic liquids (ILs),15–18 metal oxides,19–21 modified molecular sieves,22,23 supported ILs,24–30 ion-exchange resins31 and calcined hydrotalcite32 have been developed for the coupling of epoxides and carbon dioxide. The catalytic activity is usually efficient with homogeneous catalysts system, however, the separation of the catalysts from products would be a difficult work, and what's more, co-solvents or co-catalysts were usually required. Apparently, the application of heterogeneous catalysts make the separation easier, but the stability and reusability, especially the poor catalytic activity is urgently need to be improved. Therefore, to develop a kind of catalyst with high activity, low-cost, well reusability, and easy separation is still a challenge.

Recently, ionic liquids including quaternary ammonium salts,33–38 quaternary phosphonium salts,39–41 imidazolium salts,25,42–44 pyridinium salts,45 guanidinium salts46–48 and other types of ILs47,49 attract researchers' much interest because of their high catalytic activities, especially the functionalized ionic liquids, which is fabricated with hydroxyl, amidogen, carboxyl and so on. Sun et al. reported that hydroxyl-functionalized quaternary ammonium salts and imidazolium salts shown high activity for the synthesis of cyclic carbonate.50 And then they made immobilization of it with polystyrene resin to get a reusable and efficient catalyst. Furthermore, a series of functionalized ILs were got and supported with different carriers.25,38,39

Compared to single cation ILs, dication ILs exert better activities in physical and chemical.35,53 They are widely used in high temperature solvents, lubricants, and catalysts in transesterification and esterification.54,55 However, to the best of our knowledge, there are few reports about bis-functionalized heterogeneous catalysts for cyclic carbonate synthesis from carbon dioxide and epoxides.33,55 Here, a series of bis-ammonium immobilized polystyrene resins with the co-catalyzing end groups of hydroxyl, carboxyl and amino groups were synthesized (Scheme 1). Then, these novel dication functionalized catalysts were used for the synthesis of propylene carbonate from CO2 and epoxide without any solvent and co-catalyst (Scheme 2). The influence of catalyst structure, the types and amount of nucleophilicity anions, and the reaction conditions of temperature, initial pressure and reaction time were also studied in detail.


image file: c5ra23808k-s1.tif

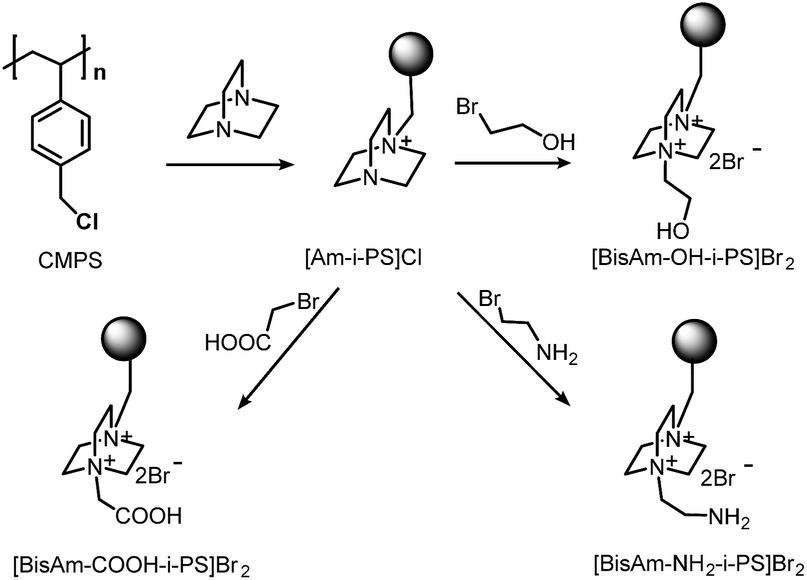

Scheme 1 The synthesis of bis-ammonium immobilized polystyrene heterogeneous catalysts.

image file: c5ra23808k-s2.tif

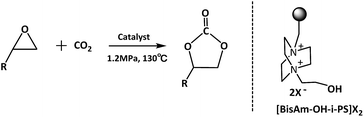

Scheme 2 Synthesis of cyclic carbonates from epoxides and carbon dioxide.

Experimental

General information

The products were analyzed by gas chromatograph (Techcomp 7900) that equipped with a FID detector and a DB-wax capillary column (30 m × 0.25 mm × 0.25 μm). Nuclear magnetic resonance (NMR) spectra were performed on Bruker 500 AVANCE II, using CDCl3 as a solvent. Fourier transformation infrared (FT-IR) spectra were obtained on a Nicolet iN10 of Thermo Fisher. Scanning electron microscopic (SEM) observations were carried out over a NOVA NanoSEM 450 microscope. Energy dispersive X-ray spectroscopy (EDS) was performed using accessory (INCA 250) of the NOVA NanoSEM 450 instrument. X-ray diffraction (XRD) patterns were obtained on a XRD-7000S operating at 40 kV and 40 mA using Ni-filtered Cu Kα radiation (λ = 1.542 Å). The XRD patterns were recorded in the 2θ range of 5° to 80°. Thermal gravimetric analysis (TGA) was performed on a TGA/DSC1 of Mettler Toledo. The content of active components was determined by Elementar Vario EL III element analysis.

Chemicals

Spherical chloromethylated polystyrene resin (CMPS, 1 mm) with 17% Cl content and 7% cross-linked with divinylbenzene was purchased from the Chemical Plant of NanKai University (China). CO2 was commercially available with a purity of 99.99% and be further purified by a filter. Propylene oxide was purchased from Sinopharm Chemical Reagent Co., Ltd and purified by distillation before the reaction. Other epoxides were purchased from J&K Chemical. 2-Bromine ethanol, 2-bromoethylamine hydrobromide, 2-bromoacetic acid and 1,4-diazobicyclo[2.2.2]octane (DABCO) were purchased from Aladdin Industrial Corporation. The other chemical solvents were purchased from Tianjin Kemiou Chemical Reagent Co., Ltd. without any further treatment.

Catalysts preparation

First, CMPS (1 g) was swelled in 30 mL acetonitrile for 12 h, and then a solution of DABCO (10 mmol) in 20 mL acetonitrile was added to the reaction system and reacted for 24 h at 30 °C, after that, the product was filtered and washed three times with diethyl ether and ethyl acetate, then dried at 65 °C under vacuum for 12 h to get the product [Am-i-PS]Cl. As for this reaction, the product is almost [Am-i-PS]Cl because that the reaction sites are nearly on the surface of the carrier and DABCO is also far excess, besides, the further reaction can be hard when one end of DABCO is reacted. After the [Am-i-PS]Cl was again swelled for 12 h, 2-bromine ethanol (10 mmol) was added into the system and the reaction solution was refluxed for 24 h. The obtained product was [BisAm-OH-i-PS]ClBr, then the catalyst was immersed into saturated NaBr solution at room temperature for 12 h to perform ion-exchange. After that, the product was filtered and washed three times with deionized water, diethyl ether and ethyl acetate, then dried at 65 °C under vacuum for 12 h to get the product of [BisAm-OH-i-PS]Br2. And the catalysts of [BisAm-COOH-i-PS]Br2 and [BisAm-NH2-i-PS]Br2 were prepared in the same procedure. For the synthesis of catalyst [BisAm-OH-i-PS]I2, [BisAm-OH-i-PS]ClBr was immersed into saturated NaI solution to perform ion-exchange at nitrogen atmosphere. And for the synthesis of catalyst [BisAm-i-PS]Cl2, when the catalyst [Am-i-PS]Cl was swelled for 12 h, methyl iodide (10 mmol) was added into the system at 40 °C to react for 12 h, the obtained product was [BisAm-i-PS]ClI, then the catalyst was immersed into saturated NaCl solution to perform ion-exchange to get the product [BisAm-i-PS]Cl2. Besides, the catalysts [BisAm-i-PS]Br2 and [BisAm-i-PS]I2 were prepared in the same way.

The synthesis process and chemical structure of bis-ammonium immobilized polystyrene heterogeneous catalysts are shown in Scheme 1. FT-IR, SEM, XRD and elemental analysis were used to confirm the synthesis of bis-ammonium immobilized polystyrene. The thermal stability of the catalyst was measured by thermo gravimetric analysis (TGA) at a heating rate of 10 °C min−1 with temperature ranging from 25 °C to 600 °C under a nitrogen atmosphere.

General procedure for the cycloaddition reaction

The cycloaddition reactions were conducted in a 100 mL high-pressure stainless-steel with magnetic stirring. In the typical reaction procedure, 0.75 mol% (calculated according to the amount of ionic liquid) of the catalyst was added into the reactor, then pressurized to 5 MPa of CO2 pressure and then released it, after repeating the above steps three times, epoxide (21.5 mmol) was injected in the reactor and we finally pressurized it to the desired pressure at a specified temperature. After reaction, the reactor was chilled to −10 °C in low-temperature pump and CO2 was liberated slowly. The product was segregated from the mixture by paper-filter and analyzed by GC. The products were identified by 1H NMR with the internal standard of TMS.

1H NMR data of the cyclic carbonates in Table 2 are as follows:

4-Methyl-1,3-dioxolan-2-one (Table 2 entry 1). 1H NMR (500 MHz, TMS CDCl3): δ = 1.50 (d, CH3, 3H), 4.05 (t, CH, 1H), 4.57 (t, CH2, H), 4.88 (m, CH2, H);

4-Ethyl-1,3-dioxolan-2-one (Table 2 entry 2). 1H NMR (500 MHz, TMS CDCl3): δ = 0.99 (t, CH3, 3H), 1.47 (m, CH2, 2H), 4.10 (dd, CH, 1H), 4.48 (dd, CH2, H), 4.65 (m, CH2, H);

4-Chloromethyl-1,3-dioxolan-2-one (Table 2, entry 3). 1H NMR (500 MHz, TMS CDCl3): δ = 3.73–3.82 (dd, CH2, 2H), 4.26 (dd, CH, 1H), 4.63 (dd, CH2, 1H), 4.95 (m, CH2, 1H);

4-Phenyl-1,3-dioxolan-2-one (Table 2, entry 4). 1H NMR (500 MHz, TMS CDCl3): δ = 4.37 (t, CH, 1H), 4.72 (t, CH2, 1H), 5.83 (t, CH2, 1H), 7.36–7.48 (m, Ar–H, 5H);

4, 5-Tetramethylene-1,3-dioxolan-2-one (Table 2 entry 5). 1H NMR (500 MHz, TMS CDCl3): δ = 1.65–1.72 (m, CH2, 2H); 1.99–2.08 (m, CH2, 2H); 2.21–2.27 (m, CH2, 4H); 4.96 (m, CH, 2H).

Results and discussion

Catalyst characterization

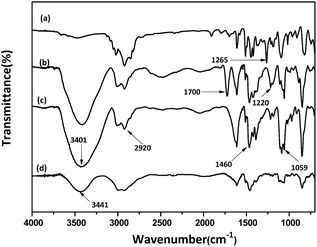

FT-IR spectra of [BisAm-OH-i-PS]Br2, [BisAm-COOH-i-PS]Br2, [BisAm-NH2-i-PS]Br2 and CMPS are shown in Fig. 1. As seen in Fig. 1(a), a typical peak at 1265 cm−1 is the stretching frequency of the functional group –CH2Cl. It disappears in the spectra of [BisAm-COOH-i-PS]Br2 (Fig. 1(b)), [BisAm-OH-i-PS]Br2 (Fig. 1(c)) and [BisAm-NH2-i-PS]Br2, that indicates the introduction of functional group DABCO. And in comparison with chloromethylated polystyrene resin, the newly appeared peaks centered at 1460 cm−1, 2920 cm−1 are the typical peaks of C–H bonds of DACBO. These results suggest the complete conversion from chloromethyl groups to ammonium groups. In addition, as shown in Fig. 1(b), [BisAm-COOH-i-PS]Br2 exhibits the characteristic bands of C[double bond, length as m-dash]O at 1700 cm−1 and C–O–C at 1220 cm−1, and the [BisAm-OH-i-PS]Br2 displays a typical strong peak corresponding to O–H stretching frequency centered at about 3401 cm−1 and C–OH stretching frequency centered at 1052 cm−1 in Fig. 1(c). The peak centered at 3441 cm−1 corresponds to the antisymmetric amino, which indicated the successfully modified of –NH2 functional group of the catalyst.56 Based on these, it is indicated that [BisAm-COOH-i-PS]Br2, [BisAm-OH-i-PS]Br2 and [BisAm-NH2-i-PS]Br2 were successfully synthesized.
image file: c5ra23808k-f1.tif
Fig. 1 FT-IR spectra of (a) CMPS, (b) [BisAm-COOH-i-PS]Br2, (c) [BisAm-OH-i-PS]Br2 and (d) [BisAm-NH2-i-PS]Br2.

The elemental analysis (C, H, and N) as shown in Table 1 was also employed to confirm the introduction of functional groups. The nitrogen contents of the [BisAm-OH-i-PS]Br2, [BisAm-COOH-i-PS]Br2 and [BisAm-NH2-i-PS]Br2 are lower than [Am-i-PS]Br, but the [BisAm-NH2-i-PS]Br2's is higher than [BisAm-OH-i-PS]Br2 and [BisAm-COOH-i-PS]Br2, which suggests the successfully modified of functional groups.

Table 1 Elemental analysis (CHN) of catalysts
Entry Catalyst C (wt%) H (wt%) N (wt%)
1 CMPS 74.06 6.46 0.067
2 [Am-i-PS]Br 70.22 7.90 8.69
3 [BisAm-OH-i-PS]Br2 51.26 6.66 5.54
4 [BisAm-COOH-i-PS]Br2 52.9 6.71 5.73
5 [BisAm-NH2-i-PS]Br2 59.60 7.27 8.49


The SEM images of the [BisAm-OH-i-PS]Br2 and CMPS were shown in Fig. 2. The surface of resin is roughened with the grafting of [BisAm-OH]Br2, which is ascribed to the loss of crystallinity. Fig. S1 (ESI) shows the XRD curves of CMPS and [BisAm-OH-i-PS]Br2. CMPS exhibits a peak at 2θ = 20.1° ascribed to diffraction at the crystalline region of the polymer structure. With the grafting of functional group, the catalyst [BisAm-OH-i-PS]Br2 shows a broadened peak centered at 2θ = 22.0°, suggesting an amorphous structure.55 This phenomenon may be caused by the collapse of regular carrier and also can be an evidence for the successful synthesis of the catalyst. The EDS spectra of [BisAm-OH-i-PS]Cl2, [BisAm-OH-i-PS]Br2 and [BisAm-OH-i-PS]I2 were observed to confirm the successfully progress of ion-exchange.52,57 To make sure the accuracy of the test, the measurement area of the catalysts are more than 200 × 200 μm2. As shown in Fig. S3 (ESI) the percentage of Cl/Br, Br/Cl and I/Cl are all above 99%.


image file: c5ra23808k-f2.tif
Fig. 2 SEM images of CMPS and [BisAm-OH-i-PS]Br2.

TGA and DTG curves of [BisAm-OH-i-PS]Br2 are shown in Fig. 3. [BisAm-OH-i-PS]Br2 has two weight loss steps characterized by the onset decomposition temperature, TOD, and the fastest decomposition temperature, TFD. The first step (TOD: 215 °C, TFD1: 251 °C) is ascribed to the degradation of the side chain ammonium groups. The second one (TFD2: 307 °C) is attributed to the decomposition of the polystyrene resin. The thermal stability of bis-ammonium immobilized polystyrene heterogeneous catalyst is high enough for the application in the cycloaddition reaction.


image file: c5ra23808k-f3.tif
Fig. 3 TGA and DTG curve of [BisAm-OH-i-PS]Br2.

Catalytic performance

The synthesis of propylene carbonate (PC) from CO2 and propylene epoxide (PO) according to cycloaddition reaction was chosen as the model to text the catalytic activity of different catalyst systems. All of the reactions were taken under 130 °C, 1.2 MPa and 2.5 h, and corresponding results were listed in Table 2. As shown in Table 2, CMPS, 2-bromopropane–ethanol and DABCO have poor activities and selectivities for the reaction. All the ammonium immobilized heterogeneous catalysts have high selectivity of above 99%. The two single-ammonium immobilized PS heterogeneous catalysts of [Am-i-PS]Cl and [Am-i-PS]Br show the yields of 40.5% and 60.3%, respectively. It indicates that DABCO-based ammonium could activate CO2 in the reaction as a kind of organic base and the halide ion can promote the ring-opening reaction of PO. Besides, the catalyst [Am-i-PS]Br which contains bromide ion behaves better than that of [Am-i-PS]Cl, indicating the importance of nucleophilic attack ability of anion. [BisAm-i-PS]Br2 shows higher yield than [Am-i-PS]Br does. It is because that the ammonium content is two times for [BisAm-i-PS]Br2 than [Am-i-PS]Br. By using [BisAm-OH-i-PS]Br2 as the catalyst, the PC yield comes up to 98.7%, which is ascribed to a great promotion of the hydroxyl functional group of [BisAm-OH-i-PS]Br2 to the ring-opening of epoxide.58 [BisAm-COOH-i-PS]Br2 and [BisAm-NH2-i-PS]Br2 also exhibit high catalytic activities. It might be because of the hydrogen bonding between these three functioned groups and epoxides. [BisAm-OH-i-PS]Br2 and [BisAm-COOH-i-PS]Br2 show similarly high activities. The yield for each of them is above 97%. With different halide anions, the activity order of the catalysts is I + I > Br + Br > Br + Cl > Cl + Cl, which is accordance with the nucleophilicity order of halides. It indicates that the stronger the nucleophilicity is, the easier the attack at the β-carbon atom of epoxide is. All these results suggest that the synergistic effect of polarization caused by hydrogen bonding and the more nucleophilic attacks by the double halide anions accounts for the excellent activity.
Table 2 Catalytic performance of various catalystsa
Entry Catalyst Catalytic results
Yield (%) Selectivity (%)
a Reaction conditions: PO 21.5 mmol, catalyst 0.75 mol%, initial CO2 pressure 1.2 MPa, temp. 130 °C, time 2.5 h.b CMPS 0.1 g.c Equal catalyst amount (0.75 mol%).
1 CMPSb 1.7 98.2
2 BrC2H4OHc 5.3 97.5
3 DABCOc 6.1 95.7
4 [Am-i-PS]Cl 40.5 99.5
5 [Am-i-PS]Br 60.3 99.5
6 [BisAm-i-PS]Br2 71.4 99.2
7 [BisAm-i-PS]I2 83.8 99.2
8 [BisAm-OH-i-PS]Cl2 81.6 99.3
9 [BisAm-OH-i-PS]ClBr 92.5 99.2
10 [BisAm-OH-i-PS]Br2 99.1 99.2
11 [BisAm-OH-i-PS]I2 99.3 99.3
12 [BisAm-COOH-i-PS]Br2 99.3 99.3
13 [BisAm-NH2-i-PS]Br2 97.3 99.4


Effect of reaction parameters

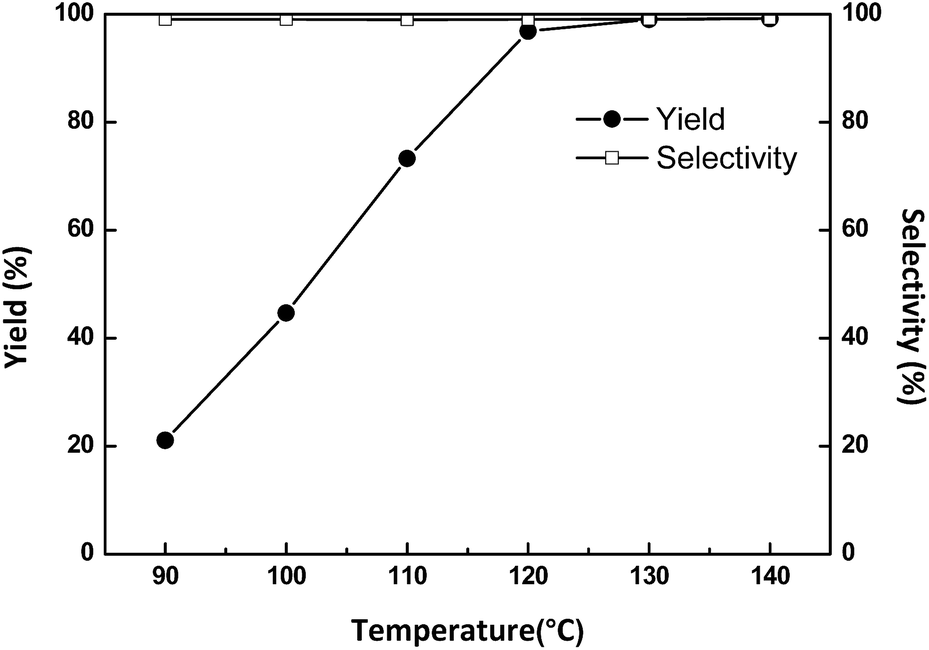

Fig. 4 shows the catalytic activity of [BisAm-OH-i-PS]Br2 as a function of temperature. Apparently, the performance of [BisAm-OH-i-PS]Br2 is closely bound with temperature. The yield of PC sharply increases from 21.0 to 96.9% when the temperature rises from 90 to 120 °C, and with further rising to 140 °C, there is a slight increase in the yield of PC. However, the selectivity of PC is not correlated with temperature. The selectivity is always above 99% at 90–140 °C. It indicates that this type of ammonium salt has a good selectivity of the cycloaddition reaction.
image file: c5ra23808k-f4.tif
Fig. 4 PC yield and selectivity as a function of reaction temperature (reaction conditions: PO 21.5 mmol, [BisAm-OH-i-PS]Br2 0.75 mol%, initial CO2 pressure 1.2 MPa, 2.5 h).

Generally, the CO2 pressure is one of the significant factors impacting on the cycloaddition reaction.30,41,57,59 The influence of initial CO2 pressure was studied under the condition of 130 °C with [BisAm-OH-i-PS]Br2 as the catalyst and the reaction time of 2.5 h. Fig. 5 shows the PC yield and selectivity as a function of initial pressure. The yield increases from 92.6 to 99% with increasing initial pressure from 0.3 to 1.2 MPa. However, when the initial pressure was further improved from 1.2 MPa to 3.0 MPa, the yield of PC decreases. A possible explanation for this phenomenon is: in the liquid phase of the reaction system, the CO2 concentration increases with adding initial system pressure, however, too high pressure would reduce the PO concentration around the catalyst, causing a decline of catalytic activity. The selectivity is almost irrelevant to the initial pressure of CO2.


image file: c5ra23808k-f5.tif
Fig. 5 PC yield and selectivity as a function of reaction pressure (reaction conditions: PO 21.5 mmol, [BisAm-OH-i-PS]Br2 0.75 mol%, 130 °C, 2.5 h).

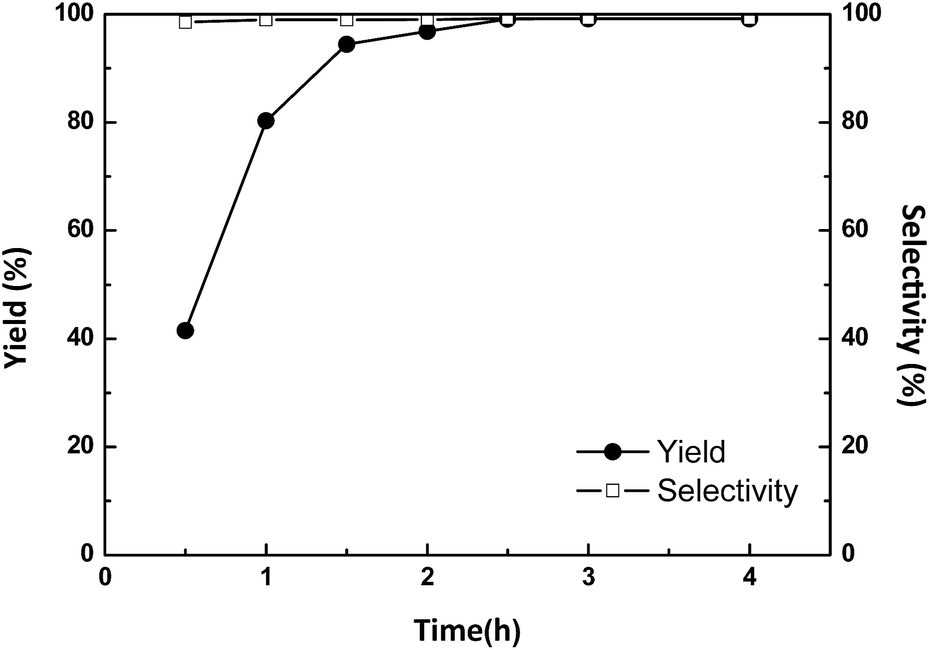

Fig. 6 represents the influence of reaction time on PC yield and selectivity at 130 °C and initial CO2 pressure of 1.2 MPa. It is found that the yield increases with reaction time from 0 to 2.5 h, and then there is almost no change in the yield after 2.5 h. It indicates that a reaction time of 2.5 h is required for the complete conversion from PO to PC. The selectivity is always above 99%.


image file: c5ra23808k-f6.tif
Fig. 6 PC yield and selectivity as a function of reaction time (reaction conditions: PO 21.5 mmol, [BisAm-OH-i-PS]Br2 0.75 mol%, 130 °C, initial CO2 pressure 1.2 MPa).

Fig. 7 shows the influence of catalyst dosage on the catalytic activity. It was found that the PC yield increased with catalyst dosage from 0.3 mol% to 0.75 mol%, however, there is a slight increase in the yield of PC when the dosage of catalyst is further improved. It is indicated that the catalyst dosage of 0.75 mol% is suitable for the reaction in this condition. Besides, the selectivity of PC is always more than 99%.


image file: c5ra23808k-f7.tif
Fig. 7 PC yield and selectivity as a function of reaction dosage of catalyst (reaction conditions: PO 21.5 mmol, [BisAm-OH-i-PS]Br2, 130 °C, 2.5 h, and initial CO2 pressure 1.2 MPa).

Catalyst recovery

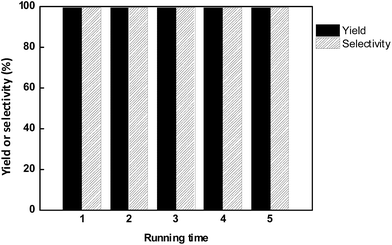

With PO as the substrate, the recyclability of [BisAm-OH-i-PS]Br2 were carried out at 130 °C, initial CO2 pressure 1.2 MPa for 2.5 h. In each run, the catalyst was recovered by filtration. As shown in Fig. 8, the [BisAm-OH-i-PS]Br2 catalyst exhibited excellent efficiency for 5 consecutive cycles. Both the yield and selectivity are always above 99%. The results show that the [BisAm-OH-i-PS]Br2 catalyst is highly stable and very promising for commercial application. Besides, the characterization of FT-IR and TGA were employed as shown in Fig. S4 and S5 (ESI) to test the [BisAm-OH-i-PS]Br2 after five times recycle. The recovered catalyst showed the similar character to the fresh one, which also suggests a good reusability of the catalyst [BisAm-OH-i-PS]Br2.
image file: c5ra23808k-f8.tif
Fig. 8 Recyclability of [BisAm-OH-i-PS]Br2 catalyst (reaction conditions: PO 21.5 mmol, [BisAm-OH-i-PS]Br2 0.75 mol%, 130 °C, 2.5 h, and initial CO2 pressure 1.2 MPa).

Catalytic activity towards different epoxides

The catalytic performance of the catalyst [BisAm-OH-i-PS]Br2 on the cycloaddition of CO2 with varieties of epoxides were studied, and the results were listed in Table 3. It is found that the catalyst works on diversified terminal epoxides. And the propylene epoxide shows the best reactivity and selectivity. The selectivity order is propylene epoxide = epoxybutane > epichlorohydrin > styrene oxide > cyclohexene. The reactivity order is propylene epoxide > epoxybutane > epichlorohydrin > styrene oxide > cyclohexene. The lower reactivity of styrene oxide and cyclohexene is possibly due to the larger sterically hindered of β-C.
Table 3 Cycloaddition of CO2 with different epoxides catalyzed by [BisAm-OH-i-PS]Br2a
Entry Epoxide Products t/h Selectivity (%) Yield (%)
a Reaction conditions: PO 21.5 mmol, [BisAm-OH-i-PS]Br2 0.75 mol%, 130 °C, 2.5 h and initial CO2 pressure 1.2 MPa.
1 image file: c5ra23808k-u1.tif image file: c5ra23808k-u2.tif 2.5 99.2 99.1
2 image file: c5ra23808k-u3.tif image file: c5ra23808k-u4.tif 2.5 99.2 98.6
3 image file: c5ra23808k-u5.tif image file: c5ra23808k-u6.tif 5 98.8 98.3
4 image file: c5ra23808k-u7.tif image file: c5ra23808k-u8.tif 5 96.1 94.4

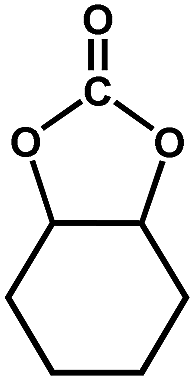

5 image file: c5ra23808k-u9.tif image file: c5ra23808k-u10.tif 5 95.2 64.7


Possible reaction mechanism

As shown in Table 2, the nucleophilic attack of halogen anion on epoxide is essential for the cycloaddition reaction, and the stronger the nucleophilicity is, the easier the attack at the β-carbon atom of epoxide is. On the other hand, the BisAm-i-PS heterogeneous catalysts with functional end groups of –CH2COOH, –CH2CH2OH, and –CH2CH2NH2 show better catalytic activities compared with those without functional groups, which is accordant with the results of other researchers reported.41,55,57,60 It indicates that these functional groups play an important role in the cycloaddition reaction. According to the present work and the previous literatures,26,30,41,51 a possible mechanism was put forwarded as shown in Scheme 3. The hydrogen bonds between O atom in propylene epoxide and H atom in OH group of the catalyst would give rise to the polarization of C–O bonds. As a result, the PO can be activated to ring-opening. At the same time, halide ions make the nucleophilic attack on β-C of PO which has the minimal steric hindrance. Bis-ammonium immobilized catalysts prepared here have two halide anions, which makes the attack more efficient compared to those with one halide anion. It further promotes the ring-opening reaction of PO. After that, the anion shifts to O atom of PO to attack the C atom of CO2 to form C–O bond because of the acidity of CO2. At last, the intermediate is converted into propylene carbonate by the intramolecular substitution of halide anion.
image file: c5ra23808k-s3.tif
Scheme 3 Proposed mechanism for the cycloaddition reaction.

Conclusions

A series of novel BisAm-i-PS heterogeneous catalysts with the functional end groups of –COOH, –OH, and –NH2 were synthesized in the present work for the cycloaddition reaction of CO2 with epoxides without any additional co-catalyst and organic solvent. The series of functionalized catalysts showed excellent performance under relatively mild conditions, which is ascribed to the nucleophilic attack of halide anion to the epoxide and the synergetic effect of hydrogen bonding formed between functional group and epoxide. Bis-ammonium immobilized catalysts were more efficient than single-ammonium one did because of the doubled nucleophilic anion concentration in one unit function group. The effects of parameters, such as halide anions of the catalysts, reaction temperature, initial pressure, reaction time and dosage of catalyst were also investigated with –OH ended BisAm-i-PS as the catalyst. BisAm-i-PS with Br anion I anion showed higher efficiency than those with Cl. Under an optimal reaction condition (1.2 MPa, 130 °C and 2.5 h), propylene carbonate selectivity and yield were above 99% and 99%, respectively. In addition, the catalyst possessed good stability for 5 times recycle tests, which is in conformity with the development of green chemistry and can be used as a potential catalyst for large-scale production of cyclic carbonates.

Acknowledgements

The authors thank the support of National Science Fund for Distinguished Young Scholars of China (Grant no. 21125628), National Natural Science Foundation of China (Grant no. 21406031 and 21404018), the Fundamental Research Funds for the Central Universities (Grant no. DUTPJ14RC(3)003, DUT14RC(3)018, and DUT14QY50), and State Key Laboratory of fine chemicals (Panjin) project (Grant no. JH2014009).

Notes references

  1. T. Sakakura, J.-C. Choi and H. Yasuda, Chem. Rev., 2007, 107, 2365–2387 CrossRef CAS PubMed.
  2. L. Xiao, D. Su, C. Yue and W. Wu, J. CO2 Util., 2014, 6, 1–6 CrossRef CAS.
  3. A. Decortes, A. M. Castilla and A. W. Kleij, Angew. Chem., Int. Ed., 2010, 49, 9822–9837 CrossRef CAS PubMed.
  4. V. Calo, A. Nacci, A. Monopoli and A. Fanizzi, Org. Lett., 2002, 4, 2561–2563 CrossRef CAS PubMed.
  5. J. Peng, H.-J. Yang, Z. Wei and C.-Y. Guo, RSC Adv., 2015, 5, 53063–53072 RSC.
  6. X.-B. Lu and D. J. Darensbourg, Chem. Soc. Rev., 2012, 41, 1462–1484 RSC.
  7. M. North, B. Wang and C. Young, Energy Environ. Sci., 2011, 4, 4163–4170 CAS.
  8. I. S. Metcalfe, M. North and P. Villuendas, J. CO2 Util., 2013, 2, 24–28 CrossRef CAS.
  9. C.-Y. Li, C.-R. Wu, Y.-C. Liu and B.-T. Ko, Chem. Commun., 2012, 48, 9628–9630 RSC.
  10. O. V. Zalomaeva, A. M. Chibiryaev, K. A. Kovalenko, O. A. Kholdeeva, B. S. Balzhinimaev and V. P. Fedin, J. Catal., 2013, 298, 179–185 CrossRef CAS.
  11. S. Verma, R. I. Kureshy, T. Roy, M. Kumar, A. Das, N. H. Khan, S. H. R. Abdi and H. C. Bajaj, Catal. Commun., 2015, 61, 78–82 CrossRef CAS.
  12. L. Cuesta-Aluja, M. Djoufak, A. Aghmiz, R. Rivas, L. Christ and A. M. Masdeu-Bultó, J. Mol. Catal. A: Chem., 2014, 381, 161–170 CrossRef CAS.
  13. H. Kawanami and Y. Ikushima, Chem. Commun., 2000, 2089–2090 RSC.
  14. A. Barbarini, R. Maggi, A. Mazzacani, G. Mori, G. Sartori and R. Sartorio, Tetrahedron Lett., 2003, 44, 2931–2934 CrossRef CAS.
  15. J. Xu, M. Xu, J. Wu, H. Wu, W.-H. Zhang and Y.-X. Li, RSC Adv., 2015, 5, 72361–72368 RSC.
  16. Y.-L. Hu, M. Lu and X.-L. Yang, RSC Adv., 2015, 5, 67886–67891 RSC.
  17. J. K. Lee, Y. J. Kim, Y.-S. Choi, H. Lee, J. S. Lee, J. Hong, E.-K. Jeong, H. S. Kim and M. Cheong, Appl. Catal., B, 2012, 111–112, 621–627 CrossRef CAS.
  18. B. Wang, X. Feng, L. Zhang, S. Yang, X. Jiang, J. Zhou and G. Gao, J. CO2 Util., 2013, 1, 88–91 CrossRef CAS.
  19. Z. Huo, J. Guo, J. Lu, Q. Xu, P. Ma, J. Zhao, D. Zhang, J. Niu and J. Wang, RSC Adv., 2015, 5, 69006–69009 RSC.
  20. W.-L. Dai, S.-F. Yin, R. Guo, S.-L. Luo, X. Du and C.-T. Au, Catal. Lett., 2009, 136, 35–44 CrossRef.
  21. B. M. Bhanage, S. Fujita, Y. Ikushima and M. Arai, Appl. Catal., A, 2001, 219, 259–266 CrossRef CAS.
  22. R. Srivastava, D. Srinivas and P. Ratnasamy, Catal. Lett., 2003, 91, 133–139 CrossRef CAS.
  23. E. J. Doskocil, J. Phys. Chem. B, 2005, 109, 2315–2320 CrossRef CAS PubMed.
  24. A. S. Aquino, F. L. Bernard, J. V. Borges, L. Mafra, F. Dalla Vecchia, M. O. Vieira, R. Ligabue, M. Seferin, V. V. Chaban, E. J. Cabrita and S. Einloft, RSC Adv., 2015, 5, 64220–64227 RSC.
  25. Y. Zhang, S. Yin, S. Luo and C. T. Au, Ind. Eng. Chem. Res., 2012, 51, 3951–3957 CrossRef CAS.
  26. L. Han, H.-J. Choi, S.-J. Choi, B. Liu and D.-W. Park, Green Chem., 2011, 13, 1023 RSC.
  27. K. R. Roshan, G. Mathai, J. Kim, J. Tharun, G.-A. Park and D.-W. Park, Green Chem., 2012, 14, 2933–2940 RSC.
  28. W. Cheng, X. Chen, J. Sun, J. Wang and S. Zhang, Catal. Today, 2013, 200, 117–124 CrossRef CAS.
  29. R. A. Watile, K. M. Deshmukh, K. P. Dhake and B. M. Bhanage, Catal. Sci. Technol., 2012, 2, 1051–1055 CAS.
  30. J. Sun, W. Cheng, W. Fan, Y. Wang, Z. Meng and S. Zhang, Catal. Today, 2009, 148, 361–367 CrossRef CAS.
  31. Y. Xiong, H. Wang, R. Wang, Y. Yan, B. Zheng and Y. Wang, Chem. Commun., 2010, 46, 3399–3401 RSC.
  32. B. M. Bhanage, S. Fujita, Y. Ikushima, K. Torii and M. Arai, Green Chem., 2003, 5, 71–75 RSC.
  33. A. R. Hajipour, Y. Heidari and G. Kozehgary, RSC Adv., 2015, 5, 22373–22379 RSC.
  34. Y. Du, J.-Q. Wang, J.-Y. Chen, F. Cai, J.-S. Tian, D.-L. Kong and L.-N. He, Tetrahedron Lett., 2006, 47, 1271–1275 CrossRef CAS.
  35. J. Li, L. Wang, F. Shi, S. Liu, Y. He, L. Lu, X. Ma and Y. Deng, Catal. Lett., 2011, 141, 339–346 CrossRef CAS.
  36. Y. Zhao, J.-S. Tian, X.-H. Qi, Z.-N. Han, Y.-Y. Zhuang and L.-N. He, J. Mol. Catal. A: Chem., 2007, 271, 284–289 CrossRef CAS.
  37. J.-Q. Wang, D.-L. Kong, J.-Y. Chen, F. Cai and L.-N. He, J. Mol. Catal. A: Chem., 2006, 249, 143–148 CrossRef CAS.
  38. B. Song, L. Guo, R. Zhang, X. Zhao, H. Gan, C. Chen, J. Chen, W. Zhu and Z. Hou, J. CO2 Util., 2014, 6, 62–68 CrossRef CAS.
  39. J. Sun, L. Wang, S. Zhang, Z. Li, X. Zhang, W. Dai and R. Mori, J. Mol. Catal. A: Chem., 2006, 256, 295–300 CrossRef CAS.
  40. S.-S. Wu, X.-W. Zhang, W.-L. Dai, S.-F. Yin, W.-S. Li, Y.-Q. Ren and C.-T. Au, Appl. Catal., A, 2008, 341, 106–111 CrossRef CAS.
  41. D. Wei-Li, J. Bi, L. Sheng-Lian, L. Xu-Biao, T. Xin-Man and A. Chak-Tong, Appl. Catal., A, 2014, 470, 183–188 CrossRef.
  42. W. Zhang, Q. Wang, H. Wu, P. Wu and M. He, Green Chem., 2014, 16, 4767–4774 RSC.
  43. S. Ghazali-Esfahani, H. Song, E. Păunescu, F. D. Bobbink, H. Liu, Z. Fei, G. Laurenczy, M. Bagherzadeh, N. Yan and P. J. Dyson, Green Chem., 2013, 15, 1584 RSC.
  44. J. Wang, J. Leong and Y. Zhang, Green Chem., 2014, 16, 4515–4519 RSC.
  45. H.-Y. Ju, J.-Y. Ahn, M.-D. Manju, K.-H. Kim and D.-W. Park, Korean J. Chem. Eng., 2008, 25, 471–473 CrossRef CAS.
  46. H. Xie, S. Li and S. Zhang, J. Mol. Catal. A: Chem., 2006, 250, 30–34 CrossRef CAS.
  47. B. Ochiai, T. Iwamoto and T. Endo, Green Chem., 2006, 8, 138–140 RSC.
  48. H. Xie, H. Duan, S. Li and S. Zhang, New J. Chem., 2005, 29, 1199–1203 RSC.
  49. Z.-Z. Yang, L.-N. He, C.-X. Miao and S. Chanfreau, Adv. Synth. Catal., 2010, 352, 2233–2240 CrossRef CAS.
  50. J. Sun, S. Zhang, W. Cheng and J. Ren, Tetrahedron Lett., 2008, 49, 3588–3591 CrossRef CAS.
  51. L.-F. Xiao, D.-W. Lv, D. Su, W. Wu and H.-F. Li, J. Cleaner Prod., 2014, 67, 285–290 CrossRef CAS.
  52. L. Han, H.-J. Choi, D.-K. Kim, S.-W. Park, B. Liu and D.-W. Park, J. Mol. Catal. A: Chem., 2011, 338, 58–64 CAS.
  53. H. Zhao and G. A. Baker, J. Chem. Technol. Biotechnol., 2013, 88, 3–12 CrossRef CAS.
  54. T. Payagala, J. Huang, Z. S. Breitbach, P. S. Sharma and D. W. Armstrong, Chem. Mater., 2007, 19, 5848–5850 CrossRef CAS.
  55. D. Wei-Li, J. Bi, L. Sheng-Lian, L. Xu-Biao, T. Xin-Man and A. Chak-Tong, Catal. Sci. Technol., 2014, 4, 556–562 Search PubMed.
  56. Z. Feng, W. Wei, L. Wang and R. Hong, Appl. Surf. Sci., 2015, 357, 759–765 CrossRef CAS.
  57. C. Jing-Xian, J. Bi, D. Wei-Li, D. Sen-Lin, C. Liu-Ren, C. Zong-Jie, L. Sheng-Lian, L. Xu-Biao, T. Xin-Man and A. Chak-Tong, Appl. Catal., A, 2014, 484, 26–32 CrossRef.
  58. D.-W. Kim, R. Roshan, J. Tharun, A. Cherian and D.-W. Park, Korean J. Chem. Eng., 2013, 30, 1973–1984 CrossRef CAS.
  59. L.-F. Xiao, F.-W. Li, J.-J. Peng and C.-G. Xia, J. Mol. Catal. A: Chem., 2006, 253, 265–269 CrossRef CAS.
  60. D. Wei-Li, J. Bi, L. Sheng-Lian, L. Xu-Biao, T. Xin-Man and A. Chak-Tong, J. Mol. Catal. A: Chem., 2013, 378, 326–332 CrossRef.

Footnote

Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra23808k
