Abstract
The process of combustion and pyrolysis of coal can be considered to be convoluted where numerous intermediates are expected to form during the course of the reaction. In this work, we have investigated the reactive products using the ReaxFF force field for three different ranked (low to high) coals, namely lignite, bituminous, and anthracite. It was observed that during the pyrolysis and combustion processes, the gases CO and CO2 were predominant. The formation rate of CO and CO2 was found to be higher for lignite coal which agreed with the experimental trend reported in the literature. In a similar manner, the fraction of CO and CO2 was found to be higher in the pyrolysis process. Further, a large number of principal intermediates such as methane, ethane and ethylene are also generated for low to high ranking (lignite, bituminous, and anthracite) coal. The pyrolysis and combustion processes were affected by temperature (2000–4000 K) with respect to the formation of various intermediates (methane, ethane and ethylene). They were found to be high throughout irrespective of the rank of coal. A higher temperature (2000–4000 K) was adopted in the reactive molecular dynamics (MD) simulation so as to visualize the chemical reactions within a computationally affordable time.
1. Introduction
Coal is a naturally occurring carbonaceous material which is one of the most important sources for energy production. Approximately 40% of worldwide electricity is produced from coal. It generally ranges from brown to black sedimentary rocks composed mainly of organic or inorganic compounds.1,2 It has a complex structure and contains functional groups such as free hydroxyl, phenolic, carboxyl, carbonyl and ether. On combustion and pyrolysis, it evolves gases such as CO, CO2, SO2 and N2. Furthermore, coal produces a wide range of other pollutants (solids as well as gases) with the functional groups mentioned above. Their studies are difficult to perform on the lab scale.3,4 The reaction mechanism explains the details of the consumption of oxygen; and formation of the gas and solid phase oxidation products. The solid oxidation products are usually phenolic compounds which are separated from coal tar.5–11
Coal with a higher oxygen content is expected to be more reactive towards gaseous oxygen and can produce a large amount of CO2 and CO upon heating.12 The heating rate of coal depends on the coal rank where the heating value is low for low rank coal. Further the gaseous yield of CH4, C2H4, and C2H6 is also high for low-rank coal as compared to high-rank coal.13–16 Irrespective of temperature; the ratio for the formation rate of CO to CO2 rapidly decreases for high-rank coals. The low-rank coal oxidizes at a high temperature, where the formation behaviour of CO and CO2 were found to vary with temperature.10–17 The hydrogen production rate is high for low-rank coal which gives a lower calorific value due to the loss of volatile components.18,19
Therefore to understand the combustion phenomena, the chemical kinetics and thermodynamic models are important aspects.20 Hence it is very essential to study the combustion phenomena even though the detailed structural model of coal or char is complicated and complex.21 Recently a complex structure of coal and char was described by experimental and atomistic simulation.22 This work has opened pathways in understanding the combustion and pyrolysis phenomena of coal which otherwise was impossible few years ago. Simulation methods based on reactive force field thereby becomes a viable tool for studying combustion processes. In our earlier work, we have already described the ReaxFF simulation involving the fundamental reaction mechanism of a representative structure of brown coal.23 The ReaxFF simulation are accurately close to quantum mechanics (QM) as well as experimental results.23,24 A common advantage for both MD and ReaxFF is that the force field parameters are easily obtained from QC (Quantum Chemical) calculations which are computationally affordable.
One of the major problems encountered by coke oven batteries has been the continuous deterioration in quality of coal resulting in coke with high ash content and poor strength. This has contributed to phenomenal increase in the demand of coke in blast furnaces in developing countries. Coke having both ash and sulphur content are linearly dependent on the coal used for its production. Thus, an important objective for studying coal combustion and pyrolysis is to evaluate the fixed carbon in the fuel portion of coke or coal. Higher the fixed carbon, the higher the thermal value of coke and lower the environment impact. While combustion of coal is primarily used for power generation, its use is also manifested in other domains such as material construction, town gas, and iron and steel industry. Similarly, coal pyrolysis contributes multiple products such as gas, liquid, and char. The gas, liquid, and char produced from the coal can further be used as fuel oil, chemical feedstock, boiler feedstock and as a raw material for iron. It also plays a vital role in the production of liquid fuels and chemicals. However, an increase in coal utilization results in greenhouse gas emissions from fossil fuel-fired power generation. The greenhouse gas emissions primarily carbon dioxide and carbon monoxide thus needs to be quantified first and then reduced by improving efficiency in gasification process.2,4–6
In this context, reactive MD such as ReaxFF25 has been developed with force fields26–34 for large scale systems to describe the bond order, bond distance and bond dissociation energy for the total atomic structure. The kinetics and initial reaction mechanism for hydrocarbons such as coal and algae was earlier studied with the help of ReaxFF within a computational affordable time.24,26–34 Recently using Illinois no. 6 coal, ReaxFF described the pyrolysis simulations for a large-scale (>50
000 atoms) molecular model based on experimental data. This was performed to investigate the effect of sulfur content on the pyrolysed coal structure.35–37 Similarly, Wang et al.32 described pyrolysis and combustion process of n-dodecane, while Liu et al.38 described the initiation mechanism; kinetics of pyrolysis; and combustion of 1,6-dicyclopropane-2,4-hexyne. Further the macro-model for the thermal decomposition of Morwell brown coal and lignite were described and validated with experimental studies.31,39
Therefore, looking at the coal combustion and pyrolysis, an attempt has been made to predict the quantitative formation of both: major (CO/CO2) and minor (CH4, C2H4, C2H6) products from reactive force field calculations. It should be noted that some of the available kinetic chemical models are very expensive and time consuming. Keeping the above advantages in mind, ReaxFF was used in this work to predict the reaction mechanism for the coal having varying rank such as lignite, bituminous and anthracite. By using ADF software, all the ReaxFF MD simulations were implemented.40 The intermediate products formed or evolved from the reaction were then studied in detail. Thereafter comparison of combustion behaviour for all the three coals was done with available experimental data.
2. Computational details
2.1 ReaxFF
ReaxFF25 was developed for bond dissociation and formation using molecular dynamic simulation. The force field parameters are derived from the quantum mechanics (QM) and are then directly applied to the system. ReaxFF combines quantum mechanics (QM) and classical mechanics models. It is based on the semi-empirical interaction potential where the potential energy of the system is described by different energies of the system (eqn (1)). Thus ReaxFF is a bond order dependent force field where the bond orders are calculated from the interatomic distances which are updated at every iteration during reactive MD simulation. The total energy of the system is thus the sum of partial non-bonded and covalent interaction energy. The total energy of the system is described by eqn (1), |
Esystem = Ebond + Eover + Eunder + Eval + Epen + Etors + Econj + EvdWaals + ECoulomb
| (1) |
where, Esystem is the potential energy of the system which describes the interaction between the particles of the systems, Ebond represents the bond energy due to the interatomic distance between a pair of atoms, Eover and Eunder represents over- and under-coordinated energy. Eval is the valence angle energy for valence angle i–j–k, where i, j, k are location for three atoms. Etors represent the torsion energy i.e. the position where bond order tends to zero and greater than one. Econj denotes the conjugate effect of the molecular energy and EvdWaals the non-bonded van der Waals interaction. Finally ECoulomb represents the coulombic interaction between all atom pairs respectively. The interaction potential is further divided into non-reactive and reactive potentials. A detailed description of the ReaxFF force field is described in our previous work23 and reviewed by van Duin et al.;25 hence it is not discussed in the current text.
2.2 Pyrolysis process
The structures of the three different types of coal are taken from literature41–44 and are given in Fig. 1. Eighteen anthracite coal molecules, 45 bituminous coal molecules and 16 lignite coal molecules were randomly placed in a periodic box of 60 × 60 × 60 Å, 56 × 56 × 56 Å and 44 × 44 × 44 Å with densities having 0.08 g cm−3, 0.1 g cm−3 and 0.2 g cm−3 respectively. The varying numbers of coal molecules were taken so as to make the number of atoms equal in each case. This allows a uniform comparison for anthracite, bituminous and lignite coal properties. The C/H/O/N/S/B force field was used to study the ReaxFF reactive simulation.35
 |

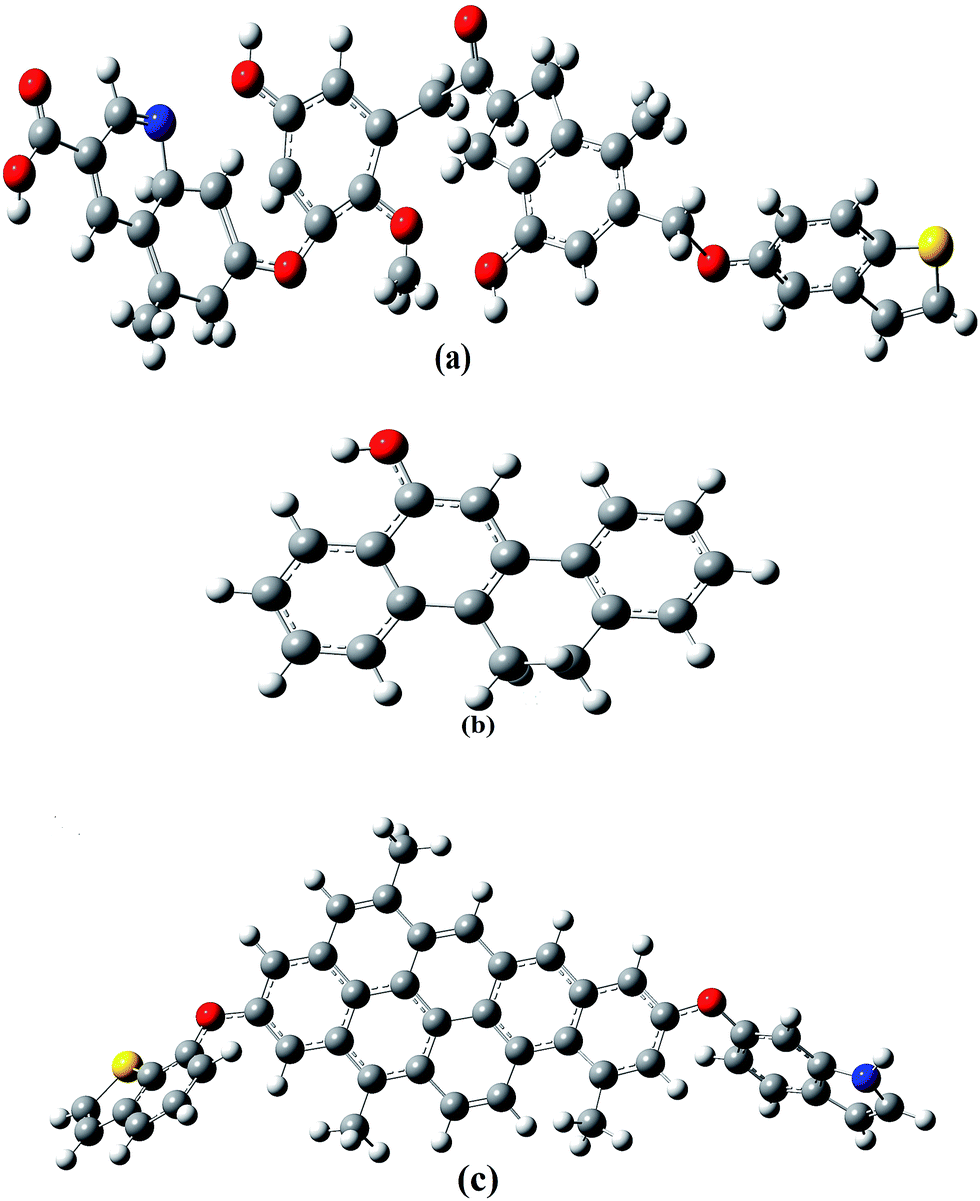

| Fig. 1 Structure of (a) lignite coal (C39H35O10NS) (b) bituminous coal (C18H14O) and (c) anthracite coal (C45H29O2NS) [colour represents the different atoms such as yellow-sulphur, blue-nitrogen, gray-carbon, red-oxygen, white-hydrogen atoms respectively (Mathews et al., 2012)41–44]. | |
Initially, the system was minimized at a lower temperature of 10 K in a NVE ensemble. The energy minimization was conducted using NVE ensemble for 10 ps with a time step of 0.25 fs to optimize the intermolecular interaction and prepare the structure of the coal for longer simulation. The process is a non-reactive process in which simply the overlap of assembly of atoms (if any) are detected and subsequently corrected. After minimization, they are equilibrated in NVT ensemble for 5 ps with a time step of 0.1 fs. The equilibration step is required so as to distribute the extra degree of freedom i.e. kinetic energy to the potential energy contribution. The reactive simulations were then used to simulate the final structure at a temperature range of 2000 K to 4000 K.
Further the C–O and O–H bond parameters were switched off during the equilibration simulations to prevent reaction occurrence. For this the ensemble was taken to the target temperature slowly with an interval of 500 K for 200 ps. This is done so as to avoid the sudden jump of kinetic energy. The heating rate would eventually not affect the reaction mechanism, but only alter the time at which the reactant begins to decompose. Using Berendsen thermostat, temperature was controlled with a damping constant of 100 fs. A 0.25 fs time step along with a total time of 200 ps was used to study the pyrolysis process. The total time (200 ps) and time step (0.1 fs) values were chosen, as the thermal decomposition occurred at a small time, which is observed in literature.31–33 This also gives reasonable descriptions for the oxidation reaction of hydrocarbon.29 For the analysis of the intermediates and products formed during the MD simulation, a 0.3 bond order cut-off was used for the identification of the molecular species.
2.3 Combustion process
For the combustion process, systems were created at densities of 0.08 g cm−3, 0.1 g cm−3 and 0.2 g cm−3 respectively. Here the systems comprises of (a) 14 anthracite coal molecules (b) 35 bituminous coal molecules and (c) 12 lignite coal molecules, placed in periodic boxes of dimension 93 × 93 × 93 Å, 79 × 79 × 79 Å, 69 × 69 × 69 Å respectively. In each case, three combustion criteria namely with 250, 500, 1000 numbers of O2 molecules having an equivalence ratio (ϕ) of 0.5, 1.008 and 2.0 respectively. This is also referred as fuel rich, stoichiometric and fuel lean combustion respectively. The system was minimized at a lower temperature of 10 K using NVE-MD ensemble simulation for all the coal molecules. The system was subsequently equilibrated with NVT ensemble at a temperature range of 2000–4000 K at an interval of 500 K for 200 ps. This is required since the combustion processes takes a longer time.35 Using Berendsen thermostat, the temperature was controlled at a damping constant of 100 fs and 0.25 fs time step along with a total time of 200 ps. Similarly to analyze the intermediates and the products, a 0.3 bond order cut-off was used.
3. Results and discussions
The simulation of the systems studied here should accurately model the coal systems with elastic bonds exhibiting translational, rotational, torsional, and vibrational motion. As a rule of thumb this requires a time step of an order of magnitude smaller than the shortest motion possible. This comes out to be approximately 0.1–0.25 fs. A smaller time step is preferred with ReaxFF as the charges and bond orders are allowed to change at every time step. In reactive molecular dynamics, covalent bonds of reactant molecules involve breaking of old bonds and formation of new bonds. Bond breaking phenomena happens among only active functional groups. Those groups are predefined in the configuration script. The functional groups will be active only if it finds similar or dissimilar functional groups within a ‘predefined’ distance. For example, bond length of carbon–carbon single bond is ∼1.54 Å. But in the configuration script, we decide the possible new bond formation when two such functional groups come within a distance much greater than this distance (say 6.0 Å). But, our actual bond distance is much less than that. So to reduce the bond length from 6.0 Å to ∼1.54 Å (ref. 45) a huge amount of energy is generated. ReaxFF has a ‘GUI’ from which the user generates configuration script. ReaxFF here assumes a default value.
This necessitates a higher time or a lower time step to the system for the dissipation of this energy. In this case 1 fs time step will be quite large and newly formed bonds will have huge vibration. Thus the simulation will be unstable; hence a time step of 0.1 to 0.25 fs is usually used. This will slow down the events thereby negating higher energies. In the simulation of non-reactive systems (classical MD) we usually give a minimum time step of 1 fs unless we are dealing with proteins. In 1 fs time step, we do not use ‘rigidBonds = all’ command (refer to NPT/NVT configuration script written in NAMD) but we activate this option if the time step is more than 1 fs. This is performed to minimize the vibrations happening between C–H and other hydrogen containing bonds. Similar concept is also used in reactive molecular dynamics.25,27,28
For high-temperature (∼3000 K) simulations, a time step of 0.1 fs allows a proficient coverage of the phase space and collisions. This helps the reaction to come about smoothly. This has been usually the case for ammonia-borane decomposition which was studied earlier.24 In ReaxFF, we always maintain a balance between computational accuracy and computational time. The higher temperature is only given to the system to increase the velocity of molecules and thus to enhance the probability of faster collision. As mentioned previously, it is used to reduce the bond length to a user defined (or default value of program itself). This step creates a huge amount of energy which needs to be dissipated. To dissipate this energy, if the system as well as thermostat temperature is kept low, huge computational time will be required to control the set temperature. To optimize this time of computing, the simulation is run at an elevated temperature. This makes dissipation of heat consume lesser amount of time.24,25
A similar event was also observed by Wang et al.,32 where at high temperatures, the pathway of pyrolysis of n-dodecane to form H and n-C12H25 was observed. The dehydrogenation reaction of n-dodecane to form a H2 molecule and an n-dodecane molecule was found to appear only once during their simulations, indicating that this reaction is hard to occur. Thus at lower temperature, it is difficult to determine the temperature effects on kinetics of different reactions. This would probably bring some uncertainty in mechanism analysis. Artificially increased temperatures were also employed in previous applications of ReaxFF MD32,37 and good agreement with experiment in the initial reaction products (such as CO and CO2 which is our primary aim) were obtained. This is despite the time and temperature difference between ReaxFF MD simulations and experiments. With this we proceed with the discussion of Section 3.1 and 3.2 involving the pyrolysis and the combustion process.
3.1 Combustion analysis
3.1.1 Formation of CO and CO2. Fig. 2 shows the general trend for the CO and CO2 formation during the combustion analysis. In our previous work23 with brown coal, we have obtained CO and CO2 as the two major intermediates. The rate of reaction or formation is obtained by following equation; |
 | (2a) |
|
 | (2b) |
where CCO and CCO2 denotes CO and CO2 concentration in mole of CO per kg of coal and mole of CO2 per kg of coal respectively. W is the weight of coal sample in kg and ṁ represents mass flow rates in kg of coal per ps respectively. The slope between concentration and time is usually written in chemical engineering terms as
The rate of formation i.e.
and
with CO and CO2 concentration were obtained graphically. From the slope, it was found that both the reactions followed a first order mechanism (eqn (3a) and (3b)). The negative sign implies that both gases are consumed in the reaction. |
 | (3a) |
|
 | (3b) |
Here ‘k’ represents the rate constant in ps−1 and takes the value 225.8 ps−1 and 184.8 ps−1 for CO and CO2 respectively. This implies that the formation of CO is faster as compared to CO2. This is further supplemented in Fig. 2 where it is observed that the rate of formation of CO2 is always higher than that of CO, which proves that CO2 is the major intermediate gaseous product formed from the combustion of coal. This also agrees well with the previous experimental results.10–12,46,47
 |

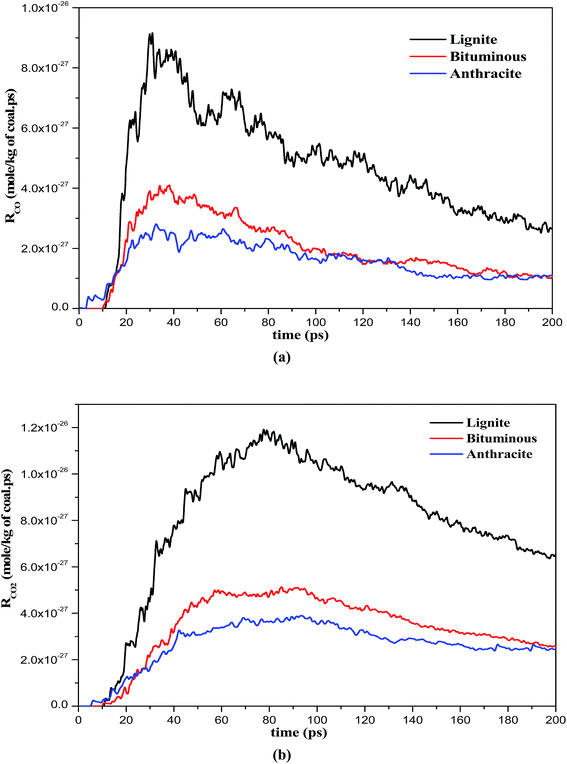

| Fig. 2 Variation in the formation rate of (a) CO2 and (b) CO for three different coals at 3500 K from ReaxFF simulation results. | |
The experimental and ReaxFF predicted rate of formation of CO and CO2 is compared in Fig. 3(a) for CO and Fig. 3(b) for CO2. While a qualitative match is found for CO, a quantitative agreement is found in CO2. For chemical kinetic modelling, we usually adopt a closed homogeneous reactor with constraint volume and temperature in order to directly compare the results with ReaxFF. This has not been attempted in this work hence a qualitative trend was obtained in Fig. 3. A similar behaviour was also observed with the combustion of n-dodecane where the likely molecule in ReaxFF and kinetic modelling was ethylene, even though the quantitative results show larger deviations.32
 |
| Fig. 3 Experimental and ReaxFF simulation results for formation rate of (a) CO and (b) CO2 at 3500 K. | |
Thus the studies on coal using ReaxFF is beneficial in predicting the emission rate of gases for various rank of coal. In both the gases (CO and CO2), the production rate reaches a maximum and then dies down gradually. Thus is due to the fact that initially the rate of formation of CO2 and CO increases, thereafter it decreases as the oxygen concentration reaches it maximum value. Again it is observed that the rate of formation of CO2 and CO is higher for lignite coal. This is primarily due to the large amount of oxygen present in the lignite version as compared to bituminous and anthracite coal.12 Further the magnitudes of formation rate of CO2 and CO for lignite coal is higher than those of bituminous and anthracite coal. Fig. 4 shows the variation of CO/CO2 ratio for lignite, bituminous and anthracite coal at different temperatures. It can be seen that for higher rank coal, the ratio of CO/CO2 rapidly decreases with time which also agrees with experimental results10,11 irrespective of temperature. Thus they are oxidized rapidly while reaching an asymptotic value. The variation in the production rate of CO to CO2 ratio is also compared with experimental values in Fig. 5(a) for lignite and Fig. 5(b) for anthracite. It is evident that production rate of CO2 with respect to CO is enhanced with time and becomes constant which is a similar trend as per experimental studies.10,11
 |
| Fig. 4 Variation in CO/CO2 ratio for (a) lignite (b) bituminous and (c) anthracite from ReaxFF simulation results. | |
 |
| Fig. 5 Variation in CO/CO2 ratio for (a) lignite and (b) anthracite for experimental and ReaxFF results. | |
3.1.2 Computation of activation energies for CO and CO2. To benchmark our modelling approach, an attempt has been made to calculate the activation energies for both CO and CO2 for all the three varieties of coal. Table 1 shows the activation energy of CO and CO2 formation for all the three coals which is obtained from the Arrhenius plots. An important observation is a close match in the activation energies for both CO and CO2. It is also proven that the formation of CO is easier than CO2 because of the lower activation energy. This also benchmarks our simulations against the reported data of Kaji et al.12 and those obtained from the rate constants as given in eqn (3a) and (3b). The smallest deviation in activation energies is observed for the bituminous coal. Table 2 discusses the formation of intermediates during the course of the reaction. Here it can be seen that the formation rate of CO is lower as compared to CO2 molecules irrespective of temperature. However this should not be confused by the activation energies as the data presented below is at a time step of 175 ps.
Table 1 Activation energy (E) of CO and CO2 at 150 ps for combustion process
Types of coal |
ECO (kJ mol−1) (ReaxFF) |
ECO (kJ mol−1) (experimental12) |
EaCO2 (kJ mol−1) (ReaxFF) |
ECO2 (kJ mol−1) (experimental12) |
Lignite |
46.1 |
51.5 |
56.4 |
56.1 |
Bituminous |
52.1 |
54.4 |
60.5 |
59.4 |
Anthracite |
59.2 |
58.2 |
64.4 |
59.4 |
Table 2 Formation of valuable intermediates at 175 ps for lignite formed during ReaxFF simulation
Temperature (K) |
CO |
CO2 |
H2 |
H2O |
HCHO |
CH3 |
CH4 |
2000 |
18 |
154 |
2 |
42 |
17 |
2 |
0 |
2500 |
29 |
272 |
2 |
63 |
18 |
0 |
1 |
3000 |
93 |
321 |
2 |
57 |
10 |
0 |
0 |
3500 |
93 |
321 |
2 |
57 |
6 |
1 |
1 |
4000 |
113 |
284 |
6 |
43 |
2 |
2 |
3 |
It should be noted that the CO molecules are formed at the start of the reaction (lower activation energies) and tends to decrease with time. For lignite coal, a large quantity of CO and CO2 molecules were released at a higher temperature. A similar phenomenon was also observed for anthracite and bituminous coal. In general, a large portion of CO and CO2 molecules are formed at a temperature range of 3000–4000 K due to the higher interaction between the carbon atoms (either from coal or from CO) and oxygen molecules. It is proposed that CO molecules are formed by the breakage of aromatic rings and subsequent incomplete reaction with oxygen molecules. Thereafter the CO molecules directly react with O2 to form CO2 molecules which is depicted in Fig. 6. Intermediates such as H2, H2O, HCHO, CH3 and CH4 are also formed during the course of the reaction. We now proceed in determining a reaction mechanism for the simplest of the coal molecule i.e. lignite.
 |
| Fig. 6 Reaction mechanism of lignite at 3000 K from ReaxFF simulation. | |
3.1.3 Reaction mechanism for lignite combustion. Fig. 6 shows the reaction mechanism of ReaxFF simulation at a temperature of 3000 K in fuel rich condition. It starts with an equilibrated structure of coal molecule (5 ps). As the coal molecules start to interact with oxygen molecules, it starts to divide into two aromatic like ring structure at a time step of 5.55 ps. The aromatic rings opens up to form straight carbon chain as 6.12 ps. Thus it is clear that the formation of CO is essentially due to the breakage of carbon–carbon (–C–C–) chain within the coal molecule. This also agrees with the lower activation energies as observed in a previous work12 and our own comparison in Table 1. This is further supplemented in Fig. 7, where the production of CO starts earlier than CO2 due to the breakage of –C–C– bond.
 |

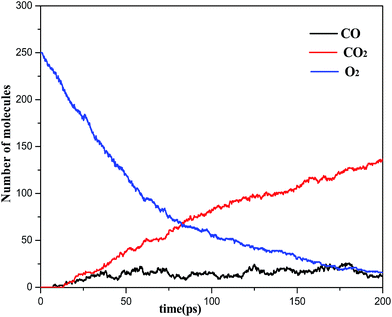

| Fig. 7 Formation of CO and CO2 molecules with time in ReaxFF simulation. | |
In the final stages, the carbon chain reacts with oxygen at a time step of 7.38 ps, where the first formation of CO is noticed. This is also accompanied by the release of the radical C3HO˙. The radical C3HO˙ then reacts with O2 molecule to form the remaining CO molecules at 8.36 ps. Simultaneously, this further releases the C2H˙ (unstable) radical. In the concluding part the CO molecules tend to react with O2 by forming the unstable form of carbon trioxide (CO3) at 9.64 ps. This again reacts with O2 and forms CO2 at 13.44 ps with the abstraction of O˙ radical. Some of the valuable intermediate such as HCHO are formed after the reaction of CH3 and O2 molecules at the end of simulation i.e. 57.28 ps. In the whole process the degradation of O2 molecules starts at 1.013 ps (Fig. 7). This is mainly due to the effect of higher temperature thereby facilitating more collisions.
3.1.4 Effect of temperature. Irrespective of the reaction mechanism, temperature and pressure only affects the reaction rates. In our previous work23 we have reported that the temperature highly affects the oxidation process i.e. large numbers of gaseous intermediates are generated during the reaction. In a similar manner, Fig. 8 shows that as temperature increases, the formation rate of CO and CO2 increases for all coal variant namely anthracite, bituminous and lignite. The formation rate of CO and CO2 are found to be much higher at 4000 K as compared to lower temperature, which agrees with experimental observations.10,11,48 It can be observed that the production rate of CO and CO2 for anthracite is much higher than that of bituminous and lignite. This is due to the large number of carbon i.e. 45 carbons in anthracite coal as compared to 18 carbon present in bituminous coal and 39 carbons present in lignite coal. Therefore when the oxygen molecules react with high rank coal, oxygen and carbon present in the coal reacts to form large number of gaseous molecules such as CO and CO2. The formation rate of CO and CO2 initially increases but then decreases at a faster rate at higher temperature. This is due to the combustion process which proceeds at a faster rate at high temperature.49 The experimental variation for the rate of formation of CO and CO2 for lignite coal is also compared in Fig. 9(a) for CO and Fig. 9(b) for CO2. The ReaxFF predicted rates are smooth when compared to the experimental rates. However the trend and the order of magnitude do represent a similar trend i.e. the production of CO2 picks up as the rate of formation declines for CO.
 |
| Fig. 8 The effect of temperature on the formation rate of CO, CO2 for anthracite (a and b), CO, CO2 for bituminous (c and d) and CO, CO2 for lignite (e and f) from ReaxFF simulation results. | |
 |
| Fig. 9 Experimental and ReaxFF simulation results for the effect of temperature on the formation rate of (a) CO, (b) CO2 for lignite. | |
3.2 Product formation in pyrolysis analysis
In the pyrolysis process, a large amount of gaseous products and intermediates are obtained. Gaseous product like CO2 is a major component which is also obtained in the combustion process, as well as in our earlier work.23 However valuable products like CH4, C2H4 and C2H6 are also evolved during the pyrolysis processes which agrees with the experimental findings.12 Table 3 gives us the amount of gaseous products such as CH4, C2H4 and C2H6 evolved during the pyrolysis analysis at 3000 K for three different coals i.e. anthracite, bituminous and lignite. From Table 3, a larger amount of CH4, C2H4, C2H6 are evolved in lignite and bituminous coals as compared to anthracite coal which agrees with the experimental trends.12 Similarly, Table 4 shows the fraction of CO and CO2 during the pyrolysis of anthracite, bituminous and lignite coal at 3500 K. The oxygen containing groups present in the coal decomposes to produce CO and CO2. Fraction of CO2 and CO were found to be 7.26 mol% and 14.52 mol% for lignite; and (6.45 mol% and 8.42 mol%) for bituminous coal respectively. This is higher as compared to anthracite coal on account of higher oxygen content present in low rank coals.12 Hence as obvious during the decomposition, coal with higher oxygen content evolves more CO and CO2.
Table 3 Industrially relevant gas as evolved in pyrolysis at 3000 K
Types of coal |
CH4 (mol%) |
C2H4 (mol%) |
C2H6 (mol%) |
Lignite |
8.0645 |
22.5806 |
8.0645 |
Bituminous |
6.4516 |
18.3140 |
6.4516 |
Anthracite |
5.6451 |
11.2903 |
3.7058 |
Table 4 Fraction of coal-O2 evolved as CO2 and CO on pyrolysis at 3500 K
Types of coal |
CO2 (mol%) |
CO (mol%) |
Lignite |
7.2580 |
14.5161 |
Bituminous |
6.4516 |
8.4193 |
Anthracite |
5.6451 |
1.6129 |
Fig. 10 shows the amount of CO and CO2 evolved during the pyrolysis at different temperature. The van't Hoff's plot i.e. Fig. 10 shows a linear plot of CO and CO2 with respect to temperature. As per experimental trend, a linear relation for CO evolution is found for all the coal samples.12 It implies that the oxygen containing group easily decomposes when pyrolysed at 3500 K to produce CO2. Table 4 gives the products of pyrolysis at 3500 K which depicts that the coal releases a higher content of CO and CO2 and it depends on the rank of the coal.
 |
| Fig. 10 Evolution of CO and CO2 on pyrolysis of anthracite, bituminous, and lignite coal. | |
Overall it is evident that the ReaxFF model (Fig. 6) points out to the fact that the functional groups decompose to produce light gas species such as CO, CO2, H2, CH2 and CH4. Both the aromatic and aliphatic portion of coal releases the radicals H˙ and OH˙ in order to form CH2, CH4, CO and CO2. The oxygenated coal molecules (CO, CO2 and H2O) and hydrocarbons (CH3, CH4, aliphatic) are hence the major intermediates formed during the reaction. In summary, the coal molecules fragment to produce unsaturated molecules and hydrogen at a high temperature. This confirms the experimental reaction mechanism of Serio et al.,50 for the pyrolysis reaction which includes gas phase reaction between non-hydrocarbon species. Further, it also depicts the gas phase reaction involving hydrocarbon species (paraffins and olefins) and hydrocarbon–non-hydrocarbon species (methane, CH4). It also confirmed a gas–solid reaction involving char and non-hydrocarbon (CO, CO2) which complements our ReaxFF MD-simulation results.
4. Conclusion
The combustion and pyrolysis of three different types of coals were analysed using ReaxFF molecular dynamics. The combustion analysis was done under fuel rich, stoichiometric and fuel lean conditions. Also, the pyrolysis was done under three different densities for lignite, bituminous and anthracite coals at a temperature range of 2000–4000 K. From the coal pyrolysis analysis, all the varieties of coal were found to produce light gas species such as CO, CO2, H2, CH2 and CH4. Oxygenated coal molecules (CO, CO2 and H2O) and hydrocarbons (CH3, CH4, aliphatic) were the major intermediates formed during the reaction. Thereafter the combustion and pyrolysis processes were compared with the experimental results and it was observed that ReaxFF results matches with the experimental findings in terms of rate of formation of CO and CO2. This rate was higher for the lignite and bituminous coals as compared to anthracite coal. Also, in general the ratio of
was found to decrease with time and has a higher ratio due to the rapid oxidation of oxygen containing groups. The activation energy for anthracite coal was found to be 59.2 kJ mol−1 for CO and 64.4 kJ mol−1 for CO2 respectively. Similarly, the production rate of CH4, C2H4 and C2H6 was also higher for lignite as compared to bituminous and anthracite coal.
Acknowledgements
The authors would like to thank the Council of Scientific and Industrial Research (CSIR), India for funding this project vide sanction letter no. 02(0093)/12/EMR-II. Useful discussions with Mr Debashis Kundu, PhD scholar at Department of Chemical Engineering, IIT Guwahati is also acknowledged.
References
- World Coal Association, Annual Energy Report, 2011, http://www.worldcoal.org/coal/ Search PubMed.
- D. W. van Krevelen, Textbook of Coal: Typology, Physics, Chemistry, Constitution, Elsevier, 3rd edn, 1990 Search PubMed.
- A. Kucuk, Y. Kadioglu and M. S. Gulaboglu, Combust. Flame, 2003, 133, 255–261 CrossRef CAS.
- Z. Li, Y. Wang, N. Song and Y. Yang, Procedia Earth Planet. Sci., 2009, 1, 123–129 CrossRef CAS.
- N. P. Vasilakos, Textbook of Advances in Coal Chemistry, Theophrastus Publications, S.A., Athens, Greece, 1988 Search PubMed.
- A. A. Agroskin, Textbook of Chemistry and Technology of Coal, Springfield, Va., Jerusalem, 1966 Search PubMed.
- H. Wang, B. Z. Dlugogorski and E. M. Kennedy, Prog. Energy Combust. Sci., 2003, 29, 487–513 CrossRef CAS.
- N. M. Laurendeau, Prog. Energy Combust. Sci., 1978, 4, 221–270 CrossRef CAS.
- G. S. Liu and S. Niksa, Prog. Energy Combust. Sci., 2004, 30, 679–717 CrossRef CAS.
- K. Baris, S. Kizgut and V. Didari, Fuel, 2012, 93, 423–432 CrossRef CAS.
- K. Baris, H. Aydin and V. Didari, Combust. Sci. Technol., 2011, 183, 105–121 CrossRef CAS.
- R. Kaji, Y. Hishinuma and Y. Nakamura, Fuel, 1985, 64, 297–302 CrossRef CAS.
- S. R. Dhaneswar and S. V. Pisupati, Fuel Process. Technol., 2012, 102, 156–165 CrossRef CAS.
- C. Moon, Y. Sung, S. Ahn, T. Kim, G. Choi and D. Kim, Appl. Therm. Eng., 2013, 54, 111–119 CrossRef CAS.
- Y. Chen and S. Mori, Energy Fuels, 1995, 9, 71–74 CrossRef CAS.
- S. Bhaskaran, A. Ganesh, S. Mahajani, P. Aghalayam, R. K. Sapru and D. K. Mathur, Fuel, 2013, 113, 837–843 CrossRef CAS.
- I. Adanez-Rubio, A. Abad, P. Gayan, L. F. de Diego, F. Garcia-Labiano and J. Adanez, Int. J. Greenhouse Gas Control, 2013, 12, 430–440 CrossRef CAS.
- K. Stanczyk, N. Howaniec, A. Smolinski, J. Swiadrowski, K. Kapusta, M. Wiatowski, J. Grabowski and J. Rogut, Fuel, 2011, 90, 1953–1962 CrossRef CAS.
- T. Mendiara, F. Garcia-Labiano, P. Gayan, A. Abad, L. F. de Diego and J. Adanez, Fuel, 2013, 106, 814–826 CrossRef CAS.
- C. K. Westbrook, W. J. Pitz, O. Herbinet, H. J. Curran and E. J. Silke, Combust. Flame, 2009, 156, 181–199 CrossRef CAS.
- M. L. Hobbs, P. T. Radulovic and L. D. Smoot, Prog. Energy Combust. Sci., 1993, 19, 505–586 CrossRef CAS.
- G. Domazetis, J. Liesegang and B. D. James, Fuel Process. Technol., 2005, 86, 463–486 CrossRef CAS.
- S. Bhoi, T. Banerjee and K. Mohanty, Fuel, 2014, 136, 326–333 CrossRef CAS.
- M. R. Weismiller, A. C. T. van Duin, J. Lee and R. A. Yetter, J. Phys. Chem. A, 2010, 114, 5485–5492 CrossRef CAS PubMed.
- A. C. T. van Duin, S. Dasgupta, F. Lorant and W. A. Goddard III, J. Phys. Chem. A, 2001, 105, 9396–9409 CrossRef CAS.
- G. Domazetis, B. D. James and J. Liesegang, J. Mol. Model., 2008, 14, 581–597 CrossRef CAS PubMed.
- S. J. Stuart, A. B. Tutein and J. A. Harrison, J. Chem. Phys., 2000, 112, 6472–6486 CrossRef CAS.
- A. C. T. van Duin, A. Strachan, S. Stewman, Q. S. Zhang, X. Xu and W. A. Goddard, J. Phys. Chem. A, 2003, 107, 3803–3811 CrossRef CAS.
- K. Chenoweth, A. C. T. van Duin and W. A. Goddard III, J. Phys. Chem. A, 2008, 112, 1040–1053 CrossRef CAS PubMed.
- S. Agrawalla and A. C. T. van Duin, J. Phys. Chem. A, 2011, 115, 960–972 CrossRef CAS PubMed.
- E. Salmon, A. C. T. van Duin, F. Lorant, P. M. Marquaire and W. A. Goddard III, Org. Geochem., 2009, 40, 1195–1209 CrossRef CAS.
- Q. D. Wang, J. B. Wang, J. Q. Li, N. X. Tan and X. Y. Li, Combust. Flame, 2011, 158, 217–226 CrossRef CAS.
- X. Liu, J. H. Zhan, D. Lai, X. Liu, Z. Zhang and G. Xu, Energy Fuels, 2015, 29, 2987–2997 CrossRef CAS.
- M. Zheng, X. Li, J. Liu and L. Guo, Energy Fuels, 2013, 27, 2942–2951 CrossRef CAS.
- F. Castro-Marcano, A. M. Kamat, M. F. Russo Jr, A. C. T. van Duin and J. P. Mathews, Combust. Flame, 2012, 159, 1272–1285 CrossRef CAS.
- F. Castro-Marcano and J. P. Mathews, Energy Fuels, 2011, 25, 845–853 CrossRef CAS.
- F. Castro-Marcano, M. F. Russo Jr, A. C. T. van Duin and J. P. Mathews, J. Anal. Appl. Pyrolysis, 2014, 109, 79–89 CrossRef CAS.
- L. C. Liu, C. Bai, H. Sun and W. A. Goddard, J. Phys. Chem. A, 2011, 115, 4941–4950 CrossRef CAS PubMed.
- B. Chen, X. Wei, Z. Yang, C. Liu, X. Fan, Y. Qing and Z. Zong, Energy Fuels, 2012, 26, 984–989 CrossRef CAS.
- Scientific Computing & Modelling (SCM). ADF; SCM, Theoretical Chemistry, Vrije Universiteit, Amsterdam, Netherlands, 2013, http://www.scm.com Search PubMed.
- J. P. Mathews and A. L. Chaffee, Fuel, 2012, 96, 1–14 CrossRef CAS.
- H. Kumagai, T. Chiba and K. Nakamura, Prepr. Pap. - Am. Chem. Soc., Div. Fuel Chem., 1999, 44, 633–637 CAS.
- M. R. Narkiewicz and J. P. Mathews, Energy Fuels, 2008, 22, 3104–3111 CrossRef CAS.
- I. Wender, Catal. Rev.: Sci. Eng., 1976, 14(1), 97–129 CAS.
- B. Arab and A. Shokuhfar, J. Mol. Model., 2013, 19, 5053–5062 CrossRef CAS PubMed.
- M. Itay, C. Hill and D. Glasser, Fuel Process. Technol., 1988, 21, 81–97 CrossRef.
- H. Wang, B. Z. Dlugogorski and E. M. Kennedy, Energy Fuels, 2003, 17, 150–158 CrossRef CAS.
- D. L. Carpenter and G. D. Sergeant, Fuel, 1964, 43, 247–266 CAS.
- N. V. Marevich and A. B. Travin, Izv. Akad. Nauk SSSR, Otd. Tekh. Nauk, 1953, 1, 1110–1117 Search PubMed.
- M. A. Serio, D. G. Hamblen, J. R. Markham and P. R. Solomon, Energy Fuels, 1987, 1(2), 138–152 CrossRef CAS.
|
