DOI:
10.1039/C5RA23072A
(Paper)
RSC Adv., 2016,
6, 3003-3012
Synthesis of novel inhibitors of β-glucuronidase based on the benzothiazole skeleton and their molecular docking studies†
Received
9th November 2015
, Accepted 21st December 2015
First published on 23rd December 2015
Abstract
A series of benzothiazole based oxadiazole analogs 1–20 was synthesized by reacting intermediate sulfite adducts with 2-aminothiophenol and refluxing in DMF for 12 h to afford ester analog I which, on further refluxing in methanolic hydrazine hydrate solution, afforded compound II. Compound II was then condensed with different aromatic carboxylic acids in POCl3 to synthesize novel benzothiazole based oxadiaxole derivatives 1–20 in good yields. All compounds were screened for β-glucuronidase inhibitory potential. Compounds 7, 14, 8 and 17 were found to be the most active analogs among the series with micromolar activities (IC50 = 2.16, 4.38, 7.20 and 8.56 μM, respectively). While compounds 5, 10, 18, 16, 1, 2, 15, 11, and 20 showed moderate activity with (IC50 values ranging between 14.12–75.14 μM), whereas compounds 3, 12, 13, and 19 were found to be inactive. Further studies showed that they do not possess any cytotoxic properties. Molecular docking studies were done to reveal the binding modes of the synthetic benzothiazole derivatives 1–20 targeting the active site of β-glucuronidase (PDB code: 1BHG).
1. Introduction
The β-glucuronidase enzyme is present in lysosomes and microsomes, and is normally excreted in urine along with cells of the urinary tract.1 β-Glucuronidase is an exoglycosidase enzyme related with breakage of glucuronosyl-O-bonds.2 It is present in different parts of the body such as, body fluids, the liver, spleen, kidneys, gastric juice, blood cells, bile, lungs, urine, muscle, and serum.3,4 In some diseases like hepatic diseases, cancer, inflammatory joints, and AIDS, the activity of β-glucuronidase increases.5 Endogenous biliary β-glucuronidase is related with deconjugation of glucuronides of bilirubin which in turn produces cholelithiasis in human bile.6 An amplified level of this enzyme has been related to different ailments of the urinary tract, such as active pyelonephritis, acute renal necrosis and cancer of the kidney and bladder.7 In contrast to other enzymes E. coli β-glucuronidase has a higher pH.8 Deficiency of β-glucuronidase in humans has resulted in mucopolysaccharidosis type VII (MPS VII; Sly syndrome), which is characterized by growth of glycosaminoglycans in cells of most tissues.9,10 Leprosy is a disease found in children of less than 15 years of age caused by β-glucuronidase.
The benzothiazole skeleton constitutes an important central template for a wide variety of biologically active compounds, having many pharmacological functions. The benzothiazoles also have immunosuppressive, antiviral properties,11,12 and calmodulin (CaM) antagonists activity.13 Extensive literature search reveals the antimalarial,14 antifungal,15 anti-inflammatory, analgesic,16 anticandidous17 and various CNS activities18 of benzothiazoles.
Much attention had been paid to the chemistry and biological activities of 1,3,4-oxadiazole nucleus. Several compounds possessing 1,3,4-oxadiazole scaffold have been recently reported as potential antiproliferative agents.19–21 Beside anticancer activity, other biological activities have been reported for 1,3,4-oxadiazole derivatives such as antidiabetic,22 antitubercular,23 antifungal,24 anti-inflammatory,25 and antibacterial activities.26 Moreover, many sulfonamide analogs have been reported as anticancer agents.27–29
Here in this study we are reporting on synthesis of the hybrid molecule of benzothiazole and oxadiazole, its characterization, β-glucuronidase inhibition and molecular docking studies.
2. Result discussion
2.1. Chemistry
A series of benzothiazole was synthesized according to literature protocol.30 The intermediate sulfite adduct was refluxed with 2-aminothiophenol in dimethylformamide for 12 h to afford compound I. The compound I was refluxed in methanolic hydrazine hydrate solution to afford compound II. Compound II was then condensed with different aromatic carboxylic acids in POCl3 to synthesize novel benzothiazole derivatives 1–20 in good yields.31 Spectral data including 1H-NMR, 13C NMR, HR MS, elemental analysis and melting points of the synthesized compounds were recorded Scheme 1.
 |
| Scheme 1 Synthesis of novel benzothiazole derivatives 1–20. | |
2.2. β-Glucuronidase and pharmacokinetic properties evaluation
In the continuation of our effort for enzyme inhibition32 we synthesized novel derivatives of benzothiazole 1–20. All synthesized compounds were evaluated for β-glucuronidase inhibitory potential. The β-glucuronidase inhibitory activity performed in this study involves mixing synthesized compounds with substrate (p-nitrophenyl-β-D-glucuronide) and β-glucuronidase enzyme to determine the ability of the compounds synthesized to prevent β-glucuronidase from breaking down the substrate (p-nitrophenyl-β-D-glucuronide) into β-D-glucuronide. Compounds 7, 14, 8 and 17 were found to be the most active analogs among the series with IC50 ranging 2.16–8.56 μM respectively. Whereas compound 5, 10, 18, 16, 1, 11, 2, 15, and 20 showed good to moderate activity with IC50 value ranging between 14.12–75.14 μM. On the other hand compound 3, 12, 13, and 19 were found inactive (Table 1). Further studies showed that all compounds were not cytotoxic.

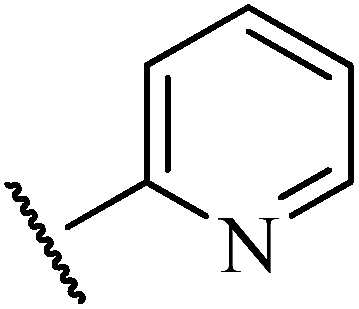

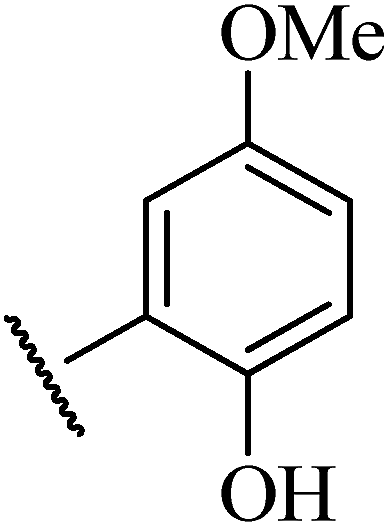

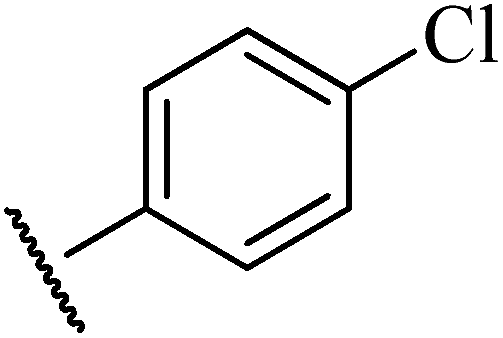

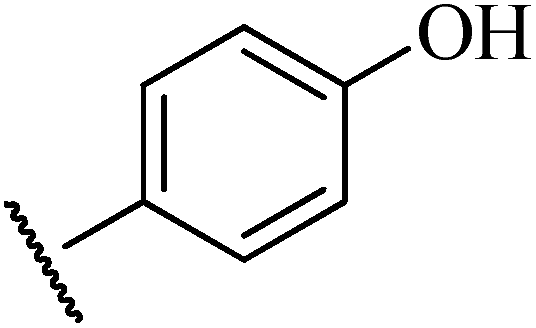

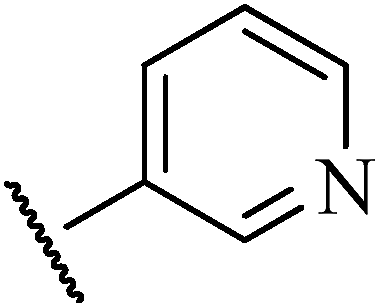

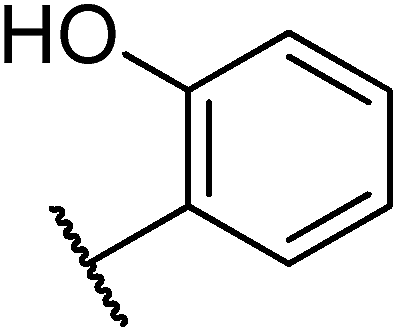

Table 1 β-Glucuronidase inhibitory potential of novel benzothiazole derivatives 1–20
Comp. |
R |
IC50 ± SEMa [μM] |
Comp. |
R |
IC50 ± SEMa [μM] |
SEM is the standard error of the mean. N.A. no activity. |
1 |
 |
18.38 ± 0.60 |
11 |
 |
39.15 ± 1.25 |
2 |
 |
31.21 ± 0.75 |
12 |
 |
N.A.b |
3 |
 |
N.A.b |
13 |
 |
N.A.b |
4 |
 |
14.12 ± 0.48 |
14 |
 |
4.38 ± 0.20 |
5 |
 |
74.37 ± 1.68 |
15 |
 |
32.42 ± 1.10 |
6 |
 |
24.17 ± 1.05 |
16 |
 |
17.30 ± 0.70 |
7 |
 |
2.16 ± 0.25 |
17 |
 |
8.56 ± 0.49 |
8 |
 |
7.20 ± 0.35 |
18 |
 |
15.40 ± 0.75 |
9 |
 |
19.68 ± 0.95 |
19 |
 |
N.A.b |
10 |
 |
14.89 ± 0.46 |
20 |
 |
75.14 ± 2.49 |
D-Saccharic acid 1,4-lactone |
48.4 ± 1.25 |
The twenty benzothiazole derivatives 1–20 were optimized using Ligprep and their pharmacokinetic properties were evaluation using QikProp for three descriptors: the predicted aqueous solubility (QP
log
S), the predicted octanol/water partition coefficient (QP
log
P), and the predicted Caco-2 cell permeability (QP Pcaco) considering their recommended range (Table 2).
Table 2 Optimization of novel benzothiazole derivatives 1–20
Compounds |
QP log Po/wa |
QP log Sb |
QP Pcacoc [nm s−1] |
Predicted octanol/water partition coefficient (QP log Po/w): range of recommended values = −2.0 to +6.5. Predicted aqueous solubility (QP log S): values less than −6 or greater than −1 are undesirable. Predicted apparent Caco-2 cell permeability (QP Pcaco): value <25 is poor. |
1 |
4.501 |
−6.698 |
1027.072 |
2 |
4.204 |
−5.942 |
1531.164 |
3 |
3.888 |
−5.621 |
1310.952 |
4 |
4.319 |
−6.541 |
733.849 |
5 |
4.843 |
−6.472 |
2339.252 |
6 |
4.168 |
−5.544 |
2180.364 |
7 |
3.622 |
−6.229 |
265.417 |
8 |
3.664 |
−6.199 |
312.746 |
9 |
3.664 |
−6.2 |
312.305 |
10 |
3.722 |
−6.177 |
375.562 |
11 |
3.569 |
−6.253 |
223.569 |
12 |
5.141 |
−6.965 |
2420.136 |
13 |
5.083 |
−6.835 |
2375.661 |
14 |
4.414 |
−6.484 |
1029.629 |
15 |
4.319 |
−6.539 |
735.78 |
16 |
4.42 |
−6.839 |
731.947 |
17 |
5.184 |
−6.918 |
2422.332 |
18 |
5.45 |
−7.312 |
2422.529 |
19 |
5.002 |
−6.688 |
2421.15 |
20 |
3.886 |
−5.618 |
1308.768 |
2.3. Molecular docking studies
Molecular docking studies were done to reveal the binding modes of the 1–20 synthetic benzothiazole derivatives targeting the active site of β-glucuronidase (PDB code: 1BHG). In compound 7 the hydroxyl group at meta and para position in the phenyl ring forms hydrogen bond with Trp528, Gln524 and Asn486 respectively. While the ring forms hydrophobic interaction with Tyr487 and Leu501. The phenyl-oxadiazole group forms hydrophobic interaction via weak van der Waals interactions with side chains non-polar group of His509, Tyr505, Tyr508, Asn484, Ser503 and Asn502. The thiazole group of the benzothiazole ring forms π–π interaction with Tyr504, while the benzene ring forms cation–π interaction with Lys606. Additionally, the benzothiazole ring forms hydrophobic mediated van der Waals contact with side chains of Arg600, Asp207, Glu451 and Glu540 (Fig. 1a).
 |
| Fig. 1 Graphical illustration of predicted binding modes of active benzothiazole derivatives. Binding modes of (a) compound 7 shown in stick form, (b) compound 14, (c) compound 8 and (d) compound 17. Key residues are represented in spear and labeled. The hydrogen bond interactions are represented by magenta arrow, π–π interactions are shown in green color lines and cation–π interactions are shown in red color lines. Compounds are represented in line form. | |
Compound 14 being the second most active compound, forms stable interaction with active site residues of β-D-glucuronidase. Where, the benzene ring of the benzothiazole ring and the benzene ring of the other end of the compound 14 form π–π interaction with Tyr505 and Trp587, respectively. While the hydroxyl group attached to the benzene ring forms hydrogen bond interaction with Tyr508 and non-polar side chains of Lys606, Glu451, Asn450, Asp207, His385, Asn604 and Glu540 form albeit weak van der Waals interactions with phenyl-oxadiazole. Similar hydrophobic interactions are also found between the benzothiazole ring and with side chains of Gln524, Ser503, His509, Ser503 Asn484, Asn502 and Tyr504 as in Fig. 1b.
Compound 8 is the third most active compound among the benzothiazole-phenyl-oxadiazole derivatives and the predicted preferred bind pose of compound 8 in the active site of β-D-glucuronidase showed that the benzothiazole ring system forms π–π interaction with Tyr504, while the same ring system forms van der Waals interaction with non-polar side chains of residues such as Tyr508, Arg600, Asp207, Lys606, Trp587, Glu540, Glu451, Asn484. Additionally, the middle benzene ring of the compound 8 forms similar van der Waals interaction with side chains of Ser503, His509, Asn502, and Tyr508. The phenyl-oxadiazole group at the other end forms non-polar contacts through weak van der Waals interactions with side chains of Leu501, Tyr487 and Tyr505. While the meta hydroxyl group forms hydrogen bond interaction with Gln524 and Trp528 (Fig. 1c).
Compound 17 is the fourth most active compound among the synthesized benzothiazole-phenyl-oxadiazole derivatives. The predicted binding mode of compound 17 showed that the fluorophenyl oxadiazole forms weak hydrophobic interaction with Leu501, Tyr505, Trp528, Tyr487 and van der Waals interactions with Gln524, Asn486, Ser485, Asn484, Ser505 and Asn502. The thiazole group of the benzothiazole ring forms π–π interaction with Tyr504, while the benzene ring forms cation–π interaction with Lys606 similar as that observed in compound 7. Furthermore, the central benzene ring forms van der Waals interaction with non-polar part of Glu451 and Tyr508. While the benzothiazole ring system was involved in weak hydrophobic contacts with side chains of Arg600, Glu540 and Asp207 as shown in Fig. 1d.
Binding mode analysis shows that the inactivity of these compounds largely depends on the hydrophobic substituted group, while the active site residues are of hydrophilic in nature. The binding mode of the potent compounds illuminates the activity profile, where the hydrophilic nature of these compounds form stable hydrogen bond network with the key hydrophilic residues in the active site. Consistently, the activity profile of the compounds directly depends on magnitude of hydrogen bonding.
3. Conclusions
Successively, our molecular docking studies evidently demonstrate the interaction pattern of our synthetic compounds in correspondence with β-glucuronidase inhibitory assay. Analysis of the binding mode clearly shows the presence of hydrophilic group i.e. hydroxyl moiety plays a key role in the activity data. Additionally, π–π and cation–π interaction along with hydrophobic interaction do also influence the activity profile. The compounds were not showing any cytotoxicity activity.
4. Experimental
4.1. General
NMR experiments were performed on UltraShield Bruker FT NMR 500 MHz, CHN analyses were performed on a Carlo Erba Strumentazion-Mod-1106, Italy. Thin layer chromatography (TLC) was performed on pre-coated silica gel aluminum plates (Kieselgel 60, 254, E. Merck, Germany). Chromatograms were visualized by UV at 254 and 365 nm.
4.2. β-Glucuronidase inhibition activity
β-Glucuronidase (E.C. 3.2.1.31 from bovine liver, G-0251) inhibition activity of the compounds had been evaluated by using method as reported in.33 In this study, D-saccharic acid 1,4-lactone had been used as a standard drug.34
4.3. Cytotoxicity
In vitro cytotoxicity assays were performed as described by Taha et al. (2015).35 Briefly, the cells (1 × 104 per well) were seeded in 96-well microtiter plates (Nunc) and allowed to grow for 24 h before treatment. After 24 h of incubation, the cells were treated with six different concentrations (0.1–100 μg mL−1) of test compounds, in three replicates. The plates were incubated for 72 h at 37 °C in a 5% CO2 incubator. A stock solution was obtained by dissolving the test compounds in DMSO. Further dilution to different tested concentrations were then carried out ensuring that the final concentration of DMSO in the test and control wells was not in excess of 1% (v/v). No effect due to the DMSO was observed. Doxorubicin was used as the positive control. The well containing untreated cells was the negative control. At the end of the incubation period, the media were replaced with medium containing 50 μg mL−1 of neutral red. The plates were incubated for another 3 h to allow for uptake of the vital dye into the lysosomes of viable and injured cells. After the incubation period, the media were removed and cells were washed with the neutral red washing solution. The dye was eluted from the cells by adding 200 μL of neutral red resorb solution and incubated for 30 min at room temperature with rapid agitation on a microtiter plate shaker. Dye absorbance was measured at 540 nm using a spectrophotometer ELISA plate reader.
4.4. Protein preparation for docking
The human β-D-glucuronidase structure (PDB code: 1BHG)36 was downloaded from the PDB database and optimized using protein preparation wizard in Maestro.37 The initial crystal structure were preprocessed for assigning bond order, addition of hydrogen, adding missing disulfide bonds and deleting B-chain, co-factors and water molecules. Further the structure was refined by minimizing hydrogens of altered species, pH 7 was set and a restrained energy minimization was done with converge heavy atoms to RMSD 0.30 Å.
4.5. Ligand preparation
All the twenty benzothiazole-phenyl-oxadiazole derivatives 3D structures were sketched using the Schrodinger Maestro37 using build option and the structure were further optimized using Ligprep application with OPLS_2005 forcefield, generation of possible states of pH 7.0 ± 2.0. generating possible tautomers, with all combinations of stereoisomer and with lowest energy conformation.
4.6. Rapid pharmacokinetic predictions of benzothiazole-phenyl-oxadiazole derivatives
In silico pharmacokinetic properties were evaluated for the twenty benzothiazole derivatives using the QikProp program, implemented in Maestro.38 Particular, three descriptors were taken into consideration for evaluation: the predicted aqueous solubility (QP
log
S), the predicted octanol/water partition coefficient (QP
log
P), and the predicted Caco-2 cell permeability (QP Pcaco).
4.7. Docking studies
Docking studies were performed using Glide: a complete solution for ligand-receptor docking in small molecule drug discovery suite.37 Initially, receptor grid generation was used to generate grid on the β-D-glucuronidase protein structure were the grid box was centered on catalytic residue Glu540 by supplying x, y, z coordinates: 81.875, 81.601 and 88.010 of β-D-glucuronidase with 12 Å radius respectively. The standard precision (SP) mode was chosen during the Glide docking process and Glide gscore was considered during analysis. While, GOLD (Genetic Optimization for Ligand Docking) version 5.1 (ref. 39) was used as docking validation tool. Gold scoring function was chosen as a fitness function. The genetic algorithm (GA) with search efficiency of 100% was set. The specified centroid (x, y, z coordinates: 80.43, 84.41, 90.48) with a cavity 12 Å radius was defined as active site. Results divergent by less than 1.5 Å in ligand-all atom RMSDs were clustered together. Best clusters and top rank scored binding mode analyzed in Pymol.40
4.8. Synthesis of methyl-4-(benzo[d]thiazol-2-yl)benzoate (I)
2-Aminobenzenethiol (6.63 g, 53 mmol) and 4-formylbenzoic acid methyl ester (6.73 g, 41 mmol) were dissolved in DMF (40 mL). Sodium metabisulfite (7.79 g, 41 mmol) was added and reaction mixture was refluxed at 130 °C for 6 h. Then reaction mixture was poured into ice water and the solid product was filtered. Crystallization of crude product from ethanol gave methyl-4-(benzo[d]thiazol-2-yl)benzoate (I) and yielded 10.20 g (92.5%) of white solid, Rf = 0.57 (ethyl acetate
:
hexane 2
:
8); m.p. 228 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.26 (d, 2H, J = 8.5 Hz), 8.21 (d, 2H, J = 8.5 Hz), 8.10 (d, 1H, J = 8.0 Hz), 8.08 (d, 1H, J = 8.0 Hz), 7.61 (dt, 1H, J = 6.5, J = 1.5 Hz), 7.45 (dt, 1H, J = 8.0, J = 1.0 Hz), 3.98 (s, 3H, CH3); 13C-NMR (DMSO-d6, 125 MHz): δ 52.88, 122.99, 123.71, 126.53, 127.41, 127.41, 127.95, 130.63, 130.63, 132.17, 135.25, 137.24, 153.98, 166.09, 166.45; anal. calcd for C15H11NO2S, C = 66.89; H = 4.12; N 5.20; found C = 66.87; H = 4.13; N 5.22; EI MS m/z (% rel. abund.): 269.
4.9. Synthesis of 4-(benzo[d]thiazol-2-yl)benzohydrazide (II)
Mixture of compound I (8.07 g, 30 mmol) and hydrazine hydrate (10 mL, 95%) in ethanol (50 mL) was refluxed for 12 h. The solvent and excess of hydrazine hydrate were evaporated and the residue (II) was washed with water, filtered, dried, and then crystallized from ethanol and yielded white solid, Rf = 0.32 (ethyl acetate
:
hexane 9
:
1); (7.35 g, 91%). M.p. 325 °C; 1H-NMR (500 MHz, DMSO-d6): δ 9.82 (s, 1H, NH), 8.28 (d, 2H, J = 8.5 Hz), 8.25 (d, 2H, J = 8.0 Hz), 8.11 (d, 1H, J = 8.0 Hz), 8.06 (d, 1H, J = 8.0 Hz), 7.64 (dt, 1H, J = 6.5, J = 2.0 Hz), 7.52 (dt, 1H, J = 8.0, J = 1.0 Hz), 3.91 (br. s, 2H, NH2); 13C-NMR (DMSO-d6, 150 MHz): δ 122.93, 123.56, 126.33, 127.31, 127.31, 127.62, 128.48, 128.48, 135.13, 135.42, 136.05, 153.99, 165.44, 166.87; anal. calcd for C14H11N3OS, C = 62.43; H = 4.12; N 15.60; found C = 62.44; H = 4.13; N 15.62; EI MS m/z (% rel. abund.): 269.
4.9.1. General procedure for synthesis of oxadiazole benzohydrazones (1–20). A mixture of compound (II) (0.25 mmol) and various aromatic acid (0.25 mmol) in POCl3 (5 mL) was refluxed for 8–14 h at 120 °C. The mixture was cooled and poured onto crushed ice. It was neutralized with NaHCO3 solution and the resulting solid mass precipitated out was filtered, dried, and crystallized.17
4.9.1.1. 2-(5-(4-(Benzo[d]thiazol-2-yl)phenyl)-1,3,4-oxadiazol-2-yl)-4-methoxyphenol (1). Yellow solid. Yield: 85.1%. M.p.: 279–280 °C; 1H NMR (500 MHz, DMSO-d6): δ 10.26 (s, 1H, OH), 8.29 (d, 2H, J2′,6′/5′,3′ = 8.0 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.15 (d, 2H, J3′,5′/2′,6′ = 8.0 Hz, H-3′, H-5′), 8.10 (d, 1H, J7,6 = 7.5 Hz, H-7), 7.63 (dt, 1H, J5,7 = 2.0, J5(4,6) = 7.5 Hz, H-5), 7.55 (dt, 1H, J6,4 = 2.0, J6(5,7) = 7.5 Hz, H-6), 7.11 (d, 1H, J6′′,4′′ = 2.0 Hz, H-6′′), 6.90 (dd, 1H, J4′′,6′′ = 2.0, J4′′,3′′ = 8.0 Hz, H-4′′), 6.84 (d, 1H, J3′′,4′′ = 8.0 Hz, H-3′′), 3.77 (s, 3H, OCH3); 13C-NMR (150 MHz, DMSO-d6): δ 165.37, 162.52, 154.38, 154.25, 152.79, 152.38, 137.23, 136.39, 128.47, 128.47, 126.72, 126.72, 126.54, 126.24, 125.31, 123.47, 122.60, 118.16, 116.72, 114.81, 110.68, 56.23; HREI-MS: m/z calcd for C22H15N3O3S [M]+ 401.0834; found 401.0838; anal. calcd for C22H15N3O3S, C, 65.82; H, 3.77; N, 10.47; found C, 65.81; H, 3.79; N, 10.45.
4.9.1.2. 2-(4-(Benzo[d]thiazol-2-yl)phenyl)-5-(pyridin-2-yl)-1,3,4-oxadiazole (2). Brown solid. Yield: 83.3%. M.p.: 281–282 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.69 (d, 1H, J6′′,5′′ = 6.0 Hz, H-6′′), 8.30 (d, 2H, J2′,6′/5′,3′ = 8.5 Hz, H-2′,H-6′), 8.20 (d, 1H, J4,5 = 8.5 Hz, H-4), 8.17 (d, 2H, J3′,5′/2′,6′ = 8.5 Hz, H-3′, H-5′), 8.10 (d, 1H, J7,6 = 8.5 Hz, H-6), 8.00 (d, 1H, J3′′,4′′ = 7.0 Hz, H-3′′), 7.91 (t, 1H, J5′′(6′′,4′′) = 7.0 Hz, H-5′′), 7.64 (t, 1H, J5(4,6) = 6.5 Hz, H-5), 7.52 (t, 1H, J6(5,7) = 7.0 Hz, H-6), 7.49 (t, 1H, J4′′(3′′,5′′) = 7.0 Hz, H-4′′); 13C-NMR (150 MHz, DMSO-d6): δ 167.20, 165.47, 162.42, 152.48, 148.46, 142.01, 139.58, 137.43, 136.29, 128.50, 128.50, 128.50, 126.92, 126.92, 126.59, 126.44, 125.48, 123.70, 122.70, 119.84; HREI-MS: m/z calcd for C20H12N4OS [M]+ 356.0732; found 356.0735; anal. calcd for C20H12N4OS, C, 67.40; H, 3.39; N, 15.72; found C, 67.41; H, 3.40; N, 15.70.
4.9.1.3. 2-(4-(Benzo[d]thiazol-2-yl)phenyl)-5-(pyridin-3-yl)-1,3,4-oxadiazole (3). Light brown solid. Yield: 75.3%. M.p.: 275–266 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.96 (s, 1H, H-2′′), 8.60 (d, 1H, J6′′,5′′ = 5.0 Hz, H-6′′), 8.24 (d, 2H, J2′,6′/5′,3′ = 8.5 Hz, H-2′, H-6′), 8.19 (d, 1H, J4,5 = 8.5 Hz, H-4), 8.15 (d, 1H, J5′′,6′′ = 5.0 Hz, H-5′′), 8.11 (d, 2H, J3′,5′/2′,6′ = 8.5 Hz, H-3′, H-5′), 8.09 (d, 1H, J7,6 = 7.0 Hz, H-7), 7.60 (t, 1H, J5(4,6) = 7.0 Hz, H-5), 7.51 (t, 1H, J6(5,7) = 7.0 Hz, H-6), 7.45 (t, 1H, J4′′(3′′,5′′) = 7.0 Hz, H-4′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.38, 162.39, 156.14, 152.49, 149.27, 148.44, 137.53, 136.49, 135.71, 128.48, 128.48, 128.24, 126.87, 126.87, 126.49, 126.32, 125.38, 123.67, 123.61, 122.56; HREI-MS: m/z calcd for C20H12N4OS [M]+ 356.0732; found 356.0729; anal. calcd for C20H12N4OS, C, 67.40; H, 3.39; N, 15.72; found C, 67.41; H, 3.41; N, 15.71.
4.9.1.4. 4-(5-(4-(Benzo[d]thiazol-2-yl)phenyl)-1,3,4-oxadiazol-2-yl)phenol (4). Red solid. Yield: 80.2%. M.p.: 288–289 °C; 1H-NMR (500 MHz, DMSO-d6): δ 10.60 (s, 1H, OH), 8.26 (d, 2H, J2′,6′/3′,5′ = 7.5 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.10 (d, 2H, J3′,5′/2′,6′ = 7.5 Hz, H-3′, H-5′), 8.08 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.60–7.56 (m, 3H, H-5, H-2′′, H-6′′), 7.51 (t, 1H, J6(5,7) = 7.5 Hz, H-6), 6.89 (d, 2H, J3′′,5′′/2′′,6′′ = 7.5 Hz, H-3′′, H-5′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.49, 165.49, 162.32, 160.76, 152.43, 137.48, 136.39, 128.69, 127.42, 126.72, 126.54, 126.41, 125.49, 123.60, 122.68, 117.38, 115.78; HREI-MS: m/z calcd for C21H13N3O2S [M]+ 371.0728; found 371.0736; anal. calcd for C21H13N3O2S, C, 67.91; H, 3.53; N, 11.31; found C, 67.89; H, 3.52; N, 11.30.
4.9.1.5. 2-(4-(Benzo[d]thiazol-2-yl)phenyl)-5-(thiophen-2-yl)-1,3,4-oxadiazole (5). Dark brown solid. Yield: 78.4%. M.p.: 276–278 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.29 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.19 (d, 1H, J4,5 = 7.0 Hz, H-4), 8.12 (d, 2H, J3′,5′/2′,6′ = 8.0 Hz, H-3′, H-5′), 8.08 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.69 (d, 1H, J3′′,5′′ = 6.0 Hz, H-3′′), 7.63 (dt, 1H, J5,7 = 2.0, J5(4,6) = 7.5 Hz, H-5), 7.51–7.48 (m, 2H, H-6, H-5′′), 7.16 (dd, 1H, J4′′,5′′ = 4.5 Hz, J4′′,3′′ = 6.0 Hz, H-4′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.92, 162.36, 160.37, 152.31, 137.53, 136.49, 131.39, 130.53, 130.14, 128.30, 128.30, 127.47, 126.62, 126.62, 126.19, 126.42, 125.48, 123.68, 122.57; HREI-MS: m/z calcd for C19H11N3OS2 [M]+ 361.0344; found 361.0347; anal. calcd for C19H11N3OS2, C, 63.14; H, 3.07; N, 11.63; found C, 63.13; H, 3.08; N, 11.65.
4.9.1.6. 2-(4-(Benzo[d]thiazol-2-yl)phenyl)-5-(furan-2-yl)-1,3,4-oxadiazole (6). Brown solid. Yield: 79.7%. M.p.: 289-290 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.30 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.18 (d, 1H, J4,5 = 7.0 Hz, H-4), 8.14 (d, 2H, J3′,5′/2′,6′ = 8.0 Hz, H-3′, H-5′), 8.10 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.72 (d, 1H, J3′′,5′′ = 6.5 Hz, H-3′′), 7.60 (dt, 1H, J5,7 = 2.0, J5(4,6) = 7.0 Hz, H-5), 7.54–7.51 (m, 2H, H-6, H-5′′), 7.19 (dd, 1H, J4′′,5′′ = 4.0 Hz, J4′′,3′′ = 6.0 Hz, H-4′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.96, 162.85, 162.36, 152.42, 149.83, 144.02, 137.53, 136.37, 128.51, 128.51, 126.98, 126.62, 126.62, 126.43, 125.68, 123.62, 122.86, 112.61, 111.18; HREI-MS: m/z calcd for C19H11N3O2S [M]+ 345.0572; found 345.0575; anal. calcd for C19H11N3O2S, C, 66.07; H, 3.21; N, 12.17; found C, 66.08; H, 3.19; N, 12.16.
4.9.1.7. 4-(5-(4-(Benzo[d]thiazol-2-yl)phenyl)-1,3,4-oxadiazol-2-yl)benzene-1,2-diol (7). Light brown solid. Yield: 91.3%. M.p.: 294–295 °C; 1H-NMR (500 MHz, DMSO-d6): δ 11.02 (s, 2H, 2 × OH), 8.26 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.11 (d, 2H, J3′,5′/2′,6′ = 8.0 Hz, H-3′, H-5′), 8.08 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.60 (dt, 1H, J5,7 = 2.0, J5(4,6) = 7.5 Hz, H-5), 7.51 (dt, 1H, J6,4 = 2.0, J6(5,7) = 7.5 Hz, H-6), 7.02 (d, 1H J3′′,4′′ = 8.0 Hz, H-4′′), 6.89 (d, J6′′,5′′ = 8.0 Hz, H-6′′), 6.76 (t, 1H, J5′′(4′′,6′′) = 7.5 Hz, H-5′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.89, 165.48, 162.52, 152.37, 148.27, 148.12, 137.53, 136.19, 128.47, 128.47, 126.98, 126.98, 126.50, 126.41, 125.43, 123.60, 122.63, 121.44, 119.17, 117.62, 112.30; HREI-MS: m/z calcd for C21H13N3O3S [M]+ 387.0678; found 387.0685; anal. calcd for C21H13N3O3S, C, 65.11; H, 3.38; N, 10.85; found C, 65.13; H, 3.36; N, 10.84.
4.9.1.8. 2-(5-(4-(Benzo[d]thiazol-2-yl)phenyl)-1,3,4-oxadiazol-2-yl)benzene-1,4-diol (8). Pale yellow solid. Yield: 76.5%. M.p.: 287–289 °C; 1H-NMR (500 MHz, DMSO-d6): δ 10.20 (s, 1H, OH), 9.25 (s, 1H, OH), 8.25 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.18 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.11 (d, 2H, J3′,5′/2′,6 = 8.0 Hz, H-3′, H-5′), 8.07 (d, 1H, J7,6 = 7.5 Hz, H-7), 7.60 (t, 1H, J5(4,6) = 7.5 Hz, H-5), 7.51 (dt, 1H, J6(5,7) = 7.0 Hz, H-6), 7.0 (d, 1H, J6′′,4′′ = 2.0 Hz, H-6′′), 6.76–6.73 (m, 2H, H-3′′, H-4′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.57, 162.48, 154.25, 153.11, 152.49, 152.19, 137.33, 136.32, 128.48, 128.48, 126.97, 126.97, 126.31, 126.14, 125.68, 123.73, 122.50, 120.15, 118.16, 115.58, 111.13; HREI-MS: m/z calcd for C21H13N3O3S [M]+ 528.2161; found 528.2167; anal. calcd for C21H13N3O3S, C, 65.11; H, 3.38; N, 10.85; found C, 65.09; H, 3.40; N, 10.84.
4.9.1.9. 4-(5-(4-(Benzo[d]thiazol-2-yl)phenyl)-1,3,4-oxadiazol-2-yl)benzene-1,3-diol (9). Light brown solid. Yield: 86.3%. M.p.: 297–298 °C; 1H-NMR (500 MHz, DMSO-d6): δ 11.20 (s, 1H, OH), 10.15 (s, 1H, OH), 8.25 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.19 (d, 1H, J4,5 = 7.5 Hz, H-4), 8.14 (d, 2H, J3′,5′/2′,6 = 8.0 Hz, H-3′, H-5′), 8.09 (d, 1H, J7,6 = 7.5 Hz, H-7), 7.60 (dt, 1H, J5,7 = 2.0, J5(4,6) = 7.5 Hz, H-5), 7.51 (dt, 1H, J6,4 = 2.0, J6(5,7) = 7.5 Hz, H-6), 7.32 (d, 1H, J6′′,5′′ = 8.5 Hz, H-6′′), 6.94 (dd, 1H, J5′′,3′′ = 2.0 Hz, J5′′,6′′ = 8.5 Hz, H-5′′), 6.31 (d, 1H, J3′′,5′′ = 2.0 Hz, H-3′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.51, 162.51, 159.43, 159.17, 155.85, 152.49, 137.45, 136.32, 129.78, 128.56, 128.56, 126.94, 126.94, 126.63, 126.47, 125.31, 123.58, 122.72, 109.19, 105.18, 104.26; HREI-MS: m/z calcd for C21H13N3O3S [M]+ 387.0678; found 387.0682; anal. calcd for C21H13N3O3S, C, 65.11; H, 3.38; N, 10.85; found C, 65.12; H, 3.39; N, 10.83.
4.9.1.10. 3-(5-(4-(Benzo[d]thiazol-2-yl)phenyl)-1,3,4-oxadiazol-2-yl)benzene-1,2-diol (10). Pale yellow solid. Yield: 89.3%. M.p.: 298–299 °C; 1H-NMR (500 MHz, DMSO-d6): δ 11.29 (s, 1H, OH), 11.20 (s, 1H, OH), 8.26 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.21 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.12 (d, 2H, J3′,5′/2′,6 = 8.0 Hz, H-3′, H-5′), 8.09 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.60 (dt, 1H, J5,7 = 2.0, J5(4,6) = 7.5 Hz, H-5), 7.52 (dt, 1H, J6,4 = 2.0, J6(5,7) = 7.5 Hz, H-6), 7.29 (d, 1H, J2′′,6′′ = 2.0 Hz, H-2′′), 6.96 (dd, 1H, J6′′,2′′ = 2.0 Hz, J6′′,5′′ = 7.5 Hz, H-6′′), 6.79 (d, 1H, J5′′,6′′ = 7.5 Hz, H-5′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.51, 162.39, 155.78, 152.31, 148.84, 147.47, 137.49, 136.31, 128.36, 128.36, 126.95, 126.95, 126.69, 126.24, 125.58, 123.80, 122.75, 121.91, 120.87, 118.12, 112.53; HREI-MS: m/z calcd for C21H13N3O3S [M]+ 387.0678; found 387.0681; anal. calcd for C21H13N3O3S, C, 65.11; H, 3.38; N, 10.85; found C, 65.10; H, 3.36; N, 10.87.
4.9.1.11. 5-(5-(4-(Benzo[d]thiazol-2-yl)phenyl)-1,3,4-oxadiazol-2-yl)benzene-1,3-diol (11). White solid. Yield: 92.6%. M.p.: 295–296 °C; 1H-NMR (500 MHz, DMSO-d6): δ 9.30 (s, 2H, 2 × OH), 8.28 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.12 (d, 2H, J3′,5′/2′,6 = 8.5 Hz, H-3′, H-5′), 8.09 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.60 (t, 1H, J5(4,6) = 7.5 Hz, H-5), 7.52 (t, 1H, J6(5,7) = 7.5 Hz, H-6), 6.60 (d, 2H, J2′′,6′′/4′′ = 2.0 Hz, H-2′′, H-6′′), 6.26 (s, 1H, H-4′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.49, 164.54, 162.41, 161.68, 161.68, 152.44, 137.63, 136.22, 128.70, 128.70, 126.72, 126.72, 126.50, 126.32, 126.16, 125.39, 123.69, 122.52, 109.75, 109.75, 103.87; HREI-MS: m/z calcd for C21H13N3O3S [M]+ 387.0678; found 387.0675; anal. calcd for C21H13N3O3S, C, 65.11; H, 3.38; N, 10.85; found C, 65.09; H, 3.40; N, 10.84.
4.9.1.12. 2-(4-(Benzo[d]thiazol-2-yl)phenyl)-5-(3,4-dimethoxyphenyl)-1,3,4-oxadiazole (12). Brown solid. M.p.: 276–277 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.25 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.12 (d, 2H, J3′,5′/2′,6 = 8.0 Hz, H-3′, H-5′), 8.09 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.60 (t, 1H, J5(4,6) = 7.0 Hz, H-5), 7.52 (t, 1H, J6(5,7) = 7.0 Hz, H-6), 7.37 (d, 1H, J2′′,6′′ = 2.0 Hz, H-2′′), 7.28 (d, 1H, J6′′,5′′ = 7.0 Hz, H-6′′), 7.09 (d, 1H, J5′′,6′′ = 7.0 Hz, H-5′′) 3.86 (s, 3H, OCH3), 3.82 (s, 3H, OCH3); 13C-NMR (150 MHz, DMSO-d6): δ 165.81, 165.48, 162.32, 152.28, 152.16, 151.48, 137.47, 136.39, 128.51, 128.51, 126.94, 126.94, 126.69, 126.41, 125.58, 123.78, 122.60, 121.21, 120.15, 115.53, 107.69, 56.79, 56.72; HREI-MS: m/z calcd for C23H17N3O3S [M]+ 415.0991; found 415.0987; anal. calcd for C23H17N3O3S, C, 66.49; H, 4.12; N, 10.11; found C, 66.51; H, 4.14; N, 10.13.
4.9.1.13. 2-(4-(Benzo[d]thiazol-2-yl)phenyl)-5-(2,5-dimethoxyphenyl)-1,3,4-oxadiazole (13). Orange solid. Yield: 81.7%. M.p.: 274–275 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.26 (d, 2H, J2′,6′/3′,5′ = 8.5 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.5 Hz, H-4), 8.14 (d, 2H, J3′,5′/2′,6 = 8.0 Hz, H-3′,H-5′), 8.10 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.61 (dt, 1H, J5,7 = 2.0 Hz, J5(4,6) = 7.5 Hz, H-5), 7.52 (dt, 1H, J6,4 = 2.0 Hz, J6(5,7) = 7.5 Hz, H-6), 6.90 (d, 2H, J2′′,6′′,/4′′ = 2.0 Hz, H-2′′, H-6′′), 6.62 (d, 1H, J4′′/6′′,2′′ = 2.0 Hz, H-4′′), 3.83 (s, 6H, 2 × OCH3); 13C-NMR (150 MHz, DMSO-d6): δ 165.49, 162.41, 156.17, 155.25, 152.49, 151.34, 137.33, 136.32, 128.48, 128.48, 126.94, 126.94, 126.61, 126.46, 125.58, 123.71, 122.54, 118.12, 117.47, 115.65, 115.38, 56.72, 56.01; HREI-MS: m/z calcd for C23H17N3O3S [M]+ 415.0991; found 415.0996; anal. calcd for C23H17N3O3S, C, 66.49; H, 4.12; N, 10.11; found C, 66.47; H, 4.14; N, 10.09.
4.9.1.14. 2-(5-(4-(Benzo[d]thiazol-2-yl)phenyl)-1,3,4-oxadiazol-2-yl)phenol (14). Brownish solid. Yield: 96.2%. M.p.: 265–266 °C; 1H-NMR (500 MHz, DMSO-d6): δ 10.56 (s, 1H, OH), 8.29 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 7.5 Hz, H-4), 8.13 (d, 2H, J3′,5′/2′,6 = 8.0 Hz, H-3′, H-5′), 8.10 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.60–7.56 (m, 2H, H-6, H-5′′), 7.52 (dt, 1H, J6,4 = 2.0, J6(5,7) = 7.5 Hz, H-6), 7.31 (t, 1H, J4′′(5′′,3′′) = 2.0 Hz, H-4′′), 6.95–6.90 (m, 2H, H-3′′, H-6′′, H-5′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.57, 162.32, 158.48, 155.72, 152.52, 137.49, 136.19, 131.74, 130.01, 128.40, 128.40, 126.95, 126.95, 126.62, 126.47, 125.38, 123.60, 122.69, 119.84, 118.76, 111.62; HREI-MS: m/z calcd for C21H13N3O2S [M]+ 371.0728; found 371.0722; anal. calcd for C21H13N3O2S, C, 67.91; H, 3.53; N, 11.31; found C, 67.93; H, 3.51; N, 11.32.
4.9.1.15. 3-(5-(4-(Benzo[d]thiazol-2-yl)phenyl)-1,3,4-oxadiazol-2-yl)phenol (15). Dark brown solid. Yield: 76.2%. M.p.: 278–279 °C; 1H-NMR (500 MHz, DMSO-d6): δ 9.90 (s, 1H, OH), 8.29 (d, 2H, J2′,6′/3′,5′ = 8.5 Hz, H-2′, H-6′), 8.21 (d, 1H, J4,5 = 8.5 Hz, H-4), 8.13 (d, 2H, J3′,5′/2′,6 = 8.0 Hz, H-3′, H-5′), 8.10 (d, 1H, J7,6 = 8.5 Hz, H-7), 7.60 (t, 1H, J5(4,6) = 8.0 Hz, H-5), 7.51 (t, 1H, Hz, J6(5,7) = 7.5 Hz, H-6), 7.32 (t, 1H, J5′′(4′′,6′′) = 7.0 Hz, H-5′′), 7.25 (s, 1H, H-2′′), 7.11 (d, 1H, J4′′,5′′ = 7.5 Hz, H-4′′), 6.89 (dd, 1H, J6′′,2′′ = 2.0 Hz, J6′′,5′′ = 7.0 Hz, H-6′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.87, 165.37, 162.49, 158.51, 152.38, 137.53, 136.28, 130.90, 128.30, 128.30, 126.72, 126.72, 126.94, 126.42, 126.25, 125.49, 123.71, 122.68, 121.13, 118.32, 114.27. HREI-MS: m/z calcd for C21H13N3O2S [M]+ 371.0728; found 371.0731; anal. calcd for C21H13N3O2S, C, 67.91; H, 3.53; N, 11.31; found C, 67.92; H, 3.54; N, 11.32.
4.9.1.16. 4-(5-(4-(Benzo[d]thiazol-2-yl)phenyl)-1,3,4-oxadiazol-2-yl)-2-methoxyphenol (16). Dark brown solid. Yield: 88.4%. M.p.: 291-292 °C; 1H-NMR (500 MHz, DMSO-d6): δ 9.60 (s, 1H, OH), 8.29 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.11 (d, 2H, J3′,5′/2′,6 = 8.0 Hz, H-3′, H-5′), 8.08 (d, 1H, J7,6 = 8.5 Hz, H-7), 7.64 (dt, 1H, J5,7 = 2.0 Hz, J5(4,6) = 7.5 Hz, H-5), 7.53 (dt, 1H, J6,4 = 2.0 Hz, J6(5,7) = 7.5 Hz, H-6); 7.35 (d, 1H, J2′′,6′′ = 2.0 Hz, H-2′′), 7.16 (dd, 1H, J6′′,2′′ = 2.0 Hz, J6′′,5′′ = 7.5 Hz, H-6′′), 6.90 (d, 1H, J5′′,6′′ = 8.0 Hz, H-5′′), 3.82 (s, 3H, OCH3); 13C-NMR (150 MHz, DMSO-d6): δ 165.95, 165.49, 162.38, 152.41, 150.82, 149.78, 137.53, 136.39, 128.40, 128.40, 126.82, 126.82, 126.49, 126.34, 125.47, 123.69, 122.87, 121.94, 117.50, 115.61, 111.78, 56.34; HREI-MS: m/z calcd for C22H15N3O3S [M]+ 401.0834; found 401.0837; anal. calcd for C22H15N3O3S, C, 65.82; H, 3.77; N, 10.47; found C, 65.83; H, 3.76; N, 10.48.
4.9.1.17. 2-(4-(Benzo[d]thiazol-2-yl)phenyl)-5-(4-fluorophenyl)-1,3,4-oxadiazole (17). Yellow solid. Yield: 86.4%. M.p.: 271–272 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.29 (d, 2H, J2′,6′ = J6′,2′ = 8.0 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.12 (d, 2H, J3′,5′ = J3′,5′ = 8.0 Hz, H-3′, H-5′), 8.09 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.74 (dd, 2H, J3′′,5′′/2′′,6′′ = 7.0 Hz, J3′′,5′′/F = 5.5 Hz, H-3′′, H-5′′), 7.60 (t, 1H, J5(4,6) = 7.5 Hz, H-5), 7.51 (t, 1H, J6(5,7) = 7.5 Hz, H-6), 7.71 (dd, 2H, J3′′,5′′/2′′,6′′ = 5.5 Hz, J3′′,5′′/F = 5.5 Hz, H-3′′, H-5′′), 7.36 (t, 2H, J2′′,6′′/3′′,5′′,F = 7.0 Hz, H-2′′, H-6′′); 13C-NMR (150 MHz, DMSO-d6): δ 166.37 (d, J = 223.2 Hz), 165.26, 162.45, 152.38, 137.53, 136.19, 129.82, 129.82, 128.60, 128.60, 126.82, 126.82, 126.60, 126.45, 125.47, 123.68, 123.51, 122.63, 116.23, 116.17, 116.17; HREI-MS: m/z calcd for C21H12FN3OS [M]+ 373.0685; found 373.0690; anal. calcd for C21H12FN3OS, C, 67.55; H, 3.24; N, 11.25; found C, 67.54; H, 3.22; N, 11.28.
4.9.1.18. 2-(4-(Benzo[d]thiazol-2-yl)phenyl)-5-(4-chlorophenyl)-1,3,4-oxadiazole (18). Brown solid. Yield: 78.7%. M.p.: 268–269 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.29 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.11 (d, 2H, J3′,5′/2′,6 = 8.0 Hz, H-3′, H-5′), 8.10 (d, 1H, J7,6 = 7.5 Hz, H-7), 7.77 (d, 2H, J2′′,6′′/3′′,5′′ = 8.5 Hz, H-2′′, H-6′′), 7.60 (t, 1H, J5(4,6) = 7.5 Hz, H-5), 7.56 (t, 1H, J6(5,7) = 7.5 Hz, H-6), 7.52 (d, 2H, J3′′,5′′/2′′,6′′ = 8.0 Hz, H-3′′, H-5′′); 13C-NMR (150 MHz, DMSO-d6): δ 165.57, 162.48, 152.42, 137.53, 137.41, 136.31, 129.47, 129.47, 128.34, 128.34, 128.12, 127.79, 127.79, 126.93, 126.93, 126.49, 126.24, 125.38, 123.67, 122.54, 122.54; HREI-MS: m/z calcd for C21H12ClN3OS [M]+ 389.0390; found 389.0395; anal. calcd for C21H12ClN3OS, C, 64.70; H, 3.10; N, 10.78; found C, 64.71; H, 3.09; N, 10.76.
4.9.1.19. 2-(4-(Benzo[d]thiazol-2-yl)phenyl)-5-(4-methoxyphenyl)-1,3,4-oxadiazole (19). Light brown solid. Yield: 85.9%. M.p.: 285–286 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.29 (d, 2H, J2′,6′/3′,5′ = 8.0 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.0 Hz, H-4), 8.12 (d, 2H, J3′,5′/2′,6 = 8.5 Hz, H-3′, H-5′), 8.09 (d, 1H, J7,6 = 7.5 Hz, H-7), 7.70 (d, 2H, J2′′,6′′/3′′,5′′ = 8.5 Hz, H-2′′, H-6′′), 7.64 (t, 1H, J5(4,6) = 7.0 Hz, H-5), 7.51 (t, 1H, J6(5,7) = 7.0 Hz, H-6), 7.08 (d, 2H, J3′′,5′′/2′′,6′′ = 8.0 Hz, H-3′′, H-5′′), 3.80 (s, 3H, OCH3); 13C-NMR (150 MHz, DMSO-d6): δ 165.47, 162.42, 162.19, 152.48, 137.43, 136.29, 128.50, 128.50, 127.07, 127.07, 126.92, 126.92, 126.59, 126.59, 126.44, 125.48, 123.70, 122.70, 121.54, 113.88, 113.88, 56.03; HREI-MS: m/z calcd for C22H15N3O2S [M]+ 385.0885; found 385.0880; anal. calcd for C22H15N3O2S, C, 68.55; H, 3.92; N, 10.90; found C, 68.56; H, 3.93; N, 10.91.
4.9.1.20. 2-(4-(Benzo[d]thiazol-2-yl)phenyl)-5-(pyridin-4-yl)-1,3,4-oxadiazole (20). Brown solid. Yield: 86.1%. M.p.: 280-281 °C; 1H-NMR (500 MHz, DMSO-d6): δ 8.67 (d, 2H, J2′′,6′′/3′′,5′′ = 6.0 Hz, H-2′′, H-6′′), 8.27 (d, 2H, J2′,6′/3′,5′ = 8.5 Hz, H-2′, H-6′), 8.20 (d, 1H, J4,5 = 8.5 Hz, H-4), 8.11 (d, 2H, J3′,5′/2′,6 = 8.5 Hz, H-3′, H-5′), 8.09 (d, 1H, J7,6 = 8.0 Hz, H-7), 7.71 (d, 2H, J3′′,5′′/2′′,6′′ = 6.0 Hz, H-3′′, H-5′′), 7.64 (dt, 1H, J5,7 = 2.0 Hz, J5(4,6) = 7.5 Hz, H-5), 7.53 (dt, 1H, J6,4 = 2.0 Hz, J6(5,7) = 7.5 Hz, H-6); 13C-NMR (150 MHz, DMSO-d6): δ 165.48, 162.32, 152.49, 150.20, 137.45, 136.19, 133.37, 128.53, 128.53, 128.53, 126.96, 126.96, 126.50, 126.50, 126.21, 125.47, 123.75, 123.43, 122.61, 122.61; HREI-MS: m/z calcd for C20H12N4OS [M]+ 356.0732; found 356.0729; anal. calcd for C20H12N4OS, C, 67.40; H, 3.39; N, 15.72; found C, 67.41; H, 3.38; N, 15.73.
