Synthesis of hydrogel polyHIPEs from functionalized glycidyl methacrylate

Abstract

Highly porous hydrogels based on functionalized glycidyl methacrylate (GMA) have been successfully prepared through the high internal phase oil-in-water emulsions. Pre-polymerization functionalization of the GMA monomer, porous structure and water uptake of highly porous hydrogels were investigated. The primary amine groups of tris(2-aminoethyl)amine (TRIS) or 1,2-diaminoethane (EDA) were found to react in three distinct reactions with the GMA, giving a mixture of methacrylate and methacrylamide as the major products with a small amount of the aza-Michael addition product. Elemental analysis revealed nitrogen loadings of 5.3 and 4.6 mmol g⁻¹ for the hydrogel polyHIPEs prepared from the pre-functionalized GMA with TRIS and EDA, respectively. The aminated p(GMA)-based hydrogel polyHIPEs had the densities of around 0.16 g cm⁻³, void diameters of around 5.5 μm, water uptake up to 15 g g⁻¹ and the specific surface area up to 55 m² g⁻¹. The water uptake and the specific surface area were found to be between 4 and 5 times higher than the corresponding values for the conventional GMA-based polyHIPEs prepared from the water-in-oil HIPEs. These results demonstrate a highly efficient pre-polymerization functionalization method for the preparation of GMA-based hydrogel polyHIPEs.

---

1. Introduction

PolyHIPEs are hydrophilic or hydrophobic porous polymers with a highly interconnected porous structure, resulting from templating within oil-in-water (O/W) or water-in-oil (W/O) high internal phase emulsions (HIPEs).¹ HIPEs are a special type of emulsions characterized by a droplet (internal) phase volume fraction exceeding 74.05% of the total emulsion volume, whereas the continuous phase consists of monomers that are polymerized around the droplet phase.² The synthesis of hydrophilic and hydrogel polyHIPEs is not an easy task. A common procedure is to start from the hydrophobic polyHIPEs, thus taking advantage of highly stabile W/O HIPEs, and enhance polyHIPE hydrophilicity through in situ^3,4 or post-polymerization functionalization.^5–7 However, in both cases a degree of polyHIPE modification with hydrophilic functional groups strongly depends on the efficiency of the functionalization reaction. Alternative methods to prepare the hydrophilic polyHIPEs are: (i) a simultaneous polymerization of hydrophobic and hydrophilic monomers within the W/O HIPEs^8,9 and (ii) direct synthesis of hydrophilic polyHIPEs from either CO₂-in-water (C/W)^10,11 or O/W^12,13 HIPEs. In the first case, the so-called bicontinuous polyHIPEs are obtained where the loss of polyHIPE interconnectivity is inevitable due to filling up of the voids with a second polymer phase, which finally affects the polyHIPE permeability. In the second case, the preparation of the C/W HIPEs demands either specialized equipment¹⁰ to achieve the required pressure, or application of specific surface-active agents¹⁴ to obtain sufficient emulsion stability. Therefore, the O/W HIPEs are still considered to be effective templates for the synthesis of highly porous hydrophilic or hydrogel polyHIPEs.

Poly(glycidyl methacrylate) (pGMA) is a versatile polymer since its pendant epoxide groups react readily and irreversibly with several nucleophiles to generate polyglycerol methacrylates.¹⁵ Therefore, it draws researchers’ attention in the fields of polymer chemistry, materials science and biochemistry. GMA-based polyHIPEs have been comprehensively investigated. Several studies on morphology,¹⁶ permeability¹⁷ and polymerization¹⁸ have been undertaken, wherein the GMA-based polyHIPEs were tested for protein separation,¹⁹ enzyme immobilization²⁰ or as supports for organic synthesis.²¹

In previous studies, the GMA-based polyHIPEs were synthesized exclusively from the W/O HIPEs where the GMA monomer was dissolved together with a comonomer in the oil (continuous) phase of HIPE. The reason lies in poor water-solubility of GMA as compared to other acrylate monomers (e.g. acrylic acid, acrylamide or 2-hydroxyethyl methacrylate) that are usually used for the synthesis of hydrophilic or hydrogel polyHIPEs. According to GMA partition coefficient (log P_ow) of 0.96 and water-solubility of 50 g L⁻¹ (at 20 °C) it can be considered as a more hydrophobic monomer.²² Polymerization of the oil (continuous) phase of the GMA-based HIPE results in an inherently hydrophobic polyHIPE polymer that needs to be appropriately functionalized before it can be applied in water-borne systems. Up to now, the GMA-based polyHIPEs were functionalized by post-polymerization modification using various nucleophiles in order to tune functionality type on the polyHIPE surface. PolyHIPE post-polymerization functionalization is mostly limited to the surface of the voids, whereas the bulk polymer remains mainly non-functionalized, which is preferred when the purpose of functionalization is to introduce functional groups on the voids’ surface, but it is not enough to significantly alter polymer hydrophilicity.

In this paper we investigated a synthetic approach to the GMA-based hydrogel polyHIPEs through the O/W HIP emulsions. A pre-polymerization modification of the GMA monomer for the preparation of hydrogel polyHIPEs via O/W HIPEs was compared with the post-polymerization modification of p(GMA) polyHIPE prepared from the W/O HIPE as well as with the unmodified p(GMA) polyHIPE. In the pre-polymerization functionalization approach, the GMA monomer was functionalized beforehand by two different amines, that is 1,2-diaminoethane (EDA) and tris(2-aminoethyl)amine (TRIS), which enabled us to prepare the O/W HIPEs that were subsequently polymerized. In the post-polymerization functionalization approach, p(GMA) polyHIPE was synthesized from the W/O HIPE. Afterwards, it was functionalized either with EDA or TRIS to prepare the post-polymerization functionalized polyHIPEs. Non-functionalized p(GMA) polyHIPE represents a reference sample. The effect of pre- vs. post-polymerization functionalization on the porous structure, specific surface area, chemical properties and water absorption capability of the GMA-based polyHIPEs is discussed herein.

2. Experimental

2.1 Materials

Glycidyl methacrylate (GMA, Sigma-Aldrich), ethylene glycol dimethacrylate (EGDMA, Sigma-Aldrich), N,N′-methylenebisacrylamide (MBAA, Sigma-Aldrich), poly(ethylene glycol)-block-poly(propylene glycol)-block-poly(ethylene glycol) (Pluronic® L121, Sigma-Aldrich), Triton™ X-705 solution (Sigma-Aldrich), α,α′-azoisobutyronitrile (AIBN, Fluka), ammonium persulfate (APS, Sigma-Aldrich), N,N,N′,N′-tetramethylethylenediamine (TMEDA), 2,6-di-tert-butyl-4-methyl-phenol (BHT, Sigma-Aldrich), calcium chloride dihydrate (CaCl₂·2H₂O, Sigma-Aldrich), toluene (Merck), N,N-dimethylformamide (DMF, Merck), chloroform (J. T. Baker), diethyl ether (Merck), 1,2-diaminoethane (EDA, Fluka), and tris(2-aminoethyl)amine (TRIS; Sigma-Aldrich) were all used as received.

2.2 Pre- and post-polymerization functionalization

2.2.1 Pre-polymerization functionalization. For the (GMA-TRIS)_pre monomer preparation, 30.73 g (0.22 mol) of GMA, 2.52 g (0.011 mol) of BHT and 3.51 g (0.024 mol) of TRIS were placed in a 250 mL round bottom flask together with 100 mL of chloroform. The reaction mixture was stirred for 18 h at 60 °C. After 18 h, the reaction mixture was cooled down to RT and afterwards chloroform was evaporated with a rotary evaporator. For the (GMA-EDA)_pre monomer preparation, 29.01 g (0.204 mol) of GMA, 1.78 g (0.008 mol) of BHT and 2.04 g (0.034 mol) of EDA were placed in a 250 mL round bottom flask together with 100 mL of chloroform and the reaction mixture was stirred for 18 h at 60 °C. Prior to further characterization and polyHIPEs synthesis, the BHT and excess of GMA were removed by adding 20 mL of cold diethyl ether to the mixture. Afterwards, the mixture was stirred and placed into an ultrasonic bath, followed by removal of the liquid phase. This procedure was repeated several times. Thus obtained functionalized monomers were dried under vacuum at room temperature overnight.

2.2.2 Post-polymerization functionalization. 1 g (7 mmol of epoxy groups) of p(GMA) polyHIPE was powdered and placed in a 50 mL flask. Then 3.08 g (0.021 mol) of TRIS (for p(GMA-TRIS)_post) or 1.27 g (0.021 mol) of EDA (for p(GMA-EDA)_post) and 20 mL of anhydrous DMF were added to the p(GMA) polyHIPE and the reaction mixture was stirred for 24 h at 60 °C. The p(GMA-EDA)_post and p(GMA-TRIS)_post polyHIPEs were filtered off and washed with DMF, ethanol, a mixture of ethanol/water (1 : 1) and finally with ethanol. Afterwards the obtained polyHIPEs were dried under vacuum.

2.3 PoyHIPE synthesis

2.3.1 O/W HIPEs. 1.85 g (3.6 mmol) of (GMA-TRIS)_pre, 0.11 g (0.4 mmol) of MBAA, and 1.67 g of Triton™ X-705 were placed in a 3-neck round-bottom flask and dissolved in 4.82 mL of deionized water. The mixture was stirred with an overhead stirrer at 400 rpm. Toluene (19.3 mL) with 0.04 g (0.24 mmol) of AIBN was added dropwise under constant stirring. In another case, 1.94 g (6.5 mmol) of (GMA-EDA)_pre, 0.11 g (0.7 mmol) of MBAA, 1.78 g of Triton™ X-705 were placed in a 3-neck round-bottom flask and dissolved in 5.20 mL of deionized water. The mixture was stirred with an overhead stirrer at 400 rpm. Toluene (20.8 mL) with dissolved 0.04 g (0.24 mmol) of AIBN was added dropwise under constant stirring. Once all AIBN in toluene was added, stirring was continued further for 15 min to produce uniform emulsions. Then, the emulsions were transferred to the moulds (polyethylene containers) and cured at 60 °C for 24 h. The resulting monolithic p(GMA-EDA)_pre and p(GMA-TRIS)_pre polyHIPEs were purified via Soxhlet extraction with ethanol for 24 h and then with diethyl ether for further 24 h. Afterward the monoliths were dried under vacuum at room temperature.

2.3.2 W/O HIPE. 9.1 g (64 mmol) of GMA, 1.4 g (7 mmol) of EGDMA and 2.35 g of Pluronic L121 were placed in a reactor and the mixture was stirred with an overhead stirrer at 400 rpm. The aqueous phase was prepared by dissolving 0.2 g of APS and 1.77 g of CaCl₂·2H₂O in 100 mL deionized water. After degassing, 46.2 mL of the as-prepared aqueous solution was added dropwise to the continuous (monomer) phase under constant stirring. Once all the aqueous phase was added, stirring was continued for further 15 min to produce a uniform emulsion. Then, stirring of the emulsion was reduced to 20 rpm and the reducing agent TMEDA (0.06 mL, 0.4 mmol) was added. After 1 min of additional stirring at 20 rpm the emulsion was transferred to the mould (polyethylene container) and cured at 40 °C for 24 h. The resulting monolith was purified via Soxhlet extraction with a mixture of ethanol/water (1 : 1) for 24 hours and then with ethanol for further 24 h. Afterwards, the obtained monolith was dried under vacuum at room temperature.

2.4 Characterization

The morphology investigations were performed with a scanning electron microscope (SEM) (Carl Zeiss, SUPRA 35 VP microscope, Germany). A piece of each sample was cryogenically fractured and mounted on a carbon tab for better conductivity and a thin layer of gold was sputtered on the sample's surface prior the scanning analysis (see details in the ESI†). The FT-IR spectra were recorded on a Perkin-Elmer Spectrum One instrument (Perkin-Elmer, Inc., Waltham, MA, USA) upgraded with a Universal ATR Accessory with a diamond Top-plate-ZnSe. Spectra were recorded in a range of 650–4000 cm⁻¹ at a resolution of 4 cm⁻¹. Data acquisition and processing were performed using a PE Software Spectrum. ¹H NMR spectra were recorded in DMSO-d₆ with five drops of trifluoroacetic acid added, while ¹³C NMR, and ¹H–¹³C gradient Heteronuclear Single Quantum Coherence adiabatic version (gHSQCad) spectra were recorded in DMSO-d₆ on a Varian Unity Inova 300 instrument (Oxford, UK) in the pulse Fourier-transform mode. Tetramethylsilane (TMS, δ = 0) was used as an internal chemical-shift standard. Nitrogen sorption measurements were performed on an IMI-100 manometric gas sorption analyzer (Hiden Isochema, Inc., Warrington, UK) at 77 K in a range of relative pressure values from 10⁻⁶ to 1. The as-prepared samples were degassed at 150 °C for 16 h prior to the measurements. The specific surface areas were determined by the BET (Brunauer Emmett Teller) method based on the obtained sorption isotherms. The densities of functionalized GMA monomers were determined by a Gay-Lussac pycnometer at 23 °C.

3. Results and discussion

3.1 Pre-polymerization functionalization of GMA monomer

The primary amine groups of TRIS and EDA react in three distinct reactions with GMA (cf.Scheme 1). The first reaction is addition of the amine to the epoxide group, leading to the secondary amine functionalized methacrylate derivatives. This reaction is typical of post-polymerization modification of the GMA-based polyHIPEs. The second reaction involves aminolysis of the GMA ester group that leads to the methacrylamide derivatives, which can be copolymerized with the amine functionalized methacrylate derivatives formed in the first reaction. The amine functionalized methacrylate derivatives exhibit improved water-solubility as compared to the methacrylamide derivatives and thus help in the preparation of the O/W type of HIPE through improvement of emulsion stability. The third reaction is the undesired aza-Michael reaction since by addition of the amino monomer to the activated double bond, a β-amino acid is formed which is not able to polymerize in the next step. Since the multifunctional amine modifiers were used for GMA modification and since the secondary amine formed in the epoxide reaction or the aza-Michael reaction can further react with any of the three functional groups of either unreacted or reacted GMA, a mixture of multifunctional, branched, water-soluble monomers was obtained. A ratio between the extents of individual reactions depends on the reaction conditions used, and was evaluated from the ¹H NMR spectra of the reaction products. Due to the complex mixtures of reaction products formed and significant overlapping of the signals for methylene groups of TRIS or EDA with the signals of glycidyl derivatives we initially focused on the identification of the products by ¹H–¹³C 2D NMR (gHSQCad) (cf.Fig. 1). First, a model reaction was performed where TRIS reacted with GMA in an equimolar ratio of the amino and the epoxide groups at 60 °C for 60 h. The signals of each characteristic functional group were identified, i.e. the double bond in methacrylate and methacrylamide moieties, which are important for further (co)polymerization reactions, together with their corresponding methyl groups, and the methyl group of the products formed by the aza-Michael reaction. By changing the reaction conditions we were able to change the ratio between the different types of reactions as indicated by quantification of the extent of individual reaction from the integrals of the signals belonging to the double bonds and the methyl groups of particular reaction products in the ¹H NMR spectra (cf. Fig. S1†). Optimal reaction conditions under which a repeat composition of the final mixtures was obtained, containing the least amount of the products formed by the aza-Michael addition reaction, included three equivalents of glycidyl methacrylate per EDA or TRIS amino groups, and conducting the reaction at 60 °C for 18 h (cf.Table 1).

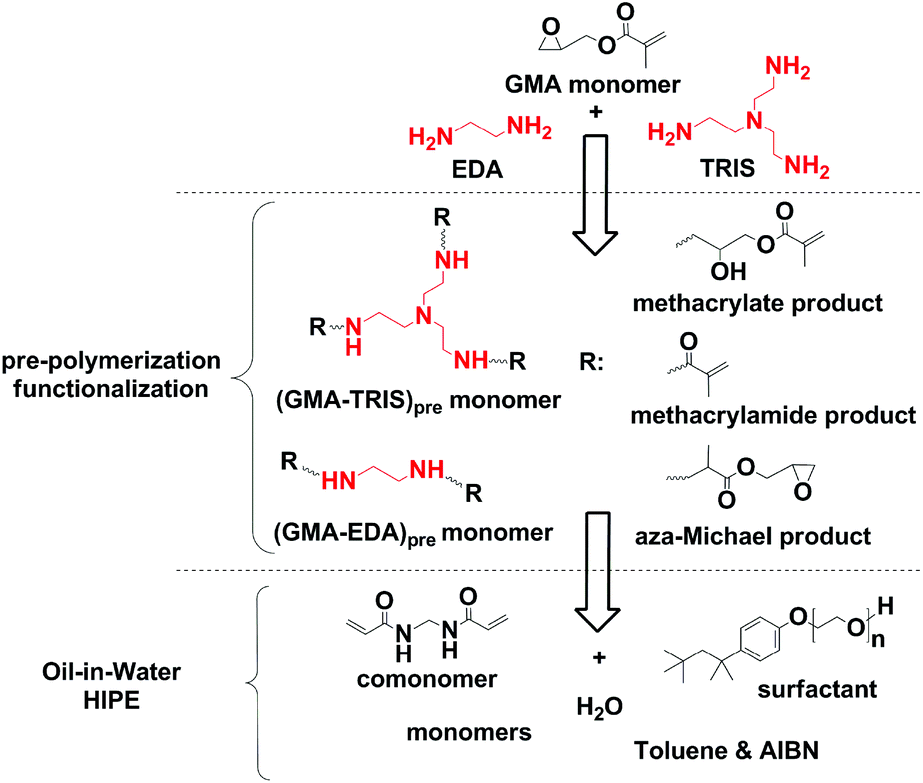

Scheme 1 Reaction scheme and products formed by GMA functionalization together with corresponding HIPE formulation.

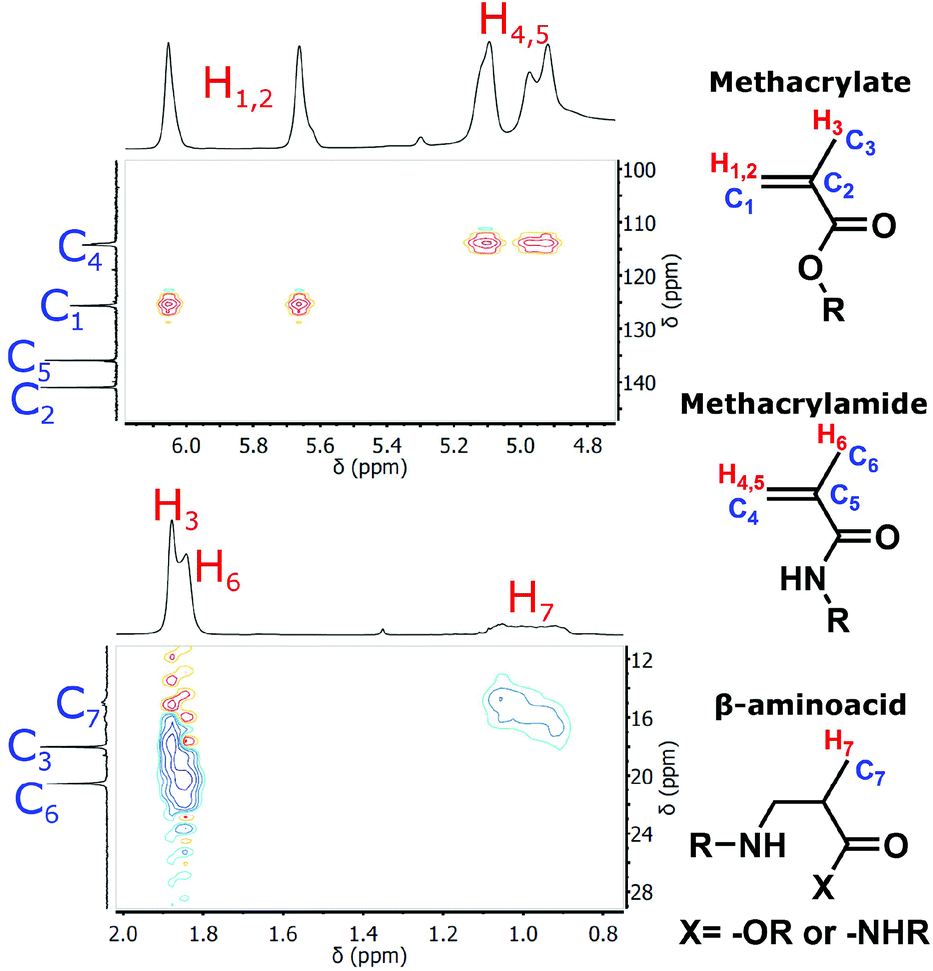

Fig. 1 Enlarged ¹H–¹³C 2D NMR (gHSQCad) spectrum of TRIS modified GMA.

Table 1 Proportion of functional groups formed in the reaction of GMA with TRIS or EDA under optimal reaction conditions. Results are given as average values of four reaction products for each system together with standard deviations

Functionality%	(GMA-TRIS)pre	(GMA-EDA)pre
a Originating from ring-opening of epoxide. b Originating from aminolysis. c Originating from aza-Michael reaction.
Methacrylate^a	52.5 ± 1.2	49.6 ± 1.9
Methacrylamide^b	36.0 ± 1.2	46.0 ± 2.1
β-Amino acid^c	11.5 ± 0.6	4.4 ± 0.3

---

3.2 Preparation of HIPEs and characterization of polyHIPEs prepared from functionalized GMA monomers

Pre-polymerization functionalization of GMA as disclosed herein is a method to enhance its hydrophilicity and expand its suitability for the preparation of O/W HIPEs. A critical issue in the preparation of hydrophilic or hydrogel polyHIPE polymers is to find a sufficiently kinetically stable O/W HIPE until the continuous phase is polymerized. Unfortunately, this is not an easy task since the O/W HIPEs demand a high surfactant concentration (between 20 and 30 wt%), and sometimes even the use of a mixture of surfactants in order to strengthen the oil/water interface, which ultimately make the system unsustainable and, therefore, neglected as compared to the W/O HIPEs. In this work, we used the continuous (aqueous) phase, consisting of functionalized (GMA-TRIS)_pre or (GMA-EDA)_pre monomer, MBAA crosslinker, and Triton™ X-705 non-ionic surfactant (19 vol% according to the continuous phase). First, the APS was used as an initiator, however, the polymerization in the (aqueous) continuous phase started immediately after it had been dissolved at room temperature. This is most probably a consequence of the tertiary amine functional groups in the monomer structure (cf.Scheme 1) that might act similarly as the TMEDA (reducing agent).²³ Instead of APS, we therefore selected AIBN as an initiator and dissolved it in the internal (toluene) phase (cf. Table S1†). The (GMA-TRIS)_pre and (GMA-EDA)_pre O/W HIPEs turned out to be very stable even without the addition of any electrolyte (visually no phase separation after 48 h at 50° C was noticed). This was ascribed to a low partitioning of functionalized monomers between the phases (opposed to neat GMA in W/O HIPE),²⁴ since (GMA-TRIS)_pre and (GMA-EDA)_pre monomers contain several functional groups such as hydroxyl, amino and amide groups (cf.Scheme 1). For comparison, we also synthesized a conventional, non-functionalized p(GMA) polyHIPE from the W/O HIPE according to the procedure reported elsewhere.²¹ All synthesized polyHIPEs were white monoliths which were Soxhlet washed and vacuum dried.

The polymerization yields (Y_PH) were 46, 48 and 79% for the polyHIPEs synthesized from the (GMA-TRIS)_pre, (GMA-EDA)_pre and original GMA, respectively. Low polymerization yields of the polyHIPEs prepared from the functionalized monomers, i.e. (GMA-TRIS)_pre and (GMA-EDA)_pre, are most probably a consequence of a combination of the interface initiation on the one hand (as schematically illustrated in Fig. S2†), and the retarded polymerization on the other hand. Previous studies have demonstrated that locus of initiation greatly impacts the properties of polyHIPEs and provides among others lower polymerization yields when the polymerization is interfacially initiated.²⁵ On the other hand, amines are known to be effective chain-transfer agents in radical polymerization.^23,26 Due to an abundance of the amine groups present in the structure of (GMA-TRIS)_pre and (GMA-EDA)_pre monomers, polymerization of the continuous (monomer) phase is most likely retarded as a result of the chain transfer reaction, which further affects the low polymerization yields of polyHIPEs prepared from the (GMA-TRIS)_pre and (GMA-EDA)_pre monomers.

The determined polyHIPEs densities (ρ_PH) were 0.16, 0.18 and 0.21 g cm⁻³ for the polyHIPEs prepared from the (GMA-TRIS)_pre, (GMA-EDA)_pre and original GMA, respectively, and were expected from a ratio of the overall porogen to the monomer content. Densities of the corresponding reference bulk hydrogels (ρ_bHG) and polymers (ρ_P) are listed in Table 2. Representative porous microstructures for the polyHIPEs prepared from the (GMA-TRIS)_pre, (GMA-EDA)_pre and GMA were determined by SEM and are shown in Fig. 2 and S3–S5.† PolyHIPEs’ structure in general consists of “voids”, the volume vacated by the droplets of the dispersed phase, and “windows”, the openings through the walls surrounding the voids. The structures in Fig. 2 resemble the polyHIPE structure since they consist of voids with a diameter from 2 to 6.5 μm (Table 1). The walls of these voids further contain the openings, which look like porous nodular structures rather than spherical windows, but they still form interconnections in-between the voids. On the other hand, the hydrogel walls in themselves have a nanoscale porous structure with smaller macropores between 70 and 150 nm (cf.Fig. 2). A similar structural hierarchy was disclosed in our previous study on polyacetylene based polyHIPE foam.²⁷

Fig. 2 Scanning electron micrographs of (A) (GMA-TRIS)_pre polyHIPE morphology, (B) (GMA-TRIS)_pre polyHIPE porous walls and (C) (GMA-EDA)_pre polyHIPE morphology.

Table 2 PolyHIPEs’ reaction yields, densities, and porosities

	p(GMA-TRIS)pre	p(GMA-EDA)pre	p(GMA)
a Yield of HIPE polymerization. b Dry polyHIPE density. c Dry (hydro)gel density. d Bulk polymer density determined by a pycnometer. e Total polyHIPE porosity. f Total bulk hydrogel porosity. g Porosity from polyHIPE void structure. h Porosity from porous polyHIPE hydrogel walls. i Void diameter determined from SEM pictures of broken samples. j Specific surface area.
YPH^a, %	46	48	79
ρ PH , g cm^−3	0.16	0.18	0.21
ρ HG , g cm^−3	0.63	0.59	1.08
ρ P , g cm^−3	1.18	1.13	1.20
P PH-T , %	86	84	82
P bHG-T , %	44	47	10
P PH-V , %	75	70	80
P PH-HG , %	11	14	2
d v ± σ^i, μm	6.5 ± 2	4.5 ± 1	2 ± 1
SSA^j, m^2 g^−1	55	37	9

---

The total porosities of polyHIPEs (P_PH-T) and the reference bulk hydrogels (P_bHGT) were calculated from the polyHIPEs’ or bulk hydrogel densities and densities of the fully dense polymers (cf. ESI†). The total polyHIPEs’ porosities (P_PH-T) were found to be similar for the pre-polymerization functionalized polyHIPEs and the non-functionalized p(GMA) polyHIPE, i.e. 86, 84 and 82% for the (GMA-TRIS)_pre, (GMA-EDA)_pre and GMA polyHIPEs, respectively. On the other hand, significant differences were observed for their total bulk hydrogel porosities (P_bHG-T), which were found to be 44, 47 and only 10% for the polyHIPEs prepared from (GMA-TRIS)_pre, (GMA-EDA)_pre and GMA, respectively (cf.Table 2).

Recently, Silverstein et al. disclosed that the total porosity of hydrogel polyHIPEs consists of two types of porosities, i.e. the porosity from the polyHIPE voids (P_PH-V) and the porosity within the polyHIPE hydrogel walls (P_PH-HG).²⁸ The P_PH-T, P_PH-V and P_PH-HG for the p(GMA-TRIS)_pre, p(GMA-EDA)_pre and p(GMA) polyHIPEs were calculated using eqn (S1)–(S3) published elsewhere (cf. ESI†).²⁸ As expected, for the p(GMA-TRIS)_pre polyHIPE the P_PH-T and the P_PH-V values were determined to be 86 and 75%, respectively, indicating predominant contribution of the voids to the overall porosity. Similar was observed for the p(GMA-EDA)_pre polyHIPE with the P_PH-T and P_PH-V values of 84 and 70%, respectively. The remainder of porosity, P_PH-HG, originated from the porous hydrogel walls and was calculated to be 11 and 14% for p(GMA-TRIS)_pre and p(GMA-EDA)_pre polyHIPEs, respectively (cf.Table 2). In the case of p(GMA) polyHIPE, the P_PH-T, P_PH-V and P_PH-HG values were 82, 80 and 2%, respectively. While there is no significant deviation in terms of P_PH-T between the polyHIPEs prepared from the (GMA-TRIS)_pre, (GMA-EDA)_pre and GMA, there are differences in the P_PH-V and P_PH-HG. In the p(GMA) polyHIPE, the P_PH-V dominates overall porosity whereas the P_PH-HG is only 2%, which is reflected in the relatively low specific surface area of 9 m² g⁻¹. On the other hand, the P_PH-HG increases to 11% for the p(GMA-EDA)_pre polyHIPE and up to 14% for the p(GMA-TRIS)_pre polyHIPE, reflecting an increase in the specific surface area up to 37 and 55 m² g⁻¹, respectively (cf.Table 2 and Fig. S6†).

To corroborate enhanced hydrophilicity of polyHIPEs prepared from the (GMA-EDA)_pre and (GMA-TRIS)_pre monomers an equilibrium water absorption capacity (WU_PH-T) was further evaluated and the values were compared with those obtained for the post-polymerization functionalized polyHIPEs by EDA or TRIS (samples designated by (GMA-EDA)_post and (GMA-TRIS)_post polyHIPEs), and the non-functionalized GMA polyHIPE. The WU_PH-T values were found to be 14.8 and 11.1 g g⁻¹ for the p(GMA-TRIS)_pre and p(GMA-EDA)_pre polyHIPEs, respectively, and 4.2, 5.3 and 5.8 g g⁻¹ for the p(GMA), p(GMA-TRIS)_post and p(GMA-EDA)_post polyHIPEs, respectively (cf.Table 3). These values represent two to three times higher water uptake for the p(GMA-EDA)_pre and p(GMA-TRIS)_pre polyHIPEs, which unequivocally show the improvement of the polyHIPE hydrophilicity prepared by the pre-polymerization functionalization approach. Since water absorption capabilities of hydrogel polyHIPEs combine the water absorption through swelling of the hydrophilic polymer and the capillary action in the nanometre and micrometre-scale porous architecture, we further evaluated other contributions to the WU_PH-T of polyHIPEs prepared from the (GMA-TRIS)_pre, (GMA-EDA)_pre and pure GMA. These include the water uptake within the original void volume (WU_PH-V, eqn (S5)), the water uptake by the porous hydrogel wall structure (WU_bHG-T, measured), and the water uptake from the “void expansion” which is driven by swelling of the porous hydrogel walls (WU_PH-VE, eqn (S6)).²⁸ The WU_PH-V, WU_bHG-T and WU_PH-VE values were 5.0, 7.3 and 2.8 g g⁻¹ for the p(GMA-TRIS)_pre polyHIPE, and 3.9, 3.0 and 4.2 g g⁻¹ for the p(GMA-EDA)_pre polyHIPE (cf. Table S3†). Due to the hydrophobic nature of the polymethacrylate backbone in the p(GMA) polyHIPE, the WU_bHG-T was found to be less than 0.1 g g⁻¹. Obviously in the case of p(GMA) polyHIPE only the WU_PH-V contributes to the WU_PH-T, meaning that water absorption through the polymer swelling is negligible (cf. Table S3†). Since the post-polymerization functionalization of polyHIPEs is limited mostly to the void surface, the p(GMA-TRIS)_post and p(GMA-EDA)_post polyHIPEs exhibit the same trend regarding the WU_PH-T as it was found for the p(GMA) polyHIPE. The contribution to WU_PH-T in the case of p(GMA-TRIS)_post and p(GMA-EDA)_post polyHIPEs is mainly due to water absorption in the highly interconnected, micrometer-scale voids since the polymethacrylate backbone poorly swells in water (WU_bHG-T of p(GMA) < 0.1 g g⁻¹). Therefore, a high water-uptake of the polyHIPEs prepared from the functionalized (GMA-TRIS)_pre or (GMA-EDA)_pre monomers indicates successful conversion of the primarily hydrophobic polymethacrylate structure into the hydrophilic water-absorbing polyHIPEs.

Table 3 Values for total water-uptake of polyHIPEs

Sample	WUPH-T^a, g g^−1
a Total polyHIPE water uptake (measured).
p(GMA-TRIS)pre	14.8
p(GMA-EDA)pre	11.1
p(GMA)	4.2
p(GMA-TRIS)post	5.3
p(GMA-EDA)post	5.8

---

The molecular structure of the p(GMA-TRIS)_pre and p(GMA-EDA)_pre polyHIPEs was further characterized by means of elemental analysis (EA) and FT-IR spectroscopy. The results were compared with those obtained for the post-polymerization functionalized p(GMA-EDA)_post and p(GMA-TRIS)_post polyHIPEs and the non-functionalized p(GMA) polyHIPE. FT-IR spectra of all polyHIPE samples show a typical acrylate ester band at 1725 cm⁻¹ (cf.Fig. 3 or S7†). In the case of p(GMA-TRIS)_pre and p(GMA-EDA)_pre polyHIPEs, the distinctive epoxy bands at 908 and 845 cm⁻¹, typical of the epoxy ring, completely disappeared (cf.Fig. 3). Instead, a new intensive band at 1612 cm⁻¹ appeared in FTIR spectra, indicating the presence of the methacrylamide product. In the case of post-polymerization functionalized p(GMA-EDA)_post and p(GMA-TRIS)_post polyHIPEs a weak band at 1575 cm⁻¹ typical of the N–H vibration appeared in their FT-IR spectra, indicating almost complete absence of the aminolysis reaction (cf. Fig. S7†). Examination of the elemental composition of the p(GMA-TRIS)_pre and the p(GMA-EDA)_pre polyHIPEs revealed 7.41 and 6.43% of nitrogen, respectively, corresponding to the nitrogen loadings of 5.3 and 4.6 mmol g⁻¹, respectively (cf. Table S4†). The nitrogen loading of polyHIPEs prepared by post-polymerization functionalization of p(GMA) polyHIPE with TRIS was found to be 4 or 2.5 mmol g⁻¹, depending on the reaction conditions used for their preparation.^21,29

Fig. 3 FT-IR spectra of (A) p(GMA) polyHIPE, (B) p(GMA-TRIS)_pre polyHIPE and (C) p(GMA-EDA)_pre polyHIPE.

4. Conclusions

We have demonstrated a new synthetic approach for the preparation of p(GMA)-based hydrogel polyHIPEs through the O/W HIPE templating. For this purpose we applied the pre-polymerization functionalization approach by which we increased the monomer water-solubility. GMA was thus functionalized by TRIS or EDA, whereby the mixtures of different reaction products were obtained. Such prepared pre-polymerization functionalized p(GMA)-based hydrogel polyHIPEs exhibit improved chemical and morphological properties as compared to those of conventional p(GMA)-based polyHIPEs synthesized from W/O HIPEs. The water uptake of the pre-polymerization functionalized p(GMA)-based hydrogel polyHIPEs is high, i.e. up to 15 g g⁻¹ water, which represents a great improvement as compared to that of the conventional p(GMA)-based polyHIPEs with less than 4 g g⁻¹. Moreover, the specific surface area of up to 55 m² g⁻¹ is more than five-times larger than that of conventional p(GMA)-based polyHIPEs.

5. Conflict of interest

The authors declare no competing financial interest.

Acknowledgements

The authors gratefully acknowledge the financial support of the Ministry of Higher Education, Science and Technology of the Republic of Slovenia, and the Slovenian Research Agency (Program no. P2-0145). The authors wish to thank Mrs Sarah Jurjevec for skillful synthetic work.
