Nanoparticles of lanthanide oxysulfate/oxysulfide for improved oxygen storage/release

Abstract

Lanthanide oxysulfates have the ability to store and release large volumes of oxygen under oxidizing/reducing conditions, rendering them interesting as automotive catalysts. Herein we demonstrate a remarkable improvement of both processes by utilization of nanoparticles compared to the bulk materials. A further improvement of the catalytic activity was achieved by cost-effective doping with 1.9 wt% of Ni.

---

Materials with a capacity for oxygen storage and release are important oxygen carriers (OCs) and are therefore of great interest for application in automotive catalytic combustion. Under oxidative conditions, metal oxides are formed, which then in turn can be reduced by fuel components, such as CO, hydrocarbons, and NO_x. In this process, OCs undergo a reversible and quantifiable redox reaction with oxygen in the gas phase or at the gas–solid interphase, and are therefore useful for regulation of the oxygen concentration under oxygen lean conditions.^1–3 Commonly, transition metal oxides on various supports, e.g. dendrimers, TiO₂, Al₂O₃, zeolites, SiO₂, etc. have been studied for this purpose.⁴ CeO₂ is an attractive material in this respect because of the reversible and fast redox reactions between Ce⁴⁺ and Ce³⁺ at relatively mild temperatures (<400 °C). Much effort has been put into control of the surface properties of this material to minimize deactivation due to sintering at operation temperatures. Strategies have been developed to increase surface area and/or to create more distorted structures, such as dispersion of ceria into porous carriers,⁵ creation of defects,^6,7 chemical doping,^8–10 and reduction of the particle size.^11–14 The latter objective is among the most important factors that are influencing the oxygen storage capacity of OCs.

However, the maximum capacity of oxygen storage per mole of CeO₂ is limited to 0.25 mole of O₂ and its stability is not sufficient under operating conditions.¹⁵ Another disadvantage of metal oxides is their susceptibility to sulfur poisoning when using common carbon fuels.^16,17 CaSO₄ has been extensively studied due to its sulfur tolerance along with the capacity to store up to 2 mol of O₂ per mol of sulfate.^18,19 However, high reduction rates can be only achieved above 1000 °C, accompanied with some undesired release of SO₂.²⁰

In 2004, Machida et al. reported a promising alternative by using lanthanide oxysulfates (Ln₂O₂SO₄) with much larger capacities of oxygen storage (2 mole of O₂ per mole of S).²¹ The mechanism of the oxygen storage, in this case, does not involve the metal ions, but is based on the reversible redox of sulfur from +6 (SO₄²⁻) to −2 in sulfide (S²⁻),¹ as shown in the following reactions:

Ln₂O₂SO₄ + 4H₂ → Ln₂O₂S + 4H₂O (1)

Ln₂O₂S + 2O₂ → Ln₂O₂SO₄ (2)

Another advantage of Ln₂O₂SO₄ is the very large stability and catalytic activity up to very high temperatures (>1000 °C), without the loss of sulfur. Moreover, a wide range of lanthanides can be applied for this purpose.^1,22 On the other hand, the practical application is limited due to the still high temperatures (>700 °C) required. Impregnation of Ln₂O₂SO₄ materials with noble metals (Pt or Pd) resulted in significant reduction of the operative temperatures by 100–200 °C for both oxygen release and storage processes due to the activation of hydrogen and oxygen spillover.²¹ The reaction rates could also be enhanced by increasing the surface of the Ln₂O₂SO₄ materials by using layered Ln-dodecyl sulfate mesophases as precursors during its preparation.²³ Doping by Ce offered another effective way to improve the activity of Ln₂O₂SO₄ (Ln ≠ Ce). It causes structural distortion of tetrahedral SO₄ units, promoting the rates of oxygen release and storage,²⁴ while the co-presence of Ce³⁺/Ce⁴⁺ ions on the surface of Ln₂O₂SO₄ further accelerated the redox of sulfur. The detailed X-ray structural study revealed that the oxygen release and storage behavior is accompanied by noticeable differences in S–O distances and O–S–O angles of the SO₄ units, as well as differences in the crystal structure of Ln₂O₂²⁺ units.^22,25 In a very recent report, Lisi et al. demonstrated that Cu-doping can enhance the oxygen mobility in the La₂O₂SO₄ structure, leading to decreased reaction temperatures for both reduction and oxidation.²⁰

The Ln₂O₂SO₄ materials for oxygen storage and release reported so far have been prepared by several methods, such as calcination of Ln₂(SO₄)₃·nH₂O,^1,26 utilization of precursors of layered Ln-dodecyl sulfate mesophases,^23,27 or Ln-precipitation.^28,29 All these procedures lead to bulk materials with an irregular morphology. The correlation between the size and shape of the catalyst and the catalytic performance has been mentioned in the literature,^30–32 but the effects on oxygen storage/release performance have yet not been demonstrated. Herein we report on a remarkable enhancement of the oxygen storage/release capacity by (i) using nanosized Pr₂O₂SO₄ rather than bulk and (ii) by doping the Pr₂O₂SO₄ with Ni(II). Pr₂O₂SO₄ was selected, because among the lanthanides it can act as oxidation catalyst with high rates at relatively low temperatures (<600 °C).¹

Recently, we have developed a facile method for the preparation of nanosized Ln₂O₂SO₄ (Ln = Gd and Ho) based on thermal decomposition of nanodroplets (NDs) formed by Ln-acetylacetonates (Ln(acac)₃) under emulsifying conditions.³³ The choice of the surfactant for the formation of NDs was found to determine the elemental composition of the nanoparticles (NPs) obtained after the calcination of the dried NDs. In the present study sodium dodecyl sulfate was selected as the surfactant. The thermogravimetric analysis (TGA) profile of the fluffy powders resulting from freeze drying of the obtained NDs, showed two major weight losses: dehydration and combustion of organic moieties below 300 °C (Fig. S1†). The formation of Pr₂O₂SO₄ takes place between 300–800 °C by the alternative stacking between SO₄²⁻ and Pr₂O₂²⁺.^23,24 Above 800 °C a stabilized curve was observed, indicating the full formation of inorganic NPs after this temperature. Therefore, to obtain the solid NPs, the calcination was carried out at 800 °C for 1 h to give Pr₂O₂SO₄ NPs in 82% yield with respect to Pr(acac)₃.

Fig. 1 demonstrates the X-Ray Diffraction (XRD) patterns of the crystalline Pr₂O₂SO₄ as well as the oxysulfide Pr₂O₂S, which was obtained after reduction of the oxysulfate by H₂ (10%) in Ar. The XRD pattern reveals an orthorhombic structure of Pr₂O₂SO₄ with calculated lattice constants a = 4.240 Å, b = 4.138 Å, and c = 13.422 Å, which are in a good agreement with the reported values (PDF#41-0679). Additionally, the XRD pattern of Pr₂O₂S shows lattice dimensions of a = 3.574 Å, b = 3.974 Å and c = 6.798 Å, corresponding to a hexagonal cell (p3ml-164, PDF#65-3453). TEM images show that fairly spherical particles NPs were obtained with a diameter of 28 ± 5.1 (Fig. S2†).

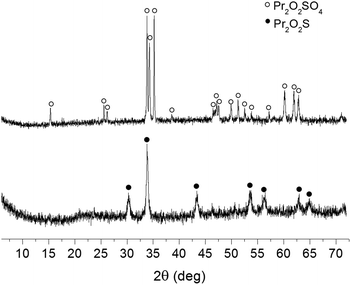

Fig. 1 Powder XRD patterns of nanoparticulate Pr₂O₂SO₄ obtained by miniemulsion method, and Pr₂O₂S, resulted from the subsequent reduction.

Following the successful preparation of Pr₂O₂SO₄ NPs, their redox behavior was investigated (Fig. 2a and b). The dynamic reduction was evaluated by the temperature programmed reduction (TPR), which was carried out in a conventional flow system by heating the sample at 10 °C min⁻¹ in a stream of 10% H₂ in Ar. As shown in Fig. 2a, the reduction started at about 700 °C and gave a peak in H₂-uptake at 790 °C, whereas the reaction was completed at around 800 °C. The asymmetric peak in the narrow temperature range indicated a very fast reduction. The oxysulfate was reduced into oxysulfide (Pr₂O₂S), as proven by its XRD pattern as shown in Fig. 1. The obtained oxysulfide was then subjected to temperature programmed re-oxidation (TPRO) in a stream of 20% O₂ in He (Fig. 2b). The oxygen consumption started at about 480 °C and exhibited a maximal peak at 580 °C. Above this temperature, the re-oxidation rate became slower and was not even completed until 900 °C. Based on the integration of TPR and TPRO profiles, the amount of consumed H₂ and O₂ was 3.97 and 1.34 mol⁻¹ for Pr₂O₂SO₄ and Pr₂O₂S, respectively. The ratio of oxygen consumption per mol of Pr₂O₂S is somewhat below 2, which confirms that the re-oxidation was not finished under the conditions applied.

Fig. 2 Temperature programmed profiles of redox reactions catalyzed by nanoparticulate Pr₂O₂SO₄: on the left are TPR profiles of non-doped (a) and 1.9% Ni-doped (c) Pr₂O₂SO₄ in a flow of 10% H₂/Ar and on the right are TPRO profiles of non-doped (b) and 1.9% Ni-doped (d) Pr₂O₂SO₄ in a flow of 20% O₂/He. Heating rate 10 °C min⁻¹.

These results can be compared with those for the bulk material as reported in literature.¹ The nanosized Pr₂O₂SO₄ displays a fast reduction in TPR between 700 and 800 °C, and a low temperature for the maximum uptake of oxygen in TPRO (580 °C). In contrast, the catalytic performance of the previously reported bulk Pr₂O₂SO₄ was clearly less effective: the reduction took place above 900 °C and the maximum oxygen uptake was observed only at 700 °C.¹

Aiming at further enhancement of the redox reactions, we next doped the Pr₂O₂SO₄ with Ni(II) as a cost-effective alternative for Pt or Pd for activation of both hydrogen and oxygen.^2,34 The Pr₂O₂SO₄ NPs described above were impregnated with an aqueous solution of NiCl₂ and then calcined at 450 °C for 90 min to give Pr₂O₂SO₄ doped with 1.9 wt% of Ni. The extent of Ni-doping was calculated from the Energy Dispersive Spectrum (EDS) of the prepared materials (Fig. S3†). The identical XRD-patterns (Fig. S4†) confirm the unchanged crystallinity of Pr₂O₂SO₄ NPs after doping with Ni, as it was already expected from the literature data.³⁵ Additionally, the calculations of the lattice space selected from the HRTEM images (Fig. S5†) resulted in 1.57, 0.72, 0.55, 0.45 and 0.36 nm, corresponding to the interplanar space of (001), (002), (100), (100), (310) and (202) crystallographic plane, which is a fair agreement with the interplanar space of the standard (PDF#41-0679).

The TPR/TPRO profile of these Ni-doped NPs (Fig. 2c and d) appeared to release the oxygen in the temperature range 570–730 °C under consumption of 3.89 mol⁻¹ of H₂. The oxygen uptake started at about 400 °C, reached a maximum at 580 °C, and was completed at about 700 °C with 1.93 mol⁻¹ of the total O₂ uptake. The ratio H₂/O₂ uptake is 2, which is in perfect agreement with fully reversible redactions.

The rate of oxygen release and storage is another important property that characterizes the performance of the Ln₂O₂SO₄ as a storage material. To compare this property of the present nanosized Pr₂O₂SO₄ with those of the bulk material, we performed the redox reaction at both 700 and 600 °C, as shown in Fig. 3. Because this material has demonstrated perfect dynamic oxygen release and storage cycles, we only calculated the reaction rates based on the first cycle. For the 1.9 wt% Ni-doped Pr₂O₂SO₄ NPs, both reduction and re-oxidation reactions were completed within 10 min at 700 °C. The reaction rates calculated from the redox profiles are 0.51 mmol g⁻¹ min⁻¹ for the reduction, and 0.66 mmol g⁻¹ min⁻¹ for the re-oxidation. The rate of oxygen storage is more than 2 times higher than that of the best bulk Pr₂O₂SO₄ materials doped with 1 wt% Pd reported in the literature (see Table 1). At 600 °C, the storage rate of Ni-doped Pr₂O₂SO₄ is still faster than that of bulk material measured at 700 °C. The observed faster oxygen storage compared to release is in agreement with bulk materials, and is characteristic for the Pr-based systems. This is due to the coexistence of Pr³⁺ and Pr⁴⁺ ions on the particle surface as demonstrated by Machida and coworkers.^22,25

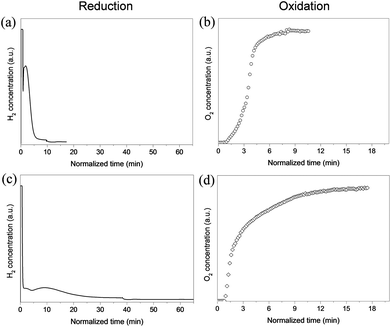

Fig. 3 Redox reactions of 1.9 wt% Ni-doped Pr₂O₂SO₄ at 700 °C (a, b) and 600 °C (c, d) under feed stream of 10% H₂/Ar and 5% O₂/He.

Table 1 Oxygen release and storage properties of Pr₂O₂SO₄ materials

Catalyst	Reaction temp./°C	O2 release/mmol g^−1 min^−1	O2 storage/mmol g^−1 min^−1	Ref.
Bulk Pr2O2SO4 (1 wt% Pd-doping)	700	0.325	0.325	25
Bulk Pr2O2SO4 (1 wt% Pd-doping)	600	0.07	N.A.	30
Pr2O2SO4 NPs (1.9 wt% Ni-doping)	700	0.51	0.66	This work
Pr2O2SO4 NPs (1.9 wt% Ni-doping)	600	0.13	0.36	This work

---

These results show that the Ni-doped nanosized Pr₂O₂SO₄ system has an improved performance in terms of faster reaction rate at lower temperatures compared to bulk materials. This is likely to be due to the reduced size of the particles: the higher surface-to-volume ratio of smaller NPs leads to rapid gas diffusion and solid–gas reactions that facilitate oxygen storage and release.^23,26 Additionally, smaller size leads to an increased number of Pr³⁺ and Pr⁴⁺ species on the surface of NPs. As discussed above, the obtained Pr₂O₂SO₄ NPs exhibit orthorhombic structure with shortened a (4.240 Å) but extended c (13.422 Å) of lattice parameters, compared to those of the bulk material with a monoclinic structure (a = 14.047 Å, and c = 8.281 Å).²² Stacking of SO₄²⁻ and Pr₂O₂²⁺ layers along the a-axis changes the crystal structure of Pr₂O₂SO₄ NPs by distortion of the SO₄ tetrahedral units in which each oxygen atom is coordinated to a Pr atom.³⁰ This is, therefore, probably advantageous for the faster release of oxygen observed in the present study.

In summary, the nanoparticulate Pr₂O₂SO₄ showed a remarkable enhancement of oxygen storage/release reaction rates allowing operation with good performance at lower temperatures than comparable bulk Pr-oxysulfates. Further improvement was achieved by 1.9 wt% doping with Ni, due to increased oxygen mobility known to occur at the surface of the catalysts with available d-orbitals. The results of TPR/TPRO for the Ni-doped Pr₂O₂SO₄ show catalytic activity already at 600 °C, and 700 °C, and the rates for oxygen storage and release are respectively 2 and 4.6 times higher than these of the best bulk material reported up to now (1 wt% Pd-doped Pr₂O₂SO₄). The promoting effect of the presented system could be attributed to a collective effect of (i) higher surface-to-volume ratio of NPs, (ii) co-presence of Pr³⁺ and Pr⁴⁺ at the NP surface, (iii) distorted crystal structure leading to more reactive SO₄ units, and (iv) Ni-doping as a cost-effective alternative to much more expensive Pt and Pd. These effects result in an overall enhanced ability in storing and releasing oxygen.

Acknowledgements

This research was supported by China Scholarship Council (W. Z.) and the Netherlands Organization for Scientific Research (K. D., Veni grant-722.012.009). The authors thank Bart van der Linden (Catalysis Engineering, TU Delft) for the TPR/TPRO measurements.

Notes and references

1. M. Machida, K. Kawamura, K. Ito and K. Ikeue, Chem. Mater., 2005, 17, 1487–1492.
2. J. Wang, H. Chen, Z. Hu, M. Yao and Y. Li, Catal. Rev.: Sci. Eng., 2015, 57, 79–144.
3. T. Motohashi, T. Ueda, Y. Masubuchi, M. Takiguchi, T. Setoyama, K. Oshima and S. Kikkawa, Chem. Mater., 2010, 22, 3192–3196.
4. W. Yu, M. D. Porosoff and J. G. Chen, Chem. Rev., 2012, 112, 5780–5817 , and references therein.
5. T. Osaki, K. Yamada, K. Watari and K. Tajiri, React. Kinet., Mech. Catal., 2014, 114, 561–570.
6. N. J. Lawrence, J. R. Brewer, L. Wang, T.-S. Wu, J. Wells-Kingsbury, M. M. Ihrig, G. Wang, Y.-L. Soo, W.-N. Mei and C. L. Cheung, Nano Lett., 2011, 11, 2666–2671.
7. B. Huang, R. Gillen and J. Robertson, J. Phys. Chem. C, 2014, 118, 24248–24256.
8. A. Simson, K. Roark and R. Farrauto, Appl. Catal., B, 2014, 158–159, 106–111.
9. N. Qiu, J. Zhang and Z. Wu, Phys. Chem. Chem. Phys., 2014, 16, 22659–22664.
10. Q. Dong, S. Yin, C. Guo, X. Wu, T. Kimura, T. Le, T. Sakanakura and T. Sato, IOP Conf. Ser.: Mater. Sci. Eng., 2013, 47, 012065.
11. J. Li, Z. Zhang, Z. Tian, X. Zhou, Z. Zheng, Y. Ma and Y. Qu, J. Mater. Chem. A, 2014, 2, 16459–16466.
12. M. P. Yeste, J. C. Hernandez-Garrido, D. C. Arias, G. Blanco, J. M. Rodriguez-Izquierdo, J. M. Pintado, S. Bernal, J. A. Perez-Omil and J. J. Calvino, J. Mater. Chem. A, 2013, 1, 4836–4844.
13. C. Sun and D. Xue, Phys. Chem. Chem. Phys., 2013, 15, 14414–14419.
14. H. Imagawa, A. Suda, K. Yamamura and S. Sun, J. Phys. Chem. C, 2011, 115, 1740–1745.
15. J. Kašpar and P. Fornasiero, J. Solid State Chem., 2003, 171, 19–29.
16. N. S. Nasri, J. M. Jones, V. A. Dupont and A. Williams, Energy Fuels, 1998, 12, 1130–1134.
17. L. S. Carvalho, C. L. Pieck, M. do Carmo Rangel, N. S. Fígoli and J. M. Parera, Ind. Eng. Chem. Res., 2004, 43, 1222–1226.
18. H. Tian and Q. Guo, Ind. Eng. Chem. Res., 2009, 48, 5624–5632.
19. Q. Song, R. Xiao, Z. Deng, H. Zhang, L. Shen, J. Xiao and M. Zhang, Energy Convers. Manage., 2008, 49, 3178–3187.
20. L. Lisi, G. Mancino and S. Cimino, Int. J. Hydrogen Energy, 2015, 40, 2047–2054.
21. M. Machida, K. Kawamura and K. Ito, Chem. Commun., 2004, 662–663.
22. M. Machida, T. Kawano, M. Eto, D. Zhang and K. Ikeue, Chem. Mater., 2007, 19, 954–960.
23. M. Machida, K. Kawamura, T. Kawano, D. Zhang and K. Ikeue, J. Mater. Chem., 2006, 16, 3084–3090.
24. D. Zhang, F. Yoshioka, K. Ikeue and M. Machida, Chem. Mater., 2008, 20, 6697–6703.
25. K. Ikeue, T. Kawano, M. Eto, D. Zhang and M. Machida, J. Alloys Compd., 2008, 451, 338–340.
26. X. Ye, J. E. Collins, Y. Kang, J. Chen, D. T. N. Chen, A. G. Yodh and C. B. Murray, Proc. Natl. Acad. Sci. U. S. A., 2010, 107, 22430–22435.
27. D.-J. Zhang, M. Eto, K. Ikeue and M. Machida, J. Ceram. Soc. Jpn., 2007, 115, 597–601.
28. W. Shen and S. Naito, Adv. Mater. Res., 2014, 886, 196–199.
29. Y. Liu, D. Tu, H. Zhu and X. Chen, Chem. Soc. Rev., 2013, 42, 6924–6958.
30. E. Aneggi, D. Wiater, C. de Leitenburg, J. Llorca and A. Trovarelli, ACS Catal., 2014, 4, 172–181.
31. C. Sun and D. Xue, Phys. Chem. Chem. Phys., 2013, 15, 14414–14419.
32. H. Imagawa, A. Suda, K. Yamamura and S. Sun, J. Phys. Chem. C, 2011, 155, 1740–1745.
33. W. Zhang, J. Martinelli, F. Mayer, C. S. Bonnet, F. Szeremeta and K. Djanashvili, RSC Adv., 2015, 5, 69861–69869.
34. R. Ran, X. Wu, D. Weng and J. Fan, J. Alloys Compd., 2013, 577, 288–294.
35. K. Ikeue, M. Eto, D.-J. Zhang, T. Kawano and M. Machida, J. Catal., 2007, 248, 46–52.

---

Footnote

† Electronic supplementary information (ESI) available: Experimental procedures, TGA profiles, TEM images, and EDS spectra of Pr₂O₂SO₄. See DOI: 10.1039/c6dt01667g

---
