A Ni(III) complex stabilized by silica nanoparticles as an efficient nanoheterogeneous catalyst for oxidative C–H fluoroalkylation

Abstract

We have developed Ni^III-doped silica nanoparticles ([(bpy)_xNi^III]@SiO₂) as a recyclable, low-leaching, and efficient oxidative functionalization nanocatalyst for aromatic C–H bonds. The catalyst is obtained by doping the complex [(bpy)₃Ni^II] on silica nanoparticles along with its subsequent electrooxidation to [(bpy)_xNi^III] without an additional oxidant. The coupling reaction of arenes with perfluoroheptanoic acid occurs with 100% conversion of reactants in a single step at room temperature under nanoheterogeneous conditions. The catalyst content is only 1% with respect to the substrates under electrochemical regeneration conditions. The catalyst can be easily separated from the reaction mixture and reused a minimum of five times. The results emphasize immobilization on the silica support and the electrochemical regeneration of Ni^III complexes as a facile route for developing an efficient nanocatalyst for oxidative functionalization.

---

Introduction

The heterogenization of homogeneous catalytic reactions allows for the facile recovery and recycling of catalysts. Transition metal complexes have gained great attention as catalysts in organic chemistry.^1–5 Both immobilization of metal-based catalysts on silica supports and their silica coating are represented in the literature as routes to heterogenization. The heterogenization techniques are well documented for Pd in different oxidation states.^6–9 It is worth noting that active species of nanocatalysts are mostly limited to only a neutral, metal(0) state, although numerous catalytic reactions require high-valent transition metals. So far, in our view, there has been only one known example of silica-supported nanocatalysts operating under oxidizing conditions.⁹ Pd(IV) species were successfully generated via oxidation of Pd@SiO₂ yolk–shell nanoparticles with iodobenzene dichloride (PhICl₂) or N-chlorosuccinimide (NCS).⁹ This nanocatalyst activated by PhICl₂ exhibited a high level of reactivity as well as superior stability to other Pd(IV)-based catalysts in hydroalkoxylation reactions.⁹

Interest in nickel compounds of higher oxidation states (III, IV) has now grown considerably, especially given the prospects of using them in oxidation catalysis.^10–15 Although the first reports on the complexes and salts of nickel in oxidation states (III) and (IV) appeared a relatively long time ago,^16,17 there have thus far been few examples of fully characterized, isolated, and relatively stable structures demonstrated.^18–26 This is due to the great difficulty in obtaining Ni(III, IV) and their stabilization, as highly oxidized nickel derivatives are very sensitive to moisture and light, and usually feature a high level of reactivity. Recently, we have demonstrated the examples of successful applications involving catalytic Ni^III derivatives under electrochemical oxidation conditions^27,28 as well as other electrochemically induced transformation involving nickel complexes under homogeneous conditions.^29–33 Careful ligand selection is crucial in obtaining stable metal complexes in high oxidation states. Thus, fluoro-, oxo-ligands and certain macrocyclic N-donor ligands are usually preferred for the stabilization of the highest oxidation states, both in main-group and transition-metal chemistry.^10–26 A recent report³⁴ on the isolated Ni(III) complex [(tpy)Ni^III(C₄F₈)](BF₄) with an identified structure exemplifies the effect of perfluoro cyclic alkyl substituents (–C₄F₈–) of ligands on stabilization of nickel in high oxidation states.

An attractive goal would be to obtain nickel derivatives in higher oxidation states, stabilized by a special environment so that they are highly effective in catalytic reactions, meanwhile easy to handle as well, and their separation from the reaction mixture, suitable for regeneration and reactivation. In this study, we consider one of the possible solutions to this problem, namely the stabilization of a nickel(III) complex generated electrochemically using a silicate shell in order to obtain a temporarily stable system, but nonetheless active in C–H substitution reactions for various aromatic model systems.

Electrochemically induced nanoheterogeneous catalysis using nickel immobilized on nanoparticles has previously only been investigated for reduction conditions, where the working pair is Ni(II)/Ni(0).³⁶ We know only of a few successful examples of solid-supported, non-metallic mediators that are easily separable and recycled in electrochemical processes.^37,38 It is worth noting that the encapsulation of transition metal complexes in silica nanoparticles is not as widely applied in heterogeneous catalysis as silica surface decoration by transition metal complexes. Moreover, the accessibility of nickel complexes within silica nanoparticles for both oxidation and catalysis seems questionable. Nevertheless, a silica matrix with solvent-exposed Si–OH and Si–O⁻ groups is a prerequisite for the extra-stabilization of Ni(III) for the purposes of both electrostatic interactions and coordination bonds.

It seems sensible to combine the advantages of two different approaches – nanoheterogeneous catalysis (easy catalyst recycling) and electrocatalysis (the generation and regeneration of the catalyst active form on the electrode surface without any additional molecular oxidant) – in order to develop a new effective catalytic technique that is both green and atom economical.

Interest in C–H activation has grown due to the fact that the direct functionalization of hydrocarbons presents several potential advantages over traditional cross-coupling in which prefunctionalization of the substrate, for example with a halogen, is not required. Though examples of nickel-mediated C–H activation date back to at least 1963,³⁵ the development of catalytic C–H activation methods using nickel is a more recent development.^10,27 Perfluoroalkyl groups are of special interest among fluorine-containing functional groups and new methods are necessary for incorporating them into organic substrates.^39–42

The purpose of this study is to provide stable nano-sized nickel complexes(III) with 2,2′-bipyridine ligands stabilized by a silica matrix while active during the fluoroalkylation reaction of the C–H bonds of aromatic substrates based on the examples of some model compounds (caffeine, 2-phenylpyridine). C–H substitution reactions will be examined as chemically variant with primarily obtained and isolated Ni^III particles taken in a stoichiometric ratio as well as under electrocatalytic Ni^III regeneration conditions on an anode.

Results and discussion

Ni(II)-doped silica nanoparticle synthesis

The choice of [(bpy)₃Ni^II] complexes as building blocks for a nanocatalyst is based on their well-known homogeneous catalytic activity in redox transformations.^27–33

The encapsulation of tris-bipyridine complexes into silica nanoparticles is well documented in the literature by [(bpy)₃Ru]^II.^43–47

The previously documented Stöber procedure⁴⁸ was thus optimized for the synthesis of Ni(II)-doped silica nanoparticles. Scheme 1 shows the fundamental steps in the synthesis (for further details on synthesis, see the ESI†). Fig. 1 exemplifies the SEM image of 90 ± 7 nm sized nanoparticles.

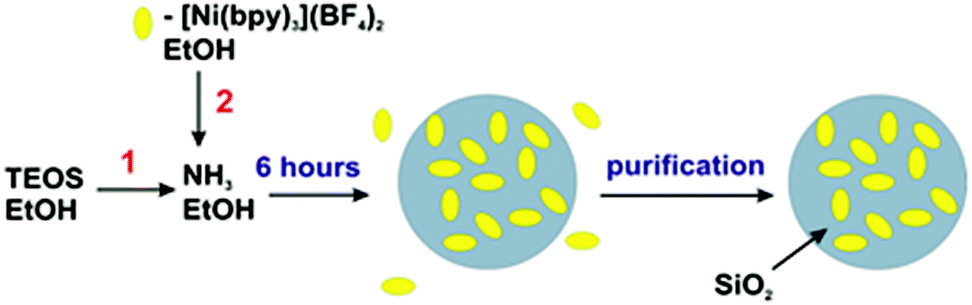

Scheme 1 Ni(II)-doped silica nanoparticle synthesis.

Fig. 1 SEM (scanning electron microscopy) image of silica nanoparticles doped with [(bpy)₃Ni](BF₄)₂.

The Ni : Si weight ratio of 1 : 74 was evaluated by plasma atomic emission spectrometry of the nanoparticles with a standard deviation not greater than 10%.

With the assumption that each nanoparticle weight is determined by its average size, formula (1) was then used to calculate the average weight of a nanoparticle (1.1 × 10⁻⁷ g). Thus, about 4 × 10¹² Ni(II) ions are packed into each nanoparticle.

m = 4/3ρπr³, (1)

where ρ = 1.96 g cm³ for pure silica and r is the radius of the nanoparticles in cm.

The transparency of silica nanoparticles enables one to apply the electronic absorption spectra of their aqueous colloids and reveal chromophores doped in silica nanoparticles.^49,50 Thus, electronic absorption spectra can reveal the presence of bipyridine ligands in silica nanoparticles. This is greatly significant, since the lability of [(bpy)₃Ni]^II complexes is a reason for their degradation under the conditions of alkali-catalyzed TEOS hydrolysis. Fig. 2a presents the electronic absorption spectra of Ni(II)-doped silica nanoparticles in acetonitrile. The spectra of bpy, [(bpy)Ni^II], and [(bpy)₃Ni^II] in acetonitrile are presented in Fig. 2b as well for comparison. The spectra in Fig. 2a indicate the presence of bpy molecules in the silica nanoparticles. These molecules can be either coordinated with Ni(II) ions or adsorbed by the silica matrix. Fig. 2b presents different spectral patterns of “free” bpy and its complexes [(bpy)Ni^II] and [(bpy)₃Ni^II]. Comparison of the spectral patterns with the spectrum of Ni(II)-doped silica nanoparticles (Fig. 2a) indicates a predominance of coordinated bpy in the synthesized nanoparticles. Nevertheless, the complex stoichiometry in silica nanoparticles cannot be accurately evaluated. Thus, the synthesized nanoparticles will continue to be designated as [(bpy)_xNi]@SiO₂, where x ≤ 3.

Fig. 2 The absorption spectra of the [(bpy)_xNi]@SiO₂ colloids (A) and [(bpy)_xNi] complexes (B) in CH₃CN. A: [(bpy)_xNi^II]@SiO₂ (1), [(bpy)_xNi^III]@SiO₂ (2), “empty” silica nanoparticles (3), C_Ni@SiO2 = 2.3 g L⁻¹. B: [(bpy)₃Ni^II] (1), [(bpy)₃Ni^III] (2), [(bpy)Ni^II] (3), bpy (4). C[(bpy)_xNi] = 5 × 10⁻⁵ M, C_bpy = 10⁻⁵ M.

The electrochemical oxidation of [(bpy)_xNi^II]@SiO₂ first calls for additional studies aimed at the evaluation of [(bpy)_xNi]^II leakage from the silica matrix into a solution. Electronic absorption spectra were applied to reveal the presence of bpy (either coordinated with Ni(II) or free) in the supernatant after continuously (1 hour) stirring [(bpy)_xNi]@SiO₂ in the acetonitrile solution with further phase separation by centrifugation. The spectra of the supernatant fit the spectral mode of “free” bpy with a small contribution of [(bpy)_xNi^II] (Fig. 3). These data point to a rather small [(bpy)_xNi^II] leakage from the silica nanoparticles into acetonitrile in an hour of stirring. It is worth noting that this time duration is optimal for electrochemical or catalytic experiments, while the leakage tends to increase in the course of 2 days (Fig. 3).

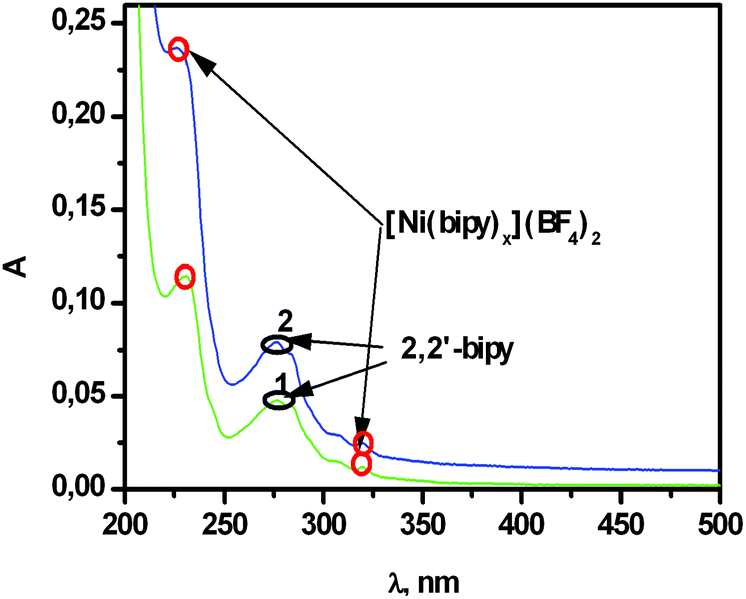

Fig. 3 The absorption spectra of the supernatants after 1 hour (1) and 2 days of continuous stirring (2) followed by the separation of [(bpy)_xNi]@SiO₂ (0.2 g L⁻¹) in CH₃CN.

The appearance of “free” bpy in the supernatant provides yet another confirmation of the partial degradation of [(bpy)₃Ni^II] under alkaline synthetic conditions, while no detectable amounts of Ni^II ions (less than 0.001 mg L⁻¹) are revealed in supernatants. The poor leaching of [(bpy)_xNi^II] from [(bpy)_xNi^II]@SiO₂ into the acetonitrile (Fig. 3) confirms the above-presented assumption that the unsaturated coordinating sphere of [(bpy)_xNi^II] can be a reason for its coordination via Si–O⁻ groups of the silica matrix. Thus, the loading of silica nanoparticles by [(bpy)₃Ni^II] differs from [(bpy)₃Ru^II]. In the latter case, the kinetic inertness of [(bpy)₃Ru^II] prevents its degradation under synthetic conditions. Thus, the binding of [(bpy)₃Ru^II] in the silica matrix is contributed by electrostatic and van der Waals interactions only, while [(bpy)_xNi^II] can be bound with silica via coordination bonds. These coordination bonds should have an effect on the redox properties of [(bpy)_xNi^II]@SiO₂.

Cyclic voltammetry

The redox properties of the nickel(II) complex in the silica nanoparticles were examined using cyclic voltammetry. For this purpose, both the suspension of nanoparticles dispersed ultrasonically in acetonitrile was used as well as a paste electrode based on the phosphonium salt previously proven for analyzing redox properties of insoluble and low-soluble complexes with a wide range of potential.^51,52 The obtained electrochemical characteristics were compared with the initial [(bpy)₃Ni](BF₄)₂ complex data (Fig. 4, Table 1).

Fig. 4 CVs of oxidation: [(bpy)_xNi^II]@SiO₂ suspension in CH₃CN (green) [0.1 g L⁻, GC electrode]; [(bpy)₃Ni](BF₄)₂, 0.1 mg, in the modified carbon paste electrode (CPE) (red); [(bpy)_xNi]@SiO₂, 0.1 mg, in CPE (blue). Potential ref. Ag/AgCl, 100 mV s⁻¹.

Table 1 Electrochemical data for the nickel complex oxidation: peak potentials for the Ni^II/Ni^III couple. Conditions: 25 °C, Ag/AgCl ref. electrode, 100 mV s⁻¹. CPE – modified carbon paste electrode

Complex	Conditions	Potentials, V
		E p ^a/Ep^c	ΔEp^a–c	E 1/2
[(bpy)xNi]@SiO2	CPE	1.92/1.77	0.15	1.84
	CH3CN suspension	1.94/1.88	0.06	1.91
[(bpy)3Ni](BF4)2	CPE	1.83/1.70	0.13	1.77
	CH3CN solution	1.85/1.78	0.07	1.82

---

The ratio of cathodic to anodic i_c/i_a currents is approximately equal to 1 for both [(bpy)₃Ni^II] in the solution and doped into silica nanoparticles in the paste electrode (Fig. 4). This fact indicates the Ni^III stability in cyclic voltammetry for both solutions and colloids in the time scale of voltammetry.

Electrosynthesis and ESR of [(bpy)_xNi^III]@SiO₂

A nickel(III) complex doped into silica nanoparticles [(bpy)_xNi^III]@SiO₂ was obtained using preparative electrolysis by oxidation of [(bpy)_xNi^II]@SiO₂ on an anode (eqn (1)). Anodic oxidation is effective for [(bpy)_xNi^II]@SiO₂ coated on the anode surface through their mixing with phosphonium salt dodecyl(tri-tert-butyl) phosphonium tetrafluoroborate. Moreover, the oxidation of [(bpy)_xNi^II]@SiO₂ is also efficient in the acetonitrile solution of the background salt Bu₄NBF₄, wherein the nanoparticles are suspended. Successful implementation of the anodic oxidation in the colloidal dispersion of nanoparticles is atypical for heterogeneous systems. The explanation for this fact may be the good adsorption of nanoparticles on the anode surface. The driving force of the adsorption is probably an electrostatic attraction of nanoparticles doped with cations (as with ions and nickel complexes), on the anode.

[(bpy)_xNi^III]@SiO₂ − 1e ⇌ [(bpy)_xNi^III]@SiO₂ (1)

The size of the isolated [(bpy)_xNi^III]@SiO₂ particles is almost identical to the original [(bpy)_xNi^II]@SiO₂ (Fig. 5).

Fig. 5 Scheme of an oxidized [(bpy)_xNi^III]@SiO₂ complex electrochemically obtained and an SEM image of the nanoparticles.

Fig. 2b illustrates the spectra of [(bpy)₃Ni^II] and electrochemically generated [(bpy)₃Ni^III] in acetonitrile solutions. The difference in their spectral modes (spectra 1, 2 in Fig. 2b) is not great, but still detectable. Nevertheless, the difference between [(bpy)_xNi]@SiO₂ before and after electrochemical oxidation (spectra 1, 2 in Fig. 2a) is not as obvious as in the solution (Fig. 2b) due to the light scattering phenomenon in the colloids. Thus, ESR spectroscopy must be applied in order to confirm the electrochemical generation of [(bpy)_xNi^III] in the silica nanoparticles.

The presence of a Ni^III center in an electrogenerated [(bpy)_xNi^III]@SiO₂ was confirmed by ESR spectroscopy. The ESR spectra were compared with those of [(bpy)₃Ni^III] in the CH₃CN solution, as well as their stability over time was analyzed. The electrochemically generated [(bpy)₃Ni^III] complex in the acetonitrile solution at ambient temperature yields an isotropic ESR spectrum, the intensity of which exhibits a two-fold decrease within 4.5 hours (Fig. 6). This decrease results from the instability of [(bpy)₃Ni^III] in acetonitrile solutions, which is the reason for Ni^III to Ni^II transfer. This instability is the reason for unsuccessful doping of the electrochemically generated [(bpy)₃Ni^III] in acetonitrile solution into the silica nanoparticles according to the applied procedure.

Fig. 6 The ESR spectra of the [(bpy)₃Ni^III](BF₄)₃ complex in CH₃CN and its parameters: g = 2.097; dH = 62G (left) along with the reducing signal intensity over time (right).

The powder of the electrochemically generated nanoparticles [(bpy)_xNi^III]@SiO₂ separated from either the background solutions or phosphonium salt was studied by ESR spectroscopy. The single band with g = 2.18 revealed in the ESR spectra of the nanoparticles (Fig. 7) indicates paramagnetic Ni(III) complexes within silica nanoparticles. Although the main band is reproduced in the repeated measurements, the ESR spectral pattern is somewhat affected by the ampoule rotation (Fig.1S†). The observed anisotropy can be explained by the nanoparticle aggregation in the concentrating and drying processes. Moreover, the presence of the preferred directions for nanoparticle aggregates in the ampoule demonstrates asymmetrically formed aggregates, such as “chain” aggregation. It should be noted that the experimentally observed ESR signal does not correspond to the [(bpy)₃Ni^III] complex signal in a frozen solution with g = 2.10, which is followed in both of our experiments, as well as stated in the literature.⁵³ This observation confirms the hypothesis that the first coordination sphere of the nickel complex inside the nanoparticles has changed. At the same time, there are many examples of complexes with low-spin Ni^III 3d⁷ (S = 1/2) (including those doped in silica) with g-factors, close to the one we observed, g = 2.18.^54–56 The intensity of the ESR [(bpy)_xNi^III]@SiO₂ spectrum does not change to any great extent within a few months (error ±10%), indicating the stability of the obtained Ni^III complexes inside the nanoparticles. Thus, for the first time, we have succeeded in obtaining a Ni^III complex that remains stable for a long time due to stabilization of the silica matrix. Moreover, it was kept in a closed flask in the dark, but not under argon, and all operations were performed without the use of special protective measures, without a Schlenk system.

Fig. 7 ESR [(bpy)_xNi^III]@SiO₂ (powder) spectrum.

Oxidative C–H fluoroalkylation of arenes

The isolated [(bpy)_xNi^III]@SiO₂ nanoparticles were used as an oxidant in the chemical coupling reaction of arenes (2-phenylpyridine and caffeine) and perfluoroheptanoic acid (eqn (2), Scheme 2). Mixing the reactants and oxidant in an equal amount, for example [caffeine-H + HC(O)OC₆F₁₃ + nanoNi(III)] = [1 : 1 : 2 (on Ni)] in acetonitrile, led to the rapid formation of a C–H perfluoroalkylation product with 100% yield according to the ¹⁹F NMR data.

Scheme 2 Perfluoroalkylation of arenes with the [(bpy)_xNi^III]-SiO₂ catalyst.

It has been discovered that an effective coupling of the selected arenes and perfluoroheptanoic acid can be carried out under electrochemically generated conditions and regenerate an active catalyst from [(bpy)_xNi^III]@SiO₂ when the nickel content is small in relation to the reagents, 1 mol% (eqn (3), Scheme 2). This reaction has also been successful. As a result of the initial substrate's 100% conversion, a perfluoroalkylation product is formed with an isolated yield of 75–85%. Interestingly, CO₂ gas evolution was observed at room temperature. The yields of the substituted products, namely phenylpyridine, are higher than the previously described methods for obtaining them under homogeneous conditions²⁷ and for caffeine they are comparable with better results.⁴²

It is worth noting the insignificant leaching of [(bpy)_xNi^III] from [(bpy)_xNi]@SiO₂ during the reaction. The low leaching enabled [(bpy)_xNi]@SiO₂ to be recycled and reused 5 times for C(sp²)–H bond functionalization (Table 2). The conversion of caffeine in the fifth synthesis with the same portion of the nanocatalyst has decreased by 6–8% according to the NMR spectra and the preparative yield for fluoroalkylated caffeine decreased by about the same amount. Moreover, the reaction cannot be repeated when the catalyst is extracted from the synthetic mixture by phase separation. We examined catalytic activities of both blank silica particles and nickel ions and complexes in the supernatant solution after their leaching over 24 hours from [(bpy)_xNi]@SiO₂. The supernatant solution was obtained by separation through the centrifugation of [(bpy)_xNi]@SiO₂ from the solution. Experiments with blank (empty) silica particles under electrolysis oxidative conditions reveal the lack of target products of C–H bond fluoroalkylation for both substrates (Table 2). Also, only a trace amount of a coupling product could be found in the reaction mixture after electrolysis of the electrolyte solution from which [(bpy)_xNi]@SiO₂ has been removed by phase separation (Table 2).

Table 2 Conditions and yields of arene perfluoroalkylation using a recycled [(bpy)Ni(SiO₂)₁₇₀] catalyst (1%)

Compound	Condition^a	Product yields
		NMR yield^b (isolated yield)^c, [%]
		1st	2nd	3rd	4th	5th
a Condition details are described in the ESI. b NMR yields obtained by ^19F NMR analysis of the crude reaction mixtures. c Isolated yields with a RFCOOH base and 100% conversion using ^19F NMR spectroscopy.
	Condition 1	95(76)	95	95	95	94
	Condition 2	100(85)	95(80)	87(74)	82(69)	77(63)
	Blank silica nanoparticles	0 (0)
	Ni(II) leached over 24 h from[(bpy)xNi^II]@SiO2	Traces
	Condition 1	85(68)	85	85	85	85
	Condition 2	86(75)	81(68)	77(65)	73(62)	69(58)
	Blank silica nanoparticles	0 (0)
	Ni(II) leached over 24 h from[(bpy)xNi^II]@SiO2	Traces

---

Thus, for the first time, Ni(III) complex-catalyst particles were obtained by means of silica matrix stabilization, which are highly effective in oxidative functionalization reactions of C–H bonds of aromatic compounds. The advantage of the developed catalyst is the high level of activity, the facile separation from the reaction mass, and the ability to be used multiple times. Moreover, applying conditions of the electrochemical regeneration in situ is the route to get high product yields under the low catalyst content, which is only 1% with respect to the substrates.

Conclusions

In conclusion, we have developed a new strategy for the Ni^III-NP-catalyzed direct fluoroalkylation of C–H bonds of arenes (for example, 2-phenylpyridine or caffeine). A silica-supported [(bpy)_xNi^III]@SiO₂ nanocatalyst was prepared electrochemically at room temperature without an additional oxidant. The coupling reaction of arenes and perfluoroheptanoic acid under nanoheterogeneous conditions occurs with 100% conversion of the reagents in a single step. The doping of metal complexes into silica nanoparticles produces an easily recyclable nanoheterogeneous catalyst, which in turn greatly broadens the catalytic applicability of transition metal complexes in the oxidative functionalization of aromatic C–H bonds. This catalytic technique is both green and atom economical.

Acknowledgements

This work was supported by the Russian Science Foundation grant no. 14-23-00016.

Notes and references

1. S. Minakata and M. Komatsu, Chem. Rev., 2009, 109, 711.
2. V. Polshettiwar, C. Len and A. Fihri, Coord. Chem. Rev., 2009, 253, 2599.
3. A. P. Wight and M. E. Davis, Chem. Rev., 2002, 102, 3589.
4. J. C. Park, E. Heo, A. Kim, M. Kim, K. H. Park and H. Song, J. Phys. Chem. C, 2011, 115, 15772.
5. H. Tian, X. Li, L. Zeng and J. Gong, ACS Catal., 2015, 5, 4959.
6. J. C. Park, H. J. Lee, J. Y. Kim, K. H. Park and H. Song, J. Phys. Chem. C, 2010, 114, 6381.
7. C. Piovezan, J. M. R. Silva, A. Neves, A. J. Bortoluzzi, W. Haase, Z. Tomkowicz, E. E. Castellano, T. C. S. Hough and L. M. Rossi, Inorg. Chem., 2012, 51, 6104.
8. P. Lakshmanan, M. S. Kim and E. D. Park, Appl. Catal., A, 2016, 513, 98.
9. M. Kim, S. Lee, K. Kim, D. Shin, H. Kim and H. Song, Chem. Commun., 2014, 50, 14938.
10. S. Z. Tasker, E. A. Standley and T. F. Jamison, Nature, 2014, 509, 299.
11. N. M. Camasso and M. S. Sanford, Science, 2015, 347, 1218.
12. M. I. Lipschutz and T. D. Tilley, Angew. Chem, Int. Ed., 2014, 126, 7418.
13. J. R. Bour, N. M. Camasso and M. S. Sanford, J. Am. Chem. Soc., 2015, 137, 8034.
14. A. Sivaramakrishna, H. S. Clayton and U. Muralikrishna, J. Coord. Chem., 2011, 64, 1309.
15. R. Mitra and K.-R. Pőrschke, Angew. Chem., Int. Ed., 2015, 54, 7488.
16. K. A. Jensen, Z. Anorg. Allg. Chem., 1936, 229, 275.
17. R. I. Haines and A. McAuley, Coord. Chem. Rev., 1981, 39, 77.
18. D. M. Grove, G. van Koten, W. P. Mul, A. A. H. Vanderzeijden, J. Terheijden, M. C. Zoutberg and C. H. Stam, Organometallics, 1986, 5, 322.
19. D. M. Grove, G. van Koten, R. Zoet, N. W. Murrall and A. J. Welch, J. Am. Chem. Soc., 1983, 105, 1379.
20. D. M. Grove, G. van Koten, P. Mul, R. Zoet, J. G. M. van der Linden, J. Legters, J. E. J. Schmitz, N. W. Murrall and A. Welch, J. Inorg. Chem., 1988, 27, 2466.
21. L. A. Van de Kuil, Y. S. J. Veldhuizen, D. M. Grove, J. W. Zwikker, L. W. Jenneskens, W. Drenth, W. J. J. Smeets, A. L. Spek and G. van Koten, J. Organomet. Chem., 1995, 488, 191.
22. C. M. Lee, C. H. Chen, F. X. Liao, C. H. Hu and G. H. Lee, J. Am. Chem. Soc., 2010, 132, 9256.
23. M. I. Lipschutz, X. Yang, R. Chatterjee and T. D. Tilley, J. Am. Chem. Soc., 2013, 135, 15298.
24. M. I. Lipschutz and T. D. Tilley, Angew. Chem., Int. Ed., 2014, 53, 7290.
25. V. M. Iluc and G. L. Hillhouse, J. Am. Chem. Soc., 2014, 136, 6479.
26. F. Tang, N. P. Rath and L. M. Mirica, Chem. Commun., 2015, 51, 3113.
27. Y. B. Dudkina, D. Y. Mikhaylov, T. V. Gryaznova, O. G. Sinyashin, D. A. Vicic and Y. H. Budnikova, Eur. J. Org. Chem., 2012, 2114.
28. Y. B. Dudkina, M. N. Khrizanforov, T. V. Gryaznova and Y. H. Budnikova, J. Organomet. Chem., 2014, 751, 301.
29. M. Khrizanforov, T. Gryaznova, O. Sinyashin and Y. Budnikova, J. Organomet. Chem., 2012, 718, 101.
30. D. Y. Mikhaylov, Y. H. Budnikova, T. V. Gryaznova, Y. Dudkina, M. Khrizanphorov, O. Kataeva and D. A. Vicic, Dalton Trans., 2012, 41, 165.
31. M. N. Khrizanforov, T. V. Gryaznova, D. Y. Mikhailov, Y. H. Budnikova and O. G. Sinyashin, Russ. Chem. Bull., 2012, 61, 1560.
32. D. Y. Mikhaylov, Y. H. Budnikova, T. V. Gryaznova, D. V. Krivolapov, I. A. Litvinov, D. A. Vicic and O. G. Sinyashin, J. Organomet. Chem., 2009, 694, 3840.
33. Yu. H. Budnikova, Yu. M. Kargin, J. Perichon and J.-Y. Nedelec, J. Organomet. Chem., 1999, 575, 63.
34. S. Yu, Y. Dudkina, H. Wang, K. V. Kholin, M. K. Kadirov, Y. H. Budnikova and D. A. Vicic, Dalton Trans., 2015, 44, 19443.
35. J. P. Kleiman and M. Dubeck, J. Am. Chem. Soc., 1963, 85, 1544.
36. Y. B. Dudkina, T. V. Gryaznova, Y. N. Osin, V. V. Salnikov, N. A. Davydov, S. V. Fedorenko, A. R. Mustafina, D. A. Vicic, O. G. Sinyashin and Y. H. Budnikova, Dalton Trans., 2015, 44, 8833.
37. J. Yoshida, R. Nakai and N. Kawabata, J. Org. Chem., 1980, 45, 5269.
38. H. Tanaka, Y. Kawakami, K. Goto and M. Kuroboshi, Tetrahedron Lett., 2001, 42, 445.
39. T. Liang, C. N. Neumann and T. Ritter, Angew. Chem., Int. Ed., 2013, 52, 8214.
40. M. G. Campbell, A. J. Hoover and T. Ritter, Top. Organomet. Chem., 2014, 52, 1.
41. O. A. Tomashenko and V. V. Grushin, Chem. Rev., 2011, 111, 4475.
42. M. Khrizanforov, S. Strekalova, V. Khrizanforova, V. Grinenko, K. Kholin, M. Kadirov, T. Burganov, A. Gubaidullin, T. Gryaznova, O. Sinyashin, L. Xu, D. A. Vicic and Y. Budnikova, Dalton Trans., 2015, 44, 19674.
43. S. V. Fedorenko, O. D. Bochkova, A. R. Mustafina, V. A. Burilov, M. K. Kadirov, C. V. Holin, I. R. Nizameev, V. V. Skripacheva and A. I. Konovalov, Phys. Chem. C, 2010, 114, 6350.
44. D. Zhang, Z. Wu, J. Xu, J. Liang, J. Li and W. Yang, Langmuir, 2010, 26, 6657.
45. J. Labéguerie-Egéa, H. M. McEvoy and C. McDonagh, J. Nanopart. Res., 2011, 13, 6455.
46. X. Wang, J. Zhou, W. Yun, S. Xiao, Z. Chang, P. He and Y. Fang, Anal. Chim. Acta, 2007, 598, 242.
47. H. Wei, L. Zhou, J. Li, J. Liu and E. Wang, J. Colloid Interface Sci., 2008, 321, 310.
48. W. Stöber, A. Fink and E. Bohn, J. Colloid Interface Sci., 1968, 26, 62.
49. A. R. Mustafina, S. V. Fedorenko, O. D. Konovalova, A. Yu. Menshikova, N. N. Shevchenko, S. E. Soloveva, A. I. Konovalov and I. S. Antipin, Langmuir, 2009, 25, 3146.
50. R. P. Bagwe, C. Yang, L. R. Hilliard and W. Tan, Langmuir, 2004, 20, 8336.
51. M. N. Khrizanforov, D. M. Arkhipova, R. P. Shekurov, T. P. Gerasimova, V. V. Ermolaev, D. R. Islamov, V. A. Miluykov, O. N. Kataeva, V. V. Khrizanforova, O. G. Sinyashin and Y. H. Budnikova, J. Solid State Electrochem., 2015, 19, 2883.
52. T. Gryaznova, Y. Dudkina, M. Khrizanforov, O. Sinyashin, O. Kataeva and Y. Budnikova, J. Solid State Electrochem., 2015, 19, 2665.
53. J. C. Brodovitch, R. I. Haines and A. McAuley, Can. J. Chem., 1981, 59, 1610.
54. U. Höchli, K. A. Müller and P. Wysling, Phys. Lett. A, 1965, 15, 5.
55. S. Bhattacharya, R. Mukherjee and C. Chakravorty, Inorg. Chem., 1986, 25, 3448.
56. A. Kassiba, M. Makowska-Janusik, J. Alauzun, W. Kafrouni, A. Mehdi, C. Reye, R. J. Corriu and A. Gibaud, J. Phys. Chem. Solids, 2006, 67, 875.

---

Footnote

† Electronic supplementary information (ESI) available: Synthesis and electrosynthesis conditions, physico-chemical characterization of catalysts and products, and other experimental details. See DOI: 10.1039/c6dt01492e

---
