Extraction and coordination studies of a carbonyl–phosphine oxide scorpionate ligand with uranyl and lanthanide(III) nitrates: structural, spectroscopic and DFT characterization of the complexes

Abstract

Hybrid scorpionate ligand (OPPh₂)₂CHCH₂C(O)Me (L) was synthesized and characterized by spectroscopic methods and X-ray diffraction. The selected coordination chemistry of L with UO₂(NO₃)₂ and Ln(NO₃)₃ (Ln = La, Nd, Lu) has been evaluated. The isolated mono- and binuclear complexes, namely, [UO₂(NO₃)₂L] (1), [{UO₂(NO₃)L}₂(μ₂-O₂)]·EtOH (2), [La(NO₃)₃L₂]·2.33MeCN (3), [Nd(NO₃)₃L₂]·3MeCN (4), [Nd(NO₃)₂L₂]⁺·(NO₃)⁻·EtOH (5) and [Lu(NO₃)₃L₂] (6) have been characterized by IR spectroscopy and elemental analysis. Single-crystal X-ray structures have been determined for complexes 1–5. Intramolecular intraligand π-stacking interactions between two phenyl fragments of the coordinated ligand(s) were observed in all complexes 1–5. The π-stacking interaction energy was estimated from Bader's AIM theory calculations performed at the DFT level. Solution properties have been examined using IR and multinuclear (¹H, ¹³C, and ³¹P) NMR spectroscopy in CD₃CN and CDCl₃. Coordination modes of L vary with the coordination polyhedron of the metal and solvent nature showing many coordination modes: P(O),P(O), P(O),P(O),C(O), P(O),C(O), and P(O). Preliminary extraction studies of U(VI) and Ln(III) (Ln = La, Nd, Ho, Yb) from 3.75 M HNO₃ into CHCl₃ show that scorpionate L extracts f-block elements (especially uranium) better than its unmodified prototype (OPPh₂)₂CH₂.

---

1. Introduction

Bidentate neutral organophosphorus extractants, first of all phosphine oxides (carbamoylphosphine oxides, alkylenediphosphine dioxides), are the most efficient extractants for the recovery of transplutonium, rare earth, and other elements from the waste of spent nuclear fuel reprocessing, to recover different metals from processing solutions of hydrometallurgy and to design analytical test objects for the same metals.^1–4 These compounds are also important in medicine for the diagnosis and treatment of different pathologies, mainly affecting the locomotor apparatus. The design of novel functionalized phosphine oxides showing higher efficiency and selectivity is one of the major and topical fields of extractive and synthetic chemistry.

Thus, highly efficient extractants for the recovery of actinides and rare earth elements from nitric acid solutions were found among derivatives of methylenediphosphine dioxide^2–5 [Scheme 1(a) and (b)]. This fact favored the development of the coordination chemistry of these ligands, in particular their ability to coordinate ions of f-block elements.^6–8

Scheme 1 Structures of different types of ligands bearing >P(O)CH₂P(O)<.

The introduction of Ar₂P(O)CH₂ and Ar₂PCH₂ functional groups showing coordination ability into the methylene bridge of dioxide [Scheme 1, (a)] leads to new scorpionate ligands [Scheme 1, (c)–(d),)] that are promising extractants for nuclear fuel reprocessing.⁹ All strongly donating Ar₂P(O) and Ar₂P groups of these scorpionates, as expected, participate in coordination to lanthanide-like Y(III).⁹ The coordination properties of such a scorpionate ligand change considerably if the donor phosphorus-containing group in substituent Ar₂P(O)CH₂–, Ar₂PCH₂– is replaced by a less basic AlkC(O)– group [Scheme 1, (e)]. Less basic carbonyl groups may not form coordination bonds with cations or form weaker bonds than phosphorus functionalities, as well as participate in other weak interactions. Consequently, such a modification can considerably change not only coordination, but also the extractive properties of the ligand.

In this paper, we report the modified synthesis of a scorpionate ligand [Ph₂P(O)]₂CHCH₂C(O)Me (L) and its new complexes with uranyl and lanthanide(III) nitrates, the structural characterization of all compounds in the solid state (X-ray crystallography for L, 1–5) and in solution by IR and multinuclear NMR (¹H, ¹³C, ³¹P) spectroscopy, and extraction studies towards the f-block elements. Furthermore, we report herein the results of AIM analysis (Bader's “Atoms in molecules” approach) for the π-stacking interactions in the U(VI), La(III), and Nd(III) complexes. Extraction ability of ligand L for the recovery of U(VI) and Ln(III) from nitric acid solution into chloroform in comparison with the Ph₂P(O)CH₂P(O)Ph₂ (L′) prototype was evaluated.

2. Results and discussion

2.1. Synthesis and characterization of the ligand L

We prepared compound Lvia a modified variant¹⁰ of the Conant reaction¹¹ that consists of combining Ph₂PCl with (E)-4-(diphenylphosphoryl)but-3-en-2-one, we developed the synthesis of the latter earlier.¹² The reaction was conducted in anhydrous acetonitrile solution at ambient temperature with the addition of acetic acid (Scheme 2). Under these conditions, the reaction was completed over 48 h to give 4,4-bis(diphenylphosphoryl)butan-2-one (L) in 90% yield (according to ³¹P{¹H} NMR spectra of the reaction mixture). It should be noted that this is the first example of the successful use of the Conant reaction for the synthesis of gem-diphosphoryl-substituted alkanones.

Scheme 2 Synthesis of 4,4-bis(diphenylphosphoryl)butan-2-one (L).

The ligand L has been characterized by elemental analysis, IR, ¹H, ³¹P{¹H}, and ¹³C NMR spectroscopy. Thus, in particular, the ¹H NMR spectrum of this compound, whose molecule contains two identical diphenylphosphoryl groups, shows the proton signals of the CH₂ and CH groups as a doublet of triplets and triplet of triplets, respectively, which transform into a doublet and triplet under broad band ¹H–³¹P decoupling (¹H{³¹P} NMR spectrum). The ¹³C{¹H} NMR spectrum also shows triplets of C=O and CH carbon atoms due to spin–spin coupling with the phosphorus nuclei of two Ph₂P(O) groups. The IR spectrum of a crystalline sample of L exhibits ν(P=O) bands at 1202 and 1182 cm⁻¹ and a ν(C=O) band at 1720 cm⁻¹. The DFT computational data for the normal vibration frequencies of ligand L agree well with the experimental values without any scaling.¹³

In addition to spectral experiments, compound L was characterized in the solid state using single-crystal X-ray diffraction. Scorpionate ligand L displays typical bond lengths and angles, with the oxygen atoms of the phosphoryl groups trans-situated with respect to the C13 atom (Fig. 1). Selected bond distances are given in Table 1. Such a conformation of L is additionally stabilized with π-stacking between the phenyl groups of different phosphorus functionalities (the centroid–centroid distance is equal to 3.681(2) Å and the dihedral angle between the ring planes is equal to 10.81(8)°). Thus, the realization of a bi- and tridentate coordination mode for this ligand requires the rotation of donor arms as compared with its conformation in the solid state. All three donor groups are involved in weak intra- and intermolecular C–H⋯O interactions. Intermolecular C_Ph–H⋯O contacts are the most significant. The shortest r(H⋯O) distances are 2.60 Å for the carbonyl group, 2.28, 2.38 Å (for P1–O1) and 2.46, 2.62 Å (for P2–O2) for the phosphoryl groups (Fig. S1, ESI†).

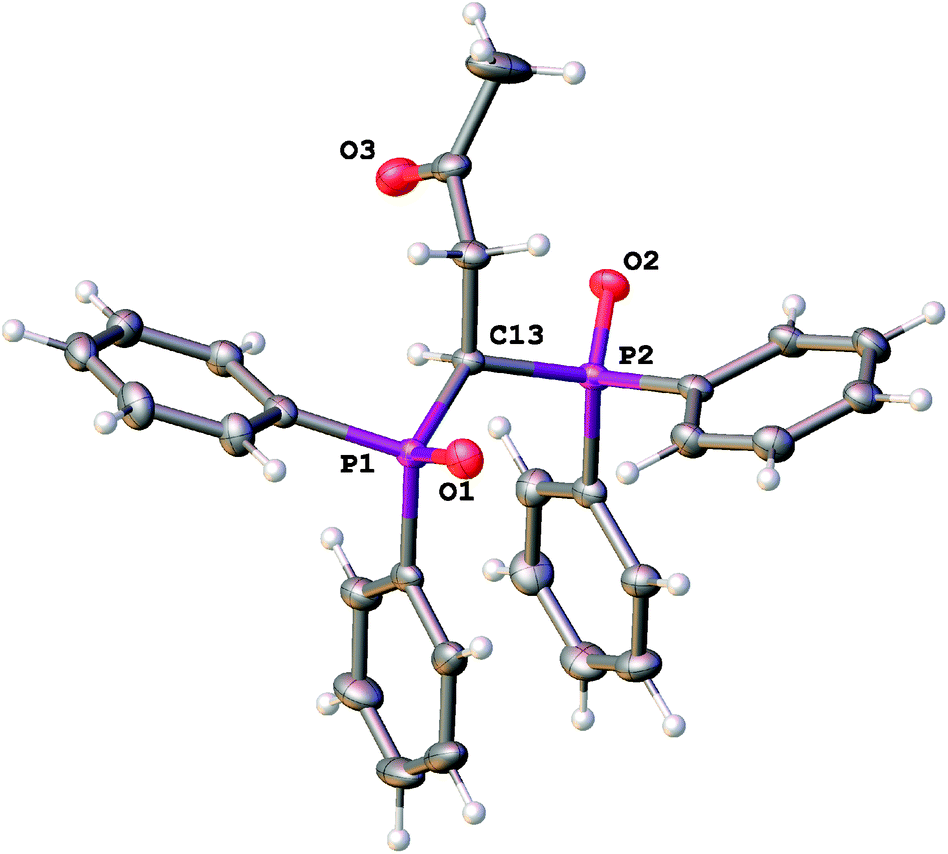

Fig. 1 General view of L with the atoms represented as thermal ellipsoids drawn at p = 50%.

Table 1 Selected bond distances (Å) in L, and uranyl complexes 1 and 2

Bond	L	1	2
P1=O1	1.485(1)	1.500(2)	1.487(6)
P2=O2	1.493(1)	1.503(2)	1.495(6)
C=O	1.208(2)	1.213(4)	1.202(12)
U1=O1		1.761(2)	1.877(11)
U1=O2		1.760(2)	1.658(12)
U1–O3(L)/O9(L)		2.393(2)	2.397(6)
U1–O4(L)/O8(L)		2.398(2)	2.463(6)
U1–O(nitrate)		2.506(3)–2.540(3)	2.520(7)–2.549(7)
U1–O(peroxo)			2.361(12)–2.407(12)

---

As far as we know, compound L is the first example of a hybrid scorpionate ligand combining two P(O) and one C(O) side arms that has ever been characterized in the solid state.

2.2. Synthesis and solid state characterization of the complexes

Compound L is a hybrid scorpionate ligand with a combination of two phosphoryl and one carbonyl groups. Therefore the coordination behavior of this ligand is interesting since the free rotation of donor arms can give a different possible combination of coordination modes. Various possible coordination modes of L, as depicted in Scheme 3, can be observed for mononuclear complexes.

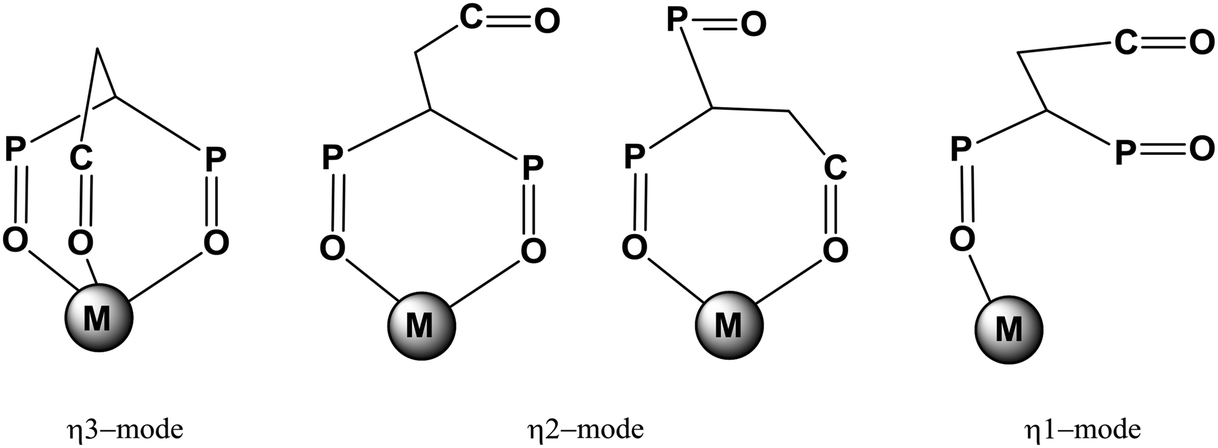

Scheme 3 Possible coordination modes of ligand L in mononuclear complexes.

C(O)-Monodentate coordination is the least probable (not shown in the Scheme). Obviously, the metal and the composition of the complex affect the choice of coordination mode. The f-block element coordination chemistry of this scorpionate ligand was studied in order to understand its coordination behavior.

Mononuclear complex [UO₂(L)(NO₃)₂] (1) was prepared by addition of 1 equivalent of UO₂(NO₃)₂·(H₂O)₆ in acetonitrile to 1 equivalent of compound L in chloroform to form a bright yellow microcrystalline powder. Crystallization of an ethanolic solution of 1 when exposed to sunlight yielded a trace amount of a yellow product with structural analyses consistent with the formula [{UO₂(NO₃)L}₂(μ₂-O₂)]·EtOH (2). The appearance of the bidentate peroxo [O₂]²⁻ anion in uranyl nitrate solutions in the presence of atmospheric dioxygen is possible due to the sunlight photolysis of EtOH.¹⁴ The mechanism of this photolysis has been previously reported.¹⁵

Mononuclear bisligand complexes [La(NO₃)₃L₂]·2.33MeCN (3), [Nd(NO₃)₃L₂]·3MeCN (4), [Nd(NO₃)₂L₂]·(NO₃)·EtOH (5) and [Lu(NO₃)₃L₂] (6) isolated in a pure state were obtained by combining stoichiometric amounts of the ligand and the salts in a mixture of aprotic solvents followed by crystallization from the corresponding solvent.

The composition and structures of the complexes in the solid state were studied using elemental analysis, and IR spectroscopy. The structures of the crystal complexes 1–5 were also elucidated by X-ray diffraction.

2.2.1. X-ray structures. According to the data of single-crystal X-ray diffraction, compound 1 is a neutral mononuclear complex, where the uranium atom adopts a hexagonal bipyramidal geometry with one bidentate chelate ligand L and two bidentate nitrate anions situated in the equatorial plane and uranyl oxygen atoms in the apical positions (Fig. 2). The C=O group is oriented in the opposite direction with respect to the uranium atom).

Fig. 2 General view of 1 with the atoms represented as thermal ellipsoids drawn at p = 50%.

The absence of strong intermolecular interactions that involve the oxygen atoms of the uranyl group, results in its linearity (the O1–U1–O2 angle is equal to 179.9(1)°) and similarity of the U=O distances (1.760(2) and 1.761(2)Å) in 1. In complex [UO₂(NO₃)₂L′] (7)⁷ (where L′ is Ph₂P(O)CH₂P(O)Ph₂), which has a similar molecular structure to 1, the U=O distances differ rather considerably, 1.781(11) and 1.768(11) Å, due to the presence of intermolecular C–H⋯O1 bonding. Complex 1 also involves intermolecular contacts C–H⋯O=C, with r(H⋯O) distances in them being virtually the same as in the structure of the ligand (Fig. S2, ESI†).

Neutral dinuclear complex 2 (Fig. 3) contains only half of the complex in the asymmetric unit. L acts as a bidentate chelate P(O),P(O)-ligand and the other equatorial positions of the uranium(VI) atom in 2 are occupied by the oxygen atoms of the bidentate chelate nitrate anion and the bridging bidentate peroxo anion.

Fig. 3 General view of 2 with the atoms represented as thermal ellipsoids drawn at p = 50%. Uranyl oxygen atoms, the peroxo group and an oxygen atom of the nitrate anion are disordered over two sites, and only one of the disordered components is depicted.

The resulting coordination polyhedron UO₈ adopts a hexagonal bipyramidal geometry with the uranyl oxygen atoms in apical positions. Two nitrates (and two L ligands) are trans-situated to each other with respect to the UO₂U species as it was previously observed in complexes with a similar [{UO₂(NO₃)X}₂(μ₂-O₂)] composition, where X is the bidentate chelate neutral ligand (X = tetraethylsuccinamide,¹⁶ 2,2′-bipyridyl¹⁷ or 5,5′-dimethyl-2,2′-bipyridine¹⁸). The severe disorder of the peroxo, NO₃ and uranyl groups in 2 provides no possibility to analyze its molecular geometry in detail, but the mutual disposition of the constituting moieties can still be assessed. Particularly, the equatorial planes of two UO₈ polyhedra connected through the peroxo anion are not parallel (the corresponding dihedral angle is ca. 21°), and deviate from planarity. Although this deviation is a rare case, it was previously reported for several peroxo complexes of uranium.¹⁹

Compounds 3 and 4 are isostructural, although the number of solvate molecules in their structures obtained from X-ray diffraction is not equal, probably due to the loss of solvent molecules in air. These contain only half of the molecule in the asymmetric unit with Ln, N1 and O5 atoms situated on a two-fold rotation axis. The Ln atom in 3 and 4 coordinates three nitrate anions and two L ligands in a bidentate chelate mode to form a LnO₁₀ coordination polyhedron (the molecular view of 3 is given in Fig. 4 as an example). The nitrate anions are situated in a T-shape according to the metal atom with the NLnN angles slightly deviating from 90° (the angle value is equal to 83.2(2) and 83.0(2)°) due to the electronic and steric effects of the L ligands.

Fig. 4 General view of molecule 3 with the atoms represented as thermal ellipsoids drawn at p = 50%.

The resulting polyhedron forms a pseudo-capped trigonal prism with the N1 atom in the capped position, if the nitrate anions are regarded as one polyhedron vertex (Fig. 5).

Fig. 5 Visualization of the pseudo-capped trigonal prismatic environment around La(III) in 3.

In the closely related family of lanthanide nitrate complexes with L′, the compounds were characterized to be of the compositions [Ln(NO₃)₃(L′)₂]·solv (Ln = La, solv = EtOH; Ln = Ce, solv = acetone), [Ln(NO₃)₂(H₂O)(L′)₂][Ln(NO₃)₄L′]·MeCN (Ln = Pr, Eu), [Ln(NO₃)₂(H₂O)(L′)₂](NO₃)·solv (Ln = Nd, Gd, solv = H₂O; Ln = Ho, solv = EtOH) and [Ln(NO₃)(L′)₃](NO₃)₂·solv (Ln = Gd, Yb; Ln = Gd, solv = EtOH).⁶ Thus, although a lanthanide cation can coordinate up to four bis(diphenylphosphino)methane dioxide ligands (as in the structure of [Eu(L′)₄](ClO₄)₃·2 H₂O),²⁰ nitrate anions compete with those for a place in the lanthanide coordination sphere. The ratio Ln : NO₃ : L′ (or L) = 1 : 3 : 2 is expected only for light elements (La, Ce); lanthanide contraction is accompanied by a decrease in this ratio as 1 : 2 : 2 (Ln = Pr–Ho) or as 1 : 1 : 3 (Ln = Gd–Yb). Thus, coordination isomerism is possible in this series.

Indeed, we succeeded to obtain complex 5 from ethanol for which the ratio is Nd : NO₃ : L = 1 : 2 : 2 (Fig. 6).

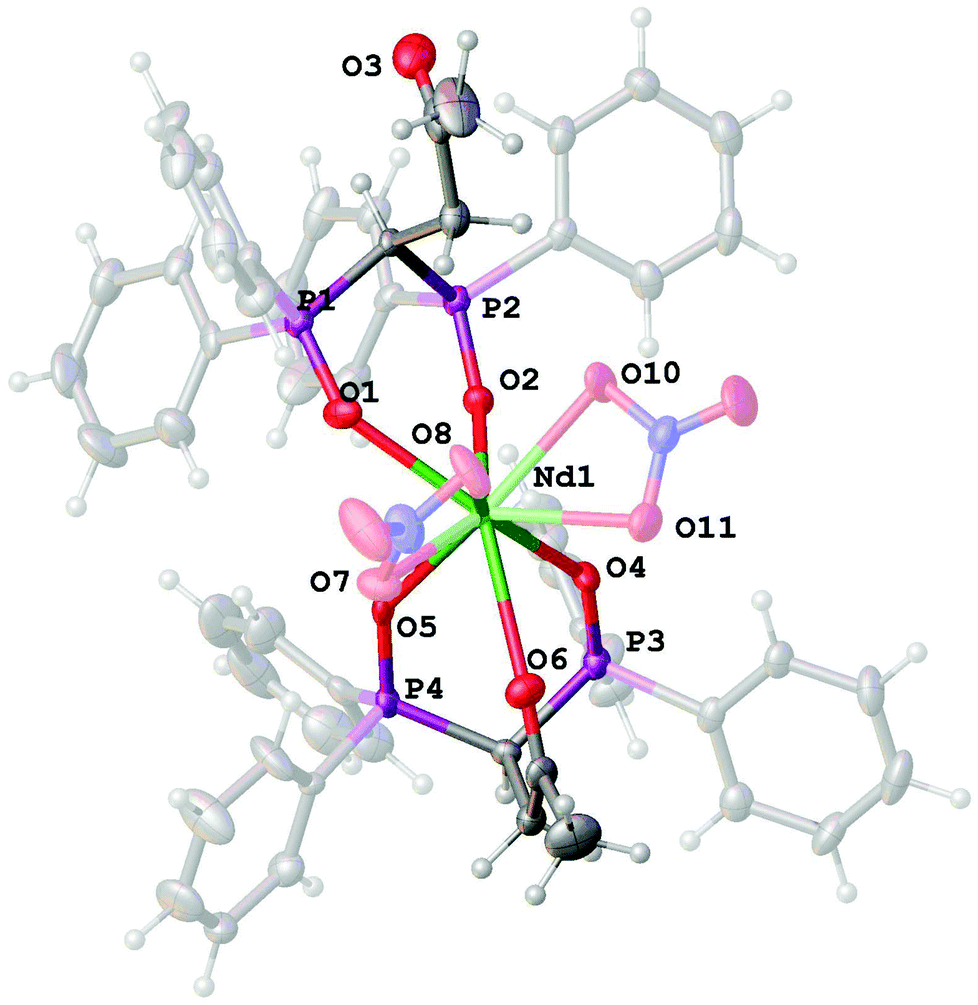

Fig. 6 General view of the complex cation [Nd(NO₃)₂L₂]⁺ in the structure of 5 with the atoms represented as thermal ellipsoids drawn at p = 50%.

It contains two L ligands in both the P(O),P(O)-bidentate and tridentate coordination modes, and only two nitrate anions coordinated by the neodymium atom. The NdO₉ polyhedron adopts a tricapped trigonal prismatic geometry (Fig. 7).

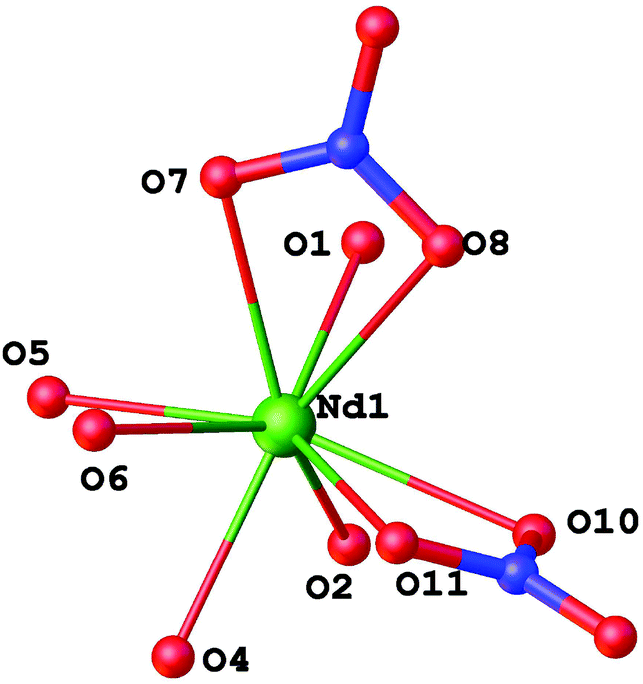

Fig. 7 Visualization of the tricapped trigonal prismatic environment around Nd(III) in 5.

For compounds 3–5, the Ln–O(L) bond distances are shorter than those for the Ln–O(nitrate) bonds (Table 2); and the latter bonds are typically alternated. In 5, the Nd–O(C) bond is the longest, and, hence, the weakest among the coordination bonds. The lanthanide contraction for isostructural compounds 3 and 4 is expressed as a shortening of the respective coordination bonds.

Table 2 Selected bond distances (Å) in complexes 3–5

Bond	3 (La)	4 (Nd)	5 (Nd)
Ln–O1(L)	2.541(6)	2.5016(9)	2.462(5)
Ln–O2(L)	2.501(7)	2.4573(9)	2.410(4)
Ln–O4(L)			2.389(4)
Ln–O5(L)			2.405(5)
Ln–O(C)			2.656(5)
C=O (free)	1.202(13)	1.214(2)	1.217(9)
C=O (coordinated)			1.222(7)
Ln–O (nitrate)	2.599(8)–2.653(6)	2.555(1)–2.609(1)	2.536(5)–2.551(4)
P1–O1	1.491(7)	1.4957(9)	1.514(5)
P2–O2	1.504(7)	1.5010(9)	1.492(4)
P3–O4			1.496(4)
P4–O5			1.505(4)

---

The coordination of phosphoryl and acetyl groups does not affect the lengths of the P=O and C=O bonds, although the oxygen atom of the longest P=O bond in 5 is involved in O–H⋯O hydrogen bonding with ethanol molecules (r(O⋯O) = 3.844(8) Å, ∠(OHO) = 165.9°) (Fig. S4, ESI†). With the exception of one ligand in 5, the acetyl group of L in complexes 1–5 is involved in the CH⋯O=C intra- and intermolecular bonding (Fig. S1–S4, ESI†). The most significant noncovalent CH⋯O=C interactions are observed in complexes 3 and 4 with the shortest O⋯H distances 2.53–2.55 Å and corresponding value of the CHO angle ∼145° (Fig. S3, ESI†). In our opinion, the presence of an uncoordinated acetyl group available for complex⋯solvate hydrogen bonding could be the reason for the enhanced extraction ability of L compared with L′. To reveal the crystal packing effects on the IR spectra of 1 and 3–5 in the solid state, we analyzed the closest environment of these complexes. The O–H⋯O bond in 5 should affect the P=O vibrations. Moreover, one can expect the effect of weak intermolecular C–H⋯O=C interactions (for 3 and 4) on acetyl group vibration.

Along with numerous C–H⋯O intramolecular bonds, intramolecular π-bonding can be suggested for 1–5 that could affect the stability of complexes. These are analyzed in the next section.

2.2.2. AIM analysis for complexes 1–5. It is well known that the topological analysis of electron density (ED) ρ(r) according to Bader's “Atom in Molecules” theory (AIM)²¹ derived from ab initio calculations in conjunction with Espinosa's correlation (E_cont = −1/2 V(r))²² makes it possible to estimate the interaction energy (E_cont) with sufficient accuracy.²³

To evaluate the π-stacking energy, topological analysis of the ED for complexes 1–5 was performed using X-ray geometry data at the DFT level of theory. Unlike the neutral compounds 1–4, complex 5 is both ionic and paramagnetic, for which convergence of SCF equations has not been achieved in spite of our efforts to change the basis set for the neodymium atom or convergence algorithms. We calculated this value for model free ligands in geometrical configuration as in the X-ray structure of complex 5.

The AIM results are presented in Fig. 8 and in Table 3. Molecular graphs of complexes 1–5 exhibit various sets of bond critical points (BCP) and bond paths corresponding to different types of π-stacking interactions.

Fig. 8 The fragments of QTAIM graphs for complexes 1–5 exhibiting π-stacking interactions in these complexes (a, b – tri- and bidentate ligand coordination in complex 5). Hydrogen atoms are omitted for clarity. Color codes for the atoms: orange (P), grey (C). The π-stacking bond paths are shown as green dotted lines; BCPs (3;−1) are red, ring (3;+1) critical points are yellow, and cage (3;+3) critical points are blue.

Table 3 Topological parameters (QTAIM) in the critical points (3,–1) for π-stacking interactions in complexes 1–4 and complex cation 5 at the PBE0/6-311+G** level

Complex	BCP (3;−1)	ρ(r), a.u.	∇^2ρ(r), a.u.	V(r), a.u.	E cont, kcal/mol	∑Econt, kcal/mol
a For tridentate ligand coordination. b For bidentate ligand coordination.
1	C38–C60	+0.008252	+0.022976	−0.003955	1.3	2.3
	C45–C63	+0.003848	+0.010428	−0.001669	0.5
	C43–C65	+0.004001	+0.010002	−0.001642	0.5
2	C44–C57	+0.008598	+0.024180	−0.003988	1.3	2.0
	C42–C60	+0.005467	+0.014297	−0.002330	0.7
3	C35–C46	+0.006458	+0.018423	−0.002927	0.9	1.4
	C40–C51	+0.001889	+0.005211	−0.000794	0.3
	C42–C55	+0.001672	+0.004601	−0.000699	0.2
4	C35–C47	+0.006593	+0.018433	−0.002946	0.9	1.6
	C39–C49	+0.003703	+0.009296	−0.001505	0.5
	C42–C52	+0.001324	+0.003886	−0.000592	0.2
5	C27–C58^a	+0.005527^a	+0.015985^a	−0.002511^a	0.8^a	0.8^a
	C28–C49^b	+0.007119	+0.019434	−0.003138	1.0^b	1.5^b
	C30–C52^b	+0.003728	+0.009775	−0.001713	0.5^b

---

The change in the parameters of the intramolecular π-stacking interactions (Table 3) for complexes 1–5 depends on the mutual geometric configuration of the benzene rings (Table 4). The larger the distance between the rings and corresponding interplanar angle the smaller the interaction energy value. The topology of molecular graphs is affected by the parallel shift of two benzene rings (e.g. for complexes 2 and 3), hence, the number of bond paths and overall interaction energy decrease. The most pronounced stacking interaction is observed in complex 1 (interplane distances are 3.505 Å). The total energy of the π-stackings in 1–5 amounts to 2.3, 4.0, 2.8, 3.2 and 2.3 kcal mol⁻¹, respectively. Interestingly, the ligands in 5 exhibit different coordinations: bi- and tridentate fashion. This leads to different molecular graphs in the π-stacking interaction fragment (5a and 5b in Fig. 8), containing one and two bond paths for tridentate and bidentate ligands, respectively. Thus, the π-stacking interaction in the tridentate ligand (5a) is the weakest (only 0.8 kcal mol⁻¹) in the series studied.

Table 4 Geometrical parameters of π-stacking^a for complexes 1–4 and complex cation 5

	1	2	3	4	5	5
a d is the average distance between the contacting planes; l is the centroid–centroid distance; β is the average dihedral angle between the planes of contacting fragments. b For tridentate ligand coordination. c For bidentate ligand coordination.
M	U	U	La	Nd	Nd	Nd
d, Å	3.505	3.710	3.816	3.849	4.644	3.831
l, Å	3.505	3.760	3.827	3.841	4.123	3.825
β, °	9.25	8.03	23.15	24.21	29.82	13.76

---

The obtained π-stacking interaction energy values are close to those for intramolecular π-stacking in a Co(III) complex²⁴ of about 1–3 kcal mol⁻¹ and to those for intramolecular interligand π-stacking interactions in Lu(III) complexes²⁵ of about 1.9–3.3 kcal mol⁻¹.

The analysis of literature data on the structure of crystalline complexes of methylenediphosphine dioxide L′ with uranyl nitrate [UO₂(NO₃)₂L′] (7)⁷ and lanthanum nitrate [La(NO₃)₃(L′)₂]·EtOH (8)⁶ also indicates π-stacking in the molecules of coordinated ligand L′. However, the stacking interactions in the complexes of unmodified ligand L′ are weaker than in complexes of L of the same chelate coordination. Thus, the dihedral angles between contacting planes in uranyl complexes 1 and 7 are 9.25° and 13.17°, respectively, while the distances between centroids are 3.505 and 3.736 Å, respectively. In the lanthanum nitrate complexes with L and L′, 3 and 8, the noted angles are 23.1 and 12.17, 12.66°, while the distances are 3.816 and 3.940, 4.079 Å (the contacting fragments in complex 8 are skewed toward each other).

Thus, the π-stacking interaction between the two Ph substituents at the phosphorus atom is observed in molecule(s) of coordinated ligand L for all of the crystalline complexes 1–5. The highest energy of the π-stacking interaction was found for bisligand uranyl complex 2. The change of ligand denticity from P(O),P(O)-bidentate to P(O),P(O),C(O)-tridentate almost doubly decreases the energy of the π-stacking interaction (see Table 3).

The above discourse deals with the stabilization of complexes in a crystal, but the situation may change in solution. Solvent nature is known to considerably affect the aromatic π-stacking interaction. However, π-stacking interactions are retained as a rule in dipolar aprotic solvents.²⁶

2.2.3. IR spectroscopy characterization. The X-ray structures were compared with the IR spectra of the same complexes (Table 5). The formation of the P=O → M coordination bond results in the shift of the ν(P=O) band in the IR spectra of crystalline complexes 1 and 3–6 by ∼40 cm⁻¹ to the low frequency region with respect to the band of the free ligand (Table 5), which is slightly lower than in similar complexes of phosphoryl-containing ligands (Δν(P=O) ∼ 65 cm⁻¹ for UO₂ complexes,^7,27 and ∼50 cm⁻¹ for Ln complexes²⁸). The spectrum of complex 5, along with the ν(P=O) band at 1160 cm⁻¹, also displays a band at 1150 cm⁻¹ responsible for vibrations of the coordinated P=O group participating in the formation of a supplementary weak H bond with a solvate EtOH molecule. The formation of the C=O → M coordination bond in complex 5 causes a shift of the ν(C=O) band to the low-frequency region but only by 9 cm⁻¹ relative to the band of the free ligand, whereas usually coordination of C=O to a cation leads to a shift of 20–25 cm⁻¹ for lanthanide complexes and 20–60 cm⁻¹ for UO₂ complexes.^16,27b,29 The band of the uncoordinated C=O group in the spectrum of crystalline complex 1 is observed³⁰ at the same frequency as in the spectrum of the free ligand (Table 5). In the isostructural complexes of La and Nd (3 and 4, respectively), the shift of the ν(C=O) band by 4–3 cm⁻¹ corresponds to vibrations of the C=O group involved in weak intra- and intermolecular CH⋯O=C interactions (Table 5). The spectrum of crystalline complex 5 exhibits a band of the free C=O group, that does not become involved in supplementary interactions, at 1722 cm⁻¹.

Table 5 Selected IR (ν, cm⁻¹) and ³¹P{¹H} NMR spectroscopic data for the ligand L and its complexes 1 and 3–6 in the solid state and in solution (0.01 M)

Compound	Sample	ν(P=O)	ν(C=O)	ν(N=O)	ν as(NO2)	δ P(W1/2)^a
a The band width at half-height (in ppm). b c = 0.02 M. c Saturated solution, c ∼ 0.003 M. d Non-covalent CH⋯O=C interaction (see section 2.2.1). e A wide absorption in the region 1300–1400 cm^−1 (weak CH⋯ON interaction of “free” nitrate – see section 2.2.3). f Weak OH⋯O bonding between coordinated P=O and EtOH (see section 2.2.1). g The strong band at 1356 cm^−1 – νE(NO3) (see section 2.3.1).
L	Cryst.	1202, 1182	1720
	In CD3CN^b	1207, 1200	1720			29.8 (0.01)
	In CDCl3 ^b	1199sh, 1181	1719			31.2 (0.03)
1	Cryst.	1166	1720	1518	1308, 1282
	In CD3CN^c	1195, 1165	1719	1523	1290, 1273	46.2 (0.02)
	In CDCl3 ^c	1171	1718	1526	1283	44.4 (0.03)
3	Cryst.	1166	1716^d	1458	1313
	In CD3CN	1170	1720	1455	1318	37.0 (0.08)
	In CDCl3	1173	1713	1450	1319	36.0 (0.7)
4	Cryst.	1164 br	1717^d	1465	1306
	In CD3CN	1162	1709, 1720	1469	1308	86 (2.5)
	In CDCl3	1173, 1162	1712	1460	1313	86(5), 70(6)
5	Cryst.^e	1160, 1150^f	1711, 1722sh	1503, 1465	1285, 1300
	In CD3CN	1162	1709, 1720	1469	1308	86 (2.5)
	In CDCl3	1174, 1162	1712	1460	1313	86(5), 70(6)
6	Solid	1185, 1161	1721	1494, 1518sh	1310
	In CD3CN^g	1189, 1159	1723	1527, 1512	1293	42.4 (0.5)
	In CDCl3	1195, 1174, 1162	1715	1490	1310	40.3 (0.5)

---

The IR spectra of complexes 1 and 3–6 show absorption bands of bidentate nitrate ions at ∼1500 cm⁻¹ for ν(N=O), and ∼1300 cm⁻¹ for ν_as(NO₂) (Table 5). Full details of the nitrate bands are shown in Table S1 (ESI†). In contrast to other complexes, X-ray structure 5 includes, along with bidentate coordinated nitrate ions, outer-sphere “free” nitrate ions involved in many weak CH⋯ON interactions. The symmetry of an uncoordinated nitrate ion is known to be violated on weak interactions in crystal or contact ion pairs (CIPs) on account of cation–anion interactions that cause strong splitting of the ν_E(NO₃) vibration.³¹ As should be expected, the spectrum of crystalline compound 5 shows no absorption for the free nitrate ion, which usually appears as a narrow intense band at ∼1370 cm⁻¹,³¹ but displays a wide absorption in the region 1300–1500 cm⁻¹ with several submaxima at 1338, 1384, and 1396 cm⁻¹.

According to elemental analysis and X-ray crystallographic data, complexes 3 and 4 contain solvate acetonitrile, but the IR spectra of 3 and 4 exhibit no absorption for the CN group.³² The IR spectra of 5 show bands typical for outer-sphere ethanol molecules in the region of ∼3400 cm⁻¹.

We failed to prepare complex 6 in a crystalline state. But, elemental analysis and IR spectra allow us to suppose unambiguously that one ligand molecule in bisligand complex 6 is coordinated in a P(O),P(O)-bidentate mode, while another molecule has a P(O)-monodentate coordination. The IR spectrum of solid complex 6 (Table 5) shows bands of free P=O and C=O groups at 1185 and 1721 cm⁻¹ along with the band of the coordinated P=O group at 1161 cm⁻¹. The strong broad IR bands of bidentate NO₃ groups are detected at 1494, 1310 and 1030 cm⁻¹. In the region of 3200–3400 cm⁻¹ the band of metal-coordinated water (typically at ∼3200 cm⁻¹) is absent. In accordance with these data, one can suppose that compound 6 most likely has the structure of neutral mononuclear complex [Lu{P(O),P(O)-L}{P(O)-L}(O,O-NO₃)₃], and that the coordination number of lutetium is nine.

Thus, lanthanide contraction is observed for the structure of the studied neutral complexes of ligand L. The coordination number (CN) of light lanthanides (La and Nd) in complexes 3 and 4, [Ln{P(O),P(O)-L}₂(NO₃)₃], equals ten, while the CN of lutetium in complex 6, [Lu{P(O),P(O)-L}{P(O)-L}(O,O-NO₃)₃], is nine.

2.3. Solution state characterization

The structure of the complexes in acetonitrile (AN) and chloroform solutions was studied by IR and multinuclear NMR spectroscopy. We were interested to study the effect of solvent nature on the structure of complexes and ligand L coordination mode. The parameters of IR and ³¹P, ¹H, and ¹³C NMR spectra for the complexes 1, 3–6 in comparison with the data for the free ligand L are given in Tables 5–7 (see also Fig. S5–S12, ESI†).

Table 6 Selected ¹H and ¹³C NMR data for the ligand L and its complexes 1, 3–6^a in CD₃CN (0.01 M) at 25 °C

Compound	δ ^1H			δ ^13C
	CH̲3	CH̲2	CH̲	C̲H3	C̲H	C̲H2	C=O
a Spectra of complexes 4 and 5 are identical. b 0.02 M solution. c Saturated solution, c ∼ 0.003 M. d Not observed.
L	1.55 s	2.98 dt	4.46 tt	28.28 s	35.61 t	38.13 s	204.04 t
1	1.30 br s	2.98 dt	5.19 br t	28.15 s	32.64 t	36.94 s	202.6 br s
3	1.47 s	3.19 dt	4.67 tt	28.18 s	32.00 s	37.81 s	203.3 br s
4	1.10 s	4.1 br s	—^d	28.30 s	29.9 br s	39.3 br s	205.4 br s
6	1.44 s	3.10 dt	4.93 tt	28.10 s	31.72 t	37.66 s	202.8 br s

---

Table 7 Selected ¹H and ¹³C NMR data for the ligand L and its complexes 1, 3, and 6 in CDCl₃ (0.01 M) at 25 °C

Compound	δ ^1H			δ ^13C
	CH̲3	CH̲2	CH̲	C̲H3	C̲H	C̲H2	C̲=O
a 0.02 M solution. b Saturated solution, c ∼ 0.003 M.
L	1.54 s	2.94 dt	4.45 tt	28.81 s	36.73 t	38.70 s	203.84 t
1	1.38 s	2.84 dt	4.95 br t	28.83 s	31.93 br s	37.72 s	203.4 br s
3	1.62 s	3.36 t	4.63 br s	29.17 s	32.43 br s	39.15 br s	206.2 br s
6	1.61 s	3.28 t	5.04 br s	28.98 s	33.05 t	39.81 s	205.7 br s

---

The coordination of the P=O groups can be reliably determined from the NMR spectra of compounds 1 and 3–6. The signals of the phosphorus nuclei as well as the protons and carbon nuclei of neighboring groups exhibit expected shifts (Tables 5–7) close to those for known complexes of akin phosphoryl-containing ligands.^{8a,c,27a,b,28} The coordination of phosphoryl-containing ligands with UO₂(II), La(III), Lu(III), and Nd(III) cations causes a downfield shift in the signals of the phosphorus nuclei by 5–60 ppm, while signals of the carbon nuclei of neighboring groups are shifted upfield; the signals of the paramagnetic neodymium complex show considerable broadening. The participation of the C=O group in coordination appears in the ¹³C and ¹H NMR spectra as a downfield shift of the carbon signals of the C=O group as well as the carbon and proton nuclei signals of neighboring CH₃ and CH₂ groups relative to the free ligand signals (Tables 6 and 7), however, the value of these shifts in the spectra of complexes of ligand L is lesser than those of corresponding complexes for the majority of carbonyl ligands (for example^16,27b,29b).

2.3.1. Acetonitrile solutions. Uranyl complex 1 is poorly soluble in AN. The IR spectrum of its saturated solution shows the band of the coordinated P=O group at 1165 cm⁻¹ as well as the bands of free P=O and C=O groups at 1195 and 1719 cm⁻¹. The bands of the nitrato groups are virtually retained when compared with the spectrum of the crystalline sample (Table 5). One can suppose that the ligand adopts a P(O)-monodentate coordination in AN solution, and the coordination sphere of the cation is supplemented by solvent molecules, while the neutral complex has the structure [UO₂{P(O)-L}(OO-NO₃)₂·MeCN].

The NMR spectra of compound 1 (Tables 5 and 6) agree well with the proposed structure. Certain signals in the spectra are broadened. The ³¹P NMR spectrum displays only one slightly broadened signal, which seems to be explained by fast exchange processes. The signal is shifted downfield relative to the signal of the free ligand by 16.4 ppm. In the ¹³C NMR spectrum, the carbon signals of the C=O, C̲H₃, and C̲H₂ groups are upfield shifted (Table 6). The largest upfield shift (−2.97 ppm) is observed for the broadened signal of the C̲H group, which is typical when the P=O group is involved in the coordination. The corresponding effects are observed in the ¹H NMR spectrum (Table 6).

The lanthanide complexes have good solubility in AN, chloroform, and methanol. According to the IR spectral data, the structure of the crystalline lanthanum complex 3 is retained in AN solution (Scheme 4). The bands of the P=O, C=O groups and nitrate ions have expected frequencies (Table 5), the complicated pattern in the spectrum of the crystalline sample caused by supplementary weak interactions disappears. Bisligand complex 3 in AN solution, like in the crystalline state, seems to remain neutral [La{P(O),P(O)-L}₂(OO-NO₃)₃], where the CN of lanthanum is ten.

Scheme 4 Complex 3 (Ln = La) in the crystalline state and in AN solution, and complex 4 (Ln = Nd) in the crystalline state.

NMR spectral data for compound 3 (Tables 5 and 6) agree well with the proposed structure (Scheme 4). ³¹P NMR spectra display a sole narrow signal (W_1/2 = 0.08 ppm) of the phosphorus nuclei downfield shifted by 7.2 ppm from its position in the free ligand. The signals of indicator groups (C=O, C̲H₃, and C̲H₂) in the ¹³C NMR are shifted upfield, which indicate the lack of coordination of the C=O group. The largest shift in the ¹³C NMR spectrum is observed for the signals of the CH groups (−3.61 ppm). The shifts in the ¹H NMR spectrum are less considerable (Table 6), the protons of the CH₃ group show the least shift (−0.08 ppm), while the protons of CH and CH₂ groups exhibit the largest shift (0.21 ppm). A fine signal structure is observed in the spectrum.

IR and NMR spectra of neodymium complexes 4 and 5 in AN solution are identical (Tables 5 and 6). The complications in the IR spectrum of the crystalline sample of 5 are caused by weak interactions in the crystal that disappear in the solution spectrum. The main analytical bands have close positions to those in the spectrum of crystalline 5 (Table 5). We observed no band for the vibrations of free nitrate ions, expected at ∼1360 cm⁻¹. Both complexes seem to be present in AN solution as a contact ion pair [Nd{P(O),P(O)-L}{P(O),P(O),C(O)-L}(OO-NO₃)₂]⁺·(NO₃)⁻, where the CN of neodymium is nine (Scheme 5).

Scheme 5 Complex cation of compounds 4 and 5 in AN solution.

The sole signal in the ³¹P NMR spectrum of neodymium complex 4 in AN at 86 ppm (analysis of NMR spectra is given for one complex because the spectra of solutions of 4 and 5 are identical) is considerably broadened (W_1/2 = 2.5 ppm). In the ¹H NMR spectrum, the proton signals of all groups except for CH₃ and CH₂ are also broadened, no signal for the CH protons is observed probably due to both paramagnetic properties of the neodymium cation and dynamic equilibria in solution. The signals of the CH₃ and CH₂ groups are shifted from their positions in the free ligand by −0.14 and 1.12 ppm, respectively. The ¹³C NMR spectrum exhibits one set of signals, which seem to correspond to the fast dynamic equilibrium of several complex species. Alterations of the chemical shifts in the ¹³C NMR spectrum agree well with the suggested complex structure (Scheme 5).

According to IR spectroscopic measurements, the structures of the lutetium complex 6 in AN solution and in the solid state differ. The main difference is the emergence of a strong vibrational band of the free nitrate ion at 1356 cm⁻¹. Furthermore, strong bands of bidentate coordinated nitrato groups are detected at 1527, 1512, and 1293 cm⁻¹. Vibration bands of the P=O and C=O groups are observed at almost the same frequencies as in the spectrum of the solid sample (Table 5). Obviously, ligand molecules retain the same coordination as in the solid complex. In accordance with these data, one can suppose that complex 6 in AN solution exists as either a solvent-separated ion pair (SSIP) or cationic complex [Lu{P(O),P(O)-L}{P(O)-L}(OO-NO₃)₂]⁺ and free nitrate ion. In this case, the CN of lutetium should be equal to seven. Both the forms, most probably, are in equilibrium. Since CNs of lutetium of eight and nine³³ are more typical, one can suppose that the remaining sites in the lutetium coordination sphere will be occupied by solvent molecules [Lu{P(O),P(O)-L}{P(O)-L}(OO-NO₃)₂(MeCN)_m]⁺·(NO₃)⁻ (Scheme 6). Complex species with coordinated solvent molecules are most likely to be involved in dynamic equilibria with species containing no coordinated solvent molecules to cause signal broadening in the ³¹P NMR spectrum.

Scheme 6 Complex 6 in the solid state (n = 3, m = 0), and complex cation of compound 6 (n = 2, m = 1 or 2) in AN solution.

The NMR spectra (Tables 5 and 6) agree well with the supposed structure (Scheme 6). The ³¹P NMR shows a sole broadened signal for the phosphorus nuclei, which seems to be explained by fast exchange processes. The signal is downfield shifted by 12.6 ppm relative to the free ligand signal. The ¹H and ¹³C NMR spectra display expected changes.

Thus, in AN solutions, the lanthanum (3) and neodymium (5) complexes retain the structure revealed in the crystal. The structures of the uranyl (1), neodymium (4), and lutetium (6) complexes change in solution. In the studied complexes in AN solutions, the scorpionate ligand L shows three coordination modes: P(O)-monodentate, chelate P(O),P(O)-bidentate, and P(O),P(O),C(O)-tridentate. The uranyl (1) and lanthanum (3) complexes in AN solution are neutral, whereas the neodymium (4 and 5) and lutetium (6) complexes are cationic.

2.3.2. Chloroform solutions. In chloroform solutions, only uranyl complex 1 retains the structure revealed in the crystal, the structures of all of the other lanthanide complexes change.

Uranyl complex 1 is relatively poorly soluble in chloroform (∼0.003 M), however, it has much better solubility (≥0.02 M) in solution containing 3 equiv. of ligand L. The ³¹P NMR spectra of the 3 : 1 mixture showed at least 3 broad peaks at 45.9, 45.3 and 45.0 and one peak at 31.6 ppm with an integral intensity ratio ∼2 : 3, which indicates the presence of complex species of different stoichiometry containing both P(O)- and P(O),P(O)-coordinated ligand molecules. The position of the analytical bands in the IR spectrum of a solution of compound 1 slightly differs compared with the spectrum of the crystalline sample (Table 5). The ³¹P NMR spectrum shows a singlet at 44.4 ppm. The ¹H NMR spectrum of complex 1 shows that the CH resonance is shifted downfield by ca. −0.5 ppm with respect to the free ligand, and the CH₃ resonance is shifted downfield by ca. −0.10 and −0.25 ppm (Table 7). The proton signal of the CH group is broadened. The carbon signals of the indicator groups C=O, C̲H, and C̲H₂ in the ¹³C NMR spectrum are shifted upfield relative to the free ligand signals (Table 7). These changes agree well with a chelating P(O),P(O)-mode of ligand coordination. The neutral uranyl complex in chloroform solution has the structure [UO₂{P(O),P(O)-L}(OO-NO₃)₂].

The structure of lanthanum complex 3 in chloroform solution according to IR spectroscopic data (Table 5) differs from that in the crystal and AN solution. Both ligand molecules in complex 3 are coordinated in a P(O),P(O),C(O)-tridentate mode. The bands of coordinated P=O and C=O groups are observed at 1173 and 1713 cm⁻¹. The bands at 1450 and 1319 cm⁻¹ correspond to bidentately coordinated nitrato groups. Taking into account the typical lanthanum coordination number of ten, one can suppose that complex 3 in chloroform solution is present as a contact ion pair [La{P(O),P(O),C(O)-L}₂(OO-NO₃)₂]⁺·(NO₃)⁻ (Scheme 7).

Scheme 7 Complex cations compounds 3 (Ln = La), 4 and 5 (Ln = Nd) in CDCl₃ solutions.

The NMR spectra (Tables 5–7) agree well with the proposed structure. The ³¹P NMR spectrum shows a sole broadened phosphorus signal at 36.0 ppm shifted from the free ligand signal by 4.8 ppm. The ¹H NMR spectrum displays the signals of the CH₃, CH₂, and CH groups downfield shifted relative to the free ligand signal, the signals of the two latter groups are broadened. The largest shift is observed for the protons of the CH₂ group (0.42 ppm), whereas the signals of CH₃ and CH groups are shifted by 0.08 and 0.18 ppm. The ¹³C NMR spectrum of complex 3 in chloroform solution exhibits considerably broadened signals for the C̲H₂, C̲H, and C̲=O groups. The signals of the C̲H and C̲=O groups have the largest shift relative to the free ligand signal: −4.3 and 2.4 ppm, respectively. The signals of the C̲H₃ and C̲H₂ groups are shifted much less: 0.36 and 0.5 ppm. Signal broadening observed for all of the NMR spectra of chloroform solutions of 3 indicate relatively fast on the NMR time scale equilibria with participation of other types of complexes (for example [La{P(O),P(O)-L}₂(OO-NO₃)₃] and similar species).

The spectra of neodymium complexes 4 and 5 in chloroform are identical except for the bands of solvate ethanol at 3683 and 3622 cm⁻¹ in the spectrum of 5. According to IR data, the structures of complexes 4 and 5 in chloroform solutions differ from those revealed in the crystalline forms and in AN solution. In chloroform solution, both ligand molecules are coordinated in a tridentate mode. The bands of coordinated P=O groups are detected at 1173 and 1162 cm⁻¹, those of coordinated C=O groups are observed at 1712 cm⁻¹. The bands at 1460 and 1313 cm⁻¹ correspond to nitrato group vibrations. One can suppose that the neodymium bisligand complex in chloroform solution has the same structure as lanthanum complex 3: [Nd{P(O),P(O),C(O)-L}₂(OO-NO₃)₂]⁺·(NO₃)⁻ (Scheme 7). The CN of neodymium is ten.

Paramagnetic properties of neodymium hamper the use of NMR spectroscopy to study the structure of Nd complexes. However, signal broadening in NMR spectra of complexes 4 and 5 is much larger than that observed for neodymium nitrate complexes with other phosphoryl-containing ligands.^28b–e,34 Thus, the ¹H NMR spectrum of complex 4, the signals of all protons either considerably broadened or not detected at all. The ³¹P NMR spectrum shows two broad signals at 86 and 70 ppm (W_1/2 = 5 and 6 ppm, respectively) with approximate ratio 8 : 1 (Table 5), which indicates the presence of equilibrium in solution of the studied complex. One can suppose that dynamic equilibria involve structural isomers with different ligand coordination modes, species differing in the number of coordinated nitrato groups or ligand molecules, intermolecular exchange processes, etc. ¹³C NMR spectrum could not be interpreted correctly because of the presence of additional signals.

The IR spectrum of lutetium complex 6 in chloroform solution shows the bands of coordinated P=O groups at 1162–1173 cm⁻¹ and a shoulder at 1195 cm⁻¹ due to the vibrations of the free P=O group. The band at 1715 cm⁻¹ slightly shifted relative to the free ligand band (1719 cm⁻¹) corresponds to vibrations of the C=O groups. A broad absorption at 3200 cm⁻¹ corresponds to vibrations of coordinated water. The bands at 1490 and 1310 cm⁻¹ are consistent with bidentately coordinated nitrato groups. In accordance with these data, one can suppose that complex 6 in chloroform solution exists as an ion pair. Both ligand molecules are coordinated through one and two phosphoryl groups, however, it is rather difficult to determine the interaction mode for the C=O groups. One can suppose that both C=O groups form H-bonds with coordinated water molecules, the CN of lutetium will be eight (Scheme 8).

Scheme 8 Complex cation of compound 6 in CDCl₃ solution.

This type of ligand coordination is not unique. A number of complexes are known where ligands form H-bonds with coordinated water molecules rather than coordination bonds with a metal.³⁵ The NMR spectroscopic data agree well with the suggested structure (Scheme 8). Thus, the ³¹P NMR spectrum shows a sole signal for the phosphorus nuclei shifted by 9.1 ppm relative to the free ligand signal (W_1/2 = 0.5 ppm) (Table 5). On cooling to −50 °C, a second broadened resonance at about 35 ppm, which may be related to an uncoordinated P(O) group,³⁶ appears along with the main broadened signal at ∼40 ppm. Fast exchange processes with participation of coordinated and uncoordinated P(O) groups seem to take place in the coordination sphere of Lu in complex 6 at ambient temperature.

The ¹H and ¹³C NMR spectra of complex 6 (Tables 6 and 7) are as expected for the structure of the complex cation in Scheme 8. Thus for ¹³C, the change in the chemical shifts are Δδ_C(C̲H₃) 0.17 ppm, Δδ_C(C̲H₂) 1.11 ppm, Δδ_C(C̲H) −3.68 ppm, and Δδ_C(C=O) 1.9 ppm. The signal of the C=O group is broad. These changes are close to those observed for the spectrum of complex 3 and agree well with the conclusion of the participation of the C=O group in certain interactions. The changes in chemical shifts (Δδ_H) for the CH̲₃ and CH̲₂ groups also confirm the conclusion of the involvement of the C=O group in “coordination”. The water signal in the spectrum of 6 is at 5.4 ppm, whereas it is usually detected in chloroform at ∼1.6 ppm.

It is possible that this complex is in equilibrium with other complexes, for example, [Lu{P(O),P(O),C(O)-L}{P(O),C(O)-L}(H₂O)(OO-NO₃)₂]⁺·(NO₃)⁻, where both C=O groups are weakly coordinated to the metal (CN = 10), neutral complex [Lu{P(O),P(O)-L}{P(O)-L}(H₂O)(OO-NO₃)₃] (CN = 10), etc. However, CN = 10 is less typical for lutetium cations.

Thus, scorpionate ligand L in complexes with f-block element nitrates in chloroform show variable denticity. In the complex with uranyl nitrate 1, this ligand is coordinated in a P(O),P(O) bidentate mode like in the crystal. This kind of chelate coordination is not realized in chloroform solutions of complexes with lanthanide nitrates 3–6. The main coordination is P(O),P(O)C(O)-tridentate, while P(O)C(O)-bidentate coordination, however through H-bond formation, is observed for the first time in the lutetium complex.

It should be noted that almost all studied complexes are labile in solution. Except for uranyl complex 1 in chloroform and AN, all other complexes have one or two broadened resonances in the ³¹P NMR spectra (Table 5). Although we did not conduct a detailed study, we suppose that the structures shown in Schemes 4–8 and noted in the text are only the main species present in solution. Virtually all of the studied complexes exhibit fluxional behavior in solution.

Let us note that only monoligand uranyl complex [UO₂(NO₃)₂L] is neutral in chloroform solution, all of the studied bisligand lanthanide complexes are cationic [Ln(NO₃)₂(L)₂]⁺·(NO₃)⁻. This fact should be taken into account in analyzing the data on the extraction of f-block elements from nitric acid solutions into chloroform.

Thus, the coordination mode of the scorpionate ligand L varies with not only the requirements of the metal coordination polyhedron and complex composition, but also depending on the solvent, and shows large variation.

2.4. Extraction studies

The extraction ability of ligand L towards the f-block elements was studied by the example of the extraction of a group of lanthanides(III), as well as uranium(VI) from nitric acid solutions into CHCl₃. To compare the efficiency and selectivity of the studied ligand L and well-known extractant L′, we compared the distribution ratios of the f-block elements (D = [M]_org/[M]_aq) for both extractants under the same experimental conditions (Fig. 9, Table S2, ESI†).

Fig. 9 Comparison of the distribution ratios of U(VI), La(III), Nd(III), Ho(III), and Yb(III) for the extraction with ligands L and L′ (0.01 M solutions in CHCl₃) from 3.75 M HNO₃; the initial concentration of lanthanide and uranyl nitrates in the aqueous phase is 2.5 × 10⁻⁴ M.

Fig. 9 shows that both compounds extract U(VI) much more efficiently than lanthanides. However, scorpionate ligand L extracts uranium by a factor of 6 more efficiently than its prototype L′. The fraction extracted for uranium over one step is 98%. Let us note that the values of D_U for common extractants – (BuO)₃P(O), (C₈H₁₇)₃P(O), and Ph₂P(O)CH₂C(O)NBu₂ – is lower by 1.0 under the same experimental conditions. Compound L is also better (about 3 times) at extracting lanthanides than ligand L′. The extraction selectivity U(VI)/Ln(III) of ligand L is higher than that of ligand L′.

As noted above, both ligands, L and L′, form crystalline complexes of the same composition with uranyl and lanthanide nitrates with the same chelate coordination of the phosphoryl groups. The π-stacking interaction between the Ph fragments of coordinated ligand molecules is inherent in not only ligand L but also to a lesser extent in ligand L′ (section 2.2.2). At the same time, the C=O group of scorpionate L in chloroform solutions of all of the lanthanide complexes participates in coordination along with two phosphoryl groups (section 2.3.2). Judging from the spectral and X-ray diffraction data, the C=O → Ln bond in the studied complexes is rather weak; however, we believe that it is its formation that leads to the better extraction of lanthanides with ligand L. It should also be noted that lanthanide complexes 3–6 in chloroform solution are ionic in contrast to neutral uranyl complex 1, which also favors the better extraction of the latter. In uranyl complex 1, the C=O group is not coordinated, however, it is available for other interactions. In the crystal, the uncoordinated C=O group participates in various CH⋯O=C contacts and one can expect that its availability for interaction with diluent will favor better extraction of the corresponding compound.

Thus, the modification of methylene dioxide L′ by the introduction of a MeC(O)CH₂– substituent leads to a considerable improvement in the extraction properties of the hybrid scorpionate ligand L toward f-block elements.

3. Conclusion

Coordination properties of the neutral organophosphorus scorpionate ligand L toward f-block elements were examined. Mono- and binuclear complexes of L with uranyl and lanthanide(III) nitrates were studied in the solid state (X-ray, IR) and solution (IR, ³¹P NMR, ¹³C NMR, and ¹H NMR). In the studied complexes, ligand L exhibits variable denticity: PO,PO-, PO,PO,CO-, PO,CO-, and PO-. The C=O → Ln coordination bond is rather weak; at the same time, the noncoordinated C=O group is involved in weak noncovalent interactions in both solution and in the crystalline form. Ligand coordination mode and complex structure are readily variable depending on both the nature of the metal and interactions in the second coordination sphere. The extraction experiments revealed an expected increase in the affinity of scorpionate ligand L over its unmodified prototype L′ for studied metal ions.

4. Experimental

4.1 General

Solvents were purified and dried using standard procedures. Deuterated solvents, CD₃CN (99.8% D, Sigma-Aldrich) and CDCl₃ (99.8% D, Sigma-Aldrich), were used as received. Multinuclear NMR spectra were recorded on a Bruker Avance 400 spectrometer, operating frequency 400.23 MHz (¹H and ¹H{³¹P}), 100.61 MHz (¹³C) and 161.98 MHz (³¹P and ³¹P{¹H}) at ambient temperature using CD₃CN or CDCl₃ solution (0.01 M), unless otherwise stated. Chemical shifts (ppm) refer to the residual protic solvent peaks (for ¹H and ¹³C), and 85% H₃PO₄ (for ³¹P) as external standards and coupling constants are expressed in hertz (Hz), the band width at half-height (W_1/2) in ppm (for ³¹P{¹H} NMR spectra). IR spectra in the region 400–4000 cm⁻¹ were obtained on a Bruker Tensor 37 FTIR spectrometer. The samples were KBr pellets, mulls in Nujol and hexachlorobutadiene as well as 0.01 M solutions (CD₃CN, CDCl₃) in CaF₂ cuvettes, unless otherwise stated. Raman spectra of the solid samples were obtained in the region 100–3500 cm⁻¹ using a Jobin-Yvon LabRAM 300 laser Raman spectrometer with 632.8 nm excitation of 2 mW output power. Elemental analyses were performed at the Laboratory of Microanalysis, INEOS RAS.

The reagents (E)-4-(Diphenylphosphoryl)but-3-en-2-one¹² and methylenediphosphine dioxide (L′)³⁷ were prepared according to literature procedures. Chlorodiphenylphosphine (Acros) was purified by vacuum distillation immediately prior to use. Glacial acetic acid (reagent grade) was distilled before reaction. Basic Brockmann activity grade I Al₂O₃, 50–200 μm (Acros) and silica gel 130–270 mesh, 60 Å (Aldrich) were used. Acetonitrile was dried by distillation over P₂O₅ prior to use. All manipulations with chlorodiphenylphosphine were carried out under an argon atmosphere.

The following reagents were used for the preparation of solutions in the extraction study: bidistilled water, CHCl₃ (reagent grade), arsenazo III (analytical grade), HNO₃ (high purity grade), UO₂(NO₃)₂·6H₂O (reagent grade), La(NO₃)₃·6H₂O (reagent grade), Nd(NO₃)₃·6H₂O (reagent grade), Ho(NO₃)₃·6H₂O (pure grade), and Yb(NO₃)₃·6H₂O (pure grade). Solutions for spectral and extraction studies were prepared by volumetric/gravimetric method.

4.1.1 Synthesis of 4,4-bis(diphenylphosphoryl)butan-2-one (L). A solution of 0.250 g (3.85 mmol) of glacial acetic acid in 3 mL of anhydrous acetonitrile and next a solution of 0.793 g (3.6 mmol) of Ph₂PCl in 4 mL of anhydrous acetonitrile were added dropwise to a solution of 0.81 g (3 mmol) of (E)-4-(diphenylphosphoryl)but-3-en-2-one in 8 mL of anhydrous acetonitrile, the reaction mixture was kept for 48 h at ambient temperature, after which the solvent was removed under vacuum (∼10 Torr) at ambient temperature. The resulting oily residue was kept for 2 h at 55 °C at ∼1 Torr, dissolved in 15 mL of CH₂Cl₂, and the resultant solution was sequentially filtered through 3 g of basic alumina and 1.5 g of silica gel, with washing of each sorbent with 15 ml of CH₂Cl₂. The filtrate was evaporated to dryness, and the resultant foam-like residue was crystallized from benzene and dried under vacuum (∼1 Torr) at 120 °C until a constant weight to give L (0.595 g, 42.1%). Mp 146.5–148.0 °C (lit.¹⁰ 145.0–145.5 °C). Found: C, 71.23; H, 5.44; P, 13.13. Calc. For C₂₈H₂₆O₃P₂: C, 71.18; H, 5.55; P, 13.11%. IR (KBr disk): ν_max/cm⁻¹ 1720s (C=O), 1202s and 1182s (P=O). ¹H NMR (400 MHz, CDCl₃, 0.1 M): δ 1.54 (3H, s, CH₃,), 2.94 (2H, dt, ³J_HH 5.3, ³J_HP 14.5, CH₂), 4.45 (1H, tt, ³J_HH 5.2, ²J_HP 14.3, CH), 7.23–7.31 (8H, m, m-Ph), 7.31–7.38 (4H, m, p-Ph), 7.64–7.73 (4H, m, o-Ph), 7.76–7.85 (4H, m, o-Ph). ¹H{³¹P} NMR (400 MHz, CDCl₃, 0.1 M): δ 1.55 (3H, s, CH₃), 2.94 (2H, d, ³J_HH 5.0, CH₂), 4.46 (1H, t, ³J_HH 5.1, CH), 7.23–7.31 (8H, m, m-Ph), 7.31–7.39 (4H, m, p-Ph), 7.68 (4H, d, ³J_HH 7.7, o-Ph), 7.81 (4H, d, ³J_HH 7.3, o-Ph). ¹³C{¹H} NMR (100.61 MHz, CDCl₃, 0.1 M): δ 28.81 (s, CH₃), 36.73 (t, ¹J_CP 59.4, CH), 38.70 (s, CH₂), 128.10 (d, ³J_CP 12.5, m-Ph), 128.12 (d, ³J_CP 12.5, m-Ph), 130.82 (d, ¹J_CP 103.0, ipso-Ph), 131.33 (dd, ¹J_CP 100.6, ³J_CP = 3.0, ipso-Ph), 131.45–131.53 (m, p-Ph), 131.48 (d, ²J_CP 9.8, o-Ph), 131.52 (d, ²J_CP 10.1, o-Ph), 131.63–131.71 (m, p-Ph), 203.84 (t, ³J_CP 4.9, C=O). ³¹P{¹H} NMR (161.98 MHz, CDCl₃, 0.1 M): δ 31.25 (s).

4.1.2 Synthesis of complexes 1 and 3–6 (general). The complexes 1 and 3–6, including those suitable for X-ray analysis, were prepared according to a similar procedure, with a ratio of reagents of 1 : 1 or 1 : 2. The yields were 50–90%, but no attempts were made to optimize the yield for each individual complex.

4.1.3 [UO₂(NO₃)₂L], 1. (a) A solution of UO₂(NO₃)₂·6H₂O (106.2 mg, 0.212 mmol) in acetonitrile (1 mL) was added dropwise to a stirred solution of ligand L (100.0 mg, 0.212 mmol) in chloroform (1 mL) at room temperature. The resulting yellow precipitate was collected by filtration, washed with diethyl ether, and dried in vacuo (1 Torr) at 62 °C to give 1 (167.4 mg, 91%).

(b) A solution of UO₂(NO₃)₂·6H₂O (35.1 mg, 0.070 mmol) in acetonitrile (1.5 mL) was added dropwise to a stirred solution of ligand L (100.0 mg, 0.212 mmol) in chloroform (1 mL) at room temperature. The transparent light yellow solution was concentrated at ∼60 °C in vacuo (∼5 Torr) down to volume of ∼1 mL. Light yellow transparent crystals of 1, including those suitable for X-ray diffraction studies, were obtained under cooling to room temperature. The resulting yellow crystals were collected by filtration, washed with diethyl ether, and dried in air at r.t. to give 1 (30.0 mg, 50%). Mp 235–236 °C. Found: C, 38.56; H, 3.05; N, 3.01; P, 7.31; U, 27.89. Calc. for C₂₈H₂₆N₂O₁₁P₂U: C, 38.81; H, 3.02; N, 3.23; P, 7.15; U, 27.47%. IR (KBr disk): ν_max/cm⁻¹ 1720s (C=O), 1166s (P=O), 1518s (N=O), 1308s and 1282s (NO₂)_as, 1032w (NO₂)_s, 939s (O=U=O)_as.

Raman: ν/cm⁻¹ 858 (O=U=O)_as, 1037 (NO₂)_s. ¹H NMR (400.13 MHz, CDCl₃, ∼0.003 M): δ 1.38 (3H, s, Me), 2.85 (2H, d.t., ³J_HH 5.0, ³J_HP 14.7, CH₂), 4.96 (1H, br m., CH), 7.18–7.22 (4H, m, m–Ph); 7.34–7.38 (2H, m, p-Ph); 7.63–7.68 (6H, m, m + p-Ph); 7.84–7.89 (4H, m, o-Ph); 8.14–8.19 (4H, m, o-Ph). ¹³C{¹H} NMR (100.61 MHz, CDCl₃, ∼0.003 M): δ 28.84 (s, CH₃), 31.93 (s, CH), 37.72 (s, CH₂), 129.10–129.40 (m, Ph), 129.71–129.95 (m, Ph), 130.95–131.05 (m, Ph), 131.10–131.28 (m, Ph), 133.44 (s, Ph), 134.14 (s, Ph), 202.42s (s, C=O). No signals of ipso-Ph were observed. ³¹P{¹H} (161.98 MHz, CDCl₃, ∼0.003 M): δ 44.4 (s, W_1/2 0.03).

4.1.4 [{UO₂(NO₃)L}₂(μ₂-O₂)]·EtOH, 2. Dissolution of a precipitate of 1 in EtOH under heating led to the formation of a clear yellow solution. The solution was left to stand in ambient light for 4 weeks and produced by slow isothermal evaporation, yellow solid and yellow crystalline material. Only a small number of crystals were yielded, and some of these proved to be suitable for single-crystal X-ray diffraction. Elemental analysis and vibrational spectra could not be obtained because of the low yield of 2.

4.1.5 [La(NO₃)₃L₂]·2.33 MeCN, 3. A solution of La(NO₃)₃·6H₂O (40.2 mg, 0.09 mmol) in acetonitrile (2 mL) was added dropwise to a stirred solution of ligand L (87.7 mg, 0.18 mmol) in chloroform (0.5 mL) at room temperature. After addition of ten drops of anhydrous ether, a white precipitate formed, it was dissolved by addition of 1 mL of acetonitrile. After a while, a large amount of fine white needle-like crystals formed, some of them were suitable for X-ray diffraction study. The crystals were separated by decantation, washed with anhydrous ether and dried in air (108.5 mg, 81%). Mp (with decomp.) 153–159 °C. The elemental analysis indicated that the formula of crystals of 3 is La(NO₃)₃·(L)₂·2CH₃CN. Found: C, 53.20; H, 4.40; N, 5.01. Calc. for C₆₀H₅₈LaN₅O₁₅P₄: C, 53.30; H, 4.32; N, 5.18%. In the sample used to obtain the ¹H NMR spectrum, the presence of only two acetonitrile molecules was found. The IR band and Raman lines of the acetonitrile molecules were not observed in the vibrational spectra of 3. IR (KBr disk): ν_max/cm⁻¹ 1716s (C=O), 1166s (P=O), 1458s (N=O), 1313s (NO₂)_as, 1031w (NO₂)_s. ¹H NMR (400.13 MHz, CDCl₃): δ 1.62 (3H, s, CH₃), 3.36 (2H, v br t, CH₂), 4.63 (1H, v br s, CH), 7.16–7.23 (4H, m, m-Ph), 7.24–7.30 (2H, m, p-Ph), 7.42–7.56 (6H, m, m + p-Ph), 7.82–8.00 (8H, br m, o-Ph), and 2.03 (6H, s, CH₃CN). ¹³C{¹H} NMR (100.61 MHz, CDCl₃): δ 29.17 (s, CH₃), 32.4 (br s, CH), 39.2 (br s, CH₂), 128.65 (d, ¹J_CP 92.0, ipso-Ph), 128.86 (d, ¹J_CP 91.0, ipso-Ph), 128.70–129.70 (m, m-Ph), 131.12 (br s, o-Ph), 132.49 (s, p-Ph), 133.02 (s, p-Ph), 206.2 (br s, C=O), and 1.92 (s, CH₃CN), 116.4 (s, CH₃CN). ³¹P{¹H} NMR (161.98 MHz, CDCl₃): δ 36.0 (br s, W_1/2 0.7).

4.1.6 [Nd(NO₃)₃L₂]·3MeCN, 4. A solution of Nd(NO₃)₃·6H₂O (46.4 mg, 0.106 mmol) in acetonitrile (1 mL) was added dropwise to a stirred solution of ligand L (100 mg, 0.212 mmol) in chloroform (0.5 mL) at room temperature. The solution was concentrated at ∼60 °C in vacuo (∼5 Torr) down to volume of ∼0.5 mL. Overnight, a light lilac fine-crystalline precipitate of 4 (94.5 mg, 70%) formed and was filtered, washed by diethyl ether and dried in air. Mp (with decomp.) 147–150 °C. Found: C, 53.15; H, 4.30; N, 5.81. Calc. for C₆₂H₆₁N₆NdO₁₅P₄: C, 53.25; H, 4.40; N, 6.01%. On storage in air, especially upon trituration, the complex easily loses solvent of crystallization.³¹ IR (KBr disk): ν_max/cm⁻¹ 1717s (C=O), 1164s br (P=O), 1465(N=O), 1306s (NO₂)_as, 1030w (NO₂)_s. ¹H NMR (400.13 MHz, CD₃CN): δ 1.10 (3H, br s, CH₃), 4.1 (2H, v br s, CH₂), 7.04 (5H, br s, Ph), 7.31 (3H, br s, Ph), 7.67–7.83 (8H, br m, Ph), 8.82 (4H, v br s, Ph). No signal of CH was observed. ¹³C{¹H} NMR (100.61 MHz, CD₃CN): δ 28.30 (s, CH₃), 29.9 (br s, CH), 39.3 (br s, CH₂), 128.90 (d, ³J_CP 12.5, Ph), 129.79 (d, ³J_CP 12.5, Ph), 131.62–131.90 (br m, Ph), 132.58 (br d, ²J_CP 8.8, Ph), 133.01 (s, Ph), 133.66 (s, Ph), 205.4 (br s, C=O). No signals of ipso–Ph were observed.

³¹P{¹H} (161.98 MHz, CD₃CN): δ 86 (br s, W_1/2 2.5).

4.1.7 [Nd(NO₃)₃L₂] EtOH, 5. Complex 4 (40 mg) was dried in vacuo (∼1 Torr) at 62 °C and dissolved in ∼0.7 ml EtOH. After a few days, a light lilac fine-crystalline precipitate of 5 was formed and filtered, washed by diethyl ether and dried in air (31 mg, 78%). Mp (with decomp.) 157–160 C. Found: C, 52.62; H, 4.34; N, 3.21. Calc. for C₅₈H₅₈N₃NdO₁₆P₄: C, 52.73; H, 4.42; N, 3.18%. IR (KBr disk): ν_max/cm⁻¹ 1711 and 1722 sh (C=O), 1160s and 1150 m (P=O), 1503, 1465(N=O), 1285, 1306 (NO₂)_as, 1030w (NO₂)_s, 1300–1500 wide absorption (NO₃, see section 2.2.3), 3440 br (OH). NMR spectra of complex 5 are identical to those of complex 4 except for the signals of solvent of crystallization in the ¹H and ¹³C NMR spectra.

4.1.8 [Lu(NO₃)₃L₂], 6. A solution of Lu(NO₃)₃·3H₂O (43.9 mg, 0.106 mmol) in acetonitrile (1 mL) was added dropwise to a stirred solution of ligand L (100 mg, 0.212 mmol) in chloroform (1 mL) at room temperature. The solution was concentrated at ∼60 °C in vacuo (∼5 Torr) down to volume of ∼0.5 mL. After the addition of six drops of anhydrous ether, the solution became slightly turbid. Overnight, a white powder of 6 (94.5 mg, 70%) formed and was filtered, washed by diethyl ether and dried in vacuo (∼1 Torr) at 62 °C. Mp (with decomp.) 147–150 °C. Found: C, 51.33; H, 3.95; N, 3.26. Calc. for C₅₆H₅₂LuN₃O₁₅P₄: C, 51.51; H, 4.01; N, 3.22%. IR (KBr disk): ν_max/cm⁻¹ 1721s (C=O), 1161s and 1185 m (P=O), 1494s and 1518sh (N=O), 1310s (NO₂)_as, 1030w (NO₂)_s, 3200 br (OH). ¹H NMR (400.13 MHz, CDCl₃): δ 1.61 (3H, s, CH₃), 3.28 (2H, t, ²J_HP 14.0, CH₂), 5.0 (1H, v br s, CH), 7.24–7.25 (4H, m, Ph), 7.34–7.41 (2H, t, Ph), 7.43–7.50 (4H, m, Ph), 7.52–7.59 (2H, m, Ph), 7.84–7.99 (8H, br m, Ph). ¹³C{¹H} NMR (100.61 MHz, CDCl₃): δ 28.98 (s, CH₃), 33.05 (t, ¹J_CP 54.7, CH), 39.81 (s, CH₂), 127.51 (d, ¹J_CP 108.6, ipso–Ph), 127.85 (d, ¹J_CP 107.9, ipso–Ph), 128.80–129.15 (m, Ph), 129.20–129.15 (m, Ph), 131.00–131.42 (m, Ph), 133.09 (s, Ph), 133.42 (s, Ph), 205.7 (s, C=O). ³¹P{¹H} NMR (161.98 MHz, CDCl₃): δ 40.3 (br s, W_1/2 0.5).

4.2. Extraction of f-block elements

The distribution of U(VI), La(III), Nd(III), Ho(III), and Yb(III) in the extraction systems was studied in model solutions of 3.75 M nitric acid at metal concentrations of 0.25 mM. Extractant solutions (0.01 M) in CHCl₃ were prepared from precisely weighed amounts of the reagents. The experiments were carried out in ampoules with ground stoppers at 20 ± 1 °C. The volumes of both organic and aqueous phases were equal to 2 mL. The solution was stirred for 30 min at 80 rpm to achieve constant values of the distribution ratio (D = [M]_org/[M]_aq). After the extraction, 0.5 mL of the aqueous solution was taken for further analysis. Metal concentrations in the initial and equilibrated aqueous solutions were determined by spectrophotometry.³⁸

4.3. X-ray crystallography

The X-ray diffraction data were collected on a Bruker Apex II CCD diffractometer using Mo-Kα (λ = 0.71073 Å) radiation. The structures were solved by direct methods and refined by full-matrix least squares against F². Non-hydrogen atoms were refined in anisotropic approximation with an exception of the disordered atoms. The oxygen atoms of the uranyl cation in 2 are equally disordered over two sites and were refined isotropically. Occupation of solvate molecules in 2–5 was refined as a free variable giving full occupation with an exception of one MeCN solvent molecule in 3 which was further fixed at 1/3. Complex 3 crystallizes as a twinned single crystal; twin components were separated using PLATON³⁹ and refined using the HKLF 5 instruction and additional BASF factor. Hydrogen atoms were included in the refinement by the riding model with U_iso(H) = nU_eq(C), where n = 1.5 for methyl and OH groups and 1.2 for the other atoms. All calculations were performed using SHELXL2013⁴⁰ and OLEX2.0⁴¹ program packages.

CCDC 1442097–1442102 for compounds L and 1–5 contain the supplementary crystallographic data for this study (Table 8).

Table 8 Crystallographic data and refinement parameters for L and 1–5

Compound	L 0.5C6H6	1	2	3	4	5
a R = ∑||Fo| − |Fc||/∑|Fo|. b R w = [∑(w(Fo^2 – Fc^2)^2)/∑(w(Fo^2))]^1/2. c GOF = [∑w(Fo^2 − Fc^2)^2/(Nobs − Nparam)]^1/2.
Empirical formula	C31H29O3P2	C28H26N2O11P2U	C58H58N2O19P4U2	C60.67H59LaN5.33O15P4	C62H61N6NdO15P4	C58H58N3NdO16P4
F w	511.48	866.48	1687.00	1365.59	1398.28	1321.19
Color, habit	Colorless, prism	Yellow, plate	Yellow, needle	Colorless, needle	Pink, needle	Pink, prism
Crystal size (mm^3)	0.23 × 0.18 × 0.15	0.23 × 0.18 × 0.10	0.29 × 0.08 × 0.08	0.29 × 0.08 × 0.08	0.31 × 0.08 × 0.06	0.23 × 0.19 × 0.11
F(000)	538	1672	3264	2789	2860	1350
T, K	148	100	100	120	120	120
Space group, Z	Triclinic, P1̄, 2	Monoclinic, P21/c, 4	Orthorhombic, Pbca, 4	Monoclinic, C2/c, 4	Monoclinic, C2/c, 4	Triclinic, P1̄, 2
a (Å)	9.8274(12)	11.3280(7)	18.2266(7)	13.444(8)	13.4706(8)	12.590(7)
b (Å)	11.8989(15)	13.8253(9)	17.8372(7)	17.849(9)	17.8919(10)	13.510(10)
c (Å)	13.0901(16)	19.7227(13)	19.0939(8)	26.571(15)	26.4711(15)	19.148(15)
α (°)	70.615(2)	90	90	90	90	90.574(16)
β (°)	68.839(2)	104.445(1)	90	90.709(14)	91.378(1)	96.836(16)
γ (°)	87.156(2)	90	90	90	90	111.923(17)
V (Å^3)	1342.3(3)	2991.2(3)	6207.6(4)	6375(6)	6378.1(6)	2994(4)
d c (g/cm^3)	1.266	1.924	1.805	1.423	1.456	1.465
μ (MoKα) (cm^−1)	0.193	5.597	5.387	0.839	0.984	1.043
θ max (°)	29.00	31.77	27.00	25.96	31.62	29.906
I hkl coll/uniq	16 085/7124	34 749/7917	62 107/6743	11 231/8846	44 834/10 755	38 088/17 037
R int	0.042	0.055	0.052	—	0.027	0.145
Obs. refl./N/restraints	5432/327/0	6105/398/0	4803/406/11	4827/394/14	10 078/403/2	8453/752/41
R,^a % [I > 2σ(I)]	0.047	0.028	0.065	0.099	0.023	0.078
R w,^b %	0.125	0.057	0.158	0.245	0.060	0.152
GOF^c	1.02	1.04	1.06	1.03	1.06	1.03

---

4.4. Computational details

Topological analysis of electron density according to Bader's “Atoms in Molecules” theory (AIM)²¹ was performed using the AIMAll⁴² program. The electron density ρ(r) (ED) in wfx-format for AIM calculations was generated for complexes 1–5 in the GAUSSIAN 09⁴³ software suite at the DFT level of theory. The hybrid PBE0⁴⁴ functional and all-electron scalar relativistic basis set⁴⁵ for U and La atoms and 6-311+G** basis set⁴⁶ for other atoms were utilized. The geometry parameters were used as those obtained from X-ray diffraction experiments. Interaction energies were estimated with Espinosa's correlation scheme E_cont = −1/2V(r).²² For paramagnetic ionic complex 5, a simplified procedure was applied by reason of a non-convergence SCF equation. π-Stacking energy evaluation was performed for “frozen” ligands in conformations that they adopt in complex 5. This technique was checked by computation for complexes 1 and 4. The difference in energies obtained by simplified and complete procedures was not larger than 0.02 kcal mol⁻¹.

Acknowledgements

This work was supported by the Russian Foundation for Basic Research (Grant No. 14-03-00695-a).

Notes and references

1. For reviews, see: (a) A. E. V. Gorden, M. A. DeVore and B. A. Maynard, Inorg. Chem., 2013, 52, 3445; (b) E. V. Sharova, O. I. Artyushin and I. L. Odinets, Russ. Chem. Rev., 2014, 83, 95; (c) D. Rosario-Amorin, S. Ouizem, D. A. Dickie, Y. Wen, R. T. Paine, J. Gao, J. K. Grey, A. de Bettencourt-Dias, B. P. Hay and L. H. Delmau, Inorg. Chem., 2013, 52, 3063; (d) P. Tkac, G. F. Vandegrift, G. J. Lumetta and A. V. Gelis, Ind. Eng. Chem. Res., 2012, 51, 10433; (e) S. Tachimori and Y. Morita, in Ion exchange and solvent extraction, ed. B.A. Moyer, CRC Press, 2010, vol. 19, pp. 1–64; (f) V. Manchanda, P.N. Pathak and P.K. Mohapatra, in Ion exchange and solvent extraction, ed. B.A. Moyer, CRC Press, 2010, vol. 19, pp. 66–118; (g) C. Hill, in Ion exchange and solvent extraction, ed. B.A. Moyer, CRC Press, 2010, vol. 19, pp. 119–194; (h) V. A. Babain, in Ion exchange and solvent extraction, ed. B.A. Moyer, CRC Press, 2010, vol. 19, pp. 359–380.
2. A. M. Rozen and B. V. Krupnov, Russ. Chem. Rev., 1996, 65, 973.
3. H. J. Cristau, D. Virieux, J. F. Dozol and H. Rouquette, J. Radioanalyt. Nucl. Chem., 1999, 241, 543.
4. I. V. Smirnov, Radiokhimiya (in Russian), 2007, 49, 44.
5. (a) A. N. Turanov, V. K. Karandashev and N. A. Bondarenko, Radiokhimiya (in Russian), 2007, 49, 55; (b) A. N. Turanov, V. K. Karandashev, A. N. Yarkevich and Z. V. Safronova, Solvent Extr. Ion Exch., 2004, 22, 391; (c) T. Yaita and S. Tachimori, Radiochim. Acta, 1996, 73, 27; (d) A. N. Turanov, V. K. Karandashev, V. E. Baulin, A. N. Yarkevich and S. V. Nosenko, Radiokhimiya (in Russian), 2012, 54, 363; (e) A. N. Turanov, V. K. Karandashev, A. N. Yarkevich and Z. V. Safronova, Radiokhimiya (in Russian), 2011, 53, 264; (f) N. E. Kochetkova, O. E. Kojro, N. P. Nesterova, T. Ya. Medved’, M. K. Chmutova, B. F. Myasoedov and M. I. Kabachnik, Radiokhimiya (in Russian), 1986, 28, 338; (g) A. Yu. Shadrin, I. V. Smirnov, R. N. Kiseleva, N. P. Nesterova, Yu. M. Polikarpov and M. I. Kabachnik, Radiokhimiya (in Russian), 1993, 35, 50.
6. A. M. J. Lees and A. W. G. Platt, Inorg. Chem., 2003, 42, 4673.
7. S. Kannan, N. Rajalakshmi, K. V. Chetty, V. Venugopal and M. G. B. Drew, Polyhedron, 2004, 23, 1527.
8. (a) S. M. Cornet, I. May, M. P. Redmond, A. J. Selvage, C. A. Sharrad and O. Rosnel, Polyhedron, 2009, 28, 363; (b) N. J. Hill, W. Levason, M. C. Popham, G. Reid and M. Webster, Polyhedron, 2002, 21, 445; (c) A. D. Sutton, G. H. John, M. J. Sarsfield, J. C. Renshaw, I. May, L. R. Martin, A. J. Selvage, D. Collison and M. Helliwell, Inorg. Chem., 2004, 43, 5480.
9. P. E. Sues, A. J. Lough and R. H. Morris, Inorg. Chem., 2012, 51, 9322.
10. A. N. Turanov, V. K. Karandashev, G. V. Bodrin, E. I. Goryunov and V. K. Brel, Radiokhimiya (in Russian), 2015, 57, 509.
11. J. B. Conant, J. B. S. Braverman and R. E. Hussey, J. Am. Chem. Soc., 1923, 45, 165.
12. E. I. Goryunov, G. V. Bodrin, I. B. Goryunova, Yu. V. Nelyubina, P. V. Petrovskii, T. V. Strelkova, A. S. Peregudov, A. G. Matveeva, M. P. Passechnik, S. V. Matveev and E. E. NifantҐev, Russ. Chem. Bull., Int. Ed., 2013, 62, 780.
13. Geometry optimization and normal coordinate analysis for the X-ray conformation of L were carried out using DFT at PBE level by Priroda 6 program package (2006.08.20) [ D.N. Laikov, Chem. Phys. Lett., 1997, 281, 151; D.N. Laikov and Yu. A. Ustynyuk, Russ. Chem. Bull., Int. Ed., 2005, 54, 820; J. P. Perdew, K. Bruke and M. Ernzerhof, Phys. Rev. Lett., 1996, 77, 3865 ].
14. (a) G. A. Doyle, D. M. L. Goodgame, A. Sinden and D. J. Williams, Chem. Commun., 1993, 1170; (b) G. H. John, I. May, M. J. Sarsfield, H. M. Steele, D. Collison, M. Helliwell and J. D. McKinney, Dalton Trans., 2004, 734; (c) B. T. McGrail, L. S. Pianowski and P. C. Burns, J. Am. Chem. Soc., 2014, 136, 4797.
15. W. D. Wang, A. Bakas and J. H. Espenson, Inorg. Chem., 1995, 34, 6034.
16. S. Wahu, J.-C. Berthet, P. Thuéry, D. Guillaumont, M. Ephritikhine, R. Guillot, G. Cote and C. Bresson, Eur. J. Inorg. Chem., 2012, 3747.
17. I. A. Charushnikova and C. Den Auwer, Russ. J. Coord. Chem., 2004, 30, 546.
18. N. Akbarzadeh-T and T. Kondori, Res. Chem. Intermed., 2015, 41, 845.
19. See for example: (a) P. Charpin, G. Folcher, M. Lance, M. Nierlich and D. Vigner, Acta Crystallogr., Sect. C: Cryst. Struct. Commun., 1985, 41, 1302; (b) B. Masci and P. Thuery, Polyhedron, 2005, 24, 229; (c) G. A. Doyle, D. M. L. Goodgame, A. Sinden and D. J. Williams, Chem. Commun., 1993, 1170; (d) I. M. Aladzheva, O. V. Bykhovskaya, Y. V. Nelyubina, Z. S. Klemenkova, P. V. Petrovskii and I. L. Odinets, Inorg. Chim. Acta, 2011, 373, 130.
20. L. Huang, B.-Q. Ma, C.-H. Huang, T. C. W. Mak, G.-Q. Yao and G.-X. Xu, J. Coord. Chem., 2001, 54, 95.
21. R. F. W. Bader, Atoms in Molecules. A Quantum Theory, Clarendron Press, Oxford, 1990.
22. (a) E. Espinosa, E. Molins and C. Lecomte, Chem. Phys. Lett., 1998, 285, 170; (b) E. Espinosa, I. Alkorta, I. Rozas, J. Elguero and E. Molins, Chem. Phys. Lett., 2001, 336, 457.
23. For example: (a) A. A. Korlyukov and M. Yu Antipin, Russ. Chem. Rev., 2012, 81, 105; (b) A. A. Korlyukov, Russ. Chem. Rev., 2015, 84, 422; (c) C. Matta and R. J. Boyd, The Quantum Theory of Atoms in Molecules, Wiley-VCH, Weinheim, Germany, 2007; (d) I. V. Glukhov, K. A. Lyssenko, A. A. Korlyukov and M. Yu. Antipin, Faraday Discuss., 2007, 135, 203.
24. J. Overgaard, M. P. Waller, R. Piltz, J. A. Platts, P. Emseis, P. Leverett, P. A. Williams and D. E. Hibbs, J. Phys. Chem. A, 2007, 111, 10123.
25. A. G. Matveeva, Z. A. Starikova, R. R. Aysin, R. S. Skazov, S. V. Matveev, G. I. Timofeeva, M. P. Passechnik and E. E. Nifant'ev, Polyhedron, 2013, 61, 172.
26. R. K. Castellano, F. Diederch and E. A. Mayer, Angew. Chem., Int. Ed., 2003, 42, 1210.
27. See for example: (a) M. B. Jones and A. J. Gaunt, Chem. Rev., 2013, 113, 1137; (b) B. G. Vats, S. Kannan, K. Parvathi, D. K. Maity and M. G. B. Drew, Polyhedron, 2015, 89, 116; A. G. Matveeva, M. S. Grigoriev, T. K. Dvoryanchikova, S. V. Matveev, A. M. Safiulina, O. A. Sinegribova, M. P. Passechnik, I. A. Godovikov, D. A. Tatarinov, V. F. Mironov and I. G. Tananaev, Russ. Chem. Bull., Int. Ed., 2012, 61, 399.
28. (a) A. G. Matveeva, A. S. Peregudov, E. I. Matrosov, Z.A. Starikova, S. V. Matveev and E. E. Nifant'ev, Inorg. Chim. Acta, 2009, 362, 3607; (b) W. Levason, E. H. Newman and M. Webster, Polyhedron, 2000, 19, 2697; (c) M. Bosson, W. Levason, T. Patel, M. C. Popham and M. Webster, Polyhedron, 2001, 20, 2055; (d) A. Bowden, S. J. Coles, M. B. Pitak and A. W. G. Platt, Polyhedron, 2014, 68, 258; (e) A. Bowden, P. N. Horton and A. W. G. Platt, Inorg. Chem., 2011, 50, 2553; (f) N.J. Hill, W. Levason, M.C. Popham, G. Reid and M. Webster, Polyhedron, 2002, 21, 445.
29. See for example: (a) R. Babecki, A. W. G. Platt and J. Fawcett, J. Chem. Soc., Dalton Trans., 1992, 675; (b) B.G. Vats, S. Kannan, I. C. Pius, D. M. Noronha, D. K. Maity and M. G. B. Drew, Polyhedron, 2014, 75, 81.
30. CH⋯O=C contacts were revealed in the ligand L (r(H⋯O) = 2.4/2.6–2.8 Å) for intra- and intermolecular interactions) and uranyl complex 1 (r(H⋯O) = 2.3–3.0/2.6–2.7 Å), however, they are much weaker than in complexes 3 and 4 (Fig. S1–S3, ESI†). Accordingly, the IR spectra of L and complex 1 display ν(C=O) at 1720 cm⁻¹.
31. K. Nakamoto, IR and Raman Spectra of Inorganic and Coordination Compounds, Wiley, New York, 5th edn, 1997, Part B, 432 pp.
32. Vibrations of the C≡N group have a low intensity. Moreover, solvate acetonitrile molecules are poorly retained in the crystal lattice of the studied complexes. Thus, freshly prepared finely crystalline complex 4 when stored in air becomes amorphous over time according to X-ray powder diffraction measurements. The content of MeCN in 3 and 4 according to elemental analysis data and NMR is lower than that determined from X-ray crystallography.
33. For example, CN of ytterbium, whose radius is close to that of lutetium, equals to eight in the crystalline complex of akin ligand [Yb(NO₃)(L′)₃](NO₃)₂·2H₂O.⁶.
34. (a) A. Bowden, K. Singh and A. W. G. Platt, Polyhedron, 2012, 42, 30; (b) A. G. Matveeva, T. V. Baulina, Z. A. Starikova, M. S. Grigor'ev, Z. S. Klemenkova, S. V. Matveev, L. A. Leites, R. R. Aysin and E. E. Nifant'ev, Inorg. Chim. Acta, 2012, 384, 266.
35. (a) D. Das, S. Kannan, D. K. Maity and M. G. B. Drew, Inorg. Chem., 2012, 51, 4869; (b) C. Villiers, P. Thuéry and M. Ephritikhine, Polyhedron, 2004, 23, 1613; (c) D. J. McCabe, E. N. Duesler and R. T. Paine, Inorg. Chem., 1985, 24, 4626; (d) S. M. Bowen, E. N. Duesler and R. T. Paine, Inorg. Chim. Acta, 1982, 61, 155.
36. In the spectra of lanthanide nitrate complexes with polydentate bisphosphoryl-containing ligands, the signal of the uncoordinated P(O) group is usually broadened and slightly shifted downfield relative to the free ligand signal.^28a,34b.
37. E. N. Tsvetkov, N. A. Bondarenko, I. G. Malakhova and M. I. Kabachnik, Zh. Obshch. Khim. (in Russian), 1985, 55, 11.
38. S. B. Savin, Arsenazo III, Atomizdat, Moscow, 1966, 256 pp. (in Russian).
39. A. L. Spek, Acta Crystallogr., Sect. D: Biol. Crystallogr., 2009, 65, 148.
40. G. M. Sheldrick, Acta Crystallogr., Sect. A: Fundam. Crystallogr., 2008, 64, 112.
41. O. V. Dolomanov, L. J. Bourhis, R. J. Gildea, J. A. K. Howard and H. Puschmann, J. Appl. Crystallogr., 2009, 42, 339.
42. Todd A. Keith, AIMAll (Version 10.05.04), TK Gristmill Software, Overland Park, KS, USA, 2012 <http://aim.tkgristmill.com>.
43. M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, G. Scalmani, V. Barone, B. Mennucci, G. A. Petersson, H. Nakatsuji, M. Caricato, X. Li, H. P. Hratchian, A. F. Izmaylov, J. Bloino, G. Zheng, J. L. Sonnenberg, M. Hada, M. Ehara, K. Toyota, R. Fukuda, J. Hasegawa, M. Ishida, T. Nakajima, Y. Honda, O. Kitao, H. Nakai, T. Vreven, J. A. Montgomery Jr., J. E. Peralta, F. Ogliaro, M. Bearpark, J. J. Heyd, E. Brothers, K. N. Kudin, V. N. Staroverov, T. Keith, R. Kobayashi, J. Normand, K. Raghavachari, A. Rendell, J. C. Burant, S. S. Iyengar, J. Tomasi, M. Cossi, N. Rega, J. M. Millam, M. Klene, J. E. Knox, J. B. Cross, V. Bakken, C. Adamo, J. Jaramillo, R. Gomperts, R. E. Stratmann, O. Yazyev, A. J. Austin, R. Cammi, C. Pomelli, J. W. Ochterski, R. L. Martin, K. Morokuma, V. G. Zakrzewski, G. A. Voth, P. Salvador, J. J. Dannenberg, S. Dapprich, A. D. Daniels, O. Farkas, J. B. Foresman, J. V. Ortiz, J. Cioslowski and D. J. Fox, Gaussian 09, Revision D.01, Gaussian, Inc., Wallingford, CT, 2013.
44. J. P. Perdew, K. Burke and M. Ernzerhof, Phys. Rev. Lett., 1997, 78, 1396.
45. (a) D. A. Pantazis and F. Neese, J. Chem. Theory Comput., 2009, 5, 2229; (b) D. A. Pantazis and F. Neese, J. Chem. Theory Comput., 2011, 7, 677.
46. (a) R. Krishnan, J. S. Binkley, R. Seeger and J. A. Pople, J. Chem. Phys., 1980, 72, 650; (b) A. D. McLean and G. S. Chandler, J. Chem. Phys., 1980, 72, 5639.

---

Footnote

† Electronic supplementary information (ESI) available: Selected IR data for complexes 1, 3–6, X-ray data for compounds L, 1–5, selected NMR spectra for compounds L, 1, 3, 6, and extraction data for L and L′. CCDC 1442097–1442102. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c5dt04963f

---
