Graphene encapsulated Fe_xCo_y nanocages derived from metal–organic frameworks as efficient activators for peroxymonosulfate

Abstract

A series of nitrogen-doped graphene encapsulated Fe_xCo_y bimetallic (Fe_xCo_y@C) nanocages were newly fabricated via a one-step thermal decomposition of Prussian blue analogue Fe_yCo_1−y[Co(CN)₆]_0.67·nH₂O nanospheres at different temperatures. The as-synthesized Fe_xCo_y@C nanocages were systematically characterized and applied as effective catalysts to activate peroxymonosulfate (PMS) for the removal of bisphenol A (BPA). The catalytic activity of Fe₃Co₇@C-650 obtained at 650 °C was found to be the highest and also much higher than that of metallic cobalt, cobalt oxide and cobalt–iron spinels. The nitrogen-doped graphene shells were demonstrated to be effective in preventing the release of metal ions, thus resulting in a better stability. Furthermore, the BPA degradation pathway was proposed based on GC-MS and LC-MS results. The involved radicals were identified through electron paramagnetic resonance and radical scavenger experiments. Based on the systematic characterization of the catalyst before and after the catalytic oxidation reaction, the overall mechanism of PMS activation over Fe_xCo_y@C nanocages was proposed. Results indicate that Fe_xCo_y@C nanocages are available to serve as promising materials for environmental remediation by activation of PMS.

---

1. Introduction

In recent years, Fenton and Fenton-like processes have been widely investigated and regarded as good alternatives for the treatment of recalcitrant organic pollutants in view of their high efficiency, simplicity and environmental friendliness.^1,2 The hydroxyl radical (˙OH), generated from the Fenton or Fenton-like process, is highly efficient to degrade nearly all organic compounds. However, the narrow working pH range and low H₂O₂ utilization rate remarkably limit the practical application of ˙OH-based Fenton systems.^3–7

Compared to the ˙OH-based Fenton system, the sulfate radical (SO₄˙⁻) based Fenton-like system by activation of peroxymonosulfate (PMS) was reported as one of the promising alternatives due to its high efficiency at a wide pH range and low catalyst dosage.^8–10 Among various transition metal catalysts, Co was found to be very active for PMS activation to produce SO₄˙⁻.¹¹ However, Co is recognized as a toxic pollutant and the leached Co ions in water may induce adverse effects to the environment.¹² The combination of Co with a suitable amount of Fe was reported to be an effective way to prevent the leaching of Co and to overcome the drawbacks of Fe.^13–15

As an emerging new class of materials, bimetallic zero valent nanoparticles (BZVNs) have received considerable attention and been widely applied for the catalytic elimination of various pollutants.^16,17 However, the long term reactivity due to the strong aggregation and surface passivation over time of BZVNs largely impeded their applications.^18–20 Encapsulation of BZVNs into air-stable materials was suggested to be a promising way for the enhancement of transportation, suspension, and stability of BZVNs without significantly sacrificing the activity.^21–23 Therefore, fabricating Fe–Co BZVNs encapsulated in carbon spheres may have great potential for efficient activation of PMS for pollutant degradation.

Prussian blue analogues (PBAs) have been regarded as promising precursors or sacrificial templates to construct various morphology-inherited nanomaterials.^23–27 Previously, we have reported a facile strategy to synthesize porous Fe_xCo_3−xO₄ nanocages by heating Fe_yCo_1−y[Co(CN)₆]_0.67·nH₂O (Fe_yCo_1−y-Co PBAs) in air.^15,25 In addition, thermal decomposition of PBAs in a N₂ atmosphere has been reported as a general strategy to synthesize nanoparticles with nitrogen-doped carbon shells.^23,24 Inspired by this, the thermal decomposition of Fe_yCo_1−y-Co PBAs is expected as a facile strategy to synthesize nitrogen-doped graphene encapsulated Fe_xCo_y BZVNs (Fe_xCo_y@C). However, the heating temperature is usually considered as the main factor influencing both the crystallinity and porous structure of the catalysts, which largely affect the catalytic activity.²⁸ Thus, heating at different temperatures is necessary to obtain Fe_xCo_y@C with an optimized nanostructure as well as the highest catalytic activity.

In the present work, a series of Fe_xCo_y@C nanocages were newly synthesized via a one-step thermal decomposition of Fe_yCo_1−y-Co PBA nanospheres in a nitrogen atmosphere at different temperatures. The morphology, crystalline structure and textural properties of the prepared Fe_xCo_y@C nanocages were thoroughly characterized by various techniques. For the first time, a series of Fe_xCo_y@C nanocages were developed as Fenton-like catalysts to activate PMS for bisphenol A (BPA) removal. The concentrations of the leached metal ions during the reaction were detected and the catalytic stability was tested. SO₄˙⁻ was confirmed as the dominant radical involved and the BPA degradation pathway was further studied. Moreover, the overall mechanism of PMS activation over Fe_xCo_y@C nanocages was systematically investigated and proposed.

2. Experiments

2.1. Chemicals

Potassium hexacyanocobaltate(III) (98%) and cobaltosic oxide (98.5%) were purchased from Beijing J&K Co., Ltd, China. PMS (KHSO₅·0.5KHSO₄·0.5K₂SO₄) was purchased from Alfa Aesar. Cobalt (99.9%, 30 nm), iron powder (100 mesh), iron oxide(II,III) (99.5%, ∼20 nm), BPA, and 5,5-dimethyl-1-pyrroline-N-oxide (DMPO) were purchased from Aladdin Co., China. Sodium sulfite, ferrous chloride, cobaltous chloride, poly(vinylpyrrolidone) (PVP), potassium iodide, sodium hydrogen carbonate, t-butanol (TBA) and methyl alcohol were purchased from Tianjin Kermel Chemical Reagent Co., Ltd, China. All chemical reagents were used without further purification.

2.2. Sample preparation

Fe_yCo_1−y-Co PBA nanospheres were prepared in a similar manner to our previous report.¹⁵ Typically, desired amounts of FeCl₂·4H₂O and CoCl₂·6H₂O (a total of 9 mM) were dissolved in 40 mL of deionized water with PVP (1.2 g) under vigorous stirring. Then 40 mL of K₃[Co(CN)₆] aqueous solution (5 mM) was added into the premixed solution slowly. The obtained colloidal solution was stirred for another 30 min and then aged for 20 h. The resulting precipitates were centrifuged and washed at least three times with a mixture of deionized water and ethanol, followed by drying in an oven at 333 K for 20 h. To obtain the Fe₃Co₇@C-T nanocages, Fe_0.5Co_0.5-Co PBA nanospheres were heated at different temperatures (500, 650 and 800 °C) and kept for 1 h in N₂. Fe₂Co₈@C-500 nanocages were obtained by heating Fe_0.3Co_0.7-Co PBA nanospheres at 500 °C and keeping them for 1 h in N₂.

2.3. Characterization

The crystallographic structures of the samples were studied by powder X-ray diffraction (XRD) in a 2θ range from 10° to 90° on a PANalytical X'Pert-Pro X-ray diffractometer equipped with a Cu Kα (λ = 0.15406 nm) radiation source. The textural and morphological information was obtained by field-emission scanning electron microscopy (FESEM, JSM 7800F) and high-resolution transmission electron microscopy (HR-TEM, JEM-2100). The element compositions were measured by energy dispersive X-ray spectroscopy (EDS) measurements. The Fourier transform infrared spectra (FT-IR) were recorded on a Bruker spectrometer equipped with a MCT detector at a resolution of 4 cm⁻¹. The specific surface areas were measured on a Micromeritics ASAP 2010 instrument by the Brunauer–Emmett–Teller (BET) N₂ adsorption–desorption method. Thermo-gravimetric and differential scanning calorimetry (TG-DSC) analyses were conducted on a Setaram Setsys 16/18 thermo-analyzer in N₂ or air flow and a heating rate of 10 K min⁻¹. The Co K-edge X-ray absorption fine structure (XAFS) spectra were taken at Beijing Synchrotron Irradiation Facility (BSRF) with a stored electron energy of 2.2 GeV. The Co K-edge spectra were processed following the conventional procedure using the IFEFFIT package. The X-ray photoelectron spectra (XPS) fitted by XPSPEAK41 software with Shirley-type background were recorded on an ESCALAB 250 X-ray photoelectron spectroscope equipped with a monochromated Al Kα source. The room temperature ⁵⁷Fe Mössbauer spectra were obtained using a Topologic 500A spectrometer and a proportional counter with ⁵⁷Co (Rh) as a γ-ray radioactive source. The electron paramagnetic resonance (EPR) spectra were collected using a Bruker EPR I200 spectrometer with a center field at 3320 G and a sweep width of 100 G at room temperature. The detailed procedures of the Mössbauer and EPR measurements were similar to our previous work.²⁹

2.4. Catalytic activity measurements

BPA degradation tests were carried out in a 200 mL reactor containing 20 mg L⁻¹ BPA at pH = 6.0 in a dark box. The reaction temperature was maintained at 25 °C using a water bath. In a typical test, 5 mg of catalyst was added into a 50 mL BPA solution and stirred for 30 min to establish the adsorption–desorption equilibrium. The reaction was initiated by adding certain amounts of PMS aqueous solution. At predetermined time intervals, 1 mL samples were withdrawn and immediately quenched with 0.5 mL of methanol. To determine the reaction rate of the leached Fe/Co ions, the catalyst was separated immediately at different time intervals, and BPA was continuously degraded by the residual solution for another 15 min. For recycle tests of catalysts, the catalyst was recycled using a magnet and washed thoroughly with deionized water three times after each run.

The concentration of BPA was analyzed using high performance liquid chromatography (HPLC, Agilent, 1260-Infinity) at a detection wavelength of 230 nm with a methanol/water mixture (70 : 30, v/v) as the mobile phase. The total organic carbon (TOC) values were analyzed by a total organic carbon analyzer (TOC-VCPH/CPN, Shimadzu, Japan). The details of the BPA degradation intermediates identified by GC-MS (Varian 450GC-320 MS) and LC-MS can be found in our previous work.¹⁵ The concentrations of leached cobalt and iron were detected by inductively coupled plasma atomic emission spectroscopy (ICP-OES). The PMS concentration was determined using an iodometric method.^30–34 Briefly, 200 μL of sample was withdrawn and immediately mixed with 1.8 mL of KI stock solution (0.166 g of KI + 0.04 g of NaHCO₃)/100 mL. After reaction for 5 min, the mixture was analyzed by a UV-vis spectrophotometer at λ = 352 nm. The calibration curve of PMS concentration is shown in Fig. S1.†

3. Results and discussion

3.1. Characterization of Fe_xCo_y@C nanocages

Fig. 1 shows the XRD patterns of Fe₂Co₈@C-500, Fe₃Co₇@C-500, Fe₃Co₇@C-650, and Fe₃Co₇@C-800. As can be seen, all of the four samples showed a main phase of Fe₃Co₇ (JCPDS No. 50-0795).³⁵ In the patterns of the latter three samples, besides the peaks of Fe₃Co₇, two peaks at 44.2° and 51.5° were observed, which suggests the existence of Co with a cubic crystalline structure (JCPDS No. 89-7093).³⁶ The other two weak peaks at 41.6° and 47.3° in the pattern of sample Fe₂Co₈@C-500 were possibly due to the existence of Co with a hexagonal crystalline structure (JCPDS No. 01-1278) with increasing content of Co. In addition, the increase of the peak intensities indicates the better crystallinity and larger crystal size of the four samples when the heating temperature increases.²⁸

Fig. 1 XRD patterns of Fe_xCo_y@C nanocages.

Fig. 2 displays the SEM images of Fe_xCo_y@C, which reveal the typical morphology of the four samples to be nanocages. As can be seen, the Fe_xCo_y nanocrystals (white points) were all well dispersed on the nanocages and the crystal size became larger with increasing the heating temperature from 500 °C to 800 °C,³⁷ which was consistent with the XRD analysis results calculated by the Debye–Scherrer equation (Table S1†). The average size of the Fe₂Co₈@C-500 nanocages, due to the smaller particle size of Fe_0.3Co_0.7-Co PBA nanospheres, appeared to be much smaller, which further suggests the significant influence of the iron doping amount on the final morphology. The TEM image of Fe₃Co₇@C-650 further confirmed the porous structure of the nanocages (Fig. 3A). The HR-TEM images of single nanocrystals (Fig. 3B–D) clearly show that the Fe₃Co₇ nanocrystals were completely coated with the graphene shells (5–20 layers) with an interlayer distance of 0.34 nm.²³ The Fe₃Co₇ nanocrystal exhibits a d-spacing of 0.20 nm (Fig. 3B), corresponding to the (110) plane of the Fe₃Co₇ alloy. The chemical composition of Fe_xCo_y@C analyzed by EDS (Table S1†) indicates that all of the samples contain N, whose content was also changeable under the different heating temperatures. In addition, the EDS mapping (Fig. S2†) confirmed the homogeneous distribution of Fe and Co species in the Fe_xCo_y@C nanocages. The high resolution XPS spectrum of N 1s on the Fe₃Co₇@C-650 surface was deconvoluted into four individual peaks, which could be assigned to pyridinic N (398.5 eV), pyrrolic N (399.8, 400.6 eV), and quaternary N (401.5 eV), respectively (Fig. S3†).²³ All these results suggest that the nitrogen-doped graphene encapsulated Fe_xCo_y BZVNs could be successfully synthesized through the one-step thermal decomposition of Fe_yCo_1−y-Co PBA nanospheres.

Fig. 2 SEM images of Fe_xCo_y@C nanocages (A) Fe₃Co₇@C-500, (B) Fe₃Co₇@C-650, (C) Fe₃Co₇@C-800, and (D) Fe₂Co₈@C-500.

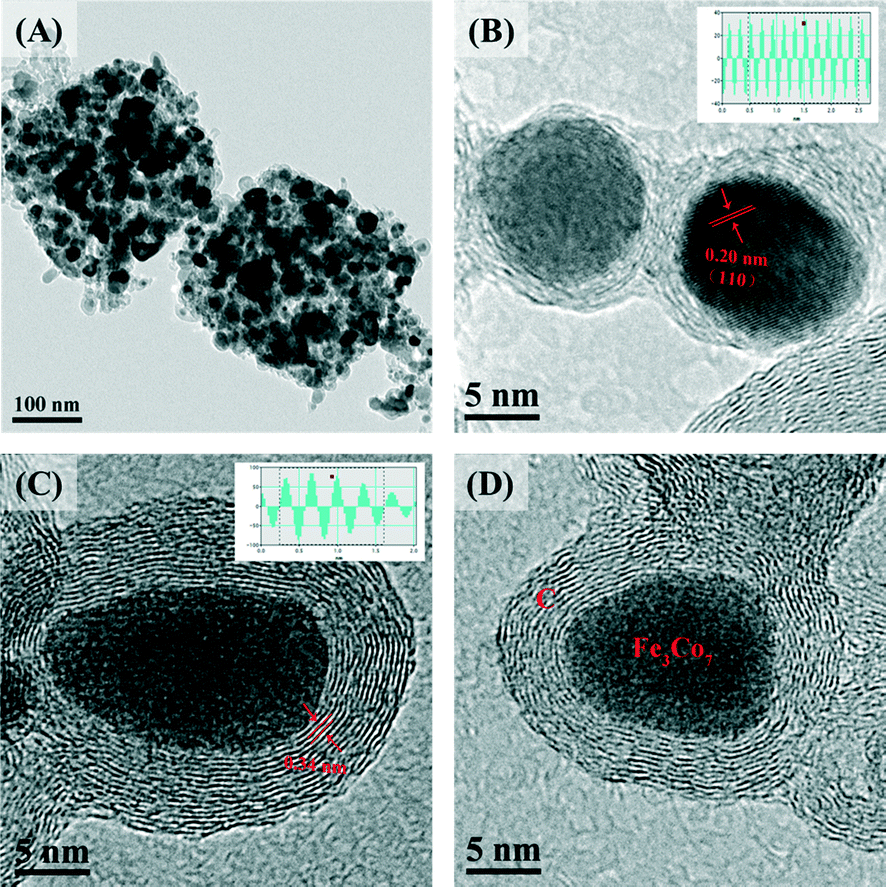

Fig. 3 TEM image (A) and HR-TEM images (B, C, D) of Fe₃Co₇@C-650 nanocages.

⁵⁷Fe Mössbauer spectroscopy was applied to determine the coordination environment and oxidation state of Fe ions in the samples (Fig. 4). The spectra were fitted with two sextets, corresponding to the Fe₃Co₇ alloy in different chemical environments and/or with different crystallite sizes.³⁸ The blue doublet in the spectra of Fe₃Co₇@C-500 and Fe₂Co₈@C-500 could be assigned to Fe^III in Fe₂O₃. The corresponding Mössbauer parameters are shown in Table S2.† As can be seen, only Fe₃Co₇@C-650 and Fe₃Co₇@C-800 contain the pure phase of Fe metal. The other two samples obtained by heating Fe_yCo_1−y-Co PBAs at 500 °C contain more than 20% Fe₂O₃, suggesting that the heating temperature largely affects the oxidation state of iron ions in the samples. Co K-edge XAFS was employed to confirm the coordination environment and chemical state of the Co ions in the Fe_xCo_y@C nanocages. In Fig. 5A, the similar pre-edge peak position suggests that the Co ions in Fe_xCo_y@C were present mainly in the form of Co⁰. The Fourier transforms of the Co K-edge EXAFS spectra are shown in Fig. 5B. The position of the peaks at around 0.21 and 0.48 nm could be correlated with the length of the Co–Fe/Co bond.^39,40 The slight decrease of the Co–Co/Fe bond length at around 0.48 nm is most probably due to the increase of the Co–Fe bond content in the samples with increasing Fe content and heating temperature, which is consistent with the XRD results.

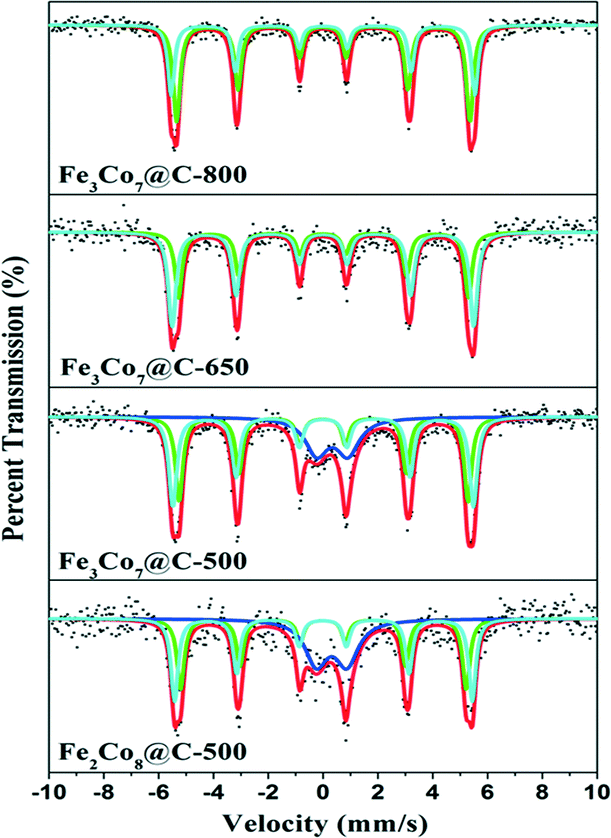

Fig. 4 Room temperature ⁵⁷Fe Mössbauer spectra of Fe_xCo_y@C nanocages. The spectra were fitted with two sextets, corresponding to two kinds of metallic irons in the Fe₃Co₇ alloy with different chemical environments and/or different crystallite sizes. The blue doublet in the spectra of Fe₃Co₇@C-500 and Fe₂Co₈@C-500 could be assigned to Fe³⁺ in Fe₂O₃.

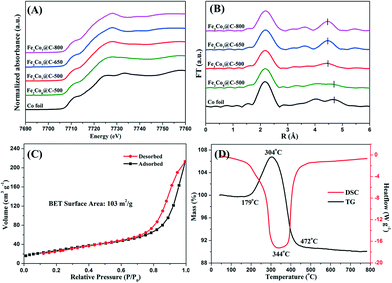

Fig. 5 Normalized XANES of Co K-edge (A) and Fourier transforms of the Co K-edge EXAFS (B) of Fe_xCo_y@C nanocages; N₂ adsorption–desorption isotherms (C) and TG-DSC curve (D) of Fe₃Co₇@C-650.

Fig. 5C shows the N₂ adsorption–desorption isotherms of the Fe₃Co₇@C-650 nanocages. The specific surface area of Fe₃Co₇@C-650 was calculated to be 103 m² g⁻¹, which was much larger than that of the recently reported Co@C catalysts.⁴¹ The TG-DSC profile of Fe₃Co₇@C-650 is shown in Fig. 5D. The increase of the weight at the first stage (179–304 °C) was due to the oxidation of Fe/Co to oxides. The following weight loss (over 304 °C) could be ascribed to the combustion of graphene layers. It was interesting to see that the weight remained unchanged until the temperature reached 179 °C, suggesting the good stability of the Fe₃Co₇@C-650 nanocages.

3.2. Catalytic performance and stability of Fe_xCo_y@C nanocages

The catalytic performance of the Fe_xCo_y@C nanocages was evaluated by activation of PMS for removal of BPA. As shown in Fig. 6A, only PMS could not induce significant BPA degradation. A control test using only Fe₃Co₇@C-650 nanocages shows that less than 3% of BPA was adsorbed in 30 min, suggesting its negligible adsorption capacity. The simultaneous presence of Fe_xCo_y@C nanocages and PMS led to a significant enhancement of the BPA removal efficiency, which was much higher than that of commercial metallic iron and Co₃O₄. At 30 min, the BPA removal efficiencies of Fe₂Co₈@C-500, Fe₃Co₇@C-500, Fe₃Co₇@C-650, and Fe₃Co₇@C-800 were 93%, 84%, 98%, and 87%, respectively. The comparison between the removal efficiencies of Fe₂Co₈@C-500 and Fe₃Co₇@C-500 suggests that a higher Co content would be beneficial for the catalytic performance, because Co is usually considered to be more active than Fe for PMS activation.^13,15 The BPA removal efficiency of Fe₃Co₇@C-650 nanocages was found to be the highest one when compared with the others, indicating the less oxidation of the catalyst surface, which is consistent with the Mössbauer results. The lower catalytic performance of Fe₃Co₇@C-800 is most probably due to its larger crystal size, which could be also evidenced from the XRD characterization.

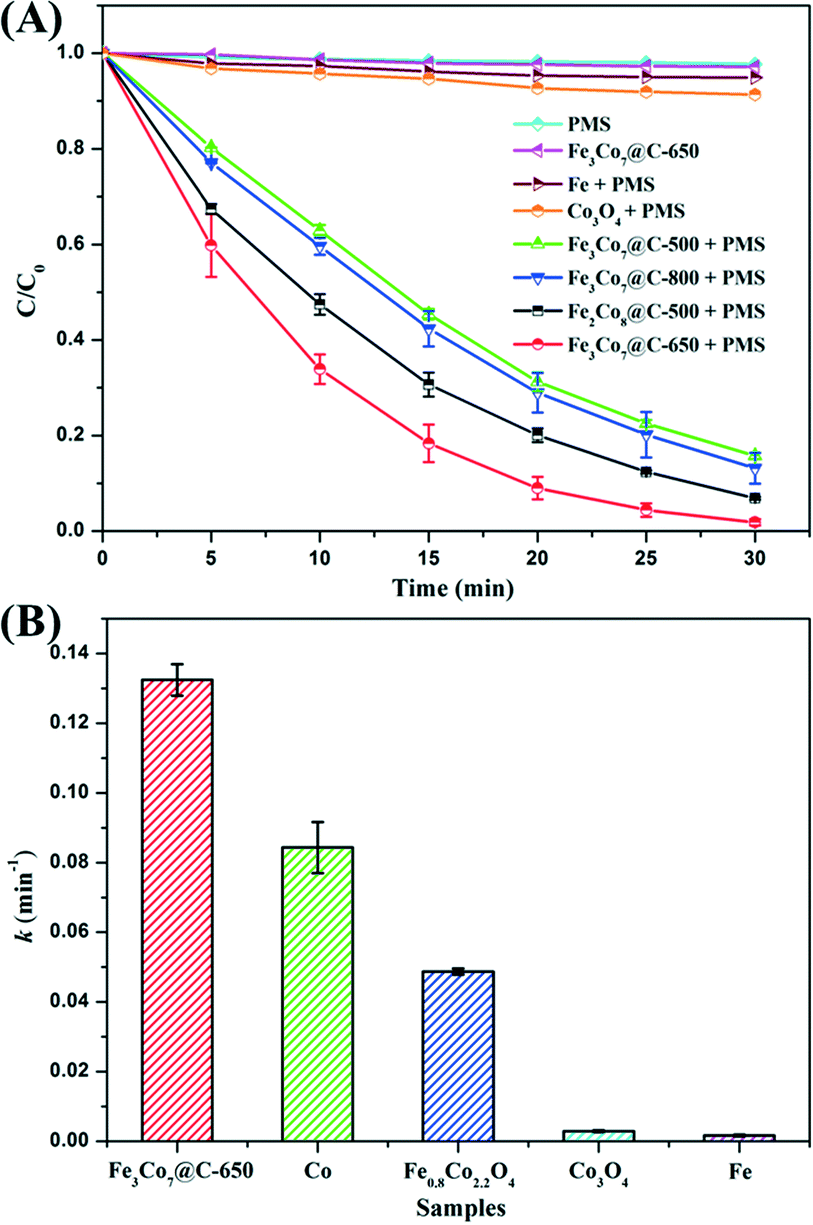

Fig. 6 (A) Removal efficiency of BPA in different reaction systems within 30 min; (B) the rate constant of Fe₃Co₇@C-650 compared with that of metallic cobalt (the same content as Co in Fe₃Co₇@C-650), iron powder, Co₂O₃ and Fe_0.8Co_2.2O₄. Reaction conditions: [BPA] = 20 mg L⁻¹, [PMS] = 0.2 g L⁻¹ (if needed), catalyst = 0.1 g L⁻¹, T = 298 K, initial solution pH = 6.0.

The BPA removal kinetics could be fitted well to first-order kinetics and the results are shown in Fig. 6B. The apparent rate constant (k) of Fe₃Co₇@C-650 (0.132 min⁻¹) was much higher than that of the Fe_0.8Co_2.2O₄ nanocages (0.049 min⁻¹) reported in our previous work,¹⁵ suggesting the better PMS activation efficiency of the BZVNs than the bimetal oxides. The catalytic activity of Fe₃Co₇@C-650 was also higher than that of metallic cobalt (the same Co content as Fe₃Co₇@C-650), which is most probably because of the synergistic effect between Fe and Co.¹⁴ In addition, about 35% of BPA was mineralized in 30 min (Fig. 7A), suggesting that BPA was not only decomposed to small organic compounds, but even mineralized to inorganic carbon forms. The time courses of PMS remaining during the reaction are shown in Fig. S4.† As can be seen, the PMS remaining in the solution after reaction was less than 20%, further suggesting the excellent catalytic performance of Fe₃Co₇@C nanocages for PMS activation.

Fig. 7 (A) TOC removal efficiency of BPA at different reaction times; (B) the concentrations of the leached Fe/Co ions and the rate constants of the leached Fe/Co ions at different reaction times. (C) Effect of PMS concentration on BPA removal efficiency; (D) consecutive runs of the catalytic activities of Fe₃Co₇@C-650 and metallic cobalt. Reaction conditions: [BPA] = 20 mg L⁻¹, [PMS] = 0.2 g L⁻¹ (for A, B and D), catalyst = 0.1 g L⁻¹, T = 298 K, initial solution pH = 6.0.

To quantify the contribution of the homogeneous reaction to the BPA removal efficiency, the leached Fe/Co ions and the k of the homogeneous reaction catalyzed by the leached Fe/Co ions at different reaction times were measured (Fig. 7B). As can be seen, the concentration of the leached Fe was negligible when compared with that of the leached Co, which kept increasing to about 3.30 mg L⁻¹ at 30 min. This result further suggests that Co is most probably the main active site. The k of the homogeneous reaction catalyzed by the leached Fe/Co ions was shown to increase along with their concentration. However, the k of the total reaction catalyzed by Fe₃Co₇@C-650 (0.132 min⁻¹) was more than two times higher than that of the homogeneous reaction, suggesting the dominant role of the heterogeneous reaction.

Fig. 7C shows the effect of PMS concentration on the BPA removal efficiency. As can be seen, the BPA removal efficiency increased with the PMS concentration increasing from 0.1 to 0.2 g L⁻¹, however, it decreased with the PMS concentration further increasing to 0.25 g L⁻¹. The optimum PMS concentration could be explained by the competitive reactions which may adversely affect the generation of reactive species (SO₄˙⁻ + SO₄˙⁻ → S₂O₈²⁻, HO˙ + SO₄˙⁻ → HSO₅⁻).^42–44

Finally, the operational stability of Fe₃Co₇@C-650 was explored and compared with commercial metallic cobalt. As shown in Fig. 7D, although the BPA removal efficiency keeps decreasing after each run due to the continuous loss of the active component, the operational stability of Fe₃Co₇@C-650 appears to be much better than that of the metallic cobalt as well as the recently reported Fe⁰/Fe₃C@CS and Fe⁰@CS catalysts.^21,45 In addition, the final leached Co ion concentration (3.30 mg L⁻¹) of Fe₃Co₇@C-650 is much lower than that of the metallic cobalt (8.73 mg L⁻¹). All these results suggest that the nitrogen-doped graphene shells were effective to prevent the release of the metal ions, thus resulting in a better stability.

3.3. Possible degradation pathway of BPA

The formed intermediates during BPA degradation were analyzed by GC-MS and LC-MS (Fig. S5–S7†). From the identified m/z determined by GC-MS and LC-MS, as well as compared with the results of previous studies,^46–49 nine compounds (Products A–I) were identified as the main intermediates as listed in Table S3.† Among them, phenol (m/z = 94) and 4-isopropenylphenol (m/z = 134) were formed through the cleavage between one of the benzenes and the attack of radicals on the middle carbon atom (Route II in Fig. 8).^4,46 However, unlike our previous work, more intermediates (Products C–I) through Route I were detected. As shown in Fig. 8, BPA-O-catechol (m/z = 244) was formed through the hydroxylation of the aromatic ring of BPA. Further oxidation of BPA-O-catechol could easily lead to the formation of Products D–F (m/z = 242, 290, and 276).⁴⁷ The products at m/z = 232, 234, 250 and 222 were formed through the sequential decarboxylation of Product F (m/z = 276).⁴⁸ The product at m/z = 460, with a high molecular weight, could result from secondary reactions between the products of m/z = 234 and m/z = 234.⁴⁹ Based on all of these experimental results and the previous studies,^46–49 the BPA degradation pathway by activation of PMS on Fe₃Co₇@C-650 nanocages was proposed as shown in Fig. 8.

Fig. 8 Proposed BPA degradation pathway by activation of PMS on Fe₃Co₇@C-650 nanocages.

3.4. Reactive intermediates during PMS activation over Fe_xCo_y@C nanocages

To investigate the activation and oxidation mechanism, the involved radical intermediates produced in activation of PMS were probed by radical scavenger experiments. As shown in Fig. 9A, when TBA, a commonly used radical scavenger for ˙OH,⁵⁰ was added to the reaction solution, only about 16% decrease of the reaction rate was observed. However, when methanol, an effective radical scavenger for both SO₄˙⁻ and ˙OH,⁴² was added to the reaction solution, more than 80% decrease of the reaction rate was observed. The production of ˙OH could be ascribed to the strong hydrolysis process of HSO₅⁻.⁵¹ In addition, the more remarkable reaction rate decrease caused by methanol indicates that SO₄˙⁻ is most probably the dominant reactive intermediate during the activation of PMS by Fe₃Co₇@C-650 nanocages.

Fig. 9 (A) Comparison of the reaction rate with and without radical scavengers; (B) time-dependent EPR spectra for the activation of PMS by Fe₃Co₇@C-650 nanocages; reaction conditions: [BPA] = 20 mg L⁻¹, [PMS] = 0.2 g L⁻¹, catalyst = 0.1 g L⁻¹, [scavenger] = 0.2 M (if needed), T = 298 K, initial solution pH = 6.0.

EPR/DMPO experiments were carried out to further confirm the identity of the involved reactive intermediates. As shown in Fig. 9B, characteristic signals for both DMPO–˙OH adducts (with a_N = a_H = 14.9 G) and DMPO–SO₄˙⁻ adduct (with a_N = 13.2 G and a_H = 9.6 G) were observed at the different reaction times, revealing that both SO₄˙⁻ and ˙OH were generated during the activation of PMS by Fe_xCo_y@C nanocages.^52,53 The stronger intensity of the signal for the DMPO–˙OH adduct was probably due to the instability of the DMPO–SO₄˙⁻ adduct, which was reported to be easily decomposed to DMPO–˙OH over time.^31,54 Fig. S8† shows the time-dependent relationship between the BPA removal efficiency and the relative peak intensities of DMPO–˙OH/DMPO–SO₄˙⁻. The DMPO–SO₄˙⁻ adduct reached the highest peak intensity at about 10 min, when saturated HSO₅⁻ was adsorbed on the catalyst surface. Then the gradually decreasing DMPO–SO₄˙⁻ intensity indicates the continuous consumption of the SO₄˙⁻ radicals for BPA removal. However, the evolution of the DMPO–˙OH intensity remained at a relatively higher value and exhibited almost no change during the first 15 min. Then the large decrease of the DMPO–˙OH intensity could also be ascribed to the continuous consumption of the SO₄˙⁻ radicals. All these results further confirm SO₄˙⁻ as the dominant radical involved during PMS activation over Fe_xCo_y@C nanocages.

3.5. Mechanism of PMS activation over Fe_xCo_y@C nanocages

To understand the mechanism of PMS activation over Fe_xCo_y@C nanocages, it is important to clarify the structural changes of the catalyst and the redox cycling of the Fe and Co species during the whole reaction process. To this end, a number of techniques were applied for the characterization of the catalyst after the reaction process.

The XRD patterns of Fe₃Co₇@C-650 before and after a 4-cycle run are shown in Fig. S9.† As seen, besides the diffraction peaks of Fe₃Co₇, no other impurity peaks were detected. More important, the morphology of Fe₃Co₇@C-650 nanocages was found to remain unchanged even after the 4-cycle run (Fig. S10A and B†), and there were no new absorbance bands detected by FT-IR after reaction (Fig. S11†), further suggesting the good stability of the Fe₃Co₇@C-650 nanocages. The HR-TEM images of Fe₃Co₇@C-650 after the 4-cycle run are shown in Fig. S10C and D;† interestingly, the lattice spacing of 0.21 nm was found to correspond well to the (400) plane of γ-Fe₂O₃ (JCPDS No. 04-0755), suggesting that the oxidation of Fe occurred most probably during the PMS activation over the Fe_xCo_y@C nanocages.

The XPS spectra of Fe₃Co₇@C-650 nanocages before and after the 4-cycle run of the catalytic oxidation process were introduced to further explore the activation mechanism of PMS. Fig. 10A–C show the high resolution XPS spectra of Fe 2p_3/2 on the Fe₃Co₇@C-650 surface before and after the reaction. The three peaks with binding energies located at 707.4, 710.4 and 712.5 eV, with relative contributions to the overall Fe intensity of 17%, 31% and 52%, could be assigned to Fe⁰, B-site, and A-site Fe^III in γ-Fe₂O₃, respectively.^55,56 However, after the catalytic oxidation reaction, the relative contributions of these three peaks change to 10%, 50%, and 40%, respectively. This result further confirms the oxidation of Fe⁰ to Fe^III during the PMS activation over the Fe_xCo_y@C nanocages. Fig. 10B–D show the high resolution XPS spectra of Co 2p_3/2 on the Fe₃Co₇@C-650 surface before and after the reaction. The two peaks with binding energies positioned at 778.6 and 780.4 eV, with relative contents of 41% and 59%, could be assigned to Co⁰ and Co^III, respectively.⁵⁷ After the reaction, the relative contents of Co⁰ and Co^III change to 16% and 84%, respectively. The decrease of the Co⁰ content on the Fe₃Co₇@C-650 surface indicates the oxidation of Co⁰ to Co^III during the PMS activation process.

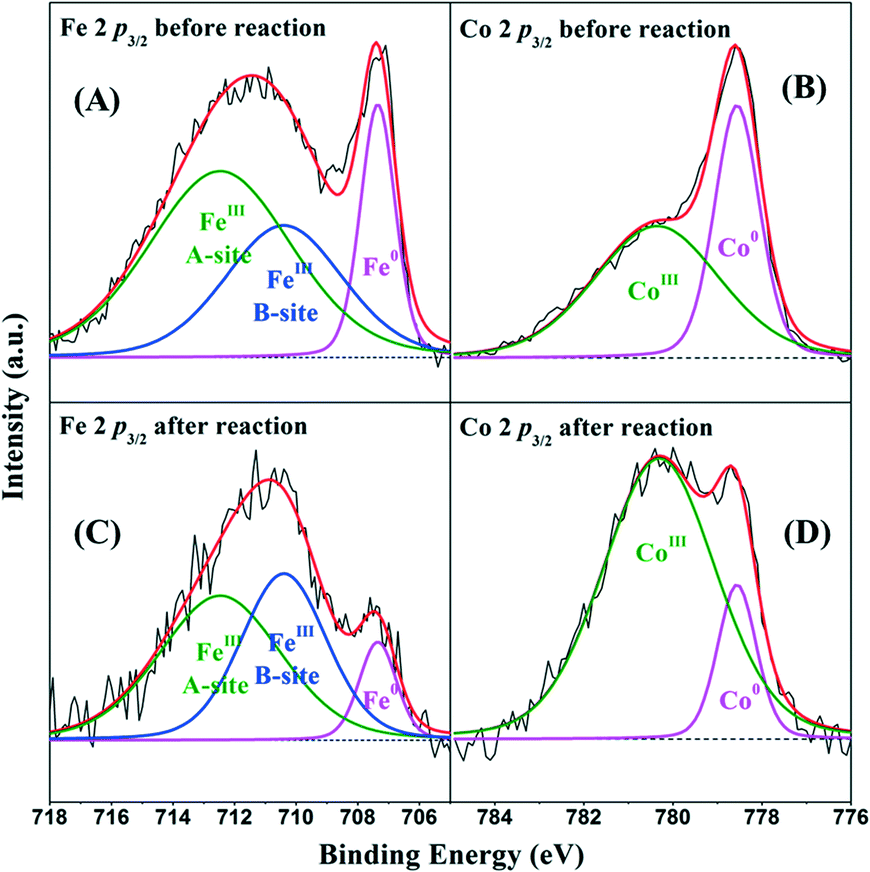

Fig. 10 High resolution XPS spectra of Fe 2p_3/2 (A–C) and Co 2p_3/2 (B–D) of Fe₃Co₇@C-650 nanocages before and after reaction.

Therefore, the overall mechanism of PMS activation over Fe_xCo_y@C nanocages was proposed as shown in Fig. 11. Firstly, Fe_xCo_y@C nanocages could release Co²⁺/Fe²⁺ ions at certain conditions and activate PMS to generate SO₄˙⁻ radicals through eqn (1)–(3).^57,58 Meanwhile, Co⁰/Fe⁰ in Fe_xCo_y@C could activate PMS to produce SO₄˙⁻ radicals through eqn (4) with itself being oxidized to ≡Co^II/Fe^II.^21,59 Secondly, the generated ≡Co^II/Fe^II could be quickly oxidized further by PMS witFurthermore, both ≡Co⁰/Fe⁰ and PMS could reduce ≡Co^III/Fe^III to ≡Co^II/Fe^II and thus make the reaction proceed cyclically until PMS is completely consumed.^44,57–59

Fig. 11 The proposed mechanism for PMS activation using Fe_xCo_y@C nanocages as the catalysts.

≡Co⁰/Fe⁰ → Co²⁺/Fe²⁺ + 2e⁻ (1)

Co²⁺/Fe²⁺ + HSO₅⁻ → Co³⁺/Fe³⁺ + SO₄˙⁻ + OH⁻ (2)

Co³⁺/Fe³⁺ + HSO₅⁻ → Co²⁺/Fe²⁺ + SO₅˙⁻ + H⁺ (3)

≡Co⁰/Fe⁰ + 2HSO₅⁻ → ≡Co^II/Fe^II + 2SO₄˙⁻ + 2OH⁻ (4)

≡Co^II/Fe^II + HSO₅⁻ → ≡Co^III/Fe^III + SO₄˙⁻ + OH⁻ (5)

≡Co^III/Fe^III + HSO₅⁻ → ≡Co^II/Fe^II + SO₅˙⁻ + H⁺ (6)

≡Co⁰/Fe⁰ + 2 ≡Co^III/Fe^III → 3 ≡Co^II/Fe^II (7)

SO₄˙⁻ + BPA → CO₂ + intermediates (8)

4. Conclusions

In summary, a series of Fe_xCo_y@C nanocages were successfully fabricated by simple thermal decomposition of Fe_yCo_1−y-Co PBA nanospheres at 500, 650, and 800 °C. The heating temperature was found to largely affect the final crystallinity, porous structure, and even the oxidation state of Fe_xCo_y@C. Fe₃Co₇@C-650 obtained at 650 °C shows the highest catalytic activity for BPA removal by PMS activation, due to the less oxidation of the catalyst surface. The nitrogen-doped graphene shells were demonstrated to play a significant role in enhancing the stability of the Fe₃Co₇ catalyst, as well as in preventing the release of the metal ions which thus results in a better recycling performance. Through radical scavenger and EPR/DMPO experiments, SO₄˙⁻ radicals were proved to play a dominant role in the activation of PMS for BPA removal. The BPA degradation pathway, mainly through hydroxylation, oxidative skeletal rearrangement, and decarboxylation, was proposed. Moreover, based on the systematic characterization of Fe₃Co₇@C-650 before and after the reaction, the mechanism for PMS activation on the catalyst surface as well as in the bulk solution was proposed. These findings may pave the way towards the development of high-performance and long cycling BZVNs for catalytic elimination of various pollutants.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (11079036, 21476232) and the Chinese Academy of Sciences Visiting Professorships for Senior International Scientists (2011T1G15). X. N. Li also thanks Beijing Synchrotron Irradiation Facility for the XAFS measurement. Many thanks to the anonymous reviewers who have helped improve this paper.
