Generation and characterization of the phenylthiyl radical and its oxidation to the phenylthiylperoxy and phenylsulfonyl radicals

Abstract

The phenylthiyl radical (1) was prepared in the gas phase by vacuum flash pyrolysis of allylphenyl sulfide or diphenyl sulfide and isolated in an argon matrix. The hitherto unknown phenylthiyl peroxy radical was synthesized by co-condensation of 1 with molecular oxygen. Irradiation with light of λ = 465 nm led to a rearrangement to the novel phenylsulfonyl radical.

---

Sulfur-centred radicals are key reactive intermediates in chemistry^1,2 and biology;^3,4 they typically form in a variety of light or heat initiated reactions of S–H or S–S bond cleavages of their precursors.^5–7 The simplest aromatic species, the phenylthiyl radical (1, Scheme 1), participates as a short-lived species in several reactions in the condensed phase.^1,7,8 The most useful synthetic applications of the phenylthiyl radical draw on its ability to readily add to carbon–carbon multiple bonds;^9–12 such additions have been intensively studied by Ito and co-workers.^7,13–19 Radical 1 has also been used for the synthesis of natural products:²⁰ for instance, Knapp and co-workers²¹ reported on a total synthesis of griseolic acid B that involved the free-radical addition of thiophenol to a sterically hindered enol ether moiety.

Scheme 1 The phenylthiyl radical (1) generated from either allylphenyl sulfide (2) or diphenyl disulfide (3) via VFP and trapping in an Ar matrix.

Despite its relevance to a variety of processes, only four low IR bands of 1 have recently been reported.²² Radical 1 was thereby generated by UV irradiation of thiophenol in a solid argon matrix, resulting in a mixture of compounds with 1 being the minor isomer. The absorption spectrum of 1 exhibited a strong band at ∼290 nm that did not reveal vibronic features.²³ Pulse radiolysis of thiophenol in aqueous solution also led to 1, with broad transitions at 295 and 460 nm.²⁴ Radical 1 was also investigated by time-resolved resonance Raman spectroscopy,²⁵ which revealed that the C–S bond in 1 has single bond character with the unpaired electron localized on sulfur. The EPR spectrum of 1 has also been reported in glassy matrices at low temperatures.^26,27

The experimental S–H bond-dissociation energy (BDE) of thiophenol was obtained using three different methods, i.e., via the electrochemical cycle (EC) method by Bordwell and Cheng,²⁸ using an electron-transfer equilibration approach by Armstrong et al.,²⁹ and by utilizing photoacoustic calorimetry by Borges dos Santos et al.³⁰ The BDEs derived from these methods are 79.5, 80.4, and 83.9 kcal mol⁻¹, respectively. The results of recent computations by Chandra et al. nicely reproduced the BDE_S–H (79.5 ± 1 kcal mol⁻¹) at the B3LYP/6-311++G(2df,2p) level of theory.³¹

The reactions of thiylperoxy radicals have been the subject of numerous studies because of their involvement in organic synthesis^1,8 and atmospheric transformations.^32–36 Tan and Wille have shown the oxidation of bis-aromatic alkynes to α-diketones by intervention of thiyl peroxy radicals formed through the reaction of thiyl radicals with molecular oxygen.⁸ A series of thiyl peroxy radicals were studied in detail by low temperature ESR.^37–42 Zhang et al. studied the formation kinetics of thiylperoxy radicals by pulse radiolysis techniques.⁴³

In this paper, we report new and efficient pathways for the generation and matrix isolation of 1 by vacuum flash pyrolysis (VFP) of allylphenyl sulfide (2) and diphenyl disulfide (3) in argon at 10 K and we reveal the most comprehensive IR data and band assignments to date. We also described the formation of a novel phenylthiyl peroxy radical (4) through a gas phase reaction of 1 with molecular oxygen and subsequent trapping in argon matrices at 10 K. The peroxy radical 4 can be photochemically rearranged into the considerably more stable equally novel phenylsulfonyl radical (5).

Radical 1 was generated under matrix isolation conditions from 2 or 3 as VFP precursors (Scheme 1). The IR spectrum of 1 matrix isolated in argon at 10 K obtained by VFP of 2 at 850 °C with subsequent trapping with an excess of argon is shown in Fig. 1. In the case of 2, VFP gave 1 and the allyl radical 6, while the precursor 3 predominantly yielded 1.

Fig. 1 (a) IR spectrum of 1 computed at M06-2X/6-311++G(2d,2p) (unscaled). (b) IR spectrum of the matrix-isolated pyrolysis products of diphenyl sulfide (3) in Ar at 10 K; pyrolysis temperature: 850 °C. (c) IR spectrum of the matrix-isolated pyrolysis products of allylphenyl sulfide (2) in Ar at 10 K; pyrolysis temperature: 850 °C. Bands attributed to the allyl radical are marked with an asterisk (*).

The excellent agreement between the experimental and unscaled M06-2X/6-311++G(2d,2p) as well as B3LYP/cc-pVTZ computed IR spectra is taken as evidence for the preparation of 1 (Fig. 1 and Fig. S1, ESI†). The most prominent IR bands attributed to 1 at 750 and 670 cm⁻¹ are also found in the precursors 2 and 3 and are thus assigned to the C–H out-of-plane vibrational modes of the phenyl ring (ν₈ and ν₉). The observed splitting of the vibrational bands is likely due to the different trapping sites in the argon matrix, which is a common phenomenon.⁴⁴ With the aid of the computations, the additional other intense IR bands of medium intensity at 1553, 1433, 1066, 1019, 989, and 415 cm⁻¹ are assigned to 1 (Fig. 1, Fig. S1, Table 1 and Table S1, ESI†). Another set of absorption bands located at 1477, 1389, 984, and 801 cm⁻¹ provides evidence for the presence of the allyl radical formed as a co-product of the thermal decomposition of 2 (Fig. 1c). The IR observed vibrational bands match well with the fundamentals of 1 (Table 1 and Table S1, ESI†) computed anharmonically at the B3LYP/cc-pVTZ level of theory.

Table 1 Experimental (Ar matrix, 10 K) and computed anharmonic IR frequencies of 1, band origins in cm⁻¹, and computed intensities (km mol⁻¹) in parentheses

Mode	Computed^a	Ar, 10 K^b	Sym.	Assignment (approx.)
a UB3LYP/cc-pVTZ, anharmonic approximation, unscaled, intensities (in parentheses) in km mol^−1. b Experiment: argon matrix, 10 K; approximate relative intensities (w: weak, m: medium, s: strong).
25	1581 (25)	1553 (s)	a 1	C=C str
24	1565 (4)	1544 (w)	b 2	C=C str
23	1475 (23)	1433 (m)	a 1	C–H def
22	1437 (2)	1419 (w)	b 2	C–H def
21	1336 (0)	—	b 2	C–H def
20	1257 (1)	1263 (w)	b 2	C=C str + C–H def
19	1190 (1)	1152 (w)	a 1	C–H def
18	1170 (0)	—	b 2	C–H def
17	1075 (23)	1066 (m)	a 1	C–S str + ring distortion
16	1075 (4)	—	b 2	Ring distortion
15	1030 (5)	1019 (m)	a 1	Ring distortion
14	999 (0)	—	b 1	C–H o.o.p. def
13	997 (1)	989 (m)	a 1	Ring breathing
12	976 (0)	—	a 2	C–H o.o.p. def
11	896 (2)	908 (w)	b 1	C–H o.o.p. def
10	835 (0)	—	a 2	C–H o.o.p. def
9	738 (42)	750 (s)	b 1	C–H o.o.p. def
8	701 (30)	670 (s)	b 1	C–H o.o.p. def
7	699 (8)	662 (w)	a 1	C–S str + ring distortion
6	624 (0)	—	b 2	Ring distortion
5	475 (8)	451(w)	b 1	Ring breathing
4	419 (0)	—	a 2	Ring breathing
3	408 (0)	415 (w)	a 1	Ring breathing

---

The UV/Vis spectrum of matrix isolated 1 reveals a strong absorption band at λ_max = 295 nm (Fig. S2, ESI†). It closely resembles the previously reported spectrum of 1 in the gas phase²³ and is in good agreement with its computed UV/Vis spectrum using time-dependent density functional theory (TD-DFT): TD-M06-2X/6-311++G(2d,2p) computations of the excitations exhibit two weak transitions at 310 nm (f = 0.001) and 360 nm (f = 0.0037) as well as two very intense transitions at 246 nm (f = 0.0141) and 228 nm (f = 0.1744), respectively.

At the UM06-2X/6-311++G(2d,2p) and UB3LYP/cc-pVTZ levels of theory the allylic C–S BDE energies of 2 are 58.7 kcal mol⁻¹ and 48.4 kcal mol⁻¹, whereas the BDE of the S–S bond in 3 amounts to 64.8 kcal mol⁻¹ and 56.5 kcal mol⁻¹, respectively. In accord with earlier theoretical studies,^45,46 the UM06-2X/6-311++G(2d,2p) optimized geometry of 1 shows a planar structure with a ²B₁ electronic ground state; the lowest excited state (²B₂) lies 7.3 kcal mol⁻¹ higher at the CASPT2/6-311++G(3df,3pd) level (complete active space second-order perturbation theory),⁴⁷ in excellent agreement with the experimental value of 7.4 ± 0.2 kcal mol⁻¹.⁴⁶ The C–S bond of 1 (1.756 Å) is shorter than that in thiophenol (1.772 Å) at the same level of theory. No significant geometrical changes were observed in the phenyl ring in comparison with thiophenol (Fig. S3, ESI†). This indicates that the unpaired electron spin is largely localized on the sulfur atom, in marked contrast to other highly delocalized aryl radicals such as the phenoxy and phenylaminyl radicals that both show significant spin delocalization over the ring as well.⁴⁸ This can be derived from the spin density distributions of these radicals (Fig. 2).

Fig. 2 Computed spin densities of 1, 4, 5, and the phenoxy – as well as the phenylaminyl radicals – at the UM06-2X/6-311++G(2d,2p) level of theory and a comparison with the phenoxy and phenylaminyl radicals (heteroatom at the top in all cases).

Phenylthiyl peroxy radical 4

We utilized 3 for the synthesis of 4 because 2 is less suitable as a precursor for 4 as the concomitantly formed allyl radical (6) reacts with molecular oxygen to give the allylperoxy radical.⁴⁹ Doping argon matrices containing the products of the VFP of 3 with variable oxygen concentrations in the range of 0.1–2% resulted in significant changes in the IR spectra. Most notably, these changes occurred in the area of out-of-plane (o.o.p) C–H vibration modes between 800 and 600 cm⁻¹. New bands appeared and grew at 751 and 686 cm⁻¹ by increasing the oxygen concentration and by annealing the matrix up to 35 K for several minutes (and re-cooling before measurement). In the presence of ∼1% of O₂1 is essentially quantitatively consumed.

According to our M06-2X/6-311G++G(2d,2p) and B3LYP/cc-pVTZ computations, 4 displays two conformers, namely a gauche (4g) form and a slightly higher-lying trans (4t) form (Fig. S4, ESI†). The conformer 4g displays no symmetry (C₁), whereas 4t shows C_s symmetry and has an ²A′′ electronic ground state. The experimental data indicate the presence of only one conformer (4g) in the argon matrix. At the M06-2X/6-311G++G(2d,2p) and B3LYP/cc-pVTZ levels, 4g is 0.5 and 0.6 kcal mol⁻¹ (including the zero point vibrational energy correction, ZPVE, denoted as ΔH₀) more stable than conformer 4t, respectively. The activation barrier for the 4g → 4t isomerisation is +0.9 and +1.3 kcal mol⁻¹ (ΔH₀), respectively (Fig. S4, ESI†).

The new IR absorptions were assigned to 4 (Scheme 1 and Fig. 3); in highly diluted matrices (0.1% of O₂), the monomers predominate. Annealing the matrices containing 1 and O₂ (0.1–1%) at temperatures above 30 K allows small trapped molecules to diffuse^50,51 and this results in an increase of bands of 4g. In addition, dilution experiments allowed us to differentiate dimers from higher aggregates. The new bands appear only when both 1 and O₂ are present in the matrix, and the band intensities increase if the concentration of one of the components increases. We therefore assigned these bands to the out-of-plane vibration (o.o.p.) C–H modes ν₈ and ν₉ of 4g. Moreover, the good agreement between the computed and experimental spectra of the isotopologues (C₆H₅S¹⁸O₂) also confirms the successful preparation of 4. For example, the strong IR band at 1173 cm⁻¹ shows a strong isotope red shift by 64 cm⁻¹ and is thus assigned to the O–O stretch (computed at 1239 cm⁻¹) of 4g, in reasonable agreement with the calculated shift of 83 cm⁻¹. Other medium and weak bands at 1442, 1310, 1279, 1090 and 475 cm⁻¹ were also attributed to 4g. The unscaled UM06-2X/6-311++G(2d,2p) computed frequencies of the ¹⁶O₂–4g and ¹⁸O₂–4g isotopologues agree well with the experimentally observed frequencies (Table S2, ESI†). Similar to 4, the reaction of the phenyl radical with O₂ was investigated using the matrix isolation technique.⁵¹ The reaction of alkyl radicals with oxygen analogously results in the formation of alkylperoxy radicals, which usually proceed without or with very low barriers.^51–53

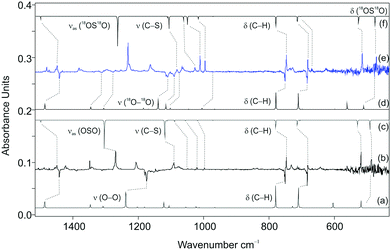

Fig. 3 (a) IR spectrum of 4 computed at M06-2X/6-311++G(2d,2p) (unscaled). (b) IR difference spectra showing the photochemistry of 4 after irradiation at λ = 465 nm in argon at 10 K. Downward bands assigned to 4 disappear while upward bands assigned to 5 appear after 60 s of irradiation time. (c) IR spectrum of 5 computed at M06-2X/6-311++G(2d,2p) (unscaled). (d) IR spectrum of ¹⁸O₂–4 computed at M06-2X/6-311++G(2d,2p) (unscaled). (e) IR difference spectra showing the photochemistry of ¹⁸O₂–4 after irradiation at λ = 465 nm in argon at 10 K. Bands pointing downwards assigned to ¹⁸O₂–4 disappear and bands pointing upwards assigned to ¹⁸O₂–5 appear after 60 s of irradiation time. (f) IR spectrum of ¹⁸O₂–5 computed at M06-2X/6-311++G(2d,2p) (unscaled).

The fundamental question whether the formation of 4 by addition of molecular oxygen to 1 is an exothermic or endothermic process is not yet unambiguously answered by theory. The reported ΔE value computed at BHLYP/cc-pVTZ indicates a mildly exothermic process (−7.9 kcal mol⁻¹) for the formation of 4.⁸ According to our M06-2X/6-311++G(2d,2p) and B3LYP/cc-pVTZ computations, the reaction of 1 with molecular oxygen is also exothermic by −7.6 kcal mol⁻¹ and −8.1 kcal mol⁻¹ (−6.0 and −6.9 kcal mol⁻¹, ΔH₀); MP2/cc-pVDZ gives an exothermicity of −5.9 kcal mol⁻¹. As anticipated for an exothermic radical reaction, no transition state was found for the C₆H₅S + ³O₂ → C₆H₅SOO addition. Similarly, no barrier could be located for the ³O₂ addition to the vinyl radical to produce the vinylperoxy radical.⁵⁴ The formation of 4 in a thermal reaction at temperatures as low as 30 K in our matrix indicates a very small or no activation barrier for this reaction, in accordance with our theoretical assessment.

Photochemistry of 4

Irradiation of the matrix in the broad absorption band of 4 at λ = 465 nm resulted in the disappearance of all IR absorption bands assigned to 4, and simultaneously, at least two distinct species formed during photolysis. The product distribution observed upon photodissociation of 4 depended markedly on the initial concentration of O₂. Irradiation of the matrices obtained by co-condensation of pyrolysis products with an argon mixture containing ∼0.5–1% of O₂ resulted in the appearance of IR bands at 1436, 1271, 1093, 1049, 1021, 997, 747, 681, 668, 518, and 487 cm⁻¹ and these were attributed to 5. A comparison of the computed (UM06-2X/6-311++G(2d,2p), unscaled) and experimental IR frequencies of two isotopically substituted radicals allowed their unambiguous identification (Table S3, ESI†). In particular, we found a large ¹⁸O isotope shift for a band at 1271 cm⁻¹ (−39 cm⁻¹ expt., −41 cm⁻¹ theor.), which was assigned to the OSO asymmetric vibration of 5. The experimental ¹⁸O isotope shift of −22 cm⁻¹ was also observed for the OSO symmetric vibration, in reasonable agreement with a computed shift of −28 cm⁻¹. Furthermore, the expected band shifts were also observed for the OSO deformation vibration (an experimental shift of −15 cm⁻¹ and a theoretical shift of −16 cm⁻¹).

In accordance with earlier theoretical studies,⁸ the rearrangement of 4 to 5 is exothermic by −61.9, −60.4 and −57.2 kcal mol⁻¹ (M06-2X/6-311++G(2d,2p), B3LYP/cc-pVTZ, and MP2/cc-pVDZ ΔH₀). The optimized geometry shows a planar C_s structure with a ²A′ electronic state, where the spin density is delocalized over the sulfonyl moiety (Fig. 2). The transformation process 4 → 5 through the transition state TS2 is associated with a barrier of +23.1 and +25.2 kcal mol⁻¹, respectively (M06-2X/6-311++G(2d,2p) and B3LYP/cc-pVTZ, ΔH₀, Fig. S5, ESI†).

Conclusion

The phenylthiyl radical 1 was synthesized by VFP of allylphenylsulfide and diphenylsulfide in argon and characterized using matrix isolation IR and UV/Vis spectroscopic methods. Radical 1 reacts with molecular triplet oxygen to form the hitherto unreported phenylthiyl peroxy radical 4 both in the gas phase and in argon matrices. The formation of 4 under matrix isolation conditions indicates that this reaction proceeds with a low or no activation barrier. Photolysis of a matrix of 4 with light at λ = 465 nm led to the formation of the considerably more stable phenylsulfonyl radical (5), which is also a novel species. The experimentally observed IR spectra are consistent with the spectra computed at the UM06-2X/6-311++G(2d,2p) and UB3LYP/cc-pVTZ levels of theory.

Experimental details

Matrix apparatus design

For the matrix isolation studies, we used an APD Cryogenics HC-2 cryostat with a closed-cycle refrigerator system, equipped with an inner CsI window for IR measurements. Spectra were recorded using a Bruker IFS 55 FT-IR spectrometer with a spectral range of 4500–400 cm⁻¹ and a resolution of 0.7 cm⁻¹, and UV/Vis spectra were recorded using a JASCO V-670 spectrophotometer. For the combination of vacuum flash pyrolysis with matrix isolation, we employed a small, home-built, water-cooled oven, which was directly connected to the vacuum shroud of the cryostat. The pyrolysis zone consisted of an empty quartz tube with an inner diameter of 8 mm, which was resistively heated over a length of 50 mm by a coaxial wire. The temperature was monitored using a NiCr–Ni thermocouple. Allylphenylsulfide 2 and diphenylsulfide 3 (Sigma-Aldrich) were evaporated (2: 5 °C, 3: 60 °C) from a storage bulb into the quartz pyrolysis tube. At a distance of approximately 50 mm, all pyrolysis products were co-condensed with a large excess of argon (typically 60–120 mbar from a 2000 mL storage bulb) on the surface of the matrix window at 11 K. Several experiments with pyrolysis temperatures ranging from 600 to 960 °C were performed in order to determine the optimal pyrolysis conditions. A high-pressure mercury lamp (HBO 200, Osram) with a monochromator (Bausch & Lomb) was used for irradiation.

Computations

All geometries were optimized and characterized as minima or transition structures by means of analytical harmonic vibrational frequency computations at the M06-2X/6-311++G(3d,3p), B3LYP/cc-pVTZ, and MP2/cc-pVDZ levels of theory (for more details, refer to the ESI†).^55–58 All computations were performed using the Gaussian09 program.⁵⁹

Acknowledgements

This paper is dedicated to Prof. Grzegorz Mloston (Lodz University) for his seminal contributions to organic sulfur chemistry. This work was supported by the Deutsche Forschungsgemeinschaft (Schr 597/19-1).

Notes and references

1. F. Dénès, M. Pichowicz, G. Povie and P. Renaud, Chem. Rev., 2014, 114, 2587–2693.
2. T. Hashimoto, Y. Kawamata and K. Maruoka, Nat. Chem., 2014, 6, 702–705.
3. M. Kolberg, K. R. Strand, P. Graff and K. Kristoffer Andersson, Biochim. Biophys. Acta, Proteins Proteomics, 2004, 1699, 1–34.
4. E. Torrents, P. Aloy, I. Gibert and F. Rodríguez-Trelles, J. Mol. Evol., 2002, 55, 138–152.
5. J. S. Lim, Y. S. Lee and S. K. Kim, Angew. Chem., Int. Ed., 2008, 47, 1853–1856.
6. G. A. Amaral, F. Ausfelder, J. G. Izquierdo, L. Rubio-Lago and L. Bañares, J. Chem. Phys., 2007, 126, 024301.
7. O. Ito, Res. Chem. Intermed., 1995, 21, 69–93.
8. K. J. Tan and U. Wille, Chem. Commun., 2008, 6239–6241.
9. V. T. D'Souza, R. Nanjundiah, J. Baeza H and H. H. Szmant, J. Org. Chem., 1987, 52, 1720–1725.
10. V. T. D'Souza, V. K. Iyer and H. H. Szmant, J. Org. Chem., 1987, 52, 1725–1728.
11. M. I. Chung, V. T. D'Souza and H. H. Szmant, J. Org. Chem., 1987, 52, 1741–1744.
12. D. F. Taber, G. J. Gorski, L. M. Liable-Sands and A. L. Rheingold, Tetrahedron Lett., 1997, 38, 6317–6318.
13. O. Ito, R. Omori and M. Matsuda, J. Am. Chem. Soc., 1982, 104, 3934–3937.
14. O. Ito and M. Matsuda, J. Phys. Chem., 1984, 88, 1002–1005.
15. O. Ito and M. Matsuda, J. Org. Chem., 1984, 49, 17–20.
16. O. Ito and M. Matsuda, J. Am. Chem. Soc., 1982, 104, 1701–1703.
17. O. Ito and M. Matsuda, J. Am. Chem. Soc., 1981, 103, 5871–5874.
18. O. Ito and M. Matsuda, J. Am. Chem. Soc., 1979, 101, 1815–1819.
19. O. Ito, Y. Arito and M. Matsuda, J. Chem. Soc., Perkin Trans. 2, 1988, 869–873.
20. L. Wang and P. E. Floreancig, Org. Lett., 2004, 6, 569–572.
21. S. Knapp, M. R. Madduru, Z. Lu, G. J. Morriello, T. J. Emge and G. A. Doss, Org. Lett., 2001, 3, 3583–3585.
22. I. Reva, M. J. Nowak, L. Lapinski and R. Fausto, Phys. Chem. Chem. Phys., 2015, 17, 4888–4898.
23. G. Porter and F. J. Wright, Trans. Faraday Soc., 1955, 51, 1469–1474.
24. M. Bonifacic, J. Weiss, S. A. Chaudhri and K. D. Asmus, J. Phys. Chem., 1985, 89, 3910–3914.
25. G. N. R. Tripathi, Q. Sun, D. A. Armstrong, D. M. Chipman and R. H. Schuler, J. Phys. Chem., 1992, 96, 5344–5350.
26. P. J. Zandstra and J. D. Michaelsen, J. Chem. Phys., 1963, 39, 933–938.
27. U. Schmidt, Angew. Chem., Int. Ed., 1964, 3, 602–608.
28. F. G. Bordwell, X.-M. Zhang, A. V. Satish and J. P. Cheng, J. Am. Chem. Soc., 1994, 116, 6605–6610.
29. D. A. Armstrong, Q. Sun and R. H. Schuler, J. Phys. Chem., 1996, 100, 9892–9899.
30. R. M. Borges dos Santos, V. S. F. Muralha, C. F. Correia, R. C. Guedes, B. J. Costa Cabral and J. A. Martinho Simões, J. Phys. Chem. A, 2002, 106, 9883–9889.
31. A. K. Chandra, P.-C. Nam and M. T. Nguyen, J. Phys. Chem. A, 2003, 107, 9182–9188.
32. H. P. Reisenauer, P. R. Schreiner, J. Romanski and G. Mloston, J. Phys. Chem. A, 2015, 119, 2211–2216.
33. H. P. Reisenauer, J. Romanski, G. Mloston and P. R. Schreiner, Chem. Commun., 2013, 49, 9467–9469.
34. R. J. Charlson, J. E. Lovelock, M. O. Andreae and S. G. Warren, Nature, 1987, 326, 655–661.
35. M. O. Andreae, C. D. Jones and P. M. Cox, Nature, 2005, 435, 1187–1190.
36. I. Faloona, Atmos. Environ., 2009, 43, 2841–2854.
37. A. A. Turnipseed, S. B. Barone and A. R. Ravishankara, J. Phys. Chem., 1992, 96, 7502–7505.
38. J. Mönig, K.-D. Asmus, L. G. Forni and R. L. Willson, Int. J. Radiat. Biol., 1987, 52, 589–602.
39. M. Tamba, G. Simone and M. Quintiliani, Int. J. Radiat. Biol., 1986, 50, 595–600.
40. M. D. Sevilla, D. Becker and M. Yan, Int. J. Radiat. Biol., 1990, 57, 65–81.
41. D. Becker, S. Swarts, M. Champagne and M. D. Sevilla, Int. J. Radiat. Biol., 1988, 53, 767–786.
42. S. G. Swarts, D. Becker, S. DeBolt and M. D. Sevilla, J. Phys. Chem., 1989, 93, 155–161.
43. X. Zhang, N. Zhang, H.-P. Schuchmann and C. von Sonntag, J. Phys. Chem., 1994, 98, 6541–6547.
44. S. Jagannathan, J. R. Cooper and C. L. Wilkins, Appl. Spectrosc., 1989, 43, 781–786.
45. P. Mulder, O. Mozenson, S. Lin, C. E. S. Bernardes, M. E. Minas da Piedade, A. F. L. O. M. Santos, M. A. V. Ribeiro da Silva, G. A. DiLabio, H.-G. Korth and K. U. Ingold, J. Phys. Chem. A, 2006, 110, 9949–9958.
46. J. S. Lim, I. S. Lim, K.-S. Lee, D.-S. Ahn, Y. S. Lee and S. K. Kim, Angew. Chem., Int. Ed., 2006, 45, 6290–6293.
47. J. S. Lim, H. Choi, I. S. Lim, S. B. Park, Y. S. Lee and S. K. Kim, J. Phys. Chem. A, 2009, 113, 10410–10416.
48. R. Crespo-Otero, K. Bravo-Rodriguez, S. Roy, T. Benighaus, W. Thiel, W. Sander and E. Sánchez-García, ChemPhysChem, 2013, 14, 805–811.
49. E. G. Baskir and O. M. Nefedov, Russ. Chem. Bull., 1996, 45, 99–106.
50. A. Mardyukov and W. Sander, Eur. J. Org. Chem., 2010, 2904–2909.
51. A. Mardyukov and W. Sander, Chem. – Eur. J., 2009, 15, 1462–1467.
52. S. Nandi, S. J. Blanksby, X. Zhang, M. R. Nimlos, D. C. Dayton and G. B. Ellison, J. Phys. Chem. A, 2002, 106, 7547–7556.
53. E. B. Jochnowitz, X. Zhang, M. R. Nimlos, B. A. Flowers, J. F. Stanton and G. B. Ellison, J. Phys. Chem. A, 2010, 114, 1498–1507.
54. A. M. Mebel, E. W. G. Diau, M. C. Lin and K. Morokuma, J. Am. Chem. Soc., 1996, 118, 9759–9771.
55. Y. Zhao and D. G. Truhlar, Theor. Chem. Acc., 2008, 120, 215–241.
56. A. D. Becke, Phys. Rev. A: At., Mol., Opt. Phys., 1988, 38, 3098–3100.
57. C. Lee, W. Yang and R. G. Parr, Phys. Rev. B: Condens. Matter Mater. Phys., 1988, 37, 785–789.
58. B. Miehlich, A. Savin, H. Stoll and H. Preuss, Chem. Phys. Lett., 1989, 157, 200–206.
59. M. J. Frisch, et al., Wallingford CT, 2013.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c6cp04278c

---
