Self-assembly behaviours of primitive and modern lipid membrane solutions: a coarse-grained molecular simulation study

Abstract

Researchers have studied the origin of life and the process of evolution on early Earth for decades. However, we lack a comprehensive understanding of biogenesis, because there are many stages in the formation and growth of the first cell. We investigate the self-replication processes of coacervate protocells using computer simulations of single-chain lipid and phospholipid aqueous mixtures. Based on a morphological phase diagram, we develop a model of prebiotic self-replication driven by only environmental factors (i.e. temperature and lipid concentrations) without any external force. Moreover, we investigate high concentration structures during the process of self-replication. These structures have an advantage in fusion and repair of cell membranes. Therefore, lipid hot spots may have existed in primordial soup.

---

1 Introduction

Alexander Oparin came out with “The Origin of Life”¹ in 1936. In the book, he proposed the “coacervate theory” to explain the origin of life on the early Earth. A coacervate is a tiny spherical droplet of assorted lipids that spontaneously forms when concentrated mixtures of macromolecules occur at the right temperature, ion, and pH conditions. Since coacervates resemble living cells, Oparin suggested that they were the precursors to the first life. However, in modern theories, coacervates are no longer considered to be direct precursors to the first cells; life is thought to have gone through many intermediate steps before becoming cellular.

Sutherland's group discovered that pyrimidine nucleotides can be readily synthesized from ribose, a simple prebiotic molecule, bypassing the more difficult routes.² This discovery offers persuasive support for the RNA world hypothesis.³ It was a significant step to explain how a complex molecule like a ribonucleic acid (RNA) was formed on the primitive Earth. Alternative models of prebiotic evolution include the peptide nucleic acid (PNA) world hypothesis,⁴ protein world hypothesis,⁵ and panspermia hypothesis.^6,7

We focus on the self-replication processes of primitive coacervate cells in the primordial soup. All cells are wrapped in membranes that consist mainly of lipids. Cell membranes collect cellular constituents together and prevent the free penetration of large molecules. Modern cell membranes are composed of lipids, cholesterols, and functional proteins. Some proteins are capable of selective water transport,^8–10 and have a function of constructing and repairing membranes.^11,12 On the other hand, the primitive protocell can accomplish these tasks without proteins. Moreover, it has metabolic and self-replicative functionality. The earliest life may have been simple fatty acid membranes self-replicating in water. Protocells would compete against each other by proliferating, and then adapt to their surroundings. Growth and division are two processes necessary for protocell proliferation.

The study of the fatty acid may lead to the elucidation of the origin of terrestrial life. In the 1990s, Luisi et al.¹³ added fatty acids to a vesicular solution. These workers observed that when a fatty acid is introduced to the vesicle membrane, the surface area and volume increase. Chen et al.^14,15 carried out an experiment on the control of the concentration in a vesicular solution. When a concentration gradient arises across the interior and exterior of a vesicle, water molecules intrude into the vesicle by an osmotic pressure to equalize the concentration between the interior and exterior, and then, tension of the membrane increases. To decrease its membrane tension, the high-tension vesicle grows by competing with nearby vesicles for additional fatty acids.

The nearby vesicles losing their fatty acids shrink and disappear. Zhu et al.^16,17 found that spherical vesicles form filament-like shapes with their growth. The filament-like vesicle is fragile; by weak external force, it disaggregates into smaller vesicles, which are spherical protocells. Szostak et al. argued that these processes facilitated many rounds of self-replication.

Self-assembled structures such as micelles, vesicles and bi-layer membranes have already been reported.^18–21 Recent studies use functional molecules or heterogeneous lipid mixtures to control self-assembled structures. Morrow et al.¹⁹ used a molecular dynamics method to simulate pH-sensitive surfactant solutions. These authors demonstrated pH-dependent morphologies including the formation of a gel-state bilayer at low and intermediate pH, and a spherical micelle at high pH. Chen and Hao²⁰ performed molecular simulations to determine a phase diagram of self-assembly in cationic–anionic surfactant mixtures. This simulation result indicated that the aggregation number, shape, and composition respond to changes in the surfactant ratio. Hu²¹ used dissipative particle dynamics simulations to investigate the self-assembly in lipid and dendritic molecule mixtures at varying hydrophilic/hydrophobic ratios. Structures characteristic of different mixing ratios include the high-genus vesicle, toroidal vesicle, oblate vesicle, and perforated vesicle. However, the self-assembly behaviour of the fatty acid itself has not been investigated fully.^22–24

We investigate the potential for oleic acid and dipalmitoylphosphatidylcholine to have been primitive biomolecules. We present a detailed phase diagram at different vol% of molecules and temperature, using coarse-grained molecular simulations. Based on the result, we discuss the morphological features of a mechanism of self-replication proposed by Szostak et al.^14–17

2 Method and models

2.1 Dissipative particle dynamics

Dissipative particle dynamics^25–28 (DPD) is a powerful mesoscopic simulation tool enabling the simulation of events occurring in millisecond timescales and on micrometre length scales. DPD particles represent coarse-grained atoms or molecules subject to three types of forces: conservative, dissipative, and random. Since its introduction a decade ago, this method has been used to model various biomolecular systems, including the rupture and reconstruction of the cell membrane,^29–31 DNA controlled assembly,^32,33 and movement of a molecular motor.^34,35 We also employ the DPD method to simulate fatty acid and phospholipid solutions, and to investigate their morphologies depending on the concentration and temperature.

The motions of DPD particles obey Newton's equations of motion,

where i is the particle index, m is the mass of a particle, v is the velocity, F^C_ij is a conservative force, F^D_ij is a dissipative force, and F^R_ij is a pairwise random force. The conservative force is normally a soft repulsion type and is given bywhere a_ij is the interaction parameter to determine the magnitude of the repulsive force between particles i and j, r_c is a cut-off radius, r_ij = r_i − r_j, and n_ij = r_ij/|r_ij|. The dissipative force and random force are given, respectively, byandHere σ is noise amplitude, γ is the friction coefficient, ω^D and ω^R are r-dependent weight functions, v_ij = v_i − v_j and ζ_ij is a random fluctuating variable with Gaussian statistics.

The dissipative force and the random force are linked by the fluctuation–dissipation theorem,²⁷ thereby one of the two weight functions appearing in eqn (3) and (4) can be chosen arbitrarily with a relation between the amplitude and k_BT,

σ² = 2γk_BT, (5)

For eqn (3) and (4), k_B is the Boltzmann constant and T is temperature. Usually, reduced units are adopted for reporting the DPD results. The DPD unit of length is the cut-off radius, r_c, the unit of mass is the particle mass, m, and the unit of energy is k_BT.

2.2 Simulation model and conditions

We adopted a mesoscopic representation of the molecular components of the system, namely, oleic acid (OA), dipalmitoylphosphatidylcholine (DPPC), and water, as shown in Fig. 1. The OA and DPPC are primitive and modern components of the cell membrane, respectively. The coarse-grained OA model consists of three kinds of beads: hydrophobic head beads, H₁, and hydrophobic tail beads, T₁ and T₂. The coarse-grained DPPC model also uses three kinds of beads: hydrophobic head beads, H₂ and H₃, and hydrophobic tail beads, T₁. A pair of nearest-neighbour beads in the mesoscopic models is connected by a harmonic spring with a spring constant k_s of 100 k_BT/r_c², and an equilibrium bond length r_s of 0.86 r_c. The spring force is given by F^S_ij = −k_s(|r_ij| − r_s)n_ij. A single water bead, W, corresponds to four or five water molecules. The interaction parameters a_ij between bead pairs are shown in Table 1. To determine the interaction parameters of the mesoscopic simulation models, we used J-OCTA simulation software.³⁶ This software estimates the cohesive energy, solubility, the Flory–Huggins parameter, and the equilibrium structures of OA and DPPC. The interaction parameter of the same kind of bead (a_ii) can be determined from dimensionless compressibility parameters.^28,37 In this study, we set a_ii = 147.71 k_BT/r_c. On the other hand, the interaction parameter for different kinds of beads (a_ij) is obtained by the equation a_ij = a_ii + 3.268χ_ij where χ is the Flory–Huggins parameter when the number density ρ = 3.0. The noise parameter σ and friction parameter γ are set at 3.0 and 4.5, respectively.

Fig. 1 Molecular structure and mesoscopic models of an oleic acid (a1, a2) and dipalmitoylphosphatidylcholine (DPPC) (b1, b2). The hydrophobic and hydrophilic beads are depicted in red and blue, respectively.

Table 1 Interaction parameters a_ij (in k_BT/r_c unit) between bead pairs

	H1	H2	H3	T1	T2	W
H1	147.71	148.58	147.73	195.84	187.21	155.24
H2	148.58	147.71	148.89	209.66	199.82	150.98
H3	147.73	148.89	147.71	193.75	185.32	156.09
T1	195.84	209.66	193.75	147.71	148.13	241.43
T2	187.21	199.82	185.32	148.13	147.71	229.22
W	155.24	150.98	156.09	241.43	229.22	147.71

---

We can convert the reduced length unit to SI units by examining the membrane thickness. Usually, the thickness of a DPPC bilayer is about 4.7 nm in vitro.³⁸ Considering that the thickness is about 4.4r_c in our simulations, we can yield r_c ∼ 1.06 nm.

Two series of computer simulations are carried out in this study. The first series simulates OA solutions and the second series simulates DPPC solutions. To illustrate the phase diagram, we select the concentration c and temperature T as axes. Each initial configuration is random, and the equilibrated systems are simulated in constant-volume and constant-temperature ensembles. A periodic boundary condition is adopted for all directions of the simulation cells. We used cell length (L) values of 15.9, 21.2, 26.5, 31.8, and 42.4 nm. For each L and molecular model, we performed 80 simulations, i.e. four different temperatures ranging from 0.5 to 2.0 k_BT and 20 different concentrations ranging from 2.5 to 100%.

To give an estimate of the values of the reduced temperatures T* in terms of physical temperatures T, we have mapped T* onto T according to the linear relation,³⁹i.e. T = aT* + b. The values of the coefficients a and b were obtained using the reduced and physical values of the melting point, and the OA vesicle disruption temperatures.⁴⁰ The resulting values are a = 21.7 °C and b = 4.3 °C. For the DPPC lipid, we found that a and b are 8.6 °C and 32.6 °C, respectively.

3 Results

3.1 Morphologies of OA solution

Firstly, we studied phase behaviour of OA solutions. In Fig. 2, we show a phase diagram of the system and representative snapshots of equilibrium morphologies. The vertical axis of the phase diagram is the temperature T and the horizontal axis is the concentration c of the OA monomers.

Fig. 2 A schematic phase diagram of the oleic acid solutions. The vertical axis is the temperature T and the horizontal axis is the oleic acid simulational concentration c. (a–k) Representative snapshots of equilibrium morphologies of oleic acid solutions. (a) Disk like micelle for T = 15.2 °C and c = 10%; (b) spherical vesicle for T = 36.8 °C and c = 10%; (c) bi-layer and micelles for T = 15.2 °C and c = 30%; (d) bi-layer with a column for T = 15.2 °C and c = 40%; (e) double bi-layer for T = 47.7 °C and c = 40%; (f) cross bi-layer for T = 15.2 °C and c = 55%; (g) bi-layer network for T = 36.8 °C and c = 60%; (h) sponge like phase for T = 26.0 °C and c = 80%; (i) gyroid phase for T = 15.2 °C and c = 100%; (j) hexagonal phase for T = 26.0 °C and c = 100%; and (k) disordered phase separation for T = 36.8 °C and c = 100%. Colour code: the hydrophobic groups, hydrophilic groups, and water molecules are red, blue, and cyan, respectively.

As expected, some micelles are formed at very low concentration (c ≤ 20%). Randomly dispersed OA molecules aggregated into several isolated spherical micelles for a short time period. After that the spherical micelles collided with each other, and fused together if they overcame an energy barrier. Eventually, the micelles transitioned to other shapes, depending on the aggregation number. When T ≥ 25 °C, collisions and fusions of micelles occurred frequently. A spherical vesicle (Fig. 2b) is formed at c ∼ 10%. As T increased beyond 45 °C, a tube-like vesicle appeared. The tube-like vesicle was also observed as a filamentous vesicle in vitro.¹⁵ On the other hand, at lower T, the collision of micelles occurred rarely. Moreover, the curvature of the aggregated structure decreased at low temperature.^41,42 Each micelle had low mean aggregation and low flexibility; accordingly, the vesicle could not form even at c ∼ 20%; however, a disk like micelle emerged (Fig. 2a). As c increased to ∼30%, a cell membrane is formed (Fig. 2c). The membrane stemmed from an opened vesicle, which became more stable than the closed vesicle as c increased.

With further increasing c, a threadlike micelle or a filamentous vesicle composed of excess OAs budded from the membrane, and a bi-layer with a column structure was observed (Fig. 2d). The bud grew up thicker and wider as c increased. A cross bi-layer, which is two bi-layers crossed perpendicularly, emerged at c ∼ 55% (Fig. 2f). However, when the temperature was high (T = 45 °C), the membrane fluctuated rapidly. The column did not develop, but a double bi-layer is formed (Fig. 2e). When c was higher than 60%, the bi-layers intricately intertwined, forming a complex network structure (Fig. 2f). As c increased further, several water domains emerged separately, and a sponge-like phase (Fig. 2h) emerged in the range of 70% < c < 90%. When water was almost exhausted from the system, a gyroid (Fig. 2i) or hexagonal phases emerged at low temperature; at high temperatures, the ordered structure was broken up, and a phase-separated morphology emerged (Fig. 2k).

To confirm the reproducibility of our observations, we carried out five independent simulations for some conditions. Our replicate simulations included conditions for forming a vesicle, bi-layer, and bi-layer with a column. Each simulation was begun with randomized initial parameters; the final morphologies were nearly the same, regardless of the initial parameters.

3.2 Morphologies of DPPC solution

Next, we draw the phase diagram for the DPPC lipid solution in order to show that the above-mentioned argument does not depend on the biomolecule; this argument even applies to a modern phospholipid. In Fig. 3, we show the T versus c phase diagram, and representative snapshots of equilibrium morphologies. The vertical axis of the phase diagram is the temperature T, and the horizontal axis is the concentration of the DPPC monomers c.

Fig. 3 A schematic phase diagram of the DPPC lipid solutions. The vertical axis is the temperature T and the horizontal axis is the oleic acid simulational concentration c. (a–h) Representative snapshots of equilibrium morphologies of DPPC lipid solutions. (a) Cylindrical micelle for T = 41.1 °C and c = 10%; (b) vesicle (cross-sectional view) for T = 45.4 °C and c = 10%; (c) bi-layer for T = 36.8 °C and c = 30%; (d) bi-layer with a column for T = 36.8 °C and c = 40%; (e) bi-layer network for T = 45.4 °C and c = 60%; (f) sponge like phase for T = 45.4 °C and c = 70%; (g) BCC phase for T = 45.4 °C and c = 90%; (h) disordered phase separation for T = 49.7 °C and c = 100%. Colour code: the hydrophobic groups, hydrophilic groups, and water molecules are red, blue, and cyan, respectively.

From low c through moderate c, micelles (Fig. 3a), vesicles (Fig. 3b), and bi-layers (Fig. 3c and d) formed as easily from DPPC as they formed from OA. The bi-layer of DPPC is slightly thicker than that of OA because of the size of the molecule. Whereas the vesicle emerged at T ≥ 25 °C in the OA solution, it emerged at T ≥ 35 °C in the DPPC solution. As c increased to 40%, a bi-layer with a column (Fig. 3d) formed. With further increasing c, water molecules were wrapped in the column, and then it grew thicker. As c continued to increase, the mixture exhibited a network morphology (Fig. 3e), followed by a sponge morphology (Fig. 3f). At c ∼ 85% and T ≤ 45 °C, the body centred cubic (BCC) structure (Fig. 3g) emerged. Eventually, at c ∼ 95%, a disordered and phase-separated morphology emerged at all temperatures (Fig. 3h).

4 Discussion

In our simulations, a phospholipid constituting modern membranes and a primitive fatty acid exhibit various morphologies and phases depending on their concentrations and temperatures in water. In both solutions, a bi-layer membrane is formed at c ∼ 20% (Fig. 2c and 3d). As c increases, a threadlike micelle or a filamentous vesicle, composed of excess lipids, comes out from it (Fig. 2d and 3e). This behaviour corresponds to a “vesicle budding”, in which the excess part is unstable compared to the membrane bi-layer.^43–45 Therefore, it is torn easily by an environmental factor or thermophysical property. Actually, it is experimentally observed¹⁷ that a long filamentous vesicle is a fragile aggregate, and is easily divided into multiple vesicles by an external shear force.

The fluctuations of each lipid increase naturally if the temperature increases. The excess part, such as a tube-like vesicle, is divided from the membrane (Fig. 2d and 3d) when temperature of the aqueous solution increases. After that, the divided parts aggregate to form a spherical vesicle (vesiculation); the exposed hydrophobic groups are surrounded by water, and consequently become a new protocell (Fig. 4).

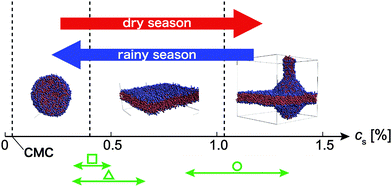

Fig. 4 A schematic depicting concentration-dependent transitions in protocell morphology. Red and blue arrows represent increasing and decreasing concentration, respectively. Points are early experimental conditions as follows. Square: The data reported by Zhu et al.,¹⁷ circle: the data reported by Budin et al.,⁵¹ triangle: the data reported by Zhu et al.¹⁶ (CMC: critical micelle concentration and CMC for oleic acid = 0.03%⁵³).

First, fatty acids (or lipids) collected in a puddle on the early Earth. They gathered mutually by a chemical interaction, and as a result, many micelles and vesicles formed (as modelled by the coacervate theory). During the dry season, the concentration of the lipid would increase due to evaporation from the puddle. Accordingly, micelles and vesicles would merge into giant vesicles, which do not have local curvatures, and can be regarded as a flat membrane locally (Fig. 2c). With further increasing concentration, tube-like vesicles would bud from the membranes. After that, as the temperature increased (due to seasonality or a local heat source), bud fission would occur. Then during the rainy season, concentration and temperature would decrease, and the fission products would have become new protocells. This sequence would be repeated over a long period of time.

It is known that morphological phase boundaries depend on the size of the lipid–water system. For example, the simulational concentration (c) of about 30% yields a periodic bilayer when the system size is 15.9³ nm³. However, this bilayer forms at c ∼ 18% when the system size is 42.4³ nm³. In other words, the concentration at which a particular morphology is observed decreases exponentially with the increasing system size. We used five simulation box sizes to investigate the effect of size on morphology, and estimated a scaling factor for the concentration in our simulations (see the ESI†). The concentration at which the bilayer membrane is formed decreases exponentially with the increasing length of a side of the cubic simulation box. The data are fitted to the function of f(x) = Ax^B, where A and B are constant. Next, we estimated the scaled physical concentration (c_s) on the early Earth by fitting with an actual size by those curves. As a result, in our simulation, the vesicle appears in the c_s range of about 0.1–0.8%, consistent with in vitro observations of, 0.28–0.85%.^15,17 Actually, the early processes of cell division and growth are thought to be functions of the giant sizes (1 μm order) at which many vesicles probably existed.^46,47 If the system sizes were set to 10³ μm³, we calculate that the lipid concentrations necessary for bilayer and budding bilayer formation would be 0.55% and 1.05%, respectively. In light of the estimated error arising from our use of a power function fit to five values, the lipid concentration necessary to form a bilayer ranges from 0.48% to 0.62%. Therefore, coacervates proliferate if concentrations change by more than 1% (e.g., due to seasons).

Next, we consider the physical meaning of the fitted curve's constant in Fig. S1 (ESI†). The concentration (C_BL) at which the bilayer is formed is attenuated with the box length L (slope factor −0.58). However, the slope factor of C_BL for L is generally −1.0. The explanation is as follows. The concentration C_BL, density ρ, and area density of the membrane ρ_a are given by N_l/N, N/L³, and N_l/L², respectively. Here, N_l is the number of lipid molecules. The concentration can be expressed as

Thus, C_BL ∝ L⁻¹, when ρ and ρ_a are constant. In our simulation, however, C_BL ∝ L^−0.58. This discrepancy arises because ρ_a is not constant, whereas ρ is constant. The box size dependence of ρ_a is shown in Fig. S2 (ESI†). The area density increases exponentially with increasing L because the membrane fluctuation becomes large. The data were fit to ρ_a(L) = A·L^B; the constants A and B were 2.50 and 0.42, respectively. In other words, ρ_a ∝ L^0.42. Substituting this result in eqn (7),This result is consistent with the morphological phase depending on the size of the simulation box (Fig. S1, ESI†). For the molecular simulation in which a limited box size is used, membrane formation is affected by the box size. It is important to reproduce the membrane fluctuation properly.

As shown in Fig. 4, due to slight changes in concentration, various self-assembly structures or phases arise. For that reason, when the concentration of OA is more than 1.05% in the dry-season (concentration-increasing processes), the tubes budding from the bi-layers grow, leading to the cross bi-layer (Fig. 2f) and network (Fig. 2g) morphologies. These structures have many small chambers (water domains separated by a bi-layer). We can regard each small chamber as a small vesicle separated by cell membranes. This transition corresponds to the processes of vesicle fusion. In this state, since the volume of a cell membrane is relatively low, the rate of chemical interaction for a nucleotide and its precursors phosphoric acid, sugar, and amino acid would be enhanced. It is expected that were these materials to have different concentrations between neighbouring chambers, osmolality gaps would facilitate the exchange of chemicals across membranes. Also, these chambers constantly fuse and divide due to thermal fluctuation. In other words, it is expected that self-replication is achieved without external stimuli, for example, shear or electric forces.^17,48 Moreover, in this study, to investigate basic processes of cell division, we employed the primitive biomolecule, OA, and simulated simple OA solutions. However, in modern cell membranes, not only a primary lipid, but also steroids, cholesterols, and proteins coexist.⁴⁹ They have complex structures and functions, and diffuse throughout the modern cell membrane. Therefore, in high-concentration phases (network and sponge), when membrane is damaged, lipids or proteins are easily exchanged for membrane from a neighbouring chamber by translational and flip-flop motions.

To represent the origin of life, several experiments using an oleic acid vesicle have been carried out in recent years.^16,17,50,51 The Szostak group proposes that vesicle replication is mediated through cycles of growth and division of vesicles. Zhu et al.¹⁶ prepared unilamellar fatty acid vesicles using the dehydration/rehydration method, and applied various shear rates to the solution. As a result, many spherical (daughter) vesicles were formed from long filamentous vesicles with modest shear forces. These authors mention that vesicle pearling and division have important implications for understanding the origin of cellular life.

Budin et al.⁵¹ investigated the concentration dependence of fatty acid aggregation. They observed different phases in the fatty acid solutions, including soluble monomers, micelles, and lamellar vesicles, depending on concentration and pH. The micelle–vesicle equilibrium is changed by the concentration: lower concentrations favour smaller micellar aggregates, and higher concentrations favour larger vesicle aggregates. They reported that the micelle–vesicle equilibrium can be used to drive the growth of vesicles upon increasing the amphiphile concentration. Based on this experimental result, they proposed a model for a driven cell cycle.

Zhu et al.¹⁷ described an alternative process for protocell division based on simple chemical mechanisms. In their model, protocell division is facilitated by thiol-rich surface environments featuring UV-absorbing polycyclic aromatic hydrocarbons. They suggested that the control of the timing of cell division by the thiol redox state is a mechanism by which an initial dependence on environmental fluctuations could have transitioned to an internally controlled process. The temperature and monomer concentration conditions reported for these in vitro experiments (plotted in Fig. 4) are consistent with the phase boundaries that we observe in silico. This result strongly supports our discussion.

At low OA or DPPC concentrations, a similar vesicle, bi-layer, and bi-layer with column morphologies arise depending on the concentration. However, these self-assembled structures are observed at DPPC concentrations slightly higher than their OA counterparts, because the molecular structure of DPPC is more complex than that of OA. Also, since the 41.3 °C melting temperature of DPPC⁵² is relatively high, the temperature at which DPPC vesicles form is slightly higher than that for OA vesicles. Therefore, for a modern lipid, prebiotic proliferation proceeds via changing the concentration and temperature, similar to the primitive molecule but at slightly elevated concentrations and temperatures. This observation suggests that the process we report is common to biomolecules, though morphological phase boundary concentrations and temperatures depend on the molecular participants.

5 Conclusions

We modelled the morphological behaviour and temperature–concentration phase diagrams of prebiotic solutions featuring oleic acid and DPPC. A vesicle, membrane (a giant vesicle), and membrane with a vesicle tube are continuously formed at different concentrations and temperatures. Temperature and concentration changes were caused by environmental variations on the early Earth; concentration changes would have resulted from seasonal increases or decreases in the water volume of the primordial soup. Seasonality would have also driven temperature changes, as would have the movement of vesicles across a temperature gradient (perhaps due to geothermal heating).

High-concentration structures correspond to states when vesicles are quite close, or in the middle of fusion. These structures have an advantage in the fusion and repair of cell membranes. Hence, during the process of self-replication, locally high concentrations of lipid hot spots may have existed in the primordial soup.

Acknowledgements

We thank Dr T. Ozawa and Mr T. Nakayama (JSOL Corporation) for assistance with the construction of parameters for mesoscopic models.

References

1. A. I. Oparin, The origin of life, The Macmillan Company, US, 1938.
2. M. W. Powner, B. Gerland and J. D. Sutherland, Nature, 2009, 459, 239–242.
3. W. Gilbert, Nature, 1986, 319, 618.
4. P. E. Nielsen, M. Egholm, R. H. Berg and O. Buchardt, Science, 1991, 254, 1497–1500.
5. K. Ikehara, Int. J. Mol. Sci., 2009, 10, 1525–1537.
6. I. S. Shklovskii and C. Sagan, Intelligent life in the universe, Dell, NY, 1966.
7. F. H. Crick and L. E. Orgel, Icarus, 1973, 19, 341–346.
8. P. Agre, G. M. Preston, B. L. Smith, J. S. Jung, S. Raina, C. Moon, W. B. Guggino and S. Nielsen, Am. J. Physiol., 1993, 265, F463–F476.
9. P. Agre, L. S. King, M. Yasui, W. B. Guggino, O. P. Ottersen, Y. Fujiyoshi, A. Engel and S. Nielsen, J. Physiol., 2002, 542, 3–16.
10. P. Agre, Proc. Am. Thorac. Soc., 2006, 3, 5–13.
11. D. Bansal, K. Miyake, S. S. Vogel, S. Groh, C. C. Chen, R. Williamson, P. L. McNeil and K. P. Campbell, Nature, 2003, 423, 168–172.
12. C. Cai, H. Masumiya, N. Weisleder, N. Matsuda, M. Nishi, M. Hwang, J. K. Ko, P. Lin, A. Thornton, X. Zhao, Z. Pan, S. Komazaki, M. Brotto, H. Takeshima and J. Ma, Nat. Cell Biol., 2008, 11, 56–64.
13. P. L. Luisi, P. Walde and T. Oberholzer, Curr. Opin. Colloid Interface Sci., 1999, 4, 33–39.
14. I. A. Chen, R. W. Roberts and J. W. Szostak, Science, 2004, 305, 1474–1476.
15. I. Budin and J. W. Szostak, Proc. Natl. Acad. Sci. U. S. A., 2011, 108, 5249–5254.
16. T. F. Zhu and J. W. Szostak, J. Am. Chem. Soc., 2009, 131, 5705–5713.
17. T. F. Zhu, K. Adamala, N. Zhang and J. W. Szostak, Proc. Natl. Acad. Sci. U. S. A., 2012, 109, 9828–9832.
18. N. Arai, K. Yasuoka and Y. Masubuchi, J. Chem. Phys., 2007, 126, 244905.
19. B. H. Morrow, P. H. Koenig and J. K. Shen, Langmuir, 2013, 29, 14823–14830.
20. J. Chen and J. Hao, Phys. Chem. Chem. Phys., 2013, 15, 5563–5571.
21. J.-M. Hu, W.-D. Tian and Y.-Q. Ma, RSC Adv., 2013, 4, 59785–59791.
22. S. M. Sagnella, C. E. Conn, I. Krodkiewska and C. J. Drummond, Phys. Chem. Chem. Phys., 2011, 13, 13370–13381.
23. J. F. D. Liljeblad, E. Tyrode, E. Thormann, A.-C. Dublanchet, G. Luengo, C. M. Johnson and M. W. Rutland, Phys. Chem. Chem. Phys., 2014, 16, 17869–17882.
24. A.-L. Fameau, A. Arnould, M. Lehmann and R. von Klitzing, Chem. Commun., 2015, 51, 2907–2910.
25. P. J. Hoogerbrugge and J. M. V. A. Koleman, Europhys. Lett., 1992, 19, 155–160.
26. Y. Kong, C. W. Manke, W. G. Madden and A. G. Schlijper, Int. J. Thermophys., 1994, 15, 1093–1101.
27. P. Espanõl and P. B. Warren, Europhys. Lett., 1995, 30, 191–196.
28. R. D. Groot and P. B. Warren, J. Chem. Phys., 1997, 107, 4423–4435.
29. X. Li, Y. Liu, L. Wang, M. Deng and H. Liang, Phys. Chem. Chem. Phys., 2009, 11, 4051–4059.
30. N. Arai, K. Yasuoka and X. C. Zeng, Nanoscale, 2013, 5, 9089–9100.
31. T. Yue, X. Zhang and F. Huang, Phys. Chem. Chem. Phys., 2014, 16, 10799–10809.
32. S. Y. Park, A. K. R. Lytton-Jean, B. Lee, S. Weigand, G. C. Schatz and C. A. Mirkin, Nature, 2008, 451, 553–556.
33. P. Cigler, A. K. R. Lytton-Jean, D. G. Anderson, M. G. Finn and S. Y. Park, Nat. Mater., 2010, 9, 918–922.
34. N. Arai, K. Yasuoka, T. Koishi and T. Ebisuzaki, ACS Nano, 2010, 4, 5905–5913.
35. N. Arai, K. Yasuoka, T. Koishi, T. Ebisuzaki and X. C. Zeng, J. Am. Chem. Soc., 2013, 135, 8616–8624.
36. J-OCTA, JSOL Corporation, http://www., j-octa.
37. R. D. Groot and K. L. Rabone, Biophys. J., 2001, 81, 725–736.
38. A. L. Liu, Advances in Planar Lipid Bilayers and Liposomes, Academic Press, 2006, vol. 3.
39. M. Venturoli, B. Smit and M. M. Sperottoz, Biophys. J., 2005, 88, 1778–1798.
40. P. L. Luisi and P. Stano, The minimal cell: The biophysics of cell compartment, The origin of cell functionality, Springer, Netherlands, 2010.
41. H. J. Risselada and S. J. Marrink, Phys. Chem. Chem. Phys., 2009, 11, 2056–2067.
42. C.-P. Chng, Soft Matter, 2013, 9, 7294–7301.
43. J. S. Bonifacino and B. S. Glick, Cell, 2004, 116, 153–166.
44. S. Yamamoto and S. Hyodo, J. Chem. Phys., 2003, 118, 7937–7943.
45. M. Laradji and P. B. S. Kumar, J. Chem. Phys., 2005, 123, 224902.
46. F. Ilhan, T. H. Galow, M. Gray, G. Clavier and V. M. Rotello, J. Am. Chem. Soc., 2000, 122, 5895–5896.
47. Y. Yu, J. A. Vroman, S. C. Bae and S. Granick, J. Am. Chem. Soc., 2010, 132, 195–201.
48. H. Terasawa, K. Nishimura, H. Suzuki, T. Matsuura and T. Yomo, Proc. Natl. Acad. Sci. U. S. A., 2012, 109, 5942–5947.
49. S. J. Singer and G. L. Nicolson, Science, 1972, 175, 720–731.
50. M. M. Hanczyc, S. M. Fujikawa and J. W. Szostak, Science, 2003, 302, 618–622.
51. I. Budin, A. Debnath and J. W. Szostak, J. Am. Chem. Soc., 2012, 134, 20812–20819.
52. R. Biltonen and D. Lichtenberg, Chem. Phys. Lipids, 1993, 64, 129–142.
53. K. Murakami, S. Y. Chan and A. Routtenberg, J. Biol. Chem., 1986, 261, 15424–15429.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c6cp02380k

---
