Dielectric characteristics of fast Li ion conducting garnet-type Li_5+2xLa₃Nb_2−xY_xO₁₂ (x = 0.25, 0.5 and 0.75)

Abstract

Here, we report the dielectric characteristics of Li-stuffed garnet-type Li_5+2xLa₃Nb_2−xY_xO₁₂ (x = 0.25, 0.5 and 0.75) in the temperature range about −53 to 50 °C using AC impedance spectroscopy. All the investigated Li-stuffed garnet compounds were prepared, under the same condition, using conventional solid-state reaction at elevated temperature in air. The Nyquist plots show mainly bulk contribution to the total Li⁺ ion conductivity for Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb) and Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb), while both bulk and grain-boundary effects are visible in the case of Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb) phase at ∼−22 °C. Non-Debye relaxation process was observed in the modulus AC impedance plots. The dielectric loss tangent of Li_5+2xLa₃Nb_2−xY_xO₁₂ are compared with that of the corresponding Ta analogue, Li_5+2xLa₃Ta_2−xY_xO₁₂ and showed a decrease in peak intensity for the Nb-based garnet samples which may be attributed to a slight increase in their Li⁺ ion conductivity. The relative dielectric constant values were also found to be higher for the Ta member (>60 for Li_5+2xLa₃Ta_2−xY_xO₁₂) than that of the corresponding Nb analogue (∼50 for Li_5+2xLa₃Nb_2−xY_xO₁₂) at below room temperature. A long-range order Li⁺ ion migration pathway with relaxation time (τ₀) 10⁻¹⁸–10⁻¹⁵ s and an activation energy of 0.59–0.40 eV was observed for the investigated Li_5+2xLa₃Nb_2−xY_xO₁₂ garnets and is comparable to that of the corresponding Ta-based Li_5+2xLa₃Ta_2−xY_xO₁₂ garnets.

---

Introduction

Currently, lithium ion batteries (LIBs) attain much attention because of their high volumetric and gravimetric energy densities, which make them suitable for possible applications from portable devices to electric vehicles and grid scale to support the peak power demand. However, there is a long-term remaining safety concern related to the presently used organic polymer-based Li⁺ ion electrolytes in LIBs and they must be replaced with thermally stable fast Li⁺ ion conductors. To this end, several families of inorganic metal oxides and non-oxides have been investigated, of which recently discovered, Li-stuffed garnet-type metal oxides are a potential class of solid-state Li⁺ ion conductors for all-solid-state LIBs due to their excellent physical and chemical properties.^1–7 Briefly, the garnet structure is known to accommodate Li content ranging from 24 to 56 ions per unit cell. Increasing the Li content in Li-stuffed garnets decreases the occupation of tetrahedral Li⁺ ions and increases the population of octahedral coordinated Li⁺ ions in the cubic garnet-type structure.⁸ Except Li₃-phase, Li₃Ln₃Te₂O₁₂ (Ln = Y, Pr, Nd, Sm–Lu), the Li⁺ ions in tetrahedral and octahedral sites are partially filled in all other known Li-stuffed garnets, which make unique structural disorders for fast ion conduction.⁹ Doping Ba²⁺ for La³⁺ and Zr⁴⁺ for Nb⁵⁺/Ta⁵⁺ showed an increase in the conductivity of the parent Li₅La₃M₂O₁₂ (M = Nb, Ta).^10,11 To date, the garnet with the nominal chemical formula Li_6.4La₃Zr_1.4Ta_0.6O₁₂, exhibits the highest bulk Li⁺ ion conductivity of 10⁻³ S cm⁻¹ at room temperature with an activation energy 0.35 eV (25–157 °C).¹² Zr and Ta-based garnets were found to be chemically stable towards reaction with Li anodes and showed an electrochemical stability window up to 6 V per Li.^13,14 The highly dense crystal structure makes it harder to understand the role of chemical doping at Li, La and M or M′ sites in Li-stuffed Li₅La₃M₂O₁₂, Li₆La₂AM₂O₁₂ (M = Ta, Nb; A = Ca, Sr, Ba), and Li₇La₃M′₂O₁₂ (M′ = Zr, Sn) garnets on Li⁺ ion transport properties.^15,16 Creating oxide ion vacancies by aliovalent doping at Nb-sites in Li₅La₃Nb₂O₁₂ decreased the bulk Li⁺ ion conductivity.¹⁷

It is important to understand the Li⁺ ion conduction mechanism in garnets to further improve Li⁺ ion conduction for advanced all-solid-state Li ion battery. It was predicted that the Li⁺ ions at octahedral sites in the garnet structure mainly attribute to the fast ionic conduction, and tetrahedral site Li⁺ ions seem to be responsible for maintaining the stability of the garnet framework structure.⁸ Solid-state ⁷Li magic angle spinning nuclear magnetic resonance (MAS NMR) and density functional theory (DFT) studies further support the above proposed Li⁺ ion conduction mechanism in the garnet structure.^18,19 Furthermore, several studies have been carried out to understand the chemical composition and Li⁺ ion dynamics relationship in these Li-stuffed garnets using neutron diffraction, NMR, electrochemical AC impedance spectroscopy and DFT calculations.^8,10,19–31 The present study is focused on analyzing the dielectric properties of Li_5+2xLa₃Nb_2−xY_xO₁₂ (x = 0.25, 0.5 and 0.75) using electrochemical AC impedance spectroscopy to better understand the Li⁺ ion conduction mechanism in the Li-stuffed garnets.

Experimental

Single phase cubic structured garnet-type Li_5+2xLa₃Nb_2−xY_xO₁₂ (x = 0.25, 0.5 and 0.75 which are represented as Li_5.5–Nb, Li₆–Nb and Li_6.5–Nb, respectively) were prepared by solid-state reaction at elevated temperature.³² The stoichiometric amount of the precursors of high purity LiNO₃ (99%, Alfa Aesar), La₂O₃ (99.99%, Alfa Aesar, preheated at 900 °C for 24 h), Nb₂O₅ (99.5%, Alfa Aesar), and Y(NO₃)₃ (99.9%, Alfa Aesar) were ball milled to ensure homogeneity. 10 wt% excess LiNO₃ was added to compensate the loss of lithium oxide while sintering. Heating at different stages were carried out at 700 °C/6 h, 900 °C/24 h and 1100 °C/6 h. The dielectric analyses were carried out using the AC impedance spectroscopy employing a Solartron 1260 impedance/gain-phase analyzer (0.01 Hz to 1 MHz) in the temperature range of −53 to 50 °C in air. The temperature was controlled below room temperature using dry ice.³³ The pellet garnet samples for AC impedance measurements were painted with Au paste on both sides and were cured for 1 h at 600 °C.

Results and discussion

AC impedance spectroscopy

Typical AC impedance spectra of cubic structured garnet-type Li_5+2xLa₃Nb_2−xY_xO₁₂³² (x = 0.25, 0.5 and 0.75 which are represented as Li_5.5–Nb, Li₆–Nb and Li_6.5–Nb, respectively) at −22 °C are shown in Fig. 1. The Li_5.5–Nb and Li₆–Nb phases of Li_5+2xLa₃Nb_2−xY_xO₁₂ show a single semicircle, which corresponds to bulk (b) contribution at higher frequency range and a spike at the low-frequency range due to polarization resistance. The line spacing through the data points is fitted using an equivalent circuit consisting of (R_bCPE_b)(CPE_e) for Li_5.5–Nb and Li₆–Nb (where R_b is the bulk resistance, CPE_b is the constant phase element due to bulk and CPE_e is the constant phase element due to electrode). The R_b is the low-frequency intercept to real axis and the bulk capacitance was found to be in the order of ∼10⁻¹¹ F. The Li_6.5–Nb phase shows an additional distorted semi-circle corresponding to grain-boundary (gb) contribution (capacitance ∼ 10⁻⁸ F) at low-frequency and it can be described using an equivalent circuit (R_bCPE_b)(R_gbCPE_gb)(CPE_e) (where R_gb is the grain-boundary resistance, CPE_gb is the constant phase element due to gb). The electrode capacitance was found to be in the order of 10⁻⁷ F. As reported earlier,³² the density of Li_5+2xLa₃Nb_2−xY_xO₁₂ garnet was found to be increasing with increase in Y and Li content. Also, there are some impurity peaks observed in the PXRD spectra of highly doped Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb) phase. These factors might be contributing to the presence of grain-boundary impedance in Li_6.5–Nb compared to Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb) and Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb). The total resistance (R) (bulk + grain-boundary) was used to estimate the total Li⁺ ion conductivity (σ) from the low-frequency intercept point of Z′′ (imaginary part of impedance) to the X-axis (Z′, real part of the impedance) (Fig. 1). The Li⁺ ion conductivity was calculated using the eqn (1):where l is the sample thickness and a is the area of current collector. The Li⁺ ion conductivity dependence on temperature was represented as the Arrhenius plots (Fig. 2) and they can be described using the eqn (2):where T is the temperature, A is the pre-exponential factor, E_a is the activation energy, and k is the Boltzmann's constant (1.38 × 10⁻²³ J K⁻¹). The Li⁺ ion conductivity of samples increases from Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb) to Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb), which is consistent with the increase in cell parameter (a) calculated from powder X-ray diffraction (PXRD). The cell constant was found to be 12.8582(5) Å, 12.9136(4) Å and 12.9488(11) Å for Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb), Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb), and Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb), respectively.³² The activation energy calculated for Li_5.5–Nb, Li₆–Nb and Li_6.5–Nb phases are 0.59, 0.58 and 0.42 eV, respectively, in the temperature range of −53 to 50 °C (Table 1) which is in agreement with the Li⁺ ion conductivity trend.

Fig. 1 Typical complex impedance spectra obtained using Li⁺ ion blocking Au electrodes for Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb), Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb) and Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb) at about −22 °C. The line spacing through the data points is fitted using an equivalent circuit consisting of (R_bCPE_b)(CPE_e) for Li_5.5–Nb and Li₆–Nb and (R_bCPE_b)(R_gbCPE_gb)(CPE_e) for Li_6.5–Nb.

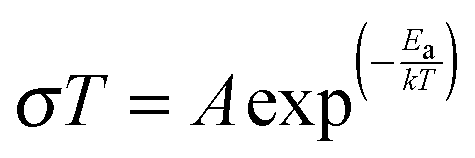

Fig. 2 Arrhenius plots of bulk Li ion conductivity of Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb), Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb), and total (bulk + grain-boundary) Li⁺ ion conductivity of Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb). The line passing through the data points is the fitted line using eqn (2).

Table 1 The bulk (except bulk + grain-boundary for Li_6.5–Nb) conductivity of Li_5+2xLa₃Nb_2−xY_xO₁₂ at −22 and 25 °C and the activation energy calculated from the Arrhenius plot (Fig. 2) at temperature range −53 to 50 °C

Sample	σ −22°C (S cm^−1)	σ 25°C (S cm^−1)	E a (eV)
Li5.5La3Nb1.75Y0.25O12 (Li5.5–Nb)	1.50 × 10^−6	7.18 × 10^−5	0.59
Li6La3Nb1.5Y0.5O12 (Li6–Nb)	4.20 × 10^−6	1.87 × 10^−4	0.58
Li6.5La3Nb1.25Y0.75O12 (Li6.5–Nb)	1.27 × 10^−5	2.99 × 10^−4	0.42

---

The relationship of conductivity (σ) and frequency is expressed by the Jonscher universal power law³⁴i.e.,:

σ_ω = σ_dc + Aωⁿ (3)

where ω is the angular frequency, σ_dc is the dc conductivity, A is the proportionality constant, and n is the power factor which varies from 0 to 1. Shown in Fig. 3 is the Li⁺ ion conductivity as a function of frequency for Li_5+2xLa₃Nb_2−xY_xO₁₂ in the temperature range from −53 to 50 °C. The dispersion region seen at lower frequency range is due to the polarization due to Li⁺ ion-blocking electrode. The frequency independent dc plateau region is seen at intermediate frequency range followed by a dispersion region. This could be explained by jump relaxation model which indicates that at intermediate frequencies, the ions hop from one site to the neighboring vacancy site contributing to the dc conductivity, and at higher frequencies the correlated alternative hopping along with the relaxation of ions contribute to the conductivity relaxation at the dispersion region.^35,36 For garnet-type oxide, the jumping of Li⁺ ions from one octahedral site to another octahedral-site (for e.g., 48g-site to the 96h-site) followed by the readjustment of surrounding ions causes the conductivity relaxation.²⁵

Fig. 3 The electrical conductivity of (a) Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb), (b) Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb) and (c) Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb) as a function of frequency at different temperatures obtained using AC impedance spectroscopy with Li⁺ ion blocking Au electrodes.

The real (ε′) and imaginary (ε′′) part of permittivity (ε) was computed using the eqn (4) and (5) as shown below:³⁷

where C₀ is the vacuum capacitance of the cell which is represented as C₀ = ε₀(a/l) (where ε₀ is the permittivity of free space = 8.854 × 10⁻¹⁴ F cm⁻¹). Fig. 4 shows the relation between the real part of permittivity (ε′) and frequency at different temperatures. It is noticeable that the dielectric constant decreases with frequency showing a constant minimum value. The upturn at the lower frequency region may be due to the blocking electrode–electrolyte polarization at the interface. When the frequency is increased, the periodical reversal of the field is increased and as a result the oscillating charges do not contribute to the dielectric constant. This causes a decrease in dielectric constant with increase in frequency. Dipolar polarization leads to formation of a plateau at the low-frequency region at higher temperature, which is clearly visible in the case of Li_6.5–Nb phase and also in the Ta series, Li_5+2xLa₃Ta_2−xY_xO₁₂ (x = 0.25, 0.5 and 0.75).²⁵ Shifting of the plateau towards high frequencies with increasing temperature indicates the increase in frequency of dipolar rotations, as Li⁺ ion mobility is enhanced due to the thermal activation.³⁸

Fig. 4 Estimated real part of permittivity (ε′) as a function of frequency of (a) Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb), (b) Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb) and (c) Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb) at different temperatures from AC impedance spectroscopy data collected using Li⁺ ion blocking Au electrodes.

The plot of imaginary part of the dielectric permittivity (ε′′) against frequency is illustrated in Fig. 5a–c. ε′′ is the dielectric loss factor which could be the combination of dipolar loss and conduction loss. The conduction loss is predominant at lower temperatures and appears as a straight line and shows inverse relationship to the angular frequency (ω) especially for Li_5.5–Nb and Li₆–Nb phases (Fig. 5a and b). In all the cases, the peak/plateau at lower frequencies due to dipolar polarization was observed (Fig. 4).

Fig. 5 Imaginary part of permittivity (ε′′) as a function of frequency of (a) Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb), (b) Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb) and (c) Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb) at different temperatures.

The dielectric loss tangent as a function of frequency of Li_5+2xLa₃Nb_2−xY_xO₁₂ is shown in Fig. 6. The peak observed in Li_5.5–Nb and Li₆–Nb phases can be attributed to the dielectric loss due to Li–Li dipolar rotations under the applied electrical field.²⁵ There seem to be two relaxation peaks for Li_6.5–Nb phases at intermediate frequencies, suggesting that an additional polarization loss occurs when compared to the Li_5.5–Nb and Li₆–Nb phases. The higher frequency peak may be attributed to the dielectric loss due to Li–Li dipolar rotation in the bulk.³⁹ The lower frequency peak in Fig. 6c seems to be due to the dielectric loss, as a result of grain-boundary polarization. This is consistent with the appearance of a grain-boundary arc in the AC impedance spectrum of Li_6.5–Nb phase (Fig. 1). The shift in loss tangent peaks towards higher frequencies with increase in temperature, similar to the real part of permittivity (ε′) as a function of temperature, indicates that both grain-boundary space charge polarization and Li–Li dipolar interaction in bulk are thermally activated processes.

Fig. 6 Dielectric loss tangent (δ) as a function of frequency of (a) Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb), (b) Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb) and (c) Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb) at different temperatures.

In Fig. 7, the loss tangent of both Nb with Ta members of Li_5+2xLa₃M_2−xY_xO₁₂ (M = Nb, Ta) at different temperatures is compared. A similar plot is observed, except for Li_6.5–Nb phase of Nb series Li_5+2xLa₃Nb_2−xY_xO₁₂, corresponding to bulk and grain-boundary contribution.³² However, very small values of peak intensity of Li_5+2xLa₃Nb_2−xY_xO₁₂ (Fig. 7b and c) compared to that of the Ta series Li_5+2xLa₃Ta_2−xY_xO₁₂ indicated that either there are fewer dipoles in the Nb garnets than in the Ta garnets or the mobility of the ions is higher in the presently investigated Nb garnets leading to a quick response of Li–Li dipoles to external electric field and resulting in less dielectric loss. Overall, the dielectric relaxation can be considered due to the main-body interactions as is common for the ionic conductor.³⁴ The relative permittivity/dielectric constant (ε_r) of Li_5+2xLa₃M_2−xY_xO₁₂ (M = Nb, Ta³²) were calculated using the capacitance (C), as given in eqn (6) and the results are summarized in Fig. 8.

Fig. 7 Comparison of dielectric loss tangent (δ) as a function of frequency of (a) Li_5.5-, (b) Li₆-, and (c) Li_6.5-phases of both Ta and Nb members of Li_5+2xLa₃M_2−xY_xO₁₂ (M = Nb and Ta²⁵) at different temperatures.

Fig. 8 The relative permittivity of Li_5.5-, Li₆-, and Li_6.5-phases Li_5+2xLa₃M_2−xY_xO₁₂ (M = Nb and Ta) at different temperatures.

The dielectric constant slightly increases with an increase in the Li content in the Ta series materials, although there is no trend in variation of ε_r with the Li content in the Nb series. With the increase in temperature, the value of the dielectric constant is increased in both Nb and Ta based garnets. The dielectric constant of the Nb garnets is found to be relatively higher than that of the Ta garnets. Generally, the higher the dielectric constant, the greater is the polarizability of the medium. Thus, the higher dielectric constant (Fig. 8) and lower dielectric loss (Fig. 7) in the Nb series materials seems to indicate that their Li⁺ ion mobility is higher compared to that of the Ta garnets since both Nb and Ta oxides exhibit similar ionic radius and electronic structure. A comparison of Li⁺ ionic conductivity of both Nb and Ta phases of Li_5+2xLa₃M_2−xY_xO₁₂ at specific temperatures is shown in Table 2.^7,25,32

Table 2 Comparison of ionic conductivity of both Nb and Ta phases of Li_5+2xLa₃M_2−xY_xO₁₂ at specific temperatures^7,25,32

	Li5+2xLa3Nb2−xYxO12		Li5+2xLa3Ta2−xYxO12
	T (°C)	σ (S cm^−1)	T (°C)	σ (S cm^−1)
Li5.5-phase	−33	4.52 × 10^−7	−35	5.94 × 10^−8
	−40	2.10 × 10^−7	−40	3.32 × 10^−8
Li6-phase	−33	1.21 × 10^−6	−35	5.84 × 10^−8
	−40	5.48 × 10^−7	−40	3.34 × 10^−8
Li6.5-phase	−21	1.60 × 10^−5	−20	9.85 × 10^−6
	−25	1.18 × 10^−5	−25	7.29 × 10^−6

---

Using modulus analysis, it is possible to understand the bulk relaxation properties in detail by suppressing the lower frequency phenomena, especially the electrode effect.³⁰ The complex dielectric modulus is expressed as eqn (7):

M = jωC₀(Z′ + Z′′) (7)

where the real and imaginary parts can be separated as M′ = ωC₀Z′ and M′′ = −ωC₀Z′′. The electric modulus accounts for the electric field relaxation in the material at a constant electric displacement.⁴⁰ The modulus spectra of Li_5.5–Nb, Li₆–Nb and Li_6.5–Nb phases of Li_5+2xLa₃Nb_2−xY_xO₁₂ samples, measured at a temperature range of −53 to −21 °C as a function of frequency is shown in Fig. 9. The electric modulus (M′′) shows a frequency independent behavior at the lower frequency region for all the samples. This indicates that the electrode polarization does not contribute to the electric modulus and the long-range migration of Li⁺ ion by hopping from one site to the neighboring site.³⁰ The presence of a peak in the modulus spectra has been ascribed to the relaxation associated with Li⁺ ion mobility.^25,30 The appearance of a high frequency side peak at lower temperatures could be due to the Li⁺ ion re-orientation relaxation as Li⁺ ion moves from one octahedron to another octahedron around the immobile tetrahedral site.²⁵ The shift in peak position towards higher frequencies with increase in temperature indicates that Li⁺ ion relaxation re-orientation is a thermally activated phenomenon. Also, it is noticeable that the peak tend to disappear in the Li_6.5–Nb phase which can be explained in terms of long-range order migration of the Li⁺ ion instead of local migration as seen in other members.²⁵

Fig. 9 Electric modulus M′′ as a function of frequency of (a) Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb), (b) Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb) and (c) Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb) at different temperatures.

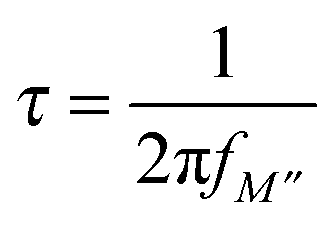

The relaxation time, τ is related to the frequency maximum in the modulus plots, f_M′′ as shown in eqn (8):

which can actually reveal the short range and/or the long range migration of Li⁺ in the crystal structure. Fig. 10 shows the Arrhenius behavior of the relaxation time, τ for the local motion of Li⁺ according to the eqn (9):where τ₀ is the relaxation time at infinite temperature and E_m is the migration energy. The migration energy calculated for Li_5.5–Nb, and Li₆–Nb and Li_6.5–Nb phases are 0.59, and 0.52, and 0.40 eV, respectively which is close to the theoretically calculated activation energy. The calculated relaxation time, τ was in the range of 10⁻¹⁵–10⁻¹⁸ s which decreases with Li content and is comparable with that of Ta family, Li_5+2xLa₃Ta_2−xY_xO₁₂.²⁵ The AC impedance or NMR analysis of some of the ionic conductors is mentioned here to get an idea of how the relaxation time varies in different electrolytes. In the polymer nano-composites of polyethylene oxide and lithium perchlorate, Li⁺ ions show relaxation times of micro seconds (10⁻⁶ s).⁴¹ The fastest Na ion conducting, Na β-alumina, has exhibited a relaxation time τ₀ of 10⁻¹² s.⁴² Solid-state ⁷Li NMR analysis of Li_1.3Al_0.15Y_0.15Ti_1.7(PO₄)₃ showed a relaxation time in the order of 10⁻¹² s.⁴³ For (BiI₃)_0.4–(Ag₃PO₄)_0.6 electrolyte, the mobile Ag⁺ ions showed a relaxation time of 10⁻⁷–10⁻¹¹ s.⁴⁴

Fig. 10 Arrhenius plots of relaxation time of (a) Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb), (b) Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb) and (c) Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb).

Conclusions

The transport mechanism of Li_5+2xLa₃Nb_2−xY_xO₁₂ (x = 0.25, 0.5 and 0.75) was studied in terms of their dielectric behavior at below room temperature. The bulk Li⁺ ion conductivity of the samples increases with an increase in the Li content and follows the trend, Li_5.5La₃Nb_1.75Y_0.25O₁₂ (Li_5.5–Nb) < Li₆La₃Nb_1.5Y_0.5O₁₂ (Li₆–Nb) < Li_6.5La₃Nb_1.25Y_0.75O₁₂ (Li_6.5–Nb) and also follows the cell constant trend. The Li⁺ ion conductivity as a function of frequency was found to follow the Jonscher universal power law. The modulus plots indicate a non-Debye behavior for Li⁺ ion relaxation. Relatively higher dielectric constants for the Nb members compared to that of the Ta members of Li_5+2xLa₃Nb_2−xY_xO₁₂ (M = Nb, Ta) could be explained in terms of the higher dipole moments and greater Li⁺ ion mobility. The calculated relaxation time, τ was 10⁻¹⁸, 10⁻¹⁷ and 10⁻¹⁵ s and the activation energy observed was 0.59, 0.52 and 0.40 eV for Li_5.5–Nb, Li₆–Nb and Li_6.5–Nb, respectively, of Li_5+2xLa₃Nb_2−xY_xO₁₂ from the relaxation profile.

Acknowledgements

The funding support from the Natural Sciences and Engineering Research Council of Canada (NSERC) through Discovery Grants (DG) program is acknowledged for this work.

References

1. V. Thangadurai, S. Narayanan and D. Pinzaru, Chem. Soc. Rev., 2014, 43, 4714–4727.
2. V. Thangadurai, D. Pinzaru, S. Narayanan and A. K. Baral, J. Phys. Chem. Lett., 2015, 6, 292–299.
3. L. Cheng, W. Chen, M. Kunz, K. Persson, N. Tamura, G. Chen and M. Doeff, ACS Appl. Mater. Interfaces, 2015, 7, 2073–2081.
4. A. Gupta, R. Murugan, M. P. Paranthaman, Z. Bi, C. A. Bridges, M. Nakanishi, A. P. Sokolov, K. S. Han, E. W. Hagaman, H. Xie, C. B. Mullins and J. B. Goodenough, J. Power Sources, 2012, 209, 184–188.
5. Y. Li, C.-A. Wang, H. Xie, J. Cheng and J. B. Goodenough, Electrochem. Commun., 2011, 13, 1289–1292.
6. S. Narayanan, G. T. Hitz, E. D. Wachsman and V. Thangadurai, J. Electrochem. Soc., 2015, 162, A1772–A1777.
7. S. Narayanan, F. Ramezanipour and V. Thangadurai, Inorg. Chem., 2015, 54, 6968–6977.
8. E. J. Cussen, J. Mater. Chem., 2010, 20, 5167.
9. E. J. Cussen, Chem. Commun., 2006, 412–413.
10. S. Narayanan, V. Epp, M. Wilkening and V. Thangadurai, RSC Adv., 2012, 2, 2553.
11. A. Ramzy and V. Thangadurai, ACS Appl. Mater. Interfaces, 2010, 2, 385–390.
12. Y. Li, J.-T. Han, C.-A. Wang, H. Xie and J. B. Goodenough, J. Mater. Chem., 2012, 22, 15357.
13. V. Thangadurai and W. Weppner, Adv. Funct. Mater., 2005, 15, 107–112.
14. R. Murugan, V. Thangadurai and W. Weppner, Angew. Chem., Int. Ed., 2007, 46, 7778–7781.
15. V. Thangadurai, H. Kaack and W. J. F. Weppner, J. Am. Ceram. Soc., 2003, 86, 437–440.
16. J. Percival, E. Kendrick, R. I. Smith and P. R. Slater, Dalton Trans., 2009, 5177–5181.
17. S. Narayanan and V. Thangadurai, J. Power Sources, 2011, 196, 8085–8090.
18. L. van Wullen, T. Echelmeyer, H. W. Meyer and D. Wilmer, Phys. Chem. Chem. Phys., 2007, 9, 3298–3303.
19. M. Xu, M. S. Park, J. M. Lee, T. Y. Kim, Y. S. Park and E. Ma, Phys. Rev. B: Condens. Matter Mater. Phys., 2012, 85, 052301.
20. E. J. Cussen and T. W. S. Yip, J. Solid State Chem., 2007, 180, 1832–1839.
21. M. P. O’Callaghan and E. J. Cussen, Chem. Commun., 2007, 2048–2050.
22. M. P. O’Callaghan, D. R. Lynham, E. J. Cussen and G. Z. Chen, Chem. Mater., 2006, 18, 4681–4689.
23. A. Kuhn, V. Epp, G. Schmidt, S. Narayanan, V. Thangadurai and M. Wilkening, J. Phys.: Condens. Matter, 2012, 24, 035901.
24. A. Kuhn, S. Narayanan, L. Spencer, G. Goward, V. Thangadurai and M. Wilkening, Phys. Rev. B: Condens. Matter Mater. Phys., 2011, 83, 094302.
25. A. K. Baral, S. Narayanan, F. Ramezanipour and V. Thangadurai, Phys. Chem. Chem. Phys., 2014, 16, 11356–11365.
26. M. M. Ahmad, Nanoscale Res. Lett., 2015, 10, 58.
27. M. M. Ahmad, Ceram. Int., 2015, 41, 6398–6408.
28. C. Deviannapoorani, L. Dhivya, S. Ramakumar and R. Murugan, J. Power Sources, 2013, 240, 18–25.
29. L. Dhivya, N. Janani, B. Palanivel and R. Murugan, AIP Adv., 2013, 3, 082115.
30. S. Ramakumar, L. Satyanarayana, S. V. Manorama and R. Murugan, Phys. Chem. Chem. Phys., 2013, 15, 11327–11338.
31. S. Ramakumar, N. Janani and R. Murugan, Dalton Trans., 2015, 44, 539–552.
32. S. Narayanan, F. Ramezanipour and V. Thangadurai, J. Phys. Chem. C, 2012, 116, 20154–20162.
33. A. M. Phipps and D. N. Hume, J. Chem. Educ., 1968, 45, 664.
34. A. K. Jonscher, Nature, 1977, 267, 673–679.
35. J. C. Dyre, J. Appl. Phys., 1988, 64, 2456–2468.
36. K. Funke, Solid State Ionics, 1997, 94, 27–33.
37. J. E. Diosa, R. A. Vargas, I. Albinsson and B. E. Mellander, Solid State Ionics, 2006, 177, 1107–1110.
38. A. Orliukas, A. Dindune, Z. Kanepe, J. Ronis, E. Kazakevicius and A. Kežionis, Solid State Ionics, 2003, 157, 177–181.
39. K. P. Padmasree, R. A. Montalvo-Lozano, S. M. Montemayor and A. F. Fuentes, J. Alloys Compd., 2011, 509, 8584–8589.
40. P. B. Macedo, C. T. Moynihan and R. Bose, Phys. Chem. Glasses, 1972, 13, 171–179.
41. S. Choudhary and R. J. Sengwa, Indian J. Eng. Mater. Sci., 2014, 21, 7–15.
42. K. L. Ngai and U. Strom, Phys. Rev. B, 1988, 38, 10350–10356.
43. T. Šalkus, E. Kazakevičius, A. Kežionis, A. Dindune, Z. Kanepe, J. Ronis, J. Emery, A. Boulant, O. Bohnke and A. F. Orliukas, J. Phys.: Condens. Matter, 2009, 21, 185502.
44. A. Saleem and S. A. Suthanthiraraj, Chem. Sci. Trans., 2014, 3, 847–853.

---
