Effect of cation structure on the oxygen solubility and diffusivity in a range of bis{(trifluoromethyl)sulfonyl}imide anion based ionic liquids for lithium–air battery electrolytes

Abstract

This paper reports on the solubility and diffusivity of dissolved oxygen in a series of ionic liquids (ILs) based on the bis{(trifluoromethyl)sulfonyl}imide anion with a range of related alkyl and ether functionalised cyclic alkylammonium cations. Cyclic voltammetry has been used to observe the reduction of oxygen in ILs at a microdisk electrode and chronoamperometric measurements have then been applied to simultaneously determine both the concentration and the diffusion coefficient of oxygen in different ILs. The viscosity of the ILs and the calculated molar volume and free volume are also reported. It is found that, within this class of ILs, the oxygen diffusivity generally increases with decreasing viscosity of the neat IL. An inverse relationship between oxygen solubility and IL free volume is reported for the two IL families implying that oxygen is not simply occupying the available empty space. In addition, it is reported that the introduction of an ether-group into the IL cation structure promotes the diffusivity of dissolved oxygen but reduces the solubility of the gas.

---

1 Introduction

In parallel with the development of new and, more importantly, sustainable technologies for energy production, significant research interest is also being paid towards the advancement of electrical energy storage systems. In addition to improving electrical energy storage systems in portable electronics, where lithium-ion (Li-ion) secondary batteries dominate at present, this aspiration also arises from the goal of developing the next generation of high energy capacity systems for electric vehicles (EVs) and hybrid-electric vehicles (HEVs).

Of all of the prospective secondary battery technologies, lithium–oxygen (Li–O₂) [or lithium–air (Li–air)] batteries have received significant interest in recent years. This attention, in both the academic and industrial fields, can be attributed to the remarkable theoretical specific energy of this particular chemistry, which is close to 3,458 W h kg⁻¹ based on the mass of the discharge product, lithium peroxide, Li₂O₂ (calculation based on the nominal voltage of 2.96 V).¹ However, many investigations have revealed important practical challenges associated with this electrochemistry, including high overpotentials during charging and discharging, and undesirable decomposition reactions of the electrolyte or electrode materials.^2,3 These factors dramatically reduce the efficiency and cyclability of such systems. As such, the primary focus of research into this field concerns investigations in search of stable electrolytes and cathode materials.

During the ideal discharge of Li–O₂ batteries, the oxygen reduction reaction (ORR) at the cathode generates a superoxide radical (O₂˙⁻) (1a) which, in turn, rapidly reacts with Li⁺ ions (1b) to form lithium-oxide discharge products; lithium superoxide (LiO₂) (1c) and, by disproportionation of LiO₂, lithium peroxide (Li₂O₂) (1d).^2,4

O₂ + e⁻ ⇌ O₂˙⁻ (1a)

Li ⇌ Li⁺ + e⁻ (1b)

O₂˙⁻ + Li⁺ ⇌ LiO₂ (1c)

2LiO₂ ⇌ Li₂O₂ + O₂ (1d)

Under ideal charging conditions, Li₂O₂ decomposition would occur exclusively to regenerate the reactants, Li⁺ and O₂. Although a seemingly simple reversible process, the particularly reactive nature of the superoxide species results in competing side reactions and significant electrolyte decomposition in many organic solvents. For example, in an organic carbonate based electrolyte, the O₂˙⁻ radical reacts almost entirely with the solvent to form lithium alkylcarbonates and Li₂CO₃ which passivate the electrode surface.⁵ Comparatively, both ether and DMSO based electrolytes, frequently used in Li–air battery studies, allow the reversible formation Li₂O₂ during cycling. However, while more stable than carbonate solvents, reactive decomposition of ether electrolytes becomes significant even after the first cycle.^6,7 On the other hand, competing side reactions in DMSO electrolytes are less favoured but these slower decomposition reactions between DMSO, Li₂O₂ and O₂˙⁻ have been observed and eventually lead to capacity fade.^8,9

Ionic liquids (ILs) have received growing attention due to their potential use as electrolytes for electrochemical energy storage devices and numerous advantages including non-flammability, negligible vapour pressure, hydrophobicity and good thermal and electrochemical stability. Perhaps most interestingly, the selection of ionic liquid structures, most notably utilising non-aromatic alkylammonium cations, is considered to exhibit good stability towards the superoxide radical.^10–12 Indeed, the electrochemical generation of O₂˙⁻ (ORR) has been studied in ionic liquids for over two decades and was first observed irreversibly in a 1-ethyl-3-methylimidazolium chloride–aluminium chloride IL.¹³ The first reported instance of the reversible electroreduction of O₂ (i.e. without significant and rapid side-reactions between O₂˙⁻ and the IL) was observed at a glassy carbon macroelectrode in 1-butyl-3-methylimidazolium hexafluorophosphate ([C₄mim][PF₆])¹⁴ and has since been reported in numerous other studies concerning imidazolium, tetraalkylammonium and tetraalkylphosphonium based ILs.^{10,11,15–22} Nevertheless, while the long-term stability of aromatic imidazolium-based ILs towards O₂˙⁻ is understood to be insufficient for battery application,²³ several recent reports have highlighted that ILs based on non-aromatic cyclic alkylammonium cations may not be as stable as previously proposed.^24,25 Furthermore, it has been reported that the stability of the IL is, as expected, dependant on both cation and anion species.²⁶

Among several contributing factors affecting the rate capability and power output of Li–air batteries, the supply of reactants to the cathode surface is very significant. The other factors include, but are not limited to, cathode porosity,²⁷ electrolyte and gas penetration into the porous cathode,^28,29 and cathode surface passivation with insoluble discharge products.³⁰ The question of transporting and supplying the reactants brings to light the major drawback of using IL-based electrolytes. ILs are typically quite viscous and, although this class of liquids are completely ionic in form, they generally exhibit relatively low conductivity. Crucially, since the diffusivity of components within the electrolyte (Li⁺ and O₂) is inversely proportional to the viscosity of the system, it is not surprising that the sluggish transport of these reactants in viscous ILs impedes the rate capability of IL-based Li–air batteries; this observation has been reported.^31–33

The properties of ionic liquids are determined by the structure of both the cation and the anion, of which there are a virtually unlimited number of combinations. With this in mind, ILs may be considered tuneable solvents and the structures can be modified with the goal of optimising certain properties including the solubility and diffusivity of oxygen.

To date, in addition to electrochemical techniques, oxygen solubility has been measured using isochoric^34–36 and gravimetric techniques.³⁷ Therein, oxygen solubilities and diffusion coefficients have been observed in the order of 10⁻³–10⁻⁴ mol dm⁻³ and 10⁻¹⁰ m² s⁻¹, respectively, for a range of imidazolium, pyridinium and ammonium-based ionic liquids. In this work, electrochemical methods have been used to determine the solubility and diffusivity of oxygen in the selection of pure ILs based on the bis{(trifluoromethyl)sulfonyl}imide anion paired with a selection of cyclic alkylammonium based cations. These observations are compared with the measured viscosity and the calculated free volume of the ILs. Exploring the relationship between the IL structure and the measured transport capabilities is necessary in the future design of novel ionic liquid structures with improved characteristics.

2 Experimental methodology

2.1 Materials and synthesis

The materials used for synthesis were sourced as follows: azepane (99%) (INVISTA); pyrrolidine (99%), N-methylpyrrolidine (99%), piperidine (99%), N-methylpiperidine (99%), 2-chloromethylethyl ether (98%), 1-bromobutane (98%), iodomethane (98%), dimethylsulfate (99%) (Sigma-Aldrich); and lithium bis{(trifluoromethyl)sulfonyl}imide (battery grade) (3 M). All reagents for synthesis were used as received. Additionally, the commercial 1-butyl-1-methylpyrrolidinium bis{(trifluoromethyl)sulfonyl}imide, [Pyrr₁₄][TFSI], (98%) was purchased from Merck. Microanalysis and lithium content analysis were performed by Analytical Services (ASEP and QUB). ¹H and ¹³C NMR spectra were recorded at 20 °C on a Bruker Advance DPX spectrometer at 300 MHz and 75 MHz, respectively.

2.1.1. Synthesis of 1-butylazepane. Under an inert atmosphere 1-bromobutane (13.7 g, 0.1 mol) was added dropwise to a stirred solution of azepane (9.9 g, 0.1 mol) in deionised water (50 cm³) cooled in an ice water bath. After 4 h, potassium hydroxide (5.6 g, 0.1 mol) was then added to the reaction mixture and the mixture was vigorously stirred for 2 h. The resulting biphasic solution was then separated and the aqueous solution was then washed with diethyl ether (2 × 20 cm³). The organic phases were then concentrated under reduced pressure in a rotary evaporator to leave the crude product.

1-Butylazepane was obtained as a colourless liquid after distillation in vacuo (68–71 °C, 10 mbar), 9.48 g, 61% yield. ¹H NMR (300 MHz, CDCl₃): δ 2.70–2.55 (m, 4H), 2.52–2.37 (m, 2H), 1.60 (s, 8H), 1.52–1.37 (m, 2H), 1.30 (dq, J = 14.5, 7.1 Hz, 2H), 0.91 (t, J = 7.2 Hz, 3H).

2.1.2. Synthesis of 1-(2-methoxyethyl)pyrrolidine and 1-(2-methoxyethyl)piperidine. Under an inert atmosphere, 2-chloromethylethyl ether (9.5 g, 0.1 mol) was added dropwise to a stirred solution of amine (pyrrolidine or piperidine, 0.1 mol) in deionised water (50 cm³) cooled in an ice water bath. After 4 h, potassium hydroxide (5.6 g, 0.1 mol) was then added to the reaction mixture and the mixture was vigorously stirred for 2 h. The resulting biphasic solution was then separated and the aqueous solution was then washed with diethyl ether (2 × 20 cm³). The organic phases were then concentrated under reduce pressure in a rotary evaporator to leave the crude product.

1-(2-Methoxyethyl)pyrrolidine was obtained as a colourless liquid after distillation in vacuo (47–49 °C, 9.8 mbar), 8.64 g, 67% yield. ¹H NMR (300 MHz, CDCl₃): δ 2.70–2.55 (m, 4H), 2.52–2.37 (m, 2H), 1.60 (s, 8H), 1.52–1.37 (m, 2H), 1.30 (dq, J = 14.5, 7.1 Hz, 2H), 0.91 (t, J = 7.2 Hz, 3H).

1-(2-Methoxyethyl)piperidine was obtained as a colourless liquid after distillation in vacuo (58–60 °C, 10 mbar), 9.15 g, 64% yield. ¹H NMR (300 MHz, CDCl₃): δ 3.50 (dd, J = 11.9, 6.1 Hz, 2H), 3.35 (s, 3H), 2.52 (dd, J = 13.2, 7.4 Hz, 2H), 2.41 (s, 4H), 1.60 (dt, J = 10.5, 5.3 Hz, 4H), 1.43 (d, J = 5.0 Hz, 2H).

2.1.3. General synthesis of N-butyl N-methylammonium ionic liquids.
1-Butyl-1-methylpyrrolidinium bromide, ([Pyrr₁₄]Br). Under an inert atmosphere 1-bromobutane (27.4 g, 0.2 mol) was added dropwise to a stirred solution of N-methylpyrrolidine (17.01 g, 0.2 mol) in acetonitrile (50 cm³) cooled in an ice-water bath. The mixture was left to reach room temperature and stirred vigorously overnight under reflux conditions. Volatiles were removed and the resulting yellowish solid was washed with a mixture of acetone and diethyl ether. After filtration and drying, the product was obtained as a white solid, 43.48 g, 98%. The product was characterized using ¹H NMR spectroscopy (300 MHz, DMSO): δ 3.50 (m, 4H), 3.38 (m, 2H), 3.02 (s, 3H), 2.08 (s, 4H), 1.68 (m, 2H), 1.31 (m, 2H), 0.92 (t, J = 7.1 Hz, 3H).
1-Butyl-1-methylpiperidinium bromide, ([Pip₁₄]Br). Under an inert atmosphere 1-bromobutane (27.4 g, 0.2 mol) was added dropwise to a stirred solution of N-methylpiperidine (19.80 g, 0.2 mol) in acetonitrile (50 cm³) cooled in an ice-water bath. The mixture was left to reach room temperature and stirred vigorously overnight under reflux conditions. Volatiles were removed and the resulting yellowish solid was washed with a mixture of acetone and diethyl ether. After filtration and drying, the product was obtained as a white solid, 45.78 g, 97%. The product was characterized using ¹H NMR spectroscopy: (300 MHz, CDCl₃): δ 3.73 (ddd, J = 22.3, 14.7, 8.3 Hz, 6H), 3.34 (s, 3H), 1.91 (t, J = 11.5 Hz, 4H), 1.87–1.66 (m, 4H), 1.57–1.37 (m, 2H), 1.01 (t, J = 7.3 Hz, 3H).
1-Butyl-1-methylazepinium iodide, ([Aze₁₄]I). Under an inert atmosphere, iodomethane (28.4 g, 0.2 mol) was added dropwise to a stirred solution of 1-butylazepane (15.50 g, 0.1 mol) in diethylether (50 cm³) cooled in an ice-water bath. The mixture was left to reach room temperature and stirred vigorously overnight. The resulting yellowish solid was washed with a mixture of hexane/diethyl ether. After filtration and drying the product was obtained as an off-white white solid 29.19 g, 98%. The product was characterized using ¹H NMR spectroscopy (300 MHz, CDCl₃): δ 3.68 (m, 4H), 3.59 (m, 2H), 3.26 (s, 3H), 1.99 (m, 4H), 1.80 (m, 6H), 1.48–1.30 (m, 2H), 0.98 (t, J = 7.3 Hz, 3H).

2.1.4. General synthesis of 1-butyl-1-methylammonium bis{(trifluoromethyl)sulfonyl}imide ionic liquids. A solution of lithium bis{(trifluoromethyl)sulfonyl}imide (15.2 g, 0.053 mol) in water (50 cm³) was mixed with a solution of 1-butyl-1-methylammonium halide (0.05 mol) in dichloromethane (50 cm³) in a 250 cm³ round bottom flask with vigorous stirring overnight. The two phases were separated using a separating funnel. The organic phase containing the ionic liquid was then washed several times with water 10 × 10 cm³. The ionic liquid was then dried in vacuo at (60 °C, 0.02 mbar) for 72 h leaving an almost colourless liquid.
1-Butyl-1-methylpyrrolidinium bis{(trifluoromethyl)sulfonyl}imide, [Pyrr₁₄][TFSI]. (20.5 g, 98%) ¹H NMR (300 MHz, DMSO): δ¹H NMR 3.62 (m, 4H), 3.40 (m, 2H), 3.13 (s, 3H), 1.78 (d, 4H), 1.54 (m, 4H), 1.34 (m, 2H), 0.91 (t, 3H). ¹³C NMR (75 MHz, DMSO): δ 126.26 (s), 122.00 (s), 117.73 (s), 113.46 (s), 63.78 (s), 63.28 (s), 47.85 (s), 40.46 (t, J = 19.3 Hz), 40.17 (s), 40.12–40.05 (m), 39.77 (d, J = 18.8 Hz), 39.65 (s), 39.48 (d, J = 20.9 Hz), 39.06 (s), 25.29 (s), 21.43 (s), 19.67 (s), 13.81 (s). CHNS theoretical: C, 31.28; H, 4.77; N, 6.63; S, 15.18; found: C, 31.69; H, 5.15; N, 6.28; S, 15.01. Li content 23 ppm.
1-Butyl-1-methylpiperidinium bis{(trifluoromethyl)sulfonyl}imide, [Pip₁₄][TFSI]. (20.72 g, 97%) ¹H NMR (300 MHz, DMSO): δ 3.13 (d, J = 8.7 Hz, 1H), 3.07 (dd, J = 11.0, 5.5 Hz, 6H), 2.76 (s, 3H), 2.31–2.26 (m, 1H), 1.56 (d, J = 4.9 Hz, 4H), 1.50–1.22 (m, 4H), 1.18–1.04 (m, 2H), 0.73 (t, J = 7.3 Hz, 3H). ¹³C NMR (75 MHz, DMSO): δ 126.58–125.96 (m), 121.99 (s), 117.73 (s), 62.65 (s), 60.36 (s), 47.33 (s), 23.31 (s), 21.04 (s), 19.61 (s), 13.77 (s). CHNS theoretical: C, 33.02; H, 5.08; N, 6.42; S, 14.69; found: C, 33.01; H, 4.93; N, 6.42; S, 14.69. Li content 36 ppm.
1-Butyl-1-methylazepanium bis{(trifluoromethyl)sulfonyl}imide, [Aze₁₄][TFSI]. (21.37 g, 98%) ¹H NMR (300 MHz, DMSO): δ 3.52–3.29 (m, 4H), 3.29–3.17 (m, 2H), 3.00 (s, 3H), 1.88 (s, J = 24.5 Hz, 4H), 1.80–1.61 (m, 6H), 1.48–1.30 (m, 2H), 0.98 (t, J = 7.3 Hz, 3H). ¹³C NMR (75 MHz, DMSO): δ 122.38 (s), 118.12 (s), 65.90 (s), 65.17 (s), 50.85 (s), 27.85 (s), 24.83 (s), 22.13 (s), 19.90 (s), 13.74 (s). CHNS theoretical: C, 34.68; H, 5.37; N, 6.22; S, 14.20; found: C, 34.28; H, 5.18; N, 6.17; S, 13.70. Li content 14 ppm.

2.1.5. General synthesis of 1-(2-methoxyethyl)-1-methylammonium methylsulfate ionic liquids. Under an inert atmosphere dimethylsulfate (0.055 mol) was added dropwise to a stirred solution of 1-(2-methoxyethyl)amine (0.05 mol) in toluene (50 cm³) cooled in an ice-water bath. The mixture was left to reach room temperature and stirred vigorously overnight under reflux conditions. The lower ionic liquid phase was taken and washed with further portions of toluene (2 × 10 cm³). Volatiles were removed to yield the corresponding methylsulfate-based ILs. A small portion was retained for ¹H NMR characterization.
1-(2-Methoxyethyl)-1-methylpyrrolidinium methylsulfate, [Pyrr_1(2o1)][MeSO₄]. ¹H NMR (300 MHz, DMSO): δ 3.64–3.55 (m, 2H), 3.44–3.37 (m, 2H), 3.38–3.28 (m, 4H), 3.21 (d, J = 5.2 Hz, 3H), 3.14 (d, J = 5.5 Hz, 3H), 2.87 (s, 3H), 2.35 (dt, J = 3.4, 1.7 Hz, 2H), 1.92 (s, 4H).
1-(2-Methoxyethyl)-1-methylpiperidinium methylsulfate, [Pip_1(2o1)][MeSO₄]. ¹H NMR (300 MHz, DMSO): δ 3.75 (s, 2H), 3.57 (dd, J = 12.6, 7.9 Hz, 2H), 3.38 (s, 3H), 3.35 (m, 4H), 3.30 (s, 3H), 3.05 (s, 3H), 1.78 (s, 4H), 1.63–1.41 (m, 2H).

2.1.6. General synthesis of 1-(2-methoxyethyl)-1-methylammonium bis{(trifluoromethyl)sulfonyl}imide ionic liquids. The remaining 1-(2-methoxyethyl)-1-methylammonium methylsulfate (0.05 mol) in dichloromethane (50 cm³) was mixed with a solution of lithium bis{(trifluoromethyl)sulfonyl}imide (15.2 g, 0.053 mol) in water (50 cm³) in a 250 cm³ round bottom flask with vigorous stirring overnight. The two phases were then separated using a separating funnel. The organic phase containing the ionic liquid was then washed several times with water 10 × 10 cm³. The ionic liquid was then dried in vacuo at (60 °C, 0.02 mbar) for 72 h leaving an almost colourless liquid.
1-(2-Methoxyethyl)-1-methylpyrrolidinium bis{(trifluoromethyl)sulfonyl}imide, [Pyrr_1(2o1)][TFSI]. ¹H NMR (300 MHz, DMSO): δ 3.95 (m, 2H), 3.78 (m, 6H), 3.40 (s, 3H), 3.30 (s, 3H), 2.32 (m, 4H). ¹³C NMR (75 MHz, DMSO): δ 126.26 (s), 122.00 (s), 117.73 (s), 113.46 (s), 66.36 (s), 64.53 (s), 62.43 (s), 58.42 (s), 48.37 (s), 21.20 (s). CHNS theoretical: C, 28.30; H, 4.27; N, 6.60; S, 15.11; found: C, 27.99; H, 5.15; N, 6.48; S, 15.03. Li content 33 ppm.
1-(2-Methoxyethyl)-1-methylpiperidinium bis{(trifluoromethyl)sulfonyl}imide, [Pip_1(2o1)][TFSI]. ¹H NMR (300 MHz, DMSO): δ 3.75 (d, J = 4.2 Hz, 4H), 3.59–3.52 (m, 4H), 3.40–3.31 (m, 9H), 3.30 (s, 6H), 3.05 (s, 6H), 1.78 (d, J = 5.3 Hz, 8H), 1.59–1.45 (m, 4H). ¹³C NMR (75 MHz, DMSO): δ 126.16 (s), 121.89 (s), 117.48 (s), 113.26 (s) 65.39 (s), 62.07 (s), 61.20 (s), 58.48 (s), 48.33 (s), 20.93 (s), 19.66 (s). CHNS theoretical; C, 30.14; H, 4.60; N, 6.39; S, 14.63; found: C, 30.62; H, 5.01; N, 6.38; S, 14.31. Li content 44 ppm.

The chemical structure of the 5 cations and the bis{(trifluoromethyl)sulfonyl}imide anion, and their respective abbreviations, are shown in Fig. 1.

Fig. 1 Chemical structures of the cyclic alkylammonium ionic liquid cations and the bis{(trifluoromethyl)sulfonyl}imide anion used in this work. The associated abbreviations for each constituent ion are presented.

2.2. Physical and electrochemical measurements

Prior to any electrochemical or physical measurements, the synthesised ILs and the commercial [Pyrr₁₄][TFSI] sample were dried by completing several freeze/thaw cycles under high vacuum (10⁻³ mbar). Following the freeze/thaw process, the ILs were kept under high vacuum at elevated temperature (90 °C) with stirring overnight. The resulting moisture content of the ILs did not exceed 40 ppm water, as measured by Karl Fischer titration using an 899 Coulometer (Metrohm). ILs were immediately stored and sealed under an Ar atmosphere inside an Ar filled glovebox before further use. The viscosity of the ILs was measured using a Gemini Rotonetic Drive 2 cone and a plate rheometer (Bohlin).

Electrochemical measurements were performed using a μ-Autolab III potentiostat (Metrohm). A three-electrode arrangement was utilised for all electrochemical measurements. A platinum microdisk electrode (10 μm diameter, Model G0225, Princeton Applied Research) was employed as the working electrode and two silver wires (0.5 mm diameter, Goodfellow Cambridge Ltd) were used as a counter electrode and a pseudo-reference electrode. The platinum microelectrode was polished using alumina slurries of decreasing grain size (1.0 μm, 0.3 μm, and 0.05 μm, Buehler) in distilled water on microcloth soft lapping pads (Kemet Ltd). After polishing, the microelectrode was sonicated in distilled water for 2 min to remove any residual alumina. The diameter of the microelectrode was calibrated by measuring the steady-state current of the single-electron oxidation of 2 mmol dm⁻³ ferrocene in acetonitrile containing 0.1 mol dm⁻³ of tetrabutylammonium perchlorate (TBAP). The known diffusion coefficient of ferrocene in this solution, 2.3 × 10⁻⁹ m² s⁻¹ at 293.15 K,³⁸ (2.43 × 10⁻⁹ m² s⁻¹ at 298.15 K)³⁹ was used to calibrate the radius, r_e, of the microelectrode using eqn (2):

i_ss = 4nFDC^br_e (2)

where i_ss is the steady-state oxidation current; n is the number of electrons transferred (where n = 1 for ferrocene oxidation); F is the Faraday constant, 96485.3 C mol⁻¹; D and C^b are the diffusion coefficient and bulk concentration of ferrocene in acetonitrile, respectively.

Electrochemical experiments were conducted in a T-cell (described previously)²² designed to permit the study of very small amounts of electrolyte under a controlled atmosphere, enabling the introduction of oxygen by means of a continuous gas-flow through the cell (see Fig. 2). The 3-electrode T-cell was constructed, and all subsequent electrochemical measurements were conducted, inside an Ar filled glovebox. A section of a plastic disposable pipette tip was securely placed around the end of the working electrode to create a cavity within which 10 μL of the IL sample was placed.

Fig. 2 Schematic of the T-cell arrangement used to measure O₂ electrochemistry in small volumes of ILs.

The cell was placed inside a Faraday cage inside the glove box and then connected to a gas line. Externally to the glove box, the gas line (Ar or O₂) was fitted to a Dreschel bottle containing CaCl₂ to remove the residual water from the gas stream. The outlet of the gas line terminated inside a fume hood, via a connection through the glove box wall, to prevent the leakage of gas into the glove box atmosphere. The cell was initially purged with Ar for at least 30 min.

Under an Ar atmosphere, cyclic voltammetry was performed to observe any processes occurring in the absence of dissolved O₂. These scans were performed at 100 mV s⁻¹ and between ca. 0 V vs. Ag and −2.5 V vs. Ag. The cell was then exposed to a flow of pure O₂ gas at a pressure of 1 barg to allow diffusion of O₂ into the liquid sample. After 45 min, voltammograms for the reduction of O₂ are recorded. This was performed periodically until the resulting voltammograms were consistent, ensuring that O₂ saturation in the IL had occurred. Once saturation was reached, typically within a period of 1.5 to 2.5 h (see voltammograms presented in Fig. 3 and the Results and discussion section), the concentration and diffusion coefficients of dissolved O₂ were determined by chronoamperometric measurements.

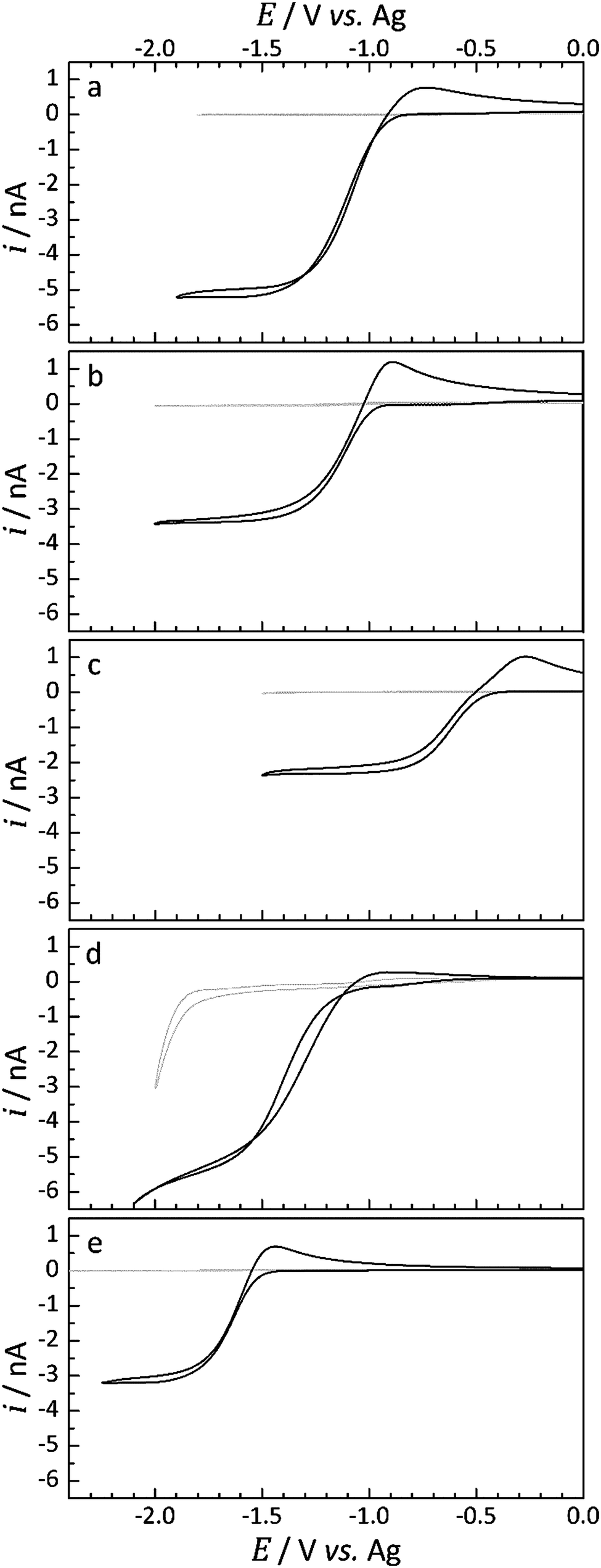

Fig. 3 Cyclic voltammograms (black) for the reduction of O₂ at a 10 μm diameter Pt-microdisk electrode vs. Ag in (a) [Pyrr₁₄][TFSI], (b) [Pip₁₄][TFSI], (c) [Aze₁₄][TFSI], (d) [Pyrr_1(2o1)][TFSI] and (e) [Pip_1(2o1)][TFSI] at 297 ± 0.5 K. The blank traces (grey) were obtained by cyclic voltammetry under an Ar atmosphere prior to exposure to O₂ gas (1 barg). A scan rate of 100 mV s⁻¹ was used in all cases.

In chronoamperometry, the potential of the working electrode is stepped from a potential at which the flow of Faradaic current is negligible (0 V vs. Ag) to a potential where the reduction of O₂ at the electrolyte/electrode interface is diffusion controlled. Since a silver pseudo-reference electrode was used, the exact reference potential is dependent on surface treatment and composition of the silver wire and, as such, the reference potential can vary between experiments.⁴⁰ Consequently, the actual step potential used for each chronoamperometry experiment is determined by a point after the peak for O₂ reduction on the measured voltammogram. The potential was held at the reduction potential and the current response is recorded over a period of several seconds. The chronoamperometry measurements were repeated several times while the system was still in O₂ with a period of at least 15 min between individual measurements. This period was utilised to allow the dissolved O₂ to equilibrate after the perturbation caused by the potential step, such that the concentration of O₂ local to the electrode surface relaxes to equal the concentration of O₂ in the bulk electrolyte. It was found that allowing the system to relax for periods of time longer than 15 min had no effect on the chronoamperometric measurements.

The potential step transients obtained were then analysed, between 20 ms and 2 s using the Shoup and Szabo eqn (3).⁴¹ The measured current response (i) is fitted as a function of time (t), the analyte concentration (C), the analyte diffusion coefficient (D) and the radius of the microelectrode (r_e),

i = 4nFCDf(t) (3)

where n is the number of electrons transferred; F is the Faraday constant and f(t) is given by eqn (4):Eqn (3) and (4) were used to fit the experimental data using a non-linear fitting function and, therefore, to calculate and extract best-fit values for the unknown variables, D and C. Typically, the first 20 ms of a potential step measurement is discarded to minimize current contributions by non-Faradaic charging of the electrical double layer. In this short time region (0.02–2 s), the Faradaic current response is a Cottrellian current, i_c:which depends on nCD^1/2t^1/2. At longer times, the process approaches steady state conditions and the observed current response becomes dependent on nCD, as shown by eqn (2). The different dependences of the long and short time regions allow the extraction of the separate terms (nC) and D by fitting the entire transient with the Shoup and Szabo equation.

2.3. Computational methods for calculating free volume

The method for calculating the free volume of ILs was completed using the COSMOthermX software (version C30 15.01) with COSMO files computed using the DFT/B3LYP/TZVP level of theory as reported by our group previously.⁴² Classically, the free volume is calculated by the difference between the molar volume and the van der Waals volume (V_vdW), wherein the V_vdW values are generally calculated using group contribution methods like Bondi's method, for example.⁴³ It has been shown previously that the estimation of the IL free volume can be made relatively straightforwardly using the COSMO-RS (Conductor-like Screening Model for Real Solvents) computational method.⁴⁴ In summary, the molar volume of each IL was calculated based on the IL molecular weight divided by the computed density for each of the 5 anion–cation combinations reported in this work. The total COSMO volume of each IL (i.e. the volume enclosed by the calculated COSMO surface) was calculated by the sum of the COSMO volumes of the anion and the cation. An estimation of the IL free volume is then calculated by taking the difference between the calculated molar volume and the COSMO volume of the IL using the COSMOthermX software.

3 Results and discussion

Several ionic liquids were selected as electrolytes to study the electrochemical reduction of dissolved oxygen and a microdisk electrode. It has been shown previously that the specific nature of both the anion and the cation will play a role in the solubility and transport of oxygen in the ionic liquid.¹⁷ For this particular study, the anion species, [TFSI]⁻, is kept constant and the effect of modified cation structures is considered to investigate the interplay between the fine-tuning of cation structure, modification of physical properties and the oxygen electrochemistry. The exploration of these properties will, hopefully, be useful for the future design of improved IL-based electrolytes for Li–air batteries.

3.1. Cyclic voltammetry of oxygen in ILs

Cyclic voltammetry of the platinum microdisk electrode was initially used to probe the electroreduction of O₂ dissolved in the IL electrolyte. For all voltammograms presented, the potential was swept initially in the negative direction from a starting voltage of 0 V vs. Ag at a scan rate of 100 mV s⁻¹. The background voltammograms, collected under an Ar-atmosphere (labelled: blank), and the voltammograms obtained once O₂ saturation in each selected IL had occurred are presented in Fig. 3.

Under an Ar atmosphere, the current response was found to be very low and completely negligible within the potential region of interest for the ILs, with the exception of [Pyrr_1(2o1)][TFSI]. The blank CV obtained for [Pyrr_1(2o1)][TFSI], Fig. 3d, shows the onset of reduction of an unknown species at ca. −1.8 V vs. Ag. Under different conditions, dissolved gases could be more effectively removed by bubbling with Ar directly into the liquid, an option not possible for the 10 μL used in T-cells, or by exposing the IL to vacuum.

For the three ionic liquids functionalised with the butyl group, [Pyrr₁₄][TFSI], [Pip₁₄][TFSI] and [Aze₁₄][TFSI] (Fig. 3a–c) and for the ether functionalised piperidinium-based IL, [Pip_1(2o1)][TFSI] (Fig. 3e), no measurable reduction current was observed prior to the onset potential of O₂ reduction. In contrast, the ether functionalised pyrrolidinium-based IL, [Pyrr_1(2o1)][TFSI] (Fig. 3d), exhibited a small pre-peak feature in the O₂ saturated CV. The current magnitude of this feature corresponds to approximately 2% of the O₂ reduction peak-current in [Pyrr_1(2o1)][TFSI]. These pre-peak processes indicate the possibility of the O₂ reduction reaction being coupled with an immediate chemical reaction of the superoxide product with either solvent molecules or impurities within the solvent, known as an EC mechanism.⁴⁵ The direct chemical reaction of the superoxide radical leads to a depletion of the concentration of the reduced species local to the electrode surface. This, in turn, causes a shift of the reduction wave towards more positive potentials provided the wave is electrochemically reversible. The magnitude of this pre-peak indicates the likelihood that the chemical reaction of the O₂˙⁻ is occurring with impurities in the electrolyte, where the concentration of these unknown impurities does not exceed the bulk concentration of O₂. This can be inferred due to the presence of two reduction peaks (i.e. the pre-peak peak and the main O₂ reduction peak). Once the impurity species is completely consumed via the chemical reaction with O₂˙⁻, the remaining O₂ undergoes reduction at the electrode by a mechanism more representative of the heterogeneous process: an electrochemical reduction in the absence of a coupled chemical reaction. This observation has been made previously in a study into Li₂O₂ formation by reduction of O₂ in the presence of known concentrations of Li⁺ ions in the solvent.⁴

Considering the reductive peak for this set of ILs, the peak shape appears to resemble steady-state characteristics. This behaviour is typical of oxygen reduction at microdisk electrodes where the convergent diffusion of the reactants is expected at slow-to-mid scan rates.¹⁸ The shape of the overall voltammograms is Asymmetric and a clear transient peak, associated with more planar diffusion, is observed for the reverse oxidation process. This observation is quite typical for the oxygen systems due to the asymmetry exhibited by the diffusion coefficients of the neutral and reduced species; the diffusion coefficient of the superoxide radical has been found to be over one order of magnitude lower than the neutral oxygen in many media.^11,15,46 Significant interactions between the charged superoxide species and the charged species of the IL are likely to contribute to the very low mobility of the anion. Additionally, the magnitude of the oxidative peak relative to the reduction peak increases in the order [Pyrr₁₄][TFSI] < [Pip₁₄][TFSI] < [Aze₁₄][TFSI] which correlates with an increase in the viscosity in the same order (see later for viscosity data), as expected.

For the ILs containing the ether-functional group, Fig. 3d and e, the relative magnitude of the current response on the reverse oxidation sweep is smaller. For [Pip_1(2o1)][TFSI], this relative difference is minimal but appears to be quite significant for [Pyrr_1(2o1)][TFSI]; where the shape of the reverse oxidation sweep is more representative of a system under convergent hemispherical type diffusion.

Based on these observations alone, it is implausible to associate the lack of a transient peak on the reverse scan with a much greater mobility of the superoxide radical in this IL. Nevertheless, the presence of oxygen in the ether-functional group of the cation could certainly be expected to alter the cation charge distribution and, in turn, alter the strength or the manner of interaction between the IL cation and the radical superoxide anion. The types of transient oxidation peaks observed in Fig. 3a–c and e are typically observed for the electrochemical oxidation of the superoxide radical at microelectrodes in more viscous media.¹⁸ This absence of a reverse transient peak upon oxidation in [Pyrr_1(2o1)][TFSI] could also potentially be the result of a direct chemical reaction and consumption of the superoxide with the IL, but this is worth further investigation.

3.2. Chronoamperometric measurements

Chronoamperometry was performed on each of the O₂-saturated IL electrolytes to determine the solubility and diffusivity of the dissolved oxygen. As described in the experimental methodology section, the potential was stepped from 0 V vs. Ag (where the Faradaic current is negligible) to a potential where the reduction of the dissolved oxygen is diffusion controlled. As shown in the voltammograms presented in Fig. 3, this potential varied between each sample as a result of using a silver pseudo-reference electrode. As such, the step potential for a given IL (given in brackets in the legend of Fig. 4) is determined from the associated voltammogram of that particular IL. The potential was held at the steady state reducing potential over a period of a few seconds and the resulting transients were analysed using the Shoup and Szabo equation (eqn (3)) to extract the diffusion coefficient of oxygen, D(O₂), and the concentration of oxygen dissolved in the bulk electrolyte, c(O₂). The number of electrons, n, involved in the oxygen reduction reaction is reasonably presumed to be 1 across the full range of studied ILs. This single-electron mechanism has been reported on several occasions for [Pyrr₁₄][TFSI] and several closely related [TFSI]⁻ anion-based ILs.^11,20,47 The resulting experimental chronoamperometric transients and the associated simulated transients are presented in Fig. 4. Excellent agreement between the experimental and the Shoup and Szabo computed transients is observed. The solubility, c(O₂), and the diffusion coefficient, D(O₂), of oxygen derived from the Shoup and Szabo analysis are presented in Table 1 along with the viscosity, molar volume and calculated free volume of each IL.

Fig. 4 Experimental (—) and simulated () chronoamperometric transients for the reduction of O₂ at 297 ± 0.5 K under 1 barg O₂ pressure in (a) [Pyrr₁₄][TFSI] (−1.70 V vs. Ag), (b) [Pip₁₄][TFSI] (−1.75 V vs. Ag), (c) [Aze₁₄][TFSI] (−1.40 V vs. Ag), (d) [Pyrr_1(2o1)][TFSI] (−1.88 V vs. Ag) and (e) [Pip_1(2o1)][TFSI] (−2.10 V vs. Ag).

Table 1 Solubility, c(O₂), and diffusion coefficient, D(O₂), data for oxygen in the series of [TFSI]⁻-based ILs at 297 ± 0.5 K derived from Shoup and Szabo analysis of chronoamperometric transients and the viscosity, η, the molar volume, V_m, and free volume, V_f, of the ILs at the same temperature. The equivalent O₂ solubility, O₂ diffusivity and viscosity data for a DMSO-based electrolyte taken from literature is provided for comparison

Ionic liquid	c(O2)/mmol dm^−3	D(O2)/×10^−10 m^2 s^−1	η/mPa s	V m/cm^3 mol^−1	V f/cm^3 mol^−1
a Ref. 48; solubility and diffusion coefficient data for O2 in DMSO was measured electrochemically at 298 K with 0.1 mol dm^−3 tetrabutylammonium hexafluorophosphate as the supporting electrolyte. b Ref. 49; viscosity of pure DMSO given at 298 K.
[Pyrr14][TFSI]	9.15 ± 0.15	2.67 ± 0.05	80.02	300.86	39.81
[Pip14][TFSI]	8.48 ± 0.09	1.82 ± 0.02	177.93	317.14	43.01
[Aze14][TFSI]	7.98 ± 0.20	1.50 ± 0.04	323.27	328.42	47.31
[Pyrr1(2o1)][TFSI]	6.67 ± 0.13	3.76 ± 0.14	55.49	291.74	36.81
[Pip1(2o1)][TFSI]	6.00 ± 0.08	2.55 ± 0.06	108.56	301.47	40.23
DMSO	1.8^a	18^a	1.99^b

---

Multiple chronoamperometric experiments were performed for each IL, as described in the experimental methodology section, and, as such, the solubility and diffusion coefficient values in Table 1 represent the average values of these experiments and the calculated standard error is shown for each sample.

The mobility of the dissolved oxygen in this selection of ILs appears to approximately follow an inverse trend with respect to the viscosity, as expected. Similarly, within the two families of ILs (i.e. the two ethereal ILs and the three alkyl ILs), the observed solubility of O₂ appears to increase with decreasing free volume and decreasing viscosity of the IL. These relationships are discussed in more depth in the following sections.

Also presented in Table 1 is the equivalent data for DMSO with 0.1 mol dm⁻³ tetrabutylammonium hexafluorophosphate as the supporting electrolyte.⁴⁸ DMSO is a commonly used electrolyte solvent for Li–air battery studies. The measured oxygen solubility across the full range of studied ILs is several times greater than that reported in the DMSO-based electrolyte. However, as is expected for relatively viscous systems like ILs, the observed range for mobility of the dissolved oxygen in these ILs (from 1.39 × 10⁻¹⁰ to 3.76 × 10⁻¹⁰ m² s⁻¹) is significantly lower than that for the lower viscosity molecular solvent. It should be noted that the data for c(O₂) and D(O₂) in DMSO provided were referenced from a study concerning the properties of a DMSO/[Pyrr₁₄][TFSI] blended electrolyte.⁴⁸ It was reported in this study that a reduction in the viscosity upon the addition of DMSO to the IL improved the mobility of the dissolved oxygen relative to the pure IL system.⁴⁸ Furthermore, the same authors recently reported on the effects of the introduction of a Li-salt to DMSO/IL blended electrolytes on the mobility of dissolved oxygen.⁵⁰ At low levels of the Li[TFSI] salt (i.e. 0.05 mol dm⁻³), the authors demonstrated the variation of D(O₂) with the use of digital simulation of CV experiments. However, the c(O₂) at saturation, initially determined by the Shoup and Szabo analysis of chronoamperometric measurements in the absence of a Li-salt, was then assumed to be unchanged after the addition of the Li-salt.⁵⁰

3.3. The relationship between diffusivity and viscosity

As previously stated, the diffusion coefficient of dissolved species is generally found to be inversely proportional to the viscosity of the solvent medium. For the ILs presented herin, the change in viscosity associated with different cation structures is well known. For example, the largest observed differences is associated with the observed increase in viscosity as the size of the alkyl ring of the cation is increased, from the 5 membered ring of [Pyrr₁₄][TFSI] to the 6 and 7 membered rings of [Pip₁₄][TFSI] and [Aze₁₄][TFSI], respectively. Additionally, the measured reduction in viscosity as a result of substituting the butyl functional group of the cation with the 2-methoxyethyl group has been documented previously.⁵¹ This reduction in viscosity for the ether-functionalised cation analogue (i.e. compared [Pyrr₁₄][TFSI] to [Pyrr_1(2o1)][TFSI] and [Pip₁₄][TFSI] to [Pip_1(2o1)][TFSI]) has been previously related to the additional conformational flexibility of the ethereal chain.⁵¹ The relationship between the measured viscosity of the IL and the diffusion coefficient of a species can be quite well described, for certain systems provided that the molecule is sufficiently large, using the Stokes–Einstein equation,where D is the diffusion coefficient of the dissolve species, k_B is the Boltzmann constant (1.38 × 10⁻²³ m² kg s⁻¹ K⁻¹), T is the temperature, η is the viscosity of the solvent and α is the hydrodynamic radius of the species.¹⁷ Alternative versions of this expression have been considered to better describe this relationship in significantly viscous solvents like ILs.⁵² However, the inverse relationship between mobility and viscosity remains and, as such, can be utilised to probe these properties in the ILs. A plot of the inverse viscosity, or fluidity (η⁻¹), of the ILs versus the diffusion coefficient of dissolved oxygen is presented in Fig. 5.

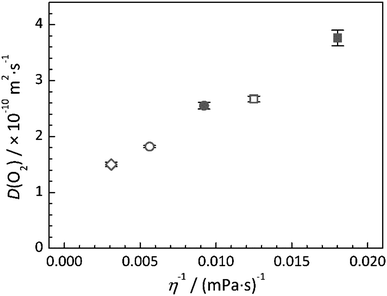

Fig. 5 Stokes–Einstein plots for the dependence of the diffusion coefficient of O₂, D(O₂), on the inverse viscosity, η⁻¹, at 297 K for [Pyrr₁₄][TFSI] (), [Pip₁₄][TFSI] (), [Aze₁₄][TFSI] (), [Pyrr_1(2o1)][TFSI] () and [Pip_1(2o1)][TFSI] (). The error bars represent the standard error of the measurements.

Across the full range of ILs studied, the measured diffusion coefficients of oxygen appear to correlate reasonably well with a decrease in IL viscosity. There have been previous studies concerning the applicability of the standard Stokes–Einstein equation for ILs which have shown that for small molecules, such as H₂, H₂S and O₂, the expected relationship does not directly apply and suggests that analyte–IL interactions may play a more significant role in the movement, or lack thereof, of the analyte.¹⁷ However, the structure of different ILs used in this particular study varied significantly whereas the structures of the [TFSI]⁻-based ILs reported in this work are more closely related. As such, the nature of the analyte–IL interactions would be expected to be relatively consistent across the range of 5 ILs studied in this work and the mobility of the dissolved oxygen is found to show a degree of linear dependence of the fluidity (η⁻¹) of the neat IL. However, it is clear that there is not a direct dependence of D on η⁻¹ since an approximate linear fit of the data would have a large intercept. Furthermore, a significant deviation away from the observed relationship is obvious if the diffusion coefficient of O₂ in DMSO and the viscosity of this solvent (Table 1) are considered. Extrapolation of an approximate linear fit of the data presented in Fig. 5 would indicate that the mobility of the oxygen in the lower viscosity solvent, DMSO, should approach 70–80 × 10⁻¹⁰ m² s⁻¹, indicating that a different diffusivity–viscosity relationship exists in IL systems.

3.4. Relationships affecting oxygen solubility in the ILs

In general, IL–gas systems where only physical absorption of a gas occurs (i.e. where no chemical absorption occurs by chemical reaction between the IL and solute), the free volume of the IL is considered to be one of the primary factors contributing to solubility.⁴⁴ Comparing all ILs studied, a direct relationship between their oxygen solubility and their calculated molar volume or free volume is not immediately apparent. However, a graphical representation of the solubility and free volume data (Fig. 6) provides potential insight into the existence of two relationships. Firstly, simply comparing the ILs with the same functional groups (i.e. the alkyl chain or the ether chain) shows that the solubility of oxygen within the IL decreases as the calculated IL free volume increases. This observation clearly shows that the oxygen is not simply occupying empty space between the ions. Secondly, the data presented in Fig. 6 highlight the effect of introducing the ether group to the cation; for both the pyrrolidinium and piperidinium based ILs, substitution of the butyl group with the 2-methoxyethyl group reduces the measured oxygen solubility.

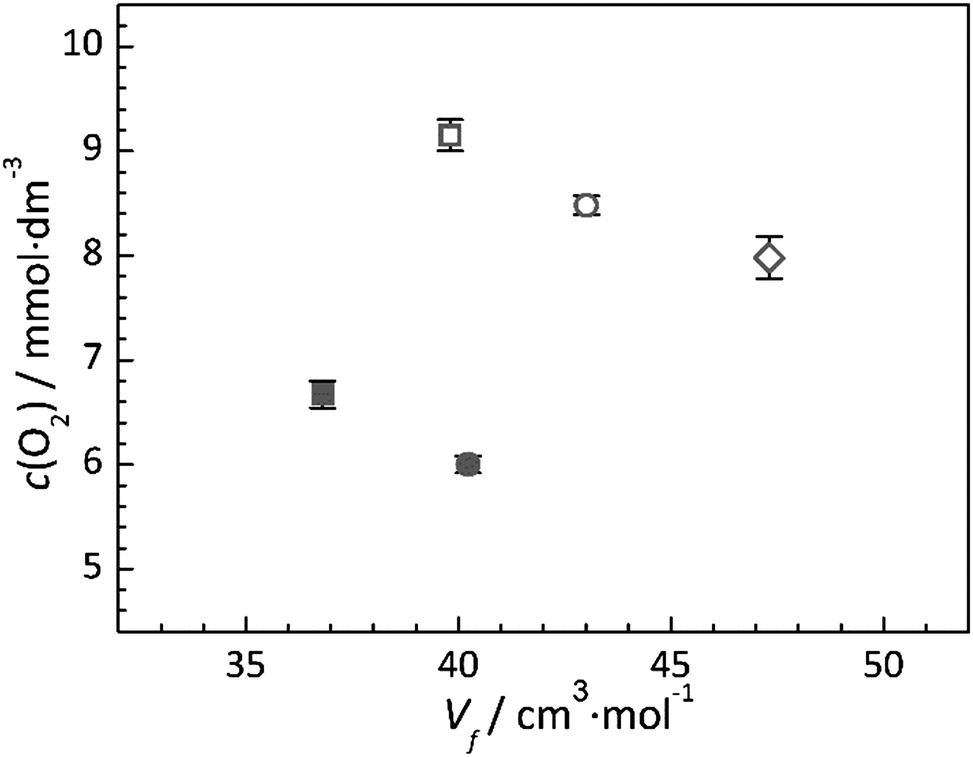

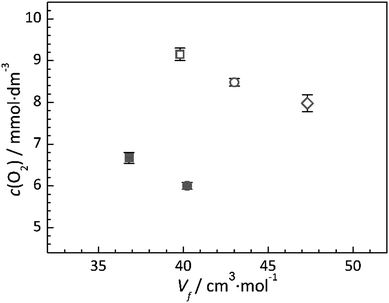

Fig. 6 Calculated IL free volume, V_f, versus the solubility of oxygen, c(O₂), at 297 K for [Pyrr₁₄][TFSI] (), [Pip₁₄][TFSI] (), [Aze₁₄][TFSI] (), [Pyrr_1(2o1)][TFSI] () and [Pip_1(2o1)][TFSI] (). The error bars represent the standard error of the measurements.

Additionally, when comparing the two families of ILs studied, there appears to be a general trend that the oxygen solubility increases with decreasing viscosity. Since the viscosity of an IL is a property which is closely linked to the molecular cohesive interactions within the liquid, this observation may be associated with the ability of O₂ to restructure the liquid upon dissolving, as it is very well known that solvation properties between O₂ and IL are mainly entropy driven. In general, the anion–cation structure does not change upon the addition of solutes whereas the structures of the cation–cation environments are affected.^53–56 In the higher viscosity liquids, the strength of the cation–cation interactions often dominate the viscosity as these have to move relative to each other under shear stress. Therefore, within the given family of ILs, the trend that the O₂ solubility increases with decreasing cation–cation interaction energy is expected.

3.5. Comparison with reported literature values and a commercial IL

The oxygen solubility and diffusivity data as measured in this work are compared, in Table 2, with other reported literature values for two of the ILs where electrochemical methods were used. [Pyrr₁₄][TFSI] is very commonly used IL for Li–air electrolytes owing to its good apparent electrochemical stability with superoxide chemistry and its moderately good transport properties. As such, the solubility and the diffusion coefficient have been measured a number of times previously.

Table 2 Comparison of the O₂ solubility and diffusivity data as measured in this work and as reported in the literature for two of the [TFSI]⁻-based ILs studied. All literature values reported at 298 K

Ionic liquid cation	c(O2)/mmol dm^−3	D(O2)/×10^−10 m^2 s^−1	Ref.	Method
a Shoup and Szabo analysis of chronoamperometric transients measured at a 25 μm Pt-microdisk electrode. b Shoup and Szabo analysis of chronoamperometric transients measured at a 10 μm Au-microdisk electrode. c Combination of Cottrellian analysis of chronoamperometric transients at a 3 mm glassy carbon macroelectrode and steady-state current analysis at 5–11 μm carbon fibre microdisk electrode.
[Pyrr14]^+	9.15 ± 0.15	2.67 ± 0.05	This work
[Pyrr14]^+	12.78 ± 0.64	2.54 ± 0.03	48
[Pyrr14]^+	3.6	5.49	17
[Pyrr14]^+	3.9	6.3	57
[Pip1(2o1)]^+	6.00 ± 0.08	2.55 ± 0.06	This work
[Pip1(2o1)]^+	4.4	5.1	57

---

The data shown in Table 2 for [Pyrr₁₄][TFSI] show that there is a significant amount of variation between the measured values for both c(O₂) (3.6–12.78 mmol dm⁻³) and D(O₂) (2.54 × 10⁻¹⁰–6.3 × 10⁻¹⁰ m² s⁻¹) in this IL. A similar, yet smaller, degree of variation can also been seen for the O₂ data for the lesser studied piperidinium-based IL, [Pip_1(2o1)][TFSI]. However, the measured values all lie within the same approximate order of magnitude and, since the concentration and diffusion coefficients are small, a higher relative degree of variation may be expected.

The measurement of the O₂ solubility and diffusivity was also conducted using a commercial sample of [Pyrr₁₄][TFSI] (Merck) to investigate potential variations in the measurements between synthesised and purchased IL batches. As described in the Experimental section, the commercial IL was dried using the same freeze–pump–thaw vacuum process as for the synthesised ILs but was, otherwise, used as received (i.e. with no further purification). The water content of the dried commercial IL was 50 ppm, slightly higher than that for the synthesised ILs (all below 40 ppm). The cyclic voltammograms (O₂ saturated and under Ar-atmosphere) and the associated chronoamperometric transient for the commercial IL are presented in Fig. S1 and S2, respectively, in the ESI.†

The c(O₂) and D(O₂) values for the commercial IL were found to be 8.21(±0.05) mmol dm⁻³ and 2.80 × 10⁻¹⁰ (±0.01 × 10⁻¹⁰) m² s⁻¹, respectively, as determined by the average values attained by Shoup and Szabo analysis of several chronoamperometric transients. These values are in reasonable agreement with the values attained for the in-house synthesised [Pyrr₁₄][TFSI] (9.15 mmol dm⁻³ and 2.67 × 10⁻¹⁰ m² s⁻¹) and, in further agreement with these observations, the magnitude and nature of the reduction and oxidation peaks observed in the CV experiments are very much congruent. Nevertheless, the CV for O₂ reduction in the commercial IL (Fig. S1, ESI†) does display a small pre-peak reductive current response (−0.6 V vs. Ag) before the main O₂ reduction peak. This feature is absent in the O₂ saturated CV of the synthesised [Pyrr₁₄][TFSI] (Fig. 3a). As discussed in Section 3.1., the presence of these pre-peak reduction features implies that the reduced O₂ may undergo a coupled chemical reaction with a reactive species in the liquid (either solvent molecules or impurities). This was observed and discussed for the synthesised IL, [Pyrr_1(2o1)][TFSI] (Fig. 3d). Since this feature is not observed in the CV of the synthesised [Pyrr₁₄][TFSI], it can be inferred that the pre-reduction peak is caused by the presence of reactive impurities within the commercial IL and this may account for the small differences found between commercial and synthesised ILs. However, the quantity and nature of the impurity species found in commercial ILs could be expected to vary by the supplier and also with the specific batch of ILs.

4 Conclusions

Five ionic liquids made up of the bis{(trifluoromethyl)sulfonyl}imide anion and a selection of alkyl- and ether functionalised cyclic alkylammonium based cations were synthesised, purified and dried in preparation for viscosity and electrochemical measurements. The electrochemical reduction of dissolved oxygen in the ionic liquids was studied at a platinum microdisk electrode. Clear oxygen reduction peaks were observed by cyclic voltammetry in all five dry IL samples. The concentrations and diffusion coefficients of the dissolved oxygen in the different ILs were analysed by chronoamperometric measurements and the diffusivity of dissolved oxygen is compared with the measured viscosity of the neat IL. As is typically expected, it is seen that the diffusivity of oxygen generally increases as the viscosity of the IL decreases. Additionally, the free volume of the ILs was estimated using computational methods. A comparison of the IL free volume with oxygen solubility showed inverse relationships within the two IL families showing clearly that oxygen is not simply occupying free space within the IL.

While this study propagates the understanding of ILs as useful solvents for studying the electrochemistry of dissolved oxygen and as potential tuneable IL electrolyte components, it can be assumed that the observed transport capabilities reported herein can be considered too low for practical application. To improve the transport properties of IL-based electrolytes for Li–air batteries, there exist two primary options worth further consideration. Firstly, the design and synthesis of ILs with considerably lower viscosity and, secondly, the investigation of blended electrolytes with ILs and molecular solvents.
