Isoskeletal Schiff base polynuclear coordination clusters: synthetic and theoretical aspects

Abstract

This work addresses and enlightens synthetic aspects derived from our effort to systematically construct isoskeletal tetranuclear coordination clusters (CCs) of the general formula [TR₂Ln₂(LX)₄(NO₃)₂(solv)₂] possessing a specific defected dicubane topology, utilizing various substituted Schiff base organic ligands (H₂LX) and Ni^II/Co^II and Dy(OTf)₃ salts. Our synthetic work is further supported by DFT studies.

---

Introduction

The chemistry of polynuclear coordination clusters (CCs)^1,2 of paramagnetic 3d and/or 4f metals is an area of research that offers many interdisciplinary opportunities to connect with chemistry, physics, biology and materials science. Aesthetically pleasing structures have been reported;^3–12 moreover, several research groups have showcased the relevance of CCs in a variety of fields such as catalysis,^13–16 biology,¹⁷ luminescence,^18–20 magnetic resonance²¹ and molecular magnetism.^22,23

Several organic ligands have been employed to build new CCs²⁴ and among them Schiff base ligands are widely employed to give access to a plethora of compounds with unprecedented topologies and interesting magnetic properties.^{5,8,9,25–45} The reason for the widespread selection of Schiff bases as ligands for the construction of polynuclear CCs is manifold: a) their facile synthesis and readily tunable structures obtainable in high yields; b) structural diversity is assured given the availability of a plethora of carbonyl and amine precursors; and c) the accessibility of several coordination sites allows for varied binding modes, although the exact structure and composition of the final product are invariably unpredictable. (E)-2-(2-Hydroxy-3-methoxybenzylideneamino)phenol H₂L1 (Scheme 1, left) is derived from the condensation of o-vanillin and 2-aminophenol and several CCs bearing this ligand have been reported.^46–57 The blending of this ligand with Co^II or Ni^II and 4f nitrate salts results in tetranuclear CCs^46,47 of the general formula [TR₂Ln₂L1₄(NO₃)₂(solv)₂], where TR is Co^II or Ni^II, Ln is Dy^III or Tb^III and solv is THF or DMF, possessing a defected dicubane or “butterfly”⁵⁸ core (Scheme 1, middle) or a 2,3M4-1 (Scheme 1, right)^48,59,60 topology with the 4f ions in the wings and the 3d metal in the hinge. This topology represents one of the most common structural motifs in magneto chemistry, and CCs of this type have been well-studied and their behaviour is often very well-understood.^46,47 From a structural point of view, it is worth emphasizing that H₂L1 supports this topology in the absence of any additional bridging atom.

Scheme 1 (left) The (E)-2-(2-hydroxy-3-methoxybenzylideneamino)phenol H₂L1 ligand, (middle) the defected dicubane motif, and (right) the 2,3M4-1 topology.

For a long time, synthetic chemists have employed new organic ligands along with 3d and/or 4f centres, under various reaction conditions, to afford new polynuclear species; however, few researchers have focused their efforts on tuning the periphery of the organic ligands and studying its influence on the properties of the final product. For example, Murugesu et al.³⁵ reported a 7-fold enhancement of the energy barrier, U_eff, of a Dy^III₂ that behaves as Single Molecule Magnet (SMM), by introducing electron-withdrawing terminal ligands.

Having all this in mind, we initiated a project towards the synthesis of tetranuclear CCs of the general formula [TR₂Ln₂L1₄(NO₃)₂(solv)₂], which possess the 2,3M4-1 topology, using Co^II or Ni^II and 4f ions and substituted Schiff base ligands, similar to H₂L1 (Scheme 2, left) in the presence or absence of substituted monocarboxylates as co-ligands (Scheme 2, right). The interest for this specific motif, which is supported only by the organic ligand in the absence of any additional bridging atom, is manifold: a) these types of molecules exhibit SMM behaviour^46,47 and thus it is anticipated that the introduction of electron-withdrawing groups would improve their magnetic properties. b) Replacement of the 3d and 4f ions with luminescent elements such as Zn^II and Eu^III or Tb^III, respectively, may lead to a new generation of materials with interesting optical properties. c) We recently showed that three tetranuclear CCs formulated as [TR^II₂Dy^III₂(L1)₄(EtOH)₆](ClO₄)₂·2(EtOH) where TR is Co^II (1) or Ni^II (2) and [Ni^II₂Dy^III₂(L1)₄Cl₂(CH₃CN)₂]·2(CH₃CN) (3) display efficient homogeneous catalytic behaviour in the room-temperature synthesis of trans-4,5-diaminocyclopent-2-enones from 2-furaldehyde and primary or secondary amines under a non-inert atmosphere and thus, further tuning of the organic periphery may improve their catalytic performance.⁵⁷ d) More importantly, the possibility of exchanging the 3d and/or the 4f elements with diamagnetic metal centres and retaining at the same time the structural topology in the solution gives the opportunity to study these molecules in the solid and/or solution state with several spectroscopic techniques such as NMR (¹H, ¹³C, ⁸⁹Y) or EPR for the Gd species.

Scheme 2 (left) The substituted organic ligands used in this work R₁ = H, Br, allyl, NO₂; R₂ = H, Cl, C₆H₅; R₃ = H, NO₂; R₂−R₃ = C₄H₄; (right) the substituted monocarboxylates used in this work (M1 R₄ = R₆=NO₂; R₅ = H; M2 R₄ = NO₂; R₅ = R₆ = H).

Adopting the isoreticular concept, introduced by O'Keeffe and Yaghi in metal–organic framework chemistry,⁶¹ a terminology that is not valid for finite structures, and since the isostructural and isomorphous terms do not fully describe the targeted CCs, we introduce herein the term “isoskeletal”, previously used to describe clusters that possess the same topology^62,63 or related organic structures with the same host framework but different guests,^64,65 to describe the targeted CCs constructed from organic ligands that provide a similar coordination environment and have the same 2,3M4-1 topology. This work addresses and enlightens synthetic and theoretical aspects derived from our effort to systematically construct isoskeletal CCs of the general formula [TR₂Ln₂(LX)₄(NO₃)₂(solv)₂], possessing the desired 2,3M4-1 topology. Magnetic, luminescence and catalytic studies of a few of the reported compounds will be discussed in future articles. To the best of our knowledge, such a systematic synthetic and theoretical investigation for the given Ni^II–Co^II/Dy^III species bearing the 2,3M4-1 topology has never been carried out.

Results and discussion

The synthesis of the substituted organic molecules represents the initial synthetic part of this project. A typical synthesis of a Schiff base ligand takes place in an alcoholic solution in the presence or absence of a catalyst (acid or base), although other synthetic methods such as microwave-mediated⁶⁶ or solvent-free mechanochemical synthesis^67,68 can be employed. Our attempts to synthesize the substituted organic molecules bearing electron-withdrawing groups (Scheme 2, left) (Table 1, entries 2–20) via a typical synthesis, viz. reflux in alcoholic solution of equivalent amounts of the corresponding aldehyde and amine, resulted in the desired products, but in very low yields. Microwave-assisted organic synthesis (MAOS) enables the rapid synthesis of organic molecules, often with excellent yields and selectivity. Interestingly, by applying MAOS^69,70 for the synthesis of the corresponding organic molecules, the yield increases drastically. In total, we synthesized 19 new organic ligands (Table 1, entries 2–20) and we characterized via single crystal X-ray crystallography two examples, H₂L3 and H₂L19 (Fig. 1). Single crystal X-ray studies at 173 K reveal that both H₂L3 and H₂L19 are a mixture of keto–enol tautomers. In H₂L3 (Fig. 1, above), where two molecules can be found in the asymmetric unit, the enol form of the ligand is indicative of the existence of protons H3 and H8A that could be freely refined with 22 and 23% chemical occupancy, respectively. However, to obtain a suitable structure solution, both protons were restrained to have 25% occupancy and their O–H bond distance to be at 0.88Å. The C–O bond distances are 1.282(3) and 1.282(3) Å which are slightly higher than a typical C=O double bond. Similarly, for ligand H₂L19, protons H1 and H2 (Fig. 1 below) could be freely refined and have 79% and 21% occupancies, indicating a 79/21 existence of the ketonic/enolic form, while the C–O bond distance is 1.285(2) Å. These findings are in line with previously reported compounds.⁶⁷ Solution studies (¹H and ¹³C NMR) of the synthesized compounds revealed the existence of both keto and enol forms.

Table 1 A list of all substituted Schiff bases synthesized for this study. R₁, R₂ and R₃ correspond to the substituted groups seen in Scheme 2 (left)

Entry		R1	R2	R3	Yield (%)
a MW technique.
1	H2L1	H	H	H	95
2	H2L2	H	H	NO2	66 [96]^a
3	H2L3	H	Cl	NO2	76 [95]^a
4	H2L4	H	C6H5	H	91
5	H2L5	H	C4H4		88
6	H2L6	NO2	H	H	93
7	H2L7	NO2	H	NO2	94
8	H2L8	NO2	Cl	NO2	80
9	H2L9	NO2	C6H5	H	92
10	H2L10	NO2	C4H4		74
11	H2L11	allyl	H	H	70 [98]^a
12	H2L12	allyl	H	NO2	72
13	H2L13	allyl	Cl	NO2	70
14	H2L14	allyl	C6H5	H	69
15	H2L15	allyl	C4H4		61 [95]^a
16	H2L16	Br	H	H	84
17	H2L17	Br	H	NO2	79
18	H2L18	Br	Cl	NO2	35 [85]^a
19	H2L19	Br	C6H5	H	83
20	H2L20	Br	C4H4		79

---

Fig. 1 A schematic representation of H₂L3 (up) and H₂L19 (bottom) ligands.

The synthesis of the targeted tetranuclear CCs represents the next part of this project. Based on the synthetic protocols that resulted in the isolation of the targeted tetranuclear CCs [TR₂Ln₂(LX)₄(NO₃)₂(solv)₂],⁵⁷ and bearing in mind that a subtle change in the synthetic procedure may affect the shape, dimensionality and nuclearity of the final product, we screened several molecular ratios to isolate the corresponding targeted isoskeletal CCs. At this point, it is worth mentioning that in order to avoid complicating the synthetic procedures we employed only Dy(OTf)₃ as the lanthanide source. During this screening procedure several interesting and unexpected results were obtained, grouped and presented below.

A) Oxidation

The reaction of H₂L6 with Co(ClO₄)₂, Dy(OTf)₃ and Et₃N in the molar ratio 2 : 1 : 1 : 5 in MeOH resulted, after 3 days, in approximately 82% yield, in dark-red shaped crystals formulated as (Et₃NH)[Co^III(L6)₂]·3MeOH [4·3MeOH] (Fig. 2 left). Similarly, the reaction of H₂L20 with Co(ClO₄)·6H₂O, Dy(OTf)₃ and Et₃N in the molar ratio 1 : 1 : 1 : 3 in MeOH resulted, after 6 days, in approximately 82% yield dark, in red-shaped crystals formulated as (Et₃NH)[Co^III(L20)₂]·2MeOH [5·2MeOH] (Fig. 2, right). In the cases of 4 and 5, during crystallization, upon standing at room temperature, Co^II is oxidized to Co^III. To target the isoskeletal 2,3M4-1 Co^II analogues, it is important to perform the synthesis and crystallization under inert atmosphere conditions.

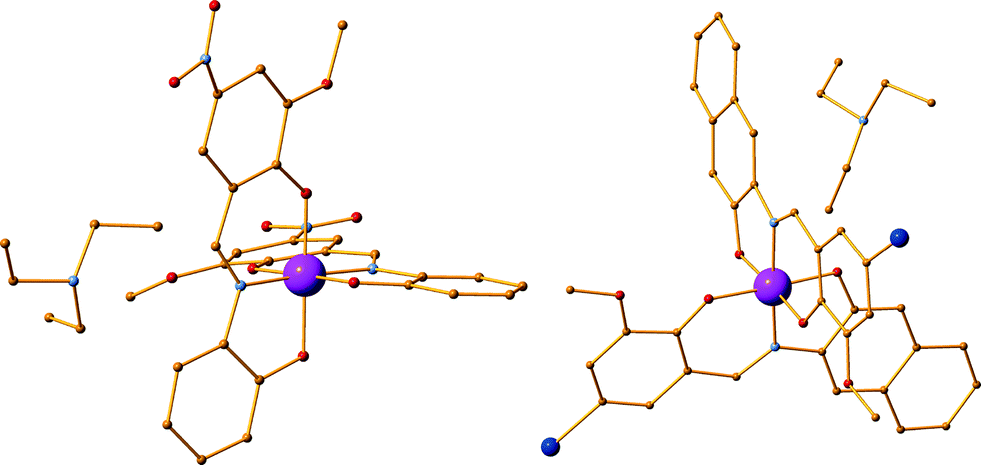

Fig. 2 (left) The crystal structure of compound 4. (right) The crystal structure of compound 5. Solvent molecules and H-atoms are omitted for clarity. Colour code: Co (pink), N (light blue), O (red), C (orange), Br (blue).

B) Solvent influence

As anticipated, modification of the organic periphery of the parent organic ligand H₂L1 drastically affects its solubility. However, when targeting the corresponding isoskeletal tetranuclear species, the use of a mixture of solvents, to enhance dissolution, results in the formation of undesired compounds. For example, the reaction of ligand H₂L14 with Ni(ClO₄)₂, Dy(OTf)₃ and Et₃N in the molar ratio 2 : 1 : 1 : 5 in a mixture of EtOH/CH₂Cl₂ results in the synthesis of a tetranuclear compound formulated as [Ni^II₂Dy^III₂(L14)₄(allyl-o-vanillin)₂(EtOH)₂]·3CH₂Cl₂ [6·3CH₂Cl₂] (Fig. 3). The two allyl-o-vanillin moieties are derived from the disassembly of H₂L14 during the reaction. Interestingly, performing a similar reaction in solely DMF results in the formation of the desired [Ni^II₂Dy^III₂(L14)₄(DMF)₆]·2(ClO₄)·4DMF [7·4DMF] (Fig. 3). This observation was additionally proven by performing a reaction of ligand H₂L19 with Ni(ClO₄)₂·6H₂O, Dy(OTf)₃ and Et₃N in the molar ratio 2 : 1 : 1 : 5 in a mixture of EtOH/CH₂Cl₂, which resulted in the isolation of compound [Ni^II₂Dy^III₂(L19)₄(bromo-o-vanillin)₂(EtOH)₂]·6EtOH [8·6EtOH] (Fig. 3). Moreover, utilizing a blend of EtOH/THF in the following reaction of Ni(ClO₄)₂·6H₂O, Dy(OTf)₃ and Et₃N in the molar ratio 2 : 1 : 1 : 5 results in [Ni^II₂Dy^III₂(L15)₄(allyl-o-vanillin)₂(EtOH)₂]·2THF·2EtOH [9·2THF·2EtOH] (Fig. 3). However, performing a similar reaction in DMF results in the formation of the desired compound [Ni^II₂Dy^III₂(L15)₄(DMF)₂]·2(ClO₄) [10] (Fig. 3). The aforementioned examples indicate that the use of a second solvent increases the chances of the formation of a by-product and thus the mixture of solvents may not correspond to an ideal synthetic protocol when targeting high purity compounds.

Fig. 3 The crystal structures of compounds 6–10. H atoms and solvents are omitted for clarity. The substituted o-vanillin moiety is indicated with blue colour. Colour code: Ni (light green), Dy (light blue), N (blue), O (red), C (orange), Br (blue).

C) Solvent concentration influence

During our efforts to scale up the synthesis of compound 2,⁵⁷ we performed reactions with a lower amount of solvent (10 ml instead of 20 ml) or we tripled the amount of the reactants while retaining the same the molar ratio, but then a different product was obtained, formulated as [Ni^II₂Dy^III₂(L1)₄(EtOH)₄(H₂O)₂](ClO₄)₂ (11) (Fig. 4). Two water molecules coordinate to Ni^II centres in 11, in contrast to two ethanol molecules found in 2.⁵⁷ Moreover, when a similar scale up reaction is performed in a different solvent such as DMF, another compound is formed formulated as [Ni^II₂Dy^III₂(L1)₄(DMF)₆](OTf₃)₂·2DMF (12·2DMF) (Fig. 4), instead of the expected perchlorate derivative. In addition, performing a concentrated reaction of Ni(ClO₄)·6H₂O, Dy(OTf)₃, Et₃N and H₂L20 in the molar ratio 1 : 1 : 2 : 8 resulted in a CC with the formula [Ni^II₂Dy^III₂(L20)₄(DMF)₆] [Ni^II₂Dy^III₂(L20)₄(DMF)₄(H₂O)₂]·4(ClO₄)·5DMF (13·5DMF) (Fig. 4).

Fig. 4 The crystal structures of 11, 12 and 13. Colour code: Ni (light green), Dy (light blue), N (blue), O (red), C (orange), Br (blue), F (green) S (yellow).

D) Molar ratio

The reaction of Ni(ClO₄)₂·6(H₂O), Dy(OTf)₃, and H₂L5 with Et₃N in MeOH in the molar ratio 1 : 1 : 2 : 5 resulted in the isolation of a tetranuclear cubane Ni₄ formulated as [Ni^II₄(L5)₄(MeOH)₄]·6MeOH (14·6MeOH) which is isoskeletal to the tetranuclear cubic Ni₄ CC formed by the H₂L1 ligand, reported recently.⁵⁴ However, performing the same reaction in EtOH results in the isolation of the targeted isoskeletal tetranuclear [Ni^II₂Dy^III₂(L5)₄(EtOH)₆]·2(ClO₄)·4EtOH (15·4EtOH) (Fig. 5).

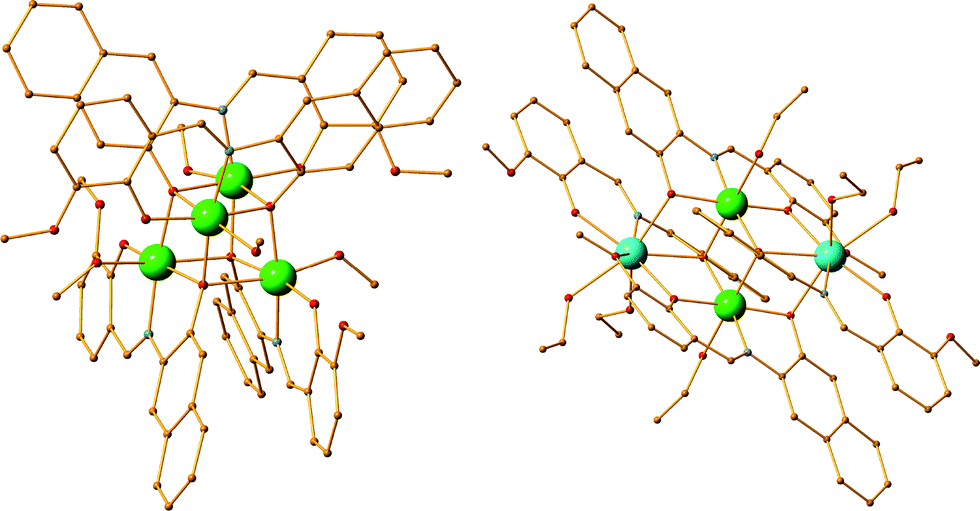

Fig. 5 The crystal structures of compounds 14 (left) and 15 (right). Colour code: Ni (light green), Dy (light blue), N (blue), O (red), C (orange).

E) Solvent diffusion crystallization

In our effort to obtain the targeted tetranuclear Ni^II₂Dy^III₂ analogues with H₂L4 as a ligand via the diffusion crystallization technique, a compound formulated as [Ni^II₂Dy^III₂(L4)₄(DMF)₆]·2(ClO₄)·2Et₂O (16·2Et₂O) (Fig. 6, left) which contains two ether molecules as lattice solvents, was isolated. Upon standing at room temperature,^71–74 compound 16 immediately loses its crystallinity.

Fig. 6 The crystal structures of compound 16 (left) and 17 (right). Colour code: Ni (light green), Dy (light blue), N (blue), O (red), Cl (light green).

F) Co-ligand introduction

To identify the possibility of introducing a monocarboxylate group as a co-ligand on the periphery of the 2,3M4-1 motif, we performed a pilot reaction with H₂L1, Ni(OAc)₂·4(H₂O), Dy(OTf)₃ and Et₃N in the molar ratio 2 : 1 : 1 : 2 in MeOH that resulted in the isolation of a compound formulated as [Ni^II₂Dy^III₂(L1)₄(OAc)₂(MeOH)₂]·2MeOH (17·2MeOH) (Fig. 6, right). Each acetate group bridges the Ni and Dy centres, which is in contrast to the NO₃ analogues that prefer to chelate to the Ln centres.^46,47

Employment of the bulky co-ligands M1 and M2 along with ligand H₂L12, Co(ClO₄)₂·6H₂O and Dy(OTf)₃ in the molar ratio of 2 : 1 : 1 : 5 in N,N′-DMF as solvent results in the isolation of two compounds formulated as [Co^II₂Dy^III₂(L12)₄(M1)₂(DMF)₂] (18) and [Co^II₂Dy^III₂(L12)₄(M2)₂(DMF)₂]·2DMF (19·2DMF), respectively (Fig. 7).

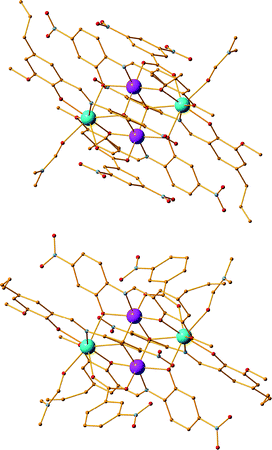

Fig. 7 The crystal structures of compounds 18 (upper) and 19 (lower). Colour code: Co (pink), Dy (light blue), N (blue), O (red), C (orange).

However, our effort to obtain the isoskeletal compound to 18 Co^II₂Dy^III₂ compound along with ligand H₂L2 instead of H₂L12 we performed a similar reaction which resulted in red plate crystals formulated as [Dy^III(M1)₃(DMF)₂] (20) (Fig. 8). Compound 20 is a one-dimensional (1D) coordination polymer and can be considered as a polymorph to the recently reported compound.⁷⁵

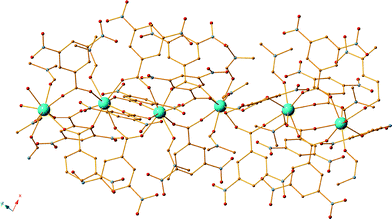

Fig. 8 The crystal structure of compound 20. Colour code: Dy (light blue), N (blue), O (red), C (orange).

Finally, the diffusion of Et₂O to a concentrated reaction of ligand H₂L5 along with Ni(ClO₄)·6H₂O, Dy(OTf)₃, M1 and Et₃N in DMF results in the formation of a compound formulated as [Ni^II₂Dy^III₂(OH)(L5)₃(M1)₃(DMF)₂]·1.5DMF·Et₂O (21·1.5DMF·Et₂O) which possesses the 2,3M4-1 topology. Surprisingly, only three organic ligands are involved in the aggregation in contrast to the four ligands used in compounds 6–19. The skeleton of 21 is further supported by the presence of a hydroxyl μ₃-OH group. Also, one Et₂O molecule is trapped in the lattice (Fig. 9).

Fig. 9 The crystal structure of compound 21. Colour code: Ni (light green), Dy (light blue), N (blue), O (red), C (orange), H (white).

Solution studies

To further confirm the identity of compounds 7, 10 and 16 in solution, we performed an electrospray ionization mass (ESI-MS) spectrometry study. For 7, we observed three peaks in the MS (positive-ion mode) at m/z 1009.2113, 972.1730 and 936.1485 which correspond perfectly to three dicationic fragments, [Ni^II₂Dy^III₂(L14)₄(DMF)₂]²⁺, [Ni^II₂Dy^III₂(L14)₄(DMF)]²⁺ and [Ni^II₂Dy^III₂(L14)₄]²⁺, respectively (see Fig. S1 ESI†). Similarly, for 10, the peaks at m/z 1742.2549, 876.6074, 840.0702 and 803.067 correspond to [Ni^II₂Dy^III₂(L15)₄(MeOH)]⁺, [Ni^II₂Dy^III₂(L15)₄(DMF)₂]²⁺, [Ni^II₂Dy^III₂(L15)₄(DMF)]²⁺, and [Ni^II₂Dy^III₂(L15)₄]²⁺ fragments (see Fig. S2†), respectively. For compound 16, the following four m/z 1847.228, 929.1356, 892.1121 and 855.5781 peaks correspond to [Ni^II₂Dy^III₂(L4)₄(MeOH)]⁺, [Ni^II₂Dy^III₂(L4)₄(DMF)₂]²⁺, [Ni^II₂Dy^III₂(L4)₄(DMF)]²⁺ and [Ni^II₂Dy^III₂(L4)₄]²⁺ fragments (see Fig. S3†), respectively. However, all the efforts to obtain similar ESI-MS spectra for compounds 18 and 19, which contain a co-ligand, were not successful.

Theoretical studies

To gain further insight into the tuning and modulation of, inter alia, the catalytic activities of the tetranuclear CCs, computational studies were carried out. Specifically, the influence of the organic ligands on the electronic properties of the metals was studied. The reason for this study is that the ‘activity’ of the ligands may be tuned by employing diverse functional groups at specific sites/positions. In order to do this, quantitative and qualitative metrics of the functional group effects were established and in parallel several congeners of the ligands were examined; more so, several model systems of the polynuclear coordination clusters were used. With respect to Scheme 2 (see text) concerning the numbering, the following tables (Tables 2–5) indicate the model systems studied. Fig. 10 shows the visualization of the mapped molecular electrostatic potential in ligands L1m to L12m, as in the usual molecular electrostatic potential (MEP) rendering, with the blue zones depicting the ‘positively’ charged zones, while the red zones the ‘negatively charged zones’.

Table 2 Recapitulative table of the model ligands used

L	R1	R2	R3
L1m	H	H	H
L2m	OMe	H	H
L3m	N(CH2CH3)2	H	H
L4m	F	H	H
L5m	H	H	NO2
L6m	CH2CH=CH2	H	NO2
L7m^1	NO2	H	H
L8m	NO2	H	H
L9m	H	Cl	NO2
L10m	Br	H	NO2
L11m	NO2	H	NO2
L12m	NO2	Cl	NO2
L7: an additional NO2 is substituted at the ortho position adjacent to R2.

---

Table 3 Recapitulative table of the co-ligands used

coL	R4	R5	R6
coL1m	H	H	H
coL2m	H	F	H
coL3m	NO2	H	NO2

---

Table 4 Recapitulative table of the models used

Model	M1	M2	L	coL	S
m1 11	Zn	Y	L1m	coL2m	(CH3)2NCOH
m2 11a	Ni	Y	L1m	coL2m	(CH3)2NCOH
m3 12	Zn	Y	L5m	MeOH	NO3
m4 12a	Ni	Y	L5m	MeOH	NO3
m5 13	Zn	Y	L1m	EtOH^1	—
m6 14	Zn	Y	L6m	coL3m	S1m
m7 14b	Zn	Y	L1m	coL3m	S1m

---

Table 5 Mulliken charges

Model	q(M1)	q(M2)	q(O1)	q(N)	q(O2)
m1 11	0.79	1.49	−0.64	−0.20	−0.61
m2 11a	0.53	1.49	−0.61	−0.16	−0.59
m3 12	0.93	1.34	−0.55	−0.26	−0.73
m4 12a	0.69	1.36	−0.62	−0.17	−0.58
m5 13	0.86	1.32	−0.56	−0.30	−0.73
m6 14	0.85	1.56	−0.55	−0.27	−0.70
m7 14b	0.85	1.55	−0.56	−0.27	−0.71

---

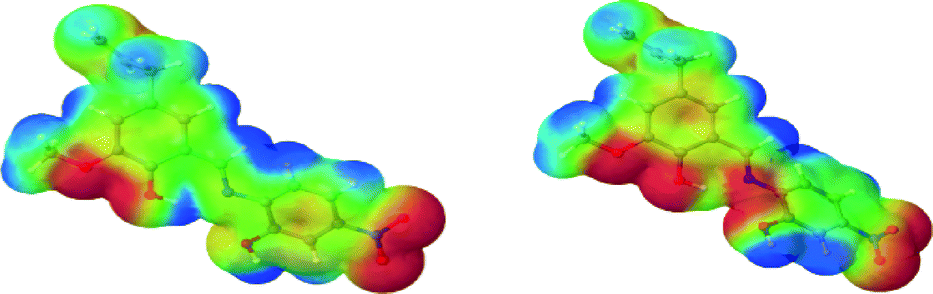

Fig. 10 Rendition of the molecular electrostatic potential (MEP) of the model ligands.

One way to assess the effect of the electron-withdrawing groups on the Schiff base is to qualitatively render the MEP mapped onto the van der Waals surface. Indeed, the nature of the R groups has a profound effect on the surface charge of the base on its ‘inner cove’ – that is, the O–O–N–O core pattern that directly interacts with the metals. Fig. 10 and Table 5 qualitatively illustrate this idea. Unsurprisingly, the results show that the charge distribution along the cove can indeed be modulated upon modification of the groups.

In the gas phase, in their most stable geometrical configuration, the most ‘simple’ functionalization, i.e. having R₁ = R₂ = R₃ = H turns out to confer the highest negative charge accumulation on the ligand ‘anchor’ points, the least being with R₁ = NO₂, R₂ = Cl, R₃ = NO₂. Interestingly, for a given R₁, changing R₃ has a profound effect on the charge distribution as can be illustrated by considering L1m and L5m. On the other hand, for a given R₃, changing R₁ does not have a noticeable altering effect, as shown for example by L5m versus L10m and L1m versus L2m. More crucially, the conformation of the ligand, although not surprisingly, ultimately determines the extent, nature and motifs of the interaction between the metal-interacting side of the ligands and the metals (see Fig. 11). Indeed, single point (sp) calculations on L6m in its ligand-bound geometry exhibits a different charge distribution signature with respect to that of its gas-phase optimized structure (gp). The geometries differ by having the nitrogen-bound aryl group (ring 2) rotated clockwise (gp) or counter clockwise (sp) around the N–C(aryl) bond. This observation can be rationalized when one considers the frontier molecular orbitals (MO).

Fig. 11 Rendition of the molecular electrostatic potential (MEP) of L6m in its ligand-bound (left) and in its free conformation (right).

Indeed, inspection of the LUMO–HOMO-2 of L6m (sp) indicates that the molecular orbitals (MO) are mainly consisted of π networks running throughout the whole molecule; even more remarkable is the low mixing of atomic p orbitals perpendicular to the molecular plane defined by ring 1 (the aryl containing R1) and the N-centered p orbital that is parallel to this plane (see Fig. 12). This very orientation of the p orbital should also be responsible for the dependence of the cove charge distribution on the orientation of the hydrogens on the OH functions on both rings (data not shown).

Fig. 12 Frontier orbitals of L6m (sp).

In terms of partial atomic charge, within the Mulliken partitioning scheme, it can be noted that there are indeed variations in values on the metals, on the two oxygen and the nitrogen atoms (see Table 5) depending on the makeup of the ligand. Close examination suggests that, in terms of partial charges, both M2 (Table 4) and O1 (the phenolic oxygen atom of the o-vanillin moiety) are spectator elements and the value of their partial charge does not depend on that of the other atoms. However, an interdependence of the values of partial charge on N, O2 (the phenolic oxygen atom of the aminophenol moiety) and M1 can be found. The largest of such variations occurs for metal M1 and is observed between model m2 11a and model m3 12. These results are perfectly in line with that of the charge distribution being dependent on the orientation of ring 2.

The above results clearly show the richness of the chemistry of the present coordination clusters: the nature of metal M1 and the identity of the R groups in the ligands play preponderant roles in both the tuning and control of the behaviour of the clusters. With the trends and rationale hereby demonstrated, it should be possible in future work to better modulate the activity of the clusters through tuning of the electronic structure and control of structural constraints.

Conclusions

In this work we present the synthesis of nineteen new substituted Schiff base organic ligands and eighteen new CCs. Adopting the MOF isoreticular concept, we introduce herein the term “isoskeletal” which ideally describes the structural and topological similarities found in compounds 6–13, 15–19 and 21. Microwave synthesis has proven to be very efficient for the synthesis of the substituted Schiff base ligands.⁷⁶ Targeting the synthesis of such isoskeletal species, it is shown that several parameters must be taken into account. We do show here that a slight change in the synthetic procedure drastically affects the formula of the desired compound. However, the usage of different lanthanide sources and the lanthanide contraction are two parameters that have not been taken into account in this study and are anticipated to have a major impact on the shape, nuclearity and formula of the final product. The possibility of producing isoskeletal species and exchanging the 3d and/or the 4f elements with diamagnetic elements such as Zn^II or Y^III gives the opportunity to further study the targeted molecules in the solid and/or solution state with additional spectroscopic techniques such as NMR (¹H, ¹³C, ⁸⁹Y) or EPR for the Gd^III species. For the present study, ESI-MS studies of compounds 7, 10 and 16 are indicative that the targeted species remain intact in solution. However, upon introduction of co-ligands the targeted CCs become insoluble in alcoholic solvents. Computational studies showcase how the likely activity of the CCs can be tuned and modulated, and suggest ways on achieving this, hence demonstrating the richness of the chemistry of the hereby reported constructs. Our future efforts will be focused on further exploring the coordination chemistry of these species as well on performing such systematic studies involving other organic ligands, aiming to isolate molecules with better magnetic, catalytic or fluorescence properties.

Experimental

Materials

Chemicals (reagent grade) were purchased from Sigma Aldrich and Alfa Aesar. Detailed synthesis and characterization of the HL ligand is described in the ESI.† All experiments were performed under aerobic conditions using materials and solvents as received. Safety note: perchlorate salts are potentially explosive; such compounds should be used in small quantities and handled with caution and utmost care at all times.

Synthesis

Detailed synthetic protocols can be found in the ESI.† Powder XRD spectra of compounds 4–21 were not recorded, due to the fact that these molecules can be considered as unexpected reaction products. Elemental analysis results of selected samples (7, 10, 11, 13 and 16) are reported in the ESI.†

Instrumentation

IR spectra of the samples were recorded over the range of 4000–650 cm⁻¹ on a Perkin Elmer Spectrum One FT-IR spectrometer fitted with a UATR polarization accessory.

Computational details

Energy minimization on strategically designed model compounds (see Results and discussion) was conducted within the Kohn–Sham Density Functional Theory (DFT) approach at the B3LYP/SDD and B3LYP/6-311G* levels.^77–87 Calculations were carried using the Gaussian09 (ref. 88) software. The Jmol program was used for visualization purposes.⁸⁹

X-ray crystallography

Data for H₂L3, H₂L19, 5–8, 10–12, 15–17 and 21 were collected (ω-scans) at the University of Sussex using an Agilent Xcalibur Eos Gemini Ultra diffractometer with a CCD plate detector under a flow of nitrogen gas at 173(2) K using Mo Kα radiation (λ = 0.71073 Å). CRYSALIS CCD and RED software were used respectively for data collection and processing. Reflection intensities were corrected for absorption by the multi-scan method. Data for 4, 9, 13, 14, 18–20 were collected at the National Crystallography Service, University of Southampton.⁹⁰ All structures were determined using Olex2,⁹¹ solved using either Superflip⁹² or SHELXT^93,94 and refined with SHELXL-2014.⁹⁵ All non-H atoms were refined with anisotropic thermal parameters, and H-atoms were introduced at calculated positions and allowed to ride on their carrier atoms. Geometric/crystallographic calculations were performed using PLATON,⁹⁶ Olex2,⁹¹ and WINGX⁹³ packages; graphics were prepared with Crystal Maker.⁹⁷ For compounds 8, 9 and 14 the SQUEEZE process was applied.⁹⁸ Each of the crystal structures has been deposited at the CCDC with reference numbers 1406218–1406237.
