Stabilization of a Zn(II) hydrosulfido complex utilizing a hydrogen-bond accepting ligand

Abstract

Hydrogen sulfide (H₂S) has gained recent attention as an important biological analyte that interacts with bioinorganic targets. Despite this importance, stable H₂S or HS⁻ adducts of bioinorganic metal complexes remain rare due to the redox activity of sulfide and its propensity to form insoluble metal sulfides. We report here reversible coordination of HS⁻ to Zn(didpa)Cl₂, which is enabled by an intramolecular hydrogen bond between the zinc hydrosulfido product and the pendant tertiary amine of the didpa ligand.

---

Although historically known for its malodour and toxicity, hydrogen sulfide (H₂S) has joined nitric oxide (NO) and carbon monoxide (CO) as a physiologically important gasotransmitter.¹ Complicating its reactivity with different bioinorganic targets, H₂S has multiple protonation states, participates in complex redox chemistry, and is highly metallophilic.^2,3 For example, the high affinity between zinc and sulfide (, sphalerite)⁴ limits generation of stable sulfide-ligated products, but has also been leveraged as a sulfide sequestration strategy in quantification and detection methods.^5,6 Consequently, stable zinc hydrosulfido complexes remain rare,^7–11 with reported examples including (tris)pyrazolylborate zinc hydrosulfide (TpZnSH) complexes, supported by the steric protection from the Tp ligand.^7,8 Complementing the use of steric protection, secondary-coordination sphere interactions have also been used to stabilize metal-sulfide species with other metals, such as iron.¹² Additionally, these stabilizing forces are hypothesized to be important in the mechanism of carbonyl sulfide fixation by carbonic anhydrase.^13,14

Toward increasing our understanding of the solution state stabilization of metal hydrosulfido complexes, we viewed that a ligand scaffold with a pendant hydrogen-bond (H-bond) acceptor would provide a viable scaffold for Zn–SH stabilization. We noted that the pyridinediimine (PDI) ligand scaffold didpa ([(2,6-ⁱPrC₆H₃)(N=CMe)(N(ⁱPr)₂C₂H₄)(N=CMe)C₅H₃N]) has been demonstrated to function as an H-bond donor when the pendant diisopropylamine is protonated and used to stabilize metal halogen hydrogen bonds (MHHBs), with calculated MHHB strengths of ∼6 kcal mol⁻¹ for [Zn(Hdidpa)Cl₂][PF₆].¹⁵ Additionally, the protonated form of the ligand can also function as an H-bond donor to stabilize rare Fe-OH species.¹⁶ Although ligands displaying hydrogen-bond donors in the secondary coordination sphere are now frequently used in bioinorganic model complexes,^17,18 hydrogen-bond accepting ligands are rare.^19–23 On the basis of these properties, we reasoned that the didpa ligand could function as an H-bond acceptor in its neutral form to provide a suitable ligation environment for metal hydrosulfido stabilization.

Treatment of Zn(didpa)Cl₂ (1) with H₂S gas failed to produce any reaction, however treatment of 1 with NBu₄SH²⁴ in either CH₂Cl₂ (Fig. 1) or MeCN (Fig. S1, ESI†) resulted in a significant change in the UV-Vis spectrum. In CH₂Cl₂ the shoulder at 313 nm decreased in intensity with a concomitant increase in absorbance at 280 nm and a well-anchored isosbestic point at 296 nm upon addition of HS⁻. A Job plot was consistent with 1 : 1 binding of HS⁻ to 1 (Fig. 1, inset). In addition, titration with HO⁻ resulted in 1 : 1 binding (Fig. S13, ESI†). Based on these results, and because chloride abstraction was not required for HS⁻ binding, we propose that HS⁻ binds to 1 to generate six-coordinate [Zn(didpa)Cl₂SH]⁻ (2, Scheme 1). All attempts to grow single crystals suitable for X-ray structural determination of 2 resulted in precipitation of a white amorphous powder after prolonged standing. Supporting the associative formation of a six-coordinate product, titration of 1 with excess Cl⁻ showed similar spectral changes by UV-Vis spectroscopy (Fig. S3 and S4, ESI†), and the Job plot was consistent with 1 : 1 Cl⁻ binding (Fig. S12, ESI†). Attempts to isolate and crystallize the six-coordinate 1 : 1 adduct of Cl⁻ and 1 with a range of different Cl⁻ sources (Bu₄NCl, Ph₄PCl, PPNCl) resulted in simple recrystallization of the starting chloride salt and 1, presumably due to the reversibility of the process.

Fig. 1 Titration of Zn(didpa)Cl₂ (87.3 μM, CH₂Cl₂, black) with NBu₄SH (0.1 equiv. increments up to 6 equiv., red). The inset shows the Job plot of 1 with NBu₄SH in MeCN at a total concentration of 420 μM. The observed break is consistent with 1 : 1 binding.

Scheme 1 Reaction of Zn(didpa)Cl₂ (1) with NBu₄SH to generate hydrosulfide adduct 2.

To gain further insights into the HS⁻ binding, we used ¹H NMR spectroscopy to investigate the stability of 2 and the role of hydrogen-bonding in the complex. Treatment of 1 with 1.5 equiv. of NBu₄SH in CD₃CN resulted in significant changes in the ¹H NMR spectrum. The resultant spectrum did not match that of the free ligand,¹⁵ suggesting that addition of HS⁻ does not remove Zn from the didpa ligand (Fig. 2). Upon HS⁻ addition, the pyridine and other aryl resonances of 1 shifted significantly in a pattern consistent with loss of free rotation of the 2,6-diisopropylphenyl group of the ligand. Similarly, the isopropyl resonance at 1.00 ppm, corresponding to the isopropyl methyl groups of the pendant amine, shifts downfield and bifurcates. Each of these spectral changes indicated a significant change in the primary coordination sphere of the zinc and are consistent with formation of a six-coordinate complex in which the Zn–SH moiety is hydrogen bonded to the pendant diisopropylamine (Scheme 1).

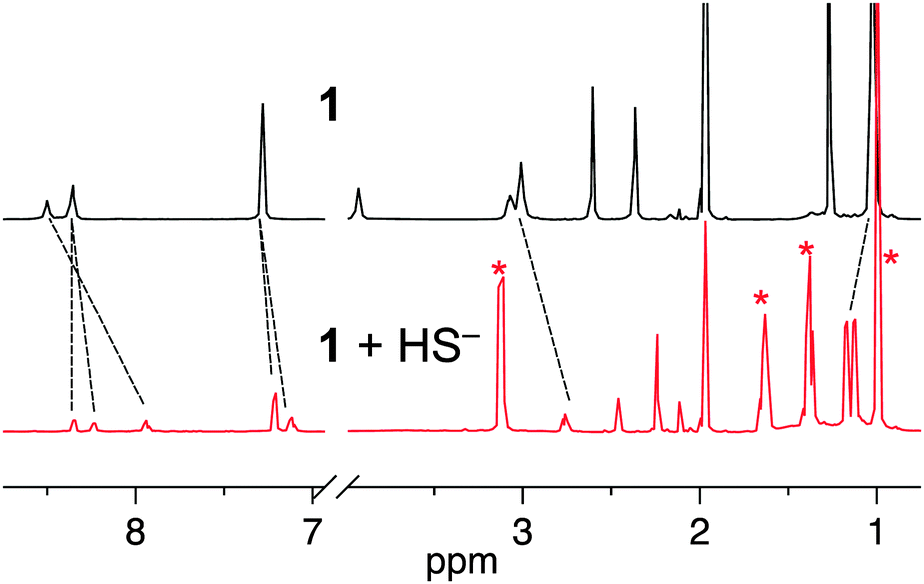

Fig. 2 ¹H NMR spectra of 1 (11.8 mM in CD₃CN) before (top, black) and after (bottom, red) addition of 1.5 equiv. of NBu₄SH. Peaks denoted with a (*) correspond to the NBu₄⁺ counterion.

Low temperature ¹H NMR investigations provided additional information about the structural flexibility of the scaffold and the presence of the coordinated hydrosulfide. Although we were unable to observe an appreciable signal corresponding to the coordinated HS⁻ at room temperature, we expected that lowering the temperature would not only enable HS⁻ observation, but also lock the conformation of the ethylene backbone of the ligand. Consistent with these expectations, cooling to −35 °C in CD₃CN resulted in the appearance of a new resonance at 11.05 ppm, matching the general chemical shift expected for partial protonation of the nitrogen as an H-bond acceptor (Fig. 3).²⁵ For comparison, the ¹H NMR spectrum of the previously reported [Zn(Hdidpa)Cl₂][PF₆] displays an N–H resonance at 8.50 ppm in CD₂Cl₂ due to the protonated diisopropylamine of the didpa ligand acting as an H-bond donor and forming an intramolecular MHHB with a chloride ligand.¹⁵ The downfield shift observed for 2 is consistent with the diisopropylamine acting as an H-bond acceptor, likely accepting a hydrogen bond from the Zn-ligated SH moiety.²⁶

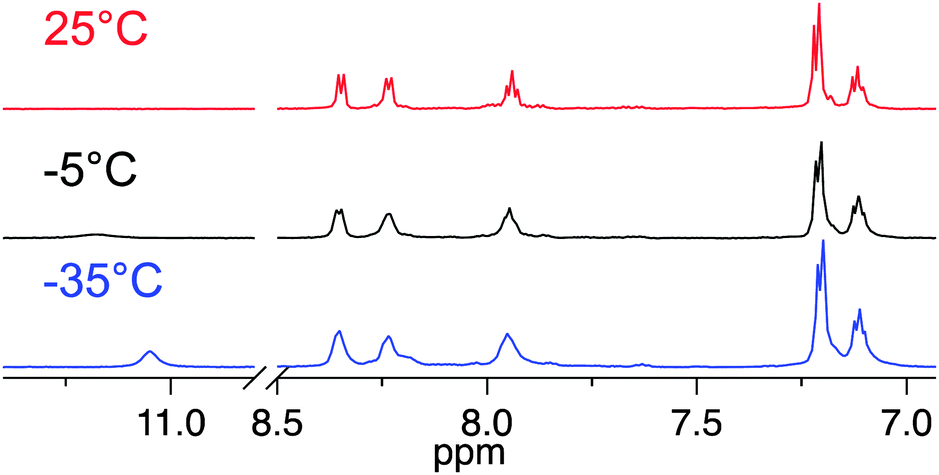

Fig. 3 Variable temperature ¹H NMR spectra of 11.4 mM Zn(didpa)Cl₂, and 1.5 equiv. NBu₄SH in CD₃CN. Cooling to −35 °C results in sharpening and an upfield shift of the broad SH peak to 11.05 ppm. See Fig. S9 (ESI†) for an expanded spectrum of the SH peak.

Additionally, we observed that the broad peak centered at 3.6 ppm corresponding to the ethylene bridge decoalesced upon cooling. The presence of the internal hydrogen bond between the sulfhydryl group and the tertiary amine significantly limits the flexibility of the secondary coordination sphere, resulting in a sharpening in the signal produced by the ethylene linker, methine protons, and methyl groups (Fig. S8, ESI†). Supporting the presence of an intramolecular SH hydrogen bond, a ¹H NOESY experiment at −35 °C revealed cross peaks between the SH and the ethylene, methine, and methyl signals of the tertiary amine linker (Fig. S5, ESI†).

Although the N⋯HS interaction was not observed by solution state FTIR, we note that the N–H stretch involved in hydrogen bonding in the [Zn(Hdidpa)Cl₂][PF₆] system is also absent in solution FTIR spectra.¹⁵ The N–H stretch in the N⋯HS moiety is likely severely broadened or obscured, which is common in many hydrogen bonding systems.²⁵

To demonstrate the reversibility of 2, and to provide evidence for the formation of a six-coordinate complex, we performed a displacement experiment by ¹H NMR. Treatment of 1 with 1.5 equiv. of NBu₄SH resulted in the formation of 2 with characteristic shifts in the aryl peaks, and broad resonance at 3.6 ppm (Fig. 4). Upon addition of 20 equiv. of NBu₄Cl, the aryl protons maintained the same configuration; however, the broad absorbance at 3.6 ppm resolved, characteristic of the Cl⁻ adduct of 1 (Fig. S6, ESI†).²⁷

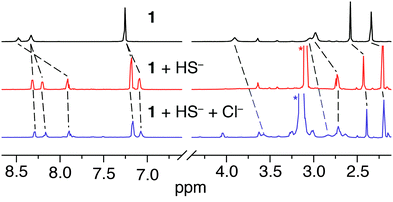

Fig. 4 ¹H NMR spectrum of 10.3 mM 1 (black), upon addition of 1.5 equiv. of NBu₄SH (red) is characteristic for 2. Addition of 20 equiv. of NBu₄Cl produces the spectrum characteristic of the Cl⁻ adduct.

To further determine whether the internal hydrogen-bond was necessary for stabilization of the Zn–SH product, we also titrated a Zn-pyridinediimine compound which does not possess the pendant amine hydrogen-bond acceptor (Scheme 2). Upon addition of 0.5 equiv. of HS⁻ to a solution of Zn(^iPrPDI)Cl₂ (3) (^iPrPDI = 2,6-(2,6-ⁱPr₂C₆H₃N=CMe)₂C₅H₃N) a white precipitate (ZnS) was immediately observed, along with a significant change in the NMR spectrum. The shifts in the NMR spectrum and formation of precipitate continued until 1 equiv. of HS⁻ was added, after which no more changes were observed (Fig. S11, ESI†). The resultant solid was isolated, washed with acetonitrile to remove any excess free sulfide, then acidified and subjected to the methylene blue assay, which provided a positive response for acid-labile sulfur and was consistent with ZnS formation.²⁸ These data illustrate the importance of the hydrogen-bond acceptor in the stabilization of the zinc-sulfido complex, as the pendant amine in 1 is vital in this system.

Scheme 2 Reaction of 3 with NBu₄SH shows decomposition, demonstrating the importance of the H-bond acceptor in 2.

In conclusion, we have shown the stabilization of a rare synthetic zinc hydrosulfide complex stabilized by a hydrogen bond accepting ligand. Removal of the hydrogen bonding ability of the ligand resulted in decomposition and ZnS precipitation, highlighting the importance of the second coordination sphere in stabilizing the zinc hydrosulfido adduct.
