Functionalization of P₄ in the coordination sphere of coinage metal cations

Abstract

Selective functionalization of white phosphorus is achieved by addition of ArLi to unique cationic coinage metal η²–P₄ complexes. This novel approach allows controlled P–C bond formation using the bulky DmpLi (Dmp = 2,6-Mes₂C₆H₃) and the unencumbered MesLi, giving sterically diverse doubly complexed RP₄ butterfly derivatives in a single step.

---

Controlling direct P–C bond formation using P₄ as starting material is of interest in avoiding chlorinated intermediates, such as PCl₃, for the production of organophosphorus compounds. Yet this task is extremely challenging due to the highly reactive nature of the P₄ tetrahedron.¹ Currently, several selective methods have been developed, like the use of ambiphilic carbenes pioneered by the group of Bertrand,² and the metal-mediated radical functionalization of P₄ reported by Scheer et al. (A; R = Cp^R, Scheme 1)³ as well as by Cummins and co-workers (R = Dmp),⁴ who also demonstrated facile P-functionalization chemistry by embedding photochemically generated P₂ fragments into organic frameworks (B).⁵ In contrast, conventional methods for the formation of P–C bonds,⁶ such as the use of organolithium and Grignard reagents, have been less fruitful due to the low selectivity and complex product distributions associated with their reactions with P₄.⁷ An intriguing exception was recently described by Hill, who achieved selective activation of P₄ using a β-diketiminato organomagnesium compound, producing the [nBu₂P₄]²⁻ dianion C,⁸ which is related to the thallium tetraphosphabutadienediide [Ar₂P₄]²⁻ salt D reported by Power et al.⁹ We showed that the reactivity of bulky ArLi reagents toward P₄ can be controlled in the presence of Lewis acids (B(C₆F₅)₃ and BPh₃), giving the LA-stabilized bicyclo[1.1.0]tetraphosphabutanides [ArP₄·LA]⁻E that can subsequently be functionalized selectively generating the neutral disubstituted bicyclic phosphanes ArP₄R (type A) and the doubly coordinated tetraphosphides [ArP₄·(LA)₂]⁻F.¹⁰ Key in this approach is the irreversible formation of the transient phosphide [RP₄]⁻ that is directly trapped by the Lewis acid. Note that P₄ does not form an adduct with BPh₃ or even B(C₆F₅)₃,¹⁰ and therefore requires the use of sterically encumbered FLP-type ArLi/LA combinations to avoid quenching. In this work, we present an alternative strategy by using novel cationic coinage metal based Lewis adducts of P₄ as synthon that now tolerate varied bulk on the ArLi reagents, as demonstrated by the selective addition of Dmp (Dmp = 2,6-dimesitylphenyl) and mesityl lithium, resulting in the formation of unique doubly complexed RP₄ butterfly cations.

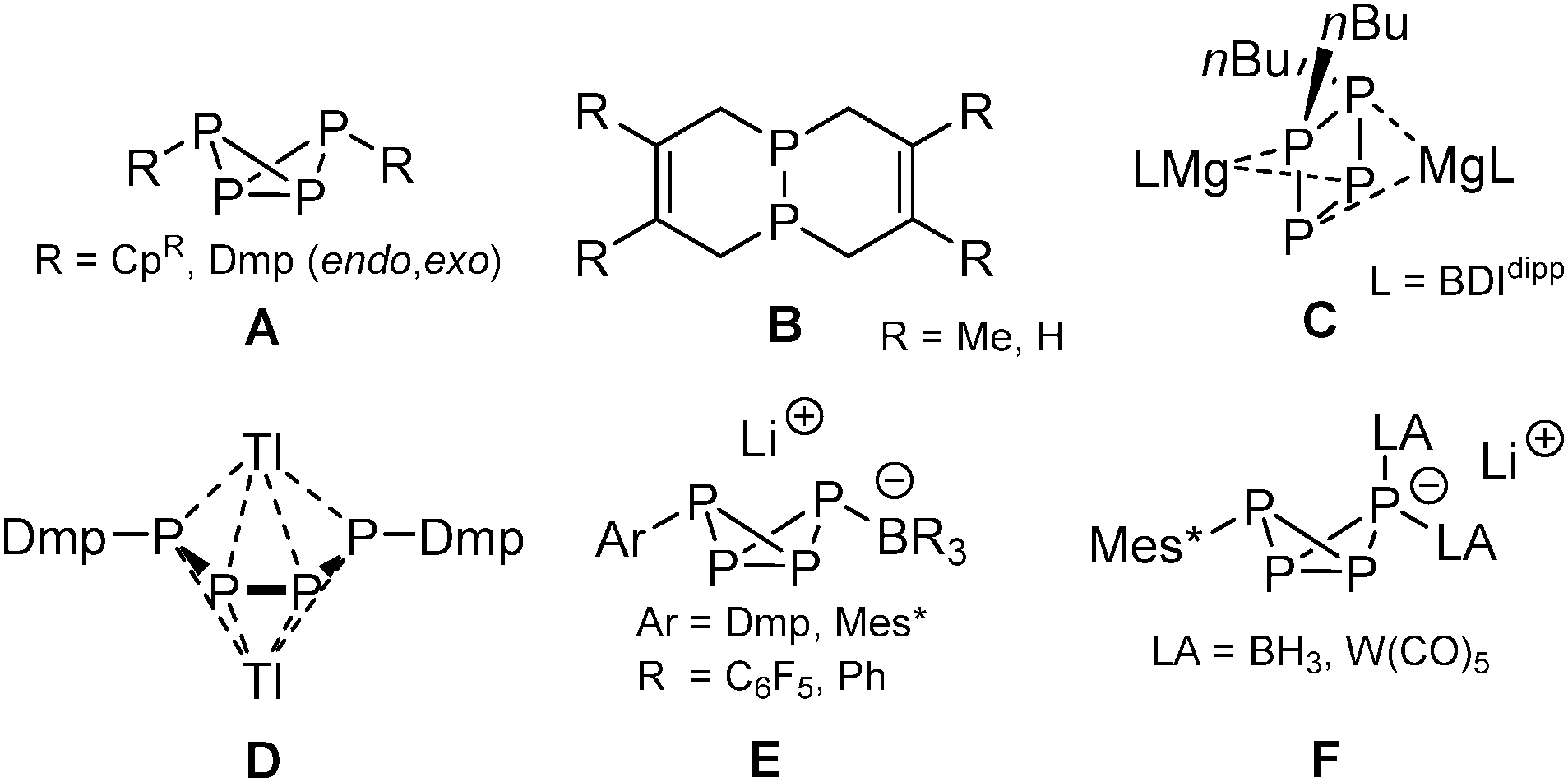

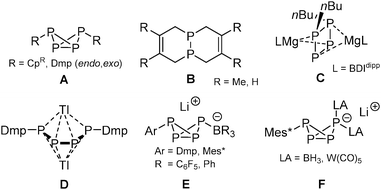

Scheme 1 Methods allowing selective direct P–C bond formation using P₄. Dmp = 2,6-dimesitylphenyl; BDI^dipp = HC{C(Me)N(2,6-iPr₂C₆H₃)}₂; Mes* = 2,4,6-tBu₃C₆H₂; Cp^R = Cp^BIG, Cp′′′, Cp*, Cp^4iPr.

Commercially available IPrMCl (M = Cu, Au; IPr = 1,3-bis(diisopropylphenyl)imidazol-2-ylidene) in combination with Li⁺ [Al(pftb)₄]⁻ (pftb = perfluoro-tert-butoxy)^11,12 as chloride scavenger were found to be suitable starting materials allowing the isolation of readily available LA–P₄ adducts. The complexation of P₄ was achieved by dropwise addition of a solution of IPrMCl (1 equiv.; M = Cu, Au) in DCM to a suspension of white phosphorus (1.1 equiv.) and Li[Al(pftb)₄] (1 equiv.) in DCM at 0 °C (Scheme 2), which resulted in a sharp downfield shifted singlet in the ³¹P{¹H} NMR spectrum in the case of Cu(I) (−483.1 ppm), and a lower field and broadened singlet for Au(I) (−464.4 ppm), indicating both P₄ tetrahedra to be coordinated dynamically to the cationic metal centers (free P₄ in CD₂Cl₂: −522.0 ppm). The dynamics were confirmed by VT NMR spectroscopy at −90 °C,¹³ revealing broadening of the ³¹P signal for Cu–P₄ complex 1a, and two broad triplets for Au–P₄ analogue 1b (δ³¹P: −453.3 and −462.1 ppm, 2 : 2 ratio; ¹J_P,P = −209.8 Hz). Both novel complexes were isolated as white powders in 92% (1a) and 87% (1b) yield, respectively, and are unique examples of heteroleptic cationic P₄ coinage metal complexes, complementing the homoleptic series [M(η²–P₄)₂]⁺ reported by Krossing^14a–d (M = Ag, Cu) and Slattery et al.^14e (M = Au), and the neutral copper complex [NacnacCu(η²–P₄)] isolated by Scheer and coworkers.^14f

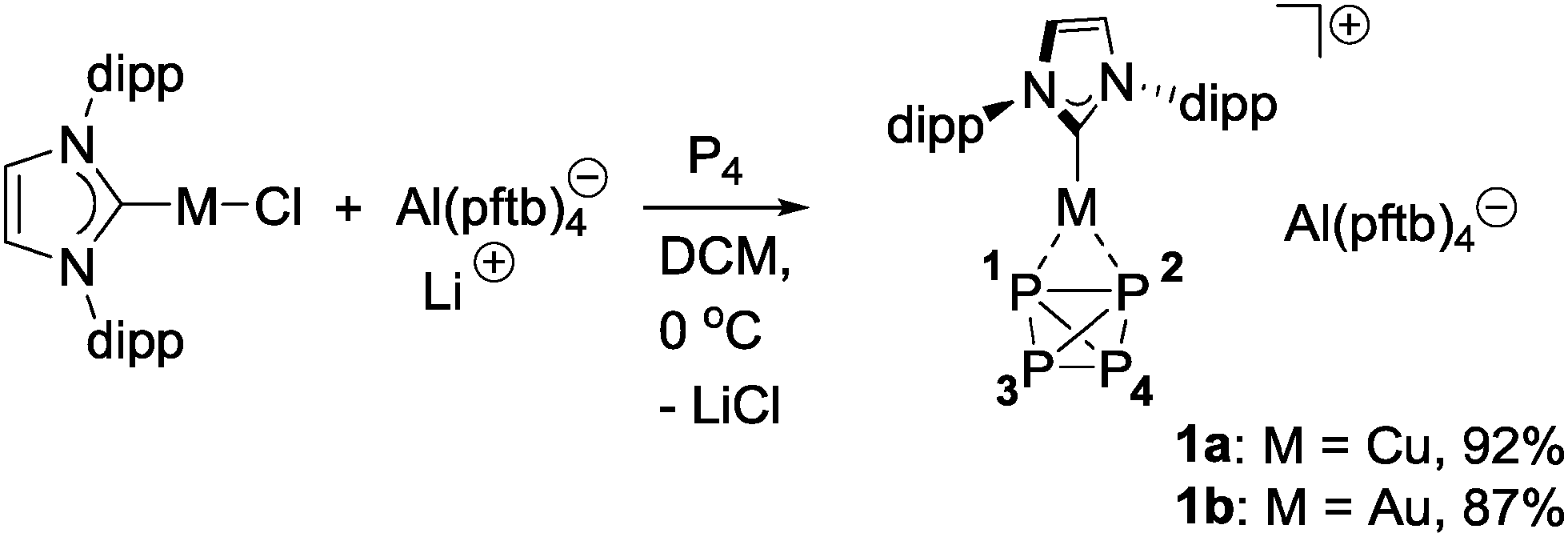

Scheme 2 Synthesis of cationic η²–P₄ complexes of copper and gold (pftb = OC(CF₃)₃; dipp = 2,6-diisopropylphenyl).

The A₂B₂ spin-system of gold(I) complex 1b observed at low temperature by ³¹P NMR spectroscopy is indicative of η²–P₄ coordination, which was confirmed by a single-crystal X-ray analysis (Fig. 1)¹⁵ that showed nearly equal Au1–P1 (2.4043(17) Å) and Au1–P2 distances (2.4286(19) Å), a distorted trigonal planar Au center with a short Au1–C1 bond (2.037(5) Å), and an acute P1–Au1–P2 angle (57.79(7)°). A comparison of the P–P bonds in “free” P₄ (2.1994(3) Å, determined by gas-phase electron diffraction¹⁶) with those in 1b⁺ shows a contraction of the P3–P4 bond (2.148(3) Å), as well as shortened P1/P2–P3/P4 bonds (2.155(3)–2.167(4) Å), but an elongated P1–P2 bond (2.335(3) Å) due to coordination to gold, albeit less pronounced than the one found in [Au(η²–P₄)₂][GaCl₄] (i.e. 2.410(1) Å^14e).

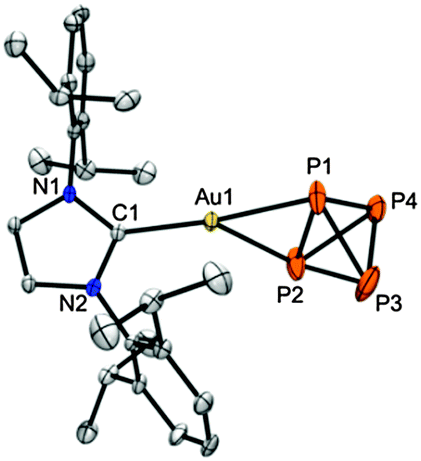

Fig. 1 Molecular structure of 1b⁺ in the crystal¹⁵ (ellipsoids are set at 50% probability; [Al(OC(CF₃)₃)₄]⁻ counter-ion and CH₂Cl₂ solvent molecule omitted). Selected bond lengths [Å] and angles [°]: P1–P2 (2.335(3)), P3–P4 (2.148(3)), P1–P3/P4 (2.167(4)/2.164(3)), P2–P3/P4 (2.156(4)/2.155(3)), Au1–P1/P2 (2.4043(17)/2.4286(19)), C1–Au1 (2.037(5)); C1–Au1–P1 (156.75(14)), C1–Au1–P2 (141.92(14)), P1–Au1–P2 (57.79(7)).

To analyze the bonding situation of 1 in more detail, we resorted to AIM analyses^17,18 on the gas-phase optimized structures of 1a⁺ and 1b⁺,¹⁹ which revealed bond critical points (BCP) between P1 and P2 (ρ = 0.079 a.u. (ε = 1.10) in 1a⁺ and 0.074 a.u. (ε = 0.93) in 1b⁺) with only a slightly lower electron density compared to that computed for the naked P₄ (ρ = 0.105 a.u.; ε = 0.10),¹³ confirming the coordinating P₄ fragments to remain intact, disfavoring oxidative addition by P–P bond cleavage. Interestingly, examination of the Laplacian of the electron densities (∇²ρ) in the P1–P2 BCPs indicated a stronger P₄–M⁺ interaction in gold complex 1b⁺ (0.056 a.u.) than in Cu derivative 1a⁺ (0.033 a.u.), which is in agreement with the observed ³¹P{¹H} NMR shifts (−483.1 vs. −464.4 ppm for 1a and 1b, respectively). ETS-NOCV²⁰ analyses of the M⁺–P₄ bonds concur with these observations,¹⁸ revealing indeed a higher bonding energy for the Au complex (ΔΔE = 1.2 kcal mol⁻¹), with the most prominent difference found for the orbital interactions, showing larger contributions for σ donation (1b⁺ −36.7; 1a⁺ −25.9 kcal mol⁻¹) and concurrent π back-donation (1b⁺ −21.4; 1a⁺ −20.7 kcal mol⁻¹), attributable to the influence of relativistic effects on the valence shell of Au(I).^21,22

This difference in bonding energy is also reflected in the stability of 1avs.1b. Namely, dissolving 1a in toluene directly led to complete displacement of P₄ at room temperature, whereas 1b is indefinitely stable under those conditions,²³ rendering Au complex 1b a suitable building block for the functionalization of P₄. As proof of concept, we first selected the bulky DmpLi to react with 1b, which proved successful in the synthesis of the LA-stabilized Li⁺ [DmpP₄·B(C₆F₅)₃]⁻.^10a Hence, a solution of DmpLi (1 equiv.) in toluene was slowly added to a solution of 1b (1 equiv.) in toluene at −78 °C, revealing an AMX₂ spin system in the ³¹P{¹H} NMR spectrum (−105.5 (P1), −118.7 (P4) and −327.9 (P2, P3) ppm in a 1 : 1 : 2 ratio, respectively), indicative for a non-symmetrically substituted P₄ butterfly.^10,25 Interestingly, ¹H NMR analysis revealed the presence of two NHC moieties instead of only one needed for the anticipated neutral DmpP₄AuIPr 2 (Scheme 3), which suggests the formation of a doubly coordinated RP₄ complex.

Scheme 3 Functionalization of P₄ by reaction of ArLi with 1b, with the proposed intermediate 2 in brackets (pftb = OC(CF₃)₃; dipp = 2,6-diisopropylphenyl).

Indeed, X-ray crystal structure determination of colorless crystals obtained by layering a DCM solution with n-pentane, displayed the non-symmetrical [DmpP₄·(AuIPr)₂][Al(pftb)₄] 3 (Fig. 2) featuring a unique bimetallic gold fragment, with similar P4–Au1/Au2 distances (2.2924(7)/2.2860(7) Å) and a Au1–P4–Au2 angle of 128.02(3)°, which is larger than found in the triaurated cation [RP(AuPPh₃)₃]⁺ (av. 106°),²⁴ likely due to the steric repulsion between the large NHC ligands. The P4–P2/P3 bonds (2.1919(10)/2.2077(10) Å) are slightly contracted compared to the P1–P2/P3 bonds (2.2140(10)/2.2240(11) Å), and are similar in length to the bridgehead P2–P3 bond (2.1992(11) Å). These structural parameters are akin to those reported for the cationic [Mes*₂P₄Cl]⁺ of Schulz et al.^25a as well as to those of the bis-LA complexed anions [Mes*P₄·(LA)₂]⁻ (LA = BH₃, W(CO)₅) reported by us.^10b Intriguingly, the bicyclic P₄ entity in 3⁺ is sterically highly shielded, as illustrated by a space-filling model (Fig. 2, right), reminiscent of the incorporation of white phosphorus in the self-assembled [Fe₄L₆]⁸⁺ container reported by Nitschke and co-workers.²⁶

Fig. 2 Left: Molecular structure of 3⁺ in the crystal¹⁵ (ellipsoids are set at 50% probability; [Al(OC(CF₃)₃)₄]⁻ counter-ion and disordered solvent molecules omitted). Selected bond lengths [Å], angles and torsion angle [°]: P1–P2/P3 (2.2140(10)/2.2240(11)), P4–P2/P3 (2.1919(10)/2.2077(10)), P2–P3 (2.1992(11)), Au1–P4 (2.2924(7)), Au2–P4 (2.2860(7)), C13–P1 (1.865(3)); Au1–P4–Au2 (128.02(3)); P1–P2–P3–P4 (100.98(4)). Right: Space-filling model of 3⁺.

The formation of 3 could be optimized by using two equivalents of 1b, which allowed its isolation in 67% yield. Bis-gold complex 3 is likely formed via neutral exo,exo-ArP₄AuIPr 2 (Scheme 3) that displaces a P₄ molecule from a second equivalent of gold complex 1b, which was computed to be energetically favorable by −43.1 kcal mol⁻¹,²⁷ and acts as a monodentate ligand (via P4) for [IPrAu]⁺, displaying reactivity analogous to the recent coordination of bicyclic Mes*₂P₄ to GaCl₃^25b shown by Schulz et al., and of [{Cp′′′Fe(CO)₂}₂(μ,η^1:1-P₄)] toward [Cu(MeCN)]⁺ presented by the group of Scheer.²⁸

Next, we assessed the reactivity of 1b toward the less encumbered nucleophile MesLi,²⁹ which was not feasible in our original approach (E, Scheme 1)¹⁰ as combining MesLi with P₄ in the presence of BPh₃ exclusively produces Li⁺ [MesBPh₃]⁻.¹³ Gratifyingly, formation of the bicyclic tetraphosphane [MesP₄·(AuIPr)₂][Al(pftb)₄] (4) proceeded readily upon mixing MesLi and 1b (2 equiv.) in toluene at −78 °C, showing a distinct set of three ³¹P{¹H} resonances at −110.6 (P1), −119.9 (P4) and −314.5 (P2, P3) ppm (1 : 1 : 2 ratio), and an additional signal for free P₄. The product could be isolated in 62% yield, and was confirmed to contain only one mesityl unit by mass spectrometry (ESI) and ¹H NMR spectroscopy, and two flanking IPrAu moieties.¹³ In contrast to related Aryl₂P₄ species, which feature either bulky 2,4,6-tBu₃C₆H₃ (Mes*)^7c,10,25a,b or terphenyl^4,9,10a groups, 4 is the first example of a mesityl-substituted P₄ butterfly, which illustrates the merit of this novel P₄-functionalization strategy in controlling direct P–C bond formation using organolithium reagents.

In summary, addition of Dmp or mesityl lithium to the coinage metal based P₄–LA adduct 1b gives the unique bimetallic ArP₄-butterfly cations 3 and 4. This novel approach allows for varied bulk on the organosubstituents in a single controlled step, showing facile functionalization of P₄. Currently, we are defining the scope of this new methodology and are exploring the application of 1 in new P₄ transformations.

Notes and references

1. For reviews, see: (a) N. A. Giffin and J. D. Masuda, Coord. Chem. Rev., 2011, 255, 1342; (b) B. M. Cossairt, N. A. Piro and C. C. Cummins, Chem. Rev., 2010, 110, 4164; (c) M. Caporali, L. Gonsalvi, A. Rossin and M. Peruzzini, Chem. Rev., 2010, 110, 4178; (d) M. Scheer, G. Balázs and A. Seitz, Chem. Rev., 2010, 110, 4236; (e) M. Peruzzini, L. Gonsalvi and A. Romerosa, Chem. Soc. Rev., 2005, 34, 1038.
2. (a) J. D. Masuda, W. W. Schoeller, B. Donnadieu and G. Bertrand, Angew. Chem., Int. Ed., 2007, 46, 7052; (b) O. Back, G. Kuchenbeiser, B. Donnadieu and G. Bertrand, Angew. Chem., Int. Ed., 2009, 48, 5530; (c) C. D. Martin, C. M. Weinstein, C. E. Moore, A. L. Rheingold and G. Bertrand, Chem. Commun., 2013, 49, 4486; (d) C. L. Dorsey, B. M. Squires and T. W. Hudnall, Angew. Chem., Int. Ed., 2013, 52, 4462.
3. S. Heinl, S. Reisinger, C. Schwarzmaier, M. Bodensteiner and M. Scheer, Angew. Chem., Int. Ed., 2014, 53, 7639.
4. B. M. Cossairt and C. C. Cummins, New J. Chem., 2010, 34, 1533.
5. D. Tofan and C. C. Cummins, Angew. Chem., Int. Ed., 2010, 49, 7516.
6. D. E. C. Corbridge, Phosphorus, Elsevier, Amsterdam, 2000.
7. (a) M. M. Rauhut and A. M. Semsel, J. Org. Chem., 1963, 28, 471; (b) M. M. Rauhut and A. M. Semsel, J. Org. Chem., 1963, 28, 473; (c) R. Riedel, H.-D. Hausen and E. Fluck, Angew. Chem., Int. Ed., 1985, 24, 1056.
8. M. Arrowsmith, M. S. Hill, A. L. Johnson, G. Kociok-Köhn and M. F. Mahon, Angew. Chem., Int. Ed., 2015, 54, 7882.
9. A. R. Fox, R. J. Wright, E. Rivard and P. P. Power, Angew. Chem., Int. Ed., 2005, 117, 7907.
10. (a) J. E. Borger, A. W. Ehlers, M. Lutz, J. C. Slootweg and K. Lammertsma, Angew. Chem., Int. Ed., 2014, 53, 12836; (b) J. E. Borger, A. W. Ehlers, M. Lutz, J. C. Slootweg and K. Lammertsma, Angew. Chem., Int. Ed., 2016, 55, 613.
11. I. Krossing, Chem. – Eur. J., 2001, 7, 490.
12. I. Krossing and I. Raabe, Angew. Chem., Int. Ed., 2004, 43, 2066.
13. See the ESI,† for further details.
14. (a) I. Krossing, J. Am. Chem. Soc., 2001, 123, 4603; (b) I. Krossing and L. van Wüllen, Chem. – Eur. J., 2002, 8, 700; (c) A. Bihlmeier. M. Gonsior, I. Raabe, N. Trapp and I. Krossing, Chem. – Eur. J., 2004, 10, 5041; (d) G. Santiso-Quiñones, A. Reisinger, J. Slattery and I. Krossing, Chem. Commun., 2007, 5046; (e) L. C. Forfar, T. J. Clark, M. Green, S. M. Mansell, C. A. Russell, R. A. Sanguramath and J. M. Slattery, Chem. Commun., 2012, 48, 1970; (f) F. Spitzer, M. Sierka, M. Latronico, P. Mastrorilli, A. V. Virovets and M. Scheer, Angew. Chem., Int. Ed., 2015, 54, 4392.
15. CCDC 1440355 (compound 1b) and 1440356 (compound 3) contain the supplementary crystallographic data for this paper.
16. B. M. Cossairt, C. C. Cummins, A. R. Head, D. L. Lichtenberger, R. J. F. Berger, S. A. Hayes, N. M. Mitzel and G. Wu, J. Am. Chem. Soc., 2010, 132, 8459.
17. R. F. W. Bader, Atoms in Molecules, Claredon Press, Oxford, 1994.
18. The AIM and ETS-NOCV analysis was performed at ZORA-BP86-D3/TZ2P using ADF2013.01; see the ESI,† for details.
19. Geometry optimizations were performed at ωB97X-D/6-31+G(2d,p) (LanL2DZ for Cu and Au); J.-D. Chai and M. Head-Gordon, Phys. Chem. Chem. Phys., 2008, 10, 6615 ; see the ESI,† for details.
20. M. P. Mitoraj, A. Michalak and T. Ziegler, J. Chem. Theory Comput., 2009, 5, 962.
21. This trend was also found in a computational study on homoleptic P₄ complexes of group 11 cations: H.-C. Tai, I. Krossing, M. Seth and D. V. Deubel, Organometallics, 2004, 23, 2343.
22. (a) P. Pyykkö, Chem. Rev., 1988, 88, 563; (b) P. Pyykkö, Angew. Chem., Int. Ed., 2004, 43, 4412.
23. Direct dissociation was observed for both complexes in Et₂O, THF and MTBE.
24. H. Schmidbaur, G. Weidenhiller and O. Steigelmann, Angew. Chem., Int. Ed., 1991, 30, 433.
25. Selected examples: (a) J. Bresien, K. Faust, A. Schulz and A. Villinger, Angew. Chem., Int. Ed., 2015, 54, 6926; (b) J. Bresien, K. Faust, C. Hering-Junghans, J. Rothe, A. Schulz and A. Villinger, Dalton Trans., 2016 10.1039/C5DT02757H; (c) D. Holschumacher, T. Bannenberg, K. Ibrom, C. G. Daniliuc, P. G. Jones and M. Tamm, Dalton Trans., 2010, 39, 10590; (d) M. B. Power and A. R. Barron, Angew. Chem., Int. Ed., 1991, 30, 1353.
26. P. Mal, B. Breiner, K. Rissanen and J. R. Nitschke, Science, 2009, 324, 1697.
27. To reduce the computation time, all aryl substituents were replaced by phenyl groups. DFT calculations were performed at ωB97X-D/6-311+G(2d,p)//6-31G(d)(LanL2DZ for Au) using Gaussian09 (Revision D.01); see the ESI,† for details.
28. C. Schwarzmaier, S. Heinl, G. Balázs and M. Scheer, Angew. Chem., Int. Ed., 2015, 54, 13116.
29. Lerner et al. isolated [Li₃][Mes₃P₄] by reaction of P₄ with 3 equiv. of MesLi: A. Hübner, T. Bernert, I. Sänger, E. Alig, M. Bolte, L. Fink, M. Wagner and H.-W. Lerner, Dalton Trans., 2010, 39, 7528.

---

Footnote

† Electronic supplementary information (ESI) available. CCDC 1440355 and 1440356. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c5cc10037b

---
