Ammonia-storage in lithium intercalated fullerides

Abstract

Ammonia has been proposed as an indirect hydrogen carrier, as solid-state ammonia-storage could be easier than directly absorbing hydrogen in materials. Here we investigate the structural evolution of hyper-ammoniated lithium fullerides (ND₃)_yLi₆C₆₀ during ammonia desorption, using in-situ high intensity neutron powder diffraction. In (ND₃)_yLi₆C₆₀, ammonia molecules are stored in their neutral state inside the inter-fullerene interstices and are coordinated to the intercalated Li ions, forming Li–ND₃ clusters. Li₆C₆₀ is found to absorb up to 36.8 wt% ND₃, which corresponds to approximately 14 ammonia molecules per C₆₀. The ammonia release, studied either in-situ or ex-situ by means of manometric analyses and differential scanning calorimetry, takes place in two main steps, at 350–410 K and 500–540 K, respectively. This corresponds to two clear 1^st order structural phase transitions and the absorption process is partially reversible. These findings suggest that the system could be a good candidate for ammonia-storage applications.

---

Introduction

The depletion of oil reserves and the environmental damage caused by burning fossil fuels represent major global issues, which could be overcome by switching to the so-called “Hydrogen economy”.¹ Hydrogen is a very efficient energy vector, able to deliver three times the energy of other chemical fuels and burns without emitting greenhouse gases.² However, one of the main problems with hydrogen is the development of an efficient hydrogen-storage system, especially for automotive applications. Among the solutions proposed, the best performance is reached by loading hydrogen in solid-state materials, but so far none of these are able to meet the technical targets imposed by industry and the Department of Energy (US DoE).³

In this context, the feasibility to use ammonia as a hydrogen carrier represents an interesting alternative, since ammonia is easy to synthesize and allows high H₂ storage capacity (up to 18 wt% in liquid NH₃).⁴ Currently, ammonia is mainly produced by reacting atmospheric nitrogen with the hydrogen contained in natural gas, through the Haber process;⁵ but other sources, such as coal or coke gasification, are available, which, in combination with CO₂ sequestration, could in principle offer a long-term ammonia production at zero emission.⁴ In contrast to hydrogen, even though liquid NH₃ is more toxic than common hydrocarbons, infrastructure for handling and transporting bulk ammonia are already well-established and developed. Nevertheless, especially for mobile applications, hazards associated with ammonia use should be further reduced ideally being a safer solution than gasoline. These hazards can in principle be lowered by storing ammonia in solid systems, such as metal ammines, which are able to reversibly absorb/desorb ammonia gas, provided at elevated temperatures.⁶ Use of NH₃ as a fuel can be direct, for instance by feeding ammonia straight into solid oxide fuel cells (SOFC),⁷ or indirect, through the catalytic decomposition of ammonia⁸ at high temperatures (300–500 °C) and using hydrogen as an energy source.

Notably, some common solid ammonia containing systems find direct use as hydrogen-storage materials, for example, ammonia borane (NH₃BH₃ with 19.6 wt% H₂),⁹ or the ammonia complexes of borohydrides (LiBH₄·nNH₃ with 18 wt% H₂, Mg(BH₄)₂·nNH₃ with 16 wt% H₂).^10,11 This is because in these compounds the thermal decomposition usually causes the recombination of the N–H and B–H groups (followed by H₂ emission), rather than the release of pure ammonia. It is worth noting that this recombination makes the H₂-storage irreversible in these systems. The situation is different in the case of metal ammine complexes M(NH₃)_nX_m, where M is a metal cation (e.g. Mg, Ca, Ni) and X is an anion (e.g. Cl, SO₄). Metal ammine complexes^6,12 were reported to reversibly store up to 10 wt% NH₃, although the complete ammonia release occurs at temperatures too high for practical applications, i.e. up to 650 K. More recently, the complex Li₂B₁₂H₁₂ was found to catch seven NH₃ molecules and to completely release them below 473 K, corresponding to 43.4 wt% NH₃ stored under mild conditions.¹³ Another noteworthy compound is LiBH₄, forming four stable ammoniated species.¹⁴ In particular, the mono-ammoniated phase of lithium borohydride contains 44 wt% ammonia and was reported to release ammonia at the accessible thermal decomposition temperature of just 313 K, although it presents a minor equilibrium NH₃ vapour pressure (8.4 mbar) at room temperature.¹⁵ Different approaches, based on the NH₃ physisorption in highly porous materials, like covalent organic frameworks (COFs), led to lower storage performance, up to 25.5 wt% ammonia stored at 1 bar.¹⁶

Recently, alkali intercalated fullerides (AIFs) have attracted some interest in the field of solid energy storage, for their ability to reversibly absorb hydrogen with favourable binding energies.^17–19 In the case of hydrogen, the storage mechanism occurs through the chemical bond of H atoms on the C₆₀ molecule (formation of the hydrofullerene C₆₀H_x), which is mediated²⁰ by the catalytic activity of the intercalated alkali (lithium, sodium) clusters^21–24 and can be optimized by the presence of catalysers.^25,26

The ability of AIFs to react with ammonia is another well-known phenomenon.^27,28 Typically, NH₃ molecules can be co-intercalated in the AIF lattice interstices directly during the synthesis stage, from the reaction of C₆₀ with the alkali metal (e.g. Li, Na, K) in ammonia solution,²⁹ or by exposing the prepared AIF to ammonia vapours.³⁰ Ammonia acts as a neutral spacer for the fulleride lattice and coordinates with the alkali ions.^31,32 The induced lattice expansion dramatically affects the electronic and magnetic properties of the metallic highly-correlated AIF phases, which generally lie on the verge of a metal-to-insulator transition.³³ However, despite the intense research activity on these compounds, so far there have been no investigations on these systems for ammonia-storage purposes.

In this work, the ND₃ desorption as a function of the temperature of the ammoniated phases of lithium fulleride (ND₃)_yLi₆C₆₀ is investigated using neutron powder diffraction (NPD). The structural evolution of the compound was, in addition to the NPD data, followed by the in-situ monitoring of ammonia release via a Sievert apparatus directly connected to the sample-holder. Ex-situ manometric measurements and differential scanning calorimetry (DSC) analyses were also performed, in order to precisely determine the thermodynamic properties of this system.

Experimental

Synthesis

The hyper-ammoniated lithium fullerides (ND₃)_yLi_xC₆₀, with x = 3, 6, and 12, were prepared as follows. First, approximately half-gram of Li_xC₆₀ was synthesized by mixing stoichiometric amounts of finely cut metallic Li (Aldrich, 99.9% purity) and C₆₀ powder (MER corp., 99.9% purity) via high-energy ball-milling. Specifically, the reagents were put in a 10 mL agate bowl of a mini-mill Fritsch Pulverisette 23 with three agate grinding-balls and were milled for 30 min at 30 Hz in an Ar atmosphere (<0.1 ppm H₂O, O₂). After this step, a homogeneous black powder was obtained, which was placed in a Pyrex Schlenk vial under vacuum in thermal contact with a methanol bath at 213 K and anhydrous deuterated ammonia (ISOTEC_INC, min 99 atom% D) was slowly condensed on the sample. The temperature was then increased to 243 K and the mixture was kept overnight under continuous magnetic stirring. Following this reaction, excess ammonia in the reactor was slowly condensed back into a bottle dipped in liquid N₂, finely regulating the evaporation with a needle valve and progressively increasing the temperature from 243 to 273 K. After the complete evaporation of ND₃ gas, the reactor containing the ammoniated sample was sealed and quickly put in an Ar glove box and the product was recovered from the vial.

Methods

Preliminary X-ray powder diffraction (XPD) measurements were performed with a Bruker D8 Discover diffractometer, operating in Debye–Scherrer geometry, equipped with a CuK_α sealed tube generator and a 2D area (GADDS) detector.

NPD experiments were performed on the three obtained hyper-ammoniated lithium fullerides (ND₃)_yLi_xC₆₀ at the high-flux powder diffractometer WOMBAT,³⁴ at the Bragg Institute of the Australian Nuclear Science and Technology Organisation (ANSTO, Sydney, Australia), using an incident wavelength of λ = 2.9654(2) Å, determined using the La¹¹B₆ NIST standard reference material 660b. The high neutron flux intensity on this instrument meant that the typical accumulation time of each pattern was on the order of 1 min. Samples were loaded in vanadium cells equipped with a gas delivery tube and isolation valve. Sample loading was performed in a He glove-box with <0.1 ppm H₂O and O₂. The gas delivery tube was then connected with a Hiden Isochema IMI gas-delivery system, able to perform in-situ Sievert analysis of the ND₃ desorption process. During the experiment, ND₃ desorption was induced by gradually increasing the temperature of samples, which was varied in the range of 15–500 K using a cryofurnace on the sample position. The temperature was controlled via a k-type thermocouple at the base of the sample cell, with a second thermocouple attached to the cell above the sample level for monitoring purposes.

Samples synthesized at the same conditions starting from natural ammonia (Aldrich, 99.99+% purity) were investigated in parallel with ex-situ manometric/DSC analysis at the Pavia H₂ lab, by heating the sample from room temperature up to 653 K under 0.3 bar of He at 5 K min⁻¹ in a high pressure cell of a Sensys DSC (Setaram) connected with a PCTPro-2000 manometric instrument (Hy Energy-Setaram). This was undertaken in order to better determine the thermodynamic parameters of the NH₃ release process.

Results and discussion

Preliminary XPD data collected either on the Li-only intercalated fulleride precursors, or on the hyper-ammoniated (ND₃)_yLi_xC₆₀ samples, revealed strong differences among them (see ESI, Fig. 1S†). The former shows the expected fcc pattern profile,²⁵ with the absence of unreacted C₆₀ or Li. On the other hand, in the latter the shift of the reflection to lower 2θ values is indicative of the effective co-intercalation of the ammonia molecules in the host fulleride lattice. In order to quantify the ND₃ concentration in the samples, the weights were compared before and after the ammoniation process. In the case of x = 6 the nominal stoichiometry was found to be (ND₃)_13,99(15)Li₆C₆₀, corresponding to 36.8(3) wt% ND₃ absorbed by the sample.

Structural thermal evolution

In Fig. 1 right, a colour map showing the evolution of the neutron powder diffraction patterns for the (ND₃)_yLi₆C₆₀ sample is displayed as a function of temperature. It is possible to identify at least four distinctive regions, corresponding to the three different structural phase transitions, that the Li intercalated fulleride experiences when different amounts of ND₃ are co-intercalated in the sample. In Fig. 1 left, the thermal evolution of the normalized total counts (i.e. the neutron total counts measured by the detectors, normalized to the incident neutron flux) is shown (red curve), which is approximately proportional to the mass of the sample and follows well the structural evolution. Concomitant with the phase transitions, a decrease of the mass of the sample is noted and this is ascribed to the ammonia release. The normalized total counts are plotted together with the effective ND₃ stoichiometry of the sample (black curve), monitored by in-situ manometric measurements, performed by continuously monitoring the pressure of a reference vessel. This forms a closed system with the sample vessel and was monitored during the whole desorption process. In order to keep the ammonia pressure on the sample roughly constant and to avoid perturbations of the desorption process itself, the manifold was manually evacuated when the pressure overcame the value of 1 bar (after isolating the sample vessel). Hence, the black curve shown in Fig. 1 was obtained by measuring the cumulative pressure during the desorption process, discarding the evacuation stages. This value is approximately proportional to the amount of ammonia released and resulted in a value of around 14 ammonia molecules per formula unit absorbed in the hyper-ammoniated phase, which is in good agreement with the weighted value.

Fig. 1 Left: Time evolution of the normalized total counts (red) of (ND₃)_yLi₆C₆₀, plotted together with the estimated ND₃ stoichiometry of the sample (black), as evaluated by in-situ Sievert analysis. Right: Colour map showing the thermal evolution of the neutron diffraction profile in the range 300–500 K. The presence of three structural phase transitions at 350 K, 410 K and 500 K is evident. These are promoted by the progressive desorption of ND₃ molecules, co-intercalated in the host fullerene lattice. Discrete temperature points are reported in the middle, referring both to the left and right plots.

For the sake of clarity, selected diffraction patterns of the four regions are plotted in separate panels displayed in Fig. 2. Below room temperature, the diffraction pattern consists of a set of broad peaks, superimposed to few narrower ones. Although not indexed, the broad peaks were ascribed to the hyper-expanded ammoniated fulleride phase containing up to 14 ammonia molecules per C₆₀ (phase 0), while the latter were indexed to the tetragonal phase of LiND₂ (S.G. I4, a = b = 5.03(1) Å, c = 10.26(3) Å)³⁵ which is present as the minority phase in the sample (<2 wt%).

Fig. 2 Left: Structural representation for the three indexed phases of Li₆C₆₀ at different degrees of ammoniation. Right: Selected powder neutron diffraction patterns of the (ND₃)_yLi₆C₆₀ sample during the ND₃ desorption process, referring to the four identified phases discussed in the text. Some sharp peaks (indicated by asterisks) were ascribed to the spurious LiND₂ phase, which in this sample is present in a very low amount (<2 wt%), thus not significantly affecting the sample properties.

At around 350 K, the first phase transition occurs, indicated by a slight rearrangement of the fulleride cell parameters, which is probably associated with a small amount of ammonia released by the sample. The reflections were successfully indexed to a hexagonal cell, containing about 12 ND₃ molecules per C₆₀ (phase 1-hcp, a = 10.86(1) Å, c = 18.57(1) Å, γ = 120°, V_cell = 1794(5) ų − V_C60 = 948(2) ų).

A more dramatic structural transition is found at 410 K, when the powder pattern starts to change, with new peaks arising in the region at 30 < 2θ < 50°. At the same time, the total counts rapidly decrease, indicating a significant loss of the sample mass. At 470 K this second phase transition is complete and all the observed reflections are indexed to a bcc phase, isostructural to the already known Mott–Hubbard insulating phase of (NH₃)₆Li₃C₆₀ (phase 2-bcc, S.G. Im3̄, a = 11.92(1) Å, V_cell = 1742(6) ų − V_C60 = 871(3) ų).^29,32

It is worth noting that at this stage (above 470 K) the peaks referred to LiND₂ are no longer present, even if the melting point and the decomposition temperature of the LiND₂ phase are expected at a much higher temperatures (648 and 973 K respectively). This fact, which was not observed in the other investigated samples (see ESI, Fig. 2S†), could be due to a chemical reaction occurring between the segregated Li amide and the fulleride, similarly to what observed in case of hydrides.¹⁸

The bcc phase appears stable for a wide range of temperatures, against a continuous loss of mass probed by the neutron total counts; during this stage the estimated amount of ammonia ranges between 7 and 5 ND₃ molecules per C₆₀.

Finally, at 500 K a third structural phase transition is observed, which suddenly brings to a fcc rearrangement of the fullerene packing, similarly to what is observed in pristine Li₆C₆₀ (phase 3-fcc, S.G. Fm3̄m, a = 14.02(1) Å, V_cell = 2758(5) ų − V_C60 = 689(3) ų).^17,25 This phase is compatible with an ammonia-free structure. The comparison between the mass before and after the experiment, in fact, reveals a loss of about 26.7 wt%, which corresponds to the complete desorption of ammonia from the sample. A more precise determination of the parameters describing the ammonia release process is discussed below, through the analysis of manometric/DSC data collected ex-situ (see also Table 1).

Table 1 Crystal symmetry, ND₃ content and transition temperature, detected either with in-situ or ex-situ manometric measurements, for the four phases assumed by (ND₃)_yLi₆C₆₀ on heating

Phase	Symmetry	ND3 cont. (wt%)	In-situ tr. T (K)	Ex-situ tr. T (K)
Phase 0	Not indexed	36.8(3)	—	—
Phase 1	hcp	∼32	∼350 K	—
Phase 2	bcc	13–18	∼410 K	350(5) K
Phase 3	fcc	—	∼500 K	535(5) K

---

Similar neutron powder diffraction measurements were performed on (ND₃)_yLi_xC₆₀ samples with x = 3 and 12 and data were shown in Fig. 2S of the ESI.† However, in these cases the ammonia-storage performance was revealed to be worse if compared with Li₆C₆₀. In particular, for (ND₃)_yLi₃C₆₀, the amount of co-intercalated ammonia turned out to be significantly lower, on the order of 10 wt%. This is most likely due to the lack of formation of a hyper-expanded ammoniated phase in this case. Moreover, the complete desorption of ammonia was not reached during the in-situ thermal treatment – even at 500 K the sample still shows the bcc arrangement.

On the other hand, in the case of (ND₃)_yLi₁₂C₆₀ the behaviour is similar to (ND₃)_yLi₆C₆₀, even if a rather large amount of LiND₂ is present. The increase in the LiND₂ content at this composition is due to the partial reaction of Li with ND₃ during the ammoniation process. The peaks ascribed to LiND₂ remain during the whole thermal treatment (see Fig. 2S†) and allowed us to estimate the amide amount in the sample at about 12 wt%. Such an amount clearly affects the effective stoichiometry of the Li fulleride, which after corrections, turns out to be Li_6.7(5)C₆₀, where part of the Li is involved in the formation of the amide phase. Notably, this fact also suggests an upper limit for the Li stoichiometry of the ammoniated (ND₃)_yLi_xC₆₀ phases, with x around 6.

Ex-situ NH₃ desorption

Desorption of ammonia in (NH₃)_yLi₆C₆₀ was also monitored with ex-situ manometric/DSC coupled measurements, in order to further understand the discharge process. In Fig. 3a, the evolution of the amount of ammonia desorbed from the sample is shown as a function of temperature, in the range 300–650 K. Temperature was increased at a rate of 5 K min⁻¹ and the pressure in the sample chamber was kept constant at 0.3 bar, by means of a gas-flow controller. Two steps of mass loss, at around 350 K and 535 K, respectively, are visible and correspond to the two structural hcp–bcc and bcc–fcc phase transitions discussed above.

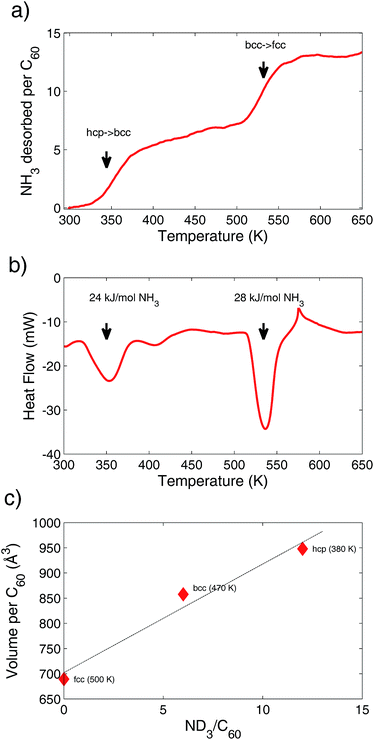

Fig. 3 (a) Manometric data of the NH₃ desorption process in (NH₃)_yLi₆C₆₀ upon heating in the range 300–650 K (rate of 5 K min⁻¹). (b) DSC data of the NH₃ desorption process. (c) Refined volume per C₆₀ as a function of the number of ammonia molecules intercalated for the ammonia free-, super-expanded bcc- and hyper-expanded hcp phases of (NH₃)_yLi₆C₆₀. The observed trend is roughly linear (dotted line).

The observed transition temperatures are slightly different with respect to those observed in the in-situ NPD experiment, but such discrepancy can be easily rationalized by taking into account the different sample environment, which in this case allowed a more precise control of the thermodynamic parameters. The amount of ammonia released in the two processes is roughly the same and corresponds to about six NH₃ molecules per C₆₀. Therefore, these findings confirm the results of the in-situ manometric analysis. DCS data indicate that the two desorption processes are endothermic, as expected.

The peak at 350 K appears broader than the one at 535 K, probably due to the more complex release mechanism of the first process, which actually involves two structural phase transitions (from phase 0 to phase 1 and from phase 1 to phase 2). From the peak area an estimate of the binding-energy of the released ammonia molecules was calculated. This ranges between 24 and 28 kJ mol⁻¹ NH₃, a value significantly lower than the binding energy of Li–NH₃ clusters reported in the literature (see also discussion below).³⁶

Discussion

It is well known that the ammonia molecule has the ability to co-intercalate into AIFs and to act as a neutral spacer for the host fullerene lattice. This phenomenon was exploited in the past in order to tune the electronic properties of fullerides. In fact, cubic A₃C₆₀ compounds are highly correlated metals, which are found close to a Mott-insulating transition (MIT); a slight increase of the lattice parameter, obtained by inserting ammonia molecules in such compounds, can hence profoundly affect their electronic behaviour, for example pushing-up the superconducting transition temperature of the metallic phase, or even driving the system towards a MIT.^37–39 However, to our knowledge, no research has so far explored systematically the ammonia-storage properties of these systems.

In particular, the lithium intercalated fulleride (NH₃)₆Li₃C₆₀ is known to be stable under ambient conditions and possesses a super-expanded insulating bcc lattice, which leads to the on-ball localization of the three electrons donated by Li to C₆₀.³² In such a system, two ammonia molecules are coordinated to each Li (see Fig. 2 left) and occupy the 24 g Wyckoff positions with half fractional occupancy. On the other hand, Li ions are in quasi-linear coordination with these sites, occupying at 25% occupancy the 24 g position (0.38, 0.41, 0), with the Li–N distance of ∼2.15 Å, falling in the typical range observed in Li–NH₃ clusters.^29,39,40 Such an arrangement indicates a relatively high degree of disorder, suggesting that more Li could in principle be accommodated in the lattice. In fact, in this work we observe a similar bcc structure in the (ND₃)_yLi₆C₆₀ phase, with y = 5–7 (phase 2), as shown in Fig. 2. This system revealed to be stable in the temperature range 400–500 K during the desorption experiment and retains about half of the total amount of ammonia that can be stored in this system.

The hyper-expanded (ND₃)_yLi₆C₆₀ (see Fig. 3c), with y = 12, 14 (phases 0 and 1), shows a different structure, that to our knowledge has been never observed so far, and it is stable up to 350–400 K. Although a detailed structural analysis was not possible, due to the low crystallinity of this phase, for y = 12 we managed to index all the observed reflections to a hcp cell (see Fig. 2 left and Fig. 1S†). The hcp–bcc transformation observed during the desorption process, when about half of the ammonia is released through an endothermic process, is not easily explained in terms of group–subgroup relationships, while it can be rationalized in the framework of the Burgers model.⁴¹ Moreover, the hcp–bcc phase coexistence observed around 410 K suggests that this is a 1^st order phase transition.

Above 500 K, the bcc structure undergoes a further phase transition to cubic fcc (phase 3), which results as an ammonia-free phase (see Fig. 2 and 1S†). During the NPD experiment, this transition was reached by evacuating the sample space; for this reason, the manometric/DSC measurements provided a slightly higher bcc–fcc transition temperature, of about 535 K.

It is worth noting here that this value is still far lower than the decomposition temperature reported by Durand and co-workers for (NH₃)₆Li₃C₆₀,²⁹ which appeared stable up to 673 K. A higher thermal stability for (ND₃)_yLi₃C₆₀ was also evidenced by our NPD data, as for this phase the complete ammonia release was not reached under the accessible thermodynamic conditions (see in Fig. 2S†). This suggests that the Li–NH₃ binding energy in these systems should be somewhat driven by the Li stoichiometry, as it is known that, on increasing the Li content, its ionization progressively decreases and, as an example, in Li₁₂C₆₀ the charge transferred to C₆₀ is of only 6 electrons.²² Specifically, over the past years, the stability of the Li(NH₃)_n (n = 1–5) complexes was thoroughly investigated^42–44 in order to understand the unusual optical properties of alkali metals solvated in liquid ammonia;⁴⁵ in particular, the Li–N dissociation energies seem to strongly depend either on the number of ammonia molecules coordinated to the alkali atom, or to the charge state of the Li(NH₃)_n cluster.³⁶ In our systems, depending on the amount of co-intercalated ammonia molecules, we expect the formation of Li(NH₃)_n clusters with n = 1–2, for which the calculated dissociation enthalpy range between 61.4 kJ mol⁻¹ (n = 1) and 46.1 kJ mol⁻¹ (n = 2) for the cluster in the neutral state, and between 169 kJ mol⁻¹ (n = 1) and 125.8 kJ mol⁻¹ (n = 2) for the cations Li(NH₃)_n⁺.³⁶ Although a direct comparison with these data is not trivial, the DSC data collected on (NH₃)_yLi₆C₆₀ (see Fig. 3b) suggest that the co-intercalation of the Li-ammonia clusters in the fullerene matrix is effective in bringing the Li–NH₃ binding energies towards lower values, probably due to the partial negative charge redistribution on the C₆₀ LUMO.

In order to check the reversibility of the ammoniation process, the completely discharged Li₆C₆₀ sample underwent a second treatment in liquid NH₃, under the same conditions employed for the first process. By comparing the weight of the sample before and after the process, an increase of 14.8 wt% was again found and this corresponds to the nominal stoichiometry (NH₃)_6.64Li₆C₆₀. Therefore, the ammonia-storage appears partially reversible in this system. Laboratory XPD data indicated an improvement of the crystallinity in the ammoniated phase after the second treatment, although a fraction of Li amide (peak at 2θ = 43° in Fig. 1S†)⁴⁶ also appears. This fact may be due to a partial Li segregation, as a metal, upon the NH₃ discharge, followed by the reaction of the bare alkali with ammonia during the second uptake. This process is expected to limit the reversibility of the ammonia absorption of this system. Further investigations are however required in order to better evaluate the robustness of this system upon cycling.

Conclusions

The known ability of Li fullerides to co-intercalate ammonia was investigated thoroughly, with the aim to evaluate their possible applications in the field of energy-storage. Li₆C₆₀ is found to absorb up to 14 ammonia molecules per C₆₀, corresponding to the notable value of 36.8 wt% ND₃ (equivalent to 31.2 wt% NH₃) stored. This value slightly exceeds the hydrogen equivalent of 5.5 wt% which corresponds to the DoE goal for 2015.³ The hyper-ammoniated phase is stable at room temperature and the complete ammonia release was reached in two main steps, respectively at 350–410 K and 500–540 K, thus falling in a convenient temperature window, if compared with other known ammonia-storage systems. The comparison between the experimental desorption enthalpies for the two processes and those calculated for the dissociation of the Li(NH₃)_n clusters (n = 1–2) suggests that the co-intercalation of the Li-ammonia clusters in the fullerene matrix is effective to bring the Li–NH₃ binding energies towards values more suitable for applications in the field of ammonia-storage.
