Bottom-up and top-down methods to improve catalytic reactivity for photocatalytic production of hydrogen peroxide using a Ru-complex and water oxidation catalysts

Abstract

Hydrogen peroxide (H₂O₂) was produced from water and dioxygen using [Ru^II(Me₂phen)₃]²⁺ (Me₂phen = 4,7-dimethyl-1,10-phenanthroline) as a photocatalyst and [Ir(Cp*)(H₂O)₃]²⁺ (Cp* = η⁵-pentamethylcyclopentadienyl) as a precursor of a water oxidation catalyst in the presence of Sc³⁺ in water under visible light irradiation. TEM and XPS measurements of residues in the resulting solution after the photocatalytic production of H₂O₂ indicated that [Ir(Cp*)(H₂O)₃]²⁺ was converted to Ir(OH)₃ nanoparticles, which are actual catalytic species. The Ir(OH)₃ nanoparticles produced in situ during the photocatalytic production of H₂O₂ were smaller in size than those prepared independently from hydrogen hexachloroiridiate (H₂IrCl₆), and exhibited higher catalytic reactivity for the photocatalytic production of H₂O₂. The photocatalytic production of H₂O₂ from water and dioxygen was also made possible when Ir(OH)₃ nanoparticles were replaced by nickel ferrite (NiFe₂O₄) nanoparticles, which are composed of more earth abundant metals than iridium. The size of NiFe₂O₄ nanoparticles became smaller during the photocatalytic production of H₂O₂ to exhibit higher catalytic reactivity in the second run as compared with that in the first run. NiFe₂O₄ nanoparticles obtained by the treatment of NiFe₂O₄ in an aqueous solution of Sc³⁺ exhibited 33-times higher catalytic reactivity in H₂O₂-production rates than the as-prepared NiFe₂O₄. Thus, both the bottom-up method starting from a molecular complex [Ir(Cp*)(H₂O)₃]²⁺ and the top-down method starting from as-prepared NiFe₂O₄ to obtain nanoparticles with smaller size resulted in the improvement of the catalytic reactivity for the photocatalytic production of H₂O₂ from water and dioxygen.

---

Introduction

The rapid and unsustainable use of fossil fuels has led to increased attention paid to the development of zero-carbon emission fuels, particularly hydrogen, utilizing renewable energy sources.^1–7 Solar energy is obviously the most abundant among the renewable energy sources under consideration. Thus, extensive efforts have been devoted to producing hydrogen by water splitting (eqn (1)), which is highly endergonic with a free energy change of ΔG° = 474 kJ mol⁻¹, which is provided by solar energy.^8–12 In this case, however, a method for separating the simultaneously produced H₂ and O₂ remains to be developed to avoid possible explosion.¹³ In addition, the storage of hydrogen at reasonable energy density poses a technical and economical challenge due to its low volumetric energy.^14,15

2H₂O → 2H₂ + O₂ ΔG° = 474 kJ mol⁻¹ (1)

In contrast to hydrogen, hydrogen peroxide (H₂O₂) is miscible in water, and therefore it can be an ideal energy carrier alternative to hydrogen, because H₂O₂ can be used as a fuel for one-compartment fuel cells.^16–23 The output potential of a H₂O₂ fuel cell theoretically achievable is 1.09 V, which is comparable with that of a hydrogen fuel cell (1.23 V).^16,17 Thus, a combination of H₂O₂ production using solar energy and power generation with an H₂O₂ fuel cell provides an ideally sustainable solar fuel.^16,17 It is desired to produce H₂O₂ from H₂O and O₂ (eqn (2)), which is highly endergonic with the free energy change of ΔG° = 210 kJ mol⁻¹, by using solar energy.^16,17

2H₂O + O₂ → 2H₂O₂ ΔG° = 210 kJ mol⁻¹ (2)

We have recently reported the photocatalytic production of H₂O₂ from H₂O and O₂ by combining the photoreduction of O₂ with a Ru-complex photosensitiser and water oxidation with Ir(OH)₃ nanoparticles as water oxidation catalysts (WOCs) in the presence of Sc³⁺ in water under visible light irradiation.²⁴ In order to improve the photocatalytic reactivity of H₂O₂ production from H₂O and O₂, it is required to employ more efficient WOCs. Extensive efforts have so far been devoted to developing efficient WOCs using transition metal complexes.^25–45 In particular, a series of mononuclear iridium(III) complexes with the η⁵-pentamethylcyclopentadienyl ligand (Cp*) have been reported to act as efficient WOCs, which are more active than ruthenium complexes.^46–49 The Cp* ligand is expected to provide electron rich circumstances useful to stabilise reaction intermediates possessing a high-valent oxidation state in catalytic water oxidation by cerium ammonium nitrate, (NH₄)₂[Ce(NO₃)₆], (CAN).^46–49 Under the conditions of catalytic water oxidation by CAN, however, the Cp* ligand of Ir complexes has been reported to be oxidised to produce IrO₂ or Ir(OH)₃ nanoparticles, which act as the actual reactive catalyst for water oxidation.^50–54 IrO₂ or Ir(OH)₃ nanoparticles have been reported to be more active than conventional IrO₂ prepared from H₂IrCl₆.^55–61 Thus, in situ formation of a WOC provides a useful way to improve the catalytic reactivity for water oxidation.

We report herein the photocatalytic production of H₂O₂ from H₂O and O₂ using an Ir complex, [Ir(Cp*)(H₂O)₃]²⁺, as a precursor of a water oxidation catalyst and [Ru^II(Me₂phen)₃]²⁺ (Me₂phen = 4,7-dimethyl-1,10-phenanthroline) as a homogeneous photocatalyst in the presence of Sc³⁺ in water. The characterisation of the catalytically active species has revealed that [Ir(Cp*)(H₂O)₃]²⁺ is converted to Ir(OH)₃ nanoparticles, which exhibit high catalytic reactivity for photocatalytic water oxidation. A synthetic strategy for such Ir(OH)₃ nanoparticles from H₂IrCl₆ has not yet been established. Because Ir is a noble metal with limited natural supplies, it is desired to replace the noble metal in WOCs by more earth-abundant metals such as Fe and Ni. In this context, we have also employed nanoparticles composed of earth abundant nickel and iron (NiFe₂O₄) instead of the Ir complex as a water oxidation catalyst for the photocatalytic production of H₂O₂. During the reaction, NiFe₂O₄ nanoparticles were formed from the corresponding as-prepared NiFe₂O₄. The effect of reaction conditions on the reactivity of the therein-formed nanoparticles from the Ir complex or NiFe₂O₄ is discussed in this paper.

Results and discussion

Photocatalytic production of hydrogen peroxide with an iridium complex precatalyst

The photocatalytic production of H₂O₂ was performed using [Ru^II(Me₂phen)₃]²⁺ as a photocatalyst for the two-electron reduction of O₂ and various Ir compounds as WOCs in the presence of Sc³⁺ ions in distilled water as shown in Fig. 1a. Sc³⁺ ions were reported to prohibit back electron transfer from O₂˙⁻ to [Ru^III(Me₂phen)₃]³⁺, which is formed after photoinduced electron transfer to O₂ from an excited state of [Ru^II(Me₂phen)₃]²⁺ (vide infra).²⁴ The initial rate of H₂O₂ production using [Ir(Cp*)(H₂O)₃]²⁺ (red squares in Fig. 1a) was 4.5 times faster than that using Ir(OH)₃ nanoparticles (blue circles in Fig. 1a) prepared from H₂IrCl₆ with the same amount of Ir.⁵⁴ The rate of H₂O₂ production using [Ir(Cp*)(H₂O)₃]²⁺ was 4.4 times and 2.8 times faster than those using Ir(SO₄)₂ and [Ir(Cp*)((OH)₂bpy)(H₂O)]²⁺ ((OH)₂bpy = 4,4′–(OH)₂–2,2′-bipyridine), respectively. [Ir(Cp*)(H₂O)₃]²⁺ had higher reactivity than Co complexes and Co ions, which have been reported to act as highly active WOCs, as shown in Fig. 1b.^62,63 The quantum efficiency determined by using monochromatised light (450 nm) and the solar energy conversion efficiency of the production of H₂O₂ were determined to be 7.1% and 0.063%, respectively (Fig. S1 and S2†). The sigmoidal behaviour in the initial stage of H₂O₂ production with [Ir(Cp*)(H₂O)₃]²⁺ (Fig. 2, green) indicates that [Ir (Cp*)(H₂O)₃]²⁺ acts as a precatalyst to produce catalytically more active species during the photocatalytic production of H₂O₂.

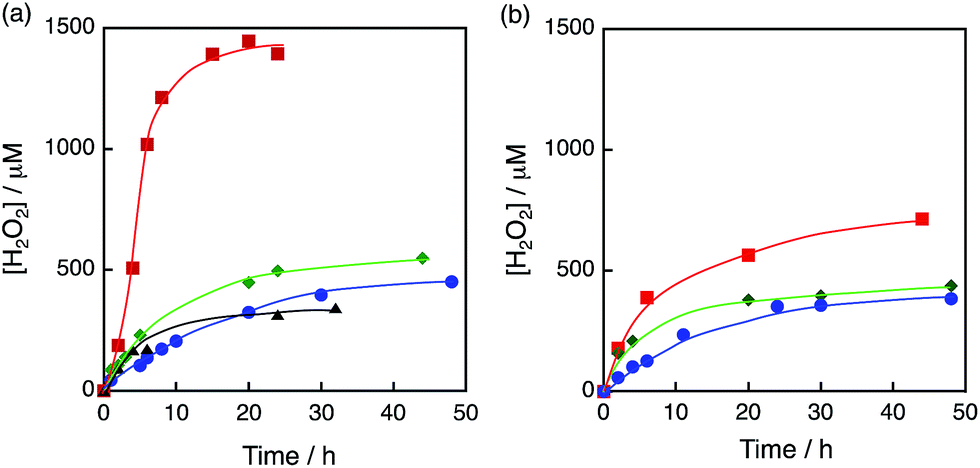

Fig. 1 Time courses of H₂O₂ production under visible light (λ > 420 nm) irradiation of [Ru^II(Me₂phen)₃]²⁺ (20 μM) in the presence of Sc³⁺ (100 mM) in O₂-saturated H₂O (3.0 mL, [O₂] = 1.2 mM) containing (a) various Ir compounds, [Ir(Cp*)(H₂O)₃]²⁺ (red squares), [Ir(Cp*)((OH)₂bpy)(H₂O)]²⁺ (green diamonds), Ir(OH)₃ (blue circles) and Ir(SO₄) (black triangles), where Ir content: 100 μM and (b) various Co compounds, [Co(Cp*)(bpy)(H₂O)]²⁺ (red squares), [Co(Cp*)(H₂O)₃]²⁺ (green diamonds) and Co(NO₃)₃ (blue circles), where Co content: 100 μM at 298 K.

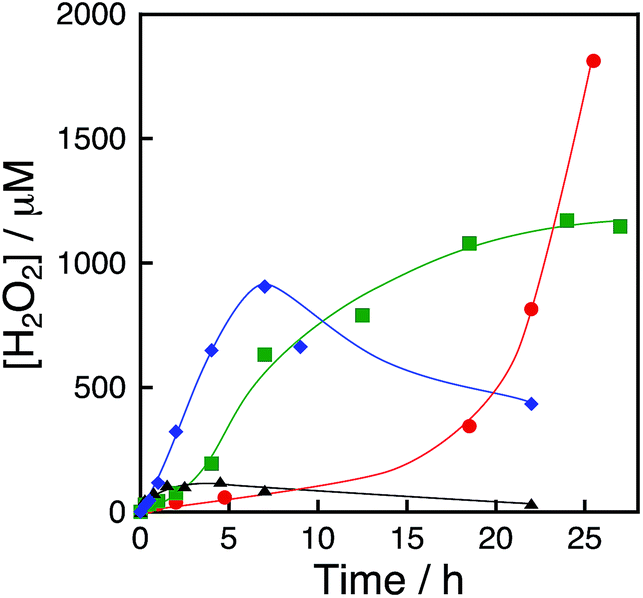

Fig. 2 Time courses of H₂O₂ production under visible light (λ > 420 nm) irradiation of [Ru^II(Me₂phen)₃]²⁺ (20 μM) in the presence of [Ir(Cp*)(H₂O)₃]²⁺ (100 μM) and Sc³⁺ (100 mM) in an O₂-saturated aqueous solution (3.0 mL) at 333 K (black triangles), 313 K (blue diamonds), 293 K (green squares) and 278 K (red circles).

The sigmoidal behaviour was more pronounced when the photocatalytic production of H₂O₂ was performed at 278 K as shown in Fig. 2 (red circles), where the results at higher temperatures are compared. The initial rate of H₂O₂ production increases with increasing temperature (Fig. 2), but the maximum H₂O₂ concentration decreased because of the enhanced decomposition of H₂O₂.

The formation of nanoparticles was observed by transmission electron microscopy (TEM) measurements. TEM images of the particles (Fig. S3†) showed that the diameters of the particles increased by extending the reaction time. The formation of nanoparticles was also confirmed by dynamic light scattering (DLS) measurements as shown in Fig. 3. The size of nanoparticles formed after 12 h photoirradiation at 278 K was 21 nm, whereas the size increased to 240 nm after 36 h photoirradiation. Large-sized particles (450 nm) were obtained after 12 h photoirradiation at 333 K. Thus, the size of the particles depends on the photoirradiation time and temperature. During photocatalytic H₂O₂ production, the size of the nanoparticles (21 nm) increases to 240 nm after 36 h (Fig. 3a and b) and the rate of the reaction decreases (Fig. 2, green line) under irradiation of visible light at room temperature. The deceleration of the reaction rate may be ascribed to the decrease in the surface area of the nanoparticles with increasing the size of the nanoparticles. [Ir(Cp*)(H₂O)₃]²⁺ has been reported to be efficiently oxidised by CAN, and TG/DTA and XPS measurements of nanoparticles produced after the water oxidation suggested that the nanoparticles were composed of Ir(OH)₃.⁶¹ XPS measurements of the nanoparticles centrifugally recovered from the reaction solution after the H₂O₂ production reaction were performed for the energy regions of Ir 4f, O 1s and C 1s with reference to commercially available IrO₂ (Fig. S4†), which suggested that the formed nanoparticles are also composed of Ir(OH)₃. Since the binding energy of Ir 4f_5/2 reflects the valence of Ir ions, the value was determined to be 61.9 eV for Ir(OH)₃ nanoparticles, which is close to the reported value for Ir^III (62.0 eV).⁶² These values were significantly different from those for Ir⁰ (61.0 eV) or Ir^IV (63.7 eV).^58,62–67 The binding energy for O 1s of Ir(OH)₃ nanoparticles (531.9 eV) shifted from that of IrO₂ (530.2 eV) due to the OH moiety as reported previously.⁵⁴ TEM images of Ir(OH)₃ nanoparticles revealed that the size of Ir(OH)₃ nanoparticles (10–20 nm) derived from [Ir(Cp*)(H₂O)₃]²⁺ was smaller than that of Ir(OH)₃ (30–100 nm) derived from H₂IrCl₆ (Fig. S5†). The higher catalytic reactivity of Ir(OH)₃ nanoparticles derived from [Ir(Cp*)(H₂O)₃]²⁺ may result from the smaller size of the nanoparticles as compared with those derived from H₂IrCl₆.

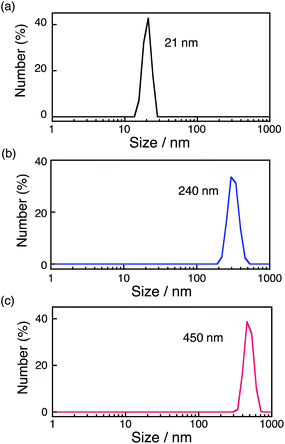

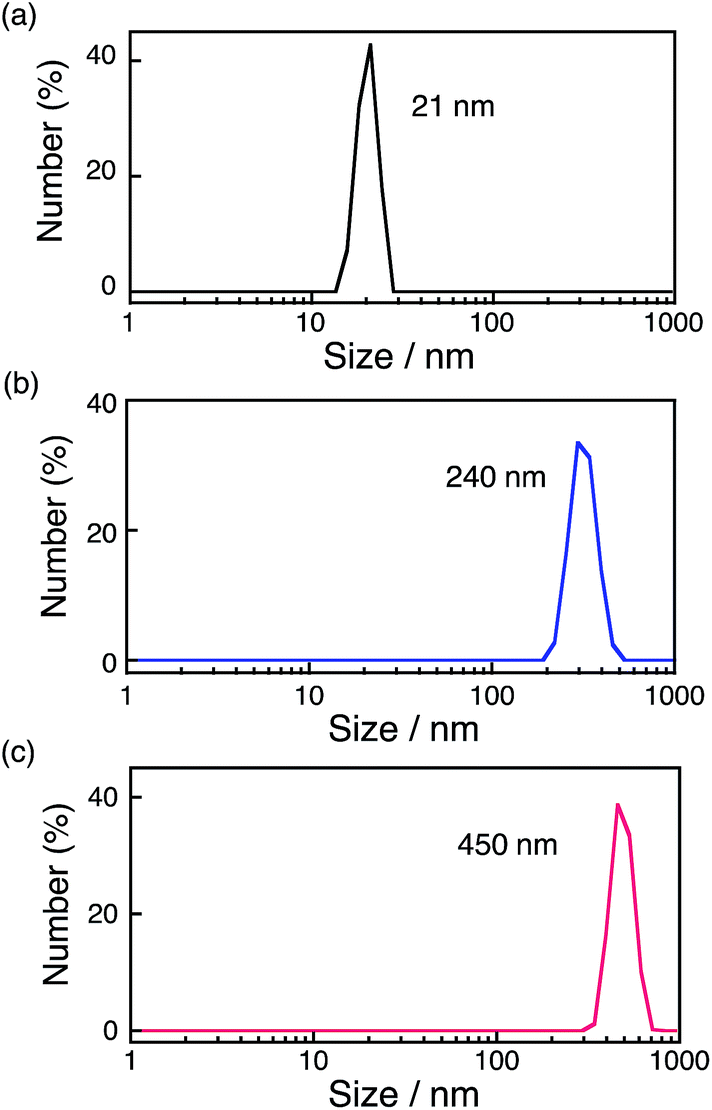

Fig. 3 Size distributions of the particles obtained by DLS measurements. The particles were formed under visible light (λ > 420 nm) irradiation of [Ru^II(Me₂phen)₃]²⁺ (20 μM) in the presence of [Ir(Cp*)(H₂O)₃]²⁺ (100 μM) and Sc³⁺ (100 mM) in an O₂-saturated aqueous solution (3.0 mL) at 298 K for (a) 12 h, (b) 36 h and (c) at 333 K for 12 h.

The dependence of photocatalytic reactivity for H₂O₂ production on the concentration of [Ru^II(Me₂phen)₃]²⁺ was examined as shown in Fig. 4a. The photocatalytic reactivity decreased with decreasing the concentration of [Ru^II(Me₂phen)₃]²⁺, however, the highest TON based on [Ru^II(Me₂phen)₃]²⁺ was determined to be 898 after 94 h photoirradiation when the concentration of [Ru^II(Me₂phen)₃]²⁺ was reduced to 1.0 μM, which is much higher than that reported for the photocatalytic H₂O₂ production using Ir(OH)₃ as a WOC (307).²⁴

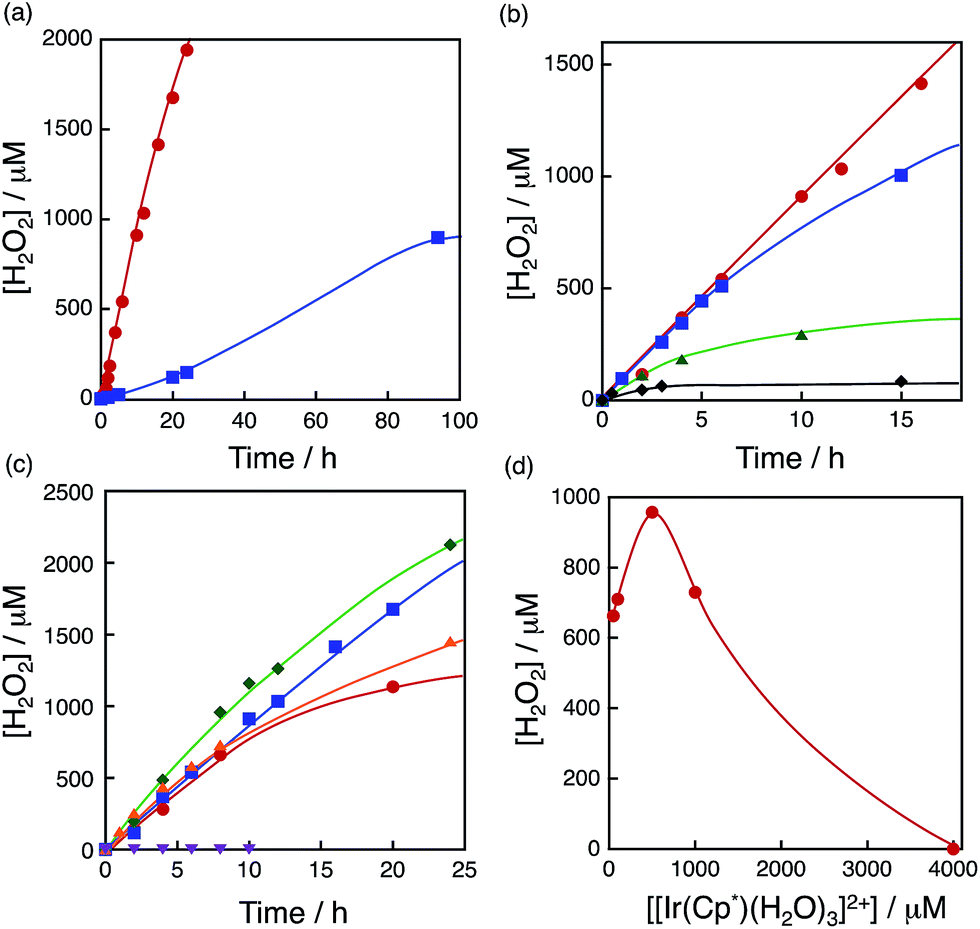

Fig. 4 (a) Time courses of H₂O₂ production at different concentrations of [Ru^II(Me₂phen)₃]²⁺ [20 μM (red circles) and 1.0 μM (blue squares)] under irradiation of [Ru^II(Me₂phen)₃]²⁺ with visible light (λ > 420 nm) in the presence of [Ir(Cp*)(H₂O)₃]²⁺ (100 μM) and Sc³⁺ (100 mM) in O₂-saturated H₂O (3.0 mL, [O₂] = 1.2 mM) at 298 K. (b) Time courses of H₂O₂ production at different concentrations of Sc³⁺ [0 mM (black diamonds), 1.0 mM (green triangles), 10 mM (blue squares) and 100 mM (red circles)] under irradiation of [Ru^II(Me₂phen)₃]²⁺ (20 μM) with visible light (λ > 420 nm) in the presence of [Ir(Cp*)(H₂O)₃]²⁺ (100 μM) in O₂-saturated H₂O (3.0 mL, [O₂] = 1.2 mM) at 298 K. (c) Time courses of H₂O₂ production at different concentrations of [Ir(Cp*)(H₂O)₃]²⁺ [50 μM (red circles), 100 μM (blue squares), 500 μM (green diamonds), 1000 μM (orange triangles) and 4000 μM (purple inverse triangles)] at 298 K. (d) Plot of the amount of H₂O₂ production after 8 h vs. the concentration of [Ir(Cp*)(H₂O)₃]²⁺ under irradiation of [Ru^II(Me₂phen)₃]²⁺ (20 μM) with visible light (λ > 420 nm) in the presence of Sc³⁺ (100 mM) in O₂-saturated H₂O (3.0 mL, [O₂] = 1.2 mM) at 298 K.

The dependence of photocatalytic reactivity for H₂O₂ production on the concentration of Sc³⁺ was also examined as shown in Fig. 4b. The photocatalytic reactivity increased with increasing the concentration of Sc³⁺. This is because Sc³⁺ inhibits back electron transfer from O₂˙⁻ to [Ru^III(Me₂phen)₃]³⁺, which is generated by photoinduced electron transfer from the excited state of [Ru^II(Me₂phen)₃]²⁺ to O₂ as reported previously.²⁴

The dependence of photocatalytic reactivity of H₂O₂ production on the concentration of [Ir(Cp*)(H₂O)₃]²⁺ is shown in Fig. 4c. The highest TON based on [Ir(Cp*)(H₂O)₃]²⁺ was determined to be 23 after 20 h photoirradiation when 50 μM of [Ir(Cp*)(H₂O)₃]²⁺ was employed in the photocatalytic H₂O₂ production. The photocatalytic reactivity increased with increasing concentration of [Ir(Cp*)(H₂O)₃]²⁺, but it decreased through the maximum value with further increase in the concentration of [Ir(Cp*)(H₂O)₃]²⁺ as shown in Fig. 4d. The decrease in the rate of H₂O₂ production may result from the catalytic decomposition of H₂O₂ with [Ir(Cp*)(H₂O)₃]²⁺ as shown in Fig. 5a. When a high concentration of [Ir(Cp*)(H₂O)₃]²⁺ (e.g., 1000 μM) was employed in the photocatalytic production of H₂O₂, a part of [Ir(Cp*)(H₂O)₃]²⁺ may remain without the full conversion to Ir(OH)₃ nanoparticles. When a low concentration of [Ir(Cp*)(H₂O)₃]²⁺ was employed, all of the [Ir(Cp*)(H₂O)₃]²⁺ may be oxidised to produce Ir(OH)₃ nanoparticles during the photocatalytic reaction. The formed Ir(OH)₃ nanoparticles are less reactive toward H₂O₂ decomposition as compared to [Ir(Cp*)(H₂O)₃]²⁺ (Fig. 5). The conversion of [Ir(Cp*)(H₂O)₃]²⁺ to Ir(OH)₃ during the photocatalytic production of H₂O₂ may be associated with the oxidation of the Cp* ligand by O₂. The full oxidation of Cp* is expected to produce 10 equivalents of CO₂ and 8 equivalents of H₂O₂ (eqn (3)). During the photocatalytic production of H₂O₂, CO₂ evolution was observed as shown in Fig. 6a. However, the yield of CO₂ based on eqn (3) is only 1%. Thus, the Cp* ligand is only partially oxidised to CO₂. The amount of H₂O₂ that is expected to be produced from Cp* calculated based on eqn (3) [Fig. 6b (blue line)] was negligible as compared with the observed amount of H₂O₂ in Fig. 6b (red line). These results indicate that H₂O₂ was produced by using H₂O as an electron source.

C₁₀H₁₅⁻ + 18O₂ + H⁺ → 10CO₂ + 8H₂O₂ (3)

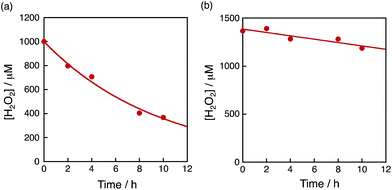

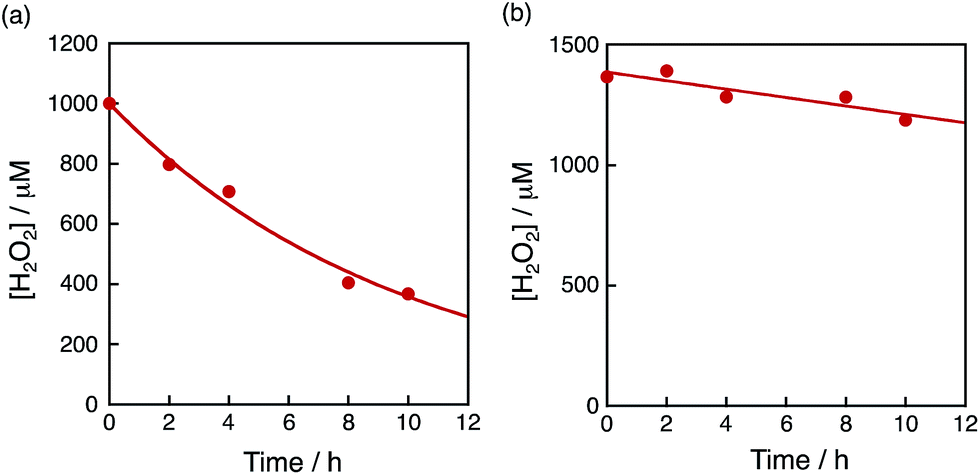

Fig. 5 Time course of the concentration of H₂O₂ in the presence of (a) [Ir(Cp*)(H₂O)₃]²⁺ (100 μM) and (b) the Ir(OH)₃ nanoparticles in H₂O (3.0 mL) at 298 K containing H₂O₂ and Sc³⁺ (100 mM) under dark conditions. The Ir(OH)₃ nanoparticles used were formed after 16 h photoirradiation of [Ru^II(Me₂phen)₃]²⁺ (20 μM) with visible light (λ > 420 nm) in the presence of [Ir(Cp*)(H₂O)₃]²⁺ (100 μM) and Sc³⁺ (100 mM) in O₂-saturated H₂O (3.0 mL, [O₂] = 1.2 mM) at 298 K and the resulting aqueous suspension was used as is for the measurements.

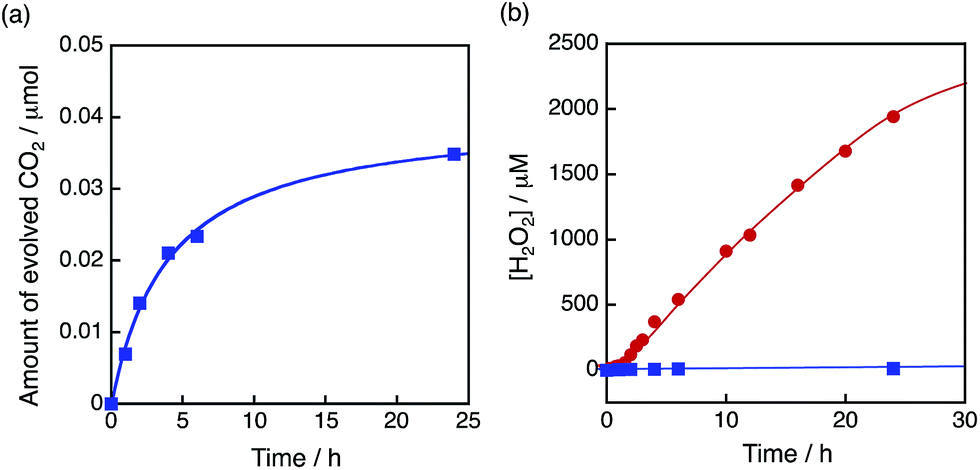

Fig. 6 (a) Time course of CO₂ evolution at 298 K under visible light (λ > 420 nm) irradiation of [Ru^II(Me₂phen)₃]²⁺ (20 μM) in the presence of Sc³⁺ (100 mM) in O₂-saturated H₂O (3.0 mL, [O₂] = 1.2 mM) containing [Ir(Cp*)(H₂O)₃]²⁺ (100 μM). (b) Time course of H₂O₂ production at 298 K under visible light (λ > 420 nm) irradiation of [Ru^II(Me₂phen)₃]²⁺ (20 μM) in the presence of Sc³⁺ (100 mM) in O₂-saturated H₂O (3.0 mL, [O₂] = 1.2 mM) containing [Ir(Cp*)(H₂O)₃]²⁺ (100 μM) (red circles). Blue squares are the time course of H₂O₂ production expected from the amount of evolved CO₂ based on eqn (3).

Photocatalytic production of hydrogen peroxide with NiFe₂O₄ nanoparticles

The catalytic reactivity of nickel ferrite (NiFe₂O₄) for water oxidation has been reported to be comparable to that of a catalyst containing Ir, Ru or Co in terms of the oxygen yield and oxygen-evolving rate under ambient reaction conditions.⁶⁷

Because NiFe₂O₄ is composed of much more earth-abundant metals than Ir, NiFe₂O₄ was employed as a WOC for the photocatalytic production of H₂O₂ with [Ru^II(Me₂phen)₃]²⁺ in the presence of Sc³⁺ in water. The overall photocatalytic cycle for H₂O₂ production is depicted in Scheme 1. Photoinduced electron transfer from the excited state of [Ru^II(Me₂phen)₃]²⁺ to O₂ results in the formation of H₂O₂ and [Ru^III(Me₂phen)₃]³⁺via the oxidation of NiFe₂O₄, which oxidises water to form O₂ and [Ru^II(Me₂phen)₃]²⁺. Back electron transfer from O₂˙⁻ to [Ru^III(Me₂phen)₃]³⁺ and the decomposition of H₂O₂ by NiFe₂O₄ are retarded in the presence of Sc³⁺ (vide supra, Fig. S6†).²⁴

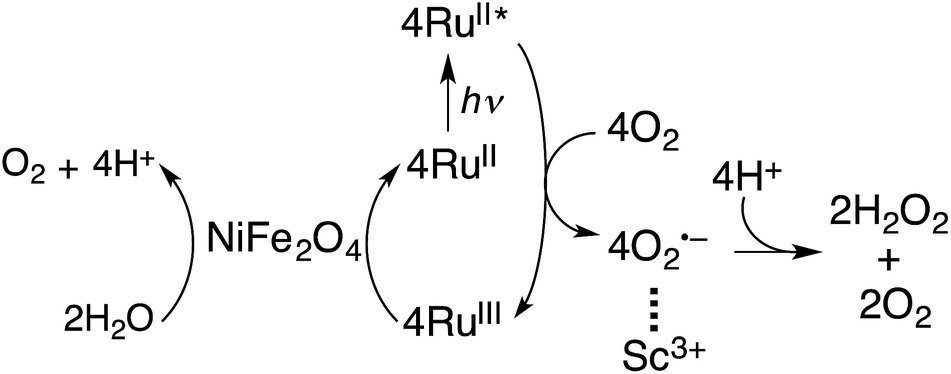

Scheme 1 Overall photocatalytic cycle for H₂O₂ production.

The photocatalytic production of H₂O₂ was performed using [Ru^II(Me₂phen)₃]²⁺ as a photosensitiser and NiFe₂O₄ as a WOC (Fig. 7a), which exhibited an induction period at the initial reaction time (black line in Fig. 7b). From the resulting solution, NiFe₂O₄ nanoparticles were recovered by centrifugation after 12 h photoirradiation and reused as WOCs. With the use of recovered NiFe₂O₄ as WOCs, the induction period was not observed (blue line in Fig. 7b). The diameter of nanoparticles measured by DLS decreased from 1300 nm to 620 nm after 12 h reaction as shown in Fig. 7c, suggesting that the induction period originates from the decrease in the diameter during the reaction.

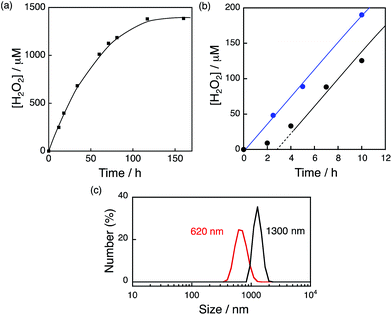

Fig. 7 (a) Time course of H₂O₂ production in the presence of NiFe₂O₄ (0.17 g L⁻¹) and Sc³⁺ (100 mM) under visible light irradiation (λ > 420 nm) of [Ru^II(Me₂phen)₃]²⁺ (200 μM) in O₂-saturated H₂O (3.0 mL, [O₂] = 1.2 mM). (b) Initial period of the plot in (a) (black) and the time course of H₂O₂ production in the presence of NiFe₂O₄ recovered from the reaction solution after 12 h of visible light (λ > 420 nm) irradiation under the same conditions as in (a) (blue). (c) Size distributions of NiFe₂O₄ particles determined by DLS in the reaction solution before (black) and after (red) 12 h reaction.

In order to determine the conditions necessary for the size change of as-prepared NiFe₂O₄, DLS measurements of NiFe₂O₄ in an aqueous solution containing Sc³⁺ (100 mM) were performed under dark (Fig. S7†). The diameter of NiFe₂O₄ particles decreased to 710 nm, which is in good agreement with the size observed for the particles in the reaction suspension, although the rate of the size change was significantly reduced to 1/20 of that under photoirradiation. This result indicates that the rate of the size change was accelerated with photoirradiation. Then, the size change of NiFe₂O₄ was also examined in an aqueous HNO₃ (1.0 M) solution (Fig. S8†) because Fe and Ni ions can be soluble in highly acidic solutions. However, the deceleration of the rate of the size change was also observed in the HNO₃ solution under dark conditions, as the diameter of NiFe₂O₄ did not change even after 24 h under dark conditions (Fig. S9†). These results indicate that the presence of Sc³⁺ is necessary for the size change, thus, the dependence of the rate of the size change on the concentration of Sc³⁺ ranging from 0.1 to 100 mM was examined under room light at 353 K. The fastest size-decreasing rate was observed for an aqueous solution containing 10 mM of Sc³⁺ (Fig. S10†). Under these conditions, the size of formed nanoparticles became as small as 91 nm after 12 h (Fig. 8).

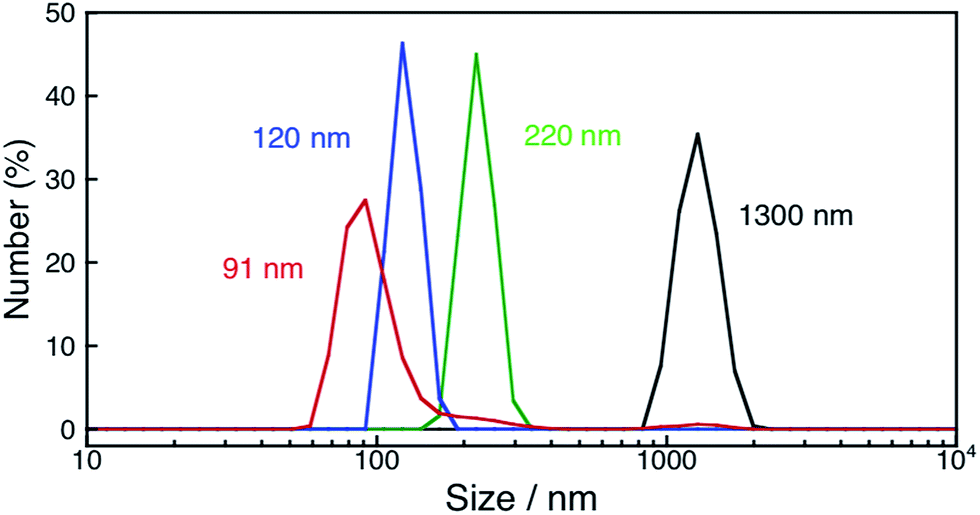

Fig. 8 Size distributions of NiFe₂O₄ nanoparticles determined by DLS measurements for an aqueous suspension containing as-prepared NiFe₂O₄ (0.17 g L⁻¹) (black) and an aqueous suspension containing NiFe₂O₄ particles (0.17 g L⁻¹) and Sc³⁺ (10 mM) exposed to room light for 3 h (green), 6 h (blue) and 12 h (red) at 353 K.

The nanoparticles were characterised by powder XRD to confirm that they kept the ferrite structure (Fig. S11†). It was also confirmed that the as-prepared NiFe₂O₄ was not dissolved to yield Fe ions. The addition of 1,10-phenanthroline (phen) and the reduced form of β-nicotinamide adenine dinucleotide disodium salt hydrate (NADH) as a reductant to the supernatant containing Fe ions produces [Fe^II(phen)₃]²⁺, which has strong absorption in the visible region (λ_max = 508 nm, ε = 1.1 × 10⁴ M⁻¹ cm⁻¹) and therefore is easily detected (Fig. S12†). It was also supported by the fact that NiFe₂O₄ nanoparticles used in the reaction solution were recovered by centrifugation in high yield (87%). TEM images of NiFe₂O₄ particles manifested that the as-prepared NiFe₂O₄ has the form of aggregated smaller primary particles (Fig. S13†). The nanoparticles were formed by the dissociation of small particles that consist of a few primary particles as depicted in Scheme 2.

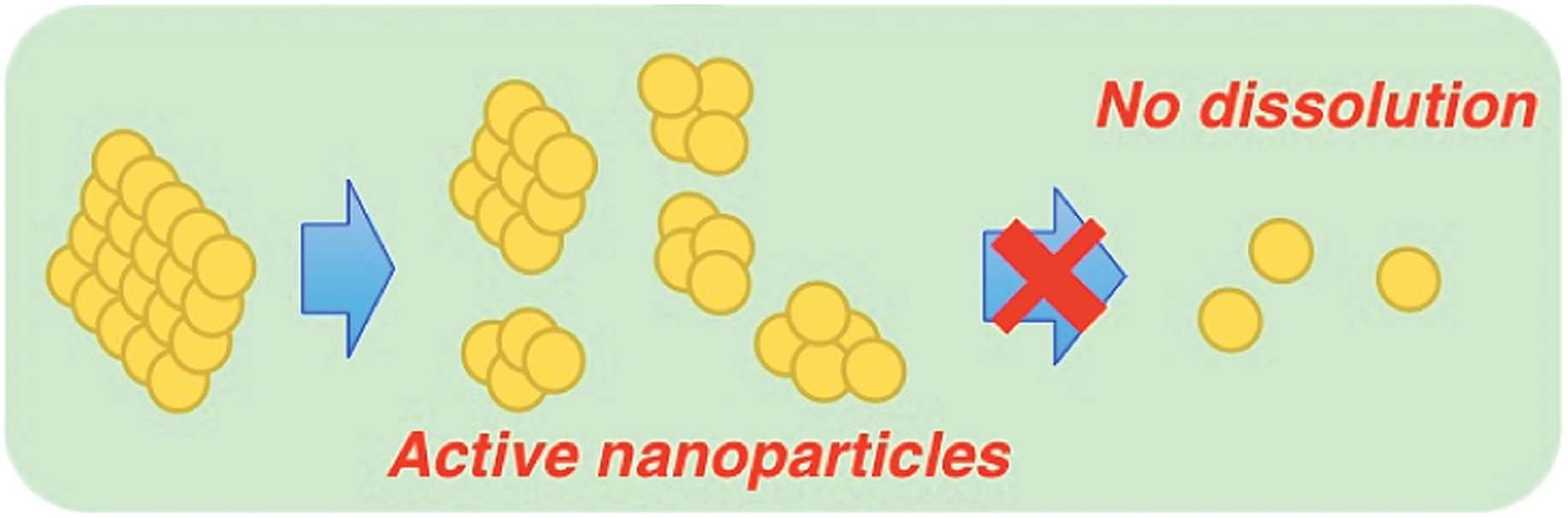

Scheme 2 Mechanism of NiFe₂O₄ nanoparticle formation.

The photocatalytic production of H₂O₂ was performed using NiFe₂O₄ nanoparticles as the WOCs in the presence of [Ru^II(Me₂phen)₃]²⁺ and Sc³⁺ under visible light irradiation (λ > 420 nm) (Fig. 9a and S14†). The quantum efficiency determined by using monochromatised light (450 nm) and solar energy conversion efficiency were determined to be 2.7% and 0.088%, respectively, using NiFe₂O₄ nanoparticles with a diameter of 90 nm (Fig. S15 and S16†). To reuse the nanoparticles after H₂O₂ production ceased, an aliquot of an aqueous solution containing a high concentration of [Ru^II(Me₂phen)₃]²⁺ was added to the reaction suspension repeatedly, in which the amount of [Ru^II(Me₂phen)₃]²⁺ added to the starting suspension at each run was calculated in terms of the concentration increase of 200 μM. The concentration of H₂O₂ in the resulting suspension increased to be as high as 3.3 mM, ensuring the high stability of the nanoparticles as WOCs (Fig. 9b). The initial rate of H₂O₂ production was accelerated 22 times and 33 times when using NiFe₂O₄ nanoparticles with diameters of 120 nm and 91 nm, respectively, as compared to the as-prepared NiFe₂O₄ with a diameter of 1300 nm (Fig. 9a). This increase in reactivity could be due to a simple increase in the surface area, therefore, surface areas for nanoparticles were estimated from the respective diameters by eqn (S5)† and compared with respective initial rates of H₂O₂ production (Fig. 10). The linear relationship between surface areas and initial rates of H₂O₂ production observed in Fig. 10 indicates that the reactivity of each active site for water oxidation in the surface of NiFe₂O₄ remains unchanged irrespective of the particle size.

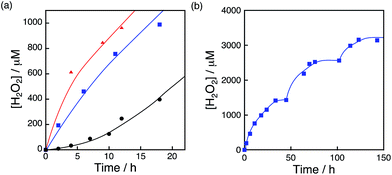

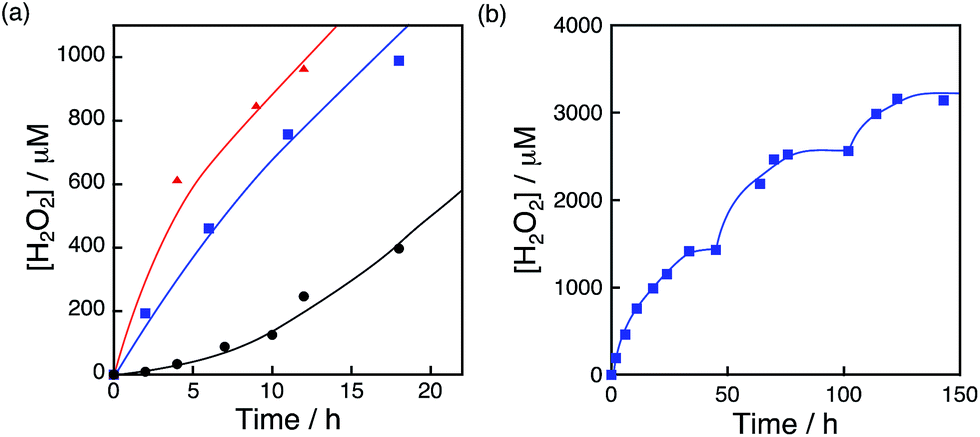

Fig. 9 (a) Time courses of H₂O₂ production under visible light irradiation (λ > 420 nm) of [Ru^II(Me₂phen)₃]²⁺ (200 μM) in the presence of Sc³⁺ (100 mM) and NiFe₂O₄ (0.17 g L⁻¹) with diameters of 1300 nm (black circles), 120 nm (blue squares) and 91 nm (red triangles) in O₂-saturated H₂O (3.0 mL, [O₂] = 1.2 mM). (b) Time course of H₂O₂ production in the presence of NiFe₂O₄ (0.17 g L⁻¹) and Sc³⁺ (100 mM) under visible light irradiation (λ > 420 nm) of [Ru^II(Me₂phen)₃]²⁺ (200 μM) in O₂-saturated H₂O (3.0 mL, [O₂] = 1.2 mM). [Ru^II(Me₂phen)₃]²⁺ was added twice to the reaction suspension at 50 h and 100 h during photoirradiation. The amount of [Ru^II(Me₂phen)₃]²⁺ added each time at 50 h and 100 h to the reaction suspension was calculated in terms of the concentration increase of 200 μM.

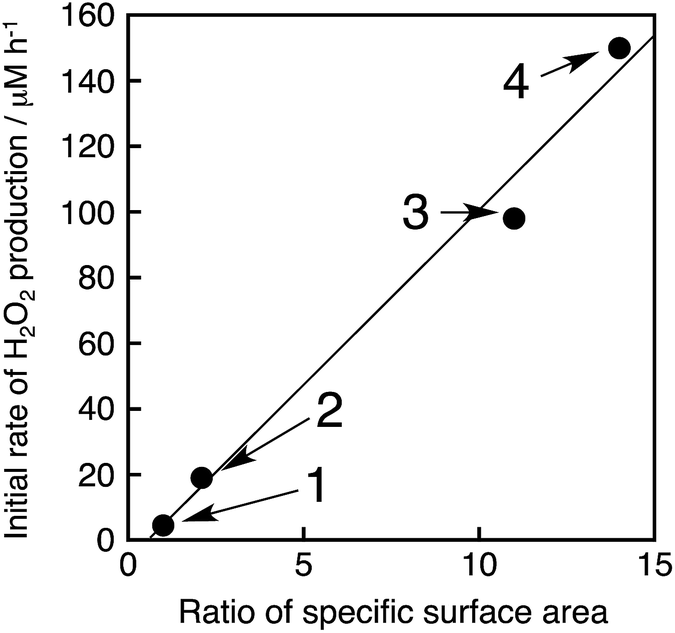

Fig. 10 Plot of initial rates of the photocatalytic H₂O₂ production vs. ratios of the specific surface area (R) of NiFe₂O₄ particles, where R = (specific surface area of the particles)/(specific surface area of non-treated NiFe₂O₄). The details of the calculation are described in ESI (Page S23).† The circles denoted as 1–4 correspond to NiFe₂O₄ particles with diameters of 1300 nm, 620 nm, 120 nm and 91 nm, respectively. The methods to produce each size of NiFe₂O₄ particles and the calculation of initial H₂O₂ production rates are described in the caption of Fig. S17.†

Conclusions

The reactivity of water oxidation catalysts for the photocatalytic production of H₂O₂ from H₂O and O₂ with [Ru^II(Me₂phen)₃]²⁺ and Sc³⁺ was improved by using [Ir(Cp*)(H₂O)₃]²⁺ as a precatalyst, which was converted to Ir(OH)₃ nanoparticles during the photocatalytic reaction, as compared with that using Ir(OH)₃ nanoparticles derived from H₂IrCl₆. The enhanced catalytic reactivity of Ir(OH)₃ nanoparticles results from the smaller size of nanoparticles produced in situ as compared with Ir(OH)₃ nanoparticles derived from H₂IrCl₆. The Cp* ligand of [Ir(Cp*)(H₂O)₃]²⁺ was partially oxidised to CO₂ during the photocatalytic reaction and remaining organic residues may act as capping reagents to prevent further aggregation of Ir(OH)₃ nanoparticles. NiFe₂O₄ nanoparticles, which are composed of much more earth abundant metals than Ir, also acted as a water oxidation catalyst for the photocatalytic production of H₂O₂ with [Ru^II(Me₂phen)₃]²⁺ in the presence of Sc³⁺ in water. In this case, the size of NiFe₂O₄ nanoparticles decreased during the photocatalytic reaction to increase the catalytic reactivity of water oxidation. Thus, both a bottom-up method starting from a metal complex precatalyst ([Ir(Cp*)(H₂O)₃]²⁺) to produce Ir(OH)₃ nanoparticles with small size and a top-down method starting from as-prepared NiFe₂O₄ to obtain smaller NiFe₂O₄ nanoparticles provide promising strategies to develop more efficient water oxidation catalysts for photocatalytic production of H₂O₂ from H₂O and O₂.

Experimental section

Materials

All chemicals commercially available were used without further purification unless otherwise noted. H₂IrCl₆·nH₂O (99.99%) was purchased from Furuya Metal. RuCl₃ (38.220 wt% Ru) was purchased from Tanaka Kikinzoku Kogyo K.K. 4,7-Dimethyl-1,10-phenanthroline (Me₂phen, 98%), Ag₂SO₄ (99.9%) and (NH₄)₂SO₄ (99.99%) were supplied by Aldrich Chemicals. Pentamethylcyclopentadiene was obtained from Kanto Chemical Co., Inc. Oxo[5,10,15,20-tetra(4-pyridyl)porphinato]titanium(IV) ([TiO(tpyp)]) and NADH were supplied by Tokyo Chemical Industry Co., Ltd. (TCI). Sc(NO₃)₃·4H₂O (99.9%) was supplied by Mitsuwa Chemicals Co., Ltd. Purification of water (18.2 MΩ cm) was performed with a Milli-Q system (Millipore, Direct-Q 3 UV). [Ir(Cp*)(H₂O)₃]SO₄ was prepared by following the reported method.⁶⁸

Synthesis of NiFe₂O₄

NiFe₂O₄ was synthesised according to the literature.^67,69 To an aqueous solution (24 mL) containing NiCl₂·6H₂O (2.0 mmol, 0.46 g) and Fe(NO₃)₃·9H₂O (4.0 mmol, 1.6 g) was added KOH solution (2.0 M, 24 mL) with magnetic stirring at room temperature (RT). The mixture was then transferred into a Teflon-lined stainless-steel autoclave of 140 mL capacity. The sealed tank was heated to and maintained at 160 °C for 10 h in an oven and cooled to RT. The resulting brown precipitates were collected by filtration and washed with water and ethanol more than 3 times, and finally dried in an oven at 60 °C for 10 h.

Formation of NiFe₂O₄ nanoparticles

Typically, an aqueous suspension (3.0 mL) containing Sc(NO₃)₃ and NiFe₂O₄ (0.50 mg) was stirred continuously for 3 h, 6 h or 12 h at 80 °C under room light to yield 220 nm, 120 nm and 91 nm nanoparticles respectively. The suspension was used for the H₂O₂ production reaction after the addition of [Ru^II(Me₂phen)₃]²⁺ and Sc(NO₃)₃. NiFe₂O₄ nanoparticles used as a sample for powder XRD measurements were prepared by immersing as-prepared NiFe₂O₄ (5.1 mg) in an aqueous solution (31 mL) of Sc(NO₃)₃ for 12 h. The resulting powder was collected by centrifugation and washed with water 3 times. The yield of NiFe₂O₄ nanoparticles was 87%.

Quantitative measurements of Fe^II and Fe^III ions

An aqueous suspension containing as-prepared NiFe₂O₄ and Sc(NO₃)₃ was stirred at 80 °C for 12 h for the formation of active NiFe₂O₄ nanoparticles as discussed in the previous paragraph. After the formation of NiFe₂O₄ nanoparticles, the supernatant of the suspension was examined for the presence of Fe^II or Fe^III ions. The filtered supernatant was diluted by water so that the solution may contain 300 μM of Fe ions if NiFe₂O₄ was dissolved completely. UV-Vis spectra were measured using a Hewlett Packard 8453 diode array spectrometer for the diluted supernatant in both the presence of 1,10-phenanthroline (phen) (4.5 mM), and in the presence of phen (4.5 mM) and NADH (1.5 mM) to reduce Fe^III that may have formed. Measured UV-Vis spectra were compared with the UV-Vis spectra of [Fe^II(phen)₃]₃²⁺ (100 μM).

Photocatalytic reactions

[Ir(Cp*)(H₂O)₃]SO₄ or NiFe₂O₄ was introduced into distilled water (3.0 mL) containing [Ru^II(Me₂phen)₃]SO₄ and Sc(NO₃)₃ in a quartz cuvette with a light path length of 1.0 cm. The solution was bubbled with oxygen gas for ∼30 min. The solution containing photocatalyst was irradiated with a xenon lamp (USHIO Optical Modulex SX-UID 501XAMQ) through a cut-off filter (Asahi Techno Glass L42) transmitting λ > 420 nm at room temperature.

Quantification of produced H₂O₂

From spectroscopic titration with an acidic solution of the [TiO(tpypH₄)]⁴⁺ complex (Ti-TPyP reagent), the amount of produced H₂O₂ was determined.⁷⁰ The [TiO(tpyp)] complex (34 mg) was dissolved in 1.0 L of 50 mM hydrochloric acid and the solution was used as a Ti-TPyP reagent. An aliquot (e.g., 100 μL) of the reaction solution was diluted with water and 0.25 mL of the sample solution was mixed with 0.25 mL of 4.8 M perchloric acid and 0.25 mL of Ti-TPyP reagent. After 5 min at room temperature, the mixture was diluted to 2.5 mL with water and used for the spectroscopic measurement. The absorbance at λ = 434 nm was measured by using a Hewlett Packard 8453 diode array spectrometer (A_S). In a similar manner, a blank solution was prepared by adding distilled water in place of the sample solution in the same volume with its absorbance designated as A_B. The difference in absorbance was determined by following the equation: ΔA₄₃₄ = A_B − A_S. Based on ΔA₄₃₄ and the volume of the solution, the amount of hydrogen peroxide was determined according to the literature.⁷⁰

Determination of the quantum yield

Quantum yields (QYs) of the photocatalytic production of hydrogen peroxide (Φ) were determined under irradiation of monochromatised light using a Shimadzu spectrofluorophotometer (RF-5300 PC) through a monochromator transmitting λ = 450 nm, and estimated as

QY (%) = (2 × R/I) × 100 (4)

where R (mol s⁻¹) and I (einstein s⁻¹) represent the H₂O₂ production rate and the light intensity, respectively. Two photons are required for the electronic transition of the [Ru^II(Me₂phen)₃]²⁺ photosensitiser in order to produce hydrogen peroxide through two-electron reduction of one molecule of oxygen. When all of the photons are fully utilized to produce hydrogen peroxide, the QY reaches 100%. Therefore, the coefficient of the right-hand side in eqn (4) is 2 for this photocatalytic system. The total number of incident photons was measured by a standard method using an actinometer and potassium ferrioxalate, K₃[Fe^III(C₂O₄)]₃, in H₂O at room temperature under photoirradiation using a Shimadzu spectrofluorophotometer (RF-5300 PC) through a monochromator transmitting λ = 450 nm (slit width of 5.0 mm) at room temperature. For the same quartz cuvette with a light path length of 1.0 cm with 3.0 mL solution as used in the production of hydrogen peroxide experiments, the rate of photon flux of the incident light (I) was determined to be 7.40 × 10⁻¹⁰ einstein s⁻¹.

Quantification of evolved CO₂

[Ir(Cp*)(H₂O)₃]SO₄ (100 μM) was added to distilled water (3.0 mL) containing [Ru^II(Me₂phen)₃]SO₄ (20 μM) and Sc(NO₃)₃ (100 mM) in a quartz cuvette (light path length = 1.0 cm). The solution was saturated by bubbling with oxygen gas for ∼30 min. The photocatalyst was irradiated with a xenon lamp (USHIO Optical Modulex SX-UID 501XAMQ) through a cut-off filter (Asahi Techno Glass L42) transmitting λ > 420 nm at room temperature. The amount of evolved CO₂ was determined by using a Shimadzu GC-14B gas chromatograph (N₂ carrier, active carbon with a particle size of 60–80 mesh at 80 °C) equipped with a TCD detector.

Characterisation of particles

Transmission electron microscopy (TEM) images of iridium hydroxide and nickel ferrite, which were mounted on a copper microgrid coated with elastic carbon, were observed using a JEOL JEM-2100 operating at 200 kV. Dynamic light scattering (DLS) data were obtained using a Zeta Sizer Nano ZS (Malvern Instruments Ltd., USA). Powder X-ray diffraction (XRD) patterns were recorded with a Rigaku MiniFlex 600 X-ray diffractometer. X-ray photoelectron spectra (XPS) were obtained with an ULVAC-PHI ESCA5600 X-ray photoelectron spectrophotometer. The incident radiation was the Mg Kα X-ray (1253.6 eV) at 400 W and the charge neutralizer was turned on for acquisition. The binding energy of each element was corrected by the C 1s peak (284.8 eV) from residual carbon.
