Parametric investigation of room-temperature fluoride-ion batteries: assessment of electrolytes, Mg-based anodes, and BiF3-cathodes

Fabienne Gschwind *ab and Joshua Bastien ab
aHelmholtz-Institute Ulm (HIU), Albert-Einstein-Allee 11, 89081 Ulm, Germany. E-mail: fabienne.gschwind@kit.edu; Fax: +49 731 50 34299; Tel: +49 731 50 34212
bKarlsruhe Institute of Technology (KIT), Hermann-von-Helmholtz-Platz 1, 76344 Eggenstein-Leopoldshafen, Germany. Tel: +49 721 60 828972

Received 3rd December 2014 , Accepted 9th February 2015

First published on 9th February 2015


Abstract

Little is known about room-temperature fluoride-ion batteries (RT FiBs), and no investigations that have varied their potential electrolytes, cathode preparations, or anode materials have been reported. In this publication, an overview of our recent investigations of these parameters for the purposes of improving the discharge capacities of RT FiBs is provided. The poly(ethylene glycol) (PEG)-based electrolytes in these systems function as ligands for fluoride ions. The impact of the increasing ligand length on battery capacity was investigated. Using Mg as an anode, different anode builds (e.g., foil or pressed pellets), as well as several composite anodes (e.g., Mg/MgF2) were tested. Furthermore the difference between cathodes prepared as hand-spread slurries or by spray-coating was investigated. Additionally the impact of using a water-soluble binder was examined. Finally, problems due to the leaching of alkaline (and/or alkaline earth) metal ions from the glass-fiber separators into the electrolyte were considered. In summary, it was demonstrated that FiBs will work using magnesium anodes, and that the capacities of such batteries are sensitive to every small change in their components.


Introduction

Fluoride-ion batteries (FiBs) are based on anion transport using fluoride or bifluoride1 ions as shuttle agents.

Depending on the materials used for the construction of a FiB, an energy density of about 5000 W h L−1 could be obtained.2 These high capacities and energy densities are possible because of the extraordinary electronegativity of fluorine. When fluorine reacts with metals to form a metal fluoride a large change in the free energy is observed, which leads to high theoretical voltages in electrochemical cells.3 To date, only a handful of papers have provided insight into this new type of battery,2,3 and only one paper discusses room-temperature fluoride batteries with a liquid electrolyte,1 although a patent has claimed the use of liquid electrolytes.4

The general working principle for the FiB is based on the reduction of the cathodic material and the oxidation of the anodic material via fluoride-ion transport through the electrolyte. For example, Mg is oxidized to MgF2, releasing two electrons, which travel via an external circuit to the cathode. There, BiF3 is reduced to metallic bismuth, releasing three fluoride ions into the electrolyte, which assures the ionic transport of the fluoride species (Fig. 1).


image file: c4ta06625a-f1.tif

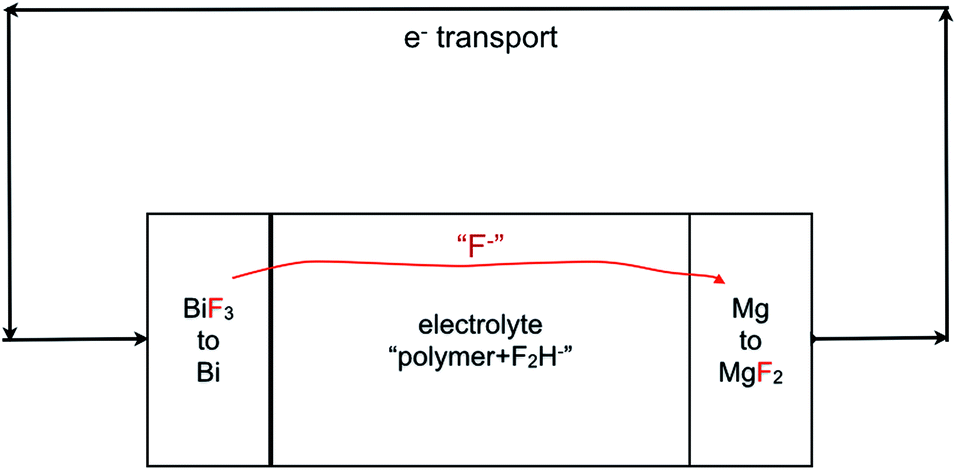

Fig. 1 Fluoride-ion battery configuration. Discharge process for the BiF3 cathode and Mg anode system.

In our previous study of a FiB system, an electrolyte based on polyethylene glycol with coordinated ammonium bifluoride molecules was investigated. Our proposed mode of binding is depicted in Fig. 2.


image file: c4ta06625a-f2.tif

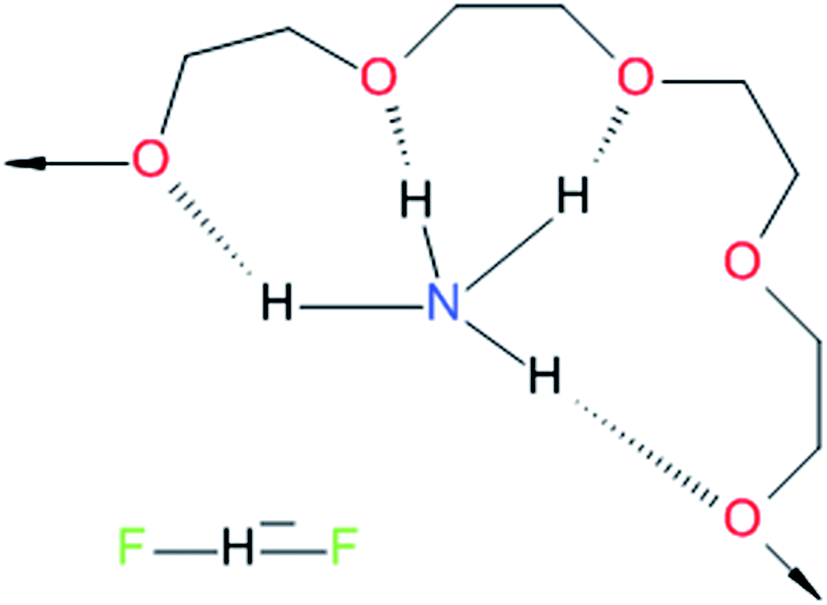

Fig. 2 Ligand-binding mode in electrolyte system. Proposed coordination mode of NH4+ with a polyethylene glycol ligand.

The battery also used lithium foil as the anode and a BiF3–carbon composite as the cathode. Unfortunately, the performance of this system was not satisfactory.

For example, as a cathode material, the theoretical capacity of BiF3 is not ideal,5 and its high mass diminishes the effective capacity of the cell, which is calculated based on the active mass of the cathode. The advantage of using BiF3 is that elemental bismuth is easily recognized by powder X-ray diffractometry (PXRD); this accounts for our continued use of Bi in this study. Electrodes can be prepared in many different ways, such as by spreading slurries or by pressing. In preliminary tests, it was found that the method of preparation significantly impacts the efficiency of the battery. The slurry method of preparation requires the use of a polyvinylidene difluoride (PVDF) binder, whereas pellets do not. It is unclear if the PVDF binder inhibits fluoride transport in the battery, or if other binders such as carboxymethyl cellulose (CMC) would be better for preparing cathodes.

Until now, only lithium anodes have been used as the anode in RT-FiBs, whereas solid-state FiBs have used lanthanum- or cerium-based anodes. In our last publication, it was shown that lithium ions can migrate into the electrolyte and can contribute to the observed capacity.1 In this study, completely different anode materials, consisting of magnesium and magnesium composites were tested. In total five different systems were chosen: pure Mg pressed in pellets, Mg foil, a partially charged Mg/MgF2-composite,6,7 a partially charged Mg/KF-composite, and lastly, another composite with polyaniline (PANI) emeraldine base.4

In our last paper, an electrolyte based on methylated PEG6000 and ammonium bifluoride was presented. Ammonium cations are “wrapped” (coordinated) into the PEG molecules, and the resulting “giant cation” forces the bifluoride anion to remain in solution. This type of electrolyte proved to be stable and HF formation could not be detected by thermogravimetric analysis (TGA) upon heating the compound.1 Therefore, the fluoride-doped PEG matrixes were retained and our attention was turned to the impact of ligand size (glycol chain length).

Furthermore, up until now, the electrolyte was prepared with a solid material, PEG6000, which resulted in a finished solid electrolyte. In order to be able to use it in our battery system, the electrolyte first had to be dissolved in a solvent. Therefore, electrolyte systems with shorter chain lengths, which are naturally liquid, were investigated more closely.

At this time, our focus is on primary cells in which only the first discharge is investigated. Charging is problematic due to the passivation of the Mg anode and the low solubility of MgF2. This will be discussed in greater detail below. In this publication, new results obtained for these different systems are presented, a new lithium-free room-temperature fluoride battery is reported and based on this results some inferences and conclusions about FiBs are drawn.

Results and discussion

Electrolyte

The three new electrolytes tetraglyme·NH4F2H (TG), higlyme·NH4F2H (Hi), PEO600[thin space (1/6-em)]000·NH4F2H (PEO) and the already published PEG6000·NH4F2H (PEG6000) based on polyethers with differing chain lengths (relative chain length; TG < Hi < PEG6000 < PEO), were prepared as described in the Experimental section. Each exhibited a double 19F NMR peak at about −152 ppm, as has been previously observed.1 We noticed that the bifluoride signal of the compound PEO is much weaker than the other, possibly due to a poor doping of NH4F2H in the polymer network. The FTIR spectra of these materials, the large peak at 3090 cm−1 normally due to the N–H stretch of NH4+ was not observed, which indicates complexation of the cation in the polymer matrixes.1 In other regions, the three electrolytes are spectrally very similar and show almost the same peak patterns (ESI). Thermal stability assessment by TGA-DSC shows that no HF or ammonia is released before the final decomposition temperatures (Fig. 3).
image file: c4ta06625a-f3.tif
Fig. 3 Thermogravimetric analysis. TGA analysis of the three new electrolytes and the starting material, ammonium bifluoride.

A weight loss was observed for compound PEO around 267 °C, possibly due to decomposition of smaller polyethylene glycol components which are also present in the polymer blend.

Liquid electrolytes TG and Hi showed almost no conductivity in their native states (Fig. 4), but the incremental addition of MeCN dramatically increased their conductivity.


image file: c4ta06625a-f4.tif
Fig. 4 Conductivity of liquid electrolytes TG and Hi as a function of MeCN content.

The undiluted electrolyte Hi had a conductivity of 3 μS cm−1, but dilution to 48% MeCN content resulted in a conductivity increase to 878 μS cm−1. For electrolyte TG, the value difference is even more impressive: 238 μS cm−1 for the pure solvent and 1960 μS cm−1 at 44% dilution with MeCN. Electrolyte PEO peaked at a conductivity of 20 μS cm−1 and is therefore not represented in the figure. The poor conductivity of PEO fits also with the previous observation, that the doping procedure probably does not work as well for the very large polymer.

We propose that, in their undiluted states, the small polymers in higlyme and the tetraglyme oligomers form densely coordinated structures, which fix the ammonium cations as well as the bifluoride anions in a network. Upon addition of the solvent, the network is partially relaxed and frees enough ions to obtain a loosely coordinated system,8,9 allowing ionic conductivity (Fig. 5).


image file: c4ta06625a-f5.tif
Fig. 5 Solvent effect on electrolyte. Swelling of the glyme oligomers to afford ion conductivity.

BiF3 cathode preparation

Next, the impact of different preparation methods and binders used in the cathode through a series of battery cells were explored. A main issue that was observed was reproducibility in the cell tests, which generally showed a difference in capacity between identically built cells. One problem was the cathode, which was typically prepared using a hand-spread slurry of BiF3/PVDF/C on a stainless steel collector. All the collectors were, therefore, unique and had different active material weights; also, the surfaces were never flat. To avoid these problems, we opted to spray coat the materials, and to avoid PVDF. The omission of the binder was sought for two reasons in particular: (i) to avoid using the toxic solvent NMP, and (ii) to remove the possible influence of PVDF on capacity, as suggested by preliminary tests. Therefore we opted to use sodium carboxymethyl cellulose (CMC) as the binder due to the fact that it is water soluble, non-toxic, and sustainable.10–12 The cathodic material was suspended in water and spray-coated on a stainless steel collector until a layer containing about 1 mg of the material was obtained. The experiments were performed in Swage-lock cells as well as in a homemade multi-cell battery (ESI). A piece of glass wool (Whatman) was used as the separator. The test cells were discharged with a standard current density of 1 × 10−5 A at 25 °C.

Prior to the cell tests, the dried electrolytes TG, Hi, and PEO were combined with dimethyl carbonate (DMC) and acetonitrile (MeCN) in a 55[thin space (1/6-em)]:[thin space (1/6-em)]10[thin space (1/6-em)]:[thin space (1/6-em)]35 vol% ratio. 19F-NMR analysis of the as prepared electrolytes were performed. The fluoride peaks in 19F NMR remained almost unshifted but were considerably weaker due to the dilution (see ESI). The previously studied PEG6000·NH4F2H (PEG6000) was prepared at a concentration of 0.05 M similar to ref. 1.

The liquid electrolytes TG and Hi (267 and 375 mA h g−1) exhibited the best initial discharge capacities (Fig. 6). Electrolyte PEG6000 (129 mA h g−1) provided a fairly good result, whereas the solid electrolyte PEO (66 mA h g−1) exhibited the worst capacity. XRD analysis of all the cathodes after cycling revealed the well-known bismuth peak, but no major changes on the cathode surface could be observed by SEM (ESI).


image file: c4ta06625a-f6.tif

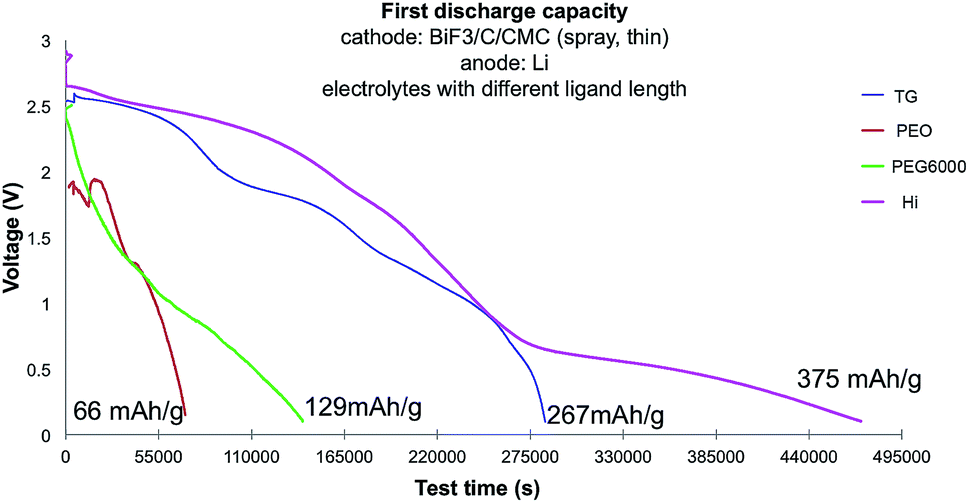

Fig. 6 Discharge capacities versus electrolyte. Comparison of the first discharge capacities of cells using electrolytes of different lengths with BIF3/CMC/C cathodes and lithium anodes (the capacities are not constant and can easily show variation of ±50 mA h g−1, typical discharge curve and capacities were chosen for this figure).

The use of lithium as an anode is known to be problematic due to the dissolution of Li ions in the electrolyte,1 which can contribute to capacity measurement errors. We strongly suspect that this occurred with liquid electrolyte TG, because the measured capacity was higher than the theoretical capacity (302 mA h g−1). In general, the discharge of these systems required more than 10 days. This extended time could have allowed more lithium ions to migrate into the electrolyte.

Furthermore, FiBs were proposed as alternative systems to Li-ion batteries, which prompted our interest in testing Mg anodes. Both bulk Mg pressed into pellets was used, and Mg foil which was cut into pieces and was sanded to remove the oxide layer. The anodes were tested in the presence of electrolytes TG, Hi, and PEG6000 (Fig. 6). Due to the bad capacity and performance of electrolyte PEO, it was chosen to omit it from further testing.


image file: c4ta06625a-f7.tif

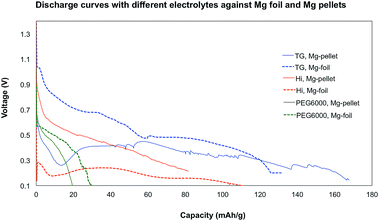

Fig. 7 Discharge capacities versus anode configuration. Discharge performance with Mg pellet or foil anodes as a function of electrolyte (the capacities are not constant and can easily show variation of ±30 mA h g−1, typical discharge curve and capacities were chosen for this figure).

The Mg anodes did not perform as well as Li in the discharge tests, with capacities decreased by approximately half. The pressed Mg pellets showed better performance than the Mg foil and both liquid electrolytes TG and Hi were far better than with electrolyte PEG6000 (Fig. 7). In electrolyte TG, a capacity up to 160 mA h g−1 was observed for the Mg pellet. Electrolyte PEO, with the longest ligand chain length, showed the poorest results with a capacity under 30 mA h g−1. Once again, capacity differences for the replicates of each cell were experienced, however, the general trends were unchanged, and both liquid electrolytes showed far better performance than the best results with PEG6000.

None of the discharge curves showed a very smooth line and variation in the voltage can typically be observed. This could have several reasons, starting from chemical side reactions with the electrodes or the electrolytes, as wells as problems with other parts of the batteries (see chapter separator). Unfortunately, similarly to the lithium anode reference cell, only one cycle was achieved in most cases. The Mg anodes were therefore investigated by SEM to determine if a MgF2 passivation layer had formed.

Mg anodes and passivation

The SEM images of the discharged anodes were remarkably different from the pristine anodes (Fig. 8).
image file: c4ta06625a-f8.tif
Fig. 8 SEM images of anodes. Before and after SEM images of Mg anodes after battery discharge tests. Mg pellets pristine (upper left photo), and after cycling (upper right photo). With magnification of the particles (lower left photo) and with surface ablation (lower right photo).

Snowflake-like formations, or even a large crust, covering the original anode could be observed (ESI). The particles are sticking to the surface but do not grow into the anode material, as shown by ablation with a focus ion beam of the anode surface (Fig. 8, lower right picture). Energy-dispersive X-ray spectroscopy (EDX) of the surface showed the presence of fluorine. The presence of fluorine in the white “flakes” (ESI) was detected, and it is suggested that these flakes are indeed MgF2.13 The presence of fluorine on the Mg foil could also be confirmed by EDX (ESI).

Intriguingly the Mg-foil anodes generally showed a much heavier crust formation.

Next, the possibility of using composite electrodes made of Mg/MgF2 was examined. It is known that such a system can improve the conductivity of F in comparison to pure Mg or pure MgF2.14 Such electrodes have been tested successfully in solid-state FiB systems and showed better performance than conventional Mg pellets.5 Based on this information, two new composite anodes were prepared, the first being a mixture of Mg and MgF2. In the second, a composite of Mg and KF was used, with the intention of achieving a more negative reduction potential by using the more electropositive K. Unfortunately, for our liquid battery systems, the capacities were not improved whatsoever using these composite anodes (Fig. 9). The discharge capacities were much worse than the normal Mg anodes.


image file: c4ta06625a-f9.tif
Fig. 9 Discharge capacities against Mg composite anodes. The capacity decreases if the Mg/MgF2 or Mg/KF composite systems are used.

The SEM images of the Mg/MgF2 composite as well as Mg/KF do not show any major differences between the reference and cycled anodes (Fig. 10). This leads us to conclude that almost no reaction had taken place on the anode side.


image file: c4ta06625a-f10.tif
Fig. 10 SEM images of the Mg/MgF2 composite anode before and after cycling.

The final anode we examined was a material comprised of a mixture of Mg and polyaniline (PANI) emeraldine base. There is evidence that PANI can intercalate fluoride ions.14 In using it, we hoped to achieve better conductivity,15,16 increase the reactivity beyond the surface of the electrode, and avoid crust formation. The PANI base was selected instead of the chloride-containing PANI emeraldine salt to avoid chloride or other halogen contamination. Magnesium powder was ball milled with PANI and shaped into the anode by pressing. Upon testing, the discharge was even worse than before (ESI), possibly because the PANI polymer coated the Mg particles and only a fraction of the “active” Mg was accessible to the electrolyte (Fig. 11). We suppose that this was also the reason why the mixed Mg/MgF2 and Mg/KF systems do not perform as well as anticipated: the Mg particles are covered and protected by a layer of an inactive material.


image file: c4ta06625a-f11.tif
Fig. 11 Proposed deactivation of Mg anode. Schematic illustration of the coating of the grey Mg particles by a layer of inactive material, such as PANI.

Leaching of the separator

In FiBs that use lithium as the anode, it has been observed that under certain circumstances, Li ions could migrate into the electrolyte and lead to erroneous capacity readings.1 Therefore, the issue of Mg migration into the electrolyte and deposition at the cathode, as well as the possible impact of impurities leached from the separator fibers was carefully investigated.

Under normal cycling conditions (0.1 V, 1 × 10−5 A), no Mg deposits were typically observed on the cathode surface. However, weak peaks from Na (from the binder), Si, and Al were observed on almost all the cathodes after discharge. Mg was also occasionally detected by EDX, especially when pieces of the separator were close to the data collection points. Furthermore, traces of Ba, K, and Ca were also observed. A separate EDX measurement of the separator showed that these alkaline (earth) metals, in addition to other elements, are present on the aluminosilicate separator (ESI), and can leach into the electrolyte (Fig. 12).


image file: c4ta06625a-f12.tif
Fig. 12 EDX measurement of the surface of a discharge BiF3-cathodes, at different places.

The potential for leaching was assessed by soaking the fibers (15 mg) in 0.3 mL of water for 24 h. The solution was examined by inductively coupled plasma-optical emission spectrometry (ICP-OES), which revealed the leaching of ∼3 ppm Mg and 13 ppm Na. To test whether impurities from the separator could have an impact on the discharge capacity, a test similar to that described in ref. 1 was performed. The electrolyte was replaced by pure solvent (higlyme or tetraglyme) and cycling tests were performed immediately after cell assembly and also after 20 h of resting time. The as-prepared batteries failed completely, and no capacity could be observed. We conclude, therefore, that the presence of such small amounts of Mg or even alkaline earth metals will not have any impact on battery performance or afford erroneous capacity results.

Outlook

To overcome this leaching problem further battery tests were done with different separators. Three systems were chosen: (a) thin celluloses paper (b) polyurethane sponge (c) thick interwoven cellulose material.

The polyurethane sponge and the thick cellulose separators could take up a larger amount of electrolyte (about 0.3 mL) and can act as an electrolyte tank. The cell tests were done with electrolyte TG under the standard conditions (Fig. 13).


image file: c4ta06625a-f13.tif
Fig. 13 Discharge curves of BiF3 against Mg with three different separators.

The OCV for each of the three separators was around 1.2 V and dropped to 0.7 V for the thick cellulose material, 0.5 V for the polyurethane sponge and to 0.3 V for the thin cellulose paper separator as soon as the discharge started. The capacity was clearly better than the one with the standard separator and could reach up to 250 mA h g−1 for the polyurethane sponge material and for the thick cellulose material, while the celluloses paper separator shows a poorer capacity of only about 30 mA h g−1. The curves are much smoother without voltage variation.

This shows how sensitive the RT-FiB are towards changes of only one parameter and that each part of the battery needs to be considered for testing.

Ongoing research will also focus on the use of different metal anodes and other fluoride salts for cathode materials. To better understand the process in the RT-FiB further electrochemical investigations as well as new electrolyte designs are in process.

Experimental

General

All reactions were carried out under standard laboratory conditions in air. Acetonitrile (MeCN) and dimethylcarbonate (DMC) for electrolyte preparation were dried and stored over molecular sieves. The cell assembly was performed under inert conditions in a glovebox to avoid moisture. 1H and 19F NMR spectra were acquired on a Bruker 500 MHz Ultrashield and a Bruker 400 MHz spectrometer with CDCl3 or D2O as solvent. FTIR spectra were collected on a Perkin-Elmer Spectrum Two spectrometer. TGA-differential scanning calorimetry (DSC) was measured on a Mettler Toledo TGA/SDTA 851. Viscosity was measured on a Thermo Haake Mars Rheometer. X-ray powder diffractograms were recorded on a Stadi P diffractometer (STOE & Cie GMBH) with a MYTHEN detector using Cu Kα radiation. Higlyme—a blend of small liquid PEG oligomers containing highly ethoxylated diethers of a high-molecular-weight alcohol—was purchased from BASF.

Electrolyte preparation

The electrolytes were prepared in a manner similar to that reported in ref. 1 with some modification.
Tetraglyme·NH4F2H, compound TG. Tetraethylene glycol (3 g, 0.13 mmol) and ammonium bifluoride (0.7 g, 0.13 mmol) were stirred and heated at 80 °C for 3 h. The reaction mixture was allowed to cool, and then acetonitrile (MeCN, 40 mL) was added. The solution was heated at reflux for 5 h, and then stirred at room temperature for another 12 h. After filtration to remove unreacted ammonium bifluoride, the solvent was evaporated at reduced pressure. Before use as an electrolyte, the colorless liquid was dried in vacuo.

IR (ATR, cm−1): 2877 b, 1739 vw, 1456 w, 1352 w, 1303 w, 1250 w, 1200 m, 1101 s, 1029 m, 991 vw, 948 w, 853 m, 551 b. 1H NMR (CDCl3, ppm): 3.66 (glycol units, 10H), 3.55 (CH3OCH2, 4H), 3.39 (CH3, 6H). 19F NMR (CDCl3, ppm): −152.27, −152.32 (F2H). TGA: evaporation and decomposition from 135 °C until 204 °C. Viscosity: 0.0043 Pa s at 20 °C.

Higlyme·NH4F2H, compound Hi. The same procedure was followed as for compound 1, using higlyme (3 g, about 0.006 mmol) ammonium bifluoride (0.5 g, 0.008 mmol), and MeCN (40 mL). A slightly thicker liquid than compound 1 was obtained.

IR (ATR, cm−1): 2926 m, 2858 m, 1739 vw, 1456 w, 1352 w, 1303 w, 1250 w, 1107 s, 951 w, 855 w, 725 vw. 1H NMR (CDCl3, ppm): 3.65, 3.61–3.54, 3.45, 3.38, 1.57, 1.26, 0.88. 19F NMR (CDCl3, ppm): −152.31, −152.36 (F2H). TGA: evaporation and decomposition from 130 °C until 360 °C. Viscosity: 0.0195 Pa s at 20 °C.

Poly(ethylene oxide)600[thin space (1/6-em)]000·NH4F2H, compound PEO. PEO600[thin space (1/6-em)]000 (1 g, 0.0016 mmol) and a large excess of ammonium bifluoride (0.095 g, 1.6 mmol) were dissolved in MeCN (40 mL; a few millilitres of methanol can be added to obtain better dissolution of the ammonium bifluoride). The reaction solution was heated to reflux for 5 h and filtered to remove unreacted ammonium bifluoride. The solvent was evaporated and the remaining plastic-like polymer film was dried in vacuo.

IR (ATR, cm−1): 3250 bw, 2887 s, 2750 w, 1466 m, 1359 w, 1341 s, 1303 w, 1280 m, 1242 w, 1149 w, 1097 s, 1081 s, 961 s, 841 s, 750 w, 530 m. 1H NMR (CDCl3, ppm): 3.65 (glycol units).19F NMR (CDCl3, ppm): −152.35 (very weak F2H peak). TGA: first weight loss observed at 211 °C to 357 °C (−17%), followed by decomposition from 357 °C to 427 °C.

Methylated PEG6000·NH4F2H, compound PEG6000. This material was prepared following the method in ref. 1 with slight modifications, as described for compound 1.

Electrode preparation

Cathode preparation. Generally, the cathode materials were mixed in a ball mill and milled for 10 cycles, with 10 min milling times at 250 rpm and 20 min rests. Acetylene carbon black was used as carbon source. For the BiF3/C/PVDF slurry (0.7 g/0.2 g/0.1 g), about 0.2 g of the mixture was dissolved in just enough N-methylpyrrolidone (NMP) to obtain a smooth slurry and coated by hand on a stainless steel collector. For the BiF3/C/CMC (0.7 g/0.2 g/0.1 g) solution intended for spray coating, the mixture (0.4 g) was slurried in a few millilitres of water and then diluted to 30 mL. Stainless collectors were heated to 140 °C and the coating was sprayed on, layer by layer, until a coating weight of around 1 mg was reached. Before use in a battery cell, the cathode was dried overnight in a vacuum oven at 100 °C.
Anode preparation. The composite Mg/MgF2 electrode was prepared by ball milling equivalent amounts of each material (0.5 g eq.) under Ar over 6 cycles at 250 rpm with 10 min milling times and 20 min rests. All anodes were pressed into pellets in a glovebox under inert conditions to avoid the formation of an oxide layer on the Mg surface. The Mg/KF electrode was prepared similarly. The final electrode, Mg/polyaniline emeraldine base, was prepared by ball milling a mixture of Mg powder, particle size < 0.1 mm (0.8 g) and polyaniline emeraldine base (0.2 g, Mw = 50[thin space (1/6-em)]000) under the same conditions as above and pressing into pellets.

Conclusions

It was demonstrated that our new liquid electrolytes based on tetraglyme and higlyme performed better than the solid electrolyte based on the PEG matrix with longer glycol chains. We were also able to show that fluoride batteries can be discharged using magnesium anodes, and that the method of cathode preparation has a significant impact on the overall capacity. The most efficient cathode preparation was achieved by spray-coating the stainless steel collector with the cathode material. It was possible to improve our cathode in a sustainable way by using non-toxic CMC and water instead of PVDF and NMP. Examination of the cathode by EDX determined that the separator, which contained alkaline earth and alkali metal ions with the potential for leaching, could pose a significant problem. Nevertheless, it was showed that these impurities did not contribute additional capacity to the batteries.

Unfortunately, cycling could not be achieved in these batteries due to the formation of a MgF2 layer on the surface of the Mg anode. An attempt to solve this problem was made by using Mg/MgF2, Mg/KF or Mg/PANI composite anodes, however this proved unsuccessful. Further tests were done using different separators and showed that sponge like materials out of polyurethane significantly increased the discharge capacity.

Therefore we conclude that the multiparametric tests brought many insights into issues and problems of RT-FiB and we demonstrated a few options to avoid these problems and increase the performance of such batteries.

Acknowledgements

The authors would like to thank Carola Hoffmann-Richter from the University Ulm for the TGA measurement, Ute Golla-Schindler and Jörg Bernhard for help with SEM/EDX measurements and Daniel Sandbeck for research assistance.

Notes and references

  1. F. Gschwind, Z. Zhao-Karger and M. Fichnter, J. Mater. Chem. A, 2014, 2, 1214–1218 CAS.
  2. C. Rongeat, M. A. Reddy, R. Witter and M. Fichtner, J. Phys. Chem. C, 2013, 117, 4943 CAS.
  3. M. A. Reddy and M. Fichtner, J. Mater. Chem., 2011, 21, 17059–17548 RSC.
  4. I. Darolles, C. M. Weiss, M. M. Alam, A. Tiruvannamalai and S. C. Jones, US Pat., US2012/0164541 A1, 2012.
  5. G. G. Amatucci and N. Pereira, J. Fluorine Chem., 2007, 128, 243–262 CrossRef CAS PubMed.
  6. C. Rongeat, M. Anji Reddy, T. Diemant, R. J. Behm and M. Fichtner, J. Mater. Chem. A, 2014, 2, 20861–20872 CAS.
  7. W. Baukal, Electrochim. Acta, 1974, 19, 687–693 CrossRef CAS.
  8. (a) M. E. Wilson, K. Peach, W. J. Zhou and M. J. Kurth, J. Org. Chem., 1998, 63, 5094–5099 CrossRef CAS; (b) D. J. Buckley, M. Berger and D. Poller, J. Polym. Sci., 1962, 56, 163–174 CrossRef.
  9. (a) A. Marquez, J. Uribe and R. Cruz, J. Appl. Polym. Sci., 1997, 21, 2221–2232 CrossRef; (b) A. Carrilo, I. R. Martin-Dominguez, A. Rosas and A. Marquez, Polymer, 2002, 43, 6307–6313 CrossRef.
  10. B. R. Lee and E. S. Oh, J. Phys. Chem. C, 2013, 117, 4404–4409 CAS.
  11. J. Li, R. B. Lewis and J. R. Dahn, Electrochem. Solid-State Lett., 2007, 10(2), A17–A20 CrossRef CAS PubMed.
  12. A. Guerfi, M. Kaneko, M. Petitclerc, M. Mori and K. Zaghib, J. Power Sources, 2007, 163, 1047–1052 CrossRef CAS PubMed.
  13. Magnesium Technology 2003 Proceedings, ed. K. Aarstad, G. Tranell, G. Pettersen, T. A. Engh and H. I. Kaplan, TMS, Warrendale, PA Search PubMed.
  14. H. Cui, Q. Li, Y. Qian, R. Tang, H. An and J. Zhai, Water Res., 2011, 45, 5736–5744 CrossRef CAS PubMed.
  15. A. G. MacDiarmid, J. C. Chiang, A. F. Richter and A. J. Epstein, Synth. Met., 1987, 18, 285–290 CrossRef CAS.
  16. A. A. Syed and M. K. Dinesan, Talanta, 1991, 8, 815–837 CrossRef.

Footnotes

Electronic supplementary information (ESI) available. See DOI: 10.1039/c4ta06625a
The active material of the battery discharged with thick cellulose materials was 2 mg and not 1 mg as we used for others tests.
