Small molecular push–pull donors for organic photovoltaics: effect of the heterocyclic π-spacer

Antoine Labrunie a, Yue Jiangab, François Baerta, Antoine Leliègea, Jean Roncalia, Clément Cabanetos*a and Philippe Blanchard*a
aCNRS UMR 6200, MOLTECH-Anjou, University of Angers, 2 Bd Lavoisier, 49045 Angers, France. E-mail: clement.cabanetos@univ-Angers.fr; Philippe.blanchard@univ-Angers.fr
bSouth China University of Technology, 381 Wushan Rd, Tianhe, Guangzhou, Guangdong, China

Received 20th October 2015 , Accepted 11th November 2015

First published on 25th November 2015


Abstract

A series of (D–π–A) small push–pull molecules involving a triphenylamine electron-rich group (D) connected to a dicyanovinyl electron-deficient unit (A) through different chalcogenophene type π-connectors has been synthesized. Optical and electrochemical results reveal that the replacement of furan by thiophene and selenophene leads to a progressive decrease of the optical band gap of the material and to a parallel increase of hole mobility and power conversion efficiency (PCE). Thus, a PCE of 3.33% has been obtained for a simple air-processed solar cell involving the selenophene-based donor and the [6,6]-phenyl-C61-butyric acid methyl ester (PC61BM) as the acceptor.


1. Introduction

Over the past decades, organic solar cells (OSCs) have generated a considerable research effort due to their lightness, flexibility, low environmental impact and potential low cost of organic materials.1,2 Recent progress in device fabrication and material engineering have led to remarkable progress with power conversion efficiencies (PCE) now exceeding the symbolic value of 10%.3–5

However, beyond striving for improved PCEs, the development of active materials by simple, clean, cost-effective, efficient and scalable syntheses is a mandatory condition for future industrial production.6–8 Owing to their well-defined chemical structure, molecularly active materials present the advantages of a better reproducibility of synthesis and purification and a more precise analysis of the structure–property relationships compared to polydisperse polymers.9–11 Among them, Donor–Connector–Acceptor (D–π–A) type push–pull molecules based on arylamines donor blocks represent interesting molecular donors that combine synthetic accessibility, simplicity and efficiency.6,12–15 Indeed, TPA-T-DCV (Fig. 1), prepared in good yields in a few synthetic steps, has been over the past few years an interesting working structure to investigate the effects of various structural variations such as (i) the covalent bridging of the dicyanovinyl (DCV) group,16 (ii) its replacement by other electron-withdrawing units,17 (iii) the substitution of one phenyl ring of TPA by fused ring systems or aliphatic chains,18,19 or (iv) the drastic size reduction to assess the limit of simplification.20


image file: c5ra21958b-f1.tif
Fig. 1 Chemical structure of the D–π–A target molecules.

As a further step of this systematic analysis of structure–properties relationships, we report here on the effect of the nature of the heterocyclic π-connector by the synthesis, characterization and photovoltaic evaluation of the furan (TPA-F-DCV) and selenophene (TPA-S-DCV) analogues of TPA-T-DCV (Fig. 1).

Indeed, while several articles deal with the effect of the replacement of the thiophene ring by other chalcogenophene in conjugated polymers for OSCs,21–25 only few examples of molecular donors, especially incorporating the selenophene ring, have been reported.26–29

2. Results and discussions

The synthesis of the three molecules is depicted in Scheme 1.
image file: c5ra21958b-s1.tif
Scheme 1 Synthetic route to TPA-F-DCV, TPA-T-DCV and TPA-S-DCV.

5-Formylfuran-2-boronic acid was engaged in a Suzuki cross-coupling reaction with the commercially available 4-bromotriphenylamine 1 affording the carbonyl compound 4.30 In parallel, the thiophene and selenophene analogues 5 and 6 were prepared by a two-step procedure involving a Stille cross-coupling of 4-bromotriphenylamine 1 and the appropriate trimethyl stannylated chalcogenophene, followed by a Vilsmeier-Haack formylation with POCl3/DMF.16 Finally, a Knoevenagel condensation between malononitrile and the carbaldehydes 4, 5 or 6 led to the target products TPA-F-DCV, TPA-T-DCV and TPA-S-DCV respectively.

The compounds show good solubility in common organic solvents and their thermal stabilities were assessed by thermogravimetric analysis (Fig. 2).


image file: c5ra21958b-f2.tif
Fig. 2 Thermogravimetric analysis of TPA-F-DCV (black), TPA-T-DCV (red) and TPA-S-DCV (blue) recorded at 5 °C min−1 under N2.

The furan and thiophene derivatives exhibit a comparable decomposition temperature (Td) of ca. 255 °C. However, introducing a selenium atom slightly increases Td since a 5% weight loss was recorded at ca. 280 °C for TPA-S-DCV.

UV-Vis absorption spectra were recorded on chloroform solutions and on films spin-cast on glass.

The spectrum of all compounds shows an intense absorption band with a maximum (λmax) around 500 nm assigned to an internal charge transfer (ICT) from the TPA moiety to the electron-deficient DCV group (Fig. 3). Replacement of the furan spacer by thiophene and selenophene leads to a progressive bathochromic shift of λmax from 499 to 520 nm with a parallel increase of the molar extinction coefficient (ε) from 33[thin space (1/6-em)]000 to 36[thin space (1/6-em)]800 M−1 cm−1 (Table 1), in agreement with previous observations (Fig. 3).23,31,32 Broader absorption bands and red-shifted absorption edges with onsets at ca. 595 nm, 606 nm and 630 nm corresponding to optical band gaps (Eoptg) of 2.08 eV, 2.04 eV and 1.96 eV for TPA-F-DCV, TPA-T-DCV and TPA-S-DCV respectively were observed on thin films (Fig. 3b).


image file: c5ra21958b-f3.tif

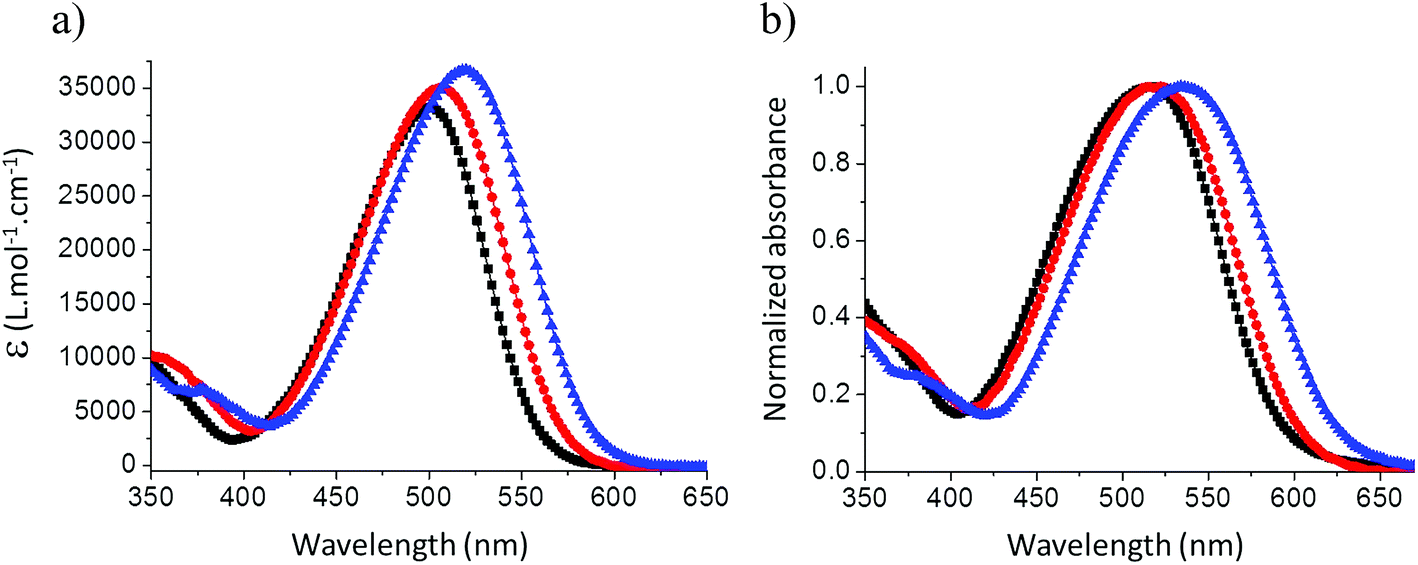

Fig. 3 UV-Vis absorption spectra of TPA-F-DCV (black squares), TPA-T-DCV (red circles) and TPA-S-DCV (blue triangles) in chloroform (a) and as thin film on glass (b).
Table 1 UV-Vis absorption data
Compound λmax (nm) solution ε (M−1 cm−1) λonset (nm) solution λmax (nm) film λonset (nm) film Eoptg (eV) film
TPA-F-DCV 499 33[thin space (1/6-em)]000 560 517 595 2.08
TPA-T-DCV 505 35[thin space (1/6-em)]000 572 523 606 2.04
TPA-S-DCV 520 36[thin space (1/6-em)]800 587 535 630 1.96


The electrochemical properties of the three molecules have been analyzed by cyclic voltammetry in dichloromethane solution in the presence of Bu4NPF6 as the supporting electrolyte. Data are summarized in Table 2.

Table 2 Electrochemical data for the target compounds (0.5 mM in 0.10 M Bu4NPF6/CH2Cl2, scan rate 100 mV s−1, Pt working and counter electrodes, ref. SCE)
Compound E1pa (V) EOx/onset (V) E1pc (V) ERed/onset (V) HOMOa (eV) LUMOb (eV) ΔEelec (eV)
a HOMO (eV) = −(EOx/onset (V) + 4.99).b LUMO (eV) = −(ERed/onset (V) + 4.99).33
TPA-F-DCV 0.98 0.86 −1.24 −1.07 −5.85 −3.92 1.93
TPA-T-DCV 1.01 0.87 −1.20 −1.05 −5.86 −3.94 1.92
TPA-S-DCV 1.01 0.87 −1.20 −1.01 −5.86 −3.98 1.88


The cyclic voltammogram (CV) of all compounds shows a reversible one-electron oxidation wave, assigned to the formation of a stable radical cation (Fig. 4). While the CVs of TPA-T-DCV and TPA-S-DCV show comparable anodic peak potentials at Epa = 1.01 V, the furan derivative presents a slight negative shift of Epa to 0.98 V indicative of an increase of the HOMO level. In the negative potentials region, the CV of all donors exhibits an irreversible reduction process with cathodic potential peak at Epc = −1.24 V for TPA-F-DCV and −1.20 V for both the thiophene and selenophene compounds. HOMO and LUMO levels were calculated respectively from the onsets of oxidation and reduction waves (Table 2).


image file: c5ra21958b-f4.tif
Fig. 4 Cyclic voltammograms of TPA-F-DCV (black), TPA-T-DCV (red) and TPA-S-DCV (blue) 0.5 mM in 0.1 M Bu4NPF6/CH2Cl2, scan rate 100 mV s−1, Pt working and counter electrodes, ref. SCE.

A slight reduction of the electrochemical gap (ΔEelec) is observed from the furan derivative (1.93 eV) to the selenophene one (1.88 eV), in agreement with optical data. Electrochemical data also show that this decrease of ΔEelec is mainly associated to the lowering of the LUMO energy levels when varying the heteroatom of the chalcogenophene from oxygen to selenium whereas the HOMO energy levels remains relatively unaffected.

To gain further insight into the electronic properties, the frontier orbitals and energy levels of the compounds have been investigated by theoretical calculations performed with Gaussian 09 program using Becke's three-parameter gradient-corrected functional (B3LYP) with the 6-31G(d,p) basis set (Fig. 5).


image file: c5ra21958b-f5.tif
Fig. 5 HOMO and LUMO energy levels and their representations for TPA-F-DCV (left), TPA-T-DCV (middle) and TPA-S-DCV (right) after optimization with Gaussian 09 at the B3LYP/6-31G(d,p) level of theory.

The optimized geometries and computed electronic structures at the observed minima reveal that the LUMO is strongly localized on the five-membered ring-DCV block whereas the HOMO is mainly distributed on the TPA-spacer. In addition, the geometry of TPA-F-DCV presents the smallest dihedral angle between the phenyl ring and the heterocycle (1.4° vs. 19.6° and 17.6° for TPA-T-DCV and TPA-S-DCV respectively) ensuring a better planarity of the structure. The calculated values of the HOMO and LUMO levels are consistent with optical and electrochemical results.

The photovoltaic properties of the three donors have been evaluated in bulk heterojunction solar cells of 0.27 cm2 of configuration: ITO/PEDOT:PSS (ca. 40 nm)/Donor:PC61BM blend/LiF (1 nm)/Al (120 nm). Except for LiF and aluminum depositions, the cells were fabricated in ambient atmosphere. Table 3 gathers the photovoltaic parameters of these devices and Fig. 6a shows the best current density–voltage (JV) characteristics measured under AM 1.5 simulated solar illumination (80 mW cm−2).

Table 3 Photovoltaic properties of TPA-F-DCV, TPA-T-DCV and TPA-S-DCV blended with PC61BM (1[thin space (1/6-em)]:[thin space (1/6-em)]2 w/w)
Donor Voc (V) Jsc (mA cm−2) FF (%) PCEmax/avea (%) μh (cm2 V−1 s−1)
a Average value recorded over 18 devices.
TPA-F-DCV 0.97 5.28 38.9 2.50/2.23 8.1 × 10−6
TPA-T-DCV 0.97 6.53 37.9 3.00/2.86 1.2 × 10−5
TPA-S-DCV 0.95 7.15 39.2 3.33/3.17 1.7 × 10−5



image file: c5ra21958b-f6.tif
Fig. 6 JV characteristics and EQE curves of TPA-F-DCV (black squares), TPA-T-DCV (red circles) and TPA-S-DCV (blue triangles) based OSCs.

The high open-circuit voltages (Voc ∼ 1.0 V) are consistent with the low-lying HOMO level of the donors resulting in a large offset with the LUMO level of PC61BM. Although comparable Voc and fill factors (FF) values are obtained for all cells, the short-circuit current-density (Jsc) progressively increases from TPA-F-DCV to TPA-S-DCV leading to a parallel increase of PCE from 2.50 to 3.33% (Table 3). This trend is confirmed by external quantum efficiency (EQE) measurements performed under monochromatic irradiation (Fig. 6b).

Thus, varying the heteroatom from oxygen to selenium results in a slight extension of the contribution of the donor in the long wavelengths region with a maximum photon-to-current conversion of 52% at 504 nm, 54% at 523 nm and 55% at 540 nm for TPA-F-DCV, TPA-T-DCV and TPA-S-DCV respectively.

The hole-mobility of the materials (μh) was determined using the space-charge limited current (SCLC) method on hole-only devices (Fig. 7).


image file: c5ra21958b-f7.tif
Fig. 7 JV characteristics of hole only devices ITO/PEDOT:PSS/TPA-F-DCV (black squares), TPA-T-DCV (red circles) or TPA-S-DCV (blue triangles)/Au.

As shown in Table 3, the furan-containing molecule exhibits the lowest mobility (of ca. 8.1 × 10−6 cm2 V−1 s−1) and the selenophene derivative the highest (1.7 × 10−5 cm2 V−1 s−1). These results, in agreement with the Jsc trend, can be correlated to the improved orbitals overlap of heavier chalcogen heteroatoms resulting in enhanced intermolecular electronic interactions.

3. Conclusion

Triphenylamine based D–π–A type small molecular donors with three different five-membered heterocycles as π-conjugating connector have been synthesized. Replacement of furan by thiophene and selenophene produces a small reduction of the band gap and an improvement of the hole-mobility and photovoltaic conversion efficiency of the donor. In addition to the synthetic accessibility (i.e., three steps from commercially available materials), promising power conversion efficiencies above 3.0% were obtained with simple BHJ solar cells processed in ambient atmosphere with PC61BM as acceptor. Further device optimization (morphology, additives, and interfaces) can be expected to significantly improve these preliminary results.

Acknowledgements

The RFI LUMOMAT is also acknowledged for the PhD grant of A. Labrunie. The Chinese Government Scholarship (CGC) program is acknowledged for the Ph-D grant of Y. Jiang and the Ministère de la Recherche is thanked for the Ph-D grant of F. Baert. The PIAM (Plateforme d’Ingénierie et Analyses Moléculaires) of the University of Angers is thanked for the characterization of organic compounds. Finally, this paper is dedicated to Dr Errol Blart on the occasion of his 50th birthday.
