A graphene/hemin hybrid material as an efficient green catalyst for stereoselective olefination of aldehydes

Abstract

A hemin/graphene composite, prepared by mixing an aqueous solution of graphene oxide (GO) with hemin and sonicating the suspension for 5 h at room temperature, was investigated for olefination of aldehydes using ethyl diazoacetate in the presence of triphenylphosphine. Efficient olefination of aromatic aldehydes with high (E)-selectivity was obtained, revealing that rGO/hemin is a promising heterogeneous catalyst for the olefination reaction. The as-synthesized catalyst could easily be recovered from the reaction mixture and was subsequently used for several runs without any significantly loss in activity and selectivity.

---

Introduction

Olefination or construction of C=C double bonds is one of the most important transformations in synthetic organic chemistry. The Wittig reaction¹ is the most commonly and widely used approach for constructing carbon–carbon double bonds for a variety of applications. To avoid the basic conditions required for the generation of phosphorane precursors, an alternative methodology using easily accessible diazo compounds in the presence of metal complexes as catalysts has received considerable interest in recent decades.² Among the known metal complexes, iron macrocyclic complexes particularly iron porphyrins, phthalocyanines, and corroles displayed good catalytic activity for this olefination reaction.³ However, these catalysts suffer from the obvious drawbacks of the homogeneous catalysts such as difficult separation/recovery as well as non-recycling ability of the catalyst.

Hemin, a well-known porphyrinato iron complex, regarded as an active centre of various heme proteins such as hemoglobin, myoglobin etc.,⁴ plays a vital key role in biochemical reactions and electron-transport chain. In addition, it has extensively been used as catalyst for various potential applications mainly related to environment and energy issues such as electrochemical reduction of nitrite, nitric oxide, carbon dioxide, hydrogen peroxide and the oxidation of peroxynitrite.⁵ However, a serious drawback of hemin is its high instability due to oxidative degradation. It undergoes a self-oxidation into an inactive meso-hydroxyporphyrin form.⁶ Thus, a great number of efforts are being focused towards the structural modification of hemin in order to prevent its self-degradation.⁷ Although these modifications increase its activity and stability, they concurrently enhance synthetic difficulties and cost which make their utility limited for large scale applications. Alternatively, immobilization of hemin molecules to support materials constitutes a logical and promising approach to prevent their self-degradation. Furthermore, covalent or strong interaction of metalloporphyrin molecules to the support is advantageous as it prevents leaching and makes the catalyst more stable.

Graphene, a two dimensional single layered structure consisting of sp²-bonded carbon atoms has several distinctive properties such as extremely high electronic conductivity, superior mechanical strength, large surface area and highly conjugated structure.⁸ Owing to extraordinary physicochemical and structural properties, it has extensively been used as support for immobilizing organic and inorganic catalysts. The potential of graphene and reduced graphene oxide (rGO) to support organic molecules such as hemin and other porphyrin species through π–π stacking interactions has widely been investigated for electrocatalytic applications.⁹ However, their use as heterogeneous catalyst for organic transformations are rarely known.

In continuation of our on-going studies towards developing graphene-based hybrid catalysts for organic transformations, herein we report hemin functionalized reduced graphene oxide (rGO/hemin) hybrid material as an effective catalyst for olefination of aldehydes using ethyl diazoacetate (EDA) in presence of triphenylphosphine (TPP) as a reducing agent (Scheme 1). The developed heterogenized catalyst displayed comparable catalytic activity to the homogeneous iron porphyrin catalyst with the additional benefits of facile recovery and recycling (Table 1, entry 12).

Scheme 1 Olefination of aldehydes.

Table 1 Olefination of benzaldehyde under different reaction conditions^a

Entry	Solvent	Catalyst amount (mol%)	Temperature (°C)	Yield^b (%)	E/Z ratio^c
a Reaction condition: benzaldehyde (1 mmol), EDA (1.2 mmol), PPh3 (1.1 mmol) under N2 atmosphere.b Isolated yield.c Determined by ^1H NMR.d In the absence of catalyst.e In the absence of PPh3.f Using rGO as catalyst.g Using homogeneous iron(II) porphyrin as catalyst.
1	THF	1	70	61	3 : 1
2	DMF	1	80	80	3 : 1
3	DCE	1	80	78	2.5 : 1
4	Toluene	1	80	92	4 : 1
5	Toluene	1	80	—^d	—
6	Toluene	1	80	—^e	—
7	Toluene	2	80	93	4 : 1
8	Toluene	5	80	93	4 : 1
9	Toluene	1	25	52	4 : 1
10	Toluene	1	100	94	4 : 1
11	Toluene	1	80	—^f	—
12	Toluene	1	80	93^g	4 : 1

---

Results and discussion

Synthesis and characterization of the catalyst

Hemin (metalloporphyrin) being a flat molecule can readily be immobilized on the surface of rGO through π–π stacking and H-bonding interactions.¹⁰ The structure of rGO/hemin catalyst is illustrated in Scheme 2.

Scheme 2 Schematic illustration of rGO/hemin catalyst.

The detailed characterization of the synthesized material was reported in our previous report.¹¹ The incorporation of hemin onto rGO surface was confirmed by FTIR measurements (Fig. 1). The FTIR spectrum of hemin (Fig. 1a) showed characteristic absorption peaks at 1580–1600 cm⁻¹ (benzenoid ring stretch) and 1100–1200 cm⁻¹ (pyrrole vibration). The appearance of these characteristic bands in the FTIR spectrum of rGO/hemin clearly indicated that hemin molecules were successfully integrated to the rGO support.¹²

Fig. 1 FTIR spectra of (a) hemin and (b) rGO/hemin.

The morphology of the synthesized rGO/hemin catalyst was investigated using FE-SEM (Fig. 2). The appearance of crumpled and erupted structure in the SEM image suggested the presence of reduced graphene oxide in rGO/hemin catalyst (Fig. 2a). EDX pattern of the synthesized composite confirmed the presence of iron (Fig. 2b). Further elemental mapping indicated the homogeneous distribution of iron throughout the catalyst (Fig. 2c and d).

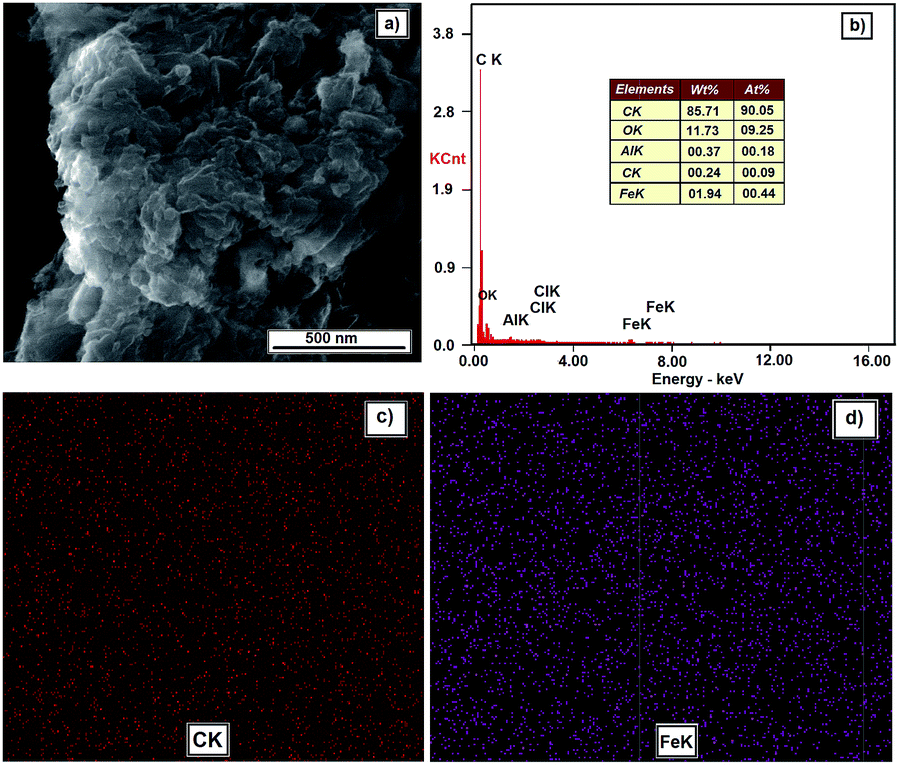

Fig. 2 rGO/hemin catalyst (a) FE-SEM image, (b) EDX pattern, and elemental mapping for (c) C, and (d) Fe atoms.

The UV/Vis absorption spectra of hemin and rGO/hemin hybrid are displayed in Fig. 3. The spectrum of hemin in DMF shows characteristic absorption peaks i.e. a strong absorption peak at 398 nm attributed to the Soret band and a broad hump between 450 and 650 nm corresponding to the Q-bands. The UV/Vis spectrum of rGO/hemin hybrid dispersed in DMF exhibits a broad absorption peak below and above 400 nm due to the ring π–π* transitions of the Soret band of incorporated hemin. The changes observed in the Soret band in rGO/hemin hybrid confirmed the incorporation of hemin molecules within the rGO network.¹³

Fig. 3 UV-Vis spectra of (a) hemin and (b) rGO/hemin.

Thermal stability of the synthesized materials was examined by thermogravimetric analysis (TGA) (Fig. 4). The TGA profile of rGO showed initial weight loss between 100–150 °C probably due to the evaporation of adsorbed water and solvent molecules. A very small weight loss between 400–600 °C was observed due to the loss of residual oxygen carrying functionalities (Fig. 4a). In case of free hemin, a sharp weight loss occurred in the temperature range of 350–380 °C probably due to the degradation of the porphyrin ring structure (Fig. 4b). In contrast rGO/hemin hybrid exhibited two major weight losses; the first in the range of 100–150 °C due to adsorbed water molecules and another at 350 °C due to the degradation of the macrocyclic ring structure of the hemin (Fig. 4c).¹⁴

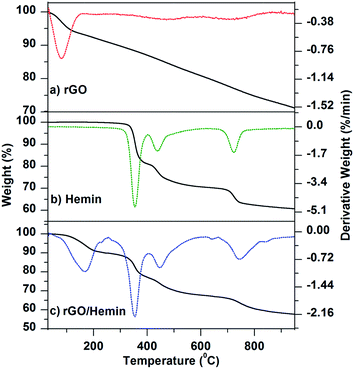

Fig. 4 DT-TGA thermograms of (a) rGO, (b) hemin and (c) rGO/hemin.

The iron content in the synthesized hybrid was found to be 6.8 wt% or 1.21 mmol g⁻¹ cat as determined by ICP-AES analysis.

Catalytic activity

The catalytic activity of the rGO/hemin composite was investigated for the olefination of aldehydes using ethyl diazoacetate (EDA) in the presence of triphenylphosphine (PPh₃). At first the olefination of benzaldehyde (1 eq.) with EDA (2 eq.) in the presence of PPh₃ (1.1 eq.) and rGO/hemin (1 mol%) was performed in toluene at 80 °C for 12 h. The reaction was found to occur efficiently and afforded olefination product in 92% isolated yield with good trans-selectivity (Table 1, entry 4). In a control blank experiment, no olefination product was obtained in the absence of the catalyst (Table 1, entry 5). The presence of PPh₃ was found to be vital and in its absence conversion of benzaldehyde was not observed even after a prolonged reaction time (Table 1, entry 6). We also investigated the effect of various solvents such as toluene, dimethylformamide (DMF), dichloroethane (DCE) and THF on the reaction efficiency (Table 1, entries 1–4). Among all the solvents studied, toluene was found to be optimum for this chemical transformation. To establish the effect of catalyst amount on the product yield, we performed olefination of benzaldehyde under identical conditions by varying the catalyst amount from 1 to 5 mol% (Table 1, entries 4, 7–8). With increasing the amount of the catalyst, there was a slight increase in the yield while the selectivity of the product remained unchanged. The reaction was found to be very slow at room temperature (Table 1, entry 9); the best results were obtained using toluene as solvent at 80 °C (entry 4). Further increase of the temperature to 100 °C did not show any significant enhancement in the conversion as well as selectivity (entry 10). Moreover, no reaction occurred when rGO was used as catalyst under described experimental conditions (Table 1, entry 11).

To explore the scope of this reaction, a number of aldehydes were subjected to olefination under described reaction conditions (Table 2). As shown, all the substituted aldehydes reacted smoothly and gave the corresponding olefination products in moderate to high yields with high trans-selectivity. In general, among all the tested aryl aldehydes those containing electron-donating groups (Table 2, entries 2–5) were found to be comparatively more reactive and gave the desired olefin in high yields (85–94%). Furthermore, the steric hindrance at ortho-position of aryl aldehydes (Table 2, entry 4) lowered the yield as well as trans-selectivity of the product. Interestingly, in case of benzaldehydes having electron withdrawing substituents the selectivity pattern of the product was found to be reversed and cis-olefins were formed predominantly (Table 2, entries 6–8). The exact reason for reversed regioselectivity in case of electron withdrawing substrates is not clear at this stage. A literature report by Shindo et al.¹⁵ suggested that the E/Z selectivity in the olefination reaction is strongly dependent on the electronic nature of the para-substituents. An increase of electron density on the phenyl substituents tends to increase the E-selectivity. However, the electron withdrawing substituents (particularly –NO₂ group) tend to give Z-olefins predominantly.

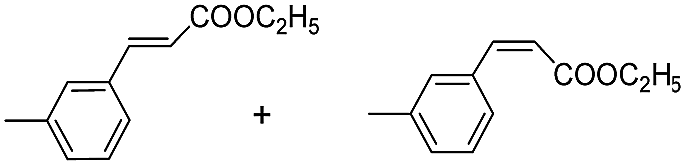

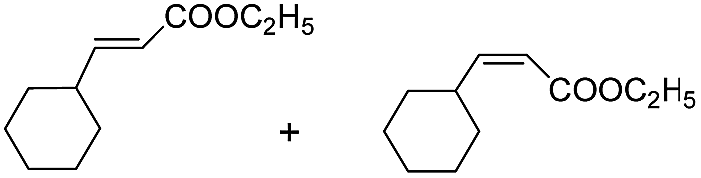

Table 2 rGO/hemin catalyzed olefination of aldehydes^a

Entry	Substrate	Product	Yield^b (%)	E/Z ratio^c
a Reaction conditions: aldehyde (1 mmol), EDA (1.2 mmol), Ph3P (1.1 mmol), catalyst (1 mol%, 0.01 mmol), toluene (5 mL) at 80 °C under N2 atmosphere.b Isolated yields.c E/Z ratio calculated by ^1H NMR.
1			92	7 : 1
2			94	4 : 1
3			93	5 : 1
4			87	3 : 1
5			93	5 : 1
6			85	1 : 4
7			84	1 : 3
8			65	1 : 4
9		—	—	—
10			28	3 : 1
11			92	5 : 1

---

Highly hindered substrate like 2,4,6-trimethylbenzaldehyde did not give any product under the described reaction conditions (Table 2, entry 9). Similarly, under the same reaction conditions, 4-dimethylamino benzaldehyde gave poor product yield (Table 2, entry 10). This lower yield might be due to the axial coordination of the amino group in 4-dimethylamino benzaldehyde. Alicyclic aldehyde such as cyclohexane aldehyde reacted efficiently and gave higher yield of the desired olefin (Table 2, entry 11).

Reusability of the solid catalyst is one of the most important criteria to make it viable at an industrial scale. To study the reusability of the heterogeneous rGO/hemin catalyst, the olefination of benzaldehyde was studied under optimized reaction conditions. After completion of the reaction, the catalyst was separated by simple filtration and the recovered catalyst was used for subsequent five cycles using benzaldehyde as model substrate. In all cases, the product yield as well as trans-selectivity of the product remained almost the same (Fig. 5). These results confirmed that the developed catalyst was highly stable and can be reused for several runs without any significant change in its catalytic activity. Moreover, the iron content in the recovered catalyst after five runs was found to be almost similar (6.5 wt%) to that of fresh catalyst (6.8 wt%). Furthermore, to ascertain the leaching, a toluene solution of the catalyst was refluxed for 12 h. After separating the catalyst, the obtained filtrate was charged with substrates i.e. benzaldehyde (1 mmol), Ph₃P (1.1 mmol) and EDA (1.2 mmol) and continued the reaction under refluxing condition for 12 h. No conversion of benzaldehyde was observed, which indicated that the developed catalyst was quite stable and did not show any leaching. These findings further establish the truly heterogeneous nature of the rGO/hemin catalyst.

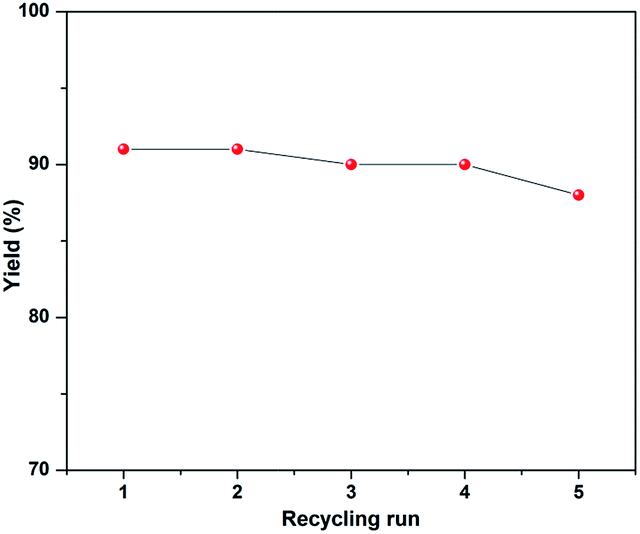

Fig. 5 Recycling experiments.

To investigate the structural and chemical changes of the rGO/hemin catalyst after catalysis, the recovered catalyst after the fifth recycling run was characterized with FTIR, SEM, UV and TGA (Fig. 6). FTIR spectrum of the recycled catalyst showed similar bands like the freshly synthesized catalyst (Fig. 6a). Similarly, the crumpled and erupted structure of the recycled catalyst suggested that the morphology of catalyst remained intact after the catalytic reactions (Fig. 6b). Also no obvious changes were observed in the UV-visible spectrum of the recycled catalyst as compared to that of fresh catalyst (Fig. 6c). Finally, TGA analysis of recycled catalyst (Fig. 6d) suggested that the recycled catalyst was thermally stable and showed similar degradation pattern as freshly synthesized catalyst.

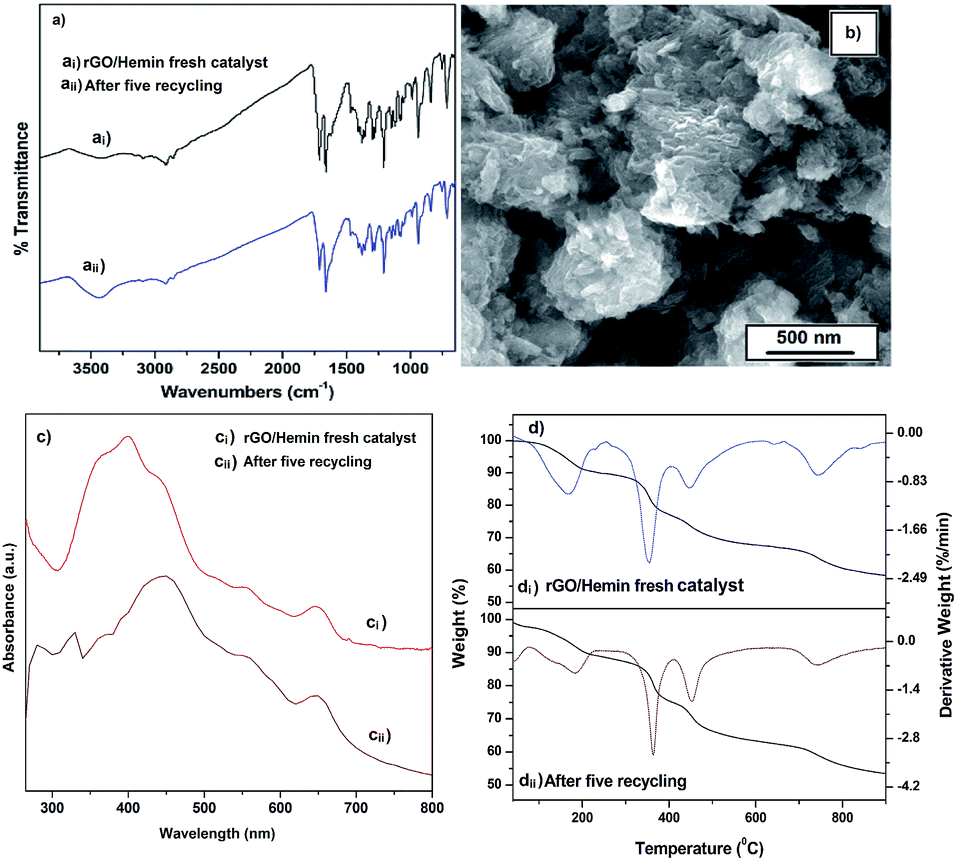

Fig. 6 (a) FTIR spectra of rGO/hemin (i) fresh catalyst, (ii) after five recycling experiments, (b) FE-SEM image of recovered rGO/hemin, (c) UV-Vis spectra of rGO/hemin: (i) fresh catalyst, (ii) after five recycling experiments, (d) TGA thermograms: (i) fresh rGO/hemin, (ii) after five recycling experiments.

Although the exact mechanism of the reaction is not clear at this stage, in analogy to the existing report by Woo et al.,^3b,16 it is assumed that the reaction involves the transfer of carbene generated from ethyldiazoacetate to phosphorous to give phosphazene in the presence of hemin. In the subsequent step, the phosphazene reacts with aldehyde to yield the corresponding olefin in a similar way to Wittig reaction (Scheme 3).

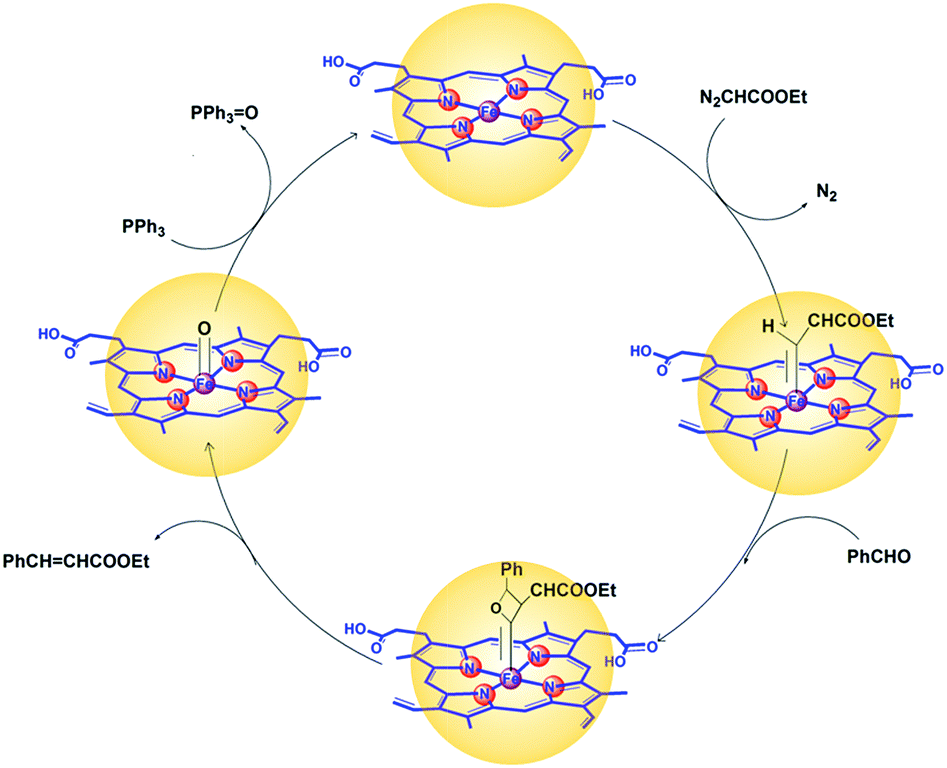

Scheme 3 Possible mechanism of olefination of aldehydes over rGO/hemin.

Conclusion

In conclusion, an efficient and simple method has been described for the synthesis of rGO/hemin hybrid by the treatment of graphene oxide with hemin under ultrasonication for 5 h. FTIR, UV-Vis and TGA measurements confirmed GO reduction and hemin incorporation to yield rGO/hemin hybrid material. The resulting rGO/hemin was successfully used as a selective catalyst for the olefination of various aldehydes. The synthesized catalyst showed the property of both hemin as well as of graphene. Graphene provided large surface area to the substrate, supported hemin through π–π interactions, and increased the active sites on the surface. Due to the synergistic effect of both components, rGO/hemin hybrid catalyst exhibited high and excellent yields of cinnamates from the corresponding aldehydes as compared to the well established homogeneous catalytic systems. Moreover, the catalyst was very stable and can be reused several times without any activity loss.

Experimental

Material

Graphite flakes, iron protoporphyrin IX (hemin) and hydrazine monohydrate were purchased from Sigma-Aldrich. Dichloromethane, potassium permanganate (99.0%), sodium nitrate (99%), concentrated sulphuric acid, hydrogen peroxide (30%), hydrochloric acid (35%), methanol, ethanol, dimethylformamide (DMF) and HPLC grade water were purchased from MERCK India. All the chemicals and solvents were of analytical grade and used as received.

Characterization

Fourier Transform Infrared (FTIR) spectra were recorded on a Perkin–Elmer spectrum RX-1 IR spectrophotometer using potassium bromide window. UV-visible absorption spectra of hemin and rGO/hemin in DMF were collected on a Perkin Elmer lambda-19 UV-VIS-NIR spectrophotometer using a 10 mm quartz cell. Thermal stability of samples was evaluated by thermogravimetric analyses (TGA) using a thermal analyzer TA-SDT Q-600. Analysis was carried out in the temperature range of 40 to 800 °C under nitrogen flow with a heating rate of 10 °C min⁻¹. The iron content of the hybrid rGO/hemin catalyst was measured on Inductively Coupled Plasma Atomic Emission Spectrometer (ICP-AES, DRE, PS-3000UV, Leeman Labs Inc, USA). For ICP-AES, 0.05 g of catalyst was leached out using conc. HNO₃ and final volume was made up to10 mL by adding distilled water.

Synthesis of rGO/hemin nanocomposite¹¹

Hemin functionalized reduced graphene oxide (rGO/hemin) hybrid was synthesized by following our previously reported method.¹¹ Graphene oxide was synthesized by following the modified Hummer's method.¹⁷ For the synthesis of rGO/hemin/catalyst, 0.75 mL (10 mM) of hemin was dissolved in DMF which was further added to a homogeneous suspension of GO (0.75 mL, 0.5 mg mL⁻¹) in distilled water and ultrasonicated at 130 kHz in a Fisher, Loughborough, Leicester, UK Transonic TI-H-10 ultrasonication bath for 5 h at 50 °C. The precipitate was separated by centrifugation at 14 000 rpm for 1 h, washed 3 times with water and dried in an oven at 60 °C for 6 h.

Typical experimental procedure for olefination of aldehydes

In a 10 mL Schlenk tube, placed in a preheated oil bath at 80 °C, was added aldehyde (1 mmol), ethyldiazoacetate (1.2 mmol), triphenylphosphine (1.2 mmol) and catalyst (1 mol%) in toluene (5 mL) under a nitrogen atmosphere. The resulting mixture was stirred as indicated in Table 2. After being cooled the mixture at room temperature, the catalyst was recovered from the reaction mixture via centrifugation. The obtained filtrate was concentrated under reduced pressure and purified by column chromatography using hexane/ethyl acetate (15 : 1) to give pure olefin. The yields of the isolated products are given in Table 2. The regioselectivity of the products was determined by ¹H NMR.
