Enhanced photocatalytic activity of g-C₃N₄–ZnO/HNT composite heterostructure photocatalysts for degradation of tetracycline under visible light irradiation

Abstract

A novel graphitic carbon nitride (g-C₃N₄)–ZnO/halloysite nanotube (HNT) nanocomposite photocatalyst was synthesized via a facile calcination method in order to enhance the visible-light photocatalytic activity and stability of pure ZnO photocatalysts for degradation of tetracycline. The network-layered structure of g-C₃N₄ was formed after compositing with previously prepared ZnO/HNTs and the g-C₃N₄–ZnO heterojunction has been formed during the coupling process. Furthermore, the HNTs can efficiently extend the surface area of g-C₃N₄, which leads to strengthening of the pathways of charge transfer and prolonging the lifetimes of photoexcited carriers. Electrochemical impedance spectroscopy (EIS) and incident-photon-to-current conversion efficiency (IPCE) measurements showed the improvement of the as-obtained g-C₃N₄–ZnO/HNT photocatalysts' performance which can be attributed to enhanced charge transfer as a result of more effective separation of photogenerated electron–hole pairs. Such a notable enhancement of photocatalytic performance was mainly ascribed to the improved charge transfer and separation rate of photogenerated electron–hole pairs by the heterostructure of the g-C₃N₄–ZnO/HNT catalyst. The mechanism of photodegradation was systematically analysed by active species trapping test and electron spin resonance (ESR) spin-trap technique with dimethyl pyridine N-oxide (DMPO), which conclude that ˙OH and ˙O₂⁻ radicals are the major reactive species during the photocatalytic reaction for g-C₃N₄–ZnO/HNT composite photocatalysts.

---

1. Introduction

Photocatalysis, as an environmental friendly technology, offers great potential for complete removal of organic chemical pollutants. It has been reported that nano-structured semiconductor metal oxides photocatalysts can degrade various organic pollutants under UV-visible light irradiation.¹ In recent years, a large number of semiconductor metal oxide and sulphide photocatalysts, such as TiO₂,^2–4 ZnO,⁵ CdS,⁶ Fe₂O₃,⁷ Bi₂WO₆ (ref. 8) and so on, have been made to develop efficient photocatalysts. As a promising semiconductor material, ZnO has received great attention owing to its high activity, low cost and environmentally friendly feature. Furthermore, nano-sized ZnO has a high UV-vis response ability because of its wide band gap (∼3.37 eV) and large exaction binding energy (60 meV),⁹ which possesses higher photocatalytic efficiency than TiO₂. Unfortunately, there are still several issues limiting the application of pure ZnO nanoparticle for photocatalysis, one of them is the high recombination rate of photogenerated electron–hole pairs. Simultaneously, photocorrosion of ZnO is particularly prone to occur in photocatalytic reaction which caused by the oxidation of ZnO by photogenerated holes.^5,10 The narrow light-responsive range is also a fundamental issue hindering the large-scale application of ZnO in industry.¹¹ Therefore, numerous efforts have been made to improve the photocatalytic performance of ZnO nanomaterials via different strategies, such as coupling with other components,^12–14 doping,^9,15 surface modification with metal nanoparticles,^5,16,17 and developing heterostructure.¹⁸ Among these, combining ZnO with other semiconductors to form heterojunction with a suitable band structure can efficaciously extend light-absorption range and accelerate the separation rate of electron–hole pairs.

Recently, a metal-free photocatalyst, polymeric g-C₃N₄ has attracted much attention, because of its high thermal and chemical stability, suitable band gap, and easy preparation.^19–23 These special properties make g-C₃N₄ a better material for organic pollutant degradation, splitting water for producing H₂, and CO₂ reduction.²⁴ Being regarded as a visible light sensitizers, g-C₃N₄ possesses several advantages towards other photocatalysts. Several kinds of g-C₃N₄ composite photocatalysts have been fabricated by coupling g-C₃N₄ with other types of inorganic photocatalysts, such as TiO₂/g-C₃N₄,^25,26 Ag–AgBr/g-C₃N₄,^26,27 CdS/g-C₃N₄,²⁸ g-C₃N₄/Bi₂WO₆,²⁹ g-C₃N₄–Ag₃PO₄,³⁰etc. Most of these composite semiconductors are responsive to visible light, because of the doped semiconductors with narrow band gaps which can strengthen the photocatalytic activity in solar light. Coating ZnO with g-C₃N₄ has been shown to be advantageous, not only owing to the enhanced visible light response, but also for the charge separation in the photoexcited electron–hole pairs. Therefore, it needs a suitable material as the carrier for prepared higher performance photocatalysts. However, the nano-particles are always easy to aggregate, which could greatly reduce the surface area and the reacted sites to degrade the photocatalytic performance. Therefore, many researchers devote to loaded supporters and enhance the performance of nano-particles, such as carbon materials, mineral substance, and so forth. As a promising mineral supporter materials, HNTs are a two-layered nature clay mineral, with aluminol (Al–OH) groups in internal surface and Si–O–Si on the external surface.³¹ HNTs in a position to disperse nanoparticles onto their surface to improve the stability of nanoparticles because of their large surface and inherent nanotube structure. There are several studies about the synthesis of HNTs coupled with other nanomaterials, which have been proved to possess promising performance as a catalyst carrier. Xing et al. reported the CdS/HNTs nanocomposites which synthesized by hydrothermal method.³² Cavallaro's group reported HNTs modified by sodium alkanoates which evidenced to obtain rather stable aqueous nanoclay dispersions.³³ And Makaremi et al. investigated the electrospun nanofibrous membranes of polyacrylonitrile/HNTs with superior water filtration ability.³⁴ Above all these studies displayed the excellent dispersity and stability of HNTs.

Herein, in our work, to sufficiently utilize the advantages of relatively high stability, suitable optical band gap (2.7 eV) and well photocatalytic activity of g-C₃N₄, large surface of HNTs, respectively, the g-C₃N₄–ZnO/HNTs nanocomposite photocatalyst was successfully synthesized by us via a facile two-step calcination method which can effectively prolong the lifetimes of photoexcited charge carriers. Furthermore, the specific layered-netlike structure of g-C₃N₄ was greatly utilized to wrap the ZnO/HNTs which contributed to suppress the photocorrosion of ZnO nanoparticles and enhanced the photo-stability of the g-C₃N₄–ZnO/HNTs composite photocatalyst. The abuse of antibiotics, such as tetracycline (TC), ciprofloxacin, norfloxacin and so on, is now a major crisis for public health agencies and leaders across the globe,^35,36 which have aroused particular attention because of their excessive application to medical, agriculture, and biology. The visible light photocatalytic tests show that the present g-C₃N₄–ZnO/HNTs composites possess much higher photocatalytic activity and photostability after four successive cycles than those of either individual ZnO or C₃N₄, and ZnO/HNTs for TC degradation under visible light irradiation. The photoelectrical properties were detected by IPCE and EIS. In addition, the ESR was introduced to investigate the possible photocatalytic mechanism during the photocatalytic degradation system.

2. Experiment

2.1. Materials

Zinc nitrate hexahydrate (Zn(NO₃)₂·6H₂O, pur. ≥ 99.0%), C₃H₆N₆, and ethanol (pur. > 99.5%) were supplied by Sinopharm Chemical Reagent Co., Ltd. China. HNTs were purchased from Zhengzhou Jin yang guang Chinaware Co., Ltd. Henan, China (>99%). Tetracycline (TC) was purchased from Shanghai Shunbo Biological Engineering Co., Ltd. All reagents for synthesis and analysis were used without further purification. Deionized water was used throughout this work.

2.2. Preparation of photocatalysts

First, 1.0 g of HNTs were put into 250 mL different concentrations of Zn(NO₃)₂ solution under continuous magnetic stirring for 2 h. Then, heating and evaporating suspension to dryness, the resultant product was milled into a powder and collected in an alumina crucible, the drying sample was calcined at different temperatures for 3 h in muffle furnace to synthesize the ZnO/HNTs photocatalysts. The pure g-C₃N₄ powders were prepared by directly calcining melamine at 520 °C for 3 h. Next, the typical preparation of g-C₃N₄–ZnO/HNTs catalysts was as follows: melamine powder and ZnO/HNTs samples with mass ratio of 5 wt%,10 wt%, 20 wt%, 50 wt% and 100 wt% were heated to 450 °C at a heating rate of 10 °C min⁻¹ in a muffle furnace and maintained for 2 h.^37,38 After the alumina crucible was cooled down to room temperature, the as-prepared sample were collected and ground into powder. The final composite g-C₃N₄–ZnO/HNTs photocatalysts were obtained. The synthesis process is illustrated in Fig. 1.

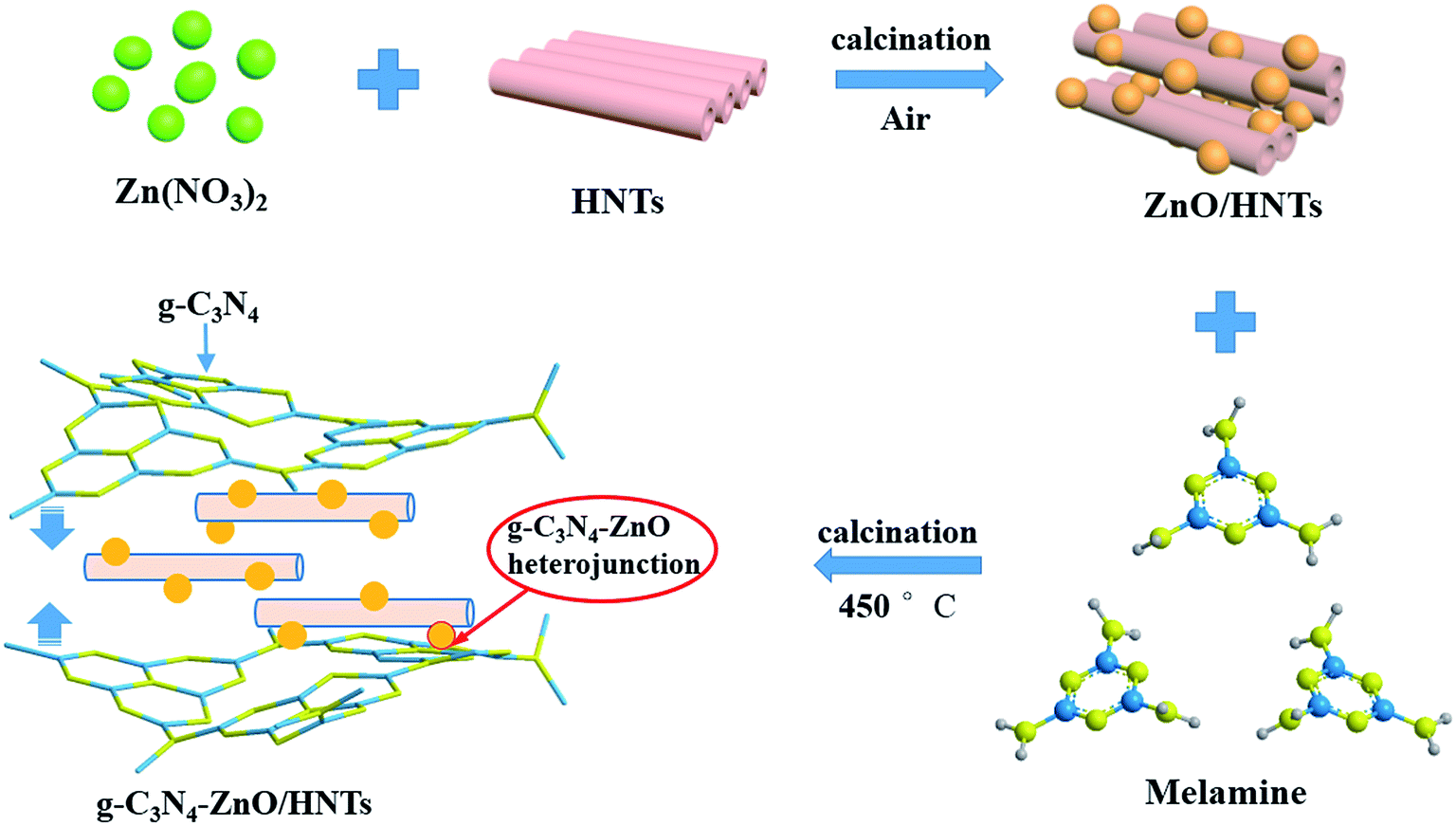

Fig. 1 The schematic illustration on formation of g-C₃N₄–ZnO/HNTs composite photocatalysts.

2.3. Characterization of materials

The crystal structure was analyzed by X-ray diffraction (XRD model MAC Science, Japan) with Ni-filtrated Cu Kα radiation. The scan range of 2θ was 5–80° at a scan rate of 5° min⁻¹. The transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM) images were examined by transmission electron microscopy (JEM-2010, Japan). The scanning electron microscopy (SEM) pictures were characterized by a field emission scanning electron microscopy (FE-SEM, JSM-7001F, Japan). Energy dispersive X-ray spectroscopy (EDS) was taken on a FEI Tecnai G2F20 instrument and operated at an accelerating voltage of 200 kV. The X-ray photoelectron spectroscopy (XPS) measurements were carried on a PerkinElmer PHI 5300 instrument using Al Kα radiation and the C1s signal was set to the position of 284.6 eV. The diffuse reflectance spectra (DRS) of the catalysts were performed in the range of 250–850 nm using a UV-vis spectrophotometer (UV-2450; Shimadzu, Japan) equipped with an integrating sphere. Specific surface area was detected by the Brunauer–Emmett–Teller (BET) technique from the N₂ adsorption isotherm, the pore size distribution was determined by desorption isotherm using the Barrett–Joyner–Halenda (BJH) method. The photoluminescence (PL) spectra for solid samples were performed by an F-4500 (Hitachi, Japan) photoluminescence detector.

2.4. Photocatalytic activity test

The photocatalytic activities of the synthesized photocatalysts were evaluated by the degradation of 20 mg L⁻¹ TC under visible-light irradiation. A 350 W Xenon arc lamp was used as the light source of the photocatalytic reaction. The reaction system contains TC solution (100 mL, 20 mg L⁻¹) and g-C₃N₄–ZnO/HNTs photocatalysts (0.1 g) with recycling water (30 °C) to maintain a constant reactor temperature. Prior to irradiation, the mixture was stirred under dark conditions for 30 min to ensure that the adsorption–desorption equilibrium was reached. Sampling periodically from the suspension and centrifuged at a given 10 min interval to measure the absorbancy of TC with a UV-vis spectrophotometer at a wavelength of 357 nm.

3. Results and discussion

3.1. XRD analysis

The XRD patterns of the pure ZnO, g-C₃N₄ and composited photocatalysts are shown in Fig. 2a. It is observed two distinct peaks at 27.4° and 13.1° of the pure g-C₃N₄ could be assigned to the (002) and (100) diffraction planes (JCPDS 87-1526) in g-C₃N₄–ZnO/HNTs composite photocatalysts, which correspond to the characteristic interplanar staking peaks of aromatic systems and the interlayer structural packing, respectively. And compared with the as-prepared composite photocatalysts, the diffraction peaks of ZnO are also obviously shown in Fig. 2a, g-C₃N₄–ZnO/HNTs, which could be indexed as the hexagonal wurtzite crystal phase of ZnO (JCPDS 65-3411). Fig. 2b displays the different mass ratio of g-C₃N₄. It is noteworthy that there is a sharp peak located at 26.9° which could be identified as the (003) diffraction for halloysite.³⁴ With increasing g-C₃N₄ proportion, the diffraction peaks of g-C₃N₄ became stronger, while those of halloysite are weaker. It is possibly attributed that the peaks of halloysite could be covered by g-C₃N₄.³¹ Besides, no obvious phase of halloysite is observed in the composite photocatalysts because of the overlapped with ZnO. Expect for ZnO, g-C₃N₄ and HNTs, no other phases are detected.

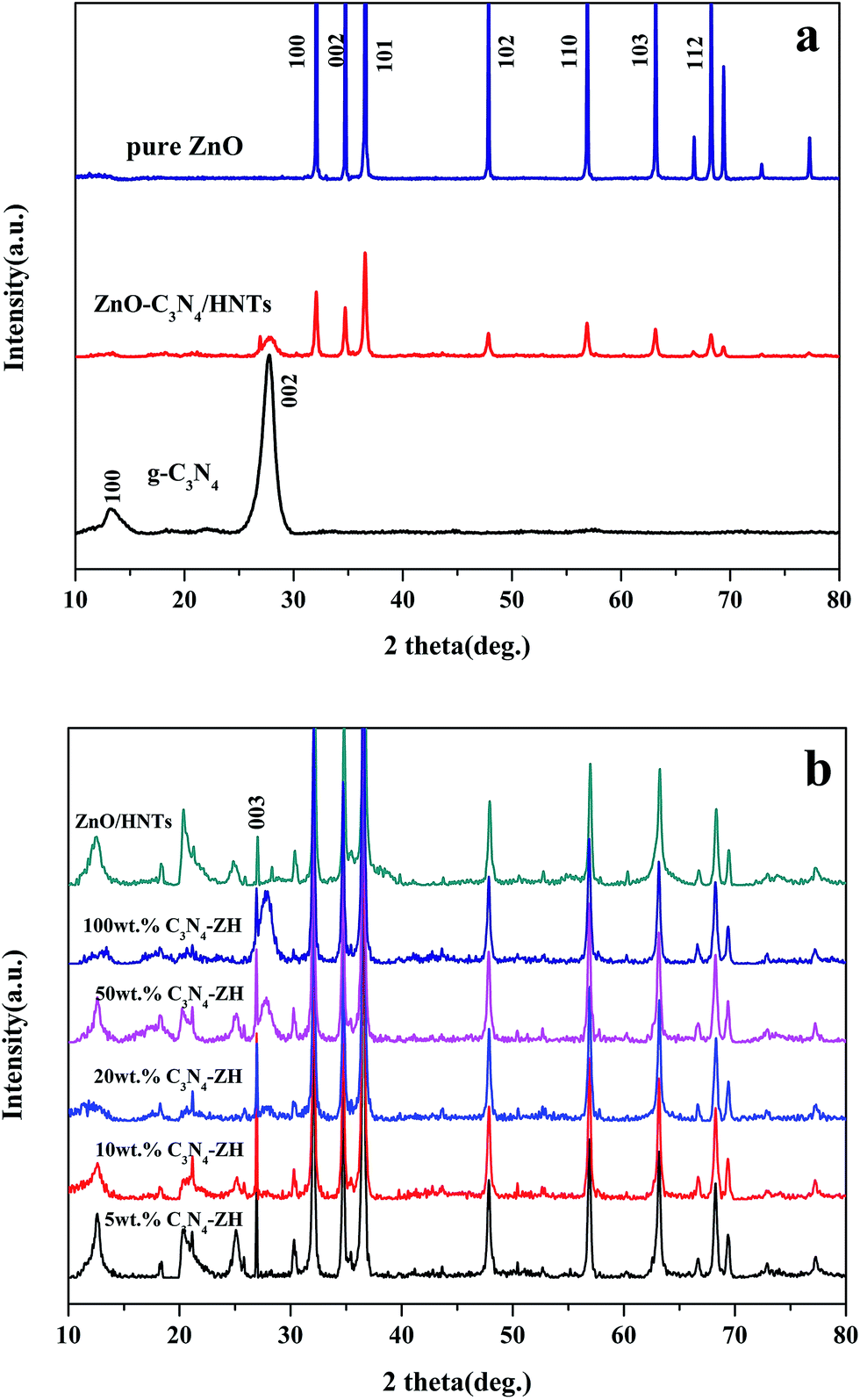

Fig. 2 XRD patterns of (a) pure ZnO, g-C₃N₄ and g-C₃N₄–ZnO/HNTs and (b) different content of g-C₃N₄ composite photocatalysts.

3.2. SEM, EDS, TEM and HRTEM

The morphology and microstructure of HNTs, ZnO/HNTs, and g-C₃N₄–ZnO/HNTs were investigated by SEM, TEM, HRTEM, and EDS, respectively. Fig. 3a shows the SEM images of pure HNTs, it is clearly that HNTs displays a cylindrical-shaped tubular structure which aligned randomly, with a diameter in the range of 80–150 nm, and the length of nanotubes are around 0.2–1.2 μm. It can be clearly observed that the surface of nanotubes is level and smooth. As shown in Fig. 3c and 4b, amounts of varied sphere-like ZnO nanoparticles with the diameter of 10–80 nm, which are deposited on the surface of HNTs. Fig. 3c shows the SEM of the g-C₃N₄–ZnO/HNTs which displayed an aggregated layered structure with a smooth surface.³⁸ As shown in the TEM image (Fig. 4c), after introducing g-C₃N₄, the HNTs with the ZnO nanoparticles are found to embed and distribute among the g-C₃N₄ network structure, which results in forming a g-C₃N₄–ZnO heterojunction.

Fig. 3 SEM and EDS images of (a and b) HNTs, (c and d) ZnO/HNTs, (e and f) g-C₃N₄–ZnO/HNTs.

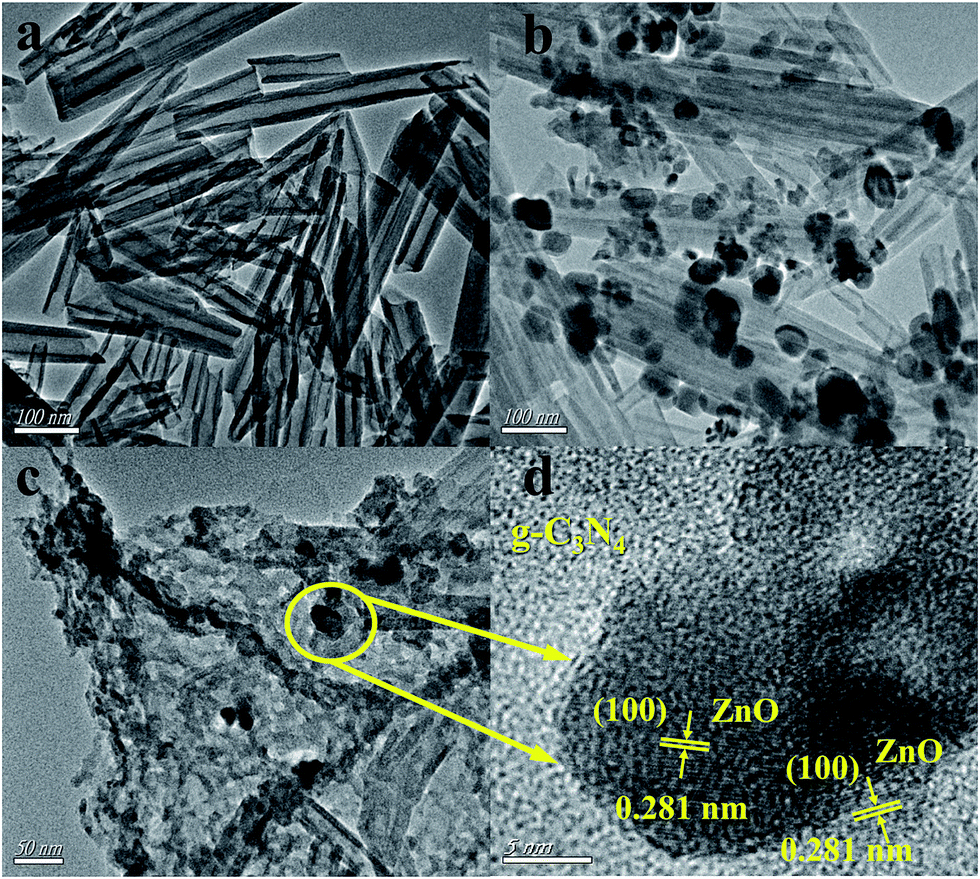

Fig. 4 (a) TEM image of pure HNTs. (b) TEM image of ZnO/HNTs. (c) TEM image of g-C₃N₄–ZnO/HNTs. (d) HRTEM image of g-C₃N₄–ZnO/HNTs photocatalysts.

In order to get further information about the heterojunction of ZnO–g-C₃N₄, high-resolution transmission electron microscopy (HRTEM) analysis was performed. It can be seen that two different phases combine each other closely in Fig. 4d of g-C₃N₄–ZnO. The dark phase, which exhibits a clear lattice fringe should be ascribed to ZnO, and the d spacing value is 0.281 nm, corresponding to the (100) crystallographic plane of hexagonal wurtzite crystal ZnO nanoparticle.¹³ The other phase without fringes can be assigned to g-C₃N₄. The observed interface between semiconductors would favor the spatial separation and extend lifetimes of photogenerated electron–hole pairs, which reduces the internal charge recombination and increase photocatalytic activity. Furthermore, it is very interesting that the hetero-architectures between ZnO nanoparticles and HNTs, g-C₃N₄ and HNTs (there are not shown) may be also well-formed.^3,39 These deduces will be confirmed in the following work.

Fig. 3b, d, and f are EDS spectra of the samples HNTs, ZnO/HNTs, and g-C₃N₄–ZnO/HNTs, respectively. It is indicated that Al, Si, and O elements existed in pure HNTs (Fig. 3b). As shown in Fig. 3d, Zn, O elements are also existed in ZnO/HNTs composite photocatalyst. According to Fig. 3f, the as-prepared photocatalysts consist of Al, Si, O, Zn, C and N. The EDS spectrum further confirmed that the g-C₃N₄–ZnO/HNTs composite catalysts are successfully fabricated.

3.3. FT-IR

The FT-IR spectra of pure HNTs, pure g-C₃N₄ and g-C₃N₄–ZnO/HNTs photocatalysts are shown in Fig. S1.† The adsorption bands at 3697 and 3622 cm⁻¹ are ascribed to the –OH groups. The band at 1035 and 450–550 cm⁻¹ can be assigned to the Si–O stretching and Si–O bending vibrations, respectively. The peak at 910 cm⁻¹ is due to the O–H deformation vibration of inner Al–OH groups (between the interface of the Al–O octahedron and the Si–O tetrahedron) for HNTs.⁴⁰ In the FT-IR spectrum of g-C₃N₄, the relative strong peaks are concentrated in the 1200–1650 cm⁻¹ region in the spectrum, the absorption band at 1635 cm⁻¹ is attributable to the C=N stretching, while the three at 1240, 1322 and 1402 cm⁻¹ are due to the aromatic C–N stretching.^25,41 The peak at 808 cm⁻¹ is attributed to out-of-plane bending modes of C–N heterocycles.⁴² This result is consistent with that of the XRD analysis. All of these adsorption bands for HNTs and g-C₃N₄ can be observed in the FT-IR spectrum of g-C₃N₄–ZnO/HNTs, and suggesting that no structural change of g-C₃N₄ occurs. In addition, the characteristic peaks of ZnO which should have been clearly observed at about 623 and 460 cm⁻¹, identified to the vibration of Zn–O–Zn and Zn–O, respectively, belonging to ZnO nanoparticles and g-C₃N₄–ZnO heteroarchitectures. This may be due to that these peaks of ZnO are overlapped by the peaks of HNTs. All of these FT-IR spectra provided the valuable information which indicating that the g-C₃N₄–ZnO heterojunction is successfully formed and excellently attached to the HNTs.

3.4. XPS spectra of g-C₃N₄–ZnO/HNTs

To further determine the chemical state of elements and composition of the g-C₃N₄–ZnO/HNTs, the XPS measurements were carried out, as shown in Fig. 5. Fig. 5a displays the XPS spectra of g-C₃N₄–ZnO/HNTs, the peaks related to Zn, O, C, N and a small amount of elements of HNTs, such as Al and Si. As shown in Fig. 5b, two main carbon peaks represented in the C1s spectra for g-C₃N₄ at the binding energies of 284.6 eV and 288.1 eV, respectively. The peak located at 284.6 eV is corresponding to sp² C–C bonds, and the other peak at 288.1 eV is assigned to sp²-hybridized carbon in N-containing aromatic ring (N–C=N).⁴³ Both of them exhibit the existence of g-C₃N₄. The N1s features are observed in Fig. 5c can be fitted into two peaks, which should be ascribed to C–N=C (397.9 eV), tertiary nitrogen N–(C)₃ (400.1 eV), respectively. Fig. 5d shows the O1s peaks at 532.6 eV and 530.1 eV. The high energy peak (at 532.6 eV) is attributed to oxygen which making single bond carbon (C–O), and the low energy peak which located at 530.1 eV (O_lattice) attributed to O²⁻ ions on the wurtzite structure of a hexagonal Zn²⁺ ion array, which is surrounded by zinc atoms with the feeding of nearest-neighbor filled O²⁻ ions.⁴⁴ In addition, the oxygen species of Al–OH, Si–O–Si bonding groups which consist in HNTs may be covered by the O²⁻ surface deficient areas of ZnO.⁴⁵ The Zn2p XPS spectrum (Fig. 5e) shows two symmetric peaks, the peak centered at 1044.6 eV is assigned to Zn2p_1/2 and another centered at 1021.1 eV is assigned to Zn2p_3/2, which indicating a normal status of Zn²⁺ in the g-C₃N₄–ZnO/HNTs nanocomposite.⁴⁶

Fig. 5 (a) XPS survey spectrum; high resolution scanning XPS of (b) C1s, (c) N1s; (d) O1s and (e) Zn2p of g-C₃N₄–ZnO/HNTs nanocomposite.

3.5. UV-vis DRS

In order to investigate the optical properties and band structure of as-prepared composite photocatalysts, the HNTs, ZnO/HNTs and g-C₃N₄–ZnO/HNTs were carried out by UV-vis diffuse reflectance spectra (DRS) in Fig. 6. From the Fig. 6, the as-prepared ZnO/HNTs and g-C₃N₄–ZnO/HNTs photocatalysts have photoresponsed from UV light region to visible light region whereas the pure HNTs possess hardly any photoresponding abilities. As shown in Fig. 6, compared with the ZnO/HNTs, the absorption threshold values of the g-C₃N₄–ZnO/HNTs are extended up to the visible light region, which the main absorption edge exhibits red shift from 395 nm to 450 nm. The band gap energies of indirect transition semiconductor can be calculated by the following eqn:⁴⁷

(αhv)² = A(hv − E_g) (1)

where α represents the absorption coefficient, h is Planck's constant, v is the light frequency, A is a constant and E_g is the band gap energy. The band gap energy (E_g) of the resulting composite samples can be estimated from the intercept of tangents to the plots of (αhv)²versus the photon energy (hv) are 3.12, 2.58 eV for ZnO/HNTs and g-C₃N₄–ZnO/HNTs respectively. The photon energy (hv) of g-C₃N₄–ZnO/HNTs is shown in the interior of Fig. 6. The band gap of g-C₃N₄–ZnO/HNTs (2.58 eV) is obviously narrower than ZnO/HNTs (3.12 eV), which can be attributed to the induction of g-C₃N₄ whose band gap is in the range of 2.4–2.7 eV reported in literatures.^23,48 What's more, the band gap energy of ZnO/HNTs (3.13 eV) is slightly smaller than pure ZnO (3.2 eV), that can be attributed to the induction of HNTs which may be due to the surface synergistic interaction between HNTs and semiconductors.^3,33 The results indicating that the as-prepared g-C₃N₄–ZnO/HNTs composite photocatalyst exhibited a better visible-light response ability than pure ZnO and ZnO/HNTs.

Fig. 6 UV-vis diffuse reflectance spectra of HNTs, ZnO/HNTs and g-C₃N₄–ZnO/HNTs composite photocatalysts.

3.6. BET analysis

It has been widely acknowledged that the morphology and crystal structure have a significant impact on enhancing the photocatalytic ability of photocatalysts. Table 1 exhibits the relationships between morphology and specific surface area. It is noted that the pore volume and average pore diameter increased with the increasing complexity of as-prepared composite photocatalysts. The pore volume and average pore diameter of pure halloysite nanotubes (HNTs) are 0.256 cm³ g⁻¹ and 8.5 nm respectively which is the minimal comparing with the ZnO/HNTs and g-C₃N₄–ZnO/HNTs, and the g-C₃N₄–ZnO/HNTs composite photocatalysts possess a maximum pore structure, which can be observed in SEM (Fig. 3) and TEM (Fig. 4). In contrast, the BET surface areas of various samples are shown something special. It is worth noting that the S_BET value of ZnO/HNTs is 45.25 m² g⁻¹ which is smaller than the pure halloysite nanotubes (HNTs), whereas the g-C₃N₄–ZnO/HNTs displays a highest S_BET value of 50.06 m² g⁻¹. This phenomenon may be attribute to the porthole effect of halloysite nanotubes (HNTs). Because of the two-layer aluminosilicate clay mineral material, which with the Si–O–Si on the external surface and Al–OH groups in the internal surface. When the ZnO nanoparticles composite with the HNTs, some of active nanoparticles block the pore and occupied a part of surface areas of the HNTs. After introducing the layered-shape g-C₃N₄, the g-C₃N₄–ZnO/HNTs reveals a larger S_BET value than ZnO/HNTs which is also larger than pure HNTs. The increase of BET surface area owed to the multi-storey or network structure of g-C₃N₄ that result in a large BET surface value. Fig. S2† exhibits the nitrogen adsorption–desorption isotherms and Barrett–Joyner–Halenda (BJH) pore-size distribution curves of pure HNTs, ZnO/HNTs, and g-C₃N₄–ZnO/HNTs.¹⁹ As shown in Fig. S2,† the adsorption–desorption isotherms of all samples are corresponding to typical type IV (BDDT classification) with H1 hysteresis which indicate the meso-porous structures (2–50 nm) of all samples.⁴⁹ All of these results indicate that the ZnO nanoparticles are well loaded with HNTs and the composite g-C₃N₄ managed to increase the S_BET value which greatly enhanced the activities of as-prepared photocatalysts.

Table 1 Morphology and BET surface area of pure HNTs, ZnO/HNTs and g-C₃N₄–ZnO/HNTs samples

Sample	Morphology	Pore volume (cm^3 g^−1)	Pore diameter (nm)	BET surface area (m^2 g^−1)
HNTs	Nanotubes	0.256	8.5	47.45
ZnO/HNTs	Tubes + particles	0.274	12.8	45.25
g-C3N4–ZnO/HNTs	Tubes + particles + sheets	0.312	14.6	50.06

---

3.7. PL spectra

In order to investigate the fate of electron–hole pairs in semiconductors and reveal the efficiency of charge transfer, photon-generated carrier trapping, and separation of electron–hole pairs, the photoluminescence (PL) spectroscopy measurements, which result from the recombination of photo-excited electrons and holes, were carried out for g-C₃N₄ and g-C₃N₄–ZnO/HNTs. It is well acknowledged that the lower fluorescence intensity means higher separation efficiency of electron–hole pairs, which indicates the higher photocatalytic properties of the nanomaterials. Fig. S3† displays PL spectra of the pure g-C₃N₄ (a), and g-C₃N₄–ZnO/HNTs composite (b). It can be clearly observed that the main emission peak for pure g-C₃N₄ appears at about 460 nm, which is equivalent to the band gap energy of pure g-C₃N₄ (2.7 eV), the similar result is reported in other literatures.²¹ After the ZnO/HNTs is introduced, the fluorescence intensity of g-C₃N₄–ZnO/HNTs decrease by a big margin compared to the pure g-C₃N₄, which indicates that the recombination rate of photo-generated charge carriers in g-C₃N₄–ZnO/HNTs heterojunction is much lower than pure g-C₃N₄. The mentions above confirm that there definitely exists the charge transfer between g-C₃N₄ and ZnO loading on HNTs. In addition, the tubular structure of HNTs could play important roles which as the appropriate supporters to improve the dispersity and surface area of the network or layered structure of g-C₃N₄, and thus to enhance the charge migration at the nano-interface. All these results exhibit an excellent performance of g-C₃N₄–ZnO/HNTs.

3.8. Photocatalytic activity

3.8.1. Photocatalytic activity study. The photocatalytic activity of as-prepared photocatalysts with different influencing factors were evaluated by photodegrading TC under visible light irradiation. The changes of TC concentration at different time intervals was investigated by measuring the absorption in UV-vis spectra at 357 nm. All the photocatalysts have 30 min in dark for getting the adsorption and desorption before irradiating by visible light. And the degradation ratio is calculated by the following equation:⁵⁰

Fig. S4† shows the influence on photocatalytic activity of ZnO/HNTs with various calcination temperatures during the process of synthesizing ZnO nanoparticles via calcining Zn(NO₃)₂·6H₂O. It is obvious that 400 °C is the optimum temperature for preparation of the ZnO/HNTs compound photocatalyst which showed a highest photocatalytic activity via photodegrading TC solution approximately 50%. The samples fabricated at 300 and 800 °C display much lower photocatalytic activity than other temperature condition, indicating that the reaction temperature plays an important role in the processes of the formation of ZnO/HNTs.

Fig. S5† displays the photocatalytic activity of ZnO/HNTs with the different contents of Zn(NO₃)₂·6H₂O which calcined at 400 °C. As the primary activity component of ZnO/HNTs composite photocatalyst, the content of zinc oxide is significantly impacting the photocatalytic activity of composite photocatalyst. The blank control experiment was carried on which contained TC solution (20 mg L⁻¹) only present 2.85% photocatalytic degradation for the photolysis of antibiotics.⁵¹ Besides, the HNTs also present a little degradation which is attributed to absorption after the adsorption equilibrium status in 30 min.^52,53 It can be seen from the Fig. S5† that the photocatalytic activity is enhanced with the concentration of Zn(NO₃)₂ at 4.80 g L⁻¹ and with a degradation rate of 0.030 min⁻¹. However, the activity of photocatalyst is not show a positive correlation with the ZnO content increasing from 4.80 g L⁻¹ to 12.80 g L⁻¹ as shown in Fig. S5.† This is mainly due to the larger amount of e⁻ and h⁺ when the content of ZnO increase, which result in a higher recombination rate of electron–hole pairs. Moreover, it is well known that the photocatalytic activity is depending on the dispersion degree of active constituent which is related to the monolayer dispersion threshold. There is a most appropriate loading amount of ZnO on HNTs which can appear the maximum, that is a dispersion threshold where ZnO species are considered to cover the surface of HNTs in a monolayer state.⁵⁴ In addition, the accumulation and reunion of active nanoparticles could also be occurred if the loading amount of ZnO is superfluous, which will decrease the photocatalytic activity to a certain extent.

Fig. 7 illustrates the photo-degradation rate of g-C₃N₄–ZnO/HNTs with different content of g-C₃N₄via degrading tetracycline. From the Fig. 7, the degradation of TC with various g-C₃N₄ content can be seen clearly and the pure g-C₃N₄ is measured for comparison. The photocatalytic rate is in the follow order: ZnO/HNTs < 100 wt% < pure g-C₃N₄ < 5 wt% < 50 wt% < 10 wt% < 20 wt%. The highest photocatalytic activity of 20 wt% g-C₃N₄ reach a photo-degradation rate at about 87% in 1 h under visible-light irradiation which is evidently higher than ZnO/HNTs with the concentration of Zn(NO₃)₂ at 4.80 g L⁻¹ in Fig. S5.† These indicating that the introduction of g-C₃N₄ which composited with ZnO/HNTs can actually enhance the visible light response ability and photocatalytic activity.

Fig. 7 Photocatalytic degradation of TC with g-C₃N₄–ZnO/HNTs (with different g-C₃N₄ contents) as photocatalysts under visible light irradiation.

3.8.2. Stability. Stability is a very important evidence to judge the quality of photocatalyst and for the further environmental application. The stabilities of the two ZnO/HNTs and g-C₃N₄–ZnO/HNTs composite photocatalysts were compared by multicycle repeated experiments for TC degradation under visible-light irradiation. The test results are shown in Fig. 8 and 9. There is a remarkable decrease of ZnO/HNTs compared with the initial value which blamed the photocorrosion and the self-decomposition of ZnO nanoparticles caused by the recombination of photo-generated electrons and holes.³⁶ The most worthwhile point in our work is that the stability of the final as-obtained samples enhanced obviously, only a slight decrease of photoactivity is observed after introducing the g-C₃N₄. The XRD analysis also verified the same result. Fig. 9 presents the results of the XRD analysis before and after consecutive experiments and the key ZnO and g-C₃N₄ peaks are observed via comparing with the initial figure (Fig. 2b). The intensity of the figure only slightly lower than that before degradation. All of above results demonstrate convincingly that g-C₃N₄ could suppress the self-decomposition and photocorrosion of ZnO via compounding with ZnO/HNTs, which enhanced stability of g-C₃N₄–ZnO/HNTs efficiently.

Fig. 8 Cycling runs for the photocatalytic degradation of tetracycline by the prepared g-C₃N₄–ZnO/HNTs composite with 20 wt% g-C₃N₄ addition under visible-light irradiation.

Fig. 9 XRD patterns of g-C₃N₄–ZnO/HNTs before and after tetracycline degradation for the fourth cycle.

3.9. Photoelectrochemical experiments

3.9.1. Transient photocurrent response. The incident-photon-to-current conversion efficiencies (IPCE) were measured for pure g-C₃N₄, pure ZnO, ZnO/HNTs and g-C₃N₄–ZnO/HNTs to analyze the electronic interaction among g-C₃N₄, ZnO and HNTs, and confirm the prolonged lifetime of photo-generated charge carriers under visible-light irradiation with a pulse of 50 s, as shown in Fig. 10. It can be seen that distinct transient photocurrent responses were observed in the electrodes via on–off cycles, which may directly correlate with the recombination efficiency of photo-generated carriers.¹⁹ Both ZnO/HNTs and g-C₃N₄–ZnO/HNTs composite photocatalysts exhibit higher photocurrents than pure g-C₃N₄ and ZnO, and the photocurrent of g-C₃N₄–ZnO/HNTs is the highest among all samples, indicating that g-C₃N₄–ZnO heterojunction of g-C₃N₄–ZnO/HNTs has an enhanced separation of photoinduced electron–hole pairs and can facilitate its photocatalytic activity greatly.²⁴ Moreover, a good photocurrent of ZnO/HNTs is displayed which may be contributed to the excellent physicochemical properties of halloysite nanotubes (HNTs) which enhanced the dispersity of photocatalysts, reduced the surface deficiency due to agglomeration and promoted rapid transfer of charge. In addition, the transfer resistance of electrons reduced with the decrease of the average size of ZnO nanoparticles, which contribute to the acceleration of electron transfer rate and enhancement of the intensity of photocurrent, respectively. A high electron transfer rate between semiconductor and surface (internal and outside) of HNTs.⁴¹ The photoelectrochemical measurements of IPCE were described in ESI.†

Fig. 10 Transient photocurrent response of g-C₃N₄ (a), pure ZnO (b), ZnO/HNTs (c) and g-C₃N₄–ZnO/HNTs nanocomposites (d) under visible-light irradiation (Init E = 0.5 V, [Na₂SO₄] = 0.5 M).

3.9.2. Electrochemical impedance spectroscopy. As known to all that EIS is a powerful method for detecting the charge immigration across the semiconductor/electrolyte interface. In order to reveal the possible photocatalytic mechanism, the charge separation efficiency and the transfer resistance between photogenerated electrons and holes are examined by the electrochemical impedance spectra. Fig. 11 shows the Nyquist plots of HNTs, pure g-C₃N₄, ZnO–HNTs and g-C₃N₄–ZnO/HNTs electrodes before and after visible light irradiation (λ > 420 nm). Generally, the arc radius in the EIS spectra reflects the interface layer impedance and the reaction rate occurring on the surface of the electrode.^41,55 The arc radius of the EIS Nyquist plot of g-C₃N₄–ZnO/HNTs is smaller than ZnO/HNTs and pure g-C₃N₄, which implies a higher efficiency of charge transfer, more effective separation of photogenerated electron–hole pairs. Furthermore, the arc radius of EIS Nyquist plot of g-C₃N₄–ZnO/HNTs under the visible light irradiation is smaller than that in dark, indicating the dramatically enhanced transfer and separation efficiency of photogenerated exciton and transfer rate of photoexcited electron after visible light irradiation.^41,43 All of above results suggesting that the as-prepared g-C₃N₄–ZnO/HNTs composite structure can effectively inhibit the electron–hole recombination and contributed to the enhancement of photocatalytic activity, which is in good accordance with the result of the transient photocurrent measurement.

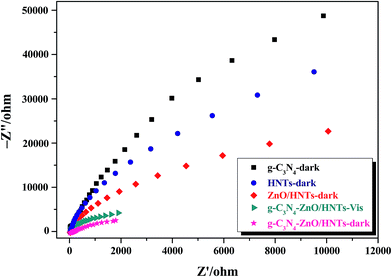

Fig. 11 EIS plots for pure g-C₃N₄, pure HNTs, ZnO/HNTs and g-C₃N₄–ZnO/HNTs in the dark and g-C₃N₄–ZnO/HNTs under visible light illumination (Init E = 0.5 V, [Na₂SO₄] = 0.5 M).

3.10. The mechanism of photodegradation

3.10.1. Active species trapping and quantification experiments. It has been widely recognized that active species have important impact on the photodegradation processes. To investigate the mechanism for the photodegradation of TC over g-C₃N₄–ZnO/HNTs, superoxide radical (˙O₂⁻), hole (h⁺), electron (e⁻) and hydroxyl radical (˙OH) were explored by employing different scavengers: benzoquinone (BQ), triethanolamine (TEOA), ethanol and isopropyl alcohol (IPA) during the photocatalytic reaction, respectively. The experiment was started by 1 mmol quencher and the results are shown in Fig. 12.⁵⁶ The photocatalytic degradation rate of TC is 86.2% without scavengers. With the introduction of TEOA, BQ and IPA, the photocatalytic rates decreased to 13.4%, 23.3% and 28.7%, respectively. However, the degradation rate of TC was 82.9% after adding ethanol while indicated that the e⁻ can be negligible in the reaction.⁵⁷ We can see clearly from the results that the h⁺, ˙O₂⁻ and ˙OH are the main reactive species during the photocatalytic reaction system for g-C₃N₄–ZnO/HNTs photocatalyst. Moreover, the ˙OH plays the most important role which can be clearly observed in the schematic diagram (Fig. 14).

Fig. 12 The photocatalytic efficiency of g-C₃N₄–ZnO/HNTs with different quenchers in the photodegradation of tetracycline.

3.10.2. Analysis of photocatalytic mechanism. To confirm the mechanism further, the ESR spin-trap technique with DMPO was performed to investigate the presence of ˙OH and ˙O₂⁻ radicals in g-C₃N₄–ZnO/HNTs photocatalytic reaction systems under visible light illumination. DMPO can be used as an ideal radical scavenger contributed to DMPO can produce an adduct with hyperfine splitting, which due to both the nitroxide and the β-hydrogen.⁴³ As shown in Fig. 13, there is no signal could be detected. After visible light irradiation, the four characteristic peaks of the DMPO-˙OH adducts (with a 1 : 2 : 2 : 1 intensity ratio, red line, Fig. 13a) and six characteristic peaks of DMPO ˙O₂⁻ adducts (Fig. 13b) in both H₂O and methanol are obviously observed in the ESR spectrum of the g-C₃N₄–ZnO/HNTs reaction system, which are consistent with the similar characteristic peaks reported by other groups for both the DMPO-˙OH and DMPO ˙O₂⁻ adducts,⁵⁸ indicating that the visible light irradiation is essential and effective for the generation of ˙OH and ˙O₂⁻ radicals on the surface of g-C₃N₄–ZnO/HNTs heterostructured photocatalysts. Therefore, according to both the active species trapping and quantification experiments and the ESR analysis, we can conclude that the ˙OH and ˙O₂⁻ exactly play major roles in the processes of degradation for TC.

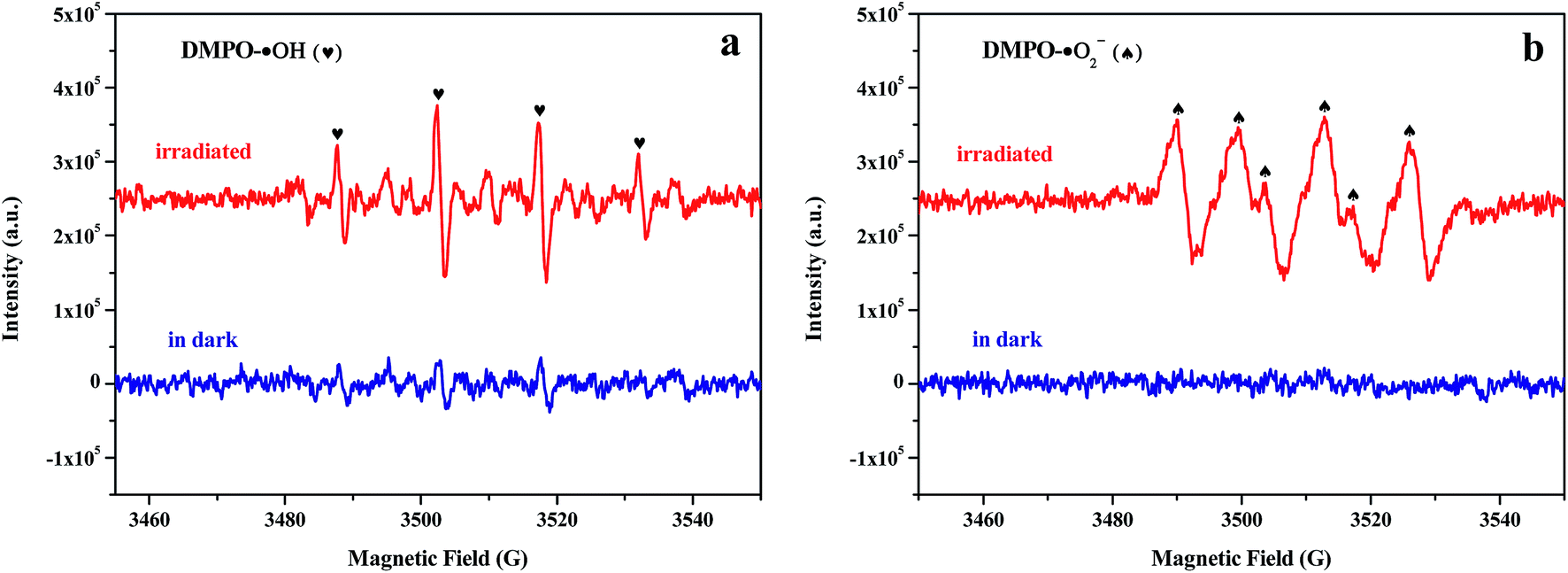

Fig. 13 DMPO spin-trapping ESR spectra of g-C₃N₄–ZnO/HNTs samples in the dark and under visible light irradiation at ambient temperature. (a) For DMPO-˙OH in aqueous dispersion, and (b) for DMPO-˙O₂⁻ in methanol dispersion.

One can see from above investigations that the g-C₃N₄–ZnO/HNTs photocatalyst not only enhanced stability evidently, but also exhibits a slightly higher photocatalytic activity than ZnO/HNTs before coupled with g-C₃N₄. The efficient charge separation of nanocomposite always be a crucial factor for the photocatalytic performances. The conduction band (CB) and valence band (VB) potentials of ZnO and g-C₃N₄ were also investigated to explain the enhanced photocatalytic mechanism.

The band edge potential of semiconductor photocatalysts is usual theoretically calculated via the equation as follows:⁵⁹

E_VB = X − E_e + 0.5E_g (3)

E_CB = E_VB − E_g (4)

where E_VB and E_CB are the top of the VB edge potential and the bottom of CB edge potential which related to the normal hydrogen electrode (NHE),⁵⁹X represents the Mulliken electronegativity of the component atoms in the semiconductor.^60,61E_g means the band gap energy of the photocatalyst and E_e is the energy of free electrons on the hydrogen scale (4.5 eV). It is widely admitted that both the CB (−1.13 V) and VB (+1.57 V) of g-C₃N₄ were negative than the CB (−0.5 V) and VB (+2.8 eV) of ZnO,^10,20,62 respectively. The g-C₃N₄–ZnO/HNTs composite photocatalyst is determined to be ca. 2.58 eV from the onset of UV-vis diffuse reflectance spectrum (DRS) in Fig. 6, which is slightly narrower than both pure g-C₃N₄ and ZnO. Obviously, there is a separation and transfer process of photoexcited electron–hole carried out in the g-C₃N₄–ZnO/HNTs heterojunction. Basis of the above results, a possible mechanism for enhanced photocatalytic activity over the as-obtained g-C₃N₄–ZnO/HNTs nanocomposite is shown schematically in Fig. 14. When the sample is irradiated by visible light, the electron can be excited simultaneously from the CB of g-C₃N₄ to ZnO because the CB edge potential of g-C₃N₄ (−1.13 eV vs. NHE) is more negative than the CB edge potential of ZnO (−0.5 eV vs. NHE), while living the holes in the VB of g-C₃N₄. Subsequently, the special surface contact among g-C₃N₄, ZnO and HNTs which in the g-C₃N₄–ZnO/HNTs result in a rapid transfer and separation of the accumulated electrons, and effectively increased the photocatalytic properties of photocatalyst. The smooth close contact between various semiconductors is needed to accelerate the charge transfer and the calcination method we have utilized can be used to produce some chemical bonds which favoring the contact between semiconductors.³⁷ As shown in Fig. 14, it has a potential difference between CB edge potential of ZnO (−0.5 eV vs. NHE) and the standard redox potential E (O₂/˙O₂⁻) (−0.33 eV vs. NHE) so that the ˙O₂⁻ can be produced by the reaction of O₂ and e⁻ in CB. A continuous flow of active surface ˙OH groups would be produced in succession. On the basis of these datum, the photo-generated electrons in CB of g-C₃N₄ and ZnO are easily be transferred, however, the VB potential of g-C₃N₄ (1.57 eV vs. NHE) is more negative than the position of E (˙OH/OH⁻) which equal to 2.27 eV vs. NHE, leading to the photo-generated holes in the VB of g-C₃N₄ are difficultly oxidized OH⁻ or H₂O to ˙OH. Consequently, the ˙OH, ˙O₂⁻ and h⁺ can be thought the main active species to responsible for the decomposition of organic pollutant, which is in agreement with the result of trapping experiment and ESR measurement. The major reactions can be described in eqn (5)–(13):^56,57

ZnO–g-C₃N₄/HNTs + hv → ZnO–g-C₃N₄/HNTs + h⁺ + e⁻ (5)

h⁺ + H₂O → ˙OH + H⁺ (6)

e⁻ + O₂ → ˙O₂⁻ (7)

˙O₂⁻ + H⁺ → ˙HO₂ (8)

2e⁻ + O₂ + 2H⁺ → H₂O₂ (9)

e⁻ + H⁺ + ˙HO₂ → H₂O₂ (10)

e⁻ + H₂O₂ → ˙OH + OH⁻ (11)

˙O₂⁻ + H₂O₂ → ˙OH + OH⁻ + O₂ (12)

˙OH + TC → degradation products (13)

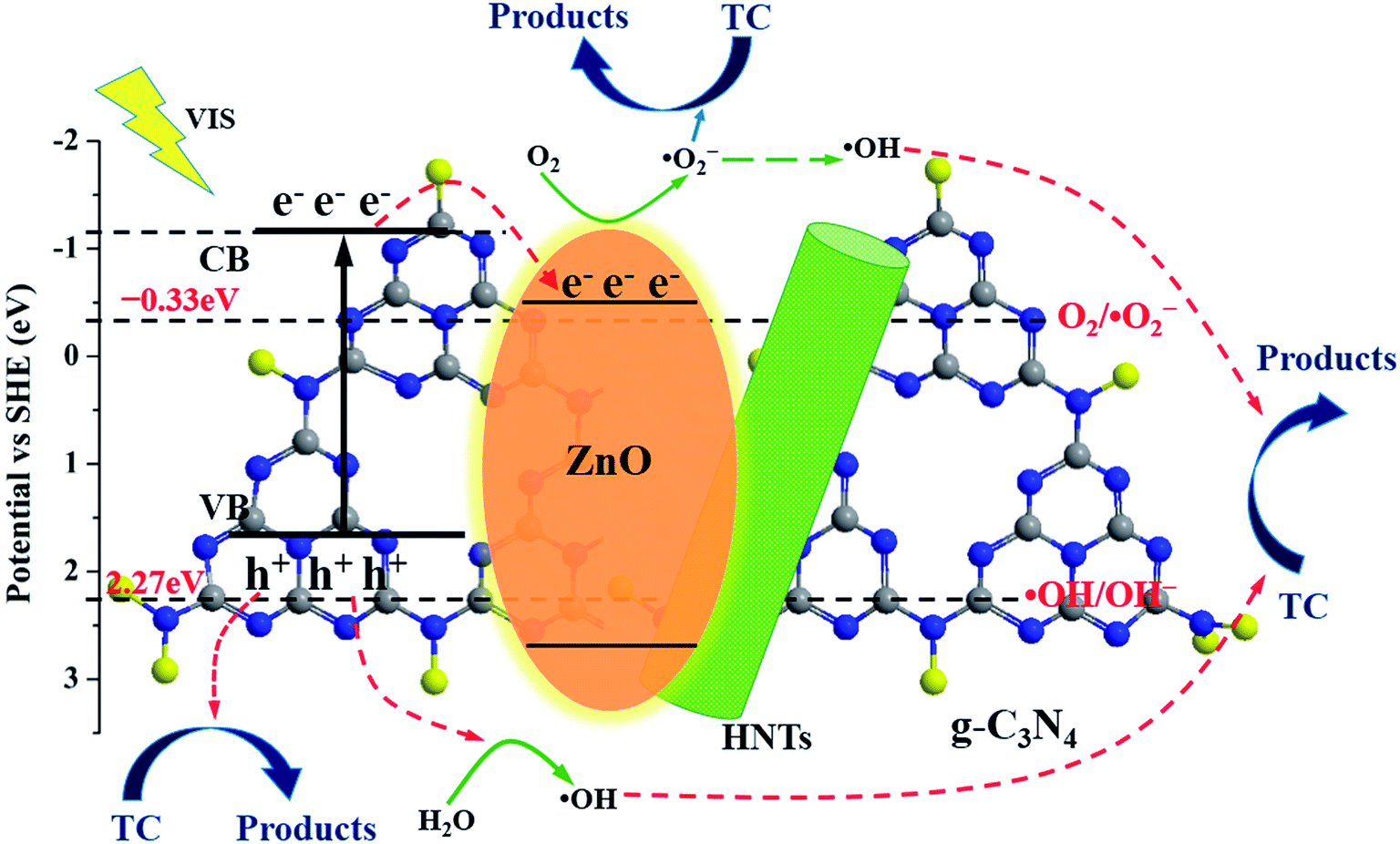

Fig. 14 Schematic diagram of the separation and transfer of photo-generated charge in g-C₃N₄–ZnO/HNTs composite under visible light irradiation.

4. Conclusions

In this study, we have successfully synthesized a visible-light-responsive g-C₃N₄–ZnO/HNTs nanocomposite heterojunction photocatalyst via introducing polymeric g-C₃N₄ with as-prepared ZnO/HNTs nanomaterial. The visible light photocatalytic activities were significantly enhanced compared to pure ZnO and g-C₃N₄. Compare to the ZnO/HNTs, the as-obtained g-C₃N₄–ZnO/HNTs composite photocatalyst could not only enhance the photoresponsive ability in visible light region but also greatly improve the stability of photocatalyst via photodegrading the tetracycline. The highest photoactivity of 20 wt% g-C₃N₄–ZnO/HNTs composite photocatalyst should be attributed to the heterostructure of g-C₃N₄–ZnO which is clearly displayed by high-resolution transmission electron microscopy and coupling with the halloysite nanotubes, which provided a platform of active sites for photo-generated electrons and efficaciously suppressed the recombination reaction of photogenerated e⁻/h⁺ pairs. The possible mechanism for composite photocatalyst reveals a rapid transfer speed among various interfaces of different semiconductors, the ˙OH, ˙O₂⁻ and h⁺ are the main reactive species during the photocatalytic reaction system. In summary, a novel, efficient and stable fabricated photocatalyst is developed by a facile calcination method which has enormous potentials in the removal of organic pollutants exist in environment.

Acknowledgements

We gratefully acknowledge the financial support of the National Natural Science Foundation of China (No. 21576125, 21407064), the Natural Science Foundation of Jiangsu Province (BK20131259, BK20130489, BK20140532), and the Research Foundation of Jiangsu University, China (No. 11JDG107).
