Needle-like MnO₂/activated carbon nanocomposites derived from human hair as versatile electrode materials for supercapacitors

Abstract

Bio-waste material, human hair, was used as a source to prepare activated carbon (ACs) by a simple NaOH activation method. MnO₂ with a needle like structure was successfully decorated on ACs by a wet impregnation method. TEM images confirmed the needle-like morphology of MnO₂ on ACs. The chemical state of Mn in MnO₂/ACs was found to be +4, as confirmed by XPS analysis. Other physicochemical properties of MnO₂/ACs were investigated by means of SEM-EDS, XRD, Raman and XPS analyses. After complete characterization, the resultant nanocomposites with different MnO₂-loading [MnO₂/ACs_(X : Y)] were employed as electrode materials for supercapacitors. Interestingly, the MnO₂/ACs nanocomposites showed an excellent capacitance in three different electrolytes (1.0 M H₂SO₄, 1.0 M KOH and 1.0 M Na₂SO₄). The MnO₂/ACs_(1 : 12) achieved a maximum capacitance of 410 F g⁻¹, 345 F g⁻¹ and 291 F g⁻¹ in 1.0 M H₂SO₄, 1.0 KOH and 1.0 Na₂SO₄, respectively. To the best of our knowledge, this is the first MnO₂-based carbon nanocomposite to show good capacitance performance in three different kinds of electrolytes. Moreover, the MnO₂/ACs showed a capacitance of ∼300 F g⁻¹ even after 500 cycles in 1.0 M H₂SO₄.

---

1. Introduction

Supercapacitors have recently gained huge attention due to their advantages such as longer cycle life, short charging time and higher power density compared to conventional electrical double-layer capacitors.¹ Several carbon-based electrode materials such as activated carbon (ACs), graphene, carbon nanotubes (CNTs), fullerenes, and carbon fibers are reported as superior supercapacitor electrode materials.^2,3 Among them, due to low cost, very high specific surface area and pore properties, ACs are often preferable over other carbon materials.⁴ Recently, Qian et al.,⁵ prepared carbon flakes from human hair and employed as electrode materials for supercapacitors. They found that the carbon flakes have a very high specific capacitance of 340 F g⁻¹ in 6.0 M KOH at a current density of 1 A g⁻¹ and good stability over 20 000 cycles. Alike, Ma and co-workers⁶ used cotton fiber as carbon source to prepare porous activated carbon (PACs). As an electrode material, the prepared PACs showed a high specific capacitance of 239 F g⁻¹ at 0.5 A g⁻¹ current density and good rate capability in 2.0 M KOH aqueous electrolyte. Alike, ACs derived from plant leaves exhibited a specific capacitance of 400 F g⁻¹ and an energy density of 55 W h Kg⁻¹ in 1.0 M H₂SO₄.⁷ Most of the ACs derived from biomass is performed as electrode materials either in acid or base electrolyte.^8,9 However, the drawback of these ACs is its poor capacitance performance in neutral electrolytes such as Na₂SO₄ and K₂SO₄; only a very few reports exist up to now on the capacitance performance of ACs in neutral electrolytes.¹⁰ Hence, the development of a versatile supercapacitor electrode material (which can perform in various electrolytes such as acid, base and neutral media) is a challenging task.

Modification or functionalization of porous ACs with metal oxides such as MnO_x, RuO_x, NiO_x and CuO_x is one of the promising approaches to achieve superior electrode performance.^11,12 Among them, manganese oxide (MnO₂) is often preferred as an electrode material for supercapacitors due the low cost, high theoretical surface area and non-toxic.¹³ Moreover, the MnO₂ can exhibit larger capacitance values and energy density due to its fast surface redox reactions. The MnO₂ has showed a maximum specific capacitance of 1370 F g⁻¹.¹⁴ However, the pseudocapacitive reaction of MnO₂ is known to be a surface reaction that can occur only on the surface. Hence, the MnO₂ is often combined with conductive materials such as graphene, CNTs and carbon fibers to improve its performance.¹⁵ Yan et al.,¹⁶ prepared MnO₂/graphene and employed as supercapacitor electrode material. The MnO₂/graphene demonstrated a very high capacitance of 310 F g⁻¹. MnO₂ nanorods were supported on ACs and employed as electrode material for supercapacitor.¹⁷ It showed a moderate capacitance of 165 F g⁻¹ in Na₂SO₄ electrolyte. In case of MnO₂/activated carbon composites, the performance is mainly dependent on five factors:^18,19 (a) surface area of the composites, (b) structure of the MnO₂ and ACs, (c) conductivity of the materials, (d) large pore volume and pore size, and (e) presence of heteroatom such as O, N and S. Recently, human hair has been used to prepare ACs with very high surface area and excellent pore structure. In addition, the ACs found to consist of various heteroatoms such as O, N and S, and has exhibited very high specific capacitance in 6 M KOH electrolyte.⁵ We believe that the functionalization of MnO₂ with unique structure on ACs (derived from human hair) would show superior capacitance performance in various electrolytes.

Herein, we prepared needle-like MnO₂/ACs nanocomposites with different MnO₂ loading by a simple wet impregnation method. The ACs was derived from human hair by NaOH activation. The prepared composite materials were characterized by various spectroscopic and microscopic methods such as HR-TEM, SEM-EDS, XRD, Raman and XPS analyses. After complete characterization, the resultant nanocomposites MnO₂/ACs_(X : Y)] were employed as electrode materials for supercapacitor in three different electrolytes, namely, 1.0 M H₂SO₄, 1.0 M KOH and 1.0 M Na₂SO₄. Conductivity and cycle life of the nanocomposites were also studied.

2. Experimental

2.1 Materials

Human hair was collected from students of Shinshu University, Japan. Nafion®perfluorinated resin solution (5 wt%), 2-propanol, potassium permanganate (KMnO₄) were purchased from Sigma Aldrich. Sodium sulfate (Na₂SO₄), potassium hydroxide (KOH), sulfuric acid (H₂SO₄), hydrochloric acid (HCl) and sodium hydroxide (NaOH) were purchased from Wako Pure Chemicals, Japan. All chemicals were used without further purification.

2.2 Preparation of ACs

The ACs was prepared from human hair according to the previously reported procedure.⁵ In a typical experiment, 1.0 g of human hair was washed well and dried in air. At first, the human hair was stabilized under air atmosphere at 300 °C (heating rate of 1°C min⁻¹) for 1 h. Subsequently, the stabilized human hair was mixed with NaOH (human hair/NaOH = 1 : 2 ratio) using mortar and pestle until the homogeneous mixture was obtained. Finally, the mixture was calcinated in the muffle furnace under N₂ atmosphere at 700 °C (heating rate of 5°C min⁻¹) for 3 h. After calcination, the resultant solid was washed well with 1 M HCl to remove the NaOH.

2.3 Synthesis of MnO₂/ACs_(X : Y) nanocomposites

In a typical synthesis procedure, 25 mg of ACs was dispersed in 10 mL distilled water followed by sonication for 30 min. To the above mixture, KMnO₄ solution was added drop by drop under vigorous stirring condition. After the addition of KMnO₄, the mixture was stirred at 60 °C for 24 h and then vacuum filtered to obtain the MnO₂/ACs. ACs and KMnO₄ with different weight ratios (ACs/KMnO₄ = 1 : 2, 1 : 1, 2 : 1, 4 : 1, 8 : 1, 10 : 1, 12 : 1, 14 : 1 and 16 : 1) were prepared. Here, the nanocomposites are denoted as MnO₂/ACs_(X : Y), where X is the weight ratio of ACs and Y represents the weight ratio of KMnO₄. Finally, the MnO₂/ACs was washed well with water and air dried. The resultant composites were characterized in detail and used for electrochemical studies.

2.4 Characterization

The surface morphology of the resultant MnO₂/ACs composites was studied by field emission scanning electron microscopy (FE-SEM; S-5000, Hitachi) and transmission electron microscopy (TEM; 2010FasTEM, JEOL, Japan). Energy dispersive X-ray spectra (EDS) were performed on JEOL JSM-5900. X-ray photoelectron spectroscopy (XPS; AXIS-ULTRADLD, Shimadzu) and Raman spectrometer (Hololab 5000, Kaiser Optical Systems, Inc., Ann Arbor, MI, USA) were recorded to study the chemical state of the atoms presented in the MnO₂/ACs. X-ray diffraction (XRD) experiment was performed at 27 °C using a Rotaflex RTP300 (Rigaku Co., Japan) diffractometer at 50 kV and 200 mA with a scan speed of 2°/min. Nickel-filtered Cu K_α radiation (5 < 2θ < 70°) was used for XRD measurements. For Raman analysis, Ar laser was operated at 532 nm with a Kaiser holographic edge filter. The specific surface area of samples was determined using the Brunauer–Emmett–Teller (BET) method (BELSORP-max, BEL Japan, Inc.). The electrochemical studies were carried out in Versastat-4 potentiostat at a scan rate ranging from 5 to 100 mV s⁻¹.

2.5 Electrochemical measurements

The electrochemical measurements were carried out in three different electrolytes (1.0 M H₂SO₄, 1.0 M KOH and 1.0 M Na₂SO₄) at 27 °C using Versastat 4 electrochemical station. The sweep potential range was adjusted from −0.2 to 0.8 V [vs. Ag/AgCl] in an electrochemical cell with three-electrode system: platinum wire, Ag/AgCl and prepared carbon nanocomposites were used as counter electrode, reference electrode and working electrode, respectively. The electrochemical impedance spectroscopy (EIS) was recorded in the frequency range of 0.01 Hz to 100 kHz with a potential amplitude of 10 mV. The working electrode was prepared as follows; 2 mg of nanocomposite, 20 μL of Nafion solution (5 wt%) and 400 μL of isopropanol were mixed and ultrasonicated at 27 °C for 2 h. The 30 μL of the prepared slurry was deposited on the active area of the glassy carbon electrode and dried at 80 °C for 30 minutes to evaporate the isopropanol.

3. Results and discussion

The MnO₂/ACs_(X : Y) nanocomposites with different MnO₂ loading were prepared and the physicochemical characteristics were investigated in detail. The representative data of SEM-EDS, BET, Raman, XRD and XPS obtained for pure ACs and MnO₂/ACs_(1 : 12) are shown and discussed. Data of other samples [MnO₂/ACs_(X : Y)] are given in the ESI (Fig. S1–S4†). The BET pore properties and EDS elemental compositions of ACs and nanocomposites are presented Table 1. Fig. 1 represents the EDS weight percentage of elements (C, O, S and Mn) presented in MnO₂/ACs_(1 : 12) nanocomposites. As expected, the pure ACs showed 0% of Mn with C (85.69%), O (12.50%) and S (2.06%). Although the presence of N was detected by XPS analysis, the EDS result didn't show any peak corresponds to N which may be due to the presence of a trace amount of N. In case of MnO₂/ACs_(X : Y) nanocomposites, the wt% of Mn was gradually increased with increasing KMnO₄ ratio (Table 1). Fig. 2 shows the representative SEM image, EDS spectrum and its corresponding elemental mappings (C, Mn and O) of MnO₂/ACs_(1 : 12). The weight percentage of Mn, O, S and C in MnO₂/ACs_(1 : 12) nanocomposites was found to be 4.72, 12.38, 3.17 and 79.73, respectively. In addition, homogeneous dispersion of MnO₂ was confirmed by the elemental mapping of Mn [Fig. 2(iii)]. For more details, refer Fig. S1 in ESI.† Fig. 3 represents nitrogen adsorption–desorption isotherms of pure ACs and MnO₂/ACs_(1 : 12). The pure ACs showed the specific surface area of 1318.4 m² g⁻¹. Alike, the BET surface areas of 1597.4 m² g⁻¹ was observed for MnO₂/ACs_(1 : 12). In addition, the MnO₂/ACs_(1 : 12) has total pore volume and average pore diameter of 1.02 cm³ g⁻¹ and 2.5542 nm, respectively (Table 1). This high surface area can offer a sufficient electrode/electrolyte interface for ion or charge accumulation. Moreover, the presence of high volume of pores (1.02 cm³ g⁻¹) in the materials can assist for the rapid diffusion of ions and results in a remarkably improved rate performance of electrode materials.²⁰

Table 1 BET pore characteristics and EDS elemental compositions of ACs and its MnO₂-composites

Samples	BET analysis			EDS (wt%)
	SBET (m^2 g^−1)	Daver (nm)	Vpore (cm^3 g^−1)	C	O	S	Mn
Pure ACs	1318.4	2.40	0.79	85.69	12.05	2.06	—
MnO2/ACs(1 : 2)	106.8	7.14	0.19	42.12	21.78	1.94	34.17
MnO2/ACs(1 : 1)	636.0	3.41	0.39	45.51	21.58	2.48	30.43
MnO2/ACs(1 : 2)	600.2	2.60	0.54	60.62	23.52	2.37	13.49
MnO2/ACs(1 : 4)	1355.7	2.38	0.81	72.44	15.38	2.07	10.11
MnO2/ACs(1 : 8)	1519.3	2.51	0.95	77.33	15.65	2.46	4.57
MnO2/ACs(1 : 10)	1560.9	2.35	0.92	77.87	14.23	2.72	5.18
MnO2/ACs(1 : 12)	1597.4	2.55	1.02	79.73	12.38	3.17	4.72
MnO2/ACs(1 : 14)	1705.3	2.68	1.14	81.73	12.12	2.28	3.87
MnO2/ACs(1 : 16)	1641.4	2.00	0.82	85.12	10.16	2.53	2.19

---

Fig. 1 EDS elemental weight percentage of (a) pure ACs, (b) MnO₂/ACs_(1 : 2), (c) MnO₂/ACs_(1 : 1), (d) MnO₂/ACs_(1 : 2), (e) MnO₂/ACs_(1 : 4), (f) MnO₂/ACs_(1 : 8), (g) MnO₂/ACs_(1 : 10), (h) MnO₂/ACs_(1 : 12), (i) MnO₂/ACs_(1 : 14), and (j) MnO₂/ACs_(1 : 16).

Fig. 2 (i) SEM image of MnO₂/ACs_(1 : 12) and corresponding elemental mapping of (ii) C, (iii) Mn and (iv) O. (v) EDS spectrum of MnO₂/ACs_(1 : 12).

Fig. 3 HR-TEM images of (i) ACs, (ii and iii) MnO₂/ACs_(1 : 2) and (iv–vi) MnO₂/ACs_(1 : 12) [images (iii) and (vi) are magnified images of MnO₂/ACs_(1 : 2) and MnO₂/ACs_(1 : 12), respectively].

The HR-TEM images were taken to study the microstructure of the ACs [Fig. 3(i)], MnO₂/ACs_(1 : 2) [Fig. 3(ii and iii)] and MnO₂/ACs_(1 : 12) [Fig. 3(iv–vi)]. As seen from HR-TEM images of pure ACs in Fig. 3(i), the architecture of ACs with two-dimensional (2D) nanosheet morphology and the average thickness of the sheets were calculated to be ∼65 nm. In addition, meso/micropores channels can be clearly seen on the surface of the nanosheets. In Fig. 3, the MnO₂/ACs_(X : Y) composite showed that the needle like MnO₂ was homogeneously anchored on the 2D nanosheet. The average diameter and average length of the MnO₂ needles are found to be ∼14 nm and ∼110 nm, respectively. Interestingly, the average thickness of the nanosheets was dramatically decreased from 65 to 41 nm compared to pure ACs. In general, the inter-layers of carbon stacked by van der Waals forces have interaction energy of ∼2 eV nm⁻² and typically a very weak ∼300 nN lm⁻² magnitude of force is required to break this energy.^21,22 In the present study, the exfoliation of the carbon sheets might have achieved during the preparation of nanocomposite (stirring and sonication process). In addition, the formed MnO₂ may be stabilized or prevented the carbon nanosheets from the further regeneration. The HR-TEM result agrees well with the BET results. Moreover, it was found that the loading of KMnO₄ has greater influence on the structure of the MnO₂. At higher loading of MnO₂, the surface morphology of the nanocomposites was quite different and no needle-like MnO₂ structures were observed on the carbon nanosheets. Instead, the MnO₂ was fully covered the carbon sheets at higher loading of KMnO₄. The needle-like nanostructure of MnO₂ can help to an easy ionic charge transport at electrode/electrolyte interfaces.²³

XRD and Raman spectra were recorded to further investigate the graphitic structure [ordered and disordered (defect sites) nature] of pure ACs and nanocomposites (Fig. 4, 5, S3 and S4†). Fig. 4 shows the XRD patterns of pure ACs and MnO₂/ACs_(1 : 12). Two characteristic peaks were seen at around 2θ = 22.3° corresponding to (002) and 2θ = 43.8° (a weak peak) corresponding to (101) plane.²⁴ The XRD peak at around 2θ = 22.3° (002) attributed to a well-defined graphitic stacking. Alike, the weak peak at 2θ = 43.8° supports to the higher degree of interlayer condensation of carbon. Moreover, the clear observation of these XRD peaks indicating that the pure ACs and MnO₂/ACs_(1 : 12) consist of small domains of prearranged graphene sheets. These results support that the samples are highly conductive in nature.²⁵ Raman spectra of both ACs and MnO₂/ACs_(1 : 12) showed two characteristic bands at 1325 (D band) and 1597 cm⁻¹ (G band).²⁶ The G-band was invented from the in-plane vibration of sp² carbon atoms, which attributed to the graphitic carbon. The D-band line was related to the amount of disorder, indicating the presence defect sites in the carbon network. Generally, the D/G ratio of band intensities is often used to study defects concentration in carbon.²⁷ At first, the D band and G band were fitted as the sum of a Gaussian function and then the I_G/I_D values were calculated (Fig. 5). The I_G/I_D values of ACs and MnO₂/ACs_(1 : 12) were calculated to be 1.0167 and 1.0601, respectively. The Raman I_G/I_D values confirm a highly graphitized ACs and MnO₂/ACs_(1 : 12), offering an excellent electric conductivity, which is consistent with the XRD results.²⁸

Fig. 4 XRD spectra of ACs (a) and MnO₂/ACs_(1 : 12) (b).

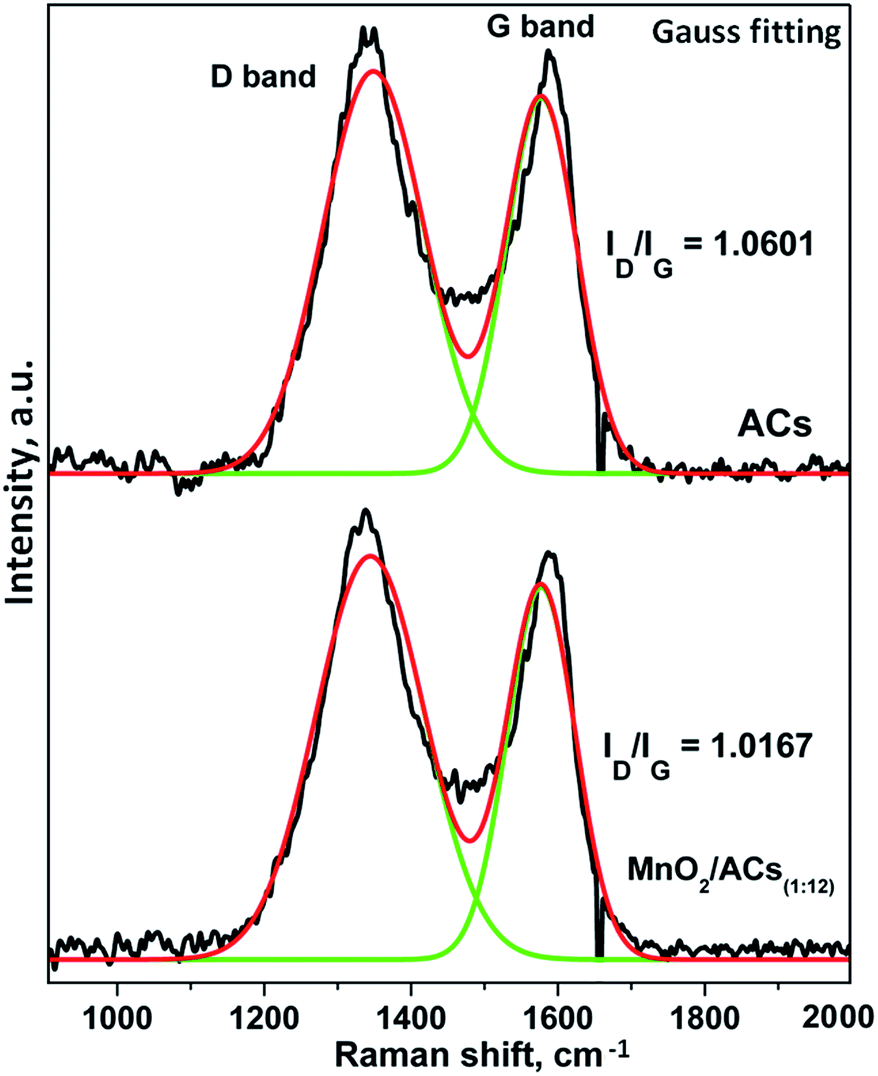

Fig. 5 Raman spectra of ACs (a) and MnO₂/ACs_(1 : 12) (b).

Further, the XPS spectra were recorded for pure ACs and MnO₂/ACs_(1 : 12). Fig. 6 shows the high-resolution XPS spectra of C 1s, N 1s, O 1s, S 2p, and Mn 2p. It was confirmed that the chemical compositions of pure ACs and nanocomposites are consist of C, N, O and S. The narrow and intense C 1s XPS peak was observed for both ACs and MnO₂/ACs_(1 : 12), indicating an improved degree of graphitic order. Alike, the O 1s peak located at B.E. = 533.5 eV shows the presence of oxygen atoms. In fact the oxygen functional groups can enhance wettability of the carbon materials.²⁹ A strong and broad peak at B.E. = 400 eV (N 1s XPS peak) was observed which reveal the presence of N species in the form of pyridinic, pyrrolic, N-oxide and quaternary nitrogen.³⁰ Similarly, the S appears at approximately B.E. = 165 eV. In fact the presence of heteroatom such as S, N and O can contribute greatly to the pseudocapacitance. Two obvious peaks at B.E. = 642.0 eV and B.E. = 653.8 eV are observed in the Mn 2p XPS spectrum, corresponding to Mn 2p_3/2 and Mn 2p_1/2 peak, respectively. The B.E. values of Mn 2p peaks confirmed the +4 oxidation state of Mn in MnO₂/ACs_(1 : 12).³¹

Fig. 6 (i) Survey XPS spectra, (ii) S 2s peaks, (iii) C 1s peaks, (iv) N 1s peaks and, (v) O 1s peaks of ACs (a) and MnO₂/ACs_(1 : 12), and (vi) XPS Mn 2p peak of MnO₂/ACs_(1 : 12).

To evaluate the specific capacitance (C_s) of the prepared ACs and nanocomposites, CV curves were recorded at different scan rates in three different electrolytes such as 1.0 M KOH, 1.0 M H₂SO₄, and 1.0 M Na₂SO₄; the results are presented in Fig. 8 and 9. As can be seen in Fig. 7, the shape of the CV curves is slightly distorted from the rectangular shape. The polarization resistance of the samples is the main reason for the distortion of CV curves.³² In addition, the presence of functional groups contributes to the pseudocapacitance behavior and the appearance of wide redox peak.³³ Fig. 8 shows the calculated C_s values of ACs and nanocomposites at scan rate of 5 mV s⁻¹. The superior capacitance performance of MnO₂/ACs_(X : Y) was realized from the higher C_s values in all the three different electrolytes. At the scan rate of 5 mV s⁻¹, the MnO₂/ACs_(1 : 12) achieved a maximum C_s of 410 F g⁻¹, 345 F g⁻¹ and 291 F g⁻¹ in 1.0 M H₂SO₄, 1.0 KOH and 1.0 Na₂SO₄, respectively. However, under same conditions, the pure ACs showed the C_s values of 275 F g⁻¹, 171 F g⁻¹ and 22 F g⁻¹ in 1.0 M H₂SO₄, 1.0 KOH and 1.0 Na₂SO₄, respectively. In comparison to pure ACs, the better C_s of MnO₂/ACs_(1 : 12) is due to the presence of MnO₂. In fact, the charge can store on both MnO₂ and ACs support, and therefore, the better C_s has been achieved.³⁴ To the best of our knowledge, this is the first MnO₂-based carbon nanocomposite to show good C_s in three kinds of electrolytes. Effect of MnO₂ loading on electrochemical performance was also investigated. Fig. 8 represents the C_s values of nanocomposites with different MnO₂ loading. As can be seen in Fig. 8, the loading of MnO₂ has a profound effect on the electrochemical performance of the MnO₂/ACs_(1 : 12). At higher loading of MnO₂ [such as MnO₂/ACs_(1 : 2)], the MnO₂ has played a negative role by blocking the carbon surface and hinder the transport of ions.³⁵ In addition, the blocking of interconnected pores of the carbon support by the MnO₂ leads to a lower surface area of the nanocomposites and, therefore, the lower C_s values are obtained. Alike, very low MnO₂ loadings also exhibited low C_s values which may be due to the insufficient amount of MnO₂.³⁶ This result agrees well with the BET results.

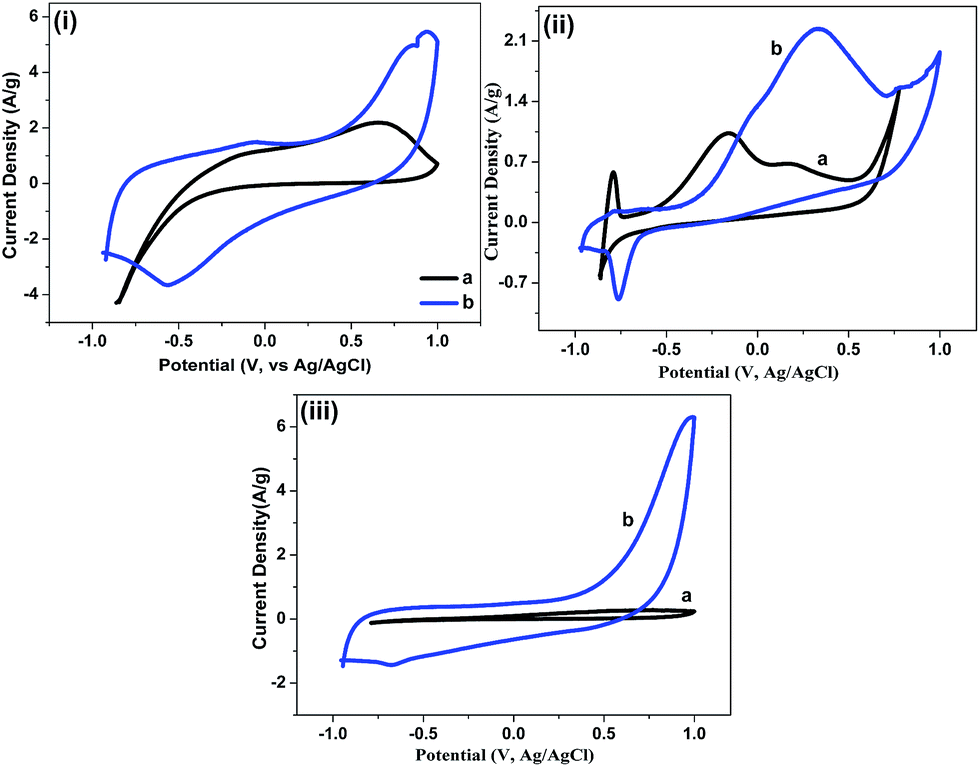

Fig. 7 Cyclic voltammetry measurements of pure ACs (a) and MnO₂/ACs_(1 : 12) (b) in (i) 1.0 M H₂SO₄, (ii) 1.0 M KOH and (iii) 1.0 M Na₂SO₄ over a potential range from −1.0 to 1.0 V at a scan rate of 5 mV s⁻¹.

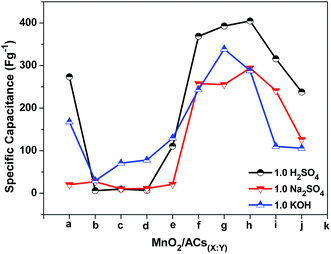

Fig. 8 Specific capacitances of (a) pure ACs, (b) MnO₂/ACs_(1 : 2), (c) MnO₂/ACs_(1 : 1), (d) MnO₂/ACs_(1 : 2), (e) MnO₂/ACs_(1 : 4), (f) MnO₂/ACs_(1 : 8), (g) MnO₂/ACs_(1 : 10), (h) MnO₂/ACs_(1 : 12), (i) MnO₂/ACs_(1 : 14), and (j) MnO₂/ACs_(1 : 16) at scan rate of 5 mV s⁻¹.

Further, the C_s of pure ACs and MnO₂/ACs_(1 : 12) at different scan rates was measured in 1.0 M H₂SO₄; the results are presented in Fig. 9. It was noticed that the C_s values are gradually decreased with scan rate for both ACs and MnO₂/ACs_(X : Y). At the scan rate of 500 mV s⁻¹, the ACs showed nearly zero capacitance, whereas, the MnO₂/ACs_(1 : 12) maintained a maximum C_s of about 50 F g⁻¹. The EIS spectrum [Fig. 10(i)] of ACs and MnO₂/ACs_(1 : 12) presented a depressed semicircle and a smaller interfacial charge-transfer resistance, representing good conductivity of the materials and high ion transfer speed across interfaces between the electrolyte and electrode.³⁷ Fig. 10(ii) represents the cycle stability of pure ACs and MnO₂/ACs_(1 : 12) at scan rate of 5 mV s⁻¹ in 1.0 M H₂SO₄.

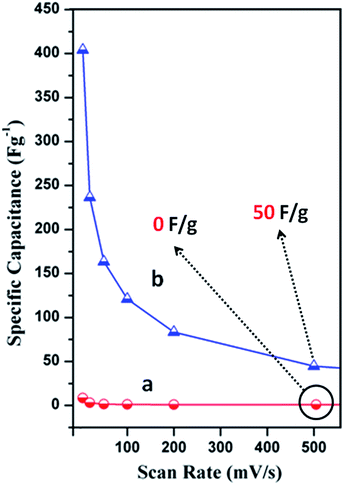

Fig. 9 Specific capacitance of (a) pure ACs and MnO₂/ACs_(X : Y) at different scan rates determined in 1.0 H₂SO₄.

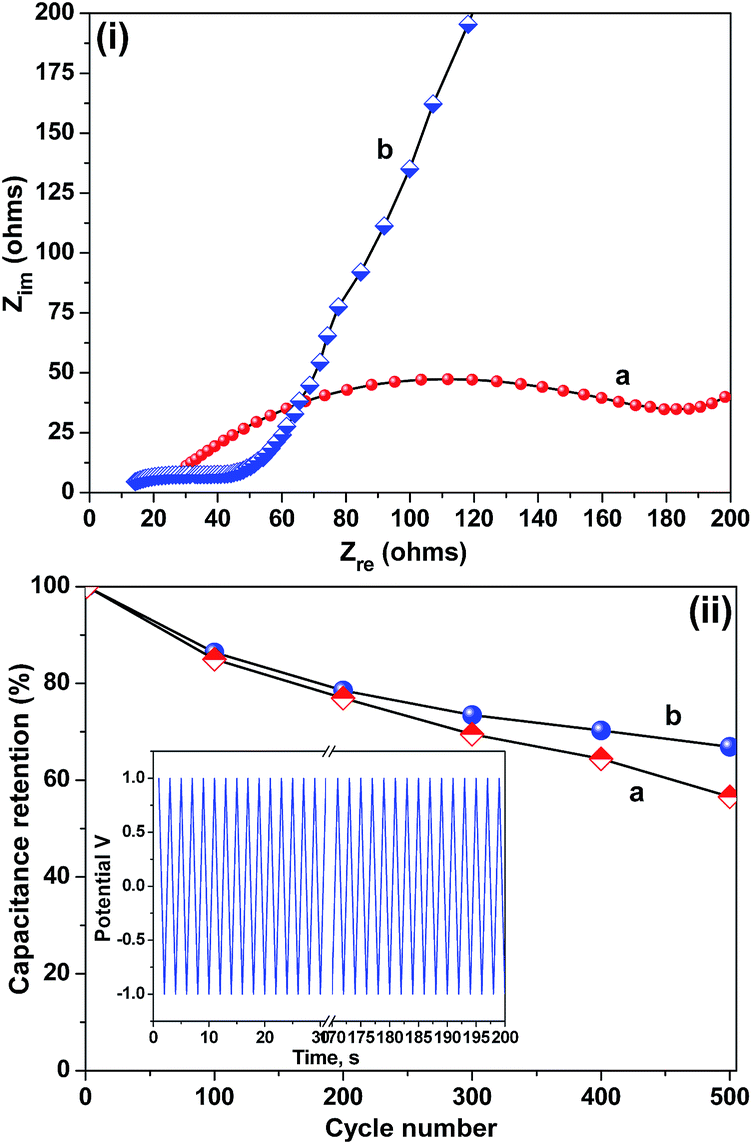

Fig. 10 (i) Nyquist plots of (a) pure ACs and MnO₂/ACs_(X : Y) recorded in 1.0 M H₂SO₄ and (ii) cycle stability of pure ACs (a) and MnO₂/ACs_(X : Y) (b) in 1.0 M H₂SO₄; inset: galvanostatic charge–discharge cycles.

It was calculated that about 70% of the C_s was maintained by the MnO₂/ACs_(1 : 12) after 500 cycles. The result confirms the good capacitance retention of the electrode material. However, after 500 cycles, the C_s of pure ACs was decreased to 59%. Overall, the better performance of the MnO₂/ACs_(X : Y) is due five obvious reasons (i) the high specific surface area, (ii) high average pore size and mean pore volume, (iii) the presence of heteroatom such as O, S and N, (iv) conductivity of carbon and (v) needle-like MnO₂.

The C_s performance of the present MnO₂/ACs_(1 : 12) is better or comparable to many other MnO₂-based electrode materials (see Table 2) including graphene–MnO₂, MnO₂/activated CNTs, C/MnO₂ nanorods, MnO₂/ACs, MnO₂/aniline, MnO₂–VACNF, MnO₂/diamond, flexible carbon cloth based MnO₂ nanosheets, ternary MnO₂/graphene nanosheets/CNTs composites, and MnO₂ nanocrystals/carbon spheres.

Table 2 Comparison of the capacity for different MnO₂-based electrode materials

Nanocomposites	Cs F g^−1	Scan rate mV s^−1	Reference
MnO2/ACs(1 : 12)	410 (1.0 H2SO4)	5	This work
	345 (1.0 KOH)
	291 (1.0 Na2SO4)
Graphene–MnO2	310	2	16
MnO2/activated CNTs	250	10	38
C/MnO2 nanorods	165	5	17
MnO2/ACs	62	—	39
MnO2/aniline	626	10	40
MnO2–VACNF	437	1	41
MnO2/diamond	326	10	42
Flexible carbon cloth based MnO2 nanosheets	683.73	—	43
Ternary MnO2/graphene nanosheets/CNTs composite	367	20	44
MnO2/carbon spheres	412	2	45

---

4. Conclusions

In summary, needle-like MnO₂ with different weight percentage was successfully decorated on ACs by a simple wet impregnation method. The physicochemical properties of the prepared nanocomposites were characterized in detail. For the first time, we demonstrated the MnO₂-based carbon nanocomposite as electrode materials for supercapacitor in three different electrolytes (1.0 M H₂SO₄, 1.0 M KOH and 1.0 M Na₂SO₄). The nanocomposites were worked well as electrode materials for supercapacitors. Interestingly, the MnO₂/ACs achieved a maximum capacitance of 410 F g⁻¹, 345 F g⁻¹ and 291 F g⁻¹ in 1.0 M H₂SO₄, 1.0 KOH and 1.0 Na₂SO₄, respectively. Moreover, the MnO₂/ACs_(1 : 12) showed capacitance of ∼300 F g⁻¹ even after 500 cycles in 1.0 M H₂SO₄.
