Improvement in the performance of a zinc ion-selective potentiometric sensor using modified core/shell Fe₃O₄@SiO₂ nanoparticles

Abstract

A novel, simple, accurate and sensitive zinc ion-selective potentiometric sensor was fabricated by modifying the surface of Fe₃O₄@SiO₂ nanoparticles using a ligand (L) prepared by a coupled reaction between (3-aminopropyl)trimethoxysilan (APTMS) and 2-hydroxy-3-methoxybenzaldehyde (2-H-3-MBA). The prepared Fe₃O₄ nanoparticles were characterized by scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray powder diffraction (XRD) and Fourier transform infrared (FTIR). In addition, Fe₃O₄@SiO₂, Fe₃O₄@SiO₂–APTMS, and Fe₃O₄@SiO₂–L were characterized by FTIR. X-ray photoelectron spectroscopy was used to confirm the surface modification of the Fe₃O₄@SiO₂ nanoparticles. The effects of individual variables such as the amount of graphite powder, Fe₃O₄@SiO₂–L and sodium tetraphenylborate (NaTPB) used in the composition of the carbon paste electrode (CPE) in addition to their possible interactions were investigated and optimized using a central composite design (CCD) under response surface methodology (RSM). The optimal values of graphite powder, Fe₃O₄@SiO₂–L and NaTPB in a proper amount of paraffin oil obtained were 72, 15 and 6 mg, respectively. The prepared electrode applied for sensing Zn²⁺ ions demonstrated a linear range of 2.5 × 10⁻⁶ to 1.00 × 10⁻¹ mol L⁻¹. The detection limit, slope and response time of this sensor were found to be 10⁻⁶ mol L⁻¹, 29.451 and 14 s, respectively. The potentiometric response of the prepared electrode based on Fe₃O₄@SiO₂–L was independent of the pH of the test solution over the pH range of 4–6, which is an advantage of this electrode having a neutral working pH. This sensor was successfully used for the sensitive determination of trace amounts of Zn²⁺ in samples of water. The moderate selectivity coefficient evaluated by the fixed interference method (FIM) indicated an efficient discriminating ability of the proposed electrode for Zn²⁺ ion assessment. It was also found to be well repeatable and reproducible.

---

1. Introduction

The environment is being seriously contaminated by heavy metals and thus is the focus of attention all over the world.¹ Zinc ions, with a quantity in serum being about 10 μM, is the most abundant heavy metal ion in the human body. Zinc ions are an important constituent of a number of enzymes such as carbonic anhydrase and matrix metalloproteinase,² and they help in the maintenance of the structural characteristics of gene transcription proteins such as zinc finger proteins, etc.³ However, an excess of zinc ions as an environmental pollutant can be toxic and decreases the soil microbial activity.⁴

Zinc is widely used in various industries such as electroplating, paint, food and agricultural waste, chemical and pharmaceutical and thus it is present in the waste and effluent of these plants. Its uptake by humans above a certain level causes pulmonary diseases, fever, nausea, anaemia, and renal failure. Therefore, the determination of zinc ions is of high importance. Many analytical techniques including UV-vis spectroscopy,^5,6 flame atomic absorption spectrometry,⁷ inductively coupled plasma atomic emission spectrometry (ICPAES)⁸ and fluorescence methods^9–13 have been used for the determination of zinc ions.

Electrochemical methods that are highly sensitive and selective in their responses have been widely used to determine various substances.^14–17 Among these methods, potentiometry is an easy and inexpensive technique that is applied in many clinical, environmental and toxicological analyses. Two-electrode potentiometric sensors as an important class of electrochemical sensor perform based on the observed potential response against the activity of the analyte species. In simple and efficient potentiometric methods, ion sensors that are called ion-selective electrodes (ISEs) are used as indicator electrodes for the determination of heavy metal ions and anions.^18–25 Among these electrodes, ISEs based on carbon paste, which are easy to structure, have simple instrumentation, a fast response, a wide dynamic range, reasonable selectivity, an easily renewable surface, are low cost and compatible with various types of modifiers,²⁶ have been widely used as suitable matrices for the construction of the sensors. Selection of suitable modifiers can improve the electrode surface state, which may cause a significant enhancement in the target signals.²⁶

Nanomaterials, including nanotubes, nanowires, nanofibers, nanorods, nanoparticles, nanocomposites^27,28 and other nanostructured materials have been widely applied to construct a variety of chemosensors and biosensors with exceptional physical and chemical properties such as a large surface area to volume ratio, good conductivity, excellent electrocatalytic activity and high mechanical strength.²⁹ Recently, nanomaterials have been gradually introduced into potentiometric sensors. These nanomaterials are suitable for the construction of sensitive electrochemical sensors. Significant advances have been achieved in synthetic methodologies. The enhancement in selectivity and sensitivity of sensors for accurate sensing may be achieved by decorating the nanomaterials with polymers and ligands (e.g., Schiff bases).

In addition, carbon paste made by a mixture of carbon (graphite) powder and a binder (pasting liquid) is suitable for the fabrication of many electrometric sensors for analytical purposes.^30,31 The operation of such electrodes depends on the properties of the modifiers used to enhance the selectivity of the sensor towards the target species.

In this work, a novel, simple, accurate and sensitive zinc ion-selective potentiometric sensor was fabricated by modifying the surface of Fe₃O₄@SiO₂ nanoparticles using a ligand (L) prepared by sequential reaction between (3-aminopropyl)trimethoxysilan (APTMS) and 2-hydroxy-3-methoxybenzaldehyde (2-H-3-MBA). Response surface methodology (RSM) was applied to optimize the responses versus variables such as the amount of graphite powder, Fe₃O₄@SiO₂–L and sodium tetraphenylborate (NaTPB) used in the composition of the CPE by performing the least number of experimental runs. In addition, the effects of interaction between the variables on the responses were investigated by RSM. The sensor characteristics such as the linear range, response time, detection limit, selectivity, sensitivity, repeatability and reproducibility were investigated.³²

2. Experimental

2.1. Chemicals and instruments

Iron(III) chloride (FeCl₃), iron(II) chloride tetrahydrate (FeCl₂·4H₂O), NH₄OH (25%, v/v) tetraethyl orthosilicate (TEOS), trimethoxy silyl propyl amine (APTMS), 2-hydroxy-3-methoxybenzaldehyde (2-H-3-MBA), methanol, graphite powder, high purity paraffin oil, sodium tetraphenylborate, metallic salts and tetrahydrofuran (THF) were purchased from Merck (Darmstadt, Germany) and used without further treatment. All the metal nitrate solutions were freshly prepared by accurate dilution of their stock solution (0.1 M) using double distilled water.

All potential measurements were carried out by a pH/mV meter (Zag Chimi, Iran) using the fabricated sensor together with a double junction Ag/AgCl reference electrode. The pH measurements were carried out using a pH/ion meter model-686 (Metrohm, Swiss). X-ray powder diffraction (XRD) spectra were taken using an X’pert diffractometer of Philips Company (Netherlands) with monochromatized Cu Kα radiation. The morphology of the nanomaterials was characterized using scanning electron microscopy (SEM, KYKY-EM3200, China) and a transmission electron micrograph was obtained using a Philips CM200 FEG\ST Lorentz electron microscope with a field emission gun at an acceleration voltage of 200 kV. FTIR spectra were recorded using a JASCO-FTIR680 (Japan) instrument over 4000–400 cm⁻¹. X-ray photoelectron spectroscopy (XPS) data were obtained using an 8025-BesTec twin anode XR3E2 X-ray source system (Germany). XPS data were taken using an Al Kα (1486.6 eV) X-ray source operated at 15 kV.

2.2. Synthesis of Fe₃O₄ nanoparticles

For the preparation of Fe₃O₄ nanoparticles, FeCl₃ (11.2 mmol) and FeCl₂·4H₂O (5.6 mmol) were separately dissolved in 50 mL double distilled water followed by mixing them. The temperature of the solution was adjusted to 80 °C. Then, while stirring under nitrogen atmosphere, 15 mL of NH₄OH (25%, v/v) was added dropwise over 30 min. After 120 min for the reaction had elapsed, the color of the bulk solution changed from orange to black. The magnetite precipitates were washed several times with deionized water and ethanol. The black Fe₃O₄ nanoparticles were separated using a permanent magnet. The synthesized Fe₃O₄ nanoparticles were dried at 70 °C for 12 h.

2.3. Preparation of nanostructured silica-coated magnetite (Fe₃O₄@SiO₂)

Fe₃O₄ nanoparticles were covered with a silica coating using TEOS. For this purpose, 300 mg of Fe₃O₄ nanoparticles was placed in a beaker containing 50 mL of methanol and 8 mL of deionized water followed by ultrasonication for 30 min. Then it was transferred to a double-neck flask and 5 mL of NH₄OH (25%, v/v) and 2 mL of TEOS were added to it. The suspension was stirred for 36 h under nitrogen atmosphere at room temperature. Finally, the silica-decorated magnetic nanoparticles (Fe₃O₄@SiO₂) were washed using diluted hydrochloric acid and water and were separated by a permanent magnet and dried at 70 °C for 8 h.

2.4. Surface modification of Fe₃O₄@SiO₂ using APTMS

400 mg of Fe₃O₄@SiO₂ nanoparticles was chemically modified by 3.5 mL of APTMS in 40 mL methanol solution by refluxing for 40 h at 65 °C. The Fe₃O₄@SiO₂–APTMS was collected by an external magnetic field and then dried at 70 °C for 10 h.

2.5. Preparation of Fe₃O₄@SiO₂–L

The Schiff base (L) chelate generation on the surface of Fe₃O₄@SiO₂ was carried out by the addition of 0.300 g of 2-hydroxy-3-methoxybenzaldehyde (2-H-3-MBA) to 40 mL methanol containing 0.6250 g Fe₃O₄@SiO₂–APTMS obtained from the previous stage. Then the reaction mixture was refluxed for 36 h at 65 °C. Finally, Fe₃O₄@SiO₂–L was collected by an external magnetic field and dried at 70 °C for 4 h. The schematic diagram of Fe₃O₄@SiO₂–L preparation is shown in Fig. 1.

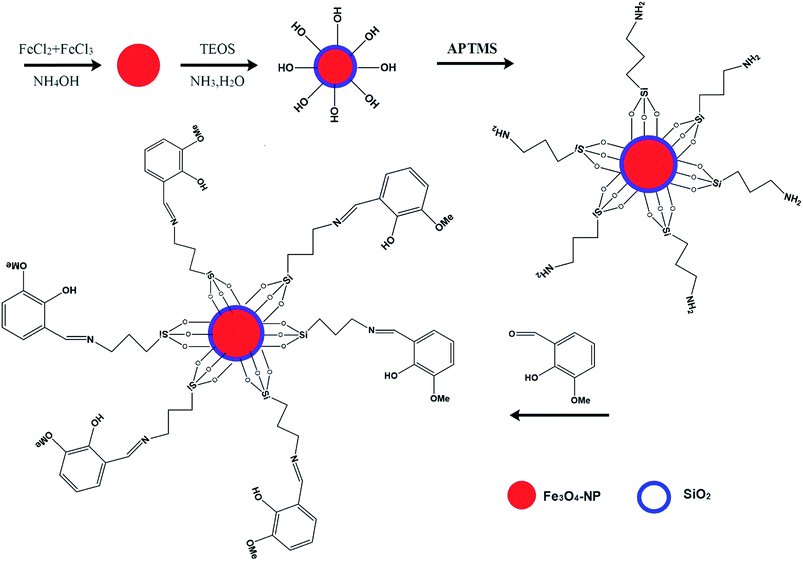

Fig. 1 The schematic diagram of Fe₃O₄@SiO₂–L preparation.

2.6. Electrode preparation

A Teflon holder with a hole of diameter 5.0 mm and depth of 3 mm at one end was fabricated for filling the carbon paste as the electrode body. Carbon paste was prepared by mixing the graphite powder with the desired weights of Fe₃O₄@SiO₂–L and NaTPB to get different compositions. The mixture was homogenized in THF at room temperature and the THF was allowed to be completely evaporated. Then paraffin oil was homogeneously mixed by agate mortar and pestle sets to get different compositions. The prepared paste was then packed into the hole of the Teflon holder. Electrical contact to the paste was established via inserting a thin copper wire. A fresh electrode surface was obtained by squeezing it out. Additionally it was polished on paper until a shiny surface was obtained. The prepared pastes were used directly for potentiometric measurements without any preconditioning.

2.7. EMF measurements

All the EMF measurements were carried out relative to an Ag/AgCl electrode by a digital pH/mV meter with the cell assembly of Ag/AgCl(s), KCl (3 mol L⁻¹) | sample solution | developed carbon paste electrode.

A calibration graph was prepared by plotting the potential of the cell E (mV) versus log[Zn²⁺]. All measurements were carried out at 25 °C. The performance of the electrodes was investigated by measuring the EMFs of the Zn²⁺ ion solutions with a desired concentration in the range of 1 × 10⁻⁹ to 1 × 10⁻¹ M and by serial dilution. In each solution, while stirring after reaching the equilibrium, the potential was recorded and plotted.

3. Results and discussion

3.1. General consideration

The Nernst equation provides the fundamental principle of all potentiometric transducers. According to this equation, the potential changes are logarithmically proportional to the specific ion activity. It is assumed that the interfacial ion transfer and the complexation processes are relatively fast and consequently the equilibrium is held at the interface.³³

3.2. Characterization of magnetite and modified magnetite nanoparticles

The Fe₃O₄ nanoparticles were characterized by SEM, TEM and powder XRD. The SEM image of the Fe₃O₄ nanoparticles (Fig. 2a) shows a size distribution of 20–50 nm, which is confirmed by the TEM micrograph (Fig. 2b). The TEM image of the modified Fe₃O₄@SiO₂ is shown in Fig. 2c. The typical XRD pattern taken from the magnetite nanoparticles is shown in Fig. 2d, which is in accordance with the standard characteristics of Fe₃O₄ (powder diffraction file, JCPDS card no. 00-003-0863).

Fig. 2 SEM (a), and TEM (b), image of Fe₃O₄ nanoparticles; TEM image of the modified Fe₃O₄@SiO₂ (c); XRD of the Fe₃O₄ nanoparticles (d); FTIR spectra of Fe₃O₄, Fe₃O₄@SiO₂, Fe₃O₄@SiO₂–APTMS and Fe₃O₄@SiO₂–L (e); XPS survey spectrum of Fe₃O₄@SiO₂–L (f).

FTIR spectra of Fe₃O₄, Fe₃O₄@SiO₂, Fe₃O₄@SiO₂–APTMS and Fe₃O₄@SiO₂–L were recorded and used to investigate the surface modification of the Fe₃O₄ nanoparticles (Fig. 2e). All the spectra obviously show one strong absorption peak at the low frequency region corresponding to the iron oxide skeleton (the Fe–O stretching band appears at 590 cm⁻¹) and one broad absorption band which is attributed to the stretching vibrations of O–H, appearing at about 3419 cm⁻¹. The silica-coated magnetite shows a band at 1098 cm⁻¹ corresponding to the stretching vibrations of Si–O–Si. The FTIR spectrum of Fe₃O₄@SiO₂–L presents an absorption peak at 1631.4 cm⁻¹ corresponding to the C=N bond, confirming the formation of the L (Schiff base) on the surface of Fe₃O₄@SiO₂.

Fig. 2f shows the XPS survey spectrum of Fe₃O₄@SiO₂–L. As mentioned above, the FTIR peak at 590 cm⁻¹ originates from the Fe–O bond, which is an indication of the formation of Fe₃O₄. However, no XPS signal from Fe was observed which implies that the modified SiO₂ shell is thicker than the sampling depth of XPS. This thick modified SiO₂ shell is confirmed by the TEM image of the modified Fe₃O₄@SiO₂ (Fig. 2c). C 1s and N 1s peaks originating from the ligand located on the surface of Fe₃O₄@SiO₂ are observed (Fig. 2f). It is worth noting that the charging effect was compensated by using the C 1s binding energy. Savitzky–Golay filtering was performed to smooth the spectra.^34,35

3.3. Preliminary investigations on the CPE

High selectivity and improved CPE figures of merit need strong interaction between the carrier and target ions. To estimate the selective interaction of the proposed CPE with the ions, a series of similar electrodes based on 67 mg of graphite powder, 10 mg of carrier, 3 mg of cationic additive (NaTPB) and a suitable amount of paraffin were prepared. Then an investigation on their responses toward various metal ions in the concentration range of 1.0 × 10⁻² to 1.0 × 10⁻⁷ M was performed. The obtained results confirmed the most sensitive response for Zn²⁺ ions over a wide concentration range compared to the other ions studied.

3.4. Central composite design (CCD) for the carbon paste electrode composition

In CCD under response surface methodology (RSM), random experiments were designed using the software STATISTICA (Table 1) and performed to minimize the effect of uncontrolled variables. The three variables including the amount of graphite powder, Fe₃O₄@SiO₂–L and NaTPB were set at three levels of low, central and high (Table 1). RSM was used to investigate the influence of these variables and their possible interactions on the Nernstian response of the electrode to Zn²⁺ and thus to optimize and improve the composition of the carbon paste electrode. The amount of graphite powder, Fe₃O₄@SiO₂–L and NaTPB was denoted by A, B and C, respectively.

Table 1 Experimental factors, levels and matrix of the central composite design

Factors	Units	−1 level	+1 level	−Alpha	+Alpha
Graphite powder (A)	mg	55	85	40	100
Fe3O4@SiO2–L (B)	mg	5	15	0	20
NaTPB (C)	mg	2	6	0	8

---

Std	Run	Block	A	B	C	Slope
4	1	Block 1	70.00	10.00	4.00	22.42
11	2	Block 1	55.00	5.00	2.00	18.809
2	3	Block 1	70.00	10.00	4.00	22.54
3	4	Block 1	85.00	15.00	2.00	20.7
7	5	Block 1	55.00	15.00	6.00	26.894
5	6	Block 1	40.00	10.00	4.00	15.098
1	7	Block 1	70.00	10.00	0.00	15.855
15	8	Block 1	70.00	10.00	4.00	21.5
14	9	Block 1	70.00	10.00	8.00	20.61
8	10	Block 1	70.00	0.00	4.00	11.8111
6	11	Block 1	70.00	20.00	4.00	29.629
13	12	Block 1	85.00	5.00	6.00	9.3604
9	13	Block 1	100.00	10.00	4.00	11.6686
12	14	Block 1	70.00	10.00	4.00	22.54
10	15	Block 1	70.00	10.00	4.00	22.54

---

Table 2 shows the results of the analysis of variance (ANOVA) and the regression coefficients, which suggest that the significance of the applied quadratic model has a p-value of less than 0.05.

Slope = −11.599 + 1.108A − 1.893B + 0.487C + 0.027AB − 0.013AC + 0.305BC − 0.010A² − 0.015B² − 0.251C² (1)

Table 2 Analysis of variance (ANOVA)

Source	Sum of squares	Df^a	Mean square	F value	p-value prob > F
a Df: degrees of freedom.
Model	455.53	9	50.61	241.76	<0.0001	Significant
A	5.88	1	5.88	28.09	0.0032
B	158.74	1	158.74	758.23	<0.0001
C	11.31	1	11.31	54.00	0.0007
AB	10.69	1	10.69	51.07	0.0008
AC	0.43	1	0.43	2.06	0.2111
BC	24.86	1	24.86	118.75	0.0001
A^2	114.88	1	114.88	548.73	<0.0001
B^2	3.42	1	3.42	16.32	0.0099
C^2	23.58	1	23.58	112.63	0.0001
Residual	1.05	5	0.21
Lack of fit	0.22	1	0.22	1.06	0.3606	Not significant
Pure error	0.83	4	0.21
Cor total	456.58	14

---

The lack of fit (LOF) indicates the variation of the data nearby the fitted model, which is a criterion for the suitability of the model. As seen in Table 2, the p-value of the LOF is 0.3606, which is larger than 0.05 and implies that the LOF is not significant and the model fits the response well. R² is a measure of the amount of deviation around the mean explained by the model. The large adjusted R² values (0.9936) indicate a good relationship between the experimental data and the fitted model and thus the suitability of the model. The plot of the predicted values of response (slope) versus the observed values (Table 1) is shown in Fig. 3a which demonstrates a good fit. This shows a normal distribution of error around the mean, which expresses the good applicability of the model for the explanation of the experimental data.

Fig. 3 The predicted versus experimental data of the normalized slope (a), and response surfaces: the slope versus variables (b)–(d).

3.5. Response surface methodology and optimization

Response surface methodology (RSM) was used to optimize the critical factors and describe the nature of the response surface in the experiments. The typical 3D response surface plots of the slope as the response versus the significant variables were obtained and are shown in Fig. 3b–d, the curvatures of which indicate the interaction between the variables involved. Fig. 3b shows that at low amounts of graphite powder, no significant increase in the slope is obtained by increasing the amount of Fe₃O₄@SiO₂–L. It also shows that at low amounts of Fe₃O₄@SiO₂–L, the slope decreases by increasing the amount of graphite powder. Moreover, a concurrent increase in the amount of graphite powder and Fe₃O₄@SiO₂–L increases the slope. Fig. 3c shows the interaction between NaTPB and graphite powder. Fig. 3d shows that at low amounts of NaTPB, a mild variation in the slope is observed while the amount of Fe₃O₄@SiO₂–L increases. At low amounts of Fe₃O₄@SiO₂–L, the slope slowly decreases while the amount of NaTPB increases. Furthermore, the rate of increase in the slope gets higher while a simultaneous increase in the amount of NaTPB and Fe₃O₄@SiO₂–L occurs.

An accurate consideration of eqn (1) and the desirability function (DF) makes it possible to obtain the best slope by running the least number of experiments with high repeatability. The presence of Fe₃O₄@SiO₂–L resulted in a development in the kinetics of the electrode process and sensitivity of the potentiometric measurements. The profiles for the predicted values and desirability were used for the optimization process. The scale must be maximized in the range of 0.0 (undesirable) to 1.0 (very desirable) following the best and an efficient selection of variables. For a sufficient amount of paraffin, the optimum values of the amount of graphite powder, Fe₃O₄@SiO₂–L and NaTPB were found to be 72, 15 and 6 mg, respectively, at which the slope obtained was 29.717 with a high desirability of 1.00. To validate this prediction, similar experiments at optimum conditions were performed which consistently resulted in 29.415 mV per decade of concentration for the slope with five orders of magnitude for the linear range.

3.6. Effect of pH on the electrode response

The effect of the pH of the test solution on the electrode response was studied in Zn(NO₃)₂ solutions (1.0 × 10⁻³ M and 1.0 × 10⁻⁵ M) and the results are presented in Fig. 4. pH adjustments in solutions were performed using nitric acid or sodium hydroxide solutions. It was seen that the electrode response is hardly affected by pH in the range of 4.0–6.0. The potential changes observed at lower pH values could be due to the protonation of the ion carrier and/or various functional groups of the graphite powder. At higher pH values, because of the formation of some hydroxy complexes or hydroxide precipitate of Zn²⁺ ions in solution and/or because of a probable change in the stoichiometry of the metal chelate species, a drift in response was achieved. Subsequently, the pH of the Zn²⁺ ion solution was set to be about 5.5 as the working pH without the addition of a buffer.

Fig. 4 Influence of pH on the potential response of the proposed Zn²⁺ sensor.

3.7. Dynamic range

As seen in Fig. 5a, the calibration curve is linear over the concentration range of 2.5 × 10⁻⁶ to 1.0 × 10⁻¹ mol L⁻¹. In this work, the detection limit of the modified CPE obtained was 1.0 × 10⁻⁶ mol L⁻¹ which was calculated by extrapolating the two segments of the calibration curve in Fig. 5a.

Fig. 5 Linear range of the electrode (a), and response time of the proposed Zn²⁺ ion-selective electrode based on Fe₃O₄@SiO₂–L at different concentrations over the range of 1.0 × 10⁻⁶ to 1.0 × 10⁻¹ mol L⁻¹ (b).

3.8. Response time

The response time of an ion-selective electrode is also an important factor for any analytical application. Response time is the average time required for the electrode to reach a potential response of the final equilibrium value ±1 mV (ref. 36) or to achieve 90% of the final equilibrium value.³⁷ The response time obtained for Zn²⁺ in the concentration range of 1.0 × 10⁻⁶ to 1.0 × 10⁻² mol L⁻¹ is presented in Fig. 5b. It was found to be 14 s after successive immersions in a series of Zn²⁺ solutions, each having a 10-fold concentration difference.

3.9. Repeatability and reproducibility

The repeatability of Zn²⁺ ion measurement using the prepared electrode was investigated by washing the electrode only with distilled water and more than 15 successive potentiometric measurements were performed on a 1.0 × 10⁻³ M Zn²⁺ solution and vice versa. The washing step required for the electrode to return to the starting potential was carried out during ∼1 min with a standard deviation of ±1.83 mV in the potential. Three similar electrodes were reproduced at optimum conditions. Their linear ranges were found to be 1.0 × 10⁻⁶ to 1.0 × 10⁻¹ M and their corresponding slope values were 29.464, 29.465 and 29.318 (mV per decade concentration) with R² values of 0.9974, 0.9865 and 0.9954, respectively (Fig. 6), which strongly supports its good reproducibility.

Fig. 6 Reproducibility of the prepared electrode at optimum conditions.

3.10. Potentiometric selectivity and lifetime

The potentiometric selectivity coefficient of an electrode is defined by its relative response for the primary ion over other ions present in the solution. The IUPAC recommended the use of two different procedures of SSM and FIM to determine the Nicolskii coefficients of ion-selective electrodes.³⁸ In the FIM, an entire calibration curve is measured for the analyte ion in a constant interfering ion background, a_j(BG). The linear response curve of the electrode as a function of the analyte ion activity is extrapolated until, at the lower detection limit a_i(DL), it intersects with the observed potential for the background alone. The FIM coefficient (K^FIM_IJ) is calculated from the obtained ratio of the lower detection limit to the interfering ion activity which is implemented in the following equation:

K^FIM_IJ =  a_i(DL)/a_j(BG)^Z_i/Z_j (2)

where Z_i and Z_j are the target ion charge and the charge of interfering ions, respectively. From Table 3, it is seen that the electrodes based on the intermixed carbon paste and Fe₃O₄@SiO₂–L are selective for Zn²⁺ ions towards a variety of cations. This is because the efficiency and selectivity in the ion/molecule binding depend not only on the ring size of the chelate, but also on the nature of the coordination groups attached. The relatively soft transition metal ions such as Zn²⁺ ions display great affinity for soft coordination centers like nitrogen atoms.³⁹ Also, the lifetime and the stability of the suggested developed Zn²⁺ sensor were evaluated using the potentiometric response to Zn²⁺ ions in a series of standard Zn²⁺ nitrate solutions and calculating the response slope of the optimized sensor. The lifetime was found to be 3 days.

Table 3 Selectivity coefficients for various interfering cations for the proposed zinc ion-selective electrode

Interfering (j)	−log K^FIMIJ J = 0.001 (M)
Na^+	2.5
K^+	2.2
Ca^2+	2.5
Pb^2+	0.3
Cu^2+	−2
Cd^2+	1.2
Co^2+	2.4
Ni^2+	2.7
Mn^2+	2.3
Al^3+	1.1

---

3.11. Analytical applications

To evaluate the applicability of the Zn²⁺ sensor for real samples, an attempt was made to determine Zn²⁺ ions in several prepared water samples. These samples were prepared by adding Zn²⁺ ions with a certain concentration in distilled water. Also, to study the applicability of the electrode for environmental samples, the proposed electrode was applied to the recovery of Zn²⁺ ions from a tap water sample. These results are summarized in Table 4, and indicate good recoveries.

Table 4 Determination of Zn²⁺ recovery by the suggested electrode in the prepared water samples

Sample	Zn^2+ added (M)	Zn^2+ found^a (M)	Recovery (%)
a Average of three replicate measurements.
Tap water	0	6 × 10^−5 ± 0.02
	5.25 × 10^−3	5.3 × 10^−3 ± 0.04	100.9
10^−6 M	0	1.08 × 10^−6 ± 0.07
	2.5 × 10^−5	2.58 × 10^−5 ± 0.05	103.2
10^−5 M	0	1.0 × 10^−5 ± 0.10
	5 × 10^−3	4.95 × 10^−3 ± 0.05	99

---

Table 5 shows a comparison of the proposed zinc ion sensor based on the Fe₃O₄@SiO₂–L nanostructure with reported zinc ion sensors. The performance of the present zinc ion sensor is better than that of the reported zinc ion sensors^40,41 because of the three-dimensional network of the Fe₃O₄@SiO₂ nanostructure grafted by the Schiff base.

Table 5 A comparative study of the present zinc ion sensor with the reported zinc ion sensors

	Concentration range	Slope sensitivity (mV per decade)	Reference
1	6 × 10^−6 to 10^−1 M	29.0	38
2	10^−5 to 10^−1 M	35.0	39
3	5 × 10^−4 to 10^−1 M	33.0	40
4	1.3 × 10^−5 to 10^−1 M	30.0	41
5	10^−6 to 10^−1 M	36.0	2
6	2.5 × 10^−6 to 10^−1 M	29.45	This work

---

4. Conclusions

This work reported a new nanocomposite-based carbon paste electrode using a feasible method to construct a selective potentiometric sensor for the determination of Zn²⁺. Nanostructured Fe₃O₄@SiO₂ was successfully prepared and grafted by a Schiff base. The influence of the amount of graphite powder, Fe₃O₄@SiO₂–L and sodium tetraphenylborate (NaTPB) used in the composition of the carbon paste electrode was investigated by response surface methodology and their optimal values were found to be 72, 15 and 6 mg, respectively. Then the optimized electrode was used as a novel chemically modified carbon paste electrode for selective zinc ion determination over the concentration range of 2.5 × 10⁻⁶ to 1.0 × 10⁻¹ M with a short response time (14 s). The electrode exhibited the best performance in terms of the working concentration range, Nernstian slope (29.451), working pH (neutral), and response time with a good detection limit, high repeatability and reproducibility.
