Relationship between crosslinking structure and low dielectric constant of hydrophobic epoxies based on substituted biphenyl mesogenic units

Huilong Guoab, Jian Zhengab, Jianqun Ganab, Liyan Lianga, Kun Wua and Mangeng Lu*a
aKey Laboratory of Cellulose and Lignocellulosics Chemistry, Chinese Academy of Sciences, Guangzhou Institute of Chemistry, Chinese Academy of Sciences, Guangzhou 510650, PR China. E-mail: mglu@gic.ac.cn; huilongguo@126.com
bUniversity of Chinese Academy of Sciences, Beijing 100049, PR China

Received 17th August 2015 , Accepted 9th October 2015

First published on 12th October 2015


Abstract

In this work, a series of low dielectric constant hydrophobic epoxies based on substituted biphenyl mesogenic were prepared and characterized. The liquid crystalline phase structure and the crosslink density of substituted biphenyl epoxies were determined by polarized optical microscopy, wide angle X-ray diffraction measurements and dynamic storage moduli data. Relationship between crosslinking structure and dielectric and water resistance properties was discussed in our paper. The samples showed lower dielectric constants down to 2.24, owing to the oriented structure and increased crosslink network density caused by the orientation of biphenyl mesogenic, indicating a new idea to prepare low dielectric constant epoxies by introducing the mesogenic units into epoxy resins. And the comprehensive contributions of oriented structure and increased crosslink network in epoxies cured by aromatic amines, less hydroxyl groups existing in epoxies cured with anhydride and the hydrophobic methyl substituents or larger tert-butyl substituents, could afford good water resistance properties with water absorptions during 48 h at 25 °C ranging from 0.31–0.36%, which indicated that the water resistance was apparently better than that of conventional epoxy systems.


1. Introduction

For various modern high-speed electrical devices, the epoxy resin (EP) materials with low dielectric constant (Dk), good water resistance and dimensional stability are expected to play increasingly crucial roles in meeting the requirement of high integrated circuit density, elevated operating temperature and high reliability. Thus, novel EP and its composites with reduced Dk and dielectric loss (Df) are paid attractive attention to the application in the next generation of high performance electrical devices.1–3

It can be observed that the majority of the researches on reducing dielectric constant of epoxy resin materials were conducted by incorporating fluorine atoms into polymers, introducing porosity or free volume, minimizing polarizability and synthesizing porous polymers.4–10 A novel fluorinated epoxy resin was synthesized by Tao et al.11 using a four-step procedure and cured with hexahydro-4-methylphthalic anhydride (HMPA) and 4,40-diaminodiphenyl-methane (DDM); the cured fluorinated epoxy resins exhibited improved dielectric properties as compared with the commercial available epoxy resins with the dielectric constants lower than 3.3. Ching Hsuan Lin et al.3 used a novel curing agent of propargyl ether-containing phosphinated benzoxazine to reduce the dielectric constant of epoxy thermosets. Yalan Wu12 reported that the dielectric constant and dielectric loss values decreased with the increasing addition of NH2–POSS into original epoxy resin. Amendola, E13 and S. S. Vaisakh14 found the dielectric constant could be decreased with introduction of ceramic nano fillers. Jiao, Jian2 added novel organic–inorganic particles (denoted POSS–MPS) into the epoxy resin and the POSS–MPS/EP nanocomposites containing 5 wt% of POSS–MPS showed a lower dielectric constant (Dk = 3.66) and loss factor (Df = 0.017) in comparison to pristine EP with the value of 4.03 and 0.031. Yu, Wenqi15 synthesized a graphene hybrid material functionalized with octa-aminophenyl polyhedral oligomeric silsesquioxanes (OapPOSS-g-GO) and reduced dielectric constant and dielectric loss by applying OapPOSS-g-GO into epoxy resin. However, conventional cross-linked epoxy polymers (or epoxy based SMPs) were highly water absorbing (about 1–4 wt%) and hydrophilic (water contact angle of 50–52 degrees) owing to the existence of large number of hydroxyl groups in the cross-linked networks.16 The epoxies with more porosities might be even more hydrophilic.

Liquid crystalline epoxides (LCEs) are superior to conventional amorphous epoxies in the performance of good water resistance properties, better mechanical properties, better dimensional stability, lower coefficients of thermal expansion, increased fracture toughness and noticeable high temperature properties.17–24 It was reported that the oriented structure of LCEs could increase packing density of the segments, resulting in increased crosslink network density.25,26 The molecular motivation of liquid crystalline epoxies under electric field was hindered by the enhanced intermolecular interactions caused by oriented and increased cross-linked networks, resulting in ultra-low dielectric constant and low dielectric loss compared with current polymeric matrix without introducing pores or fluorine. In addition, the closely packed arrangement of mesogens could lead to dramatically reduced solvent absorptions.21,27 Therefore, it was attractive that biphenyl mesogenics were induced into cross linked epoxy systems, to gain low dielectric constant and good water resistance epoxy resins, which indicated that liquid crystalline epoxies could be novel epoxy resin (EP) materials applied in the next generation of high performance electrical devices. However, there were only few works that were focused on the low dielectric constant of hydrophobic liquid crystalline epoxies.

In our latest work, a novel epoxy monomer denoted as 3,5′-di-t-butyl-5,3′-dimethyl biphenyl diglycidyl ether (t-BuMBPDGE) was synthesized and applied into situ composites with 3,3′,5,5′-tetramethyl-4,4′-biphenyl diglycidyl ether (TMBPDGE), accompanied with curing agent aromatic amines. The epoxies showed good mechanical and water resistance properties and extraordinary shape memory properties.28 In this paper, it was found that substituted biphenyl epoxies owned excellent dielectric properties with low dielectric constant and low dielectric loss. To further investigate the relationship between crosslinking structure and low dielectric constant of hydrophobic epoxies, epoxy resins cured with different curing agents and cured at different temperatures were prepared and characterized.

2. Experimental

2.1 Materials

3,3′,5,5′-Tetramethyl-4,4′-biphenyl diglycidyl ether [TMBPDGE, epoxide equivalent weight (EEW): 198 g mol−1, abbreviated as (1)] and 3,5′-di-t-butyl-5,3′-dimethyl biphenyl diglycidyl ether [t-BuMBPDGE, (EEW): 263 g mol−1, abbreviated as (2)] were synthesized in our laboratory according to the program proposed by our group in early reports.28 4,4′-Diaminodiphenylmethane (DDM) and methyl hexahydrophthalic anhydride (MHHPA, see Scheme 1) were purchased from Aladdin and were used as curing agent. N-Benzyldimethylamine (BDMA, see Scheme 1) was purchased from Aladdin and was used as an accelerator when cured with MHHPA. All other reagents were of analytical grade and used as received.
image file: c5ra16540g-s1.tif
Scheme 1 Chemical structures of MHHPA and BDMA.

2.2 Curing of substituted biphenyl epoxies

The stoichiometric amount of epoxy monomer [different weight ratios of (1) and (2)] (10 mmol) and DDM (5 mmol) or MHHPA (10 mmol) and 1 phr of accelerator BDMA were cured at 105 °C for 5 h, 160 °C for 4 h and 200 °C for 1 h. To investigate the relationship between crosslinking structure and low dielectric constant of hydrophobic epoxies, (1)/DDM and (1)/MHHPA were also cured directly at higher temperature 160 °C for 6 h, 200 °C for 1 h to guarantee completely branching and crosslinking, while the totally reaction of linear chain extension might not be afforded.

2.3 Physical measurements

The liquid crystalline phase structure of substituted biphenyl epoxies was examined by polarized light optical microscopy (POM) (Orthoglan, LEITZ, Germany) and wide angle X-ray diffraction measurements (WAXS) which were carried out with a Rigaku Diffractometer (D/MAX-1200), using monochromatic Cu Kα radiation (40 kV, 30 mA) and secondary graphite monochromator, with the X-ray scatting intensities being detected by a scintillation counter incorporating a pulse-height analyzer.

The response of the samples to small-strain mechanical deformation was measured as a function of temperature (−120 to 200 °C) using a NETZSCH DMA 242 dynamic mechanical analyzer in a tensile mode. The testing was carried out at a heating rate of 5 °C min−1 in a N2 atmosphere, frequencies of 1 Hz, a dynamic stress of 5 N, and a static stress of 0.5 N. The sample displacement was 30 μm. Storage moduli (E′), loss moduli (E′′), and loss tangent (tan[thin space (1/6-em)]δ) were recorded.

The dielectric properties were measured by a dielectric analyzer (DEA 2970, TA Instruments), up to a frequency of 1 MHz at 25 °C.

Water sorption as a function of immersion time was monitored by a gravimetric method. The sample sheets (20 mm × 10 mm × 0.6 mm) were polished and dried under vacuum oven at 85 °C for a week. The specimens were periodically removed from water bath at 25 °C, followed by wiping with tissue paper for removal of any water on the surface, and then weighed by a hundred thousandths microanalytical balance (AUW120D, Japan, 42/120 g, 0.01/0.1 mg) immediately. Three samples were used to repeat the test and averages were selected.

The contact angle test was carried out by contact angle meter (JC2000D1, Shanghai zhongchen digital technic apparatus co., ltd).

3. Results and discussion

3.1 The liquid crystalline phase structure and crosslink density of substituted biphenyl epoxies

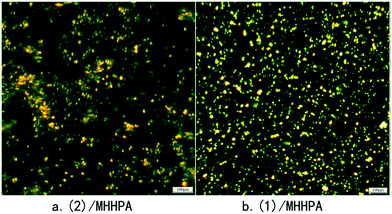

Fig. 1 showed the polarized optical microscopic pictures after curing of (1)/MHHPA and (2)/MHHPA. Birefringence was observed from all of the POM pictures of (1)/MHHPA and (2)/MHHPA network. And density of bright droplet-like liquid crystalline domains of (2)/MHHPA was lower than that of (1)/MHHPA. While the liquid crystalline domains density of these epoxy/MHHPA systems was lower than that of epoxy/DDM systems.28
image file: c5ra16540g-f1.tif
Fig. 1 Polarized optical microscopic pictures of [(a) (2)/MHHPA and (b) (1)/MHHPA] after curing at room temperature.

In order to further investigate the nematic structure of biphenyl epoxies affected by substituents and curing agent, wide angle X-ray diffraction patterns of (1)/DDM, (2)/DDM, (1)/(2)/DDM composite, (1)/MHHPA, (2)/MHHPA and (1)/(2)/MHHPA composite were analyzed, as shown in Table 1 and Fig. 2. It could be seen from Table 1 that all the samples showed broad peaks around 23°. While (1)/MHHPA, (2)/MHHPA and (1)/(2)/MHHPA composite showed similar peaks with 2θ increased from 17.5° to 18.8° corresponding to d-spacing of 5.1 Å to 4.7 Å (see Fig. 2).

Table 1 Overview results of (2)/DDM resin, (1)/DDM resin and (1)/(2)/DDM composite published in RSC Adv., 2015, 5, 67247–67257
Samples Storage moduli (E′) (MPa) 20 °C Tg by DMA/(°C) Crosslink density νc (mol cm−3) XRD/2θ XRD/d Contact angles/degree
(1)/DDM 2007 178 3.07 × 10−3 22.5 3.95 98
(2)/(1)5[thin space (1/6-em)]:[thin space (1/6-em)]5/DDM 3145 169 2.42 × 10−3 21.8 4.08 96
(2)/DDM 3215 160 1.75 × 10−3 21.8 4.08 92



image file: c5ra16540g-f2.tif

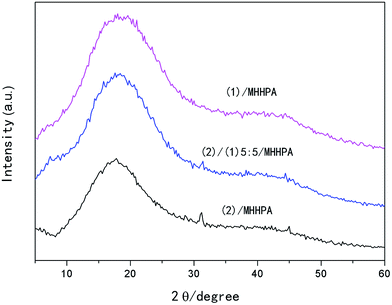

Fig. 2 Wide angle X-ray diffraction measurements of (1)/MHHPA, (2)/MHHPA and (1)/(2)/MHHPA composite.

The crosslink density defined as the number of moles of elastically effective network chains per cubic centimeter of sample was determined by the following equation28–31


νc = G′/RT = E′/3RT (1)

The calculated crosslink density νc was shown in Tables 1 and 2, from which it could be seen that the crosslink density of epoxy/DDM systems was higher than that of epoxy/MHHPA systems. And the crosslink density of both epoxy/DDM and epoxy/MHHPA systems decreased as the increasing of the content of (2). While crosslink density of (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature was lower than that of (1)/DDM and (1)/MHHPA systems which were cured at lower temperature.

Table 2 DMA results and crosslink density of (1)/MHHPA, (2)/MHHPA, (1)/(2)/MHHPA composite and (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature
Samples Storage moduli (E′) (MPa) 20 °C (ER′) (MPa) (Tg + 50 °C) Tg (°C) νc (mol cm−3)
(1)/MHHPA 2238 11.83544 137 1.04 × 10−3
(2)/(1)5[thin space (1/6-em)]:[thin space (1/6-em)]5/MHHPA 2286 5.54834 126 0.49 × 10−3
(2)/MHHPA 2461 2.31652/2.1697 112/126 0.21/0.19 × 10−3
(1)/DDM cured at higher temperature 2528 4.99284 133.9 0.43 × 10−3
(1)/MHHPA cured at higher temperature 2420 3.005 121.6 0.27 × 10−3


There were four reactive sites in each molecular structure of DDM (see Scheme 2), while there were only two reactive sites in each MHHPA molecular structure (see Scheme 2), moreover, the steric hindrance of the tert-butyl substituents was larger than that of methyl substituents. So during linear chain extension stage, the packing density of mesogenic might be higher in the epoxy/DDM systems than that in epoxy/MHHPA systems. And the density of liquid crystalline domains decreased in the order in (1)/DDM, (2)/DDM, (1)/MHHPA and (2)/MHHPA networks with d-spacing increased from 3.9 Å to 5.1 Å, resulting in the highest νc in (1)/DDM resin. However, the linear chain extension could not catch up with the branching and crosslinking and the uniaxially oriented structure could not be formed in epoxy systems which were cured directly at higher temperature, so that no birefringence was observed in (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature and the packing density of molecules ranked the lowest.


image file: c5ra16540g-s2.tif
Scheme 2 Uniaxial oriented nematic structure mode and reaction mechanism of (1)/DDM resin and (1)/MHHPA resin.

Uniaxial oriented nematic structure mode and the reaction process mechanism of (1)/DDM and (1)/MHHPA were shown schematically in Scheme 2. From which the orientation of substituted biphenyl mesogenic could be more easily analyzed and understood.

3.2 Dynamic mechanical analysis

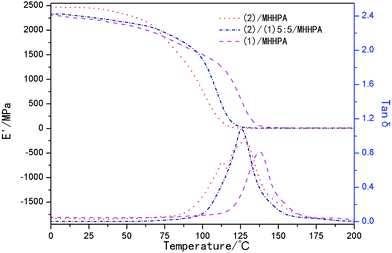

The dynamic storage moduli (E′) of (1)/MHHPA, (2)/MHHPA and (1)/(2)/MHHPA composite were shown in Fig. 3, from which it could be found that all the samples illustrated higher dynamic storage moduli over 2 GPa at room temperature, which indicated that these epoxies based on substituted biphenyl mesogenic exhibited high dimensional stability to external force. And this high dimensional stability was an attractive property for electric device materials. It could also be found that the E′ of epoxy/DDM systems were higher than that of epoxy/MHHPA systems, owing to higher crosslink density in epoxy/DDM systems. While the E′ increased with the content of (2) increasing in both epoxy/DDM and epoxy/MHHPA systems, in that the orientation of biphenyl mesogenic along the direction of stress was obstructed by the larger steric hindrance of the tert-butyl substituents in (2)/DDM and (2)/MHHPA resins.
image file: c5ra16540g-f3.tif
Fig. 3 Dynamic storage moduli (E′) and loss tangent (tan[thin space (1/6-em)]δ) of (1)/MHHPA, (2)/MHHPA and (1)/(2)/MHHPA composite.

The compared data of the dynamic storage moduli (E′) of (1)/DDM and (1)/MHHPA systems which were cured at lower temperature and directly at higher temperature was shown in Fig. 4. It could be seen that the (E′) of both (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature was higher than that of (1)/DDM and (1)/MHHPA systems which were cured at lower temperature. Although the crosslink densities of (1)/DDM and (1)/MHHPA systems which were cured at lower temperature were higher than that of (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature, more physical entanglement might formed in the latter, the orientation of biphenyl mesogenic along the direction of stress might be obstructed by the physical entanglement, thus, the (E′) of both (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature was higher than that of (1)/DDM and (1)/MHHPA systems which were cured at lower temperature.


image file: c5ra16540g-f4.tif
Fig. 4 Compared data of the dynamic storage moduli (E′) of (1)/DDM and (1)/MHHPA systems which were cured at lower temperature and directly at higher temperature.

The loss tangent (tan[thin space (1/6-em)]δ) data of (1)/DDM, (2)/DDM, (1)/(2)/DDM composite, (1)/MHHPA, (2)/MHHPA, (1)/(2)/MHHPA composite and (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature were shown in Table 1, Fig. 3 and 4. The glass transition temperature of the samples decreased from 178 °C to 96 °C in the order in (1)/DDM, (1)/(2)/DDM composite, (2)/DDM, (1)/MHHPA, (1)/(2)/MHHPA composite, (2)/MHHPA. Two peaks could be seen in (2)/MHHPA resin. The glass transition temperature of (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature were lower than that of (1)/DDM and (1)/MHHPA systems which were cured at lower temperature.

As was well known, Tg in DMA referred to the temperature at which the network segments began to move. And the movement of network segments could be influenced by the chemical crosslinking, physical entanglement and the packing density of the segments. The interchain interactions were strongly dependent on the packing density of the segments which was affected by the orientation of substituted biphenyl mesogenics. Highly oriented substituted biphenyl mesogenics could enhance the interchain interactions, making the substituted biphenyl mesogens slip and rotate not easily. Therefore, the Tg of (1)/DDM resin ranked the highest with the lowest one in (2)/MHHPA resin. While two peaks could be found in the loss tangent (tan[thin space (1/6-em)]δ) data of (2)/MHHPA resin, which was because that the orientation of substituted biphenyl mesogenics was obstructed by the larger steric hindrance of the tert-butyl substituents in (2)/MHHPA resin. And the molecular structure of MHHPA itself, compared to the rigid molecular structure of aromatic amines DDM, could also decrease the liquid crystalline domains. Thus, a liquid crystalline phase and an isotropic phase existed in (2)/MHHPA resin (it could be seen in Fig. 1a that the density of liquid crystalline domains was the lowest one with isotropic domains existing between the bright droplet-like domains of the liquid crystalline). In the liquid crystalline phase, mainly oriented biphenyl mesogenics were obtained so that the crosslinks are mostly chemical in nature. Larger number of physical crosslinks was expected to be present in addition to the chemical crosslinks in the isotropic phase and extra constraints on the molecular motions were exerted in the isotropic state because of existence of physical crosslinks, which caused the shift of the Tg to higher temperatures.17,32,33 Therefore, the peak at 112 °C is owing to the Tg of the liquid crystalline phase, while the peak at 126 °C is due to the Tg of the isotropic phase. However, the glass transition temperature of (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature (isotropic state) were lower than that of (1)/DDM and (1)/MHHPA systems which were cured at lower temperature (liquid crystalline phase), which might be the reason that the crosslink densities of the former were far less than that of the latter (see Table 1) and these totally isotropic states were essentially different from the isotropic domains existing between the domains of the liquid crystalline.

3.3 The dielectric properties analysis

The dielectric constant and dielectric loss of the samples were listed in Table 3. The dielectric constant of epoxy/DDM systems at 1 MHz increased from 2.24 to 2.52 and the dielectric loss at 1 MHz increased from 0.022 to 0.034 as the decrease of the content of (1). And the dielectric constant of epoxy/MHHPA systems at 1 MHz increased from 3.13 to 3.95 and the dielectric loss at 1 MHz increased from 0.024 to 0.035 as the increase of the content of (2). While dielectric constant and dielectric loss of (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature were higher than that of (1)/DDM and (1)/MHHPA systems which were cured at lower temperature.
Table 3 Dielectric properties of (1)/DDM resin, (2)/DDM resin, (1)/(2)/DDM composite, (1)/MHHPA, (2)/MHHPA, (1)/(2)/MHHPA composite and (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature
Samples Dielectric constant Dk/1 MHz Dielectric loss Df/1 MHz
(1)/DDM 2.24 0.022
(2)/(1)5[thin space (1/6-em)]:[thin space (1/6-em)]5/DDM 2.49 0.028
(2)/DDM 2.52 0.034
(1)/MHHPA 3.13 0.025
(2)/(1)5[thin space (1/6-em)]:[thin space (1/6-em)]5/MHHPA 3.57 0.027
(2)/MHHPA 3.95 0.035
(1)/DDM cured at higher temperature 3.05 0.029
(1)/MHHPA cured at higher temperature 3.16 0.036


Low dielectric constant and low dielectric loss epoxy resin materials were expected to play enormously crucial roles in the next generation of high performance electrical devices, which were increasingly attractive to researchers. In this paper, much lower dielectric constant epoxy resin materials, compared to the reported works,2,3,11,12,14,15 were prepared by introducing biphenyl mesogenic. The molecule motion under external alternating electric field was hindered by the oriented structure and increased crosslink network density caused by the orientation of biphenyl mesogenic, resulting in lower dielectric constant and lower dielectric loss epoxy resins, which indicated a new way to reduce the dielectric constant of epoxy thermosets by importing mesogenic. As discussed above, larger substituents of tert-butyl and curing agent MHHPA could decrease crosslink density and the orientation of biphenyl mesogenics, thus, the dielectric constant and the dielectric loss decreased as the increase of the content of (2) with epoxy/MHHPA systems exhibiting higher dielectric constant and dielectric loss. The oriented structure and higher crosslink density could be obtained in (1)/DDM and (1)/MHHPA systems which were cured at lower temperature, therefore, the dielectric constant and dielectric loss of (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature were higher than that of (1)/DDM and (1)/MHHPA systems which were cured at lower temperature.

3.4 The water resistance properties of substituted biphenyl epoxies

The water resistance properties of substituted biphenyl epoxies were determined by contact angle test and water sorption test, as was shown in Table 1, Fig. 5 and Table 4. It could be seen that the contact angles of both epoxy/DDM and epoxy/MHHPA systems increased with the content of (1) increasing while the water absorptions during 48 h and 2 weeks at 25 °C decreased as the increase of the content of (2). Epoxy/DDM systems illustrated slightly better water resistance properties than epoxy/MHHPA systems. And (1)/DDM and (1)/MHHPA systems which were cured at lower temperature exhibited better water resistance properties than (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature.
image file: c5ra16540g-f5.tif

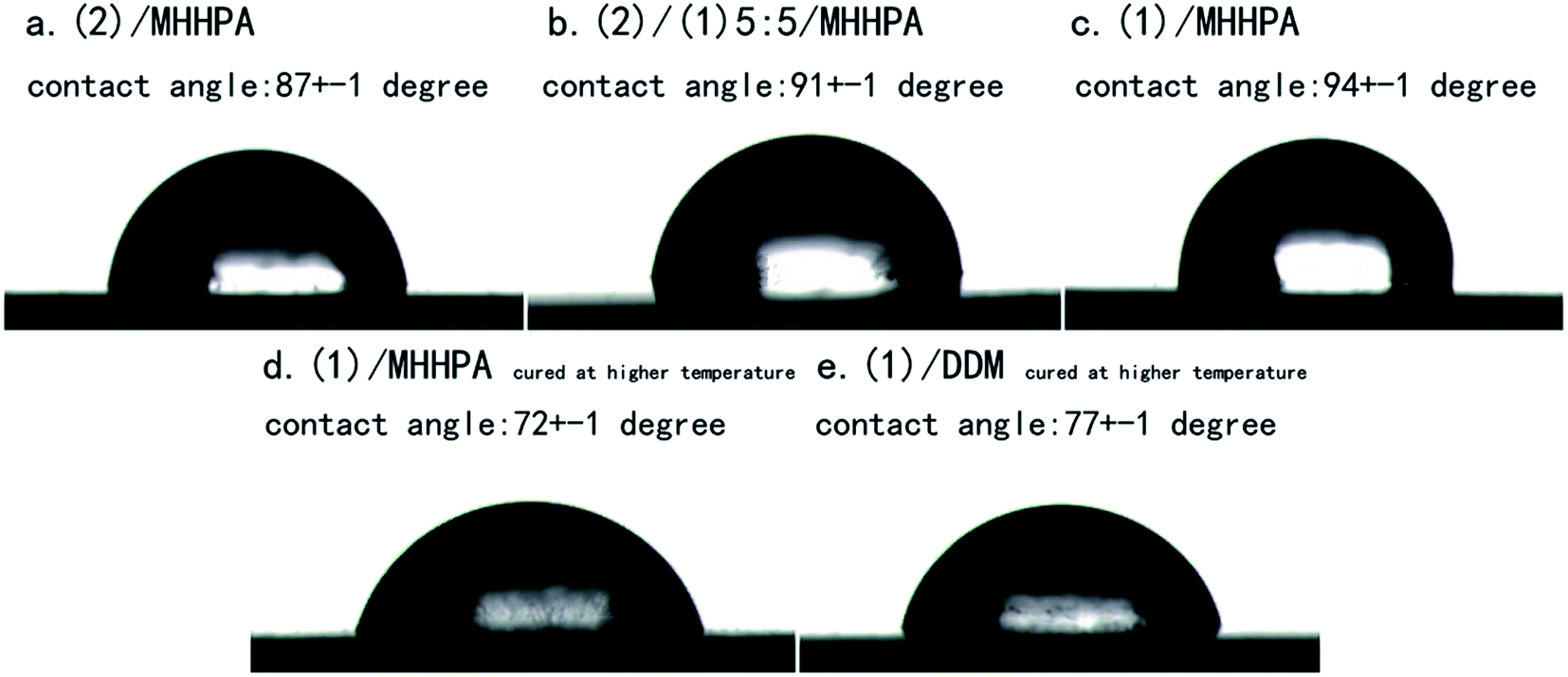

Fig. 5 Contact angles of [(a) (2)/MHHPA, (b) (2)/(1)5 : 5/MHHPA, (c) (1)/MHHPA and (d) (1)/MHHPA and (e) (1)/DDM systems which were cured directly at higher temperature].
Table 4 Water absorbance of (1)/DDM resin, (2)/DDM resin, (1)/(2)/DDM composite, (1)/MHHPA, (2)/MHHPA, (1)/(2)/MHHPA composite and (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature
Samples Water absorbance/% Water absorbance/%
48 h 2 weeks
(1)/DDM 0.35 1.01
(2)/(1)5[thin space (1/6-em)]:[thin space (1/6-em)]5/DDM 0.33 0.88
(2)/DDM 0.31 0.84
(1)/MHHPA 0.36 0.94
(2)/(1)5[thin space (1/6-em)]:[thin space (1/6-em)]5/MHHPA 0.34 0.88
(2)/MHHPA 0.33 0.83
(1)/DDM cured at higher temperature 0.68 1.63
(1)/MHHPA cured at higher temperature 0.51 1.32


As was known, conventional cross-linked epoxy polymers (or epoxy based SMPs) were highly water absorbing (about 1–4 wt%) and hydrophilic (water contact angle of 50–52 degrees) owing to the existence of large number of hydroxyl groups in the cross-linked networks.16 In our work, epoxies based on substituted biphenyl mesogenics with extremely better water resistance properties were prepared. The orientation of substituted biphenyl mesogenics could contribute to an increased crosslink network density, resulting in closely packed polymer chains. Therefore, (1)/DDM and (1)/MHHPA systems which were cured at lower temperature exhibited better water resistance properties than (1)/DDM and (1)/MHHPA systems which were cured directly at higher temperature. Although the crosslink network density could be decreased by the larger steric hindrance of tert-butyl substituents and the curing agent MHHPA, the hydrophobic tert-butyl group could play a positive role in the good water resistance properties, and less hydroxyl groups existed in epoxy/MHHPA systems than in epoxy/DDM systems (Scheme 2), thus, epoxy/DDM systems illustrated slightly better water resistance properties than epoxy/MHHPA systems with not very much obvious changes in epoxy/DDM and epoxy/MHHPA systems individually.

4. Conclusion

In this paper, it was found that substituted biphenyl epoxies owned excellent dielectric properties with low dielectric constant and low dielectric loss. The low dielectric constant down to 2.24 and good water resistance properties with water absorptions during 48 h at 25 °C ranging from 0.31–0.36% indicated a new idea to prepare low dielectric constant hydrophobic materials by introducing the mesogenic units into epoxy resins in the application of high performance electrical devices.

Higher dynamic storage moduli over 2 GPa at 25 °C could be seen in all the samples, indicating high dimensional stability in these epoxies. E′ of epoxy/DDM systems were higher than that of epoxy/MHHPA systems, owing to higher crosslink density in epoxy/DDM systems. While the E′ increased with the content of (2) increasing in both epoxy/DDM and epoxy/MHHPA systems, in that the orientation of biphenyl mesogenic along the direction of stress was obstructed by the larger steric hindrance of the tert-butyl substituents in (2)/DDM and (2)/MHHPA resins.

Highly oriented substituted biphenyl mesogenics could enhance the interchain interactions, making the substituted biphenyl mesogens slip and rotate not easily. Therefore, the Tg of (1)/DDM resin ranked the highest with the lowest one in (2)/MHHPA resin.

Larger substituents of tert-butyl and curing agent MHHPA could decrease crosslink density and the orientation of biphenyl mesogenics, thus, the dielectric constant and the dielectric loss decreased as the increase of the content of (2) with epoxy/MHHPA systems exhibiting higher dielectric constant and dielectric loss.

The comprehensive contributions of oriented structure and increased crosslink network in epoxies cured by aromatic amines, less hydroxyl groups existing in epoxies cured with methyl hexahydrophthalic anhydride and the hydrophobic methyl substituents or larger tert-butyl substituents, could afford good water resistance properties with contact angles ranging from 89 to 98 degrees and water absorptions during 48 h at 25 °C ranging from 0.31–0.36%, which indicated that the water resistance was apparently better than that of conventional epoxy systems.

Acknowledgements

The financial supports from Zhujiang Science&Technogy New-star Program of Guangzhou, China (No. 2013J2200016), National Natural Science Foundation of China (No. 51003123), Guangdong Special Support Program-Youth Top-notch Talent (No. 2014TQ01C400) and Intergration of Industry, Education and Research of Guangdong Province Project (2011A091000007) are acknowledged.

References

  1. B. De and N. Karak, RSC Adv., 2015, 5, 35080–35088 RSC.
  2. J. Jiao, L. Wang, P. Lv, Y. Cui and J. Miao, Mater. Lett., 2014, 129, 16–19 CrossRef CAS PubMed.
  3. C. H. Lin, C. M. Huang, T. I. Wong, H. C. Chang, T. Y. Juang and W. C. Su, J. Polym. Sci., Part A: Polym. Chem., 2014, 52, 1359–1367 CrossRef CAS PubMed.
  4. Y. Wang, J. Sun, K. Jin, J. Wang, C. Yuan, J. Tong, S. Diao, F. He and Q. Fang, RSC Adv., 2014, 4, 39884–39888 RSC.
  5. S. Kim, X. Wang, S. Ando and X. Wang, RSC Adv., 2014, 4, 27267–27276 RSC.
  6. R. S. Kumar, M. Ariraman and M. Alagar, RSC Adv., 2014, 4, 19127–19136 RSC.
  7. J.-M. Park, K. H. Kim, C. J. An, M. L. Jin, J.-H. Hahn, B.-S. Kong and H.-T. Jung, RSC Adv., 2014, 4, 28409–28416 RSC.
  8. L. Luo, T. Qiu, Y. Meng, L. Guo, J. Yang, Z. Li, X. Cao and X. Li, RSC Adv., 2013, 3, 14509–14520 RSC.
  9. R. S. Kumar and M. Alagar, RSC Adv., 2015, 5, 33008–33015 RSC.
  10. X.-Y. Zhao and H.-J. Liu, Polym. Int., 2010, 59, 597–606 CAS.
  11. Z. Tao, S. Yang, Z. Ge, J. Chen and L. Fan, Eur. Polym. J., 2007, 43, 550–560 CrossRef CAS PubMed.
  12. Y. Wu, F. Li, J. Huyan, X. Zou and Y. Li, J. Appl. Polym. Sci., 2015 DOI:10.1002/app.41951.
  13. E. Amendola, A. M. Scamardella, C. Petrarca and D. Acierno, J. Appl. Polym. Sci., 2011, 122, 3686–3693 CrossRef CAS PubMed.
  14. S. S. Vaisakh, M. Hassanzadeh, R. Metz, S. Ramakrishnan, D. Chappelle, J. D. Sudha and S. Ananthakumar, Polym. Adv. Technol., 2014, 25, 240–248 CrossRef CAS PubMed.
  15. W. Yu, J. Fu, X. Dong, L. Chen and L. Shi, Compos. Sci. Technol., 2014, 92, 112–119 CrossRef CAS PubMed.
  16. K. S. S. Kumar and C. P. R. Nair, RSC Adv., 2014, 4, 2969–2973 RSC.
  17. H. Guo, Y. Li, J. Zheng, J. Gan, L. Liang, K. Wu and M. Lu, J. Appl. Polym. Sci., 2015 DOI:10.1002/app.42616.
  18. M. Wlodarska, A. Maj, B. Mossety-Leszczak, G. W. Bak, H. Galina, L. Okrasa and M. Izdebski, J. Polym. Res., 2013, 20 DOI:10.1007/s10965-013-0227-0.
  19. Y. Li, P. Badrinarayanan and M. R. Kessler, Polymer, 2013, 54, 3017–3025 CrossRef CAS PubMed.
  20. A. Mija and C. N. Cascaval, Polimery, 2009, 54, 786–789 CAS.
  21. C. Farren, M. Akatsuka, Y. Takezawa and Y. Itoh, Polymer, 2001, 42, 1507–1514 CrossRef CAS.
  22. Y. Li and M. R. Kessler, Polymer, 2014, 55, 2021–2027 CrossRef CAS PubMed.
  23. C. Carfagna, E. Amendola and M. Giamberini, Compos. Struct., 1994, 27, 37–43 CrossRef.
  24. G. G. Barclay and C. K. Ober, Prog. Polym. Sci., 1993, 18, 899–945 CrossRef CAS.
  25. H. Guo, M. Lu, L. Liang, J. Zheng, Y. Zhang, Y. Li, Z. Li and C. Yang, J. Appl. Polym. Sci., 2014, 131 DOI:10.1002/app.40363.
  26. J. Y. Lee and J. Jang, Polym. Bull., 2007, 59, 261–267 CrossRef CAS.
  27. J. Feng, K. Berger and E. Douglas, J. Mater. Sci., 2004, 39, 3413–3423 CrossRef CAS.
  28. H. Guo, Y. Li, J. Zheng, J. Gan, L. Liang, K. Wu and M. Lu, RSC Adv., 2015, 5, 67247–67257 RSC.
  29. L. W. Hill, Prog. Org. Coat., 1997, 31, 235–243 CrossRef CAS.
  30. A. L. Larsen, K. Hansen, P. Sommer-Larsen, O. Hassager, A. Bach, S. Ndoni and M. Jørgensen, Macromolecules, 2003, 36, 10063–10070 CrossRef CAS.
  31. R. Hansen, A. L. Skov and O. Hassager, Phys. Rev. E: Stat., Nonlinear, Soft Matter Phys., 2008, 77, 011802 CrossRef.
  32. M. Giamberini, G. Malucelli, V. Ambrogi, D. Capitani and P. Cerruti, Polym. Int., 2010, 59, 1415–1421 CrossRef CAS PubMed.
  33. H. J. Sue, J. D. Earls and R. E. Hefner, J. Mater. Sci., 1997, 32, 4031–4037 CrossRef CAS.
