Synthesis of silicone elastomers containing trifluoropropyl groups and their use in dielectric elastomer transducers

Abstract

Vinyl end-functionalized polysiloxanes P_x containing varying mol% of trifluoropropyl groups (x) were prepared starting from 1,3,5-tris(3,3,3-trifluoropropyl)-1,3,5-trimethylcyclotrisiloxane (F₃) and octamethylcyclotetrasiloxane (D₄) via anionic polymerization in the presence of tetramethylammonium hydroxide (TMAH) and 1,3-divinyl-1,1,3,3-tetramethyldisiloxane end-capping reagent. Their structures were determined by ¹H NMR spectroscopy and their molecular weights and distributions were measured by GPC. The various P_x were cross-linked in thin films via hydrosilylation of the vinyl groups with tetrakis(dimethylsiloxy)silane cross-linker in the presence of Karstedt catalyst. The mechanical, dielectric and electromechanical properties of the prepared films were investigated. An increase in the permittivity (ε′) with increasing content of polar trifluoropropyl groups was observed with a maximum value of ε′ = 6.4 for P₅₈(0). A maximum lateral actuation strain of 5.4% at an electric field as low as 7.8 V μm⁻¹ was measured for a material prepared by cross-linking P₅₃.

---

Introduction

Cross-linked polydimethylsiloxanes (silicones) are presently intensively explored as dielectrics in dielectric elastomer transducers (DET).^1,2 DET are stretchable capacitors that elongate when charged and can function as actuators, generators, and sensors.³ A large variety of applications have been proposed, which range from valves, pumps, wave generators, pressure sensors, to muscle replacements, to name a few.⁴

Any elastomer can in principle be used as a dielectric in DET, however silicones are most often used mainly due to their fast response time, low viscoelastic loss, and low T_g which allow operation at different frequencies and temperatures. Silicones have a high dielectric strength, high gas permeability and hydrophobicity which afford them with humidity tolerance and a low water uptake.⁵ Silicone actuators can have large actuation strains and high energy densities, but rather high electric fields have to be used.^6,7 More efficient silicones that actuate at low electric fields might pave the way for application of this technology in the area of medicine, e.g. as implantable devices, where the maximum allowed operation voltage is below 24 V.⁸ The actuation strain can be increased when the thickness of the dielectric film is reduced and when soft high permittivity elastomers are used as dielectric. Another possibility to enhance the actuation strain is to use appropriately designed heterogeneous materials consisting of alternating soft isotropic and anisotropic layers. For such materials theoretical calculations predict a ten-fold enhancement of the electromechanical coupling.⁹

The ε′ of polymers can be increased when blended with high permittivity ceramic^10,11 or conductive particles.^12–17 As fillers, polyaniline,¹² encapsulated polyaniline in polydivinylbenzene,¹³ silver nanoparticles coated with a thin silica shell,¹⁴ carbon black,¹⁵ carbon nanotubes,¹⁶ and polythiophene¹⁷ have been used. An increase in permittivity was observed with increasing volume fraction of conductive filler, but other properties like elasticity, elastic moduli, strain at break, dielectric loss, and dielectric breakdown were negatively affected. Furthermore, the migration of the conductive filler in an electric field and thus the long term stability of such composites are of concern especially when thermoplastic matrices are used. Ceramic fillers significantly increase the permittivity, but concentrations above 50 vol% have to be used. The resulting materials tend to have poor mechanical properties and increased elastic moduli. The present work is focused on increasing the electromechanical response in an actuator by using soft high permittivity silicones.

Silicones have a rather low ε′ of less than 3 and therefore high electric fields are required to induce actuation. It has been suggested that the ε′ of polymers can be increased when modified with polar groups.¹⁸ When modified with nitroaniline and nitrobenzene moieties, silicones show ε′ = 6 and ε′ = 8.5 at high frequencies, respectively,^19,20 while ε′ = 4.7 can be achieved when modified with chloropropyl groups.²¹ By modifying the silicones with cyanopropyl groups at every repeat unit, polymers with ε′ of about 18 were prepared.^22,23 Recently, the synthesis of a silicone elastomer modified with polar nitrile groups was reported which combines ε′ of about 10, low elastic moduli and a strain at break of 260%.²⁴ Commercial fluorinated silicones also show a high permittivity and were used by Pelrine et al. as dielectric in actuators.²⁵ Unfortunately, the reported materials are commercial products and therefore no data about their chemical composition is available. More recently, Böse et al. used a trifluoropropyl (CF₃) modified silicone oil as softening agent in a polydimethylsiloxane matrix and obtained a material with ε′ = 5.5, a strain at break as high as 400%, and a maximum actuation strain of 7.5% at 14 V μm⁻¹.²⁶ The polar CF₃ modified silicone oil was mixed together with a nonpolar polydimethylsiloxane and thus the resulting materials might undergo phase separation. Furthermore, the amount of CF₃ modified silicone used in the silicone matrix was limited to 45% which represents about 28 mol% of CF₃ groups in the material. A further increase of the CF₃ content resulted in very soft materials which were difficult to process in thin films.

The aim of this work was to synthesize high molecular weight polysiloxanes P_x containing different mol% of CF₃ groups as well as reactive end-groups which allow them to be cross-linked in thin films. Homogenous materials were prepared, for which the dielectric, mechanical, and electromechanical properties were investigated as function of CF₃ content.

Experimental section

Materials and characterization

1,3,5-Tris(3,3,3-trifluoropropylmethyl)-1,3,5-trimethylcyclotrisiloxane (F₃) was purchased from EuroLab Limited. Octamethylcyclotetrasiloxane (D₄) and tetrakis(dimethylsiloxy)silane were purchased from ABCR, 1,3-divinyl-1,1,3,3-tetramethyldisiloxane (EB), TMAH (25 wt% solution in methanol) and platinum(0)-1,3-divinyl-1,1,3,3-tetramethyldisiloxane complex solution in xylene (Pt ∼ 2 wt%) were purchased from Sigma-Aldrich. Prior to use D₄ and F₃ were dried over calcium hydride, and TMAH was dried by azeotropic distillation. All other chemicals were used as received. Acrylic foil VHB-4905 from 3M was used.

FTIR spectra were recorded on a Bruker Vertex 70 ATR FT-IR spectrometer at room temperature. ¹H NMR spectra were recorded on a Bruker Avance III 400 NMR spectrometer using a 5 mm BBO Prodigy™ CryoProbe at 400.18 Hz. GPC was conducted using an Agilent 1100 Series HPLC (columns: serial coupled PSS SDV 5 u, 100 A and PSS SDV 5 u, 1000 A, detector: DAD, 235 nm and 360 nm; refractive index) with THF solvent using polydimethylsiloxane and toluene as internal standards. Thermogravimetric analysis (TGA) was conducted on a Perkin Elmer TGA7 at a heating rate of 20 °C min⁻¹ under a nitrogen gas flow up to 800 °C. Differential scanning calorimetry (DSC) measurements were conducted on a Perkin Elmer DSC 8000. The mechanical properties were investigated with a Zwick Z010 tensile test machine with a crosshead speed of 200 mm min⁻¹ (strain rate of 1111.1% min⁻¹). Tensile test specimens with a gauge width of 2 mm and a gauge length of 18 mm were prepared by die cutting. The strain was determined using a traverse moving sensor. The curves were averaged from 2–4 different specimens (see ESI†). The tensile modulus was determined from the slope of the stress–strain curves using a linear fit to the data points within 10% strain. The strain at break was calculated by taking the average of the different measurements. DMA spectra were measured on a ARES Rheometer from TA instruments with a parallel plate setup (25 mm plate diameter), a strain of 5% and 1 N preforce. Dielectric measurements were conducted on a Novocontrol Alpha-A Frequency Analyzer using a Hewlett Packard 16451B Dielectric test fixture as electrodes. Shielded electrodes with a diameter of 5 mm were used and the sample thickness was determined by using the built in micrometer screw. The probing voltage was 1RMSV (root mean square voltage). Actuator tests were performed using circular membrane actuators, for which the films were fixed between two circular frames of 25 mm diameter. Circular electrodes (8 mm diameter) of carbon black powder were applied to each side of the film. A high voltage amplifier Trek Model 5/80 (up to 5600 V) was used for actuator tests. The voltage was increased by 100 V every 2 s. The actuation strain was measured optically as the extension of the diameter of the electrode area via a digital camera, using an edge detection tool of a LabView program to detect the boundary between the black electrode area and brighter film.

General procedure for the synthesis of P_x

A solution of TMAH in methanol (73 μL) was added to a three-neck 50 mL round-bottom flask and dried by azeotropic distillation. D₄, F₃ and EB were added simultaneously to the dried TMAH. For the amount of reagents used, see Table 1. The reaction mixture was heated to 100 ± 2 °C under nitrogen for 4.5 h. Then the reaction mixture was heated to 160 °C and kept at this temperature for 2 h to deactivate the initiator. Finally, the unreacted cycles were distilled at 180–200 °C under vacuum. The residue was washed with ethanol and then dried in an oven at 100 °C to obtain P_x. ¹H NMR (400 MHz, CDCl₃, δ): 6.20–5.71 (vinyl–H), 2.08 (CH₂––CF₃), 0.76 (–CH₂–CF₃), 0.1 (Si–CH₃). The chemical composition of P_x as well as its molar mass and distribution are given in Table 2.

Table 1 The amount of reagents used for the synthesis of P_x

Entry	F3 g (mmol)	D4 g (mmol)	F3/D4 mol ratio	EB μL (mmol)	TMAH^a [μL]
a A solution of 25% in methanol was used.
P28	11.2 (23.9)	7.1 (23.9)	1	23 (0.1)	73
P42	22.3 (47.6)	14.2 (47.9)	1	45 (0.2)	128
P47	21.7 (46.3)	10.6 (35.7)	1.3	45 (0.2)	128
P53	21.7 (46.3)	9.2 (31.0)	1.5	45 (0.2)	123
P58	21.7 (46.3)	5.9 (19.9)	2.3	45 (0.2)	110

---

Table 2 Composition and M_n of copolymers P_x calculated from ¹H NMR, as well as the M_n, M_w, and PDI obtained from the GPC measurements

Entry	NMR			GPC
	F^a [mol%]	D^b [mol%]	Mn [g mol^−1]	Mn [g mol^−1]	Mw [g mol^−1]	PDI
a F represents trifluoropropyl.b Represents dimethylsilyl.
P28	28.3	71.7	61 600	46 800	101 700	2.2
P42	41.8	58.2	118 500	59 520	140 200	2.4
P47	47.1	52.9	13 400	11 600	18 200	1.6
P53	52.9	47.1	48 500	34 700	75 900	2.2
P58	57.5	42.5	47 000	16 500	48 900	3.0

---

General synthesis of polysiloxane elastomers containing trifluoropropyl groups

To a homogenous mixture of P_x and tetrakis(dimethylsiloxy)silane cross-linker (CL, 10 wt% in toluene), a solution of Karstedt catalyst (1 vol% in toluene) was added. This mixture was stirred for another 3 min and sonicated for 1 min to remove the air bubbles. To reinforce the elastomers, a dispersion of hexamethyldisilasane (HMDS) treated silica particles in toluene was used. Thin films were prepared by the doctor blade technique. The samples were aged at 80 °C in oven for 24 h. The resulting elastomers were named as: P_x(y), where P_x represents the starting copolymer and y represents the wt% of silica used. Table 3 summarises the amounts of reagents used for the synthesis of P_x(y).

Table 3 Amount of reagents used for the synthesis of P_x(y)

Sample	Px [g]	CL^a [μL]	Molar ratio [vinyl/Si–H]	Karstedt cat.^b [μL]	SiO2^d [mg]
a A 10 wt% solution of tetrakis(dimethylsiloxy)silane in toluene was used.b 1 vol%.c 0.5 vol% of Karstedt catalyst in toluene was used.d Silica particles were dispersed in toluene prior use.
P28(0)	0.5	53	1.1	32.4	—
P28(5)	0.5	53	1.1	32.4	25
P28(10)	0.5	53	1.1	32.4	50
P42(0)	2.0	111	1.1	67.5	—
P42(5)	2.0	111	1.1	67.5	100
P42(10)	2.0	111	1.1	67.5	200
P47(0)	0.5	62	4.5	18.7^c	—
P47(5)	0.5	62	4.5	18.7^c	25
P47(10)	0.5	62	4.5	18.7^c	50
P53(0)	2.0	271	1.1	164.8	—
P53(5)	2.0	271	1.1	164.8	100
P57(0)	2.0	279	1.1	170.0	—
P57(5)	2.0	279	1.1	170.0	100

---

Results and discussions

Synthesis and characterization of P_x

Vinyl end-functionalized polysiloxanes containing varying mol% of CF₃ groups P_x were prepared starting from F₃ and D₄ via anionic bulk polymerization in the presence of TMAH catalyst and 1,3-divinyl-1,1,3,3-tetramethyldisiloxane end-capping reagent (Scheme 1). TMAH was selected as initiator because it can be decomposed to inactive components at elevated temperatures, while the end capping reagent allowed us to functionalize P_x with vinyl end-groups that should be further used for the cross-linking in thin films. The content of CF₃ groups in P_x was tuned by using different feed ratios of D₄ to F₃, while the molecular weight can be controlled by the amount of end-capping reagent used. P_x were analysed by ¹H NMR, IR and GPC.

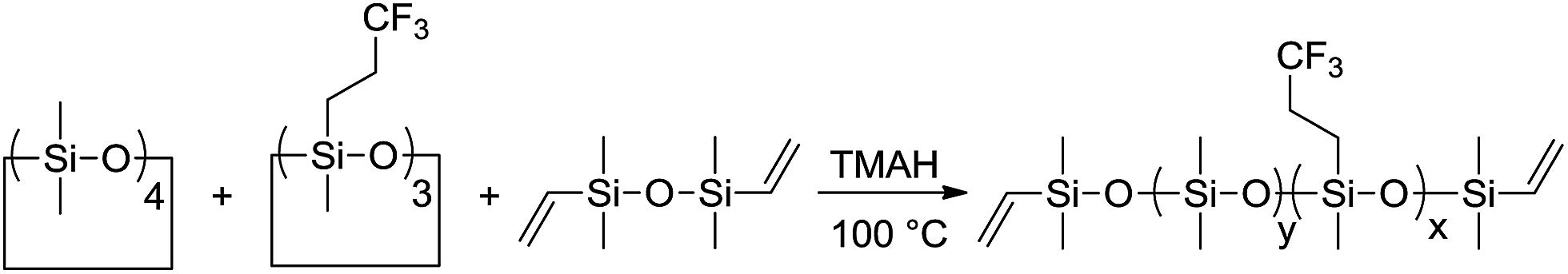

Scheme 1 Synthesis of vinyl end-functionalized polysiloxanes containing CF₃ groups starting from D₄, F₃, and 1,3-divinyl-1,1,3,3-tetramethyldisiloxane end-blocker.

Fig. 1 shows the ¹H NMR spectra of P₄₇. The signal at δ = 0.10 ppm is assigned to the methyl groups, the signals at δ = 0.76 ppm and δ = 2.08 ppm correspond to the methylene units α- and β- to CF₃ groups.²⁷ The signals between δ = 5.71 to δ = 6.20 ppm are attributed to the vinyl end-groups.²⁸ The other copolymers P_x show the same signals as those of P₄₇, but the intensities of the signals are different (Fig. S1–S5†). The content of CF₃ groups in P_x was calculated using the integrals of the signal at δ = 0.10 ppm and that at δ = 2.08 of the methylene units α to CF₃. Although F₃ has a higher reactivity as compared to D₄, the amount of CF₃ units incorporated in the polymers was found to be lower than the feed ratios F₃ : D₄. The reason for this might be the high temperature used for the decomposition of TMAH which might favour the depolymerization and formation of cyclic monomers containing CF₃ units. Nevertheless, an increase in content of CF₃ units in P_x with increasing F₃ : D₄ feed ratios was observed.

Fig. 1 ¹H NMR spectrum of P₄₇ in CDCl₃ at room temperature.

M_n values were calculated by comparing the integral of the signal at δ = 0.10 ppm with the integral of the vinyl protons and found to be slightly higher than the M_n values obtained from GPC (Fig. S6–S10†).²⁹ Table 2 gives an overview of the chemical composition of P_x as well as the molecular weight and its distribution as found by NMR (ESI Fig. S1–S5†) and GPC measurements (see ESI†).

The infrared absorption spectra of P_x are shown in Fig. S11 (see ESI†). The broad and strong absorption band from 1170 cm⁻¹ to 1000 cm⁻¹ in each spectrum is attributed to the Si–O–Si asymmetric stretching vibration.^30,31 The absorption bands from 2964 cm⁻¹ and 2909 cm⁻¹ are assigned to the C–H vibrations from –CH₃ groups. The peak at 1264 cm⁻¹ is assigned to the absorption due to vibration of Si–CH₃. Characteristic absorption peaks of –CH₂CH₂CF₃ appeared at 1368 cm⁻¹ (wagging –CH₂–), 1315 cm⁻¹ (CH₂–CH₂), 1208 cm⁻¹ (–CF₃), 1168 cm⁻¹ (C–H bond in –CH₂–) and 902 cm⁻¹ (C–CF₃). An absorption band in the region of 740–850 cm⁻¹, originating from –CH₃ rocking and Si–C stretching is also clearly visible. This absorption peak became broader and the peak height decreased gradually with increasing mol% of CF₃ groups. Additionally, the main absorption peak of Si–C bond shifted to a slightly higher frequency, as did the absorption peak of C–H bonds in –CH₃, which further supports the presence of the CF₃ units. Furthermore, all the absorption intensities of the characteristic peaks of CF₃ increased with increasing feed ratio of F₃, which suggested that the content of CF₃ groups in P_x increased along with increasing F₃ feed ratio. The presence of vinyl groups is confirmed by a broad and weak absorption band from 1600 cm⁻¹ to 1720 cm⁻¹ present in each spectrum.³² As mentioned above, the end-functionalization of P_x with vinyl groups is important, since these groups are used to cross-link P_x in thin films.

The thermal stability of P_x was investigated by TGA in argon atmosphere and shows that P_x are stable up to 380 °C and have a maximum weight loss around 450 °C (Fig. 2).

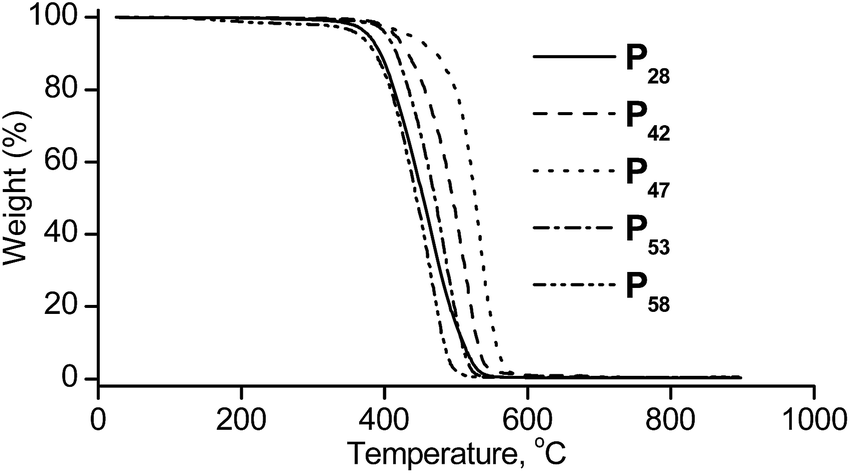

Fig. 2 TGA curves of P_x conducted at a heating rate of 20 °C min⁻¹ under nitrogen.

Differential scanning calorimetry (DSC) measurements show an increase in T_g with increasing mol% of CF₃ groups from −106 °C for P₂₈ to −88.6 °C for P₅₈ (ESI Fig. S12–S16,† Table 4). It is known that the introduction of polar moieties in a polymer shifts the T_g of the modified polymer to higher values. Luckily, the T_gs of P_x are well below room temperature and thus the materials obtained by cross-linking P_x are still elastic. The presence of only one glass transition temperature indicates that the distribution of CF₃ groups in P_x is random. No melting temperatures were observed in the DSC. PDMS is known to easily crystallize at about −80 °C.³³ However, by modifying the silicone with CF₃ group, the crystallization process in P_x is hindered. Even for P₂₈, which has the lowest content of CF₃ groups, no melting temperature was observed.³⁴

Table 4 Transition temperatures observed for P_x as well as the ΔC_p of the transitions

Copolymer	Tg [°C]		ΔCp [J g^−1 °C^−1]
	2^nd heating	Cooling	2^nd heating	Cooling
P28	−106.0	−115.4	0.39	0.47
P42	−97.7	−105.8	0.27	0.28
P47	−97.1	−103.6	0.30	0.25
P53	−92.2	−98.0	0.33	0.24
P58	−88.6	−95.8	0.31	0.25

---

Synthesis and characterization of P_x(y)

All materials of series P_x are highly viscous liquids and have to be cross-linked to furnish elastomers. As mentioned before, we designed P_x with vinyl end-groups which should allow cross-linking. Next, the vinyl end-functionalized P_x were cross-linked via hydrosilylation using a tetrafunctional cross-linker tetrakis(dimethylsiloxy)silane and Karstedt's platinum catalyst. The molar ratio of the vinyl groups of P_x to the hydrosilyl groups of the CL was kept constant (1.1) for all synthesized materials except for P₄₇ for which the ratio was increased. The reason for this was the fast cross-linking observed when P₄₇ was cross-linked, which did not allow sufficient time for thin film preparation. A reduction of the catalyst did not reduce the reaction rate significantly. Therefore the amount of cross-linker used had to be decreased. To optimize the mechanical properties of the resulting materials, hexamethyldisilazane treated silica particles were used as reinforcing filler. Thin films were prepared by the doctor blade technique on a Teflon substrate. The synthesized materials were named as P_x(y), where P_x represents the copolymer and y represents the wt% of surface treated silica particles used.

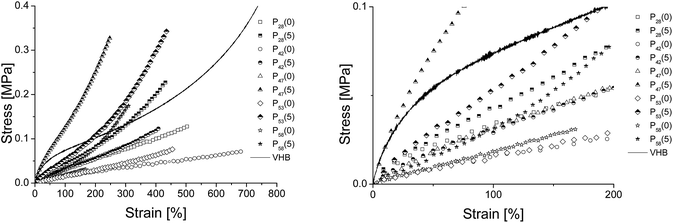

The mechanical properties of P_x(y) were investigated in tensile tests (see ESI Fig. S17–S28†). Fig. 3 shows the stress–strain curves of materials P_x(y), while Table 5 gives an overview of the Young's moduli at different strains (Y_x%) and the strain at break. It is known that the mechanical properties of a material are strongly affected by the molecular weight of the polymer used. Unfortunately, because the molar masses of P_x were rather different, a direct comparison of the mechanical properties as function of CF₃ content was not possible. However, irrespective of the content of trifloropropyl units in the materials and the M_w of the polymer used, an increase in the tensile strength and a decrease in the elongation at break with increasing amount of silica were observed. Materials P_x(y), for which the concentration of cross-linker to vinyl groups was kept constant, showed an increase in the strain at break with increasing molar mass of polymer P_x used. The lowest strain at break of 180% was observed for material P₄₇(10) which was synthesized starting from P₄₇ and had the lowest M_w, while the maximum strain at break of 850% was observed for P₄₂(0) which was prepared starting from P₄₂ and had the highest M_w. All other materials showed an elongation at break value between 240 to 550%. It should be mentioned here that materials P₄₂(y) showed visible viscous flow when strained, were sticky and difficult to handle in thin films. For materials P₅₈(y) which have the highest CF₃ content, the strain at break was slightly improved when 5 wt% silica was used and the tensile strength was increased from 0.05 MPa for P₅₈(0) to 0.22 MPa for P₅₈(5). Sample P₅₃(5) showed an increased tensile strength, while the strain at break was only slightly affected as compared to P₅₃(0). Furthermore, an increase in the stickiness with CF₃ content was observed. All obtained materials P_x(y) are rather soft and have Young's moduli (at 10% strain) that range between 19 kPa to 405 kPa. Additionally an increase in the Young's moduli with the addition of silica filler was observed (see Table 5).

Fig. 3 Stress–strain curves for P_x(y) (left) with the stress–strain curves up to 200% strain enlarged (right). The strain at break represents the lowest value obtained from different measurements. Tensile test specimens with a gauge width of 2 mm and a gauge length of 18 mm were tested at a crosshead speed of 200 mm min⁻¹.

Table 5 Overview of the Young's moduli at different strains and the strain at break for P_x(y)

Sample	Young modulus^a [kPa]				Strain break^c [%]
	10% (0–20)	50% (40–60)	100% (90–110)	200% (190–210)
a Young's moduli at different strain levels.b The slope between 5 and 15% strain was taken.c The average of the strain at break from different measurements is given.
P28(0)	58	26	22	21	513
P28(5)	65	35	34	44	488
P28(10)	97	42	46	61	552
P42(0)	24	13	11	10	850
P42(5)	45	26	22	27	540
P47(0)	50	30	24	25	360
P47(5)	184	107	104	150	240
P47(10)	405	298	352	—	180
P53(0)	19	15	15	13	498
P53(5)	72	46	—	—	459
P58(0)	20	17	18	—	263
P58(5)	34	28	34	64	349
VHB	146^b	50	30	27

---

The dielectric properties of materials P_x(y) were also measured in a frequency range from 10⁻¹ Hz to 10⁶ Hz and room temperature (Fig. 4). Table 6 summarizes ε′, dielectric loss (ε′′) and conductivity (σ) at 10 kHz for materials P_x(0), P_x(5) and VHB foil. ε′ raised with increasing amounts of CF₃ groups in the materials. The ε′ values are almost constant at frequencies above 10² Hz. The increase in ε′ at low frequencies is most likely caused by electrode polarization.³⁵ The ε′ at 10 kHz for P_x(y) as well as for F₃ monomer (ε′ = 8.8) are given as function of CF₃ content in Fig. 5. A linear increase in ε′ with increasing amounts of CF₃ groups from ε′ = 5.1 for P₂₈(0) to ε′ = 6.4 for P₅₈(0) was observed. Since the permittivity is increasing with the concentration of the polar groups in the material, it is expected that a material P₁₀₀(0) would have a maximum ε′ = 8.8. Materials P_x(5) and P_x(10) which contain 5 and 10 wt% silica particles show slightly lower values for the permittivity as compared to P_x(0). This decrease is not unexpected given the fact that silica has ε′ = 3.9. The conductivity at low frequencies (the static conductivity) is lower than 10⁻¹⁰ S cm⁻¹, typical for insulating materials.³⁶ The silica modified materials P_x(5) and P_x(10), tend to have a lower conductivity than P_x(0) (Fig. 4).

Fig. 4 Dielectric properties as function of frequency of P_x(y).

Table 6 Dielectric properties, actuation strain (s) at 7.8 V μm⁻¹, maximum actuation strain (s_max), and dielectric breakdown in actuator (E_b) for P_x(y)

Sample	ε′^a	ε′′^a	σ^a [S cm^−1]	Tan δ	Y10% [kPa]	ε′/Y [MPa^−1]	s [%] at 7.8 V μm^−1	smax [%]	Eb [V μm^−1]	d^d [μm]
a The permittivity, dielectric losses and conductivity values were taken at 10 kHz.b Maximum field achieved, no breakdown.c Y at 300% strain.d Actuator thickness.
P28(0)	5.1	0.018	8.92 × 10^−11	0.0035	58	88	1.1	4.8	19.1	89
P28(5)	4.5	0.005	2.95 × 10^−11	0.0012	65	69	—	—	—	—
P42(0)	5.6	0.004	1.89 × 10^−11	0.0007	24	233	—	1.8	6.5	175
P42(5)	5.3	0.004	2.40 × 10^−11	0.0008	45	118	0.8	5.1	17.1	317
P47(0)	5.7	0.007	3.37 × 10^−11	0.0012	50	114	0.9	3.7	16.0^b	317
P47(5)	5.7	0.004	2.03 × 10^−11	0.0007	184	31	—	—	—	—
P53(0)	6.2	0.005	2.35 × 10^−11	0.0008	19	326	5.4	5.4	7.8	320
P53(5)	6.0	0.005	2.43 × 10^−11	0.0009	72	83	1.1	3.6	13.3	223
P58(0)	6.4	0.007	3.37 × 10^−11	0.00011	20	320	—	—	—	—
P58(5)	6.1	0.005	2.66 × 10^−11	0.0009	34	179	3.1	5.0	10.2	157
VHB	4.4	—	9.02 × 10^−10	0.044	32^c	138	—	—	>100	—

---

Fig. 5 Dielectric permittivity at 10 kHz of P_x(y) as function of mol% of CF₃ groups. The permittivity at 100% is the permittivity of monomer F₃.

In all materials P_x(y), a minimum in the dielectric losses of less than 10⁻² was observed between 10⁴ and 10⁵ Hz which recommends these materials for high frequency applications.

Some materials were further investigated in electromechanical tests using circular actuators. The voltage was increased in steps of 100 V every 2 s until breakdown through the material occurred. Fig. 6 shows the lateral actuation strain as a function of the electric field, while Table 6 summarizes the maximum actuation strain achieved at breakdown, and the actuation strains at 7.8 V μm⁻¹ for P_x(y). All tested materials showed actuation at rather low electric fields of less than 20 V μm⁻¹. The best performance in terms of actuation strain at a low electric field was observed for material P₅₃(0) which has the highest ratio of ε′/Y and showed an actuation strain of 5.4% at 7.8 V μm⁻¹, while material P₅₃(5) showed significantly lower actuation strain of 1.1%. The reason behind this is its slightly lower permittivity value and higher Young's moduli. Material P₅₈(5) showed slightly lower actuation strain as compared to P₅₃(0) most likely due to its higher elastic modulus. The lowest actuation strain was observed for material P₂₈(0) which had the lowest content of CF₃.

Fig. 6 Lateral actuation strain of circular actuators of materials P_x(y), as a function of applied electric field. The voltage was increased by 100 V every 2 s (0.5 Hz). The actuator constructed from P₄₇(0) did not suffer a breakdown at 16 V μm⁻¹, however, we could not increase the voltage further due to the limitation of the voltage source used.

A raise in the actuation strain at a certain electric field with increasing content of CF₃ groups was observed for materials P_x(5). For example, materials P₄₂(5) and P₅₈(5) showed about the same actuation strain of 5% but the electric field used decreased from 17.1 V μm⁻¹ for P₄₂(5) to 10.2 V μm⁻¹ for P₅₈(5), respectively. Material P₂₈(0) shows the highest breakdown field of 19.1 V μm⁻¹. The film prepared from material P₄₇(0) was rather thick (317 μm) and therefore, the maximum given actuation is not the actuation at breakdown. Furthermore, a decrease in actuator breakdown field with increasing content of polar component from 19.1 V μm⁻¹ for P₂₈(0) to 7.8 V μm⁻¹ for P₅₃(0) was observed.

As mentioned above, materials P₄₂(y) after straining, do not immediately recover their initial shape. Room temperature rheological measurements show that the storage moduli G′ for the tested material are rather low, typical for elastomeric materials (see DMA in ESI Fig. S29†). The viscoelastic losses of different materials negatively affect the cyclic actuation strain at a certain frequency (see ESI, Fig. S30–S33†).

For example, while the cyclic actuation of P₄₇(0) at 17.6 V μm⁻¹ showed only a small hysteresis in the actuation strain in time (Fig. 7 and S34†), materials P₄₂(y) showed quite some hysteresis and require a few cycles to achieve a stable actuation (see ESI, Fig. S31†). Cyclic actuation tests for materials P₅₃(y) and P₅₈(5) also show a rather small hysteresis (see ESI, Fig. S35–S37†). Some actuators, especially those constructed from materials with high CF₃ content showed a repairing effect which was observed during the cyclic actuation tests (see ESI, Fig. S36†). Although this effect is of potential advantage since the lifetime and the reliability of the actuator is increased, this process was rather slow and can occasionally take minutes.

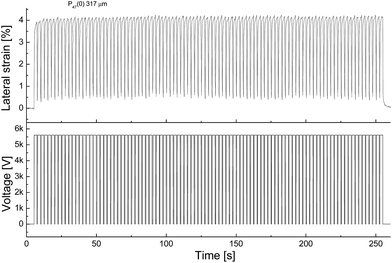

Fig. 7 Long-term stability of P₄₇(0) actuator at 17.6 V μm⁻¹ at 28.6% prestrain (100 cycles at 0.4 Hz).

Finally, the performance of our material will be compared to other reported materials²⁶ and VHB. An elastomer containing 45 wt% CF₃ modified silicone which represents about 28 mol% of CF₃ units in the final material has a similar chemical composition as P₂₈(0). The reported material has a ε′ = 5.4, which is in agreement with the values measured by us (ε′ = 5.1). While the reported material has a strain at break of 280%, P₂₈(0) shows a much higher strain at break of 513%. Unfortunately, the actuation strain of the two materials cannot be easily compared, since different setups were used. The VHB foil is widely used by the DEA community and it was therefore selected here as reference material. The mechanical and dielectric characteristics of VHB were included in Tables 5 and 6.³⁷ The VHB membrane was prestrained biaxially by 300% before circular carbon black electrodes with a diameter of 8 mm were applied. As can be seen in Fig. 6, by far the lowest actuation strain at a certain electric field is observed for VHB which at 20 V μm⁻¹ showed only a 0.35% lateral actuation strain. However, in terms of maximum achievable actuation strain and dielectric breakdown, the VHB foil is still unbeatable. However, for implantable devices for which the maximum allowed voltage is 24 V, the materials presented herein are superior. Future work will focus on the upscaling of the synthesis and the optimization of the mechanical properties of materials P₅₃(y) and P₅₈(y) as well as on investigating how the dielectric breakdown of these materials can be increased.

Conclusions

Polysiloxanes P_x containing different mol% of trifluoropropyl groups and vinyl end-groups were successfully obtained under anionic conditions starting from F₃, D₄, and 1,3-divinyl-1,1,3,3-tetramethyldisiloxane end-capping reagent. By cross-linking P_x in thin films using a hydrosilylation reaction, elastomers with good mechanical and dielectric properties were obtained. All the materials show a strain at break higher than 180%. The highest strain at break value was 850% and was obtained for a material for which a high molecular weight P₄₂(0) was used. The dielectric permittivity raised with increasing amounts of polar trifluoropropyl groups and a maximum value of ε′ = 6.4 was measured for P₅₈(0). An actuation strain of 5.4% at 7.8 V μm⁻¹ where electrical breakdown occurred was measured for a film prepared starting from P₅₃(0). The increased permittivity and the low actuation voltage recommend these materials as dielectrics in sensors and actuators.

Acknowledgements

We gratefully acknowledge Sciex (project no. 12.192), the Swiss National Science Foundation (IZERZ0 – 142215/1 and No. 150638), and the Swiss Federal Laboratories for Materials Science and Technology for financial support. We also like to acknowledge B. Fischer (Empa, Switzerland) for the TGA and DSC measurements, D. Rentsch (Empa, Switzerland) for helping with the NMR measurements, and G. Kovacs (Empa, Switzerland) for providing us with the infrastructure for the actuator measurements. DMO thanks C. Racles from Petru Poni Institute, Iasi, Romania for her kind support of the Sciex fellow and Prof. F. Nüesch from Empa for his generous support.
