Activity-tunable nanocomposites based on dissolution and in situ recrystallization of nanoparticles on ion exchange resins

Amanda Alonso *a, Núria Vigués b, Rosalía Rodríguez-Rodríguez c, Xavier Borrisé d, María Muñoz e, Dmitri N. Muraviev e, Jordi Mas b and Xavier Muñoz-Berbel *f
aChemical Engineering Department, Escola d'Enginyeria, Universitat Autònoma de Barcelona, UAB, Spain.. E-mail: amanda.alonso@uab.cat
bDepartment of Genetics and Microbiology, UAB, Spain
cDepartment of Pharmacology, Universidad de Sevilla, Spain
dInstitut Català de Nanociencia i Nanotecnología (ICN2), Spain
eDepartment of Chemistry, UAB, Spain
fCentre Nacional de Microelectrònica (IMB-CNM, CSIC), Bellaterra, Spain

Received 10th August 2015 , Accepted 15th October 2015

First published on 15th October 2015


Abstract

This work proposes the use of cationic ion exchange resins as a platform for in situ formation and recrystallization of nanoparticles as a way to dynamically modulate their activity by changing their structure/composition. Here applied to Ag@Co-nanoparticles in cationic resins, this protocol may be expanded to other materials, opening the possibility to modulate activity with a simple and economic approach.


Introduction

Polymer nanotechnology provides simple and quick synthetic routes for the development of low-cost functional materials with improved functionalities.1 One of the most interesting routes is InterMatrix Synthesis (IMS), where ionic precursors of the metal are loaded in a polymer and reduced in situ to obtain metal nanoparticles (NPs).2 With this protocol, single-metal and bimetallic core–shell NPs have been already synthesized in polymeric matrices of different nature (e.g. membranes,3 fibers4 or resins5).

The role of the polymeric matrix in IMS is twofold. First, it acts as supporting material, retaining the ionic precursors for subsequent NPs formation. Additionally, it also acts as stabilizing agent, ensuring homogeneous distribution of the NPs thus avoiding their aggregation and leakage. Conversely, NPs are the functional element in the structure, conferring the nanocomposite with the desired activity. This may be catalytic capacity,6,7 antibacterial activity2,8 and/or magnetism.9 As a step forward, the activity of nanocomposites containing bimetallic NPs is the combination of the activity of both NPs.10 In some cases, synergetic effects, due to the combination of two metals in a single core–shell NP (shell@core), have been reported. For instance, in the Ag@Co-nanocomposite reported by our group, the presence of Co in the core enhanced bactericidal activity of the Ag shell.4 Hence, IMS provides with a very versatile synthetic route to obtain nanocomposites with different activities through a simple and fast synthetic protocol. Their main limitation may be in terms of versatility. Traditional IMS protocols are designed to produce nanocomposites with a selected activity, which remain stable over time. However, it is not possible to modulate or change their activity once fabricated.

Regarding this, and according to bibliography,11 NPs activity can be modulated by altering their size, shape, composition or state of aggregation. Hence, the activity of a nanocomposite may be tailored by modifying some of the previously exposed properties of the NPs.

Based on the latter, this communication proposes an IMS protocol to produce dynamic and activity-tunable nanocomposites based on the modification of Ag@Co-NPs stabilized on Ion Exchange Resins (IER).

Experiment

InterMatrix synthesis protocol for Ag@Co-NPs in sulfonated IER

The raw sulfonated polymeric resin was initially pre-treated with 0.1 M NaCl (1 h) to ensure the presence of Na+ as counterion in the resin. In the synthesis of bimetallic Ag@Co NPs, Co-NPs were firstly synthesized by loading the pre-treated polymer with 0.01 M Co(NO3)2 (1 h) and reduction to Co0 with 0.5 M NaBH4. Next, the material containing Co-NPs was loaded with 0.01 M AgNO3 solution for 30 min and the Ag+ was reduced to Ag0 by addition of 0.5 M NaBH4. Core–shell bimetallic Ag@Co NPs were thus obtained in the polymeric material structure.12

Incubation conditions of the pre-synthesized Ag@Co NPs for activity-tune evaluation

Pre-synthesized Ag@Co-NPs on sulfonated IER were incubated in aqueous solutions containing different concentrations of chloride (from 0.5 to 1.0 M) and/or phosphate (from 0.05 to 1.0 M) at different temperatures (4, 37, 60, 80 °C) for 16 h. After that, samples were dried and stored at 4 °C until analysed. Control sample consisted of sulfonated polymer without pre-synthesized NPs.

Scanning Electron Microscope (SEM) imaging and energy dispersive X-ray spectroscopy (EDX) analysis

Experimental samples were analysed with a SEM (Merlin FE-SEM, Zeiss) coupled to an EDX from Servei de Microscopia of the UAB. EDX provided the metal chemical composition of the samples based on the X-rays emitted by an atom which interacted with an electron beam. Each atom has a unique X-ray spectrum and so the elemental composition could be obtained by the detected radiation. EDX spectra were always obtained at 20 keV for being the one calibrated and allowing semi-quantitative analysis. NPs, aggregates, FLS and CS morphology, distribution and composition were obtained. Additionally, information about size was obtained after SEM images analysis using the free-software ImageJ.

X-ray diffraction (XRD)

XRD technique was used to obtain the crystalline structure of the particles. In a diffraction pattern, the location of the peaks on the 2θ scale can be compared to reference peaks. Diffraction patterns were collected on Panalytical X'Pert PRO MPD (Multipurpose Diffractometer). Analyses were performed at Institut Català de Nanociència i Nanotecnologia (ICN2), Spain. The identification of magnetite was based on the characteristic peaks in the diffractograms and comparing with the database.

Bactericide activity

Minimum Inhibitory Concentration (MIC) assay was performed to evaluate the bactericide activity of samples containing different aggregate architectures (i.e. NPs, FLS and/or CS). The MIC 50 is defined as the concentration of an antimicrobial agent that inhibits the proliferation of 50% of the microorganisms presents in a sample. In this case, the MIC 50 of each nanocomposite was determined by introducing an increasing amount of nanocomposite bead (the whole nanocomposite, without extraction of NPs) in individual wells of a 96-well ELISA plate already containing 200 µL of 105 colony forming units per mL (CFU mL−1) of Escherichia coli (E. coli) in (Luria–Bertani) LB medium. After overnight incubation (16–18 h), bacterial proliferation was evaluated by measuring the optical density of each well at 550 nm using a SmartSpec Plus Spectrophotometer (Biorad). The antibacterial activity of all nanocomposites was determined. The raw material without NPs was used as control.

Cytotoxicity assay

Determination of cell viability is a common method to estimate biocompatibility of materials. The cytotoxicity of the samples containing different structures (i.e. NPs, FLS and/or CS) was evaluated in vascular smooth muscle cells (VSMC) cultured from rat aorta by using the colorimetric MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) assay. This technique is based on the ability of viable cells to transform the MTT salt into formazan dyes. VSMCs were trypsinised and plated in a 96-well culture plate at 7 × 104 cell per well in Dulbecco's modified Eagle's medium (DMEM) (Gibco-Invitrogen, Spain). After 24 h attachment, a nanocomposite bead (the whole nanocomposite, without extraction of NPs) was introduced in the well an incubated with cells for another 24 h. Next, the nanocomposite was collected, the culture medium was aspirated and the wells were washed with PBS. The MTT solution (1 mg mL−1) was added at each well and incubated for 4 h. The purple formazan generated by viable cells was solubilized with 20% sodium dodecyl sulphate in 0.02 M HCl and incubated for 10 h at 37 °C. Absorption of each well was determined at 540 nm in a Thermo Electron Multiskan EX plate reader (VWR International, Pennsylvania). Cell viability was expressed as percentage in relation to controls (non-treated cells).

Results and discussion

IER were used as a platform for in situ formation and recrystallization of NPs to architectures with modified structure, composition and function. To this end, core–shell Ag@Co-NPs in IER were incubated with solution and under experimental conditions that induced their dissolution and subsequent re-crystallization. The role of the polymeric matrix was fundamental at this stage. Negatively-charged sulfonated functional groups in the resin captured re-dissolved ionic precursors allowing the subsequent in situ recrystallization of NPs with minimal reagents losses.

Incubation solutions contained phosphate and chloride; two ions that interacted with Ag-NPs. Phosphate ions are capable to change the morphology of pre-synthetized Ag-NPs.13 Chloride ions, on the other hand, can etch Ag-NPs, leading to the formation of regular aggregates.14 Moreover, both chloride and phosphate react with Ag ions, being able to induce Ag re-crystallization to produce NPs of different composition (e.g. AgCl, AgCl@Co, Ag3PO4, etc.) and aggregation state. Apart from them, other components of the incubation solution may influence NPs dissolution and re-crystallization. This is the case of Co2+ ions. According to bibliography,4,15 the presence of Co2+ traces, in this case from dissolved Ag@Co-NPs, may also induce Ag ions reduction and Ag-NPs formation. Thus, the equilibrium between both dissolution and recrystallization reactions may lead to the formation of NPs with different structure/function, allowing the dynamic modulation of nanocomposite activity.

In order to study the incubation-induced modulation of activity, nanocomposites were subjected to different incubation conditions. These included phosphate concentrations between 0 and 0.1 M, chloride concentrations from 0 to 0.67 M and temperatures from 4 to 80 °C. SEM, EDX and XRD techniques were used to determine nanocomposite structure and composition at the different incubation situations (detail in Experimental section).

Equilibrium between dissolution and recrystallization reactions was reached under three experimental conditions ranges, detailed in Fig. 1.


image file: c5ra16081b-f1.tif
Fig. 1 Scanning Electron Microscope (SEM) image for samples incubated overnight in solutions containing 0.14 M chloride and 0.01 M phosphate at 30 °C, here used to illustrate the architectures obtained after each incubation condition.

At these conditions, regular aggregate structures, i.e. fractal-like (FLS) and cubic structures (CS), were obtained. More precisely, FLS were observed in nanocomposites after incubation with phosphate solutions (0.05 or 0.1 M phosphate) at a temperature between 4 and 65 °C. CS, on the other hand, were obtained after incubation with 0.5 M chloride at temperatures between 30 and 65 °C. Both FLS and CS were observed in nanocomposite samples incubated with chloride (0.14 and 0.67 M) and phosphate (0.01 and 0.07 M) in a wide temperature window (4–80 °C). The number and size of FLS and CS in the sample depended on the incubation conditions. Representative images of nanostructures obtained under these experimental conditions and others used during activity modulation evaluation are available in ESI (SI.1). It should be mentioned that FLS in nanotechnology are commonly associated to processes involving formation of NPs. Concretely, it is reported that FLS are composed of multiple primary particles which act as nucleation centers in the synthesis of NPs.16

The formation of these regular aggregates of NPs was associated to a dissolution–recrystallization process. XRD data from nanocomposite samples containing NPs, CS and FLSs is illustrated in Fig. 2.


image file: c5ra16081b-f2.tif
Fig. 2 XRD analysis of nanocomposite samples containing NPs, FLS or CS. Inset, a magnification of the crystalline area of each samples indicating the crystalline peaks obtained with the analysis.

As shown, all nanocomposites, independently on their composition/aggregation state, presented two phases. The first phase, the principal component of the spectrum was amorphous, and may be associated to the polymeric IER. The second one corresponded to the crystalline components, in this case, the NPs. Different crystalline peaks were observed depending on the nanostructures present in the nanocomposite. Unfortunately, only those corresponding to nanocomposites containing CS could be assigned to a crystalline structure. Concretely, these peaks presented strong similarity to AgCl crystals, which suggested that this may be the main component of the cubes. Spectra corresponding to nanocomposites containing NPs or FLSs could not be assigned to any single Ag and/or Co crystalline pattern, probably due to their low intensity or the presence of NPs with different composition. Even though, the differences in the crystalline phase corroborated NPs recrystallization during the incubation and their change of composition, depending on the incubation conditions.

In terms of composition, nanocomposite samples containing NPs, CSs and FLSs were analysed by EDX and compared with IER without nanostructures. EDX peaks comparison is illustrated in Fig. 3 (EDX spectra in SI.2 ESI).


image file: c5ra16081b-f3.tif
Fig. 3 Pseudo-quantitative comparison of EDX peaks corresponding to sulphur (S), Ag, chloride (Cl) and Co for nanocomposite samples containing NPs, FLS or CS. EDX measurements were performed at the calibrated energy of 20 eV. IER without NPs modification was used as control for comparison reasons. Error bars correspond to the standard deviation of the measurement.

According to these results, CSs and FLSs presented Ag and Co concentrations higher than those recorded in other regions of the nanocomposite. Since no additional metal precursors were added during incubation, the formation of these structures with high Ag and Co concentration confirmed NPs dissolution and concentration before recrystallization. It was demonstrated by statistical analysis of aggregate size in the nanocomposite sample. Thus, nanocomposite samples containing CSs presented aggregates of NPs significantly bigger than those observed in nanocomposites without NPs. An example is illustrated in Fig. SI.3. In this figure, the size of the aggregates observed after incubation with solutions containing 0, 0.5 and 1.0 M chloride at 30 °C was determined and compared. According to results, 0.5 M chloride solutions, leading to CSs, presented bigger aggregates (163 ± 26 µm average) than the others (140 ± 34 µm for 0 M and 110 ± 30 µm for 1.0 M chloride, respectively). Additionally, the concentration of chloride in cubes was higher than in other structures or other regions of the same nanocomposite. This result may confirm the presence of AgCl crystals in the nanocomposite structure.

The structural and composition changes observed (by SEM, EDX and XRD) may involve a modification of the nanocomposite activity. Bactericide and cytotoxic activity of Ag@Co-NPs synthesized in situ on IER has been already reported.12 Following the same protocols, bactericide and cytotoxic activities of the modified nanocomposites reported here were determined and compared with previous results.

Nanocomposites containing either FLSs or CSs presented significantly lower bactericide activity than those containing NPs (MIC 50FLS = 3.2 ± 0.4 particle per 200 µL; MIC 50CS = 2.8 ± 0.2 particle per 200 µL; MIC 50NP = 1.01 ± 0.15 particle per 200 µL; Fig. 4).


image file: c5ra16081b-f4.tif

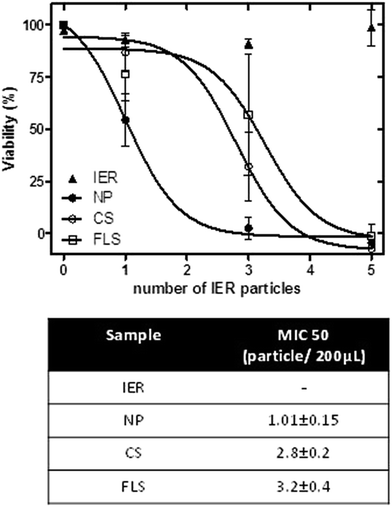

Fig. 4 Bactericide activity. Representation of the variation of bacterial viability (in percentage terms) with the increasing number of nanocomposite for samples containing NPs, CSs or FLS. Error bars represent standard deviation from the mean (95% confidence, n = 3). The MIC 50 magnitude of each nanocomposite is included in the table inset.

This decrease may be the combination of factors. First, NPs aggregation to build big aggregates such as CSs or FLSs may drastically reduce the specific exposed bactericide surface. Apart from that, activity reduction may be also attributed to composition changes. In this sense, AgCl is reported to be less bactericidal than Ag.17

In terms of cytotoxicity, nanocomposites containing CSs were found much more cytotoxic (cell viabilityNP = 87 ± 5%; Fig. 5) than those containing FLSs or NPs, which presented similar cytotoxicities (cell viabilityFLS = 113 ± 1%; cell viabilityNP = 114 ± 2%; Fig. 5).


image file: c5ra16081b-f5.tif
Fig. 5 MTT cytotoxicity assay. Representation of cell viability of muscle cells after incubation with 1 or 7 particles of nanocomposite containing NPs, FLS or CS. IER alone was used as control. The percentage of cell viability was determined by comparison with samples without nanocomposite. Error bars represent standard deviation from the mean (95% confidence, n = 3).

According to previous experiences, most of cytotoxicity associated to most of cytotoxicity should be associated to Ag@Co-NPs may be attributed to Co.12 In fact, Co is reported to be much more cytotoxic than Ag or any other component of the nanocomposite.12 Then, this result suggested that the amount of Co in contact with cells was higher in samples with CS than in those only containing NPs or FLSs. This was partially corroborated by EDX analysis of nanocomposites containing CSs, where it was possible to find areas containing high concentrations of Co (Fig. 6).


image file: c5ra16081b-f6.tif
Fig. 6 EDX spectrum of nanocomposites containing CSs where Co peak intensity is similar to that obtained by Ag.

In this region, Ag may not be completely covering Co-NPs and hence, it may be in direct contact with cells, increasing samples cytotoxicity. Therefore, it may be possible to postulate that, apart from AgCl crystals (as we concluded above), nanocomposites containing CSs may also present Co-NPs with high cytotoxic activity.

Thus, we observed here a modification of the bactericide activity, in comparison with the previous results reported for Ag@Co-NPs,12 when this material is treated under different incubation conditions.

Conclusion

IER can be used as a platform for in situ formation of NPs and their recrystallization to build NPs with modified structure/composition as a way to modulate their activity. This concept has been demonstrated with highly reactive Ag@Co-NPs synthesized on sulfonated IER by IMS. Structural–functional changes were achieved after overnight incubation with low concentrations of chloride and/or phosphate ions, which induced NPs dissolution and recrystallization to regular aggregates (i.e. FLS and or CSs). FLSs and CSs presented low bactericidal activity because of NPs aggregation and their change in composition. Additionally, CSs showed and enhanced cytotoxic activity, probably due to the presence of Co-NPs. Hence, with a simple incubation step and under soft reaction conditions, it was possible to tune nanocomposites activity by modifying the aggregation state and composition of the NPs. This process, here demonstrated by highly reactive Ag@Co-NPs, may be applied to NPs with other composition by application of suitable reagents and experimental conditions.

References

  1. D. R. Paul and L. M. Robeson, Polymer, 2008, 49(15), 3187 CrossRef CAS PubMed.
  2. A. Alonso, N. Vigués, X. Muñoz-Berbel, J. Macanás, M. Muñoz, J. Mas and D. N. Muraviev, Chem. Commun., 2011, 47, 10464 RSC.
  3. D. N. Muraviev, J. Macanás, J. Parrondo, M. Muñoz, A. Alonso, S. Alegret, M. Ortueta and F. Mijangos, React. Funct. Polym., 2007, 67(12), 1612 CrossRef CAS PubMed.
  4. A. Alonso, N. Vigués, X. Muñoz-Berbel, J. Macanás, M. Muñoz, J. Mas and D. N. Muraviev, Langmuir, 2012, 28(1), 783 CrossRef CAS PubMed.
  5. A. Alonso, G.-L. Davies, A. Satti, J. Macanás, Y. K. Gun'ko, M. Muñoz and D. N. Muraviev, Nanocomposites: In Situ Synthesis of Polymer-Embedded Nanostructures, Wiley, 2012, ISBN 978-953-308-55-0 Search PubMed.
  6. K. Esumi, R. Isono and T. Yoshimura, Langmuir, 2004, 20(1), 237 CrossRef CAS.
  7. A. Alonso, D. N. Muraviev, J. Macanás, A. Shafir, M. Muñoz, A. Vallribera, D. Prodius, S. Melnic and C. Turta, Dalton Trans., 2010, 39, 2579 RSC.
  8. R. Pinto, P. Marques, C. Neto, T. Trindade, S. Daina and P. Sadocco, Acta Biomater., 2009, 5, 2279 CrossRef CAS PubMed.
  9. S. Behrens, Nanoscale, 2011, 3, 877 RSC.
  10. F. Zhan and C. Zhang, J. Mater. Chem., 2011, 21, 4765 RSC.
  11. J. Jiang, G. Oberdorster and P. Biswas, J. Nanopart. Res., 2009, 11, 77 CrossRef CAS.
  12. A. Alonso, X. Muñoz-Berbel, N. Vigués, R. Rodríguez-Rodríguez, J. Macanás, M. Muñoz, J. Mas and D. N. Muraviev, Adv. Funct. Mater., 2013, 23(19), 2450 CrossRef CAS PubMed.
  13. J. Zhong-Jie, L. Chun-Yan and S. Lu-Wei, J. Phys. Chem. B, 2005, 109, 1730 CrossRef PubMed.
  14. S. Chang, K. Chen, Q. Hua, Y. Ma and W. Huang, J. Phys. Chem. C, 2011, 115, 7979 CAS.
  15. A. R. Tao, et al. , Angew. Chem., 2006, 118, 4713 CrossRef PubMed.
  16. M. L. Eggersdorfer, D. Kadau, H. J. Herrmann and S. E. Pratsinis, Langmuir, 2011, 27, 6358 CrossRef CAS PubMed.
  17. S. Agnihotri, S. Mukherjiabc and S. Mukherj, Nanoscale, 2013, 5, 7328 RSC.

Footnote

Electronic supplementary information (ESI) available: SI.1. SEM images for the nanostructures obtained by modifying the incubation conditions, SI.2. EDX spectra corresponding to nanocomposites containing NPs, CSs or FLSs. The spectrum corresponding to the IER without modification is also added for comparison and SI.3. histograms showing the size frequency of the nanostructures for different incubation conditions. See DOI: 10.1039/c5ra16081b
