Photocurrent generation of nanofibers constructed using a complex of a gelator and a fullerene derivative

Abstract

A carboxylic acid derivative (C8CBTA) with benzothiadiazole as an electron-withdrawing unit and N-octyl 3-amidocarbazole as an electron donor was designed and synthesized to obtain a gelator with a longer absorption wavelength. C8CBTA could form red gels in some aromatic solvents and could self-assemble into thin nanofibers in gel phases. The changes in UV-vis absorption spectra during gelation suggested J-aggregate stacking between aromatic moieties, and the IR spectrum of the xerogel film revealed the intermolecular hydrogen bonding between amide groups and the formation of dimers between carboxyl groups in gel phases. Thus, the synergistic effect of π–π interaction and hydrogen bonding induced 1D stacking. The C8CBTA gel exhibited a maximal absorption peak at 520 nm and emitted weak near-infrared fluorescence at a maximum of 700 nm because of the strong intramolecular charge transfer. A fullerene derivative that contains an imidazole unit as a hydrogen bond acceptor was synthesized and used as an electron acceptor in constructing a photo-induced electron-transfer two-component gel with C8CBTA. Fullerene derivatives also formed 1D stacking in the two-component gel. Moreover, the xerogel film, which served as the active layer, generated a larger amount of photocurrent compared with the disordered film under light irradiation.

---

Introduction

Functional organic molecules have been widely developed and applied in numerous practical fields because of their structural flexibility, low cost, and varied properties.^1–3 These molecules can self-assemble into nanofibers, nanoribbons, and nanorods, and their size-controlled optical and electrical properties, solution processability, and facile and large-scale synthesis increasingly attract attention.^4–6 These 1D nanoscale superstructures are widely used as sensor,^7–10 transistor,^11,12 batteries,¹³ solar cell,¹⁴ and nanoscale laser.¹⁵ Importantly, the gelation of π-gelators in organic solvents or water is a rapid, convenient, and low-cost approach to prepare 1D organic self-assembly.^16–22 π–π interaction, which allows long-range exciton migration, exists between π-conjugated moieties in these self-assemblies.^23,24 In addition, the narrow diameter of nanofiber provides large surface area. Therefore, the gel nanofibers have been applied in vapor sensors^25–28 and transistors.^29,30 The π-packing of π-conjugated moieties in the gel nanofibers afforded 1D p- or n-channel; thus, the gel fibers could be used as electron donor or acceptor for photocurrent generation. Shinkai, Würthner, and Stupp et al. developed some gelators as electron donors or acceptors and are applied in preparing physical mixture with gelators and polymers or fullerene derivative for photocurrent generation.^31–36 In these systems, p- and n-channels are separated; however, the phase segregation is poor, which is unfavorable for excellent exciton separation.

A two-component gel that consists of a donor gelator and a fullerene carboxylic acid derivative as electron acceptor was designed to obtain large-phase segregation and exciton transport channel.³⁶ The hydrogen bonding between the gelator and the fullerene derivative led to 1D close stacking of fullerene derivative. Thus, the electron donor and acceptor were interspersed at the molecular level, and effective electron and hole transport channels existed in the fibers. Consequently, the xerogel fibrous film could generate a large amount of photocurrent under light irradiation. However, a short absorption peak of 357 nm is unfavorable for solar light harvesting. Recently, quinoxaline or 2,3-dimethyl quinoxaline moieties as electron withdrawing group and N-alkyl 3-aminocarbazole or N-alkyl 3-aminocarbazol-3-yl thiophene as electron donor were introduced in the preparation of π-conjugated gelators with a D–π–A–π–D molecular structure to obtain a gelator with longer absorption wavelengths.^37,38 Their maximum red-shifted absorption occurred at 487 and 498 nm in their gels. A gelator with longer absorption wavelength was obtained by selecting benzothiadiazole because of its stronger electron-withdrawing ability (Scheme 1). Benzothiadiazole cannot form a strong hydrogen bond with the hydrogen bond donor; thus, a carboxyl terminal group as a hydrogen bond donor was introduced. In addition, a fullerene with imidazole unit as hydrogen bond and electron acceptor was synthesized. As a result, the gelator showed a maximum absorption peak at 520 nm and emitted weak near-infrared fluorescence with a maximum at 700 nm. A hydrogen bonding complex of gelator and fullerene was also formed and self-assembled into 1D nanofibers in the gel phase. Moreover, the xerogel film can provide larger amount of photocurrent compared with the disordered film under light irradiation.

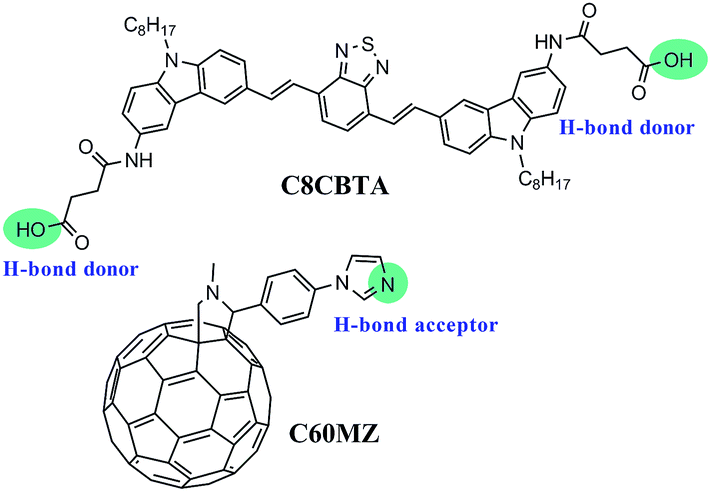

Scheme 1 Molecular structures of C8CBTA and C60MZ.

Experimental section

Instruments

Infrared spectra were measured using a Nicolet-360 FT-IR spectrometer by incorporating the samples in KBr disks. The UV-vis spectra were determined on a Mapada UV-1800pc spectrophotometer. C, H, and N elemental analyses were performed on a Perkin-Elmer 240C elemental analyzer. Photoluminescence measurements were taken on a Shimadzu RF-5301 Luminescence Spectrometer. ¹H NMR spectra were recorded on Mercury plus 400 MHz and 400 MHz. TEM images were observed with a Hitachi H-8100 apparatus by wiping the samples onto a 200-mesh carbon coated copper grid followed by naturally evaporating the solvent. The fluorescence quantum yields of C8CBTA in THF were measured by comparing to standards (Rhodamine 6G in water, Φ_F = 0.75). Cyclic voltammetry was employed using a three-electrode cell and an electrochemistry workstation (CHI 604). The working electrode was a glass carbon disc, the auxiliary electrode was a Pt wire, and Ag/AgCl was used as reference electrode. Tetrabutylammonium tetrafluoroborate (TBABF₄, 0.1 M) was used as the supporting electrolyte in dry THF and the ferrocenium/ferrocene (Fc/Fc⁺) redox couple was used as an internal potential reference.

Gelation test of organic fluids

The solution containing certain weighed gelator 1 in organic solvent was heated in a sealed test tube with 1 cm diameter in an oil bath until the solid was dissolved. After the solution was allowed to stand at room temperature for 6 h, the state of the mixture was evaluated by the “stable to inversion of a test tube” method.

Preparation of the ITO active electrodes

Two-component xerogel film. Gelator (1.0 mg) and 0.85 mg of C60MZ were added to 2.0 mL of o-dichlorobenzene and heated to complete dissolution. The hot solution (10 μL) was quickly casted on an ITO glass electrode (electrode area 0.25 cm²) and aged for 2 h at room temperature. The active electrode was obtained after the solvent was removed under low pressure for 2 h at room temperature and then at 100 °C for 6 h. A solution (15 μL) and a hot solution (10 μL) with only gelator (gelator of 1.0 mg, 2.0 mL solvent) were casted on ITO electrode to prepare the other films.

Disordered film. Gelator (1.0 mg) and 0.85 mg of C60MZ were added to 2.0 mL of THF, and 10 μL solution was casted on an ITO glass electrode (electrode area 0.25 cm²) and aged for 2 h at room temperature. The active electrode was obtained after the electrode was heated at 100 °C for 6 h under low pressure.

Photocurrent measurement. It carried out in a nitrogen-saturated 0.1 M Na₂SO₄ solution containing 50 mM ascorbic acid (AsA) as a sacrificial electron donor using a xerogel film ITO working electrode (0.25 cm²) and a Pt wire counter electrode at 0 mV bias against a Ag/AgCl (3 M KCl) reference electrode. A collimated light beam (50 mW cm⁻²) from a 150 W Xe lamp was used for the excitation of ITO active films.

Synthesis and characteristics. Compound 1 was synthesized according to the lecture procedures.³⁹ The synthesis route of C8CBTA is shown in Scheme 2.

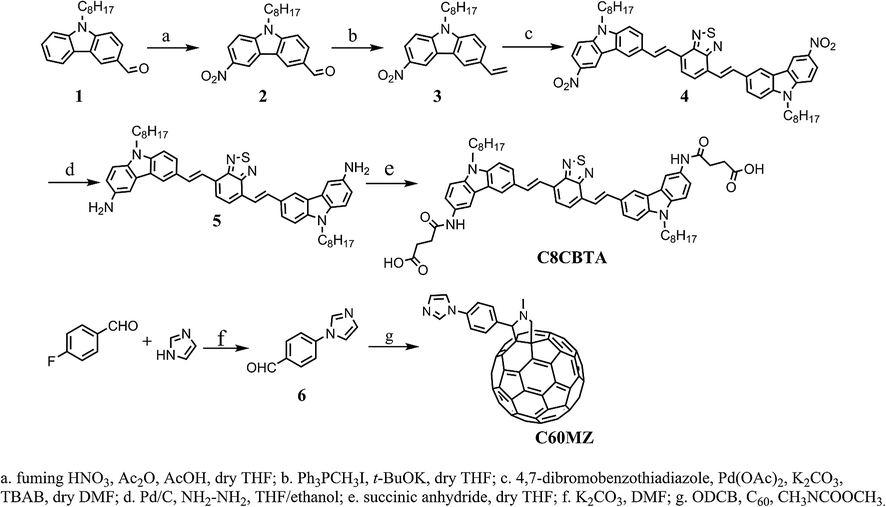

Scheme 2 Synthesis route of C8CBTA and C60MZ.

6-Nitro-9-octyl-9H-carbazole-3-carbaldehyde (2). Compound 2 was synthesized by a reported procedure.⁴⁰ Compound 1 (4.13 g, 13.45 mmol), 10 mL acetic anhydride and 10 mL THF were combined in a flask and heated to dissolve solid. After the solution was stirred for 10 min in an ice-water bath fuming HNO₃ (1 mL in 7 mL acetic acid) was added dropwise over 30 min. The mixture was stirred at room temperature for 6 h and poured into 100 mL water. The precipitate was collected by suction filtration and washed by water. The crude product was recrystallized from acetic acid to give light yellow needle-like crystal (3.98 g) in a yield of 84%. Element analysis (%): calculated for C₂₁H₂₄N₂O₃: C, 71.57; H, 6.86; N, 7.95; Found: C, 71.56; H, 6.80; N, 7.99. ¹H NMR (400 MHz, CDCl₃) δ 10.15 (s, 1H), 9.08 (s, 1H), 8.68 (s, 1H), 8.45 (d, J = 8.8 Hz, 1H), 8.13 (d, J = 7.7 Hz, 1H), 7.58 (d, J = 7.9 Hz, 1H), 7.50 (d, J = 8.8 Hz, 1H), 4.40 (s, 1H), 1.92 (t, J = 7.2 Hz, 2H), 1.30 (m, 10H), 0.86 (t, J = 7.0 Hz, 3H). MS, m/z: cal. 352.2, found 350.9, [M − H]⁺.

3-Nitro-9-octyl-6-vinyl-9H-carbazole (3). Methyltriphenylphosphonium iodine (4.1 g, 10.1 mmol), compound 2 (1.77 g, 5.0 mmol), and t-BuOK (2.30 g, 20 mmol) were dissolved in 30 mL dry THF at 0 °C, and the solution was stirred for 2 h at room temperature. After filtrated to remove the solid, the solvent was removed under reduced pressure. The residue was purified using column chromatography (petroleum ether/CH₂Cl₂ = 1 : 1) to give light yellow solid (1.5 g, 85% in yield). Element analysis (%): calculated for C₂₂H₂₆N₂O₂: C, 75.40; H, 7.48; N, 7.99; Found: C, 75.45; H, 7.43; N, 7.94. ¹H NMR (400 MHz, CDCl₃) δ 9.00 (s, 1H), 8.37 (d, J = 8.8 Hz, 1H), 8.15 (s, 1H), 7.65 (d, J = 8.1 Hz, 1H), 7.39 (t, J = 9.1 Hz, 2H), 7.26 (s, 1H), 6.91 (dd, J = 17.2, 11.0 Hz, 1H), 5.82 (d, J = 17.6 Hz, 1H), 5.28 (d, J = 10.7 Hz, 1H), 4.32 (t, J = 6.4 Hz, 2H), 1.88 (m, 2H), 1.29 (m, 10H), 0.86 (t, J = 7.0 Hz, 3H). MS, m/z: cal. 350.2, found 349.8, M⁺.

4,7-Bis((E)-2-(6-nitro-9-octyl-9H-carbazol-3-yl)vinyl)benzo[c][1,2,5]thiadiazole (4). To a 4,7-dibromobenzo[c][1,2,5]thiadiazole (0.58 g, 2.0 mmol), compound 3 (1.45 g, 4.1 mmol), anhydrous K₂CO₃ (1.32 g, 9.6 mmol), and Pd(OAc)₂ (2.5 mg, 0.01 mmol) and Bu₄NBr (3.1 g, 9.6 mmol) were added in dry DMF (20 mL). The mixture was stirred under a N₂ atmosphere at 120 °C for 24 h. After cooling to room temperature, the mixture was poured into water (200 mL) and crude solid was obtained by filtration and drying. The solid was dispersed in 50 mL of CH₂Cl₂ and petroleum ether (V/V = 1 : 3). The mixture was stirred overnight and product as black solid was gained by filtration. Yield: 87%. Element analysis (%): calculated for C₅₀H₅₂N₆O₄S: C, 72.09; H, 6.29; N, 10.09; Found: C, 72.13; H, 6.21; N, 10.01. ¹H NMR (400 MHz, CDCl₃) δ 9.04 (s, 2H), 8.41 (m, 4H), 8.23 (d, J = 16.8 Hz, 2H), 7.94 (d, J = 8.5 Hz, 2H), 7.76 (s, 2H), 7.75 (d, J = 16.7 Hz, 2H), 7.51 (d, J = 8.6 Hz, 2H), 7.41 (d, J = 9.1 Hz, 2H), 4.37 (t, J = 7.2 Hz, 4H), 1.56 (m, 4H), 1.49–1.22 (m, 20H), 0.89 (t, J = 7.0 Hz, 6H). MS, m/z: cal. 832.4, found 831.9, M⁺.

4,7-Bis((E)-2-(6-amino-9-octyl-9H-carbazol-3-yl)vinyl)benzo[c][1,2,5]thiadiazole (5). Compound 4 (0.72 g, 0.86 mmol) and 10% Pd/C (10 mg) was added DMF (10 mL) and ethanol (10 mL). After the mixture was heated to reflux for 10 min, the hydrazine hydrate (3 mL, 80% in water) was added dropwise over 30 min. After refluxing for 2 h, Pd/C was removed by filtration and then the filtrate was poured into water (100 mL). Crude product was collected by filtration and drying and purified using column chromatography (methanol/CH₂Cl₂ = 1 : 30) to give light yellow solid (0.45 g, 67% in yield). Element analysis (%): calculated for C₅₀H₅₆N₆S: C, 77.68; H, 7.30; N, 10.87; Found: ¹H NMR (400 MHz, CDCl₃) δ 8.27 (s, 2H), 8.15 (d, J = 16.3 Hz, 2H), 7.78 (d, J = 8.5 Hz, 2H), 7.74 (s, 2H), 7.71 (d, J = 16.4 Hz, 2H), 7.49 (s, 2H), 7.35 (d, J = 8.5 Hz, 2H), 7.22 (d, J = 8.5 Hz, 2H), 6.93 (d, J = 8.4 Hz, 2H), 4.24 (t, J = 7.0 Hz, 4H), 3.66 (s, 4H), 1.86 (m, 4H), 1.47–1.08 (m, 20H), 0.87 (t, J = 6.5 Hz, 6H).

4,4′-((6,6′-((1E,1′E)-Benzo[c][1,2,5]thiadiazole-4,7-diylbis(ethene-2,1-diyl))bis(9-octyl-9H-carbazole-6,3-diyl))bis(azanediyl))bis(4-oxobutanoic acid) (C8CBTA). 5 (0.13 g, 0.17 mmol) and succinic anhydride (0.08 g, 0.8 mmol) was dissolved in 10 mL dry THF and stirred for 10 h at room temperature. After removing solvent, the residue was dispersed in toluene and treated for 5 min by ultrasonic. The black product was gained by filtration. Yield = 79%. Element analysis (%): calculated for C₅₈H₆₄N₆O₆S: C, 71.58; H, 6.63; N, 8.64; Found: C, 71.64; H, 6.71; N, 8.59. ¹H NMR (400 MHz, d₆-DMSO) δ 12.13 (s, 2H), 10.02 (s, 2H), 8.59 (s, 2H), 8.42 (s, 2H), 8.29 (d, J = 16.5 Hz, 2H), 7.97 (s, 2H), 7.83 (s, 2H), 7.80 (d, J = 7.4 Hz, 2H), 7.63 (d, J = 7.2 Hz, 2H), 7.56 (d, J = 7.6 Hz, 2H), 7.52 (d, J = 7.6 Hz, 2H), 4.39 (t, J = 6.4 Hz, 2H), 2.61 (m, 8H), 1.79 (m, 4H), 1.37–1.10 (m, 20H), 0.83 (t, J = 6.5 Hz, 6H). MS, m/z: cal. 972.5, found 973.9, [M + H]⁺.

4-(1H-Imidazol-1-yl)benzaldehyde (6). The mixture of imidazole (1.13 g, 16.6 mmol), K₂CO₃ (1.33 g, 9.6 mmol) and hexadecyltrimethyl ammonium bromide (2.0 mg) as catalysis in DMF (16 mL) was heated for 10 min at 90 °C. The DMF solution of 4-fluorobenzaldehyde (10 mL, 2.0 g, 16.1 mmol) was added dropwise. After 24 h, the mixture was poured into 100 mL and crude product was obtained by filtration. Pure product as white solid was gained by column chromatography (methanol/CH₂Cl₂ = 2 : 5) (0.8 g, 28% in yield). Elemental Analysis: C, 69.76; H, 4.68; N, 16.27; found: Elemental Analysis: C, 69.69; H, 4.63; N, 16.32. ¹H NMR (500 MHz, CDCl₃) δ 10.05 (s, 1H), 8.03 (d, J = 8.6 Hz, 2H), 7.99 (s, 1H), 7.59 (d, J = 8.6 Hz, 2H), 7.38 (s, 1H), 7.27 (s, 1H), 7.27–7.25 (m, 1H).

N-Methyl-20-(4-(1H-imidazol-1-yl)phenyl)-pyrrolidino-[30,40:1,2][60]fullerene (C60MZ). The mixture of C60 (0.195 g, 0.27 mmol), 6 (56 mg, 3.5 mmol), glycine (0.15 g, 2 mmol) in o-dichlorobenzene was refluxed for 1 h. When the mixture was cooled to room temperature CHCl₃ (10 mL) and NaOH solution (10 mL, 5%) was added under stirring. Organic layer was dried by Na₂SO₄. CHCl₃ was removed under low pressure. The residue was purified using column chromatography (petroleum ether/toluene = 20 : 1 and then toluene/ethanol = 20 : 1) to give black solid (0.1 g, 40% in yield). ¹H NMR (500 MHz, CDCl₃) δ 7.95 (s, 2H), 7.91 (s, 1H), 7.48 (d, J = 8.4 Hz, 2H), 7.32 (s, 1H), 7.20 (s, 1H), 5.02 (d, J = 9.4 Hz, 1H), 4.99 (s, 1H), 4.30 (d, J = 9.4 Hz, 1H), 2.83 (s, 3H).

Results and discussion

Molecular synthesis

Donor and acceptor units were linked by vinyl group as π-bridge bond because small twist angles between phenyl and vinyl groups would enhance molecular π-conjugated degree and then induce red-shift of absorption spectrum. In addition, an amide moiety and long alkyl chains were introduced to produce a compound that gelates in solvent and self-assembles into 1D nanofibers.^41,42 Scheme 2 shows the detailed synthesis route. Compound 3 was synthesized based on reported procedures. A Heck reaction between 4,7-dibromobenzo[c][1,2,5]thiadiazole and compound 3 containing nitro and terminal vinyl moieties produced a high yield (87%) of key intermediate 4. Compound 5 was easily obtained using NH₂NH₂ as a reducing agent in the presence of Pd/C. The rapid amidation of 4 with succinic anhydride supported the terminal product without purification of the column chromatography. C8CBTA was characterized through elemental analysis, NMR, and MS. C60MZ with imidazole unit as a hydrogen bond acceptor was designed and synthesized because C8CBTA is a hydrogen bond donor. First, compound 6 was obtained through the nucleophilic substitution reaction of imidazole and 4-fluorobenzaldehyde. The reaction between C60, 6, and glycine in o-dichlorobenzene at a refluxing condition for 1 h produced crude C60MZ. Because imidazole unit could bind glycine, the mixture was washed several times with NaOH aqueous solution. Pure C60MZ was obtained through gradient elution column chromatography.

Photophysical properties of C8CBTA in solution

The obtained C8CBTA was black in color; thus, a longer absorption wavelength was expected. When C8CBTA dissolved in THF, a red solution was obtained, and the absorption spectrum of THF solution showed absorption peaks at 506, 350, and 319 nm (Fig. 1a and Table 1). The peaks at 350 and 319 nm may have originated from the π–π* transition. The strong absorption at 506 nm exhibited a high molar absorption coefficient (3.05 × 10⁴ M⁻¹ cm⁻¹), which was a longer wavelength compared with that of gelator where quinoxaline served as a relatively weak electron-withdrawing group. This red-shifted absorption suggests that the introduced benzothiadiazole moiety indeed led to a longer absorption wavelength. Fig. 1 shows the solvent-dependent absorption and fluorescence spectra. Increasing the solvent polarity induced a slight red-shift in the absorption band (Table S1†). For example, the maximal absorption peak at 506 nm shifted to 514 nm in DMSO. By contrast, a larger shift of the maximum emission was observed as solvent polarity increased. C8CBTA emitted a strong red fluorescence with a maximum at 620 nm and a fluorescence quantum yield of 0.39. DMSO solution showed an emission peak at 659 nm, indicating a red-shift of 39 nm relative to that in THF; this finding suggests that the excited state exhibited a larger polarity compared with the ground state.^43,44 In addition, the shift in the emission band in polar solutions is smaller relative to that in D–π–A molecules because C8CBTA exhibits a symmetric conformation, which was confirmed by quantum chemical calculation. DFT calculation (B3LYP/6-31G) indicated that the maximal absorption band of C8CBTA is assignable to the transition of HOMO to LUMO. Moreover, HOMO is mainly localized over the linear party, whereas LUMO is mainly distributed in the benzothiadiazole and vinyl units (Fig. 1c). Thus, light excitation would lead to a charge transfer from carbazole to benzothiadiazole. However, symmetric C8CBTA resulted in small change in molecular polarity after light excitation; thus, a slight red-shift in fluorescence spectra of C8CBTA was observed.⁴⁵

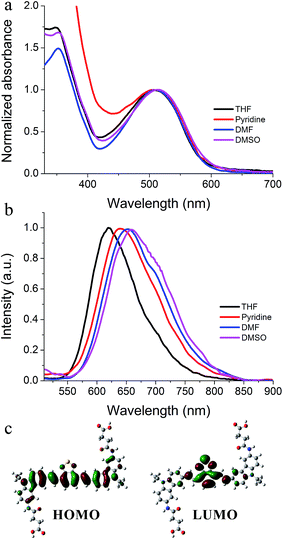

Fig. 1 (a) Normalized absorption and (b) fluorescence spectra of C8CBTA in various solvents, and (c) HOMO and LUMO of C2CBTA.

Table 1 Photophysical data of C8CBTA in THF

	λabs^a (nm, ε × 10^4 M^−1 cm^−1)	λem^a (nm)	Φ^b	Eg^c (eV)	HOMO^d (eV)	LUMO^e (eV)	HOMO^f (eV)	LUMO^f (eV)
a Measured in THF.b Obtained in THF using Rhodamine 6G as reference (0.75 in water, λex = 488 nm).c Determined by the onset of absorption spectrum.d Obtained by first oxidation peak with ferrocene/ferrocenium as an internal reference.e ELUMO = EHOMO − Eg.f Determined after geometrical optimization.
C8CBTA	506 (3.05), 350 (4.34), 319 (3.55)	620	0.39	2.11	−4.82	−2.71	−4.55	−2.36

---

Cyclic voltammetry was performed to investigate the electrochemical properties of C8CBTA. The higher HOMO energy level (−4.82 eV) of C8CBTA, which was estimated from the first oxidation potential, is ascribed to the presence of amidocarbazole moiety. The LUMO was evaluated using the following equation: E_LUMO = E_HOMO + E_g. E_g is the 0–0 excitation energy, which is determined by the onset of absorption spectrum in THF. A LUMO energy level of −2.71 eV was obtained, which is higher relative to that of fullerene derivative. Thus, electron transfer from the gelator to C60MZ is possible, and photocurrent generation is expected.⁴⁶

Self-assembly in the gel phase

The gelation ability of C8CBTA was first investigated because gelation in organic solvents always involves supramolecular self-assembly and formation of 1D nanofibers in the gel phase. The result is listed in Table 2. C8CBTA is difficult to dissolve in nonpolar hydrocarbon solvents, ethanol, and ethyl acetate even upon heating. Low solubility of C8CBTA was observed in nonpolar aromatic solvents, such as benzene and toluene. By contrast, C8CBTA dissolved in aromatic amines, pyridine, and quindine at room temperature because of the strong interaction between the carboxyl groups of the gelator and the N atoms of the solvents. Clear solutions were observed in polar THF, DMSO, and DMF. Red gels formed when the hot solutions of dichlorobenzene and bromobenzene were cooled to room temperature and aged for 1 h. Low critical gelation concentrations were observed in the two aforementioned solvents. For example, 0.6 mg of C8CBTA could gelate 1 mL of bromobenzene. Thus, one gelator molecule can prevent the flow of more than 15 000 bromobenzene. TEM measurement was performed to observe the morphology of the self-assembly in the gel phase. Fig. 2 shows that the gelators in the gel formed numerous intertwined fibers with a high aspect ratio, indicating that the gelators are likely to stack together to form 1D aggregates.^47,48

Table 2 Gelation ability of C8CBTA in organic solvents^a

Solvent	C8CBTA	C60MZ	Complex^c	Solvent	C8CBTA	C60MZ	Complex^c
a G – gel; P – precipitate; S – soluble.b Critical gelation concentration (CGC), wt/vol%.c Complex with a molar ratio of 1 : 1.
Benzene	I	S	I	Cyclohexane	I	I	I
Toluene	I	S	I	THF	S	S	S
Dichlorobenzene	G (0.13)^b	S	G	DMF	S	S	S
Bromobenzene	G (0.06)	S	G	DMSO	S	S	S
Ethanol	I	I	I	Pyridine	S	S	S
Ethyl acetate	I	I	I	Quindine	S	S	S
Hexane	I	I	I	Aniline	S	S	S
Heptane	I	I	I	N-Methylaniline	S	S	S

---

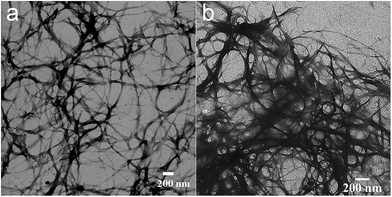

Fig. 2 TEM images of (a) dichlorobenzene xerogel and (b) the two-component (C8CBTA/C60MZ = 1 : 1) xerogel.

As shown above, gelators could self-assemble into thin nanofibers in the gel phase so the driving forces of the formation of 1D aggregates were analyzed using the UV-vis absorption, fluorescence, and FT-IR spectra. Fig. 3a shows the changes in absorption spectra during gelation. The maximal absorption peak in hot solution (120 °C) occurred at 503 nm, which decreased and shifted to 520 nm when the solution was cooled to room temperature and formed gel. An evident red-shift of 17 nm during gelation revealed the J-aggregate formation and the existence of π–π stacking between aromatic moieties.^49–52 When the black-red powder of C8CBTA in ODCB was heated to form a clear red solution, a strong red fluorescence with maximum emission at 620 nm was observed (Fig. 3b), which was ascribed to the emission of molecules in monomeric form. When the hot solution cooled, a gradual decrease in emission intensity was observed. Finally, a weak red emission with a maximum at 700 nm was observed in the gel phase. The spectral shifts imply that π–π interaction between aromatic moieties is a major driving force of molecular self-assembly. Because gelator has amide and carboxyl groups, FT-IR spectrum of the xerogel film was measured to study the intermolecular hydrogen bonding. The vibration peak of carboxyl group for C8CBTA gel occurred at 1699 cm⁻¹, and three wide absorption bands ranging from 2760 cm⁻¹ to 2480 cm⁻¹ were observed (Fig. S1†), which demonstrate the dimer structure of the carboxylic acid groups.⁵³ The amide I (C=O) and NH bands appeared at 1650 and 3287 cm⁻¹, respectively. These results imply that all the amide groups were involved in hydrogen bonding.⁵⁴ The results of absorption and IR spectra proved that π–π interaction and hydrogen bonding play important role in gel formation.

Fig. 3 (a) Absorption and (b) fluorescence spectral changes of C8CBTA in ODCB during phase transformation from hot sol to gel (120 to 20 °C, interval is 20 °C). The insets are images of phase transition from sol to gel. Concentration is 0.5 mg mL⁻¹.

Molecular modelling calculation was performed to obtain a stable aggregate to elucidate the self-assembling behavior of C8CBTA in the gel.⁵⁵ Fig. 4a shows that the two compounds exhibited a J-aggregate in the stable packing structure; this result is consistent with that of the UV-vis absorption spectra. In this π-packing, the intermolecular hydrogen bonds were found between adjacent amide units, which agrees with that of IR spectra. Furthermore, a double hydrogen bonding between carboxyl groups can promote dimer formation (Fig. 4b). These results further proved that the π–π interaction and hydrogen bonding were the driving force for gelation.

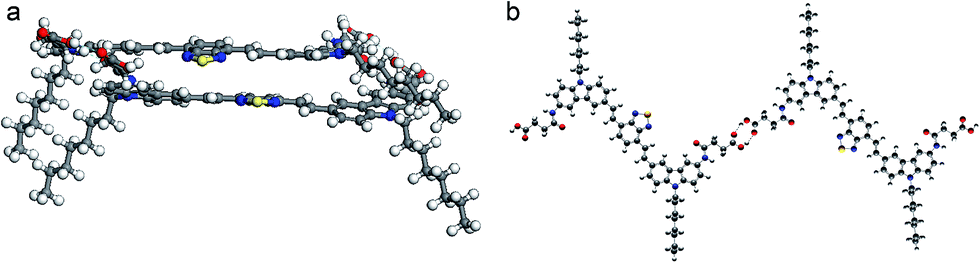

Fig. 4 Optimal structures of two C8CBTA: (a) π–π stacking, and (b) dimer between carboxyl groups.

Photocurrent generation by the two-component xerogel film

As discussed above, C8CBTA contains two carboxyl groups and exhibits higher LUMO energy level, whereas C60MZ contains an imidazole unit. Given the structures of C8CBTA and C60MZ, they were expected to form hydrogen bonding with the two-component gel with photoinduced electron transfer. When the fraction of C60MZ was less than 100%, the hot dichrolobenzene or bromobenzene solutions of C8CBTA and C60MZ could transform into red gels (Table 2), suggesting the formation of a two-component gel. In other solvents, no gel phase was observed. The maximal absorption peak at 520 nm was independent of the amount of C60MZ (Fig. 5a). This result shows that the addition of C60MZ did not destroy the stacking model (J-aggregate) of C8CBTA, and the charge-transfer complex of C8CBTA and C60MZ did not form into a two-component gel.^56–58 Hydrogen bonding between C8CBTA and C60MZ was confirmed by measuring the IR spectra of the two-component xerogels. Fig. S1† shows that the addition of C60MZ did not change the IR peak locations of C=O and N–H, suggesting that the hydrogen bonding between amide groups remained intact. The vibration peak at 1699 cm⁻¹, which is ascribed to the carboxyl dimer, weakened upon the addition of C60MZ, and a peak at 1719 cm⁻¹ corresponding to the free C=O appeared. Moreover, when the equimolar C60MZ was added, the wide absorption bands ranging from 2760 cm⁻¹ to 2480 cm⁻¹ disappeared, indicating that the carboxyl dimer was destroyed and hydrogen bonding between imidazole and carboxyl formed.⁵⁹ Considering the large diameter (7.1 Å) of C60 and the general π-stacking distance of 3.6 Å, the conversion of stacking model upon the addition of C60MZ is expected.³⁶ Fig. 6 shows that C8CTBA self-assembled into 1D aggregate along with the π-packing direction in the gel phase, and hydrogen bonds formed between carboxyl groups (Fig. 6a). After adding C60MZ, the double hydrogen bonds between carboxyl groups were destroyed and new hydrogen bonds between carboxyl and imidazole formed. Given the strong π–π stacking between aromatic moieties and the hydrogen bonds between amide units, 1D J-aggregate of C8CBTA still existed and half of the carboxyl groups were involved in hydrogen bonding owing to the large diameter of C60MZ. Thus, C60MZ, along with the gelator fibers as electron transport channels, was induced to construct 1D aggregate. In addition, only nanofibers were observed in TEM image (Fig. 2b) of two-component gel (1 : 1) and C60MZ aggregates did not exist, which also suggests the formation of hydrogen bonding complex. Therefore, photocurrent generation is anticipated if such two-component aggregates were used as active layer.

Fig. 5 (a) Absorption and (b) emission spectra of the two-component gels at various molar ratios. λ_ex = 500 nm. (c) Photocurrent response of indium tin oxide (ITO) electrodes to the two-component xerogel (1 : 1) film (black) and disordered film (red); the applied potential is 0 V vs. Ag/AgCl.

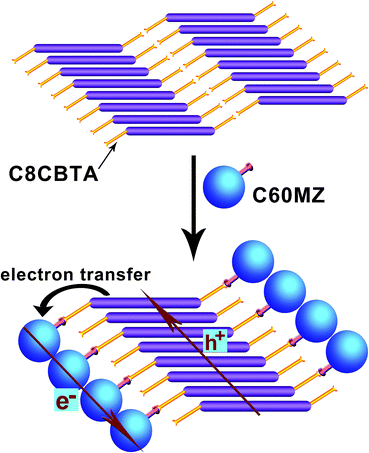

Fig. 6 Conversion of stacking model upon the addition of C60MZ and electron transfer from the gelator to C60MZ. Ordered 1D stacking of gelator and C60MZ supply electron and hole transport channels.

The difference between ordered film and disordered film in terms of photocurrent generation was compared by preparing two kinds of complex films. One is a two-component xerogel film (1 : 1) and the other was prepared from their THF solution. The photocurrent measurements for the ITO electrodes coated with active films (which served as the working electrode) were performed using ascorbic acid as a sacrificial electron donor, platinum wire as a counter electrode, and Ag/AgCl as a reference electrode.⁶⁰ Fig. 5c shows that the photovoltaic cell using xerogel film as active layer exhibited a considerably low current (3.0 × 10⁻³ μA) in the dark but immediately generated a stable and large amount of photocurrent (0.5 μA) upon irradiation. The current instantly dropped when the illumination was switched off (Fig. 5c). This process is reversible, indicating that the active layer is considerably robust. By contrast, photocurrent was considerably low (0.017 μA) when the disordered film was applied. In addition, we measured the photocurrents of the electrode with xerogel film and blank electrode, and found that current is less than 2.0 × 10⁻⁸ A. This result suggests that the existence of excellent p- and n-channels is important in generating larger photocurrent. Moreover, a complex xerogel film with a larger thickness was prepared and its photocurrent was measured. As shown in Fig. 5c, stable current could be observed under light irradiation, but it is weaker than that of thin one, indicating thick film is not a better choice to act as active layer because organic molecules always possess small hole mobility and short exciton diffusion length.

Conclusions

A new gelator with strong electron-withdrawing benzothiadiazole, electron-donating N-octyl-3-amidocarbazole and two carboxyl groups as hydrogen bond donor was designed and synthesized. When induced by intermolecular hydrogen bonds and π–π interaction, this gelator could self-assemble into 1D J-aggregate in its gel phase. The maximum absorption peak of the gel located at 520 nm. Moreover, a fullerene with one imidazole unit as an electron acceptor was synthesized and was able to form two-component hydrogen-bonding gels with gelator resulting from the hydrogen bonds between carboxyl and imidazole moieties. In the two-component gel, the 1D aggregate of fullerene derivative, which serves as an electron transport channel, formed along the gel fibers. Upon irradiation, larger amount of photocurrent was generated by the xerogel film compared with the disordered film. This result reveals that the strong electron-withdrawing group possibly promoted longer absorption wavelength, and the 1D arrangement of electron acceptor and donor is important for the large photocurrent generation. Future works will focus on the synthesis of gelator with longer absorption wavelength.

Acknowledgements

This work was financially supported by the National Natural Science Foundation of China (21103067, and 21374041), the Youth Science Foundation of Jilin Province (20130522134JH), the Open Project of the State Key Laboratory of Supramolecular Structure and Materials (SKLSSM2015014), the Open Project of State Laboratory of Theoretical and Computational Chemistry (K2013-02).
