Altering synthetic fragments to tune the AIE properties and self-assemble grid-like structures of TPE-based oxacalixarenes

Abstract

TPE-based oxacalixarenes were synthesized by one-pot condensation. Their AIE properties and self-assembled structures in the solid state can be tuned effectively by utilization different building blocks in the synthetic process. Moreover, the oxacalixarene 1a can be assembled into nanoparticles in THF/water and can be used as a detector for nitroaromatic explosives, such as TNP.

---

Introduction

Oxacalixarenes,^1,2 an important class of macrocyclic host molecules, are synthesized by simple nucleophilic aromatic substitution (S_NAr) reactions of diphenol compounds. With the characteristics of ready availability and tunable cavities, great efforts have been attracted in recent years and resulted in a wide variety of oxacalixarenes by different synthetic methods including the fragment coupling approach (FCA)³ and one-pot macrocyclic condensation reaction.⁴ In this field, the introduction of novel building blocks into oxacalixarene scaffolds to replace phenol units has been promoted greatly the advances in oxacalixarene chemistry. For example, large size building blocks, such as naphthalene,⁵ triptycene⁶ and terphenylene derivatives^2g,2i have been used to synthesize novel oxacalixarenes with larger-sized cavity. Although the utilization of functional building blocks to synthesize fluorescent oxacalixarenes and to tune their photophysical properties is significant in fields of host-guest chemistry and self-assembly, such oxacalixarenes remain largely unexplored.

Tetraphenylethylene and its derivatives (TPEs),⁷ with the well-known aggregation-induced emission (AIE) effect, have attracted increasing interest in photoelectric materials,⁸ porous materials,⁹ and chemo/biosensors.¹⁰ TPE has been proved a promising building block to construct oxacalixarene. Recently, we synthesized TPE-based oxacalixarene^11a and porous oxacalixarene cage^11b and found that these oxacalixarenes showed typical aggregation-induced emission (AIE) properties.

Herein, we introduced the different fragments of dicyanopyridines or dinitrobenzenes into TPE-based oxacalixarene scaffolds 1a or 1b (Scheme 1) by S_NAr reaction, respectively. In the oxacalixarenes, the AIE properties of TPE could be turned on or turned off by dicyanopyridines or dinitrobenzenes groups. Based on this result, oxacalixarene 1a could efficiently detect nitroaromatic explosives.

Scheme 1 The synthesis of TPE-based oxacalixarenes 1a and 1b.

Experimental section

General methods

Melting points, taken on an electrothermal melting point apparatus, are uncorrected. ¹H NMR and ¹³C NMR spectra were recorded on a DMX600 NMR. MALDI-TOF mass spectra were obtained on a BIFLEXIII mass spectrometer. UV spectra were recorded on SHIMADZU UV-2041PC spectrometer. Emission spectra were obtained on HITACHI F-4500 spectrometer. The X-ray single crystal data were collected on Bruker Apex II CCD Area Detector. Materials obtained commercially were used without further purification.

Synthesis of 1a

Under a dry argon atmosphere, a mixture of TPE 2 (100 mg, 0.28 mmol), 2,6-dichloropyridine-3,5-dicarbonitrile 3a (54 mg, 0.28 mmol) and anhydrous Cs₂CO₃ (273 mg, 0.84 mmol) in anhydrous DMSO (5 mL) was stirred vigorously at 25 °C for 1 h. The reaction mixture was partitioned between CH₂Cl₂ (50 mL) and H₂O (40 mL), separated, and the aqueous layer was extracted twice with CH₂Cl₂ (20 mL). The combined organic layer was washed with brine (100 mL), dried over anhydrous Na₂SO₄, filtered, and concentrated in vacuo. The combined organics were dried over anhydrous Na₂SO₄, filtered, and concentrated in vacuo. The residue was purified by column chromatography (petroleum ether/CH₂Cl₂, 5/1) to afford 1a as white solid (50 mg, 37%). Yield: 37.1%. Mp > 300 °C. IR (KBr): 2240, 1614, 1561, 1503, 1431, 1334, 1215, 1156 cm⁻¹. ¹H NMR (600 MHz, CDCl₃): δ 6.81 (d, J = 8.4 Hz, 8H), 7.02 (d, J = 8.4 Hz, 8H), 7.08 (d, J = 6.6 Hz, 8H), 7.12 (t, J = 7.2 Hz, 8H), 7.15 (m, 4H), 8.19 (s, 2H); ¹³C NMR (CDCl₃, 150 MHz) 91.3, 112.8, 120.9, 127.2, 128.1, 131.3, 132.5, 138.3, 141.4, 143.1, 143.5, 149.2, 149.7, 164.1. MALDI-TOF-MS: m/z 978.20 (M⁺). Anal. calcd for C₆₆H₃₈N₆O₄: C, 80.97; H, 3.91; N, 8.58; found: C, 81.23; H, 4.05; N, 8.50.

Synthesis of 1b

Under a argon atmosphere, a mixture of TPE 2 (100 mg, 0.28 mmol), 1,5-difluoro-2,4-dinitrobenzene 3b (56 mg, 0.28 mmol) and Cs₂CO₃ (273 mg, 0.84 mmol) were combined in a 50 mL flask. DMSO (10 mL) was added, and then the reaction mixture was stirred at room temperature for 4 h. The mixture was added with water (40 mL), extracted with EtOAc (3 × 50 mL). The combined organics were dried over anhydrous Na₂SO₄, filtered, and concentrated in vacuo. The residue was purified by column chromatography (petroleum ether/CH₂Cl₂, 1/2) to afford 1b as light yellow solid (45 mg, 31%). Yield: 31.0%. Mp > 300 °C. IR (KBr): 1620, 1591, 1530, 1501, 1349, 1293, 1201, 1164. ¹H NMR (600 MHz, CDCl₃): δ 8.85 (s, 2H), 7.21 (d, J = 7.2 Hz, 4H), 7.18 (t, J = 15 Hz, 8H), 7.11–7.15 (m, 16H), 6.82 (d, J = 12 Hz, 8H), 6.50 (s, 2H). ¹³C NMR (150 MHz, CDCl₃): 156.69, 151.45, 144.03, 143.33, 141.93, 137.18, 133.93, 132.38, 131.22, 128.22, 127.66, 125.80, 120.78, 104.93. MALDI-TOF-MS: m/z 1057.0 (M⁺). Anal. calcd for C₆₄H₄₀N₄O₁₂: C, 72.72; H, 3.81; N, 5.30; found: C, 72.86; H, 3.65; N, 5.54.

Crystallographic data for oxacalixarenes

1a·C₄H₁₀O (C₇₀H₄₈N₆O₅): M_r = 1053.14, triclinic, space group P1̄, a = 12.2726(17), b = 15.102(2), c = 15.213(2) Å, α = 90.795(2)°, β = 101.799(2)°, γ = 93.906(2)°, V = 2752.5(7) ų, Z = 2, ρ_calcd = 1.271 g cm⁻³, μ = 0.081 mm⁻¹, reflections collected 20 080, data/restraints/parameters 10092/0/732, GOF on F² 1.020, final R₁ = 0.0527, wR₂ = 0.1335, R indices (all data): R₁ = 0.0988, wR₂ = 0.1651, largest diff. peak and hole: 0.415 and −0.256 e Å⁻³, CCDC-1007294. 1b·0.5CH₂Cl₂·2C₄H₁₀O (C_72.5H₆₁ClN₄O₁₄): M_r = 1247.70, triclinic, space group P1̄, a = 14.4472(19), b = 14.816(2), c = 17.342(2) Å, α = 86.480(2)°, β = 68.308(2)°, γ = 66.251(2)°, V = 3140.4(7) ų, Z = 2, ρ_calcd = 1.319 g cm⁻³, μ = 0.133 mm⁻¹, reflections collected 22 762, data/restraints/parameters 10 939/27/842, GOF on F² 1.023, final R₁ = 0.0601, wR₂ = 0.1585, R indices (all data): R₁ = 0.0887, wR₂ = 0.1829, largest diff. peak and hole: 1.230 and −0.535 e/ų, CCDC-1035320.

Results and discussion

Synthesis of the oxacalixarenes 1a and 1b was carried out by one-pot condensation reaction depicted in Scheme 1. The S_NAr reactions of dihydroxytetraphenylethylene 2 with 2,6-dichloropyridine-3,5-dicarbonitrile 3a or 1,5-difluoro-2,4-dinitrobenzene 3b in the presence of Cs₂CO₃ in DMSO at room temperature resulted in the formation of 1a or 1b in yields of 37.1% or 31.0%, respectively. The products were characterized by IR, ¹H NMR, ¹³C NMR, MALDI-TOF MS, and elemental analysis.¹²

The TPE-based oxacalixarenes 1a and 1b displayed good solubility in common organic solvents. ¹H and ¹³C NMR spectra was used to investigate the conformation of macrocycles 1a and 1b in solution. For 1a, the ¹H NMR spectrum in CDCl₃ (Fig. S1†) shows only one singlet at 8.19 ppm for the proton Ha of the pyridine moiety. For 1b, the low-field chemical shift of 8.85 ppm for Ha′ and high-field chemical shift of 6.50 ppm for Hb′ were observed in its ¹H NMR spectrum in CDCl₃ (Fig. S3†). Meanwhile, their ¹³C NMR spectra both showed fourteen signals for the carbons. These results with only one set of proton and carbon signals in their of NMR experiments indicates that oxacalixarenes 1a and 1b are in fixed conformational structure of 1,3-alternation like our previous results.^11a

The structures of oxacalixarenes 1a and 1b were confirmed by their analysis of X-ray single crystal diffraction. The single crystals of oxacalixarenes 1a and 1b suitable for X-ray diffraction were obtained from vapor diffusion of Et₂O into dichloromethane solution. Like the conformational structures of most literature-documented oxacalixarenes, oxacalixarene 1a and 1b both adopt 1,3-alternate conformation in the solid state. In the crystal structure of 1a, the four bridging oxygen atoms are located in one plane. The two pyridine rings are eclipsed with a dihedral angle of 81.20°. The transannular N1⋯N4 distance for lower and C3⋯C36 distance for upper rim are 9.353 and 13.614 Å, respectively (Fig. 1a and b). For 1b, the two dinitrobenzene rings are twisted with a dihedral angle of 64.82°. The transannular C6⋯C34 distance for lower and C3⋯C37 distance for upper rim are 9.406 and 14.269 Å, respectively (Fig. 1c and d).

Fig. 1 Top views (a and c) and side views (b and d) of crystal structures of 1a and 1b, respectively. Hydrogen atoms and solvent molecule were omitted for clarity.

In the solid state, the oxacalixarene 1a can assemble into supramolecular grid structure, in which two molecules of Et₂O are contained (Fig. 2a). By virtue of a couple of C–H⋯N interactions (d_H⋯N = 2.725 Å, θ_C–H⋯N = 155.43°) and a couple of C–N⋯π interactions (d_N⋯π = 3.022 Å) between the cyanopyridine moieties, a dimer structure of 1a was formed (Fig. S7a†). The dimer structure of 1a could be assembled into one-dimensional linear grid structure by a couple of π–π stacking interactions (d_π–π = 3.320 Å) (Fig. S7b†). Different from 1a, the oxacalixarene 1b assembled into two different kinds of grid-like pores structure. Two molecules of 1b with different directions could form a dimer structure by two couples of C–H⋯O interactions (d_H⋯O = 2.566 and 2.553 Å, θ_C–H⋯O = 121.75 and 143.90°) between the aromatic protons of TPE moiety and the oxygen atoms of the dinitrobenzene (Fig. S8a†). The oxacalixarenes could assemble into one-dimensional linear grid structure by another a couple of C–H⋯O interactions (d_H⋯O = 2.546 Å, θ_C–H⋯O = 137.43°) and a couple of π–π stacking interactions (d_π–π = 3.373 Å) between the adjacent dimers (Fig. S8b and c†). The grid-like pore A can be recognized as formation from the four dinitrobenzene moieties. Furthermore, another grid-like pores (pore B) were obtained by two couple of C–H⋯π interactions (d_H⋯π = 2.603 Å) between the TPE moieties in the adjacent two grid structures (Fig. S9a and b†). The pore B was formed from four TPE moieties. Due to the different structure and properties, one disordered CH₂Cl₂ molecule and two molecular ethyl ethers were located in pore A and pore B, respectively (Fig. 2b).

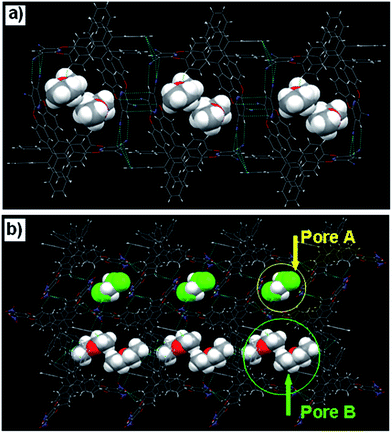

Fig. 2 The grid-like structure assembled from oxacalixarene 1a (a), and grid-like structure bearing pore A and pore B assembled from oxacalixarene 1b (b).

The oxacalixarene 1a shows typical AIE properties. In THF solution, 1a is almost non-fluorescent. While, addition of water into the THF solution might “turns on” the fluorescence of 1a because of the AIE effect. As shown in Fig. 3a, the fluorescence intensity of 1a is significantly enhanced when the volume ratio of water/THF is larger than 70/30, which can be detected by naked eye (Fig. 3b). From the dynamic light scattering experiment (Fig. S10a†) and transmission electron micrograph (TEM) results (Fig. S10b†), 1a can be assembled into nanoparticles with size of ∼100 nm in water/THF (95/5). Different from 1a, the AIE effect of TPE was turned off by introducing the dinitrobenzenes into oxacalixarene 1b, which might result from photoinduced electron transfer between the TPE and dinitrobenzene units.

Fig. 3 (a) Fluorescence spectra of oxacalixarene 1a in THF after the addition of various amounts of water (excitation wavelength: 350 nm) and (b) photographs of solution of 1a in THF/water with different ratio under UV irradiation (365 nm).

Inspired by the results of fluorescence quenching of TPE in 1b, oxacalixarene 1a can be used as a detector for nitroaromatic explosives, which is significant for national security and environmental protection. The recognition of 2,4,6-trinitrophenol (TNP) was studied by fluorescent titration experiments. As shown in Fig. 4a, the emission of 1a in water/THF (95/5) was quenched upon addition of TNP. The quenching constant of 1a for TNP was determined from the exponential quenching equation (I/I₀ = Ae^K[Q] + B).¹³ By the nonlinear curve-fitting, the quenching constant of 1a with TNP was calculated to 1.7 × 10⁴ M ⁻¹.

Fig. 4 Emission spectra (λ_ex = 350 nm) of 1a (4.5 × 10⁻⁶ M) in presence of TNP at various concentration (0, 5, 10, 15, 20, 25, 30, 35, 40, 45 and 50 equiv.). Inset: the photographs of solution of 1a without (left) or with (right) 50 equiv. TNP under UV light (a). Fluorescence quenching efficiency ((1 − I/I₀) × 100%), where I and I₀ denote the fluorescence intensity of 1a with and without quencher, respectively of different quenchers (b).

To investigate the selectivity of 1a for nitroaromatic explosives, nine aromatic compounds were used as quenchers, including TNP, 2,4-dinitrophenol (DNP), p-nitrophenol (p-NP), o-nitrophenol (o-NP), m-nitrophenol (m-NP), o-nitrotoluene (NT), 4-nitrobenzoic acid (NBA), benzoic acid (BA) and phenol (PH). When 15 equiv. of quenchers were added into the suspension of 1a in water/THF (95/5), the fluorescent intensities were measured (Fig. S11–S19†).¹² As shown in Fig. 4b, 1a displayed greater fluorescence quenching with electron deficient nitroaromatic compounds than with other aromatic compounds. Among these electron deficient nitroaromatic compounds, TNP induced the greatest quenching with the most electron-deficient characteristic. The quenching efficiency ((1 − I/I₀) × 100%) of TNP is up to 74.3%. The quenching constant of 1a with TNP is also the greatest in the nine aromatic compounds (Table S1†). These results suggested that the greater the number of nitro-groups present on the aromatic ring, the more extensive the degree of fluorescence quenching. In order to determine the limits of detection of TNP by 1a, the fluorescence changes of 1a (5.0 × 10⁻⁷ M) with different amounts of TNP were measured as shown in Fig. S20.† By this method, the sensitivity of 1a toward TNP was down to 0.1 μM (23 μg L⁻¹).

Conclusions

In conclusion, we have synthesized TPE-based oxacalixarenes by the S_NAr reactions. Their AIE properties can be tuned effectively by different building blocks such as cyanopyridine or nitrobenzene. With typical AIE properties, the oxacalixarene 1a shows good detection abilities towards nitroaromatic explosives such as TNP. Further work on these expanded oxacalixarenes will be focused on their co-assembly and recognition of some interesting guests, which are now underway in our lab.
