Wei-Zhuo Gaiab,
Zhen-Yan Deng*a and
Ying Shib
aEnergy Materials & Physics Group, Department of Physics, Shanghai University, Shanghai 200444, China. E-mail: zydeng@shu.edu.cn; Fax: +86-21-66134208; Tel: +86-21-66134334
bSchool of Materials Science and Engineering, Shanghai University, Shanghai 200444, China
First published on 28th September 2015
Different Al(OH)3 powders were used as adsorbents for fluoride removal from water. The results showed that the defluoridation performance of ultrasonically prepared Al(OH)3 (UAH) is much better than that of commercially available Al(OH)3 and is comparable to that of activated alumina, because the ultrasonic waves effectively break the agglomerates in the suspension so that the UAH particles are fine and have a beneficial phase constituent. Furthermore, the residual aluminum concentration in aqueous solution after defluoridation by Al(OH)3 was found to be one order of magnitude lower than that obtained with activated alumina which is below the World Health Organization (WHO) guideline for aluminum (0.2 mg L−1) in drinking water. The defluoridation dynamics and mechanism for UAH are discussed in detail.
High fluoride concentration in drinking water comes from two different channels: natural sources and anthropogenic discharge. Fluorides are released into the environment naturally through weathering and the dissolution of rock minerals, leading to a high fluoride concentration in groundwater in some areas. On the other hand, the discharge of wastewater containing fluorides from various industries, e.g. mining, semiconductor fabricating, electroplating, rubber and fertilizer manufacturing etc., is another cause for fluoride enrichment in groundwater. Most rural areas and some urban areas in developing countries use groundwater as the drinking water. As per a conservative estimate, more than 200 million people worldwide are at risk of different forms of “fluorosis” due to excess fluoride in drinking water, especially in Africa, Mexico, China, India, Pakistan, and Thailand.3
Fluoride removal from water has long been an engineering challenge, much effort has been put into developing effective defluoridation technologies. In order to reduce fluoride concentration to an acceptable level in drinking water, different methods have been developed such as precipitation, adsorption, ion exchange, membrane separation and electrodialysis, and reverse osmosis.4,5 Among the various defluoridation techniques, adsorption is an environmentally friendly and economically viable method due to its flexibility and simplicity of design, relative ease of operation and low cost.
During the past decades, many natural mineral and biopolymer adsorbents have been used to remove fluoride, e.g. alum sludge, hydroxyapatite, aluminum hydroxide coated rice husk ash, surface modified pumice, modified natural siderite, zeolitic tuff, pseudoboehmite and chitosan shell.6–13 Although natural mineral and biopolymer adsorbents are low in cost, they have low adsorption capacity and require a complex modification procedure to improve their defluoridation performance. In order to enhance the adsorption capacity of adsorbents, some nanometer metal oxides and hydroxides with high surface areas such as nano alumina,14–16 carbon nanotube supported alumina,17 manganese-oxide-coated alumina,18,19 nano boehmite or bayemite,20–22 double or trimetal hydroxides,23–27 Fe3O4/Al2O3, CeO2/ZrO2, MnO/Al2O3 nanoparticles,28–30 aluminum sulfate/graphene hydrogel, MgO/MgCO3, and alumina modified graphite,31–33 etc. have been developed in recent years.
In general, the criteria for selecting an adsorbent mainly include the adsorption capacity, cost, production technology and water quality after fluoride removal. Among the various adsorbents available, activated alumina has been commercialized and widely used in many countries due to its high binding affinity with F− ions and its cost-effectiveness. However, the main disadvantage of activated alumina is its high residual aluminum concentration in aqueous solution after defluoridation. George et al.34 found that the residual aluminum concentration was up to 1.5 mg L−1 when the initial fluoride concentration was 10 mg L−1 and the activated alumina dose was 4 g L−1, which is far higher than the WHO guideline of 0.2 mg L−1 of aluminum in drinking water. A high concentration of aluminum in drinking water could cause Alzheimer’s disease.35 For the aforementioned nanometer adsorbents, there is not much data relating to the residual aluminum concentration in water after defluoridation. In this work, it was found that a low residual aluminum concentration in drinking water was reached using aluminum hydroxides to remove fluoride, making aluminum hydroxides promising alternatives to activated alumina.
However, the commercial aluminum hydroxides produced by the Bayer process using bauxite have a poor fluoride adsorption capacity.36 In order to improve the defluoridation performance of aluminum hydroxides, Shimelis et al.37 prepared aluminum hydroxide adsorbent through hydrolysis of aluminum sulfate. Jia et al.22 synthesized a feather like bayerite/boehmite adsorbent by a facile one-pot hydrothermal method. However, these methods use alkaline solution and the amount of alkaline solution requires precise control. In a previous work,38 a high-activity Al(OH)3 was prepared by the reaction of Al with water using an ultrasonic procedure. In this work, the ultrasonically prepared Al(OH)3 was used as the adsorbent for fluoride removal from water, and it was found that its defluoridation performance is comparable to that of activated alumina.
In addition to the commercial Al(OH)3 powders, two other Al(OH)3 suspensions and powders were prepared in this work. One was prepared by reacting pure Al powder with water in a closed glass reactor in vacuum (the initial pressure is 7.4 kPa) at 40 °C to form Al(OH)3 suspension (S-VAH), and then filtering by a filter paper and drying at 60 °C to form Al(OH)3 powder (VAH).39 Another was prepared by putting pure Al powder into a beaker with deionized water, then ultrasonically treating in an ultrasonic vessel (40 kHz, 100 W) at 40 °C for a time period (∼2 h) to form Al(OH)3 suspension (S-UAH), and finally filtering by a filter paper and drying at 60 °C to form Al(OH)3 powder (UAH).38
The fluoride stock solution (1000 mg L−1) was prepared by dissolving an appropriate amount of NaF in deionized water. The fluoride solution used for the adsorption experiments was prepared by diluting the stock solution to a setting concentration using deionized water. Adsorption tests were carried out in 250 mL of fluoride solution, and 1 g of Al(OH)3 adsorbent (4 g L−1) was used in each test. A magnetic agitation bar was used at a speed of ∼500 rpm to stir the mixture of adsorbent and fluoride solution. At a pre-setting time, 10 mL of sample was taken from the adsorption solution and filtrated through a filter with a 0.22 μm polyethersulfone (PES) resin membrane. The residual F− concentration in the filtrate was measured using an ion chromatograph (IC, Model no. MIC-II, Metrohm Co., Switzerland). The F− removal ratio α can be calculated using the following equation:
![]() | (1) |
A zeta potential analyzer (type: ZETASIZER 3000HSA, Malvern Instruments Ltd, UK) was used to measure the zeta (ζ) potential of the Al(OH)3 suspensions prepared by the ultrasonic procedure (S-UAH). A pH meter (Model no. MP512, Shanghai Sanxin Instrument Co., Shanghai, China) was used to measure the pH value of the different solutions. X-ray diffractometry (XRD, Model no. D/max-2200, Rigaku Co., Japan) was used to analyze the phases in different Al(OH)3 powders. Scanning electron microscopy (SEM, Model no. JSM-6700F, JEOL Co., Japan) was used to observe the morphologies of Al and different Al(OH)3 powders.
Fig. 2 shows the X-ray diffraction patterns of four kinds of Al(OH)3 powders. It can be seen that T-CAH and J-CAH have a phase of gibbsite and bayerite, respectively. VAH has a phase of bayerite, but UAH has a phase composition of bayerite and boehmite. Furthermore, the diffraction peaks of UAH are wider than those of other Al(OH)3 powders (see the red arrows), so the grain sizes in UAH are smaller than those in other Al(OH)3 powders, implying that the surface area of UAH is the largest of the powders studied, which is consistent with the morphology observation presented in Fig. 1.
![]() | ||
Fig. 2 X-ray diffraction patterns of different Al(OH)3 powders: (a) T-CAH, (b) J-CAH, (c) VAH and (d) UAH. |
Fig. 3(b) shows fluoride removal from aqueous solution with different initial F− concentration using UAH at 25 °C. It can be seen that the initial F− concentration has a significant effect on the fluoride removal ratio, which decreases when the initial F− concentration is increased. When the initial F− concentration is 10 mg L−1, more than 90% of fluoride is removed within 3 h and the residual F− concentration is ∼1.0 mg L−1, which is within the guideline value of WHO. This implies that UAH is an effective and viable adsorbent for defluoridation if the F− concentration in groundwater is below 10 mg L−1.
The effect of initial pH value in aqueous solution on the fluoride removal using UAH was investigated, as shown in Fig. 4(a), where fluoride solutions with different initial pH values were obtained by adding a suitable amount of HCl or NaOH. It can be seen that the final fluoride removal is closely related to the initial pH value. When the initial pH value is between 5 and 9, it has almost no impact on the fluoride removal. When the initial pH value decreases from 5 to 3, the fluoride removal increases. When the initial pH value is >9, fluoride removal decreases with an increase in the pH value.
![]() | ||
Fig. 4 (a) Effect of pH value on fluoride removal from aqueous solution using UAH at 25 °C (initial F− concentration = 20 mg L−1, contact time = 24 h) and (b) zeta potential curve for S-UAH. |
In fact, the F− adsorption onto Al(OH)3 or AOOH is closely related to its surface chemical characteristics, changing the pH value leads to a change in its zeta potential. Fig. 4(b) shows the zeta potential curve of S-UAH, it can be seen that the isoelectric point of S-UAH is at ∼10.3. When the pH value is below this isoelectric point, the zeta potential of Al(OH)3 suspension is positive, i.e. the Al(OH)3 particles have a positive surface charge.40 In this case, there is an electrostatic attraction between the Al(OH)3 surfaces and F− ions, so decreasing the pH value from 5 to 3 promotes the F− adsorption onto UAH. However, when the pH value is above the isoelectric point, the Al(OH)3 particles have a negative surface charge and there is an electrostatic repulsion between the Al(OH)3 surfaces and F− ions, so increasing the pH value inhibits the F− adsorption when the pH value is >9 (Fig. 4(a)). Moreover, there is a competition between the OH− and F− ions for the adsorption sites on Al(OH)3 surfaces at alkaline pH range.40

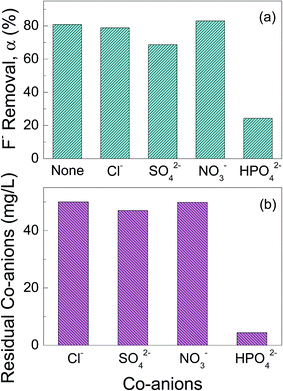

In addition to fluoride, drinking water often contains other anions such as Cl−, SO42−, NO3− and HPO42−, etc.,41 and the co-existing anions in water may influence the defluoridation performance of UAH. Fig. 5(a) shows the fluoride removal from a solution containing 50 mg L−1 of different co-existing anions separately using UAH at 25 °C. It can be seen that Cl− and NO3− ions almost have no effect on the fluoride removal. However, SO42− and HPO42− ions inhibit the F− adsorption onto UAH, this is more marked for HPO42− ions, which decrease the fluoride removal from ∼80% to just 24.4%. Fig. 5(b) shows the residual co-existing anions in aqueous solution after defluoridation by UAH. It can be seen that the concentrations of Cl− and NO3− do not change before and after defluoridation, but the concentrations of SO42− and HPO42−decrease to 47.0 and 4.4 mg L−1, respectively, after defluoridation. This indicates that SO42− and HPO42− ions are also adsorbed onto UAH surfaces, and there is competition between F− and, SO42−and HPO42− ions for the adsorption sites on the UAH surfaces.20
Fig. 6 shows fluoride removal from solutions with different initial F− concentration using UAH at different temperatures. It can be seen that the defluoridation performance of UAH decreases with an increase in the temperature. When the temperature increases from 25 °C to 55 °C, the fluoride removal decreases from 92.6% to 82.5% and from 68.1% to 45.4% for initial F− concentrations of 10 and 40 mg L−1, respectively, implying that F− adsorption onto UAH is an exothermic process.42
![]() | ||
Fig. 6 Effect of temperature on fluoride removal from aqueous solution using UAH, where the initial F− concentrations in (a) and (b) are 10 and 40 mg L−1, respectively. |
Our adsorption dynamics analyses indicated that F− adsorption onto UAH is pseudo-second-order adsorption. The adsorption isotherm showed that F− adsorption onto UAH is a chemical adsorption process. Thermodynamic study confirmed that F− adsorption onto UAH is an exothermic process, which is favorable and spontaneous in nature (the details are given in the ESI material†).
![]() | ||
Fig. 7 Residual Al in aqueous solution at 25 °C after defluoridation using different adsorbents (initial F− concentration = 20 mg L−1, contact time = 24 h). The result of activated alumina (AA) is added for comparison34 and the red line represents the WHO guideline for aluminum concentration in drinking water. |
Fig. 8–10 show the effect of pH value, initial F− concentration and temperature on the residual aluminum concentration in aqueous solution after defluoridation by UAH. When the pH value is between 5.5 and 8.5, the pH value has a small effect on the residual aluminum concentration in aqueous solution, but it is in the range of 0.040–0.055 mg L−1 (Fig. 8), which is below the WHO guideline. In fact, the pH value of drinking water is about 6.5–8.5, so UAH is suitable for fluoride removal in drinking water. Fig. 9 indicates that the initial F− concentration has a significant impact on the residual aluminum concentration and it increases with an increase in the F− concentration. When the initial F− concentration is >40 mg L−1, the residual aluminum concentration exceeds the WHO guideline. The possible cause is that at higher initial F− concentration, Al(OH)3 interacts with F− ions to form more AlFx species. As AlFx has a definite solubility in water, more residual aluminum appears in the solution.44 Fig. 10 indicates that the residual aluminum concentration increases with an increase in the temperature, because the solubility of Al(OH)3 in water increases with an increase in the temperature.
![]() | ||
Fig. 8 Residual Al in aqueous solutions with different initial pH values at 25 °C after defluoridation using UAH (initial F− concentration = 20 mg L−1, contact time = 24 h). |
![]() | ||
Fig. 9 Residual Al in aqueous solution with different initial F− concentration at 35 °C after defluoridation using UAH (contact time = 24 h). |
![]() | ||
Fig. 10 Residual Al in aqueous solution at different temperatures after defluoridation using UAH (initial F− concentration = 10 mg L−1, contact time = 24 h). |
F− + ![]() ![]() | (2) |
In order to validate the adsorption mechanism proposed above, Table 1 gives the pH values of the solutions with different F− concentrations before and after defluoridation by different Al(OH)3 at 25 °C. It can be seen that the pH value increases after defluoridation by Al(OH)3. The change (ΔpH) in pH value for UAH is higher than for other Al(OH)3 adsorbents, the ΔpH increases with an increase in the initial F− concentration and is proportional to the amount of F− removal (Fig. 3). This confirms the above proposed mechanism, because more OH− ions are released when more F− ions adsorb onto Al(OH)3 particle surfaces. As the increase in reaction by-product inhibits the reversible reaction, the F− removal ratio decreases with increasing F− concentration (Fig. 3(b)).
Adsorbent | pH (before defluoridation) | pH (after defluoridation) | ΔpH |
---|---|---|---|
T-CAH, 20 mg L−1 | 7.18 | 7.36 | 0.18 |
J-CAH, 20 mg L−1 | 7.22 | 7.51 | 0.29 |
S-VAH, 20 mg L−1 | 7.37 | 7.76 | 0.39 |
S-UAH, 20 mg L−1 | 7.53 | 8.27 | 0.74 |
VAH, 20 mg L−1 | 7.38 | 7.62 | 0.24 |
UAH, 10 mg L−1 | 6.82 | 6.98 | 0.16 |
UAH, 20 mg L−1 | 7.03 | 7.51 | 0.48 |
UAH, 30 mg L−1 | 7.35 | 8.05 | 0.70 |
UAH, 40 mg L−1 | 7.46 | 8.53 | 1.07 |
From the above analyses, it is clear that F− ion adsorption onto Al(OH)3 particles is closely related to their surface hydroxyl groups. The surface hydroxyl group density and surface area of Al(OH)3 are two key factors affecting its F− removal efficiency. In fact, different aluminum oxides and hydroxides have different surface hydroxyl group density. For example, the surface hydroxyl group density of α-Al2O3, boehmite and gibbsite is 6, 16.5 and 12 groups per square nanometer, respectively.46 This may be one reason why T-CAH and J-CAH have different F− removal performance, because they have different Al(OH)3 phases. Moreover, the good adsorption kinetics of UAH probably also results from its high surface hydroxyl group density, because UAH has a phase composition of bayerite and boehmite (Fig. 2), and boehmite has a high surface hydroxyl group density as mentioned above.
It is well known that the sonochemical effect of ultrasound in a liquid–solid system mainly arises from acoustic cavitation.47 During cavitation, bubble collapse produces intense heating and high pressure at the interfacial region around cavitation bubbles, which promote the formation of boehmite during the UAH preparation process, because boehmite forms at a higher temperature than bayerite.48 As aforementioned, the existence of boehmite in UAH is favorable for the removal of F−. In addition, ultrasonic cavitation can create microjets and shock waves, which effectively break agglomerates and increase the Al(OH)3 and AlOOH surface area, leading to a higher F− removal ratio of UAH than VAH, T-CAH and J-CAH (Fig. 3(a)).

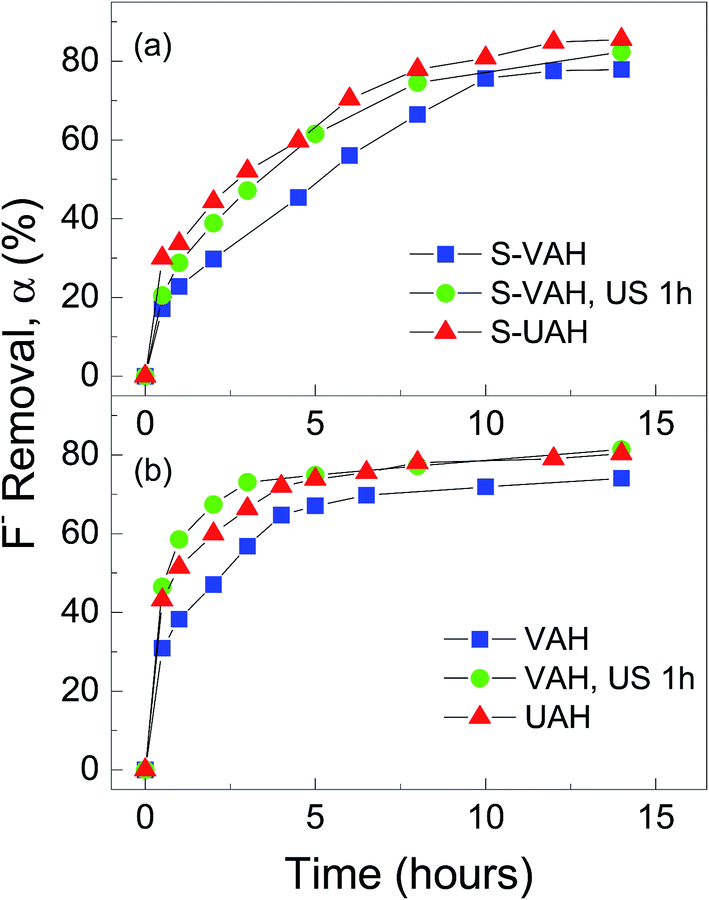

The above analyses indicated that the ultrasonic procedure is an important reason for the high F− removal of UAH. In order to determine whether the ultrasonic procedure can improve the F− removal of J-CAH and VAH, J-CAH and S-VAH were ultrasonically treated for 1 h and then used in F− adsorption tests. Fig. 12 and 13 show F− removal from aqueous solution with an initial F− concentration of 20 mg L−1 at 25 °C using J-CAH, VAH, S-VAH and those after the ultrasonic treatment. It can be seen that the ultrasonic treatment has a negligible impact on the removal of F−by J-CAH (Fig. 12). However, the ultrasonic treatment greatly improves the removal of F−by VAH and S-VAH (Fig. 13).
In fact, there are many Al(OH)3 soft agglomerates in S-VAH due to its lack of breaking mechanism. After the ultrasonic treatment, the soft agglomerates in S-VAH are broken, which increases the Al(OH)3 surface area, leading to an increase in its F− removal. However, the agglomerates in J-CAH are hard due to the sintering and grain growth during drying, coalescence between particles occurs and the bonding strength between the particles is strong.39 Therefore, it is not easy to break these hard agglomerates, and the surface area of J-CAH almost has no change after the ultrasonic treatment. This is why the ultrasonic treatment has a negligible impact on the F− removal by J-CAH.
In fact, the Al–water reaction is a promising hydrogen-generation technology for portable fuel cell application and Al(OH)3 is the byproduct of Al–water reaction.49–51 Therefore, the Al–water reaction byproduct can be used to remove fluoride in drinking water through ultrasonic treatment, which provides an ideal and economic way to dispose of the Al–water reaction byproduct.
Footnote |
† Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra14706a |
