Competing mechanisms for the reaction of dichloropropynylborane with 2-tert-butylbutadiene. Diels–Alder reaction versus alkynylboration

Abstract

Density functional theory and the quantum theory of atoms in molecules approach were used to study two competing process: the Diels–Alder reaction (DA) and the 1,4-alkynylboration (AB) between dichloropropynylborane (1) and 2-tert-butylbutadiene (2) in dichloromethane. We analyzed several reaction pathways related with such reactions for both orientations (meta and para). The stepwise mechanisms for the two competitive reactions share the first step that leads to an intermediate zwitterionic structure. The second step is more favorable for the reaction occurring via TSC-m that leads to the meta enyne product 5, which is the kinetic product. The formation of the meta DA product cannot be explained through a direct cycloaddition, due to the higher activation free energy of the associated transition structure (TSB-m). An alternative transition structure with [4 + 3] character (TSD-m) that connects the meta enyne 5 with the meta cycloadduct 3 was found. We propose that at longer reaction times, 5 rearranges to the thermodynamic product 3 via TSD-m passing by a six-membered ring structure and a seven-membered ring structure. The topological analysis of the charge density along the selected reaction coordinates provided some understanding on the intriguing competitive reactions.

---

Introduction

Alkynyl boron reagents have shown great versatility as building blocks in several cycloaddition reactions leading to a wide variety of compounds in a regioselective manner.^1–15 Moreover, the cycloaddition products can be used in subsequent reactions to obtain complex structures. Among these compounds, alkynylboranes have proved to be good dienophiles showing an unusual electronic preference for the meta products in Diels–Alder (DA) reactions. Singleton et al.¹⁶ have reported that the DA reactions of (trimethylsilyl)ethynyl-9-BBN and acyclic dienes at 100 °C lead to the corresponding 1,4-cyclohexadienes with predominance of the meta cycloadduct products consistent with the [4 atom + 3 atom] transition structure (TS). Other alkynyldialkylboranes were shown to be poor dienophiles due to their low reactivity while alkynyldihaloboranes were extremely reactive in cycloaddition reactions.¹⁶ The DA reactions of alkynyldihaloboranes with isoprene as diene in hexanes at 25 °C generated the cycloadducts in high yields and with complete meta regioselectivity. Interestingly, the reactions of alkynyldihaloboranes and 2-tert-butylbutadiene in dichloromethane afforded the meta DA cycloadduct, together with the product of 1,4-alkynylboration (AB) (Scheme 1).^17,18 The experimental outcome of these reactions indicated that the amount of alkynylboration product depends on the reaction time, the solvent and the structure of the reactants. On the basis of theoretical calculations, Singleton et al. proposed an unified mechanism for the DA reaction and the AB process through of a zwitterionic seven-membered ring species.¹⁷

Scheme 1

Goodman et al. investigated the cycloaddition mechanism for a series of alkynyldihaloboranes and alkynyldialkylboranes with 1,3-butadiene using density functional theory (DFT) calculations.¹⁹ Two different TSs connecting the reactants with the 1,4-cyclohexadienylborane products were found. The more energetically favored structure had classical [4 + 2] character with a C–B secondary orbital interaction while the other one showed strong [4 + 3] character. The TS corresponding to the concerted pathway for the direct AB was not found. Instead, a TS that connects the enyne product of the AB process with the DA product via a zwitterionic structure was located. These authors also studied the reaction of isoprene as a model of substituted systems, and dichloropropynylborane to provide further insight into the DA reaction and the AB pathways.²⁰ Again, two TSs were found for the cycloaddition, one of them showed a classical [4 + 2] structure with a significant C–B secondary orbital interaction, and the other TS had high [4 + 3] character and it was energetically favored for the meta mode of addition, which explained the experimental regioselectivity for similar systems. In addition, a direct AB pathway was found only for the meta orientation, predicting the formation only of the meta AB product whereas the para TS, when launched toward the reactants, lead to the cyclohexadienylborane product, as in the case of butadiene. These results provided more understanding into the origin of the AB process and explained the preferred formation of the DA cycloadduct. However, the formation of the meta enyne as the major product at short reaction times in dichloromethane observed with highly substituted systems and why the cycloadduct became the major product when the reaction was left for longer could not be completely rationalized.

Carreaux, Cossío and co-workers²¹ carried out an experimental and computational study on the mechanism of a related reaction, i.e., the thermal dimerization of 2-boryl-1,3-butadienes to provide insight into the evolution of the [4 + 3] TSs toward the [4 + 2] cycloadducts. This study indicated that in the initial stage of the reaction the σ-overlap between the 2p atomic orbitals is more stabilizing for the C–B secondary interaction than for the C–C counterpart, favoring the [4 + 3] pathway. However, beyond the TS, the C–C orbital interaction becomes more favorable and the [4 + 3] zwitterionic species easily falls to the [4 + 2] cycloadduct. In the same context, we carried out a detailed study in the framework of the quantum theory of atom in molecules (QTAIM)^22,23 along the course of the DA reactions of isoprene with a set of vinylboranes, finding that the evolution of the [4 + 3] to the [4 + 2] structure observed in the endo pathway of the DA reaction with vinylborane occurs through of a conflict mechanism in which the C₁ and B atoms of the dienophile compete to become attached to the C₆ atom of the diene.²⁴

In this work, we have studied the reaction of 2-tert-butylbutadiene (1) with dichloropropynylborane (2), in order to gain a better understanding on the competition between the DA cycloaddition and the AB process. Scheme 2 shows the structure of the four possible products: 3 and 4 correspond to the DA reaction, and 5 and 6 to the AB. As far as we know, in previous works dedicated to study on the regioselectivity of the DA reactions of alkynylboranes the solvent effect was not taken into account. In this study, the solvent effect was considered because this is one of the key factors in these processes.

Scheme 2

The QTAIM,^22,23 based on the topological analysis of the electron charge density allows one to understand the electronic structure of molecules and also the nature and properties of chemical bonds. The analysis based on QTAIM along the reaction paths connecting the stationary points has been successfully applied to rationalize the mechanism of chemical reactions, such as the DA reactions of unsaturated organoboron dienophiles,²⁵ the dimerization of cyclopentadiene,²⁶ the Cope rearrangement of 1,5-hexadiene,²⁷ pericyclic and pseudopericyclic reactions,^28–34 among others.³⁵ In the present study, we have performed a QTAIM analysis to gain a deeper insight into the charge distribution and the bonding changes associated with the competitive DA reaction and AB process.

Methodology

Density functional theory (DFT) calculations were carried out using the Becke3 Lee–Yang–Parr (B3LYP)^36,37 functional with the 6-311++G(d,p) basis set. The B3LYP/6-311++G(d,p) level of theory is appropriate to obtain reliable geometries and energies for the study of cycloadditions.^38–42

The geometries of the reactants, the intermediate structures, the TSs and the products were optimized without any constraints. Frequency calculations were performed to determine the nature of the stationary points: the TSs had one imaginary frequency and the reactants, the intermediate structures and the products had no imaginary frequencies. Solvent effects in dichloromethane (DCM) (ε_DCM = 8.93) were evaluated through full optimizations using the polarizable continuum model (PCM)⁴³ as in the framework of self-consistent reaction field (SCRF).^44–46 Free energies were computed at 298.15 K and 1 atm in DCM.

Intrinsic reaction coordinate (IRC) paths were traced to verify the connectivity of the TSs with reactants or intermediate structures and products. Some structures on the reaction pathway were selected for electronic structure analyses. All computations were carried out with the Gaussian 09 suite of programs.⁴⁷

For the QTAIM topological analysis, total electron densities of the selected structures on the IRC were calculated at the B3LYP/6-311++G(d,p) level of theory. The bond and atomic properties in the framework of the QTAIM theory were calculated using the AIMALL program.⁴⁸

Results and discussion

Study of DA and AB pathways for the meta and para modes of addition between reactants 1 and 2

For each mode of addition of the reactants 1 and 2 (meta and para) three feasible pathways were found, two of them correspond to the DA reaction (paths A and B) and the other to the AB process (path C). The free energy profile for the reaction between 1 and 2 showing the located stationary points with their corresponding relative free energies in DCM is displayed in Fig. 1 (absolute energies in DCM are given in the ESI†). The optimized geometries of the TSs and intermediate structures with selected bond distances are shown in Fig. 2.⁴⁹

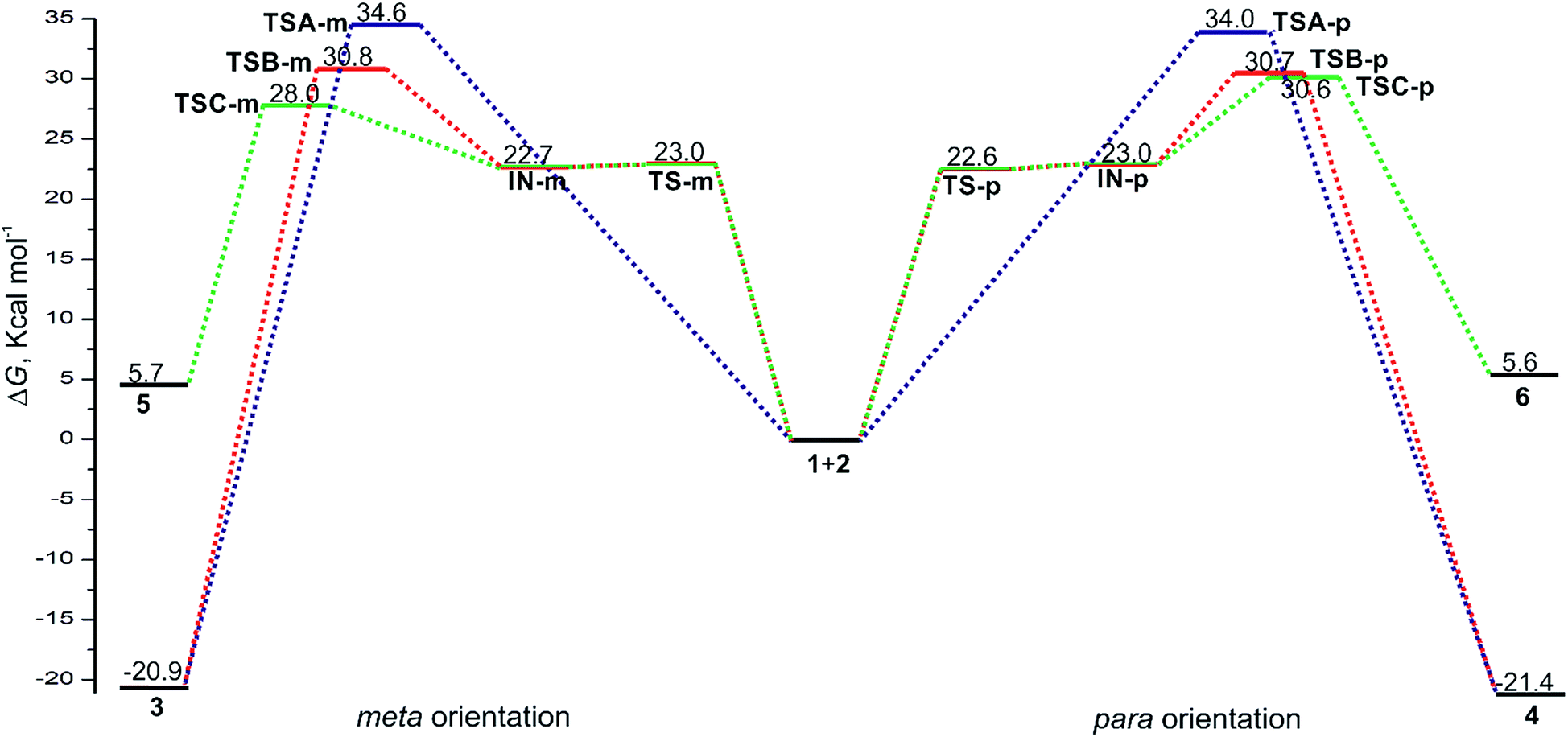

Fig. 1 Free energy profile for the reaction of 1 with 2 for the meta and para orientation modes. Paths A (blue) and B (red) correspond to the DA reaction and paths C (green) correspond to the AB process.

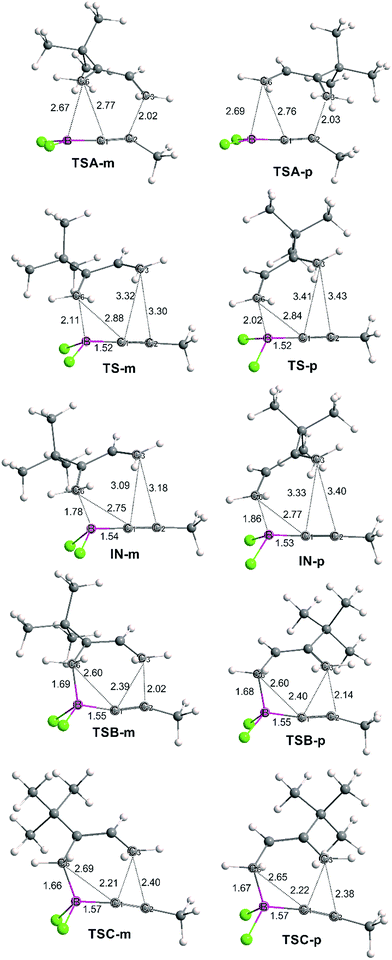

Fig. 2 Optimized geometries in DCM of the TSs and INs of the reaction of 2-tert-butylbutadiene (1) with dichloropropynylborane (2). Selected bond distances are given in Å.

In path A, a TS for each orientation was found (TSA-m and TSA-p), which connects with the reactants and the corresponding DA product (3 and 4). Both paths correspond to a concerted DA mechanism. The length of the C₁–C₆ forming bond is larger than C₂–C₃ by 0.75 and 0.73 Å for TSA-m and TSA-p, respectively, indicating that these TSs are highly asynchronous and showing that the formation of the C₂–C₃ bond is more advanced than the C₁–C₆ bond. In both TSs the C₆–B distance is slightly shorter than C₁–C₆ forming bond reflecting the existence of notable C–B secondary orbital interactions. However, TSAs are classical [4 + 2] structures. In addition, TSAs have relatively high free energy barriers and TSA-p is lower in energy than TSA-m by 0.6 kcal mol⁻¹ which does not explain the experimental regioselectivity and, in consequence, the reaction should follow another pathway towards the cycloadduct as it was previously proposed for the reaction of isoprene and dichlorovinylborane.²⁰

The analysis of the stationary points of pathways B and C, associated with the DA reaction and the AB process, respectively indicates that these reactions take place through stepwise mechanisms. Both mechanisms share the first step of the reaction with a TS in which the boron atom of the dienophile portion approaches the C₆ atom of the diene (TS-m and TS-p) to yield the corresponding zwitterionic intermediate structures (IN-m and IN-p).

TS-m and TS-p show short C₆–B distances (2.11 and 2.02 Å, respectively) while the distances C₁–C₆, C₂–C₃ and C₁–C₃ are larger. TS-p has a lower free activation energy than TS-m (by 0.4 kcal mol⁻¹), however the formation of the [4 + 2] cycloadduct or AB product is determined by the second step of the reaction. In IN-m and IN-p the C₆–B distance becomes even shorter (1.78 and 1.86 Å, respectively). IN-m is slightly more stable than IN-p by 0.3 kcal mol⁻¹ and in both cases the formation of these intermediates are endergonic (ΔG = 22.7 and 23.0 kcal mol⁻¹ for IN-m and IN-p, respectively). TSBs, which lead to the [4 + 2] cycloadducts, have asynchronous structures being the C₁–C₆ distances 2.60 Å, and the C₂–C₃ distances 2.02 and 2.14 Å for TSB-m and TSB-p, respectively. Hence, TSB-m is slightly more asynchronous than TSB-p. In both TSs the C₆–B distance (∼1.69 Å) is shorter than any of the forming bonds suggesting that TSBs have strong C–B secondary interactions, adopting [4 + 3] character.²⁴ As a consequence of the strong [4 + 3] C–B secondary interaction, TSBs are more stable than [4 + 2] TSAs.

In earlier studies on similar systems with butadiene as diene, no direct route from the reactants to the AB product was found, instead the TS connecting the cycloadduct and the AB product was located.¹⁹ Also, with isoprene as diene a TS that leads to the AB product from the reactants was found only for the meta orientation while the para TS connected the AB and DA products.²⁰ However, in our case IRC studies for TSC-m and TSC-p showed similar pathways, connecting the intermediates with the corresponding AB products 5 and 6, respectively.

In TSCs the C₆–B bond distances are very short (∼1.66 Å), with the B atom significantly pyramidalized, similar to TSBs, reflecting that the formation of the C₆–B bond is very advanced. In contrast with TSBs, the C₁–C₃ distances (2.21 and 2.22 Å for TSC-m and TSC-p, respectively) are shorter than the C₂–C₃ distances (2.40 Å for TSC-m and 2.38 Å for TSC-p) since the C₁–C₃ bonds are being formed. Also, the C₁–B distances in TSCs are slightly larger than in TSBs, which is consistent with the C₁–B bond breaking during the formation of the enyne products. In TSBs the dienophile portion is more bent (<BC₁C₂ ∼ 166° and 169°) than in TSCs (<BC₁C₂ ∼ 172°), and in the latter the dienophile portion is shifted with respect to the diene portion. In TSBs, a repulsive steric interaction between the methyl substituent on C₂ of the dienophile moiety and the atoms of the diene might operate and hence destabilize these structures, being the distance between the carbon of the methyl substituent and C₃ of 2.90 Å, while in TSCs these distances are larger (3.30 Å). Also, an attractive interaction between a chlorine atom attached to B of the dienophile and a hydrogen atom of the t-Bu substituent on C₅ of the diene might contribute to stabilize the meta TSs (TSB-m and TSC-m). In addition, the presence of a donating alkyl group on C₅ of the diene fragment stabilizes the incipient positive change developing after the boron attack, favoring the meta regioselectivity.²⁰

TSC-m (ΔG^# = 28.0 kcal mol⁻¹) is the most energetically favored structure among the TSs and determines the formation of the meta AB product under kinetic control. The free activation energy of TSC-m is lower than that of its para counterpart (TSC-p) by 2.6 kcal mol⁻¹, which predicts the almost exclusive formation of the meta enyne (99 : 1 mixture of the meta/para enyne products),⁵⁰ in agreement with the experimental regioselectivity of similar systems which showed that the meta enyne predominates at short reaction times while the meta cycloadduct becomes the major product when the reaction is left for longer (Scheme 1).¹⁷ The free activation energies of TSB-m and TSB-p are very similar (30.8 and 30.7 kcal mol⁻¹, respectively) and these values are close to that of TSC-p thus, the formation of the meta cycloadduct could not take place through TSB-m, because if it happened a mixture of products would be obtained. These theoretical results do not explain the experimental outcome of the reaction.

Analysis of DA and AB reaction free energies

From Fig. 1, the reaction free energies indicate that the meta and para DA products are more stable than the corresponding AB products by ∼25 kcal mol⁻¹, and for both reactions regioisomeric products have similar free energies. These results support the fact that enyne 5 is the kinetic product of the reaction which predominates at short reaction times and also suggests that the formation of the [4 + 2] cycloadduct might take place under thermodynamic control. Note that the DA reaction is exergonic by ∼−21 kcal mol⁻¹ while the AB process is endergonic by ∼6 kcal mol⁻¹. Several groups have reported that the B3LYP functional is relatively accurate for kinetic data, but underestimates the exothermicity of the reaction.^51–53 The MPWB1K⁵⁴ functional proposed by the Truhlar group provides an improvement in the accuracy of the thermodynamic data. Therefore, in order to obtain reliable values of reaction energies we calculated the free energies of the reactants and the products in DCM using the proposed functional with the 6-311++G(d,p) basis set. Relative energies are displayed in Table 1 and the absolute energies are given in the ESI.†

Table 1 MPWB1K/6-311++G(d,p) relative free energies (ΔG, in kcal mol⁻¹) computed at 298.15 K and 1 atm of the products of the reaction of 1 with 2

Product	ΔG (kcal mol^−1)
3	−35.3
4	−35.4
5	−2.5
6	−1.7

---

The MPWB1K/6-311++G(d,p) free energies indicate that the AB processes are exergonic by −2.5 and −1.7 kcal mol⁻¹, and the formation of the meta and para cycloadducts is strongly exergonic by −35 kcal mol⁻¹. These results also predict that the cycloaddition reaction would be favored under thermodynamical control.

Analysis of the reaction coordinate associated with TSB-m and TSC-m. Conversion of the meta enyne to the meta DA cycloadduct

To explain the formation of cycloadduct 3 we figured that it could be formed from enyne 5, as previously proposed.^17,20 We analyzed the reaction coordinates associated with TSB-m and TSC-m which are depicted in Fig. 3. In the pathway that connects TSB-m with cycloadduct 3 there is a flat region in the reaction path corresponding with the seven-membered ring structure Bm-p-1. In early studies, a zwitterionic seven-membered ring which was associated with both the [4 + 3] cycloaddition and 1,4-alkynylboration pathways was also located and characterized.^19,20

Fig. 3 Energy profiles along the intrinsic reaction coordinate for the meta channel of pathways (a) B and (b) C corresponding to the reaction between 1 and 2. The zwitterionic structures are depicted and other selected points on the IRC are indicated.

The IRC that connects TSC-m with enyne product 5 exhibits a rather flat area that corresponds to the six-membered ring structure Cm-p-1. It is worth noting that structures such as Bm-p-1 and Cm-p-1 are not stationary points. Because of this, we assumed that the zwitterionic six-membered ring Cm-p-1, which lays in a plateau region in the PES might rearrange to a seven-membered ring such as Bm-p-1 and, then this species might lead to the meta DA cycloadduct which is more stable than the meta enyne product. Therefore, we propose that at longer reaction times the meta DA cycloadduct becomes the major product due to the rearrangement of the enyne via a zwitterionic six-membered ring and then a zwitterionic seven-membered ring. This proposal agrees with the early approach of an unified mechanism for the DA reaction and the AB through a zwitterionic seven-membered ring species though this intermediate has not been found.¹⁷

To prove this hypothesis, we performed a refined scan of the PES. Fortunately, we were able to locate a TS (TSD-m) that connects the enyne with the DA cycloadduct (Fig. 4).⁵⁵ Visualization of the vibration corresponding to the imaginary frequency clearly shows that C₃ shifts between C₁ and C₂. Interestingly, in the reaction coordinate from TSD-m to enyne 5 and to cycloadduct 3 flat areas were located corresponding to the six-membered ring structure (Dm-r-4) and seven-membered ring structure (Dm-p-1), respectively (see Fig. 4). In TSD-m the C₆–B, C₁–C₃ and C₂–C₃ bond distances (1.65, 2.10 and 1.94 Å, respectively) are shorter than those in TSB-m and TSC-m, indicating that the dienophile and diene portions are closer. TSD-m shows [4 + 3] character, as TSB-m, since the C₆–B distance is shorter than the C₁–C₆ distance (2.64 Å).²⁴ The free activation energy of TSD-m (ΔG^# = 24.9 kcal mol⁻¹) is lower than that of TSC-m, therefore it supports our hypothesis that the formation of the DA cycloadduct from the enyne occurs under thermodynamic control. These results allowed us to explain the outcome of the reaction between 1 and 2 as displayed in the Scheme 3.

Fig. 4 Energy profile along the intrinsic reaction coordinate associated with TSD-m. Optimized geometry in DCM of TSD-m together with some bond distances (in Å) and activation free energy (between parentheses, in kcal mol⁻¹) are included. Selected points on the IRC are indicated.

Scheme 3

Topological QTAIM analysis

Several studies have shown that the topological QTAIM analysis along a reaction path is a powerful tool for characterizing reactions and understanding the nature of key interactions.^{24,25,28–30} To further elucidate the electron density redistribution during the two competing processes and in an attempt to explain how the zwitterionic six-membered ring rearranges to the seven-membered ring structure leading to the DA cycloadduct from AB product, we carried out a topological analysis of charge density along the IRC coordinate associated with TSC-m and TSD-m. We analyzed the variations of several topological properties (the charge density ρ_b, its Laplacian ∇²ρ_b and the ellipticity ε) at the bond critical point (bcp) in some bonds along the reaction path as well as the delocalization index (DI). Fig. 5 shows the contour plots of −∇²ρ_b superimposed on the molecular graphs of selected structures along the analyzed IRC including the topological properties for some bcps. The full QTAIM analysis is given in the ESI.†

Fig. 5 Contour plots of −∇²ρ_b r superimposed on the molecular graphs of selected structures along the IRCs of TSC-m and TSD-m. Continuous blue lines and dashed red lines depict regions of local charge density depletion and concentration, respectively. The values given for selected bcps, from top to bottom, are ρ_b, ∇²ρ_b, ε and DI. DI of other interactions are also included. All symbols are explained in the text and the localization of structures on IRCs are shown in Fig. 3 and 4.

Topological analysis of relevant points on the IRC of path C with meta orientation. Some significant information can be obtained from the QTAIM analysis along the two analyzed paths. In TSC-m the C₆–B bcp (ρ_b = 0.154 au., ∇²ρ_b = −0.249 au., ε = 0.04) and the C₁–B bcp (ρ_b = 0.159 au., ∇²ρ_b = 0.057 au., ε = 0.10) display the hallmarks of “shared-shell” or covalent interaction while the C₁–C₃ interaction is weaker and has “closed-shell” features (ρ_b = 0.053 au., ∇²ρ_b = 0.068 au., ε = 0.41) (see Fig. 5). This can also be visualized in the contour plot −∇²ρ_b through the charge density distribution around the corresponding bcps. Hence, the C₆–B bond is practically formed at TSC-m and the breaking/formation of the C₁–B/C₁–C₃ bonds begins afterwards. C₁–C₃ σ-bond formation takes place just after TSC-m. In Cm-p-1 the topological properties at C₁–C₃ bcp (ρ_b = 0.148 au., ∇²ρ_b = −0.134 au., DI = 0.67 and ε = 0.09) are clearly indicative of a shared shell interaction, i.e. a covalent bond, and this new bond is involved in a six-membered cyclic structure for which its associated ring critical point (rcp) is localized. After this point, ρ_b and DI increase progressively, ∇²ρ_b becomes more negative and ε remains close to zero at the C₁–C₃ bcp, which indicates that this bond is being strengthened. C₁–B bond breaking occurs more delayed and progressively during the course of the reaction. In Cm-p-3 structure, it can be clearly visualized that the charge concentration region around the C₁–B bcp is slimmer than that in Cm-p-1 denoting the weakness of the C₁–B bond. Then, at the C₁–B bcp ρ_b and DI decrease up to values of 0.028 au. and 0.10, ∇²ρ_b shows a small positive value (0.035 au.) and ε increases abruptly up to a value of 0.66 at Cm-p-4 which indicates that the C₁–B covalent bond disappears at this stage.

Topological analysis of relevant points on the IRC of path D with meta orientation. In the pathway from enyne 5 to TSD-m the charge density is concentrated around the C₁–B bcp to form the covalent bond, in contrast to pathway C in which the C₁–B bond is breaking (see Fig. 5).⁵⁶ The C₁–B covalent bond is involved in the six-membered ring structure (Dm-r-4, see the ESI†) like in Cm-p-1. Then, the C₁–C₃ interaction begins to weaken, as can be seen in Dm-r-3, in which the region of the charge concentration around the C₁–C₃ bcp is slimmer. In Dm-r-2, the C₁–C₃ interaction shows features of a closed shell interaction (ρ_b = 0.087 au., ∇²ρ_b = 0.056 au., and ε = 1.2), in which the bond path that connects both atoms is bend around the C₁–C₂ bcp. In addition, in this structure DI C₁–C₃ (0.41) is similar to DI C₂–C₃ (0.40), reflecting that C₁ and C₂ are sharing the same amount of charge density with C₃. Then, in Dm-r-1, the C₁–C₃ bcp disappears and the C₁–C₂ bcp appears forming a cyclic seven-membered ring structure, in which DI C₁–C₃ (0.36) is now lower than DI C₂–C₃ (0.44). These results put forward that in the region among C₁, C₂ and C₃ a significant redistribution of the charge density occurs, and suggests that the system should pass by a conflict structure in which a bond path is linking C₃ and the C₁–C₂ bcp.⁵⁷ Therefore, these important finding reveals that the conflict state is the key point in the evolution of a six-member ring zwitterionic species towards a seven-member zwitterion structure.

In TSD-m, the C₆–B interaction is still a covalent interaction (ρ_b = 0.160 au., ∇²ρ_b = −0.287 au., and DI = 0.51 at the C₆–B bcp) and the C₂–C₃ interaction is stronger than in the previous structure but still has features of an open shell interaction (ρ_b = 0.095 au., ∇²ρ_b = 0.026 au., DI = 0.51). Also, DI C₁–C₆ and DI C₁–C₃ (0.15 and 0.31, respectively) indicate that these atoms are sharing their electrons too. This topology is in accordance with a [4 + 3] structure.²⁴ TSD-m and TSB-m have similar topological patterns but in the former, the electron density shared among the atoms of the diene and dienophile is greater than in the second (see the ESI†). Therefore, we infer that the conflict state near the TS, in which the C₁ and C₂ atoms are closer to C₃, facilitates the sharing of electrons and as a consequence TSD-m structure is more stabilized.

After TSD-m, firstly the C₂–C₃ bond formation occurs being almost completely formed at Dm-p-1 in which the C₂–C₃ bcp shows features of a covalent interaction (ρ_b = 0.210 au., ∇²ρ_b = −0.390 au., ε = 0.01 and DI 0.88) and is involved in a seven-membered ring structure. At Dm-p-2 the C₆–B bond begins to weaken (ρ_b = 0.019 au., ∇²ρ_b = −0.036 au., ε = 1.40 and DI 0.28) and the C₁–C₆ interaction starts to become stronger (DI C₁–C₆ = 0.55) although its corresponding bcp does not appear yet. In the following structure of the reaction path Dm-p-3, the C₆–B bcp disappears and the C₁–C₆ bcp is localized indicating the C₆–B bond breaking and the beginning of the C₁–C₆ bond formation in this stage of the reaction. A feature of the conflict stage is the larger value of the ε, such as in the C₁–C₆ bcp of Dm-p-3 structure (ε = 2.82) denoting an asymmetrical distribution of the charge density around the bcp and the instability of the interaction. Therefore, these findings also indicate that the system undergoes a conflict mechanism, in which the B and C₁ atoms are competing to be bound to the C₆ atom and this is the basis for the evolution of the [4 + 3] structure toward the [4 + 2] structure.²⁴ At Dm-p-4, the C₁–C₆ interaction becomes stronger and has features of a covalent bond (ρ_b = 0.229 au., ∇²ρ_b = −0.478 au., ε = 0.03 and DI 0.99) forming part of the six-membered ring structure as it is found in the final cycloadduct.

Conclusions

The reaction of dichloropropynylborane (1) with 2-tert-butylbutadiene (2) has been studied using density functional theory and the QTAIM approach in DCM in order to rationalize the mechanisms associated with the competing DA and AB reactions, and the origin of the experimental regioselectivity.

Three pathways (A, B and C) for each possible regioisomer, meta and para, were found. Pathways A and B correspond to the DA reaction and pathways C correspond to the AB process. For pathways A the mechanism are concerted and their TSAs associated have relatively high energy barriers and do not explain the experimental regioselectivity.

Pathways B and C correspond to stepwise mechanisms and share the first step of the reaction to the intermediate structures IN-m and IN-p. The second step is determinant for the reaction and involves [4 + 3] TSs, TSB-m and TSB-p, for pathways B and TSC-m and TSC-p for pathways C. The meta TS associated with the C pathway (TSC-m) is the most energetically favored structure among the TSs predicting the almost exclusive formation of the meta enyne under kinetic control, in agreement with the experimental results. The energy barriers of TSB-m, TSB-p and TSC-p were very similar, which demonstrates that the formation of the meta DA cycloadducts does not take place through TSB-m.

A TS which connects the enyne 5 with the DA cycloadduct 3 was found (TSD-m) and two plateau regions related with the six-membered and seven-membered ring structures were located in the associated reaction coordinate. TSD-m also has [4 + 3] character and a lower activation free energy than TSC-m. As cycloadducts were computed to be more stable than the corresponding enynes we propose that at longer reaction times the formation of the meta [4 + 2] cycloadduct might occur under thermodynamic control from enyne 5 via TSD-m passing by a six-membered ring structure and a seven-membered ring structure.

The topological analysis of the charge density distribution revealed that in the reaction pathway that connects enyne 5 with TSD-m, the system passes by a conflict structure in which a bond path is connecting C₃ with the C₁–C₂ bcp. This conflict mechanism is the key point in the evolution of a six-membered ring zwitterionic species towards a seven-membered zwitterion. Then, the [4 + 3] TSD-m progresses to the [4 + 2] cycloadduct by another conflict structure in which the B and C₁ atoms are competing to be bound to the C₆ atom.
