Low temperature synthesis of ZrS₂ nanoflakes and their catalytic activity

Abstract

ZrS₂ nanoflakes with a narrow size distribution (10–30 nm) were successfully prepared via a direct gaseous reaction between ZrCl₄ and S at a relatively low temperature (800 °C). They exhibited unique optical properties and showed excellent performance in photocatalytic degradation of 4-nitrophenol, one of the most-difficult-to-remove pollutants.

---

During the past two decades, transition metal chalcogenides have attracted a great deal of attention because of their excellent optical, electrical, mechanical and catalytic properties.^1–5 They can be used or potentially used in many important areas including in batteries, lubricants, drug carriers, and dye-sensitised solar cells (DSCs).^6–9 Among transition metal chalcogenides, ZrS₂ is a semiconductor with a graphite-like layered structure. Because of this structure, it is possible to prepare various nanostructured ZrS₂ materials such as nanoflakes, nanobelts and nanotubes.^10,11 These nanostructured ZrS₂ materials exhibit unique physical and chemical properties originating from a quantum-confinement effect and thus are regarded as good candidate materials for making various novel nanodevices, e.g., field emitters.¹¹

To synthesise these nanostructured ZrS₂, a few techniques have been attempted, of which the most straightforward one was to directly heat Zr and S powders at 850 °C in an inert atmosphere. In this case, S vapour generated from the original solid S reacted with solid Zr, forming ZrS₂ nanobelts possessing good electrical properties.¹² By replacing S with CS₂, the reaction temperature could be further reduced to 800 °C.¹² Another synthesis technique was via decomposition of ZrS₃ at 900 °C in H₂.¹³ ZrS₂ nanotubes with about 140 nm in diameter were resulted.

Recently, a few types of monolayered or multi-layered transition metal chalcogenides have been prepared. They exhibited enhanced electrical and mechanical properties compared to their bulk counterparts.¹⁴ By reacting ZrCl₄, oleylamine and CS₂, about 1.6 nm thick ZrS₂ nanodiscs with controllable diameters (20–60 nm) were successfully produced. These nanodiscs exhibited good performance as an anodic material for Li⁺ intercalation in Li-ion batteries. Compared to the case using bulk ZrS₂, the discharge capacity was enhanced by 230%, along with much improved stability.¹⁵ Nevertheless, this technique still suffers from several drawbacks, including the usage of hazard raw materials (in particular CS₂) and complicated process.

To overcome the drawbacks of the synthesis techniques reported to date, a new synthesis technique was developed in this work. ZrS₂ nanoflakes were prepared via a gaseous reaction process between ZrCl₄ and S at a relatively low temperature (800 °C). Furthermore, photocatalytic properties of as-prepared ZrS₂ nanoflakes were explored for the first time. The results indicated that as-prepared ZrS₂ nanoflakes exhibited excellent catalytic activity in photocatalytic decomposition of 4-nitrophenol (4-NP), one of the most-difficult-to-remove pollutants inevitably present in pesticides, herbicides, insecticides, synthetic dyes, etc.

Preparation of ZrS₂ nanoflakes

ZrCl₄ (>99.5% Sigma-Aldrich) and S (99% Sigma-Aldrich) powders were used as the starting raw materials. A quartz tube in an electric furnace was flushed with Ar at 40 mL min⁻¹ for 30 min to remove any residual air and was then heated at 10 °C min⁻¹ to a given temperature between 650–800 °C. During heating, H₂ was introduced into the tube at 20 mL min⁻¹ along with Ar flowing at 40 mL min⁻¹. A mixture of S and ZrCl₄ in the molar ratio of 10 : 1 was placed in a ceramic boat and pushed quickly into the hot zone of the furnace preheated to the given temperature and held for 1 h. After furnace cooling to room temperature, the reacted mass was collected from the ceramic boat and subjected to further characterisation.

Characterisation

Phase analysis on the reacted powders was performed using an X-ray diffractometer (D500 Siemens) at 30 mA and 40 kV with Ni-filtered Cu Kα radiation (λ = 0.154 nm). The scan rate (2θ) of 2° min⁻¹ with a step size of 0.02° was used within the scan range of 10–80°. A JEOL 2100 TEM at an accelerating voltage of 200 kV was used to observe microstructures of the reacted samples. UV-vis spectra and photoluminescence excitation spectra were recorded by a Jenway 6715 UV/visible spectrophotometer and a Hitachi F-4500 fluorescence spectrophotometer respectively. A small amount of sample was dispersed in water and examined at room temperature.

Catalytic decomposition of 4-NP

As-prepared ZrS₂ nanoflakes were ultrasonically dispersed in 10 mL distilled water for 30 min to form a homogenous solution/suspension of 0.5 × 10⁻³ mol L⁻¹ which was further combined with 10 mL 3.2 × 10⁻³ mol L⁻¹ 4-NP aqueous solution and 1 mL H₂O₂ solution (30% in weight) under stirring. The resultant solution/suspension was exposed to the beam generated from a Xenon lamp at room temperature. The reaction progress was monitored by UV-vis measurements on 1 mL solution taken out every 30 min from the reacting solution.

ZrCl₄ + 3S + 2H₂ = ZrS₃ + 4HCl (1)

ZrS₃ + H₂ = ZrS₂ + H₂S (2)

Fig. 1 presents XRD patterns of samples resultant from 1 h firing at 650, 700, 750 and 800 °C. At 650 °C, ZrS₃ rather than ZrS₂ was formed as the primary phase (Fig. 1a), indicating occurrence of the reaction between ZrCl₄, S and H₂ (Reaction (1)). As excessive S was used to compensate for its high temperature evaporation, Reaction (1) was essentially proceeded in an S-rich atmosphere. In such an S-rich atmosphere and at this relatively low temperature, ZrS₃ is thermodynamically stable.¹¹ Upon increasing the temperature to 700 °C, small amounts of ZrS₂ were detected along with the primary phase of ZrS₃ (Fig. 1b), indicating that ZrS₃ was not stable at this temperature and started to decompose into ZrS₂ according to Reaction (2). Upon further increasing the temperature to 750 °C, ZrS₂ became the primary phase, and only minor ZrS₃ remained (Fig. 1c). Finally, when the temperature increased to 800 °C, only ZrS₂ was formed and no other phases were detected (Fig. 1d).

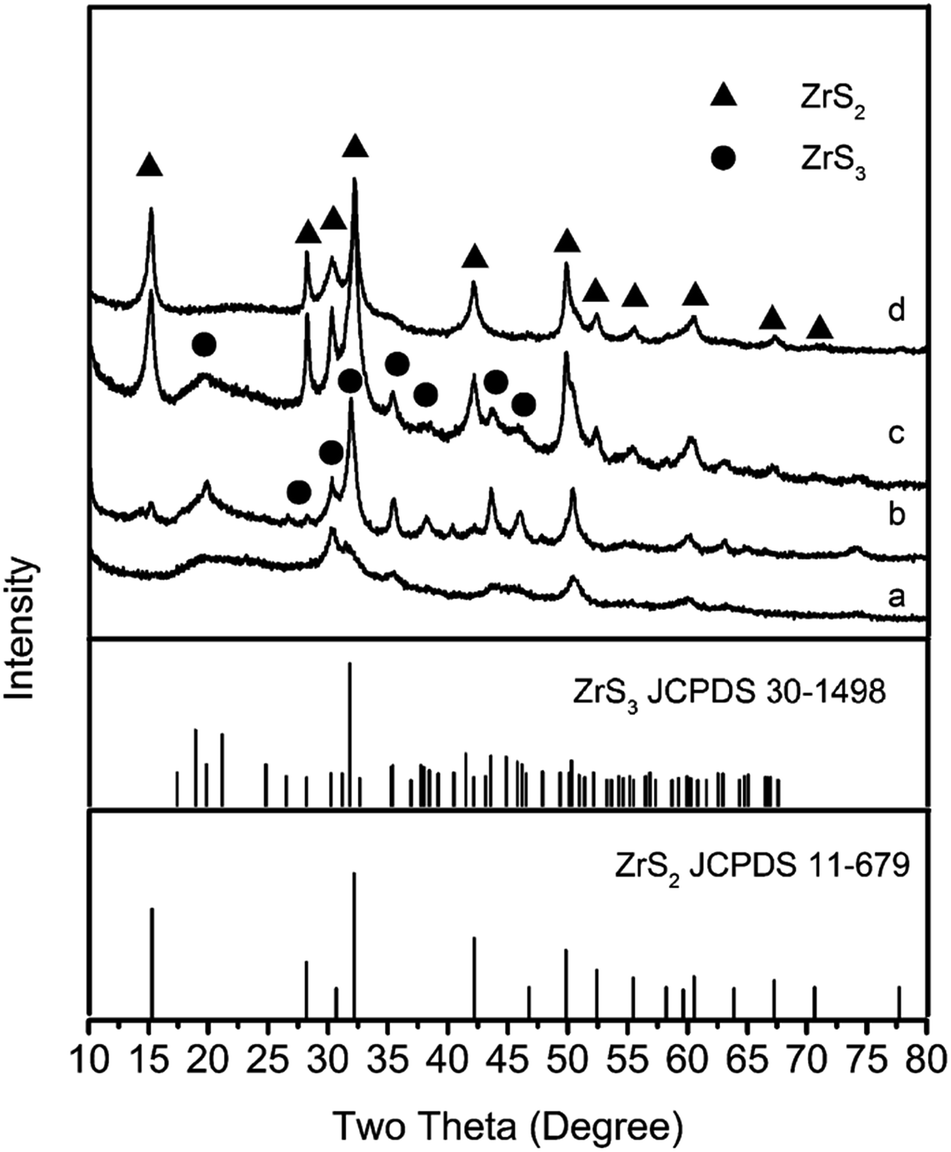

Fig. 1 XRD patterns of samples resulting from 1 h firing in H₂/Ar at (a) 650 °C, (b) 700 °C, (c) 750 °C and (d) 800 °C.

Fig. 2 presents TEM images of some of the samples whose XRD patterns are shown in Fig. 1. The ZrS₃ nanosheets resultant from 1 h firing at 650 °C (Fig. 2a) were nearly transparent, implying their very small thicknesses. The average size and thickness of the curved nanosheets were measured to be approximately 150 and 7 nm, respectively. Due to their small thicknesses and relatively high surface areas, the ZrS₃ nanosheets tended to curve and connect with each other to maintain the minimum thermodynamic energy,¹⁶ which explained the agglomerations among them. At 700 °C, the formed ZrS₃ nanosheets began to disintegrate into small nanoflakes with sizes below 100 nm (Fig. S1†). Upon increasing the temperature to 750 °C, these generated nanoflakes were further reduced by H₂ (Reaction (2)). The loss of S during the reduction caused crushing of the initial nanosheets into tiny fragments,¹¹ which finally crystallised to ZrS₂ (Fig. 2b). ZrS₂ particles synthesised at 800 °C had angular shapes and a narrow size distribution (10–30 nm) (Fig. 2c). An HRTEM image (Fig. 2d) further reveals that the ZrS₂ nanoflakes were well crystallised, with a lattice spacing of 0.31 nm which matches with the spacing between the (100) planes of ZrS₂ (Fig. 2d).

Fig. 2 TEM images of samples resultant from 1 h firing at (a) 650 °C, (b) 750 °C and (c & d) 800 °C in Ar/H₂ atmosphere.

Based on the results shown in Fig. 1 and the discussion above, the overall reaction process could be summarised as follows: ZrS₃ nanosheets were initially formed from the reaction between ZrCl₄ and S and remained stable until 650 °C (Fig. 1a). At >650 °C, ZrS₃ nanosheets would decompose to form ZrS₂ nanoflakes (Fig. 1b and c and 2a), and with increasing the temperature, the decomposition rate increased. Upon the completion of the reaction at 800 °C, all of the ZrS₃ had been consumed and phase pure ZrS₂ nanoflakes were obtained (Fig. 1d and 2c and d).

Presented in Fig. 3 are the UV-vis, PL and PLE spectra of the ZrS₂ nanoflakes resultant from 1 h firing at 800 °C in H₂/Ar. Two peaks centred at 245 nm and 280 nm are observed (Fig. 3a). Compared with the characteristic UV-vis absorption peak of a ZrS₂ thin film (centred at approximately 400 nm),¹⁷ the absorption peak in Fig. 3a exhibited obvious blue-shift, arising from the strong quantum confinement effect. According to Fig. 3b, several fluorescence spectra were measured with various excitation wavelengths between 290 and 320 nm. The strongest emissions of the ZrS₂ nanoflakes occurred at 330 and 356 nm (UV area) when a 290 nm excitation wavelength was used. Upon changing the excitation wavelength, the fluorescence band position remained unchanged, indicating that the fluorescence was generated under the same initial and final states even when the excitation wavelength varied between 290 and 320 nm. This effect was attributed to the fast energy relaxation from the excitation state, which was excited by the photo-excitation to the ground state. A strong peak (∼291 nm) and a weak peak (∼229 nm) appeared in the photoluminescence-excitation (PLE) spectrum of the ZrS₂ nanoflakes with a detection wavelength of 330 nm (Fig. 3c). Although ZrS₂ is an indirect gap semiconductor, it could be transferred to a direct gap semiconductor upon decreasing the atomic layers.¹⁸ The evident luminescence of as-synthesised ZrS₂ nanoflakes (Fig. 4b) indicated such an indirect-to-direct band structure change, which was consistent with the thin-layered structure observed by HRTEM (Fig. 2d). The two excitation peaks in the PLE spectrum could be assigned to the following: (1) excitation from the V₂ point to the conduction band minimum (band gap ∼4.43 eV) and (2) excitation from the V₁ point to the conduction band minimum (band gap ∼5.06 eV). These band gaps were much larger than those reported for monolayer ZrS₂ (∼2 eV)¹⁸ because of the strong quantum confinement of the as-synthesised ZrS₂ nanoflakes. This wide band gap could efficiently hinder the recombination of excited electrons and thus extend the lifetime of electron holes, leading to improved oxidation performance.

Fig. 3 (a) UV-vis spectrum of as-synthesised ZrS₂ nanoflakes from 1 h firing at 800 °C. (b) PL spectrum of as-synthesised ZrS₂ nanoflakes with various excitation wavelengths. (c) Corresponding PLE spectrum with 330 nm detection wavelength. (d) Diagram of the band structure of as-synthesised ZrS₂ nanoflakes close to the K point (V₁ and V₂ are the two valence band maxima).

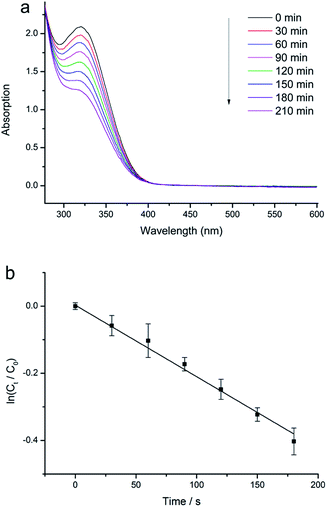

Fig. 4 (a) Evolution of UV-vis absorption spectrum with time, in the case of ZrS₂ catalysed degradation of 4-NP. (b) Plot of ln(C_t/C₀) versus time, in the case of using ZrS₂ as the catalyst.

Some semiconductor materials such as TiO₂ and ZnO have been reported to exhibit strong photocatalytic activities.^19,20 When they are irradiated with light of a suitable wavelength, electrons will jump from the valence band (VB) to the conduction band (CB), leaving holes behind. In an aqueous suspension, the electron holes generated can react with OH⁻ groups to form ˙OH radicals which are very strong oxidising species^21,22 and thus can readily oxidise some organic compounds. Since the as-synthesised ZrS₂ nanoflakes had a large band gap (4.43 eV), excited electrons need a relatively long time to refill the electron holes, extending the lifetime of ˙OH radicals, and leading to strong oxidation. In this work, H₂O₂ was used as an electron acceptor to enhance the oxidation process because of two main reasons. One was that H₂O₂ could accept excited electrons, generating more radical ˙OH radicals, and the other was that the acceptance of excited electrons by H₂O₂ could inhibit the recombination of electrons and holes, thus further improving the oxidation performance.²³ Fig. 4 illustrates the UV-vis spectrum evolution of the 4-NP degradation with time. The 4-NP–H₂O₂ solution gave a UV absorption peak centred at approximately 320 nm (the characteristic peak of 4-NP²⁰). When ZrS₂ nanoflakes were used, the peak height at 320 nm evidently decreased with time. The ratio between the 4-NP concentrations at times t (C_t) and 0 (C₀) was measured from the relative intensity ratio of the respective absorbance, A_t/A₀, at 320 nm. A linear relationship between ln(C_t/C₀) and time was obtained (Fig. 4b), indicating a first-order reaction. Standard deviation from the mean was determined to estimate the error in ln(C_t/C₀). From the slope of the straight line in Fig. 4b, the reaction rate constant when using ZrS₂ nanoflakes as a catalyst was calculated to be 2.22 × 10⁻³ min⁻¹. To compare, photocatalytic degradation tests were also carried out on the 4-NP/H₂O₂ solutions without using ZrS₂ nanoflakes. According to Fig. S2,† very little degradation was observed after 1 h, indicating that H₂O₂ itself did not show any obvious catalytic effects on the photocatalytic degradation of 4-NP. The above results indicated that as-synthesised ZrS₂ showed excellent catalytic activity in the decomposition of 4-NP, one of the most-difficult-to-remove pollutants commonly present in many systems, thus could be potentially used as a promising catalyst for future pollutant purifications.

Conclusions

ZrS₂ nanoflakes were produced via a direct gaseous reaction between ZrCl₄ and S at a relatively low temperature (800 °C). The generated ZrS₂ nanoflakes had a narrow size distribution (10–30 nm). During the heat treatment, thin ZrS₃ nanosheets were initially formed at 650 °C but decomposed into ZrS₂ nanoflakes upon increasing the temperature to above 650 °C. Because of their small sizes, as-prepared ZrS₂ nanoflakes exhibited strong quantum confinement effect and a large band gap (4.43 eV). Moreover, they also exhibited excellent photocatalytic activity in the degradation of 4-NP.

Notes and references

1. X. F. Duan, Y. Huang, R. Agarwal and C. M. Lieber, Nature, 2003, 421, 241–245.
2. M. R. Gao, Y. F. Xu, J. Jiang and S. H. Yu, Chem. Soc. Rev., 2013, 42, 2986–3017.
3. J. Chen and F. Wu, Appl. Phys. A: Mater. Sci. Process., 2004, 78, 989–994.
4. G. L. Frey, S. Elani, M. Homyonfer, Y. Feldman and R. Tenne, Phys. Rev. B: Condens. Matter Mater. Phys., 1998, 57, 6666–6671.
5. O. Tevet, O. Goldbart, S. R. Cohen, R. Rosentsveig, R. Popovitz-Biro, H. D. Wagner and R. Tenne, Nanotechnology, 2010, 21, 365705.
6. Y. L. Liang, R. J. Feng, S. Q. Yang, H. Ma, J. Liang and J. Chen, Adv. Mater., 2011, 23, 640–643.
7. H. B. Yang, S. K. Liu, J. X. Lil, M. H. Li, G. Peng and G. T. Zou, Nanotechnology, 2006, 17, 1512–1519.
8. H. Wu, R. Yang, B. Song, Q. Han, J. Li, Y. Zhang, Y. Fang, R. Tenne and C. Wang, ACS Nano, 2011, 5, 1276–1281.
9. H. C. Sun, D. Qin, S. Q. Huang, X. Z. Guo, D. M. Li, Y. H. Luo and Q. B. Meng, Energy Environ. Sci., 2011, 4, 2630–2637.
10. A. H. Reshak and S. Auluck, Phys. B, 2004, 353, 230–237.
11. Y. L. Zhang, X. C. Wu, Y. R. Tao, C. J. Mao and J. J. Zhu, Chem. Commun., 2008, 2683–2685.
12. B. T. Kaminskii, G. N. Prokof'eva, A. S. Plygunov and P. A. Galitskii, Powder Metall. Met. Ceram., 1973, 12, 521–524.
13. M. Nath and C. N. R. Rao, Angew. Chem., Int. Ed., 2002, 41, 3451–3454.
14. J. N. Coleman, M. Lotya, A. O'Neill, S. D. Bergin, P. J. King, U. Khan, K. Young, A. Gaucher, S. De, R. J. Smith, I. V. Shvets, S. K. Arora, G. Stanton, H. Y. Kim, K. Lee, G. T. Kim, G. S. Duesberg, T. Hallam, J. J. Boland, J. J. Wang, J. F. Donegan, J. C. Grunlan, G. Moriarty, A. Shmeliov, R. J. Nicholls, J. M. Perkins, E. M. Grieveson, K. Theuwissen, D. W. McComb, P. D. Nellist and V. Nicolosi, Science, 2011, 331, 568–571.
15. J. T. Jang, S. Jeong, J. W. Seo, M. C. Kim, E. Sim, Y. Oh, S. Nam, B. Park and J. Cheon, J. Am. Chem. Soc., 2011, 133, 7636–7639.
16. Y. D. D. Li, X. L. L. Li, R. R. R. He, J. Zhu and Z. X. X. Deng, J. Am. Chem. Soc., 2002, 124, 1411–1416.
17. M. M. B. R. Thiyagarajan and M. Anusuya, J. Am. Sci., 2009, 5, 6–12.
18. Y. Li, J. Kang and J. B. Li, RSC Adv., 2014, 4, 7396–7401.
19. G. Mele, E. Garcia-Lopez, L. Palmisano, G. Dyrda and R. Slota, J. Phys. Chem. C, 2007, 111, 6581–6588.
20. S. T. Kochuveedu, Y. H. Jang, Y. J. Jang and D. H. Kim, J. Mater. Chem. A, 2013, 1, 898–905.
21. J. C. Doliveira, C. Minero, E. Pelizzetti and P. Pichat, J. Photochem. Photobiol., A, 1993, 72, 261–267.
22. R. W. Matthews and S. R. Mcevoy, J. Photochem. Photobiol., A, 1992, 64, 231–246.
23. G. Mele, G. Ciccarella, G. Vasapollo, E. Garcia-Lopez, L. Palmisano and M. Schiavello, Appl. Catal., B, 2002, 38, 309–319.

---
