Adsorption behavior and removal mechanism of arsenic on graphene modified by iron–manganese binary oxide (FeMnO_x/RGO) from aqueous solutions

Abstract

Iron–manganese binary oxide (FeMnO_x) is considered highly effective for arsenic adsorption, however, the agglomeration effect hindered its practical application. In this study, graphene has been used as a supporting matrix to disperse FeMnO_x due to its huge specific surface area, and the synthesized novel composite adsorbent (FeMnO_x/RGO) was employed for arsenic removal. Results demonstrated that FeMnO_x/RGO (mass ratio of FeMnO_x to FeMnO_x/RGO nanocomposites is 45%) has larger specific surface area (411 m² g⁻¹) in comparison with bare FeMnO_x, and showed 10.16 mg As g⁻¹ FeMnO_x and 11.49 mg As g⁻¹ FeMnO_x adsorption capacities for As(III) and As(V), respectively, with 1 mg L⁻¹ initial concentration. Increased in the initial concentration to 7 mg L⁻¹, the adsorption capacities of As(III) and As(V) reached to 47.05 mg As g⁻¹ FeMnO_x and 49.01 mg As g⁻¹ FeMnO_x, respectively. The removal process perfectly obeys pseudo second-order kinetic model for both As(III) and As(V). And PO₄³⁻ was found to strongly inhibit arsenic adsorption. Furthermore, adsorption tests and characterization analyses confirmed that MnO₂ played a key role on the oxidation of As(III), while iron(III) oxide was found crucial to As(V) removal. Electrostatic interaction and surface complexation mechanisms involved in the adsorption. These findings suggested that the adsorbent could be used in real arsenic-contaminated water treatment.

---

1. Introduction

Arsenic is one of the most toxic and carcinogenic chemical elements and its contamination in natural waters has become a worldwide problem.¹ Long-term exposure to drinking water containing arsenic can give rise to cancers of skin, lungs, liver, kidney and bladder, as well as hypertension and cardiovascular disease.² To minimize associated health risks, the World Health Organization (WHO) and US Environmental Protection Agency (USEPA) have set a more stringent standard value for arsenic in drinking water from 0.05 to 0.01 mg L⁻¹ in 1990s.^3,4 Inorganic forms of arsenic mainly exist in natural water environments. The inorganic forms, arsenite (As(III)) and arsenate (As(V)), are thought to be more toxic than the organic arsenic species. In general, As(III) exists in groundwater, while As(V) is dominate in surface water bodies.^5–7 In addition, As(III) is more soluble and toxic than As(V) and it is less efficient to be removed because of its mobility in water and low affinity towards adsorbents.⁸

In recent years, due to growing concerns of arsenic contamination in water bodies, numerous methods have been developed and adsorption is considered to be one of the most promising technologies due to its simple operation and low cost.^9,10 Nowadays, a variety of materials have been used as adsorbents for arsenic removal, such as granular ferric hydroxide,¹¹ Fe–Mn binary oxide,¹² activated carbon,¹³ alumina,¹⁴ and so on. Among these materials, Fe–Mn binary oxide has been widely studied for arsenic remediation.^15,16 The combination can take full advantages of the excellent oxidation potential of manganese dioxide for As(III) and the superior adsorption ability of iron(III) oxide for arsenic removal from aqueous solutions. However, bare Fe–Mn binary oxide exhibits high tendency to agglomerate, so that the adsorption properties will be weakened, limiting its full-scale application. In order to overcome this problem, providing a carrier such as multiwalled carbon nanotubes,¹⁷ activated carbon,¹⁸ graphene,¹⁹ and wheat straw²⁰ to disperse particles of Fe–Mn binary oxide seems to be a better alternative for enhanced arsenic removal.

Graphene, a two-dimensional structure of sp²-bonded carbon with only one-atom thick, possesses huge theoretical specific surface area (2630 m² g⁻¹), good electrical conductivity, high thermal conductivity and intrinsic mobility.²¹ Compared to other carbon-based materials, such as activated carbon and multiwalled carbon nanotubes, graphene sheets have higher specific surface area, which provides more active adsorption sites for Fe–Mn binary oxide loading. Furthermore, their superior electrical conductivity can promote electron transport between Fe–Mn binary oxide and targeted contaminants in the adsorption process.²² Therefore, utilizing graphene as a supporter for adsorbents' synthesis attracts its wide application in pollutant remediation measures.

In our previous study, honeycomb briquette cinders (HBC) were used as a carrier to coat with Fe₃O₄ and MnO₂ for arsenic removal, certifying that Fe₃O₄ and MnO₂ had good affinity to arsenic.²³ Nanoscale zero-valent iron (nZVI) assembled on magnetic Fe₃O₄/graphene for Cr(VI) removal was studied to confirm that graphene was an excellent supporter to disperse and stabilize nZVI particles.²² Therefore, in this study, graphene modified by iron–manganese binary oxide (FeMnO_x/RGO) was synthesized and to reduce the associated costs, graphene was derived from exfoliation of graphite oxide followed by reduction. Characterization techniques including TEM, XRD, FTIR, BET and XPS were applied to characterize the adsorbent composites. Effect of loading ratios of Fe–Mn binary oxide was studied to explain the role of graphene and examine the removal efficiency of As(III) and As(V). Adsorption isotherms and adsorption kinetics were performed to explore the adsorbent properties. Effects of competing ions on As(III)/As(V) were also investigated. And effects of initial pH, various molar ratios of iron to manganese on graphene were carried out to identify the possible removal mechanism.

2. Materials and methods

2.1. Materials

Chemicals used in this study were of analytical grade except hydrochloric acid (GR). Graphite powder and hydrazine hydrate were purchased from Aladdin Reagent Database Inc., China. Potassium permanganate (KMnO₄), sulfuric acid (H₂SO₄) 98%, sodium nitrate, hydrogen peroxide (H₂O₂) 30%, ammonia, ferrous sulfate heptahydrate (FeSO₄·7H₂O), manganese(II) sulfate monohydrate (MnSO₄·H₂O), sodium hydroxide and sodium hypochlorite were purchased from Sinopharm Chemical Reagent Co., Ltd, China.

As(III) and As(V) stock solutions (1000 mg L⁻¹) were prepared by dissolving appropriate amount of sodium arsenite (NaAsO₂) and sodium arsenate dodecahydrate (Na₃AsO₄·12H₂O) in purified water, respectively. Thiourea, L-ascorbic acid and potassium borohydride were utilized for arsenic detection.

2.2. Preparation of RGO

Graphite oxide was synthesized through a modified Hummer's method.²⁴ In brief, 120 mL concentrated sulfuric acid was added into a 500 mL three-neck flask and then the flask was put in water bath containing ice bags with continuous stirring at 200 rpm. At 10 °C, 5.0 g graphite powder, 2.5 g NaNO₃ and 15 g KMnO₄ were added separately into the flask. After removing ice bags, the suspension was stirred overnight until its color turned into light gray and the mixture became pasty. Then 150 mL water was slowly added into the mixture to dilute the paste and the reaction temperature was heated to 98 °C for 2 h. Later on, 50 mL H₂O₂ was added and the mixture continued stirring for another 30 min. The product was washed by 5% HCl, ethanol and deionized water, and then dried in vacuum oven at 60 °C.

Approximately 1.6 g synthesized graphitic oxide was re-dispersed in 800 mL deionized water and exfoliated by ultrasonication for 1.5 h to obtain graphene oxide. Subsequently, 19.2 mL hydrazine solution (50%) and 22.72 mL ammonia solution (25%) were added to reduce graphene oxide into graphene. The reaction was held for 3 h at 98 °C and then the mixture was centrifuged, rinsed by deionized water and filtered through a 0.45 μm filter membrane. Finally, the product was dried in vacuum at 60 °C and stored for subsequent experiments.

2.3. Preparation of FeMnO_x/RGO

The fabrication of FeMnO_x/RGO was followed by a co-precipitation process¹⁶ with some modifications. Firstly, 0.2 g graphene was dispersed in deionized water under ultrasonic wave for 1.5 h to obtain uniform black suspension, followed by the addition of desired amounts of KMnO₄ and FeSO₄·7H₂O under vigorous stirring. At the same time, 5 M NaOH was added to adjust pH value to 7–8. Then the mixture was continuously stirred for 2 h at 60 °C and aged at room temperature for 12 h. Finally, the material was separated, rinsed and dried for further use.

When the molar ratio of Fe : Mn was 3 : 1, different mass ratios of generated Fe–Mn binary oxide on graphene to the whole nanocomposites were prepared, mass ratios of FeMnO_x to FeMnO_x/RGO nanocomposites are 14%, 45% and 76.5%, respectively. For instance, to obtain FeMnO_x/RGO with mass ratio of FeMnO_x 45%, 0.079 g KMnO₄ and 0.4170 g FeSO₄·7H₂O were added for reaction. Fe–Mn binary oxide (FeMnO_x) was also synthesized for comparison using the method employed by Zhang et al.¹⁶

Using FeMnO_x/RGO (nFe : nMn = 3 : 1, mass ratio of FeMnO_x to FeMnO_x/RGO nanocomposites is 45%) as a standard, different molar ratios of Fe : Mn were prepared. As the amount of FeSO₄·7H₂O was 0.4170 g, change the dosage of KMnO₄ to make nFe : nMn = 3 : 0.5, 3 : 2 and 3 : 4, respectively. In contrast, while 0.079 g KMnO₄ was added, the dosage of FeSO₄·7H₂O was changed to make nFe : nMn = 0.5 : 1, 1 : 1 and 4 : 1, respectively.

In order to better understand the removal mechanism, FeO_x/RGO (0.2 g RGO, 0.4170 g FeSO₄·7H₂O) and MnO_x/RGO (0.2 g RGO, 0.0507 g MnSO₄·H₂O, 0.0316 g KMnO₄) were synthesized to compare with FeMnO_x/RGO. Theoretically, the amount of obtained MnO₂ in MnO_x/RGO was the same as that in FeMnO_x/RGO.

2.4. Characterization and analytical methods

TEM (JEM-1230, JEOL, Japan) analyses were conducted to know the morphological structures of bare graphene, FeMnO_x and FeMnO_x/RGO. XRD analysis (X'pert PRO analytical B.V., Netherlands) of the samples was performed in 2θ scale. The specific surface area and porosity data were analyzed by a BET analyzer (ASIC-2, USA). Functional groups and valence states of elements were investigated by FTIR (IRaffinity-1, SHIMADZU, Japan) and XPS (Kratos Axis Ultra DLD, SHIMADZU, Japan), respectively.

PZC determination of RGO, FeMnO_x and FeMnO_x/RGO was obtained using a Zeta Meter 3.0 (Zetasizer 3000 HSa, UK). 0.01 g adsorbent was added into five 100 mL conical flasks with 50 mL deionized water, respectively. And the mixture was under ultrasonic wave for 20 min to obtain uniform suspension. Then adjust pH values to 2, 4, 6, 8 and 10, respectively. So zeta potentials under different pH values could be measured.

Total arsenic concentration was measured by an AFS-230E atomic fluorescence spectrophotometer (Beijing Kechuang Haiguang Instrument Company, China). Solution of 5% L-ascorbic acid and 5% thiourea was employed to act as a reducing reagent.

2.5. Batch adsorption experiments

Adsorption isotherms were conducted at temperature 25 °C and pH 7.0 ± 0.1. Adsorbent dose of 0.01 g was added into 50 mL 0.2, 0.6, 1.0, 3.0, 5.0, 7.0 mg L⁻¹ As(III) or As(V) solution, respectively. And then the suspension was mixed by a rotary shaker (SUKUN, SKY-110WX, Shanghai, China) at 180 rpm. Samples were taken out using syringe and filtered through a 0.45 μm filter membrane after 24 h for arsenic detection.

Kinetic studies were examined by batch experiments at different time intervals from 5 min to 24 h with 1 mg L⁻¹ initial arsenic concentration and 0.2 g L⁻¹ adsorbent dose. Effects of competing ions (SO₄²⁻, HCO₃⁻, PO₄³⁻) on arsenic removal were investigated by varying the ionic concentration ranges (0–10 mM). Effect of initial pH on arsenic removal was tested by changing pH values from 3–11. Other conditions were kept the same as for isotherm experiments. All batch adsorption experiments were performed in triplicate, and the average values were reported.

2.6. Adsorbent desorption and regeneration

In order to study the regeneration potential of the sorbent, five consecutive adsorption–regeneration cycles were performed. 0.01 g adsorbent was added into 50 mL 100 μg L⁻¹ As(III) or As(V) solution for adsorption and then 0.1 M NaOH + 0.1 M NaClO was used as the regenerant.

3. Results and discussion

3.1. Characterization of adsorbents

TEM images reveal the morphological structures of RGO, FeMnO_x as well as FeMnO_x/RGO with different loading ratios of Fe–Mn binary oxide. The folding nature of graphene sheets was clearly visible in Fig. 1a. It can be observed that graphene possesses crumpled and silk wave-like structure, confirming that the reduced graphite oxide was successfully formed. Fig. 1b shows that particles of iron–manganese binary oxide agglomerated severely with each other, which could result in a dramatic decline in the functions of Fe–Mn binary oxide for arsenic removal. Irregular shapes of Fe–Mn binary oxide particles were found to attach tightly on graphene sheets (Fig. 1c–e). They were well dispersed on the surface of RGO, however, the average diameter increased with the increase of FeMnO_x loading ratios. It can be clearly seen that the particle size of Fe–Mn binary oxide assembled on graphene was less than 10 nm when the mass ratio of FeMnO_x to FeMnO_x/RGO nanocomposites was 14%. However, the Fe–Mn binary oxide diameter was found to be 20–50 nm when the mass ratio was 45%. As the loading ratio achieved 76.5%, the average diameter (50–80 nm) was further increased, indicating the occurrence of a slight aggregation effect. Therefore, FeMnO_x/RGO with appropriate loading ratios of Fe–Mn binary oxide could be more conductive to arsenic adsorption.

Fig. 1 TEM images of (a) RGO, (b) FeMnO_x, (c) FeMnO_x/RGO 14%*, (d) FeMnO_x/RGO 45%* and (e) FeMnO_x/RGO 76.5%*. *: mass ratios of Fe–Mn binary oxide to FeMnO_x/RGO nanocomposites.

According to Table S1,† the specific surface areas of RGO, Fe–Mn binary oxide were measured to be 548 m² g⁻¹ and 360 m² g⁻¹, respectively. In the presence of graphene possessing higher surface area, the specific surface area of FeMnO_x/RGO became larger compared to the unsupported Fe–Mn binary oxide.²⁵ And when the mass ratios of FeMnO_x to FeMnO_x/RGO increased, the surface area decreased because more active sites were occupied by FeMnO_x particles. The BET surface area of FeMnO_x/RGO was 411 m² g⁻¹, which was obtained from the nitrogen adsorption–desorption isotherms in Fig. S1.† A typical type-IV curve was observed, which was characteristic for mesoporous materials.²⁶ Further, the isotherms exhibited a H2 hysteresis loop at a relative pressure from 0.4, implying that the adsorbent was a porous structure.^27,28 According to Barrett–Joyner–Halenda (BJH) equation, the mean pore size in FeMnO_x/RGO was 5.62 nm and the total pore volume was measured to be 0.59 cm³ g⁻¹ (Table S1†), which was similar to the result of graphene, indicating that no major effect on porous structure occurred during the loading process, and bare FeMnO_x also had a porous structure and high surface area, which was effective to arsenic adsorption.

Fig. S2† presents XRD patterns of RGO, FeMnO_x and FeMnO_x/RGO. As shown in Fig. S2a,† two typical peaks at 2θ = 25.0°, 44.0° corresponded to (002) and (100) reflections of graphene sheets.²² In Fig. S2b,† no obvious crystalline peak emerged, indicating that iron oxide and manganese oxide mainly existed in an amorphous form. The results were consistent with studies reported by Zhang et al.,¹² and the formation of crystalline iron(III) oxides and manganese oxide could be blocked by their coexistences during the preparation process. After combining graphene with Fe–Mn binary oxide, reductions in the diffraction peaks of graphene were noticed (Fig. S2c†), which might be attributed to more disordered stacking and less agglomeration of graphene in the synthesized composite.²⁹

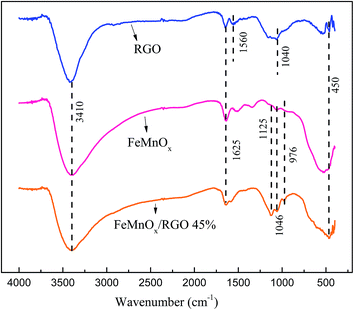

FTIR spectrums of RGO, FeMnO_x and FeMnO_x/RGO are shown in Fig. 2. And the magnification of relevant peaks from 400 to 1900 cm⁻¹ wavenumber is given in Fig. S3.† Peak at λ value of 3410 cm⁻¹ was assigned to O–H stretching vibrations in water molecules.³⁰ The band appeared at 1625 cm⁻¹ could be attributed to the hydroxyl deformation in water molecules indicating the presence of physisorbed water on the adsorbents.³¹ In the spectra of RGO, a broad band at 1040 cm⁻¹ was the typical characteristic of C–O stretching vibration, and the presence of a weak band at 1560 cm⁻¹ was assigned to the skeletal vibration of the unoxidized graphite,³⁰ demonstrating that most part of graphene oxide has been reduced to RGO. The absorption band at 450 cm⁻¹ corresponding to Mn–O vibration¹⁹ revealed the existence of residual KMnO₄. Three small peaks appeared at 1125 cm⁻¹, 1046 cm⁻¹ and 976 cm⁻¹ in FeMnO_x and FeMnO_x/RGO were assigned to the bending vibrations of Fe–OH,³² indicating the successful formation of iron oxide. The band at 450 cm⁻¹ corresponding to Mn–O vibration strengthened after coating with Fe–Mn binary oxide on graphene,¹⁹ which revealed that particles of manganese oxide were integrated onto the basal plane of graphene.

Fig. 2 FTIR spectrums of RGO, FeMnO_x and FeMnO_x/RGO.

3.2. Effect of loading ratios of Fe–Mn binary oxide

Fig. 3 compares the effect of different mass ratios of Fe–Mn binary oxide to FeMnO_x/RGO nanocomposites for (a) As(III) and (b) As(V) adsorption. As presented in Fig. 3a, the adsorption capacity of FeMnO_x/RGO for As(III) removal improved as the mass ratio of Fe–Mn binary oxide to FeMnO_x/RGO increased. However, in Fig. 3b, there was little difference in the removal efficiency of As(V) when the mass ratios were 45% and 76.5%, indicating that higher proportion of Fe–Mn binary oxide might hinder As(V) adsorption on FeMnO_x/RGO nanocomposites due to particle aggregation effect. This phenomenon could also be inferred from TEM images in Fig. 1. Moreover, Fig. 3 shows that FeMnO_x/RGO had lower adsorption ability for both As(III) and As(V) removal as the mass ratio of FeMnO_x was 14%, because the composition of Fe–Mn binary oxide containing in this nanocomposite was also lower.

Fig. 3 Effect of different mass ratios of Fe–Mn binary oxide to FeMnO_x/RGO nanocomposites for (a) As(III) and (b) As(V) adsorption. Reaction conditions: initial As concentration: 0.2–7.0 mg L⁻¹, adsorbent dose: 0.2 g L⁻¹, contact time: 24 h, solution pH: 7.0 ± 0.1, temperature: 25 °C.

Langmuir and Freundlich isotherm models were employed to describe the data of arsenic adsorption. The Langmuir model³³ and the Freundlich model³⁴ are expressed as follows:

where q_e and q_m stand for the equilibrium adsorption amount and the maximum adsorption amount of As(III) or As(V) (mg g⁻¹), respectively, C_e is the equilibrium concentration of arsenic (mg L⁻¹), and b is the Langmuir constant, which represents the free energy of adsorption (L mg⁻¹). K_F and n are the Freundlich parameters, which are related to the capacity and intensity of the sorbent, respectively. Generally, adsorption is considered to be favorable when 0.1 < 1/n < 0.5, whereas it is difficult adsorbed when 1/n > 2.³⁵

The fitting data of different kinds of sorbents are listed in Table 1. It can be seen that the Freundlich isotherm matched well with As(III) adsorption on FeMnO_x/RGO with various ratios of Fe–Mn binary oxide and the values of n were all between 1 and 10¹⁹, indicating favorable adsorption on the sorbents. In contrast, As(V) adsorption was better described by the Langmuir model.

Table 1 Langmuir and Freundlich isotherm parameters for As(III) and As(V) adsorption by different mass ratios of Fe–Mn binary oxide to FeMnO_x/RGO nanocomposites

Mass ratios of FeMnOx	Arsenic	Langmuir model			Freundlich model
		b (L mg^−1)	qm (mg g^−1)	R^2	n	KF (mg g^−1) (mg^−1)^1/n	R^2
14%	As(III)	2.50	6.01	0.9824	3.18	3.48	0.9848
	As(V)	2.81	6.44	0.9900	3.16	3.81	0.9861
45%	As(III)	3.46	22.42	0.9827	2.27	14.42	0.9963
	As(V)	17.31	22.22	0.9928	5.34	20.50	0.8955
76.5%	As(III)	77.50	32.26	0.9846	3.62	44.05	0.9947
	As(V)	15.38	22.42	0.9670	5.91	19.59	0.9119

---

In order to determine the optimal loading ratios of Fe–Mn binary oxide more persuasively, Table 2 summarized the arsenic adsorption capacity of FeMnO_x/RGO with different loading ratios of Fe–Mn binary oxide when the initial arsenic concentration was 7 mg L⁻¹. Meanwhile, RGO and bare Fe–Mn binary oxide were used for comparison. From Table 2, it was obvious that RGO had subtile influence on arsenic removal, which meant that graphene only acted as a favorable carrier to disperse iron and manganese oxides and provided high specific surface area for Fe–Mn binary oxide loading. As can be clearly seen in Table 2, the adsorption capacities of Fe–Mn binary oxide assembled onto RGO with different loading ratios for both As(III) and As(V) removal were much higher than bare Fe–Mn binary oxide. Therefore, using RGO as a template can effectively enhance the adsorption ability of Fe–Mn binary oxide. The possible reason might be that RGO could prevent the particles of Fe–Mn binary oxide from aggregating due to its high specific surface area, so that active adsorption sites increased with the help of graphene, resulting in the enhancement of adsorption capacity.

Table 2 The arsenic adsorption capacity of RGO, bare FeMnO_x and FeMnO_x/RGO. The equilibrium adsorption capacity (q_e) was measured in As(III)/As(V) solution of 7 mg L⁻¹

Adsorbent	Mass ratios of FeMnOx	Arsenic	qe
RGO	0%	As(III)	0.003 (mg As g^−1)
		As(V)	0.001 (mg As g^−1)
Bare FeMnOx	100%	As(III)	33.59 (mg As g^−1 FeMnOx)
		As(V)	23.97 (mg As g^−1 FeMnOx)
FeMnOx/RGO	14%	As(III)	40.19 (mg As g^−1 FeMnOx)
		As(V)	44.16 (mg As g^−1 FeMnOx)
FeMnOx/RGO	45%	As(III)	47.05 (mg As g^−1 FeMnOx)
		As(V)	49.01 (mg As g^−1 FeMnOx)
FeMnOx/RGO	76.5%	As(III)	42.12 (mg As g^−1 FeMnOx)
		As(V)	30.31 (mg As g^−1 FeMnOx)

---

As shown in Table 2, FeMnO_x/RGO owned the maximum equilibrium adsorption capacities for As(III) and As(V), which were found to be 47.05 mg As g⁻¹ FeMnO_x and 45.95 mg As g⁻¹ FeMnO_x. Furthermore, Table 3 compares arsenic adsorption capacity with some adsorbent materials in references, it showed that the synthesized FeMnO_x/RGO in our study possessed excellent adsorption capacity for arsenic removal. Thus, FeMnO_x/RGO (nFe : nMn = 3 : 1, mass ratio of FeMnO_x to FeMnO_x/RGO nanocomposites is 45%) was used for further experiments.

Table 3 Comparison of arsenic adsorption capacity with some adsorbent materials in references

Adsorbent	Adsorbent dose (g L^−1)	Initial concentration (mg L^−1)	Adsorption capacity (mg g^−1)		Ref.
			As(III)	As(V)
FeMnOx/RGO	0.2	7	22.17	22.05	This paper
Fe3O4–RGO–MnO2 (3 : 8)	0.5	10	14.04	12.22	19
Magnetic wheat straw	0.5	28	3.898	8.062	20
HBC–Fe3O4–MnO2 (3 : 2)	0.2	0.8	2.42	1.45	23
Fe coated mesoporous carbon	3.0	24	5.96	5.15	36
Bead cellulose loaded with iron oxyhydroxide	1.9	7.5	4.09	4.55	37
Magnetite2–RGO	0.2	7	13.10	5.83	38
Magnetic biochar	0.2	0.8	2.0	3.1	39

---

3.3. Sorption kinetics

Effect of contact time on As(III) or As(V) uptake onto the FeMnO_x/RGO nanocomposites is shown in Fig. 4. The adsorption process was initially rapid in first 2 h for both As(III) and As(V), after which the adsorption capacity remained slowdown and reached to an equilibrium state within 12 h. As the initial arsenic concentration was 1 mg L⁻¹, the equilibrium adsorption capacities of the adsorbent for As(III) and As(V) were 4.57 mg g⁻¹ and 5.17 mg g⁻¹, respectively. Therefore, it was observed that FeMnO_x/RGO exhibited faster and greater adsorption ability for As(V) than As(III).

Fig. 4 Effect of contact time on (a) As(III) and (b) As(V) removal by FeMnO_x/RGO. Reaction conditions: initial As concentration: 1 mg L⁻¹, adsorbent dose: 0.2 g L⁻¹, contact time: 5 min to 24 h, solution pH: 7.0 ± 0.1, temperature: 25 °C.

The pseudo-first-order kinetic model⁴⁰ and pseudo-second-order kinetic model⁴¹ were used to describe the experimental data. The linear forms are presented as follows:

ln(q_e − q_t) = ln q_e − k₁t (3)

where q_e (mg g⁻¹) represents the amount of arsenic adsorbed at the equilibrium time, q_t (mg g⁻¹) is the solid-phase loading of arsenic at time t (min); k₁ and k₂ are the rate constants for the pseudo-first-order model and the pseudo-second-order model, respectively.

The results in Table 4 indicated that the pseudo-second-order model (R² ≥ 0.9989) fitted perfectly with the experimental data for both As(III) and As(V). What's more, the calculated q_e values derived from the pseudo-second-order model were close to the experimental q_e (Table 4). That is to say, the rate-limiting step of arsenic adsorption on FeMnO_x/RGO was chemical adsorption between the adsorbent and the adsorbate rather than a mass transfer in solutions.⁴²

Table 4 Pseudo-first-order and pseudo-second-order rate constants for As(III) and As(V) adsorption on FeMnO_x/RGO

Arsenic	Pseudo-first-order kinetic model			Pseudo-second-order kinetic model			Experimental data
	k1 (min)	qe (mg g^−1)	R^2	k2 (g mg^−1 min^−1)	qe (mg g^−1)	R^2	qe (mg g^−1)
As(III)	0.0035	2.04	0.9112	7.53 × 10^−3	4.59	0.9989	4.57
As(V)	0.0095	2.17	0.9742	1.52 × 10^−2	5.24	0.9999	5.18

---

3.4. Effect of competing ions

Fig. 5 presents the influence of various competing ions (SO₄²⁻, HCO₃⁻, PO₄³⁻) on As(III) and As(V) removal by FeMnO_x/RGO. It can be seen that SO₄²⁻ at different concentrations affected little on arsenic removal efficiency. Whereas, HCO₃⁻ and PO₄³⁻ at the studied concentration range showed significant influence on arsenic removal.

Fig. 5 Effect of competing ions on (a) As(III) and (b) As(V) removal by FeMnO_x/RGO. Reaction conditions: initial As concentration: 1 mg L⁻¹, adsorbent dose: 0.2 g L⁻¹, contact time: 24 h, solution pH: 7.0 ± 0.1, temperature: 25 °C.

HCO₃⁻ inhibited As(V) adsorption more remarkably than As(III), because As(V) usually exists as anionic species in aqueous solutions.¹⁴ Thus, HCO₃⁻ and As(V) would compete for the active adsorption sites on the adsorbent to form more stable surface complexes with iron (oxy)hydroxides.⁴³

As presented in Fig. 5, when the concentration of PO₄³⁻ increased to 10 mM, the removal efficiency of As(III) and As(V) remained only 31.26% and 1.42%, respectively. The reason could be that PO₄³⁻ had stronger affinity towards iron(oxy)hydroxides than arsenic, and it can form inner-sphere surface complexes with hydroxyl groups more easily, resulting in low removal efficiency of arsenic.^44,45

3.5. Removal mechanism

The removal mechanisms of As(III) and As(V) exist differences due to their various species in water. Herein, the mechanism could be explained under the following aspects:

3.5.1. pH. Fig. 6 depicts the effect of pH on arsenic adsorption by FeMnO_x/RGO. The removal efficiency of As(V) was comparatively higher than As(III) in the pH range 3–9 with 1 mg L⁻¹ initial arsenic concentration, which confirmed that As(V) was easier and more efficient to be removed from aqueous system using FeMnO_x/RGO. The trend of removal efficiency of As(V) dropped much slightly at pH range 3–9, whereas rapid decline emerged in the pH range 9–11. This phenomenon could be explained by the point of zero charge (pH_PZC) of the sorbent. In this study, the pH_PZC value of FeMnO_x/RGO was calculated to be 6.56, which was shown in the inset of Fig. 6. Detailed information about pH_PZC can be obtained in Fig. S4.† As(V) is usually present in the form of anionic species in aqueous solutions, such as H₂AsO₄⁻, HAsO₄²⁻.^14,46 Thus, when pH < pH_PZC, the surface of adsorbent was positively charged, resulting in more adsorption sites for anionic arsenate because of stronger electrostatic attraction. At pH > pH_PZC, the removal efficiency of As(V) began to decrease, and especially when pH > 9, the adsorbent possessed highly negative surface charge and exhibited stronger electrostatic repulsion towards As(V), causing much lower removal efficiency of As(V). Similar explanations were also obtained by Chandra et al.³⁸

Fig. 6 Effect of initial pH on As(III) and As(V) removal by FeMnO_x/RGO. Reaction conditions: initial As concentration: 1 mg L⁻¹, adsorbent dose: 0.2 g L⁻¹, contact time: 24 h, solution pH: 3–11, temperature: 25 °C. Inset: the change of zeta potential as a function of pH value.

As presented in Fig. 6, the removal efficiency of As(III) maintained over 80% in the pH between 3 and 9 and it dropped when pH > 9, indicating that part of neutral As(III) was converted into anionic As(V), which brought out electrostatic repulsion between negatively charged sorbent's surface and anionic As(V), together with the competition for active adsorption sites by OH⁻.

Variations of pH values before and after arsenic removal were investigated and presented in Table S2.† It can be seen that in acidic environment, pH slightly increased after arsenic adsorption, whereas the pH decreased under alkaline conditions demonstrating the possible release of H⁺ from the surface of sorbent.³⁹ There were minor variations between pH values before and after arsenic removal as the initial pH value was around 7, showing the material was stable in real water treatment and it was considered to be a promising adsorbent for arsenic removal. Our results were in agreement with the study reported by Feng et al.⁴⁷

3.5.2. The role of iron and manganese oxides. XPS was used to analyze the valence states of iron and manganese in FeMnO_x/RGO with different molar ratios of iron to manganese, as shown in Fig. 7. The peaks Fe2p_1/2 and Fe2p_3/2 were located at 724.0 and 710.4 eV, corresponding to Fe(III),⁴⁸ and the electron binding energies at 653.3 and 642.0 eV were characteristic of Mn(IV).¹² No significant changes appeared in Fe2p and Mn2p spectrums with the variations of molar ratios of Fe to Mn, indicating that Fe(III) and Mn(IV) were quite stable in the adsorbent composite.

Fig. 7 XPS spectra of (a) Fe2p and (b) Mn2p: (1) nFe : nMn = 0.5 : 1, (2) nFe : nMn = 1 : 1, (3) nFe : nMn = 3 : 0.5, (4) nFe : nMn = 3 : 1, (5) nFe : nMn = 3 : 2, (6) nFe : nMn = 3 : 4, (7) nFe : nMn = 4 : 1.

Fig. 8 presents the influence of various molar ratios of iron to manganese in As(III) and As(V) adsorption. In Fig. 8a, when the proportion of MnO₂ increased, the adsorption ability of the sorbent for As(III) removal also enhanced, indicating the oxidation ability of MnO₂. However, too much amount of MnO₂ (nFe : nMn = 3 : 4) resulted in a dramatic decline in the adsorption capacity for As(III), which might be the reason that MnO₂ occupied too many adsorption sites, inhibiting As(III) adsorption. There was a little difference in the removal efficiency of As(V) as nFe : nMn = 3 : 0.5, 3 : 2 and 3 : 4. While FeMnO_x/RGO (nFe : nMn = 3 : 1) held the highest adsorption capacity among the other adsorbents (Fig. 8b). The results demonstrated that MnO₂ had subtle effect on As(V) adsorption and 3 : 1 was an appropriate proportion of iron to manganese for arsenic removal. In contrast, when changing the amount of iron oxide, the difference of adsorption capacity for As(V) was more obvious (Fig. 8d) as compared to As(III) (Fig. 8c), which revealed that iron(III) oxide owned the dominant availability for As(V) removal.

Fig. 8 Effect of different molar ratios of iron to manganese for arsenic adsorption onto FeMnO_x/RGO. Reaction conditions: initial As concentration: 0.2–7.0 mg L⁻¹, adsorbent dose: 0.2 g L⁻¹, contact time: 24 h, solution pH: 7.0 ± 0.1, temperature: 25 °C.

To understand the role of iron and manganese oxides more clearly, Fig. 9 compares the adsorption ability of FeO_x/RGO and MnO_x/RGO with FeMnO_x/RGO for As(III) and As(V) adsorption. From Fig. 9, the adsorption capacity of adsorbents for both As(III) and As(V) was in the following order: FeMnO_x/RGO > FeO_x/RGO > MnO_x/RGO. It was obvious that MnO₂ had quite lower adsorption ability for As(III) and As(V); however, MnO₂ was found highly effective for As(III) oxidation. It can be seen in Fig. 10 that after reaction with As(III) solution, MnO_x/RGO showed a peak at 48.5 eV, corresponding to As(V), while the peak in XPS spectra of FeO_x/RGO was also the characteristic peak of As(III) (44.3 eV).^31,49 Thus, MnO₂ could transform As(III) into As(V) easily during the adsorption process and FeO_x/RGO had higher adsorption capacity for As(V) rather than As(III) (Fig. 9), confirming iron(III) oxide played a key role on As(V) removal.

Fig. 9 The adsorption capacities of FeMnO_x/RGO, FeO_x/RGO and MnO_x/RGO for (a) As(III) and (b) As(V) adsorption. Reaction conditions: initial As concentration: 0.2–7.0 mg L⁻¹, adsorbent dose: 0.2 g L⁻¹, contact time: 24 h, solution pH: 7.0 ± 0.1, temperature: 25 °C.

Fig. 10 As 3d core levels of FeMnO_x/RGO, FeO_x/RGO and MnO_x/RGO after reaction with As(III).

Data fitted by Langmuir model showed that the sum of adsorption capacities of FeO_x/RGO and MnO_x/RGO for As(III) removal was lower than the maximum adsorption amount of As(III) by FeMnO_x/RGO (5.96 mg g⁻¹ + 2.95 mg g⁻¹ = 8.91 mg g⁻¹ < 22.42 mg g⁻¹). Moreover, the results of As(V) (12.14 mg g⁻¹ + 3.41 mg g⁻¹ = 15.55 mg g⁻¹ < 22.22 mg g⁻¹) were in agreement with that of As(III) (Table S3†), confirming that Fe–Mn binary oxide possessed synergistic effects for As(III) and As(V) removal. Thus, combination of both iron oxide and manganese oxide on graphene was very effective and beneficial for arsenic removal.

To summarize the possible mechanism of As(III) adsorption on FeMnO_x/RGO, the schematic diagram of removal mechanism is shown in Fig. 11. As the adsorbent was added into As(III) solution, the part of As(III) was converted into As(V) by MnO₂. The reaction pathway involved two steps containing the reduction of Mn(IV) to Mn(III) and then Mn(III) to Mn(II):³¹

MnO₂ + H₃AsO₃ + 2H⁺ = Mn²⁺ + H₃AsO₄ + H₂O (5)

2MnO₂ + H₃AsO₃ = 2MnOOH* + H₃AsO₄ (6)

2MnOOH* + H₃AsO₃ + 4H⁺ = 2Mn²⁺ + H₃AsO₄ + 3H₂O (7)

Fig. 11 Schematic removal mechanism of As(III) on FeMnO_x/RGO.

Furthermore, As(V) would diffuse into the aqueous solution because of higher concentration on the surface of MnO₂.²³ Then As(V) together with the minority of As(III) was more attractive to iron(III) oxide attached tightly on graphene. As a consequence, hydroxyl groups on the surface of iron oxide could be replaced by As(III)/As(V) via ligand exchange, forming the inner-sphere surface complexes.^50,51 Thus, arsenic was eventually adsorbed on FeMnO_x/RGO.

3.6. Regeneration and reusability

Relevant experiments about the reusability of this adsorbent were performed. Fig. 12 reveals arsenic removal efficiency on regenerated FeMnO_x/RGO at initial concentration 100 μg L⁻¹. In the five treatment cycles, the majority of As(III) or As(V) was removed and As(III) removal efficiency was always higher than 90%, indicating that the residual concentration of As(III) was still under the standard concentration 10 ppb after the fifth adsorption. These results also indirectly demonstrated that the adsorbed arsenic could be successfully desorbed from FeMnO_x/RGO using 0.1 M NaOH + 0.1 M NaClO as the regenerant. Therefore, this adsorbent possesses good regeneration potential and it will be effectively and consecutively applied in real treatment of arsenic-contaminated water in future.

Fig. 12 Five consecutive adsorption–regeneration cycles on FeMnO_x/RGO for As(III) and As(V) removal.

4. Conclusions

In summary, FeMnO_x/RGO has been successfully prepared and employed for As(III) and As(V) removal from aqueous solutions. Due to huge specific surface area of graphene, Fe–Mn binary oxide was finely dispersed onto the surface of RGO, providing a large number of adsorption active sites for arsenic removal. Results demonstrated that MnO₂ possessed excellent oxidative ability for As(III), while iron(III) oxide was quite efficient to As(V) removal. High removal efficiency by FeMnO_x/RGO confirmed that this material could be promising in large scale applications.
