Novel catalyst of zinc tetraamino-phthalocyanine supported by multi-walled carbon nanotubes with enhanced visible-light photocatalytic activity

Yi Wana, Qian Lianga, Tiantian Conga, Xinyu Wanga, Yuyao Taoa, Manyou Suna, Zhongyu Li*abc and Song Xu*a
aJiangsu Key Laboratory of Advanced Catalytic Materials and Technology, School of Petrochemical Engineering, Changzhou University, Changzhou 213164, PR China. E-mail: zhongyuli@mail.tsinghua.edu.cn; zhongyuli@cczu.edu.cn; cyanine123@163.com; Fax: +86-519-86334771; Tel: +86-519-86334771
bKey Laboratory of Regional Environment and Ecoremediation (Ministry of Education), Shenyang University, Shenyang 110044, PR China
cDepartment of Materials Science and Engineering, Jilin Institute of Chemical Technology, Jilin 132022, PR China

Received 2nd June 2015 , Accepted 30th July 2015

First published on 30th July 2015


Abstract

Zinc tetraamino-phthalocyanine (ZnTAPc) supported by multi-walled carbon nanotubes (MWCNTs) hybrid materials were successfully fabricated by the method of chemical grafting and their photocatalysis behavior was reported. The as-prepared products were thoroughly characterized by scanning electron microscopy (SEM), X-ray diffraction (XRD), Raman spectroscopy, transmission electron microscopy (TEM), UV-vis spectra, thermogravimetric analysis (TGA) and FT-IR spectra. The results showed that the ZnTAPc nanostructures were not only grown on the multi-walled carbon nanotubes but also uniformly distributed without aggregation. The photocatalytic studies revealed that the ZnTAPc–MWCNTs hybrid materials exhibited high absorption capacity and simultaneously excellent visible-light-driven photocatalytic performance for rhodamine B (RB) under visible-light irradiation. A possible mechanism for the photodegradation of rhodamine B (RB) was suggested. The hybrid materials provide great potential as active photocatalysts for degrading organic pollutions.


1. Introduction

Carbon nanomaterials, including graphene, single-walled carbon (SWCNTs) and multi-walled carbon nanotubes (MWCNTs), because of their unique electronic, mechanistic and structural properties, have attracted tremendous scientific attention and wide applications in the past decades.1–10 MWCNTs are extremely promising as supports for heterogeneous metal catalysts for organic synthesis and fuel cell applications11–17 due to their good stability, large surface and unique mechanical properties. Some studies have indicated the introduction of MWCNTs can improve the activity and selectivity of these metal particles, likely due to the large surface areas, the special hollow interiors and excellent electronic properties.18,19 On the other hand, since the chemical bonding of MWCNTs is solely via sp2 bonds similar to those of graphite, the high-level of electron mobility and electrical conductivity of MWCNTs allow them to be used as supports for macrocyclic organic catalysts such as metalloporphyrins and metallophthalocyanines (MPcs).

Phthalocyanines, especially metal phthalocyanines, could be referred to as attractive alternatives for the visible-light-included photocatalytic decomposition of dye compounds.20–24 Photoactivity of phthalocyanines arises from their ability to produce the high active 1O2 singlet oxygen species upon photonflux absorption in either UV or visible parts of the spectrum. This singlet oxygen is formed during the extinction mechanism of the excited triplet state, following its collision with molecular O2. In addition, besides this property, metallophthalocyanines revealed extraordinary molecular stability, negligible toxicity and high thermal stability. The nanoscale particles could enhance the photocatalytic activity and singlet oxygen quantum yields of the phthalocyanines.25,26 Zinc phthalocyanine (ZnPc) and its derivatives possess a wide visible light response (600–800 nm).27 They can be synthesized with different substituent groups and combined with other compounds by loading or coordination. The synthetic flexibility of phthalocyanines offers great possibilities to modify the length of the connection groups and the positions of substituted groups.28 Furthermore, zinc phthalocyanine is able to photochemically activate triplet oxygen into singlet oxygen (1O2), which is frequently used as a non-radical oxidant for oxidizing organic pollutants.29 However, metallophthalocyanines are easy to aggregate, leading to markedly decrease the catalytic activity. Therefore, combining the photoresponsive property of both MWCNTs and ZnPc to prepare a photocatalyst with favorable dispersibility and higher photocatalytic activity seems to be extraordinarily vital.

Therefore, we attempted to fabricate a kind of tetraaminophthalocyanine (ZnTAPc) supported by MWCNTs hybrid materials, to solve the problem of aggregation of phthalocyanines and improve its photocatalytic activity. In the present study, the ZnTAPc–MWCNTs hybrid materials were successfully fabricated by the method of chemical grafting and their photocatalysis behaviors were also studied.

2. Experimental

2.1. Synthesis of ZnTAPc

All chemicals were reagent grade and used without further purification. ZnTAPc was synthesized from 3-nitrophthalonitrile, zinc acetate and DBU as described.30 In a typical experiment, 3-nitrophthalonitrile (0.100 mmol), Zn(AC)2·2H2O (0.025 mmol), 1-pentanol (30 mL) and DBU (1.5 mL) were put into a three-necked 100 mL round bottom flask. The mixture was then stirred at 130 °C for 8 h. After reaction, the purified ZnTNPc was obtained after washed by 1 mol L−1 NaOH and then 1 mol L−1 HCl. Finally, the 1,8,15,22-tetraamino zinc phthalocyanine was obtained after the ZnTNPc reacted with excess Na2S for 5 h.

2.2. Perparation of ZnTAPc–MWCNTs hybrid materials

The ZnTAPc–MWCNTs hybrid materials were prepared via the method of chemical grafting (Fig. 1). The chemical modification of MWCNTs was prepared as follows: MWCNTs were sonicated in a mixture of concentrated sulfuric and nitric acid (3[thin space (1/6-em)]:[thin space (1/6-em)]1 by volume) for 8 h at 80 °C. The obtained carboxyl-terminated MWCNTs (0.05 g) were then refluxed in excess SOCl2 (50 mL) at 70 °C for 24 h. The excess SOCl2 was removed by distillation and the remaining solid was dried in the vacuum. The obtained solid was reacted with ZnTAPc (0.2 g) in 100 mL dimethylformamide (DMF) and mixed with several drops of pyridine at 90 °C for 24 h. The excess ZnTAPc was removed completely by washing with anhydrous redistilled DMSO, leaving a black solid after filtration. The final ZnTAPc–MWCNTs hybrid materials were obtained by drying this solid at ambient temperature.
image file: c5ra10462a-f1.tif
Fig. 1 Illustration of preparation process of ZnTAPc–MWCNTs hybrid materials.

2.3. Characterization

XRD analyses were carried out with a Rigaku D/Max-2500 PC X-ray diffractometer (Rigaku Co., Japan), using a graphite crystal monochromator to select the Cu-Kα1 radiation source at λ = 1.5406 Å, with a step size of 0.02 s−1. Morphologies of the prepared samples were observed on a JSM-6360LA scanning electron microscope (SEM, JEOL, Japan) and a JEM-2100 transmission electron microscope (TEM, JEOL, Japan). Raman spectra were measured at room temperature using a LabRAM XploRA Raman spectrometer (Horiba Jobin Yvon, France) with a 532 nm laser focused on a spot about 3 nm in diameter. UV-vis spectrum was recorded on a UV-vis spectrometer (UV759, Shanghai Precision & Scientific Instrument Co., Ltd, China). Fourier transform infrared spectra (FT-IR) of samples were collected with a Nicolet (PROTéGé 460) spectrometer in the range from 500 to 4000 cm−1. The thermal stability of the materials was carried out using the TG-209-F3 thermogravimetric analysis meter (Nestal Company, Germany).

2.4. Photocatalytic test

The photoreactor was designed with an internal xenon lamp (XHA 1000 W and the average intensity was 28 mW cm−2) equipped with a cut-off glass filter transmitting >400 nm surrounded by a water-cooling quartz jacket to cool the lamp, where a 100 mL aliquot of the rhodamine B (RB) solution with an initial concentration of 25 mg L−1 in the presence of ZnTAPc–MWCNTs hybrid catalysts (50 mg). The volume of initial RB solution is 50 mL. The solution was stirred in the dark for 30 min to obtain a good dispersion and established adsorption–desorption equilibrium between the organic molecules and the catalyst surface. Decreases in the concentrates of dyes were analyzed by a UV-vis spectrometer (UV759, Shanghai Precision & Scientific Instrument Co., Ltd, China). At given intervals of illumination, the samples of the reaction solution were taken out and analyzed. The photodegradation of methyl orange (MO), was also carried out by the similar procedure.

3. Results and discussion

The FT-IR spectra of oxidized-MWCNTs (c), ZnTAPc (b) and ZnTAPc–MWCNTs (a) are shown in Fig. 2. For ZnTAPc, the bands at 1341, 1109, 1028, 738 cm−1 are assignable to the skeleton stretching of ZnTAPc. Carboxylic acid-functionalized MWCNTs showed two strong absorption bands at 3440 and 1715 cm−1, associating with O–H stretching and C[double bond, length as m-dash]O stretching in carboxyl, respectively. Another strong band at 1226 cm−1 was assigned to the C–O stretching in carboxylic. For ZnTAPc–MWCNTs, the peaks appeared in ZnTAPc can be found in ZnTAPc–MWCNTs, but are not present in oxidized MWCNTs. The peaks at 1721 and 1530 cm−1 were assigned to amide and the amide linkages between ZnTAPc and MWCNTs. In addition, two broad peaks around 3452 and 3337 cm−1, corresponded with the dissociation of N–H stretching band from ZnTAPc, disappeared in the spectra of ZnTAPc–MWCNTs. All these observations indicated that ZnTAPc had been attached onto MWCNTs successfully.
image file: c5ra10462a-f2.tif
Fig. 2 FT-IR spectra of oxidized ZnTAPc–MWCNTs (a), ZnTAPc (b) and MWCNTs (c).

Fig. 3 shows the TEM images of oxidized-MWCNTs (a), ZnTAPc–MWCNTs (b), pure ZnTAPc (c), and HRTEM image of ZnTAPc–MWCNTs (d). Compared with oxidized-MWCNTs, the interfacial area of the ZnTAPc–MWCNTs was found to be rough due to the formation of a whiskered ZnTAPc (Fig. 3b and d). The TEM images of the ZnTAPc–MWCNTs exhibited a roughened and shortened feature with ZnTAPc uniformly assembling in the convex surfaces of MWCNTs. The interfacial area of the ZnTAPc–MWCNTs was found to be rough due to the formation of a whiskered ZnTAPc (Fig. 3d). From these figures, we can observe the coverage of phthalocyanines on the sidewall of MWCNTs. The ZnTAPc–MWCNTs appears to be made of bundles composed of tubes with specific rugged surface and a layer of about 2–5 nm in thickness immobilized onto the sidewall of MWCNTs. Moreover, the integrity of tubular individual nanohorns before and after coating ZnTAPc is also noticeable in the magnified images, indicating that the surface functionalization with ZnTAPc via covalent π–π stacking produces insignificant damage to the intrinsic structures of MWCNTs. The resulting hybrid materials exhibited a stretched and shortened feature with phthalocyanines uniformly assembling on the convex surface of MWCNTs (Fig. 3b). However, ZnTAPc exhibited poor dispersibility with clusters congregated while the density of ZnTAPc on the MWCNTs was improved (Fig. 3c).


image file: c5ra10462a-f3.tif
Fig. 3 TEM images of oxidized-MWCNTs (a), ZnTAPc–MWCNTs (b), pure ZnTAPc (c), and HRTEM image of ZnTAPc–MWCNTs (d).

Compared with the oxidized-MWCNTs (Fig. 4a), the SEM image of ZnTAPc–MWCNTs hybrid materials show an appreciable increase in thickness (Fig. 4b), confirming the formation of nanohybrids, probably due to the amide linkages between ZnTAPc and MWCNTs. After immobilized on MWCNTs, nanoparticles of phthalocyanines with a diameter from several to tens of nanometers are clearly observed on MWCNTs walls. Compared with the SEM image of pure ZnTAPc (Fig. 4c), ZnTAPc dots are dispersed in each threadlike MWCNT matrix (Fig. 4b), showing good dispersibility with MWCNT materials.


image file: c5ra10462a-f4.tif

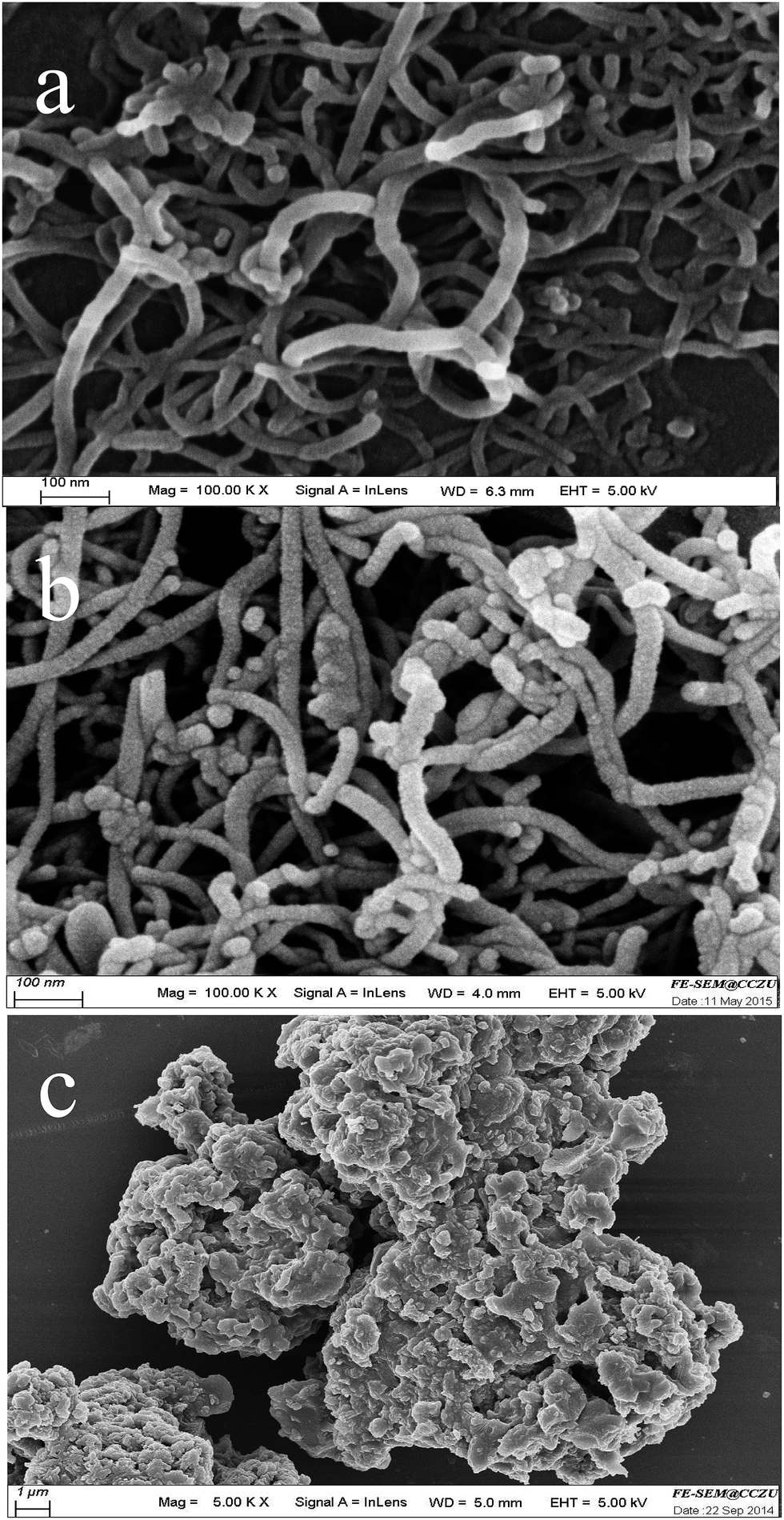

Fig. 4 SEM images of oxidized-MWCNTs (a), ZnTAPc–MWCNTs (b) and pure ZnTAPc (c).

The X-ray diffraction (XRD) patterns of oxidized-MWCNTs, ZnTAPc and ZnTAPc–MWCNTs are shown in Fig. 5. Compared with the curve b in Fig. 5, the diffraction peaks of the ZnTAPc–MWCNTs (the curve c) were broad and weak, indicating a small crystal size or poor crystallinity of ZnTAPc in the ZnTAPc–MWCNTs hybrid materials. Moreover, the characteristic peaks of the ZnTAPc–MWCNTs became weak because the ZnTAPc was well dispersed on the surface of MWCNTs. All of the reflection peaks of ZnTAPc–MWCNTs could be indexed as ZnTAPc, indicating the ZnTAPc nanostructures were successfully fabricated on the surface of MWCNTs.


image file: c5ra10462a-f5.tif

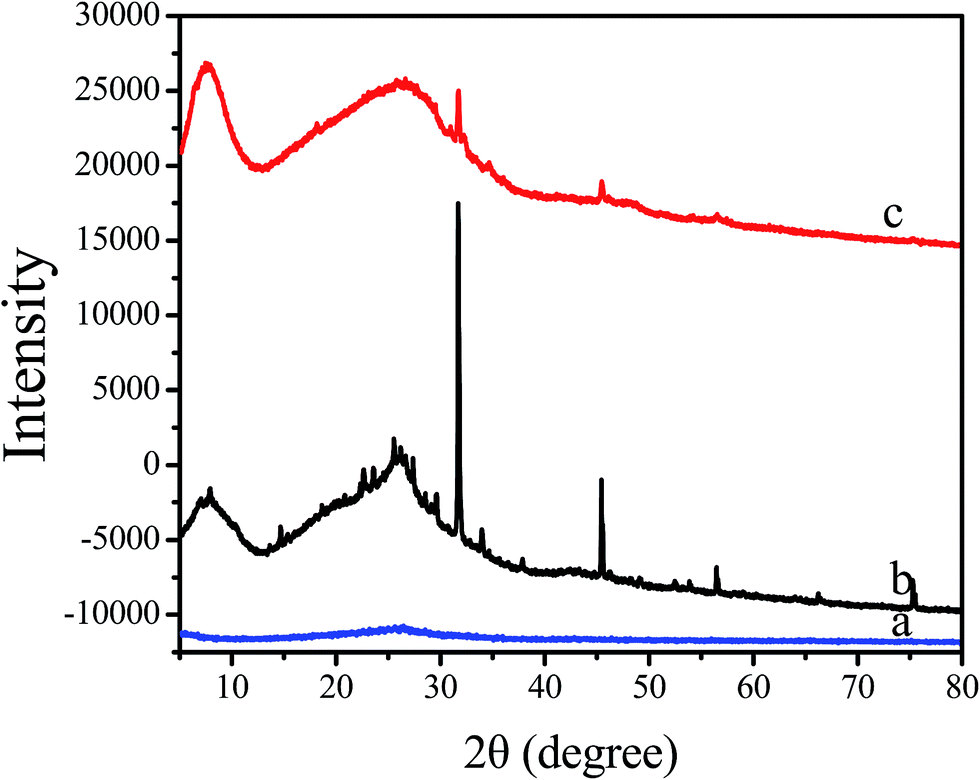

Fig. 5 XRD spectra of oxidized MWCNTs (a), ZnTAPc (b) and ZnTAPc–MWCNTs (c).

We evaluated UV-vis spectra of free ZnTAPc and ZnTAPc–MWCNTs in DMF solution (Fig. 6). Free ZnTAPc shows two distinguishable adsorption bands, peaked at 681 and 764 nm, corresponding to the presence of a dimer and monomer of ZnTAPc, respectively. Upon complexation of MWCNTs, the absorption band of the dimer and the monomer peak turned to broader and weaker, accompanying a blue shift to 678 and 761 nm, respectively. The phenomena indicated that a strong π–π interaction between MWCNTs and ZnTAPc, resulted in the deaggregation of ZnTAPc.


image file: c5ra10462a-f6.tif
Fig. 6 UV-vis spectra of ZnTAPc and ZnTAPc–MWCNTs hybrid materials in DMF. Inset shows a photograph of ZnTAPc–MWCNTs (left) and ZnTAPc dispersed in DMF.

Covalent attachment of ZnTAPc to MWCNTs support was further confirmed by Raman spectroscopy. The Raman spectra of ZnTAPc–MWCNTs and MWCNTs are shown in Fig. 7. The oxidized-MWCNTs displayed a G mode at 1576 cm−1 accompanied by a strong tangential peak at 1347 cm−1, corresponding to the D mode due to sp3-hybridized carbons. The grafting of ZnTAPc of the oxidized-MWCNTs resulted in a substantial decrease in the number of sp3-hybridized carbons with a concomitant decrease in the D mode and a increase in the tangential G mode associated with sp2-hybridized carbons from the nanotube sidewalls. This decrease in the ratio of the sp3[thin space (1/6-em)]:[thin space (1/6-em)]sp2 ratio is described by the D[thin space (1/6-em)]:[thin space (1/6-em)]G ratio, suggesting that the continuous delocalization of electrons throughout the nanotubes has been highly disrupted due to covalent attachment of the ZnTAPc to the nanotubes. Thus, the conjugates of tetra-amino substituted phthalocyanines with MWCNTs were synthesized.


image file: c5ra10462a-f7.tif
Fig. 7 Raman spectra of ZnTAPc–MWCNTs (a) and MWCNTs (b).

The amounts of ZnTAPc covalently linked with the MWCNTs were determined by TGA. Fig. 8 shows the TGA measurements for pure MWCNTs and ZnTAPc–MWCNTs hybrid materials. This figure shows the percent mass loss as a function of temperature at 10 °C min−1 heating rate under a nitrogen atmosphere. As shown in Fig. 8, the ZnTAPc segments in ZnTAPc–MWCNT hybrid materials can be completely degraded without any inert residue remaining at 800 °C. It is clear seen that there is about 39.9% of ZnTAPc–MWCNTs hybrid materials present at 800 °C. In contrast, there is 94.9% of pure MWCNTs present at this temperature. By definitely value the weights of pure MWCNTs and ZnTAPc–MWCNTs hybrid materials after thermal degradation at 800 °C, the amount of ZnTAPc bonded to MWCNTs is calculated to be 55% by weight. Combining with the mentioned FT-IR and TEM measurements, it is believed that MWCNTs covalently bonded by zinc tetraamino-phthalocyanines are indeed obtained.


image file: c5ra10462a-f8.tif

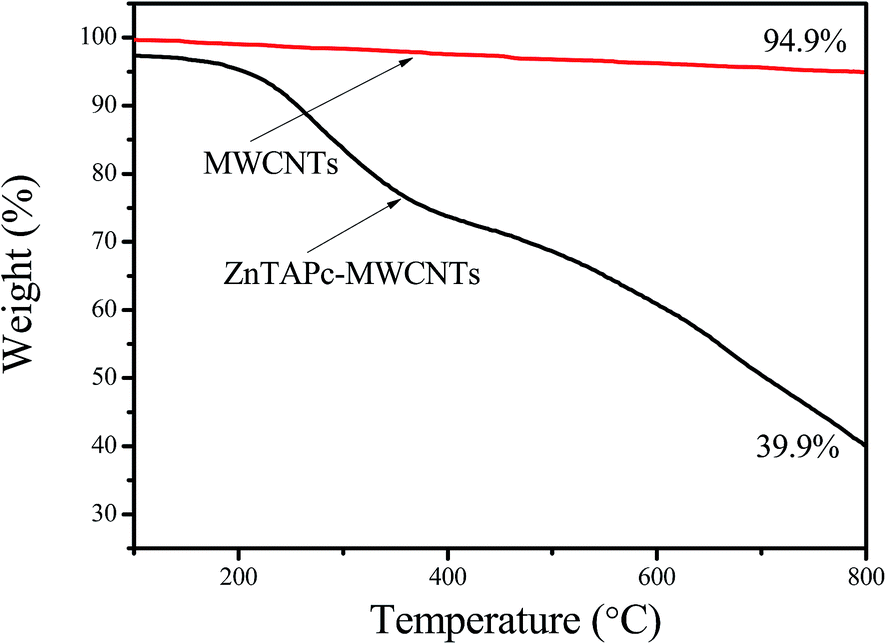

Fig. 8 TGA curves of pure MWCNTs and ZnTAPc–MWCNTs hybrid materials.

To test the photocatalytic activity of ZnTAPc–MWCNTs hybrid materials for the degradation of organic pollutions, rhodamine B (RB) was selected as a representative dye pollutant of industrial wastewaters. The photocatalytic activities of the ZnTAPc–MWCNTs hybrid materials were evaluated by the degradation of RB in aqueous solution under visible-light irradiation. Before studying and comparing the activities of the ZnTAPc–MWCNTs hybrid materials, the bleaching of RB in the absence of any catalysts was first examined. As shown in Fig. 9a, RB degradation without any photocatalyst was performed, and the results illustrated that the degradation of RB was very slow in the absence of photocatalyst under visible-light irradiation, only 2% of RB was degraded under the irradiation with visible light. Next, the photocatalytic activities of MWCNTs were investigated. It can be clearly seen that the MWCNTs had almost no photocatalytic activity under the visible-light irradiation, expect decent adsorption for RB (18.5%), which could attributed to the high specific surface area of the carbon nanotubes. Irradiation of aqueous solutions of RB (25 mg L−1) after the ZnTAPc immobilized onto MWCNTs led to an obvious decrease of RB concentration. The excellent photoactivity depended on the structure of the immobilized phthalocyanines, implying that the degradation of RB was initiated by its reaction with the reactive oxygen species produced upon exciting the phthalocyanines with the appropriate wavelength of light. It seems very important to consider whether photocatalysis could still happen effectively after the adsorption of RB to ZnTAPc–MWCNTs hybrid materials reached equilibrium. In the presence of ZnTAPc–MWCNTs hybrid materials but in the darkness, the removal rate of RB was 37.9% within 30 min. It was found that almost no change occurred during the next 240 min, which was attributed to the good adsorption of ZnTAPc–MWCNTs, while the adsorption of RB was close to saturation by the end of the initial 30 min. Indeed, at same conditions, 88.0% of the RB was degraded under the irradiation with visible light. On the other hand, pure ZnTAPc barely showed activity for RB photodegradation (54.3%) due to the aggregation of ZnTAPc decreased the photoactivity, while ZnTAPc–MWCNTs demonstrates good photocatalytic activity with a degradation rate of 0.5144 h−1 (Fig. 9b). The degradation efficiency of the as-prepared samples was defined as C0/C, and the rate was estimated based on

ln(C0/C) = kt
where C0 is the equilibrium concentration of RB after 30 min dark adsorption, C is the RB concentration remaining in the solution at irradiation time (h), and k is the observed rate constant. The introduction of MWCNTs promoted the degradation of RB effectively. The k value was 0.5144 h−1, which was 6.8 and 11.4 times higher than that of pure ZnTAPc (0.0659 h−1) and MWCNTs (0.0415 h−1), respectively. Obviously, the coupling of ZnTAPc and MWCNTs via the covalent attachment created an excellent hybrid photocatalyst. The enhanced photoactivity may be ascribed to the improvement in charge transmission between the MWCNTs and ZnTAPc prolonged the lifetime of charge carriers. Moreover, the photoactivity of the hybrid photocatalyst was also affected by the surface contact between particles. The ZnTAPc–MWCNTs hybrid materials had higher contact interfaces between ZnTAPc and MWCNTs, resulting in higher photocatalytic efficiency. Table 1 shows the photocatalytic activity of as-prepared of ZnTAPc–MWCNTs hybrid photocatalyst by comparison of the metallophthalocyanine and other metal photocatalysts. It was found that 88.0% of the RB was degraded under the visible light irradiation with ZnTAPc–MWCNTs as photocatalyst, confirming the as-prepared ZnTAPc–MWCNTs hybrid materials showed good photocatalytic performance.


image file: c5ra10462a-f9.tif
Fig. 9 Absorption and photocatalytic of RB by different photocatalysts with the same weight under visible-light irradiation (a), kinetic plot for ZnTAPc–MWCNTs, ZnTAPc and MWCNTs in photooxidation of RB (b).
Table 1 Photocatalytic activities toward the degradation of RB of some reported catalysts
Catalyst Reaction time, min Removal percentage, % Concentration of RB, g L−1 Ref.
CuTNPc/TiO2 240 87 10 20
FeTNPc 300 90 10 37
TiO2/RGO 210 75 10 38
NiO 180 80 10 39
CdPc/PAN 420 85 10 40
Bi5O7Br 120 85 11 41
ZnTAPc–MWCNTs 240 88 25 This work


Fig. 10 shows the photocatalytic activities of RB and MO in the presence of ZnTAPc–MWCNTs hybrid photocatalyst. It can be seen that the RB and MO dyes are photodegraded efficiently over the ZnTAPc–MWCNTs photocatalysts, 85.6% of the MO solution was degraded after irradiation for 4 h, the photocatalytic results indicated that the as-prepared ZnTAPc–MWCNTs hybrid materials are excellent photocatalyst for the photodegradation of RB and MO. The introduction of MWCNTs could greatly promote the photocatalytic activity of ZnTAPc due to the MWCNTs as catalyst support prevented the aggregation of ZnTAPc and increased the catalytic active sites. Moreover, the stability of the ZnTAPc–MWCNTs hybrid photocatalysts was examined for degradation of RB during a three cycle experiment, which was very important for the ZnTAPc–MWCNTs hybrid photocatalyst to apply in environmental problems. As shown in Fig. 11, each experiment was carried out under identical conditionals, and after a three-cycle experiment, the photocatalytic activity of RB remained almost unchanged. The high photocatalytic performance of ZnTAPc–MWCNTs was effectively maintained except for 3.7% decrease in photocatalytic efficiency. It was indicated that the ZnTAPc–MWCNTs hybrid photocatalysts displayed an efficient photoactivity for the degradation of organic pollutions under visible light irradiation and could be easily be separated for reuse.


image file: c5ra10462a-f10.tif
Fig. 10 Photodegradation of different organics over 50 mg ZnTAPc–MWCNTs.

image file: c5ra10462a-f11.tif
Fig. 11 Photocatalytic degradation of RB over ZnTAPc–MWCNTs under visible-light irradiation for 3 cycles.

Mechanism of photodegradation of organic pollutions in presence of oxygen and porphyrin or phthalocyanines, either immobilized or in solution31,32 or in solution,33,34 may involve both type I (electron or atom transfer) and/or type II (singlet oxygen) processes. To test whether the mechanism of reactions of the systems in these studies involves electron transfer and/or singlet oxygen, photodegradation reactions were carried out in the presence and absence of oxygen.

The photodegradation of RB catalyzed by ZnTAPc–MWCNTs hybrid materials was performed in air and in a solution of beta-carotene (C40H56, 1O2 scavenger). As shown in Fig. 12, the photodegradation of RB was virtually complete after 4 h irradiation when experiment was carried out in air solutions, while under oxygen-free conditions only 4.8% conversion was achieved. The addition of beta-carotene greatly decreased the photocatalytic activity of ZnTAPc–MWCNTs, indicating that 1O2 is the dominant active species.35 Introduction of singlet oxygen scavenger halted the reaction strongly suggesting that single oxygen is involved in the mechanism of photodegradation (type II mechanism).


image file: c5ra10462a-f12.tif

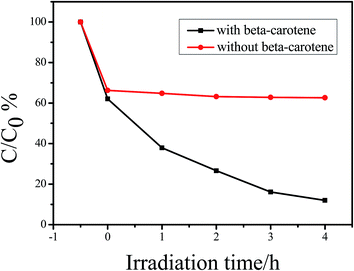

Fig. 12 Photodegradation rate of RB in the presence of beta-carotene at different periods of time.

In heterogeneous reaction for ZnTAPc–MWCNTs under visible light irradiation, the generation of singlet oxygen is an adopted photocatalytic mechanism.36 On the basis of the above results and the earlier reports on the photocatalytic oxidation of pollutants, a proposed mechanism of visible light-induced photodegradation of RB with the ZnTAPc–MWCNTs hybrid materials is elucidated as follows:


image file: c5ra10462a-t1.tif(1)

image file: c5ra10462a-t2.tif(2)

3O2 + 3ZnTAPc*–MWCNTs → ZnTAPc–MWCNTs + 1O2 (3)

1O2 + RB → oxidation product (4)

The ZnTAPc–MWCNTs was excited by visible light irradiation to form the single line excitation state (1ZnTAPc*–MWCNTs) (eqn (1)), and then 1ZnTAPc*–MWCNTs can turn into the excited triplet states sensitizer of 3ZnTAPc*–MWCNTs (eqn (2)) by irradiation and intersystem crossing (ISC). 3ZnTAPc*–MWCNTs can interact with the ground state triplet oxygen (3O2) to generate the highly active singlet oxygen (1O2) (eqn (3)), resulting in the decomposition of RB (eqn (4)).

4. Conclusions

In summary, by using a chemical grafting process, the ZnTAPc–MWCNTs hybrid materials were successfully fabricated. Furthermore, the ZnTAPc–MWCNTs exhibited not only high absorption capacity, but also excellent photocatalytic activities for RB under visible light. The prepared ZnTAPc–MWCNTs powders displayed much higher photocatalytic activity than single ZnTAPc or MWCNTs under visible light irradiation. A possible mechanism for “singlet oxygen process” was suggested. Also, it is expected that the ZnTAPc–MWCNTs hybrid materials with high photoactivity will greatly promote their industrial application to eliminate the organic pollutions from wastewater. Moreover, this research offers a new strategy to design high efficient MWCNTs-supported catalysts by utilizing the special sp2-hybridized surface of MWCNTs for various applications in organic synthesis, green chemistry and environmental treatment.

Acknowledgements

This work was financially supported by Open Fund of Key Laboratory of Regional Environment and Eco-remediation of Ministry of Education, China (SYU-KF-E-12), Open Fund of Key Laboratory of Contaminated Environment Control and Regional Ecology Safety, Shenyang University, China (SYU-KF-L-12), Project Funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions, Project for Six Major Talent Peaks of Jiangsu Province (2011-XCL-004) and Natural Science Foundation of Changzhou City, China (CJ20140053).

References

  1. C. Chung, Y. K. Kim, D. Shin, S. R. Ryoo, B. H. Hong and D. H. Min, Acc. Chem. Res., 2013, 46, 2211–2224 CrossRef CAS PubMed.
  2. G. Qin, J. Zhang and C. Wang, J. Alloys Compd., 2015, 635, 158–162 CrossRef CAS PubMed.
  3. M. F. de Volder, S. H. Tawfick, R. H. Baughman and A. J. Hart, Science, 2013, 339, 535–539 CrossRef CAS PubMed.
  4. Y. Song, K. Qu, C. Zhao, J. Ren and X. Qu, Adv. Mater., 2010, 22, 2206–2210 CrossRef CAS PubMed.
  5. M. Calvaresi and F. Zerbetto, Acc. Chem. Res., 2013, 46, 2454–2463 CrossRef CAS PubMed.
  6. G. Peng, L. Zhang, X. Yang, S. Duan, G. Liang and Y. Huang, J. Alloys Compd., 2013, 570, 1–6 CrossRef CAS PubMed.
  7. Z. Liu, A. C. Fan, K. Rakhra, S. Sherlock, A. Goodwin, X. Chen, Q. Yang, D. W. Felsher and H. Dai, Angew. Chem., Int. Ed., 2009, 48, 7668–7672 CrossRef CAS PubMed.
  8. N. S. Andryushina and O. L. Stroyuk, Appl. Catal., B, 2014, 148, 543–549 CrossRef PubMed.
  9. Q. Cheng, M. Wu, M. Li, L. Jiang and Z. Tang, Angew. Chem., Int. Ed., 2013, 13, 3838–3843 CrossRef PubMed.
  10. T. N. Lambert, C. A. Chavez, B. Hernandez-Sanchez, P. Lu, N. S. Bell, A. Ambrosini, T. Friedman, T. J. Boyle, D. R. Wheeler and D. L. Huber, J. Phys. Chem. C, 2009, 113, 19812–19823 CAS.
  11. B. Yoon and C. M. Wai, J. Am. Chem. Soc., 2005, 127, 17174–17175 CrossRef CAS PubMed.
  12. A. Solhy, B. F. Machado, J. Beausoleil, Y. Kihn, F. Goncalves, M. F. R. Pereira, J. J. M. Orfao, J. J. Figueiredo, J. L. Faria and P. Serp, Carbon, 2008, 46, 1194–1207 CrossRef CAS PubMed.
  13. S. Wang, X. Shi, G. Shao, X. Duan, H. Yang and T. Wang, J. Phys. Chem. Solids, 2008, 69, 2396–2400 CrossRef CAS PubMed.
  14. B. Liu, Z. Y. Li, S. Xu, D. Han and D. Lu, Mater. Lett., 2014, 131, 229–232 CrossRef CAS PubMed.
  15. H. Vu, F. Goncalves, R. Philippe, E. Lamouroux, M. Corrias, Y. Kihn, D. Plee, P. Kalck and P. Serp, J. Catal., 2006, 240, 18–22 CrossRef CAS PubMed.
  16. J. Q. Wei, J. Ding, X. F. Zhang, D. H. Wu, Z. C. Wang, J. B. Luo and K. L. Wang, Mater. Lett., 2005, 59, 322–325 CrossRef CAS PubMed.
  17. J. Li, Y. B. Wang, J. D. Qiu, D. C. Sun and X. H. Xia, Anal. Bioanal. Chem., 2005, 383, 918–922 CrossRef CAS PubMed.
  18. H. B. Zhang, X. Dong, G. D. Lin, X. L. Liang and H. Y. Li, Chem. Commun., 2005, 5094–5096 RSC.
  19. X. Pan, Z. Fan, W. Chen, Y. Ding, H. Luo and X. Bao, Nat. Mater., 2007, 6, 507–511 CrossRef CAS PubMed.
  20. M. Y. Zhang, C. L. Shao, Z. C. Guo, Z. Y. Zhang, J. B. Mu, P. Zhang and T. P. Cao, ACS Appl. Mater. Interfaces, 2011, 3, 2573–2578 CAS.
  21. E. Marais, R. Klein, E. Antunes and T. J. Nyokong, J. Mol. Catal. A: Chem., 2007, 261, 36–42 CrossRef CAS PubMed.
  22. G. Palmisano, M. C. Gutierrez, M. L. Ferrer, M. D. Gil-Luna, V. Augugliaro, S. Yurdakal and M. Pagliaro, J. Phys. Chem. C, 2008, 112, 2667–2670 CAS.
  23. H. J. Mackintosh, P. M. Budd and N. B. McKeown, J. Mater. Chem., 2008, 18, 573–578 RSC.
  24. S. Makhseed, F. Al-Kharafi, J. Samuel and B. Ateya, Catal. Commun., 2009, 10, 1284–1287 CrossRef CAS PubMed.
  25. M. E. Wieder, D. C. Hone, M. J. Cook, M. M. Handsley, J. Gavrilovic and D. A. Russell, Photochem. Photobiol. Sci., 2006, 5, 727–734 CAS.
  26. S. FitzGerald, A. Beeby, I. Chambrier, M. J. Cook and D. A. Russell, Langmuir, 2002, 18, 2985–2987 CrossRef.
  27. Y. Wan, Q. Liang, Z. Y. Li, S. Xu, X. J. Hu, Q. L. Liu and D. Y. Lu, J. Mol. Catal. A: Chem., 2015, 402, 29–36 CrossRef CAS PubMed.
  28. C. Zhou, Y. Liu and X. Zhao, Inorg. Chim. Acta, 2015, 425, 11–16 CrossRef CAS PubMed.
  29. M. Gao, N. Li, W. Lu and W. Chen, Appl. Catal., B, 2014, 147, 805–812 CrossRef CAS PubMed.
  30. B. N. Achar, G. M. Fohlen, J. A. Parker and J. Keshavayya, Polyhedron, 1987, 6, 1463–1467 CrossRef CAS.
  31. M. Silva, M. E. Azenha, M. M. Pereira, H. D. Burrows, M. Sarakha, C. Forano, M. F. Ribeiro and A. Fernandes, Appl. Catal., B, 2010, 100, 1–9 CrossRef CAS PubMed.
  32. M. A. Zanjanchi, A. Ebrahimian and M. Arvand, J. Hazard. Mater., 2010, 175, 992–1000 CrossRef CAS PubMed.
  33. X. F. Zhang, X. Li and L. J. Niu, J. Fluoresc., 2009, 19, 947–954 CrossRef CAS PubMed.
  34. C. Yang, L. Ye, L. Tian, T. Peng, K. Deng and L. Zan, J. Colloid Interface Sci., 2011, 253, 533–541 Search PubMed.
  35. C. J. P. Monteiro, M. M. Pereira, M. E. Azenha and H. D. Burrows, Photochem. Photobiol. Sci., 2005, 4, 617–624 CAS.
  36. X. F. Zhang, X. Li, L. J. Niu, L. Sun and L. Liu, J. Fluoresc., 2009, 19, 947–954 CrossRef CAS PubMed.
  37. Z. C. Guo, J. B. Mu and B. Chen, Ceram. Int., 2015, 41, 4916–4922 CrossRef CAS PubMed.
  38. L. X. Zhang, J. Zhang, H. F. Jiu, C. H. Ni, X. Zhang and M. L. Xu, J. Phys. Chem. Solids, 2015, 86, 82–89 CrossRef CAS PubMed.
  39. M. Fereshteh, R. M. Mohammad, S. Faezeh and S. N. Masoud, RSC Adv., 2014, 4, 27654–27660 RSC.
  40. Z. C. Guo, C. L. Shao, J. B. Mu, M. Y. Zhang, Z. Y. Zhang, Z. Peng, B. Chen and Y. C. Liu, Catal. Commun., 2011, 12, 880–885 CrossRef CAS PubMed.
  41. Y. R. Su, C. H. Ding, Y. L. Yuan, H. Wang, L. Q. Ye, X. L. Jin, H. Q. Xie and C. Liu, Appl. Surf. Sci., 2015, 346, 311–316 CrossRef CAS PubMed.
