In situ synthesis of silver nanostructures on magnetic Fe₃O₄@organosilicon microparticles for rapid hydrogenation catalysis

Abstract

A novel protocol to prepare multifunctional magnetic organic–inorganic nanostructured catalysts of Fe₃O₄@organosilicon/Ag with tailored properties is developed. Such nanostructure design endows the catalysts with superparamagnetism (11.6 emu g⁻¹), excellent oxidation resistance, and catalytic activity. Fe₃O₄ nanoparticles (NPs) are encapsulated with porous organosilicon via improved self-assembly of a flexible-bridged organosilicon precursor without templates. Subsequently, dispersed Ag NPs are in situ grown on the porous microparticles via a silver mirror reaction. The as-prepared multifunctional catalysts are characterized by scanning electron microscopy, X-ray photoelectron spectroscopy, a vibration sample magnetometer, X-ray diffraction, thermal gravimetric analysis, and nitrogen adsorption and desorption, respectively. The resultant hybrid microparticles possess micro- and nano-pores, and exhibit a small hysteresis loop and low coercivity. Meaningfully, they exhibit exceptional catalytic performance for the reduction of 4-nitrophenol in the presence of sodium borohydride and could be reused at least 9 times with excellent stability by means of convenient magnetic separation. The catalysts could be employed to reduce other dyes such as methylene blue, orange G and rhodamine B, and their corresponding reductions follow pseudo-first-order reactions. Therefore, the proposed structure design and scalable route for the synthesis of hierarchical catalysts can pave the way for synthesizing other catalyst systems to address the diverse reaction demands.

---

1. Introduction

Recently, noble-metal (such as Au, Pd, Ag or their alloys) nanoparticles (NPs) have attracted intensive attentions for their unexpectedly high catalytic activity toward various catalytic reductions, due to their extremely high surface area-to-volume ratio.^1–6 Among them, Ag NPs are one of the most fascinating topics in consideration of their relatively cheap price, as well as excellent chemical and physical properties. However, there are several major challenges that greatly prohibit Ag NPs from a large-scale use. First, Ag NPs tend to aggregation, which decreases the surface area of Ag NPs, resulting in the degradation of catalytic activity. Second, the separation of Ag NPs from the catalytic reaction systems by centrifugation or filtering is tedious and time-consuming, thus hampering the recovery and reusability of catalysts in aqueous solution. Moreover, the synthesis of Ag NPs always involves various hazardous and toxic reagents such as sodium borohydride and hydrazine hydrate.^7–11 Therefore, a novel design and synthesis of “green” Ag NPs with long-term stability and facile separation is highly desirable.

To overcome these mentioned issues, many methods have been developed to synthesize magnetically retrievable Ag-based catalyst. Fe₃O₄ magnetic nanoparticles (MNPs), which possess high saturation magnetization, low coercivity and good biocompatibility, could be employed as perfect platforms for loading various nanocatalysts.^12–14 Lin¹⁵ developed dumbbell-like Au–Fe₃O₄ nanostructures as recyclable nanocatalysts for reduction of 4-nitrophenol (4-NP) to 4-aminophenol (4-AP) in the presence of NaBH₄. Li¹⁶ reported the preparation of recyclable catalysts Ag/Au-decorated Fe₃O₄/SiO₂ nanoparticles through Au seeds attached onto NH₂-SSCNs, followed by the deposition of Ag for catalytic reduction of methylene blue. However, Fe₃O₄ MNPs are prone to be easily aggregated, oxidized or dissolved in acid medium during the treatment procedure, and the traditional silica layer is non-porous and needs to be modified to loading metal NPs.^16–19 Therefore, a suitable approach to design multifunctional composites consisting of Fe₃O₄ MNPs and other functional components is essential to avoid such limitations. Organosilicon is regarded as one of the efficient coating layer for Fe₃O₄ MNPs due to its high chemical and thermal stabilities, adjustable reactive sites, and good bio-compatibilities.^20–22 On the other hand, organosilicon is also regarded as promising candidate for immobilizing Ag NPs and avoiding the aggregation of Ag NPs.²³ The integrated microspheres of magnetic oxides and noble metals could endow the porous organosilicon with excellent catalytic activity and convenient magnetic separation. In return, the porous organosilicon could immobilize the Ag NPs and enhance the stability of Fe₃O₄ core. In general, it remains a challenge to how to conveniently synthesize these desirable multifunctional structures for extended applications.

In the present work, we propose a facile and scalable approach to deposit Ag NPs on Fe₃O₄ encapsulated with organosilicon (Fe₃O₄@Si/Ag), which is applied to catalytic reduction of diverse dyes. Initially, magnetically responsive Fe₃O₄@Si (core@shell) microparticles are fabricated via solvothermal and improved sol–gel method. Then, Ag NPs are in situ grown on the surface of Fe₃O₄@Si microparticles via the silver mirror reaction. The as-prepared Fe₃O₄@Si/Ag catalyst could successfully realize a combination of functions and features from single component. Furthermore, as a magnetically recoverable catalyst, its catalytic performance, reusability along with the corresponding kinetics behaviours are also investigated in the reduction of 4-NP, orange G, methylene blue, and rhodamine B in the presence of NaBH₄. More important, the unique Fe₃O₄@Si hierarchical structure makes the microparticles promising candidates for immobilizing metal catalyst.

2. Materials and methods

2.1 Materials

Hexamethylene diisocyanate (HDI), 3-aminopropyl triethoxylsilane (APTS), and polyvinylpyrrolidone (PVP) are purchased from Aladdin Reagent Co., Ltd and used as received without any further purification. Sodium borohydride (NaBH₄), silver nitrate (AgNO₃), iron chloride hexahydrate (FeCl₃·6H₂O), sodium acetate anhydrous (NaAc), ethylene glycol, glucose (C₆H₁₂O₆), orange G (OG), rhodamine B (RhB), methylene blue (MB) and 4-NP are purchased from Sinopharm Chemical Reagent Co., Ltd. Chloroform and ethanol are dried before using. Other chemicals are analytical grade and used without any further purification. Milli-Q grade water is used in all experiments.

2.2 Synthesis of Fe₃O₄ MNPs

The ethanol dispersible Fe₃O₄ MNPs are synthesized according to previous method.²⁴ Briefly, FeCl₃·6H₂O (1.5 g, 5.56 mmol), PVP (1.0 g, 1 mmol), and NaAc (2.0 g, 24.4 mmol) are dissolved in ethylene glycol (60 mL) with magnetic stirring. The obtained yellow solution is then transferred into a 100 mL Teflon-lined stainless-steel autoclave, sealed and maintained at 200 °C for 8 h. After the reaction is completed, the black precipitates are filtered, washed with ethanol and deionized water 3 times to remove irons possibly remnant. The as-prepared Fe₃O₄ MNPs is then re-dispersed in ethanol (5 wt%), and stored for the next procedure.

2.3 Synthesis of organosilicon-coated Fe₃O₄ (Fe₃O₄@Si) microparticles

The disilylated hexamethylene-bridged organosilicon precursor (DHBP) is synthesized according to our previous work.²⁵ The product is confirmed through detecting –NCO absorption band at 2275 cm⁻¹ by Fourier transform infrared spectroscopy (FTIR). The as-prepared DHBP is then dissolved in dried CHCl₃ (34 wt%) and stored for the following procedure.

The organosilicon coated Fe₃O₄ microparticles are prepared under multi-step acid–alkali condition without templates. All glassware is dried completely prior to use. Typically, 6.5 g DHBP/CHCl₃ solution (34 wt%) and 6.44 g Fe₃O₄/ethanol solution (5 wt%) are charged into a round bottomed flask equipped with a mechanical stirrer, and the mixture is stirred vigorously for 5 min. Then 0.65 g diluted HCl (0.1 M) is added into the above solution and stirred for another 3 min to obtain uniform solution. Subsequently, 0.07 g HCl (10 M) is then dropwise added to the mixture under ultrasonication condition for 2 min, and a solution of ethanol (10 mL) and CHCl₃ (5 mL) is poured to the mixture. After another 5 min 1.5 mL ammonium hydroxide (25 wt%) is added. The reaction is stirred for another 20 min, and then aged for 0.5 h at room temperature. The products are washed with CHCl₃, ethanol and water sequentially, and dried in an oven overnight at 60 °C. It should be noted that the concentration and amount of HCl and NH₄OH should be well controlled.

2.4 Synthesis of silver NPs supported on Fe₃O₄@Si (Fe₃O₄@Si/Ag)

A versatile approach is used to immobilize Ag NPs on the Fe₃O₄@Si particles via silver mirror reaction.²⁶ A typical procedure is as follows: Fe₃O₄@Si particles (350 mg), deionized water (110 mL) and glucose (0.270 g) are charged into the Erlenmeyer flask equipped with a mechanical stirrer, and the mixture undergoes 10 min of ultrasonication to obtain a dispersed suspension. Fresh Ag(NH₃)₂OH solution is prepared as follows: ammonium hydroxide (0.55 M) is dropwise added into silver nitrate aqueous solution (20 mL, 8 mM) until the AgOH/Ag₂O precipitate disappears. Subsequently, the fresh Ag(NH₃)₂OH solution is poured into the above mixture. The resultant mixture is stirred for 2.0 h at room temperature. The slurry-like product is magnetically collected and washed with water and ethanol repeatedly to remove any impurities, and the obtained catalysts (Fe₃O₄@Si/Ag) are dried overnight in a vacuum oven at 60 °C.

2.5 Catalytic reduction of various organic dyes

The reduction of organic dyes including OG, RhB, MB and 4-NP is carried out in a quartz cuvette and monitored using an ultraviolet-visible (UV-vis) spectroscopy at room temperature. In a typical catalytic reduction, 35 mL of fresh NaBH₄ (10 mM) aqueous solution is added into a glass beaker containing 5 mL 4-NP (0.4 mM) aqueous solution with vigorous stirring, leading to an immediate colour change from yellow to yellow-green. Subsequently, 35 mg of Fe₃O₄@Si/Ag catalyst is added into the above mixture, and meanwhile 3.5 mL of reaction mixture is transferred to a quartz cuvette immediately before UV-vis measurements. Therefore, the obtained data can be designated as the value for reaction time t = 0. Afterwards, the mixture is in situ monitored by measuring the adsorption at λ_max = 400 nm every 1 min to detect the reduction evolution. As the reduction proceeds, the peak at λ_max = 400 nm corresponding to the p-nitrophenolate ion disappears and the solution changes gradually from yellow-green to colourless. OG, RhB and MB are reduced by NaBH₄ at the similar condition and in situ monitored by measuring their adsorption at λ_max = 478, 553, 665 nm using a UV-vis spectrophotometer, respectively. As the reaction proceeds, the peaks at λ_max = 478, 553, 665 nm disappear. As control experiment, similar reactions have also been performed without Fe₃O₄@Si/Ag catalyst.

To study the recyclability of the magnetic catalysts, the used Fe₃O₄@Si/Ag catalyst is separated from the solution by magnet after the completion of reduction process. Similar to the above catalytic reduction process, the cuvette is then placed in a UV-vis spectrophotometer to monitor the time-dependent absorption at λ_max = 400 nm at room temperature. The recycle tests are repeated at least 9 times.

2.6 Measurements and characterizations

The morphology and structure are characterized using field-emission scanning electron microscope (SEM, FEI Nova Nano SEM 450). FTIR spectra are recorded with KBr pellets on infrared spectrometer (Vertex70, Bruker Optik GmbH, Germany) with the range of 500–4000 cm⁻¹. UV-vis absorption spectra of the samples are recorded on a UV-vis-NIR spectrometer (Shimadzu UV-3000) with a wavelength range of 200–800 nm. Powder X-ray diffraction (XRD) patterns are recorded on an X-ray diffractometer (Rigaku D/Max 2500) with monochromated Cu Kα radiation (λ = 1.54 Å) at a scanning rate of 2° min⁻¹. X-ray photoelectron spectroscopy (XPS) measurements are carried out on a Perkin Elmer PHI 5600 spectrometer operating at 10⁻⁷ Pa. Thermogravimetric analysis (TGA) is carried out on a thermogravimetric analyser (TA Q600, USA) under 100 mL min⁻¹ of nitrogen at a heating rate of 10 °C min⁻¹ from room temperature to 800 °C. The Brunauer–Emmett–Teller (BET) surface area is determined by nitrogen adsorption and desorption using a specific surface area analyser (Micromeritics ASAP 2020, USA). By using the Barrett–Joyner–Halenda (BJH) model, the pore volumes and pore size distributions are derived from the desorption branches of isotherms. The magnetic properties are carried out on a vibrating sample magnetometer (VSM, Quantum Design MPMS-XL-7) at 300 K and the hysteresis loops are obtained in a magnetic field that varies from −1 to +1 T.

3. Results and discussion

3.1 Synthesis and characterization of Fe₃O₄@Si/Ag catalyst

As depicted in Scheme 1, the synthesis procedure of magnetic Fe₃O₄@Si/Ag catalyst involves three steps. Firstly, Fe₃O₄ MNPs are synthesized by a solvothermal method via a high temperature reduction of FeCl₃ with ethylene glycol as the solvent and reducing agent, NaAc as the precipitation agent, and PVP as the structure-directing agent. Secondly, Fe₃O₄ NPs encapsulated with organosilicon (Fe₃O₄@Si) are obtained due to the fast self-assembly, hydrolysis and condensation of DHBP upon multi-step addition of the diluted HCl and NH₄OH into the mixture. Finally, we employ a simple and green synthesis (silver mirror reaction) for the in situ growth of the dispersed Ag NPs on the Fe₃O₄@Si microparticles, due to the high affinity and bonding capacity of amino groups toward silver ions. It should be noted that the design of flexible-bridged precursor and multi-step hydrolysis is helpful to the formation of porous structure.

Scheme 1 Schematic illustration for the preparation of Fe₃O₄@Si/Ag catalyst.

To characterize the structure variations during the whole synthesis procedure, FTIR spectra are recorded in Fig. 1a. Absorption bands at 2930 and 2850 cm⁻¹ are attributed to the asymmetric and symmetric stretching vibration of C–H in aliphatic CH₂ groups, while the peaks at 1580 cm⁻¹ result from the bending vibrations of N–H. In the curve of DHBP, the disappearance of peaks at 2275 and 1360 cm⁻¹ attributed to stretching vibrations of –NCO, and emergence of a new carboxylic band at 1700–1750 cm⁻¹ and a strong peak of the C–O stretching at 1080 cm⁻¹ indicate that the reaction between the amine group of APTS and isocyanate group of HDI occurs successfully.^27,28 The broad absorption peaks at 3333 cm⁻¹ corresponding to –OH group indicate the existence of the hydroxyl group. The characteristic peaks at 560 cm⁻¹ are assigned the Fe–O stretching vibration of Fe₃O₄, confirming the existence of Fe₃O₄.²⁹ Moreover, the spectrum of Fe₃O₄@Si/Ag is almost the same as that of the Fe₃O₄@Si but a weak intensity, resulting from the non-absorption of Ag NPs in the infrared regions.³⁰ More detailed information regarding the chemical and bonding environment of Fe₃O₄ and Fe₃O₄@Si/Ag is ascertained using X-ray photoelectron spectroscopy (XPS). The binding energies at 710.5 and 724.1 eV are contributed to the peaks of Fe 2p_3/2 and Fe 2p_1/2 in Fe₃O₄, respectively (Fig. 1b). There are no obvious shakeup satellite structures at the higher binding energy side of both main peaks (about 718.8 and 729.5 eV), which is the characteristic of Fe₃O₄. The relative areas ratio of the deconvoluted peak assigned to Fe²⁺ and Fe³⁺ are calculated to be 0.31 : 0.69, which is clearly that of the stoichiometric of Fe₃O₄ within the uncertainty of calculations.³¹ In the case of Fe₃O₄@Si/Ag, the doublet peaks at 367.8 and 373.8 eV, corresponding to Ag 3d_5/2 and Ag 3d_3/2, and the gap between the two states (6.0 eV), demonstrate that Ag in the composite is zero-valent and further testify that Ag(NH₃)₂OH has been reduced to Ag NPs by silver mirror reaction.³² Fig. 1c shows the representative XRD patterns of all the samples. The diffraction peaks of Fe₃O₄ NPs can be indexed to the face-centered cubic structures of magnetite. The characteristic peaks at 2θ = 18.3°, 30.1°, 35.8°, 43.1°, 53.4°, 57.2°, 62.5° and 74.5°, corresponding to (111), (220), (311), (400), (422), (511), (440) and (533) crystal planes of Fe₃O₄,⁸ are observed in all samples, revealing that its crystalline structure is well maintained after a series of functionalization. Besides, the apparent broad peak at around 2θ = 23° corresponding to the amorphous peak of organosilicon, indicates that organosilicon has successfully encapsulated the Fe₃O₄ NPs. In the case of Fe₃O₄@Si/Ag catalysts, with the exception of characteristic peaks of Fe₃O₄, five new peaks appearing at 2θ = 38.1°, 44.1°, 64.4°, 77.3° and 81.3°, are corresponding to the (111), (200), (220), (311) and (222) crystal planes of the face centered cubic of Ag,¹⁰ which prove the formation of Ag NPs and its good crystal structure. These aforementioned results confirm the formation of multifunctional hierarchical catalyst. The thermal behaviors of Fe₃O₄, Fe₃O₄@Si and Fe₃O₄@Si/Ag are assessed by TGA under nitrogen atmosphere in Fig. 1d. It could be seen that the significant weight loss in the range of 200–600 °C is mostly attributed to the degradation of polymer chains of organosilicon and the residual weight increases after the deposition of Ag NPs, which implies that the successful encapsulation of Fe₃O₄ with organosilicon and the immobilization of Ag NPs.

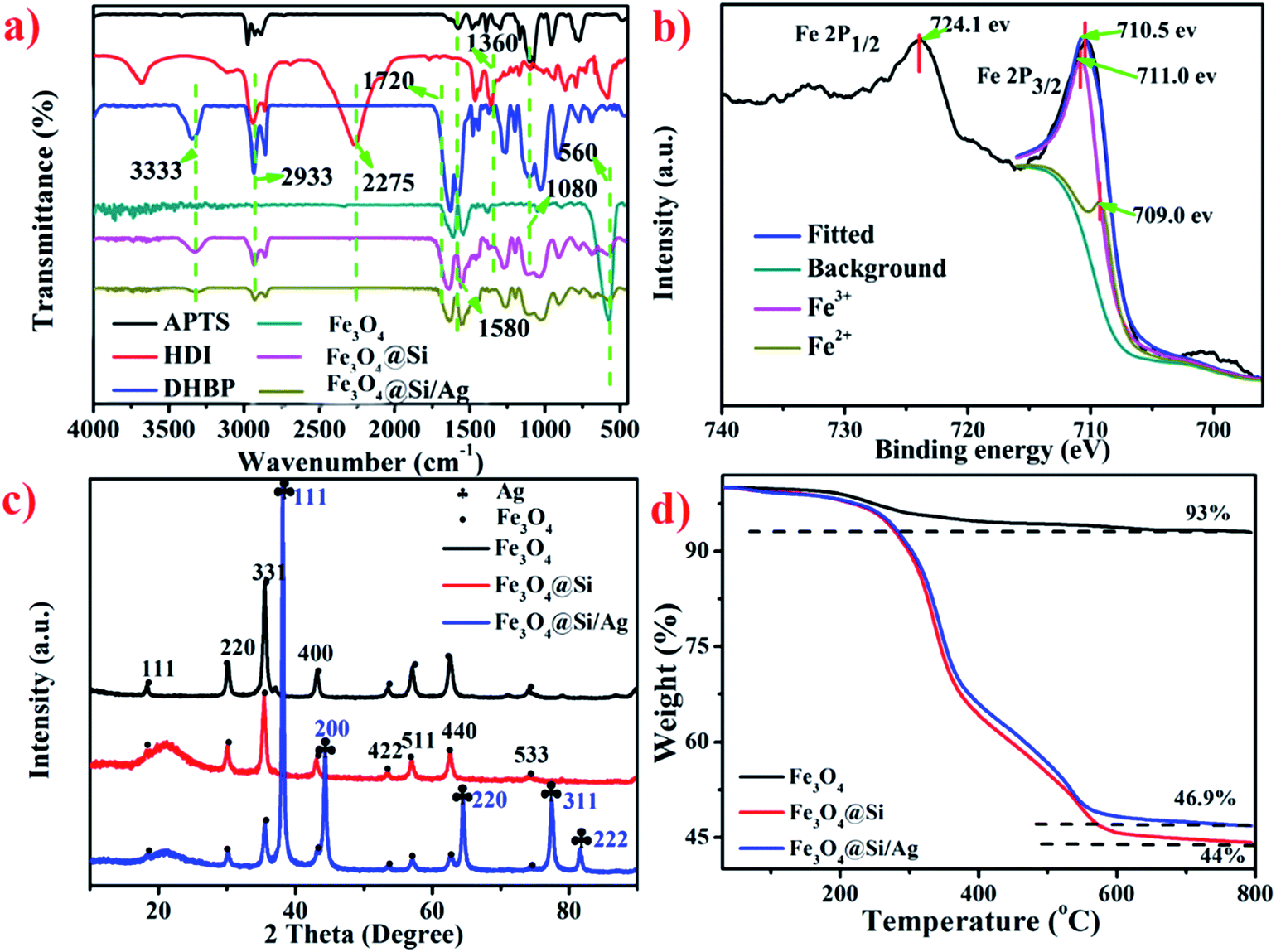

Fig. 1 (a) Evolution of FTIR spectra during the whole synthesis procedure, (b) the X-ray photoelectron spectrum (XPS) of the fitted Fe 2p_2/3 peak from Fe₃O₄ NPs, (c) XRD patterns and (d) TGA curves of Fe₃O₄, Fe₃O₄@Si and Fe₃O₄@Si/Ag.

The morphologies and structure of Fe₃O₄, Fe₃O₄@Si and Fe₃O₄@Si/Ag are further investigated by SEM (Fig. 2). As revealed in Fig. 2a and b, the Fe₃O₄ microparticles have well-defined spherical morphology with average diameter of 700 nm. Through an improved sol–gel process, the Fe₃O₄ MNPs encapsulated with organosilicon possess rough surface and porous structure, which are not only good platforms for the immobilization of Ag NPs and the multiple accessible channels for diffusion and transport of the reactant molecules, but also improves the oxidation resistance of Fe₃O₄ core. Furthermore, it can be seen that there is no essential structure change after the growth of Ag NPs in the Fe₃O₄@Si/Ag compared with that of Fe₃O₄@Si in Fig. 2d. Therefore, desirable multifunctional structures are successfully developed via a series of processes, including solvothermal method, improved sol–gel method and silver mirror reaction.

Fig. 2 (a and b) SEM images of Fe₃O₄ NPs, (c) SEM image of Fe₃O₄@Si microparticles, and (d) SEM image of Fe₃O₄@Si/Ag particles, and Ag NPs are marked with ellipses.

To investigate the detailed information of the porous structure in the resultant microparticles, the surface area and pore size distribution are determined by the multipoint BET method using N₂ adsorption/desorption analysis. Fig. 3 shows the N₂ adsorption/desorption isotherms and BJH pore size distribution of Fe₃O₄, Fe₃O₄@Si and Fe₃O₄@Si/Ag. All isotherms can be classified to a type-IV isotherm with H3 hysteresis loop according to the IUPAC and BDDT classification.³³ The BET surface area, pore volume and pore size are summarized in Table S1.† These results reveal that there are nano-sized pores, and the primary and secondary pore diameters are centred at 2 and 90 nm (Fig. 3b), respectively, implying that the Fe₃O₄@Si maintains its initial porous structure after the immobilization of the Ag NPs. The decrease in pore size indicates that the Ag NPs occupies the pores of the Fe₃O₄@Si microparticles, and the increase in surface area results from the accumulation of Ag NPs.

Fig. 3 (a) N₂ adsorption/desorption isotherms and (b) pore size distribution of samples Fe₃O₄, Fe₃O₄@Si and Fe₃O₄@Si/Ag.

The magnetic behaviours of these materials are critical to ensure magnetic separation. Fig. 4 shows the room-temperature magnetic hysteresis loops of Fe₃O₄, Fe₃O₄@Si and Fe₃O₄@Si/Ag. They exhibit a small hysteresis loop and low coercivity, suggesting superparamagnetic behaviour. The main magnetic parameters of the three samples are listed in Table S2.† The magnetic saturation (Ms) values are 81.1, 15.3, and 11.6 emu g⁻¹, respectively, depending on the effective mass of the Fe₃O₄ microspheres. Whereas the coercivity values are 34.9, 43.8, and 47.9 Oe, respectively. The slight changes of coercivity might be attributed to the influence of the surrounding environment.^24,34 To investigate the magnetic response of the catalyst visually, a magnet is placed beside the cuvette, Fe₃O₄@Si/Ag microparticles in aqueous solution are attracted to the side of the cuvette leaving the solution transparent within 10 s. Therefore, the catalysts could be separated from water quickly under the magnetic field, leading to easy recycling and reuse.

Fig. 4 (a) Room-temperature magnetic hysteresis loops of Fe₃O₄, Fe₃O₄@Si and Fe₃O₄@Si/Ag. The inset shows the response of Fe₃O₄@Si/Ag to an external magnet. (b) Magnification of the magnetic hysteresis loops.

3.2 Catalytic performance

It is well-known that metallic silver nanostructures are excellent catalysts with high activity and selectivity. While immobilized on porous supports, Ag NPs could serve as practical recyclable catalysts towards many reactions. In order to assess the catalytic capability of Fe₃O₄@Si/Ag composites, the reduction of 4-NP, MB, RhB and OG by NaBH₄ at room temperature are chosen as model reactions, which are widely used as evaluation criteria of the catalytic activity of metal NPs. The main merit of these reductions is their convenient monitoring by UV-vis absorption spectroscopy because no side reaction exits.³⁵

As shown in Fig. 5a, upon the addition of NaBH₄ aqueous solution, the UV-vis absorbance band immediately shifts from 317 to 400 nm, which is attributed to the formation of 4-nitrophenolate under the alkaline condition. Meanwhile, the corresponding colors change from yellow to yellow green.³⁶ The reaction conversion can be calculated from C/C₀, which is measured from the relative intensity of UV-vis absorbance (A/A₀) at 400 nm. Herein, C is the concentration of 4-NP during the reaction and C₀ is the initial concentration. It is noteworthy that the reduction of 4-NP with an excess amount of NaBH₄ could not occur without suitable catalysts. As shown in Fig. 5b, once introducing a small amount of the Fe₃O₄@Si/Ag catalyst, the peak intensity at 400 nm successfully decreases with concomitant increase in peak at 300 nm as the reduction proceeds, which is the characteristic absorption peak of 4-aminophenol (4-AP), indicating the occurrence of reduction of 4-NP to 4-AP. Meanwhile, the reduction of 4-NP could also be visually witnessed through color change from yellow green to colorless within 12 min. Moreover, the addition of the alone Fe₃O₄@Si cannot promote the reduction of 4-NP even after 120 min and the Ag NPs alone could promote the occurrence of reduction of 4-NP (Fig. 5c), undoubtedly confirming that the reduction of 4-NP by NaBH₄ is solely catalyzed by Ag NPs immobilized on Fe₃O₄@Si. That is to say, Ag NPs in the reaction system play an important role in electron transference between the BH₄⁻ ions and 4-nitrophenolate ions. It is worth noting that the reaction starts immediately without induction time after the addition of catalysts.

Fig. 5 Catalytic performance of Fe₃O₄@Si/Ag catalyst: (a) UV-vis absorption spectra of 4-NP and 4-nitrophenolate; (b) time-dependent UV-vis spectra of the reduction of 4-NP to 4-AP by NaHB₄ in the presence of Fe₃O₄@Si/Ag; (c) plots of the ln(C/C₀) vs. reaction time with the addition of Fe₃O₄@Si, Ag NPs and catalyst; (d) plots of the ln(C/C₀) vs. reaction time with different amount of Fe₃O₄@Si/Ag catalyst; (e) plots of the ln(C/C₀) vs. reaction time for different mole ratio (n_4-NP/n_NaBH4); and (f) recyclability of Fe₃O₄@Si/Ag catalyst for the reduction of 4-NP.

The concentration of NaBH₄ is higher than that of 4-NP, and it could be considered as constant during the reaction process. Pseudo-first-order kinetics can be applied to evaluate the reaction rate constants. The reaction kinetics can be described as ln(C/C₀) = −kt, where k is the apparent first-order rate constant (min⁻¹) and t is the reaction time (min).³⁷ Therefore, we plot ln(C/C₀) vs. reaction time t in Fig. 5d and e, which show a good linear relationship for ln(C/C₀) against reaction time t in the catalytic reduction catalyzed by the heterostructures following pseudo-first-order kinetics. The kinetic reaction rate constant (k) calculated from the slope of the straight line in Fig. 5d are 0.0001, 0.453 and 2.010 min⁻¹, respectively. The increase of rate constant directly indicates the speeding up of the degradation of 4-NP, which is attributed to that more catalysts could offer larger surface area and active sites to enhance the contacting opportunity with 4-NP, resulting in the enhancement of catalytic activity. Moreover, the kinetic reaction rate constant (k) of the reduction catalyzed by Ag NPs alone is 3.676 min⁻¹, which is higher than that of Fe₃O₄@Si/Ag catalyst due to the effective mass of Ag NPs.

On the other hand, the effect of concentration of NaHB₄ aqueous solution on reaction rate constant k is also investigated in Fig. 5e. When the mole ratio between the 4-NP and NaBH₄ is 100, 200, 400, the corresponding rate constant k are calculated to be 0.203, 0.453 and 0.864 min⁻¹, respectively. The increase in rate constant k results from the more electrons offered by higher amounts of NaHB₄.

In order to demonstrate the universality of Fe₃O₄@Si/Ag catalyst, the catalytic reductions of OG, RhB and MB with NaBH₄ have been used as other model reactions. The whole reaction involves the following processes: NaBH₄ is adsorbed onto the catalyst surface to form metal hydride, and then various dyes are also adsorbed onto the surface; dyes are reduced and desorbed to create a free space for the reaction to continue. Fig. S2a† shows the successive UV-vis spectra of the OG reduction in the presence of Fe₃O₄@Si/Ag. Obviously, the absorption intensity at λ_max = 478 nm of OG decreases with the reaction time, indicating the occurrence of the reduction of OG. As expected, the catalytic reduction proceeds successfully, and no poisoning of catalyst occurs. Similar to the reduction of 4-NP, reduction of OG also follows pseudo first-order kinetics and exhibits a good linear relationship, as shown in Fig. S2b.† The catalyzed reaction rate is determined to be 0.091 min⁻¹, which is ten times higher than that of reduction without catalyst (0.0094 min⁻¹). As for the reduction of RhB and MB, the similar results are obtained, which certifies that the Fe₃O₄@Si/Ag has excellent performance towards the hydrogenation of diversiform dyes under aqueous reaction conditions.

Regeneration capacity of catalyst is of great importance in the view of practical application. Hence, the successive cycles of the catalytic reduction of 4-NP are performed with Fe₃O₄@Si/Ag. After each run of catalysts, the catalysts are separated from the reaction mixture by magnet, rinsed with deionized water, and then reused in the next cycle. As shown in Fig. 5f, in the first three cycles, the conversion is almost 100%; with the increase in cycling times, the conversion drops and still remains at 80% for the same reaction time (5 min), which implies that Fe₃O₄@Si/Ag could serve as a recyclable and reusable catalyst. The recyclability of the catalyst may result from the efficient stabilization of Fe₃O₄@Si/Ag.

4. Conclusion

In summary, the magnetic recyclability of Fe₃O₄, the oxidation resistance and affinity capacity of organosilicon as well as the catalytic activity of Ag NPs are successfully integrated into multifunctional composites through the design of flexible-bridged organosilicon precursor. During the process, the protective layer of porous organosilicon is synthesized via self-assembly, hydrolysis and condensation of DHBP, and the dispersed Ag NPs are in situ grown on Fe₃O₄@Si microparticles via classical silver mirror reaction. The as-prepared Fe₃O₄@Si/Ag catalysts exhibit enhanced catalytic reactivity and reusability towards the hydrogenation of 4-NP and other dyes. This simple and versatile method can provide a multitude of magnetic catalysts, and the design approach based on Fe₃O₄@Si/Ag may provide a novel platform for the synthesis of other multifunctional organic–inorganic hybrid catalysts for various catalytic applications.
