One-step synthesis of ordered mesoporous CoAl2O4 spinel-based metal oxides for CO2 reforming of CH4

Leilei Xuab, Jian Zhanga, Fagen Wangad, Kaidi Yuanc, Liangjun Wangc, Kai Wube, Guoqin Xuabd and Wei Chen*abcd
aDepartment of Chemistry, National University of Singapore, 3 Science Drive 3, 117543, Singapore, Singapore. E-mail: phycw@nus.edu.sg; Fax: +65-6777-6126; Tel: +65-6516-2921
bSingapore-Peking University Research Center for a Sustainable Low-Carbon Future, 1 CREATE Way, #15-01, CREATE Tower, Singapore 138602, Singapore
cDepartment of Physics, National University of Singapore, 2 Science Drive 3, 117551, Singapore, Singapore
dNational University of Singapore (Suzhou) Research Institute, Suzhou, China
eCollege of Chemistry and Molecular Engineering, Peking University, Beijing 100871, China

Received 21st April 2015 , Accepted 13th May 2015

First published on 14th May 2015


Abstract

A series of ordered mesoporous CoAl2O4 spinel-based metal oxides with different Co content were facilely synthesized via a one-step evaporation-induced self-assembly method and utilized as catalysts for CO2 reforming of CH4. These mesoporous catalysts, which have unique textural properties and outstanding thermal stabilities, exhibited excellent catalytic performances under various reaction conditions. The ordered mesostructures in the catalysts could provide sufficiently accessible Co active sites for gaseous reactants and stabilize Co metallic nanoparticles via confinement effects within the mesoporous frameworks. These mesoporous catalysts exhibited better anti-coke abilities than non-mesoporous catalysts or traditional supported catalysts, thus acting as a promising series of potential catalyst candidates for CO2 reforming of CH4.


1 Introduction

In the past decades, the excessive use of fossil fuels has caused severe environmental problems such as increasing concentrations of greenhouse gases (mainly CO2) in the atmosphere.1,2 Attempts to efficiently reduce CO2 levels have recently attracted worldwide attention. Moreover, CO2 can be considered as a valuable and sustainable carbon source for the synthesis of value-added chemical fuels. Intensive research efforts have been devoted to the development of efficient CO2 reduction and conversion technologies.3,4 Among the strategies proposed for converting CO2 into higher energy intermediates, heterogeneous catalysis-based processes are of great interest for their ease of process scalability.5,6 Among them, the catalytic carbon dioxide reforming of methane (CRM, CH4(g) + CO2(g) = 2CO(g) + 2H2(g), ΔH298 = +247 kJ mol−1) has been considered as one of the most promising technologies for large scale CO2 reduction and utilization. Moreover, under this process, two greenhouse gases (CO2 and CH4) can be simultaneously transformed into the value-added synthesis gas resource (H2 + CO).7–14

In comparison with other synthesis gas production processes, such as steam reforming of methane (SRM, CH4 + H2O = CO + 3H2, ΔH = +206 kJ mol−1) and partial oxidation of methane (POM, 2CH4 + O2 = 2CO + 4H2, ΔH = −44 kJ mol−1), the present CRM process can generate syngas with a low H2/CO ratio, i.e., close to unity (1/1), which is highly desirable for downstream chemical processes such as hydroformylation and oxo synthesis.12,15–17 However, the highly endothermic nature of this CRM process requires the reaction to be carried out at high temperatures (>600 °C) to achieve acceptable conversion rates. Under such high temperatures severe thermal sintering of the metallic active sites can result.11,18 The CRM process is often accompanied by undesirable side reactions such as methane decomposition reaction (CH4(g) = C(s) + 2H2(g), ΔH298 = +75 kJ mol−1) and Boudouard reaction (2CO(g) = C(s) + CO2(g), ΔH298 = −172 kJ mol−1). Coke formed in these side reactions can also passivate the active centers.9,12,17,19 Both factors can cause the rapid deactivation of the catalyst, not allowing the CRM process for large-scale industry applications. Therefore, it is highly desirable to rationally design an efficient catalyst with high resistance to thermal sintering and carbon deposition.

It has been widely reported that most of the group VIII transition metals are active towards the CRM reaction.12,20–22 Among these metals, noble metals (such as Pt, Rh, Pd, and Ir) usually have higher catalytic activity and anti-coke capacity than non-precious metals (such as Ni and Co). However, it is more practical to develop Ni- and Co-based catalysts for scalable commercial applications due to their lower cost and inherent availability.23–25 Supported Ni catalysts have been widely investigated because of their high initial activity that is comparable with noble catalysts. However, Ni-based catalysts are prone to carbon deposition over the catalyst surface due to their strong C–H bond cleavage ability, leading to rapid catalyst deactivation and blockage of the fixed bed reactor.7,14,23 It was found that the introduction of Co into a Ni-based catalyst could significantly suppress the carbon deposition during the CRM reaction.7,19,26–28 Recently, it has been revealed that Co showed interesting catalytic performance in the CRM reaction.11,21,29–31

For Co-based catalysts, it is also very challenging to prevent catalyst deactivation derived from thermal sintering of the metallic active sites and carbon deposition.23 Based on thermodynamic calculations, the methane decomposition reaction can only be initiated at temperatures above 553 °C and the Boudouard reaction can take place at temperatures below 700 °C. Therefore, it is impossible to simultaneously inhibit the occurrence of these two carbon deposition reactions under typical CRM reaction conditions.12,32 Moreover, the anti-coke performance of the catalyst is closely related to the size of the Co metallic active sites. Large Co metal ensembles easily stimulate carbon deposition, and therefore the thermal sintering of the metallic active sites plays an important role in carbon deposition during the CRM process.33–36 However, under typical CRM reaction conditions, the sintering of the Co particles can easily take place, making it a big challenge to restrict Co metallic active centers within nanometer size.

Traditionally, small particles can be obtained by the impregnation of a porous support with large surface area in a precursor-containing solution.37,38 However, it is difficult to control metal dispersion because metallic particles have a strong tendency to aggregate at high temperatures.18 Intensive research efforts have been made to confine Co active sites in precursors with defined structures such as spinel (CoAl2O4) and solid solutions (Co–Mg–O).34,39,40 The formation of a strong interaction between Co and the lattice structure can significantly improve the anti-sintering performance of the Co active centers. However, these materials usually could not provide enough accessible surface Co active sites because most of the active metal species are homogeneously dispersed in the bulk.

To address these challenges, a series of ordered mesoporous CoAl2O4 spinel-based metal oxides with different Co content were designed and facilely synthesized via a one-step evaporation-induced self-assembly method. These catalysts possess outstanding structural properties and thermal stability. The Co species were homogeneously dispersed among the mesoporous matrix in the form of CoAl2O4 spinel, and thus the Co nanoparticles could be effectively stabilized via the confinement effect. This effectively suppressed the severe sintering of Co nanoparticles under CRM conditions. Furthermore, these mesoporous catalysts with large surface areas, big pore volume, and uniform pore channels can ensure and provide sufficient Co active sites for the gaseous feedstock. This series of materials is promising as ideal catalysts towards CRM reaction and even other catalytic reactions such as CO2 methanation.

2 Experimental

2.1 The synthesis of the ordered mesoporous CoAl2O4 spinel based metal oxide

Ordered mesoporous CoAl2O4 spinel-based metal oxides with different Co content were synthesized via a one-step evaporation induced self-assemble (EISA) strategy.41,42 In a typical synthesis procedure, approximately 1.0 g (EO)20(PO)70(EO)20 triblock copolymer (Pluronic P123, Mn = 5800, Sigma-Aldrich) was dissolved in 20.0 mL absolute ethanol with vigorous stirring. 1.6 mL of 67.0 wt% concentrated nitric acid, 10 mmol aluminum isopropoxide (>98%, Sigma-Aldrich), and quantitative Co(NO3)2·6H2O (Sigma-Aldrich) were then sequentially added. The pink transparent homogeneous sol was transferred to a Petri dish after stirring for at least 5 h at room temperature, and then dish was placed into a temperature and humidity controlled chamber at 60 °C with 50% relative humidity to undergo solvent evaporation for 48 h. A pink xerogel was obtained after EISA process. Calcination was carried out by slowly increasing temperature from room temperature to 700 °C with 1 °C min−1 ramping rate and maintaining this final temperature for 5 h in air. The final ordered mesoporous materials were labeled as OMA-xCo, where x refers to the molar percentage between Co and Al (x mol% = nCo/nAl × 100%, x = 3, 5, 7, 10, and 15, nAl = 10 mmol).

To investigate the role of ordered mesostructures in promoting catalytic properties, CoAl2O4 spinel-based metal oxides without ordered mesostructures were also prepared. The obtained non-mesoporous materials were denoted as NPA-xCo, where the meaning of x was the same as that in OMA-xCo. The method of preparing NPA-xCo was similar to that of OMA-xCo, only without the addition of the Pluronic P123 template.

To compare the catalytic properties of the present OMA-xCo catalysts with a traditional supported catalyst, a Co-based catalyst supported on gamma-alumina (γ-Al2O3) was prepared via an incipient wetness impregnation method using Co(NO3)2·6H2O (Sigma-Aldrich) as the precursor of cobalt. After impregnation, the catalyst precursors were dried in an oven at 60 °C for 24 h. Finally, the catalyst precursors were calcined at 700 °C for 5 h. The obtained catalysts were denoted as x%Co/Al2O3, where x refers to the molar percentage between Co and Al.

2.2 Catalyst characterizations

X-ray diffraction (XRD) patterns were recorded on an X'pert Pro multipurpose diffractometer (PANalytical, Inc., Netherlands) with Ni-filtered Cu Kα radiation (0.15046 nm). The N2 adsorption and desorption analyses were carried out using a NOVA 2200e (Quantachrome, US) at −196 °C. Transmission electron microscopy (TEM), selected area electron diffraction (SAED), and energy-dispersed spectroscopy (EDS) measurements were performed on a JEOL 2010F microscope (Japan) under a working voltage of 200 kV. X-ray photoelectron spectroscopy (XPS) analyses of the catalysts were performed on a VG ESCALAB 210 (Thermo Scientific, US) spectrometer. The XPS data were referenced to the carbon species with C 1s at the binding energy of 284.8 eV. H2 temperature programmed reduction (H2-TPR) measurements for the as-prepared catalysts (100 mg) were performed on a ChemBET Pulsar TPR/TPD (Quantachrome, US) utilizing 5 mol% H2/He steam (70 mL min−1) as a reducing agent and the hydrogen consumption was recorded using a TCD detector. Temperature programmed hydrogenation (TPH) characterizations of the spent catalysts were carried out on the same apparatus as described for H2-TPR. The long-term endurance-tested catalyst (30 mg) was submitted to a heat treatment (10 °C min−1 up to 900 °C) in a gas flow (60 mL min−1) of the 5 mol% H2/He mixture. Thermogravimetric (TG) analysis was performed using a TA instrument 2960 (Discovery, US) from room temperature to 900 °C with a heating rate of 10 °C min−1 under air stream.

2.3 Catalytic properties measurement

The reaction was performed in a vertical fixed bed quartz reactor at atmospheric pressure. The temperature of the reaction bed was monitored by a coaxial thermocouple, which was protected by a small quartz thermocouple well. The flow rate of reactant gas was precisely regulated by mass flow controllers (Beijing Sevenstar Electronics Co., Ltd., China). For each test, 100 mg of catalyst was loaded on the quartz fixed-bed reactor. Prior to the reaction, the catalyst was pretreated in situ by reducing in a mixed flow of H2 and N2 (10/20 mL min−1) with a heating rate of 1.5 °C min−1 rate to 800 °C, and maintaining at 800 °C for 120 min. Before introducing the reaction gases (CH4/CO2 = 1, without dilution), the catalyst bed was purged with N2 for half an hour to remove adsorbed hydrogen. The reaction products were analyzed online by a gas chromatograph (Agilent 7890B) equipped with an automatic six-port valve and a TCD detector. A TDX-01 packed column was used for the analysis of gaseous products. The conversions of CO2 and CH4 were calculated based on the balance of carbon. Their formulas are listed as follows:
image file: c5ra07249b-t1.tif

image file: c5ra07249b-t2.tif

3 Results and discussion

3.1 Characterizations of the fresh catalysts

3.1.1 XRD analysis. Fig. 1(1) and (2) display the small-angle (0.5–5.0°) and wide-angle (20–80°) XRD patterns of the as-synthesized OMA-xCo catalysts calcined at 700 °C, respectively. As shown in the figure, each sample presented a strong diffraction peak around 0.8° and another weak peak centered at around 1.4°, implying the presence of p6mm hexagonal symmetry. Besides, most of the samples possessed diffraction peaks for γ-Al2O3 (JCPDS Card no. 10-0425) and CoAl2O4 spinel (JCPDS Card no. 82-2252). It is worth noting that the intensity of the CoAl2O4 spinel diffraction peaks increased with the gradual increase of Co content from 3% to 15%. In contrast, the diffraction peaks for γ-Al2O3 became weaker until they completely disappeared for OMA-15Co. This indicates that the incorporation of Co species into the framework is beneficial for phase transformation toward CoAl2O4 by facilitating the following reaction: CoO + Al2O3 = CoAl2O4. However, it was very difficult to accurately calculate the crystallite size of CoAl2O4 spinel species by the Scherrer formula due to the broadening of diffraction peak, which implied a high dispersion of Co species within the mesoporous skeleton.
image file: c5ra07249b-f1.tif

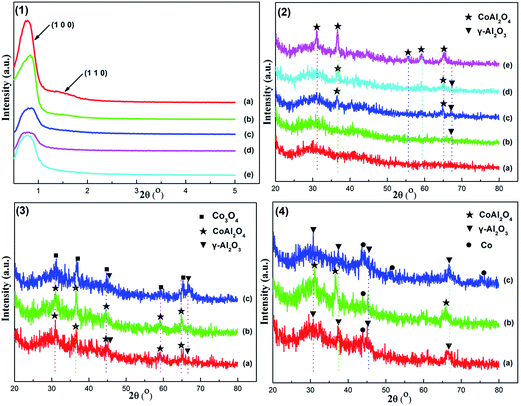

Fig. 1 (1) Small-angle and (2) wide-angle XRD patterns of the as-synthesized OMA-xCo catalysts: (a) OMA-3Co, (b) OMA-5Co, (c) OMA-7Co, (d) OMA-10Co, and (e) OMA-15Co; (3) XRD patterns of the as-synthesized and (4) as-reduced catalysts prepared by different methods: (a) OMA-10Co, (b) NPA-10Co, and (c) 10%Co/Al2O3.

Comparative studies for OMA-10Co, NPA-10Co, and 10%Co/Al2O3 catalysts prepared with different methods were also carried out and their XRD patterns are displayed in Fig. 1(3). OMA-10Co, synthesized with P123 template, presented weak CoAl2O4 and γ-Al2O3 diffraction peaks. As a comparison, NPA-10Co without any template only displayed apparent CoAl2O4 diffraction peaks that were considerably stronger in intensity than those of OMA-10Co. This suggested that the presence of P123 template was not favorable for phase transformation toward CoAl2O4. The 10%Co/Al2O3 supported catalyst displayed characteristic diffraction peaks for Co3O4 (JCPDS Card no. 74-2120) species and γ-Al2O3 (JCPDS Card no. 10-0425), which could be attributed to the thermal decomposition of the Co(NO3)2·6H2O precursor and γ-Al2O3 support, respectively. Moreover, the positions of the diffraction peaks of CoAl2O4 and Co3O4 crystalline phases almost overlapped, which is consistent with previous studies.43–46 CoAl2O4 and Co3O4 had the same spinel cubic (Fd3m) crystallographic structure with only a slight difference in the lattice constant (a = 8.111 Å for CoAl2O4 and a = 8.0885 Å for Co3O4). Therefore, they displayed similar XRD peak patterns, and the positions of the peaks were nearly same. However, we expected that these catalysts would exhibit different Co 2p XPS and H2-TPR profiles due to the difference in their chemical coordination environments, which will be discussed later.

We also compared the XRD patterns of the as-reduced OMA-10Co, NPA-10Co, and 10%Co/Al2O3 catalysts at 800 °C for 2 h, as exhibited in Fig. 1(4). It could be observed that the intensities of metallic Co diffraction peaks (JCPDS Card no. 15-0806) for as-reduced OMA-10Co and NPA-10Co were weaker than those of 10%Co/Al2O3. For as-reduced OMA-10Co, the diffraction peaks of CoAl2O4 disappeared. As a comparison, the intensities of γ-Al2O3 peaks became stronger after the reduction process. The process of CoAl2O4 reduction (CoAl2O4 + H2 = γ-Al2O3 + H2O) could account for this and the high dispersion of metallic Ni nanoparticles within the mesoporous framework. However, for the as-reduced NPA-10Co, its main crystalline phase remained as CoAl2O4 spinel and its diffraction peaks were considerable stronger than those of metallic Co. This suggests that the reduction of CoAl2O4 spinel species is more difficult. The difference in reducibility between OMA-10Co and NPA-10Co could be attributed to their different structural properties. Compared with NPA-10Co, the larger surface area, bigger pore volume, and unblocked mesopore channels of OMA-10Co made the reduction of CoAl2O4 spinel easier because the H2 molecules has easier access to surface species than bulk material. The pattern of the 10%Co/Al2O3 supported catalyst exhibited obvious metallic Co and γ-Al2O3 diffraction peaks, implying that most Co3O4 species had been reduced.

3.1.2 Nitrogen adsorption–desorption analysis. The nitrogen adsorption–desorption isotherms and pore size distributions for the as-synthesized OMA-xCo with different Co molar fractions are displayed in Fig. 2(1) and (2), respectively. All the isotherms can be attributed to the type IV with H1-shaped hysteresis loops, which are the typical characteristics for the presence of mesopores with cylindrical shape. For the adsorption isotherms with steep condensation steps, the corresponding pore size curves displayed a very narrow steep condensation step, and the corresponding pore size distribution curves possessed a narrow distribution around 10.0 nm.
image file: c5ra07249b-f2.tif
Fig. 2 Nitrogen adsorption–desorption isotherms ((1), (3)) and pore size distribution curves ((2), (4)) of the as-synthesized catalysts.

To investigate the role of the P123 template in the construction of ordered mesoporous channels, comparative analyses between OMA-10Co and NPA-10Co were carried out and the results are displayed in Fig. 2(3) and (4). Unlike OMA-10Co, which has a type IV H1-shaped hysteresis loop and a narrow pore size distribution, NPA-10Co exhibited a type IV H3-shaped hysteresis loop and a wide pore size distribution, suggesting the absence of uniform mesopores. This demonstrated that the P123 template plays a crucial role in constructing ordered mesopores. In addition, the N2 adsorption–desorption analysis result of 10%Co/Al2O3 supported catalysts are also depicted in Fig. 2(3) and (4), showing a type IV H3-shaped hysteresis loop and a wide pore size distribution around 6.0 nm. It is proposed that the mesopores in 10%Co/Al2O3 might be blocked due to the disordered accumulation of γ-Al2O3 support particles. The values of specific surface areas, pore volumes, and average pore diameters of the as-synthesized catalysts are summarized in Table 1. All the OMA-xCo samples calcined at 700 °C exhibited large BET surface areas up to 207.5 m2 g−1, big pore volumes up to 0.31 cm3 g−1, and average pore diameters in the range of 9.8–12.8 nm, which are considerably better than those of NPA-10Co and 10%Co/Al2O3.

Table 1 Structural properties of the as-synthesized, as-reduced, and 60 h endurance-tested catalysts
Samples Specific surface area (m2 g−1) Pore volume (cm3 g−1) Average pore diameter (nm) Isotherm type
a AR stands for “as-reduced”.b SP stands for “60 h spent”.
OMA-3Co 148.4 0.28 9.9 IV H1
OMA-5Co 196.5 0.27 9.8 IV H1
OMA-7Co 152.5 0.24 9.8 IV H1
OMA-10Co 207.6 0.31 9.8 IV H1
10Co/Al2O3 99.3 0.17 6.0 IV H3
NPA-10Co 85.6 0.08 IV H3
OMA-15Co 150.4 0.25 12.8 IV H1
ARa-OMA-3Co 107.7 0.27 9.8 IV H1
AR-OMA-5Co 124.1 0.28 9.8 IV H1
AR-OMA-7Co 87.2 0.19 9.9 IV H1
AR-OMA-10Co 133.8 0.25 9.9 IV H1
AR-10Co/Al2O3 96.9 0.18 6.7 IV H3
AR-NPA-10Co 77.5 0.05 IV H3
AR-OMA-15Co 89.2 0.19 12.6 IV H1
SP-OMA-7Co 125.6 0.18 8.1 IV H1
SPb-OMA-10Co 119.8 0.15 8.0 IV H1
SP-10Co/Al2O3 89.2 0.16 4.3 IV H3
SP-NPA-10Co 61.4 0.09 IV H3


To further verify the thermal stability of the ordered mesostructures of the OMA-xCo catalysts, the nitrogen adsorption–desorption analyses of the as-reduced OMA-xCo catalysts were carefully carried out and their results are presented in Fig. S1(1) and (2) (ESI). Identical to their corresponding precursors, the as-reduced samples also fully displayed type IV isotherms with H1-shaped hysteresis loops and narrow pore size distributions around 10.0 nm, demonstrating excellent thermal stabilities. In addition, the isotherms and pore size distribution curves of the as-reduced NPA-10Co and 10%Co/Al2O3 are shown in Fig. S1(3) and (4) (ESI), respectively. Similar to the as-synthesized samples, they also possessed type IV H3-shaped hysteresis loops and wide pore size distributions. These structural properties of the as-reduced catalysts are also summarized in Table 1. Compared with their corresponding precursors, the specific surface areas and pore volumes suffered some decline after H2 reduction treatment, which might be caused by the shrinkage of the skeleton and phase transformations at high temperature.

3.1.3 TEM analysis. To confirm the presence of the ordered mesoporous channels, TEM characterization of OMA-xCo was carried out, as displayed in Fig. 3. For all the samples, the alignment of the cylindrical shaped pores along the [1 1 0] direction was observed. The SAED patterns of the ordered mesostructure domains are also provided as insets in Fig. 3. Their diffraction rings are very fuzzy, indicating the low crystallinity of the mesoporous walls. This was consistent with previous XRD patterns that only exhibited weak diffraction peaks. An EDS measurement of the ordered mesoporous region for OMA-10Co was conducted and its profile is shown in Fig. 3(g). The characteristic peaks for Co, Al, and O elements could be clearly observed. This suggested that the Co element was successfully introduced into ordered mesoporous alumina matrix via the present one-step synthesis method.
image file: c5ra07249b-f3.tif
Fig. 3 TEM, SAED, and EDS measurements of the as-synthesized OMA-xCo catalysts: (a) OMA-3Co, (b) and (c) OMA-5Co, (d) OMA-7Co, (e) and (g) OMA-10Co, and (f) OMA-15Co.

The TEM characterization of the as-reduced OMA-xCo catalysts was also performed. The as-reduced OMA-3Co, OMA-5Co, and OMA-10Co catalysts were chosen as representatives and their TEM images are displayed in Fig. S2 (ESI). The alignment of cylindrical pores along the [1 1 0] direction for the as-reduced catalysts was successfully preserved after the reduction process under severe conditions (800 °C for 2 h), demonstrating excellent thermal stability. Furthermore, there was no evident agglomeration of metallic Co within the ordered mesoporous channels, indicating the high dispersion of metallic Co species within the whole mesoporous framework.

3.1.4 XPS analysis. XPS measurements were used to determine the chemical oxidation state of the surface Co species in as-synthesized OMA-xCo, NPA-10Co, and 10%Co/Al2O3. Their Co 2p XPS profiles are shown in Fig. 4. It is worth noting that in Fig. 4(1) all the as-prepared OMA-xCo samples presented similar peak shape profiles. In particular, all the samples displayed an obvious Co 2p3/2 peak around 781.83 eV, a weak shake-up satellite peak around 786.86 eV, and a Co 2p1/2 peak around 798.40 eV. Compared with the Co 2p3/2 characteristic binding energy values reported in the literature for cobalt compounds, such as Co(OH)2 (780.9 eV), Co3O4 (780.0 eV), and CoAl2O4 (781.0 eV),45,47–49 the oxidation state of Co species in the present OMA-xCo was ascribed to Co2+ in the form of CoAl2O4 spinel, which is in good agreement with the XRD result in Fig. 1(2).
image file: c5ra07249b-f4.tif

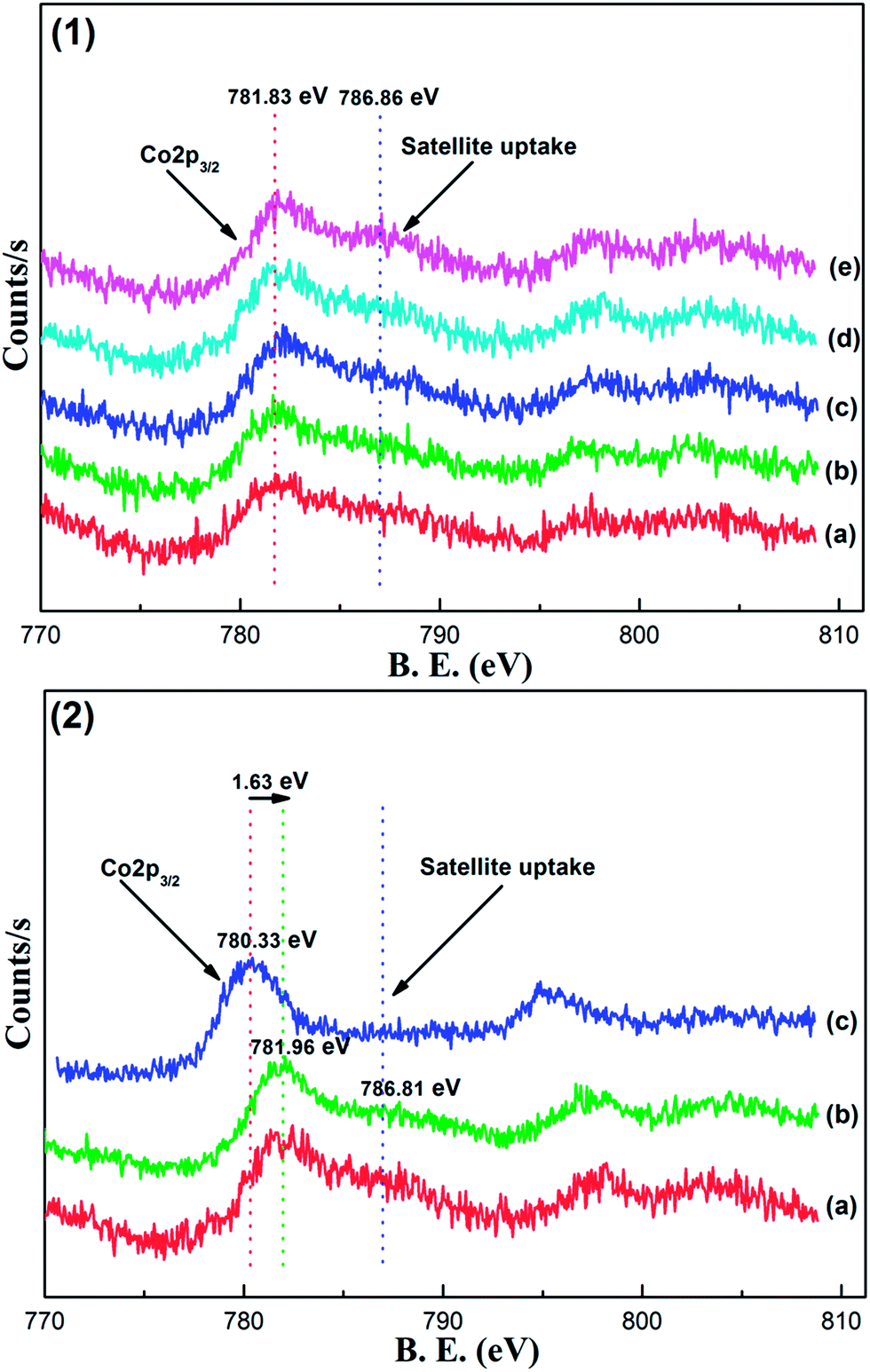

Fig. 4 (1) XPS profiles of Co 2p for the as-synthesized OMA-xCo catalysts: (a) OMA-3Co, (b) OMA-5Co, (c) OMA-7Co, (d) OMA-10Co, and (e) OMA-15Co; (2) XPS profiles of Co 2p for the as-synthesized catalysts prepared by different methods: (a) OMA-10Co, (b) NPA-10Co, and (c) 10%Co/Al2O3.

Fig. 4(2) presents the comparative analyses of Co 2p XPS profiles for OMA-10Co, NPA-10Co, and 10%Co/Al2O3 catalysts with the same Co loading. As for NPA-10Co, it exhibited similar patterns to OMA-10Co in both peak position and shape. This suggested that its surface Co species was also present in the form of CoAl2O4 spinel, as verified by XRD analysis in Fig. 1. We propose that during the one-step synthesis process, the precursors of Co and Al species could mix thoroughly and sufficiently react with each other. As a result, Co species could enter into the bulk alumina matrix during the process of calcination, promoting the formation of CoAl2O4 spinel via the following process: CoO + Al2O3 = CoAl2O4. However, for the 10%Co/Al2O3 catalyst, its Co 2p spectrum was considerably different from OMA-10Co in both peak position and shape. In particular, the Co 2p3/2 (780.33 eV) binding energy of 10%Co/Al2O3 was considerably lower than that of OMA-10Co (781.83 eV), which was attributable to a Co3O4 species.45,47,49 In addition, there was no shake-up satellite peak accompanying the Co 2p3/2 peak for 10%Co/Al2O3, which is a typical feature for the CoAl2O4 spinel species.48

3.1.5 H2-TPR analysis. To investigate the interaction between Co species and mesoporous frameworks, the H2-TPR measurements of the as-synthesized OMA-xCo catalysts were carried out, as shown in Fig. 5(1). The intensities of the H2 reduction peaks gradually increased with the increase of Co content for most of the samples, indicating the increase in H2 consumption. It is also noteworthy that most of the samples presented similar hydrogen consumption profiles in terms of shape regardless of Co content, displaying one pronounced H2 reduction peak in the region above 1080 °C and one broad shoulder peak in the region of 746–937 °C. There was no reduction peak observed in the range of 300–450 °C for all the mesoporous catalysts. This implied the absence of free CoO and/or Co3O4 species that did not interact with the mesoporous framework.43,48,50 The XRD and XPS measurements discussed above confirmed the presence of CoAl2O4 spinel in the OMA-xCo framework. CoAl2O4 spinel can only be reduced at high temperatures due to the strong interaction between Co and the mesoporous framework.48,51,52 Therefore, these two reduction peaks in the different temperature regions should be ascribed to the reduction of Co2+ from +2 to 0 valence state, which are in different coordination environments. As for the reduction peaks in the region of 746–937 °C, they might be assigned to the reduction of surface Co species. On the one hand, the unsaturated coordination of surface Co2+ made them easier to reduce; on the other hand, the surface Co2+ was more easily accessible to the H2 stream owing to their large surface areas and uniform pore channels. As a result, they could be reduced in the relatively lower temperature region. The reduction peaks in the higher temperature region above 1080 °C could be ascribed to the reduction of the saturated coordinated Co2+, which has strong metal-support interactions with the mesoporous framework.
image file: c5ra07249b-f5.tif
Fig. 5 (1) H2-TPR profiles of the OMA-xCo catalysts: (a) OMA-3Co, (b) OMA-5Co, (c) OMA-7Co, (d) OMA-10Co, and (e) OMA-15Co; (2) H2-TPR profiles of the catalysts prepared by different methods: (a) OMA-10Co, (b) NPA-10Co, and (c) 10%Co/Al2O3.

Furthermore, the comparative analysis of H2-TPR profiles for OMA-10Co, NPA-10Co, and 10%Co/Al2O3 catalysts are summarized in Fig. 5(2). For the NPA-10Co catalyst, it presented obvious reduction peaks in a high temperature region similar to OMA-10Co. It displayed high reduction peaks in the high temperature regions, which were also attributed to the reduction of CoAl2O4 spinel species in different coordination environments. In addition, the small uptake peaks in the low temperature region around 586 °C could be attributed to the reduction of Co oxides, which had weak interactions with the bulk catalyst. This might be caused by the absence of a self-assembly step around the P123 template during its synthesis. As a result, the Co species could not be completely transformed into CoAl2O4 and parts of Co species existed as cobalt oxides (CoO or/and Co3O4). In the case of the 10%Co/Al2O3 catalyst, its profile displayed three obvious reduction peaks centered around 607, 786, and 989 °C, which could be attributed to the first step reduction of Co3O4 and subsequent reduction of CoO species. The XRD and XPS analyses had confirmed the presence of Co3O4 crystalline phase over 10%Co/Al2O3 supported catalyst. The reduction peak at 607 °C could be attributed to the first step reduction of Co3O4 (I) (Co3O4 (I) + H2 = 3CoO (I) + H2O), which had weak interactions with the Al2O3 support. The peak centered at 786 °C, however, might stem from both the subsequent reduction of CoO (I) (CoO (I) + H2 = Co + H2O) and the first step reduction of Co3O4 (II) that was strongly interacted with the support. The last peak around 989 °C was attributed to the further reduction of CoO (II) derived from Co3O4 (II), which also had strong interactions with the Al2O3 support.

3.2 Catalytic performances

3.2.1 Effect of reaction temperature. To investigate the influence of reaction temperature, the catalytic performance of CRM reaction over OMA-xCo catalysts with different Co content at different temperatures under particular conditions (CH4/CO2 = 1, GHSV = 15[thin space (1/6-em)]000 mL (g−1 h−1), 1 atm) were investigated and the results are summarized in Fig. 6(1) and (2). The conversions of CH4 and CO2 were greatly promoted with an increase in the reaction temperature. Typically, they displayed the highest activity at 800 °C, regardless of Co content due to the intensively endothermic nature of the CRM reaction.12 The relationship between catalytic activity and Co content for OMA-xCo catalysts was also studied. With an increase in Co content, the conversions of CH4 and CO2 rapidly increased in the initial stage and reached a maximum value at 10%Co content for all the temperature stages. This could be attributed to the increasing number of Co active sites, providing the gaseous feedstock with more accessible metallic active sites under similar reduction conditions. However, the higher content of Co up to 15% caused a sharp drop in CH4 and CO2 conversion, which most likely appeared due to the thermal agglomeration of the Co active centers and hence the decrease of active sites.
image file: c5ra07249b-f6.tif
Fig. 6 The curves of (1) CH4 conversion and (2) CO2 conversion versus reaction temperature for OMA-xCo catalysts with different Co content; reaction conditions: CH4/CO2 = 1, GHSV = 15[thin space (1/6-em)]000 mL (g−1 h−1), 1 atm. The curves of (3) CH4 conversion and (4) CO2 conversion versus gas hourly space velocity (GHSV) for OMA-xCo catalysts with different Co content; reaction conditions: CH4/CO2 = 1, 750 °C, 1 atm.
3.2.2 Effect of gas hourly space velocity (GHSV). The influence of gas hourly space velocity (GHSV) on the conversions of CH4 and CO2 was investigated under the given conditions (CH4/CH4 = 1, 750 °C, 1 atm) over OMA-xCo catalysts. As shown in Fig. 6(3) and (4), with an increase of feed flow from 7200 to 45[thin space (1/6-em)]000 mL (g−1 h−1), the conversions of CH4 and CO2 rapidly decreased (e.g. decreased from 88.9% to 60.5% for the CH4 conversion over OMA-10Co) for all the catalysts investigated. It has been proposed that the reduction in the residence time of the reactants on the catalyst surface and the drop in catalyst bed temperature could result in these phenomena.53 However, for the present OMA-xCo catalysts, we propose that the decrease in the residence time over the catalyst surface and the limited number of active sites with respect to the increasing amount of reactants were the main reasons. With the increase of GHSV, the velocity for the gaseous reactants through the catalyst bed became faster and residence time over the catalyst bed became shorter. However, as GHSV increased, the number of reactants moving through the catalyst bed largely increased, making the active sites insufficient for redundant reactants. The effect of Co content on the catalytic activity for OMA-xCo catalysts under different GHSV could also be investigated. Among the OMA-xCo catalysts under given GHSV, OMA-10Co still possessed the highest CH4 and CO2 conversion among all the catalysts studied. It was of great interest to observe that the OMA-10Co always displayed the best catalytic activity among the OMA-xCo catalysts under different GHSVs and at different temperatures.
3.2.3 Effect of ordered mesostructure. To investigate the role of the ordered mesoporous framework in promoting CRM catalytic activity, the comparative analyses of OMA-10Co, NPA-10Co, and 10%Co/Al2O3 catalysts with identical Co content were systematically carried out under different reaction conditions. As shown in Fig. 7, CH4 and CO2 conversions for the OMA-10Co mesoporous catalyst were considerably higher than those for NPA-10Co and 10%Co/Al2O3 catalysts under different reaction conditions. This demonstrated that the ordered mesostructure could significantly promote catalytic activity. Compared with NPA-10Co, which does not have any obvious mesoporous structure, the mesoporous catalyst possessed larger surface area, bigger pore volume, and more barrier-free pore channels. In contrast, most of the Co species were located in the bulk of the material for NPA-10Co. Therefore, the mesoporous catalysts could provide much more exposed Co active centers for the gaseous reactants, which accounted for the higher catalytic activity of OMA-10Co over that of NPA-10Co. The 10%Co/Al2O3 supported catalyst was prone to severe thermal agglomeration of the metallic Co active sites during the processes of catalyst reduction and CRM reaction due to the weak interactions between metal and support. At this point, the OMA-10Co catalyst presented better performance than 10%Co/Al2O3. The Co species could be effectively confined by the mesoporous framework due to the advantage of the one-step synthesis strategy, which effectively stabilized the Co metallic active sites against severe reduction and CRM reaction conditions. Therefore, the decrease in the number of Co active centers caused by thermal sintering could be effectively avoided to some degree, which accounted for the higher catalytic activity compared to 10%Co/Al2O3.
image file: c5ra07249b-f7.tif
Fig. 7 The curves of (1) CH4 conversion and (2) CO2 conversion versus reaction temperature for catalysts prepared with different methods; reaction conditions: CH4/CO2 = 1, GHSV = 15[thin space (1/6-em)]000 mL (g−1 h−1), 1 atm. The curves of (3) CH4 conversion and (4) CO2 conversion versus gas hourly space velocity (GHSV) for catalysts prepared with different methods; reaction conditions: CH4/CO2 = 1, 750 °C, 1 atm.
3.2.4 Long-term stability tests of the catalysts. Laboratory-scale 60 h long-term stability tests over OMA-10Co, OMA-7Co, NPA-10Co, and 10%Co/Al2O3 catalysts were performed under specific reaction conditions: 750 °C, GHSV = 15[thin space (1/6-em)]000 mL (g−1 h−1), CH4/CO2 = 1, 1 atm. As shown in Fig. 8, OMA-10Co and OMA-7Co catalysts, which have ordered mesostructures, exhibited both high catalytic activities and excellent catalytic stabilities during the whole 60 h test. On the other hand, NPA-10Co and 10%Co/Al2O3 samples suffered a gradual decline in CH4 and CO2 conversions (e.g. from 79.9% to 50.6% for CH4 conversion over NPA-10Co). It is well known that developing a catalyst with enhanced stability is significant for the future large-scale industrialization of CRM process. Previous studies have revealed that metallic active centers with smaller sizes possess strengthened capacity of coke suppression, also known as the size effect.33,34 For the OMA-10Co and OMA-7Co catalysts, the growth of the Co particles was effectively suppressed by the confinement effect of the mesoporous framework during the processes of catalyst reduction and CRM reaction, thus leading to good catalytic stability. For NPA-10Co, the absence of ordered mesostructure might cause thermal sintering of the metallic active centers. At the same time, due to the weak interaction between metal and support, the thermal agglomeration of the Co species could take place on the 10%Co/Al2O3 supported catalyst, thus leading to a gradual continuous deactivation. The large metallic clusters facilitated methane decomposition and carbon deposition, hence resulting in the rapid deactivation of the catalyst and large amount of surface coke.33,34 All the H2/CO ratios over these catalysts were less than 1, as shown in Fig. 8(3). This was derived from reverse water gas shift side reaction (RWGS, CO2(g) + H2(g) = H2O(g) + CO(g), ΔH298 = +41 kJ mol−1), which consumes H2 and generates CO.12 The H2/CO ratios over OMA-10Co and OMA-7Co mesoporous catalysts were constant around 0.87 and 0.83, respectively, indicating that equilibrium between the coke deposition reaction and elimination reaction had been achieved.53,54 As a comparison, the H2/CO ratio for the NPA-10Co sample decreased continuously from 0.99 to 0.76, implying that a balance between carbon deposition and coke elimination could not be achieved. The rate of carbon deposition was considerably faster than that of the coke elimination reaction. Therefore, coke deposition over the catalyst surface was very serious and the catalyst subsequently suffered quick deactivation.
image file: c5ra07249b-f8.tif

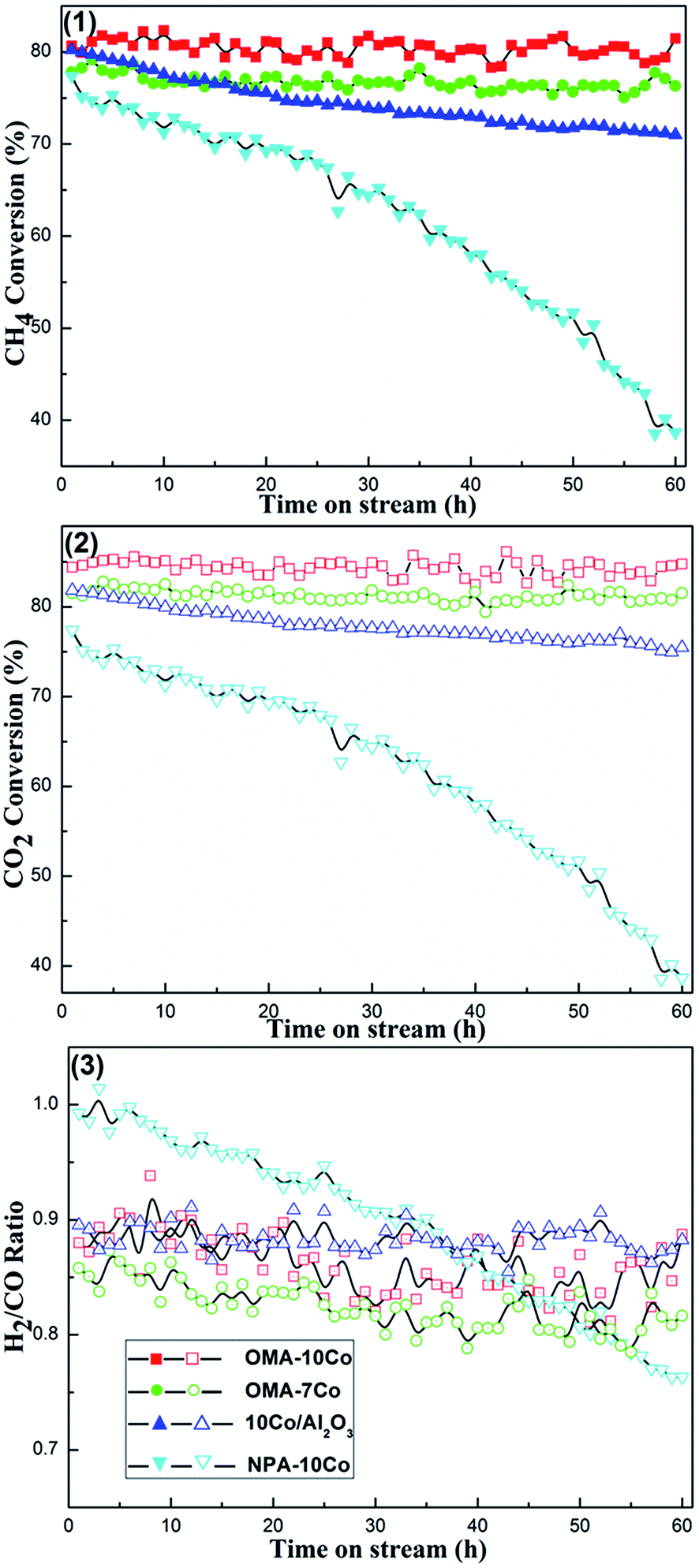

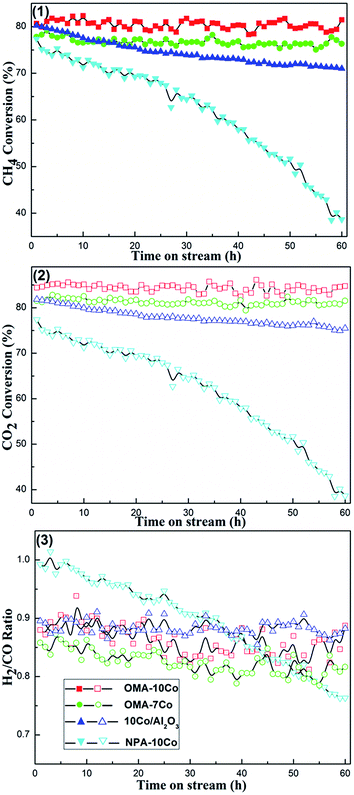

Fig. 8 60 h long-term stability tests over different catalysts: (1) CH4 conversion, (2) CO2 conversion, (3) H2/CO ratio; reaction conditions: CH4/CO2 = 1, GHSV = 15[thin space (1/6-em)]000 mL (g−1 h−1), 750 °C, 1 atm.

3.3 Characterization of the spent catalysts

3.3.1 TG analysis. In view of the carbon balance, most carbon atoms of the feed gases (CH4 and CO2) were converted into the final product in the form of CO. However, a portion of the carbon atoms was deposited on the surface of the catalyst in the form of the coke due to the presence of side reactions under CRM reaction condition such as methane decomposition and Boudouard reaction. Therefore, the properties of carbon deposition over OMA-7Co, OMA-10Co, NPA-10Co, and 10%Co/Al2O3 catalysts after 60 h long-term stability tests were examined by TG analysis. As shown in Fig. 9. The weight losses over OMA-7Co, OMA-10Co, 10%Co/Al2O3, and NPA-10Co catalysts were 6.7%, 10.0%, 16.0%, and 43.5%, respectively. In contrast to 10%Co/Al2O3 and NPA-10Co catalysts, OMA-7Co and OMA-10Co mesoporous catalysts possessed considerably less carbon deposition and hence better anti-coke performance. The mesoporous framework could stabilize the nano-sized Co particles during the processes of reduction and CRM reaction via its confinement effect, thus significantly suppressing the coke formation owing to the size effect of the metallic active sites.
image file: c5ra07249b-f9.tif

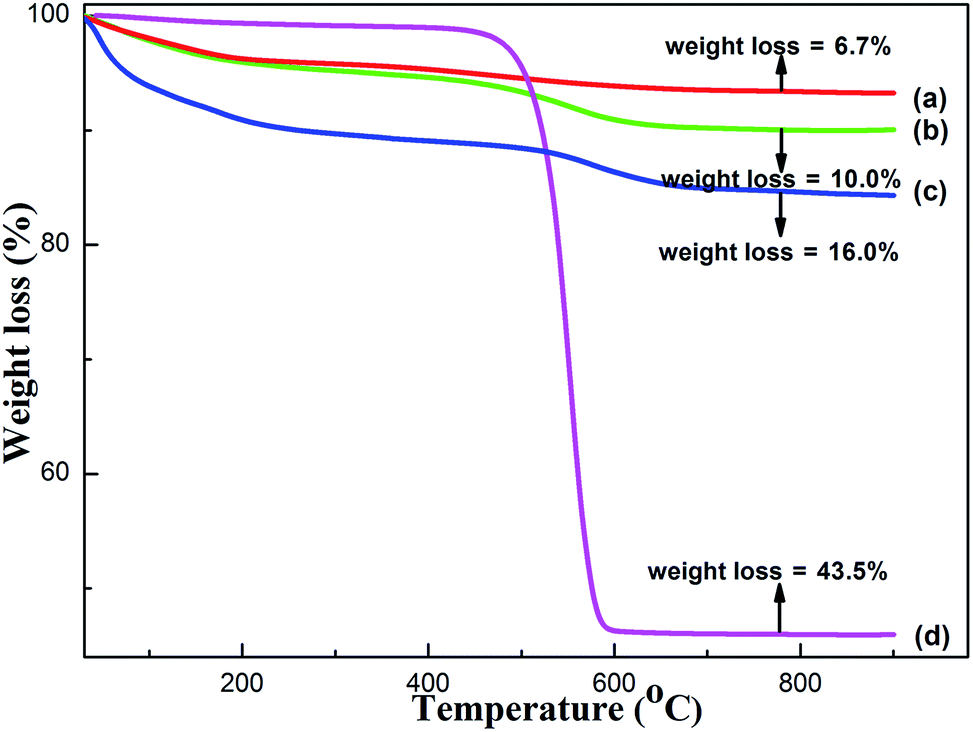

Fig. 9 TG curves of the 60 h endurance-tested catalysts: (a) OMA-7Co, (b) OMA-10Co, (c) NPA-10Co, and (d) 10%Co/Al2O3.
3.3.2 TPH analysis. TPH technique could be used to study the types of coke deposited on the catalysts. The different types of coke possessed different hydrogenation performances for the generation of CH4. Generally, coke with high activity usually presented CH4 signal peak in the low temperature region, while the species with low activity exhibited CH4 signal peak in the high temperature region.55–57 TPH characterization was carried out over 60 h endurance-tested OMA-7Co, OMA-10Co, NPA-10Co, and 10%Co/Al2O3 catalysts to study the characteristics of the surface coke species and their profiles are shown in Fig. 10. Most of the samples displayed CH4 signal peaks with similar shapes, with one weak peak around 400 °C and one strong peak around 640 °C (or even higher temperatures around 750 °C), which could be assigned to two types of carbon deposition with different reactivities toward hydrogenation. The weak shoulder peaks around 400 °C were proposed to arise from the hydrogenation of amorphous carbon deposition,55–58 which was responsible for CO formation during the reaction.10,55,56,59,60 The main peaks around 640 °C could be attributed to the hydrogenation peak of carbon nanotube species, which had a considerably lower reactivity toward H2 than amorphous carbon and finally caused the deactivation of the catalyst by covering metallic active sites and blocking pore channels.56,58,61
image file: c5ra07249b-f10.tif
Fig. 10 TPH profiles of the 60 h endurance-tested catalysts: (a) OMA-7Co, (b) OMA-10Co, (c) NPA-10Co, and (d) 10%Co/Al2O3.
3.3.3 Morphology analysis of the long-term endurance-tested catalysts. The TEM analysis of the 60 h endurance-tested OMA-10Co, OMA-7Co, NPA-10Co, and 10%Co/Al2O3 catalysts was performed to further confirm the thermal stability of the ordered mesostructure and investigate the morphology of carbon deposition over the catalyst surface, as shown in Fig. 11. The OMA-7Co and OMA-10Co ordered mesoporous catalysts retained uniform cylindrical mesopores along the [1 1 0] direction and hexagonal honeycomb-like mesopores along the [0 0 1] direction even after 60 h CRM reactions, which is in good agreement with their type IV H1 hysteresis loops and narrow pore size distributions in Fig. S3 (ESI). This suggested that these ordered mesoporous catalysts possessed good thermal stability. It is worth noting that there was no obvious large and aggregated Co metallic cluster observed in these mesoporous catalysts. This further confirmed that the confinement effect of the mesoporous framework played an important role in stabilizing the Co metallic nanoparticles during the long-term stability test. In addition, carbon nanotubes were the main coke residue for all the catalysts studied, as predicted by TPH characterization, that caused the rapid deactivation of the catalysts.61,62 In contrast, there was no apparent amorphous carbon species found among the catalysts. We propose that amorphous carbon might uniformly distribute among the mesoporous channels and catalyst surface, which could be further eliminated in the subsequent process of CO production.
image file: c5ra07249b-f11.tif
Fig. 11 TEM and SAED (inset) images of the 60 h endurance-tested catalysts: (a), (b), and (c) OMA-7Co; (d), (e), and (f) OMA-10Co; (g) NPA-10Co; (h) and (i) 10%Co/Al2O3.

4 Conclusion

In conclusion, a series of ordered mesoporous CoAl2O4 spinel-based metal oxides with different Co content were designed and facilely prepared by a one-step evaporation induced self-assemble method for the first time. The obtained materials exhibited excellent structural properties and good thermal stability, and were utilized as catalysts for the CRM reaction. Compared with non-mesoporous and traditional supported catalysts, these mesoporous catalysts exhibited higher catalytic activities and better stabilities. The ordered mesoporous structure could significantly improve catalytic activity and stability by providing sufficiently accessible Co metallic active sites for gaseous feed stocks and stabilizing the Co nanoparticles via the confinement effect of the mesoporous framework during the CRM reaction, simultaneously. In addition, the OMA-xCo catalysts had a strong capacity for coke resistance due to the size effect of the Co nanoparticles. Our results demonstrated that these OMA-xCo materials could be considered as a series of promising catalysts for the CRM reaction.

Acknowledgements

The authors acknowledge the financial support from Singapore MOE grant R143-000-542-112, Singapore National Research Foundation CREATE-SPURc program R-143-001-205-592, and Jiangsu Province Government Research Platform Grant and NUSRI Seed Fund.
