Synthesis, characterization, enhanced sunlight photocatalytic properties, and stability of Ag/Ag₃PO₄ nanostructure-sensitized BiPO₄

Abstract

This novel Ag/Ag₃PO₄ nanostructure-sensitized BiPO₄ (Ag/Ag₃PO₄/BiPO₄) photocatalyst was synthesized using hydrothermal and impregnation processes. Powder X-ray diffraction, UV-Vis diffuse reflectance spectroscopy, Raman spectroscopy, IR spectroscopy, X-ray photoelectron spectroscopy, transmission electron microscopy, and scanning electron microscopy were used to characterize the as-prepared products. The optical properties and morphology of BiPO₄ exhibited drastic changes and were dependent on the AgNO₃ concentration. Regarding methylene blue (MB), rhodamine B, and methyl orange degradation under solar irradiation (95% degradation within 5 min), 15% Ag/Ag₃PO₄/BiPO₄ exhibited considerably higher photocatalytic activity than BiPO₄ and P25. After five cycles, Ag/Ag₃PO₄/BiPO₄ exhibited no apparent loss of activity, confirming its stability despite recycling. The practicality of this Ag/Ag₃PO₄/BiPO₄ was validated according to its ability to degrade MB in seawater, pond water, and industrial wastewater samples, which also demonstrated the advantages of its high photocatalytic activity. Moreover, 15% Ag/Ag₃PO₄/BiPO₄ also showed sunlight-induced photocatalytic disinfection activity toward E. coli cells. The enhanced photocatalytic activity and improved stability of Ag/Ag₃PO₄/BiPO₄ could be attributed to the strong visible light absorption by Ag/Ag₃PO₄ nanostructures, a low electron–hole recombination rate, and the highly efficient separation of photogenerated electron–hole pairs throughout Ag₃PO₄/BiPO₄ heterostructures. Moreover, holes were the main reactive species.

---

Introduction

Dyes are used in many industries for coloring products. However, most dyestuffs do not bind to product surfaces and are thus discharged into wastewater. Because of the chemical stability of dyes, conventional methods for mitigating this type of wastewater pollution are limited to decolorization of dyes. Photocatalysis has been extensively studied and applied as an effective technology for treating wastewater containing organic dyes.¹ For example, TiO₂, a heterogeneous photocatalyst, is considered attractive because of its wide availability, low cost, nontoxicity, and relatively high chemical stability.^2,3 However, the photocatalytic activity of TiO₂ is insufficient for industrial applications because the high recombination rate of the photogenerated electrons and holes leads to high running costs.⁴ Therefore, developing photocatalytic materials that are more efficient is urgently required.

Some novel materials, such as Bi- and V-based photocatalysts, have been synthesized in 2014 for finding materials with superior photocatalytic activity.^5–9 Among them, BiPO₄ has unique catalytic applications. Many systematic studies have analyzed the morphology-dependent photocatalytic activity, recyclability, and practicability of these catalysts.^10,11 The high photocatalytic activity of BiPO₄ was primarily attributed to the high energy of the valence band and high separation efficiency of electron–hole pairs.^12,13 However, poor solar efficiency hindered the applicability of BiPO₄. Therefore, developing photocatalysts that have high reactivity under visible light irradiation is crucial for overcoming the drawbacks of BiPO₄. Recently, Ag₃PO₄ was found to demonstrate high performance in the photodecomposition of organic dyes in wastewater under visible light illumination.^14,15 However, Ag₃PO₄ is not stable during the photocatalytic process because of photocorrosion, meaning that in the absence of an electron acceptor, the photogenerated electron decomposes Ag₃PO₄ on photoillumination.^16–18 More recently, Ag₃PO₄/BiPO₄-based heterostructures were prepared as a modification of Ag₃PO₄.^19–21 For example, a BiPO₄@Ag₃PO₄ core/shell heterojunction photocatalyst was synthesized using a facile hydrothermal process, followed by the ion-exchange method.¹⁹ The results showed that RhB was almost completely degraded in 60 min under visible light irradiation and in 40 min under solar irradiation. The BiPO₄@Ag₃PO₄ core/shell heterojunction photocatalyst exhibited enhanced photocatalytic activity against RhB, which is attributed to the effective charge separation by the core/shell heterojuction between Ag₃PO₄ and BiPO₄. One-step synthesis of a Ag/Ag₃PO₄/BiPO₄ double-heterostructured photocatalyst was demonstrated by the Lv group.²⁰ Higher photocatalytic activity and stability for the photodegradation of organic compounds (rhodamine B, RhB) were observed under visible light (98% RhB degradation, 60 min) because of both the formation of an effective heterostructure and the Schottky barrier effect. These two aspects contributed to the charge transfer between the metal and semiconductor and the separation of photogenerated electron–hole pairs; however, this research lacked the experimental evidence to prove these two suggestions. Ag₃PO₄/BiPO₄ was synthesized using the co-precipitation hydrothermal method.²¹ The higher photocatalytic activity of Ag₃PO₄/BiPO₄ (97% methyl orange (MO) degradation, 30 min) could be mainly attributable to strong visible light absorption and a high separation efficiency of electron–hole pairs. However, the stability study was not addressed. Notably, few photocatalytic results have demonstrated the practicability of the aforementioned Ag₃PO₄/BiPO₄ photocatalysts.

This paper presents a systematic study of Ag/Ag₃PO_4/BiPO₄ synthesis under hydrothermal conditions at 180 °C for 24 h and then calcination at 500 °C for 6 h. The photocatalytic activity, recyclability, and practicability of the synthesized Ag/Ag₃PO_4/BiPO₄ were evaluated according to its ability to degrade methylene blue (MB), RhB, and MO in various water samples under visible light (λ > 420 nm) and solar irradiation. The mechanism of the photocatalytic degradation of organic pollutants by Ag/Ag₃PO_4/BiPO₄ was also investigated.

Experimental

Chemicals

All chemicals used were of an analytical grade and of the highest purity available. AgNO₃, Bi(NO₃)₃·5H₂O, Na₃PO₄, MB, RhB, MO, and HNO₃ were purchased from Sigma Aldrich (St. Louis, MO, USA). Milli-Q ultrapure water was used in all of the experiments.

Preparation

Ag/Ag₃PO₄/BiPO₄ was synthesized using the impregnation method. First, Bi(NO₃)₃·5H₂O (1.25 mmol) and Na₃PO₄ (2.5 mmol) were placed in a beaker. Deionized water (46 mL) and HNO₃ (4 M, 1 mL) were added to the beaker, and the mixture was magnetically stirred to form a homogeneous solution at room temperature. After 1 min, the white precipitate was transferred to a Teflon-lined stainless steel autoclave and maintained at 180 °C for 24 h. A white BiPO₄ powder was obtained through centrifugation, washed three times with deionized water and ethanol, and then dried in a desiccator at 55 °C for 12 h. An appropriate amount of AgNO₃ was then dissolved in 2 mL of distilled water, and the obtained BiPO₄ powder (0.3 g) was dispersed in the AgNO₃ solution with magnetic stirring to yield a uniform precursor. The precursor was then maintained at 80 °C for 10 h for the water to evaporate. Finally, the powder obtained was calcined at 500 °C for 6 h to produce Ag/Ag₃PO₄/BiPO₄ heterostructures. Herein, various Ag⁺ to BiPO₄ powder mass ratios, from 0, 3, 6, 15, to 30%, were used to prepare Ag/Ag₃PO₄/BiPO₄. We use X% Ag/Ag₃PO₄/BiPO₄ to represent the different photocatalysts (X = 3, 6, 15, and 30).

Ag/Ag₃PO₄ samples were synthesized using a precipitation–hydrothermal process. The typical preparation was as follows: AgNO₃ (1.25 mmol) and Na₃PO₄ (2.5 mmol) were placed in a beaker. Deionized water (46 mL) and HNO₃ (4 M, 1 mL) were added to the beaker, and the mixture was magnetically stirred to form a homogeneous solution at room temperature. After 1 min, the yellow precipitate was transferred to a Teflon-lined stainless steel autoclave and maintained at 180 °C for 24 h. Yellow Ag/Ag₃PO₄ powders were obtained through centrifugation, washed three times with deionized water and ethanol, and then dried in a desiccator at 55 °C for 12 h.

Characterization

X-ray powder diffraction (XRD) was performed on a LabX XRD-6000 X-ray diffractometer (SHIMADZU, Kyoto, Japan) with Cu Kα radiation (λ = 0.15418 nm). Raman spectra were measured at room temperature using a confocal micro-Raman system (Thermo Scientific Inc., NY, USA). A 532 nm laser line was used as the photoexcitation source with a laser power of 2 mW focused on the sample for 10 s. FT-IR spectra were collected at room temperature using an Agilent Cary 600 Series FT-IR (Agilent Technologies, Santa Clara, CA, USA). X-ray photoelectron spectroscopy (XPS) measurements were performed using a VG ESCA210 electron spectroscope (VG Scientific, West Sussex, UK). Scanning electron microscopy (SEM) images were obtained using a Hitachi S4300 SEM (Hitachi, Tokyo, Japan) operating at 15 kV. Transmission electron microscopy (TEM) images were recorded using a JEOL-1200EX II TEM (JEOL, Tokyo, Japan) at an accelerating voltage of 200 kV. UV-Vis diffuse reflectance spectra (DRS) were recorded on a UV-Vis spectrometer (Evolution 200, Thermo Fisher, NY, USA) using BaSO₄ as a reference. The Brunauer–Emmett–Teller (BET) specific surface areas of the samples were characterized using a PMI C-BET 201A system (USA).

Photocatalytic activity

The photocatalytic activity of the as-prepared photocatalysts (0–30% mass ratios of Ag⁺ to BiPO₄) was evaluated for MB degradation under visible light irradiation (λ > 420 nm, 150 W) by using a Xe lamp as the light source. In these experiments, as prepared photocatalyst (0.2 g) was added to an aqueous MB solution (50 mL, 5 mg L⁻¹) in a reactor at room temperature. Prior to irradiation, the solution was stirred for 10 min in the dark to ensure an adsorption–desorption equilibrium. The solution was then exposed to Xe lamp irradiation (150 W) with magnetic stirring. At each designated time interval, 1 mL of the suspension was sampled and centrifuged to remove the photocatalyst powder. The MB concentration during degradation was monitored using colorimetry with a Synergy H1 Hybrid Multi-Mode Microplate Reader (Biotek Instruments, Winooski, VT, USA). All measurements were performed at room temperature. The photocatalytic degradation conditions of titania P25 (TiO₂, ca. 80% anatase, and 20% rutile), BiPO₄, and 15% Ag/Ag₃PO₄/BiPO₄ for the various pollutants (MB, RhB, and MO) were the same as described previously, except for the use of solar irradiation. The molecule structure of MB, RhB, and MO are provided in the ESI (Fig. S1†).

Detection of methylene blue degradation in real samples

Pond water samples were collected from the campus of National Changhua University of Education, Taiwan. An industrial wastewater sample was collected from a factory near the campus. A seawater sample was collected from a beach in Taichung city. After the real samples were filtered through a 0.2 μm membrane, 15% Ag/Ag₃PO₄/BiPO₄ (0.2 g) was added to an aqueous MB solution (50 mL, 5 mg L⁻¹) in a reactor at room temperature. Prior to irradiation, the solution was stirred for 10 min in the dark to ensure an adsorption–desorption equilibrium. The solution was then exposed to solar irradiation with magnetic stirring. Experimental time using solar irradiation was performed between 1100 AM and 0200 PM. At each designed time interval, 1 mL of the suspension was sampled and centrifuged to remove the 15% Ag/Ag₃PO₄/BiPO₄ powder. The MB concentration during degradation was monitored using colorimetry with a Synergy H1 Hybrid Multi-Mode Microplate Reader.

Photocatalytic disinfection

To evaluate the photocatalytic disinfection of the samples, E coli cells using as the model waterborne pathogens were inoculated in phosphate buffer solution (0.2 M, pH 7.2) containing 2 μg L⁻¹ 15% Ag/Ag₃PO₄/BiPO₄ with a final cell concentration of ∼10³ cfu mL⁻¹. The mixture solutions were kept under sunlight irradiation. At each designed time interval, the mixture was applied uniformly on three Luria–Bertani culture medium plates. These plates were incubated at 37 °C for 48 h. The colony forming units were counted and compared with control plates to calculate percentage of cell viability (n/n₀). Control experiments without samples were also carried out at the same time.

Detection of photogenerated electrons, holes, and hydroxyl radical species

To detect photogenerated electrons, BiPO₄ and 15% Ag/Ag₃PO₄/BiPO₄ films were deposited on indium tin oxide (ITO)-conducting glass for electrochemical measurements. The clean ITO glass substrates were immersed in a slurry of the as-prepared photocatalyst (3 mg) and ethanol (3 mL) mixtures. The substrate was then dried at 80 °C to eliminate ethanol and was subsequently maintained at 80 °C for 6 h.

The experimental procedure followed for examining holes and hydroxyl radical species was similar to that for the photocatalytic activity experiment.²² Various quantities of scavengers were introduced into the MB solution prior to the addition of the catalyst. In addition, a photoluminescence (PL) technique, with coumarin (1 mM) as a probe molecule, was used to investigate the formation of hydroxyl radicals on the surface of the photocatalysts (BiPO₄ and 15% Ag/Ag₃PO₄/BiPO₄) illuminated by visible light irradiation for 15 min.²²

Results and discussion

Phase structure and morphology

XRD analysis was used to identify the phases and purity of the products. Fig. 1(a) shows the XRD pattern of BiPO₄, which is consistent with the standard data for pure monoclinic BiPO₄ (JCPDS 80-0209). Ag/Ag₃PO₄ was prepared under precipitation–hydrothermal conditions, and high temperatures have been reported to favor the reduction of Ag⁺ to Ag.^23,24 The main diffraction peaks of Ag/Ag₃PO₄ could be primarily indexed to the body-centered cubic structure of Ag₃PO₄ (JCPDS 06-0505). The diffraction peaks at 38.1°, 44.3°, and 64.5°, corresponding to (111), (200), and (220) crystal planes of cubic Ag (JCPDS 65-2871), were also obvious. For the Ag/Ag₃PO₄/BiPO₄ heterostructure, the coexistence of BiPO₄ and Ag/Ag₃PO₄ phases, which are marked with • and □, respectively, could be observed. Similarly, the peaks of the Ag metal, which are marked with ▼, were also obvious.

Fig. 1 (a) X-ray powder diffraction (XRD) and (b) UV-diffuse reflectance spectra (DRS) of as-prepared BiPO₄, Ag/Ag₃PO₄/BiPO₄, and Ag/Ag₃PO₄. Inset presents the corresponding (Abs)^0.5(hν)^0.5 versus energy curves.

Fig. 1(b) shows the UV-DRS spectra of Ag/Ag₃PO₄, Ag/Ag₃PO₄/BiPO₄, and BiPO₄. Clearly, yellow Ag/Ag₃PO₄ possessed strong visible light absorption ability, whereas white BiPO₄ possessed UV light absorption ability. Ag/Ag₃PO₄/BiPO₄ exhibited absorption properties that were a mixture of those of Ag/Ag₃PO₄ and BiPO₄. For semiconductor materials, the square of the absorption coefficient was linearly correlated with the energy for direct optical transitions in the absorption edge region, whereas the square root of the absorption coefficient was linearly correlated with the energy for indirect transitions. Data plots of the square root of the absorption coefficient versus the energy in the absorption edge region are shown in the inset of Fig. 1(b); the plots are approximately linear. These results suggested that the absorption edges of the three materials were because of indirect transitions; thus, the bandgap energies of the samples were estimated from the plots using the intercept of the tangent to the x-axis. The estimated bandgaps of as-synthesized Ag/Ag₃PO₄, Ag/Ag₃PO₄/BiPO₄, and BiPO₄ were approximately 2.08, 2.05, and 4.08 eV, respectively (inset of Fig. 1(b)). These results clearly confirm that the electronic structures of the as-synthesized materials differ. The variation in the bandgap may be due to different degrees of delocalization and mobility of the photoinduced electron–hole pairs, which may have also resulted in different photocatalytic efficiencies.

The structures of Ag/Ag₃PO₄, Ag/Ag₃PO₄/BiPO₄, and BiPO₄ were further characterized using Raman spectroscopy in the 100–1200 cm⁻¹ region (Fig. S2A†). Notably, the Raman bands we observed in these spectra were consistent with literature data.²⁵ For Ag/Ag₃PO₄/BiPO₄ and BiPO₄, the peaks between 100 and 300 cm⁻¹ may be assigned to the symmetric bending vibration of the Bi–O bonds. One of the strong features of Raman spectroscopy is that bands below 400 cm⁻¹ are readily observed. Thus, the intense bands attributable to M–O bond vibrations could be observed. However, Ag/Ag₃PO₄ exhibited no peaks in this region. For Ag/Ag₃PO₄/BiPO₄ and BiPO₄, the Raman bands between 460 and 600 cm⁻¹ in the spectra in Fig. S2† were attributed to the v₄ bending modes of the PO₄ units, and those between 380 and 460 cm⁻¹ were attributed to the v₂ bending modes of the PO₄ units. Ag/Ag₃PO₄ exhibited weak peaks corresponding to v₂ and v₄ bending vibrations of the PO₄³⁻ moiety at 408 and 552 cm⁻¹, respectively. The two intense bands between 960 and 1100 cm⁻¹ were ascribed to the v₁ symmetric and v₃ antisymmetric stretching modes of the PO₄ tetrahedron in case of Ag/Ag₃PO₄/BiPO₄ and BiPO₄, respectively. Ag/Ag₃PO₄ exhibited an intense peak at 908 cm⁻¹, which was attributed to the symmetric stretching mode of the PO₄³⁻ moiety under cubic symmetry. A similar peak was also observed in case of Ag/Ag₃PO₄/BiPO₄, indicating the presence of the Ag₃PO₄ structure.

FTIR spectroscopy was also used to investigate the structures of the catalysts (Fig. S2B†). There are four asymmetric stretching (v₃) vibrations of P–O bond resulting from the distortion of tetrahedral phosphate groups in monoclinic BiPO₄. These bands are seen at 1070, 1010, 956, and 925 cm⁻¹ in the as prepared BiPO₄. The asymmetric bending (v₄) vibrations of PO₄ group appeared between 500 to 600 cm⁻¹. These bands appeared at 596, 566, 555, and 528 cm⁻¹, respectively. In the case of as-prepared Ag/Ag₃PO₄/BiPO₄, the different relative intensities and wavenumber shifts of the v₃ and v₄ vibration indicate that a slight change in the structure of the PO₄ tetrahedron.²⁵

To further investigate the chemical and bonding environment of Ag/Ag₃PO₄/BiPO₄ heterostructures, an XPS analysis was performed; the results are shown in Fig. S3,† where the C 1s peak at 285 eV serves as a calibration standard. In this figure, peaks from Bi, P, O, and Ag could be observed, thus proving the chemical composition of the heterostructures. Both the Bi and Ag bands exhibited distinct doublets because of spin–orbit coupling. The peaks at 159.8 and 164.8 eV were due to Bi4f_7/2 and Bi4f_5/2 levels in BiPO₄, respectively. The peaks at 442.8 and 465.8 eV corresponded to Bi3d_5/2 and Bi3d_3/2 levels in BiPO₄, respectively. The peak at 132.8 eV corresponded to P⁵⁺ in the PO₄³⁻ of BiPO₄, while those at 367.8 eV and 373.8 eV corresponded to Ag3d_5/2 and Ag3d_3/2, respectively. According to literature,^19,26 the peak shift (6 eV) between Ag3d_5/2 and Ag3d_3/2 is in agreement on that of bulk Ag (Ag3d_5/2, 368.2 eV; Ag3d_3/2, 374.2 eV), indicating the appearance of zero-valent Ag in the Ag/Ag₃PO₄/BiPO₄ heterostructure.^19,26

Fig. 2 displays typical SEM and TEM images of BiPO₄ and Ag/Ag₃PO₄/BiPO₄ products prepared with an increasing Ag content (mass ratios of 3%, 15%, and 30%). Marked differences in the morphology and size of the as-prepared products can be clearly seen in these images. The BiPO₄ comprises rod-like nanostructures (Fig. 2). The morphology and size of BiPO₄ particles were further examined using TEM. The particles had diameters of 180.9 ± 49.3 nm and lengths of 2169.4 ± 257.0 nm. In a typical process for synthesis of BiPO₄, Bi(NO₃)₃·5H₂O and Na₃PO₄ was mixed with Milli-Q water in the presence of 4 M of HNO₃. The mixture was stirred gently at room temperature for 1 min, at which time the white precipitate was formed, indicating the formation of small BiPO₄ NPs. Then the white precipitate was transferred to a Teflon-lined stainless steel autoclave and maintained at 180 °C for 24 h. In the hydrothermal process, the primary particles may aggregate in an oriented fashion, resulting in the formation of a larger single crystal, or they may randomly aggregate and reorient.¹⁰ However, this aggregation-growth mechanism provides a route for the incorporation of defects; numerous cracks were observed on the surface in the HR-TEM image (Fig. 2(a)). In the HRTEM image of BiPO₄, majority of the particles appeared to be composed of many primary building block particles ranging in size from less than 5 to 10 nm. It is thus assumed in BiPO₄ rod-like structures that the primary particles aggregated in an oriented fashion, producing assemblies of oriented nanoparticles that subsequently underwent further growth.

Fig. 2 Scanning electron microscopy (SEM), transmission electron microscopy (TEM), and HR-TEM images of (a) BiPO₄, (b) 3% Ag/Ag₃PO₄/BiPO₄, (c) 15% Ag/Ag₃PO₄/BiPO₄, and (d) 30% Ag/Ag₃PO₄/BiPO₄.

Ag/Ag₃PO₄/BiPO₄, which was impregnated with 3% Ag⁺, comprises irregular rod-like nanostructures with diameters of 195.6 ± 70.0 nm and lengths of 1625.7 ± 195.3 nm. As the BiPO₄ reacted with water, the hydroxyl groups are generated on the surface of BiPO₄ and produced chemical bonding with Ag⁺ ions.¹⁹ Through ion exchange process, Ag₃PO₄ particles would be formed on the cracks of BiPO₄ surface, as a result short and irregular rod-like heterojunction nanostructures were produced (HR-TEM image in Fig. 2(b)). When the Ag⁺ content was increased to 15%, short rod-like Ag/Ag₃PO₄/BiPO₄ particles with diameters of 171.7 ± 62.1 nm and lengths of 1252.6 ± 159.2 nm were formed. From the HR-TEM image of 15% Ag/Ag₃PO₄/BiPO₄, the resolved lattice spacing was determined to be 0.131 and 0.249 nm, which is consistent with the d spacing of the (421) plane of the body-centered cubic phase of Ag₃PO₄ and the (3̄11) plane of the monoclinic phase of BiPO₄, respectively. Finally, adding 30% Ag⁺ to BiPO₄ resulted in shorter rod-like Ag/Ag₃PO₄/BiPO₄ structures with diameters of 182.8 ± 54.2 nm and lengths of 853.8 ± 79.2 nm. The HR-TEM image of 30% Ag/Ag₃PO₄/BiPO₄ indicated the existence of a distinct lattice spacing of 0.465 nm, which corresponds to the (011) crystal plane of BiPO₄.

The BET specific surface areas of the BiPO₄ and X% Ag/Ag₃PO₄/BiPO₄ samples (X = 3, 6, 15, and 30) were also determined using nitrogen adsorption–desorption measurements and the corresponding values are listed in Table 1. As shown in Table 1, the BET surface areas values increases with increasing the amount of Ag⁺. Therefore, BiPO₄ with Ag⁺ impregnation is expected to have higher adsorption capacity and photocatalytic activity for the degradation of dye in water.

Table 1 Pseudo first-order rate constants for methylene blue photocatalytic oxidation using BiPO₄ and Ag/Ag₃PO₄/BiPO₄

Series	Pseudo first-order kinetic equation	R^2	Surface area (m^2 g^−1)
BiPO4	y = 0.0347x − 0.0306	0.9720	3.5 ± 0.1
3% Ag/Ag3PO4/BiPO4	y = 0.0538x − 0.0538	0.9977	30.1 ± 0.1
6% Ag/Ag3PO4/BiPO4	y = 0.1021x − 0.0609	0.9903	42.5 ± 0.3
15% Ag/Ag3PO4/BiPO4	y = 0.2593x − 0.1372	0.9919	55.1 ± 0.1
30% Ag/Ag3PO4/BiPO4	y = 0.2546x − 0.1072	0.9892	70.1 ± 0.1

---

Photocatalytic properties

The photocatalytic performance of the as-prepared BiPO₄ and X% Ag/Ag₃PO₄/BiPO₄ samples (X = 3, 6, 15, and 30) was evaluated for MB degradation under visible light irradiation. Fig. 3(a) presents plots of the variation in the MB concentration (C/C₀) with the irradiation time for the series of BiPO₄ and X% Ag/Ag₃PO₄/BiPO₄ photocatalysts, where C₀ is the initial MB concentration, and C is the MB concentration at time t. For comparison, the direct photolysis of MB in the absence of photocatalysts was also analyzed under identical conditions. Clearly, in the absence of photocatalysts, the MB concentration barely changed with an increase in the reaction time, indicating that the as-prepared Ag/Ag₃PO₄/BiPO₄ samples are active photocatalysts. In addition, Fig. 3(a) shows remarkable differences in the extent of MB degradation within the 15 min observation time of the various Ag/Ag₃PO₄/BiPO₄ samples. On further increasing the proportion of Ag⁺ more than 15%, the degradation activity did not increase obviously. In this study, 15% Ag/Ag₃PO₄/BiPO₄ was found to be the optimal photocatalyst. The photocatalytic degradation kinetics for MB was then investigated (Fig. 3(b)), and the photodegradation process was found to be a pseudo first-order reaction. Using the data in Fig. 3(b), the pseudo first-order rate constants (k) for MB degradation catalyzed by BiPO₄ and the X% Ag/Ag₃PO₄/BiPO₄ samples (X = 3, 6, 15, and 30) were estimated to be 0.0347, 0.0538, 0.1021, 0.2593, and 0.2546 min⁻¹, respectively. Clearly, the rate constant for 15% Ag/Ag₃PO₄/BiPO₄ is almost 7.5 times higher than that for BiPO₄. The pseudo first-order kinetic equation, rate constants and relative coefficients are summarized in Table 1.

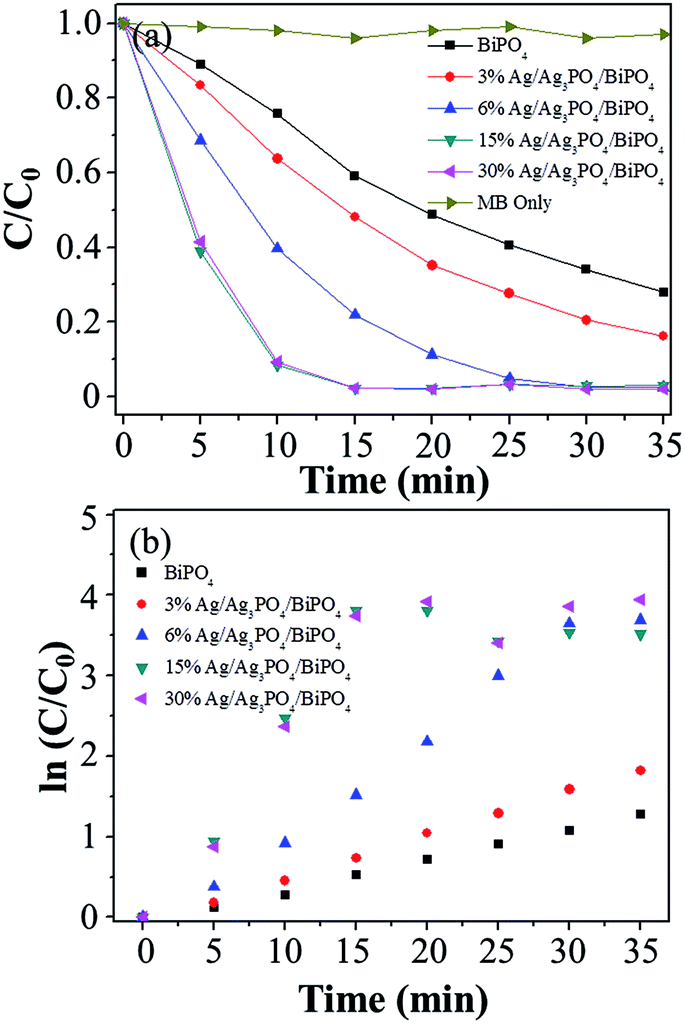

Fig. 3 (a) Photocatalytic decomposition curves for MB and (b) kinetic fit for MB degradation catalyzed by BiPO₄ and Ag/Ag₃PO₄/BiPO₄.

Fig. S4(a) and (b)† show the temporal evolution of the spectral change upon MB degradation over BiPO₄ and 15% Ag/Ag₃PO₄/BiPO₄, respectively. According to literature, chromophore cleavage is analogous to a competitive photodegradation reaction involved in the photocatalytic decomposition of organic pollutants.²⁶ The absorption of MB at 665 nm decreased with an increase in the irradiation time. Moreover, the characteristic absorption of MB in the presence of BiPO₄ and 15% Ag/Ag₃PO₄/BiPO₄ decreased only insignificantly and exhibited a slight hypsochromic shift. Thus, the cleavage of the MB chromophore is inferred to predominate in both BiPO₄ and 15% Ag/Ag₃PO₄/BiPO₄ photocatalytic decomposition systems.

Stability evaluation and applications

In addition to the photocatalytic efficiency, the stability of photocatalysts is crucial for practical applications. Therefore, to evaluate the stability and efficiency of the photocatalytic performance of 15% Ag/Ag₃PO₄/BiPO₄, a circulating run was performed for MB photocatalytic degradation. Notably, the photocatalytic activity of 15% Ag/Ag₃PO₄/BiPO₄ for MB photodegradation did not considerably decrease even after five cycles (Fig. S5(a)†). Specifically, the MB photocatalytic degradation efficiency still reached 95% after five cycles, indicating that the photocatalyst has good stability, which was confirmed by a lack of change in the XRD pattern for 15% Ag/Ag₃PO₄/BiPO₄, after being used for five reaction cycles (Fig. S5(b)†). These results suggest that with its high catalytic activity and stability, 15% Ag/Ag₃PO₄/BiPO₄ should be attractive as a photocatalyst.

To further investigate the photocalalytic activity of the various photocatalysts (P25, BiPO₄, Ag/Ag₃PO₄, and 15% Ag/Ag₃PO₄/BiPO₄), RhB, MO, and MB degradation under solar irradiation was analyzed; the results are shown in Fig. 4(a). 15% Ag/Ag₃PO₄/BiPO₄ exhibited excellent photocatalytic activity than that of the P25 and BiPO₄ photocatalyst under solar irradiation for the degradation of all dyestuffs, with nearly 100% degradation achieved in only 5 min. This may be because of absorption in the visible region of sunlight. In addition, we found 15% Ag/Ag₃PO₄/BiPO₄ could also be easily recovered by sedimentation due to high density of Ag₃PO₄ (6.37 g cm⁻³) comparing to BiPO₄ (6.32 g cm⁻³) and TiO₂ (4.23 g cm⁻³), which is beneficial for the applications in water purification. Although the Ag/Ag₃PO₄ also exhibited the similar photocatalytic activity to that of the 15% Ag/Ag₃PO₄/BiPO₄ due to high absorption in the visible region of sunlight, the amount of AgNO₃ for the preparation of the Ag/Ag₃PO₄ (0.21 g) is more than that of the 15% Ag/Ag₃PO₄/BiPO₄ (0.045 g) photocatalyst. This 15% Ag/AgP₃O₄/BiPO₄ photocatalyst possesses attractive features (low cost) when compared with Ag/Ag₃PO₄ heterostructures. According to literatures, long UV irradiation also effectively induces electron–hole separation in the BiPO₄.^4,10,12 This can further improve the photocalytic activity of 15% Ag/Ag₃PO₄/BiPO₄ for the practical applications.

Fig. 4 (a) Photocatalytic activities of P25, BiPO₄, Ag/Ag₃PO₄, and 15% Ag/Ag₃PO₄/BiPO₄ for rhodamine B (RhB), methyl orange (MO), and MB degradation under solar irradiation (5 min) and (b) photocatalytic activities of 15% Ag/Ag₃PO₄/BiPO₄ for MB degradation in different environmental water samples under solar irradiation.

To further test the practicality of 15% Ag/Ag₃PO₄/BiPO₄, the photocatalytic performance was evaluated for MB degradation in environmental water samples under solar irradiation. Fig. 4(b) presents variations in the MB concentration (C/C₀) with the time of irradiation over 15% Ag/Ag₃PO₄/BiPO₄, where C₀ is the initial MB concentration and C is the MB concentration at time t. For all of the environmental water samples, in the presence of 15% Ag/Ag₃PO₄/BiPO₄, the MB concentration decreased with an increase in the reaction time, indicating that the as-prepared material is an active photocatalyst. A remarkable difference in MB degradation with time was observed for the pond water (within 5 min) than that for the seawater and industrial wastewater (within 20 min). This may be because anions or radical scavengers in the seawater and industrial wastewater samples reduced the photocatalytic activity of 15% Ag/Ag₃PO₄/BiPO₄. Further research on the high photocatalytic activity of other heterojunction BiPO₄ composites, such as those enwrapped by graphene oxide and carbon nanotubes, is now underway in our laboratory.^27–31

Next, to test the microorganism disinfection ability, the photocatalytic disinfection of 15% Ag/Ag₃PO₄/BiPO₄ was evaluated using the model waterborne pathogen E. coli. Fig. 5(a) presents plots of the variation in the E. coli colony forming units (n/n₀) with the irradiation time for the control and 15% Ag/Ag₃PO₄/BiPO₄, where n₀ is the initial E. coli colony forming units, and n is the E. coli colony forming units at time t. It shows that 90% E. coli removal occurred in the presence of 15% Ag/Ag₃PO₄/BiPO₄ under sunlight irradiation for 30 min. The bactericidal activity of the sample is also confirmed by the images of colonies incubated on an agar plate the control and 15% Ag/Ag₃PO₄/BiPO₄ under sunlight irradiation (image d and e in the Fig. 5). Interesting, 15% Ag/Ag₃PO₄/BiPO₄ also presents the intrinsic antibacterial activity in the dark condition for 30 min (about 40% E. coli cell removal, shown in the Fig. 5(a), image b and c in the Fig. 5). As we known, Ag-based composites are to be effective biocides against many bacteria.³¹ Thus, it is reasonable to suggest that the Ag/Ag₃PO₄/BiPO₄ could be used for the disinfection applications.

Fig. 5 (a) Photocatalytic disinfection activity of the control and 15% Ag/Ag₃PO₄/BiPO₄ for E. coli cells with and without solar irradiation. Each data point and error bar represents the mean and the standard errors (n = 3). Images of E. coli colonies on an agar plate under different conditions: (b) the control and (c) 15% Ag/Ag₃PO₄/BiPO₄ in the dark, (d) the control and (e) 15% Ag/Ag₃PO₄/BiPO₄ with solar irradiation for 30 min.

Photocatalytic mechanism

The higher separation efficiency and lower recombination rate of the photogenerated electrons and holes are the major factors that contribute to the increased photocatalytic activity of 15% Ag/Ag₃PO₄/BiPO₄. We proved our suggestions by conducting the following photocurrent and PL experiments.

First, the photocurrent responses of BiPO₄ and 15% Ag/Ag₃PO₄/BiPO₄ were measured to reflect the separation efficiency of the photogenerated electrons and holes. Uniform photocurrent responses to the light were detected (Fig. S6(a)†). In addition, the photocurrent response of 15% Ag/Ag₃PO₄/BiPO₄ was higher than that of BiPO₄ (three times), indicating enhanced separation of photogenerated electrons and holes. Moreover, a heterostructure was formed between Ag and Ag₃PO₄ nanoparticles. Such heterostructures can also improve the separation of photogenerated electrons and holes through the Schottky barrier effect, which is consistent with a previous study on electron transfer from a semiconductor to a metal.²⁰ Ag nanoparticles on the Ag₃PO₄ surface act as absorbents for electrons; this contributes to the interfacial charge transfer between the metal and semiconductor and to the separation of photogenerated electrons and holes, thus enhancing the photocatalytic activity.

The recombination of electron–hole pairs can release energy in the form of PL emission. A low electron–hole recombination rate implies a lower luminescence emission intensity and higher photocatalytic activity.⁹ Thus, to understand the recombination rates of the electron–hole pairs during photocatalysis using BiPO₄ and 15% Ag/Ag₃PO₄/BiPO₄, the PL emission spectra of the samples were measured at λ_ex = 250 nm (Fig. S6(b)†). The emission intensity of BiPO₄ was greater than that of 15% Ag/Ag₃PO₄/BiPO₄, indicating that the electron–hole pairs in BiPO₄ recombine rapidly. As mentioned earlier, the heterostructure interface between the BiPO₄ and Ag₃PO₄ nanoparticles had numerous defects that suppressed the recombination of photogenerated electrons and holes, resulting in increased photocatalytic activity.

Radical- and hole-trapping experiments were designed to elucidate the photocatalytic degradation process for 15% Ag/Ag₃PO₄/BiPO₄. Under irradiation, MB photodegradation was suppressed upon the addition of the hole scavenger disodium ethylenediamine tetraacetate (EDTA-2Na) but only slightly inhibited upon the addition of the radical scavenger tert-butyl alcohol (Fig. S7(a)†). These results indicate that a hole is the primary active species involved in the decomposition of the adsorbed organic pollutants. Therefore, holes play a crucial role in the Ag/Ag₃PO₄/BiPO₄ photocatalytic system. Hydroxyl radicals can be formed through the hole oxidation of OH⁻ or the reduction of O₂. The former route is controlled by the potential of the holes in the valence band.^32,33 The effect of using a N₂ atmosphere is shown in Fig. S7(b).† In an anoxic suspension, MB photodegradation decreased, which indicated that O₂ is also an essential source for the generation of superoxide species and hydroxyl radicals via photoreduction. To further confirm the existence of hydroxyl radicals, BiPO₄ and 15% Ag/Ag₃PO₄/BiPO₄ illuminated by Xe light were examined using the PL technique. The PL emission spectra, excited at 370 nm in the coumarin solution containing a suspension of BiPO₄ or 15% Ag/Ag₃PO₄/BiPO₄, were measured after each sample was illuminated for 15 min. Fig. S8† shows that a PL signal was observed at 516 nm for each sample. The maximum PL intensity was observed for 15% Ag/Ag₃PO₄/BiPO₄. This suggests that the fluorescence was due to chemical reactions of coumarin with hydroxyl radicals formed in the photocatalytic reactions.²² Hence, the hydroxyl radical is the indirect reactive oxidation species in the Ag/Ag₃PO₄/BiPO₄ samples and finally induces MB degradation.

On the basis of the aforementioned discussion, a possible mechanism for the increased photodegradation activity and stability of the Ag/Ag₃PO₄/BiPO₄ heterostructures is presented in Scheme 1. The conduction band (CB) and valence band (VB) positions in BiPO₄ and Ag/Ag₃PO₄ were calculated using the equation E_VB = X − E_e + 0.5 E_g, where X is the Mulliken electronegativity (X_Ag3PO4: 5.961 eV, X_BiPO4: 6.492 eV), E_e is the energy of free electrons on the hydrogen scale (≅4.5 eV), and E_g is the bandgap. The E_VB for the BiPO₄ and Ag₃PO₄ were thus estimated to be 4.032 and 2.486 eV, meanwhile the E_CB of them were −0.048 and 0.436 eV, respectively. The illumination energy of sunlight can be efficiently absorbed by Ag/Ag₃PO₄/BiPO₄. The electron in the VB can be excited to the CB with simultaneous generation of the same amount of holes in the VB. Because the energy position of the CB of the Ag₃PO₄ is lower than that of the BiPO₄, Ag/Ag₃PO₄/BiPO₄ heterostructures would produce an interface. Therefore, the generated electrons in CB are limited to immigrate from BiPO₄ (electronic barrier) to Ag₃PO₄ (electronic potential well). The generated electron from Ag₃PO₄ and BiPO₄ can be quickly reacted with water and oxygen for the generation of superoxide species. However, superoxide specie is not the primary active species in the decomposition of the adsorbed organic pollutants. The energy level of the VB of the Ag₃PO₄ is higher than that of the BiPO₄; the generated holes in VB are thus immigrated from BiPO₄ to Ag₃PO₄ in the Ag/Ag₃PO₄/BiPO₄ heterostructures, whereas the accumulated holes on Ag₃PO₄ to oxidize organic substances. Therefore, Ag/Ag₃PO₄/BiPO₄ suppresses the recombination of electron–hole pairs because of the heterostructure interface. In addition, Ag nanoparticles on the Ag₃PO₄ surface also act as electron acceptors, thus contributing to the separation of photogenerated electron–hole pairs. These two factors enhance the production of active holes and hydroxyl radicals, which decompose MB. Furthermore, excess electrons favor the presence of Ag nanoparticles that also decrease the reduction of Ag⁺ of the Ag₃PO₄ photocatalyst, thus increasing the stability of the photocatalyst.^20,24

Scheme 1 Proposed mechanism for the MB photocatalytic degradation catalyzed by Ag/Ag₃PO₄/BiPO₄.

This novel Ag/AgP₃O₄/BiPO₄ photocatalyst possesses several attractive features when compared with different Ag/Ag₃PO₄/BiPO₄-based heterostructures (Table 2): (1) facile and simplicity—sophisticated preparation process is not required; (2) high stability and photocatalytic performance—95% photocatalytic degradation of various organic dyes (MB, RhB, and MO) is observed within 5 min; (3) practicality—the sunlight induced photocatalytic degradation of dyes in the complicated samples (seawater, pond water, and industrial wastewater samples) and disinfection of E. coli cells are possible. Further application research using this novel Ag/AgP₃O₄/BiPO₄ photocatalyst, such as water purification and direct methanol fuel cells, is now underway in our laboratory.

Table 2 Comparing photocatalytic properties, stability, and practicality applications for different Ag/Ag₃PO₄/BiPO₄-based heterostructures

Photocatalyst	Synthesis method	Photocatalytic activity (λ > 420 nm)	Sunlight irradiation	Stability	Degradation target	Environmental water samples	Ref.
a Not provided.b Mercury lamp with main emission wavelength 313 nm.
BiPO4@Ag3PO4	Hydrothermal process and ion-exchange method	95% degradation (0.05 g photocatalyst/20 ppm RhB) within 60 min (500 W)	95% degradation (0.05 g photocatalyst/20 ppm RhB) within 40 min	—^a	RhB	—^a	19
Ag/Ag3PO4/BiPO4	Low temperature chemical bath method	98% degradation (0.1 g photocatalyst/10 ppm RhB) within 60 min (300 W)	—^a	—^a	RhB	—^a	20
Ag3PO4/BiPO4	Co-precipitation hydrothermal method	97% degradation (0.1 g photocatalyst/10 ppm MO) within 30 min (500 W)	—^a	3 recycling	MO	—^a	21
BiPO4/Ag	Sonochemical synthesis	100% degradation (0.03 g photocatalyst/9.6 ppm RhB) within 120 min (150 W)	—^a	5 recycling	RhB	—^a	25
Ag/BiPO4	Hydrothermal and impregnation processes	90% degradation (0.05 g photocatalyst/3.2 ppm MB) within 20 min (500 W)^b	—^a	5 recycling	MB	—^a	26
Ag/Ag3PO4/BiPO4	Hydrothermal and impregnation processes	95% degradation (0.2 g photocatalyst/5 ppm MB) within 15 min (150 W)	95% degradation (0.2 g photocatalyst/5 ppm MB) within 5 min	5 recycling	MB, RhB, MO, E. coli cell	Seawater, pond water, industrial wastewater samples	This study

---

Conclusions

Ag/Ag₃PO₄/BiPO₄, with controllable morphology and phases, was prepared using a hydrothermal process combined with an impregnation technique, and 15% Ag/Ag₃PO₄/BiPO₄ exhibited the highest photocatalytic activities for MB degradation under visible light (15 min) and solar (5 min) irradiation. The high photocatalytic activity and stability of 15% Ag/Ag₃PO_4/BiPO₄ were primarily attributed to the high separation efficiency and low recombination of electron–hole pairs. The practicality of 15% Ag/Ag₃PO₄/BiPO₄ was validated according to its ability to degrade MB in environmental water samples, demonstrating its photocatalytic activity. Moreover, 15% Ag/AgP₃O₄/BiPO₄ also showed sunlight-induced photocatalytic disinfection activity toward E. coli cells. Therefore, this study not only presents a possible mechanism of the photocatalytic activity of the Ag/AgP₃O₄/BiPO₄ photocatalysts, but also provides evidences for the recyclability and potential for the practical applications of Ag/AgP₃O₄/BiPO₄ photocatalyst for the treatment of contaminated wastewater and the environmental water samples.

Acknowledgements

This study was supported by the Ministry of Science and Technology under contract (MOST 101-2113-M-018-001-MY2). We would like to thank anonymous reviewers and the editor for their comments. We thank Wallace Academic Editing for the English language editing.

Notes and references

1. N. N. Mahamuni and Y. G. Adewuyi, Ultrason. Sonochem., 2010, 17, 990–1003.
2. X. Chen, S. Shen, L. Guo and S. S. Mao, Chem. Rev., 2010, 110, 6503–6570.
3. A. Fujishima, X. Zhang and D. A. Tryk, Surf. Sci. Rep., 2008, 63, 515–582.
4. C. Pan and Y. Zhu, Environ. Sci. Technol., 2010, 44, 5570–5574.
5. M. Muruganandham, R. P. S. Suri, M. Sillanpaa, J. J. Wu, B. Ahmmad, S. Balachandran and M. Swaminathan, J. Nanosci. Nanotechnol., 2014, 14, 1898–1910.
6. S. T. Huang, Y. R. Jiang, S. Y. Chou, Y. M. Dai and C. C. Chen, J. Mol. Catal. A: Chem., 2014, 391, 105–120.
7. Y. Sang, L. Kuai, C. Y. Chen, Z. Fang and B. Y. Geng, ACS Appl. Mater. Interfaces, 2014, 6, 5061–5068.
8. J. J. Sun, X. Y. Li, Q. D. Zhao, J. Ke and D. K. Zhang, J. Phys. Chem. C, 2014, 118, 10113–10121.
9. S. Y. Wu, H. Zheng, Y. W. Lian and Y. Y. Wu, Mater. Res. Bull., 2013, 48, 2901–2907.
10. L.-W. Cheng, J.-C. Tsai, T.-Y. Huang, C.-W. Huang, B. Unnikrishnan and Y.-W. Lin, Mater. Res. Express, 2014, 1, 025023.
11. Y. Y. Zhu, Y. F. Liu, Y. H. Lu, H. Wang, Q. Ling and Y. F. Zhu, Acta Phys.–Chim. Sin., 2013, 29, 576–584.
12. C. Pan, J. Xu, Y. Chen and Y. Zhu, Appl. Catal., B, 2012, 115–116, 314–319.
13. C. S. Pan, D. Li, X. G. Ma, Y. Chen and Y. F. Zhu, Catal. Sci. Technol., 2011, 1, 1399–1405.
14. S. Kumar, T. Surendar and V. Shanker, Mater. Lett., 2014, 123, 172–175.
15. X. Z. Li, K. L. Wu, C. Dong, S. H. Xia, Y. Ye and X. W. Wei, Mater. Lett., 2014, 130, 97–100.
16. J. H. Liu, X. Li, F. Liu, L. H. Lu, L. Xu, L. W. Liu, W. Chen, L. M. Duan and Z. R. Liu, Catal. Commun., 2014, 46, 138–141.
17. L. Luo, Y. Z. Li, J. T. Hou and Y. Yang, Appl. Surf. Sci., 2014, 319, 332–338.
18. X. L. Ma, H. H. Li, Y. H. Wang, H. Li, B. Liu, S. Yin and T. Sato, Appl. Catal., B, 2014, 158, 314–320.
19. Y. L. Ren, X. Y. Li and Q. D. Zhao, Chem. J. Chin. Univ., 2014, 35, 2435–2441.
20. Y. H. Lv, K. Huang, W. Zhang, B. Yang, F. L. Chi, S. L. Ran and X. G. Liu, Ceram. Int., 2014, 40, 8087–8092.
21. H. L. Lin, H. F. Ye, B. Y. Xu, J. Cao and S. F. Chen, Catal. Commun., 2013, 37, 55–59.
22. K.-I. Ishibashi, A. Fujishima, T. Watanabe and K. Hashimoto, Electrochem. Commun., 2000, 2, 207–210.
23. Y. P. Liu, L. Fang, H. D. Lu, Y. W. Li, C. Z. Hu and H. G. Yu, Appl. Catal., B, 2012, 115, 245–252.
24. W. Teng, X. Y. Li, Q. D. Zhao, J. J. Zhao and D. K. Zhang, Appl. Catal., B, 2012, 125, 538–545.
25. M. H. Fulekar, A. Singh, D. P. Dutta, M. Roy, A. Ballal and A. K. Tyagi, RSC Adv., 2014, 4, 10097–10107.
26. Y. N. Zhang, H. Q. Fan, M. M. Li and H. L. Tian, Dalton Trans., 2013, 13172–13178.
27. Z. L. Ai, Y. Z. Wu, X. P. Hao, Q. F. Lu and S. W. Liu, Mater. Res. Bull., 2014, 59, 192–198.
28. B. Chai, J. Li and Q. Xu, Ind. Eng. Chem. Res., 2014, 53, 8744–8752.
29. C. Cui, Y. P. Wang, D. Y. Liang, W. Cui, H. H. Hu, B. Q. Lu, S. Xu, X. Y. Li, C. Wang and Y. Yang, Appl. Catal., B, 2014, 158, 150–160.
30. B. Liu, Z. Y. Li, S. Xu, D. D. Han and D. Y. Lu, J. Alloys Compd., 2014, 596, 19–24.
31. L. Liu, J. C. Liu and D. D. Sun, Catal. Sci. Technol., 2012, 2, 2525–2532.
32. S. Zheng, W. J. Jiang, Y. Cai, D. D. Dionysiou and K. E. O'Shea, Catal. Today, 2014, 224, 83–88.
33. S. Zheng, W. J. Jiang, M. Rashid, Y. Cai, D. D. Dionysiou and K. E. O'Shea, Molecules, 2015, 20, 2622–2635.

---

Footnote

† Electronic supplementary information (ESI) available: Fig. S1. Molecular structures of MB, RhB, and MO. Fig. S2. (a) Raman and (b) FTIR spectra of as-prepared BiPO₄, Ag/Ag₃PO₄/BiPO₄, and Ag/Ag₃PO₄. Fig. S3. XPS spectra of as-prepared Ag/Ag₃PO₄/BiPO₄. Fig. S4. Temporal evolution of the spectral change upon MB degradation over (a) BiPO₄ and (b) 15% Ag/Ag₃PO₄/BiPO₄. Fig. S5. (a) Cycling runs of MB photocatalytic degradation in the presence of 15% Ag/Ag₃PO₄/BiPO₄ products and (b) XRD pattern for 15% Ag/Ag₃PO₄/BiPO₄ after being used for five reaction cycles. Fig. S6. (a) Photocurrents and (b) PL spectra measured at λ_ex = 250 nm of BiPO₄ and 15% Ag/Ag₃PO₄/BiPO₄. Fig. S7. (a) Plots of photogenerated carrier trapping for MB photodegradation catalyzed by 15% Ag/Ag₃PO₄/BiPO₄. (b) Effect of O₂ and N₂ on MB photocatalytic degradation in the presence of 15% Ag/Ag₃PO₄/BiPO₄. Fig. S8. PL spectra of BiPO₄ and 15% Ag/Ag₃PO₄/BiPO₄ in coumarin solution measured at λ_ex = 370 nm (each sample was illuminated for 15 min under visible light). See DOI: 10.1039/c5ra07101a

---
