DOI: 10.1039/C5RA05937B (Paper) RSC Adv., 2015, 5, 47592-47598

Underwater superoleophobic meshes fabricated by poly(sulfobetaine)/polydopamine co-deposition†

Peng-Fei Ren, Hao-Cheng Yang, Yi-Ning Jin, Hong-Qing Liang, Ling-Shu Wan* and Zhi-Kang Xu*
MOE Key Laboratory of Macromolecular Synthesis and Functionalization, Department of Polymer Science and Engineering, Zhejiang University, Hangzhou, 310027, China. E-mail: xuzk@zju.edu.cn

Received 3rd April 2015 , Accepted 12th May 2015

First published on 12th May 2015

Abstract

Porous meshes with superhydrophilicity and underwater superoleophobicity have attracted much attention for oil/water separation. In this work, poly(sulfobetaine methacrylate) (PSBMA), was co-deposited with polydopamine (PDA) to cover steel meshes and to endow them with characteristics for oil/water separation. Compared with PDA-modified meshes, the oil contact angle increases to 158.6 ± 8.0° and the sliding angle decreases to 3.9° for the PSBMA/PDA-modified ones, indicating superoleophobic behaviour underwater and ultra-low adhesive properties towards oil. These results are mainly attributed to the superhydrophilicity of PSBMA and the highly rough surface morphology in micro-nanoscale introduced during the co-deposition process. The PSBMA/PDA-modified meshes show excellent performance in gravity-driven oil/water separation. They are stable towards organic solvent treatment, and retain the wettability in sea water for a long time. This one-step PSBMA/PDA co-deposition method provides a convenient and effective approach to modify porous materials with underwater superoleophobicity for oil/water separation.

1. Introduction

In recent years, oil spill accidents have occasionally happened, with catastrophic consequences for the marine environment.1,2 There is a growing demand for technologies that can separate oil and water selectively and effectively during oily wastewater treatment. Materials with surperwetting properties are deemed as one of the most promising solutions to this problem. Both superhydrophobic and superhydrophilc (underwater superoleophobic at the same time) materials can be applied for oil/water separation. In the former case, the oil passes through hydrophobic pores and water is retained.3–5 However, the main problem is oil pollution caused by oleophilicity in the presence of water, which makes the oil hard to remove and leads to secondary pollution, thus greatly affecting the flux.6 In addition, it is unsuitable for gravity-driven oil/water separation due to the low density of most oil over water. The concept of underwater low-oil-adhesion superoleophobicity has been introduced to fabricate novel oil/water separation materials due to their affinity to water and blocking to oil. It is inspired by fish scales which can keep their surfaces clean in oil-polluted water.7 A hydrophilic surface with micro-nano hierarchical structures allows water being trapped at the interface, serving as a barrier for repelling oil drops. Following this idea, Jiang and co-workers fabricated a hydrophilic hydrogel coating with underwater superoleophobic property to separate water from an oil/water mixture.8 Since then, various superhydrophilic and underwater superoleophobic surfaces have been proposed, based on the same principle.9–12 Hydrophilicity and rough surface morphology are two key factors in fabricating an underwater superoleophobic surface. Hydrophilic polymers are considered the most attractive materials, due to their superior wettability and excellent flexibility for coating fabrication.13 Polyacrylamide8 and polyethylene glycol14–16 have been widely used, which can bind with water molecules via hydrogen bonds. However, the hydrogen bonds are generally not stable, which may affect the stability of the hydration layer and its application in practical use.17,18 Zwitterionic polymers provide us with an alternative choice, as they can be strongly hydrated via the ion–ion or ion–dipole bonding with water molecules.19,20 They have been widely studied as antifouling materials to resist protein/bacteria adsorption for biomedical applications.21–24 Zwitterionic polymers are now an attractive alternative to become a new generation of coating in oil/water separation. Zhu et al. fabricated poly(sulfobetaine meth-acrylate) (PSBMA), a zwitterionic polymer, on poly(vinylidene fluoride) membranes via a surface-initiated atom transfer radical polymerization technique for separating oil from water effectively.25 However, there is a need for simplification of the multi-step procedure and to overcome the choice limitation of porous materials. Polydopamine (PDA), generally known for its universal adhesion with flexibility of coating formation, can be used to decorate various forms of substrates such as sponges, microfiltration membranes and meshes.26–30 Recently, we reported a PDA-assisted PSBMA deposition method to decorate polypropylene microfiltration membranes to realize resisting protein adsorption.31 It is reasonable for one to envisage that this method has great potential for constructing underwater superoleophobic and ultra-low adhesive surfaces on materials to separate oil/water mixtures.

Materials in various forms, such as membranes,32,33 powders,34 sponges35,36 and meshes,37,38 have been modified and proposed for the separation of oil/water mixtures. Among them, metallic meshes, especially stainless steel and copper meshes, are two-dimensional pore-structured materials, which provide the most appealing substrates for the studied aims.39 This is mainly due to their regular and rough morphology and furthermore the modified meshes can realize the gravity driven oil/water separation. Since a spray-and-dry method reported by Feng et al. in 2004,40 various approaches, such as physical modification, layer-by-layer assembly, polymer grafting and chemical-based oxidation, were employed to fabricate superhydrophobic or superoleophilic oil/water separation meshes.41–45

Here, stainless steel meshes were used as a model substrate and we report a facile method to endow them with underwater low-oil-adhesion superoleophobicity by simply co-depositing PSBMA and PDA (Fig. 1). We explored the reasons for low-oil-adhesion of PSBMA/PDA-modified meshes and studied the effects of PSBMA/dopamine (DA) ratio in the deposition solution on the performance of our mashes. Furthermore, the meshes were applied in a gravity-driven oil/water separation.


image file: c5ra05937b-f1.tif

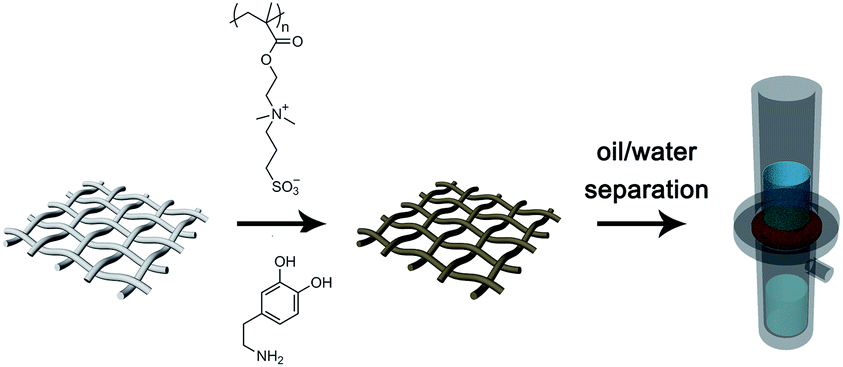

Fig. 1 Schematic representation of the surface modification of a stainless steel mesh by immersion in a PSBMA/DA solution and its application in oil/water separation.

2. Experimental section

2.1 Materials

Stainless steel meshes (1/300 in pore size) were purchased from Xing-An mesh manufacturer (China) and washed with acetone overnight before use. Dopamine hydrochloride and N-(3-sulfopropyl)-N-(methacryloxyethyl)-N,N-dimethyl ammonium betaine (sulfobetaine methacrylate, SBMA, 97%) was obtained from Sigma-Aldrich (USA) and used without further purification. PSBMA was synthesized by free radical polymerization according to our previous work.31 It was further characterized by NMR (Fig. S1 in ESI.† 1H NMR (400 MHz, D2O, δ): 4.43 (2H, peak c), 3.74 (2H, peak d), 3.52 (2H, peak f), 3.16 (6H, peak e), 2.90 (2H, peak h), 2.20 (2H, peak g), 1.93 (2H, peak b), 0.93–1.20 (3H, peak a)) and GPC (Table S1 in ESI†). Other reagents, such as tris(hydroxymethyl) amino-methane, 1,2-dichloroethane and hexane were procured from Sinopharm Chemical Reagent Co., Ltd (China) and used as received.

2.2 Co-deposition of PSBMA and PDA on the meshes

DA and PSBMA mixtures were dissolved in Tris buffer (pH 8.5, 50 mM). The DA concentration was kept at 2 mg mL−1 and the ratio of PSBMA/DA varied from 0[thin space (1/6-em)]:[thin space (1/6-em)]1 to 1[thin space (1/6-em)]:[thin space (1/6-em)]1, 5[thin space (1/6-em)]:[thin space (1/6-em)]1 and 10[thin space (1/6-em)]:[thin space (1/6-em)]1 to prepare a series of reaction solutions. The mesh samples were directly immersed in the freshly prepared solution, and shaken for 18 h at 25 °C. Then, the samples were washed three times with deionized water, and dried in a vacuum at 40 °C overnight.

2.3 Characterization and measurement

Chemical composition of the mesh surfaces was analysed by X-ray photoelectron spectroscopy (XPS). It was performed on a spectrometer (PerkinElmer, USA) with Al Kα excitation radiation (1486.6 eV). Field emission scanning electron microscopy (FESEM, Hitachi S-4800, Japan) was used to characterize the surface morphology of the meshes. Samples were spurted with Au for 1 min before FESEM observation. Surface wettability of the meshes was obtained by measuring oil contact angle (OCA) and sliding angle (SA). Both static and dynamic contact angles were detected using a DropMeter A-200 contact angle system (MAIST VisionInspection & Measurement Co. Ltd., China). Oily drop was set at 5 μL and the angle values were averaged from three measurements.

2.4 Oil/water separation experiment

One of the as-prepared meshes were first immersed in water for 10 min and fixed between two O-rings. A mixture of water and hexane (50% v/v) was poured immediately down the top glass tube. The permeated liquid was then collected. The driving force for the separation was the gravity of the solution itself.

2.5 Stability of the PSBMA/PDA-modified coating

To investigate the stability of the PSBMA/PDA co-deposited coating, the modified meshes were rinsed with organic solvent, deionized water and sea water in a shaken bath at 25 °C under 150 rpm. The samples were then taken out, dried, and the underwater OCAs were measured once for every period of time. The organic solvents used were water-soluble, including ethanol, N,N-dimethyl-formamide (DMF), N-methyl-2-pyrrolidone (NMP) and acetone. The samples were washed for 24 h. The test for salt stability was conducted in sea water and continued until 7 days.

3. Results and discussion

3.1 Surface composition and morphology of the PSBMA/PDA-modified meshes

It is well known that surface wetting behaviour is mainly related to two crucial factors, i.e. hierarchical micro- and nanostructures and surface composition. In our previous work, we found that the PSBMA concentration significantly affects the deposition density of PSBMA/PDA on polypropylene microfiltration membrane, resulting in controllable membrane surface properties.31 Herein, different ratios of PSBMA/DA, i.e. 1[thin space (1/6-em)]:[thin space (1/6-em)]0 to 0[thin space (1/6-em)]:[thin space (1/6-em)]1, 1[thin space (1/6-em)]:[thin space (1/6-em)]1, 5[thin space (1/6-em)]:[thin space (1/6-em)]1 and 10[thin space (1/6-em)]:[thin space (1/6-em)]1, were chosen to investigate the influence of PSBMA. The mesh surfaces were characterized by XPS and FESEM, respectively.

XPS spectra in Fig. 2 and chemical composition in Table 1 confirm the formation of PSBMA/PDA co-deposited coatings on the mesh surfaces. For a PDA-modified mesh (Fig. 2a), the major peaks at 284.6 eV, 401.0 eV and 534.0 eV are ascribed to the binding energy of C1s, N1s and O1s respectively. When PSBMA is introduced for co-deposition (Fig. 2b–d), an additional peak appears at 169.0 eV for S2p. The content of sulfur element rises gradually with the feed ratio of PSBMA/DA as shown in Table 1. The molar ratio of S/N can be used to analyse the relative content of PSBMA and DA on the mesh surfaces. PSBMA on the mesh surface is 22% when the PSBMA/DA feed ratio is 1[thin space (1/6-em)]:[thin space (1/6-em)]1, and increases alongside with the ratio. However, the increased content is slight for a 10[thin space (1/6-em)]:[thin space (1/6-em)]1 ratio, compared with a 5[thin space (1/6-em)]:[thin space (1/6-em)]1 ratio. It indicates that further addition of PSBMA is not beneficial for the PDA-assisted deposition of PSBMA on the mesh surfaces.


image file: c5ra05937b-f2.tif

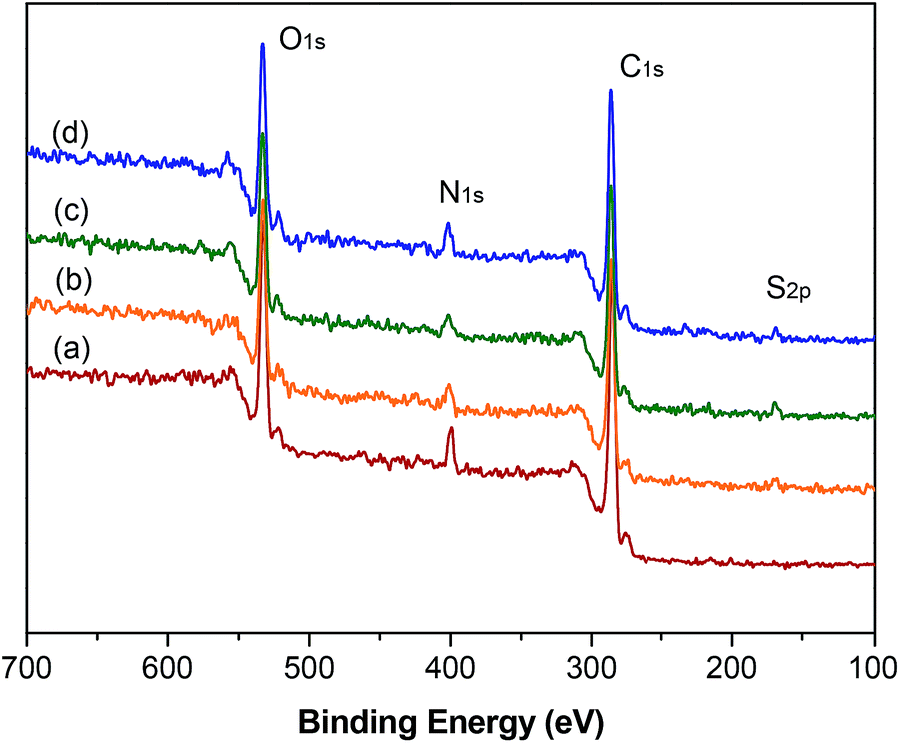

Fig. 2 XPS spectra of (a) PDA-modified mesh and PSBMA/PDA-modified meshes with PSBMA/DA ratios of (b) 1[thin space (1/6-em)]:[thin space (1/6-em)]1, (c) 5[thin space (1/6-em)]:[thin space (1/6-em)]1 and (d) 10[thin space (1/6-em)]:[thin space (1/6-em)]1, respectively.
Table 1 Chemical composition of the modified meshes from XPS spectra (in at%)
  C1s (%) O1s (%) N1s (%) S2p (%) S/N
a 70.4 23.1 6.8 0 0
b 68.9 24.2 5.7 1.3 0.22
c 68.6 24.2 5.5 1.6 0.29
d 69.5 23.6 5.3 1.6 0.30

Fig. 3 shows typical FESEM images of steel meshes with an average diameter of approximately 40.7 μm. The nascent mesh shows a smooth surface (Fig. 3a). The mesh surface is covered by PDA particles after an 18 h deposition in a pure DA solution (Fig. 3b). The particle number further increases when PSBMA is added (Fig. 3c and f). The mesh surface thus becomes much rougher than the PDA-modified one. This roughness here mainly results from the particles size and number. We further measured the particle size in solutions for co-deposition (Fig. S2 in ESI†), as the particles size is similar with those on the mesh surfaces. For the mesh surface deposited by pure PDA, the particles are self-aggregated as large as 12.8 ± 4.7 μm (Fig. S2a in ESI†). However, they are too large to be stable on the mesh surface and can be easily washed away. The particle size decreases significantly with the addition of PSBMA (Fig. S2b in ESI†). Our previous work has demonstrated the non-covalent interactions between PSBMA and DA.31 In an alkaline solution, the phenol groups of DA are deprotonated and may interact with the quaternary ammonium of PSBMA via local electrostatic interactions. Therefore, the incorporation of PSBMA will weaken the non-covalent interaction among DA molecules,33 which prevents from large PDA particles on the mesh surface (Fig. 3f). The numbers and diameters of the particles decrease further with increasing the PSBMA/DA ratio in the solution (Fig. S2c and d in ESI†). This phenomenon illustrates that the self-aggregation of polydopamine is suppressed and the roughness of the mesh surface decreases slightly (Fig. 3d and e). No matter how the surface morphology changes, the pore size remains constant because the deposited PSBMA/PDA coating is thin enough.


image file: c5ra05937b-f3.tif

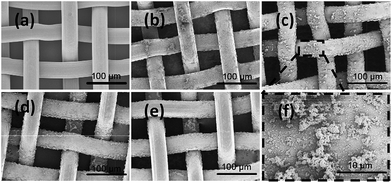

Fig. 3 Typical FESEM graphs of the studied meshes: (a) nascent, (b) PDA-modified, PSBMA/PDA-modified with PSBMA/DA ratios of (c) 1[thin space (1/6-em)]:[thin space (1/6-em)]1, (d) 5[thin space (1/6-em)]:[thin space (1/6-em)]1, and (e) 10[thin space (1/6-em)]:[thin space (1/6-em)]1. (f) enlarged image of (c).

3.2 Wettability of the PSBMA/PDA-modified meshes

It is expected that the as-modified meshes realize superhydrophilc behaviours underwater by combining the micro-/nanoscale rough structures with the superior hydrophility of PSBMA. The superoleophobicity of the mesh surface was evaluated by contact angle measurement using 1,2-dichloroethane as a model oil. A 5 μL oil droplet was suspended on the micro-syringe tip and slowly lowered to reach the mesh surface. OCA on the studied mesh surfaces is shown in Fig. 4a. It is about 137.6 ± 3.2° on the nascent mesh surface underwater, which indicates not an underwater superhydrophobic surface.
image file: c5ra05937b-f4.tif
Fig. 4 (a) Underwater OCAs of the studied meshes modified with different ratio of PSBMA/DA for co-deposition. Photographs of the dynamic underwater oil-adhesion measurements and the sliding behaviour on (b) PDA-modified and (c) PSBMA/PDA-modified meshes.

After PDA deposition, the oil droplet is difficult to be transferred to the mesh surface and must be forced to fall off for an accurate measurement of OCA. The OCA increases to 147.2 ± 4.8° on the PDA-modified mesh surface. It further increases to 158.6 ± 8.0° when PSBMA is co-deposited with DA at 1[thin space (1/6-em)]:[thin space (1/6-em)]1 ratio. This means underwater superoleophobicity (OCA > 150°) is achieved on the PSBMA/PDA-modified meshes, due to the strong hydration of PSBMA combining with the high roughness of the mesh surface. However, the OCA no longer increases with further increase of the ratio of PSBMA/DA, because the mesh surface becomes smooth. Therefore, we finally adopt 1[thin space (1/6-em)]:[thin space (1/6-em)]1 as an optimized PSBMA/DA mass ratio for the surface modification of stainless steel meshes by co-deposition. The underwater superoleophobicity can also be confirmed by dynamic underwater oil-adhesion measurements and sliding behaviour of the oil droplet on the mesh surface (Fig. 4b and c). A 5 μL oil droplet was lowered to point of contact with the surface, and then left. The oil-adhesion behaviours were captured by camera set at continuous mode. Although the OCA approaches 150°, the PDA-modified mesh exhibits high adhesion with oil as shown in Fig. 4b. The oil droplet is stretched to deformation after the syringe is lifted up, even though it is slightly pushed downward. Besides, the oil droplet hardly rolls off the surface until the mesh is sloped to 28.9°. Compared with the PDA-modified mesh, the behaviour of PSBMA/PDA-modified one is much different (Fig. 4c). The oil droplet can leave the surface more easily and there is almost no deformation to happen, even the oil droplet is squeezed against the surface with high preload. Moreover, the oil droplet can easily roll off from the PSBMA/PDA-modified surface (SA = ∼3.9°).

Our PSBMA/PDA-modified mesh also has excellent underwater superoleophobicity towards various oils, including diesel, gasoline, hexane, and petroleum ether. Fig. 5 shows the underwater OCAs for a selection of oils, and the typical photographs of oil droplets on the mesh surface are shown as the insets. The OCAs are all over 150°, which is similar to the result of 1,2-dichloroethane.


image file: c5ra05937b-f5.tif

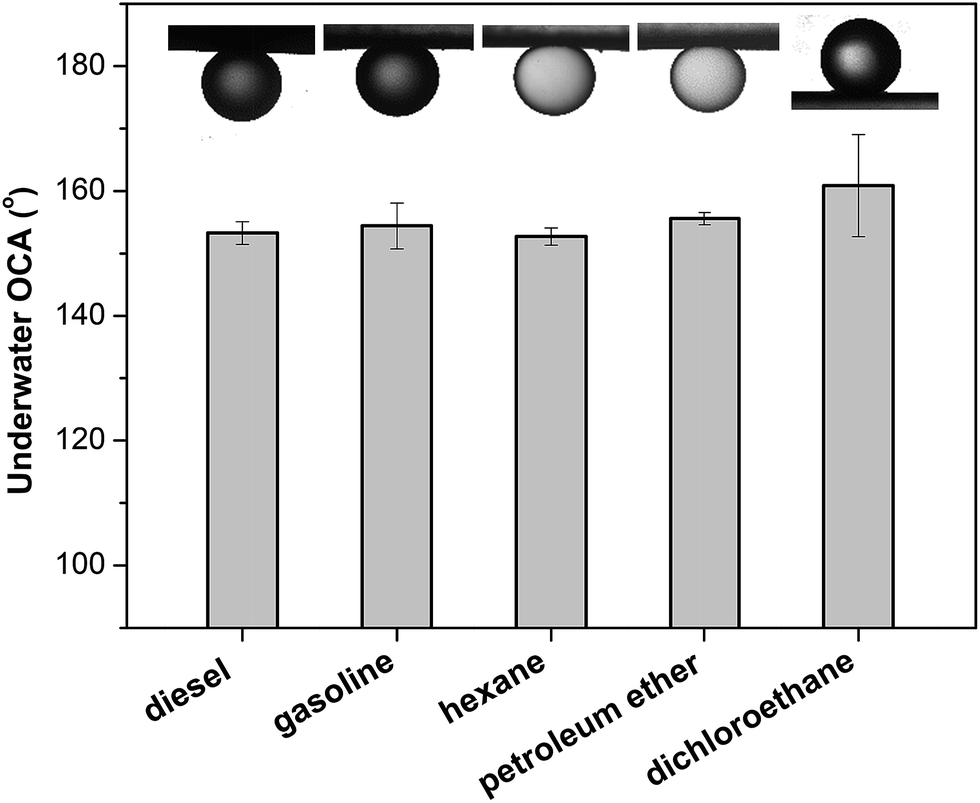

Fig. 5 Underwater superoleophobicity of the PSBMA/PDA-modified mesh for different oils.

All the results are serving as strong proof to illustrate the ultra-low oil adhesion underwater of the PSBMA/PDA-modified mesh. As we know, PDA can interact with oil via hydrophobic interactions due to the phenol groups on the coating surface. However, PSBMA is a superhydrophilic polymer and water molecules are bonded tightly via electrostatic interactions, which form a more stable hydration layer at the oil/solid interface than PDA. It serves as a natural barrier towards oil immersion, endowing the mesh surface with excellent superoleophobicity underwater according to the theory developed by Jiang and coworkers.8 The coating roughness of PSBMA/PDA also makes some contribution to this high oil-repellency.

3.3 Separation of oil and water

The PSBMA/PDA-modified meshes with excellent low adhesion property have great potential in oil/water separation process. Typical measurements were performed as shown in Fig. 6a. Hexane (dyed with methyl red) was used as a model oil and the oil/water mixture (50% v/v) was poured onto the mesh. Water with high density can selectively penetrate through the mesh, while oil is blocked. The oil content in the filtrate is 3.75 ± 0.27 ppm, which was measured using a total organic carbon analyser (TOC). Therefore, the separation efficiency is over 99.9%. This is mainly due to the underwater superoleophobicity and low oil-adhesion property of the as-prepared mesh. The modified mesh can be reused after a washing process, and benefited from its super-oil-repellency. As shown in Fig. 6b, the oil on the mesh surface can be easily washed away. The surface retained its original property after being used several times. A video illustrating the washing process is provided as ESI, Movie S1.†
image file: c5ra05937b-f6.tif

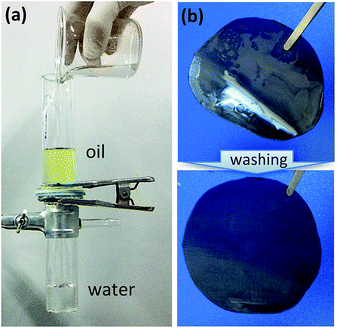

Fig. 6 Photographs for (a) oil/water separation and (b) washing process of the PSBMA/PDA-modified mesh.

3.4 Stability of the PSBMA/PDA coating

It is important to sustain the underwater superoleophobicity during practical applications. Therefore, the stabilities of PSBMA/PDA coating were examined by washing the modified meshes in various organic solutions and sea water at 25 °C for different periods (Fig. 7). As mentioned previously, the PSBMA/PDA coating has high oil-repellency of water–insoluble organic solvent. Herein, we adopted four water–soluble organic solvents for stability measurement. As shown in Fig. 7a, the PSBMA/PDA-modified meshes retain the low oil-adhesion after washing for 24 h. The coating is also stable under long-term washing with deionized water. In general, metal ions can chelate with the phenol groups in PDA, which play central roles in the adhesion of PDA on meshes.30 In our work, the PSBMA is only 22% in the coating. Therefore, the coating has shown good stability, which is similar to that of PDA coating. More appealing, the underwater OCAs remain unchanged during the whole experiment, even after the meshes were continuously subjected to sea water for 7 days (Fig. 7b). It is generally known that the intra- or inter-chain associations of the charges in PSBMA moieties will be shielded in the presence of inorganic salts, such as sodium chloride. PSBMA will turn to a more extended molecular conformation in this case. It is called the “anti-polyelectrolyte effect”.46,47 However, the PSBMA moieties are anchored in the PDA coating in our cases and cannot be washed away until PDA coating is dissolved. The “anchor” effect between PSBMA and PDA ensures the modified meshes with excellent stability under sea water.
image file: c5ra05937b-f7.tif
Fig. 7 (a) Solvent and (b) salt stabilities of PSBMA/PDA-modified meshes.

The mechanical durability of the coating is also a key issue for practical application. Therefore, a tear test with an adhesive tape was conducted according to a procedure described by Wang et al.48 to detect the mechanical stability of the PSBMA/PDA coating. After 30-cycle test, the underwater OCA is only slightly decreased and still higher than 150° (Fig. 8). The results indicate the PSBMA/PDA coating has good mechanical durability, which is promising for use in environmental and energy applications.


image file: c5ra05937b-f8.tif
Fig. 8 Underwater OCAs of the PSBMA/PDA-modified mesh repeatedly torn by adhesive tape. The insets show the process of the tear test: (a) a piece of PSBMA/PDA-modified mesh; (b) the mesh peeled off the adhesive tape.

4. Conclusions

In conclusion, we used a convenient and facile method of PSBMA/PDA co-deposition to endow stainless steel meshes with underwater superoleophobicity and ultra-low adhesion towards oil. These results are derived from the combination of the superhydrophilicity of PSBMA with the rough surface morphology in micro-nanoscale introduced during the co-deposition process. The meshes prove to be selective and effective in separating water from oil/water mixture. The oily residues can be washed away easily, ensuring the reusability of the prepared meshes. Furthermore, the wettability can be retained towards organic solvents and sea water treatment. As PDA is able to decorate various materials, this work provides a universal method for underwater superoleophobic materials fabrication and application, especially in oily wastewater treatment.

Acknowledgements

The authors are thankful for the financial support to this work by the Zhejiang Provincial Natural Science Foundation of China (grant no. LZ15E030001) and the National Natural Science Foundation of China (grant no. 50933006).

Notes and references

  1. J. Zhang and S. Seeger, Adv. Funct. Mater., 2011, 21, 4699–4704 CrossRef CAS PubMed.
  2. N. Liu, Y. Chen, F. Lu, Y. Cao, Z. Xue, K. Li, L. Feng and Y. Wei, ChemPhysChem, 2013, 14, 3489–3494 CrossRef CAS PubMed.
  3. J. Song, S. Huang, Y. Lu, X. Bu, J. E. Mates, A. Ghosh, R. Ganguly, C. J. Carmalt, I. P. Parkin, W. Xu and C. M. Megaridis, ACS Appl. Mater. Interfaces, 2014, 6, 19858–19865 CAS.
  4. Y. Cao, X. Zhang, L. Tao, K. Li, Z. Xue, L. Feng and Y. Wei, ACS Appl. Mater. Interfaces, 2013, 5, 4438–4442 CAS.
  5. C. Dai, N. Liu, Y. Cao, Y. Chen, F. Lu and L. Feng, Soft Matter, 2014, 10, 8116–8121 RSC.
  6. Y. Chen, Z. Xue, N. Liu, F. Lu, Y. Cao, Z. Sun and L. Feng, RSC Adv., 2014, 4, 11447–11450 RSC.
  7. M. Liu, S. Wang, Z. Wei, Y. Song and L. Jiang, Adv. Mater., 2009, 21, 665–669 CrossRef CAS PubMed.
  8. Z. Xue, S. Wang, L. Lin, L. Chen, M. Liu, L. Feng and L. Jiang, Adv. Mater., 2011, 23, 4270–4273 CrossRef CAS PubMed.
  9. X. Li, D. Hu, K. Huang and C. Yang, J. Mater. Chem. A, 2014, 2, 11830–11838 CAS.
  10. H.-C. Yang, J.-K. Pi, K.-J. Liao, H. Huang, Q.-Y. Wu, X.-J. Huang and Z.-K. Xu, ACS Appl. Mater. Interfaces, 2014, 6, 12566–12572 CAS.
  11. B. Wang, W. Liang, Z. Guo and W. Liu, Chem. Soc. Rev., 2015, 44, 336–361 RSC.
  12. L. Li, Z. Liu, Q. Zhang, C. Meng, T. Zhang and J. Zhai, J. Mater. Chem. A, 2015, 3, 1279–1286 CAS.
  13. W. B. Zhang, Y. Z. Zhang, X. Liu, D. Wang, J. Y. Jing, L. Jiang and J. Jin, Angew. Chem., Int. Ed., 2014, 53, 856–860 CrossRef CAS PubMed.
  14. A. K. Kota, G. Kwon, W. Choi, J. M. Mabry and A. Tuteja, Nat. Commun., 2012, 3, 1025 CrossRef PubMed.
  15. A. Raza, B. Ding, G. Zainab, M. El-Newehy, S. S. Al-Deyab and J. Yu, J. Mater. Chem. A, 2014, 2, 10137–10145 CAS.
  16. A. Pagidi, R. Saranya, G. Arthanareeswaran, A. F. Ismail and T. Matsuura, Desalination, 2014, 344, 280–288 CrossRef CAS PubMed.
  17. J.-F. Lutz, K. Weichenhan, Ö. Akdemir and A. Hoth, Macromolecules, 2007, 40, 2503–2508 CrossRef CAS.
  18. M. M. Ali and H. D. H. Stöver, Macromolecules, 2004, 37, 5219–5227 CrossRef CAS.
  19. S. Chen, J. Zheng, L. Li and S. Jiang, J. Am. Chem. Soc., 2005, 127, 14473–14478 CrossRef CAS PubMed.
  20. J. Wu, W. Lin, Z. Wang, S. Chen and Y. Chang, Langmuir, 2012, 28, 7436–7441 CrossRef CAS PubMed.
  21. Q. Shao and S. Jiang, Adv. Mater., 2015, 27, 15–26 CrossRef CAS PubMed.
  22. C. Diaz Blanco, A. Ortner, R. Dimitrov, A. Navarro, E. Mendoza and T. Tzanov, ACS Appl. Mater. Interfaces, 2014, 6, 11385–11393 CAS.
  23. C.-J. Huang, L.-C. Wang, J.-J. Shyue and Y.-C. Chang, Langmuir, 2014, 30, 12638–12646 CrossRef CAS PubMed.
  24. W. Li, Q. Liu and L. Liu, Langmuir, 2014, 30, 12619–12626 CrossRef CAS PubMed.
  25. Y. Zhu, F. Zhang, D. Wang, X. F. Pei, W. Zhang and J. Jin, J. Mater. Chem. A, 2013, 1, 5758–5765 CAS.
  26. H. Lee, S. M. Dellatore, W. M. Miller and P. B. Messersmith, Science, 2007, 318, 426–430 CrossRef CAS PubMed.
  27. S. M. Kang, J. Rho, I. S. Choi, P. B. Messersmith and H. Lee, J. Am. Chem. Soc., 2009, 131, 13224–13225 CrossRef CAS PubMed.
  28. S. M. Kang, N. S. Hwang, J. Yeom, S. Y. Park, P. B. Messersmith, I. S. Choi, R. Langer, D. G. Anderson and H. Lee, Adv. Funct. Mater., 2012, 22, 2949–2955 CrossRef CAS PubMed.
  29. X. Du, L. Li, J. Li, C. Yang, N. Frenkel, A. Welle, S. Heissler, A. Nefedov, M. Grunze and P. A. Levkin, Adv. Mater., 2014, 26, 8029–8033 CrossRef CAS PubMed.
  30. Y. Liu, K. Ai and L. Lu, Chem. Rev., 2014, 114, 5057–5115 CrossRef CAS PubMed.
  31. R. Zhou, P.-F. Ren, H.-C. Yang and Z.-K. Xu, J. Membr. Sci., 2014, 466, 18–25 CrossRef CAS PubMed.
  32. M. Tao, L. Xue, F. Liu and L. Jiang, Adv. Mater., 2014, 26, 2943–2948 CrossRef CAS PubMed.
  33. H.-C. Yang, K.-J. Liao, H. Huang, Q.-Y. Wu, L.-S. Wan and Z.-K. Xu, J. Mater. Chem. A, 2014, 2, 10225–10230 CAS.
  34. T. Arbatan, X. Fang and W. Shen, Chem. Eng. J., 2011, 166, 787–791 CrossRef CAS PubMed.
  35. K. Li, X. Zeng, H. Li and X. Lai, RSC Adv., 2014, 4, 23861–23868 RSC.
  36. J. P. Chaudhary, S. K. Nataraj, A. Gogda and R. Meena, Green Chem., 2014, 16, 4552–4558 RSC.
  37. H. Yoon, S.-H. Na, J.-Y. Choi, S. S. Latthe, M. T. Swihart, S. S. Al-Deyab and S. S. Yoon, Langmuir, 2014, 30, 11761–11769 CrossRef CAS PubMed.
  38. S. Zhang, F. Lu, L. Tao, N. Liu, C. Gao, L. Feng and Y. Wei, ACS Appl. Mater. Interfaces, 2013, 5, 11971–11976 CAS.
  39. Z. L. Chu, Y. J. Feng and S. Seeger, Angew. Chem., Int. Ed., 2015, 54, 2328–2338 CrossRef CAS PubMed.
  40. L. Feng, Z. Zhang, Z. Mai, Y. Ma, B. Liu, L. Jiang and D. Zhu, Angew. Chem., Int. Ed., 2004, 43, 2012–2014 CrossRef CAS PubMed.
  41. Y. Dong, J. Li, L. Shi, X. Wang, Z. Guo and W. Liu, Chem. Commun., 2014, 50, 5586–5589 RSC.
  42. G. Zhang, M. Li, B. Zhang, Y. Huang and Z. Su, J. Mater. Chem. A, 2014, 2, 15284–15287 CAS.
  43. W. Zhang, Y. Cao, N. Liu, Y. Chen and L. Feng, RSC Adv., 2014, 4, 51404–51410 RSC.
  44. Y. Yu, H. Chen, Y. Liu, V. Craig, L. H. Li and Y. Chen, Adv. Mater. Interfaces, 2014, 1, 1300002 Search PubMed.
  45. F. Wang, S. Yu, M. Xue, J. Ou and W. Li, New J. Chem., 2014, 38, 4388–4393 RSC.
  46. Q. Shao, L. Mi, X. Han, T. Bai, S. Liu, Y. Li and S. Jiang, J. Phys. Chem. B, 2014, 118, 6956–6962 CrossRef CAS PubMed.
  47. Y.-H. Zhao, K.-H. Wee and R. Bai, ACS Appl. Mater. Interfaces, 2009, 2, 203–211 Search PubMed.
  48. Z. X. Wang, Y. C. Xu, Y. Y. Liu and L. Shao, J. Mater. Chem. A, 2015 10.1039/c5ta01767j.

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra05937b
