Hyperbranched fluorene-alt-carbazole copolymers with spiro[3.3]heptane-2,6-dispirofluorene as the core and their application in white polymer light-emitting devices

Abstract

A series of hyperbranched copolymers with fluorene-alt-carbazole as the branches and three-dimensional-structured spiro[3.3]heptane-2,6-dispirofluorene (SDF) as the core were synthesized by one-pot Suzuki polycondensation. 4,7-Dithienyl-2,1,3-benzothiadiazole (DBT) as the orange-light emitting unit was introduced into the backbones to obtain white-light emission. The thermal, photoluminescent (PL), electrochemical and electroluminescent (EL) properties of the copolymers were investigated. The copolymers show great thermal stabilities by the introduction of a carbazole moiety. Besides, the HOMO energy levels of the copolymers were enhanced and the hole injection was improved because of the hole-transporting ability of the carbazole unit. The hyperbranched structures suppress the interchain interactions efficiently, and help to form amorphous films. The copolymers exhibit efficient EL performance as a result of the hyperbranched structure with the incorporation of the carbazole moiety. A quite low turn-on voltage of 5.3 V, a maximal luminance of 7409.5 cd m⁻² and a luminous efficiency of 4.27 cd A⁻¹ were achieved with a CIE coordinate of (0.32, 0.26) for the PFCzSDF10DBT10 (10 mol% of SDF and 0.1 mol% of DBT) device. The hyperbranched framework based on fluorene-alt-carbazole branches and SDF core are attractive candidates for solution-processable white polymer light-emitting device (WPLED) applications.

---

Introduction

Hyperbranched polymers have recently received considerable interest as light-emitting materials for displays, lighting and other photonic devices.^1–5 Firstly, they are easy to be synthesized by one-pot polymerization with comparable properties to dendritic polymers or other well defined polymers.^6,7 Secondly, hyperbranched polymers with a three-dimensional structure can prevent the aggregation of polymer chains, making the material form amorphous films with good quality, and increase the glass transition temperature (T_g) of the polymers.^4,8,9 Recently, a number of hyperbranched electroluminescent polymers with the three principle colors (red,¹⁰ green^11,12 and blue¹³) have been synthesized, and both emission efficiency and thermal stability were effectively improved with respect to their linear analogies.^14–16 However, white-light-emitting hyperbranched polymers have rarely been reported. Meanwhile, white polymer light-emitting devices (WPLEDs) have been widely recognized owing to their potential applications in large-area full-color and flexible displays combined with a color filter, backlights and solid lighting sources, and their great advantages such as high stability, low price, as well as easy fabrication process.^17–19 A general approach to obtain white-light emission from a single molecule or polymer is to use blue-light emitting and complementary orange-light emitting units.^19–21 In our previous research,²² white-light emitting from copolymers based on 9,9-dioctylfluorene and 4,7-dithienyl-2,1,3-benzothiadiazole (DBT) was realized through the incomplete Förster resonance energy transfer (FRET) from the fluorene segment to DBT unit.²³ Polyfluorenes (PFs) are shown to be the most promising blue light-emitting materials because of high photoluminescence quantum efficiency, and relatively good chemical and thermal stabilities.^24–26 However, it is hard to balance charge injection owing to the large band gap between the HOMO and LUMO energy levels.²⁷ Carbazole is a well-known hole-transporting unit as a result of the electron-donating capabilities associated with its nitrogen atom.^13,28 For this reason, to reduce the band gap between the work function of PEDOT:PSS and the HOMO energy levels of the copolymers, and further improve the electroluminescent (EL) performance of the copolymers, carbazole incorporated into the copolymer backbone is a promising strategy.

In this paper, hyperbranched copolymers with 3,6-carbazole-alt-2,7-fluorene (PFCz) and DBT branches and spiro[3.3]heptane-2,6-dispirofluorene (SDF) core (10 mol%) were constructed. The three-dimensional-structured SDF exhibits great morphological stability and intense fluorescence,²⁹ and furthermore, its steric hindrance can prevent rotation of the adjacent aryl groups, which reduces close packing and intermolecular interactions between the chromophores in the solid-state.³⁰ In order to obtain white-light emission, the orange light-emitting unit DBT was introduced with different contents from 0.05 mol% to 0.10 mol%. Such a highly branched framework provides a highly efficient white-light electroluminescence.

Experimental section

Materials and characterization

9,9-Dioctylfluorene-2,7-bis(trimethyleneboronate) (M2, 99.5%) was purchased from Synwitech. Tetrahydrofuran (THF) and toluene were distilled using standard procedures. Other solvents were used without further purification unless otherwise specified. All reactions were carried out using Schlenk techniques under dry nitrogen atmosphere. ¹H NMR and ¹³C NMR spectra were measured on a Bruker DRX 600 spectrometer, and chemical shifts were reported in ppm using tetramethylsilane as an internal standard. Elemental analysis (EA) was performed with a Vario EL elemental analyzer. Molecular weights and polydispersities of the copolymers were determined using gel permeation chromatography (GPC) on an HP1100 high performance liquid chromatograph (HPLC) system equipped with a 410 differential refractometer, and a refractive index (RI) detector, with polystyrenes as the standard and THF as the eluent at a flow rate of 1.0 mL min⁻¹ at 30 °C. The UV-visible absorption spectra were determined on a Hitachi U-3900 spectrophotometer and the PL emission spectra were obtained using a Horiba FluoroMax-4 spectrophotometer at room temperature. Thermogravimetric analysis (TGA) of the copolymers was conducted on a Setaram thermogravimetric analyzer at a heating rate of 10 °C min⁻¹ under nitrogen atmosphere. Differential scanning calorimetry (DSC) measurements were performed at both heating and cooling rates of 5 °C min⁻¹ under nitrogen atmosphere, using DSC Q100 V9.4 Build 287 apparatus. Atomic force microscopy (AFM) measurements were performed on an SPA-300HV from Digital Instruments Inc. (Santa Barbara, CA) at a tapping mode. Cyclic voltammetry (CV) measurements were performed on an Autolab/PG STAT302 electrochemical workstation with the thin film of the copolymer on the working electrode in a solution of tetrabutylammonium hexafluorophosphate (Bu₄NPF₆, 0.1 M) in acetonitrile (CH₃CN) at a scanning rate of 50 mV s⁻¹ at room temperature under nitrogen atmosphere. A Pt plate was used as the counter electrode, and a saturated calomel electrode was used as the reference electrode.

Device fabrication and characterization

Patterned glass substrates coated with indium tin oxide (ITO) (20 Ω square⁻¹) were cleaned by a surfactant scrub, washed successively with deionized water, acetone and isopropanol in an ultrasonic bath, and then dried at 120 °C in a heating chamber for 8 h. A 40 nm-thick poly(3,4-ethylenedioxythiophene): poly(styrenesulfonic acid) (PEDOT:PSS) hole injection layer was spin-coated on top of ITO and baked at 120 °C for 20 min. Thin films (50 nm thick) of the copolymers as the emitting layer were deposited on top of the PEDOT:PSS layer by spin-coating the chlorobenzene solution of the copolymers, followed by thermal annealing at 110 °C for 20 min. Then an electron-transporting layer of 1,3,5-tris(N-phenylbenzimidazol-2-yl)benzene (TPBi, 35 nm) and LiF (1 nm) and Al (150 nm) as the cathode were deposited by vacuum evaporation under a base pressure of 5 × 10⁻⁴ Pa.³¹ The EL spectra and CIE coordinates were measured with a PR-655 spectra colorimeter. The current–voltage–forward luminance curves were measured using a Keithley 2400 source meter and a calibrated silicon photodiode.

Syntheses

Spiro[3.3]heptane-2,6-di-(2′,2′′,7′,7′′-tetrabromospirofluorene) (TBrSDF),^32,33 and 4,7-bis(2-bromo-5-thienyl)-2,1,3-benzothiadiazole (DBrDBT)^34–36 were synthesized according to the published literature.

3,6-Dibromo-N-(2-ethylhexyl)-carbazole (DBrCz)^37,38. 3,6-Dibromo carbazole (6.50 g, 20 mmol) and adequat tetrabutyl ammonium bromide (TBAB) were added to toluene (100 mL) and potassium hydroxide solution (16 mol L⁻¹, 15 mL). After the solution was stirred for 1 h, 2-ethylhexylbromide (4.26 mL, 25 mmol) was added. The mixture was stirred for 12 h under refluxing, and another 12 h at room temperature. After cooling to room temperature, the mixture was extracted with water and methylene chloride (CH₂Cl₂), dried over anhydrous magnesium sulfate and concentrated. The crude product was purified by column chromatography on silica gel with petroleum ether : CH₂Cl₂ = 5 : 1 as eluent to give DBrCz as colorless viscous fluid (6.73 g, 15 mmol) in a 77% yield. ¹H NMR (600 MHz, CDCl₃) δ (ppm): 7.81 (d, J = 1.8 Hz, 2H, Ph), 7.34 (dd, J₁ = 1.8 Hz, J₂ = 9 Hz, 2H, Ph), 6.93 (d, J = 8.4 Hz, 2H, Ph), 3.65 (t, J = 6.6 Hz, 2H, CH₂), 1.78–1.73 (m, 1H, CH), 1.22–1.04 (m, 8H, CH₂), 0.77 (t, J = 6.6 Hz, 3H, CH₃), 0.73 (t, J = 7.8 Hz, 3H, CH₃); ¹³C NMR (600 MHz, CDCl₃) δ (ppm): 142.58, 131.83, 126.24, 126.03, 114.81, 113.52, 50.46, 42.22, 33.86, 31.67, 27.27, 25.94, 16.95, 13.80. Elemental anal. calcd for C₂₀H₂₃Br₂N: C 54.94, H 5.30, N 3.20; found: C 54.90, H 5.33, N 3.21.

General procedure for the synthesis of copolymers PPFCzSDF10DBT5–PFCzSDF10DBT10. To a solution of predetermined amount of the monomers (DBrCz, M2, TBrSDF and DBrDBT) in toluene (20 mL) was added an aqueous solution (5 mL) of potassium carbonate (2 M) and a catalytic amount of Pd(PPh₃)₄ (2.0 mol%). Aliquat 336 (1 mL) in toluene (5 mL) was added as the phase transfer catalyst. The mixture was vigorously stirred at 90 °C for 3 days. Phenylboronic acid was then added to the reaction mixture, followed by stirring at 90 °C for an additional 12 h. Finally, bromobenzene was added in the same way by heating for 12 h again. When cooled to room temperature, the reaction mixture was washed with 2 M HCl and water. The organic layer was separated, and the solution was added dropwise to excess methanol. The precipitates were collected by filtration, and dried under vacuum. The solid was Soxhlet extracted with acetone for 72 h and then passed through a short chromatographic column using toluene as the eluent to afford the copolymers.
PFCzSDF10DBT5. DBrCz (0.153 g, 0.35 mmol), M2 (0.354 g, 0.55 mmol), TBrSF (0.071 g, 0.1 mmol) and DBrDBT (0.2 ml, 2 × 10⁻³ mol L⁻¹). Green powder, yield: 62.9%. ¹H NMR (CDCl₃) δ (ppm): 7.88–7.57 (–ArH–), 6.93–6.89 (–ArH–), 3.41–2.93 (–CH₂–), 2.21–1.89 (–C–CH₂–), 1.18–0.96 (–CH₂–), 0.93–0.55 (–CH₃).
PFCzSDF10DBT7. DBrCz (0.153 g, 0.35 mmol), M2 (0.354 g, 0.55 mmol), TBrSF (0.071 g, 0.1 mmol) and DBrDBT (0.28 ml, 2 × 10⁻³ mol L⁻¹). Light yellow powder, yield: 65.8%. ¹H NMR (CDCl₃) δ (ppm): 7.89–7.56 (–ArH–), 6.93–6.81 (–ArH–), 3.42–2.93 (–CH₂–), 2.21–1.88 (–C–CH₂–), 1.19–0.98 (–CH₂–), 0.94–0.60 (–CH₃).
PFCzSDF10DBT8. DBrCz (0.153 g, 0.35 mmol), M2 (0.354 g, 0.55 mmol), TBrSF (0.071 g, 0.1 mmol) and DBrDBT (0.32 ml, 2 × 10⁻³ mol L⁻¹). Green powder, yield: 59.3%. ¹H NMR (CDCl₃) δ (ppm): 8.06–7.42 (–ArH–), 6.94–6.77 (–ArH–), 3.45–3.02 (–CH₂–), 2.24–1.87 (–C–CH₂–), 1.19–0.95 (–CH₂–), 0.94–0.64 (–CH₃).
PFCzSDF10DBT10. DBrCz (0.153 g, 0.35 mmol), M2 (0.354 g, 0.55 mmol), TBrSF (0.071 g, 0.1 mmol) and DBrDBT (0.4 ml, 2 × 10⁻³ mol L⁻¹). Gray powder, yield: 61.4%. ¹H NMR (CDCl₃) δ (ppm): 7.98–7.48 (–ArH–), 6.93–6.78 (–ArH–), 3.39–3.02 (–CH₂–), 2.21–1.75 (–C–CH₂–), 1.22–0.88 (–CH₂–), 0.86–0.45 (–CH₃).

Results and discussion

Synthesis and characterization

As shown in Scheme 1, a series of hyperbranched copolymers based on N-alkyl and 9-C-alkyl substituted 3,6-carbazole-co-2,7-fluorene branches with SDF (10 mol%) as the branch point were synthesized by one-pot Suzuki polycondensation in relatively high yields. To obtain white-light emission, the organe-light-emitting unit DBT was incorporated into the framework with the feed ratios of 0.05 mol%, 0.07 mol%, 0.08 mol% and 0.10 mol%, and the corresponding copolymers are named as PFCzSDF10DBT5, PFCzSDF10DBT7, PFCzSDF10DBT8 and PFCzSDF10DBT10, respectively. The synthetic and structural results of PPFCzSDF10DBT5–PFCzSDF10DBT10 are summarized in Table 1.

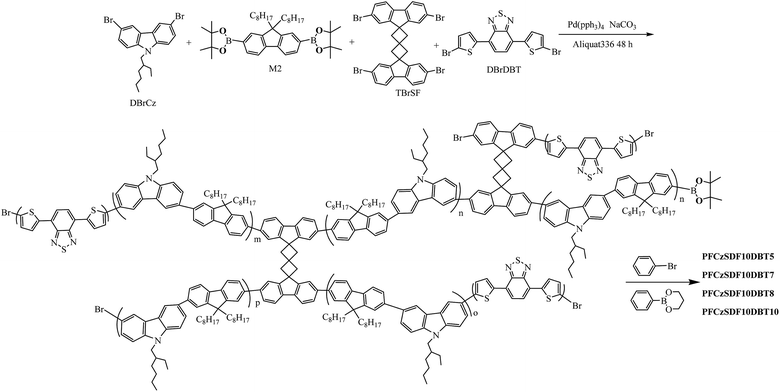

Scheme 1 Synthesis of the hyperbranched copolymers.

Table 1 Polymerization results and characterizations of the copolymers

Copolymers	nDBrCz	nM2	nTBrSDF	nDBrDBT	Yield (%)	GPC
						Mn	PDI
PFCzSDF10DBT5	0.35	0.55	0.10	5 × 10^−4	62.9	9547	2.29
PFCzSDF10DBT7	0.35	0.55	0.10	7 × 10^−4	65.8	10 535	2.63
PFCzSDF10DBT8	0.35	0.55	0.10	8 × 10^−4	59.3	10 854	2.43
PFCzSDF10DBT10	0.35	0.55	0.10	10 × 10^−4	61.4	10 366	1.60

---

The functional groups for Suzuki polycondensation were bromine and trimethyleneboronate. The monomers with bromine group include N-(2-ethylhexyl)-carbazole, the branch point spiro[3.3]heptane-2,6-dispirofluorene (SDF), and 4,7-dithienyl-2,1,3-benzothiadiazole (DBT, ≤0.1 mol%), and the monomers with the trimethyleneboronate group were 9,9-dioctylfluorene. Thus, the fluorene and carbazole monomers distributed alternately in the synthesized polymer branches. Because of the same feed ratios of monomers DBrCz, M2 and TBrSDF for copolymers PPFCzSDF10DBT5–PFCzSDF10DBT10, their ¹H NMR spectra were quite similar (Fig. S3, ESI,† the proton signals of DBT have little effect because of its low content), revealing the similar backbone structures of the copolymers. Taking PFCzSDF10DBT7 as an example (Fig. S4, ESI†), the actual ratio of monomers DBrCz, M2 and SDF was calculated by comparing the peak integral intensities of the proton signals of α-CH₂ (δ 4.0–4.5), β-CH (δ 1.8–2.2) of N-(2-ethylhexyl)-carbazole, β′-CH₂ of 9,9-dioctylfluorene (δ 1.8–2.2), and the spiro[3.3]heptane of SDF (δ 3.0–3.5), and the results (n_DBrCz : n_M2 : n_SDF 0.35 : 0.54 : 0.1) was quite close to the feed ratio of the monomers (0.35 : 0.55 : 0.1). The number-average molecular weights (M_n) of the copolymers determined by GPC ranged from 9547 to 10 854 with a polydispersity index (PDI) from 1.60 to 2.63. The resulting copolymers are readily soluble in common organic solvents such as CHCl₃, THF and toluene.

Thermal properties

The TGA and DSC data of the copolymers are shown in Fig. 1 and Table 2. The onset decomposition temperatures (T_d, measured at a 5% weight loss) range from 400 to 447 °C under nitrogen. The high thermal stability of the copolymers is suggested to benefit from the presence of a large amount of carbazole groups, which are known to exhibit excellent thermal and chemical stabilities.³⁹ The relatively high glass transition temperatures (T_g, inset of Fig. 1) of the copolymers at around 180 °C are found in the DSC curves, which indicates the good morphological stabilities of the copolymers. The high T_gs of the resulting copolymers could be attributed to their rigid hyperbranched structures and the introduction of carbazole unit to the copolymer backbones.

Fig. 1 TGA and DSC (insert) curves of the copolymers in nitrogen atmosphere with a heating rate of 10 °C min⁻¹ and 5 °C min⁻¹, respectively.

Table 2 Thermal and photophysical properties of the copolymers

Copolymer	Td (°C)	Tg (°C)	Dilute solution		Solid film
			λabs (nm)	λPL (nm)	λabs (nm)	λPL (nm)
PFCzSDF10DBT5	405	186	364	416, 435	370	418, 439
PFCzSDF10DBT7	447	186	362	416, 436	367	417, 437
PFCzSDF10DBT8	400	179	365	416, 436	368	419, 440
PFCzSDF10DBT10	424	178	371	415, 436	372	419, 439, 603

---

Photophysical properties

The UV-vis absorption of DBT and the PL spectra of fluorene-alt-carbazole copolymer (PFCz) are shown in Fig. S5a.† The absorption of DBT and the emission of PFCz show good spectral overlap, indicating the efficient FRET from the PFCz segment to DBT unit can be expected. The normalized UV-vis absorption and PL spectra of the copolymers in dilute solution are shown in Fig. 2a. The absorption bands at around 365 nm are due to the π–π* transitions of poly(fluorene-alt-carbazole) backbones,²⁷ which are blue-shifted about 20 nm compared with the fluorene-based hyperbranched copolymer.⁴⁰ This notable hypochromatic shift is attributable to the interruption of the conjugation of the copolymer backbone by the introduction of the 3,6-carbazole linkage. In the PL spectra, the copolymers exhibit emission bands at 416 nm and a slight vibronic shoulder at 436 nm, which can be attributed to the formation of a charge-transfer (CT) state in the poly(fluorene-alt-carbazole) branches. The PL spectra showed about 6 nm blue-shift respect to that of the fluorene-based copolymer because of the decreased conjugated length in these fluorene-alt-carbazole based copolymers.⁴⁰ No distinct absorption or emission peaks of the DBT unit can be observed in the spectra because of its comparatively low contents in the copolymers, and the FRET is exclusively intrachain in dilute solution.⁴¹

Fig. 2 UV-vis absorption and PL spectra of the copolymers: (a) in CHCl₃ solution (10⁻⁵ M) and (b) in solid film.

In films, the copolymers exhibit UV-vis absorption bands at around 370 nm owning to the π–π* transitions of the poly(fluorene-alt-carbazole) backbones (Fig. 2b and Table 2). In the PL spectra, the maximum emission bands of copolymers are at about 418 nm, along with a shoulder at around 439 nm, showing no obvious bathochromic shift with respect to those in dilute solution. This result indicates that the hyperbranched molecular structure can prevent the aggregation of the copolymer chains efficiently. For PFCzSDF10DBT10, the emission band of DBT centered at 603 nm can be observed as a result of both intra- and interchain FRET from fluorene-alt-carbazole unit to DBT, which showed a bathochromic shift of 43 nm compared to that of pure DBT as a result of the conjugation effect of the copolymer system.^23,41,42

Electrochemical characteristics

The electrochemical behaviors of the resulting copolymers were investigated by cyclic voltammetry (CV), as shown in Fig. 3 and Table 3. The oxidation potentials (E_ox) vary slightly from 0.58 to 0.60 V. The HOMO levels of copolymers are calculated according to the empirical formulas E_HOMO = −(E_ox + 4.5) (eV).⁴¹ The LUMO levels are deduced from the HOMO levels and the optical band gaps (E_g) determined from the onset value of the absorption spectrum in film in the long-wavelength direction (E_g = 1240/λ_edge). The HOMO levels of the hyperbranched copolymers are at about −5.10 eV, which are relatively close to the work function of PEDOT (−5.2 eV) and thus facile hole injection into the emission layer (EML) can be expected.⁴³ On the other hand, the LUMO levels of copolymers (from −2.08 eV to −2.13 eV) are comparatively distant to the work function of LiF/Al (−2.9 eV), indicating that there is a barrier for electron injection. The results demonstrate that the incorporation of the carbazole moiety into the fluorene backbone could effectively increases the hole-transporting ability of the materials, and at the same time, the potential barrier of electron injection is aggrandized. Thus, an electron transport layer (ETL) will be needed in the following PLED structure.

Fig. 3 Cyclic voltammograms of the copolymers.

Table 3 Electrochemical properties of the copolymers

Copolymers	λabs (onset) (nm)	Eg (eV)	Eonset/OX (V)	HOMO (eV)	LUMO (eV)
PFCzSDF10DBT5	416	2.98	0.60	−5.11	−2.13
PFCzSDF10DBT7	412	3.01	0.59	−5.09	−2.08
PFCzSDF10DBT8	418	2.97	0.60	−5.10	−2.13
PFCzSDF10DBT10	419	2.96	0.58	−5.08	−2.12

---

Film morphology

The morphology of the spin-coated films of the copolymers, which is a key factor for the PLED fabrication, was investigated by atomic force microscopy (AFM) at a tapping mode. Fig. 4 shows the AFM images of PPFCzSDF10DBT5–PFCzSDF10DBT10 films prepared by spin-coating chlorobenzene solutions of the copolymers (10⁻⁵ M) on the quartz substrates. Generally, all the films show flat and smooth surface without any pinhole defects. The results imply that the three-dimensional structured SDF branch point can help to form homogeneous films with good quality. The uniform amorphous morphology is favorable for PLED fabrication.

Fig. 4 AFM images (10 × 10 μm) of the copolymer films: (a) PFCzSDF10DBT5, (b) PFCzSDF10DBT7, (c) PFCzSDF10DBT8 and (d) PFCzSDF10DBT10.

Electroluminescent properties

The devices were fabricated with the configuration ITO/PEDOT:PSS (40 nm)/copolymer (50 nm)/TPBi (35 nm)/LiF (1 nm)/Al (150 nm). The relative-energy-level diagram of the devices is shown in Fig. 5. As mentioned above, the incorporation of carbazole unit greatly increases the hole-transporting ability of the materials but leads to a barrier for electron injection into the emission layer. Here 1,3,5-tris(N-phenylbenzimidazol-2-yl)benzene (TPBi) is used as the electron-injection layer to facilitate electron transport.¹⁰

Fig. 5 The energy-level diagram of the devices.

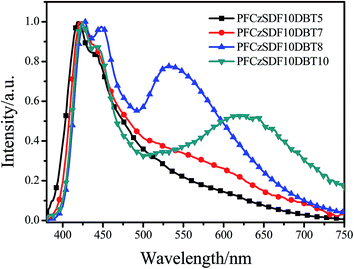

The electroluminescence spectra of the copolymers are shown in Fig. 6, and the device data are summarized in Table 4. The main peaks at 420 nm with a shoulder at 440 nm are analogous to their PL counterparts. The peaks in the long-wavelength around 610 nm are gradually enhanced with increasing the contents of the orange-light emission unit DBT from PFCzSDF10DBT5 to PFCzSDF10DBT10. White-light emission was obtained with CIE coordinates located near (0.33, 0.33), and the CRI values are around 90 when the contents of DBT were 0.08 mol% and 0.10 mol%. PFCzSDF10DBT8 exhibits cold white light, and PFCzSDF10DBT10 shows warm white light (Fig. 7).

Fig. 6 Electroluminescence spectra of the copolymer PLEDs at a voltage of 13 V.

Table 4 EL performances of the PLEDs

Copolymer	Von^a (V)	Lmax^b (cd m^−2) (at the voltage (V))	CEmax (cd A^−1)	LEmax (lm W^−1)	CIE (x,y)
a Turn-on voltage (at 1 cd m^−2).b Maximum luminance at applied voltage.
PFCzSDF10DBT5	5.11	7280 (12.6)	4.38	1.64	(0.22,0.20)
PFCzSDF10DBT7	5.24	7188.5 (13.2)	4.02	1.31	(0.25,0.24)
PFCzSDF10DBT8	5.49	7266.4 (13.5)	4.21	1.19	(0.28,0.31)
PFCzSDF10DBT10	5.34	7409.5 (13.5)	4.27	1.45	(0.32,0.26)

---

Fig. 7 CIE coordinates of the copolymer PLEDs: (a) PFCzSDF10DBT5, (b) PFCzSDF10DBT7, (c) PFCzSDF10DBT8 and (d) PFCzSDF10DBT10.

Taking PFCzSDF10DBT10 as an example, the mechanism of white light emission was investigated from the EL spectra under voltages varying from 8 V to 13 V (Fig. 8a). It is clearly seen that the spectral stabilities at 420 and 440 nm are extremely well and the broad peaks in the long-wavelength around 610 nm are gradually enhanced with increasing the voltages. The growth rate of the intensity of the peak at 610 nm compared to that at 420 nm accelerates as the voltage increases (Fig. 8b). The results reveal that the intra-, interchain FRET from PFCz unit to DBT and the charge trapping of DBT with narrow-band gap happen simultaneously in the electroluminescence process, and the charge trapping is more efficient under higher voltage.²³ So the white-light emission of copolymer PFCzSDF10DBT10 was obtained at ⋯V from the blue-light emitting of PFCz segments and the complementary orange-light emitting from DBT through both incomplete intra-, interchain FRET and the charge trapping processes mentioned above.

Fig. 8 Electroluminescence spectra of the copolymer PFCzSDF10DBT10 (a), and the intensity ratio of the 610 nm of DBT emission to the 420 nm of PFCz emission of the copolymer PFCzSDF10DBT10, i.e. R_DBT/PFCz (b).

Fig. 9a shows the current density–voltage–brightness (J–V–L) characteristics of the devices. The devices exhibit moderate low turn-on voltage of 5.1–5.5 V (Table 4), which can be attributed to the small energy barrier between PEDOT:PSS and EML. The maximum luminance (∼7400 cd m⁻²) and maximum current efficiency (∼4.2 cd A⁻¹) of the devices are quite analogous as a result of the homologous molecular structure of the copolymers. As can be seen from Fig. 9b, the efficiencies decrease quite slowly with increasing current density, suggesting that these hyperbranched copolymers and their devices have good stabilities. Further investigations on the optimization of the device performance are ongoing in our laboratory.

Fig. 9 Current–voltage (left) and luminance–voltage (right) curves of copolymer PLEDs (a), and current efficiency–current density characteristics of copolymer PLEDs (b).

Conclusions

In conclusion, a series of hyperbranched 3,6-carbazole-alt-2,7-fluorene copolymers with SDF as the core were prepared by Suzuki polycondensation. The hyperbranched structures suppress the interchain interactions efficiently, and help to form amorphous spin-coating films. The emission bands of the copolymers showed no obvious bathochromic shifts in solid films with respect to those in dilute solution. The FRET efficiency from fluorene-alt-carbazole segments to DBT unit is remained in the hyperbranched systems. With the introduction of carbazole moiety into the backbone, the hyperbranched copolymers show great thermal stability with T_ds ranging from 400 to 447 °C and T_gs ranging from 178 to 186 °C, respectively. The HOMO energy levels of the copolymers were close to the work function of PEDOT:PSS because of the carbazole segment, which facilitates hole injection from PEDOT:PSS to EML in the PLEDs. Thus, the hyperbranched copolymers exhibit good EL properties with a low turn-on voltage of about 5 V, the maximum luminance of 7409.5 cd m⁻² (at 13.5 V) and maximum current efficiency of 4.38 cd A⁻¹. PFCzSDF10DBT8 and PFCzSDF10DBT10 devices realized white light-emitting with CIE coordinates of (0.28, 0.31) and (0.32, 0.26), respectively. The results indicate that the hyperbranched copolymers using SDF as the core and fluorene-alt-carbazole as the branches could be promising candidates as white-emitting materials with high efficiency.
