Direct use of allylic alcohols for palladium-catalyzed synthesis of 3-allylbenzo[b]thiophenes, benzofurans and indoles in aqueous media

Abstract

Allylative cyclization of (o-alkynylphenyl) (methoxymethyl) sulfides, o-alkynylanilines and o-alkynylphenols catalyzed by π-allyl palladium species generated from simple allylic alcohols is described. 3-Allylbenzo[b]thiophenes, 3-allylindoles and 3-allylbenzofurans were obtained in good yields using aqueous media under neutral conditions.

---

Benzo[b]thiophenes, benzofurans and indoles are important classes of heterocycles in the pharmaceutical sciences. They are found in a variety of drugs and biologically active compounds.¹ Transition metal-catalyzed reactions using a π-allylmetal intermediate are regarded as the most important transformations in organic synthesis.² In most cases, activated allylic alcohol derivatives (e.g., allylic halides, carbonates and esters) have been used as π-allylmetal sources. Since the beginning of the 21st century, catalytic activation (or activation by hydrogen-bonding of solvent) of allylic alcohols to produce π-allylmetal intermediates has attracted much attention from an environmental point of view.³ A number of reactions using simple allyl alcohol as a π-allylmetal source have been reported, such as allylic substitution reactions,^4a–l carbonylation reactions,^4m coupling reactions with boronic acids⁴ⁿ and coupling reactions with terminal alkynes.^4o Although palladium-catalyzed synthesis of 3-allylindoles and 3-allylbenzofurans using activated allylic compounds as π-allyl palladium sources have been reported,⁵ direct use of simple allylic alcohols is more attractive with respect to the environmental benefit.⁶ To our knowledge, utilization of the π-allylpalladium intermediates derived from simple allylic alcohols for alkyne activation is extremely rare.⁷

Recently, we reported the synthesis of benzo[b]thiophenes, benzofurans and indoles based on palladium(II)-catalyzed cyclization-carbonylation of alkyne substrates.⁸ Prompted by this precedent^4d,5 and our recent research,⁸ we envisioned the direct use of allylic alcohols for the synthesis of heterocycles. Here, we report the palladium-catalyzed synthesis of 3-allylbenzo[b]thiophenes, 3-allylbenzofurans and 3-allylindoles in aqueous media using simple allylic alcohols as π-allylpalladium sources based on Oshima's protocols (Scheme 1).^4d

Scheme 1 Outline of this work.

Oshima et al. pointed out the importance of hydration of the hydroxyl group for the smooth generation of the π-allylpalladium species.^4d Initially, we selected 1 (standard substrate), Pd₂(dba)₃·CHCl₃, allyl alcohol and tppms to search for potential solvents (Table 1). Cyclized product 7 was obtained in low yield using only water (Table 1, entry 1). Next, we investigated the reaction in mixed solvents containing water, because the substrates and products were highly lipophilic, and did not dissolve in water. Although iPrOH–H₂O, DMSO–H₂O and hexane–H₂O were not suitable as solvents, the use of THF–H₂O and dioxane–H₂O gave 4a in moderate to excellent yields (Table 1, entries 2–6). In the absence of water, the reaction did not proceed, and substrate 1 was recovered (Table 1, entry 7). When the amount of tppms was reduced to 10 mol%, 4a was obtained in 89% yield (Table 1, entry 8).

Table 1 Optimization of the reaction (synthesis of 4a)

Entry	Solvent	Time (h)	Yield of 4a (%)	Yield of 7 (%)
a 80 °C.b TPPMS: 10 mol%.
1	H2O	23	Trace	48
2	iPrOH–H2O = 2/1	2	26	43
3	Hexane–H2O = 2/1	23	—	—
4	DMSO–H2O = 2/1	23^a	4	25
5	THF–H2O = 2/1	24	65	15
6	Dioxane–H2O = 2/1	1.5	97	—
7	Dioxane	23	7	9
8^b	Dioxane–H2O = 2/1	1.5	89	—

---

Having elucidated the optimum conditions for the reaction, we then employed several allylic alcohols 8–14 and substrates 1–3 for the synthesis of 3-substituted benzo[b]thiophenes, 3-substituted indoles and 3-substituted benzofurans (Table 2 and Fig. 1). The reaction of o-alkynylaniline 2 with allyl alcohol 8 proceeded well, and 5a was obtained in excellent yield (Table 2, entry 2). The use of o-alkynylphenol 3 resulted in a reduced yield of 6a (75%) with 2-phenylbenzofuran obtained in 14% yield as a by-product (Table 2, entry 3). These products were easily separated by silica gel column chromatography. In the case of cinnamyl alcohol 9, the attempted reactions occurred smoothly, affording 4b, 5b and 6b in 89–97% yields (Table 2, entries 4–6). The allylic alcohols 10 and 11 bearing both electron-donating and electron-withdrawing substituents gave good results, similar to that of parent cinnamyl alcohol (Table 2, entries 7–12). Chloro substituents on the phenyl group were tolerated under the reaction conditions (Table 2, entries 13–15). In the case of 2-methyl-3-butene-2-ol 13, linear 4f and 5f were obtained as sole products due to steric hindrance (Table 2, entries 16 and 17). On the other hand, the reaction of allylic alcohol 14 with 1 afforded an inseparable mixture of linear and branched products 4g and 4h (1 : 1) in 80% yield (Table 2, entry 18). Replacement of the aryl groups at the alkyne terminus with an alkyl group and hydrogen atom afforded a slightly lower yield of 16 (78%) (Scheme 2 and eqn (1)). In the case of terminal alkyne 17, 18 was obtained in 38% yield together with 19 (50%) (Scheme 2 and eqn (2)).

Table 2 Synthesis of 3-substituted benzo[b]thiophenes, 3-substituted indoles and 3-substituted benzofurans 4–6

Entry	Substrates	Allylic alcohols	R	Time (h)	Yield of 4–6 (%)
a 2-Phenylbenzofuran was obtained in 14% yield.b Small amount of E-isomer was contained.
1	1	8		1.5	4a: 89
2	2	8		1.0	5a: 98
3	3	8		2.0	6a: 75^a
4	1	9		1.0	4b: 91
5	2	9		1.0	5b: 97
6	3	9		0.5	6b: 89
7	1	10		0.5	4c: 95
8	2	10		1.0	5c: 97
9	3	10		0.5	6c: 80
10	1	11		1.0	4d: 88
11	2	11		1.5	5d: 99
12	3	11		0.5	6d: 84
13	1	12		0.5	4e: 93
14	2	12		1.0	5e: 93
15	3	12		0.5	6e: 82
16	1	13		1.0	4f: 82
17	2	13		1.0	5f: 98
18	1	14		2.0	4g, h: 80 (1 : 1)

---

Fig. 1 Allylic alcohols for Table 2.

Scheme 2 Reaction of 15 and trerminal alkyne 17.

To investigate the reaction pathway, control reactions were performed (Scheme 2). The direct allylation of indole with allylic alcohols has been reported,⁶ thus N-tosyl-2-phenylindole 20 and 2-phenylbenzofuran 21 were treated under the current reaction conditions (Scheme 3). No reaction took place, with 20 and 21 recovered quantitatively. These results show that the simple cyclized products were not intermediates in the present reaction. As described in the introduction, the reaction of 2-alkynylaniline with activated allylic alcohol derivatives has previously been reported,⁵ with the N-allylaniline derivative proposed as an intermediate. Although the N-allylaniline derivative could not be detected by TLC analysis in the present reaction, we performed another control reaction. At first, the reaction of 22 with allyl alcohol 8 proceeded well, and 23 was obtained in 98% yield (Scheme 4 and eqn (1)). Next, N-allylaniline derivative 24 was prepared and subjected to the reaction conditions without allyl alcohol (Scheme 4 and eqn (2)). The reaction rate of 24 was slower relative to that of 22, and about half of 24 was recovered. In addition, an equimolar mixture of 22 and 24 was subjected to the reaction conditions (Scheme 4 and eqn (3)). Although 22 was transformed to 23 within one hour, about half of 24 was recovered. These results suggested that the N-allylaniline derivative was not the intermediate in the present reaction, or at least it was not involved in the major pathway. Based on these control experiments, a plausible mechanism for the reaction is shown in Scheme 5. First, the π-allyl palladium complex A1 is formed from allyl alcohol with the aid of hydrogen-bonding to water. The triple bond of the substrate coordinates to A1 to produce intermediate A2 by ligand exchange. In the case of aniline and phenol substrates 2 and 3, the hydroxyl anion of A1 acts as a base to remove the proton. This is followed by cyclization and subsequent reductive elimination to provide the products 5 and 6. On the other hand, in the case of the substrates 1, deprotection of the MOM group may occur after cyclization.^8,9

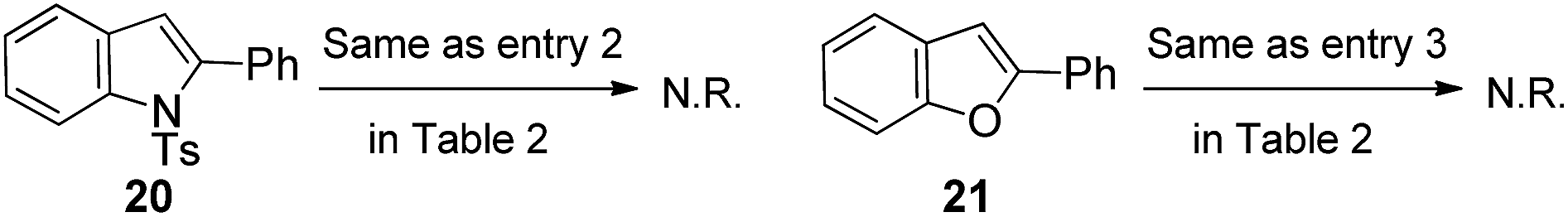

Scheme 3 Control experiment 1.

Scheme 4 Control experiment 2.

Scheme 5 Plausible mechanism.

Conclusions

In conclusion, palladium-catalyzed allylative cyclization of (o-alkynylphenyl) (methoxymethyl) sulfides 1, o-alkynylanilines 2 and o-alkynylphenols 3 using simple allylic alcohols in aqueous media afforded 3-allylbenzo[b]thiophenes, 3-allylindoles and 3-allylbenzofurans in good yields. These reactions are general for a wide range of substrates. The reaction conditions are nearly neutral and base is not required.

Acknowledgements

This work was supported by a JSPS KAKENHI grant (no. 15K078771).

Notes and references

1. (a) H. H. Seltzman, Drug Dev. Res., 2009, 70, 601; (b) C. Wasylyk, H. Zheng, C. Castell, L. Debussche, M.-C. Multon and B. Wasylyk, Cancer Res., 2008, 68, 1275; (c) S. Kiyonaka, K. Kato, M. Nishida, K. Mio, T. Numaga, Y. Sawaguchi, T. Yoshida, M. Wakamori, E. Mori, T. Numata, M. Ishii, H. Takemoto, A. Ojida, K. Watanabe, A. Uemura, H. Kurose, T. Morii, T. Kobayashi, Y. Sato, C. Sato, I. Hamachi and Y. Mori, Proc. Natl. Acad. Sci. U. S. A., 2009, 106, 5400; (d) L. Berrade, B. Aisa, M. J. Ramirez, S. Galiano, S. Guccione, L. R. Moltzau, F. O. Levy, F. Nicoletti, G. Battaglia, G. Molinaro, I. Aldana, A. Monge and S. Perez-Silanes, J. Med. Chem., 2011, 54, 3086; (e) H. F. Guo, H. Y. Shao, Z. Y. Yang, S. T. Xue, X. Li, Z. Y. Liu, X. B. He, J. D. Jiang, Y. Q. Zhang, S. Y. Si and Z. R. Li, J. Med. Chem., 2010, 53, 1819; (f) S. N. Singh, R. D. Fletcher, S. G. Fisher, B. N. Singh, H. D. Lewis, P. C. Deedwania, B. M. Massie, C. Colling and D. Layyeri, N. Engl. J. Med., 1995, 333, 77; (g) S. Takai, M. Sakaguchi, D. Jin, K. Baba and M. Miyazaki, Life Sci., 1999, 64, 1889; (h) W.-F. Zheng, X.-W. Gao, C.-F. Chen and R.-X. Tian, Int. Immunopharmacol., 2007, 7, 117; (i) R. J. Sundberg, Indoles, Academic Press, London, 1996; (j) A. J. Kochanowska-Karamyan and M. T. Hamann, Chem. Rev., 2010, 110, 4489; (k) V. Sharma, P. Kumar and D. Pathak, J. Heterocycl. Chem., 2010, 47, 491; (l) D. F. Taber and P. K. Tirunahari, Tetrahedron, 2011, 67, 7195.
2. For rewiews, see: (a) J. Tsuji, Palladium Reagents and Catalysts: New Perspectives for the 21st Century, Wiley, Chichester, 2004; (b) B. M. Trost and D. L. Van Vranken, Chem. Rev., 1996, 96, 395.
3. For rewiews, see: (a) B. Sundararaju, M. Achard and C. Bruneau, Chem. Soc. Rev., 2012, 41, 4467; (b) M. Bandini and M. Tragni, Org. Biomol. Chem., 2009, 7, 1501; (c) Y. Tamaru, Eur. J. Org. Chem., 2005, 2647.
4. (a) M. Kimura, Y. Horino, R. Mukai, S. Tanaka and Y. Tamaru, J. Am. Chem. Soc., 2001, 123, 10401; (b) F. Ozawa, H. Okamoto, S. Kawagishi, S. Yamamoto, T. Minami and M. Yoshifuji, J. Am. Chem. Soc., 2002, 124, 10968; (c) K. Manabe and S. Kobayashi, Org. Lett., 2003, 5, 3241; (d) H. Kinoshita, H. Shinokubo and K. Oshima, Org. Lett., 2004, 6, 4085; (e) Y. Yokoyama, H. Hikawa, M. Mitsuhashi, A. Uyama, Y. Hiroki and Y. Murakami, Eur. J. Org. Chem., 2004, 1244; (f) N. Komine, A. Sako, S. Hirahara, M. Hirano and S. Komiya, Chem. Lett., 2005, 34, 246; (g) R. Shibuya, L. Lin, Y. Nakahara, K. Mashima and T. Ohshima, Angew. Chem., Int. Ed., 2014, 53, 4377; (h) P. Mukherjee and R. A. Widenhoefer, Chem.–Eur. J., 2013, 19, 3437; (i) X. Huo, G. Yang, Q. Liu, I. Gridnev and W. Zhang, Angew. Chem., Int. Ed., 2014, 53, 6766; (j) N. Selander, J. R. Paasch and K. J. Szabó, J. Am. Chem. Soc., 2010, 133, 409; (k) S. B. Lang, T. M. Locasio and J. A. Tange, Org. Lett., 2014, 16, 4308; (l) I. Usui, S. Schmidt, M. Keller and B. Breit, Org. Lett., 2008, 10, 1207; (m) Q. Liu, L. Wu, H. Jiao, X. Fang, R. Jackstell and M. Beller, Angew. Chem., Int. Ed., 2013, 52, 8064; (n) H.-B. Wu, X.-T. Ma and S.-K. Tian, Chem. Commun., 2014, 50, 219; (o) Y.-X. Li, Q.-Q. Xuan, L. Liu, D. Wang, Y.-J. Chen and C.-J. Li, J. Am. Chem. Soc., 2013, 135, 12536.
5. The palladium catalyzed synthesis of 3-allylindoles and benzofuranes using allyl chlorides, allyl esters and allyl carbonates as a π-allyl palladium source, see: (a) K. Iritani, S. Matsubara and K. Utimoto, Tetrahedron Lett., 1988, 29, 1799; (b) S. Cacchi, G. Fabrizi and P. Pace, J. Org. Chem., 1998, 63, 1001; (c) S. Cacchi, G. Fabrizi and L. Moro, Synlett, 1998, 741.
6. Recently, palladium catalyzed one-pot synthesis of 2,3-substituted indoles from o-alkynyl anilines and allylic alcohols has been reported. The mechanism is different from that of our work, (1) intramolecular cyclization lead to indolyl palladium intermediate (2) protonolysis of indolyl palladium intermediate to form 2-substituted indole (3) C3-alkylation of 2-substituted indole giving 2,3-substituted indole. In addition, allylic alcohols are restricted to 1,3-diaryl-2-propenols, two aryl groups of allylic alcohols are indispensable for allylation reaction, see: (a) C. Xu, V. K. Murugan and S. A. Pullarkat, Org. Biomol. Chem., 2012, 10, 3875 , Cyclization-Heck reaction sequence, see: ; (b) Q. Wang, L. Huang, X. Wu and H. Jiang, Org. Lett., 2013, 15, 5940.
7. Cycloheptatriene formation by [3 + 2 + 2] cocyclizations, see: (a) N. Tsukada, S. Sugawara and Y. Inoue, Tetrahedron Lett., 2007, 48, 4019 , Palladium catalyzed reactions of activated allyl compounds with alkynes, see: ; (b) N. C. Ihle and C. H. Heathcock, J. Org. Chem., 1993, 58, 560; (c) N. Tsukada, S. Sugawara and Y. Inoue, Org. Lett., 2000, 2, 655; (d) N. Tsukada, S. Sugawara, T. Okuzawa and Y. Inoue, Synthesis, 2006, 3003; (e) M. Jeganmohan, S. Bhuvaneswari and C.-H. Cheng, Angew. Chem., Int. Ed., 2009, 48, 391.
8. (a) Y. D. Dhage, H. Daimon, C. Peng, T. Kusakabe, K. Takahashi, Y. Kanno, Y. Inouye and K. Kato, Org. Biomol. Chem., 2014, 12, 8619; (b) R. Shen, T. Kusakabe, K. Takahashi and K. Kato, Org. Biomol. Chem., 2014, 12, 4533; (c) Y. Jiang, T. Kusakabe, K. Takahashi and K. Kato, Org. Biomol. Chem., 2014, 12, 3380; (d) T. Kusakabe, E. Sekiyama, S. Motodate, S. Kato, T. Mochida and K. Kato, Synthesis, 2012, 1825.
9. I. Nakamura, T. Sato and Y. Yamamoto, Angew. Chem., Int. Ed., 2006, 45, 4473.

---
