DOI:
10.1039/C5RA04433B
(Paper)
RSC Adv., 2015,
5, 41017-41024
A triazine-based covalent organic framework/palladium hybrid for one-pot silicon-based cross-coupling of silanes and aryl iodides†
Received
13th March 2015
, Accepted 27th April 2015
First published on 28th April 2015
Abstract
A triazine-based covalent organic framework (COF-SDU1) was synthesized through facile solvothermal conditions and characterized by IR, solid state 13C NMR, XRD, elemental analysis and BET. By a simple solution infiltration method, Pd(II) species were successfully immobilized into COF-SDU1 due to its two-dimensional eclipsed layer-sheet structure and nitrogen-rich content. High-resolution TEM images showed the uniform loading of the Pd species into the COF-SDU1 matrix. By using this hybrid material, Pd(II)/COF-SDU1, as a sustainable and green catalyst, one-pot cross-coupling of silanes and aryl iodides was realized with high selectivity. The catalyst can be easily recovered by a simple separation process and recycled several times without obvious loss of activity and selectivity.
Introduction
Carbon–carbon cross-coupling reactions are some of the most crucial transformations in synthetic chemistry due to their extensive application in forming novel organic compounds.1 Among them, the silicon-based cross-coupling reaction is an emerging interesting method based on its non-toxicity, high chemical stability and broad availability.2 To date, many types of silicon coupling reagents have been developed, such as organo(alkoxy)silanes and organosilanols.3 However, the synthesis of these silicon coupling reagents often need complicated and toxic raw materials. Meanwhile, separation and purification are difficult because some of them are easy to dimerize.4 In recent years, oxidation of organosilanes to fabricate silicon coupling reagents catalyzed by transition metal has been rapidly developed.5 This method was more green and facile over the above conventional routes. Because the oxides in these reactions are water or alcohols and the only by-product is H2. Progressively, if the synthesis of silicon coupling reagents and the following cross-coupling could combine in one-pot, separation of intermediates would be avoided and the reaction would be green, dexterous and environmentally friendly. Rare related work has been investigated so far. Very recently, our group firstly realized the silicon-based one-pot cross-coupling reaction by using ordinary organosilanes as starting materials catalyzed by nanoporous Pd.6 Although excellent yield was reached, homocoupling side product of aryl iodides inevitably existed. Furthermore, the preparation of nanoporous Pd catalyst is complicated. To solve these problems and further optimize silicon-based cross-coupling reaction with high yield and selectivity, design and fabrication of highly effective and sustainable catalysts are of great importance.
Covalent organic frameworks (COFs),7 as the emerging stable and porous materials, have attracted increasing interests in the past ten years due to their various applications in gas storage,8 chemical sensing,9 and catalytic supports.10 The fascinating features of COFs, such as high surface area, porosity and structural tunability, make them to be the brilliant candidates as versatile and efficient supports for various catalytically active metals. In this view, as COFs were synthesized by strong covalent bonds and elaborately designed building blocks, their chemical functionalities and structural properties could be tuned by appropriate choice of the starting building block and modification of the synthetic process. Therefore, COFs would be more suitable for anchoring and mono-dispersing metal ion due to their effective interplay between metal ion and the elaborately designed functional groups. In fact, a few cases of COF/metal hybrids have exhibited excellent catalytic activity in organic reactions, such as Suzuki coupling,10a,11 glycerol oxidation,12 nitro reduction,13 Heck–Sonogashira coupling10c etc. in the last few years. Inspired by the remarkably catalytic performances of the emerging COF/metal hybrids, seeking novel COF/metal hybrids catalysts and expanding their catalytic applications in more extensive reaction types have received more and more attention.
Previous investigations have revealed that the introduction of nitrogen functionalities on the supports could increase the dispersion and stability of some metal nanoparticles. In this respect, nitrogen-modified activated carbons as supports for platinum and palladium have attracted great interest in the liquid-phase oxidation of alcohols.14 For COFs materials, Wang,10a Banerjee,10b,c Prati,12 Schüth10e et al. had also demonstrated that imine-based and triazine-based COFs could immobilize and disperse palladium, gold, and platinum well. And these COF/metal hybrids exhibited increasing catalytic activity in organic reactions. Based on these considerations, in present work, we design and synthesize a nitrogen-rich triazine building block tri-(4-formacylphenoxy)-1,3,5-triazine (trif) (Scheme 1). By a facile solvothermal reaction between trif and p-phenylenediamine, a novel COF material (COF-SDU1) containing both imine and triazine functional groups was obtained. This material can sturdily stabilize and regularly mono-disperse the palladium species due to COF-SDU1's two-dimensional eclipsed layer-sheet structure and nitrogen-rich content. The Pd(II)/COF-SDU1, as a sustainable and green catalyst, exhibits excellent catalytic activity and selectivity towards the silicon-based one-pot cross-coupling reaction of silanes and aryl iodide. In addition, the catalyst can be reused several times without obvious metal leaching, sintering behaviors and evident loss of catalytic activity.
 |

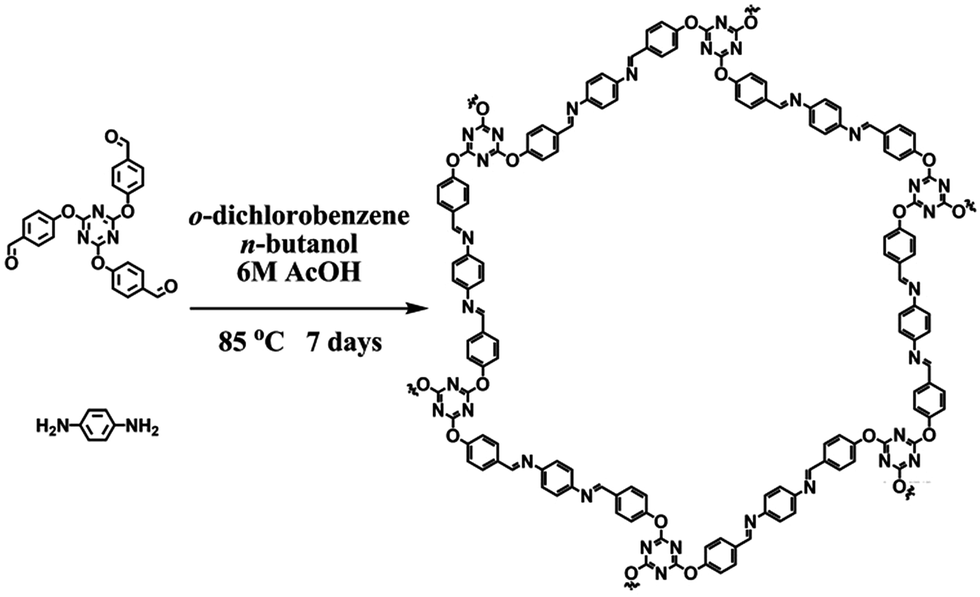

| Scheme 1 The preparation of COF-SDU1 by the condensation reaction between trif and p-phenylenediamine. | |
Experimental section
General
Column chromatography was carried out on silica gel (Merck, Kieselgel 60, 200–300 mesh) with the indicated eluents. p-Hydroxybenzaldehyde and p-phenylenediamine were obtained from Sinopharm Chemical Reagent Limited Company. Tri-(4-formacylphenoxy)-1,3,5-triazine (trif) was prepared according to the published procedure.15 All other reagents and solvents were of analytical grade and used as received without further purification.
Measurements
1H NMR spectra were recorded on a Bruker DPX 400 spectrometer. Spectra were referenced internally using the residual solvent resonances relative to SiMe4. Solid-state NMR experiments were performed on Bruker AVANCE III 600 spectrometer at a resonance frequency of 150.9 MHz. 13C CP/MAS NMR spectra were recorded using a 4 mm MAS probe and a spinning rate of 8 kHz. A contact time of 2 ms, a recycle delay of 5 s, and 4000 accumulations were used for the 1H–13C CP/MAS measurement. Fourier transform infrared spectra (FT-IR) were recorded in KBr pellets with 2 cm−1 resolution using an αALPHA-T spectrometer. MALDI-TOF mass spectra were taken on a Bruker BIFLEX III ultra-high resolution Fourier transform ion cyclotron resonance (FT-ICR) mass spectrometer with α-cyano-4-hydroxycinnamic acid as matrix. Elemental analyses were performed on an Elementar Vavio El III elemental analyzer. Powder X-ray diffraction (PXRD) measurements were carried out on a Rigaku D/mas-γB X-ray diffractometer with a Cu-Kα sealed tube (λ = 1.5406 Å) at 293 K. High-resolution transmission electron microscopy (HR-TEM) images were measured on a JEOL JEM-2100 electron microscope operated at 200 kV. Scanning electron microscopy (SEM) images were obtained using a JEOL JSM-6700F field-emission scanning electron microscopy. For TEM imaging, a drop of freshly prepared sample solution was cast onto a carbon copper grid. For SEM imaging, C (1–2 nm) was sputtered onto the grids to prevent charging effects and to improve the image clarity. The Pd contents of the COF samples were determined by inductively coupled plasma atomic emission spectroscopy (ICP-AES) analysis with an IRIS Intrepid II XRP instrument. N2 adsorption–desorption isotherms were measured on an ASAP 2020 (V4.01G) apparatus at 77.3 K and the surface areas of the COF-SDU1 and Pd(II)/COF-SDU1 were calculated by both the Brunauer–Emmett–Teller (BET) and Langmuir method. X-ray photoelectron spectroscopy (XPS) was carried out on PHI 5300 ESCA System (Perkin-Elmer, USA). The excitation source is Al Kα radiation. AA stacking and AB stacking Molecular modelings and Pawley refinement of the COF-SDU1 were carried out at the level of PBE-D(Grimme)/DN(4.4) in DMol3 software.
Preparation of COF-SDU1
A mixture of trif (178 mg, 0.4 mmol) and p-phenylenediamine (65 mg, 0.6 mmol) in o-dichlorobenzene/n-butanol/6 M AcOH (5/5/1 by vol; 16.5 mL) was sonicated at room temperature for 0.5 h. Then, the mixture was sealed in a 25 mL Teflon-lined stainless steel container and heated at 85 °C for 7 days. After the temperature of container cooled down to room temperature, a grayish yellow solid was found. This solid was isolated by centrifugation and washed with ethyl acetate, tetrahydrofuran (THF), acetone and chloroform to remove the trapped guest molecules, such as unreacted starting materials, then dried at 70 °C under vacuum for 12 h to yield COF-SDU1 as a grayish yellow powder (150 mg, yield 65%); found: C, 66.21; H, 3.307; N, 17.37. Calc. for (C11H7ON2)n: C, 72.13; H, 3.82; N, 15.30%; IR (powder, cm−1): 3405, 1695, 1620, 1565, 1504, 1365, 1206, 1161, 840, 809; 13C CP/MAS NMR (ppm): 173, 165, 154, 149, 135, 130, 122.
Preparation of Pd(II)/COF-SDU1
Pd(OAc)2 (15 mg, 0.067 mmol) and COF-SDU1 (100 mg) were dissolved in 10 mL of dichloromethane. The mixture was kept stirring at room temperature for 24 h. The resulting solid was isolated by centrifugation, washed with dichloromethane, and then dried at 70 °C under vacuum for 12 h to obtain Pd(II)/COF-SDU1 as a grayish yellow powder (110.8 mg, 89% yield). The Pd content was 4.5% as determined by ICP-AES; found: C, 62.55; H, 3.37; N, 15.79. Calcd for 0.049nPd(OAc)2@(C11H7ON2)n: C, 68.04; H, 3.61; N, 14.43%; IR (powder, cm−1) 3405, 2872, 1698, 1620, 1565, 1502, 1363, 1206, 1161, 841, 809, 619; 13C CP/MAS NMR (ppm) 180, 173, 165, 154, 149, 135, 130, 122, 22.
Silicon-based one-pot cross-coupling reaction
Pd(II)/COF-SDU1 (20 mg) and 0.2 mL of methanol were added into 2 mL of THF solvent at room temperature. Then phenylsilane (108 mg, 1 mmol) was added into this mixture. After no obvious bubbles emerging, iodobenzene derivatives (1.1 mmol) and tetrabutylammonium fluoride (TBAF 3 mmol) were added into the system without changing the reaction vessel and then the reaction temperature was elevated to 80 °C. After the reaction was completed, the mixture was cooled to room temperature, filtered and washed with THF. Then the filtrate was concentrated under vacuum. The residue was purified by silica gel chromatography with the appointed solvent as eluent.
Results and discussion
Synthesis of COF-SDU1 and Pd(II)/COF-SDU1
COF-SDU1 was synthesized in a good yield under solvothermal condition through the condensation of trif and p-phenylenediamine in o-dichlorobenzene/n-butanol/6 M AcOH (5/5/1, volume ratio) at 85 °C for 7 days (Scheme 1). Pd(II)/COF-SDU1 was prepared by coordinating COF-SDU1 with Pd(OAc)2 in dichloromethane at room temperature for 24 h. Both COF-SDU1 and Pd(II)/COF-SDU1 are insoluble in water and some polar organic solvents such as THF, acetone and chloroform. The thermal stability of COF-SDU1 and Pd(II)/COF-SDU1 was monitored by thermogravimetric analysis (TGA). Under nitrogen conditions, COF-SDU1 displayed great thermal stability and can be stable up to 450 °C. After being coordinated with Pd(OAc)2, Pd(II)/COF-SDU1 still remained high thermal stability. The degradation of this material started at approximately 250 °C (ESI, Fig. S1†). As the temperature of most liquid reaction is below 250 °C, the higher thermal stability would endow Pd(II)/COF-SDU1 more potential application in liquid phase reactions, even in gas phase reactions.
Fourier transform infrared (FT-IR) and 13C CP/MAS NMR spectra
The successful formation of the COFs was assessed by Fourier transform infrared (FT-IR) and 13C CP/MAS NMR spectroscopies. As showed in the FT-IR spectra of the raw materials, the carbonyl stretching band of trif (Fig. 1c) and N–H stretching band of p-phenylenediamine (Fig. 1d) were appeared at 1701 and 3377 cm−1 respectively. Compared with these starting materials, the clearly weakening absorption bonds for C
O and N–H and the appearance of a new stretching vibration band at 1620 cm−1 attributing to the C
N bond were observed in the FT-IR spectra of COF-SDU1 (Fig. 1a), clearly indicating the successful fabrication of the COFs material. Meantime, the 13C CP/MAS NMR spectrum provided further confirmation for the formation of imine bonds in the as-synthesized COFs. As showed in Fig. 2a, a characteristic resonance signal at 165 ppm, which was assigned to the C
N bond, was exhibited in the as-synthesized COFs. Furthermore, the strong resonance signals of C
O bond at 191 ppm displayed in the 13C NMR spectrum of trif (ESI, Fig. S2†) was strongly attenuated. However, the other resonance signals appeared in the 13C NMR spectrum of trif was also existed in the 13C CP/MAS NMR spectrum of COF-SDU1.
 |

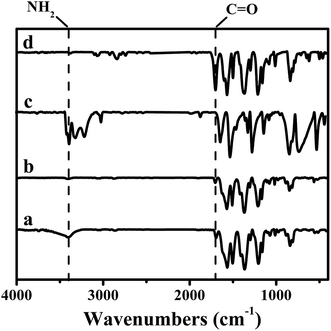

| Fig. 1 FT-IR spectra of (a) COF-SDU1, (b) Pd(II)/COF-SDU1, (c) p-phenylenediamine and (d) tri-(4-formacylphenoxy)-1,3,5-triazine (trif) in the region of 500–2000 cm−1 with 2 cm−1 resolution. | |
 |

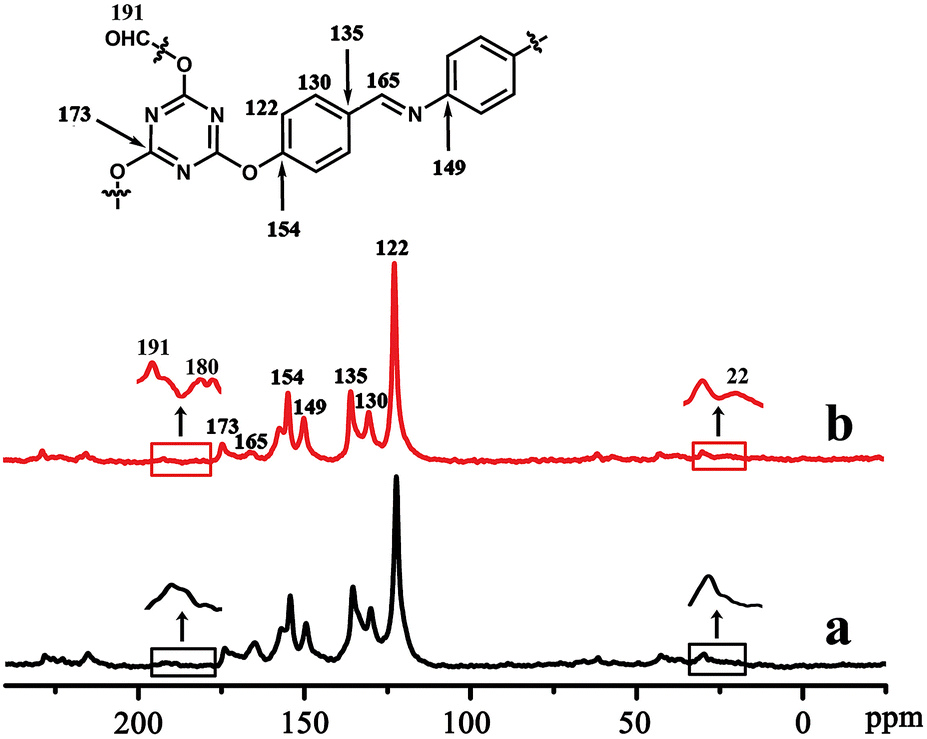

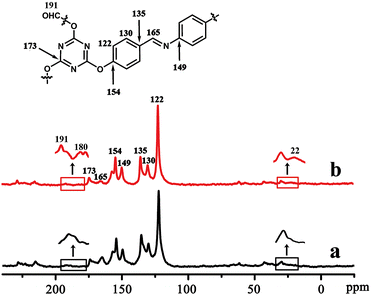

| Fig. 2 13C CP/MAS NMR spectra of (a) COF-SDU1 and (b) Pd(II)/COF-SDU1. | |
Similar with COF-SDU1, FT-IR and 13C CP/MAS NMR spectra of Pd(II)/COF-SDU1 exhibited almost identical absorption and resonance peaks with COF-SDU1 (Fig. 1b and 2b). This result clearly indicated that the crystal structure of COF-SDU1 was well preserved after the coordination with Pd2+. In addition, in the 13C CP/MAS NMR spectrum of Pd(II)/COF-SDU1, two additional minor resonance signals were also observed at ∼180 and 22 ppm, respectively. According to Wang's previous work,10a these two signals were assigned to the carbonyl and methyl groups of the incorporated Pd(OAc)2, further implying the effective coordination of Pd2+ with COF-SDU1 materials. Further evidences for this point were also revealed by the PXRD, SEM and TEM results, as detailed below.
X-ray photoelectron spectra (XPS) analysis
To confirm the incorporation of palladium within COF-SDU1, X-ray photoelectron spectroscopy (XPS) was employed to detect the Pd ions circumstance. The XPS spectra of Pd(OAc)2 and Pd(II)/COF-SDU1 (ESI, Fig. S3†), indicated that both compounds show typical signals for the Pd2+ ion. The strong absorption peak at 338.7 and the weak absorption peak at 344.3 for Pd(OAc)2 attributed to the Pd2+ 3d5/2 and Pd2+ 3d3/2, respectively.16 In the comparison with the XPS spectrum of Pd(OAc)2, the Pd2+ signals in the XPS spectrum of Pd(II)/COF-SDU1 take obvious shift to the lower bonding energy direction, implying the stronger coordination of Pd(OAc)2 with the imine and triazine groups of COF-SDU1.10a
Powder X-ray diffraction patterns of COF-SDU1 and Pd(II)/COF-SDU1
Powder X-ray diffraction (PXRD) analysis was used to determine the crystalline structure of COF-SDU1 and Pd(II)/COF-SDU1. Fig. 3A showed the both experimental and simulated PXRD patterns of as-synthesized COF materials. The PXRD diagram of COF-SDU1 exhibited one intense and three weak peaks at 2θ = 2.71° (corresponding to 3.26 nm), 4.69° (1.88 nm), 5.41° (1.63 nm) and 7.27° (1.22 nm) respectively at the low angle range, which are ascribed to the refractions from the (100), (110), (200), and (210) planes, indicating the long-rang molecular ordering of COF-SDU1 along these planes. When Pd(II) species was incorporated into COF-SDU1, a well maintained PXRD diagram of Pd(II)/COF-SDU1 with that of COF-SDU1 was observed. No other diffraction peaks attributed to the Pd(II) species can be found, implying the high dispersion of Pd(II) on COF-SDU1 materials. Obviously, the highly dispersed Pd(II) species on COF-SDU1 did not damage the crystallinity of COF-SDU1 and the integrity of COF-SDU1 structure was retained. Next, Materials Studio software package was used to elucidate the lattice packing of COF-SDU1. Two probable structures, namely a fully eclipsed model with an AA stacking sequence (Fig. 3B) and a staggered model with an AB stacking sequence (Fig. 3C), were simulated.17 Simulations of AA stacking sequence used P1 space group with a = 39.694 Å, b = 39.474 Å, c = 4.838 Å and α = β = 90 °C, γ = 120 °C. As can be found in Fig. 3A, the peak positions and relative intensities of AA stacking model was in good accordance with that of the experimentally observed one. While the PXRD pattern of AB staggered stacking mode exhibited a largely deviation from that of the experimentally observed profile. From these results, it can be speculated that COF-SDU1 was composed of hexagonal layers, stacking along the 001 plane.
 |

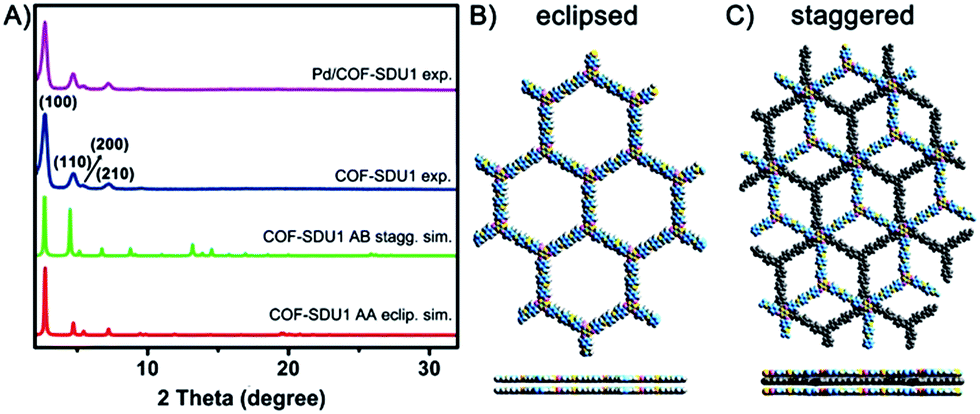

| Fig. 3 (A) Experimental PXRD patterns of COF-SDU1 and Pd(II)/COF-SDU1 together with the simulated patterns according to AA and AB stacking models. (B) Views of the AA stacking structure along c and b axes. (C) Views of the AB stacking structure along c and b axes. | |
Morphology of the COFs materials
The morphological and structural features of the as-synthesized both COFs were examined by scanning electron microscopy (SEM) and transmission electron microscopy (TEM). Samples were prepared by casting a drop of sample solution onto a carbon-coated grid. As could be seen from the panoramic SEM image of COF-SDU1 (Fig. 4A), the sample was mainly composed of numerous uniform spherical clusters of about 1–2 μm in diameter. A close observation (Fig. 4B) revealed that each of the individual clusters was stacked by a large amount of small and dense flake with diameter of 70–90 nm. As results, the surface of COF-SDU1 was rather rough and rugged, which would be favor of catalytic applications. The corresponding TEM image of COF-SDU1 (Fig. 4C) indicated that the material was formed by a crowd of homogeneous small flakes within tens of nanometers range, consistent with the SEM results. In the high-resolution transmission electron microscopy (HR-TEM) image of the COF-SDU1 (Fig. 4D), the lattice fringes could also be observed, clearly implying the highly ordered crystalline structure of the as-synthesized COF-SDU1. In the SEM and TEM images of Pd(II)/COF-SDU1, it can be seen that the morphology of Pd(II)/COF-SDU1 was similar with COF-SDU1 (Fig. 5). Further observation of the high resolution TEM image revealed that the surface of the spherical clusters was covered with the 3–4 nm sized black dots attributed to Pd(0) nanoparticles. However, from the results shown in XPS analysis, the oxidation state of the palladium incorporated into the COF-SDU1 matrix is +2. This may be a consequence of the high energy electron beam during TEM analyses. According to previous research,10a,c,18 the loaded Pd2+ would get agglomerated first then further reduced spontaneously from Pd(II) to Pd(0) under the action of electron beam during TEM analyses.
 |
| Fig. 4 (A) SEM, (B) amplifying SEM, (C) TEM and (D) high-resolution TEM images of COF-SDU1. | |
 |
| Fig. 5 (A) SEM, (B) amplifying SEM, and high-resolution TEM images of Pd(II)/COF-SDU1 (C) before and (D) after reused for three times. | |
Brunauer–Emmett–Teller (BET) surface area
In order to characterize the porosity parameters of COF-SDU1 and Pd(II)/COF-SDU1, the nitrogen adsorption isotherm were measured at 77.3 K. As showed in Fig. 6A, COF-SDU1 displayed a sharp uptake below P/P0 = 0.01 and a very well-defined jump between P/P0 = 0.04–0.25 was also observed, indicating the high crystallinity of the porous system.19 This profile is assigned to a type IV isotherm, which is characteristic of mesoporous nature of the material. The Brunauer–Emmett–Teller (BET) surface area and Langmuir surface area of COF-SDU1 were calculated to be 1125 and 3545 m2 g−1, respectively, which is much higher than that of the analogous COFs materials reported previously, such as CTF-1 (791 m2 g−1).20 The total pore volume and pore size distribution were calculated by using the nonlocal density functional theory (NLDFT). The total pore volume was estimated to be 1.20 cm3 g−1 at P/P0 = 0.98. The average pore size was mainly centered at around 2.63 nm except a few minor peaks appeared at some smaller pore width range. This result was slight smaller than that of the PXRD and theoretically predicted value (3.2 nm), which may arise from the imperfect solid-state stacking of the eclipsed 2D sheets that cannot be identified by PXRD studies as reported for many 2D COFs and predicated by theoretical studies.8c,21 The nitrogen adsorption isotherm of Pd(II)/COF-SDU1 also possessed a type IV isotherm (Fig. 6C). The total pore volume and pore size distribution calculated by NLDFT were 1.16 cm3 g−1 at P/P0 = 0.98 and 2.51 nm, respectively. In comparison with COF-SDU1, the pore size of Pd(II)/COF-SDU1 was nearly parallel to COF-SDU1, which indicated that the incorporation of Pd2+ did not disturb the internal matrix of COF-SDU1. According to the previous investigates, when metal ions or particles were incorporated into the COFs materials, notable decrease of the BET surface was appeared while the pristine COF materials were maintained.10 However, in our present case, it is amazing that the BET surface area and Langmuir surface area of Pd(II)/COF-SDU1 were calculated to be 1052 and 3327 m2 g−1, respectively, very closer to that of COF-SDU1. The almost unchanged high BET surface would undoubtedly benefit the catalytic performance of Pd(II)/COF-SDU1.
 |

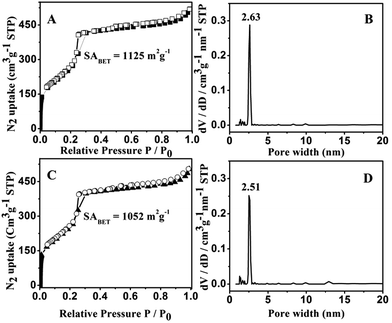

| Fig. 6 Nitrogen adsorption–desorption isotherms of (A) COF-SDU1 and (C) Pd(II)/COF-SDU1. Pore-size distribution of (B) COF-SDU1 and (D) Pd(II)/COF-SDU1 from nonlocal density functional theory. | |
Catalytic activity measurement
The catalytic activity of Pd(II)/COF-SDU1 toward one-pot silicon-based cross-coupling reaction of silanes and aryl halides was accessed. To realize this reaction, oxidation of organosilanes to organo(alkoxy)silanes or organosilanols in good yield and then effectively cross-couples between the organo(alkoxy)silanes or organosilanols with aryl halides are necessary. Therefore, Pd(II)/COF-SDU1's activity towards oxidation of organosilanes to organo(alkoxy)silanes or organosilanols was studied firstly. The reaction was tested in THF solution (2 mL) at room temperature with phenylsilane (1 mmol), water (0.2 mL) and Pd(II)/COF-SDU1 (20 mg, the mole ratio of Pd species versus phenylsilane was 0.0085). After 2 h, phenylsilanetriol (1a) was obtained with 97.8% yield (ESI, Table S1,† entry 1). Similar with water, when methanol or ethanol was used as oxide, the corresponding organo(alkoxy)silanes was also obtained in high yield, (ESI, Table S1,† entries 4–5). Then different substrates were explored. Aromatic organosilanes, no matter containing one, two or three H, could be activated to corresponding organo(alkoxy)silanes or organosilanols within 2–3 h with almost equivalent yield (ESI, Table S1,† entries 1–3), indicating the high activity of Pd(II)/COF-SDU1 toward the oxidation of organosilanes.
Next, we tested the Pd(II)/COF-SDU1's activity towards silicon-based cross-coupling reaction of the organo(alkoxy)silanes or organosilanols with aryl iodides. Considering the follow-up one-pot reaction, equivalent amount of the catalyst was used. The experiment was carried out firstly with phenyltrimethoxylsilane (1d) (1 mmol), 4-iodotoluene (1.1 mmol), TBAF (3 mmol) at 80 °C in THF (2 mL). After 7 h, 4-methylbiphenyl as the cross-coupling product was obtained (97.8% yield, ESI, Table S2†). On the other hand, no coupling product was obtained in the absence of Pd(II)/COF-SDU1, indicating that the reaction was catalyzed by Pd(II)/COF-SDU1. Similar with 1d, other organo(alkoxy)silanes or organosilanols can also be effectively converted into 4-methylbiphenyl (ESI, Table S2†). Moreover, no homo-coupling byproduct was detected. These results implied the high catalytic activity of Pd(II)/COF-SDU1 for this type of cross-coupling reaction.
Based on the above experimental observations, Pd(II)/COF-SDU1 is active for organosilane oxidation as well as silicon-based cross-coupling reaction, individually. Hence, we investigated one-pot silicon-based cross-coupling reaction of silanes and aryl iodides catalyzed by Pd(II)/COF-SDU1. According to the previous research, Si–OH bonds in organosilanols could easily dimerize,22 which was negative to the following no-isolated continuous reaction. Therefore organo(alkoxy)silanes were more suitable as coupling partner. We finally chose methanol instead of water as oxidant to avoid the generation of organosilanols intermediate. The representative reaction conditions were methanol (5 mmol), phenylsilane (1 mmol), 4-iodotoluene (1.1 mmol), TBAF (3 mmol), Pd(II)/COF-SDU1 (20 mg) and THF (2 mL). After methanol (5 mmol), phenylsilane (1 mmol) and Pd(II)/COF-SDU1 (20 mg) were reacted in THF at room temperature for 3 h, 4-iodotoluene (1.1 mmol) and TBAF (3 mmol) were added into this mixture. Then the system was heated up to 80 °C. After 7 h, the corresponding cross-coupling product 4-methyl-bipheny (2a) was obtained in 96.5% separated yield (Table 1, entry 1).
Table 1 Recycle test of Pd(II)/COF-SDU1 in one-pot silicon-based cross-coupling reaction of phenylsilane and 4-iodotoluene

|
Entry |
Catalyst |
t1a + t2b (h) |
Yieldc,d (%) |
Reaction conditions: phenylsilane (1 mmol), methanol (5 mmol), Pd(II)/COF-SDU1 (20 mg, 8.5 × 10−3 mmol of Pd) and THF (2 mL), room temperature, 3 h. Reaction conditions: 4-iodotoluene (1.1 mmol), TBAF (3 mmol), 80 °C, 7 h. Reaction conditions: isolated yield. Reaction conditions: the values are the average of two independent experiments. |
1 |
Fresh |
10 |
96.5 |
2 |
Reused 1 |
10 |
95.1 |
3 |
Reused 2 |
12 |
94.6 |
4 |
Reused 3 |
10 |
95.3 |
We also used nanoporous Pd (np-Pd) and commercial available Pd/C to comparatively test this reaction. The np-Pd was prepared from the reported method,5 and the Pd/C (5% Pd) was purchased from Aladdin Industrial Corporation. When using the same condition, especially the same equivalent of 4-iodotoluene (1.1 mmol), the yield of np-Pd was only 50% due to the formation of homo-coupling by-products. Higher yield (91%) was obtained when we increased the dosage of 4-iodotoluene (1.5 mmol). As for Pd/C, 93% yield was obtained under the same condition and a small number of homo-coupling by-products were also detected. However, it was hard to realize the good reusability of Pd/C because of the leaching problem. When Pd/C was reused for the second time, 70% cross-coupling product was obtained.
To evaluate the stability and reusability of Pd(II)/COF-SDU1, the recycled and leaching experiments were performed. For leaching, when the reaction was finished, Pd(II)/COF-SDU1 was filtered from the solution. Then the filtrate was analyzed by inductively coupled plasma atomic emission spectroscopy (ICP-AES). Results showed that the leaching of palladium was lower than the detection limits (<0.02 ppm), indicating the heterogeneity of Pd(II)/COF-SDU1 catalyst. Owing to the insolubility of Pd(II)/COF-SDU1 in most of organic solvent, the catalyst can be separated easily by simple filtration. The recovered catalyst was washed with THF and methanol and then reused without further treatment. No significant loss of the catalytic activity was observed (Table 1, entries 2–4) after Pd(II)/COF-SDU1 was reused for additional three times. The stability of the catalyst after catalytic cycles was further confirmed by comparing the TEM images of the catalyst after catalytic runs with the fresh prepared one. As shown in Fig. 6D, no obvious aggregates and change in the morphology and feature dimensions of the Pd species were observed. The FT-IR and PXRD data of the reused and fresh Pd(II)/COF-SDU1 were also consistent, which revealed the crystallinity and the atomic-level structure of Pd(II)/COF-SDU1 were maintained (ESI, Fig. S4 and S5†).
The substrate generality under the same reaction conditions was also studied. Aryl iodide derivatives containing both electron-donating and electron-withdrawing groups were explored. As shown in Table 2, the coupling of aryl iodides containing the electron-withdrawing group (nitro and hydroxy) produced relatively lower efficiencies (66.5% and 68.5% yields, Table 2, entries 5–6). However, aryl iodides containing the electron-donating group such as methyl, methoxyl and fluoro coupled with organo(alkoxy)silanes well, gaining the corresponding products with good to excellent yields (91.4–96.5%, Table 2, entries 1–4). Additionally, 2-iodotoluene was also attempted to this reaction, which resulted in identically high yield with 4-iodotoluene, (Table 2, entry 2). In this way, the steric hindrance of iodobenzene derivatives could barely influence the reaction.
Table 2 Catalytic activity test of Pd(II)/COF-SDU1 in one-pot silicon-based cross-coupling reaction of silanes and aryl iodides

|
Entry |
R |
2 |
t1a + t2b (h) |
Yieldc,d (%) |
Reaction conditions: phenylsilane (1 mmol), methanol (5 mmol), Pd(II)/COF-SDU1 (20 mg, 8.5 × 10−3 mmol of Pd) and THF (2 mL), room temperature, 3 h. Reaction conditions: iodobenzene derivatives (1.1 mmol), TBAF (3 mmol), 80 °C, t2. Reaction conditions: isolated yield. Reaction conditions: the values are the average of two independent experiments. |
1 |
4-CH3 |
2a |
10 |
96.5 |
2 |
2-CH3 |
2b |
10 |
93.2 |
3 |
4-OCH3 |
2c |
12 |
94.2 |
4 |
4-F |
2d |
10 |
91.4 |
5 |
4-OH |
2e |
16 |
68.5 |
6 |
4-NO2 |
2f |
12 |
66.5 |
Conclusions
In summary, a new covalent organic framework (COF-SDU1) containing both imine and triazine functional groups was prepared. The as-obtained COF material possessed highly ordered crystalline structure and large surface area. Based on its stable, porous, nitrogen-rich properties, COF-SDU1 can act as the efficient support for immobilizing and mono-dispersing Pd species. The Pd(II)/COF-SDU1 showed superior performance in one-pot silicon-based cross-coupling reaction of silanes and aryl iodides with high selectivity. To the best of our knowledge, this is the first report to combine the oxidation of silanes and the next cross-coupling in one system by using COF/palladium hybrids as catalyst. Due to the particular structural properties of COFs materials incorporation with their easy functionalization to combine various metal, COF/metal hybrids will exhibit more future potential in catalytic field from both academia and industry.
