Pyridinum-based flexible tripodal cleft: a case of fluorescence sensing of ATP and dihydrogenphosphate under different conditions and cell imaging

Abstract

Pyridinium-based chemosensor 1 built on tris(aminomethyl)amine (tren) has been designed, synthesized and established as a chemosensor for ATP over ADP, AMP and a series of other anions in aqueous CH₃CN at pH 6.5. Compound 1 exhibits a significant change in emission upon complexation of ATP. In CH₃CN, the sensor selectively binds H₂PO₄⁻ and forms an excimer with significant intensity. Furthermore, the intracellular ATP detection using 1 was possible through fluorescent confocal imaging.

---

Introduction

Anions play a key role in a variety of environmental and biological processes.¹ In particular, phosphate-based biomolecules such as ATP, ADP, AMP and related inorganic phosphates are considered to be important due to their ubiquitous presence in a range of life processes spanning from energy storage and signal transduction to gene construction.² ATP is associated with the transport of chemical energy within the cells for metabolism. Apart from its role in intracellular energy transfer, ATP is involved in DNA duplication and transcription.³ Deficiency of ATP results in ischemia, Parkinson's disease and hypoglycaemia.⁴ Therefore, selective detection of ATP or inorganic phosphates released from the hydrolysis of the phosphate chain is considered to be important in anion recognition chemistry. In detection of these anions, use of fluorescent receptors draws attention due to the simplicity and high sensitivity of fluorescence technique. Considerable effort in this direction has already been given by different research groups in last few decades.⁵ Inspite of reasonable progress, the use of organic cation in devising fluorescent receptors for nucleotides is less explored.^5,6 Survey of the literature reveals that metal–ligand complexes have been maximally used for phosphate and phosphate-based biomolecule recognition.^5,7

In this paper, we wish to report a simple tris(aminomethyl)amine (tren) coupled pyridinium-based tripodal chemosensor 1 that fluorimetrically selectively senses ATP over ADP, AMP and a series of other anions in CH₃CN/H₂O (1 : 1, v/v, pH = 6.5, 10 mM HEPES buffer). Furthermore, while the sensor was non responsive to different inorganic phosphates in CH₃CN/H₂O (1 : 1, v/v, pH = 6.5), it exhibited strong and selective interaction with H₂PO₄⁻ in pure CH₃CN. The versatility of 3-aminopyridinium-based compounds in anion recognition is recently reviewed by us.⁸ Careful scrutiny in this domain, reveals that pyridinium-based compounds is little explored in nucleotide binding although we, for the first time, reported dipodal^6e and tripodal^6f receptors for selective sensing of ATP and AMP, respectively. Compound 1 in the present report is the modification of our earlier reported tripod 2 that showed selective sensing of AMP in water.^6f The replacement of the butyryl amide in 2 by 1-naphthyl acetamide group results in compound 1 which selectively binds ATP in aqueous CH₃CN and thus makes the pyridinium motif-based tripod core versatile in nucleotide binding.

Scheme 1 describes the synthetic route to the synthesis of compound 1. The reaction of tris(2-aminoethyl)amine with chloroacetyl chloride in CHCl₃–H₂O (1 : 1, v/v) gave amide 3.^6g Amide 3 was next refluxed with pyridine amide 5^6e which was obtained from the reaction of 3-aminopyridine with 1-naphthyl acetyl chloride 4, in dry CH₃CN–DMF (5 : 1, v/v) mixture solvent for 6 days to have pure trichloride salt 6. Subsequent anion exchange reaction of 6 with NH₄PF₆ in MeOH–H₂O gave the desired compound 1. All the compounds were characterized by usual spectroscopic techniques.

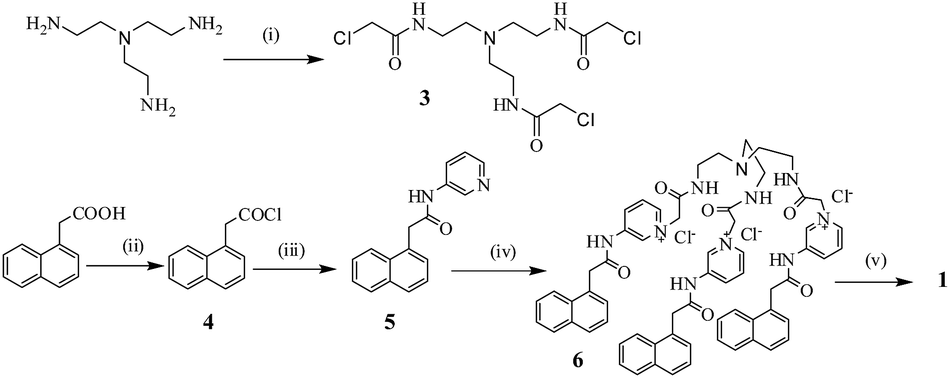

Scheme 1 (i) Chloroacetyl chloride, K₂CO₃, CHCl₃–H₂O, stir 4 h; (ii) oxalyl chloride, dry CH₂Cl₂, DMF (cat.), stir 8 h; (iii) 3-aminopyridine, Et₃N, dry CH₂Cl₂, stir 3 h; (iv) 3, CH₃CN, reflux, 4 days; (v) NH₄PF₆, MeOH–water, stirring for 1/2 h.

Results and discussion

The anion recognition potential of compound 1 was evaluated by fluorescence, UV-vis and NMR spectroscopic techniques. In fluorescence, excitation of 1 in CH₃CN/H₂O (1 : 1, v/v, pH = 6.5, 10 mM HEPES buffer) at 290 nm introduced the emission at 386 nm. Upon interaction with some biologically relevant phosphate-based anions such as ATP, ADP, AMP, H₂PO₄⁻, HPO₄²⁻, PO₄³⁻ and pyrophosphate (P₂O₇⁻), glucose-1-phosphate (G1P) and glucose-6-phosphate (G6P) in CH₃CN/H₂O (1 : 1, v/v, pH = 6.5, 10 mM HEPES buffer), the emission intensity of 1 was changed to the different extents (Fig. 1a). Among the different phosphate-based anions, only ATP caused significant change in emission (Fig. 1b). On incremental addition of ATP, a broad emission at 390 nm was intensified. This was also observed in the presence of ADP (ESI, Fig. 1S†). But it was much less compared to the case with ATP. During interaction, appearance of the peak at ∼390 nm is attributed to formation of exciplex between naphthalene and adenine. It is mentionable that during interaction of 1 with ATP, the interference of other anions was negligible. This is evident from Fig. 2a. Fig. 2b demonstrates the effect of addition of ATP to the solution of 1 containing other anions. The large change in emission in the presence of other anions reveals a clear-cut binding selectivity of 1 towards ATP. This was also true when the selectivity of 1 towards ATP was tested in presence of both phosphate and non-phosphate-based anions (ESI, Fig. 2S†). In this case, only F⁻ ion was observed to interfere to some extent although F⁻ – induced change in emission of 1 in CH₃CN/H₂O (1 : 1, v/v, pH = 6.5, 10 mM HEPES buffer) was considerably small (ESI, Fig. 2S†).

Fig. 1 (a) Change in emission ratio of 1 (c = 2.5 × 10⁻⁵ M) in the presence of 20 equiv. amounts of the sodium salts of various anions in CH₃CN–H₂O (1 : 1, v/v, pH = 6.5, 10 mM HEPES buffer); (b) change in emission of 1 (c = 2.5 × 10⁻⁵ M) in CH₃CN–H₂O (1 : 1, v/v, pH = 6.5, 10 mM HEPES buffer) upon gradual addition of 30 equiv. of ATP (c = 1 × 10⁻³ M) [λ_exc = 290 nm].

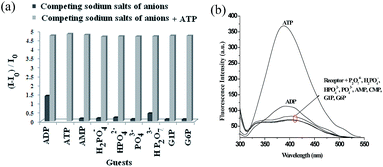

Fig. 2 (a) Change in fluorescence ratio of 1 (c = 2.5 × 10⁻⁵ M) in absence and presence of 20 equiv. amounts of ATP in presence of sodium salts of various anions in CH₃CN–H₂O (1 : 1, v/v, pH = 6.5, 10 mM HEPES buffer); (b) change in fluorescence intensity of 1 in CH₃CN–H₂O (1 : 1, v/v, pH = 6.5, 10 mM HEPES buffer) upon addition of 20 equiv. amount of ATP in presence of other anions considered in the present study [λ_exc = 290 nm].

The linearity in Benesi–Hilderband plot⁹ in Fig. 3a corresponds to a 1 : 1 stoichiometric interaction between receptor 1 and ATP. This was also true for ADP (ESI, Fig. 3S†). The association constant values were calculated from fluorescence titration data and they were found to be 1.16 × 10³ M⁻¹ and 1.10 × 10³ M⁻¹ for ATP and ADP, respectively. The detection limit for ATP was determined to be 8.44 × 10⁻⁶ M (ESI, Fig. 3S†).¹⁰

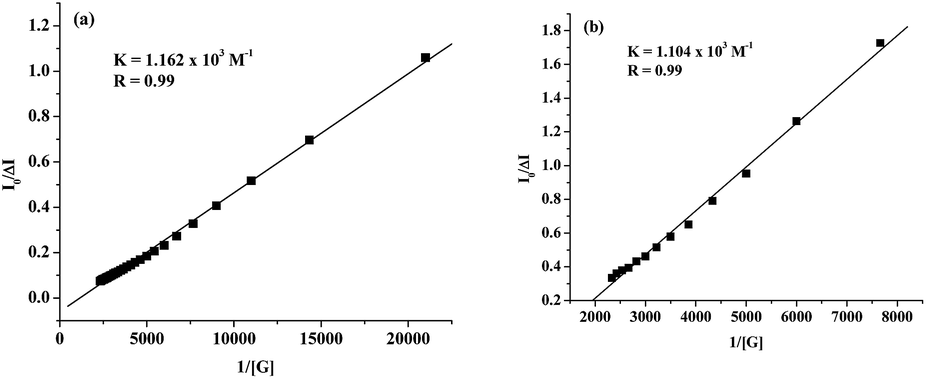

Fig. 3 Benesi–Hilderband plots for receptor 1 (c = 2.5 × 10⁻⁵ M) with (a) ATP and (b) ADP ([ATP] = [ADP] = 1 × 10⁻³ M) at 390 nm.

In UV-vis spectroscopy, the tripodal receptor 1 in CH₃CN/H₂O (1 : 1, v/v, pH = 6.5, 10 mM HEPES buffer) showed absorptions at 252 nm and 285 nm. During interaction with ATP, the band at 285 nm which was attributed to the absorption of naphthalene underwent minor change although the absorption at 252 nm was significant. This was true for ADP and AMP also and thus the distinction of these three nucleotides by 1 was not possible in the ground state (ESI, Fig. 4S†). For other anions the change in absorption of the two peaks (252 nm and 285 nm) was negligible and thereby suggested the mere interaction of the receptor in the ground state (ESI, Fig. 4S†).

In order to be acquainted with the anion binding behaviour of 1 in non aqueous solvent, we investigated the interaction of 1 with the anions such as F⁻, Cl⁻, Br⁻, I⁻, NO₃⁻, AcO⁻, ClO₄⁻, HSO₄⁻, HP₂O₇³⁻ and H₂PO₄⁻ (taken as their tetrabutylammonium salt) in pure CH₃CN (ESI, Fig. 5S†). Among these anions, only H₂PO₄⁻ perturbed the emission of 1 markedly by showing excimer emission at 455 nm. We believe that this excimer emission at 455 nm which is retained in the midst of other anions (ESI, Fig. 6S†), results in from the complexation induced pulling of the pendant naphthalenes closely. This observation is in accordance with the findings observed by us^6e and other researchers.¹¹

Thus, this unique feature of emission can be considered as the diagnostic one for discrimination of H₂PO₄⁻ from the other anions examined in CH₃CN. In UV-vis study, upon gradual addition of H₂PO₄⁻, the absorption of 1 was changed irregularly (ESI, Fig. 7S†). In contrast, gradual addition of F⁻ ion initially did not bring any marked change in absorption spectra. But upon increasing the concentration of F⁻, the absorption at 252 nm was decreased followed by an appearance of a new absorption band at ∼300 nm. Such ratiometric response introduced an isoemissive point at 284 nm. This suggests a strong ground state interaction of 1 with F⁻ although there was no considerable change in emission in fluorescence.

The stoichiometry of the H₂PO₄⁻ complex as determined from fluorescence Job plot¹² was found to be 1 : 1 (ESI, Fig. 8S†) and the association constant⁹ for H₂PO₄⁻ was evaluated to be 7.06 × 10³ M⁻¹ by considering the emission titration results, gathered from addition of 2 equiv. amounts of H₂PO₄⁻ to the solution of 1. The detection limit for H₂PO₄⁻ was determined to be 1.46 × 10⁻⁶ M (ESI, Fig. 9S†).¹⁰

Prior to identify the interacting protons of 1 in the complexation, we recorded NOESY spectrum of 1 in d₆-DMSO (Fig. 4). We did not record the NMR spectra in CD₃CN due to appearance of non homogeneity of the solution of 1 in NMR concentration range. As can be seen from Fig. 4, naphthalene appended pyridinium motifs in the tripod are disposed in spread out conformation by exhibiting some correlations in the individual strand. In the presence of equivalent amount of H₂PO₄⁻ in d₆-DMSO some correlations of protons in each pod as shown in Fig. 4 were destroyed (ESI, Fig. 10S†). Even no correlation among the pendant naphthalenes was observed. This finding suggests that the hydrogen bonding interaction of H₂PO₄⁻ occurs into the core involving pyridinium sites in such a way that the naphthalene rings from the different arms are pulled weakly without showing any characteristic NOESY correlation which depends on the distance of the nuclei. The details along this direction including the change in ¹H-NMR of 1 during complexation of H₂PO₄⁻ can be found in the ESI (Fig. 11S†).

Fig. 4 NOESY spectrum of 1 (d₆-DMSO, 400 MHz) (c = 1.83 × 10⁻³ M).

ATP amplified prominent change of optical behaviour of receptor 1 in fluorescence was understood from ¹H NMR spectral change. In this experiment receptor 1 was taken in d₆-DMSO and to this solution ATP (dissolved in D₂O) was added in equivalent amount. In the presence of equiv. amount of ATP, amide protons of types ‘o’ and ‘d’ underwent downfield chemical shifts by 0.74 ppm and 0.45 ppm, respectively. On keeping the solution for ∼15 min, the exchangeable amide protons were not observed due to presence of D₂O in the mixture. The pyridinium ring protons (types ‘b’ and ‘c’) moved downfield (Fig. 5). These results indicated that the pyridinium sites in 1 are involved in complexation of the phosphate chain. The downfield chemical shifts of the methylene protons of types ‘n’ and ‘m’ by 0.57 ppm and 0.27 ppm, respectively also suggested their participation in hydrogen bonding with the phosphate chain. Furthermore, during interaction the naphthyl ring protons (i, j, k and l types) suffered upfield chemical shift by 0.11 ppm and the adenine ring protons moved upfield by 0.001–0.03 ppm. These changes in chemical shift values may be ascribed to the stacking of adenine ring with the naphthyl unit (Fig. 6). Analysis of the NOESY spectrum reveals that in 1·ATP complex, there is a cross-peak between the signal of adinine ring proton (δ 8.70 ppm) and methylene protons of type ‘m’ (Fig. 7). This observation means that adenine is located closely to naphthalene moiety in the suggested mode shown in Fig. 6 for which naphthalene–adenine–naphthalene π-stacking interaction exists in solution and allows the formation of exciplex at 390 nm (see Fig. 1b) in fluorescence.

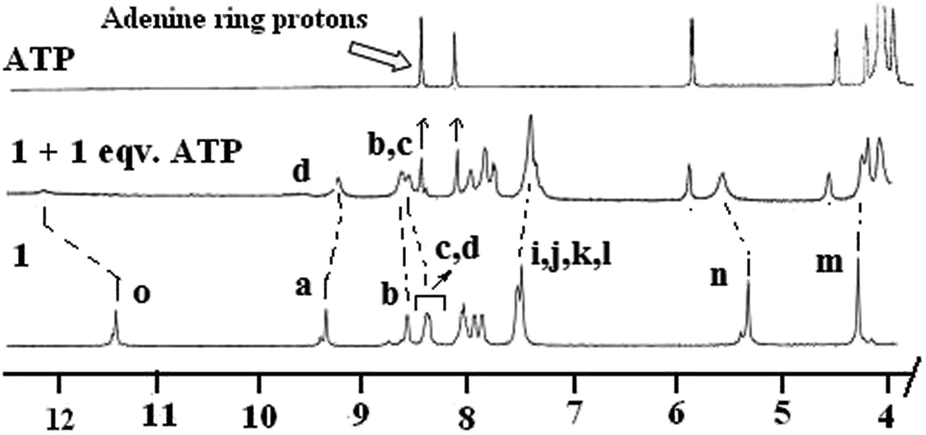

Fig. 5 (a) Partial ¹H NMR (d₆-DMSO, 400 MHz) of 1 (c = 1.5 × 10⁻³ M) with equiv. amount of ATP (dissolved in D₂O).

Fig. 6 Probable binding mode of 1 with ATP.

Fig. 7 NOESY spectrum of 1·ATP (d₆-DMSO/D₂O, 400 MHz) (c = 1.83 × 10⁻³ M).

Further attempts have been made to understand the biological application of the compound 1 for detection of ATP under cellular condition in HEK293T cell line (Human Embryonic Kidney cells with T antigen of SV40) using confocal microscopy (Fig. 8). Microscopic images revealed a significant increase in the blue fluorescence in HEK293T cells incubated with both ATP and compound 1 (Fig. 8J) when compared to cells treated with only compound 1 (Fig. 8F) and/or normal untreated cells (Fig. 8B). This finding suggests that the compound 1 is permeable through cellular membrane and is able to sense the presence of intracellular ATP. In MTT assay, there was no significant difference in percentage of viable cells of receptor treated cells when compared to that of solvent treated series of cell sets (ESI, Fig. 12S†). This indicates that the receptor is non cytotoxic in nature.

Fig. 8 Confocal microscopy of different sets of normal untreated and experimental sets of HEK293T cells: (A) differential interference contrast (DIC) image and (B) fluorescing image of untreated control cells, (C) merge images of (A) + (B), (D) intensity profile of (B) (scale: X axis = length (μm) [0.32 μm per pixel], Y axis = intensity/pixel), (E) DIC image and (F) fluorescing image of cells treated with 1 (10 μM) for 1 h at 37 °C, (G) merge images of (E) + (F), (H) intensity profile of (F) (scale: X axis = length (μm) [0.32 μm per pixel], Y axis = intensity/pixel), (I) DIC image and (J) fluorescing image of cells which were pre incubated with 50 μM ATP and then treated with 1 (10 μM) for 30 min at 37 °C, (K) merge images of (I) + (J), (L) intensity profile of one of the representative fluorescing cells in (J) (scale: X axis = length (μm) [0.32 μm per pixel], Y axis = intensity/pixel).

Conclusion

We have thus reported a pyridinium motif coupled tren-based tripodal receptor 1 which in aqueous CH₃CN selectively recognizes ATP over ADP, AMP, other inorganic phosphates and non-phosphate containing anions based on fluorescence. In pure CH₃CN, receptor 1 recognizes tetrabutylammonium dihydrogenphosphate flurometrically by exhibiting diagnostic excimer emission. The recognition takes place through hydrogen bonding and charge–charge interactions at the pyridinium sites. Our previous report on receptor 2 as well as the present observation of 1 firmly establishes that the tripodal core of 1, comprised of pyridinium motifs, is a unique platform of sensing nucleotides. While the absence of aromatic surface onto the pyridinium motif in 2 directs the binding of AMP in pure water, the presence of naphthalenes in 2 modifies the cleft to sense ATP over ADP and AMP in aqueous CH₃CN. This versatility of the pyridinium motif-based tripodal core will definitely inspire chemists to enquire new findings in molecular recognition.

Experimental

Syntheses

N,N′,N′′-(2,2′,2′′-Nitrilotris(ethane-2,1-diyl))tris(2 chloroacetamide) (3)^6g. To a stirred solution of tris-(2-aminoethyl) amine (0.6 g, 4.10 mmol) in CHCl₃ (30 mL), chloroacetyl chloride (1.53 g, 13.54 mmol) was added dropwise. Then water (10 mL) was added to the reaction mixture followed by the addition of K₂CO₃ (1.87 g, 13.54 mmol). Catalytic amount of tetrabutylammonium hydrogensulphate was added to the reaction mixture and stirred for 2 h. After completion of the reaction, as monitored by TLC, organic layer was separated and dried over anhydrous Na₂SO₄. The solution was concentrated on a rotary evaporator and purified by silica gel column chromatography using 1% CH₃OH in CHCl₃ as eluent to afford pure compound 3 (1.40 g, 90%), mp 102 °C, ¹H NMR (CDCl₃, 400 MHz) δ 7.05 (br s, 3H), 4.08 (s, 6H), 3.38 (q, 6H, J = 4 Hz), 2.65 (t, 6H, J = 4 Hz); FTIR (KBr, cm⁻¹) 3515, 3273, 2961, 1677, 1660, 1562.

2-(Naphthalen-1-yl)acetyl chloride (4). To a stirred solution of 1-napthylacetic acid (0.700 g, 3.76 mmol) in dry CH₂Cl₂ (20 mL), oxalyl chloride (0.365 mL, 4.51 mmol) was added followed by addition of one drop of dry DMF. After stirring at room temperature for 8 h under nitrogen atmosphere, excess oxalyl chloride was completely removed under vacuum to give acid chloride 2 (0.720 g, yield 93%). This was directly used in the next step without any purification.

2-(Naphthalen-1-yl)-N-(pyridin-3-yl)acetamide (5)^6e. To a stirred solution of 3-aminopyridine (0.390 g, 4.14 mmol) in dry CH₂Cl₂ (20 mL), 2-(naphthalen-1-yl) acetyl chloride 4 (0.706 g, 3.45 mmol) was added followed by addition of Et₃N (0.58 mL, 4.14 mmol). After stirring the reaction mixture for 8 h at room temperature under nitrogen atmosphere, the reaction mixture was poured into water and extracted with CH₂Cl₂ (3 × 40 mL). Organic layer was dried over anhydrous Na₂SO₄ and concentrated in vacuo. The crude product was purified by chromatography using 50% ethyl acetate in petroleum ether to give 5 in 88% yield (0.800 g); mp 125 °C; ¹H NMR (400 MHz, CDCl₃) δ 8.27–8.24 (m, 2H), 8.02–7.99 (m, 2H), 7.92–7.87 (m, 2H), 7.59–7.55 (m, 2H), 7.53–7.49 (m, 2H), 7.20–7.17 (m, 2H), 4.20 (s, 2H); ¹³C NMR (100 MHz, CDCl₃) δ 169.9, 145.1, 141.1, 134.6, 134.0, 132.0, 130.3, 128.9, 128.8, 128.4, 127.9, 127.0, 126.3, 125.6, 123.6, 123.5, 42.33; FTIR (KBr) 3281, 3122, 2850, 1742, 1658, 1606, 1549, 1481 cm⁻¹.

Receptor 1. To a solution of tris amide 3 (0.150 g, 0.399 mmol) in CH₃CN (10 mL), compound 5 (0.419 g, 1.60 mmol) in CH₃CN (25 mL) was added. The reaction mixture was refluxed with stirring for 4 days under nitrogen atmosphere. On cooling the reaction mixture, precipitate appeared. The precipitate was filtered off and washed with CH₃CN for several times to have pure trichloride salt 6 (0.374 g, 80.7%). The pure trichloride salt 5 (0.100 g, 0.07 mmol) was dissolved in 2 mL hot MeOH, and NH₄PF₆ (0.053 g, 0.32 mmol) was added in one portion. After stirring the reaction mixture for 20 min, water was added to precipitate the compound. Repeated washing of the precipitate with water and diethyl ether afforded the desired salt 1 in 82% yields (0.102 g), mp 210 °C; ¹H NMR (400 MHz, DMSO-d₆) δ 11.37 (s, 3H), 9.35 (s, 3H), 8.57 (s, 3H), 8.39 (brs, 6H), 8.04–7.86 (m, 12H), 7.52–7.49 (m, 12H), 5.31 (s, 6H), 4.26 (s, 6H), 3.39 (6H overlapped with the signal for d₆-DMSO water), 3.12 (brm, 6H); ¹³C NMR (100 MHz, DMSO-d₆) δ 170.5, 164.1, 140.7, 138.4, 135.9, 134.4, 133.2, 131.8, 131.1, 128.4, 128.1, 127.6, 126.2, 125.7, 125.4, 124.0, 61.9, 52.5, 38.7, 37.3 (one carbon in aromatic region is unresolved); FTIR (KBr, cm⁻¹) 3399, 3098, 1688, 1594, 1553, 1508, 1458; HRMS (TOF MS ES+) calcd for C₆₃H₆₃N₁₀O₆·2PF₆: 1345.4210 (M − PF₆)⁺; found: 1345.4215 (M − PF₆)⁺.

Cell culture reagents

MTT [3-(4,5-dimethyl-thiazol-2-yl)-2,S-diphenyltetrazolium bromide], and DMSO were of analytical grade and they were procured from Sigma-Aldrich Inc. (St-Louis, MO, USA); Dulbecco's modified Eagle's medium (DMEM), fetal bovine serum, and antibiotics, namely, penicillin, streptomycin, and neomycin (PSN) were purchased from Gibco BRL (Grand Island, NY, USA). All organic solvents used were of high performance liquid chromatography grade.

Cell culture procedure

HEK293T cells (Human embryonic kidney cells with T antigen of SV40), were obtained from National Centre for Cell Science, Pune, India. Cells were grown in 5% carbon dioxide, at 37 °C in Dulbecco's modified Eagle's Medium (DMEM) supplemented with 10% foetal bovine serum and 1% antibiotic (PSN). For experimental studies, the cells were allowed to grow to 70–80% confluence, after which they were harvested in ice-cold buffer saline (PBS) and plated at desired density. The cells were allowed to re-equilibrate for 24 h before any treatment.¹³

Cytotoxicity assessment of receptor in living cells

To check whether the receptor render any cytotoxicity to the cells, the MTT assay¹⁴ was conducted by following the standard technique of Mossman. Different concentrations of the receptor, ranging from 1 μL through 5 μL of stock solution, were added to the cultured cells (10⁶ cells per mL) in 96-well micro plates and incubated for 24 h. A set of cells, not exposed to any of the concentrations of the receptors, were kept as untreated control. At the termination of incubation period, MTT was added into each well. After 4 h, the formazon crystals thus formed were dissolved with dimethyl sulfoxide (DMSO) and the absorbance of the solution was measured at 595 nm using ELISA reader (Thermo scientific, Multiskan ELISA, USA). The percentage of cell survival was calculated as: (mean experimental absorbance/mean control absorbance) × 100%.

Evaluation of potential efficacy of the receptor to detect the presence of ATP in cultured cell line

At first the cells were washed with phosphate buffered saline (PBS). They were then incubated in 20 μL of ATP solution (50 μM). After 30 min of incubation at 37 °C, the cells were again washed in PBS and then further treated with 30 μL of receptor stock solution (10 μM) made in PBS (maintained at pH 6.5) and kept for another 30 min at 37 °C. Washing excess of receptor with PBS the cells were then photographed under Andor Spinning Disk Confocal Microscope and evaluated against untreated control set of cells. The fluorescence intensity was quantified using the Analysis software, NIS Elements AR Version 4.00.

Acknowledgements

We thank DST and UGC, New Delhi, India for providing facilities in the department under FIST and SAP programs, respectively. DT thanks CSIR, New Delhi, India for a fellowship.

References

1. (a) J. L. Sessler, P. A. Gale and W. S. Cho, Anion Receptor Chemistry, Royal Society of Chemistry, Cambridge, 2006; (b) Supramolecular Chemistry of Anions, ed. A. Bianchi, K. Bowman-James and E. Garcia-Espana, Wiley-VCH, New York, 1997; (c) E. Garcia-Espana, P. Diaz, J. M. Llinares and A. Bianchi, Coord. Chem. Rev., 2006, 250, 2952.
2. B. Alberts, A. Johnson, J. Lewis, M. Raff, K. Roberts and P. Walter, Molecular Biology of the Cell, Newton, Tokyo, 4th edn, 2002.
3. (a) P. Ritter, Biochemistry, a foundation, Creation Research Society Quarterly June 1999, Books/Cole, Pacific Grove, CA, 1996, vol. 36; (b) W. N. Lipscomb and N. Strater, Chem. Rev., 1996, 96, 2375; (c) P. Nyron, Anal. Biochem., 1987, 167, 235; (d) T. Tabary and L. Ju, J. Immunol. Methods, 1992, 156, 55.
4. K. T. Bush, S. H. Keller and S. K. Nigam, J. Clin. Invest., 2000, 106, 621.
5. (a) A. E. Hargroove, S. Nieto, T. Zhang, J. L. Sessler and E. V. Anslyn, Chem. Rev., 2011, 111, 6603; (b) J. Y. Kwon, N. J. Singh, H. Kim, S. K. Kim, K. S. Kim and J. Yoon, J. Am. Chem. Soc., 2004, 126, 8892; (c) C. Bazzicalupi, S. Biagini, A. Bencini, E. Faggi, C. Giorgi, I. Matera and B. Valtancoli, Chem. Commun., 2006, 4087; (d) J. Kaur and P. Singh, Chem. Commun., 2011, 47, 4472; (e) D. Amilan Jose, S. Mishra, A. Ghosh, A. Shrivastav, S. K. Mishra and A. Das, Org. Lett., 2007, 9, 1979; (f) F. Sancenon, A. B. Descalzo, R. Martinez-Manez, M. A. Miranda and J. Sato, Angew. Chem., Int. Ed., 2001, 40, 2640; (g) Y. Zhou, Z. Xu and J. Yoon, Chem. Soc. Rev., 2011, 40, 2222; (h) K. Ghosh and I. Saha, Org. Biomol. Chem., 2012, 10, 9383.
6. (a) C. Schmuck and M. Heller, Org. Biomol. Chem., 2007, 5, 787 and references cited therein; (b) Z. Xu, N. R. Song, J. H. Moon, J. Y. Lee and J. Yoon, Org. Biomol. Chem., 2011, 9, 8340; (c) Z. Xu, N. J. Singh, J. Lim, J. Pan, H. N. Kim, S. Park, K. S. Kim and J. Yoon, J. Am. Chem. Soc., 2009, 131, 15528; (d) K. Ghosh, D. Tarafdar, A. Samadder and A. R. Khuda-Bukhsh, RSC Adv., 2014, 4, 58530; (e) K. Ghosh and I. Saha, New J. Chem., 2011, 35, 1397; (f) K. Ghosh, S. S. Ali, A. R. Sarkar, A. Sammader, A. R. Khuda-Bukhsh, I. D. Petsalakis and G. Theodorakopoulos, Org. Biomol. Chem., 2013, 11, 5666; (g) K. Ghosh and I. Saha, Supramol. Chem., 2011, 7, 518.
7. M. J. Kim, K. M. Swamy, K. M. Lee, A. R. Jagdale, Y. Kim, S. J. Kim, K. H. Yoo and J. Yoon, Chem. Commun., 2009, 7215.
8. K. Ghosh, A. R. Sarkar, T. Sarkar, S. Panja and D. Kar, RSC. Adv., 2014, 4, 20114.
9. P. T. Chou, G. R. Wu, C. Y. Wei, C. C. Cheng, C. P. Chang and F. T. Hung, J. Phys. Chem. B, 2000, 104, 7818.
10. A. Caballero, R. Martinez, V. Lioveras, I. Ratera, J. Vidal-Gancedo, K. Wurst, A. Tarraga, P. Mollina and J. Vaciana, J. Am. Chem. Soc., 2005, 127, 15666.
11. M. T. Albelda, E. Garcia-Espana, L. Gil, J. C. Lima, C. Lodeiro, J. S. de Malo, M. J. Melo, A. J. Parola, F. Pina and C. Soriano, J. Phys. Chem. B, 2003, 107, 6573.
12. P. Job, Ann. Chim., 1928, 9, 113.
13. A. Samadder, S. Das, J. Das and A. R. Khuda-Bukhsh, Colloids Surf., B, 2013, 109, 10.
14. T. Mossam, J. Immunol. Methods, 1983, 65, 55.

---

Footnote

† Electronic supplementary information (ESI) available: Change in fluorescence and UV-vis titrations of receptor 1 with the anions, binding constant curves, Job plots, MTT assay, NOESY spectrum, ¹H, ¹³C NMR and mass spectra. See DOI: 10.1039/c5ra04023j

---
