Abstract

Emission of greenhouse gases and limited amount of fossil fuels lead to the emerging need for renewable and sustainable energy sources. The Gibbs free energy released when river water flows into the sea can be utilized as a source of energy. The Mixing Entropy Battery (MEB) is a novel electrochemical cell which efficiently extracts energy from this natural salinity. It consists of cationic and anionic electrodes. Each of these electrodes interacts selectively with one type of ions. In this work the “MEB” principle is applied. The battery is constructed with two inexpensive and easily prepared electrodes including carbon paste electrode modified by cobalt hexacyanoferrate film (CPE-CoHCF) as cathode, and silver/silver chloride as anode. The feasibility of electrochemical oxidation, reduction and cycling of CoHCF were demonstrated. The AgCl/CPE-CoHCF cell showed the standard cell potential of 0.497 V. A power density of about 24[thin space (1/6-em)]000 μW g−1 with 65% efficiency was achieved with this system, which is a considerable improvement over previous reported results.


1. Introduction

Emission of greenhouse gases and limited amount of fossil fuels lead to the emerging need for renewable and sustainable energy sources. Sunlight, wind, geothermal, biomass, and oceans are well known renewable sources of energy, but less well known is salinity gradient. The Gibbs free energy released when river water flows into the sea has been identified as a source of renewable energy.1 Pressure retarded osmosis (PRO),2–5 reverse electrodialysis (RED),4–10 and capacitive mixing (CAPMIX)11–16 are the most investigated techniques to harvest salinity gradient energy. In PRO, water from a diluted solution flows through a semi-permeable membrane into the pressurized concentrated solution. Depressurizing the transported water can be used to generate electrical power in a turbine.2–5 In RED, alternating cation and anion exchange membranes separate alternately salt and fresh solutions. The salinity difference on either side of the membrane creates an ion flux, resulting in a potential difference that can be utilized as electrical energy.4–10 These approaches are membrane based and have some problems such as: membranes high cost, and short life time.17 In 2009 Brogioli proposed a novel method based on electric double layer (EDL) capacitor technology in which the capacitance of EDL varies with concentration.11 This pioneering work, leads to the family of CAPMIX technologies,12 capacitive double layer expansion (CDLE),11 and Capacitive Donnan Potential (CDP),13 which takes advantages of ion selective membranes and capacitor technology. Another approach is mixing entropy battery (MEB), which has overcome the problems of membranes and the supercapacitor self-discharge.18 MEB belongs to the accumulator mixing family (AccMix).19

Among all the techniques mentioned above, MEB is the youngest. It was proposed by La Mantia et al. in 2011.18 It consists of two electrodes: anionic electrode, which interacts specifically with Cl ions, and cationic electrode, which intercalate/deintercalate Na+ ions. Energy is produced with a four-step cycle. The battery is charged in fresh solution while the ions exit from their respective electrodes, exchanging the freshwater with saltwater leads the equilibrium potential to increase, then the battery is discharged with entering Na+ and Cl ions into cationic and anionic electrodes, at last exchanging the concentrated solution with diluted one results in the decrease of equilibrium cell potential. With this closed cycle energy is produced.

Few papers about MEB have been published yet.18–21 In the first work La Mantia et al. obtained the power density of 10.5 μW cm−1 with 74% efficiency, and the gained potential was about 0.135 V.18 In another research in 2013 Jia et al. reported a power density of 1795 μW g−1 with 69% efficiency, and VG ≈ 0.148 V.20 Inspired by zinc–silver chloride battery Marino et al. constructed a kind of MEB in which energy was produced with different zinc chloride solutions, the power output of their system was about 2 W m−2.19 In the last report, Ye et al. used wastewater effluent for charging of a MEB, the energy recovery for their system was 0.11 kW h per m3 of wastewater effluent.21

To further investigates this promising technology, and to study the effect of electrode materials on efficiency and power density, we construct a battery which employs CPE-CoHCF as Na+ capturing electrode, and silver sheet as Cl capturing electrode. Reducing the cost of renewable energy generation is crucial for comparing these recourses with fossil fuels. Nowadays developing new and low cost methods and materials for energy conversion from natural resources has attracted great attention.22–24 For this reason in the current study we chose CPE-CoHCF because CPEs are easily made and economic, and hexacyanoferrate compounds intercalate and deintercalate alkali metal ions reversibly.25–31 It is anticipated that with this new cationic electrode higher energy/power density will be produced.

2. Experimental

2.1. Equipment and reagents

Cyclic voltammetry and galvanostatic charge/discharge were performed with SAMA 500 ELECTROANALYZER (Iran). Cyclic voltammetry was accomplished using a three electrode cell, bare or electrochemically modified CPE as working electrode, Ag|AgCl|3 M KCl (Metrohm) as a reference electrode and a Pt rod (Metrohm) as a counter electrode. The body of the working electrode was a 5 mL polyethylene syringe that was tightly packed with carbon paste. A copper wire inserted into the carbon paste established the electrical contact. CPE-CoHCF was employed as cathode, and silver sheet was used as anode. The geometrical electrodes surface area in contact with the solution was 1.3 cm2. The distance between positive and negative electrodes was 1 cm. The current of 13 μA was employed for charging and discharging the battery. All the experiments were performed at room temperature.

Potassium hexacyanoferrate, cobalt nitrate hexahydrate, potassium chloride, sodium chloride, graphite fine powder and paraffin oil (Uvasol®) were purchased from Merck and used without further purification. All solutions were prepared with deionized water. The electrolyte solutions were 0.6 M NaCl as artificial sea water and 0.024 M as artificial river water (other concentrations of NaCl between 1–200 mM were also used).

The morphology of the electrode surface was examined by scanning tunneling microscope model of Nanoscope® II in AFM mode. The analysis of the AFM images were done by Nanoscope III 5.12r2 software.

2.2. Preparation of cationic electrode

CPE was prepared by mixing the graphite powder with paraffin oil (70[thin space (1/6-em)]:[thin space (1/6-em)]30) to obtain a uniform paste. This paste was housed in a polyethylene syringe (area = 1.3 cm2), and then polished with a weighing paper. CoHCF films were electrodeposited on CPE with repetitive cyclic voltammetry from 0.0 to +1.1 V at 100 mV s−1,32 from a fresh solution mixture containing 0.5 M KCl, 1 mM Co(NO3)2, and 0.5 mM K3Fe(CN)6. After 72 cycles, modified electrode was taken out and rinsed thoroughly with water. It is important that this mixed solution should be prepared freshly and for obtaining reproducible result it is better to mix them in similar steps.33 In the current study solutions were added according to this order: KCl, K3Fe(CN)6 and Co(NO3)2.

3. Results and discussions

3.1. Electrochemical properties of CPE-CoHCF

Fig. 1 illustrates the cyclic voltammogram (CV) during the electrodeposition process. The gradual increase in currents for both cathodic and anodic peaks shows that CoHCF films were formed on the electrode surface, and its thickness grows progressively. Finally a limiting contour of the cyclic voltammogram is obtained (71st and 72nd cycles are identical).
image file: c5ra03909f-f1.tif
Fig. 1 CVs for electrodeposition process of CoHCF film on CPE. The 10, 20, 30, 40, 50, 60 and 72nd cycles are illustrated.

The morphology of electrodeposited CoHCF film was studied with AFM. The results of surface morphology studies show that formation of hexacyanoferrate on the carbon particles make an almost uniform nanometric roughness on the electrode surface (the roughness value is about 130 nm) (see Fig. 2).


image file: c5ra03909f-f2.tif
Fig. 2 AFM images of CoHCF film on carbon paste.

Typical CV of CPE-CoHCF obtained in 0.6 and 0.024 M NaCl solutions at scan rate (ν) of 100 mV s−1 between 0 and +1.1 V is shown in Fig. 3. This figure demonstrates that the position and height of the redox peaks depends on the solution concentration. In 0.6 M solution two pairs of reversible redox peaks can be observed and the formal potentials (E° = (Ep,a + Ep,c)/2) are about 0.48 and 0.88 V respectively. The two sets of redox peaks were explained as the existence of two possible forms of CoHCF, NaCoII1.5FeII(CN)6 and Na2CoIIFeII(CN)6, and have been attributed to the transformations between Fe(II) and Fe(III) in NaCoII1.5FeII(CN)6 and Na2CoIIFeII(CN)6, respectively.32 According to previous reports the redox reaction of Na+ can be expressed as follows:34,35


Co(II)1.5[Fe(III)(CN)6] + e−1 + Na+ ⇌ NaCo(II)1.5[Fe(II)(CN)6] (1)

NaCo(II)[Fe(III)(CN)6] + e−1 + Na+ ⇌ Na2Co(II)[Fe(II)(CN)6] (2)


image file: c5ra03909f-f3.tif
Fig. 3 CV of CPE-CoHCF in 0.6 (solid line) and 0.024 M NaCl solution (dashed line) (ν = 100 mV s−1).

These equations demonstrate that reduction and oxidation of CoHCF take place with intercalation and deintercalation of Na+ ions.

The CPE-CoHCF was studied in 0.6 M NaCl solution by cyclic voltammetry at different ν over a range of 10–100 mV s−1 between 0 and +1.1 V. Plotting the peak currents (Ip) against ν obtains straight lines for both anodic and cathodic reactions, indicating the adsorption process of modified electrode (Fig. 4).


image file: c5ra03909f-f4.tif
Fig. 4 CVs of CPE-CoHCF in 0.6 M NaCl solution at various ν over the range of 10–100 mV s−1. Inset: plot of anodic and cathodic peak currents of the first redox couple of CoHCF against ν.

The peak to peak potential separation is about 85 mV for ν of 10 mV s−1. The formal potential is approximately independent of the ν which represents facile charge transfer kinetics. The surface coverage (Γ) can be calculated from the equation Γ = Q/nFA, here Q is the charge obtained by integrating the first anodic peak under the background correction (at a low ν of 10 mV s−1), F is Faraday constant, A is electrode area and n is the number of electrons. In the present study, by assuming the involvement of one electron in the process, the calculated value of surface coverage is 6.43 × 10−8 mol cm−2, which means that the active material deposited on the electrode is about 19.3 μg cm−2.

The stability of CPE-CoHCF was examined with cyclic voltammetry, after 100 cycles with ν = 100 mV s−1 of consecutive scanning in 0.6 M NaCl solution there is about 20% decrease in the first peak current for the first redox couples.

3.2. Electrochemical thermodynamics of the cell

As assembled, the AgCl/CPE-CoHCF cell showed an open circuit potential of about 300 mV. To avoid contamination with K+ ions, the cell was first charged in 0.024 M NaCl solution until the potential reach to 1.2 V. After washing the electrodes with water and exchanging the solution with fresh one the cell discharged to 0.2 V.

In this experiment potentials do not exceed 600 mV after charging, so we assume the half reactions as follows:


Co(II)1.5Fe(III)(CN)6 + e + Na+ ⇌ NaCo(II)1.5Fe(II)(CN)6 (3)

AgCl + e ⇌ Ag + Cl (4)

The overall reaction is:


Co(II)1.5Fe(III)(CN)6 + Ag + NaCl ⇌ NaCo(II)1.5Fe(II)(CN)6 + AgCl (5)

The potential difference between the two electrodes is:


image file: c5ra03909f-t1.tif(6)
where E0Cell is the standard cell voltage, CNaCl the concentration of NaCl, and γNaCl the mean activity coefficient of NaCl. Eqn (6) can be rearranged as:

image file: c5ra03909f-t2.tif(7)

ECell or open circuit potential (OCP) may be measured in various concentration of NaCl solution. Fig. 5 shows the equilibrium cell potentials for different NaCl concentrations.


image file: c5ra03909f-f5.tif
Fig. 5 OCPs for AgCl/CPE-CoHCF in different concentrations of NaCl solutions.

By plotting the left-hand side of the eqn (7) (E*) vs. C1/2, in the range of values where Debye–Hückel limiting law holds, E0Cell will be found by extrapolation.36,37 The concentration range from 1–10 mM were fitted to this equation (Fig. 6).


image file: c5ra03909f-f6.tif

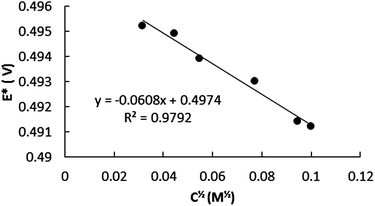

Fig. 6 Plot of E* against C1/2 for 1–10 mM NaCl solution.

As demonstrated in Fig. 6 the standard cell potential is gained 0.497 V, and the value of A, in the Debye–Hückel limiting law (ln[thin space (1/6-em)]γNaCl = −2.303AC1/2) is obtained about 0.51 M−1/2, which is in good agreement with the theoretical prediction (0.5115 M−1/2).37

Using the values calculated for ECell, the mean activity coefficients can be found. The values of γNaCl at different concentrations from 1 to 600 mM is illustrated in Fig. 7.


image file: c5ra03909f-f7.tif
Fig. 7 Mean activity coefficient of NaCl solution at different concentrations.

The thermodynamic gained potential (VG) is defined as the difference in equilibrium cell potential in concentrated and diluted solution.18 In current study VG ∼ 0.153 V was measured, which is higher than previous reports.18,20

Values for mean activity coefficients are applied to calculate the Gibbs free energy of mixing. If a volume VD of a diluted NaCl solution combines with a volume VC of concentrated one to give a volume VB of brackish solution, the total amount of Gibbs free energy per unit volume of brackish solution is determined by (for example see ref. 38):


ΔGmix = 2RT[CB[thin space (1/6-em)]ln(γBCB) − φCC[thin space (1/6-em)]ln(γCCC) − (1 − φ)CD[thin space (1/6-em)]ln(γDCD)] (8)
where φ is volumetric ratio of concentrated solution to the total system volume, and other symbols have their usual meanings. In the present study the error committed by assuming the solutions to be ideal is about 40 J dm−3 which is 4.7% of the total Gibbs free energy (850 J dm−3).

3.3. Cycles of energy extraction

A four step cycle performed as follows:

First step: the battery was charged in 0.024 M NaCl solution with the current of 13 μA and time limit of 100 s.

Second step: the diluted solution was exchanged for concentrated one (0.6 M NaCl), the equilibrium potential is measured for 10 s. The potential rise is about 100 mV.

Third step: the battery was discharged by applying −13 μA current for 100 s.

Fourth step: the concentrated solution was substituted by diluted one, and the OCP was measured within 10 s.

In Fig. 8 the first energy extraction cycle for AgCl/CPE-CoHCF has been shown. The battery generates 131.7 μJ in the first cycle which equals to the energy density of 5249 mJ g−1. To calculate the power density, the energy density must be divided by time spend for energy extraction, since 220 seconds have been spent for the extraction of energy the power density gained is about 24[thin space (1/6-em)]000 μW g−1, which is significantly higher than previous MEB devices that have been studied in 0.024 M and 0.6 M NaCl solutions.20 The energy efficiency for this system is about 65%, and with this new cationic electrode the highest gained potential was observed (VG = 152.6 mV).


image file: c5ra03909f-f8.tif

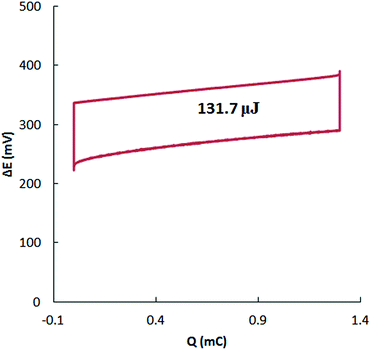

Fig. 8 First cycle of energy extraction for AgCl/CPE-CoHCF system.

Fig. 9 illustrates the values of extracted energy versus the number of cycle. It can be seen that the system shows a little loss in energy production.


image file: c5ra03909f-f9.tif

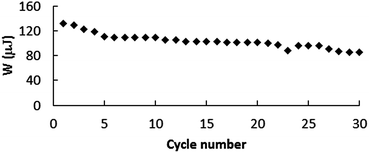

Fig. 9 Energy extracted vs. number of cycle for AgCl/CPE-CoHCF battery.

To obtain more power, higher current densities must be applied, so the higher quantities of active material is necessary.20 Since with this procedure not more than μg of active material can be electrodeposited, our future work will focus on constructing electrodes with nanoparticles of CoHCF on carbon cloth.

4. Conclusions

A thin film cathode for the mixing entropy battery has been prepared using repetitive cyclic voltammetry, and characterized with electrochemical techniques. The battery constructed with AgCl/CPE-CoHCF with standard cell potential of 0.497 V, was used to extract salinity gradient energy. The power density gained, which is very better than the recent reports, was about 24[thin space (1/6-em)]000 μW g−1 with 65% efficiency. In this study the preparation procedure of the cationic electrode was easy and economical and the materials were environment friendly. We believe that the mixing entropy battery is a powerful device to efficiently extract energy from differences in salinity. Further investigations are necessary to improve this promising technology.
