Fabrication of attapulgite/carbon composites from spent bleaching earth for the efficient adsorption of methylene blue

Abstract

In this work, one-dimensional attapulgite/carbon composites were prepared by a one-step carbonization process using the residual organic matter of spent bleaching earth as a low-cost available carbon precursor. The obtained composites were characterized by transmission electron microscopy, Fourier transform infrared spectroscopy, X-ray diffraction, and thermogravimetric analysis to confirm the presence of carbonaceous species. The attapulgite/carbon composites can be used as adsorbents for the removal of methylene blue, with a maximum adsorption capacity of 132.72 mg g⁻¹, and the process parameters affecting the adsorption behavior for methylene blue, such as the pH of the solution, calcination temperature and contact time, were also analyzed through batch adsorption processes. It was revealed that attapulgite/carbon composites could be employed as candidates for the removal of cationic dyes.

---

1. Introduction

Among various dyes, cationic dyes have been commonly used for different purposes due to their ease of good fastness, durability, and applicability to materials.^1,2 However, it is well-known that most organic dyes are carcinogenic and mutagenic, and the discharge of organic dyes results in a serious detriment, even at very low concentrations, to the entire ecosystem and living body.^3,4 To date, adsorption technology has been considered to be a front line of defence against pollutants, using adsorbents, because of its simplicity, high efficiency and low operational costs, thus it has become one of the preferable choices for the restoration, remediation and sustainability of our environment.^5,6 In recent years, several efforts have been made by previous researchers to tackle dyeing industry effluents through the development and application of different adsorbents.^7,8

Clay mineral/carbon composites, as novel adsorbents, have recently received considerable attention for their potential applications in the removal of dyestuff from dyeing industry wastewater.^9,10 Many researchers have used furfuryl alcohol,¹¹ sucrose,^12,13 or cellulose acetate¹⁴ as carbon precursors to prepare clay mineral/carbon composites to serve as adsorbents or catalysts. From a comprehensive literature review, adsorbents with high applicability and low cost in adsorption processes are the most desirable choice. However, most of the methods for the preparation of clay mineral/carbon composites reported in the previous studies are complicated, and the raw materials are expensive. Hence, the development of clay mineral/carbon composites with good adsorption capacities is urgently in demand, using low-cost available carbon precursors.

Crude palm oil usually contains many impurities, coloring matter and other hazardous substances, which are bad for health and the oil’s quality. Therefore, it is indispensable for it to be refined to remove the above components, improving the appearance and quality of the oil before eating.¹⁵ The refining process for crude palm oil usually includes three operations: degumming, bleaching and deodorization.¹⁶ The bleaching process is the most crucial step, which is realized by the use of activated clay at a dosage of 1–3%, and then the activated clay will become the spent bleaching earth (SBE) after bleaching, which contains about 10–21% normal grease. Therefore, it is a rational and feasible strategy to prepare clay mineral/carbon composites using the residual organic matter of the spent bleaching earth as a cheap carbon precursor. Hussein et al. prepared kaolin/carbon adsorbents with and without sulphuric acid pretreatment, followed by activation–carbonization at 500 °C for carotene removal from red palm oil.¹⁷ Mana et al. reported a treated SBE, by impregnation with a 1.0 N sodium hydroxide solution followed by mild thermal treatment (100 °C), for the removal of basic dyes and lead from aqueous solutions.^18,19 Anadão et al. prepared carbon/montmorillonite composites from waste bleaching sodium montmorillonite for the adsorption of methylene blue (MB) and gasoline.²⁰ In addition, clay mineral/carbon adsorbents were also fabricated by the pyrolysis of waste materials based on natural bentonite in the presence of tetrachloromethane.²¹ It is not hard to find that research on SBE was mainly centred around two-dimensional clay materials,²⁰ but one-dimensional clay-based SBE has scarcely been studied, despite that natural attapulgite-based bleaching earth has received growing attention as an eco-friendly decolorizer.²² One-dimensional nanomaterials, especially the natural ones, exhibit fascinating properties based on their atomic scale structures and their 1D morphology, and they can also act as ideal carriers to fabricate various functional materials for potential magnetic, catalytic and adsorption applications.^23–25 It is feasible to fabricate carbon adsorption sites on the surface of attapulgite (APT) to derive new composite materials. Therefore, attapulgite/carbon (APT/C) composites were prepared by a one-step carbonization process, using one-dimensional APT-based SBE as a low-cost available raw material, for the adsorption of MB in this study, as illustrated in Scheme 1. In addition, the adsorption mechanism and the process parameters affecting the adsorption behavior were also investigated.

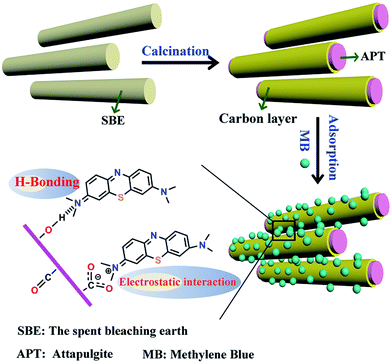

Scheme 1 Schematic illustration of the synthetic route of the APT/C composites for the adsorption of MB.

2. Materials and methods

2.1. Materials

SBE, which is mainly composed of APT and about 21% organic matter (such as grease, natural pigments, fatty acids, etc.), was provided by Jinguang Food Co. LTD (Zhejiang, China). MB (indicator grade) with a formula of C₁₆H₁₈N₃SCl was purchased from Alfa Aesar, a Johnson Matthey Company (UK) and used as received. All of the other chemicals were analytical grade and used without further purification, and all solutions were prepared with deionized water.

2.2. Preparation of the attapulgite/carbon (APT/C) composites

25.0 g of SBE was calcinated under temperatures of 200, 250, 300, 350, 400, 450 and 500 °C, respectively. The calcination process was carried out in an air atmosphere up to the final temperature, with a heating rate of 12 °C min⁻¹, and keeping at the final temperature for 2 h. The samples were marked as APT/C-200, APT/C-250, APT/C-300, APT/C-350, APT/C-400, APT/C-450, and APT/C-500, corresponding to the above calcinated temperatures, respectively.

2.3. Adsorption experiments

Adsorption measurements were performed in a series of 50 mL conical flasks containing 0.025 g of adsorbent and 25 mL of the MB solution. The mixtures were shaken in a thermostatic shaker (THZ-98A) at 30 °C and 160 rpm for a given time, and then the adsorbent was separated by direct filtration. The concentrations of the MB solution before and after adsorption were analyzed using a Specord 200 UV-vis spectrophotometer, by monitoring the absorbance changes at the wavelength corresponding to maximum absorbance (664 nm). The adsorption capacity of the adsorbent for MB was calculated according to the following equation:where Q_e is the adsorption capacity of MB onto the adsorbent (mg g⁻¹), C₀ is the initial MB concentration (mg L⁻¹), C_e is the MB concentration at equilibrium (mg L⁻¹), m is the mass of adsorbent used (mg), and V is the volume of MB solution used (L).

The effect of the pH on dye adsorption was investigated according to a similar procedure that kept the same initial dye concentration (200 mg L⁻¹) while maintaining the pH of the initial solution at 2.0 and 10.0, respectively.

2.4. Reusability of the APT/C composite

In order to evaluate the regeneration ability of the APT/C composite, the desorption process and readsorption of MB were studied for five consecutive cycles. In each cycle, the APT/C composite was added to a 200 mg L⁻¹ MB solution and the mixture was placed in a thermostatic shaker and shaken for 360 min at 160 rpm. Then the MB-adsorbed APT/C composite was separated from the MB solution by centrifugation and added to 25 mL of 1.0 mol L⁻¹ CH₃COOH and shaken for 360 min. After desorption, the APT/C composite was collected and the amount of desorbed dye was examined using a UV-vis spectrophotometer. After each cycle of the desorption and readsorption experiments, the desorbed APT/C composite was activated with NaOH (0.1 mol L⁻¹) solution and then washed with deionized water to recondition and neutralize the adsorbent for further adsorption of MB.

2.5. Characterization

Fourier transform infrared (FTIR) spectra of the samples were recorded with a Fourier transform infrared spectrometer (Thermo Nicolet NEXUS TM, USA) in the range of 4000–400 cm⁻¹ using KBr pellets. The morphologies of the samples were observed using a JSM-6701F field emission scanning electron microscope (JEOL, Tokyo, Japan) at an acceleration voltage of 10.0 kV and a working distance of 10 mm, in high vacuum mode, after coating the sample with a gold film. The TEM images were taken using a JEM-2010 high resolution transmission electron microscope (JEOL, Tokyo, Japan) at an acceleration voltage of 200 kV, and the sample was ultrasonically dispersed in anhydrous ethanol and dropped onto a grid before observation. Powder X-ray diffraction (XRD) (Pana XPERT PRO, Netherlands) patterns were obtained using an X-ray diffractometer with Cu Kα (1.540598 Å) radiation at a scan rate of 0.05° s⁻¹, running at 40 kV and 30 mA. The weight percent of carbonaceous species was determined by thermogravimetric analysis (TGA) (STA 6000, Perkin Elmer, USA) at a heating rate of 10 °C min⁻¹ from 30 °C to 800 °C in an oxygen atmosphere. The specific surface area was determined using the Brunauer–Emmett–Teller (BET) method and the pore volume was estimated using the Barrett–Joyner–Halenda (BJH) method at 77 K (ASAP 2020 M, Micromeritics Instrument Corporation, USA). The samples were dried and outgassed at 105 °C for 4 h before N₂ adsorption. The zeta potentials of the suspensions were conducted using a zeta potential instrument (Malvern Zeta voltmeter (ZEN3600), Britain). UV-vis spectra were determined using a UV-vis spectrophotometer (SPECORD 200, Analytik Jera AG).

3. Results and discussion

3.1. Characterization of the APT/C composites

3.1.1. FTIR analysis. The FTIR analysis was performed to identify the functional groups present on the adsorbent. Fig. 1a displays the FTIR spectra of the SBE and APT/C composites. For the SBE, the absorption bands of the organic matter at 2925 and 2854 cm⁻¹ completely disappear after calcination,²⁶ indicating that the residual organic matter has been transformed into a carbon species during the heat treatment process. Furthermore, it can be found that the absorption bands of the SBE at 3552, 3436 and 1631 cm⁻¹ are attributed to the –OH stretching and bending vibrations of the adsorbed water, respectively. The intensities of these peaks decrease obviously or even disappear after calcination, which is indicative of dehydroxylation.²⁷ The absorption bands at 1744 cm⁻¹ are ascribed to the stretching vibration of the carboxyl groups.²⁸ The intensities of these peaks decrease after calcination at 200 °C, 250 °C, 300 °C and 350 °C, and even disappear with a calcination temperature above 350 °C. Thus, it can be speculated that the adsorption capacity of the APT/C composites may be related to this change. In addition, the characteristic absorption band of the C–C located at 470 cm⁻¹ might be overlapped with the bending vibration of Si–O at 468 cm⁻¹.²⁹ The absorption bands of the asymmetric and symmetric stretching vibration of Si–O–Si can also be found at 1033 and 794 cm⁻¹ for all samples.^30,31 The absorption bands at 1441 and 845 cm⁻¹ are ascribed to the asymmetrical stretching vibration and bending vibration of carbonate, respectively. These groups are derived from a small quantity of carbonates that remained in the samples. Furthermore, it also can be found that the intensities of these peaks reduce, due to the decomposition of the carbonates with the increase in the calcination temperature. In addition, the APT and APT/C-300 samples were analyzed on the basis of their FTIR spectra. Compared with APT, the adsorption bands of the –OH groups on APT/C-300 at 3444 and 1627 cm⁻¹ slightly shifted, along with a change of intensity (Fig. 1b). These changes indicate that carbon species are bonded on to the surface of APT by hydrogen-bonding and electrostatic interactions between the hydroxyl groups of APT and the carboxyl groups generated in the carbonization process.

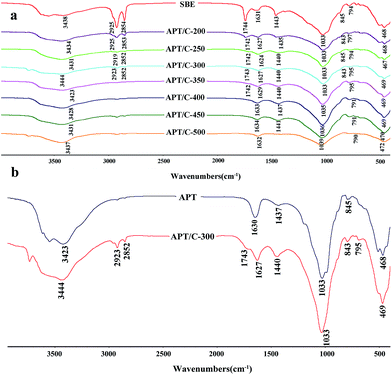

Fig. 1 FTIR spectra of (a) SBE and the APT/C composites, and (b) APT and APT/C-300.

3.1.2. Morphology analysis. The digital photographs and SEM images of SBE, APT/C-250, APT/C-300 and APT/C-450 are shown in Fig. 2. For SBE, the APT rods were aggregated together due to the existence of much organic matter among the rods with a better coating (Fig. 2e). After calcination, the digital photographs show the colour change of the SBE with the increase in the calcination temperature (Fig. 2b–d). By comparison with the SBE (Fig. 2a), the colour of the APT/C composites changes from black to grey when the calcination temperature increases from 250 °C to 450 °C. Therefore, it can be inferred that the content of carbide in the composites gradually decreases. Furthermore, the typical rod structure of APT can be seen from the SEM images of the APT/C composites, and part of the aggregates can be found from that of APT/C-250 (Fig. 2f). This can be ascribed to crystal bundles and aggregates composed of the single rod crystals of APT due to the existence of van der Waals forces and hydrogen bonds.³² Nevertheless, the rod-like structure of APT gradually increases with the increase in the calcination temperature (Fig. 2f and h), indicating improvement in the aggregate phenomenon of crystal bundles and aggregates. This can be attributed to the decomposition of the carbonates. Furthermore, the results illustrated by the TEM images (Fig. 3) are also consistent with the SEM observations. The characteristic rod-like structure can also be seen in all of the samples. In addition, it is revealed that the carbon species are successfully deposited on the surface of the APT, and that carbon shells with a thickness of approximately 50 nm are encapsulated on the surface of the APT (Fig. 3d).

Fig. 2 Digital photographs of (a) SBE, (b) APT/C-250, (c) APT/C-300 and (d) APT/C-450, and SEM images of (e) SBE, (f) APT/C-250, (g) APT/C-300 and (h) APT/C-450.

Fig. 3 TEM images of (a) APT/C-250, (b) APT/C-300 and (c) APT/C-450, and (d) a partial enlarged view of APT/C-300.

3.1.3. XRD analysis. On the basis of the above study, the SBE and three APT/C composites obtained at 250 °C, 300 °C and 450 °C were selected to study the changes in the crystal structure before and after calcination, and the XRD patterns are displayed in Fig. 4a. For SBE, the characteristic diffraction peaks of APT at 2θ = 8.5°, 13.8°, 16.5°, 19.8°, 21.5°, 23.1° and 27.6° can be observed.²⁵ After being calcinated at 250 °C and 300 °C, the position of the diffraction peaks of APT had not obviously changed, and the relative intensity of the characteristic peaks changed inconspicuously. However, the relative intensity of these diffraction peaks decreases or disappears to some extent when the temperature rises to 450 °C. It can be revealed that the crystal structure of APT is almost unchanged at 250 °C and 300 °C, but it has been destroyed at 450 °C. Additionally, the higher temperature may lead to loss of the carbon species, and it is possible that the oxygen molecules present in the clay channels are converted to carbon dioxide in a certain atmosphere. Hence, this phenomenon can result in the collapse of the clay structure, due to the removal of the molecules between the clay tunnels.²⁹ For the XRD pattern of the APT/C-300 (Fig. 4b), the intensity of the diffraction peaks at 16.5°, 21.5° and 27.6° weakened, and the diffraction peak at 23.1° disappeared compared with that of the original spent bleaching earth.³³ This might be attributed to the heat treatment and loss of the amorphous carbon species. This is also consistent with the results of the FTIR analysis.

Fig. 4 XRD patterns of (a) SBE, APT/C-250, APT/C-300 and APT/C-450, and (b) partial enlarged view of SBE and APT/C-300.

3.1.4. TGA. The successful coating of carbon onto the APT clay is further confirmed by thermal gravimetric analysis (TGA) performed under an oxygen atmosphere. The mass loss curves for the APT/C composites are shown in Fig. 5. APT usually contains different states of water molecules, such as adsorbed water, zeolitic water, bound water, and structural hydroxyl groups. All of them can be removed at different temperatures under heating. For the APT/C composites, the mass losses below 100 °C are assigned to the release of the adsorbed water and some zeolitic water,³⁴ and the residual zeolitic water molecules can be further removed at approximately 110–300 °C.³⁵ The mass losses of APT/C-200, APT/C-250, APT/C-300, APT/C-350, APT/C-400, APT/C-450 and APT/C-500 in the temperature range of 200–500 °C are 26.87%, 16.87%, 12.47%, 7.85%, 4.52%, 2.78% and 1.96%, respectively, and the mass losses in this temperature range are assigned to the oxidative degradation of the carbon species under the oxygen atmosphere. The mass of the APT/C composites remains almost constant above 650 °C, owing to the disappearance of the carbon species. It can be seen that the mass losses significantly reduce along with the increase in the calcination temperature. This also infers that the content of carbon species decreases with the increasing calcination temperature.

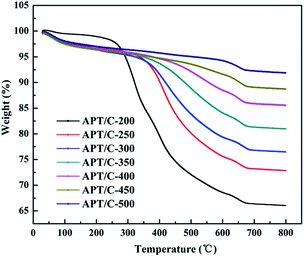

Fig. 5 TGA curves of the APT/C composites.

3.1.5. Pore structure parameters. The pore structure parameters, including the specific surface area, pore volume and pore diameter of the adsorbents, played a crucial role in the process of the adsorption. According to IUPAC classification, all the isotherms in Fig. 6a are assigned to a typical type IV isotherm with H3 type hysteresis loop features.³⁶ At a range of comparatively low relative pressure (P/P₀ < 0.4), the amount of nitrogen adsorbed increased gradually with the increasing relative pressure. The adsorption and desorption lines completely coincided with each other, implying a monolayer adsorption. This phenomenon infers that the adsorption of nitrogen mainly takes place in the micropores.³⁷ The small hysteresis loops were clearly observed in the high relative pressure range (P/P₀ > 0.4) where the amount of the adsorbed nitrogen increases, which confirms that meso and macropores exist in the samples.

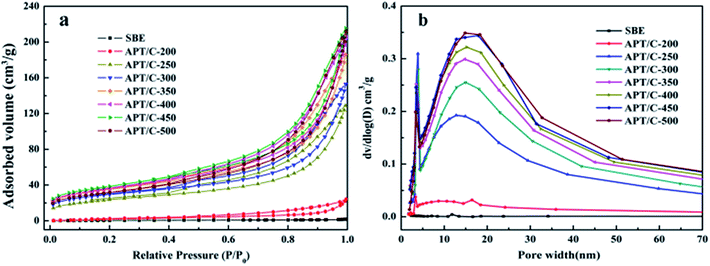

Fig. 6 (a) N₂ adsorption/desorption isotherms and (b) BJH pore size distributions of the SBE and APT/C composites.

A summary of the pore structure parameters of all samples is listed in Table 1. It can be seen that the BET surface area of the APT/C composites firstly gradually increases in the range of 200–450 °C, with the increasing calcination temperature, and then slightly decreases when the temperature is above 450 °C. The increment in the specific surface area can be mainly attributed to the decomposition of the organic matter, which provides access for nitrogen molecules into some of the pores, or when the temperature is lower than 300 °C, zeolite water and a part of the bound water can be removed from the nanoporous tunnels of APT. In a word, such a change can improve the adsorption properties for MB to some extent. The remaining bound water and a small quantity of the structural water are removed when the temperature increases from 300 to 450 °C, which leads to partial collapse of the nanopores. While at the higher calcination temperature (T > 450 °C), the specific surface area slightly decreases. This phenomenon can be ascribed to the collapse of the pores and channels of APT, and the decomposition of the loaded carbon species. Therefore, the decrement in the specific surface area may result in a reduced adsorption capacity.³³

Table 1 N₂ adsorption/desorption analysis of the SBE and APT/C composites

Sample	SBET^a (m^2 g^−1)	Smic^b (m^2 g^−1)	Sext^c (m^2 g^−1)	Vtot^d (cm^3 g^−1)	Vmic^e (cm^3 g^−1)	Dpore^f (nm)
a BET (Brunauer–Emmett–Teller) surface area.b Micropore surface area, derived from a t-plot method.c External surface area, calculated using a t-plot method.d Total pore volume, measured at P/P0 = 0.974.e Micropore volume, obtained from a t-plot method.f Average pore diameter, calculated from Dpore = 4 V/A according to BET.
SBE	2.34	—	3.49	0.0022	—	3.85
APT/C-200	12.69	—	18.38	0.0266	—	8.38
APT/C-250	85.19	9.00	76.19	0.1699	0.0031	7.98
APT/C-300	104.92	19.32	85.60	0.2011	0.0080	7.67
APT/C-350	125.12	18.82	106.31	0.2477	0.0077	7.92
APT/C-400	129.48	17.56	111.92	0.2719	0.0071	8.40
APT/C-450	137.16	23.36	113.81	0.2859	0.0099	8.34
APT/C-500	112.67	18.87	93.80	0.2749	0.0079	9.76

---

As the temperature increases, the samples have a much wider pore size distribution; therefore, the corresponding pore size distributions were investigated according to BJH theory (Fig. 6b). The larger pores in the range of 5–35 nm correspond to mesopores formed by decomposition of the organic matter in the SBE, or the removal of coordinated water and a small quantity of the structural water existing in the crystal structure of APT leading to a change of the original conformation of APT during calcination. Thus, it can be concluded that mesopores (5–35 nm) may be the main location for the interactions between the dye molecules and APT/C composites.

3.1.6. Zeta potentials. To obtain information on the surface charge of the APT/C composites, zeta potential measurements were characterized, and APT/C-300 was selected to study the change of the zeta potential at different pH values, as shown in Fig. 7. It can be obviously observed from Fig. 7a that the zeta potentials of all the APT/C composites are negative. APT/C-300 maintains a negative zeta potential within the pH range studied and even becomes more negative at a higher pH value (Fig. 7b), which may be attributed to the fact that some of the carboxylic groups are located at the surface of the APT/C composites.²⁸ Therefore, it is in no doubt that the negatively charged APT/C composites could capture cationic dyes via electrostatic interactions. In summary, the surface modifications offer an advantage for the removal of dye molecules under wide environmental pH conditions.

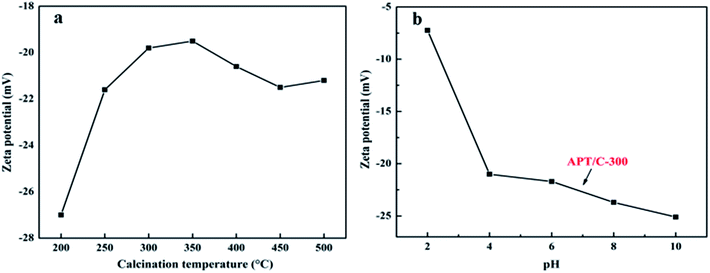

Fig. 7 The zeta potentials of (a) the APT/C composites at different calcination temperatures, and (b) APT/C-300 in the pH range of 2.0–10.0.

3.2. Adsorption properties

3.2.1. Effect of calcination temperature on the adsorption capacity. The effect of the calcination temperature on the adsorption capacity of the APT/C composites for MB is presented in Fig. 8. It can be seen that the adsorption capacity increases from 12.91 to 132.72 mg g⁻¹ when the calcination temperature was increased up to 300 °C. This may be ascribed to the increase in the entropy of the system with increasing temperature, which leads to more successful collisions of solute and solvent that yield more chances of adsorption. In addition, the zeta potential and FTIR spectra are indicative of existing abundant functional groups on the surface of APT (i.e., hydroxyl groups, carboxyl groups), which have a major impact on the adsorption capacity for MB. As can be clearly seen from Fig. 8, the adsorption capacity decreases with further increasing of the calcination temperature. It can be assumed that a large proportion of the functional groups disappear or that partial collapse of the pores prevents the dye molecules from entering into channels of the clay. In conclusion, the adsorption capacity of the adsorbent is related to its own surface functional groups and pore structure parameters such as the specific surface area and pore diameter, and the combination of these two impacts leads to the improved adsorption. In the present study, APT/C-300 can be used as an efficient adsorbent for the adsorption of MB due to it having the best adsorption capacity. Moreover, it can be suggested that the composite material has potential for application in wastewater treatment because it has a better adsorption capacity than the reported montmorillonite/carbon composites.²⁰

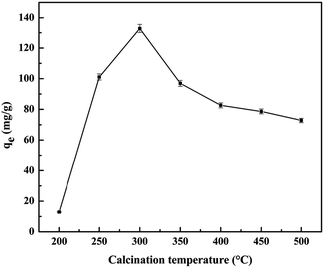

Fig. 8 Effect of calcination temperature on adsorption of MB.

3.2.2. Effect of pH on the adsorption capacity. The pH of a dye solution is one of the most important parameters, which affects the adsorption through controlling the ionization process of the dye molecules and the degree of ionization and speciation of the adsorbate.^38,39 To evaluate the effect of the solution pH value on the MB adsorption, the pH of the MB solution was adjusted between 2.0 and 10.0 in batch adsorption studies. As shown in Fig. 9, the adsorption capacity of APT/C-300 for MB obviously increases at elevated initial pH values. The increasing tendency becomes flat and the adsorbed amount of MB is almost identical in the pH range of 6.0–10.0. Similar phenomena have been reported for MB adsorption using heat-treated APT clay.^33,40 The results may be attributed to the following factors. According to the zeta potential analysis, APT/C-300 is an ionic composite at various pH values, and its surface charge is obviously affected by changing the pH value. At lower pH values (pH < 6.0), there is competition between the hydrogen ions and the cationic dye MB and repulsive forces between the positively charged composite adsorbent surface and MB.⁴¹ Furthermore, the carboxylate groups of the adsorbent may convert into carboxylic acid groups, which weakens the electrostatic attraction between the adsorbent and the MB molecules, and thus the adsorbed amount of MB decreases. At higher pH values (pH = 6.0–10.0), deprotonation of the carboxylic acids generated more negatively charged adsorption sites in the sorption of MB onto APT/C-300.⁴² In spite of that, the composite still adsorbs MB at this pH range, which may be attributed to the hydrogen-bonding of the N–H groups contained in the MB molecules.⁴³ This was also confirmed by the results of FTIR analysis of APT/C-300 and MB-loaded APT/C-300 (Fig. 10), where it can be seen that the adsorption bands of the –OH groups in the MB-loaded APT/C-300 at 3444 and 1627 cm⁻¹ obviously shifted, along with a change of intensity, compared with those of APT/C-300. That is to say, the adsorption properties of the materials are highly pH-dependent and the maximum adsorption capacity of MB on the APT/C composites occurred at pH 6.0. Further studies were then carried out with a pH 6.0 dye solution, which is closest to the natural pH of the MB solution (6.3), with satisfactory adsorption efficiency.

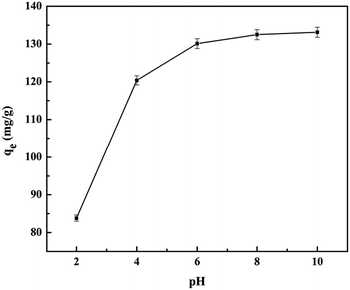

Fig. 9 Effect of pH on the adsorption of MB for APT/C-300.

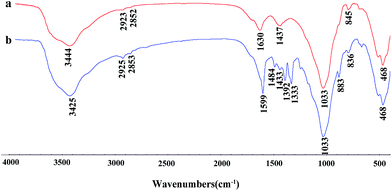

Fig. 10 FTIR spectra of (a) APT/C-300 and (b) MB-loaded APT/C-300.

3.2.3. Effect of contact time on adsorption capacity. In addition to a high adsorption capacity, a fast adsorption rate is also essential for practical application. Contact time is one of the important parameters for evaluating the adsorption capacity of adsorbents, because it can determine the time required to attain a thermodynamic equilibrium of the adsorption system and can predict the feasibility for application in wastewater treatment. The effect of contact time on the MB adsorption of APT/C-300 is displayed in Fig. 11. The results show fast MB adsorption in the initial stage with respect to the contact time and that adsorption gradually becomes slower when approaching the equilibrium position. The results are ascribed to numerous and available vacant active sites on the surface of the APT/C-300 in the beginning of the adsorption process,⁴⁴ and to the vacant sites decreasing in number thereby slowing down the adsorption process.^45,46

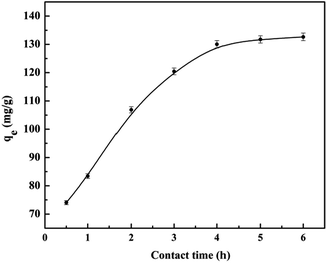

Fig. 11 Effect of contact time on the adsorption of MB for APT/C-300.

3.3. Reusability of adsorbent

Reusability is a very important and critical factor in the design of a progressive and efficient adsorbent. A good adsorbent should have a high adsorption capacity as well as a high desorption efficiency, which will reduce the overall cost of the adsorbent.

In this study, the MB-adsorbed APT/C composite (APT/C-300) was treated with 1.0 mol L⁻¹ CH₃COOH solution, as the desorbing agent, to regenerate the sorption sites, which was proven to be suitable for desorption of MB due to the similar consistency and electrostatic repulsions.⁴³ Afterwards, the desorbed adsorbent was treated with 0.1 mol L⁻¹ NaOH solution as the activator for MB adsorption. Then the regenerated adsorbent was utilized again to adsorb the MB solution to study its adsorption stability, and five successive cycles were performed (Fig. 12).

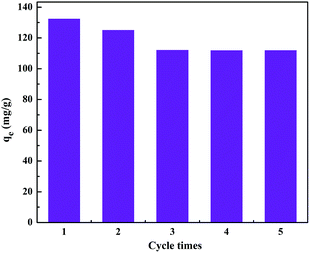

Fig. 12 The reusability of the as-prepared APT/C-300 for MB adsorption.

It was observed that the adsorption capacity of APT/C-300 is still higher than 112 mg g⁻¹ after regeneration for five times, indicating that this composite has an excellent adsorption capacity and stability. The slight decrease of the adsorption capacity may be attributed to the incomplete desorption of the MB adsorbed on APT/C-300. Accordingly, the results from the regeneration experiments show that the as-prepared APT/C composite can be used as an efficient recyclable adsorbent for the treatment of wastewater.

4. Conclusions

In this work, APT/C composite adsorbents have been fabricated via a one-pot carbonization process using a low-cost available carbon precursor. The TEM images clearly revealed that the carbonaceous species were successfully coated on the surface of APT, which can also be well validated by the FTIR spectra and TGA. It was found that the obtained adsorbent showed a high adsorption capacity of 132.72 mg g⁻¹ for the removal of MB, and the electrostatic attractions and hydrogen-bonding between the APT/C composites and MB molecules play a primary role in the whole adsorption process. Thus, the as-prepared adsorbent could serve as a low-cost and environmentally friendly adsorption material for the removal of dyes from water, due to the advantages of facile preparation, cheap raw materials, and no requirement for additional chemical reagents. It is also anticipated that a feasible approach to realize the application of spent bleaching earth in wastewater treatment could be developed.
