CuS–Bi2S3 hierarchical architectures: controlled synthesis and enhanced visible-light photocatalytic performance for dye degradation†
Received
6th February 2015
, Accepted 7th April 2015
First published on 7th April 2015
Abstract
Novel CuS–Bi2S3 heterojunctions were fabricated by a one-step solvothermal method using glycol as solvent and L-lysine as structure-directing reagent. By varying the sulfur sources, CuS–Bi2S3 composites of different morphologies were obtained. Novel microspheres composed of ultrathin nanosheets and radial nanoneedles were synthesized using potassium thiocyanate (PT) and thiourea (TU) as sulfur sources, respectively. Based on the experimental and characterization results, we proposed a step-by-step mechanism for the growth of the CuS–Bi2S3 hierarchical architectures based on the different release rates of S2− in the preparation process. It was observed that the CuS–Bi2S3 nanocomposites show high photocatalytic activity for the degradation of dyes (Rh-B and CV, as well as both of them in an aqueous solution) under visible light (λ ≥ 400 nm), showing performance much higher than those reported in the literature. In terms of sulfur precursors, the degradation rates can be arranged in the following order: TU > PT > ST > SS, and the optimal conditions for composite preparation are a crystallization time of 6 h and a Bi/Cu molar ratio of 10
:
1. The good photocatalytic activity is attributed to the matching of the CuS and Bi2S3 band-gap energies as well as the CuS/Bi2S3 interfaces that facilitate transfer and separation of photogenerated charge carriers. With high stability, the CuS–Bi2S3 composites have high potential for the photodegradation of dyes in water-treatment processes.
Introduction
Controlled synthesis of visible-light photocatalysts (commonly made up of semiconductors) of unique morphologies is a popular research topic in the past decades. This is because the photocatalytic activity of semiconductors is dependent on their shape, structure, phase, size and crystal facets as well as the ways they are prepared.1 Bismuth sulfide (Bi2S3) as an important V–VI semiconductor material is well studied for their potential applications in X-ray computed tomography imaging,2 Schottky diodes,3 lithium ion batteries,4 gas sensors,5 visible-wavelength photodetectors,6 electrochemical hydrogen storage,7 and hydrogen sensors.8 In the past decades, Bi2S3 of different structures were synthesized. For example, high-quality Bi2S3 nanorods were prepared by a solvothermal method by Lou et al.9 By means of aerosol-assisted chemical vapor deposition, Tahir et al. synthesized films of Bi2S3 nanoparticles and nanotubes that could be used as photoelectrodes.10 By an acetylacetone solvothermal method, Zhou et al. synthesized Bi2S3 microspheres and microflowers that perform well in lithium ion batteries.11 Yang et al. prepared Bi2S3 nanowires that function well as a thermoelectric material by a modified composite molten salt method.12 Looking into the methods developed so far for Bi2S3 generation, one can see shortcomings such as the use of harmful solvents and additives as well as complication in synthesis. It is therefore interesting to develop methods that are simple, cost-effective, environment-benign and do not require harsh experimental conditions.
As a semiconductor with direct narrow band-gap (1.3–1.7 eV), Bi2S3 absorbs visible light (λ ≤ 800 nm) and can be used as visible-light photocatalysts. Since the first report by Wu et al.13 on the use of Bi2S3 nanodots and nanorods as photocatalysts for the degradation of dyes under UV light, this is much progress. Chen et al.14 reported a hierarchical structured Bi2S3 that functioned as photocatalyst for the decomposition of methyl orange under UV light. Luo et al.15 reported Bi2S3 nanorods for the degradation of Rh-B under visible light; despite it showed higher activity than Degussa P25, it took 4 h to reach complete Rh-B degradation under the adopted conditions (cat.: 50 mg, Rh-B: 10−5 mol L−1 × 50 mL and 350 W Xe lamp). Over Bi2S3 dots, rods and sheets that are different in dominant facets, Huang et al.16 studied Rh-B photodegradation under visible light and reported that degradation efficiency could be related to surface dimensionality. It is observed that the time for complete removal of Rh-B is long (11 h) and catalyst recyclability is poor because of electrostatic interaction between dye molecules and catalyst. It is apparent that the photocatalytic performance of one-component Bi2S3 under UV or visible light is not satisfactory. This is attributed to the facile recombination of photogenerated electrons and holes due to the narrow bandgap between the conduction band (CB) and valance band (VB) of Bi2S3.
It is known that the presence of heterojunctions in a photocatalyst is beneficial for effective separation of charge carriers.17 Liu et al. reported enhanced visible-light photocatalytic performance towards Rh-B degradation over CuS-modified Bi2S3.18 However, the photocatalytic activity under visible light is low and the reason for the enhanced activity remains unclear. In this paper, we report the synthesis of CuS–Bi2S3 microspheres by a simple solvothermal method using glycol as solvent in the presence of L-lysine (a biomolecule used as structure-directing agent). The composites generated by this environment-benign process were evaluated for the photodegradation of Rh-B and crystal violet (CV) under visible light. Furthermore, we propose a step-by-step formation mechanism for controlled synthesis of the CuS–Bi2S3 composites as well as a mechanism to explain the enhancement of photocatalytic activity. We made estimation on the energy-band positions of Bi2S3 and CuS and deduced that the heterojunctions at the interfaces of CuS and Bi2S3 can prevent the recombination of photoexcited electrons and holes.
Experimental
Synthesis
The commercially available reagents were of analytical grade and were used without further purification. Typically, 10 mmol of Bi(NO3)3·5H2O (4.85 g), 0.18 g of L-lysine and a proper amount of CuCl2 were dissolved in 36 mL of glycol; the as-obtained transparent blue solution is named herein as solution A (the molar ratio of Bi to Cu were kept at 10
:
0.5, 10
:
1, 10
:
2, 10
:
4). Solution B was obtained by dissolving 0.18 g of L-lysine and a proper amount of sulfur source (i.e. thiourea (TU), sodium sulphide (SS), potassium thiocyanate (PT), sodium thiosulfate (ST)) in 36 mL of glycol. Then solution B was added dropwise into solution A under constant stirring. The resulted orange solution was transferred to a 100 mL Teflon-lined autoclave and maintained at 160 °C for a designated period of time (3, 6 or 18 h). Then the autoclave with its content was cooled down to room temperature (RT) and the solid substance was collected by filtration, and washed several times with de-ionized water and absolute ethanol. After being dried in air at 80 °C for 4 h, the samples were ready for use. Herein, the CuS–Bi2S3 composites with a Bi/Cu molar ratio of 10/1 prepared using sulfur source “X” and subject to solvothermally treatment of “y” hours is denoted as “X-yh”. For example, the CuS–Bi2S3 composites with Bi/Cu molar ratio = 10/1 prepared using TU, SS, PT, and ST as sulfur sources and subject to solvothermally treatment of 6 h are denoted as TU-6h, SS-6h, PT-6h, and ST-6h, respectively. As references, pure CuS and Bi2S3 samples were prepared using TU as sulfur sources (subject to 6 h of solvothermal treatment) but without the addition of Bi(NO3)3·5H2O or CuCl2, respectively.
Characterization
The as-prepared samples were characterized by powder X-ray diffraction (XRD) on a Bruker Automatic Diffractometer (Bruker D8 Advance) with monochromatized CuKα radiation (λ = 0.15406 nm) at a setting of 40 kV and 80 mA. The scanning rate was 0.02° (2θ) s−1 and the scanning range was 10–70°. X-ray photoelectron spectroscopy (XPS) was employed for the measurement of surface composition and chemical states of the CuS–Bi2S3 composites prepared using TU as sulfur source. The micro- and nano-structure as well as the morphology of as-prepared samples were examined using a field emission scanning electron microscope (FE-SEM) (Hitachi S-4800). Transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM) images were taken over a JEM-3010F transmission electron microscope at an accelerating voltage of 200 kV. The BET surface area was measured using a Quantachrome NovaWin instrument. UV-vis diffuse reflectance spectra (UV-vis DRS) were obtained over a UV-vis spectrophotometer (Cary 100) using BaSO4 as reference material. Photoluminescence (PL) spectra were recorded using a Varia Cary Eclipse Fluorescence spectrophotometer at laser source of 425 nm.
Photocatalytic activity
The photodegradation of Rh-B was employed to evaluate the photocatalytic activity of the as-prepared samples. Typically, 50 mg of catalyst was added into 100 mL aqueous solution of Rh-B (2.0 × 10−5 mol L−1) in a Pyrex glass vessel. A 300 W Xe lamp was used to enable visible-light irradiation with a cut-off filter of λ ≥ 400 nm. The distance between the light source and the surface of dye solution was kept at 25 cm and the light intensity was about 0.1 mW cm−2. Before illumination, the suspension was stirred using a magnetic stirrer for 30 min in the dark to establish adsorption–desorption equilibrium between catalyst and dye. Then the mixture was exposed to visible light under constant stirring, and was sampled (about 3 mL) at designated intervals; with the removal of photocatalyst by centrifugation, the liquid was analyzed using a Cary-100 UV-vis spectrophotometer. The photocatalytic experiments were conducted at RT. Both the initial and final pH of the dye-containing solution (Rh-B, CV and their mixture) were in the range of 6.5–6.8. To demonstrate the wide application of the composite photocatalysts, CV (2.0 × 10−5 mol L−1) and a mixture of Rh-B and CV (50 mL Rh-B solution and 50 mL CV solution, catalyst: 50 mg) were also studied under the same reaction conditions.
Results and discussion
Phase structure
Shown in Fig. 1 are the XRD patterns of Bi2S3, TU-3h, TU-6h and TU-18h. The pattern of as-synthesized Bi2S3 is ascribable to orthorhombic phase (JCPDS card no. 65-2431), whereas that of CuS to hexagonal phase (JCPDS card no. 06-0464). Besides displaying peaks similar to those of Bi2S3, the TU-3h, TU-6h and TU-18h samples show peaks at 2θ = 27.9, 32.4, 46.4 and 54.9 due to CuS, indicating the successful preparation of CuS/Bi2S3 composites. In the cases of PT-3h, PT-6h and PT-18h, there is the detection of peaks corresponding to orthorhombic Bi2S3 and hexagonal CuS (see Fig. S1, ESI,† peaks belonging to CuS and Bi2S3 are marked by stars and triangles, respectively). It is noted that there is no significant change of XRD pattern upon the change of crystallization time across the PT-3h, PT-6h and PT-18h samples. With the addition of CuCl in the preparation process of Bi2S3, the diffraction peaks of Bi2S3 broaden (especially those between 20–35 degrees and 45–50 degrees), indicating the reduction of crystal size.
 |
| Fig. 1 XRD patterns of CuS, Bi2S3, TU-3h, TU-6h and TU-18h. | |
Surface composition
To further study the composition of the composite samples, the TU-6h sample was analyzed by XPS with the peak positions calibrated against the C1s signal of contaminant carbon (binding energy = 284.6 eV). Fig. 2(a) is a typical survey spectrum, showing the presence of Bi, Cu, S and a trace amount of C and O. Fig. 2(b) is the high-resolution Bi4f spectrum with two strong Bi4f7/2 and Bi4f5/2 peaks at 158.7 and 164.0 eV, respectively, which are characteristics of Bi3+. The weak peaks located at 157.0 and 162.3 eV can be ascribed to the Bi4f7/2 and Bi4f5/2 signals of metal Bi, respectively,19 whereas the weak peak located at 161.0 eV between the Bi4f7/2 and Bi4f5/2 peaks can be assigned to S2p signal.20 Fig. 2(c) displays the Cu2p spectrum and the peaks at 931.9 and 952.0 eV are the Cu2p3/2 and Cu2p1/2 signals of CuS. The weak peak at 940.0 eV is a satellite peak.21 Fig. 2(d) shows S2s peak at 225.7 eV ascribable to S2−. There is no detection of N1s signal (not shown here), confirming the complete removal of L-lysine and NO3−. The results of XPS analysis further confirm the presence of CuS and Bi2S3 in the composites.
 |

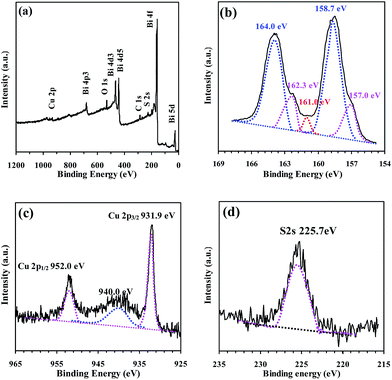

| Fig. 2 XPS spectra of TU-6h (a) survey, (b) Bi4f, (c) Cu2p, and (d) S2s. | |
Morphological structure
The SEM images of CuS, Bi2S3 and TU-6h are displayed in Fig. 3. One can see that the CuS sample is composed of irregular microspheres with diameters ranging from 500 nm to 4 μm. The microspheres are composed of nanoplates with nanoparticles dispersed on the surface (Fig. 3(a) and (b)). Shown in Fig. 3(c) and (d) are the low- and high-resolution SEM images of the Bi2S3 sample, and one can see cockscomb-like structures with diameter of 2–5 μm. As for the TU-6h sample, we observe uniform microspheres that are urchin-like with diameter of about 1.5 μm (Fig. 3(e) and (f)). Compared to the size distributions of CuS and Bi2S3, that of CuS–Bi2S3 is much narrower. It was observed that the presence of CuS does not significantly affect the morphology of Bi2S3.
 |
| Fig. 3 SEM images of (a and b) CuS, (c and d) Bi2S3 and (e and f) TU-6h. | |
Effect of sulfur sources
In the synthesis of materials, it is often observed that factors such as precursor source and reaction condition have an influence on the physical and chemical properties of the final product.22 Shown in Fig. 4 are the SEM images of TU-6h, SS-6h, PT-6h, and ST-6h. The SS-6h sample is irregular in morphology, and is composed of nanoparticles and nanorods that are non-uniform in size (Fig. 4(a) and (b)). The SEM image of ST-6h shows sheets that are 100 nm in thickness and 300–500 nm in width, and there is the dispersion of nanoparticles on the surface. To a certain extent, there is the assembly of sheets into the form of microspheres (Fig. 4(c) and (d)). When PT and TU are used as sulfur sources, we obtained porous microspheres that are spongy-like and urchin-like. The former is about 800 nm in diameter and is composed of intertwining nanoplates (ca. 20 nm in thickness) (Fig. 4(e) and (f)). The latter displays radial nanoneedles coming out from the sphere center (Fig. 4(g) and (h)). The results of EDS analysis confirm the presence of Bi, Cu and S elements in the as-prepared samples (only those of PT-6h and TU-6h are given). The Cu-to-Bi molar ratio as indicated by the results of EDS and X-ray fluorescence analyses (Fig. 4(i)) are similar, and are in agreement with the theoretical value (i.e. 0.1).
 |
| Fig. 4 SEM images of (a and b) SS-6h, (c and d) ST-6h, (e and f) PT-6h, (g and h) TU-6h; (i) Cu-to-Bi molar ratios of composite samples as-indicated by EDS and X-ray fluorescence analysis; (A and B) are the corresponding EDS patterns. | |
Effect of solvothermal treatment time
It is known that the crystallinity and morphology of nanomaterials are influenced by the time adopted for hydro- or solvo-thermal treatment. Despite the PT-3h, PT-6h and PT-18h samples show no apparent difference in phase structure and crystallinity (Fig. S1, ESI†), there is significant difference in terms of morphology. PT-3h is in the form of ultrathin nanoplates. One can find plates that are stacking together but there is no detection of regular pores between the plates, and there is no detection of microspheres (Fig. 5(a) and (b)). When the thermal treatment is extended to 6 h (Fig. 5(c) and (d)), one can see self-assembled spongy-like microspheres with diameter of about 800 nm. What is more, there is the existence of macropores known to be beneficial for the diffusion of reactants and products. Over PT-18h, one can see bigger microspheres (diameters ranging from 1 to 3 μm) with loose plates blocking some of the pore entrances (Fig. 5(e) and (f)). Similar phenomena are also observed over the TU-3h, TU-6h and TU-18h samples. Shown in Fig. S2 (ESI†) are the time-dependent SEM images. At a growth time of 3 h, there is the appearance of nanoplates and nanoneedles. At 6 h, one can see uniform microspheres (about 1 μm in diameter) that are generated as a result of the self-assembly of nanoneedles, and there is no detection of nanoplates. At 18 h, the TU-18h sample displays larger microspheres (1 to 6 μm), showing nanoneedles longer than those of TU-6h. Based on the data, we consider that a solvothermal treatment period of 6 h is the most appropriate for the synthesis of the CuS–Bi2S3 nanocomposites.
 |
| Fig. 5 SEM images of (a and b) PT-3h, (c and d) PT-6h, and (e and f) PT-18h. | |
The structure of PT-6h was further investigated using the TEM and HRTEM techniques. In consistent with the SEM results, the material is composed of ultrathin nanoplates as revealed in the low-magnification TEM image (Fig. 6(a)). Fig. 6(b) is the HRTEM image of a selected area showing d-spacing of 0.183 nm, in agreement with that of (106) plane of Bi2S3, and the corresponding fast Fourier transform (FFT) pattern (Fig. 6(c)) shows well-defined diffraction spots, indicating single crystallinity. Fig. 6(d) is the HRTEM image of another selected area showing fringes of d = 0.375 nm and d = 0.326 nm which are in agreement with the (011) plane of Bi2S3 and (100) plane of CuS. It is clear that there are heterojunctions at the interfaces of Bi2S3 and CuS. The HRTEM images of samples prepared using TU and ST as sulfur sources further confirm the successful fabrication of CuS–Bi2S3 heterojunctions (Fig. S3, ESI†).
 |
| Fig. 6 (a) TEM image of PT-6h, (b) HRTEM image, (c) FFT pattern, and (d) HRTEM image of selected area of PT-6h. | |
Possible growth mechanism
The specific surface area of three-dimensional microspheres with porous structures is much larger than that of the bulk counterparts. In other words, there is higher exposure of active sites with the former. For better design and synthesis of porous hierarchical materials, insight into the formation mechanism of CuS–Bi2S3 composites is beneficial. Based on the information accumulated in the present study, we propose a plausible mechanism for the growth of the CuS–Bi2S3 hierarchical architectures (Fig. S4, ESI†). There is an immediate change of color from blue to orange when solution B (colorless) is added to solution A (blue). When the mixture are solvothermally treated at 160 °C, the Bi3+ and Cu2+ in the solution react with S2− at a rate that depends on how fast S2− is released from the sulfur sources. The nucleation of CuS–Bi2S3 using SS as sulfur source is much faster than that using TU, PT or ST because there is the original presence of S2− in the mixture. In the cases of using TU, PT or ST as sulfur source, the availability of S2− is restricted by the partial dissociation of TU, PT or ST upon which there is the release of S2−. When the released S2− reacts with Bi3+ and Cu2+, there is the generation of CuS–Bi2S3 nuclei. With further release of S2−, there is anisotropic growth of CuS–Bi2S3. Depending on the release rate of S2−, there is the formation of CuS–Bi2S3 units that are different in size and/or shape. This phenomenon is quite similar to that observed in our previous work on the controlled synthesis of hollow and branched Bi2O3–Bi2S3 photocatalysts by an etching and re-growth method.23 When TU, PT and ST are used as sulfur sources, units of nanoneedle, ultrathin nanoplate and thick sheet are generated, respectively. With the assistance of L-lysine, there is the self-assembly of units and finally the formation of the unique CuS–Bi2S3 composites.
Nitrogen adsorption–desorption
Shown in Fig. 7 are the isotherms of N2 adsorption–desorption as well as the pore size distributions of the CuS–Bi2S3 composites. One can see that PT-6h and TU-6h show type-IV isotherms, and the hysteresis loops start at P/P0 = 0.4 and show high adsorption at P/P0 = 1.0, indicating the existence of mesopores and macropores. Over PT-18h, we observed type-IV isotherm with high adsorption at P0 = 1.0, but the hysteresis loop starts at P/P0 = 0.8, suggesting the presence of mesopores and macropores but absence of micropores (Fig. 7(a)). The corresponding pore size distributions (estimated based on BJH method) shown in Fig. 7(b) confirms the deduction. It is clear that there are micropores in PT-6h and TU-6h but not in PT-18h. The specific surface areas of PT-6h and PT-18h are 33.7 and 23.5 m2 g−1, respectively. The total pore volumes of PT-6h, PT-18h and TU-6h are 0.118, 0.081 and 0.107 mL g−1, respectively (inset of Fig. 7(a)). The results of nitrogen adsorption–desorption analysis are in agreement with the SEM results that PT-6h, PT-18h and TU-6h are porous, and solvothermal treatment exceeding 6 h results in the loss of micropores. In other words, with the mature growth of microspheres, there is a decline in specific surface area and total pore volume.
 |

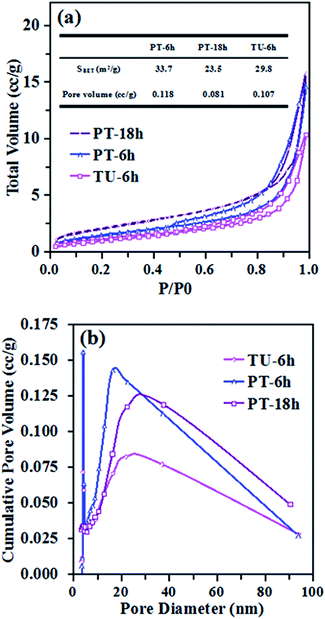

| Fig. 7 (a) Nitrogen adsorption–desorption isotherms, specific surface areas, and pore volumes, and (b) pore size distributions of PT-6h, PT-18h and TU-6h. | |
Optical properties
UV-visible diffuse reflectance spectra of PT-3h, PT-6h, PT-18h, ST-6h and TU-6h are displayed in Fig. S5 (ESI†). It is clear that all samples show absorption in both UV and visible-light regions. The absorption intensity increases with solvothermal treatment time plausibly due to crystallinity improvement. One can estimate the band gap of a semiconductor by plotting (Ahν)n vs. (hν) using n = 2 for direct transition semiconductors. The band gaps of CuS and Bi2S3 are 1.9 and 1.4 eV (Fig. S6, ESI†), respectively, in agreement with the values reported in the literature.14,24
The room-temperature photoluminescence (PL) emission was used to study the separation behavior of photogenerated charge carriers. It is known that a higher PL intensity implies lower efficiency of electron–hole separation.17b,25 Illustrated in Fig. 8 are the PL spectra of Bi2S3, TU-6h, TU-8h, TU-18h, PT-6h, and ST-6h. All composite samples show peaks similar to those of Bi2S3, but with much weaker peak intensity. Apparently, the PL intensity recorded over TU-6h is lower than that over TU-3h and TU-18h. On the other hand, the PL intensity recorded over ST-6h is higher than that over TU-6h and PT-6h. It is clear that for efficient separation of charge carriers, TU and PT are suitable sulfur sources, and a period of 6 h is appropriate for the solvothermal treatment.
 |
| Fig. 8 Room temperature PL spectra of TU-3h, TU-6h, TU-18h PT-6h and ST-6h (excited at 425 nm). | |
Photocatalytic properties
Photocatalytic degradation of Rhodamine-B (Rh-B) under visible light was used as a probe reaction to evaluate the activity of PT-3h, PT-8h and PT-18h, TU-6h and ST-6h (Fig. 9). After the establishment of adsorption/desorption equilibrium in the dark, there is complete decolorization of Rh-B in 150 min over TU-6h (urchin-like) and PT-6h (porous spongy-like) microspheres, with the rate of the former higher than that of the latter. The adsorption of Rh-B on TU-6h, PT-6h, ST-6h, SS-6h, CuS and Bi2S3 are 64%, 60%, 40%, 32%, 1% and 18%, respectively. It is understood that the higher the adsorption of dyes on a photocatalyst the higher is the degradation rate. The Rh-B degradation rates over the composite samples prepared in this work are much higher than those over the ones prepared by a two-step method reported by Liu et al.18 Despite the catalyst loading in the present study is only half of that adopted by Liu et al., the Rh-B degradation rate is 100% in 150 min whereas it was only 50% in 330 min in the case of Liu et al. Over ST-6h and SS-6h, the removal of Rh-B is 85% and 15% under the same conditions. We ascribe the high performance of TU-6h and PT-6h to their unique hierarchical structures. With sodium sulfide, the formation of composite is rapid, and its presence as nanoparticles and nanorods non-uniform in size is not beneficial to light harvesting, and hence the lower activity. As illustrated in the PL results (Fig. 8), both the ultrathin nanoplates and nanoneedles are beneficial to prevent the recombination of photogenerated charge carriers. It is also observed that the CuS–Bi2S3 composites subject to solvothermal treatment of 6 h are high in photocatalytic activity (Fig. S7, ESI†), in agreement with the PL results.
 |
| Fig. 9 Photocatalytic degradation of Rh-B over PT-6h, TU-6h, SS-6h, and ST-6h. | |
The effect of Bi/Cu molar ratio on the photocatalytic activity was studied. It is clear from Fig. 10 that the two-component CuS–Bi2S3 catalysts prepared using TU as sulfur source are higher than the one-component CuS and Bi2S3 catalysts in photocatalytic activity, and highest degradation rate is observed over the CuS–Bi2S3 catalyst with Bi/Cu molar ratio = 10/1. The results suggest that at a Bi/Cu molar ratio of 10/1, there is the optimal formation of heterojunctions.
 |
| Fig. 10 Effect of Bi/Cu molar ratio on the performance of CuS–Bi2S3 composites prepared using TU as sulfur source (solvothermally treated at 160 °C for 6 h) in the photodegradation of Rh-B (2 × 10−5 mol L−1). | |
To assess the generality of the CuS–Bi2S3 catalysts, we evaluated the performance of PT-6h, TU-6h and Bi2S3 in the photodegradation of CV (known to be toxic to aquatic organisms) under the reaction conditions adopted for Rh-B degradation. One can see from Fig. S8(a) and (b) (ESI†) that there is 100% decolorization within 120 min over PT-6h and TU-6h whereas it is only 85% over Bi2S3 in a period of 180 min (Fig. S8(c), ESI†). The degradation rate constants further confirm that the composite samples show much higher photocatalytic activity towards different dyes than the single-component one (Table S1, ESI†).
The performance of PT-6h was also evaluated when there is the co-presence of Rh-B and CV (50 mL Rh-B and 50 mL CV, both at a concentration of 2 × 10−5 mol L−1). With irradiation time (Fig. S9, ESI†), the absorption peaks of Rh-B and CV decrease in intensity. The time required for the complete removal of dyes is about 210 min. The results confirm that PT-6h and TU-6h are efficient photocatalysts potentially applicable for dye removal from wastewater.
Possible mechanism for enhancement of photocatalytic activities
For semiconductors, the potentials of valance band (VB) and conduction band (CB) are calculated using the following empirical equations: |
EVB = Xsemiconductor (eV) − Ee + 0.5Eg
| (1) |
|
Xsemiconductor (eV) = 0.45Xcation (eV) + 3.36
| (3) |
|
Xcation (eV) = (Xcation (P.u.) + 0.206)/0.336
| (4) |
where EVB is the VB edge potential, Xsemiconductor (eV) is the semiconductor electronegativity, Ee is the energy of free electrons vs. hydrogen (4.5 eV), Eg is the band gap energy of semiconductor, ECB is the CB edge potential, Xcation (eV) is the absolute cationic electronegativity (eV) and Xcation (P.u.) represents the cationic electronegativity (P.u. Pauling units).26 The bandgap of CuS and Bi2S3 is found to be 1.9 and 1.4 eV, respectively. The VB and CB potentials of CuS and Bi2S3 as calculated using eqn (1)–(4) are adopted in Fig. S10† that shows the band gap structures of CuS and Bi2S3 as well as the plausible processes for the separation of charge carriers. The CB potential of Bi2S3 is 0.08 eV, more negative than that of CuS (0.73 eV). There is hence diffusion of electrons through the heterojunctions from CB of Bi2S3 to CB of CuS. At the same time, there is transfer of holes from VB of CuS to VB of Bi2S3 because the VB potential of CuS is more positive than that of Bi2S3. Thus with the effective separation of charge carriers at the heterojunctions, there is enough time for the photogenerated electrons and holes to react with adsorbed OH− and O2, generating active ˙OH and ˙O2− species for the degradation of dyes.
Conclusions
For the first time, CuS–Bi2S3 composites of unique hierarchical structures were synthesized by a one-step method using glycol as solvent in the presence of L-lysine. When thiourea and potassium thiocyanate are used as sulfur sources, there is the formation of urchin-like and porous spongy-like microspheres, respectively; the former is composed of nanoneedles while the latter ultrathin nanoplates. The optimal thermal treatment conditions for their generation are Bi
:
Cu molar ratio of 10
:
1 at 160 °C for 6 h. A growth mechanism that depends on the release rate of S2− is proposed for the formation of the different morphologies. Compared to the single-component CuS and Bi2S3, the as-prepared two-component composites show much higher photocatalytic activity in the degradation of Rh-B and CV. The better performance is attributed to the hierarchical structures that enhance light absorption and generation of heterojunctions at the CuS/Bi2S3 interfaces. Based on the structures of CuS and Bi2S3 band gaps, it is deduced that there is enhanced transfer and separation of charge carriers at the heterojunctions. It is envisaged that the CuS–Bi2S3 photocatalysts are good candidates for the treatment of dyes-containing wastewater.
Acknowledgements
This project was financially supported by NSFC (Grant nos 21401054, 21476065 and J1210040), the China Postdoctoral Science Foundation (2014M562098) and the Fundamental Research Funds for the Central Universities. C. T. Au thanks the HNU for an adjunct professorship.
Notes and references
-
(a) S. Q. Liu, M. Q. Yang and Y. J. Xu, J. Mater. Chem. A, 2014, 2, 430 RSC;
(b) N. Tian, Z. Y. Zhou, S. G. Sun, Y. Ding and Z. L. Wang, Science, 2007, 316, 732 CrossRef CAS PubMed;
(c) K. H. Reddy, S. Martha and K. M. Parida, Inorg. Chem., 2013, 52, 6390 CrossRef CAS PubMed;
(d) K. Zhang, J. Liang, S. Wang, J. Liu, K. X. Ren, X. Zheng, H. Luo, Y. J. Peng, X. Zou, X. Bo, J. H. Li and X. B. Yu, Cryst. Growth Des., 2012, 12, 793 CrossRef CAS;
(e) H. L. Xu and W. Z. Wang, Angew. Chem., Int. Ed., 2007, 46, 1489 CrossRef CAS PubMed;
(f) N. Roy, Y. K. Sohn and D. Pradhan, ACS Nano, 2013, 7, 2532 CrossRef CAS PubMed;
(g) X. Wen, W. J. Luo and Z. G. Zou, J. Mater. Chem. A, 2013, 1, 15479 RSC;
(h) C. B. Xu, W. S. Yang, Q. Guo, D. X. Dai, M. D. Chen and X. M. Yang, J. Am. Chem. Soc., 2013, 135, 10206 CrossRef CAS PubMed;
(i) X. F. Li, X. Z. Zhen, S. G. Meng, J. J. Xian, Y. Shao, X. Z. Fu and D. Z. Li, Environ. Sci. Technol., 2013, 47, 9911 CrossRef CAS PubMed;
(j) J. T. Han, Y. H. Huang, X. J. Wu, C. L. Wu, W. Wei, B. Peng, W. Huang and J. B. Goodenough, Adv. Mater., 2006, 18, 2145 CrossRef CAS PubMed.
- O. Rabin, J. M. Perez, J. Grimm, G. Wojtkiewicz and R. Weissleder, Nat. Mater., 2006, 5, 118 CrossRef CAS PubMed.
- H. F. Bao, C. M. Li, X. Q. Cui, Y. Gan, Q. L. Song and J. Guo, Small, 2008, 4, 1125 CrossRef CAS PubMed.
- J. M. Ma, Z. F. Liu, J. B. Lian, X. C. Duan, T. Kim, P. Peng, X. D. Liu, Q. Chen, G. Yao and W. J. Zheng, CrystEngComm, 2011, 13, 3072 RSC.
- K. Yao, W. W. Gong, Y. F. Hu, X. L. Liang, Q. Chen and L. M. Peng, J. Phys. Chem. C, 2008, 112, 8721 CAS.
-
(a) G. Konstantatos, L. Levina, J. Tang and E. H. Sargent, Nano Lett., 2008, 8, 4002 CrossRef CAS PubMed;
(b) X. L. Yu and C. B. Cao, Cryst. Growth Des., 2008, 8, 3951 CrossRef CAS;
(c) H. Bao, X. Cui, C. M. Li, Y. Gan, J. Zhang and J. Guo, J. Phys. Chem. C, 2007, 111, 12279 CrossRef CAS.
- B. Zhang, X. C. Ye, W. Y. Hou, Y. Zhao and Y. Xie, J. Phys. Chem. B, 2006, 110, 8978 CrossRef CAS PubMed.
- K. Yao, W. W. Gong, Y. F. Hu, X. L. Liang, Q. Chen and L. M. Peng, J. Phys. Chem. C, 2008, 112, 8721 CAS.
- W. J. Lou, M. Chen, X. B. Wang and W. M. Liu, Chem. Mater., 2007, 19, 872 CrossRef CAS.
- A. A. Tahir, M. A. Ehsan, M. Mazhar, K. G. U. Wijayantha, M. Zeller and A. D. Hunter, Chem. Mater., 2010, 22, 5084 CrossRef CAS.
- H. Y. Zhou, S. L. Xiong, L. Z. Wei, B. J. Xi, Y. C. Zhu and Y. T. Qian, Cryst. Growth Des., 2009, 9, 3862 CAS.
- Q. Yang, C. G. Hu, S. X. Wang, Y. Xi and K. Y. Zhang, J. Phys. Chem. C, 2013, 117, 5515 CAS.
- T. Wu, X. Zhou, H. Zhang and X. Zhong, Nano Res., 2010, 3, 379 CrossRef CAS PubMed.
- F. J. Chen, Y. L. Cao and D. Z. Jia, J. Colloid Interface Sci., 2013, 404, 110 CrossRef CAS PubMed.
- Y. F. Luo, H. Chen, X. Li, Z. Q. Gong, X. J. Wang, X. F. Peng, M. D. He and Z. Z. Sheng, Mater. Lett., 2013, 105, 12 CrossRef CAS PubMed.
- J. Huang, H. Zhang, X. G. Zhou and X. H. Zhong, Mater. Chem. Phys., 2013, 138, 755 CrossRef CAS PubMed.
-
(a) L. Chen, S. F. Yin, S. L. Luo, R. Huang, Q. Zhang, T. Hong and C. T. Au, Ind. Eng. Chem. Res., 2012, 51, 6760 CrossRef CAS;
(b) L. Chen, Q. Zhang, R. Huang, S. F. Yin, S. L. Luo and C. T. Au, Dalton Trans., 2012, 9513 RSC;
(c) M. Xiong, L. Chen, R. Huang, Q. Yuan, J. He, S. L. Luo, C. T. Au and S. F. Yin, Dalton Trans., 2014, 8331 RSC;
(d) L. Chen, R. Huang, S. F. Yin, Y. J. Ma, Y. B. Zhou, S. L. Luo and C. T. Au, RSC Adv., 2013, 3, 24354 RSC;
(e) Q. Yuan, L. Chen, M. Xiong, J. He, S. L. Luo, C. T. Au and S. F. Yin, Chem. Eng. J., 2014, 255, 3944 CrossRef PubMed;
(f) S. G. Kumar and K. S. R. K. Rao, RSC Adv., 2015, 5, 3306 RSC.
- Z. Q. Liu, W. Y. Huang, Y. M. Zhang and Y. X. Tong, CrystEngComm, 2012, 14, 8261 RSC.
- X. W. Liu, H. Q. Cao and J. F. Yin, Nano Res., 2011, 4, 470 CrossRef CAS PubMed.
- L. Tian, H. Y. Tan and J. J. Vittal, Cryst. Growth Des., 2008, 8, 734 Search PubMed.
-
(a) J. G. Yu, J. Zhang and S. W. Liu, J. Phys. Chem. C, 2010, 114, 13642 CrossRef CAS;
(b) J. Ghijsen, L. H. Tjeng, J. V. Elp, H. Eskes, J. Westerink, G. A. Sawatzky and M. T. Czyayk, Phys. Rev. B: Condens. Matter Mater. Phys., 1988, 38, 11322 CrossRef CAS.
-
(a) H. F. Cheng, B. B. Huang, X. Y. Qin, X. Y. Zhang and Y. Dai, Chem. Commun., 2012, 48, 97 RSC;
(b) Y. H. Ni, X. X. Wang and J. M. Hong, RSC Adv., 2012, 2, 546 RSC.
- L. Chen, J. He, Q. Yuan, Y. Liu, C. T. Au and S. F. Yin, J. Mater. Chem. A, 2015, 3, 1096 CAS.
- X. Y. Meng, G. H. Tian, Y. J. Chen, R. T. Zhai, J. Zhou, Y. H. Shi, X. R. Cao, W. Zhou and H. G. Fu, CrystEngComm, 2013, 15, 5144 RSC.
-
(a) H. F. Cheng, B. B. Huang, Y. Dai, X. Y. Qin and X. Y. Zhang, Langmuir, 2010, 26, 6618 CrossRef CAS PubMed;
(b) C. L. Yu, K. Yang, J. C. Yu, F. F. Cao, X. Lin and X. C. Zhou, J. Alloys Compd., 2011, 509, 4547 CrossRef CAS PubMed;
(c) L. Chen, S. F. Yin, R. Huang, Q. Zhang, S. L. Luo and C. T. Au, CrystEngComm, 2012, 14, 4217 RSC.
-
(a) L. Andrionic, L. Isac and A. J. Duta, J. Photochem. Photobiol., A, 2011, 221, 30 CrossRef PubMed;
(b) C. W. Kwon, A. Poquet, S. Mornet, G. Campet, M. H. Delville, M. Treguer and J. Portier, Mater. Lett., 2001, 51, 402 CrossRef CAS.
Footnote |
† Electronic supplementary information (ESI) available: XRD pattern, SEM, TEM(HRTEM) images, photocatalytic properties towards Rh-B, CV and composite dye degradation as well as the possible growth mechanism and charge carrier separation process. See DOI: 10.1039/c5ra02316e |
|
