Synthesis, crystal structure and photoluminescence properties of new blue-green Ba_1−x(PO₃)₂:Eu_x²⁺ (0 < x ≤ 0.040) phosphors for near ultraviolet based white light-emitting diodes

Abstract

A series of new blue-green Ba_1−x(PO₃)₂:Eu_x²⁺ (x = 0.005, 0.010, 0.020, 0.030, 0.035, 0.040) phosphors were synthesized by a solid-state reaction. The phase purities and crystal structures of the series were characterized by X-ray diffraction (XRD) and Rietveld refinements. Their photoluminescence properties were investigated by means of excitation, emission spectra and Commission International de L'Eclairage (CIE) chromaticity coordinates. The concentration quenching mechanism of Eu²⁺ emission in Ba(PO₃)₂ hosts was studied. Thermal stability was evaluated by temperature-dependent luminescence of Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor. Moreover, the activation energy (E_a) for thermal quenching was calculated. The photoluminescence of Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor shows higher thermal stability than that of the commercial blue phosphor BaMgAl₁₀O₁₇:Eu²⁺ (BAM). All the results show that Ba(PO₃)₂:Eu²⁺ phosphor is a potential blue-green phosphor for near ultraviolet-based white light-emitting diodes (WLED).

---

1. Introduction

White light-emitting diodes (WLEDs) have begun to replace conventional incandescent and fluorescent lamps in recent years due to their superior energy efficiencies, long lifetimes and environmental friendliness.^1–3 Presently, white light is frequently created by combining a Y₃Al₅O₁₂:Ce³⁺ phosphor with a blue InGaN chip.^4,5 However, this method suffers a low color rendering index (R_a < 80) and high correlated color temperature (T_c > 4500 K) because it lacks a red component.⁶ To obtain white light with high R_a and suitable T_c, one approach is to use near-ultraviolet (NUV, 350–420 nm) LED chips with red, blue and green multi-phased phosphors.⁷ In this case, it is essential to develop new phosphors that can be effectively excited by NUV chips.

As it is well known, rare earth ions with rich energy levels are ideal for designing new luminescent materials.⁸ In particular, Eu²⁺ is one of the most excellent activators due to its unique electronic configurations. Eu²⁺ has a 4f⁷ electronic configuration in the ground state and a 4f⁶5d¹ electronic configuration in the excited state. Since the transition between 4f⁷ and 4f⁶5d¹ states is spin and parity allowed, the absorption and emission of Eu²⁺ ions are broadband. In addition, the emission of Eu²⁺ ions strongly depends on the crystal field, which is influenced by the nature of the host and ligand–activator interactions. When Eu²⁺ is incorporated into different compounds, different types of emission centers can be formed. Therefore, the color of Eu²⁺ emission can vary from ultraviolet to red depending on the host materials.^9,10

The phosphors in phosphor-conversion (pc) luminescent materials applied in WLEDs are generally required to have high fluorescence conversion efficiency for NUV light, appropriate excitation and emission bands, as well as high chemical stability. In addition, they should provide excellent thermally stable luminescence in order to withstand the high temperatures generated by LEDs, which generally operate about 120 °C. The thermal stability of the phosphors greatly influences the light output of pc-LEDs and the lifetimes of LED devices. Moreover, optimal blue phosphors are expected to be prepared at low temperatures from cheap raw materials. It can be noted that the high sintering temperature (over 1400 °C) of the commercial blue phosphor BaMgAl₁₀O₁₇:Eu²⁺ (BAM) requires specialized production equipment that consumes huge amounts of electric energy. Phosphors based on phosphates show many advantages, such as low preparation temperatures, high luminescence efficiencies, cheap raw materials and relative physical and chemical stabilities, compared with other host systems such as aluminates (SrAl₂O₄:Eu²⁺),¹¹ silicates (β-Ca₃SiO₄Cl₂:Eu²⁺),¹² and nitrides ((Sr, Ca)₂Si₅N₈:Eu²⁺).¹³

In 1968, Costas C. Lagos reported on the UV excitation of the divalent europium-activated Ba(PO₃)₂, which showed a weak violet emission band peak at 375 nm under 253.7 nm excitation.^14,15 However, the structure of Ba(PO₃)₂:Eu²⁺ phosphor was not reported. Obviously, the Ba(PO₃)₂:Eu²⁺ phosphor reported by Lagos cannot be applied in WLEDs. Furthermore, there were few reports about it.

In this study, a series of new Eu²⁺-activated blue-green phosphate phosphors Ba_1−x(PO₃)₂:Eu_x²⁺ (x = 0.005, 0.010, 0.020, 0.030, 0.035, 0.040) were prepared by a solid-state method at a lower temperature of 600 °C. The crystal structures, luminescence properties, and thermal stabilities of the phosphors were investigated in detail. Finally, the activation energy (E_a) for thermal quenching was calculated from the temperature-dependent luminescence of Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor.

2. Experimental section

2.1. Materials and synthesis

The Ba_1−x(PO₃)₂:Eu_x²⁺ samples (x = 0.005, 0.010, 0.020, 0.030, 0.035, 0.040) were synthesized by a solid-state reaction. The raw materials BaCO₃ (AR grade), NH₄H₂PO₄ (AR grade) and Eu₂O₃ (99.99% purity) were stoichiometrically weighed and thoroughly mixed by grinding in an agate mortar. Then, they were placed into an alundum crucible and heated in a muff furnace at 600 °C for 6 h in a CO atmosphere. Finally, the synthesized samples were allowed to cool to room temperature before further experiments.

2.2. Measurements and characterization

Crystal phase identification was carried out on an X-ray diffractometer (XRD, D-MAX2500/PC, RIGAKU Corporation, Japan) using 40 kV, 20 mA and Cu Kα radiation (λ = 1.5418 Å). Microtopography and composition of the calcined particles were observed by scanning electron microscopy (SEM, JSM-6700F, JEOL, Japan) and energy disperse spectroscopy (EDS, INCA Energy, Oxford). Room temperature excitation and emission spectra of Ba(PO₃)₂:Eu²⁺ were analyzed by a fluorescence spectrophotometer (F-2700, HITACHI High-Technologies Corporation, Japan) with a photomultiplier tube operating at 400 V, and a 150 W Xe lamp was used as the excitation source. Temperature-dependent luminescence was measured by a FluoroMax-4 spectrofluorometer (HORIBA, JOBIN YVON, France) and the excitation sources used include a 150 W xenon lamp.

3. Results and discussion

3.1. Crystal structure and microtopography

The XRD patterns of Ba_1−x(PO₃)₂:Eu_x²⁺ samples (x = 0.005, 0.010, 0.020, 0.030, 0.035, 0.040) are shown in Fig. 1 and the standard data for Ba(PO₃)₂ (PDF card no. 43-0518) are also shown as a reference. All the diffraction peaks of the samples can be indexed to the standard data of PDF#43-0518, which has been refined to be orthorhombic with a space group of P2₁2₁2₁ and cell parameters of a = 4.499 Å, b = 13.394 Å, c = 8.340 Å, Z = 4 and V = 502.53 ų. The results indicate that the prepared phosphors are isostructural with Ba(PO₃)₂, and the doping of a small amount of Eu²⁺ has no obvious influence on the host structure. Moreover, no impurities are detected in the prepared products, suggesting that Eu²⁺ ions have been successfully incorporated in Ba(PO₃)₂ host lattice due to the similarities in ionic radii and valences between Ba²⁺ and Eu²⁺.

Fig. 1 XRD patterns of Ba_1−x(PO₃)₂:Eu_x²⁺ samples.

To further study the structure of the obtained samples, Rietveld structure refinement of the Ba_0.980(PO₃)₂:Eu_0.020²⁺ phosphor was performed using Topas Academic software.¹⁶ Fig. 2 shows the observed, calculated and difference synchrotron XRD profiles for the Rietveld refinement of the Ba_0.980(PO₃)₂:Eu_0.020²⁺ phosphor. The results of the Rietveld refinement further indicate that Ba²⁺ was substituted by Eu²⁺ ion in the Ba(PO₃)₂ host and the incorporated Eu²⁺ ions caused no obvious impurity or secondary phases. The lattice parameters of the Ba_0.980(PO₃)₂:Eu_0.020²⁺ phosphor are a = 4.50128(5) Å, b = 13.4005(1) Å, c = 8.34468(8) Å and V = 503.350(9) ų, which are slightly different because a small amount of Eu²⁺ replaces Ba²⁺. The final refined structural parameters are listed in Table 1. The refinement finally converged to R_p (profile R value) = 3.60%, R_wp (weighted-profile R value) = 4.82% and R_B (Bragg-intensity R value) = 2.07%, indicating that all these factors satisfy well with the reflection condition. Fig. 3 and 4 show the refined unit cell structure of the samples. The Ba/Eu atoms, oxygen atoms and PO₄ tetrahedra are plotted in blue, red and green, respectively. The black numbers in Fig. 4 denote the interatomic distances between Ba/Eu and coordinated O atoms. In the Ba(PO₃)₂ host, there is only one type of Ba²⁺ site and Ba is defined as being 10-coordinated. From the refinement results, the average length of Ba–O was calculated to be about 2.89 Å.

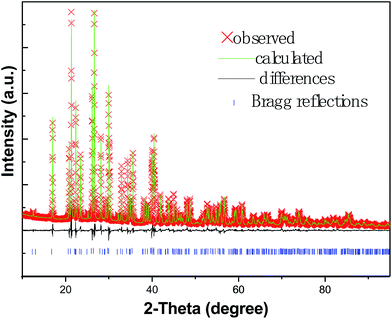

Fig. 2 Rietveld plot of XRD data for Ba_0.980(PO₃)₂:Eu_0.020²⁺.

Table 1 Final refined structural parameters of the Ba_0.980(PO₃)₂: Eu_0.020²⁺ phosphor^a

Atoms	x	y	z	Occup.	Biso (Å^2)
a a = 4.501 Å, b = 13.401 Å, c = 8.344 Å, V = 503.350 Å^3, α = 90°, β = 90°, γ = 90°, Z = 4 with space group P212121, Rp = 3.60%, Rwp = 4.82%, RB = 2.07%.
Ba1	0.25899	0.12586	0.19855	0.98120	0.93568
Eu1	0.25899	0.12586	0.19855	0.01880	0.93568
P1	0.70993	0.35414	0.21916	1	1.00402
P2	0.21378	0.40271	0.42374	1	1.00402
O1	0.37794	0.33489	0.28201	1	0.47143
O2	0.88652	0.36844	0.39288	1	0.47143
O3	0.68331	0.44888	0.13245	1	0.47143
O4	0.79082	0.25747	0.12960	1	0.47143
O5	0.78578	0.01036	0.12345	1	0.47143
O6	0.79746	0.13454	0.39819	1	0.47143

---

Fig. 3 Final refined unit cell for Ba_0.980(PO₃)₂:Eu_0.020²⁺.

Fig. 4 The coordination state of Ba/Eu in Ba_0.980(PO₃)₂:Eu_0.020²⁺.

The morphology of Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor was observed by SEM (Fig. 5a). The microstructure of the phosphor consists of irregular fine grains with diameters ranging from 200 to 300 nm. It seems that the surface of the particles is not smooth and every particle is composed of many tiny particles. Therefore, the average crystalline size of the particles was estimated by the Debye–Scherrer equation:¹⁷

D = 0.89λ/β cos(θ) (1)

where D is the average diameter of the particles, λ is the wavelength of the X-rays (1.5406 Å), β is the full-width in radiation at half-maximum (FWHM) of the peak, here β = 0.06, and θ is the Bragg angle of the X-ray diffraction peak. The calculated crystal size of the phosphor is about 23 nm. These results show that lots of primary crystals reunite to form agglomerates. The energy dispersive spectrum (EDS) of Ba_0.970(PO₃)₂:Eu_0.030²⁺ shown in Fig. 5b reveals the major chemical elements, including (wt%) Ba (43.22%), P (18.14%), O (30.43%) and Eu²⁺ (1.89%), in the host, which conforms with the stoichiometric weight ratio of the elements in Ba_0.970(PO₃)₂:Eu_0.030²⁺ (Ba 45.03%, P 20.96%, O 32.46%, Eu²⁺ 1.5%).

Fig. 5 (a) SEM image of Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor and (b) EDS of Ba_0.970(PO₃)₂:Eu_0.030²⁺.

3.2. Photoluminescence properties

Fig. 6 depicts the excitation and emission spectra of Ba_1−x(PO₃)₂:Eu_x²⁺ (x = 0.005, 0.010, 0.020, 0.030, 0.035, 0.040) phosphors at room temperature. Monitored at 445 nm, the samples show a broad intense excitation band from 220 to 400 nm, which matches the emission of NUV chips. The excitation band consists mainly of three peaks located at 268, 323 and 350 nm. Since absorption bands of phosphate hosts are located in the vacuum ultraviolet region (100–200 nm),¹⁸ the excitation bands in the range of 220–400 nm are attributed to the electronic transition from the 4f⁷ ground state to the 4f⁶5d¹ excited state of the Eu²⁺ ions.¹⁹ The profile of the excitation spectrum is assigned to the crystal field splitting of the 5d level of Eu²⁺ ions. The excited 5d levels are not shielded from the crystal field, giving rise to a marked splitting of the excited level, which means the excitation spectrum is composed of several excitation peaks. For Ba(PO₃)₂:Eu²⁺ phosphor, the excitation peak at 323 nm is the strongest.

Fig. 6 Photoluminescence spectra of Ba_1−x(PO₃)₂:Eu_x²⁺: (a) excitation spectra (λ_em = 445 nm) and (b) emission spectra (λ_ex = 323 nm). The inset shows emission intensity of Ba(PO₃)₂:Eu²⁺ phosphor with different Eu²⁺ concentrations.

The emission spectra of Ba_1−x (PO₃)₂:Eu_x²⁺ (x = 0.005, 0.010, 0.020, 0.030, 0.035, 0.040) when excited by 323 nm light are shown in Fig. 6b. Upon excitation with NUV light at 323 nm, the sample shows a broad asymmetric intense blue-green emission band with the strongest peak around 445 nm, which is assigned to the electron transition from the 4f⁶5d¹ excited state to the 4f⁷ ground state of Eu²⁺.²⁰ The emission intensity increases with the increase in Eu²⁺ concentration until a maximum value is reached, and then it decreases due to concentration quenching effects. The inset of Fig. 6b shows the dependence of the emission intensity on the concentration of Eu²⁺, which suggests that the optimum doping amount of Eu²⁺ is x = 0.030. In general, the concentration quenching of luminescence is due to energy transfer between the activator ions at high concentrations. In the energy transfer process, the energy is lost at a killer (or quenching) site, resulting in the decrease of luminescence intensity.²¹ It is also observed that the emission peaks shift gradually to longer wavelengths (from 438 to 450 nm) with increasing concentration of Eu²⁺, which is consistent with previous studies.^19,22 The inter-atomic distance between two Eu²⁺ ions is expected to become shorter due to the increase of Eu²⁺-doping concentration, and the interaction is enhanced. The crystal field strength surrounding the Eu²⁺ ions is thus increased, leading to the red-shifting of the emission peak.

In addition, the excitation and emission spectra of Ba_0.970(PO₃)₂:Eu_0.030²⁺ and the commercial blue-emitting phosphor BAM are presented in Fig. 7 for comparison. In the range of 310–380 nm, Ba_0.970(PO₃)₂:Eu_0.030²⁺ shows a higher excitation intensity than BAM, which is favorable for application in NUV chip based LEDs. Similarly, Ba_0.970(PO₃)₂:Eu_0.030²⁺ exhibits a stronger and broader emission band than BAM upon NUV light excitation.

Fig. 7 The excitation (a) and emission (b) spectra of Ba_0.970(PO₃)₂:Eu_0.030²⁺ and BAM.

3.3. Temperature-dependent luminescence properties

The temperature-dependent luminescence of phosphors is an essential parameter, which has great influence on the light output of phosphors used in WLEDs. Fig. 8 shows temperature-dependent photoluminescence of Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor excited at 323 nm in the temperature range of 298–423 K. It can be seen that the shape, position and intensity of the emission spectra gradually changed when the temperature was increased from 298 to 423 K. The emission integrated intensity of Ba_0.970(PO₃)₂:Eu_0.030²⁺ decreases gradually to 66.5% of the initial value as the temperature increases from 298 to 423 K. It can be noted that the emission integrated intensity of Ba_0.970(PO₃)₂:Eu_0.030²⁺ only decreased to 83.6% of the initial value when the temperature increases to 398 K, which is close to the working temperature of LEDs (about 120 °C). As a comparison, the temperature-dependent luminescence of commercial blue phosphor BAM is also shown in the inset of Fig. 8. The emission integrated intensity of Ba_0.970(PO₃)₂:Eu_0.030²⁺ decreases more slowly than that of BAM. These results suggest that Ba_0.970(PO₃)₂:Eu_0.030²⁺ has a higher thermal stability than BAM.

Fig. 8 Emission spectra of Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor as a function of temperature (λ_ex = 323 nm). Inset shows temperature dependent emission intensity of Ba_0.970(PO₃)₂:Eu_0.030²⁺ and commercial blue phosphor BAM.

The temperature-dependent emission intensity of Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor can be described by a modified Arrhenius equation²³ as:

where I₀ is the initial emission intensity of the phosphor at room temperature, I_T is the emission intensity of the phosphor at different testing temperatures, c is a constant and k is the Boltzmann constant (8.617 eV). As shown in Fig. 9, the plot of ln[(I₀/I) − 1] vs. 1000/T could be fit to a straight line. The E_a value obtained from Fig. 9 was 0.334 eV. Compared with previously reported data,^22,24 Ba_0.970(PO₃)₂:Eu_0.030²⁺ exhibits a relatively high E_a value. The relatively high E_a indicates that the as-prepared phosphor has good thermal stability, which is very beneficial for its application in LEDs.

Fig. 9 The Arrhenius fitting of the emission intensity of Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor and the calculated activation energy (E_a) for thermal quenching.

The decrease in emission intensity with increasing temperature can be described by thermal quenching in a configuration coordinate diagram (shown in Fig. 10). Through phonon interactions, the excited luminescent center is thermally activated and then thermally released through the crossing point between the excited state and the ground state. This nonradiative transition probability is greatly dependent on the temperature, which leads to the decrease of emission intensity with increasing temperature. The main mechanism for the temperature quenching of Eu²⁺ luminescence in solids is the thermal excitation of the 5d electron to the conduction band states. The 5d electron probably remains bonded in a Eu²⁺ trapped excited state, from which it returns nonradiatively to the Eu²⁺ ground state. The activation energy referred to is the energy required to raise the electron from the relaxed excited level into the host lattice conduction band.²⁵ The high quenching temperature and E_a for Eu²⁺ emission in Ba(PO₃)₂ indicate that the lowest energy level of the Eu²⁺ 4f⁶5d¹ electronic configuration is well isolated from the host lattice conduction band.

Fig. 10 The schematic configuration coordinate diagram of a Eu²⁺ ion.

In addition, the maximum emission wavelength of Ba_0.970(PO₃)₂:Eu_0.030²⁺ shows a blue shift from 453 to 447 nm with increasing temperature. This phenomenon can be ascribed to thermal back-transfer over the barrier from the excited states of the low energy emission band to the excited states of the high energy emission band of Eu²⁺ by the assistance of thermally active phonons (Fig. 11). At low temperature, low-energy emission is dominant. As temperature increases, thermally activated phonon-assisted tunneling from the excited states of the low-energy emission band to the excited states of the high-energy emission band (see Fig. 11) occurs and the electron population of Eu²⁺ in the upper vibration level of the excited state, from which radiative transition takes place, becomes dominating under phonon-assistant. Thus, a blue shift is observed with increasing temperature. Therefore, the profiles of the emission spectra at high temperature become more symmetric gradually (as shown in Fig. 8).

Fig. 11 Schematic of spectrum blue shift at high temperature.

3.4. CIE chromaticity coordinates

Fig. 12 shows the Commission International de L'Eclairage (CIE) chromaticity coordinates calculated from the emission spectrum of Ba_1−x(PO₃)₂:Eu_x²⁺ (x = 0.005, 0.010, 0.020, 0.030, 0.035) under 323 nm light excitation. As shown in Fig. 12 and Table 2, the CIE chromaticity coordinates shift from (0.162, 0.174) to (0.165, 0.198) as Eu²⁺ concentrations increase from 0.005 to 0.035. The results indicate that the CIE chromaticity can be varied within a certain range by adjusting the content of Eu²⁺. A digital image of the Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor under NUV light about 365 nm irradiation is also shown in inset of Fig. 12. It can be seen that the sample shows bright blue-green emission.

Fig. 12 CIE chromaticity coordinates of Ba_1−x(PO₃)₂:Eu_x²⁺ (x = 0.005, 0.010, 0.020, 0.030, 0.035) (λ_ex = 323 nm) in the CIE chromaticity diagram. The inset shows a digital image of the Ba_0.970(PO₃)₂:Eu_0.030²⁺ phosphor under 365 nm NUV lamp irradiation.

Table 2 CIE chromaticity coordinates of Ba_1−x(PO₃)₂:Eu_x²⁺ (x = 0.005, 0.010, 0.020, 0.030, 0.035) phosphors (λ_ex = 323 nm)

No.	Composition	CIE (x, y)
1	Ba0.995(PO3)2:Eu0.005^2+	(0.162, 0.174)
2	Ba0.990(PO3)2:Eu0.010^2+	(0.163, 0.183)
3	Ba0.980(PO3)2:Eu0.020^2+	(0.164, 0.188)
4	Ba0.970(PO3)2:Eu0.030^2+	(0.164, 0.196)
5	Ba0.965(PO3)2:Eu0.035^2+	(0.165, 0.198)

---

4. Conclusion

In conclusion, a series of blue-green emitting phosphors Ba_1−x(PO₃)₂:Eu_x²⁺ (x = 0.005, 0.010, 0.020, 0.030, 0.035) were synthesized by solid-state methods at a low temperature of 600 °C. The results of XRD and Rietveld refinement indicate that there is only one type of Ba²⁺ site and Ba²⁺ is substituted by Eu²⁺ in the Ba(PO₃)₂ host. The photoluminescence excitation spectra are very broad, extending from 200 to 400 nm. Under NUV light excitation, Ba(PO₃)₂:Eu²⁺ exhibits a strong blue-green emission band peaking at 445 nm. The optimal concentration of Eu²⁺ in a Ba(PO₃)₂ host is 3.0 mol%. The CIE chromaticity can be varied within a certain range by adjusting the Eu²⁺ content. The temperature-dependent luminescence spectra show that Ba_0.970(PO₃)₂:Eu_0.030²⁺ has excellent thermal stability. All these results indicate that Ba(PO₃)₂:Eu²⁺ phosphor is a promising blue-green emitting phosphor for application in NUV WLEDs.

Acknowledgements

This study was financially supported by the National Natural Science Foundation of the People's Republic of China (no. 51472132), the Natural Science Foundation of Shandong Province (no. ZR2012BQ017), the Qingdao Project of Science and Technology (no. 13-1-4-114-jch), the Joint Funds of the National Natural Science Foundation of China and Guangdong Province (no. U1301242), the Research Fund for the Doctoral Program of Higher Education of China (RFDP) (no. 20130171130001) and the Guangdong Province project for industrial applications of rare earth materials (2012B09000026).
